Intel HD Graphics P630

Intel HD Graphics P630

L'Intel HD Graphics P630 (GT2) è un'unità grafica integrata, che possiamo trovare su vari processori di workstations Xeon della generazione Kaby Lake. La versione "GT2" della GPU Skylake offre 24 Execution Units (EUs) con clock fino a 1050 MHz (in base al modello di CPU). A causa dell'assenza di memoria grafica dedicata o di cache eDRAM, la P630 accede alla memoria principale (2x 64bit DDR3L-1600 / DDR4-2133). Usa lo stesso silicio della consumer HD Graphics 630 dei processori Kaby-Lake-H ma sfrutta drivers ottimizzati per workstation e software CAD. Stando ad Intel è certificata per 15 applicazioni (guardate la lista).

Performance

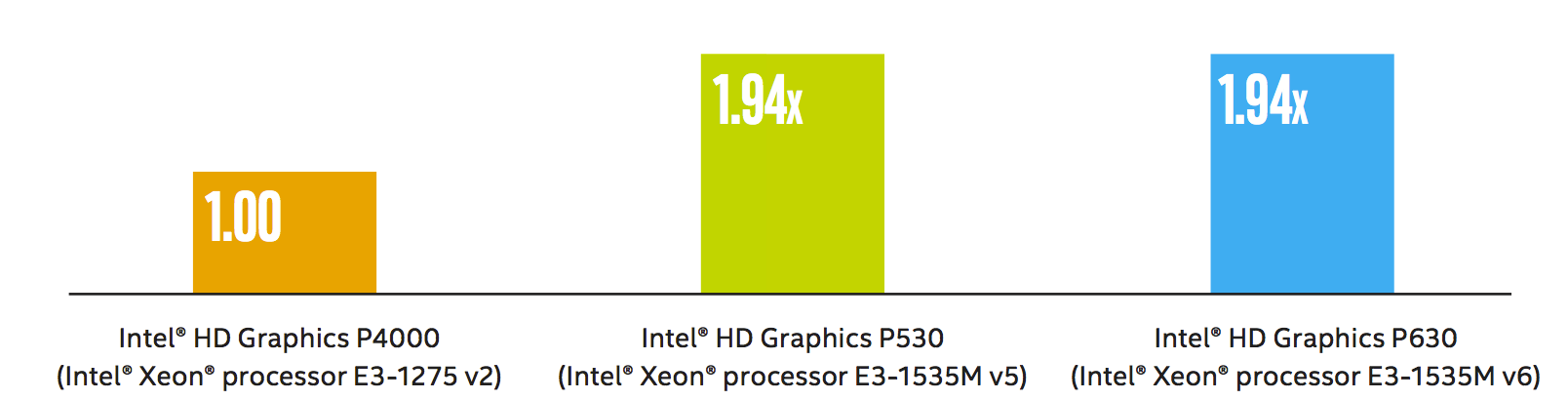

Stando ad Intel, le performance della P630 sono identiche al processore grafico Intel HD Graphis P530 (predecessore Skylake) e di 1.94x volte più veloci rispetto alla vecchia Intel HD Graphics P4000. Rispetto alle schede consumer, le prestazioni gaming dovrebbero essere al livello della GeForce 920M dedicata e dovrebbero gestire i giochi datati (del 2015) con settaggi medi o bassi.

Features

Il motore video rivisitato nei chips Kaby Lake ora supporta il profilo H.265/HEVC Main10 ad una profondità di colore da 10-bit ed anche il codec VP9 con l'hardware. Inoltre, è supportato anche l'HDCP 2.2 in tutti i chips, che consente i videos Netflix 4K, ad esempio.

Consumo Energetico

L'HD Graphics P630 possiamo trovarla nei processori mobile quad-core Xeon con TDP da 45 W ed anche sui processori Xeon con TDPs più elevati.

Gen. 9.5 Serie

Iris Plus Graphics 655 48 @ 0.3 - 1.2 GHz
Iris Plus Graphics 650 48 @ 0.3 - 1.1 GHz64/128 Bit
Iris Plus Graphics 645 48 @ 0.3 - 1.15 GHz
Iris Plus Graphics 640 48 @ 0.3 - 1.05 GHz64/128 Bit
UHD Graphics 630 24 @ 0.3 - 1.15 GHz64/128 Bit
UHD Graphics P630 24 @ 0.3 - 1.2 GHz64/128 Bit
HD Graphics 630 24 @ 0.3 - 1.15 GHz64/128 Bit
HD Graphics P630 24 64/128 Bit
UHD Graphics 620 24 @ 0.3 - 1.15 GHz
HD Graphics 620 24 @ 0.3 - 1.05 GHz64/128 Bit
UHD Graphics 617 24 @ 0.3 - 1.15 GHz64/128 Bit
UHD Graphics 615 24 @ 0.3 - 1 GHz64/128 Bit
HD Graphics 615 24 @ 0.3 - 1.05 GHz64/128 Bit
Nome in codiceKaby-Lake-H-GT2
ArchitetturaGen. 9.5 Kaby Lake
Pipelines24 - unified
Larghezza del bus di memoria64/128 Bit
Memoria condivisasi
APIDirectX 12_1, OpenGL 4.4
tecnologia14 nm
CaratteristicheQuickSync
Data dell'annuncio05.08.2015
CPU in HD Graphics P630GPU Base SpeedGPU Boost / Turbo
Intel Xeon E3-1535M v64 x 3100 MHz, 45 W300 MHz1150 MHz
Intel Xeon E3-1505M v64 x 3000 MHz, 45 W300 MHz1150 MHz
min. - max.300 MHz1150 MHz

Benchmark

3DMark - 3DMark Time Spy Score
400 Points (1%)
129 -68%
...
355 -11%
363 -9%
364.2 -9%
364.7 -9%
371.2 -7%
374 -6%
Intel UHD Graphics 24EUs (Alder Lake-N)
380.9 -5%
389 -3%
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
398.7 0%
Intel HD Graphics P630
400
415.4 4%
Intel HD Graphics 630
425 6%
425 6%
433 8%
443.9 11%
454.5 14%
463 16%
472 18%
474.5 19%
...
18114 4429%
max:
27286 6722%
0%
100%
3DMark - 3DMark Cloud Gate Score
8280 Points (9%)
178 -98%
...
7729 -7%
7881 -5%
7887 -5%
7905 -5%
7971 -4%
8010 -3%
8025 -3%
8102 -2%
8164 -1%
Intel HD Graphics P630
8280
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
8390 1%
Intel HD Graphics 630
8539 3%
8544 3%
Intel UHD Graphics G1 (Ice Lake 32 EU)
8806 6%
8982 8%
9150 11%
9196 11%
NVIDIA Quadro P500
9301 12%
9478 14%
...
61532 643%
max:
87173 953%
0%
100%
- Valori di benchmark per questa scheda grafica
- Valori medi di benchmark per questa scheda grafica
* Numeri più piccoli rappresentano prestazioni supeiori
