Recensione della Scheda Grafica PNY GeForce GTX 1660 XLR8 Gaming OC: una piccola GPU per PC compatti

Sebastian Bade, Andrea Grüblinger (traduzione a cura di G. De Luca), 11/28/2019

Una buona alternativa 1080p. La GeForce GTX 1660 colma il divario tra la GTX 1650 e la GTX 1660 Ti, anche se NVIDIA ha ora rilasciato anche i gusti SUPER delle GTX 1650 e GTX 1660. La GTX 1660 viene fornita con 6 GB di GDDR5 VRAM, mentre la PNY XLR8 Gaming OC ha un TDP relativamente economico di 120 W. Continuate a leggere per scoprire come questa GPU desktop compatta si comporta nei nostri test e come si confronta con altre schede.

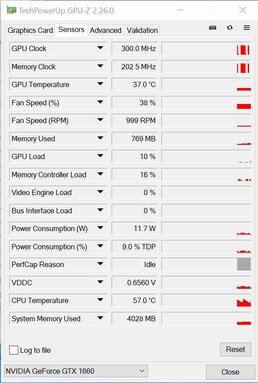

GPU-Z
GPU-Z

NVIDIA posiziona la GeForce GTX 1660 tra le GTX 1650 e GTX 1660 Ti non solo in termini di prezzo ma anche di prestazioni. Come suggerisce il nome, la GPU non ha cores ray-tracing, che NVIDIA si riserva per la serie RTX.

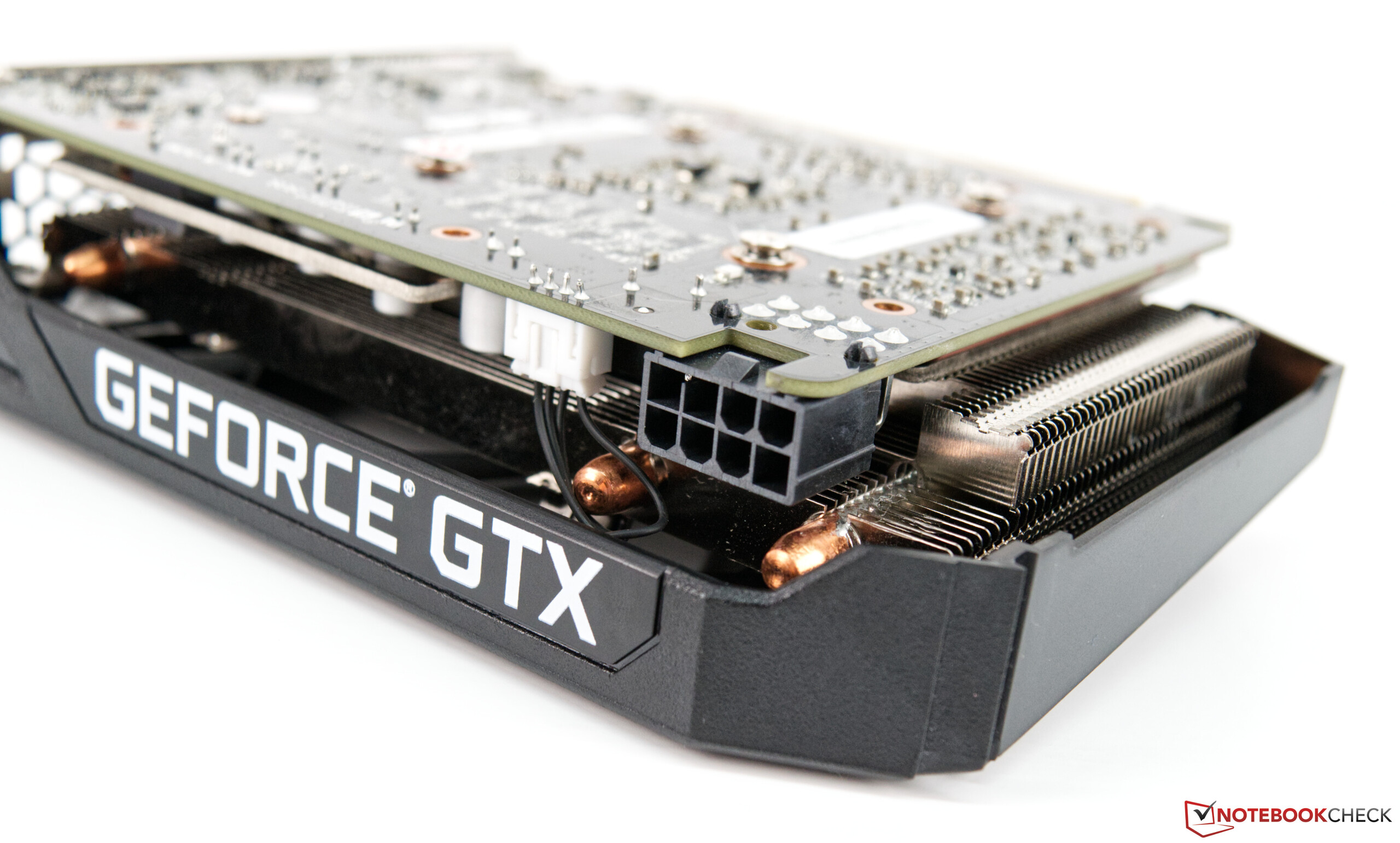

NVIDIA ha incluso un connettore di alimentazione a 8 pin sulla GTX 1660 in quanto richiede un po' più potenza sotto carico rispetto alla sorella entry-level Turing, la GTX 1650. Tuttavia, la GTX 1660 ha meno shaders e unità di texture rispetto alla GTX 1660 Ti, insieme alla GDDR5 piuttosto che alla GDDR6 VRAM. Di conseguenza, la GTX 1660 ha una larghezza di banda di memoria inferiore rispetto alla GTX 1660 Ti, anche se entrambe operano sullo stesso bus di memoria. La GTX 1660 è in vantaggio rispetto alla GTX 1660 Ti in termini di velocità di clock. Entrambi hanno anche 6 GB di VRAM.

Il PNY XLR8 Gaming OC ha una porta HDMI 2.0b, insieme alle connessioni DVI e DisplayPort.

La PNY include 36 mesi di garanzia di serie, che è un tocco di classe. Si prega di consultare le nostre FAQ su Garanzie e politiche di restituzione  specifiche per ogni paese.

PNY GeForce GTX 1660 XLR8 Gaming OC
PNY GeForce GTX 1660 XLR8 Gaming OC
PNY GeForce GTX 1660 XLR8 Gaming OC
PNY GeForce GTX 1660 XLR8 Gaming OC
PNY GeForce GTX 1660 XLR8 Gaming OC
PNY GeForce GTX 1660 XLR8 Gaming OC
PNY GeForce GTX 1660 XLR8 Gaming OC
PNY GeForce GTX 1660 XLR8 Gaming OC
PNY GeForce GTX 1660 XLR8 Gaming OC

UNa panoramica della GPUS NVIDIA Turing

Specifiche GTX 1650 GTX 1660 GTX 1660 Ti RTX 2060 RTX 2070 RTX 2080 RTX 2080 Ti
GPU TU117 TU116 TU116 TU106 TU106 TU104 TU102
Process 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm 12 nm
Shader units 896 1,408 1,536 1,920 2,304 2,944 4,352
Texture units 56 88 96 120 144 184 272
Tensor Cores - - - 240 288 368 544
RT Cores - - - 30 36 46 68
GPU base clock 1,485 MHz 1,530 MHz 1,500 MHz 1,365 MHz 1,410 MHz 1,515 MHz 1,350 MHz
GPU boost clock 1,665 MHz 1,785 MHz 1,770 MHz 1,680 MHz 1,620 MHz 1,710 MHz 1,545 MHz
Memory bus 128 Bit 192 Bit 192 Bit 192 Bit 256 Bit 256 Bit 352 Bit
Memory bandwidth 128 GB/s 192.1 GB/s 288 GB/s 336 GB/s 448 GB/s 448 GB/s 616 GB/s
VRAM 4 GB GDDR5 6 GB GDDR5 6 GB GDDR6 6 GB GDDR6 8 GB GDDR6 8 GB GDDR6 11 GB GDDR6
TDP 75 W 120 W 120 W 160 W 175 W 215 W 250 W

Sistema di Test - AMD Ryzen 9 3900X come base

Abbiamo accoppiato la XLR8 Gaming OC con una scheda madre MSI MEG X570 Godlike e un processore AMD Ryzen 9 3900X per i nostri test. Il Ryzen 9 3900X offre prestazioni eccellenti, come abbiamo scoperto nella nostra recensione all'inizio di quest'anno, e abbiamo usato un Be Quiet Silent Loop 280 mm AIO per mantenerlo fresco. Abbiamo anche utilizzato 16 GB di G-Skill Trident Z Royal Gold RAM che abbiamo lasciato con clock a 3.600 MHz su CL16-16-16-36. Infine, abbiamo eseguito tutti i nostri benchmarks e test su un Acer Predator XB321HK, un monitor 4K che abbiamo utilizzato in molte delle nostre recensioni di gioco.

Un grande ringraziamento ad AMD per averci gentilmente fornito questa piattaforma di test.

AMD Ryzen 9 3900X
MSI MEG X570 Godlike
G-Skill Trident Z Royal Gold DDR4-3600

Abbiamo utilizzato il seguente hardware per i nostri test e benchmarks:

Case Corsair Carbide Air 540 ATX Cube
CPU AMD Ryzen 9 3900X
GPU PNY GeForce GTX 1660 XLR8 Gaming OC
CPU cooler Be Quiet Silent Loop 280 mm
RAM G-Skill Trident Z Royal Gold DDR4-3600 2 x 8 GB (DDR4-3600 CL16-16-16-36)
Scheda Madre MSI MEG X570 Godlike (BIOS 1.20, Default Settings, XMP 1 for DDR4-3600 CL16)
Monitor Acer Predator XB321HK 4K
Alimentatore Corsair RM 1000X
SSD Corsair MP600 2 TB M.2 PCIe 4.0 SSD
SDD Western Digital SN720 512 GB - for games
SSD Crucial MX500 2 TB - for games
OS Microsoft Windows 10 Professional 64-Bit (Version 1903)
Drivers NVIDIA 441.12

Velocità Clock - un boost clock superiore alle velocità di riferimento NVIDIA

L'XLR8 Gaming OC rimane vicino alle velocità di clock di riferimento NVIDIA. La scheda può raggiungere i 1.830 MHz, 45 MHz in più del clock di riferimento di 1.785 MHz. Il suo clock di base da 1.530 MHz è invariato, così come la sua velocità di clock VRAM da 2.000 MHz. Di conseguenza, l'XLR8 Gaming OC ha la stessa larghezza di banda di memoria di 192,1 GB/s delle altre schede GTX 1660.

GPU-Z
GPU-Z
GPU-Z
GPU-Z
GPU-Z
GPU-Z

Synthetic Benchmarks - Tiene il passo con la Radeon RX 570

La XLR8 Gaming OC si è comportata come previsto nei benchmarks sintetici, in particolare collocandosi tra la GTX 1650 e la GTX 1660 Ti. Tuttavia, il divario tra la nostra unità di prova e la GTX 1660 Ti è compreso tra il 10 e il 30%. Tuttavia, la nostra unità di prova ottiene punteggi fino al 60% in più della GTX 1650, con le maggiori lacune che si verificano a risoluzioni più elevate a causa dei 2 GB aggiuntivi di VRAM che ha la GTX 1660.

Rispetto ad AMD, la XLR8 Gamin OC si comporta approssimativamente alla pari con la AMD Radeon RX 570. Mentre il primo corrisponde al secondo nella maggior parte dei casi, l'RX 570 ha occasionalmente un vantaggio a causa della maggiore quantità di VRAM.

Performance Rating
AMD Radeon RX 5700 XT
95.2 pt ∼95%
AMD Radeon RX 5700
84.1 pt ∼84%
MSI RTX 2060 Gaming Z 6G
76.6 pt ∼77%
Zotac GeForce GTX 1660 Ti 6 GB
64.3 pt ∼64%
XFX AMD Radeon RX 590 OC+ 8 GB
61.6 pt ∼62%
Sapphire NITRO+ RX 570 8 GB
51.8 pt ∼52%
PNY GeForce GTX 1660
50.7 pt ∼51%
Gainward GeForce GTX 1650 4 GB
38.9 pt ∼39%
3DMark
2560x1440 Time Spy Graphics
AMD Radeon RX 5700 XT
8673 Points ∼100% +58%
MSI RTX 2060 Gaming Z 6G
7732 Points ∼89% +41%
AMD Radeon RX 5700
7675 Points ∼88% +39%
Zotac GeForce GTX 1660 Ti 6 GB
6131 Points ∼71% +11%
PNY GeForce GTX 1660
5502 Points ∼63%
XFX AMD Radeon RX 590 OC+ 8 GB
4863 Points ∼56% -12%
Sapphire NITRO+ RX 570 8 GB
3958 Points ∼46% -28%
Gainward GeForce GTX 1650 4 GB
3492 Points ∼40% -37%
3840x2160 Fire Strike Ultra Graphics
AMD Radeon RX 5700 XT
5955 Points ∼100% +122%
AMD Radeon RX 5700
5292 Points ∼89% +97%
MSI RTX 2060 Gaming Z 6G
4244 Points ∼71% +58%
XFX AMD Radeon RX 590 OC+ 8 GB
3702 Points ∼62% +38%
Zotac GeForce GTX 1660 Ti 6 GB
3158 Points ∼53% +18%
Sapphire NITRO+ RX 570 8 GB
3070 Points ∼52% +14%
PNY GeForce GTX 1660
2684 Points ∼45%
Gainward GeForce GTX 1650 4 GB
1674 Points ∼28% -38%
Fire Strike Extreme Graphics
AMD Radeon RX 5700 XT
12209 Points ∼100% +90%
AMD Radeon RX 5700
10876 Points ∼89% +70%
MSI RTX 2060 Gaming Z 6G
9097 Points ∼75% +42%
XFX AMD Radeon RX 590 OC+ 8 GB
7328 Points ∼60% +14%
Zotac GeForce GTX 1660 Ti 6 GB
7184 Points ∼59% +12%
PNY GeForce GTX 1660
6414 Points ∼53%
Sapphire NITRO+ RX 570 8 GB
6077 Points ∼50% -5%
Gainward GeForce GTX 1650 4 GB
4044 Points ∼33% -37%
1920x1080 Fire Strike Graphics
AMD Radeon RX 5700 XT
25383 Points ∼100% +83%
AMD Radeon RX 5700
22457 Points ∼88% +62%
MSI RTX 2060 Gaming Z 6G
19338 Points ∼76% +40%
XFX AMD Radeon RX 590 OC+ 8 GB
16746 Points ∼66% +21%
Zotac GeForce GTX 1660 Ti 6 GB
16024 Points ∼63% +16%
PNY GeForce GTX 1660
13847 Points ∼55%
Sapphire NITRO+ RX 570 8 GB
13827 Points ∼54% 0%
Gainward GeForce GTX 1650 4 GB
9195 Points ∼36% -34%
3DMark 11 - 1280x720 Performance GPU
AMD Radeon RX 5700 XT
35715 Points ∼100% +73%
AMD Radeon RX 5700
31570 Points ∼88% +53%
MSI RTX 2060 Gaming Z 6G
26413 Points ∼74% +28%
XFX AMD Radeon RX 590 OC+ 8 GB
23202 Points ∼65% +12%
Zotac GeForce GTX 1660 Ti 6 GB
22128 Points ∼62% +7%
PNY GeForce GTX 1660
20696 Points ∼58%
Sapphire NITRO+ RX 570 8 GB
18967 Points ∼53% -8%
Gainward GeForce GTX 1650 4 GB
13759 Points ∼39% -34%
Unigine Heaven 4.0
Extreme Preset OpenGL
MSI RTX 2060 Gaming Z 6G
115.8 fps ∼100% +41%
AMD Radeon RX 5700 XT
110.2 fps ∼95% +34%
AMD Radeon RX 5700
100.7 fps ∼87% +22%
Zotac GeForce GTX 1660 Ti 6 GB
94.3 fps ∼81% +14%
PNY GeForce GTX 1660
82.4 fps ∼71%
XFX AMD Radeon RX 590 OC+ 8 GB
60.3 fps ∼52% -27%
Sapphire NITRO+ RX 570 8 GB
55.7 fps ∼48% -32%
Gainward GeForce GTX 1650 4 GB
54.3 fps ∼47% -34%
Extreme Preset DX11
AMD Radeon RX 5700 XT
132.5 fps ∼100% +51%
MSI RTX 2060 Gaming Z 6G
124.1 fps ∼94% +42%
AMD Radeon RX 5700
119.9 fps ∼90% +37%
Zotac GeForce GTX 1660 Ti 6 GB
100.9 fps ∼76% +15%
PNY GeForce GTX 1660
87.6 fps ∼66%
XFX AMD Radeon RX 590 OC+ 8 GB
76.1 fps ∼57% -13%
Sapphire NITRO+ RX 570 8 GB
64.7 fps ∼49% -26%
Gainward GeForce GTX 1650 4 GB
56.8 fps ∼43% -35%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
AMD Radeon RX 5700 XT
106.3 fps ∼100% +66%
AMD Radeon RX 5700
99.3 fps ∼93% +55%
MSI RTX 2060 Gaming Z 6G
91.2 fps ∼86% +42%
Zotac GeForce GTX 1660 Ti 6 GB
77.4 fps ∼73% +21%
PNY GeForce GTX 1660
64.2 fps ∼60%
XFX AMD Radeon RX 590 OC+ 8 GB
57.3 fps ∼54% -11%
Sapphire NITRO+ RX 570 8 GB
49.1 fps ∼46% -24%
Gainward GeForce GTX 1650 4 GB
42.1 fps ∼40% -34%
1920x1080 Extreme HD Preset OpenGL AA:x8
AMD Radeon RX 5700 XT
89.1 fps ∼100% +51%
MSI RTX 2060 Gaming Z 6G
83.6 fps ∼94% +41%
AMD Radeon RX 5700
82.7 fps ∼93% +40%
Zotac GeForce GTX 1660 Ti 6 GB
70.5 fps ∼79% +19%
PNY GeForce GTX 1660
59.1 fps ∼66%
XFX AMD Radeon RX 590 OC+ 8 GB
50 fps ∼56% -15%
Sapphire NITRO+ RX 570 8 GB
42.8 fps ∼48% -28%
Gainward GeForce GTX 1650 4 GB
40 fps ∼45% -32%
LuxMark v2.0 64Bit
Room GPUs-only
MSI RTX 2060 Gaming Z 6G
2586 Samples/s ∼100% +27%
Zotac GeForce GTX 1660 Ti 6 GB
2108 Samples/s ∼82% +4%
AMD Radeon RX 5700 XT
2104 Samples/s ∼81% +4%
PNY GeForce GTX 1660
2030 Samples/s ∼78%
XFX AMD Radeon RX 590 OC+ 8 GB
1996 Samples/s ∼77% -2%
AMD Radeon RX 5700
1856 Samples/s ∼72% -9%
Sapphire NITRO+ RX 570 8 GB
1600 Samples/s ∼62% -21%
Gainward GeForce GTX 1650 4 GB
1368 Samples/s ∼53% -33%
Sala GPUs-only
AMD Radeon RX 5700 XT
6188 Samples/s ∼100% +52%
MSI RTX 2060 Gaming Z 6G
5655 Samples/s ∼91% +39%
AMD Radeon RX 5700
5312 Samples/s ∼86% +31%
Zotac GeForce GTX 1660 Ti 6 GB
4440 Samples/s ∼72% +9%
XFX AMD Radeon RX 590 OC+ 8 GB
4084 Samples/s ∼66% 0%
PNY GeForce GTX 1660
4070 Samples/s ∼66%
Sapphire NITRO+ RX 570 8 GB
3282 Samples/s ∼53% -19%
Gainward GeForce GTX 1650 4 GB
2577 Samples/s ∼42% -37%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
AMD Radeon RX 5700 XT
5761 Points ∼100% +54%
MSI RTX 2060 Gaming Z 6G
4903 Points ∼85% +31%
AMD Radeon RX 5700
4703 Points ∼82% +26%
Zotac GeForce GTX 1660 Ti 6 GB
3975 Points ∼69% +6%
PNY GeForce GTX 1660
3740 Points ∼65%
XFX AMD Radeon RX 590 OC+ 8 GB
3299 Points ∼57% -12%
Gainward GeForce GTX 1650 4 GB
2538 Points ∼44% -32%
Sapphire NITRO+ RX 570 8 GB
2444 Points ∼42% -35%
1024x600 Normal, Mandel Scalar
AMD Radeon RX 5700 XT
4869 Points ∼100% +121%
AMD Radeon RX 5700
4043 Points ∼83% +84%
XFX AMD Radeon RX 590 OC+ 8 GB
3312 Points ∼68% +51%
MSI RTX 2060 Gaming Z 6G
2982 Points ∼61% +36%
Sapphire NITRO+ RX 570 8 GB
2478 Points ∼51% +13%
Zotac GeForce GTX 1660 Ti 6 GB
2362 Points ∼49% +7%
PNY GeForce GTX 1660
2199 Points ∼45%
Gainward GeForce GTX 1650 4 GB
1474 Points ∼30% -33%
1024x600 Normal, Mandel Vector
AMD Radeon RX 5700 XT
4246 Points ∼100% +92%
AMD Radeon RX 5700
3532 Points ∼83% +60%
XFX AMD Radeon RX 590 OC+ 8 GB
2802 Points ∼66% +27%
MSI RTX 2060 Gaming Z 6G
2800 Points ∼66% +26%
Zotac GeForce GTX 1660 Ti 6 GB
2327 Points ∼55% +5%
PNY GeForce GTX 1660
2214 Points ∼52%
Sapphire NITRO+ RX 570 8 GB
2169 Points ∼51% -2%
Gainward GeForce GTX 1650 4 GB
1628 Points ∼38% -26%
1024x600 Normal, Fluid 2DTexArr
AMD Radeon RX 5700 XT
1960 Points ∼100% +90%
AMD Radeon RX 5700
1810 Points ∼92% +76%
MSI RTX 2060 Gaming Z 6G
1801 Points ∼92% +75%
Zotac GeForce GTX 1660 Ti 6 GB
1452 Points ∼74% +41%
XFX AMD Radeon RX 590 OC+ 8 GB
1140 Points ∼58% +11%
PNY GeForce GTX 1660
1030 Points ∼53%
Sapphire NITRO+ RX 570 8 GB
997 Points ∼51% -3%
Gainward GeForce GTX 1650 4 GB
673 Points ∼34% -35%
1024x600 Normal, Fluid 3DTex
AMD Radeon RX 5700 XT
2349 Points ∼100% +123%
AMD Radeon RX 5700
2294 Points ∼98% +118%
MSI RTX 2060 Gaming Z 6G
1889 Points ∼80% +79%
Zotac GeForce GTX 1660 Ti 6 GB
1531 Points ∼65% +45%
XFX AMD Radeon RX 590 OC+ 8 GB
1239 Points ∼53% +18%
Sapphire NITRO+ RX 570 8 GB
1106 Points ∼47% +5%
PNY GeForce GTX 1660
1054 Points ∼45%
Gainward GeForce GTX 1650 4 GB
698 Points ∼30% -34%
1024x600 Normal, Score
AMD Radeon RX 5700 XT
19184 Points ∼100% +87%
AMD Radeon RX 5700
16383 Points ∼85% +60%
MSI RTX 2060 Gaming Z 6G
14375 Points ∼75% +40%
XFX AMD Radeon RX 590 OC+ 8 GB
11791 Points ∼61% +15%
Zotac GeForce GTX 1660 Ti 6 GB
11648 Points ∼61% +14%
PNY GeForce GTX 1660
10237 Points ∼53%
Sapphire NITRO+ RX 570 8 GB
9194 Points ∼48% -10%
Gainward GeForce GTX 1650 4 GB
7011 Points ∼37% -32%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
AMD Radeon RX 5700 XT
89.55 fps ∼100% +107%
AMD Radeon RX 5700
79.21 fps ∼88% +83%
XFX AMD Radeon RX 590 OC+ 8 GB
70.44 fps ∼79% +63%
Sapphire NITRO+ RX 570 8 GB
59.94 fps ∼67% +38%
MSI RTX 2060 Gaming Z 6G
57.59 fps ∼64% +33%
Zotac GeForce GTX 1660 Ti 6 GB
55.36 fps ∼62% +28%
Gainward GeForce GTX 1650 4 GB
43.33 fps ∼48% 0%
PNY GeForce GTX 1660
43.33 fps ∼48%
1900x1060 Siemens NX (snx-02)
AMD Radeon RX 5700 XT
35.27 fps ∼100% +444%
AMD Radeon RX 5700
33.5 fps ∼95% +417%
XFX AMD Radeon RX 590 OC+ 8 GB
24.87 fps ∼71% +284%
Sapphire NITRO+ RX 570 8 GB
19.35 fps ∼55% +199%
Zotac GeForce GTX 1660 Ti 6 GB
8.55 fps ∼24% +32%
MSI RTX 2060 Gaming Z 6G
8.35 fps ∼24% +29%
Gainward GeForce GTX 1650 4 GB
6.48 fps ∼18% 0%
PNY GeForce GTX 1660
6.48 fps ∼18%
1900x1060 Medical (medical-01)
AMD Radeon RX 5700 XT
46.9 fps ∼100% +119%
AMD Radeon RX 5700
40.97 fps ∼87% +91%
MSI RTX 2060 Gaming Z 6G
35.22 fps ∼75% +65%
XFX AMD Radeon RX 590 OC+ 8 GB
33.92 fps ∼72% +58%
Zotac GeForce GTX 1660 Ti 6 GB
31.75 fps ∼68% +48%
Gainward GeForce GTX 1650 4 GB
21.41 fps ∼46% 0%
PNY GeForce GTX 1660
21.41 fps ∼46%
Sapphire NITRO+ RX 570 8 GB
18.12 fps ∼39% -15%
1900x1060 Maya (maya-04)
MSI RTX 2060 Gaming Z 6G
127.42 fps ∼100% +49%
Zotac GeForce GTX 1660 Ti 6 GB
123.16 fps ∼97% +44%
AMD Radeon RX 5700 XT
86.51 fps ∼68% +1%
Gainward GeForce GTX 1650 4 GB
85.26 fps ∼67% 0%
PNY GeForce GTX 1660
85.26 fps ∼67%
AMD Radeon RX 5700
73.32 fps ∼58% -14%
XFX AMD Radeon RX 590 OC+ 8 GB
66.24 fps ∼52% -22%
Sapphire NITRO+ RX 570 8 GB
31.7 fps ∼25% -63%
1900x1060 Energy (energy-01)
AMD Radeon RX 5700 XT
12.72 fps ∼100% +478%
AMD Radeon RX 5700
11.53 fps ∼91% +424%
MSI RTX 2060 Gaming Z 6G
9.19 fps ∼72% +318%
Zotac GeForce GTX 1660 Ti 6 GB
7.89 fps ∼62% +259%
XFX AMD Radeon RX 590 OC+ 8 GB
5.95 fps ∼47% +170%
Sapphire NITRO+ RX 570 8 GB
4.27 fps ∼34% +94%
Gainward GeForce GTX 1650 4 GB
2.2 fps ∼17% 0%
PNY GeForce GTX 1660
2.2 fps ∼17%
1900x1060 Creo (creo-01)
AMD Radeon RX 5700 XT
66.87 fps ∼100% +144%
AMD Radeon RX 5700
60.21 fps ∼90% +120%
XFX AMD Radeon RX 590 OC+ 8 GB
49.01 fps ∼73% +79%
MSI RTX 2060 Gaming Z 6G
44.45 fps ∼66% +62%
Sapphire NITRO+ RX 570 8 GB
41.33 fps ∼62% +51%
Zotac GeForce GTX 1660 Ti 6 GB
36.6 fps ∼55% +34%
Gainward GeForce GTX 1650 4 GB
27.36 fps ∼41% 0%
PNY GeForce GTX 1660
27.36 fps ∼41%
1900x1060 Catia (catia-04)
AMD Radeon RX 5700 XT
158.81 fps ∼100% +271%
AMD Radeon RX 5700
135.74 fps ∼85% +217%
XFX AMD Radeon RX 590 OC+ 8 GB
123.47 fps ∼78% +188%
MSI RTX 2060 Gaming Z 6G
74.84 fps ∼47% +75%
Zotac GeForce GTX 1660 Ti 6 GB
65.95 fps ∼42% +54%
Sapphire NITRO+ RX 570 8 GB
54.64 fps ∼34% +28%
Gainward GeForce GTX 1650 4 GB
42.85 fps ∼27% 0%
PNY GeForce GTX 1660
42.85 fps ∼27%
1900x1060 3ds Max (3dsmax-05)
MSI RTX 2060 Gaming Z 6G
183.6 fps ∼100% +73%
AMD Radeon RX 5700 XT
173.77 fps ∼95% +63%
Zotac GeForce GTX 1660 Ti 6 GB
159.02 fps ∼87% +49%
AMD Radeon RX 5700
155.74 fps ∼85% +46%
XFX AMD Radeon RX 590 OC+ 8 GB
120.33 fps ∼66% +13%
Sapphire NITRO+ RX 570 8 GB
107.88 fps ∼59% +1%
Gainward GeForce GTX 1650 4 GB
106.41 fps ∼58% 0%
PNY GeForce GTX 1660
106.41 fps ∼58%
SPECviewperf 13
Solidworks (sw-04)
AMD Radeon RX 5700 XT
114.44 fps ∼100% +88%
AMD Radeon RX 5700
101.77 fps ∼89% +67%
MSI RTX 2060 Gaming Z 6G
83.42 fps ∼73% +37%
XFX AMD Radeon RX 590 OC+ 8 GB
82.95 fps ∼72% +37%
Sapphire NITRO+ RX 570 8 GB
79.9 fps ∼70% +32%
Zotac GeForce GTX 1660 Ti 6 GB
77.54 fps ∼68% +28%
Gainward GeForce GTX 1650 4 GB
60.76 fps ∼53% 0%
PNY GeForce GTX 1660
60.76 fps ∼53%
Siemens NX (snx-03)
AMD Radeon RX 5700 XT
61.27 fps ∼100% +428%
AMD Radeon RX 5700
60.49 fps ∼99% +421%
XFX AMD Radeon RX 590 OC+ 8 GB
44.18 fps ∼72% +281%
Sapphire NITRO+ RX 570 8 GB
38.28 fps ∼62% +230%
Zotac GeForce GTX 1660 Ti 6 GB
15.26 fps ∼25% +32%
MSI RTX 2060 Gaming Z 6G
14.99 fps ∼24% +29%
Gainward GeForce GTX 1650 4 GB
11.6 fps ∼19% 0%
PNY GeForce GTX 1660
11.6 fps ∼19%
Medical (medical-02)
AMD Radeon RX 5700 XT
82.83 fps ∼100% +199%
AMD Radeon RX 5700
67.51 fps ∼82% +144%
MSI RTX 2060 Gaming Z 6G
49.1 fps ∼59% +78%
Sapphire NITRO+ RX 570 8 GB
43.54 fps ∼53% +57%
Zotac GeForce GTX 1660 Ti 6 GB
42.08 fps ∼51% +52%
XFX AMD Radeon RX 590 OC+ 8 GB
27.9 fps ∼34% +1%
Gainward GeForce GTX 1650 4 GB
27.66 fps ∼33% 0%
PNY GeForce GTX 1660
27.66 fps ∼33%
Maya (maya-05)
MSI RTX 2060 Gaming Z 6G
246.96 fps ∼100% +91%
AMD Radeon RX 5700 XT
220.34 fps ∼89% +71%
Zotac GeForce GTX 1660 Ti 6 GB
202.66 fps ∼82% +57%
AMD Radeon RX 5700
185.19 fps ∼75% +43%
XFX AMD Radeon RX 590 OC+ 8 GB
151.03 fps ∼61% +17%
Sapphire NITRO+ RX 570 8 GB
143.92 fps ∼58% +11%
Gainward GeForce GTX 1650 4 GB
129.23 fps ∼52% 0%
PNY GeForce GTX 1660
129.23 fps ∼52%
Energy (energy-02)
AMD Radeon RX 5700 XT
26.82 fps ∼100% +831%
AMD Radeon RX 5700
24.55 fps ∼92% +752%
Zotac GeForce GTX 1660 Ti 6 GB
11.17 fps ∼42% +288%
XFX AMD Radeon RX 590 OC+ 8 GB
8.98 fps ∼33% +212%
Sapphire NITRO+ RX 570 8 GB
8.1 fps ∼30% +181%
MSI RTX 2060 Gaming Z 6G
7.62 fps ∼28% +165%
Gainward GeForce GTX 1650 4 GB
2.88 fps ∼11% 0%
PNY GeForce GTX 1660
2.88 fps ∼11%
Creo (creo-02)
MSI RTX 2060 Gaming Z 6G
169.83 fps ∼100% +94%
AMD Radeon RX 5700 XT
156.98 fps ∼92% +79%
Zotac GeForce GTX 1660 Ti 6 GB
133.46 fps ∼79% +53%
AMD Radeon RX 5700
116.7 fps ∼69% +33%
XFX AMD Radeon RX 590 OC+ 8 GB
90 fps ∼53% +3%
Gainward GeForce GTX 1650 4 GB
87.5 fps ∼52% 0%
PNY GeForce GTX 1660
87.5 fps ∼52%
Sapphire NITRO+ RX 570 8 GB
80.19 fps ∼47% -8%
Catia (catia-05)
AMD Radeon RX 5700 XT
242.76 fps ∼100% +302%
AMD Radeon RX 5700
209.21 fps ∼86% +247%
XFX AMD Radeon RX 590 OC+ 8 GB
168.94 fps ∼70% +180%
Sapphire NITRO+ RX 570 8 GB
153.63 fps ∼63% +154%
MSI RTX 2060 Gaming Z 6G
108.16 fps ∼45% +79%
Zotac GeForce GTX 1660 Ti 6 GB
94.27 fps ∼39% +56%
Gainward GeForce GTX 1650 4 GB
60.37 fps ∼25% 0%
PNY GeForce GTX 1660
60.37 fps ∼25%
3ds Max (3dsmax-06)
MSI RTX 2060 Gaming Z 6G
184.36 fps ∼100% +75%
AMD Radeon RX 5700 XT
175.55 fps ∼95% +66%
Zotac GeForce GTX 1660 Ti 6 GB
159.38 fps ∼86% +51%
AMD Radeon RX 5700
157 fps ∼85% +49%
XFX AMD Radeon RX 590 OC+ 8 GB
120.44 fps ∼65% +14%
Sapphire NITRO+ RX 570 8 GB
108.41 fps ∼59% +3%
Gainward GeForce GTX 1650 4 GB
105.54 fps ∼57% 0%
PNY GeForce GTX 1660
105.54 fps ∼57%
SiSoft Sandra 2016
Image Processing
AMD Radeon RX 5700 XT
919.18 MPix/s ∼100% +35%
MSI RTX 2060 Gaming Z 6G
912 MPix/s ∼99% +34%
AMD Radeon RX 5700
775 MPix/s ∼84% +14%
Zotac GeForce GTX 1660 Ti 6 GB
737.26 MPix/s ∼80% +8%
PNY GeForce GTX 1660
680.77 MPix/s ∼74%
Gainward GeForce GTX 1650 4 GB
440.57 MPix/s ∼48% -35%
GP Cryptography (Higher Security AES256+SHA2-512)
MSI RTX 2060 Gaming Z 6G
63.84 GB/s ∼100% +22%
PNY GeForce GTX 1660
52.19 GB/s ∼82%
Zotac GeForce GTX 1660 Ti 6 GB
46.29 GB/s ∼73% -11%
Sapphire NITRO+ RX 570 8 GB
29.52 GB/s ∼46% -43%
Gainward GeForce GTX 1650 4 GB
23.8 GB/s ∼37% -54%
GP Financial Analysis (FP High/Double Precision)
Sapphire NITRO+ RX 570 8 GB
137.45 KOPT/s ∼100% +98%
MSI RTX 2060 Gaming Z 6G
99.09 KOPT/s ∼72% +42%
Zotac GeForce GTX 1660 Ti 6 GB
73.83 KOPT/s ∼54% +6%
PNY GeForce GTX 1660
69.57 KOPT/s ∼51%
Gainward GeForce GTX 1650 4 GB
44.82 KOPT/s ∼33% -36%
AMD Radeon RX 5700 XT
24 KOPT/s ∼17% -66%
AMD Radeon RX 5700
20.81 KOPT/s ∼15% -70%
3DMark 05 Standard
53031 punti
3DMark 06 Standard
43633 punti
3DMark Vantage P Result
57895 punti
3DMark 11 Performance
19912 punti
3DMark Ice Storm Standard Score
176879 punti
3DMark Cloud Gate Standard Score
45665 punti
3DMark Fire Strike Score
12629 punti
3DMark Fire Strike Extreme Score
6359 punti
3DMark Time Spy Score
5985 punti
Aiuto

Gaming Benchmarks - Un solido gamer 1080p

The Witcher 3: Tempi di risposta – ultra preset
The Witcher 3: Tempi di risposta – ultra preset
The Witcher 3: Frame rates – ultra preset
The Witcher 3: Frame rates – ultra preset

L'XLR8 Gaming OC ha convinto anche nei nostri test di gioco. La GPU fatica a 1440p e 2160p, quindi consigliamo di utilizzarla solo per i giochi a 1080p. Anche se la GPU è limitata in questo senso, supera la GTX 1650 in misura ancora maggiore rispetto ai benchmarks sintetici, come dimostrano le nostre tabelle seguenti.

La nostra unità di prova colma il divario anche con la GTX 1660 Ti, anche se si prega di tenere a mente che abbiamo testato quest'ultima su un sistema di test più lento. Al contrario, le nostre GPU di confronto della generazione Polaris faticano a tenere il passo con la XLR8 Gaming OC. Anche la XFX RX 590 non è all'altezza della nostra unità di prova, il che è piuttosto sorprendente. Solo le GPU Navi superano la XLR8 Gaming OC delle nostre schede di confronto AMD, ma queste sono molto più costose dell'offerta PNY.

In breve, la XLR8 Gaming OC offre buone prestazioni di gioco. La scheda può anche gestire gli ultimi giochi tripla A come Call of Duty: Modern Warfare, GRID (2019) o Need for Speed Heat in 1080p. Nel frattempo, titoli meno impegnativi in termini di risorse come FIFA 20 possono essere giocati anche a 2160p.

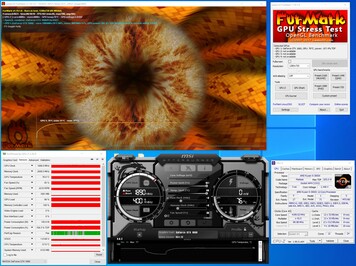

Abbiamo anche guardato come si comporta la scheda sotto carico sostenuto eseguendo The Witcher 3 sull'ultra preset a 1080p per un'ora. Come dimostra il grafico sottostante, il sistema di raffreddamento integrato mantiene la GPU sufficientemente fredda in modo da reggere le massime prestazioni per periodi prolungati. La nostra unità di prova ha oscillato solo tra 54 e 59 FPS durante questo test, quindi non si dovrebbe notare alcun calo delle prestazioni nelle lunghe sessioni di gioco. Anche i tempi di frame non sono stati degni di nota.

The Witcher 3: Frame rates – ultra preset

05101520253035404550556065Tooltip
PNY GeForce GTX 1660 GeForce GTX 1660 (Desktop), 3900X: Ø56.4 (54-59)
Forza Horizon 4 - 1920x1080 Ultra Preset AA:2xMS
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
149 fps ∼100% +52%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
138 fps ∼93% +41%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
118 fps ∼79% +20%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
110 fps ∼74% +12%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
98 fps ∼66%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
97 fps ∼65% -1%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
91 fps ∼61% -7%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
75 fps ∼50% -23%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
65 fps ∼44% -34%
Far Cry 5 - 1920x1080 Ultra Preset AA:T
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
110 (min: 85, max: 145) fps ∼100% +34%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
99 (min: 75, max: 131) fps ∼90% +21%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
96 (min: 75, max: 127) fps ∼87% +17%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
91 (min: 78, max: 105) fps ∼83% +11%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
84 (min: 59, max: 114) fps ∼76% +2%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
82 (min: 73, max: 93) fps ∼75%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
74 (min: 67, max: 88) fps ∼67% -10%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
65 (min: 58, max: 79) fps ∼59% -21%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
56 (min: 50, max: 66) fps ∼51% -32%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
94 (min: 86, max: 103) fps ∼100% +69%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
92 (min: 79, max: 99) fps ∼98% +66%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
80 (min: 70, max: 87) fps ∼85% +44%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
79 (min: 67, max: 89) fps ∼84% +42%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
62 (min: 43, max: 74) fps ∼66% +12%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
55.5 (min: 50, max: 63) fps ∼59%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
50.8 (min: 42, max: 57) fps ∼54% -8%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
43 (min: 37, max: 47) fps ∼46% -23%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
43 (min: 37, max: 47) fps ∼46% -23%
Farming Simulator 19 - 1920x1080 Very High Preset
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
119 (min: 99, max: 161) fps ∼100% +3%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
118 (min: 106, max: 156) fps ∼99% +2%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
116 (min: 101, max: 151) fps ∼97% 0%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
116 (min: 93, max: 186) fps ∼97%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
94 (min: 76, max: 121) fps ∼79% -19%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
76 (min: 60, max: 125) fps ∼64% -34%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
69 (min: 44, max: 117) fps ∼58% -41%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
56.1 (min: 43, max: 100) fps ∼47% -52%
Darksiders III - 1920x1080 Epic
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
121 (min: 52, max: 160) fps ∼100% +46%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
108 (min: 63, max: 126) fps ∼89% +30%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
103 (min: 49, max: 123) fps ∼85% +24%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
93 (min: 64, max: 104) fps ∼77% +12%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
88 (min: 60, max: 103) fps ∼73% +6%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
83 (min: 61, max: 94) fps ∼69%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
68.2 (min: 50, max: 76) fps ∼56% -18%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
55.8 (min: 48, max: 63) fps ∼46% -33%
Apex Legends - 1920x1080 Maximum Settings AA:TS AF:16x
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
144 (min: 143, max: 145) fps ∼100% +30%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
144 (min: 143, max: 145) fps ∼100% +30%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
142 (min: 136, max: 145) fps ∼99% +28%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
112 (min: 104, max: 126) fps ∼78% +1%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
111 (99° percentile: 93.5) fps ∼77%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
96 (min: 88, max: 110) fps ∼67% -14%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
77 (min: 71, max: 91) fps ∼53% -31%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
67 (min: 56, max: 78) fps ∼47% -40%
Far Cry New Dawn - 1920x1080 Ultra Preset
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
97 (min: 69, max: 147) fps ∼100% +21%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
85 (min: 63, max: 134) fps ∼88% +6%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
84 (min: 65, max: 110) fps ∼87% +5%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
83 (min: 60, max: 132) fps ∼86% +4%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
80 (min: 64, max: 96) fps ∼82%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
79 (min: 58, max: 120) fps ∼81% -1%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
76 (min: 58, max: 102) fps ∼78% -5%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
66 (min: 49, max: 86) fps ∼68% -17%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
55 (min: 44, max: 67) fps ∼57% -31%
Metro Exodus - 1920x1080 Ultra Quality AF:16x
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
61 (min: 36.09, max: 86.1) fps ∼100% +61%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
58.9 (min: 32, max: 92) fps ∼97% +55%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
58.6 (min: 32.67, max: 85.8) fps ∼96% +54%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
42.7 (min: 24, max: 66) fps ∼70% +12%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
38 (min: 22, max: 57) fps ∼62%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
37.9 (min: 21, max: 58) fps ∼62% 0%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
31.7 (min: 18, max: 49) fps ∼52% -17%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
25.4 (min: 15, max: 38) fps ∼42% -33%
The Division 2 - 1920x1080 Ultra Preset
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
88 (min: 30.2, 99° percentile: 50) fps ∼100% +49%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
85 fps ∼97% +44%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
78 (min: 14.6, 99° percentile: 42.2) fps ∼89% +32%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
70 fps ∼80% +19%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
60 fps ∼68% +2%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
59 fps ∼67%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
44 fps ∼50% -25%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
39 fps ∼44% -34%
Anno 1800 - 1920x1080 Ultra Graphics Quality (DX11)
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
45 (min: 37, max: 58) fps ∼100% +29%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
40.9 (min: 35, max: 53) fps ∼91% +17%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
40.3 (min: 30, max: 55) fps ∼90% +15%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
38.9 (min: 33, max: 48) fps ∼86% +11%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
35.9 (min: 32, max: 41) fps ∼80% +3%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
34.9 (min: 32, max: 40) fps ∼78%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
26.3 (min: 23, max: 29) fps ∼58% -25%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
25.1 (min: 23, max: 27) fps ∼56% -28%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
23.3 (min: 21, max: 25) fps ∼52% -33%
Rage 2 - 1920x1080 Ultra Preset (Resolution Scale Off)
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
104 (99° percentile: 65.1) fps ∼100% +46%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
103 (99° percentile: 94.3) fps ∼99% +45%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
71 (99° percentile: 60.9) fps ∼68% 0%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
71 (99° percentile: 57.5) fps ∼68%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
58.8 (99° percentile: 52.1) fps ∼57% -17%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
43.7 (99° percentile: 38.1) fps ∼42% -38%
F1 2019 - 1920x1080 Ultra High Preset AA:T AF:16x
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
152 (min: 129, max: 171) fps ∼100% +85%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
140 (min: 120, max: 156) fps ∼92% +71%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
124 (min: 107, max: 140) fps ∼82% +51%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
121 (min: 108, max: 136) fps ∼80% +48%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
86 (min: 77, max: 98) fps ∼57% +5%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
82 (min: 71, max: 92) fps ∼54%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
72 (min: 65, max: 80) fps ∼47% -12%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
52 (min: 42, max: 64) fps ∼34% -37%
Rocket League - 1920x1080 High Quality AA:High FX
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
244 (min: 206, max: 252) fps ∼100% +33%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
242 (min: 207, max: 252) fps ∼99% +32%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
230.2 (min: 192, max: 252) fps ∼94% +26%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
205 (min: 151, max: 228) fps ∼84% +12%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
183 (min: 147, max: 246) fps ∼75%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
93 fps ∼100%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
77 fps ∼83% -17%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
57.1 fps ∼61% -39%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
48.1 fps ∼52% -48%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
47 fps ∼51% -49%
Shadow of the Tomb Raider - 1920x1080 Highest Preset AA:T
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
114 fps ∼100% +58%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X
110 fps ∼96% +53%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X
96 fps ∼84% +33%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X
90 fps ∼79% +25%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X
76.7 fps ∼67% +7%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
72 fps ∼63%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
66 fps ∼58% -8%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X
55.1 fps ∼48% -23%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X
44 fps ∼39% -39%
FIFA 20 - 1920x1080 Ultra Preset AA:4xMS
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 3900X
284 (99° percentile: 204.1) fps ∼100% +19%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
282 (99° percentile: 208.3) fps ∼99% +18%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 3900X
266 (99° percentile: 196.1) fps ∼94% +11%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 3900X
248 (99° percentile: 178.6) fps ∼87% +4%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
239 (99° percentile: 175.4) fps ∼84%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 3900X
234 (99° percentile: 172.4) fps ∼82% -2%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 3900X
184 (99° percentile: 140.8) fps ∼65% -23%
Control - 1920x1080 High Quality Preset (DX11)
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
83 (min: 72, max: 95) fps ∼100% +58%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 3900X
80 (min: 70, max: 91) fps ∼96% +52%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 3900X
73 (min: 63, max: 83) fps ∼88% +39%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
52.5 (min: 45, max: 60) fps ∼63%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 3900X
48.3 (min: 42, max: 56) fps ∼58% -8%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 3900X
40.2 (min: 34, max: 46) fps ∼48% -23%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 3900X
33.3 (min: 28, max: 39) fps ∼40% -37%
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
71.7 fps ∼100% +46%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 3900X
68.7 fps ∼96% +40%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 3900X
66.7 fps ∼93% +36%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
49 fps ∼68%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 3900X
42.1 fps ∼59% -14%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 3900X
35.2 fps ∼49% -28%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 3900X
30.1 fps ∼42% -39%
Ghost Recon Breakpoint - 1920x1080 Ultra Preset AA:T
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
80 (min: 35, max: 125) fps ∼100% +63%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 3900X
71 (min: 24, max: 106) fps ∼89% +45%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 3900X
68 (min: 36, max: 104) fps ∼85% +39%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
49 (min: 30, max: 69) fps ∼61%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 3900X
46 (min: 34, max: 67) fps ∼58% -6%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 3900X
45 (min: 35, max: 75) fps ∼56% -8%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 3900X
8 (min: 4, max: 34) fps ∼10% -84%
GRID 2019 - 1920x1080 Ultra High Preset
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
96 (99° percentile: 61.3) fps ∼100% +43%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 3900X
91 (99° percentile: 55.9) fps ∼95% +36%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 3900X
90 (99° percentile: 59.5) fps ∼94% +34%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
67 (99° percentile: 47.2) fps ∼70%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 3900X
64 (99° percentile: 42.7) fps ∼67% -4%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 3900X
47.1 (99° percentile: 31.8) fps ∼49% -30%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 3900X
43.1 (99° percentile: 32.9) fps ∼45% -36%
Call of Duty Modern Warfare 2019 - 1920x1080 Maximum Settings AA:T2X Filmic SM
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
112 (99° percentile: 83.3) fps ∼100% +42%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 3900X
109 (99° percentile: 82) fps ∼97% +38%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 3900X
95 (99° percentile: 69.9) fps ∼85% +20%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
79 (99° percentile: 62.5) fps ∼71%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 3900X
76 (99° percentile: 54.1) fps ∼68% -4%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 3900X
64 (99° percentile: 49) fps ∼57% -19%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 3900X
51.7 (99° percentile: 40) fps ∼46% -35%
Need for Speed Heat - 1920x1080 Ultra Preset
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 3900X
92 (min: 76, max: 107) fps ∼100% +31%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X
88 (min: 74, max: 99) fps ∼96% +26%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 3900X
88 (min: 74, max: 103) fps ∼96% +26%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X
70 (min: 57, max: 78) fps ∼76%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 3900X
60 (min: 55, max: 67) fps ∼65% -14%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 3900X
48.4 (min: 38, max: 56) fps ∼53% -31%
basso medio alto ultraQHD4K
The Witcher 3 (2015) 282 181 99 55.5 34.9 fps
Dota 2 Reborn (2015) 163.7 152.4 145.9 136.7 85.9 fps
Rocket League (2017) 249 249 183 129 81 fps
X-Plane 11.11 (2018) 127 114 93 79 fps
Far Cry 5 (2018) 142 95 87 82 57 29 fps
Shadow of the Tomb Raider (2018) 152 92 80 72 47 23 fps
Forza Horizon 4 (2018) 200 132 123 98 76 50 fps
Farming Simulator 19 (2018) 242 190 153 116 80 41.9 fps
Darksiders III (2018) 196 115 96 83 54.5 18.8 fps
Apex Legends (2019) 144 144 114 111 77 43.6 fps
Far Cry New Dawn (2019) 132 92 87 80 58 31 fps
Metro Exodus (2019) 118 61 45 38 29 19 fps
The Division 2 (2019) 185 103 82 59 40 21 fps
Anno 1800 (2019) 94 92 69 34.9 23.6 14 fps
Rage 2 (2019) 168 83 71 71 45.3 21.7 fps
F1 2019 (2019) 261 142 123 82 64 38 fps
Control (2019) 198 70 52.5 31.6 15.8 fps
Borderlands 3 (2019) 143 91 61 49 34 14 fps
FIFA 20 (2019) 265 262 241 239 202 127 fps
Ghost Recon Breakpoint (2019) 114 73 67 49 34 17 fps
GRID 2019 (2019) 160 119 97 67 51.4 31.9 fps
Call of Duty Modern Warfare 2019 (2019) 159 112 90 79 56.8 31.6 fps
Need for Speed Heat (2019) 111 89 79 70 49.5 23 fps
Star Wars Jedi Fallen Order (2019) 112 90 81 53.1 26.4 fps

Emissioni - Rumorosa, ma non c'è coil whine

PNY ha impostato il TDP della XLR8 Gaming OC a 120 W, lo stesso che ha la GTX 1660 Ti. Tuttavia, quest'ultima offre migliori prestazioni per watt grazie al suo maggior volume di unità shader e texture. Avere VRAM GDDR6 invece di GDDR5 aiuta la GTX 1660 Ti ad allontanarsi dalla GTX 1660.

Il nostro sistema di prova consuma poco meno di 80 W a regime minimo, un valore che aumenta a 248 W sotto carico sostenuto. Tra l'altro, il PNY consente di aumentare la potenza target (PT) della GPU al 107%, che si traduce in un TDP di picco di 128,4 W. Lo abbiamo confermato durante i nostri test, mentre il nostro sistema di test ha raggiunto il picco di 258 W anche sotto carico.

Durante i nostri test non abbiamo riscontrato alcun problema di temperatura con l'XLR8 Gaming OC. Le temperature interne hanno raggiunto il picco di 76 °C anche con il suo PT impostato al 107%, anche se il PCB ha raggiunto 86 °C. Tuttavia, questo è ancora entro limiti di sicurezza. Riducendo il PT al 100%, le temperature sono scese a 80 °C anche sul retro del PCB.

Inoltre, la ventola della GPU è meno rumorosa quando è al 100% di PT, ma la nostra unità di prova è sempre relativamente rumorosa. Durante i nostri test, però, non abbiamo sentito alcun coil whine.

Mappa termica della PNY GeForce GTX 1660 XLR8 Gaming OC durante uno stress test (PT 100%)
Mappa termica della PNY GeForce GTX 1660 XLR8 Gaming OC durante uno stress test (PT 100%)
Mappa termica della PNY GeForce GTX 1660 XLR8 Gaming OC durante uno stress test (PT 100%)
Mappa termica della PNY GeForce GTX 1660 XLR8 Gaming OC durante uno stress test (PT 100%)
Mappa termica della PNY GeForce GTX 1660 XLR8 Gaming OC durante uno stress test (PT 107%)
Mappa termica della PNY GeForce GTX 1660 XLR8 Gaming OC durante uno stress test (PT 107%)
Consumo energetico del nostro sistema di prova in idle
Consumo energetico del nostro sistema di prova in idle
Consumo energetico del nostro sistema di prova durante un test da sforzo FurMark PT 100%.
Consumo energetico del nostro sistema di prova durante un test da sforzo FurMark PT 100%.
Consumo energetico del nostro sistema di prova durante una prova da sforzo FurMark PT 107%.
Consumo energetico del nostro sistema di prova durante una prova da sforzo FurMark PT 107%.
Consumo energetico del nostro sistema di test durante la riproduzione di The Witcher 3 sul preset Ultra
Consumo energetico del nostro sistema di test durante la riproduzione di The Witcher 3 sul preset Ultra
Informazioni sul sistema durante una prova da sforzo FurMark PT 100%.
Informazioni sul sistema durante una prova da sforzo FurMark PT 100%.
Informazioni di sistema durante una prova da sforzo FurMark PT 107%.
Informazioni di sistema durante una prova da sforzo FurMark PT 107%.


Power Consumption
1280x720 FurMark 1.19 GPU Stress Test - Power Consumption (external Monitor)
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 3900X (Idle: 85.9 W)
371.7 (min: 360, max: 388) Watt * ∼100% -50%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
357.5 (min: 347, max: 383) Watt * ∼96% -44%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X (Idle: 83.2 W)
352.1 (min: 346, max: 377) Watt * ∼95% -42%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X (239 fps, Idle: 69.8 W)
326.56 (min: 313, max: 351) Watt * ∼88% -32%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 3900X (Idle: 85.5 W)
322.8 (min: 309, max: 347) Watt * ∼87% -30%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 3900X (Idle: 86.7 W)
312 (min: 306, max: 328) Watt * ∼84% -26%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X (Idle: 72.61 W)
308.92 (min: 301, max: 338) Watt * ∼83% -25%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 3900X (Idle: 77.9 W)
297.3 (min: 292, max: 316) Watt * ∼80% -20%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), 2700X (Idle: 74.66 W)
295.2 (min: 148, max: 331) Watt * ∼79% -19%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X (237 fps, Idle: 77.12 W)
281.4 (min: 275, max: 321) Watt * ∼76% -14%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X (207 fps, Idle: 64.5 W)
280.49 (min: 271, max: 312) Watt * ∼75% -13%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X (Idle: 79.88 W)
247.84 (min: 242, max: 282) Watt * ∼67%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X (Idle: 68.3 W)
233.2 (min: 226, max: 250) Watt * ∼63% +6%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 3900X (Idle: 82.4 W)
202.5 (min: 200, max: 213) Watt * ∼54% +18%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X (Idle: 64.63 W, Idle: 64.63 W)
183 (min: 178, max: 187) Watt * ∼49% +26%
1920x1080 The Witcher 3 Power Consumption (external Monitor) ultra
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 3900X (Idle: 83.2 W)
376.4 (min: 373, max: 382) Watt * ∼100% -51%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 3900X (Idle: 85.9 W)
358.9 (min: 351, max: 370) Watt * ∼95% -44%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), 2700X (Idle: 69.8 W)
348.71 (min: 341, max: 359) Watt * ∼93% -40%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, 2700X
346.9 (min: 326, max: 364) Watt * ∼92% -40%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 3900X (Idle: 86.7 W)
331 (min: 322, max: 344) Watt * ∼88% -33%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 3900X (Idle: 77.9 W)
317.5 (min: 313, max: 326, 99° percentile: 216) Watt * ∼84% -28%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 3900X (Idle: 85.5 W)
300.2 (min: 284, max: 311) Watt * ∼80% -21%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, 2700X (82.7 fps, Idle: 77.12 W)
298.2 (min: 293, max: 322) Watt * ∼79% -20%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), 2700X (84.2 fps, Idle: 64.5 W)
295.9 (min: 284, max: 304) Watt * ∼79% -19%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), 2700X (Idle: 74.66 W)
288.8 (min: 284, max: 299) Watt * ∼77% -16%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, 2700X (Idle: 72.61 W)
273.96 (min: 268, max: 300) Watt * ∼73% -10%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), 3900X (Idle: 79.88 W)
248.63 (min: 240, max: 259) Watt * ∼66%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), 2700X (Idle: 68.3 W)
235.5 (min: 232, max: 269) Watt * ∼63% +5%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 3900X (Idle: 82.4 W)
203.9 (min: 199, max: 215) Watt * ∼54% +18%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), 2700X (Idle: 64.63 W)
178.87 (min: 176, max: 192) Watt * ∼48% +28%

* ... Meglio usare valori piccoli

Pro

+ abbastanza potente per i giochi a 1080p
+ sistema di raffreddamento adeguatoabbastanza compatto per PC di piccole dimensioni
+ clock elevato
+ moderato consumo energetico
+ prezzo ragionevole

Contro

- la singola ventola funziona è rumorosa sotto carico
- non c'e' quasi nessun potenziale di overclocking
- prestazioni per watt inferiori rispetto alla GTX 1660 Ti

Giudizio Complessivo - Una alternativa economia e compatta per il gaming 1080p

Recensione della GPU Desktop PNY GeForce GTX 1660 XLR8 Gaming OC
Recensione della GPU Desktop PNY GeForce GTX 1660 XLR8 Gaming OC

Chiunque abbia un budget di circa 250 euro (~$276) per una nuova scheda grafica prima o poi si imbatterà prima o poi in una GeForce GTX 1660. La PNY GeForce GTX 1660 XLR8 Gaming OC può gestire tutti i titoli moderni con una grafica di almeno 1080p e al massimo. Mentre la scheda è in grado di giocare alcuni giochi come FIFA 20 a 2160p, la GTX 1660 offre prestazioni per watt peggiori rispetto alla GTX 1660 Ti. Questo è da aspettarsi, dato che le due schede condividono lo stesso TDP, ma la GTX 1660 Ti è in vantaggio in molte altre specifiche.

La PNY GeForce GTX 1660 XLR8 Gaming OC costa circa 225 euro (~$249) al momento della recensione, e dovrebbe adattarsi alla maggior parte dei PC compatti. I suoi 6 GB di VRAM non limitano la scheda, dato che la nostra unità di prova ha tenuto testa alla AMD Radeon RX 570, che ha altri 2 GB di VRAM.

Se siete indecisi sulla XLR8 Gaming OC, allora vale la pena ricordare che la scheda non è la più silenziosa sul mercato. Possiamo sentire la nostra unità di prova girare in un case chiuso, quindi vi consigliamo di acquistare una versione a doppia ventola se siete intenzionati ad avere una macchina silenziosa.

    La PNY GeForce GTX 1660 XLR8 Gaming OC offre un eccellente rapporto qualità-prezzo. Tuttavia, non raggiunge le prestazioni per watt che offre la GeForce GTX 1660 Ti.

Nel complesso, abbiamo apprezzato le prestazioni offerte dalla PNY GeForce GTX 1660 XLR8 Gaming OC. NVIDIA ha quasi un campo libero attualmente in quanto AMD non ha portato sul mercato nessuna nuova GPU a prezzi accessibili. Anche se questo potrebbe cambiare presto, le schede Polaris rimangono le uniche alternative alla serie GeForce GTX 16 di NVIDIA. AMD ha la sua serie Radeon RX 5700, ma queste schede hanno un prezzo diverso da quello della serie GTX 16 e sono progettate per i giochi a 1440p.

NVIDIA GeForce GTX 1660 benchmarks (vendor agnostic)

Benchmark

3DMark - Time Spy Score 2560x1440
5985 Points (42%)
3DMark - Time Spy Graphics 2560x1440
5502 Points (37%)
3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen
478810 Points (90%)
3DMark - Ice Storm Extreme Graphics 1920x1080
231602 Points (32%)
3DMark - Cloud Gate Standard Score 1280x720
45665 Points (69%)
3DMark - Cloud Gate Standard Graphics 1280x720
79435 Points (41%)
3DMark - Fire Strike Score 1920x1080
12629 Points (45%)
3DMark - Fire Strike Graphics 1920x1080
13847 Points (34%)
3DMark - Ice Storm Standard Graphics 1280x720
285307 Points (38%)
3DMark 11 - Performance 1280x720
19912 points (57%)
3DMark 11 - Performance GPU 1280x720
20696 points (41%)
...
AMD Radeon RX 480 (Desktop) -13%
AMD Radeon RX 570 (Desktop) -8%
AMD Radeon RX 580 (Desktop) -7%
NVIDIA Quadro RTX 3000 (Laptop) -6%
NVIDIA GeForce GTX 1660 Ti (Laptop) -4%
NVIDIA GeForce GTX 1660 (Desktop)
NVIDIA GeForce RTX 2060 (Laptop) 0%
NVIDIA GeForce GTX 1660 Super (Desktop) 3%
NVIDIA GeForce RTX 2070 Max-Q 5%
NVIDIA GeForce GTX 1660 Ti (Desktop) 7%
AMD Radeon RX 590 (Desktop) 12%
...
NVIDIA GeForce RTX 2080 Ti (Desktop) 128%
0%
100%
3DMark Vantage
P Result 1280x1024 +
P GPU no PhysX 1280x1024 +
3DMark 05 - Standard 1024x768
53031 Points (100%)
3DMark 06 Standard 1280x1024 +
Unigine Valley 1.0 - Extreme HD DirectX 1920x1080
64.2 fps (39%)
SPECviewperf 12
Solidworks (sw-03) 1900x1060 +
Siemens NX (snx-02) 1900x1060 +
Medical (medical-01) 1900x1060 +
