AMD Radeon RX 6650M XT

AMD Radeon RX 6650M XT

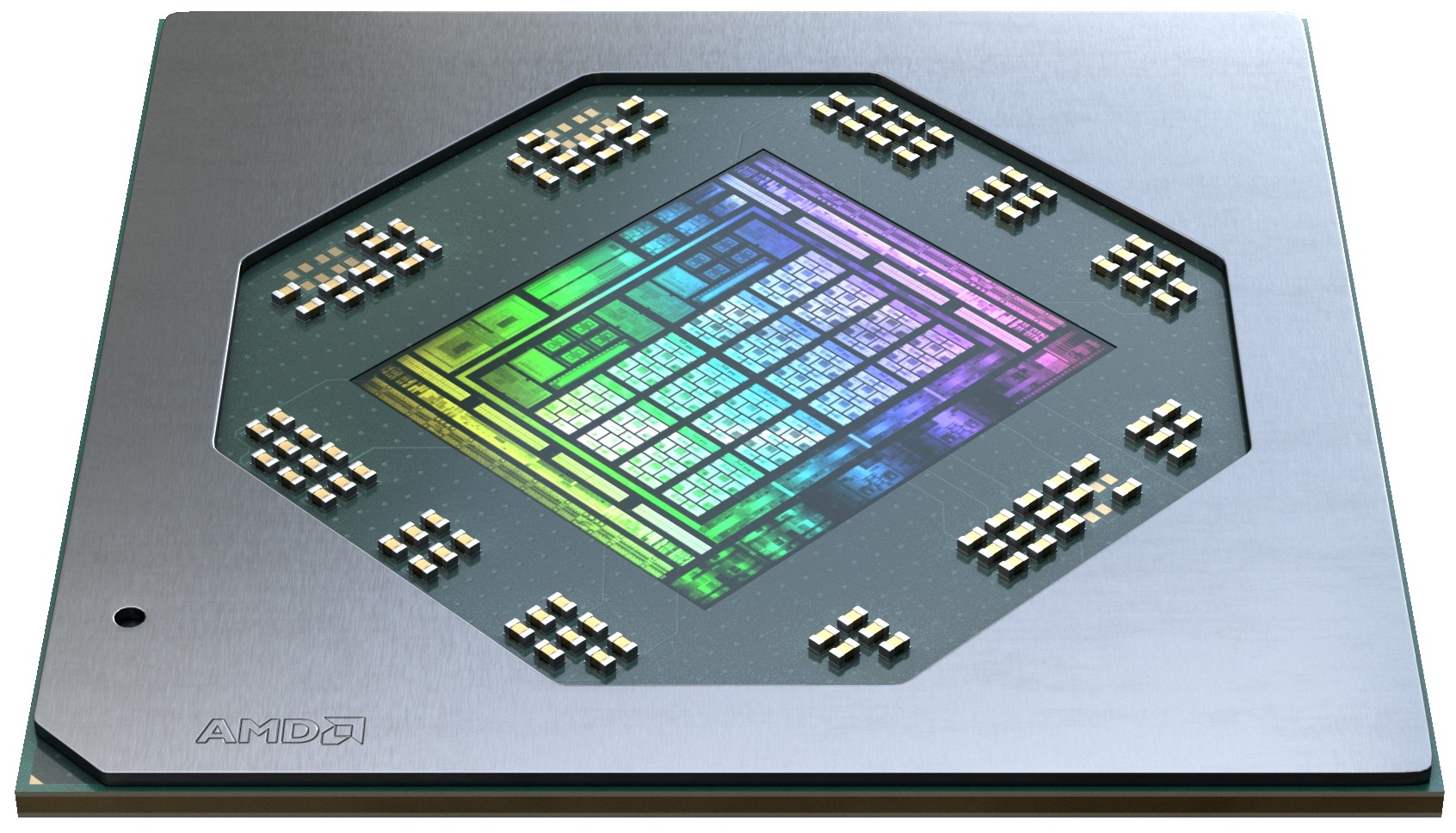

La AMD Radeon RX 6650M XT è una scheda grafica mobile di fascia media basata sul chip Navi 23 (architettura RDNA 2) prodotto in 7 nm. Presenta 2.048 core (32 CU - unità di calcolo) e 8 GB di memoria grafica veloce GDDR6 collegata a un bus di memoria a 128 bit. Il chip include anche 32 MB di Infinity Cache. La velocità di clock dei core dipenderà dal portatile, secondo AMD. La velocità di clock di gioco specificata è di 2162 MHz (molto probabilmente a 120 W TGP).

AMD paragona le prestazioni allaRTX 3060 per i computer portatilie simili a quelle della RX 6600M. Quando vengono attivati gli effetti Raytracing, rimane indietro rispetto alle GPU GeForce. Rispetto alla normale RX 6650Mla variante XT offre più shader, ma con una velocità di clock inferiore.

Il chip Navi 21 è prodotto presso TSMC nel moderno processo a 7 nm.

Radeon RX 6000M Serie

Radeon RX 6850M XT 2560 @ 2.46 GHz192 Bit @ 18000 MHz
Radeon RX 6800M 2560 @ 2.12 - 2.3 GHz192 Bit @ 16000 MHz
Radeon RX 6800S 2048 @ 1.8 - 1.98 GHz128 Bit @ 16000 MHz
Radeon RX 6700M 2304 @ 2.3 GHz160 Bit @ 16000 MHz
Radeon RX 6650M XT 2048 @ 2.16 GHz128 Bit @ 18000 MHz
Radeon RX 6650M 1792 @ 2.22 GHz128 Bit @ 18000 MHz
Radeon RX 6600M 1792 @ 2.07 - 2.18 GHz128 Bit @ 14000 MHz
Radeon RX 6700S 1792 @ 1.7 - 1.89 GHz128 Bit @ 14000 MHz
Radeon PRO W6600M 1792 128 Bit @ 14000 MHz
Radeon RX 6600S 1792 @ 1.88 GHz128 Bit @ 16000 MHz
Radeon RX 6550M 1024 @ 2 - 2.56 GHz64 Bit @ 18000 MHz
Radeon RX 6500M 1024 @ 2.19 GHz64 Bit @ 18000 MHz
Radeon RX 6550S 1024 @ 2.17 GHz64 Bit @ 16000 MHz
Radeon RX 6450M 768 @ 2 - 2.22 GHz64 Bit @ 18000 MHz
Radeon RX 6300M 768 @ 1.51 GHz128 Bit @ 18000 MHz
ArchitetturaRDNA 2
Pipelines2048 - unified
Velocità del core2162 (Boost) MHz
Velocità della memoria18000 MHz
Larghezza del bus di memoria128 Bit
Tipo di memoriaGDDR6
Max. quantità di memoria8 GB
Memoria condivisano
APIDirectX 12, Shader 6.4, OpenGL 4.6
Consumo di corrente120 Watt
Transistor Count11.1 Billion
tecnologia7 nm
CaratteristicheDisplayPort 1.4 w/DFSC, HDMI 2.0b, Radeon Media Engine (H.264 4K150 decode, 4K90 encode / H.265 4K90 decode, 4K60 encode / VP9 4K90 decode)
Dimensione del portatilegrande
Data dell'annuncio04.01.2022
Link alla pagina del produttorewww.amd.com

Benchmark

- Valori di benchmark per questa scheda grafica
- Valori medi di benchmark per questa scheda grafica
* Numeri più piccoli rappresentano prestazioni supeiori

Per conoscere altri giochi che potrebbero essere utilizzabili e per una lista completa di tutti i giochi e delle schede grafiche visitate la nostra Gaming List
