Recensione del Chuwi LarkBox Celeron J4115: un Mini PC 4K così piccolo che è più leggero del suo alimentatore.

Più piccolo di una palla da baseball. L'ultimo prodotto di Chuwi è uno dei più piccoli mini PC che si possano trovare in giro e che non funziona con un processore raffreddato passivamente. Il rumore della ventola, tuttavia, è più forte del previsto. Vediamo cosa ne pensiamo di questo progetto finanziato con il crowdfunding da 160 dollari.
Allen Ngo, 👁 Allen Ngo (traduzione a cura di G. De Luca),

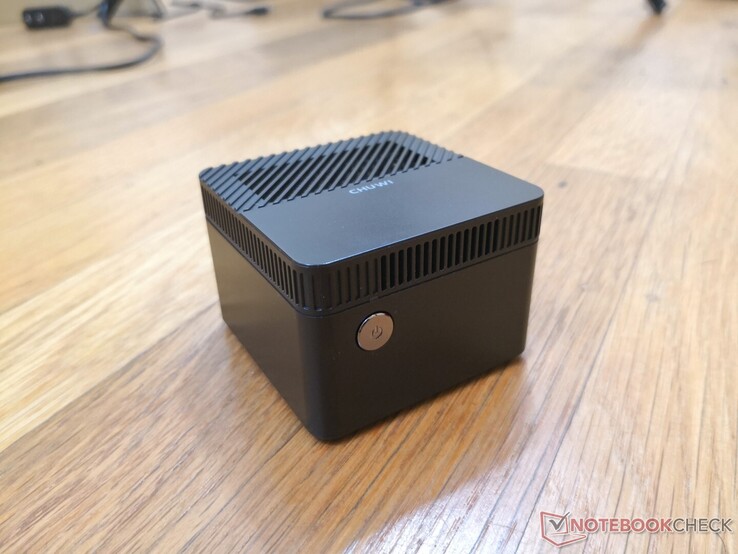

Chuwi LarkBox 4K Mini PC
Processore
Intel Celeron J4115 4 x 1.8 - 2.5 GHz, Gemini Lake Refresh
Scheda grafica
Intel UHD Graphics 600, 26.20.100.7262
Memoria
6144 MB
, Saldata, 1200 MHz, Dual-Channel
Harddisk
128 GB eMMC Flash, 128 GB
Scheda audio
Intel Gemini Lake SoC - High Definition Audio Controller
Rete
Wireless AC-9461 (ac = Wi-Fi 5)
Dimensioni
altezza x larghezza x profondità (in mm): 43 x 61 x 61
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Altre caratteristiche
12 Mesi Garanzia
Peso
129 gr, Alimentazione: 200 gr
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Punteggio
Data
Modello
Peso
Altezza
Dimensione
Risoluzione
Miglior Prezzo
07/2020
Chuwi LarkBox 4K Mini PC
Celeron J4115, UHD Graphics 600
129 gr43 mmx
12/2019
Lenovo ThinkCentre M90n-1 Nano
i5-8265U, UHD Graphics 620
499 gr22 mmx
10/2018
Chuwi GBox CWI560
Celeron N4100, UHD Graphics 600
558 gr37.3 mmx
06/2018
Intel NUC7CJYH
Celeron J4005, UHD Graphics 600
577 gr51 mm0x0
09/2018
Zotac ZBOX-CI660 Nano
i5-8550U, UHD Graphics 620
1.1 kg68 mmx
204 mm 129 mm 68 mm 1.1 kg187.6 mm 138.3 mm 37.3 mm 558 g179 mm 88 mm 22 mm 499 g117 mm 112 mm 36 mm 493 g61 mm 61 mm 43 mm 129 g
Lato posteriroe: USB-C, HDMI 2.0, 2x USB-A 3.0
Lato posteriroe: USB-C, HDMI 2.0, 2x USB-A 3.0
Lato destro: lettore MicroSD, cuffie da 3.5 mm (nessun microfono)
Lato destro: lettore MicroSD, cuffie da 3.5 mm (nessun microfono)
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81 MB/s ∼100% +21%
Intel NUC8i7BE
  (Toshiba Exceria Pro M501 UHS-II)
69 MB/s ∼85% +3%
Chuwi LarkBox 4K Mini PC
  (Toshiba Exceria Pro M501 UHS-II)
66.9 MB/s ∼83%
Zotac ZBOX-CI660 Nano
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
35 MB/s ∼43% -48%
Chuwi GBox CWI560
  (Toshiba Exceria Pro M501 UHS-II)
18.7 MB/s ∼23% -72%
maximum AS SSD Seq Read Test (1GB)
Intel Hades Canyon NUC8i7HVK
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.27 MB/s ∼100% +3%
Chuwi LarkBox 4K Mini PC
  (Toshiba Exceria Pro M501 UHS-II)
85.4 MB/s ∼97%
Intel NUC8i7BE
  (Toshiba Exceria Pro M501 UHS-II)
85.02 MB/s ∼96% 0%
Zotac ZBOX-CI660 Nano
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.73 MB/s ∼43% -56%
Chuwi GBox CWI560
  (Toshiba Exceria Pro M501 UHS-II)
20.8 MB/s ∼24% -76%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkCentre M90n-1 Nano
Intel Wireless-AC 9560
643 MBit/s ∼100% +83%
Apple MacBook Air 2020 i3
802.11 a/b/g/n/ac
641 (554min - 678max) MBit/s ∼100% +82%
Intel NUC8i7BE
Intel Wireless-AC 9560
602 MBit/s ∼94% +71%
Chuwi UBook CWI509
Wireless AC-9461
391 MBit/s ∼61% +11%
Chuwi LarkBox 4K Mini PC
Wireless AC-9461
352 (344min - 357max) MBit/s ∼55%
Chuwi LapBook Plus
Intel Dual Band Wireless-AC 3165
330 MBit/s ∼51% -6%
Chuwi GBox CWI560
Intel Dual Band Wireless-AC 3165
326 MBit/s ∼51% -7%
Chuwi Lapbook 12.3
Intel Dual Band Wireless-AC 3165
316 MBit/s ∼49% -10%
Zotac ZBOX-CI660 Nano
Intel Dual Band Wireless-AC 3165
301 MBit/s ∼47% -14%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkCentre M90n-1 Nano
Intel Wireless-AC 9560
604 MBit/s ∼100% +78%
Intel NUC8i7BE
Intel Wireless-AC 9560
553 MBit/s ∼92% +63%
Apple MacBook Air 2020 i3
802.11 a/b/g/n/ac
545 (414min - 604max) MBit/s ∼90% +61%
Chuwi UBook CWI509
Wireless AC-9461
355 MBit/s ∼59% +5%
Chuwi LarkBox 4K Mini PC
Wireless AC-9461
339 (302min - 361max) MBit/s ∼56%
Chuwi Lapbook 12.3
Intel Dual Band Wireless-AC 3165
281 MBit/s ∼47% -17%
Chuwi LapBook Plus
Intel Dual Band Wireless-AC 3165
248 MBit/s ∼41% -27%
Chuwi GBox CWI560
Intel Dual Band Wireless-AC 3165
227 MBit/s ∼38% -33%
Zotac ZBOX-CI660 Nano
Intel Dual Band Wireless-AC 3165
218 MBit/s ∼36% -36%
050100150200250300350400Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø352 (344-357)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø339 (302-361)
0102030405060708090100110120130140150160170180190200210220230240250260270Tooltip
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash; CPU Multi 64Bit: Ø253 (207.57-262.65)
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064; CPU Multi 64Bit: Ø186 (184.81-188.15)
Intel NUC7CJYH UHD Graphics 600, Celeron J4005, SanDisk Ultra II; CPU Multi 64Bit: Ø146 (143.42-146.64)
Chuwi UBook CWI509 UHD Graphics 600, Celeron N4100, Netac SSD 256GB; CPU Multi 64Bit: Ø174 (172.96-175.02)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.1 / 5.2: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R15 / CPU Multi 64Bit - CPU Multi 64Bit
Lenovo ThinkCentre M90n-1 Nano IoT
Intel Core i3-8145U
353 Points ∼100% +34%
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
333 (293min - 333max) Points ∼94% +27%
Intel NUC8i3CYSM
Intel Core i3-8121U
317.56 (304.79min - 319.39max) Points ∼90% +21%
Asrock J4105-ITX
Intel Celeron J4105
270 Points ∼76% +3%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
263 (207.57min - 262.65max) Points ∼75%
Chuwi GBox CWI560
Intel Celeron N4100
188 Points ∼53% -29%
Chuwi Lapbook 12.3
Intel Celeron N3450
167 Points ∼47% -37%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
144.07 (131.27min - 145.38max) Points ∼41% -45%
Intel NUC7CJYH
Intel Celeron J4005
144 Points ∼41% -45%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points ∼35% -52%
Chuwi Hi10 Air
Intel Atom x5-Z8350
97 Points ∼27% -63%
XIDU PhilBook Max
Intel Celeron J3355
90 (89.56min - 90.33max) Points ∼25% -66%
Jumper EZbook X3
Intel Celeron N3350
82.3 (81.02min - 82.28max) Points ∼23% -69%
Cinebench R15 / CPU Single 64Bit - CPU Single 64Bit
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
141 Points ∼100% +98%
Lenovo ThinkCentre M90n-1 Nano IoT
Intel Core i3-8145U
139 Points ∼99% +95%
Intel NUC8i3CYSM
Intel Core i3-8121U
133 Points ∼94% +87%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
78.93 Points ∼56% +11%
Intel NUC7CJYH
Intel Celeron J4005
77 Points ∼55% +8%
Asrock J4105-ITX
Intel Celeron J4105
73 Points ∼52% +3%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
71.1 Points ∼50%
Chuwi GBox CWI560
Intel Celeron N4100
68 Points ∼48% -4%
XIDU PhilBook Max
Intel Celeron J3355
47.6 Points ∼34% -33%
Chuwi Lapbook 12.3
Intel Celeron N3450
44 Points ∼31% -38%
Jumper EZbook X3
Intel Celeron N3350
43.4 Points ∼31% -39%
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points ∼29% -42%
Chuwi Hi10 Air
Intel Atom x5-Z8350
30 Points ∼21% -58%
Cinebench R20 / CPU (Multi Core) - CPU (Multi Core)
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
590 Points ∼100%
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
587 Points ∼99% -1%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
316 Points ∼54% -46%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points ∼46% -54%
XIDU PhilBook Max
Intel Celeron J3355
200 Points ∼34% -66%
Jumper EZbook X3
Intel Celeron N3350
190 Points ∼32% -68%
Cinebench R20 / CPU (Single Core) - CPU (Single Core)
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
348 Points ∼100% +123%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
175 Points ∼50% +12%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
156 Points ∼45%
XIDU PhilBook Max
Intel Celeron J3355
106 Points ∼30% -32%
Jumper EZbook X3
Intel Celeron N3350
100 Points ∼29% -36%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points ∼27% -40%
Blender 2.79 / BMW27 CPU - BMW27 CPU
Jumper EZbook X3
Intel Celeron N3350
6277 Seconds * ∼100% -164%
XIDU PhilBook Max
Intel Celeron J3355
5811 Seconds * ∼93% -144%
Chuwi LapBook Plus
Intel Atom x7-E3950
4564 Seconds * ∼73% -92%
Intel NUC7CJYH
Intel Celeron J4005
4123.5 Seconds * ∼66% -73%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
4064 Seconds * ∼65% -71%
Chuwi GBox CWI560
Intel Celeron N4100
3527 Seconds * ∼56% -48%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
2380 Seconds * ∼38%
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
1814 Seconds * ∼29% +24%
7-Zip 18.03 / 7z b 4 -mmt1 - 7z b 4 -mmt1
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
3438 MIPS ∼100% +55%
Chuwi GBox CWI560
Intel Celeron N4100
2459 MIPS ∼72% +11%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
2456 MIPS ∼71% +11%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
2215 MIPS ∼64%
XIDU PhilBook Max
Intel Celeron J3355
1825 MIPS ∼53% -18%
Jumper EZbook X3
Intel Celeron N3350
1653 MIPS ∼48% -25%
Chuwi LapBook Plus
Intel Atom x7-E3950
1454 MIPS ∼42% -34%
7-Zip 18.03 / 7z b 4 - 7z b 4
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
8098 MIPS ∼100%
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
7921 MIPS ∼98% -2%
Chuwi GBox CWI560
Intel Celeron N4100
6608 MIPS ∼82% -18%
Chuwi LapBook Plus
Intel Atom x7-E3950
4569 MIPS ∼56% -44%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
4498 MIPS ∼56% -44%
XIDU PhilBook Max
Intel Celeron J3355
3541 MIPS ∼44% -56%
Jumper EZbook X3
Intel Celeron N3350
3267 MIPS ∼40% -60%
Geekbench 5.1 / 5.2 / 64 Bit Single-Core Score - 64 Bit Single-Core Score
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
1096 Points ∼100% +182%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
475 Points ∼43% +22%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
388 Points ∼35%
Jumper EZbook X3
Intel Celeron N3350
310 Points ∼28% -20%
Geekbench 5.1 / 5.2 / 64 Bit Multi-Core Score - 64 Bit Multi-Core Score
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
2028 Points ∼100% +44%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
1410 Points ∼70%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
858 Points ∼42% -39%
Jumper EZbook X3
Intel Celeron N3350
591 Points ∼29% -58%
HWBOT x265 Benchmark v2.2 / 4k Preset - 4k Preset
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
2.23 fps ∼100% +50%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
1.49 fps ∼67%
Chuwi LapBook Plus
Intel Atom x7-E3950
0.98 fps ∼44% -34%
Chuwi GBox CWI560
Intel Celeron N4100
0.974 fps ∼44% -35%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
0.92 fps ∼41% -38%
Intel NUC7CJYH
Intel Celeron J4005
0.88 fps ∼39% -41%
XIDU PhilBook Max
Intel Celeron J3355
0.7 fps ∼31% -53%
Jumper EZbook X3
Intel Celeron N3350
0.65 fps ∼29% -56%
LibreOffice / 20 Documents To PDF - 20 Documents To PDF
Jumper EZbook X3
Intel Celeron N3350
281 s ∼100% +87%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
150 s ∼53%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
139 s ∼49% -7%
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
97.8 s ∼35% -35%
R Benchmark 2.5 / Overall mean - Overall mean
Jumper EZbook X3
Intel Celeron N3350
2.21 sec * ∼100%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
1.511 sec * ∼68%
Apple MacBook Air 2020 i3
Intel Core i3-1000NG4
0.918 sec * ∼42%
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.1 / 5.2: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... Meglio usare valori piccoli

Cinebench R10 Rendering Multiple CPUs 32Bit
7426
Cinebench R10 Shading 32Bit
3259
Cinebench R10 Rendering Single 32Bit
2087
Cinebench R11.5 CPU Multi 64Bit
3.2 Points
Cinebench R11.5 OpenGL 64Bit
10.44 fps
Cinebench R11.5 CPU Single 64Bit
0.83 Points
Cinebench R15 CPU Single 64Bit
71.1 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
17.4 fps
Cinebench R15 CPU Multi 64Bit
263 Points
Aiuto
PCMark 10
Digital Content Creation
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4007 Points ∼31% +261%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
3296 Points ∼25% +197%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
2939 Points ∼23% +165%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
2917 Points ∼23% +163%
Intel NUC8i3CYSM
Radeon RX 540, i3-8121U, Seagate ST1000VT001
2902 Points ∼22% +161%
Lenovo ThinkCentre M90n-1 Nano IoT
UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ
1762 Points ∼14% +59%
Apple MacBook Air 2020 i3
Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256
1521 Points ∼12% +37%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
1110 Points ∼9%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
990 Points ∼8% -11%
Chuwi GBox CWI560
UHD Graphics 600, Celeron N4100, SanDisk DA4064
972 Points ∼8% -12%
Jumper EZbook X3
HD Graphics 500, Celeron N3350, 64 GB eMMC Flash
835 Points ∼6% -25%
Chuwi Lapbook 12.3
HD Graphics 500, Celeron N3450, 64 GB eMMC Flash
787 (784min - 789max) Points ∼6% -29%
Productivity
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
7236 Points ∼69% +144%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
6494 Points ∼62% +119%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
6481 Points ∼62% +118%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
6337 Points ∼61% +113%
Lenovo ThinkCentre M90n-1 Nano IoT
UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ
5689 Points ∼55% +92%
Intel NUC8i3CYSM
Radeon RX 540, i3-8121U, Seagate ST1000VT001
5302 Points ∼51% +79%
Apple MacBook Air 2020 i3
Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256
3620 Points ∼35% +22%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
3289 Points ∼32% +11%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
2969 Points ∼28%
Chuwi GBox CWI560
UHD Graphics 600, Celeron N4100, SanDisk DA4064
2883 Points ∼28% -3%
Chuwi Lapbook 12.3
HD Graphics 500, Celeron N3450, 64 GB eMMC Flash
2012 (1995min - 2022max) Points ∼19% -32%
Jumper EZbook X3
HD Graphics 500, Celeron N3350, 64 GB eMMC Flash
1885 Points ∼18% -37%
Essentials
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
8994 Points ∼79% +86%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
8551 Points ∼75% +77%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
8235 Points ∼72% +70%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
8051 Points ∼70% +66%
Lenovo ThinkCentre M90n-1 Nano IoT
UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ
7625 Points ∼67% +58%
Intel NUC8i3CYSM
Radeon RX 540, i3-8121U, Seagate ST1000VT001
5576 Points ∼49% +15%
Apple MacBook Air 2020 i3
Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256
5464 Points ∼48% +13%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
4837 Points ∼42%
Chuwi GBox CWI560
UHD Graphics 600, Celeron N4100, SanDisk DA4064
4418 Points ∼39% -9%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
4188 Points ∼37% -13%
Chuwi Lapbook 12.3
HD Graphics 500, Celeron N3450, 64 GB eMMC Flash
3486 (3484min - 3505max) Points ∼30% -28%
Jumper EZbook X3
HD Graphics 500, Celeron N3350, 64 GB eMMC Flash
2833 Points ∼25% -41%
Score
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4580 Points ∼56% +154%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
4019 Points ∼50% +123%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
3876 Points ∼48% +115%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
3837 Points ∼47% +113%
Intel NUC8i3CYSM
Radeon RX 540, i3-8121U, Seagate ST1000VT001
3161 Points ∼39% +75%
Lenovo ThinkCentre M90n-1 Nano IoT
UHD Graphics 620, i3-8145U, Samsung SSD PM981a MZVLB256HBHQ
3042 Points ∼38% +69%
Apple MacBook Air 2020 i3
Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256
2229 Points ∼27% +24%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
1803 Points ∼22%
Chuwi GBox CWI560
UHD Graphics 600, Celeron N4100, SanDisk DA4064
1658 Points ∼20% -8%
Chuwi Lapbook 12.3
HD Graphics 500, Celeron N3450, 64 GB eMMC Flash
1269 (1261min - 1270max) Points ∼16% -30%
Jumper EZbook X3
HD Graphics 500, Celeron N3350, 64 GB eMMC Flash
1179 Points ∼15% -35%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
1136 Points ∼14% -37%
PCMark 8
Work Score Accelerated v2
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
4286 Points ∼63% +34%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
3550 Points ∼52% +11%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
3191 Points ∼47%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
3188 Points ∼47% 0%
Chuwi Lapbook 12.3
HD Graphics 500, Celeron N3450, 64 GB eMMC Flash
2152 (2150min - 2152max) Points ∼32% -33%
Home Score Accelerated v2
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4674 Points ∼77% +130%
Zotac ZBOX-CI660 Nano
UHD Graphics 620, i5-8550U, OCZ Vertex OCZSSD2-1VTX120G
3594 Points ∼59% +77%
Intel NUC10i5FNK
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1
3526 Points ∼58% +73%
Apple MacBook Air 2020 i3
Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4, Apple SSD AP0256
2701 Points ∼44% +33%
Apple MacBook 12 (Early 2016) 1.1 GHz
HD Graphics 515, 6Y30, Apple SSD AP0256
2550 Points ∼42% +25%
Intel NUC7CJYH
UHD Graphics 600, Celeron J4005, SanDisk Ultra II
2084 Points ∼34% +2%
Chuwi GBox CWI560
UHD Graphics 600, Celeron N4100, SanDisk DA4064
2062 Points ∼34% +1%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
2036 Points ∼33%
Chuwi Lapbook 12.3
HD Graphics 500, Celeron N3450, 64 GB eMMC Flash
1461 (1450min - 1461max) Points ∼24% -28%
PCMark 8 Home Score Accelerated v2
2036 punti
PCMark 8 Work Score Accelerated v2
3191 punti
PCMark 10 Score
1803 punti
Aiuto
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaPad Flex 3 11IGL05
UHD Graphics 600, Celeron N4020, SanDisk DA4064
2421.3 μs * ∼100% -216%
Honor MagicBook 15
Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ
1343.1 μs * ∼55% -75%
Huawei MateBook 13 2020 AMD
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
993.2 μs * ∼41% -30%
Dell Latitude 7310
UHD Graphics 620, i7-10610U, Samsung SSD PM981a MZVLB512HBJQ
767.4 μs * ∼32% -0%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
765.6 μs * ∼32%

* ... Meglio usare valori piccoli

Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
Intel NUC10i5FNK
Kingston RBUSNS8154P3256GJ1
Lenovo ThinkCentre M90n-1 Nano
Samsung SSD PM981 MZVLB512HAJQ
Chuwi GBox CWI560
SanDisk DA4064
Intel NUC7CJYH
SanDisk Ultra II
AS SSD
930%
1586%
416%
Copy Game MB/s
104.73
471.17
350%
175.51
68%
Copy Program MB/s
92.56
328.85
255%
102.04
10%
Copy ISO MB/s
107.3
576.38
437%
197.01
84%
Score Total
142
1955
1277%
2716
1813%
1025
622%
Score Write
52
765
1371%
1305
2410%
268
415%
Score Read
61
808
1225%
942
1444%
498
716%
Access Time Write *
0.406
0.07
83%
0.032
92%
0.089
78%
Access Time Read *
0.254
0.11
57%
0.039
85%
0.115
55%
4K-64 Write
20.03
641.66
3103%
1073.77
5261%
174.58
772%
4K-64 Read
16.8
650.04
3769%
726.4
4224%
420.47
2403%
4K Write
21.59
61.35
184%
116.47
439%
47.43
120%
4K Read
15.22
26.44
74%
48.46
218%
26.98
77%
Seq Write
106.94
616
476%
1150.28
976%
464.8
335%
Seq Read
285.96
1318
361%
1668.47
483%
480.03
68%
CrystalDiskMark 5.2 / 6
826%
1692%
68%
286%
Write 4K
26.02
58.43
125%
130
400%
38
46%
61.13
135%
Read 4K
16.33
30.24
85%
45.61
179%
23.84
46%
31.99
96%
Write Seq
109.5
773
606%
226.7
107%
421.7
285%
Read Seq
334.3
711.9
113%
271.8
-19%
427.4
28%
Write 4K Q32T1
28.76
448.5
1459%
365.3
1170%
44.74
56%
97.02
237%
Read 4K Q32T1
17.41
391.4
2148%
350.2
1911%
53.16
205%
121.9
600%
Write Seq Q32T1
58.96
914.4
1451%
2985.9
4964%
129.4
119%
504.4
755%
Read Seq Q32T1
218.8
1583
623%
3564.9
1529%
189.4
-13%
551.4
152%
Write 4K Q8T8
402.3
368.7
183.1
Read 4K Q8T8
679.8
789.7
221.3
Media totale (Programma / Settaggio)
878% / 892%
1639% / 1623%
68% / 68%
351% / 369%

* ... Meglio usare valori piccoli

128 GB eMMC Flash
CDM 5/6 Read Seq Q32T1: 218.8 MB/s
CDM 5/6 Write Seq Q32T1: 58.96 MB/s
CDM 5/6 Read 4K Q32T1: 17.41 MB/s
CDM 5/6 Write 4K Q32T1: 28.76 MB/s
CDM 5 Read Seq: 334.3 MB/s
CDM 5 Write Seq: 109.5 MB/s
CDM 5/6 Read 4K: 16.33 MB/s
CDM 5/6 Write 4K: 26.02 MB/s

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350Tooltip
: Ø338 (279.97-340.32)
3DMark
1920x1080 Fire Strike Graphics
Intel NUC8i3CYSM
AMD Radeon RX 540, i3-8121U
3242 Points ∼100% +616%
Media Intel UHD Graphics 620
  (557 - 1418, n=195)
1152 Points ∼36% +154%
Apple MacBook Air 2020 i3
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4
922 Points ∼28% +104%
Lenovo ThinkCentre M90n-1 Nano IoT
Intel UHD Graphics 620, i3-8145U
863 Points ∼27% +91%
Chuwi LarkBox 4K Mini PC
Intel UHD Graphics 600, Celeron J4115
453 Points ∼14%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
448 Points ∼14% -1%
Lenovo IdeaPad Flex 3 11IGL05
Intel UHD Graphics 600, Celeron N4020
372 Points ∼11% -18%
Jumper EZbook X3
Intel HD Graphics 500, Celeron N3350
364 Points ∼11% -20%
XIDU PhilBook Max
Intel HD Graphics 500, Celeron J3355
311 Points ∼10% -31%
Chuwi Lapbook 12.3
Intel HD Graphics 500, Celeron N3450
310 (307min - 317max) Points ∼10% -32%
1280x720 Cloud Gate Standard Graphics
Intel NUC8i3CYSM
AMD Radeon RX 540, i3-8121U
18704 Points ∼100% +382%
Media Intel UHD Graphics 620
  (6910 - 11436, n=207)
9227 Points ∼49% +138%
Lenovo ThinkCentre M90n-1 Nano IoT
Intel UHD Graphics 620, i3-8145U
6971 Points ∼37% +80%
Chuwi LapBook Plus
Intel HD Graphics 505, x7-E3950
3997 Points ∼21% +3%
Chuwi LarkBox 4K Mini PC
Intel UHD Graphics 600, Celeron J4115
3882 Points ∼21%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
3513 Points ∼19% -10%
Chuwi Lapbook 12.3
Intel HD Graphics 500, Celeron N3450
2651 (2630min - 2661max) Points ∼14% -32%
1920x1080 Ice Storm Extreme Graphics
Media Intel UHD Graphics 620
  (29002 - 59483, n=65)
43433 Points ∼100% +162%
Chuwi LapBook Plus
Intel HD Graphics 505, x7-E3950
17895 Points ∼41% +8%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
16594 Points ∼38% 0%
Chuwi LarkBox 4K Mini PC
Intel UHD Graphics 600, Celeron J4115
16551 Points ∼38%
3DMark 11
1280x720 Performance Combined
Intel NUC8i3CYSM
AMD Radeon RX 540, i3-8121U
4334 Points ∼100% +608%
Media Intel UHD Graphics 620
  (959 - 2142, n=225)
1574 Points ∼36% +157%
Apple MacBook Air 2020 i3
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4
1352 Points ∼31% +121%
Chuwi LapBook Plus
Intel HD Graphics 505, x7-E3950
754 Points ∼17% +23%
Chuwi LarkBox 4K Mini PC
Intel UHD Graphics 600, Celeron J4115
612 Points ∼14%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
593 Points ∼14% -3%
Chuwi Lapbook 12.3
Intel HD Graphics 500, Celeron N3450
570 Points ∼13% -7%
Lenovo IdeaPad Flex 3 11IGL05
Intel UHD Graphics 600, Celeron N4020
501 Points ∼12% -18%
Chuwi GBox CWI560
Intel UHD Graphics 600, Celeron N4100
445 Points ∼10% -27%
Chuwi Hi10 Air
Intel HD Graphics (Cherry Trail), Z8350
318 Points ∼7% -48%
1280x720 Performance GPU
Intel NUC8i3CYSM
AMD Radeon RX 540, i3-8121U
4458 Points ∼100% +637%
Apple MacBook Air 2020 i3
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4
1941 Points ∼44% +221%
Media Intel UHD Graphics 620
  (1235 - 2006, n=225)
1743 Points ∼39% +188%
Chuwi LapBook Plus
Intel HD Graphics 505, x7-E3950
765 Points ∼17% +26%
Chuwi LarkBox 4K Mini PC
Intel UHD Graphics 600, Celeron J4115
605 Points ∼14%
Chuwi Lapbook 12.3
Intel HD Graphics 500, Celeron N3450
584 Points ∼13% -3%
Intel NUC7CJYH
Intel UHD Graphics 600, Celeron J4005
579 Points ∼13% -4%
Lenovo IdeaPad Flex 3 11IGL05
Intel UHD Graphics 600, Celeron N4020
532 Points ∼12% -12%
Chuwi GBox CWI560
Intel UHD Graphics 600, Celeron N4100
484 Points ∼11% -20%
Chuwi Hi10 Air
Intel HD Graphics (Cherry Trail), Z8350
278 Points ∼6% -54%
3DMark 06 Standard
4434 punti
3DMark 11 Performance
687 punti
3DMark Cloud Gate Standard Score
3516 punti
3DMark Fire Strike Score
420 punti
3DMark Time Spy Score
140 punti
Aiuto
basso medio alto ultra
Dota 2 Reborn (2015) 42.9 19.5 8.6 7.7 fps
X-Plane 11.11 (2018) 7.17 4.93 4.55 fps
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
Intel Skull Canyon NUC6i7KYK
Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
Dell XPS 13 9300 i5 FHD
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Toshiba XG6 KXG60ZNV512G
Intel Hades Canyon NUC8i7HVK
Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Noise
2%
-5%
8%
0%
off /ambiente *
26
28.7
-10%
29.5
-13%
29.3
-13%
28.7
-10%
Idle Minimum *
26
28.7
-10%
31.6
-22%
29.3
-13%
29
-12%
Idle Average *
26
29.3
-13%
32.2
-24%
29.3
-13%
29
-12%
Idle Maximum *
43.3
31.8
27%
32.3
25%
29.3
32%
29
33%
Load Average *
43.3
39
10%
43
1%
30
31%
36
17%
Load Maximum *
43.5
41.4
5%
43.2
1%
32.4
26%
49.4
-14%
Witcher 3 ultra *
39
42

* ... Meglio usare valori piccoli

Rumorosità

Idle
26 / 26 / 43.3 dB(A)
Sotto carico
43.3 / 43.5 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 26 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.631.634.336.32529.230.53231.23124.326.228.326.44024.122.823.423.65023.422.722.523.26324.224.323.924.98022.921.521.822.710024.720.31925.612521.417.617.922.316022.91715.921.520023.416.516.724.325023.816.215.224.631523.716.215.924.740024.316.315.224.650026.114.61426.863028.413.513.828.680031.713.513.331.6100032.413.413.132.4125038.412.713.237160030.812.813.532.4200031.213.213.130.8250031.613.213.231.7315029.713.513.729.7400029.413.913.929.85000321414.332.3630027.514.314.428.1800025.91414.326.21000018.81414.219.21250017.71514.517.41600016.715.715.517.2SPL43.525.92643.3N4.20.70.74.2median 26.1median 14median 14.3median 26.8Delta3.81.51.13.8hearing rangehide median Fan NoiseChuwi LarkBox 4K Mini PC
Consumo di corrente
Off / Standbydarklight 0.04 / 0.1 Watt
Idledarkmidlight 2.2 / 2.6 / 3 Watt
Sotto carico midlight 13.1 / 21.9 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Chuwi LarkBox 4K Mini PC
Celeron J4115, UHD Graphics 600, 128 GB eMMC Flash, , x,
Intel NUC10i5FNK
i5-10210U, UHD Graphics 620, Kingston RBUSNS8154P3256GJ1, , 0x0, 0
Lenovo ThinkCentre M90n-1 Nano
i5-8265U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, , x, 0
Chuwi GBox CWI560
Celeron N4100, UHD Graphics 600, SanDisk DA4064, , x,
Intel NUC7CJYH
Celeron J4005, UHD Graphics 600, SanDisk Ultra II, , 0x0, 0
Power Consumption
-336%
-93%
26%
-64%
Idle Minimum *
2.2
4.4
-100%
1.9
14%
3.9
-77%
Idle Average *
2.6
15.7
-504%
4.4
-69%
2
23%
4.5
-73%
Idle Maximum *
3
4.7
-57%
2.9
3%
8.4
-180%
Load Average *
13.1
27.7
-111%
8.6
34%
12.3
6%
Load Maximum *
21.9
58.6
-168%
49.9
-128%
9.5
57%
21.4
2%

* ... Meglio usare valori piccoli

Pro

+ Slot di espansione MicroSD e M.2 2242
+ 75 mm e 100 mm montabili
+ 6 GB di RAM dual-channel
+ design solido del telaio
+ molto efficiente dal punto di vista energetico
+ economico
+ minuscolo

Contro

- USB-C solo per l'alimentazione e non per altri dispositivi
- L'alimentatore è relativamente grande
- il rumore della ventola è forte e percepibile
- nessuna opzione CPU più veloce
- Problemi di latenza del DPC
- nessun ricevitore IR
Recensione del mini PC Chuwi LarkBox. Dispositivo di test fornito da Chuwi
Recensione del mini PC Chuwi LarkBox. Dispositivo di test fornito da Chuwi

Per oltre $150 USD, LarkBox ci ha sorpreso per il suo design pragmatico, la riproduzione video 4K e le molteplici opzioni di archiviazione, soprattutto considerando le dimensioni ridotte. Tuttavia, ci sono diversi modi per migliorare il dispositivo.

In primo luogo, il comportamento della ventola potrebbe essere migliore in quanto la sua tendenza a pulsare è evidente nel migliore dei casi e fastidiosa nel peggiore. In secondo luogo, l'alimentatore è piuttosto grande anche se assorbe appena 24 W al massimo. Integrare l'alimentatore sul LarkBox stesso o renderlo più piccolo sarebbe bello da vedere. E infine, non siamo contrari ad avere opzioni di processore più veloci anche se ciò significa pagare un po' di più. I carichi di lavoro come la riproduzione 4K possono essere fluidi, ma tentando il multi-tasking si avrà la sensazione di muoversi nella melassa. Il design in miniatura è abbastanza attraente e utile che le opzioni Core i3 o Ryzen 3 di fascia più alta attirerebbero certamente più occhi.

Pricecompare

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del Chuwi LarkBox Celeron J4115: un Mini PC 4K così piccolo che è più leggero del suo alimentatore.
Allen Ngo, 2020-07-24 (Update: 2020-07-24)
Allen Ngo
Editor of the original article: Allen Ngo - US Editor in Chief
