Recensione del Mini PC Prime Computer PrimeMini 5 i7 (Intel Provo Canyon NUC8v7PNB): Whiskey Lake a raffreddamento passivo per le imprese

Mini PC senza ventola. Dotato di un processore vPro Whiskey Lake vPro raffreddato passivamente e di buone opzioni di connettività, il Prime Computer PrimeMini 5 mira ad offrire una soluzione di desktop computing sostenibile, a bassa manutenzione e a lungo termine per le aziende. Anche se il PrimeMini 5 ha il potenziale per mantenere queste promesse, è dotato di alcuni compromessi sulle prestazioni che non dovrebbero essere trascurati.
Vaidyanathan Subramaniam, 👁 Klaus Hinum (traduzione a cura di G. De Luca), 🇺🇸 🇳🇱 ...
, , , , , ,
relazione di ricerca.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Prime Computer PrimeMini 5 i7 NUC8v7PNB
Processore
Intel Core i7-8665U 4 x 1.9 - 4.8 GHz, 16 W PL2 / Short Burst, 16 W PL1 / Sustained, Whiskey Lake-U, vPro
Scheda grafica
Intel UHD Graphics 620, Intel Graphics Driver DCH 27.20.100.9126
Memoria
16384 MB
, DDR4-2400 17-17-17-39, Dual-Channel SO-DIMM
Scheda madre
Intel Cannon Point-LP
Harddisk
Samsung SSD 860 Evo 256GB M.2, 256 GB
, 196 GB libera
Porte di connessione
1 USB 2.0, 3 USB 3.0 / 3.1, 1 Thunderbolt, 1 VGA, 2 HDMI, via Thunderbolt 3 DisplayPort, 2 RJ-45
Rete
Realtek USB GBE Familiy Controller (10/100/1000/2500/5000MBit/s), Intel Wireless-AC 9260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Dimensioni
altezza x larghezza x profondità (in mm): 55 x 177 x 114
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Altre caratteristiche
60 Mesi Garanzia, IP51 Rating, senza ventola
Peso
1.3 kg
Prezzo
1322 Euro
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Confronto con i concorrenti

Punteggio
Data
Modello
Peso
Altezza
Dimensione
Risoluzione
Miglior Prezzo
01/2021
Prime Computer PrimeMini 5 i7 NUC8v7PNB
i7-8665U, UHD Graphics 620
1.3 kg55 mmx
02/2020
Intel NUC10i7FNH
i7-10710U, UHD Graphics 620
697 gr51 mm0.00"0x0
11/2018
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655
683 gr51 mmx
06/2019
Intel NUC8i7BEH Asura NVMe SSD
i7-8559U, Iris Plus Graphics 655
683 gr51 mmx
12/2020
Beelink SEi10
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)
350 gr41 mmx
10/2020
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620
472 gr51 mmx
12/2019
Lenovo ThinkCentre M90n-1 Nano
i5-8265U, UHD Graphics 620
499 gr22 mm0.00"x
177 mm 114 mm 55 mm 1.3 kg179 mm 88 mm 22 mm 499 g128 mm 126 mm 51 mm 472 g117 mm 112 mm 51 mm 697 g115 mm 111 mm 51 mm 683 g124 mm 113 mm 41 mm 350 g
, , , , , ,
relazione di ricerca.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

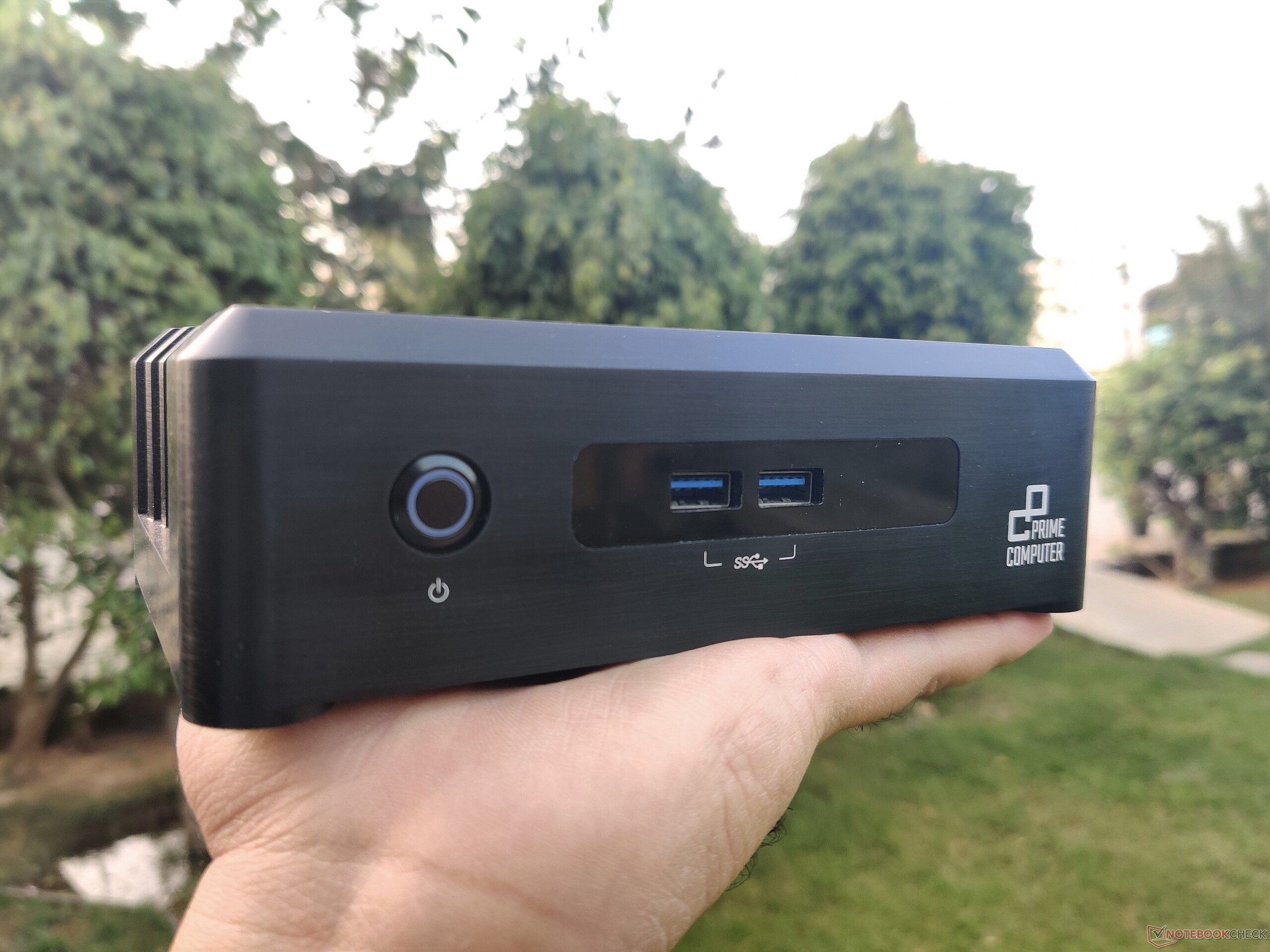

Davanti (da sinistra a destra): Alimentazione, 2x USB 3.1 Tipo A.
Davanti (da sinistra a destra): Alimentazione, 2x USB 3.1 Tipo A.
Lato Posteriore (da sinistra a destra): Porta antenna Wi-Fi, alimentazione, UHD protetto HDMI, VGA, 2x RJ-45, USB 3.1 Type-A, USB 2.0 Type-A, Thunderbolt 3, HDMI, porta antenna Wi-Fi.
Lato Posteriore (da sinistra a destra): Porta antenna Wi-Fi, alimentazione, UHD protetto HDMI, VGA, 2x RJ-45, USB 3.1 Type-A, USB 2.0 Type-A, Thunderbolt 3, HDMI, porta antenna Wi-Fi.
Fare riferimento alla scheda Intel Provo Canyon. (Fonte immagine: Simply NUC)
Fare riferimento alla scheda Intel Provo Canyon. (Fonte immagine: Simply NUC)
Networking
iperf3 Client (transmit) 1 m 4M x10 Netgear AX12
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Wireless-AC 9260
1210 (603min - 1247max) MBit/s ∼100%
Beelink SEi10
Intel Wi-Fi 6 AX201
742 (470min - 902max) MBit/s ∼61% -39%
Media della classe Desktop
  (172 - 1626, n=19, last 2 years)
651 MBit/s ∼54% -46%
Lenovo ThinkCentre M90n-1 Nano
Intel Wireless-AC 9560
604 MBit/s ∼50% -50%
Intel NUC8i7BE
Intel Wireless-AC 9560
553 MBit/s ∼46% -54%
iperf3 Client (receive) 1 m 4M x10 Netgear AX12
Beelink SEi10
Intel Wi-Fi 6 AX201
1212 (1060min - 1309max) MBit/s ∼100% +2%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Wireless-AC 9260
1186 (1167min - 1219max) MBit/s ∼98%
Media della classe Desktop
  (346 - 1524, n=19, last 2 years)
791 MBit/s ∼65% -33%
Lenovo ThinkCentre M90n-1 Nano
Intel Wireless-AC 9560
643 MBit/s ∼53% -46%
Intel NUC8i7BE
Intel Wireless-AC 9560
602 MBit/s ∼50% -49%
60365370375380385390395310031053110311531203Tooltip
; iperf3 Client (receive) 1 m 4M x10 Netgear AX12; iperf 3.1.3: Ø1186 (1167-1219)
; iperf3 Client (transmit) 1 m 4M x10 Netgear AX12; iperf 3.1.3: Ø1189 (603-1247)

04080120160200240280320360400440480520560600640680720760Tooltip
Prime Computer PrimeMini 5 i7 NUC8v7PNB Intel Core i7-8665U; CPU Multi 64Bit: Ø451 (440.42-458.07)
Beelink SEi10 Intel Core i3-1005G1; CPU Multi 64Bit: Ø405 (402.55-406.84)
Zotac ZBOX MI642 Nano Intel Core i5-10210U; CPU Multi 64Bit: Ø514 (504.41-521.83)
Lenovo ThinkCentre M90n-1 Nano Intel Core i5-8265U; CPU Multi 64Bit: Ø513 (491.14-523.79)
Dell Latitude 5500 Intel Core i7-8665U; CPU Multi 64Bit: Ø611 (599.53-729.94)
Lenovo ThinkPad X1 Carbon 2019-20QE000VGE Intel Core i7-8665U; CPU Multi 64Bit: Ø632 (574.56-701.36)
Dynabook Tecra X50-F Intel Core i7-8665U; CPU Multi 64Bit: Ø491 (471.7-499.81)
Intel NUC8i7BE Intel Core i7-8559U; CPU Multi 64Bit: Ø681 (671.37-798.44)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core)
Intel NUC10i7FNH
Intel Core i7-10710U
480 Points ∼100% +27%
Dell Latitude 5500
Intel Core i7-8665U
472 Points ∼98% +25%
Intel NUC8i7BE
Intel Core i7-8559U
466 Points ∼97% +23%
Media Intel Core i7-8665U
  (379 - 472, n=5)
427 Points ∼89% +13%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
418 Points ∼87% +10%
Media della classe Desktop
  (156 - 632, n=31, last 2 years)
412 Points ∼86% +9%
Beelink SEi10
Intel Core i3-1005G1
403 Points ∼84% +6%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
379 Points ∼79%
Cinebench R20 / CPU (Multi Core)
Intel NUC10i7FNH
Intel Core i7-10710U
2303 Points ∼100% +119%
Media della classe Desktop
  (304 - 5847, n=31, last 2 years)
2092 Points ∼91% +99%
Intel NUC8i7BE
Intel Core i7-8559U
1691 Points ∼73% +61%
Dell Latitude 5500
Intel Core i7-8665U
1530 Points ∼66% +46%
Media Intel Core i7-8665U
  (1050 - 1530, n=5)
1329 Points ∼58% +27%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1183 Points ∼51% +13%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
1050 Points ∼46%
Beelink SEi10
Intel Core i3-1005G1
848 Points ∼37% -19%
Cinebench R15 / CPU Single 64Bit
Dell Latitude 5500
Intel Core i7-8665U
199 Points ∼100% +29%
Intel NUC10i7FNH
Intel Core i7-10710U
194 Points ∼97% +26%
Intel NUC8i7BE
Intel Core i7-8559U
188 Points ∼94% +22%
Media Intel Core i7-8665U
  (143 - 199, n=7)
174 Points ∼87% +13%
Media della classe Desktop
  (71.1 - 256, n=31, last 2 years)
168 Points ∼84% +9%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
167 Points ∼84% +8%
Beelink SEi10
Intel Core i3-1005G1
158.02 Points ∼79% +3%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
154 Points ∼77%
Lenovo ThinkCentre M90n-1 Nano
Intel Core i5-8265U
148 Points ∼74% -4%
Cinebench R15 / CPU Multi 64Bit
Intel NUC10i7FNH
Intel Core i7-10710U
1067 Points ∼100% +133%
Media della classe Desktop
  (204 - 2397, n=33, last 2 years)
897 Points ∼84% +96%
Intel NUC8i7BE
Intel Core i7-8559U
798 (671.37min - 798.44max) Points ∼75% +74%
Dell Latitude 5500
Intel Core i7-8665U
688 (599.53min - 729.94max) Points ∼64% +50%
Media Intel Core i7-8665U
  (458 - 701, n=7)
612 Points ∼57% +34%
Lenovo ThinkCentre M90n-1 Nano
Intel Core i5-8265U
524 Points ∼49% +14%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
522 (504.41min - 521.83max) Points ∼49% +14%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
458 (440.42min - 458.07max) Points ∼43%
Beelink SEi10
Intel Core i3-1005G1
406.84 (402.55min - 406.84max) Points ∼38% -11%
Blender 2.79 / BMW27 CPU
Beelink SEi10
Intel Core i3-1005G1
1126 Seconds * ∼100% -15%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
977.6 Seconds * ∼87%
Media della classe Desktop
  (197 - 2845, n=30, last 2 years)
917 Seconds * ∼81% +6%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
892 Seconds * ∼79% +9%
Media Intel Core i7-8665U
  (716 - 978, n=4)
801 Seconds * ∼71% +18%
Dell Latitude 5500
Intel Core i7-8665U
740 Seconds * ∼66% +24%
Intel NUC8i7BE
Intel Core i7-8559U
682 Seconds * ∼61% +30%
Intel NUC8i7BE
Intel Core i7-8559U
650 Seconds * ∼58% +34%
Intel NUC10i7FNH
Intel Core i7-10710U
468.3 Seconds * ∼42% +52%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC8i7BE
Intel Core i7-8559U
6171 MIPS ∼100% +42%
Intel NUC8i7BE
Intel Core i7-8559U
4826 MIPS ∼78% +11%
Dell Latitude 5500
Intel Core i7-8665U
4988 MIPS ∼81% +15%
Intel NUC10i7FNH
Intel Core i7-10710U
4727 MIPS ∼77% +9%
Media Intel Core i7-8665U
  (4338 - 4988, n=4)
4684 MIPS ∼76% +8%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
4338 MIPS ∼70%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4303 MIPS ∼70% -1%
Media della classe Desktop
  (2215 - 6328, n=29, last 2 years)
4242 MIPS ∼69% -2%
Beelink SEi10
Intel Core i3-1005G1
4041 MIPS ∼65% -7%
7-Zip 18.03 / 7z b 4
Intel NUC8i7BE
Intel Core i7-8559U
30570 MIPS ∼100% +108%
Intel NUC8i7BE
Intel Core i7-8559U
22033 MIPS ∼72% +50%
Intel NUC10i7FNH
Intel Core i7-10710U
29948 MIPS ∼98% +104%
Media della classe Desktop
  (6136 - 61738, n=29, last 2 years)
24747 MIPS ∼81% +69%
Dell Latitude 5500
Intel Core i7-8665U
20015 MIPS ∼65% +36%
Media Intel Core i7-8665U
  (14665 - 20023, n=5)
18146 MIPS ∼59% +24%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
16971 MIPS ∼56% +16%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
14665 MIPS ∼48%
Beelink SEi10
Intel Core i3-1005G1
10536 MIPS ∼34% -28%
Geekbench 5.3 / 64 Bit Single-Core Score
Intel NUC10i7FNH
Intel Core i7-10710U
1229 Points ∼100% +18%
Media della classe Desktop
  (388 - 1784, n=30, last 2 years)
1180 Points ∼96% +14%
Beelink SEi10
Intel Core i3-1005G1
1118 Points ∼91% +8%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1111 Points ∼90% +7%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
1039 Points ∼85%
Media Intel Core i7-8665U

1039 Points ∼85% 0%
Intel NUC8i7BE
Intel Core i7-8559U
723 Points ∼59% -30%
Geekbench 5.3 / 64 Bit Multi-Core Score
Intel NUC10i7FNH
Intel Core i7-10710U
5839 Points ∼100% +119%
Media della classe Desktop
  (1239 - 10709, n=30, last 2 years)
4818 Points ∼83% +80%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
3877 Points ∼66% +45%
Intel NUC8i7BE
Intel Core i7-8559U
3660 Points ∼63% +37%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
2671 Points ∼46%
Media Intel Core i7-8665U

2671 Points ∼46% 0%
Beelink SEi10
Intel Core i3-1005G1
2153 Points ∼37% -19%
HWBOT x265 Benchmark v2.2 / 4k Preset
Intel NUC10i7FNH
Intel Core i7-10710U
7.95 fps ∼100% +108%
Media della classe Desktop
  (0.65 - 19.3, n=29, last 2 years)
6.52 fps ∼82% +71%
Intel NUC8i7BE
Intel Core i7-8559U
5.9 fps ∼74% +54%
Intel NUC8i7BE
Intel Core i7-8559U
5.523 fps ∼69% +45%
Dell Latitude 5500
Intel Core i7-8665U
5 fps ∼63% +31%
Media Intel Core i7-8665U
  (3.82 - 5.2, n=5)
4.54 fps ∼57% +19%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4.15 fps ∼52% +9%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
3.82 fps ∼48%
Beelink SEi10
Intel Core i3-1005G1
3.48 fps ∼44% -9%
LibreOffice / 20 Documents To PDF
Media della classe Desktop
  (41.7 - 367, n=28, last 2 years)
83.5 s * ∼100% -26%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
68.8 s * ∼82% -4%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
66.2 s * ∼79%
Media Intel Core i7-8665U

66.2 s * ∼79% -0%
Beelink SEi10
Intel Core i3-1005G1
55.8 s * ∼67% +16%
R Benchmark 2.5 / Overall mean
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel Core i7-8665U
0.876 sec * ∼100%
Media Intel Core i7-8665U

0.876 sec * ∼100% -0%
Media della classe Desktop
  (0.4891 - 1.885, n=28, last 2 years)
0.815 sec * ∼93% +7%
Beelink SEi10
Intel Core i3-1005G1
0.763 sec * ∼87% +13%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
0.695 sec * ∼79% +21%
Intel NUC10i7FNH
Intel Core i7-10710U
0.649 sec * ∼74% +26%
Intel NUC8i7BE
Intel Core i7-8559U
0.6275 sec * ∼72% +28%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit
458 Points
Cinebench R15 OpenGL 64Bit
47.8 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
154 Points
Aiuto
PCMark 10
Score
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4580 Points ∼52% +22%
Dell Latitude 5500
UHD Graphics 620, i7-8665U, Toshiba XG6 KXG60ZNV1T02
4515 Points ∼51% +20%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
4418 Points ∼50% +17%
Media della classe Desktop
  (1803 - 7281, n=26, last 2 years)
4238 Points ∼48% +13%
Media Intel Core i7-8665U, Intel UHD Graphics 620
  (3763 - 4515, n=7)
4070 Points ∼46% +8%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
3876 Points ∼44% +3%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3791 Points ∼43% +1%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
UHD Graphics 620, i7-8665U, Samsung SSD 860 Evo 256GB M.2
3763 Points ∼43%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
3420 Points ∼39% -9%
Essentials
Dell Latitude 5500
UHD Graphics 620, i7-8665U, Toshiba XG6 KXG60ZNV1T02
9790 Points ∼85% +21%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
9013 Points ∼78% +12%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
8994 Points ∼78% +11%
Media Intel Core i7-8665U, Intel UHD Graphics 620
  (8071 - 9790, n=7)
8758 Points ∼76% +9%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
8551 Points ∼74% +6%
Media della classe Desktop
  (4837 - 10422, n=26, last 2 years)
8172 Points ∼71% +1%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
UHD Graphics 620, i7-8665U, Samsung SSD 860 Evo 256GB M.2
8071 Points ∼70%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
7787 Points ∼68% -4%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
7766 Points ∼68% -4%
Productivity
Dell Latitude 5500
UHD Graphics 620, i7-8665U, Toshiba XG6 KXG60ZNV1T02
7281 Points ∼65% +9%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
7236 Points ∼65% +8%
Media Intel Core i7-8665U, Intel UHD Graphics 620
  (6506 - 7281, n=7)
6946 Points ∼62% +4%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
6876 Points ∼62% +3%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
UHD Graphics 620, i7-8665U, Samsung SSD 860 Evo 256GB M.2
6694 Points ∼60%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
6337 Points ∼57% -5%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
6333 Points ∼57% -5%
Media della classe Desktop
  (2948 - 10196, n=26, last 2 years)
6322 Points ∼57% -6%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
5353 Points ∼48% -20%
Digital Content Creation
Media della classe Desktop
  (1110 - 10492, n=26, last 2 years)
4194 Points ∼27% +57%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4007 Points ∼26% +50%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
3777 Points ∼24% +41%
Dell Latitude 5500
UHD Graphics 620, i7-8665U, Toshiba XG6 KXG60ZNV1T02
3506 Points ∼23% +31%
Media Intel Core i7-8665U, Intel UHD Graphics 620
  (2677 - 3506, n=7)
3016 Points ∼19% +13%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3000 Points ∼19% +12%
Lenovo ThinkCentre M90n-1 Nano
UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
2917 Points ∼19% +9%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
UHD Graphics 620, i7-8665U, Samsung SSD 860 Evo 256GB M.2
2677 Points ∼17%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
2614 Points ∼17% -2%
PCMark 8
Home Score Accelerated v2
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4674 Points ∼74% +26%
Dell Latitude 5500
UHD Graphics 620, i7-8665U, Toshiba XG6 KXG60ZNV1T02
3959 Points ∼63% +7%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
3938 Points ∼63% +6%
Media Intel Core i7-8665U, Intel UHD Graphics 620
  (3547 - 4211, n=6)
3799 Points ∼61% +3%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
UHD Graphics 620, i7-8665U, Samsung SSD 860 Evo 256GB M.2
3703 Points ∼59%
Media della classe Desktop
  (1928 - 4946, n=12, last 2 years)
3460 Points ∼55% -7%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3455 Points ∼55% -7%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
2900 Points ∼46% -22%
Work Score Accelerated v2
Media Intel Core i7-8665U, Intel UHD Graphics 620
  (4696 - 5195, n=5)
4902 Points ∼69% +2%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
4879 Points ∼69% +2%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
UHD Graphics 620, i7-8665U, Samsung SSD 860 Evo 256GB M.2
4783 Points ∼67%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
4631 Points ∼65% -3%
Media della classe Desktop
  (2575 - 5154, n=11, last 2 years)
4112 Points ∼58% -14%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
2575 Points ∼36% -46%
PCMark 8 Home Score Accelerated v2
3703 punti
PCMark 8 Work Score Accelerated v2
4783 punti
PCMark 10 Score
3763 punti
Aiuto
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1230.84 μs * ∼100% -90%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
UHD Graphics 620, i7-8665U, Samsung SSD 860 Evo 256GB M.2
647.2 μs * ∼53%

* ... Meglio usare valori piccoli

Prime Computer PrimeMini 5 i7 NUC8v7PNB
Samsung SSD 860 Evo 256GB M.2
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
Beelink SEi10
Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
Lenovo ThinkCentre M90n-1 Nano
Samsung SSD PM981 MZVLB512HAJQ
AS SSD
37%
-40%
-23%
108%
Seq Read
526.39
1306
148%
1110.96
111%
506.95
-4%
1668.47
217%
Seq Write
492.76
611
24%
323.54
-34%
413.77
-16%
1150.28
133%
4K Read
43.79
21.53
-51%
33.1
-24%
36.75
-16%
48.46
11%
4K Write
95.8
53.52
-44%
66.16
-31%
88.54
-8%
116.47
22%
4K-64 Read
372.16
651.73
75%
357.28
-4%
369.37
-1%
726.4
95%
4K-64 Write
331.76
647.56
95%
154.8
-53%
193.74
-42%
1073.77
224%
Access Time Read *
0.048
0.114
-138%
0.066
-38%
0.103
-115%
0.039
19%
Access Time Write *
0.104
0.07
33%
0.616
-492%
0.095
9%
0.032
69%
Score Read
469
804
71%
501
7%
457
-3%
942
101%
Score Write
477
762
60%
253
-47%
324
-32%
1305
174%
Score Total
1200
1944
62%
983
-18%
1023
-15%
2716
126%
Copy ISO MB/s
488.75
976.28
100%
1159.86
137%
482.52
-1%
Copy Program MB/s
377.53
346.04
-8%
121.07
-68%
191.93
-49%
Copy Game MB/s
383.93
734.57
91%
364.42
-5%
248.87
-35%
CrystalDiskMark 5.2 / 6
170%
117%
-3%
144%
Write 4K
113.7
442.4
289%
203
79%
105.9
-7%
130
14%
Read 4K
44.61
371.1
732%
63.23
42%
39.15
-12%
45.61
2%
Write Seq
408.1
900.2
121%
1114
173%
Read Seq
541
1582
192%
1765
226%
Write 4K Q32T1
318.8
373.8
17%
423.9
33%
320.5
1%
365.3
15%
Read 4K Q32T1
342.6
374.9
9%
389.2
14%
342.1
0%
350.2
2%
Write Seq Q32T1
517.2
893
73%
1104
113%
513.7
-1%
2985.9
477%
Read Seq Q32T1
559.3
1581.5
183%
1990
256%
554.3
-1%
3564.9
537%
Write 4K Q8T8
348.2
399.1
15%
330.8
-5%
368.7
6%
Read 4K Q8T8
396.9
687.9
73%
391.8
-1%
789.7
99%
Media totale (Programma / Settaggio)
104% / 93%
39% / 17%
-13% / -16%
126% / 123%

* ... Meglio usare valori piccoli

Throttling disco: DiskSpd Read Loop, Queue Depth 8

No graph data
3DMark 11
1280x720 Performance GPU
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
3081 Points ∼100% +79%
Dell Latitude 5500
Intel UHD Graphics 620, i7-8665U
2006 Points ∼65% +17%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
1983 Points ∼64% +15%
Media Intel UHD Graphics 620
  (1144 - 2006, n=241)
1742 Points ∼57% +1%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, i7-8665U
1717 Points ∼56%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
1684 Points ∼55% -2%
1280x720 Performance Combined
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
2583 Points ∼100% +61%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
2142 Points ∼83% +33%
Dell Latitude 5500
Intel UHD Graphics 620, i7-8665U
2084 Points ∼81% +30%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, i7-8665U
1608 Points ∼62%
Media Intel UHD Graphics 620
  (927 - 2142, n=241)
1573 Points ∼61% -2%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
1252 Points ∼48% -22%
3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
16698 Points ∼100% +77%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
11065 Points ∼66% +18%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, i5-10210U
10057 Points ∼60% +7%
Lenovo ThinkCentre M90n-1 Nano
Intel UHD Graphics 620, i5-8265U
9590 Points ∼57% +2%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, i7-8665U
9413 Points ∼56%
Media Intel UHD Graphics 620
  (6205 - 11437, n=222)
9232 Points ∼55% -2%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
7448 Points ∼45% -21%
1920x1080 Fire Strike Graphics
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
2260 Points ∼100% +84%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
1418 Points ∼63% +15%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, i5-10210U
1232 Points ∼55% 0%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, i7-8665U
1228 Points ∼54%
Lenovo ThinkCentre M90n-1 Nano
Intel UHD Graphics 620, i5-8265U
1183 Points ∼52% -4%
Media Intel UHD Graphics 620
  (557 - 1444, n=210)
1154 Points ∼51% -6%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
960 Points ∼42% -22%
2560x1440 Time Spy Graphics
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
633 Points ∼100% +68%
Intel NUC10i7FNH
Intel UHD Graphics 620, i7-10710U
443 Points ∼70% +18%
Media Intel UHD Graphics 620
  (299 - 760, n=85)
384 Points ∼61% +2%
Prime Computer PrimeMini 5 i7 NUC8v7PNB
Intel UHD Graphics 620, i7-8665U
377 Points ∼60%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
320 Points ∼51% -15%
3DMark 11 Performance
1912 punti
3DMark Cloud Gate Standard Score
8187 punti
3DMark Fire Strike Score
1111 punti
3DMark Time Spy Score
432 punti
Aiuto
basso medio alto ultra
Dota 2 Reborn (2015) 76 45.9 20.1 18 fps
Final Fantasy XV Benchmark (2018) 12.3 fps
X-Plane 11.11 (2018) 12.6 12.2 11 fps
Consumo di corrente
Off / Standbydarklight 1.01 / 2.2 Watt
Idledarkmidlight 6.19 / 11.16 / 30.04 Watt
Sotto carico midlight 33.1 / 39.38 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
Prime Computer PrimeMini 5 i7 NUC8v7PNB
i7-8665U, UHD Graphics 620, Samsung SSD 860 Evo 256GB M.2, , x,
Beelink SEi10
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU), Silicon Motion AZW 256G M.228 NVMe 4X 200725 D, , x,
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620, Western Digital WD Blue 3D WDBNCE5000PNC, , x,
Lenovo ThinkCentre M90n-1 Nano
i5-8265U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, , x, 0.00
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655, , , x,
Power Consumption
24%
-1%
33%
6%
Idle Minimum *
6.19
6.3
-2%
8.9
-44%
4.4
29%
2.7
56%
Idle Average *
11.16
6.6
41%
9
19%
4.4
61%
3.1
72%
Idle Maximum *
30.04
6.7
78%
9.9
67%
4.7
84%
6.3
79%
Load Average *
33.1
25.9
22%
33
-0%
27.7
16%
59.7
-80%
Load Maximum *
39.38
46.7
-19%
58
-47%
49.9
-27%
78
-98%
Witcher 3 ultra *
47.2

* ... Meglio usare valori piccoli

Pro

+ Costruzione durevole in alluminio
+ Opzioni di configurazione decenti
+ Buona selezione di porte
+ Velocità Wi-Fi consistente
+ Cinque anni di garanzia
+ Prestazioni silenziose senza ventola
+ Bassa latenza DPC
+ Prestazioni SSD SATA coerenti
+ Temperature di superficie gestibili sotto stress

Contro

- Nessun accessorio di montaggio VESA nella confezione
- Nessun lettore di schede SD, jack audio da 3,5 mm e porta IR
- Ancora Whiskey Lake
- Nessun Wi-Fi 6
- PL1/PL2 limitato a 16 W per impostazione predefinita
- Throttling sotto stress
- Prestazioni della CPU inferiori alla maggior parte degli altri dispositivi Core i7-8665U
- Consumo energetico leggermente superiore in idle
PrimeMini 5. Unità di test fornita da Prime Computer AG, Svizzera.
PrimeMini 5. Unità di test fornita da Prime Computer AG, Svizzera.

Con scelte di configurazione fino al Core i7-8665U vPro, fino a 32 GB di RAM e una combinazione di storage NVMe e SATA, il PrimeMini 5 ha molto da offrire alle aziende che richiedono una soluzione informatica robusta che può essere implementata con il minimo sforzo. La costruzione interamente in alluminio conferisce al dispositivo un aspetto di qualità superiore, offrendo al contempo una protezione IP51 per tenere lontana la polvere.

Le opzioni di connettività sono buone, e gli acquirenti saranno lieti di sapere che Prime Computer permette anche di aggiungere alcune porte aggiuntive oltre a quanto già offerto dalla scheda Intel NUC8 Provo Canyon Pro.

Il PrimeMini 5 piacerà alle imprese che cercano una semplice amministrazione IT e un supporto prodotto di lunga durata, e a coloro che non si preoccupano di una piattaforma di vecchia generazione, a patto che offra un costo totale di gestione complessivamente basso. Non si tratta sicuramente di un mini PC destinato agli intenditori delle prestazioni.

C'è comunque ancora spazio per migliorare. Per il prezzo richiesto, vorremmo vedere più accessori nella confezione, come ad esempio una piastra di montaggio VESA. Anche se è possibile aggiungere ulteriori periferiche tramite dock USB, sarebbe stata gradita la presenza di uno slot per schede SD, jack audio da 3,5 mm e uno slot Kensington. Alcuni utenti potrebbero anche sentire la necessità di una porta IR e di un'autenticazione biometrica.

Dal punto di vista dell'elaborazione, le prestazioni complessive dovrebbero essere appena sufficienti a soddisfare il normale lavoro d'ufficio, come l'elaborazione di testi, i fogli di calcolo di base e le presentazioni. Il chip raffreddato passivamente e limitato al TDP significa che c'è solo una quantità di prestazioni che può essere ottenuta dalla macchina prima di raggiungere le soglie di strozzamento. Detto questo, un limite di potenza leggermente più alto può essere utile per quella spinta occasionale.

Pricecompare

Vaidyanathan Subramaniam
Editor of the original article: Vaidyanathan Subramaniam - Managing Editor - 1500 articles published on Notebookcheck since 2012
contact me via: @Geeky_Vaidy
Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del Mini PC Prime Computer PrimeMini 5 i7 (Intel Provo Canyon NUC8v7PNB): Whiskey Lake a raffreddamento passivo per le imprese
Vaidyanathan Subramaniam, 2021-01-25 (Update: 2021-01-25)
