Recensione del Mini PC GMK NucBox 2: Prezzo ragionevole con buona possibilità di aggiornamento

Alternativa Intel NUC. Il GMK utilizza la stessa CPU Intel di 8a generazione del MacBook Pro 13 del 2018 e costa meno di 500 dollari al dettaglio. La qualità costruttiva e le impressioni sulle prestazioni sono buone anche se mancano alcune caratteristiche.
Allen Ngo, 👁 Allen Ngo (traduzione a cura di G. De Luca), 🇺🇸 🇷🇺 ...
GMK NucBox 2
Processore
Intel Core i5-8259U 4 x 2.3 - 3.8 GHz, 28 W PL2 / Short Burst, 28 W PL1 / Sustained, Coffee Lake-U
Scheda grafica
Intel Iris Plus Graphics 655, Core: 1050 MHz, Memoria: 1200 MHz, DDR4, 27.20.100.9316
Memoria
8192 MB
, DDR4-2666, 19-19-19-43, Single-Channel
Scheda madre
Intel Cannon Lake-U PCH-LP Premium
Harddisk
Netac S930E8/256GPN
Scheda audio
Intel Cannon Lake-LP - cAVS
Porte di connessione
4 USB 3.0 / 3.1, 1 USB 3.1 Gen 2, 2 HDMI, Connessioni Audio: 3.5 mm earphones, Lettore schede: MicroSD
Rete
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Dimensioni
altezza x larghezza x profondità (in mm): 50 x 125 x 110
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Altre caratteristiche
12 Mesi Garanzia
Peso
430 gr, Alimentazione: 291 gr
Prezzo
500 USD
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Confronto con i potenziali concorrenti

Punteggio
Data
Modello
Peso
Altezza
Dimensione
Risoluzione
Miglior Prezzo
03/2021
GMK NucBox 2
i5-8259U, Iris Plus Graphics 655
430 gr50 mmx
02/2021
Intel NUC11PAQi7
i7-1165G7, Iris Xe G7 96EUs
647 gr56 mmx
11/2018
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655
683 gr51 mmx
09/2020
GMK NucBox K1
Celeron J4125, UHD Graphics 600
130 gr42 mmx
12/2020
Beelink SEi10
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU)
350 gr41 mmx
07/2020
Zotac ZBox MI643
i5-10210U, UHD Graphics 620
550 gr28.5 mmx
149.5 mm 149.5 mm 28.5 mm 550 g125 mm 110 mm 50 mm 430 g117 mm 112 mm 56 mm 647 g115 mm 111 mm 51 mm 683 g124 mm 113 mm 41 mm 350 g62 mm 62 mm 42 mm 130 g
Parte anteriore: Pulsante di accensione, cuffie da 3,5 mm, USB-C 3.2 Gen. 2, 2x USB-A 3.0
Parte anteriore: Pulsante di accensione, cuffie da 3,5 mm, USB-C 3.2 Gen. 2, 2x USB-A 3.0
A destra: Lettore MicroSD
A destra: Lettore MicroSD

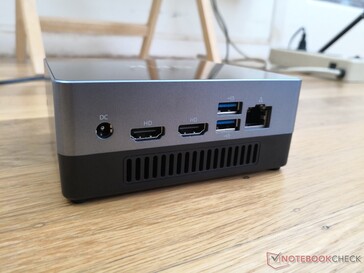

Lato Posteriore: Porta adattatore AC, 2x HDMI 2.0, 2x USB-A 3.0, Gigabit RJ-45
Lato Posteriore: Porta adattatore AC, 2x HDMI 2.0, 2x USB-A 3.0, Gigabit RJ-45
A sinistra: nessuna porta
A sinistra: nessuna porta
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Intel NUC11PAQi7
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
189.6 MB/s ∼100% +575%
Intel NUC8i7BE
  (Toshiba Exceria Pro M501 UHS-II)
69 MB/s ∼36% +146%
GMK NucBox K1
  (Toshiba Exceria Pro M501 UHS-)
47.1 MB/s ∼25% +68%
Zotac ZBox MI643
  (Toshiba Exceria Pro M501 UHS-II)
34.2 MB/s ∼18% +22%
GMK NucBox 2
  (Toshiba Exceria Pro M501 UHS-II)
28.1 MB/s ∼15%
Beelink SEi10
  (Toshiba Exceria Pro M501 UHS-II)
22.93 MB/s ∼12% -18%
maximum AS SSD Seq Read Test (1GB)
Intel NUC11PAQi7
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
200.9 MB/s ∼100% +864%
Intel NUC8i7BE
  (Toshiba Exceria Pro M501 UHS-II)
85 MB/s ∼42% +308%
GMK NucBox K1
  (Toshiba Exceria Pro M501 UHS-)
84.3 MB/s ∼42% +305%
Zotac ZBox MI643
  (Toshiba Exceria Pro M501 UHS-II)
38 MB/s ∼19% +82%
Beelink SEi10
  (Toshiba Exceria Pro M501 UHS-II)
29.29 MB/s ∼15% +41%
GMK NucBox 2
  (Toshiba Exceria Pro M501 UHS-II)
20.84 MB/s ∼10%
Networking
iperf3 Client (transmit) 1 m 4M x10 Netgear AX12
Beelink SEi10
Intel Wi-Fi 6 AX201
742 (470min - 902max) MBit/s ∼100% +93%
Intel NUC8i7BE
Intel Wireless-AC 9560
553 MBit/s ∼75% +44%
Intel NUC11PAQi7
Intel Wi-Fi 6 AX201
546 (369min - 618max) MBit/s ∼74% +42%
GMK NucBox 2
Intel Dual Band Wireless-AC 7265
385 (299min - 426max) MBit/s ∼52%
Zotac ZBox MI643
Wireless AC-9461
345 (257min - 397max) MBit/s ∼46% -10%
GMK NucBox K1
Intel Dual Band Wireless-AC 7265
172 (126min - 188max) MBit/s ∼23% -55%
iperf3 Client (receive) 1 m 4M x10 Netgear AX12
Beelink SEi10
Intel Wi-Fi 6 AX201
1212 (1060min - 1309max) MBit/s ∼100% +94%
Intel NUC11PAQi7
Intel Wi-Fi 6 AX201
862 (809min - 916max) MBit/s ∼71% +38%
GMK NucBox 2
Intel Dual Band Wireless-AC 7265
625 (346min - 678max) MBit/s ∼52%
Intel NUC8i7BE
Intel Wireless-AC 9560
602 MBit/s ∼50% -4%
GMK NucBox K1
Intel Dual Band Wireless-AC 7265
441 (403min - 464max) MBit/s ∼36% -29%
Zotac ZBox MI643
Wireless AC-9461
360 (180min - 365max) MBit/s ∼30% -42%
050100150200250300350400450500550600650Tooltip
; iperf3 Client (receive) 1 m 4M x10 Netgear AX12; iperf 3.1.3: Ø625 (346-678)
; iperf3 Client (transmit) 1 m 4M x10 Netgear AX12; iperf 3.1.3: Ø385 (299-426)
04080120160200240280320360400440480520560600640680720760Tooltip
GMK NucBox 2 Intel Core i5-8259U; CPU Multi 64Bit: Ø612 (608.07-614.94)
Apple MacBook Pro 13 2018 Touchbar i5 Intel Core i5-8259U; CPU Multi 64Bit; macOS Software Update: Ø688 (666.16-693.55)
Apple MacBook Pro 13 2018 Touchbar i5 Intel Core i5-8259U; CPU Multi 64Bit; macOS: Ø579 (560-607)
Intel NUC8i7BE Intel Core i7-8559U; CPU Multi 64Bit: Ø681 (671.37-798.44)
Lenovo Yoga C930-13IKB Intel Core i5-8250U; CPU Multi 64Bit: Ø484 (468.03-611.66)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R15 / CPU Multi 64Bit
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1240 Points ∼100% +102%
Intel NUC11PAQi7
Intel Core i7-1165G7
986 (962.77min - 985.76max) Points ∼80% +60%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
872 Points ∼70% +42%
Intel NUC8i7BE
Intel Core i7-8559U
798 (671.37min - 798.44max) Points ∼64% +30%
GPD Win 3
Intel Core i5-1135G7
722 (710.19min - 722.13max) Points ∼58% +17%
Media Intel Core i5-8259U
  (575 - 687, n=6)
620 Points ∼50% +1%
GMK NucBox 2
Intel Core i5-8259U
615 (608.07min - 614.94max) Points ∼50%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
613 Points ∼49% 0%
Zotac ZBox MI643
Intel Core i5-10210U
524 (518.69min - 524.21max) Points ∼42% -15%
Beelink SEi10
Intel Core i3-1005G1
406.8 (402.55min - 406.84max) Points ∼33% -34%
GMK NucBox K1
Intel Celeron J4125
243 (199.13min - 242.53max) Points ∼20% -60%
Chuwi LarkBook CWI509
Intel Celeron N4120
224 (216.74min - 224.4max) Points ∼18% -64%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30
218 Points ∼18% -65%
Cinebench R15 / CPU Single 64Bit
Intel NUC11PAQi7
Intel Core i7-1165G7
230 Points ∼100% +52%
GPD Win 3
Intel Core i5-1135G7
200 Points ∼87% +32%
Intel NUC8i7BE
Intel Core i7-8559U
188 Points ∼82% +25%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
178 Points ∼77% +18%
Zotac ZBox MI643
Intel Core i5-10210U
173 Points ∼75% +15%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
173 Points ∼75% +15%
Beelink SEi10
Intel Core i3-1005G1
158 Points ∼69% +5%
GMK NucBox 2
Intel Core i5-8259U
151 Points ∼66%
Media Intel Core i5-8259U
  (132 - 154, n=5)
147.3 Points ∼64% -2%
Lenovo Yoga C930-13IKB
Intel Core i5-8250U
145 Points ∼63% -4%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30
91 Points ∼40% -40%
Apple MacBook 12 (Early 2016) 1.1 GHz
Intel Core m3-6Y30
90 Points ∼39% -40%
GMK NucBox K1
Intel Celeron J4125
75.3 Points ∼33% -50%
Chuwi LarkBook CWI509
Intel Celeron N4120
73.2 Points ∼32% -52%
Cinebench R20 / CPU (Multi Core)
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
3095 Points ∼100% +116%
Intel NUC11PAQi7
Intel Core i7-1165G7
2657 Points ∼86% +86%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
2016 Points ∼65% +41%
GPD Win 3
Intel Core i5-1135G7
1842 Points ∼60% +29%
Intel NUC8i7BE
Intel Core i7-8559U
1691 Points ∼55% +18%
Media Intel Core i5-8259U
  (1385 - 1512, n=4)
1450 Points ∼47% +1%
GMK NucBox 2
Intel Core i5-8259U
1432 Points ∼46%
Zotac ZBox MI643
Intel Core i5-10210U
1191 Points ∼38% -17%
Beelink SEi10
Intel Core i3-1005G1
848 Points ∼27% -41%
Chuwi LarkBook CWI509
Intel Celeron N4120
490 Points ∼16% -66%
GMK NucBox K1
Intel Celeron J4125
304 Points ∼10% -79%
Cinebench R20 / CPU (Single Core)
Intel NUC11PAQi7
Intel Core i7-1165G7
582 Points ∼100% +52%
GPD Win 3
Intel Core i5-1135G7
522 Points ∼90% +37%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
473 Points ∼81% +24%
Intel NUC8i7BE
Intel Core i7-8559U
466 Points ∼80% +22%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
449 Points ∼77% +18%
Zotac ZBox MI643
Intel Core i5-10210U
413 Points ∼71% +8%
Beelink SEi10
Intel Core i3-1005G1
403 Points ∼69% +5%
GMK NucBox 2
Intel Core i5-8259U
382 Points ∼66%
Media Intel Core i5-8259U
  (369 - 386, n=4)
380 Points ∼65% -1%
Chuwi LarkBook CWI509
Intel Celeron N4120
166 Points ∼29% -57%
GMK NucBox K1
Intel Celeron J4125
161 Points ∼28% -58%
Blender 2.79 / BMW27 CPU
GMK NucBox K1
Intel Celeron J4125
2391 Seconds * ∼100% -217%
Beelink SEi10
Intel Core i3-1005G1
1126 Seconds * ∼47% -49%
Zotac ZBox MI643
Intel Core i5-10210U
884 Seconds * ∼37% -17%
GMK NucBox 2
Intel Core i5-8259U
755 Seconds * ∼32%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
748 Seconds * ∼31% +1%
Media Intel Core i5-8259U
  (699 - 769, n=5)
739 Seconds * ∼31% +2%
Intel NUC8i7BE
Intel Core i7-8559U
682 Seconds * ∼29% +10%
Intel NUC8i7BE
Intel Core i7-8559U
650 Seconds * ∼27% +14%
GPD Win 3
Intel Core i5-1135G7
648 Seconds * ∼27% +14%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
479 Seconds * ∼20% +37%
Intel NUC11PAQi7
Intel Core i7-1165G7
468 Seconds * ∼20% +38%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC8i7BE
Intel Core i7-8559U
6171 MIPS ∼100% +56%
Intel NUC8i7BE
Intel Core i7-8559U
4826 MIPS ∼78% +22%
Intel NUC11PAQi7
Intel Core i7-1165G7
5405 MIPS ∼88% +37%
GPD Win 3
Intel Core i5-1135G7
4761 MIPS ∼77% +21%
Zotac ZBox MI643
Intel Core i5-10210U
4467 MIPS ∼72% +13%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
4362 MIPS ∼71% +10%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
4338 MIPS ∼70% +10%
Beelink SEi10
Intel Core i3-1005G1
4041 MIPS ∼65% +2%
Media Intel Core i5-8259U
  (3951 - 4022, n=5)
3988 MIPS ∼65% +1%
GMK NucBox 2
Intel Core i5-8259U
3951 MIPS ∼64%
GMK NucBox K1
Intel Celeron J4125
2361 MIPS ∼38% -40%
Chuwi LarkBook CWI509
Intel Celeron N4120
2279 MIPS ∼37% -42%
7-Zip 18.03 / 7z b 4
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
33282 MIPS ∼100% +77%
Intel NUC8i7BE
Intel Core i7-8559U
30570 MIPS ∼92% +63%
Intel NUC8i7BE
Intel Core i7-8559U
22033 MIPS ∼66% +17%
Intel NUC11PAQi7
Intel Core i7-1165G7
27203 MIPS ∼82% +45%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
24101 MIPS ∼72% +28%
GPD Win 3
Intel Core i5-1135G7
21683 MIPS ∼65% +15%
Media Intel Core i5-8259U
  (17799 - 28824, n=5)
21188 MIPS ∼64% +13%
GMK NucBox 2
Intel Core i5-8259U
18802 MIPS ∼56%
Zotac ZBox MI643
Intel Core i5-10210U
16799 MIPS ∼50% -11%
Beelink SEi10
Intel Core i3-1005G1
10536 MIPS ∼32% -44%
GMK NucBox K1
Intel Celeron J4125
7494 MIPS ∼23% -60%
Chuwi LarkBook CWI509
Intel Celeron N4120
7184 MIPS ∼22% -62%
Geekbench 5.3 / 64 Bit Single-Core Score
Intel NUC11PAQi7
Intel Core i7-1165G7
1559 Points ∼100% +58%
GPD Win 3
Intel Core i5-1135G7
1417 Points ∼91% +44%
Zotac ZBox MI643
Intel Core i5-10210U
1133 Points ∼73% +15%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1121 Points ∼72% +14%
Beelink SEi10
Intel Core i3-1005G1
1118 Points ∼72% +14%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
1108 Points ∼71% +13%
GMK NucBox 2
Intel Core i5-8259U
984 Points ∼63%
Media Intel Core i5-8259U
  (951 - 984, n=2)
968 Points ∼62% -2%
Intel NUC8i7BE
Intel Core i7-8559U
723 Points ∼46% -27%
Chuwi LarkBook CWI509
Intel Celeron N4120
439 Points ∼28% -55%
GMK NucBox K1
Intel Celeron J4125
435 Points ∼28% -56%
Geekbench 5.3 / 64 Bit Multi-Core Score
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
6243 Points ∼100% +86%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
5091 Points ∼82% +52%
Intel NUC11PAQi7
Intel Core i7-1165G7
4975 Points ∼80% +48%
GPD Win 3
Intel Core i5-1135G7
4924 Points ∼79% +47%
Zotac ZBox MI643
Intel Core i5-10210U
3975 Points ∼64% +18%
Intel NUC8i7BE
Intel Core i7-8559U
3660 Points ∼59% +9%
Media Intel Core i5-8259U
  (3359 - 3607, n=2)
3483 Points ∼56% +4%
GMK NucBox 2
Intel Core i5-8259U
3359 Points ∼54%
Beelink SEi10
Intel Core i3-1005G1
2153 Points ∼34% -36%
Chuwi LarkBook CWI509
Intel Celeron N4120
1505 Points ∼24% -55%
GMK NucBox K1
Intel Celeron J4125
1394 Points ∼22% -58%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
9.18 fps ∼100% +71%
Intel NUC11PAQi7
Intel Core i7-1165G7
8.47 fps ∼92% +58%
GPD Win 3
Intel Core i5-1135G7
6.17 fps ∼67% +15%
Intel NUC8i7BE
Intel Core i7-8559U
5.9 fps ∼64% +10%
Intel NUC8i7BE
Intel Core i7-8559U
5.523 fps ∼60% +3%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
5.86 fps ∼64% +9%
GMK NucBox 2
Intel Core i5-8259U
5.37 fps ∼58%
Media Intel Core i5-8259U
  (4.72 - 5.42, n=5)
5.13 fps ∼56% -4%
Zotac ZBox MI643
Intel Core i5-10210U
4.23 fps ∼46% -21%
Beelink SEi10
Intel Core i3-1005G1
3.48 fps ∼38% -35%
GMK NucBox K1
Intel Celeron J4125
1.46 fps ∼16% -73%
Chuwi LarkBook CWI509
Intel Celeron N4120
1.31 fps ∼14% -76%
LibreOffice / 20 Documents To PDF
Chuwi LarkBook CWI509
Intel Celeron N4120
131 s * ∼100% -106%
GMK NucBox K1
Intel Celeron J4125
124 s * ∼95% -95%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
72 s * ∼55% -13%
Media Intel Core i5-8259U
  (63.6 - 76, n=4)
71.2 s * ∼54% -12%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
67.3 s * ∼51% -6%
GMK NucBox 2
Intel Core i5-8259U
63.6 s * ∼49%
Zotac ZBox MI643
Intel Core i5-10210U
57 s * ∼44% +10%
Beelink SEi10
Intel Core i3-1005G1
55.8 s * ∼43% +12%
GPD Win 3
Intel Core i5-1135G7
48.7 s * ∼37% +23%
Intel NUC11PAQi7
Intel Core i7-1165G7
42.2 s * ∼32% +34%
R Benchmark 2.5 / Overall mean
Chuwi LarkBook CWI509
Intel Celeron N4120
1.642 sec * ∼100% -109%
GMK NucBox K1
Intel Celeron J4125
1.577 sec * ∼96% -101%
GMK NucBox 2
Intel Core i5-8259U
0.786 sec * ∼48%
Media Intel Core i5-8259U
  (0.738 - 0.806, n=4)
0.769 sec * ∼47% +2%
Beelink SEi10
Intel Core i3-1005G1
0.763 sec * ∼46% +3%
Zotac ZBox MI643
Intel Core i5-10210U
0.658 sec * ∼40% +16%
GPD Win 3
Intel Core i5-1135G7
0.637 sec * ∼39% +19%
Intel NUC8i7BE
Intel Core i7-8559U
0.6275 sec * ∼38% +20%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
0.616 sec * ∼38% +22%
HP Envy x360 15-ee0257ng
AMD Ryzen 5 4500U
0.614 sec * ∼37% +22%
Intel NUC11PAQi7
Intel Core i7-1165G7
0.553 sec * ∼34% +30%
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit
615 Points
Cinebench R15 OpenGL 64Bit
66.4 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
151 Points
Aiuto
PCMark 10
Score
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
5158 Points ∼58% +25%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4580 Points ∼51% +11%
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
4244 Points ∼48% +3%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
4132 Points ∼46%
Media Intel Core i5-8259U, Intel Iris Plus Graphics 655
  (3284 - 4132, n=5)
3831 Points ∼43% -7%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
3420 Points ∼38% -17%
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
1831 Points ∼21% -56%
Essentials
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
10258 Points ∼88% +23%
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
9510 Points ∼82% +14%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
8994 Points ∼77% +8%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
8351 Points ∼72%
Media Intel Core i5-8259U, Intel Iris Plus Graphics 655
  (7364 - 8351, n=5)
7883 Points ∼68% -6%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
7766 Points ∼67% -7%
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
4900 Points ∼42% -41%
Productivity
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
7236 Points ∼65% +14%
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
7136 Points ∼64% +12%
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
6975 Points ∼62% +10%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
6348 Points ∼57%
Media Intel Core i5-8259U, Intel Iris Plus Graphics 655
  (4390 - 6400, n=5)
5827 Points ∼52% -8%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
5353 Points ∼48% -16%
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
2948 Points ∼26% -54%
Digital Content Creation
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
5087 Points ∼32% +41%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4007 Points ∼26% +11%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
3613 Points ∼23%
Media Intel Core i5-8259U, Intel Iris Plus Graphics 655
  (2679 - 3884, n=5)
3348 Points ∼21% -7%
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
3128 Points ∼20% -13%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
2614 Points ∼17% -28%
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
1155 Points ∼7% -68%
PCMark 10 Score
4132 punti
Aiuto
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
1717 μs * ∼100% -118%
Beelink SEi10
UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Silicon Motion AZW 256G M.228 NVMe 4X 200725 D
1231 μs * ∼72% -57%
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
786 μs * ∼46%
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
745 μs * ∼43% +5%
Intel NUC11PAQi7
Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
568 μs * ∼33% +28%

* ... Meglio usare valori piccoli

GMK NucBox 2
Netac S930E8/256GPN
Intel NUC11PAQi7
Samsung SSD 980 Pro 500GB MZ-V8P500BW
Zotac ZBox MI643
Lexar NM610 1TB
GPD Win 3
BIWIN NS200 1TB CNF82GS1G02-1TB
AS SSD
209%
45%
99%
Seq Read
2069
3257
57%
1511
-27%
1585
-23%
Seq Write
1203
3937
227%
1558
30%
1776
48%
4K Read
41.66
51.3
23%
43.77
5%
61.6
48%
4K Write
136.9
75.7
-45%
119.5
-13%
208.9
53%
4K-64 Read
366.3
2283
523%
839
129%
1142
212%
4K-64 Write
340.5
2206
548%
909
167%
1103
224%
Access Time Read *
0.064
0.056
12%
0.032
50%
0.03
53%
Access Time Write *
0.347
0.154
56%
0.242
30%
0.074
79%
Score Read
615
2660
333%
1034
68%
1362
121%
Score Write
598
2676
347%
1185
98%
1489
149%
Score Total
1497
6725
349%
2760
84%
3573
139%
Copy ISO MB/s
1186
2030
71%
1373
16%
1741
47%
Copy Program MB/s
428.6
883
106%
280.4
-35%
543
27%
Copy Game MB/s
435.7
1817
317%
531
22%
1318
203%
CrystalDiskMark 5.2 / 6
153%
9%
39%
Write 4K
178.4
244.6
37%
214.1
20%
223
25%
Read 4K
61
80.4
32%
62.1
2%
66.5
9%
Write Seq
1040
4094
294%
1664
60%
1857
79%
Read Seq
1919
4099
114%
1797
-6%
1737
-9%
Write 4K Q32T1
417.7
715
71%
421.8
1%
611
46%
Read 4K Q32T1
325.6
783
140%
512
57%
688
111%
Write Seq Q32T1
1144
5065
343%
564
-51%
1948
70%
Read Seq Q32T1
2379
6884
189%
2073
-13%
1995
-16%
Media totale (Programma / Settaggio)
181% / 188%
27% / 32%
69% / 77%

* ... Meglio usare valori piccoli

Netac S930E8/256GPN
CDM 5/6 Read Seq Q32T1: 2379 MB/s
CDM 5/6 Write Seq Q32T1: 1144 MB/s
CDM 5/6 Read 4K Q32T1: 325.6 MB/s
CDM 5/6 Write 4K Q32T1: 417.7 MB/s
CDM 5 Read Seq: 1919 MB/s
CDM 5 Write Seq: 1040 MB/s
CDM 5/6 Read 4K: 61 MB/s
CDM 5/6 Write 4K: 178.4 MB/s

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

No graph data
3DMark
1280x720 Cloud Gate Standard Graphics
GPD Win 3
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
30894 Points ∼100% +102%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, R7 4700U
25431 Points ∼82% +67%
HP Envy x360 15-ee0257ng
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4500U
24163 Points ∼78% +58%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
22393 Points ∼72% +47%
Asus ZenBook 13 UX325JA
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
18164 Points ∼59% +19%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
16698 Points ∼54% +9%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
15258 Points ∼49%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
14343 Points ∼46% -6%
Media Intel Iris Plus Graphics 655
  (6498 - 16698, n=8)
13736 Points ∼44% -10%
Zotac ZBox MI643
Intel UHD Graphics 620, i5-10210U
10077 Points ∼33% -34%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, i5-8250U
10003 Points ∼32% -34%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
7448 Points ∼24% -51%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Celeron N4120
3932 Points ∼13% -74%
GMK NucBox K1
Intel UHD Graphics 600, Celeron J4125
3366 Points ∼11% -78%
1920x1080 Fire Strike Graphics
GPD Win 3
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
4846 Points ∼100% +153%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
3724 Points ∼77% +95%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, R7 4700U
3579 Points ∼74% +87%
HP Envy x360 15-ee0257ng
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4500U
3239 Points ∼67% +69%
Asus ZenBook 13 UX325JA
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
2983 Points ∼62% +56%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
2260 Points ∼47% +18%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
2070 Points ∼43% +8%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
1914 Points ∼39%
Media Intel Iris Plus Graphics 655
  (920 - 2260, n=8)
1817 Points ∼37% -5%
Zotac ZBox MI643
Intel UHD Graphics 620, i5-10210U
1283 Points ∼26% -33%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, i5-8250U
1216 Points ∼25% -36%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
960 Points ∼20% -50%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Celeron N4120
472 Points ∼10% -75%
GMK NucBox K1
Intel UHD Graphics 600, Celeron J4125
433 Points ∼9% -77%
2560x1440 Time Spy Graphics
GPD Win 3
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
1354 Points ∼100% +128%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
1168 Points ∼86% +97%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, R7 4700U
1076 Points ∼79% +81%
HP Envy x360 15-ee0257ng
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4500U
932 Points ∼69% +57%
Asus ZenBook 13 UX325JA
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
788 Points ∼58% +33%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
633 Points ∼47% +7%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
624 Points ∼46% +5%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
594 Points ∼44%
Media Intel Iris Plus Graphics 655
  (301 - 633, n=9)
563 Points ∼42% -5%
Zotac ZBox MI643
Intel UHD Graphics 620, i5-10210U
403 Points ∼30% -32%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, i5-8250U
349 Points ∼26% -41%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
320 Points ∼24% -46%
GMK NucBox K1
Intel UHD Graphics 600, Celeron J4125
120 Points ∼9% -80%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Celeron N4120
120 Points ∼9% -80%
2560x1440 Time Spy Score
GPD Win 3
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
1506 Points ∼100% +123%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
1316 Points ∼87% +95%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, R7 4700U
1221 Points ∼81% +81%
HP Envy x360 15-ee0257ng
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4500U
1047 Points ∼70% +55%
Asus ZenBook 13 UX325JA
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
885 Points ∼59% +31%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
722 Points ∼48% +7%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
707 Points ∼47% +5%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
676 Points ∼45%
Media Intel Iris Plus Graphics 655
  (348 - 722, n=9)
639 Points ∼42% -5%
Zotac ZBox MI643
Intel UHD Graphics 620, i5-10210U
462 Points ∼31% -32%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, i5-8250U
400 Points ∼27% -41%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
367 Points ∼24% -46%
GMK NucBox K1
Intel UHD Graphics 600, Celeron J4125
138 Points ∼9% -80%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Celeron N4120
137 Points ∼9% -80%
3DMark 11
1280x720 Performance GPU
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
6027 Points ∼100% +105%
GPD Win 3
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
5914 Points ∼98% +101%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, R7 4700U
5346 Points ∼89% +81%
HP Envy x360 15-ee0257ng
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4500U
4713 Points ∼78% +60%
Asus ZenBook 13 UX325JA
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
4152 Points ∼69% +41%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
3081 Points ∼51% +5%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
3044 Points ∼51% +3%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
2947 Points ∼49%
Media Intel Iris Plus Graphics 655
  (1365 - 3081, n=7)
2681 Points ∼44% -9%
Zotac ZBox MI643
Intel UHD Graphics 620, i5-10210U
1858 Points ∼31% -37%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, i5-8250U
1734 Points ∼29% -41%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
1684 Points ∼28% -43%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Celeron N4120
606 Points ∼10% -79%
GMK NucBox K1
Intel UHD Graphics 600, Celeron J4125
589 Points ∼10% -80%
1280x720 Performance Combined
GPD Win 3
Intel Iris Xe Graphics G7 80EUs, i5-1135G7
5707 Points ∼100% +129%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, R7 4700U
4363 Points ∼76% +75%
HP Envy x360 15-ee0257ng
AMD Radeon RX Vega 6 (Ryzen 4000/5000), R5 4500U
4297 Points ∼75% +72%
Intel NUC11PAQi7
Intel Iris Xe Graphics G7 96EUs, i7-1165G7
4111 Points ∼72% +65%
Asus ZenBook 13 UX325JA
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7
3639 Points ∼64% +46%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Iris Plus Graphics 655, i5-8259U
2683 Points ∼47% +8%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, i7-8559U
2583 Points ∼45% +4%
GMK NucBox 2
Intel Iris Plus Graphics 655, i5-8259U
2495 Points ∼44%
Media Intel Iris Plus Graphics 655
  (1245 - 2683, n=7)
2301 Points ∼40% -8%
Zotac ZBox MI643
Intel UHD Graphics 620, i5-10210U
1829 Points ∼32% -27%
Lenovo Yoga C930-13IKB
Intel UHD Graphics 620, i5-8250U
1524 Points ∼27% -39%
Beelink SEi10
Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1
1252 Points ∼22% -50%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Celeron N4120
610 Points ∼11% -76%
GMK NucBox K1
Intel UHD Graphics 600, Celeron J4125
546 Points ∼10% -78%
3DMark 11 Performance
3181 punti
3DMark Cloud Gate Standard Score
11622 punti
3DMark Fire Strike Score
1779 punti
3DMark Time Spy Score
676 punti
Aiuto
Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
98 (79.8min) fps ∼100%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
95 (80min) fps ∼97% -3%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Core i5-8259U, Intel Iris Plus Graphics 655
87.9 (75.6min) fps ∼90% -10%
Media Intel Iris Plus Graphics 655
  (51.4 - 98, n=7)
86.2 fps ∼88% -12%
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
81.4 (47.3min) fps ∼83% -17%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
78.8 (48.8min) fps ∼80% -20%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
73.8 (65.9min) fps ∼75% -25%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
61.2 (55min) fps ∼62% -38%
Chuwi LarkBook CWI509
Intel Celeron N4120, Intel UHD Graphics 600
38.9 (33.4min) fps ∼40% -60%
GMK NucBox K1
Intel Celeron J4125, Intel UHD Graphics 600
32.8 (28.4min) fps ∼33% -67%
1366x768 med (1/3)
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
68 (58.9min) fps ∼100% +3%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
66 (54.7min) fps ∼97%
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
64.2 (43.4min) fps ∼94% -3%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Core i5-8259U, Intel Iris Plus Graphics 655
64 (54.5min) fps ∼94% -3%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
61.8 (46.8min) fps ∼91% -6%
Media Intel Iris Plus Graphics 655
  (34.6 - 68, n=7)
55.7 fps ∼82% -16%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
46 (40.9min) fps ∼68% -30%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
25 (20.7min) fps ∼37% -62%
GMK NucBox K1
Intel Celeron J4125, Intel UHD Graphics 600
16 (12min) fps ∼24% -76%
Chuwi LarkBook CWI509
Intel Celeron N4120, Intel UHD Graphics 600
15.2 (11.2min) fps ∼22% -77%
1920x1080 high (2/3)
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
44.3 (31min) fps ∼100% +39%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
37.7 (26.8min) fps ∼85% +18%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
34.7 (31.6min) fps ∼78% +9%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Core i5-8259U, Intel Iris Plus Graphics 655
32.4 (30min) fps ∼73% +2%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
31.9 (29.3min) fps ∼72%
Media Intel Iris Plus Graphics 655
  (15.8 - 34.7, n=7)
28.7 fps ∼65% -10%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
21.5 (20min) fps ∼49% -33%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
15.3 (12.4min) fps ∼35% -52%
Chuwi LarkBook CWI509
Intel Celeron N4120, Intel UHD Graphics 600
8 (7min) fps ∼18% -75%
GMK NucBox K1
Intel Celeron J4125, Intel UHD Graphics 600
6.8 (5.7min) fps ∼15% -79%
1920x1080 ultra (3/3) best looking
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
44.2 (28.1min) fps ∼100% +60%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
35 (25.8min) fps ∼79% +26%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
30.4 (27.6min) fps ∼69% +10%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Core i5-8259U, Intel Iris Plus Graphics 655
28.1 (25.9min) fps ∼64% +1%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
27.7 (25.5min) fps ∼63%
Media Intel Iris Plus Graphics 655
  (13.4 - 30.4, n=7)
25.2 fps ∼57% -9%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
19.2 (18.1min) fps ∼43% -31%
Beelink SEi10
Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
14.2 (11.7min) fps ∼32% -49%
Chuwi LarkBook CWI509
Intel Celeron N4120, Intel UHD Graphics 600
7.4 (6.3min) fps ∼17% -73%
GMK NucBox K1
Intel Celeron J4125, Intel UHD Graphics 600
6.1 (5.1min) fps ∼14% -78%
Final Fantasy XV Benchmark
1280x720 Lite Quality
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
38.9 fps ∼100% +125%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
30.3 fps ∼78% +75%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
17.3 fps ∼44%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
16.9 fps ∼43% -2%
Media Intel Iris Plus Graphics 655
  (9.11 - 17.3, n=7)
15.3 fps ∼39% -12%
Apple MacBook Pro 13 2018 Touchbar i5
Intel Core i5-8259U, Intel Iris Plus Graphics 655
14.7 fps ∼38% -15%
1920x1080 Standard Quality
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
21 fps ∼100% +132%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
15.6 fps ∼74% +72%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
9.07 fps ∼43%
Media Intel Iris Plus Graphics 655
  (7.88 - 9.07, n=3)
8.58 fps ∼41% -5%
1920x1080 High Quality
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
16.5 fps ∼100% +173%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
12.7 fps ∼77% +110%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
6.04 fps ∼37%
Media Intel Iris Plus Graphics 655
  (5.25 - 6.08, n=3)
5.79 fps ∼35% -4%
X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
42.3 fps ∼100% +67%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
32.6 fps ∼77% +29%
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
26.6 fps ∼63% +5%
Media Intel Iris Plus Graphics 655
  (13.8 - 42.8, n=6)
26.4 fps ∼62% +4%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
25.3 fps ∼60%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
22.3 fps ∼53% -12%
Chuwi LarkBook CWI509
Intel Celeron N4120, Intel UHD Graphics 600
6.92 fps ∼16% -73%
GMK NucBox K1
Intel Celeron J4125, Intel UHD Graphics 600
6.89 fps ∼16% -73%
1920x1080 med (fps_test=2)
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
35.6 fps ∼100% +98%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
32.7 fps ∼92% +82%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
23.3 fps ∼65% +29%
Media Intel Iris Plus Graphics 655
  (9.75 - 29.5, n=6)
18.5 fps ∼52% +3%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
18 fps ∼51%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
14.8 fps ∼42% -18%
GMK NucBox K1
Intel Celeron J4125, Intel UHD Graphics 600
4.87 fps ∼14% -73%
Chuwi LarkBook CWI509
Intel Celeron N4120, Intel UHD Graphics 600
4.68 fps ∼13% -74%
1920x1080 high (fps_test=3)
GPD Win 3
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
31.6 fps ∼100% +99%
Intel NUC11PAQi7
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
28.8 fps ∼91% +81%
Intel NUC8i7BE
Intel Core i7-8559U, Intel Iris Plus Graphics 655
19.8 fps ∼63% +25%
GMK NucBox 2
Intel Core i5-8259U, Intel Iris Plus Graphics 655
15.9 fps ∼50%
Media Intel Iris Plus Graphics 655
  (8.55 - 25.1, n=6)
15.8 fps ∼50% -1%
Zotac ZBox MI643
Intel Core i5-10210U, Intel UHD Graphics 620
13.2 fps ∼42% -17%
GMK NucBox K1
Intel Celeron J4125, Intel UHD Graphics 600
4.31 fps ∼14% -73%
Chuwi LarkBook CWI509
Intel Celeron N4120, Intel UHD Graphics 600
4.26 fps ∼13% -73%
basso medio alto ultra
Dota 2 Reborn (2015) 98 66 31.9 27.7 fps
Final Fantasy XV Benchmark (2018) 17.3 9.07 6.04 fps
X-Plane 11.11 (2018) 25.3 18 15.9 fps
GMK NucBox 2
Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
Zotac ZBox MI643
UHD Graphics 620, i5-10210U, Lexar NM610 1TB
GMK NucBox K1
UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB
Noise
-15%
-4%
-17%
off /ambiente *
25.6
28.7
-12%
26.1
-2%
27.8
-9%
Idle Minimum *
25.7
28.7
-12%
27.5
-7%
27.8
-8%
Idle Average *
25.7
29.3
-14%
27.5
-7%
27.8
-8%
Idle Maximum *
25.7
31.8
-24%
27.5
-7%
27.8
-8%
Load Average *
35.3
39
-10%
28.9
18%
46.8
-33%
Load Maximum *
35.1
41.4
-18%
42
-20%
46.8
-33%
Witcher 3 ultra *
39

* ... Meglio usare valori piccoli

Rumorosità

Idle
25.7 / 25.7 / 25.7 dB(A)
Sotto carico
35.3 / 35.1 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 25.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203937.540.541.72530.331.433.830.83126.625.327.826.64022.522.422.925.65026.524.623.828.56325.123.222.329.98030.227.628.330.910027.925.325.527.212536.736.236.337.216025.919.920.326.22002417.316.423.725024.916.116.92631525.517.616.925.540025.515.215.42650029.31413.429.363029.912.412.229.380025.712.112.325.5100026.411.311.526.4125024.411.111.324.5160023.111.711.623.4200021.211.811.721.2250018.611.911.818.9315018.811.711.818.7400017.911.611.717.3500013.811.511.413.5630014.511.711.512.7800014.31211.612.2100001312.111.612125001512.711.4121600016.911.610.712.5SPL35.225.725.635.1N2.20.80.82.2median 24median 12.1median 11.8median 23.7Delta4.13.23.44.4hearing rangehide median Fan NoiseGMK NucBox 2
Consumo di corrente
Off / Standbydarklight 0.36 / 0.5 Watt
Idledarkmidlight 6.1 / 6.8 / 7.3 Watt
Sotto carico midlight 46.3 / 50.7 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
GMK NucBox 2
i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,
Intel NUC11PAQi7
i7-1165G7, Iris Xe G7 96EUs, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x,
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655, , , x,
GMK NucBox K1
Celeron J4125, UHD Graphics 600, HIKVision C100 NGFF SSD 128GB, , x,
Beelink SEi10
i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU), Silicon Motion AZW 256G M.228 NVMe 4X 200725 D, , x,
Zotac ZBox MI643
i5-10210U, UHD Graphics 620, Lexar NM610 1TB, , x,
Power Consumption
3%
8%
53%
12%
-17%
Idle Minimum *
6.1
5.6
8%
2.7
56%
3.4
44%
6.3
-3%
7.5
-23%
Idle Average *
6.8
5.6
18%
3.1
54%
3.8
44%
6.6
3%
9.2
-35%
Idle Maximum *
7.3
6
18%
6.3
14%
3.9
47%
6.7
8%
9.6
-32%
Load Average *
46.3
31.4
32%
59.7
-29%
12.5
73%
25.9
44%
34.4
26%
Load Maximum *
50.7
80.5
-59%
78
-54%
22.7
55%
46.7
8%
60.6
-20%
Witcher 3 ultra *
39
47.2

* ... Meglio usare valori piccoli

Pro

+ Prestazioni di CPU e GPU decenti per il prezzo
+ 2x SODIMM, 1x M.2 2280, 1x 2.5 pollici SATA III
+ rumore della ventola relativamente silenzioso
+ buona qualità dello chassis

Contro

- USB-C non supporta Thunderbolt, Power Delivery o DisplayPort
- la parte superiore in plastica lucida attira graffi e resiste alle ditate
- nessun lettore di impronte digitali o Kensington Lock
- Wi-Fi 5 invece di Wi-Fi 6
- lettore MicroSD lento
Recensione del mini computer GMK NucBox 2 KB2. Unità di prova fornita da GMK
Recensione del mini computer GMK NucBox 2 KB2. Unità di prova fornita da GMK

Il NucBox 2 non sta cercando di essere il più piccolo mini PC e nemmeno il più veloce. Invece, è un'offerta di fascia media senza fronzoli con una CPU Core i5 decente, una GPU Iris Plus per il supporto dual 4K60, e abbastanza RAM e storage per andare avanti per scopi HTPC. Il rumore della ventola è più silenzioso dell'Intel NUC, soprattutto quando si eseguono carichi più elevati.

A differenza dei kit barebone che costano circa lo stesso, il NucBox 2 viene fornito con tutto il necessario per iniziare e con spazio per una facile espansione in caso di necessità.

La dipendenza da un adattatore AC proprietario invece di una soluzione USB-C più standard rende il NucBox 2 meno universale. Ci piacerebbe vedere più porte USB-C sui modelli futuri o anche un alimentatore integrato per evitare del tutto un adattatore AC esterno. Una mossa del genere sarebbe davvero superiore alla concorrenza, dove gli adattatori esterni a volte possono essere grandi quanto i mini PC stessi.

Pricecompare

Allen Ngo
Editor of the original article: Allen Ngo - Lead Editor U.S. - 4839 articles published on Notebookcheck since 2011
contact me via: @AllenNgoNBC
Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del Mini PC GMK NucBox 2: Prezzo ragionevole con buona possibilità di aggiornamento
Allen Ngo, 2021-03-31 (Update: 2021-03-31)
