Hands-On Zotac ZBOX MI642 Nano Desktop

Il Nano Desktop di Zotac riceve un upgrade Comet Lake. Mentre la nuova CPU offre un piccolo aumento delle prestazioni, la grafica stagnante lascerà alcuni utenti dietro le più potenti CPU Tiger Lake e le APU Ryzen. Tuttavia, se un piccolo ingombro è necessario, lo ZBOX Nano è un'opzione decente per l'uso a casa e in ufficio.

Sam Medley, 👁 Allen Ngo (traduzione a cura di Giuliano De Luca), 10/20/2020 🇺🇸 🇷🇺 ...

Zotac ZBOX MI642 Nano

Processore

Intel Core i5-10210U 4 x 1.6 - 4.2 GHz, 15 W PL2 / Short Burst, 35 W PL2 / Sustained, Comet Lake-U

Scheda grafica

Intel UHD Graphics 620 - 1024 MB, Core: 1100 MHz, Memoria: 1333 MHz, Intel UHD Graphics Driver 27.20.100.7990

Memoria

16384 MB

, DDR4-2666 / PC4-21300

Scheda madre

Intel Comet Lake-U PCH-LP Premium

Harddisk

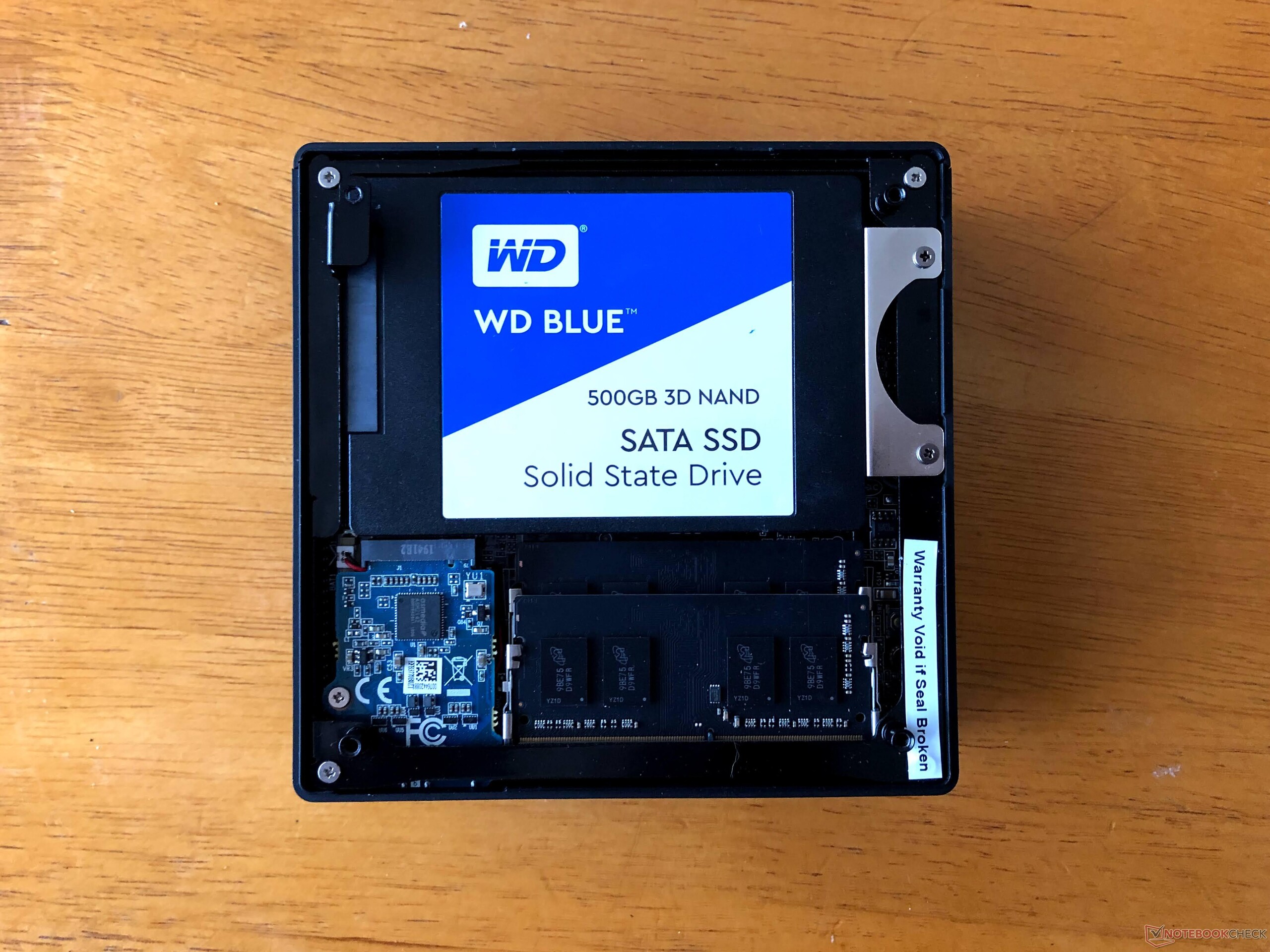

Western Digital WD Blue 3D WDBNCE5000PNC, 500 GB

Scheda audio

Realtek ALC295 @ Intel Comet Lake PCH-LP - cAVS

Porte di connessione

7 USB 3.0 / 3.1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Connessioni Audio: headphone jack, microphone jack, Lettore schede: 3-in-1 (SD/SDHC/SDXC)

Rete

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5)

Dimensioni

altezza x larghezza x profondità (in mm): 51 x 128 x 126

Sistema Operativo

Microsoft Windows 10 Home 64 Bit

Altre caratteristiche

12 Mesi Garanzia

Peso

472 gr, Alimentazione: 326 gr

Prezzo

500 USD

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Data	Modello	Peso	Altezza	Dimensione	Risoluzione
10/2020	Zotac ZBOX MI642 Nano i5-10210U, UHD Graphics 620	472 gr	51 mm		x
02/2020	Intel NUC10i7FNH i7-10710U, UHD Graphics 620	697 gr	51 mm	0.00"	0x0
02/2020	Intel NUC10i5FNK i5-10210U, UHD Graphics 620	493 gr	36 mm	0.00"	0x0
11/2018	Intel NUC8i7BE i7-8559U, Iris Plus Graphics 655	683 gr	51 mm		x
08/2020	Beelink GTR35 II-G-16512D00W64PRO-1T R5 3550H, Vega 8	843 gr	39 mm		x
12/2019	Lenovo ThinkCentre M90n-1 Nano i5-8265U, UHD Graphics 620	499 gr	22 mm	0.00"	x

I nostri Top 10
» Top 10 Portatili Multimedia
» Top 10 Portatili Gaming
» Top 10 Portatili Gaming Leggeri
» Top 10 Portatili da Ufficio e Business economici
» Top 10 Portatili Premium da Ufficio/Business
» Top 10 Portatili sotto i 300 Euro
» Top 10 Portatili sotto i 500 Euro
» Top 10 dei Portatili Workstation
» Top 10 Subnotebooks
» Top 10 Ultrabooks
» Top 10 Convertibili
» Top 10 Tablets
» Top 10 Tablets Windows
» Top 10 Smartphones

Confronto Dimensioni

Beelink GTR35 II-G-16512D00W64PRO-1T Lenovo ThinkCentre M90n-1 Nano Zotac ZBOX MI642 Nano Intel NUC10i7FNH Intel NUC8i7BE Intel NUC10i5FNK ❌

Connessioni

Davanti: Pulsante di accensione, lettore di schede SD, jack per cuffie, jack per microfono, 2x USB 3.1 Gen 2 (10 Gbps) Tipo-C, 1x USB 3.0 (5 Gbps) Tipo-A

Posteriore: Collegamento antenna WiFi, 2x Gigabit Ethernet, 4x USB 3.1 Gen 2 (10 Gbps) Tipo A, DisplayPort 1.2, HDMI 2.0, DC in

Zotac ZBOX MI642 Nano Intel Core i5-10210U, Intel Core i5-10210U: Ø514 (504.41-521.83)

Intel NUC10i5FNK Intel Core i5-10210U, Intel Core i5-10210U: Ø755 (749.68-790.62)

Intel NUC8i7BE Intel Core i7-8559U, Intel Core i7-8559U: Ø665 (657.41-808.08)

Intel NUC8i7BE Intel Core i7-8559U, Intel Core i7-8559U: Ø681 (671.37-798.44)

Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Ryzen 5 3550H: Ø649 (494.25-672.07)

Lenovo ThinkCentre M90n-1 Nano Intel Core i5-8265U, Intel Core i5-8265U: Ø513 (491.14-523.79)

Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Single Core)
Intel NUC10i7FNH Intel Core i7-10710U	480 Points ∼100% +15%
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	475 Points ∼99% +14%
Intel NUC8i7BE Intel Core i7-8559U	466 Points ∼97% +11%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	447 Points ∼93% +7%
HP EliteBook 830 G7 Intel Core i7-10810U	444 Points ∼93% +6%
Intel NUC10i5FNK Intel Core i5-10210U	428 Points ∼89% +2%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	418 Points ∼87%
Media Intel Core i5-10210U (322 - 428, n=27)	409 Points ∼85% -2%
LG Gram 15Z90N Intel Core i5-1035G7	380 Points ∼79% -9%
Media della classe Desktop (156 - 501, n=17)	354 Points ∼74% -15%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	347 Points ∼72% -17%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	156 Points ∼33% -63%

Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	2935 Points ∼100% +148%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	2401 Points ∼82% +103%
Intel NUC10i7FNH Intel Core i7-10710U	2303 Points ∼78% +95%
Intel NUC10i5FNK Intel Core i5-10210U	1820 Points ∼62% +54%
Intel NUC8i7BE Intel Core i7-8559U	1691 Points ∼58% +43%
Media della classe Desktop (304 - 5196, n=17)	1647 Points ∼56% +39%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	1583 Points ∼54% +34%
HP EliteBook 830 G7 Intel Core i7-10810U	1516 Points ∼52% +28%
Media Intel Core i5-10210U (771 - 1820, n=27)	1282 Points ∼44% +8%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	1183 Points ∼40%
LG Gram 15Z90N Intel Core i5-1035G7	1043 Points ∼36% -12%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	590 Points ∼20% -50%

Cinebench R15 / CPU Single 64Bit
Intel NUC10i7FNH Intel Core i7-10710U	194 Points ∼100% +16%
Intel NUC8i7BE Intel Core i7-8559U	188 Points ∼97% +13%
Intel NUC8i7BE Intel Core i7-8559U	180 Points ∼93% +8%
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	184 Points ∼95% +10%
HP EliteBook 830 G7 Intel Core i7-10810U	182 Points ∼94% +9%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	174 Points ∼90% +4%
Lenovo ThinkCentre M920z Intel Core i5-8500	172 Points ∼89% +3%
Intel NUC10i5FNK Intel Core i5-10210U	168 Points ∼87% +1%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	167 Points ∼86%
Media Intel Core i5-10210U (154 - 174, n=32)	167 Points ∼86% 0%
LG Gram 15Z90N Intel Core i5-1035G7	153 Points ∼79% -8%
Lenovo ThinkCentre M90n-1 Nano Intel Core i5-8265U	148 Points ∼76% -11%
Media della classe Desktop (68 - 218, n=41)	148 Points ∼76% -11%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	146 Points ∼75% -13%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	71.1 Points ∼37% -57%

Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	1287 (1057.08^min - 1287.21^max) Points ∼100% +147%
Intel NUC10i7FNH Intel Core i7-10710U	1067 Points ∼83% +104%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	973 Points ∼76% +86%
Lenovo ThinkCentre M920z Intel Core i5-8500	950 Points ∼74% +82%
Intel NUC8i7BE Intel Core i7-8559U	808 Points ∼63% +55%
Intel NUC8i7BE Intel Core i7-8559U	798 (671.37^min - 798.44^max) Points ∼62% +53%
Intel NUC10i5FNK Intel Core i5-10210U	790 Points ∼61% +51%
Media della classe Desktop (188 - 2302, n=43)	731 Points ∼57% +40%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	672 (494.25^min - 672.07^max) Points ∼52% +29%
HP EliteBook 830 G7 Intel Core i7-10810U	658 (598.31^min - 772.22^max) Points ∼51% +26%
Media Intel Core i5-10210U (478 - 790, n=32)	611 Points ∼47% +17%
LG Gram 15Z90N Intel Core i5-1035G7	539 Points ∼42% +3%
Lenovo ThinkCentre M90n-1 Nano Intel Core i5-8265U	524 Points ∼41% 0%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	522 (504.41^min - 521.83^max) Points ∼41%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	263 (207.57^min - 262.65^max) Points ∼20% -50%

Blender 2.79 / BMW27 CPU
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	2380 Seconds * ∼100% -167%
LG Gram 15Z90N Intel Core i5-1035G7	1074.6 Seconds * ∼45% -20%
Media della classe Desktop (208 - 3527, n=18)	1022 Seconds * ∼43% -15%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	892 Seconds * ∼37%
Media Intel Core i5-10210U (585 - 1339, n=21)	854 Seconds * ∼36% +4%
HP EliteBook 830 G7 Intel Core i7-10810U	695 Seconds * ∼29% +22%
Intel NUC8i7BE Intel Core i7-8559U	682 Seconds * ∼29% +24%
Intel NUC8i7BE Intel Core i7-8559U	650 Seconds * ∼27% +27%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	670 Seconds * ∼28% +25%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	593.4 Seconds * ∼25% +33%
Intel NUC10i5FNK Intel Core i5-10210U	584.9 Seconds * ∼25% +34%
Lenovo ThinkCentre M920z Intel Core i5-8500	494.76 Seconds * ∼21% +45%
Intel NUC10i7FNH Intel Core i7-10710U	468.3 Seconds * ∼20% +47%
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	403 Seconds * ∼17% +55%

7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC8i7BE Intel Core i7-8559U	6171 MIPS ∼100% +43%
Intel NUC8i7BE Intel Core i7-8559U	4826 MIPS ∼78% +12%
HP EliteBook 830 G7 Intel Core i7-10810U	4794 MIPS ∼78% +11%
Intel NUC10i7FNH Intel Core i7-10710U	4727 MIPS ∼77% +10%
Lenovo ThinkCentre M920z Intel Core i5-8500	4513 MIPS ∼73% +5%
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	4438 MIPS ∼72% +3%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	4303 MIPS ∼70%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	4288 MIPS ∼69% 0%
Intel NUC10i5FNK Intel Core i5-10210U	4253 MIPS ∼69% -1%
Media Intel Core i5-10210U (3504 - 4467, n=21)	4204 MIPS ∼68% -2%
LG Gram 15Z90N Intel Core i5-1035G7	4091 MIPS ∼66% -5%
Media della classe Desktop (2132 - 6171, n=19)	3913 MIPS ∼63% -9%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3543 MIPS ∼57% -18%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	2215 MIPS ∼36% -49%

7-Zip 18.03 / 7z b 4
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	37081 MIPS ∼100% +118%
Intel NUC8i7BE Intel Core i7-8559U	30570 MIPS ∼82% +80%
Intel NUC8i7BE Intel Core i7-8559U	22033 MIPS ∼59% +30%
Intel NUC10i7FNH Intel Core i7-10710U	29948 MIPS ∼81% +76%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	23610 MIPS ∼64% +39%
Lenovo ThinkCentre M920z Intel Core i5-8500	23200 MIPS ∼63% +37%
HP EliteBook 830 G7 Intel Core i7-10810U	21925 MIPS ∼59% +29%
Intel NUC10i5FNK Intel Core i5-10210U	21679 MIPS ∼58% +28%
Media della classe Desktop (6040 - 60747, n=19)	20428 MIPS ∼55% +20%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	16971 MIPS ∼46%
Media Intel Core i5-10210U (10950 - 21679, n=21)	16740 MIPS ∼45% -1%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	16683 MIPS ∼45% -2%
LG Gram 15Z90N Intel Core i5-1035G7	13921 MIPS ∼38% -18%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	8098 MIPS ∼22% -52%

Geekbench 5.3 / 64 Bit Single-Core Score
HP EliteBook 830 G7 Intel Core i7-10810U	1274 Points ∼100% +15%
Intel NUC10i7FNH Intel Core i7-10710U	1229 Points ∼96% +11%
LG Gram 15Z90N Intel Core i5-1035G7	1163 Points ∼91% +5%
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	1157 Points ∼91% +4%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	1111 Points ∼87%
Intel NUC10i5FNK Intel Core i5-10210U	1099 Points ∼86% -1%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	1098 Points ∼86% -1%
Media Intel Core i5-10210U (1014 - 1133, n=22)	1079 Points ∼85% -3%
Media della classe Desktop (388 - 1745, n=14)	960 Points ∼75% -14%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	903 Points ∼71% -19%
Intel NUC8i7BE Intel Core i7-8559U	723 Points ∼57% -35%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	388 Points ∼30% -65%

Geekbench 5.3 / 64 Bit Multi-Core Score
Intel NUC10i7FNH Intel Core i7-10710U	5839 Points ∼100% +51%
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	5600 Points ∼96% +44%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	4646 Points ∼80% +20%
Intel NUC10i5FNK Intel Core i5-10210U	3939 Points ∼67% +2%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	3877 Points ∼66%
Media della classe Desktop (1353 - 10244, n=14)	3814 Points ∼65% -2%
HP EliteBook 830 G7 Intel Core i7-10810U	3671 Points ∼63% -5%
Intel NUC8i7BE Intel Core i7-8559U	3660 Points ∼63% -6%
Media Intel Core i5-10210U (2079 - 4256, n=22)	3570 Points ∼61% -8%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3203 Points ∼55% -17%
LG Gram 15Z90N Intel Core i5-1035G7	2713 Points ∼46% -30%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	1410 Points ∼24% -64%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	8.33 fps ∼100% +101%
Intel NUC10i7FNH Intel Core i7-10710U	7.95 fps ∼95% +92%
Lenovo ThinkCentre M920z Intel Core i5-8500	7.86 fps ∼94% +89%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	6.72 fps ∼81% +62%
Intel NUC10i5FNK Intel Core i5-10210U	6.28 fps ∼75% +51%
Intel NUC8i7BE Intel Core i7-8559U	5.9 fps ∼71% +42%
Intel NUC8i7BE Intel Core i7-8559U	5.523 fps ∼66% +33%
Media della classe Desktop (0.65 - 16.8, n=21)	5.24 fps ∼63% +26%
HP EliteBook 830 G7 Intel Core i7-10810U	5.16 fps ∼62% +24%
Media Intel Core i5-10210U (2.66 - 6.28, n=21)	4.28 fps ∼51% +3%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	4.15 fps ∼50%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	4.1 fps ∼49% -1%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	1.49 fps ∼18% -64%

LibreOffice / 20 Documents To PDF
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	150 s * ∼100% -118%
Media della classe Desktop (55.8 - 367, n=10)	110 s * ∼73% -60%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	74.9 s * ∼50% -9%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	68.8 s * ∼46%
HP EliteBook 830 G7 Intel Core i7-10810U	67.8 s * ∼45% +1%
Media Intel Core i5-10210U (49.6 - 80.3, n=15)	60.3 s * ∼40% +12%
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	58.4 s * ∼39% +15%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	58.19 s * ∼39% +15%
LG Gram 15Z90N Intel Core i5-1035G7	32.26 s * ∼22% +53%

R Benchmark 2.5 / Overall mean
Media della classe Desktop (0.548 - 1.885, n=14)	0.944 sec * ∼100% -36%
LG Gram 15Z90N Intel Core i5-1035G7	0.811 sec * ∼86% -17%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	0.737 sec * ∼78% -6%
Media Intel Core i5-10210U (0.658 - 0.901, n=21)	0.729 sec * ∼77% -5%
Intel NUC10i5FNK Intel Core i5-10210U	0.72 sec * ∼76% -4%
Zotac ZBOX MI642 Nano Intel Core i5-10210U	0.695 sec * ∼74%
HP EliteBook 830 G7 Intel Core i7-10810U	0.651 sec * ∼69% +6%
Intel NUC10i7FNH Intel Core i7-10710U	0.649 sec * ∼69% +7%
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U	0.639 sec * ∼68% +8%
Intel NUC8i7BE Intel Core i7-8559U	0.6275 sec * ∼66% +10%
Lenovo ThinkPad X13-20UGS00800 AMD Ryzen 7 PRO 4750U	0.613 sec * ∼65% +12%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit

522 Points

Cinebench R15 OpenGL 64Bit

53.5 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

167 Points

Aiuto

... in confronto

PCMark 10 | PCMark 8

PCMark 10
Digital Content Creation
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4007 Points ∼26% +34%
Media della classe Desktop (972 - 11987, n=29)	3988 Points ∼26% +33%
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	3835 Points ∼25% +28%
Intel NUC10i7FNH UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1	3777 Points ∼24% +26%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	3296 Points ∼21% +10%
Media Intel Core i5-10210U, Intel UHD Graphics 620 (2487 - 4463, n=27)	3086 Points ∼20% +3%
Zotac ZBOX MI642 Nano UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC	3000 Points ∼19%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	2917 Points ∼19% -3%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	1110 Points ∼7% -63%
Productivity
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	7236 Points ∼65% +14%
Intel NUC10i7FNH UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1	6876 Points ∼62% +9%
Media Intel Core i5-10210U, Intel UHD Graphics 620 (5990 - 7317, n=27)	6688 Points ∼60% +6%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	6494 Points ∼58% +3%
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	6420 Points ∼58% +1%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	6337 Points ∼57% 0%
Zotac ZBOX MI642 Nano UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC	6333 Points ∼57%
Media della classe Desktop (2883 - 8515, n=29)	6124 Points ∼55% -3%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	2969 Points ∼27% -53%
Essentials
Intel NUC10i7FNH UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1	9013 Points ∼79% +16%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	8994 Points ∼79% +16%
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	8575 Points ∼75% +10%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	8551 Points ∼75% +10%
Media Intel Core i5-10210U, Intel UHD Graphics 620 (7172 - 10000, n=27)	8512 Points ∼74% +9%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	8235 Points ∼72% +6%
Zotac ZBOX MI642 Nano UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC	7787 Points ∼68%
Media della classe Desktop (4418 - 10598, n=29)	7776 Points ∼68% 0%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	4837 Points ∼42% -38%
Score
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4580 Points ∼52% +21%
Intel NUC10i7FNH UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1	4418 Points ∼50% +17%
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	4269 Points ∼49% +13%
Media della classe Desktop (1658 - 7329, n=29)	4035 Points ∼46% +6%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	4019 Points ∼46% +6%
Media Intel Core i5-10210U, Intel UHD Graphics 620 (3686 - 4353, n=27)	4008 Points ∼46% +6%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	3876 Points ∼44% +2%
Zotac ZBOX MI642 Nano UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC	3791 Points ∼43%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	1803 Points ∼21% -52%

PCMark 8 - Home Score Accelerated v2
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4674 Points ∼75% +35%
Intel NUC10i7FNH UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1	3938 Points ∼64% +14%
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	3755 Points ∼61% +9%
Media della classe Desktop (1928 - 5418, n=31)	3725 Points ∼60% +8%
Media Intel Core i5-10210U, Intel UHD Graphics 620 (3182 - 4284, n=20)	3619 Points ∼58% +5%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	3526 Points ∼57% +2%
Zotac ZBOX MI642 Nano UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC	3455 Points ∼56%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	2036 Points ∼33% -41%

PCMark 8 Home Score Accelerated v2		3455 punti
PCMark 8 Work Score Accelerated v2		4879 punti
PCMark 10 Score		3791 punti
Aiuto

	Zotac ZBOX MI642 Nano Western Digital WD Blue 3D WDBNCE5000PNC	Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	Intel NUC10i5FNK Kingston RBUSNS8154P3256GJ1	Beelink GTR35 II-G-16512D00W64PRO-1T Silicon Motion AZW 512G NV428	Lenovo ThinkCentre M90n-1 Nano Samsung SSD PM981 MZVLB512HAJQ	Media Western Digital WD Blue 3D WDBNCE5000PNC
CrystalDiskMark 5.2 / 6
Write 4K	105.9	442.4 318%	58.43 -45%	161.9 53%	130 23%	106 0%
Read 4K	39.15	371.1 848%	30.24 -23%	52.76 35%	45.61 17%	39.2 0%
Write 4K Q32T1	320.5	373.8 17%	448.5 40%	285 -11%	365.3 14%	321 0%
Read 4K Q32T1	342.1	374.9 10%	391.4 14%	324 -5%	350.2 2%	342 0%
Write Seq Q32T1	513.7	893 74%	914.4 78%	1578.8 207%	2985.9 481%	514 0%
Read Seq Q32T1	554.3	1581.5 185%	1583 186%	2017.9 264%	3564.9 543%	554 0%
Write 4K Q8T8	330.8	399.1 21%	402.3 22%	529.6 60%	368.7 11%	331 0%
Read 4K Q8T8	391.8	687.9 76%	679.8 74%	738.1 88%	789.7 102%	392 0%
AS SSD
Copy Game MB/s	248.87	734.57 195%	471.17 89%	658.13 164%		249 0%
Copy Program MB/s	191.93	346.04 80%	328.85 71%	261.71 36%		192 0%
Copy ISO MB/s	482.52	976.28 102%	576.38 19%	1228.29 155%		483 0%
Score Total	1023	1944 90%	1955 91%	2377 132%	2716 165%	1023 0%
Score Write	324	762 135%	765 136%	1054 225%	1305 303%	324 0%
Score Read	457	804 76%	808 77%	869 90%	942 106%	457 0%
Access Time Write *	0.095	0.07 26%	0.07 26%	0.114 -20%	0.032 66%	0.095 -0%
Access Time Read *	0.103	0.114 -11%	0.11 -7%	0.063 39%	0.039 62%	0.103 -0%
4K-64 Write	193.74	647.56 234%	641.66 231%	813.84 320%	1073.77 454%	194 0%
4K-64 Read	369.37	651.73 76%	650.04 76%	695.76 88%	726.4 97%	369 0%
4K Write	88.54	53.52 -40%	61.35 -31%	98.55 11%	116.47 32%	88.5 0%
4K Read	36.75	21.53 -41%	26.44 -28%	35.27 -4%	48.46 32%	36.8 0%
Seq Write	413.77	611 48%	616 49%	1413.39 242%	1150.28 178%	414 0%
Seq Read	506.95	1306 158%	1318 160%	1382.19 173%	1668.47 229%	507 0%

* ... Meglio usare valori piccoli

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Western Digital WD Blue 3D WDBNCE5000PNC

CDM 5/6 Read Seq Q32T1: 554.3 MB/s

CDM 5/6 Write Seq Q32T1: 513.7 MB/s

CDM 5/6 Read 4K Q32T1: 342.1 MB/s

CDM 5/6 Write 4K Q32T1: 320.5 MB/s

CDM 5/6 Read 4K: 39.15 MB/s

CDM 5/6 Write 4K: 105.9 MB/s

CDM 6 Write 4K Q8T8: 330.8 MB/s

CDM 6 Read 4K Q8T8: 391.8 MB/s

3DMark
1920x1080 Fire Strike Graphics
Media della classe Desktop (433 - 43404, n=33)	7471 Points ∼100% +506%
Lenovo IdeaPad 5 15IIL05 NVIDIA GeForce MX350, Intel Core i5-1035G1	4457 Points ∼60% +262%
Lenovo ThinkPad T15 Gen1-20S7S02U00 NVIDIA GeForce MX330, Intel Core i7-10510U	3581 Points ∼48% +191%
Lenovo ThinkPad X13-20UGS00800 AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U	3019 Points ∼40% +145%
Lenovo IdeaPad 5 14ARE05 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	2876 Points ∼38% +133%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	2737 Points ∼37% +122%
Intel NUC8i7BE Intel Iris Plus Graphics 655, Intel Core i7-8559U	2260 Points ∼30% +83%
Intel NUC10i7FNH Intel UHD Graphics 620, Intel Core i7-10710U	1418 Points ∼19% +15%
450 450	1232 Points ∼16%
Intel NUC10i5FNK Intel UHD Graphics 620, Intel Core i5-10210U	1202 Points ∼16% -2%
Lenovo ThinkCentre M90n-1 Nano Intel UHD Graphics 620, Intel Core i5-8265U	1183 Points ∼16% -4%
Media Intel UHD Graphics 620 (557 - 1420, n=202)	1152 Points ∼15% -6%
1280x720 Cloud Gate Standard Graphics
Media della classe Desktop (3366 - 182888, n=28)	26132 Points ∼100% +160%
Lenovo IdeaPad 5 15IIL05 NVIDIA GeForce MX350, Intel Core i5-1035G1	24744 Points ∼95% +146%
Lenovo ThinkPad X13-20UGS00800 AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U	22904 Points ∼88% +128%
Lenovo IdeaPad 5 14ARE05 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	22247 Points ∼85% +121%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	18901 Points ∼72% +88%
Intel NUC8i7BE Intel Iris Plus Graphics 655, Intel Core i7-8559U	16698 Points ∼64% +66%
Lenovo ThinkPad T15 Gen1-20S7S02U00 NVIDIA GeForce MX330, Intel Core i7-10510U	15595 Points ∼60% +55%
Intel NUC10i7FNH Intel UHD Graphics 620, Intel Core i7-10710U	11065 Points ∼42% +10%
450 450	10057 Points ∼38%
Lenovo ThinkCentre M90n-1 Nano Intel UHD Graphics 620, Intel Core i5-8265U	9590 Points ∼37% -5%
Media Intel UHD Graphics 620 (6910 - 11436, n=214)	9221 Points ∼35% -8%
Intel NUC10i5FNK Intel UHD Graphics 620, Intel Core i5-10210U	9113 Points ∼35% -9%
1920x1080 Ice Storm Extreme Graphics
Media della classe Desktop (14600 - 435092, n=14)	118555 Points ∼100%
Lenovo IdeaPad 5 14ARE05 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 4500U	93183 Points ∼79%
Lenovo IdeaPad 5 15IIL05 NVIDIA GeForce MX350, Intel Core i5-1035G1	85655 Points ∼72%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	69477 Points ∼59%
Intel NUC10i7FNH Intel UHD Graphics 620, Intel Core i7-10710U	48446 Points ∼41%
Media Intel UHD Graphics 620 (29002 - 59483, n=68)	43200 Points ∼36%
Intel NUC10i5FNK Intel UHD Graphics 620, Intel Core i5-10210U	40532 Points ∼34%

3DMark Cloud Gate Standard Score		8616 punti
3DMark Fire Strike Score		1131 punti
Aiuto

Rumorosità

Idle		27.8 / 33.9 / 33.9 dB(A)
Sotto carico		43.7 / 43.7 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 27.8 dB(A)

Consumo di corrente

Off / Standby	0.46 / 0.47 Watt
Idle	8.9 / 9 / 9.9 Watt
Sotto carico	33 / 58 Watt


Leggenda: min: , med: , max: Metrahit Energy

Pro

+ case molto compatto

+ solido sistema di montaggio VESA

+ facile accesso alla RAM e alla memoria

+ prestazioni adeguate

+ silenzioso sotto carico leggero (lavoro d'ufficio, ecc.)

+ buona selezione delle porte

Contro

- Nessuna Thunderbolt 3

- la costruzione in plastica appare cheap

- supporta solo unità SATA, non NVMe

- prestazioni grafiche deboli

- nessun altoparlante interno

Giudizio Preliminare

Recensione del miniPC ZOTAC ZBOX MI642 Nano. Dispositivo fornito da ZOTAC.

Lo ZOTAC ZBOX MI642 Nano non è un dispositivo notevole, soprattutto per 500 dollari. Non batte alcun record stipando una potente GPU in un piccolo case. Non vanta alcuna caratteristica unica. A questo proposito, lo ZBOX MI642 Nano non riesce a distinguersi tra il crescente oceano di piccoli desktop.

In effetti, lo ZBOX MI642 Nano pecca in alcune aree chiave, in particolare le opzioni di archiviazione e la selezione delle porte. La mancanza del supporto NVMe spicca come un aspetto dolente, considerando che molti piccoli desktop supportano questo formato veloce. Inoltre, l'assenza di Thunderbolt limita fortemente l'adattabilità dello ZBOX MI642 Nano.

Ciò che lo ZOTAC ZBOX MI642 Nano fa bene, tuttavia, è offrire prestazioni di calcolo affidabili. Il Core i5-10210U rimane costante, anche sotto carico intenso, il che lo rende una buona opzione per gli impiegati che hanno bisogno di una macchina stabile per più di 8 ore al giorno. Il suo ingombro compatto e il solido supporto VESA può essere interessante anche per gli utenti che vogliono nascondere la loro macchina ad occhi indiscreti.

Dobbiamo notare il problema che la nostra particolare unità ha incontrato durante il nostro stress test; durante l'esecuzione di Prime95, il dispositivo si è spento. Da allora non siamo stati in grado di avviare la macchina. È molto probabile che questo problema sia relegato alla nostra unità e non sia la causa di un problema diffuso, ma ci ha impedito di analizzare adeguatamente alcuni test (ad esempio, la latenza del DPC).

La principale concorrenza dello ZBOX si è rivelata vincente in diversi settori. Per circa 150-200 dollari in più, il Beelink GT-R offre prestazioni della CPU leggermente migliori, una grafica decisamente migliore, e include 16 GB di RAM DDR4, un veloce SSD NVMe e un grande disco rigido SATA. Per lo stesso costo dello ZBOX MI642 Nano, il Frost Canyon NUC di Intel vanta la stessa CPU in un formato più piccolo e ha il supporto per un disco NVMe, anche se manca di alcune porte.

Considerando il prezzo, lo ZOTAC ZBOX MI642 Nano offre prestazioni costanti della CPU in un case compatto. Tuttavia, è surclassato da molte altre opzioni di piccolo formato attualmente sul mercato.

Anche se non siamo stati in grado di testare alcune aree della nostra analisi a causa di un guasto del sistema, abbiamo in programma di ritestare lo ZOTAC ZBOX MI642 Nano una volta ricevuta un'unità sostitutiva.

Articoli collegati

Lo ZOTAC ZBOX MAGNUS ONE è dotato di un processore Comet Lake-H e di una GPU Ampere. (Fonte immagine: ZOTAC)

Mini-PC ZOTAC ZBOX MAGNUS ONE lanciato con un Intel Core i7-10700 e una NVIDIA GeForce RTX 3070 01/13/2021

Lo stock di lancio delle AMD Radeon RX 6800 XT & RX 6800 dovrebbe essere quasi uguale a quello della RTX 3080 11/17/2020

SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Intel NUC8i7BE (Toshiba Exceria Pro M501 UHS-II)	69 MB/s ∼100% +77%
Chuwi LarkBox 4K Mini PC (Toshiba Exceria Pro M501 UHS-II)	66.9 MB/s ∼97% +72%
Media della classe Desktop (18.6 - 197, n=15)	57.4 MB/s ∼83% +47%
GMK NucBox K1 (Toshiba Exceria Pro M501 UHS-)	47.1 MB/s ∼68% +21%
Zotac ZBOX MI642 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	38.94 MB/s ∼56%
Zotac ZBOX-CI660 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	35 MB/s ∼51% -10%
Chuwi GBox CWI560 (Toshiba Exceria Pro M501 UHS-II)	18.7 MB/s ∼27% -52%
Lenovo ThinkCentre M920z	18.61 MB/s ∼27% -52%
maximum AS SSD Seq Read Test (1GB)
Chuwi LarkBox 4K Mini PC (Toshiba Exceria Pro M501 UHS-II)	85.4 MB/s ∼100% +103%
Intel NUC8i7BE (Toshiba Exceria Pro M501 UHS-II)	85.02 MB/s ∼100% +102%
GMK NucBox K1 (Toshiba Exceria Pro M501 UHS-)	84.3 MB/s ∼99% +101%
Media della classe Desktop (20.1 - 223, n=15)	66.5 MB/s ∼78% +58%
Zotac ZBOX MI642 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	42 MB/s ∼49%
Zotac ZBOX-CI660 Nano (Toshiba Exceria Pro SDXC 64 GB UHS-II)	37.73 MB/s ∼44% -10%
Lenovo ThinkCentre M920z	30.7 MB/s ∼36% -27%
Chuwi GBox CWI560 (Toshiba Exceria Pro M501 UHS-II)	20.8 MB/s ∼24% -50%

Cinebench R15 CPU Multi 64 Bit in confronto
Toshiba Satellite W30Dt-A-100 (min) A4-1200, Radeon HD 8180	33
...
Lenovo ThinkPad E580-20KS001RGE i5-8550U, Radeon RX 550 (Laptop)	521
Lenovo ThinkPad L590-20Q70019GE i5-8265U, UHD Graphics 620	521
Razer Blade Stealth QHD i7-8550U i5-8550U, UHD Graphics 620	521
Zotac ZBOX MI642 Nano i5-10210U, UHD Graphics 620	522
Xiaomi Mi Notebook Air 13.3 2018 i5-8250U, GeForce MX150	522
Lenovo Flex 6-14IKB i5-8250U, GeForce MX130	522
Acer Spin 3 SP314-51-548L i5-8250U, UHD Graphics 620	523
...
(max) R9 5950X, NVIDIA Titan RTX	4492
