Recensione del mini PC Trigkey S3: Prestazioni simili a quelle di un Core i3 al prezzo di un Celeron o di un Atom

Trigkey è specializzata in mini PC economici che utilizzano processori di vecchia generazione per mantenere i prezzi bassi. L'S3 è un modello di questo tipo che utilizza il vecchio processore Ryzen 5 3550H al prezzo di circa 280 dollari

I concorrenti in questo settore includono altri mini PC economici come il BMax B5 Pro, Beelink U59o il Chuwi LarkBox.

Data	Modello	Peso	Altezza	Risoluzione
01/2023	Trigkey S3 R5 3550H, Vega 8	419 gr	40.7 mm	x
11/2022	Intel NUC Pro Chassis_i7_1265U i7-1265U, Iris Xe G7 96EUs		35 mm	x
04/2021	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 gr	37 mm	x
12/2022	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 gr	42 mm	x
09/2022	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs	440 gr	40 mm	x
10/2022	Beelink SER Pro Ryzen 5 5600H R5 5600H, Vega 7	498 gr	42 mm	x

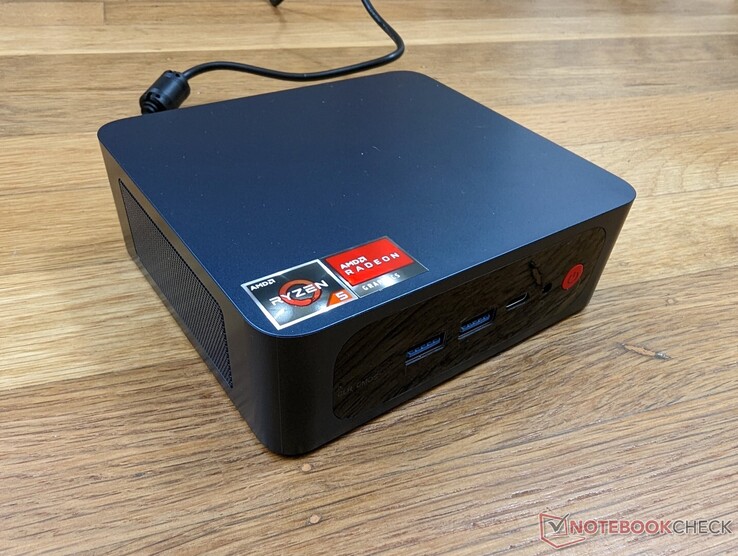

Caso

Il telaio in plastica ha una forma simile a quella del Beelink SEi8 ma con diverse differenze superficiali. La parte superiore, ad esempio, è ora tutta opaca e a filo con i bordi dei lati per un aspetto più pulito. Per il resto, le opzioni delle porte e la manutenzione sono quasi identiche.

Con 421 g di peso con RAM e SSD, il Trigkey S3 è più leggero di molti altri mini PC

La parte superiore e i lati sono in plastica liscia e opaca, mentre le griglie di ventilazione sono in metallo

Piedini in gomma sul fondo con prese a vite per il montaggio VESA rimovibile

Confronto delle dimensioni

Beelink SEi12 Core i5-1235U Beelink SER Pro Ryzen 5 5600H Trigkey S3 Beelink SEi11 Pro Intel NUC 12 Pro Kit NUC12WSKi7 Intel NUC11TNKi5 DIN A5 ❌

Connettività

Le porte sono numerose, ma la singola porta USB-C sembra essere destinata solo ai dati o alla ricarica di dispositivi esterni. Il nostro monitor esterno USB-C non funziona con la Trigkey.

Parte anteriore: Pulsante Clear CMOS, 2x USB-A 3.0, USB-C, cuffie da 3,5 mm, pulsante di alimentazione

Posteriore: Gigabit RJ-45, 2x USB-A, 2x HDMI (4k60), adattatore AC

Comunicazione

Il sistema viene fornito con il vecchio Intel Dual Band Wireless-AC 3165 1x1 per una velocità di trasferimento che è solo una frazione di quella dei moderni moduli Wi-Fi 6 e 6E. Tuttavia, le prestazioni sono stabili e sufficienti per lo streaming e la navigazione a 1080p.

Networking
iperf3 transmit AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1626 (1386^min - 1677^max) MBit/s ∼100%
iperf3 receive AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1524 (1442^min - 1571^max) MBit/s ∼100%
iperf3 receive AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1713 (1694^min - 1728^max) MBit/s ∼100%
Beelink SER Pro Ryzen 5 5600H MediaTek RZ608	850 (802^min - 876^max) MBit/s ∼50%
Beelink SEi11 Pro MediaTek RZ608	743 (453^min - 793^max) MBit/s ∼43%
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s ∼100% +333%
Trigkey S3 Intel Dual Band Wireless-AC 3165	320 (269^min - 345^max) MBit/s ∼23%
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s ∼100% +469%
Trigkey S3 Intel Dual Band Wireless-AC 3165	262 (233^min - 292^max) MBit/s ∼18%
iperf3 transmit AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1093 (570^min - 1168^max) MBit/s ∼100%
Beelink SER Pro Ryzen 5 5600H MediaTek RZ608	750 (374^min - 799^max) MBit/s ∼69%
Beelink SEi11 Pro MediaTek RZ608	722 (447^min - 789^max) MBit/s ∼66%

Trigkey S3; iperf3 receive AXE11000; iperf 3.1.3: Ø319 (269-345)

Trigkey S3; iperf3 transmit AXE11000; iperf 3.1.3: Ø262 (233-292)

Manutenzione

Il pannello inferiore dovrebbe staccarsi facilmente, ma le viti sono morbide e possono uscire più facilmente rispetto alla maggior parte degli altri mini PC. Questo purtroppo si è verificato sulla nostra unità e quindi raccomandiamo ai possessori di fare molta attenzione durante la manutenzione dell'unità. In confronto, l'Intel NUC è dotato di viti a testa zigrinata per una manutenzione più rapida e senza attrezzi.

Accessori e garanzia

La confezione include una staffa per il montaggio a parete, un adattatore CA, un manuale d'uso e due cavi HDMI. Si applica la consueta garanzia limitata di un anno del produttore.

Prestazioni

Condizioni di test

Abbiamo impostato Windows in modalità Prestazioni prima di eseguire i benchmark riportati di seguito. Il sistema non è dotato di applicazioni preinstallate del tipo "centro di controllo" per la regolazione dei profili energetici.

Processore

Le prestazioni complessive della CPU sono di gran lunga inferiori a quelle di qualsiasi CPU Intel Core i5 o i7 serie U di 11a o 12a generazione, ma sono comunque sensibilmente più veloci di qualsiasi soluzione Celeron o Atom attualmente sul mercato. Pertanto, il Ryzen 5 3550H nella nostra Trigkey è più paragonabile a un PC basato su Intel Core i3 o al molto più vecchio Core i5-8260U. È un peccato che il produttore non abbia optato per il Ryzen 7 4800U perché la CPU Zen 2 rappresenta un notevole upgrade rispetto alla serie Zen+ H.

Cinebench R15 Multi Loop

Trigkey S3 AMD Ryzen 5 3550H: Ø637 (633.41-642.56)

Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)

Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H: Ø1310 (1286.46-1319.48)

CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Beelink GTR6 AMD Ryzen 9 6900HX	91.8 pt ∼92%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	90.8 pt ∼91%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	78.7 pt ∼79%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	75.9 pt ∼76%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	72.2 pt ∼72%
Beelink SEi11 Pro Intel Core i5-11320H	63.8 pt ∼64%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	63.2 pt ∼63%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	61.8 pt ∼62%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	50.3 pt ∼50%
Beelink SER3 ^-2! AMD Ryzen 7 3750H	44.2 pt ∼44%
Media AMD Ryzen 5 3550H	43.5 pt ∼44%
Trigkey S3 AMD Ryzen 5 3550H	42.8 pt ∼43%
MSI Cubi 5 10M ^-8! Intel Core i3-10110U	37.5 pt ∼38%
Beelink SEi8 Intel Core i3-8109U	35.4 pt ∼35%
BMAX B5 Pro G7H8 Intel Core i5-8260U	35.3 pt ∼35%
Beelink U59 N5105 Intel Celeron N5105	27.6 pt ∼28%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	27.4 pt ∼27%
Chuwi LapBook Plus ^-6! Intel Atom x7-E3950	10 pt ∼10%
Chuwi Hi10 Air ^-12! Intel Atom x5-Z8350	8.2 pt ∼8%

Cinebench R20 / CPU (Multi Core)
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points ∼100% +225%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	4578 Points ∼99% +222%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points ∼70% +128%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points ∼67% +119%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points ∼67% +116%
Beelink SEi11 Pro Intel Core i5-11320H	2208 Points ∼48% +55%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	2051 Points ∼44% +44%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	2027 Points ∼44% +43%
Media AMD Ryzen 5 3550H (1421 - 1728, n=8)	1596 Points ∼35% +12%
Beelink SER3 AMD Ryzen 7 3750H	1514 Points ∼33% +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1498 Points ∼32% +5%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1494 Points ∼32% +5%
Trigkey S3 AMD Ryzen 5 3550H	1421 Points ∼31%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	828 Points ∼18% -42%
Beelink U59 N5105 Intel Celeron N5105	826 Points ∼18% -42%
Beelink SEi8 Intel Core i3-8109U	772 Points ∼17% -46%
MSI Cubi 5 10M Intel Core i3-10110U	743 Points ∼16% -48%
Chuwi LapBook Plus Intel Atom x7-E3950	272 Points ∼6% -81%

Cinebench R20 / CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	698 Points ∼100% +96%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points ∼94% +83%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points ∼90% +77%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points ∼89% +74%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	568 Points ∼81% +59%
Beelink SEi11 Pro Intel Core i5-11320H	561 Points ∼80% +57%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	558 Points ∼80% +56%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points ∼76% +49%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	415 Points ∼59% +16%
MSI Cubi 5 10M Intel Core i3-10110U	401 Points ∼57% +12%
BMAX B5 Pro G7H8 Intel Core i5-8260U	400 Points ∼57% +12%
Beelink SER3 AMD Ryzen 7 3750H	377 Points ∼54% +6%
Trigkey S3 AMD Ryzen 5 3550H	357 Points ∼51%
Media AMD Ryzen 5 3550H (331 - 370, n=8)	354 Points ∼51% -1%
Beelink SEi8 Intel Core i3-8109U	351 Points ∼50% -2%
Beelink U59 N5105 Intel Celeron N5105	235 Points ∼34% -34%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	234 Points ∼34% -34%
Chuwi LapBook Plus Intel Atom x7-E3950	93 Points ∼13% -74%

Cinebench R23 / Multi Core
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points ∼100% +225%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	11815 Points ∼100% +224%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points ∼70% +129%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points ∼69% +123%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	7945 (7877.51^min - 7944.53^max) Points ∼67% +118%
Beelink SEi11 Pro Intel Core i5-11320H	5720 (5681.08^min - 5720.38^max) Points ∼48% +57%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5240 Points ∼44% +44%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5222 Points ∼44% +43%
Media AMD Ryzen 5 3550H (3646 - 4213, n=2)	3930 Points ∼33% +8%
Beelink SER3 AMD Ryzen 7 3750H	3897 (3854.8^min - 3897.37^max) Points ∼33% +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3867 Points ∼33% +6%
Trigkey S3 AMD Ryzen 5 3550H	3646 (3617.23^min - 3645.96^max) Points ∼31%
BMAX B5 Pro G7H8 Intel Core i5-8260U	3028 (1303.58^min - 3027.81^max) Points ∼26% -17%
Beelink U59 N5105 Intel Celeron N5105	2175 (2157.23^min - 2174.57^max) Points ∼18% -40%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	2164 Points ∼18% -41%
Beelink SEi8 Intel Core i3-8109U	2004 (1983.59^min - 2004.09^max) Points ∼17% -45%
MSI Cubi 5 10M Intel Core i3-10110U	1910 Points ∼16% -48%

Cinebench R23 / Single Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1812 Points ∼100% +97%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points ∼95% +86%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points ∼89% +75%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points ∼89% +74%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1487 Points ∼82% +61%
Beelink SEi11 Pro Intel Core i5-11320H	1467 Points ∼81% +59%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1451 Points ∼80% +57%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1367 Points ∼75% +48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1082 Points ∼60% +17%
MSI Cubi 5 10M Intel Core i3-10110U	1031 Points ∼57% +12%
Beelink SER3 AMD Ryzen 7 3750H	971 Points ∼54% +5%
Trigkey S3 AMD Ryzen 5 3550H	922 Points ∼51%
Beelink SEi8 Intel Core i3-8109U	906 Points ∼50% -2%
Media AMD Ryzen 5 3550H (850 - 922, n=2)	886 Points ∼49% -4%
BMAX B5 Pro G7H8 Intel Core i5-8260U	629 Points ∼35% -32%
Beelink U59 N5105 Intel Celeron N5105	618 Points ∼34% -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	611 Points ∼34% -34%

Cinebench R15 / CPU Multi 64Bit
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points ∼100% +206%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1879 Points ∼95% +192%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points ∼72% +119%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points ∼67% +105%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points ∼67% +105%
Beelink SEi11 Pro Intel Core i5-11320H	857 (845.25^min - 856.84^max) Points ∼44% +33%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	832 Points ∼42% +29%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	791 Points ∼40% +23%
Media AMD Ryzen 5 3550H (635 - 769, n=11)	717 Points ∼36% +12%
Beelink SER3 AMD Ryzen 7 3750H	680 (670.93^min - 679.66^max) Points ∼35% +6%
Trigkey S3 AMD Ryzen 5 3550H	643 (633.41^min - 642.56^max) Points ∼33%
BMAX B5 Pro G7H8 Intel Core i5-8260U	627 (557.08^min - 626.69^max) Points ∼32% -2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	623 Points ∼32% -3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	369 Points ∼19% -43%
Beelink U59 N5105 Intel Celeron N5105	368 (359.79^min - 368.43^max) Points ∼19% -43%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points ∼16% -50%
MSI Cubi 5 10M Intel Core i3-10110U	316 Points ∼16% -51%
Chuwi LapBook Plus Intel Atom x7-E3950	125 Points ∼6% -81%
Chuwi Hi10 Air Intel Atom x5-Z8350	97 Points ∼5% -85%

Cinebench R15 / CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	260 Points ∼100% +83%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points ∼100% +83%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points ∼94% +73%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points ∼89% +63%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	221 Points ∼85% +56%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points ∼85% +56%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	215 Points ∼83% +52%
Beelink SEi11 Pro Intel Core i5-11320H	214 Points ∼82% +51%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	170 Points ∼65% +20%
MSI Cubi 5 10M Intel Core i3-10110U	162 Points ∼62% +14%
BMAX B5 Pro G7H8 Intel Core i5-8260U	156.9 Points ∼60% +11%
Beelink SER3 AMD Ryzen 7 3750H	146 Points ∼56% +3%
Trigkey S3 AMD Ryzen 5 3550H	141.8 Points ∼55%
Media AMD Ryzen 5 3550H (77 - 146, n=11)	137.9 Points ∼53% -3%
Beelink SEi8 Intel Core i3-8109U	124.3 Points ∼48% -12%
Beelink U59 N5105 Intel Celeron N5105	108.1 Points ∼42% -24%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	106 Points ∼41% -25%
Chuwi LapBook Plus Intel Atom x7-E3950	41 Points ∼16% -71%
Chuwi Hi10 Air Intel Atom x5-Z8350	30 Points ∼12% -79%

Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus Intel Atom x7-E3950	4564 Seconds * ∼100% -530%
Beelink U59 N5105 Intel Celeron N5105	1573 Seconds * ∼34% -117%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	1550 Seconds * ∼34% -114%
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * ∼29% -83%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	759 Seconds * ∼17% -5%
BMAX B5 Pro G7H8 Intel Core i5-8260U	726 Seconds * ∼16% -0%
Trigkey S3 AMD Ryzen 5 3550H	724 Seconds * ∼16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	694 Seconds * ∼15% +4%
Media AMD Ryzen 5 3550H (612 - 759, n=6)	675 Seconds * ∼15% +7%
Beelink SER3 AMD Ryzen 7 3750H	672 Seconds * ∼15% +7%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	590 Seconds * ∼13% +19%
Beelink SEi11 Pro Intel Core i5-11320H	541 Seconds * ∼12% +25%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * ∼9% +46%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * ∼8% +47%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * ∼8% +48%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	280 Seconds * ∼6% +61%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * ∼6% +65%

7-Zip 18.03 / 7z b 4
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS ∼100% +230%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	47064 MIPS ∼82% +171%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS ∼70% +130%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS ∼63% +109%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS ∼62% +105%
Beelink SEi11 Pro Intel Core i5-11320H	24798 MIPS ∼43% +43%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	24006 MIPS ∼42% +38%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	23471 MIPS ∼41% +35%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	20163 MIPS ∼35% +16%
BMAX B5 Pro G7H8 Intel Core i5-8260U	18874 MIPS ∼33% +9%
Media AMD Ryzen 5 3550H (16683 - 19409, n=6)	17967 MIPS ∼31% +3%
Trigkey S3 AMD Ryzen 5 3550H	17375 MIPS ∼30%
Beelink SER3 AMD Ryzen 7 3750H	17077 MIPS ∼30% -2%
Beelink U59 N5105 Intel Celeron N5105	11153 MIPS ∼19% -36%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	10994 MIPS ∼19% -37%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS ∼17% -45%
Chuwi LapBook Plus Intel Atom x7-E3950	4569 MIPS ∼8% -74%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS ∼100% +64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	5738 MIPS ∼96% +57%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS ∼90% +48%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS ∼89% +47%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5255 MIPS ∼88% +44%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5235 MIPS ∼87% +43%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS ∼86% +42%
Beelink SEi11 Pro Intel Core i5-11320H	5105 MIPS ∼85% +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4638 MIPS ∼77% +27%
BMAX B5 Pro G7H8 Intel Core i5-8260U	4056 MIPS ∼68% +11%
Beelink SER3 AMD Ryzen 7 3750H	3752 MIPS ∼62% +3%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS ∼62% +3%
Trigkey S3 AMD Ryzen 5 3550H	3652 MIPS ∼61%
Media AMD Ryzen 5 3550H (3472 - 3652, n=6)	3554 MIPS ∼59% -3%
Beelink U59 N5105 Intel Celeron N5105	3108 MIPS ∼52% -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	3098 MIPS ∼52% -15%
Chuwi LapBook Plus Intel Atom x7-E3950	1454 MIPS ∼24% -60%

Geekbench 5.4 / Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	9935 Points ∼100% +203%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points ∼94% +185%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points ∼88% +167%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points ∼79% +138%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points ∼61% +86%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5813 Points ∼59% +77%
Beelink SEi11 Pro Intel Core i5-11320H	4959 Points ∼50% +51%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4851 Points ∼49% +48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3934 Points ∼40% +20%
Media AMD Ryzen 5 3550H (3162 - 3486, n=5)	3316 Points ∼33% +1%
Trigkey S3 AMD Ryzen 5 3550H	3281 Points ∼33%
Beelink U59 N5105 Intel Celeron N5105	2080 Points ∼21% -37%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	2020 Points ∼20% -38%
Beelink SEi8 Intel Core i3-8109U	1880 Points ∼19% -43%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1817 Points ∼18% -45%

Geekbench 5.4 / Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1715 Points ∼100% +89%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points ∼100% +89%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points ∼96% +82%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points ∼95% +80%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1543 Points ∼90% +70%
Beelink SEi11 Pro Intel Core i5-11320H	1518 Points ∼89% +67%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1506 Points ∼88% +66%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points ∼84% +58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1219 Points ∼71% +34%
Trigkey S3 AMD Ryzen 5 3550H	907 Points ∼53%
Media AMD Ryzen 5 3550H (880 - 907, n=5)	896 Points ∼52% -1%
Beelink SEi8 Intel Core i3-8109U	888 Points ∼52% -2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	657 Points ∼38% -28%
Beelink U59 N5105 Intel Celeron N5105	653 Points ∼38% -28%
BMAX B5 Pro G7H8 Intel Core i5-8260U	639 Points ∼37% -30%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps ∼100% +281%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	13.2 fps ∼86% +227%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps ∼68% +160%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps ∼63% +140%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps ∼61% +133%
Beelink SEi11 Pro Intel Core i5-11320H	7.28 fps ∼47% +80%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	6.55 fps ∼43% +62%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	5.2 fps ∼34% +29%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4.74 fps ∼31% +17%
Beelink SER3 AMD Ryzen 7 3750H	4.14 fps ∼27% +2%
Media AMD Ryzen 5 3550H (3.7 - 4.43, n=5)	4.05 fps ∼26% 0%
Trigkey S3 AMD Ryzen 5 3550H	4.04 fps ∼26%
Beelink SEi8 Intel Core i3-8109U	2.85 fps ∼19% -29%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	2.02 fps ∼13% -50%
Beelink U59 N5105 Intel Celeron N5105	2.01 fps ∼13% -50%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.8 fps ∼12% -55%
Chuwi LapBook Plus Intel Atom x7-E3950	0.98 fps ∼6% -76%

LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8 Intel Core i5-8260U	107.9 s * ∼100% -23%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	103.2 s * ∼96% -18%
Beelink U59 N5105 Intel Celeron N5105	101 s * ∼94% -15%
Trigkey S3 AMD Ryzen 5 3550H	87.8 s * ∼81%
Beelink SER3 AMD Ryzen 7 3750H	86.5 s * ∼80% +1%
Media AMD Ryzen 5 3550H (73.3 - 92.7, n=4)	82.2 s * ∼76% +6%
Beelink SEi8 Intel Core i3-8109U	79 s * ∼73% +10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	68.2 s * ∼63% +22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * ∼48% +41%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	51.8 s * ∼48% +41%
Beelink SEi11 Pro Intel Core i5-11320H	49.1 s * ∼46% +44%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * ∼45% +44%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * ∼45% +45%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	46.1 s * ∼43% +47%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * ∼43% +48%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	45 s * ∼42% +49%

R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.257 sec * ∼100% -72%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	1.166 sec * ∼93% -59%
Beelink U59 N5105 Intel Celeron N5105	1.162 sec * ∼92% -59%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * ∼68% -18%
Media AMD Ryzen 5 3550H (0.732 - 0.752, n=4)	0.739 sec * ∼59% -1%
Trigkey S3 AMD Ryzen 5 3550H	0.732 sec * ∼58%
Beelink SER3 AMD Ryzen 7 3750H	0.723 sec * ∼58% +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	0.7 sec * ∼56% +4%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	0.609 sec * ∼48% +17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	0.599 sec * ∼48% +18%
Beelink SEi11 Pro Intel Core i5-11320H	0.581 sec * ∼46% +21%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * ∼42% +28%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * ∼41% +30%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * ∼39% +34%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	0.4787 sec * ∼38% +35%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * ∼37% +37%

CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... Meglio usare valori piccoli

Blender
v3.3 Classroom HIP/AMD
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	926 Seconds * ∼100%
Media AMD Radeon RX Vega 8 (Ryzen 2000/3000)	926 Seconds * ∼100% -0%
v3.3 Classroom CPU
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	1297 Seconds * ∼100%
Media AMD Radeon RX Vega 8 (Ryzen 2000/3000)	1297 Seconds * ∼100% -0%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	995 Seconds * ∼77% +23%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds * ∼55% +45%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	697 Seconds * ∼54% +46%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	666 Seconds * ∼51% +49%

* ... Meglio usare valori piccoli

Performance Rating
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	92.6 pt ∼93%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	76.7 pt ∼77%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	74.9 pt ∼75%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	69.6 pt ∼70%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	64.6 pt ∼65%
Media AMD Ryzen 5 3550H	44.2 pt ∼44%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	41.1 pt ∼41%

AIDA64 / FP32 Ray-Trace
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	9181 KRay/s ∼100% +206%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	7047 KRay/s ∼77% +135%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	6915 KRay/s ∼75% +131%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s ∼74% +126%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s ∼73% +124%
Media AMD Ryzen 5 3550H (2996 - 3607, n=5)	3309 KRay/s ∼36% +10%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	2996 KRay/s ∼33%

AIDA64 / FPU Julia
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	58039 Points ∼100% +255%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	37275 Points ∼64% +128%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points ∼59% +111%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	29972 Points ∼52% +84%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points ∼48% +71%
Media AMD Ryzen 5 3550H (16278 - 18781, n=5)	17574 Points ∼30% +8%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	16331 Points ∼28%

AIDA64 / CPU SHA3
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	2006 MB/s ∼100% +137%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	1992 MB/s ∼99% +135%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	1911 MB/s ∼95% +126%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s ∼94% +122%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s ∼92% +119%
Media AMD Ryzen 5 3550H (847 - 983, n=4)	933 MB/s ∼47% +10%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	847 MB/s ∼42%

AIDA64 / CPU Queen
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	66699 Points ∼100% +57%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65340 Points ∼98% +54%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points ∼90% +41%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	48212 Points ∼72% +14%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points ∼70% +10%
Media AMD Ryzen 5 3550H (42017 - 48622, n=5)	45217 Points ∼68% +6%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	42470 Points ∼64%

AIDA64 / FPU SinJulia
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	8340 Points ∼100% +55%
Media AMD Ryzen 5 3550H (5386 - 6316, n=5)	5909 Points ∼71% +10%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	5386 Points ∼65%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	4779 Points ∼57% -11%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	4771 Points ∼57% -11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points ∼56% -14%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points ∼53% -17%

AIDA64 / FPU Mandel
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	31962 Points ∼100% +276%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	17999 Points ∼56% +111%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	17987 Points ∼56% +111%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points ∼53% +99%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points ∼51% +93%
Media AMD Ryzen 5 3550H (8460 - 9767, n=5)	9148 Points ∼29% +7%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	8511 Points ∼27%

AIDA64 / CPU AES
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	79183 MB/s ∼100% +185%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	68683 MB/s ∼87% +147%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s ∼85% +142%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s ∼84% +140%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	38221 MB/s ∼48% +38%
Media AMD Ryzen 5 3550H (27486 - 32316, n=5)	29977 MB/s ∼38% +8%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	27755 MB/s ∼35%

AIDA64 / CPU ZLib
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s ∼100% +110%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	577 MB/s ∼91% +91%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	507 MB/s ∼80% +68%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s ∼59% +24%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	368 MB/s ∼58% +22%
Media AMD Ryzen 5 3550H (299 - 352, n=5)	323 MB/s ∼51% +7%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	302 MB/s ∼48%

AIDA64 / FP64 Ray-Trace
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	4811 KRay/s ∼100% +204%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	3926 KRay/s ∼82% +148%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	3811 KRay/s ∼79% +141%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s ∼75% +129%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s ∼73% +123%
Media AMD Ryzen 5 3550H (1584 - 1914, n=5)	1753 KRay/s ∼36% +11%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	1584 KRay/s ∼33%

AIDA64 / CPU PhotoWorxx
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	44210 MPixel/s ∼100% +164%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s ∼67% +76%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	25964 MPixel/s ∼59% +55%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	20237 MPixel/s ∼46% +21%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s ∼38% +1%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	16736 MPixel/s ∼38%
Media AMD Ryzen 5 3550H (14325 - 17838, n=5)	16132 MPixel/s ∼36% -4%

Prestazioni del sistema

Come previsto, i risultati di PCMark si collocano tra i mini PC più lenti con CPU Celeron o Atom e i mini PC più veloci con le più moderne CPU Intel di 11a o 12a generazione.

PCMark 10 / Score
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5902 Points ∼100% +47%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points ∼94% +38%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	5510 Points ∼93% +38%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5095 Points ∼86% +27%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points ∼76% +13%
Media AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (4006 - 4307, n=4)	4153 Points ∼70% +4%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	4006 Points ∼68%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2670 Points ∼45% -33%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	1144 Points ∼19% -71%

PCMark 10 / Essentials
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points ∼100% +39%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	10351 Points ∼95% +33%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	10281 Points ∼95% +32%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	10186 Points ∼94% +31%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points ∼83% +16%
Media AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (7781 - 8579, n=4)	8202 Points ∼76% +5%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	7781 Points ∼72%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	6340 Points ∼58% -19%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	2891 Points ∼27% -63%

PCMark 10 / Productivity
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	9293 Points ∼100% +43%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points ∼79% +13%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	7041 Points ∼76% +9%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	6915 Points ∼74% +7%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	6487 Points ∼70%
Media AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (5995 - 6487, n=4)	6327 Points ∼68% -2%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points ∼67% -5%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	3758 Points ∼40% -42%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	1407 Points ∼15% -78%

PCMark 10 / Digital Content Creation
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	6330 Points ∼100% +83%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5801 Points ∼92% +68%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points ∼92% +68%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5048 Points ∼80% +46%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4474 Points ∼71% +29%
Media AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (3457 - 3947, n=4)	3751 Points ∼59% +9%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	3457 Points ∼55%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2170 Points ∼34% -37%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	1001 Points ∼16% -71%

CrossMark / Overall
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points ∼100% +98%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1559 Points ∼95% +87%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1335 Points ∼81% +60%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1311 Points ∼80% +58%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	832 Points ∼51%
Media AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	832 Points ∼51% 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	531 Points ∼32% -36%

CrossMark / Productivity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points ∼100% +88%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1528 Points ∼91% +72%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1419 Points ∼85% +59%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1355 Points ∼81% +52%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	890 Points ∼53%
Media AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	890 Points ∼53% 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	590 Points ∼35% -34%

CrossMark / Creativity
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1679 Points ∼100% +116%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points ∼92% +99%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1315 Points ∼78% +69%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1256 Points ∼75% +62%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	777 Points ∼46%
Media AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	777 Points ∼46% 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	471 Points ∼28% -39%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points ∼100% +123%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1336 Points ∼72% +60%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1327 Points ∼71% +59%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1177 Points ∼63% +41%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	836 Points ∼45%
Media AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	836 Points ∼45% 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	554 Points ∼30% -34%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	69882 MB/s ∼100% +117%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s ∼62% +34%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	42001 MB/s ∼60% +30%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	41106 MB/s ∼59% +28%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	32188 MB/s ∼46%
Media AMD Ryzen 5 3550H (28887 - 32188, n=5)	30294 MB/s ∼43% -6%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s ∼33% -29%

AIDA64 / Memory Read
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65177 MB/s ∼100% +85%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	47363 MB/s ∼73% +35%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s ∼72% +33%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46516 MB/s ∼71% +32%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	35172 MB/s ∼54%
Media AMD Ryzen 5 3550H (31862 - 35172, n=5)	33574 MB/s ∼52% -5%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s ∼38% -29%

AIDA64 / Memory Write
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	63385 MB/s ∼100% +77%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46760 MB/s ∼74% +30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s ∼73% +30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	42347 MB/s ∼67% +18%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	35845 MB/s ∼57%
Media AMD Ryzen 5 3550H (32493 - 35847, n=5)	34148 MB/s ∼54% -5%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s ∼37% -35%

AIDA64 / Memory Latency
Media AMD Ryzen 5 3550H (95 - 120, n=5)	113.8 ns * ∼100% -20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	100 ns * ∼88% -5%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	95 ns * ∼83%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns * ∼80% +4%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * ∼77% +8%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	81 ns * ∼71% +15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	80.3 ns * ∼71% +15%

* ... Meglio usare valori piccoli

Latenza DPC

LatencyMon rivela problemi di DPC quando si aprono più schede del browser della nostra homepage. la riproduzione di video 4K a 60 FPS è perlopiù fluida, con solo 3 fotogrammi caduti durante il nostro video di prova della durata di un minuto.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	3219.2 μs * ∼100%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1151 μs * ∼36% +64%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * ∼26% +74%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	562 μs * ∼17% +83%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * ∼16% +84%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs * ∼5% +95%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

La Trigkey utilizza lo stessoKingston NV1 SNVS/500GCN M.2 2280 NVMe presente in molti mini PC Beelink, come il modello SEi11 Pro o SER Pro. Si tratta di un'unità PCIe3 x4 economica con velocità di trasferimento massima sostenuta di circa 2500 MB/s. Gli utenti possono installare un'unità SSD M.2 e un'unità SATA III da 2,5 pollici se riescono ad aprire il pannello inferiore.

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV1 SNVS/500GCN

CDM 5/6 Read Seq Q32T1: 2517 MB/s

CDM 5/6 Write Seq Q32T1: 1837 MB/s

CDM 5/6 Read 4K Q32T1: 364 MB/s

CDM 5/6 Write 4K Q32T1: 232.6 MB/s

CDM 5 Read Seq: 1963 MB/s

CDM 5 Write Seq: 1784 MB/s

CDM 5/6 Read 4K: 51.91 MB/s

CDM 5/6 Write 4K: 138.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	92.8 pt ∼93%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	70.5 pt ∼71%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	55.7 pt ∼56%
Beelink SER Pro Ryzen 5 5600H ^-11! Kingston NV1 SNVS/500GCN	55.1 pt ∼55%
Trigkey S3 Kingston NV1 SNVS/500GCN	52.2 pt ∼52%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	17.7 pt ∼18%

DiskSpd
seq read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s ∼100% +31%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2228 (1938.09^min - 2228.38^max) MB/s ∼89% +16%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	1976 (1950.06^min - 1975.69^max) MB/s ∼79% +3%
Trigkey S3 Kingston NV1 SNVS/500GCN	1924 (1916.02^min - 1924^max) MB/s ∼77%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s ∼65% -15%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s ∼20% -74%
seq write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s ∼100% +62%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2198 (2143.62^min - 2198.23^max) MB/s ∼77% +25%
Trigkey S3 Kingston NV1 SNVS/500GCN	1758 (745.14^min - 1757.99^max) MB/s ∼62%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	1746 (580.39^min - 1746.23^max) MB/s ∼61% -1%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s ∼58% -6%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s ∼16% -73%
seq q8 t1 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s ∼100% +44%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3497 (2944.82^min - 3496.65^max) MB/s ∼96% +39%
Trigkey S3 Kingston NV1 SNVS/500GCN	2518 (2250.15^min - 2517.63^max) MB/s ∼69%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	2456 (2261.06^min - 2456.06^max) MB/s ∼68% -2%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s ∼65% -6%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s ∼15% -78%
seq q8 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s ∼100% +57%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2573 (2547.29^min - 2572.88^max) MB/s ∼91% +42%
Trigkey S3 Kingston NV1 SNVS/500GCN	1809 (1103.1^min - 1809.06^max) MB/s ∼64%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	1763 (714.42^min - 1763.25^max) MB/s ∼62% -3%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s ∼50% -21%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s ∼18% -72%
4k q1 t1 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s ∼100% +79%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s ∼64% +14%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	44.7 (43.85^min - 44.67^max) MB/s ∼56% +1%
Trigkey S3 Kingston NV1 SNVS/500GCN	44.4 (42.57^min - 44.42^max) MB/s ∼56%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	44.3 (43.84^min - 44.26^max) MB/s ∼56% 0%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s ∼27% -51%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s ∼100% +189%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s ∼44% +28%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	147.9 (117.82^min - 147.87^max) MB/s ∼38% +9%
Trigkey S3 Kingston NV1 SNVS/500GCN	135.1 (104.83^min - 135.1^max) MB/s ∼35%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	127.3 (125.68^min - 127.3^max) MB/s ∼33% -6%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s ∼12% -66%
4k q32 t16 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s ∼100% +161%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	747 (745.51^min - 747.02^max) MB/s ∼38% 0%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s ∼38% 0%
Trigkey S3 Kingston NV1 SNVS/500GCN	745 (742.5^min - 744.62^max) MB/s ∼38%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	643 (632.31^min - 643.46^max) MB/s ∼33% -14%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s ∼15% -62%
4k q32 t16 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s ∼100% +180%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	860 (472.56^min - 860.33^max) MB/s ∼39% +8%
Trigkey S3 Kingston NV1 SNVS/500GCN	793 (785.74^min - 792.64^max) MB/s ∼36%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s ∼33% -8%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s ∼15% -58%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	328 (314.14^min - 327.95^max) MB/s ∼15% -59%

AS SSD
Score Total
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points ∼100% +91%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3536 Points ∼77% +46%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points ∼59% +13%
Trigkey S3 Kingston NV1 SNVS/500GCN	2421 Points ∼52%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points ∼18% -65%
Score Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points ∼100% +69%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1042 Points ∼64% +8%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points ∼60% +1%
Trigkey S3 Kingston NV1 SNVS/500GCN	969 Points ∼59%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points ∼19% -69%
Score Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points ∼100% +134%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1997 Points ∼88% +105%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points ∼56% +31%
Trigkey S3 Kingston NV1 SNVS/500GCN	975 Points ∼43%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points ∼16% -62%
Seq Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s ∼100% +44%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2881 MB/s ∼90% +29%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s ∼70% +1%
Trigkey S3 Kingston NV1 SNVS/500GCN	2226.03 MB/s ∼69%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s ∼16% -76%
Seq Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1960 MB/s ∼100% +19%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s ∼90% +8%
Trigkey S3 Kingston NV1 SNVS/500GCN	1640.43 MB/s ∼84%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s ∼24% -71%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s ∼24% -72%
4K Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s ∼100% +41%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	45.38 MB/s ∼76% +7%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s ∼74% +4%
Trigkey S3 Kingston NV1 SNVS/500GCN	42.33 MB/s ∼71%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s ∼34% -52%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s ∼100% +162%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s ∼69% +80%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	182.89 MB/s ∼65% +71%
Trigkey S3 Kingston NV1 SNVS/500GCN	107.09 MB/s ∼38%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s ∼15% -60%
4K-64 Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s ∼100% +78%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	708.14 MB/s ∼57% +1%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s ∼56% 0%
Trigkey S3 Kingston NV1 SNVS/500GCN	704.26 MB/s ∼56%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s ∼18% -67%
4K-64 Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s ∼100% +177%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1617.56 MB/s ∼83% +130%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s ∼47% +30%
Trigkey S3 Kingston NV1 SNVS/500GCN	703.84 MB/s ∼36%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s ∼15% -59%
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * ∼100% -75%
Trigkey S3 Kingston NV1 SNVS/500GCN	0.071 ms * ∼57%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms * ∼43% +25%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.053 ms * ∼43% +25%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * ∼40% +31%
Access Time Write
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms * ∼100% -4%
Trigkey S3 Kingston NV1 SNVS/500GCN	0.328 ms * ∼96%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * ∼79% +18%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * ∼20% +79%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.022 ms * ∼6% +93%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Trigkey S3: Ø2442 (2098.62-2474.72)

Prestazioni della GPU

Le prestazioni grafiche grezze sono circa il doppio di quelle della UHD Graphics 620 comunemente presente nelle CPU Intel di decima generazione o più vecchie. Non è sufficiente per alimentare la maggior parte dei giochi, ma ogni piccolo dettaglio è utile per lo streaming o per l'esecuzione su schermi a risoluzione più elevata.

3DMark Performance Rating | 3DMark | 3DMark 11

3DMark Performance Rating - Percent
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	100 pt ∼100%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	64 pt ∼64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	62.3 pt ∼62%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	61.2 pt ∼61%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	60.4 pt ∼60%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	59.3 pt ∼59%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	56 pt ∼56%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	52.6 pt ∼53%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	50.4 pt ∼50%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	36.8 pt ∼37%
Media AMD Radeon RX Vega 8 (Ryzen 2000/3000)	31.6 pt ∼32%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	28.9 pt ∼29%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	18.6 pt ∼19%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	16.1 pt ∼16%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	15.3 pt ∼15%
Geekom MiniAir 11 Special Edition ^-1! Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	9.4 pt ∼9%
Chuwi LapBook Plus ^-1! Intel HD Graphics 505, Intel Atom x7-E3950	7.3 pt ∼7%
Chuwi Hi10 Air ^-3! Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350	2.6 pt ∼3%

3DMark
1280x720 Cloud Gate Standard Graphics
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	44579 Points ∼100% +137%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	31437 Points ∼71% +67%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	26093 Points ∼59% +39%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	25485 Points ∼57% +36%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	22735 Points ∼51% +21%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	22363 Points ∼50% +19%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	21602 Points ∼48% +15%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	21276 Points ∼48% +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points ∼47% +12%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	18788 Points ∼42%
Media AMD Radeon RX Vega 8 (Ryzen 2000/3000) (7309 - 19399, n=37)	15327 Points ∼34% -18%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	13791 Points ∼31% -27%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	9921 Points ∼22% -47%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	8388 Points ∼19% -55%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points ∼18% -57%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points ∼11% -74%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	3997 Points ∼9% -79%
1920x1080 Fire Strike Graphics
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points ∼100% +166%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7

Cinebench R15 CPU Multi 64 Bit in confronto
Toshiba Satellite W30Dt-A-100 (min) A4-1200, Radeon HD 8180	33
...
One K56-4N 4700MQ, Radeon R9 M290X	643
Alienware 17 (GTX 880M) 4700MQ, GeForce GTX 880M	643
Gigabyte P34G 4700HQ, GeForce GTX 760M	643
Trigkey S3 R5 3550H, Vega 8	643
HP Spectre x360 13-aw0013dx i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU)	643
Asus GL771JM 4710HQ, GeForce GTX 860M	643
Microsoft Surface Pro 7 Core i5-1035G4 i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)	644
...
(max) TR Pro 3995WX, Radeon Pro W6800	9706

Recensione del mini PC Trigkey S3: Prestazioni simili a quelle di un Core i3 al prezzo di un Celeron o di un Atom

Potenziali concorrenti a confronto

Caso

Confronto delle dimensioni

Connettività

Comunicazione

Manutenzione

Accessori e garanzia

Prestazioni

Condizioni di test

Processore

Cinebench R15 Multi Loop

Prestazioni del sistema

Latenza DPC

Dispositivi di archiviazione

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Prestazioni della GPU
