Recensione del mini PC Beelink SEi12: Supera l'Intel NUC 11

Mini PC Intel di 12a generazione a 460 dollari. Il SEi12 Core i5-1235U offre prestazioni del processore più elevate rispetto all'Intel NUC11 Core i7-1165G7, pur costando centinaia di dollari in meno. Per la maggior parte delle configurazioni HTPC, il nuovo Beelink avrà tutta la potenza e le funzioni necessarie per lo streaming 4K e non solo.

Allen Ngo, 👁 Allen Ngo (traduzione a cura di DeepL / Ninh Duy), Published 12/10/2022 🇺🇸 🇸🇪 ...

Mini PC Alder Lake

A sinistra: Beelink SEi12, a destra: Intel NUC11TNK

Beelink offre una vasta gamma di mini PC progettati per i mercati di fascia media ed economica. Sebbene non vi siano ancora modelli con GPU dedicate, molti di essi vengono forniti con Windows 11, RAM e storage già preinstallati per essere sufficienti per media center, streaming box o per le tipiche attività quotidiane di navigazione o ufficio

L'ultimo mini PC di Beelink è l'SEi12, che viene fornito con il Core i5-1235U di 12a generazione, mentre la maggior parte delle altre alternative economiche sono dotate di CPU più vecchie o più lente per mantenere bassi i costi. La nostra unità di prova può essere acquistata online a soli 460 dollari

I concorrenti dell'SEi12 includono la maggior parte degli altri mini PC dotati di CPU della serie U, come molti modelli di Modelli NUC di Intel, il BMAX B5 Proo il Ace Magician AMR5

Altre recensioni di Beelink:

Beelink SEi12 Core i5-1235U

Processore

Intel Core i5-1235U 10 x 0.9 - 4.4 GHz, 47 W PL2 / Short Burst, 27 W PL1 / Sustained, Alder Lake-U

Scheda grafica

Intel Iris Xe Graphics G7 80EUs, Core: 1200 MHz, Memoria: 1600 MHz, DDR4, 31.0.101.3802

Memoria

16 GB

, Crucial DDR4-3200, 22-22-22-52, Dual-Channel

Scheda madre

Intel Alder Lake-P PCH

Harddisk

Kingston NV1 SNVS/500GCN, 500 GB

Scheda audio

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Porte di connessione

2 USB 2.0, 3 USB 3.0 / 3.1, 2 HDMI, 1 DisplayPort, Connessioni Audio: 3.5 mm headset

Rete

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Dimensioni

altezza x larghezza x profondità (in mm): 42 x 126 x 113

Sistema Operativo

Microsoft Windows 11 Pro

Altre caratteristiche

12 Mesi Garanzia

Peso

465 gr, Alimentazione: 546 gr

Prezzo

460 USD

Links

Beelink homepage

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Potenziali concorrenti a confronto

Data	Modello	Peso	Altezza	Risoluzione
12/2022	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 gr	42 mm	x
04/2022	Beelink SEi8 i3-8109U, Iris Plus Graphics 655	346 gr	41 mm	x
04/2022	Beelink SER4 R7 4800U, Vega 8	494 gr	40 mm	x
02/2021	Intel NUC11PAQi7 i7-1165G7, Iris Xe G7 96EUs	647 gr	56 mm	x
11/2022	BMAX B5 Pro G7H8 i5-8260U, UHD Graphics 620	369 gr	43.2 mm	x
04/2018	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH	1.3 kg	39 mm	x

Caso

Il telaio è solo leggermente più spesso e più pesante del vecchio SEi 11ma con materiali metallici e caratteristiche fisiche simili. L'aspetto visivo più notevole dell'SEi12 è il nuovo materiale in pile o tessuto sulla superficie superiore, mentre i vecchi modelli Beelink erano semplicemente in plastica liscia o in una rete di plastica perforata. Il tessuto è liscio al tatto per una sensazione di lusso, ma la pulizia può risultare difficoltosa in quanto capelli e polvere vi si attaccano più facilmente.

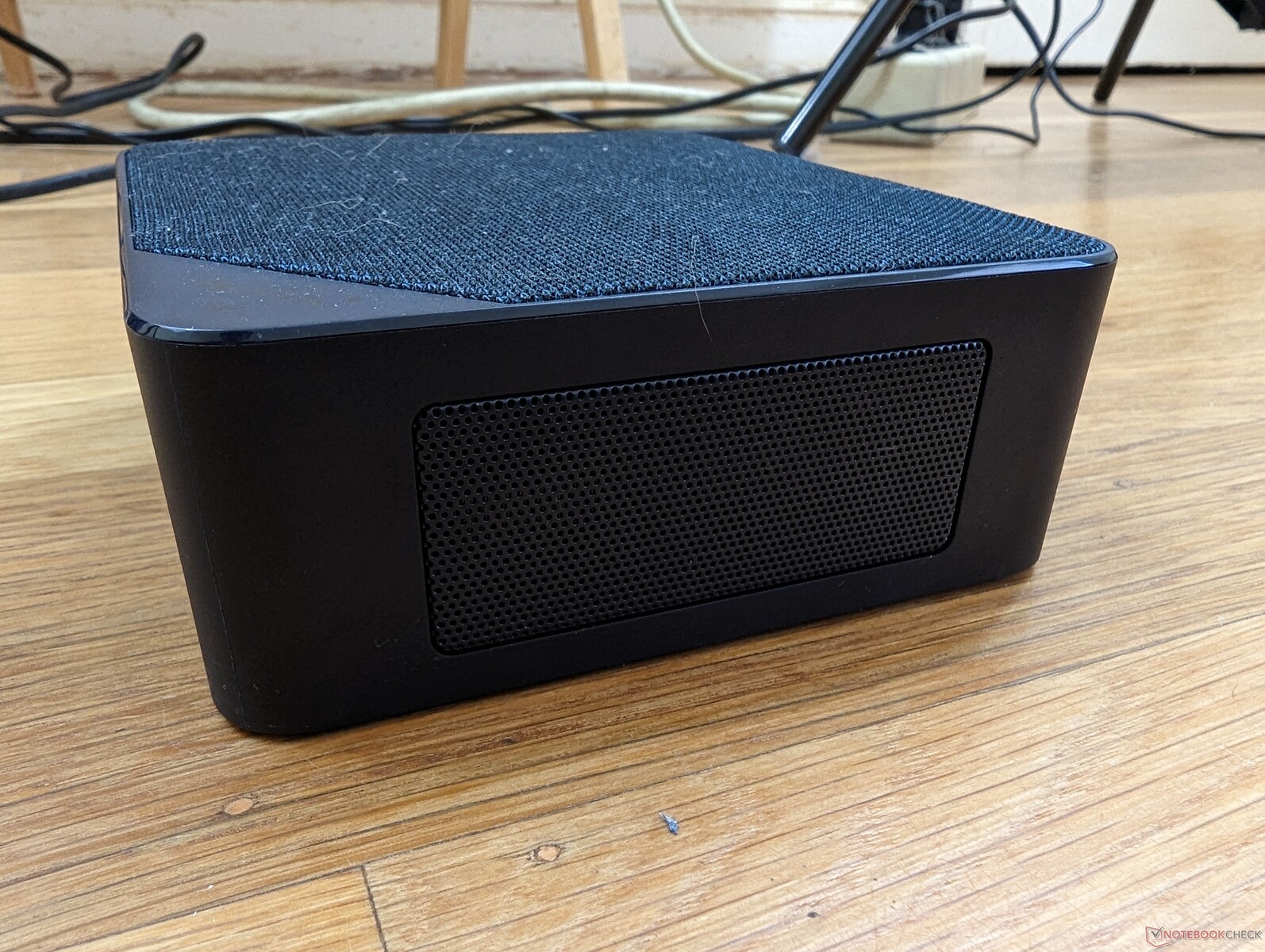

Nuovo tessuto impermeabile sulla parte superiore

il mattone di potenza da 120 W è relativamente grande: 14,5 x 6,4 x 3 cm

Il pannello inferiore è dotato di fori per il supporto VESA rimovibile con piedini in gomma incollati e viti Philips

Aletta in gomma sul fondo per facilitare la rimozione del pannello piatto

Confronto delle dimensioni

Intel Hades Canyon NUC8i7HVK Intel NUC11PAQi7 BMAX B5 Pro G7H8 Beelink SEi12 Core i5-1235U Beelink SEi11 Pro Beelink SER4 DIN A4 ❌

Connettività - Niente Thunderbolt

Le opzioni di porta sono eccellenti, con cinque porte USB e due porte HDMI tra cui scegliere. Tuttavia, non siamo in grado di emettere alcun video dalla porta USB-C, il che significa che DisplayPort-over-USB potrebbe non essere supportato. Il sistema non può essere alimentato nemmeno tramite USB-C.

Parte anteriore: Pulsante Clear CMOS, 2x USB-A 3.0, USB-C, cuffie da 3,5 mm, pulsante di alimentazione

Posteriore: Gigabit RJ-45, 2x USB-A 2.0, 2x HDMI 2.0, adattatore AC

Comunicazione

La connettività Wi-Fi 6 e Bluetooth 5.2 è garantita da un modulo Intel AX201. Non ci sono opzioni Wi-Fi 6E, probabilmente per contenere i costi, ma gli utenti possono installare il proprio modulo Wi-Fi 6E se lo desiderano. La velocità di trasferimento è comunque veloce e costante.

Networking
iperf3 transmit AX12
Beelink SER4 MediaTek RZ608	821 (758^min - 891^max) MBit/s
Intel NUC11PAQi7 Intel Wi-Fi 6 AX201	546 (369^min - 618^max) MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	376 MBit/s
Beelink SEi8 Intel Dual Band Wireless-AC 3165	200 (156^min - 261^max) MBit/s
iperf3 receive AX12
Beelink SER4 MediaTek RZ608	880 (842^min - 900^max) MBit/s
Intel NUC11PAQi7 Intel Wi-Fi 6 AX201	862 (809^min - 916^max) MBit/s
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	591 MBit/s
Beelink SEi8 Intel Dual Band Wireless-AC 3165	338 (320^min - 344^max) MBit/s
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s
BMAX B5 Pro G7H8 Realtek RTL8852BE	708 (679^min - 737^max) MBit/s -49%
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s
BMAX B5 Pro G7H8 Realtek RTL8852BE	634 (593^min - 680^max) MBit/s -57%

Beelink SEi12 Core i5-1235U; iperf3 transmit AXE11000; iperf 3.1.3: Ø1491 (1413-1572)

Beelink SEi12 Core i5-1235U; iperf3 receive AXE11000; iperf 3.1.3: Ø1384 (1200-1495)

Manutenzione

La manutenzione richiede un po' più di lavoro rispetto alla maggior parte degli altri mini PC. Rimuovendo la piastra inferiore si espone una delle ventole, che deve essere poi rimossa per rivelare i moduli RAM, SSD M.2 e WLAN M.2, come mostrano le immagini qui sotto. Per fortuna è sufficiente un normale cacciavite Philips per qualsiasi aggiornamento.

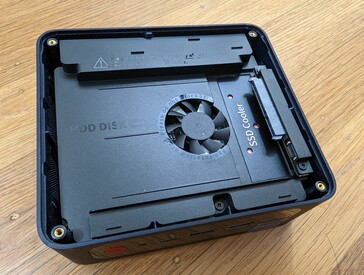

La rimozione della piastra inferiore espone la ventola e lo slot SATA III da 2,5 pollici vuoto

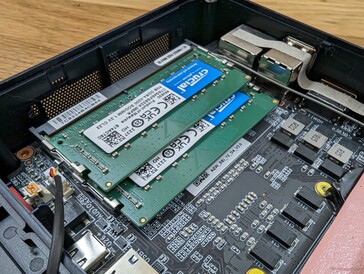

Una volta rimossa la ventola, è possibile accedere ai componenti interni

Accessori e garanzia

La confezione include due cavi HDMI, una staffa VESA con viti, il manuale d'uso e l'adattatore CA. La garanzia limitata del produttore è di un anno, mentre se si acquista un NUC Intel la garanzia è di tre anni.

Prestazioni

Condizioni di test

Abbiamo impostato l'unità in modalità Performance prima di eseguire i benchmark delle prestazioni riportati di seguito. Il produttore non include applicazioni preinstallate o software di tipo "control center" con nessuno dei suoi mini PC.

Processore

Le prestazioni della CPU sono eccellenti, con risultati significativamente più veloci rispetto a quelle delGateway Ultra Slim 14.1 o del VAIO FE 14.1, ciascuno con lo stesso Core i5-1235U di 12a generazione Core i5-1235U CPU. La sostenibilità del Turbo Boost potrebbe tuttavia essere migliore, dato che i punteggi di CineBench R15 xT diminuiscono di circa il 14% nel tempo, come mostra il grafico sottostante. Non ci si aspetta comunque un elevato potenziale di Turbo Boost, trattandosi di una CPU Core serie U

Le prestazioni multi-thread complessive sono circa il 15% più veloci rispetto al Core i7-1165G7 di 11a generazione Core i7-1165G7 nel più costoso NUC11.

Cinebench R15 Multi Loop

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Beelink SER4 AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Intel NUC11PAQi7 Intel Core i7-1165G7: Ø969 (962.77-985.76)

BMAX B5 Pro G7H8 Intel Core i5-8260U: Ø566 (557.08-626.69)

Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G: Ø857 (853.53-862.44)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Beelink SER4 AMD Ryzen 7 4800U	3248 Points +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points +4%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	3131 Points +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points
Media Intel Core i5-1235U (1783 - 3537, n=7)	2695 Points -13%
Intel NUC11PAQi7 Intel Core i7-1165G7	2657 Points -15%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	2027 Points -35%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	2005 Points -36%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1494 Points -52%
Beelink SEi8 Intel Core i3-8109U	772 Points -75%

Cinebench R20 / CPU (Single Core)
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	669 Points +8%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points
Media Intel Core i5-1235U (566 - 651, n=7)	613 Points -1%
Intel NUC11PAQi7 Intel Core i7-1165G7	582 Points -6%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	558 Points -10%
Beelink SER4 AMD Ryzen 7 4800U	488 Points -21%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	404 Points -35%
BMAX B5 Pro G7H8 Intel Core i5-8260U	400 Points -35%
Beelink SEi8 Intel Core i3-8109U	351 Points -43%

Cinebench R23 / Multi Core
Beelink SER4 AMD Ryzen 7 4800U	8376 (8310.1^min - 8376.05^max) Points +3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points +3%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	8332 (8041.69^min - 8332.08^max) Points +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points
Intel NUC11PAQi7 Intel Core i7-1165G7	6862 Points -16%
Media Intel Core i5-1235U (2485 - 9208, n=7)	6225 Points -23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5222 Points -36%
BMAX B5 Pro G7H8 Intel Core i5-8260U	3028 (1303.58^min - 3027.81^max) Points -63%
Beelink SEi8 Intel Core i3-8109U	2004 (1983.59^min - 2004.09^max) Points -75%

Cinebench R23 / Single Core
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1756 Points +9%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points
Media Intel Core i5-1235U (1444 - 1698, n=7)	1588 Points -1%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1451 Points -10%
Beelink SER4 AMD Ryzen 7 4800U	1240 Points -23%
Beelink SEi8 Intel Core i3-8109U	906 Points -44%
BMAX B5 Pro G7H8 Intel Core i5-8260U	629 Points -61%

Cinebench R15 / CPU Multi 64Bit
Beelink SER4 AMD Ryzen 7 4800U	1411 (1390.29^min - 1411.03^max) Points 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1400 (1342.78^min - 1400.12^max) Points -1%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points -6%
Media Intel Core i5-1235U (785 - 1587, n=7)	1129 Points -20%
Intel NUC11PAQi7 Intel Core i7-1165G7	986 (962.77^min - 985.76^max) Points -30%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points -39%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	791 Points -44%
BMAX B5 Pro G7H8 Intel Core i5-8260U	627 (557.08^min - 626.69^max) Points -56%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points -77%

Cinebench R15 / CPU Single 64Bit
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	250 Points +8%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points
Intel NUC11PAQi7 Intel Core i7-1165G7	230 Points 0%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	215 Points -7%
Media Intel Core i5-1235U (151.5 - 242, n=7)	212 Points -8%
Beelink SER4 AMD Ryzen 7 4800U	187 Points -19%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points -23%
BMAX B5 Pro G7H8 Intel Core i5-8260U	156.9 Points -32%
Beelink SEi8 Intel Core i3-8109U	124.3 Points -46%

Blender / v2.79 BMW27 CPU
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * -241%
BMAX B5 Pro G7H8 Intel Core i5-8260U	726 Seconds * -86%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	590 Seconds * -51%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	537 Seconds * -38%
Media Intel Core i5-1235U (366 - 662, n=7)	491 Seconds * -26%
Intel NUC11PAQi7 Intel Core i7-1165G7	468 Seconds * -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds *
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	381 Seconds * +2%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * +3%
Beelink SER4 AMD Ryzen 7 4800U	340 Seconds * +13%

7-Zip 18.03 / 7z b 4
Beelink SER4 AMD Ryzen 7 4800U	40117 MIPS +13%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	37325 MIPS +5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS
Media Intel Core i5-1235U (20166 - 38643, n=7)	30814 MIPS -13%
Intel NUC11PAQi7 Intel Core i7-1165G7	27203 MIPS -24%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	23471 MIPS -34%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	19347 MIPS -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U	18874 MIPS -47%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS -73%

7-Zip 18.03 / 7z b 4 -mmt1
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	5464 MIPS +5%
Intel NUC11PAQi7 Intel Core i7-1165G7	5405 MIPS +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS +3%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5235 MIPS +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS
Media Intel Core i5-1235U (4371 - 5233, n=7)	4970 MIPS -4%
Beelink SER4 AMD Ryzen 7 4800U	4603 MIPS -11%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	4101 MIPS -21%
BMAX B5 Pro G7H8 Intel Core i5-8260U	4056 MIPS -22%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS -28%

Geekbench 5.5 / Multi-Core
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points +12%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	8105 Points +4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points
Media Intel Core i5-1235U (5528 - 8571, n=9)	6865 Points -12%
Beelink SER4 AMD Ryzen 7 4800U	6375 Points -18%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5813 Points -26%
Intel NUC11PAQi7 Intel Core i7-1165G7	4975 Points -36%
Beelink SEi8 Intel Core i3-8109U	1880 Points -76%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1817 Points -77%

Geekbench 5.5 / Single-Core
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points +5%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	1712 Points +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points
Intel NUC11PAQi7 Intel Core i7-1165G7	1559 Points -5%
Media Intel Core i5-1235U (1426 - 1643, n=9)	1547 Points -5%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1506 Points -8%
Beelink SER4 AMD Ryzen 7 4800U	1192 Points -27%
Beelink SEi8 Intel Core i3-8109U	888 Points -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U	639 Points -61%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink SER4 AMD Ryzen 7 4800U	10.4 fps +10%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	9.92 fps +5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps
Intel NUC11PAQi7 Intel Core i7-1165G7	8.47 fps -10%
Media Intel Core i5-1235U (4.99 - 9.43, n=7)	7.79 fps -17%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	7.1 fps -25%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	6.55 fps -31%
Beelink SEi8 Intel Core i3-8109U	2.85 fps -70%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.8 fps -81%

LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8 Intel Core i5-8260U	107.9 s * -122%
Beelink SEi8 Intel Core i3-8109U	79 s * -62%
Beelink SER4 AMD Ryzen 7 4800U	62.6 s * -29%
Media Intel Core i5-1235U (42.4 - 65.5, n=7)	50.8 s * -4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * -0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s *
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	46.1 s * +5%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	44.5 s * +9%
Intel NUC11PAQi7 Intel Core i7-1165G7	42.2 s * +13%

R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.257 sec * -146%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * -68%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	0.599 sec * -17%
Beelink SER4 AMD Ryzen 7 4800U	0.576 sec * -13%
Intel NUC11PAQi7 Intel Core i7-1165G7	0.553 sec * -8%
Media Intel Core i5-1235U (0.4986 - 0.603, n=7)	0.528 sec * -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec *
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * +5%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U	0.4807 sec * +6%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit

1409 Points

Cinebench R15 OpenGL 64Bit

95.4 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

231 Points

Aiuto

... in confronto

Performance Rating
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	91.8 pt
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	78 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	73.2 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	72.1 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	69.5 pt
Media Intel Core i5-1235U	60.1 pt
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	43.2 pt
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	24.5 pt

AIDA64 / FP32 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +48%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	7373 KRay/s +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	7026 KRay/s +4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	6915 KRay/s +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s
Media Intel Core i5-1235U (3078 - 7457, n=7)	5568 KRay/s -18%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	4686 KRay/s -31%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	2663 KRay/s -61%

AIDA64 / FPU Julia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points +64%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	37403 Points +9%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	37275 Points +8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	29426 Points -15%
Media Intel Core i5-1235U (15838 - 37760, n=7)	29040 Points -16%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	23561 Points -32%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	12985 Points -62%

AIDA64 / CPU SHA3
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	2079 MB/s +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	1983 MB/s +5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	1911 MB/s +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -2%
Media Intel Core i5-1235U (978 - 2072, n=7)	1591 MB/s -16%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	1029 MB/s -45%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	629 MB/s -67%

AIDA64 / CPU Queen
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +31%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65340 Points +9%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	64914 Points +9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points
Media Intel Core i5-1235U (52832 - 62404, n=7)	58671 Points -2%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	52480 Points -12%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	43788 Points -27%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	23893 Points -60%

AIDA64 / FPU SinJulia
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +154%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	4779 Points +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	4580 Points -1%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	4499 Points -3%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	4189 Points -10%
Media Intel Core i5-1235U (3099 - 4644, n=7)	4031 Points -13%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	2152 Points -54%

AIDA64 / FPU Mandel
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points +75%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	18624 Points +14%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	17999 Points +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	17959 Points +10%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points
Media Intel Core i5-1235U (8046 - 18819, n=7)	14317 Points -13%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	11729 Points -28%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	6615 Points -60%

AIDA64 / CPU AES
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	67682 MB/s +1%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	67458 MB/s 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -19%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	38221 MB/s -43%
Media Intel Core i5-1235U (23386 - 67140, n=7)	36262 MB/s -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	16756 MB/s -75%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	8170 MB/s -88%

AIDA64 / CPU ZLib
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	577 MB/s -9%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	558 MB/s -12%
Media Intel Core i5-1235U (329 - 633, n=7)	500 MB/s -21%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	341 MB/s -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	299 MB/s -53%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	147.2 MB/s -77%

AIDA64 / FP64 Ray-Trace
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +57%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	3966 KRay/s +12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	3926 KRay/s +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	3766 KRay/s +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s
Media Intel Core i5-1235U (1670 - 3928, n=7)	2966 KRay/s -16%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	2556 KRay/s -28%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	1440 KRay/s -59%

AIDA64 / CPU PhotoWorxx
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	44210 MPixel/s +50%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Iris Xe G7 96EUs	42305 MPixel/s +43%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs	38731 MPixel/s +31%
Media Intel Core i5-1235U (15933 - 41909, n=7)	32193 MPixel/s +9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s -18%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	19258 MPixel/s -35%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	14060 MPixel/s -52%

Prestazioni del sistema

I risultati di PCMark sono significativamente superiori a quelli del più vecchioBeelink SEi8 che utilizza un i3-8109U di 8a generazione e un SSD Intel 660p più lento.

PCMark 10 / Score
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5301 Points -4%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5257 Points -5%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5158 Points -7%
Media Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (4528 - 5543, n=7)	5026 Points -9%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	3921 Points -29%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	3645 Points -34%

PCMark 10 / Essentials
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	10258 Points -5%
Media Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (9143 - 11273, n=7)	10029 Points -8%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	9188 Points -15%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	9125 Points -16%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	8177 Points -25%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	7861 Points -28%

PCMark 10 / Productivity
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	7916 Points +8%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	7915 Points +8%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	7136 Points -3%
Media Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (6440 - 7354, n=7)	6733 Points -8%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	6197 Points -16%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	6093 Points -17%

PCMark 10 / Digital Content Creation
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5598 Points -3%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5422 Points -6%
Media Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (4220 - 5839, n=7)	5118 Points -12%
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	5087 Points -12%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	3229 Points -44%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	2746 Points -53%

CrossMark / Overall
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points
Media Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (983 - 1644, n=7)	1398 Points -15%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	819 Points -50%

CrossMark / Productivity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points
Media Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (1026 - 1676, n=7)	1389 Points -17%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	856 Points -49%

CrossMark / Creativity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points
Media Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (1032 - 1618, n=7)	1462 Points -5%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	761 Points -51%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points
Media Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs (746 - 1867, n=7)	1260 Points -33%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	891 Points -52%

PCMark 10 Score		5543 punti
Aiuto

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Media Intel Core i5-1235U (24653 - 61921, n=7)	50362 MB/s +17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s -14%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	33609 MB/s -22%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	28779 MB/s -33%

AIDA64 / Memory Read
Media Intel Core i5-1235U (24441 - 66108, n=7)	52559 MB/s +13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s -4%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	30792 MB/s -34%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	30757 MB/s -34%

AIDA64 / Memory Write
Media Intel Core i5-1235U (25156 - 75808, n=7)	53627 MB/s +15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s -6%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	34164 MB/s -26%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	17678 MB/s -62%

AIDA64 / Memory Latency
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -3%
BMAX B5 Pro G7H8 Intel Core i5-8260U, UHD Graphics 620	94.4 ns * -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns *
Media Intel Core i5-1235U (89.5 - 119, n=7)	83.7 ns * +9%
Beelink SEi8 Intel Core i3-8109U, Iris Plus Graphics 655	56 ns * +39%

* ... Meglio usare valori piccoli

Latenza DPC

LatencyMon non rivela alcun problema di DPC quando si aprono più schede del browser della nostra homepage. anche la riproduzione di video 4K a 60 FPS è fluida e non presenta cadute di fotogrammi.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs *
Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	568 μs * +32%
BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	401.8 μs * +52%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	336 μs * +60%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs * +80%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

Il sistema supporta le unità SSD PCIe4 x4 NVMe e include anche un dissipatore di calore per tenere sotto controllo le temperature. Ciononostante, l'unità viene fornita con un'unità più lenta Kingston NV1 PCIe3 x4 NVMe come misura di risparmio. Quando si esegue DiskSpd in loop, si nota che le velocità di trasferimento scendono da un massimo di 3600 MB/s a un minimo di 1700 MB/s, il che potrebbe far pensare a un dissipatore di calore poco performante.

Slot primario M.2 2280 PCIe4 x4 NVMe + alloggiamento secondario SATA III da 2,5" sulla parte superiore. Il modulo WLAN rimovibile si trova sotto l'SSD M.2

AS SSD

DiskSpd

Kingston NV1 SNVS/500GCN

Sequential Read: 3206.84MB/s

Sequential Write: 463.76MB/s

4K Read: 59.54MB/s

4K Write: 280.94MB/s

4K-64 Read: 1252.33MB/s

4K-64 Write: 1950.21MB/s

Access Time Read: 0.049ms

Access Time Write: 0.07ms

Copy ISO: 0.99MB/s

Copy Program: 344.18MB/s

Copy Game: 411.4MB/s

Score Read: 1633Points

Score Write: 2278Points

Score Total: 4619Points

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	81.5 pt
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	70.8 pt
Intel Hades Canyon NUC8i7HVK ^-8! Intel Optane 120 GB SSDPEK1W120GA	51.2 pt
BMAX B5 Pro G7H8	42 pt
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	40.5 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	34.3 pt

DiskSpd
seq read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3630 (3511.15^min - 3630.17^max) MB/s +45%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s
BMAX B5 Pro G7H8	2167 (1366.5^min - 2167.27^max) MB/s -14%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s -35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s -45%
seq write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3504 (3409.87^min - 3503.8^max) MB/s +23%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s -42%
BMAX B5 Pro G7H8	1401 (545.01^min - 1401.03^max) MB/s -51%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -66%
seq q8 t1 read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	6794 (6533.05^min - 6794.19^max) MB/s +87%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s
BMAX B5 Pro G7H8	2448 (2357.41^min - 2447.51^max) MB/s -33%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s -35%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -57%
seq q8 t1 write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	4867 (4865.94^min - 4867.49^max) MB/s +71%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s
BMAX B5 Pro G7H8	1922 (587.5^min - 1922.04^max) MB/s -32%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s -50%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -66%
4k q1 t1 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s -21%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	55.8 (55.66^min - 55.82^max) MB/s -30%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s -36%
BMAX B5 Pro G7H8	49.1 (48.65^min - 49.06^max) MB/s -38%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s -49%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s -56%
BMAX B5 Pro G7H8	130.2 (125.24^min - 130.18^max) MB/s -67%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	83.2 (82.75^min - 83.2^max) MB/s -79%
4k q32 t16 read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3117 (3085.18^min - 3117.44^max) MB/s +61%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s
BMAX B5 Pro G7H8	1181 (609.06^min - 1181.44^max) MB/s -39%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s -62%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -82%
4k q32 t16 write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2636 (2619.44^min - 2635.84^max) MB/s +19%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s
BMAX B5 Pro G7H8	914 (454.55^min - 913.99^max) MB/s -59%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s -63%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s -67%

AS SSD
Score Total
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	6725 Points +46%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	3023 Points -35%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points -41%
BMAX B5 Pro G7H8	2389 Points -48%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -60%
Score Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2660 Points +63%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1524 Points -7%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points -40%
BMAX B5 Pro G7H8	827 Points -49%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -67%
Score Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2676 Points +17%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points -44%
BMAX B5 Pro G7H8	1147 Points -50%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -55%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	714 Points -69%
Seq Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3257 MB/s +2%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s
BMAX B5 Pro G7H8	2258.54 MB/s -30%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s -30%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -48%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1379 MB/s -57%
Seq Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	3937 MB/s +749%
BMAX B5 Pro G7H8	1845.2 MB/s +298%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s +280%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s +87%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	553 MB/s +19%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s
4K Read
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	127.9 MB/s +115%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s -5%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	51.3 MB/s -14%
BMAX B5 Pro G7H8	44.84 MB/s -25%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s -26%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s -31%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s -42%
BMAX B5 Pro G7H8	130.67 MB/s -53%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	103.5 MB/s -63%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	75.7 MB/s -73%
4K-64 Read
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2283 MB/s +82%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1258 MB/s 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s -44%
BMAX B5 Pro G7H8	555.92 MB/s -56%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -74%
4K-64 Write
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	2206 MB/s +13%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s -53%
BMAX B5 Pro G7H8	831.78 MB/s -57%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s -60%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	556 MB/s -71%
Access Time Read
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -73%
BMAX B5 Pro G7H8	0.058 ms * -18%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.056 ms * -14%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms * -8%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms *
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.025 ms * +49%
Access Time Write
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms * -389%
BMAX B5 Pro G7H8	0.156 ms * -123%
Intel NUC11PAQi7 Samsung SSD 980 Pro 500GB MZ-V8P500BW	0.154 ms * -120%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * -96%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms *
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.033 ms * +53%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SEi12 Core i5-1235U: Ø3411 (1756.47-3635.06)

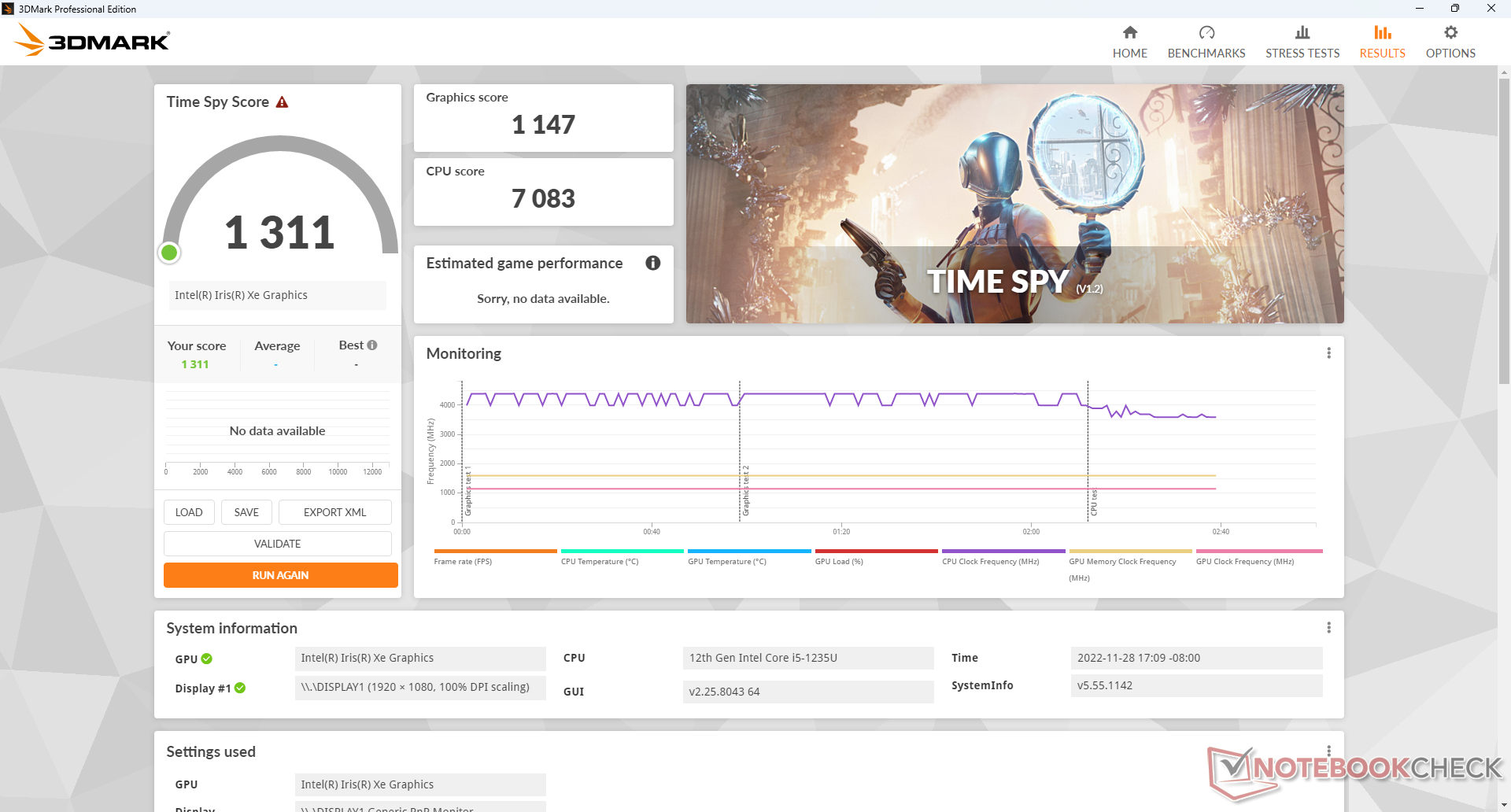

Prestazioni della GPU

Le prestazioni grafiche sono quelle che ci aspettiamo rispetto ad altri PC con lo stesso sistema integrato Iris Xe G7 80 EUs GPU. Si noti che altri PC con Iris Xe G7 96 EUs possono essere più veloci del 25-40% se configurati con RAM a doppio canale anziché a canale singolo.

3DMark | 3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	10248 Points +160%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points +24%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points 0%
Media Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=107)	3782 Points -4%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3724 Points -5%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	1715 Points -56%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1288 Points -67%
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	2908 Points +154%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points +42%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points +8%
Media Intel Iris Xe Graphics G7 80EUs (561 - 1511, n=104)	1170 Points +2%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1168 Points +2%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	569 Points -50%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	422 Points -63%
2560x1440 Time Spy Score
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	3096 Points +136%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1854 Points +41%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1412 Points +8%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1316 Points 0%
Media Intel Iris Xe Graphics G7 80EUs (630 - 1731, n=104)	1314 Points 0%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1311 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	636 Points -51%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	484 Points -63%

3DMark 11 - 1280x720 Performance GPU
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	14302 Points +183%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points +35%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points +19%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6027 Points +19%
Media Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=105)	5167 Points +2%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	2801 Points -45%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1744 Points -65%

3DMark 11 Performance		5598 punti
3DMark Cloud Gate Standard Score		18879 punti
3DMark Fire Strike Score		3658 punti
3DMark Time Spy Score		1311 punti
Aiuto

... in confronto

Blender - v3.3 Classroom CPU
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1402 Seconds * -98%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1099 Seconds * -55%
Media Intel Iris Xe Graphics G7 80EUs (463 - 3047, n=47)	939 Seconds * -33%
HP Spectre x360 13.5 14t-ef000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U	726 Seconds * -3%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds *
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	697 Seconds * +1%

* ... Meglio usare valori piccoli

Performance Rating - Percent
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	100 pt
Beelink SEi11 Pro ^-1! Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.9 pt
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.8 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	43.5 pt
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	39.5 pt
BMAX B5 Pro G7H8 ^-5! Intel Core i5-8260U, Intel UHD Graphics 620	5.9 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	34.3 (32^min) fps +181%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +17%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps +13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	10.3 (9^min) fps -16%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39.4 (1.843^min, 27^P1) fps +432%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (3.61^min, 9.62^P1) fps +81%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	5.72 (2.43^min, 3.77^P1) fps -23%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	20.4 fps +51%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps +10%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.7 fps -6%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	56.6 (42.9^min, 44.5^P1) fps +223%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (17.8^min, 19.5^P1) fps +37%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps +27%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.9 (5^min, 5^P1) fps -3%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	94.6 (82.1^min) fps +124%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +21%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps +12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (25.8^min) fps -17%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (2.2^min) fps -87%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	45.5 fps +54%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps +26%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps -2%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165.5 (148^min) fps +113%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	94.8 (40^min) fps +22%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps +17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps +15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	77.7 (46^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	70.3 (63^min) fps -10%
Media Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=98)	65.3 fps -16%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.2 (51^min) fps -17%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	23.8 (20^min) fps -69%
1366x768 Medium Graphics & Postprocessing
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	105.1 (100^min) fps +116%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps +23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	57.9 (25.7^min, 27.5^P0.1, 33^P1) fps +19%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	50.1 (54^min) fps +3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.7 (43^min) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.2 (41^min) fps -7%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	43.7 (40^min) fps -10%
Media Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=100)	41.8 fps -14%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	13.5 (10^min) fps -72%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	59.7 (56^min) fps +130%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	33.5 (15.9^min, 16.8^P0.1, 18.7^P1) fps +29%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	32.7 (29^min) fps +26%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32 (14^min, 15.4^P0.1, 17.2^P1) fps +23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.6 (21^min) fps -13%
Media Intel Iris Xe Graphics G7 80EUs (9.3 - 33.5, n=98)	21.5 fps -17%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.7 (18^min) fps -20%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	7.3 (2^min) fps -72%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	34.3 (32^min) fps +181%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	14.8 (14^min) fps +21%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps
Media Intel Iris Xe Graphics G7 80EUs (6.26 - 15.7, n=89)	11 fps -10%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	10.3 (9^min) fps -16%

GTA V
1024x768 Lowest Settings possible
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (1.676^min, 100^P1) fps +40%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	117.5 (24.8^min, 71.4^P1) fps
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	113.9 (22.5^min, 66.7^P1) fps -3%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	110 (19.4^min, 71.4^P1) fps -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps -10%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps -13%
Media Intel Iris Xe Graphics G7 80EUs (36.5 - 144.6, n=77)	83 fps -29%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	67.6 (16.5^min, 47.6^P1) fps -42%
1920x1080 Lowest Settings possible
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (4.25^min, 111^P1) fps +146%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	91.4 (16^min, 58.8^P1) fps +36%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	88.4 (8.61^min, 58.8^P1) fps +32%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	80.4 (22.6^min, 52.6^P1) fps +20%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	71.5 (8.83^min, 52.6^P1) fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	67.2 (25.1^min, 45.5^P1) fps
Media Intel Iris Xe Graphics G7 80EUs (21.5 - 98.1, n=63)	61.7 fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.7 (12.8^min, 27.8^P1) fps -39%
1366x768 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	158 (4.71^min, 100^P1) fps +60%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	100.9 (23.5^min, 62.5^P1) fps +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	98.7 (7.72^min, 66.7^P1) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (13.8^min, 62.5^P1) fps 0%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps -4%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps -11%
Media Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=80)	70.4 fps -29%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	52.5 (13.6^min, 37^P1) fps -47%
1920x1080 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	157 (3.27^min, 100^P1) fps +143%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	80.8 (23.8^min, 47.6^P1) fps +25%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	78 (15.8^min, 50^P1) fps +21%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (6.79^min, 50^P1) fps +12%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	71.3 (22.8^min, 45.5^P1) fps +10%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	64.7 (21.2^min, 43.5^P1) fps
Media Intel Iris Xe Graphics G7 80EUs (18.8 - 97.2, n=63)	55.6 fps -14%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35.3 (13.8^min, 23.8^P1) fps -45%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.2 (1.964^min, 62.5^P1) fps +372%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.6 (5.48^min, 21.7^P1) fps +72%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	29.4 (12.5^min, 20.8^P1) fps +71%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	24.3 (8.65^min, 18.2^P1) fps +41%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	24 (8.72^min, 18.2^P1) fps +40%
Media Intel Iris Xe Graphics G7 80EUs (7.81 - 32, n=79)	18.4 fps +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.2 (9.35^min, 13.5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.6 (5.49^min, 8.93^P1) fps -27%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39.4 (1.843^min, 27^P1) fps +432%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (3.61^min, 9.62^P1) fps +81%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	10.3 (4.39^min, 6.58^P1) fps +39%
Media Intel Iris Xe Graphics G7 80EUs (3.07 - 11.6, n=66)	7.87 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	5.72 (2.43^min, 3.77^P1) fps -23%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.8 fps +129%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	47.5 fps +33%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	43.6 fps +22%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	43.4 fps +22%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.3 fps +4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps
Media Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=101)	31.5 fps -12%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	30.3 fps -15%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	16.6 fps -54%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.61 fps -84%
1920x1080 Standard Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	41.2 fps +113%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +30%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.9 fps +29%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	23.8 fps +23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	19.3 fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.2 fps -1%
Media Intel Iris Xe Graphics G7 80EUs (4.47 - 25.1, n=94)	17.3 fps -10%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.6 fps -19%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	8.8 fps -54%
1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +85%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	20.4 fps +51%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	18.1 fps +34%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	16.6 fps +23%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps +2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps
Media Intel Iris Xe Graphics G7 80EUs (4.01 - 22, n=85)	13 fps -4%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.7 fps -6%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	6.08 fps -55%

Strange Brigade
1280x720 lowest AF:1
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	210 (146^min, 184^P1) fps +219%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89.9 (20^min, 32.7^P1) fps +36%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	89 (19.4^min, 28.4^P1) fps +35%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	87.6 (11.7^min, 31^P1) fps +33%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.3 (43.8^min, 72.3^P1) fps +25%
Media Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=78)	67 fps +2%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	66.2 (14^min, 22.8^P1) fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	65.9 (14.2^min, 19.7^P1) fps
1920x1080 medium AA:medium AF:4
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	85.3 (73.4^min, 74.4^P1) fps +222%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	40.8 (14.1^min, 22.7^P1) fps +54%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	38.3 (10.4^min, 17.6^P1) fps +45%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	38.1 (8.7^min, 14.5^P1) fps +44%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.3 (24^min, 29.6^P1) fps +26%
Media Intel Iris Xe Graphics G7 80EUs (6 - 48.8, n=80)	27.9 fps +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26.5 (7^min, 12.6^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	23.8 (5.4^min, 6.17^P1) fps -10%
1920x1080 high AA:high AF:8
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	68 (51.7^min, 52.9^P1) fps +218%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	32.4 (8.5^min, 17.9^P1) fps +51%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.4 (6.3^min, 11.4^P1) fps +42%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	29.7 (7.4^min, 10.7^P1) fps +39%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.1 (20.4^min, 22.5^P1) fps +31%
Media Intel Iris Xe Graphics G7 80EUs (11.4 - 32.3, n=77)	22.6 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	21.4 (5^min, 7.98^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.1 (5^min, 5.19^P1) fps -6%
1920x1080 ultra AA:ultra AF:16
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	56.6 (42.9^min, 44.5^P1) fps +223%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	26.1 (7^min, 9.02^P1) fps +49%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.5 (5^min, 6.62^P1) fps +40%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (17.8^min, 19.5^P1) fps +37%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.7 (5^min, 6.21^P1) fps +35%
Media Intel Iris Xe Graphics G7 80EUs (13.6 - 26.2, n=53)	19.6 fps +12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.9 (5^min, 5^P1) fps -3%

Dota 2 Reborn
1280x720 min (0/3) fastest
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	127 (103.6^min) fps +35%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	117.8 (92.7^min) fps +26%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	115.1 (96.2^min) fps +23%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	109 (85^min) fps +16%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	103 (88.1^min) fps +10%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	94.4 (75.6^min) fps +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps
Media Intel Iris Xe Graphics G7 80EUs (14.8 - 140.3, n=106)	91.2 fps -3%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	78.8 (48.8^min) fps -16%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	42.4 (30.8^min) fps -55%
1366x768 med (1/3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	119 (95.8^min) fps +34%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	105.8 (88^min) fps +19%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	92.2 (73.2^min) fps +4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	85.7 (67^min) fps -3%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	83.3 (67.5^min) fps -6%
Media Intel Iris Xe Graphics G7 80EUs (10.9 - 119.5, n=106)	67.7 fps -24%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	61.8 (46.8^min) fps -30%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	34.6 (29.8^min) fps -61%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	8.6 (6.3^min) fps -90%
1920x1080 high (2/3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	108 (87.1^min) fps +137%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	68.4 (57.5^min) fps +50%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	68.1 (61.5^min) fps +50%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	67.4 (60.9^min) fps +48%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.1 (44.7^min) fps +17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps
Media Intel Iris Xe Graphics G7 80EUs (10.4 - 70.9, n=106)	42.5 fps -7%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	37.7 (26.8^min) fps -17%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	25.3 (19.3^min) fps -44%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (4.2^min) fps -88%
1920x1080 ultra (3/3) best looking
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	94.6 (82.1^min) fps +124%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	62.4 (55.5^min) fps +48%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	61.9 (52.7^min) fps +47%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	59.8 (52.4^min) fps +42%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +21%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps
Media Intel Iris Xe Graphics G7 80EUs (7.8 - 66.1, n=107)	39.2 fps -7%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (25.8^min) fps -17%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.7 (18.8^min) fps -46%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (2.2^min) fps -87%

Cyberpunk 2077 1.6
1920x1080 Low Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39 (25^min) fps +191%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	22.6 (14.7^min) fps +69%
Media Intel Iris Xe Graphics G7 80EUs (9.1 - 17.8, n=7)	14.2 fps +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.4 (8.9^min) fps
1920x1080 Medium Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	30 (21^min) fps +163%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	18.6 (12.1^min) fps +63%
Media Intel Iris Xe Graphics G7 80EUs (11.4 - 14.7, n=5)	12.7 fps +11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	11.4 (8^min) fps
1920x1080 High Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	23 (16^min) fps +156%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	14.2 (9.8^min) fps +58%
Media Intel Iris Xe Graphics G7 80EUs (9 - 11.3, n=4)	10.1 fps +12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	9 (6.7^min) fps
1920x1080 Ultra Preset
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	23 (15^min) fps +211%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	11.2 (7.7^min) fps +51%
Media Intel Iris Xe Graphics G7 80EUs (7.4 - 9.71, n=4)	8.53 fps +15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.4 (5.3^min) fps

X-Plane 11.11
1280x720 low (fps_test=1)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	61.8 fps +28%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	44.5 fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	42.3 fps -13%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 fps -15%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	40.4 fps -17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	37.9 fps -22%
Media Intel Iris Xe Graphics G7 80EUs (9.12 - 74.4, n=106)	36.3 fps -25%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	22.4 fps -54%
1920x1080 med (fps_test=2)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	52.8 fps +61%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	41.1 fps +25%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	35.8 fps +9%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	34.9 fps +6%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.2 fps +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.7 fps 0%
Media Intel Iris Xe Graphics G7 80EUs (6.45 - 40.5, n=107)	28.6 fps -13%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	15 fps -54%
1920x1080 high (fps_test=3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	45.5 fps +54%
HP Spectre x360 13.5 14t-ef000 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs	36.2 fps +23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32.9 fps +12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30.4 fps +3%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps -2%
Media Intel Iris Xe Graphics G7 80EUs (5.55 - 36.3, n=105)	25.7 fps -13%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	12.3 fps -58%

Witcher 3 FPS Chart

Beelink SEi12 Core i5-1235U: Ø75.7 (64-80)

	basso	medio	alto	ultra
GTA V (2015)	117.5	98.7	17.2	7.41
The Witcher 3 (2015)	77.7	48.7	26	12.2
Dota 2 Reborn (2015)	93.8	88.7	45.5	42.2
Final Fantasy XV Benchmark (2018)	35.7	19.3	13.5
X-Plane 11.11 (2018)	48.4	32.8	29.5
Strange Brigade (2018)	65.9	26.5	21.4	17.5
Cyberpunk 2077 1.6 (2022)	13.4	11.4	9	7.4

Emissioni

Rumore del sistema

Come altri mini PC di Beelink, il rumore della ventola è sempre presente sul SEi12, con quasi 28 dB(A) a fronte di uno sfondo silenzioso di 23 dB(A). Fortunatamente, il sistema non diventa mai fastidiosamente rumoroso anche quando si introducono carichi più elevati. Eseguendo Witcher 3 o 3DMark 06 si otterrebbero livelli di rumore della ventola paragonabili a quelli dell'Intel NUC 11PAQ Intel NUC 11PAQ se sottoposto a condizioni simili. Il rumore della ventola può occasionalmente raggiungere i 39 dB(A), anche se solo per brevi periodi, prima di ridursi a 30 dB(A). I mini PC più potenti, come la serie Beelink SER, sono ancora più rumorosi.

Profilo del rumore della ventola (bianco: Sfondo, Rosso: Sistema inattivo, Blu: 3DMark 06, Arancione: Witcher 3, Verde: Prime95 stress)

Rumorosità

Idle		27.8 / 27.8 / 27.8 dB(A)
Sotto carico		32 / 39.2 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 23.3 dB(A)

	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	Intel NUC11PAQi7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW	BMAX B5 Pro G7H8 UHD Graphics 620, i5-8260U	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Noise		-4%	-14%	-4%	10%	-14%
off /ambiente *	23.3	24.5 -5%	23.4 -0%	25.6 -10%	23 1%	28.7 -23%
Idle Minimum *	27.8	26.5 5%	33.2 -19%	25.6 8%	25.1 10%	29 -4%
Idle Average *	27.8	26.5 5%	33.2 -19%	25.6 8%	25.1 10%	29 -4%
Idle Maximum *	27.8	31.1 -12%	33.2 -19%	25.6 8%	25.1 10%	29 -4%
Load Average *	32	37.7 -18%	38.6 -21%	33.6 -5%	28.6 11%	36 -13%
Witcher 3 ultra *	34.1		39.2 -15%	33.6 1%	30.1 12%	42 -23%
Load Maximum *	39.2	37.5 4%	40.8 -4%	54.5 -39%	34 13%	49.4 -26%

* ... Meglio usare valori piccoli

Temperatura

L'aria fredda entra dai lati e dalla maglia superiore, mentre l'aria calda esce dalla parte posteriore, come mostrano le mappe di temperatura qui sotto. Il punto caldo sul retro può raggiungere i 47 C quando si eseguono applicazioni impegnative. Si sconsiglia di collocare oggetti sopra l'unità per non ridurre il flusso d'aria.

L'adattatore CA può raggiungere i 30 C quando si utilizzano carichi impegnativi per lunghi periodi.

Stress test

Quando viene sollecitata con Prime95, la CPU sale a 3,6 GHz con un assorbimento di potenza del processore di 47 W. Quando la temperatura del nucleo raggiunge i 76 C pochi secondi dopo, tuttavia, le velocità di clock e l'assorbimento di potenza scendono rispettivamente a 2,1 GHz e 27 W, per mantenere una temperatura del nucleo più fredda di 67 C.

La velocità di clock e la temperatura della GPU in funzione Witcher 3 si stabilizzerebbero rispettivamente a 1150 MHz e 68 C, rispetto ai 1300 MHz e 57 C del più costoso Intel NUC11PAQi7.

	Clock della CPU (GHz)	Clock della GPU (MHz)	Temperatura media della CPU (°C)
Sistema inattivo	--	--	32
Stress Prime95	2,1	1150	67
Prime95 + FurMark Stress	1,9	1150	75
Witcher 3 Sollecitazione	~2,6	1150	68

Gestione dell'energia

Consumo di energia

Il consumo energetico è relativamente elevato, il che potrebbe spiegare l'adattatore CA più grande del previsto. Il funzionamento al minimo sul desktop consuma circa 17 W, rispetto a meno della metà di altri mini PC della serie U come il modello SER4 o l'Intel NUC11. Quando si eseguono carichi impegnativi come i giochi, il consumo si aggira in media sui 50 W, rispetto ai 40 W del NUC11.

Il consumo di energia raggiunge i 102 W per circa 20 secondi dopo l'avvio di Prime95, prima di scendere e stabilizzarsi a 60 W a causa del Turbo Boost limitato

Siamo riusciti a misurare un assorbimento massimo temporaneo di 119 W dall'adattatore CA da 120 W quando si eseguono contemporaneamente Prime95 e FurMark

Consumo di corrente

Off / Standby	0.88 / 1 Watt
Idle	15.8 / 16.8 / 17 Watt
Sotto carico	54.4 / 119.1 Watt


Leggenda: min: , med: , max: Metrahit Energy Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.

	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink SEi8 i3-8109U, Iris Plus Graphics 655, Intel SSD 660p SSDPEKNW512G8, , x,	Beelink SER4 R7 4800U, Vega 8, Intel SSD 660p SSDPEKNW512G8, , x,	Intel NUC11PAQi7 i7-1165G7, Iris Xe G7 96EUs, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x,	BMAX B5 Pro G7H8 i5-8260U, UHD Graphics 620, , , x,	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Power Consumption		49%	59%	49%	49%	-38%
Idle Minimum *	15.8	7.5 53%	4.1 74%	5.6 65%	6 62%	15.5 2%
Idle Average *	16.8	7.6 55%	4.1 76%	5.6 67%	6.2 63%	16.2 4%
Idle Maximum *	17	9.2 46%	4.6 73%	6 65%	6.3 63%	16.5 3%
Load Average *	54.4	41.1 24%	35.6 35%	31.4 42%	42.8 21%	83.4 -53%
Witcher 3 ultra *	50.7		35.6 30%	39 23%	35 31%	121.7 -140%
Load Maximum *	119.1	41.4 65%	39.9 66%	80.5 32%	55.8 53%	173.5 -46%

* ... Meglio usare valori piccoli

Power Consumption Witcher 3 / Stresstest

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Witcher 3 ultra: Ø50.7 (49.7-63.2)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Witcher 3 ultra: Ø53.1 (41.1-54.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø78.5 (72.1-119.1)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59 (57.8-59.6)

Power Consumption external Monitor

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø63.2 (57.9-102.6)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø58.6 (57.2-59.1)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø69.5 (56-93.5)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø52.4 (49.2-53.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.8 (39.3-47.7)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø50.2 (31.6-53.6)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø50.7 (49.7-63.2)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø53.1 (41.1-54.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø16.6 (15.8-19.1)

Pro

+ supporta fino a 2x SSD e 2x SODIMM

+ buone prestazioni della CPU

+ facile manutenzione

+ conveniente

Contro

- assenza di DisplayPort-over-USB-C o Thunderbolt

- consumo energetico superiore alle aspettative

- nessuna opzione Core i7

- ingombrante mattone di alimentazione

Verdetto: un prezzo basso senza ridurre le prestazioni

In recensione: Beelink SEi12. Unità di prova fornita da Beelink

L'SEi12 offre livelli di prestazioni paragonabili e spesso migliori rispetto a un Intel NUC11 con processore Core U, ma a un prezzo di vendita molto inferiore. Il NUC11PAH con CPU Core i5-1135G7, 16 GB di RAM e SSD da 256 GB, ad esempio, viene attualmente venduto a 550 dollari, mentre il nostro SEi 12 con il doppio dello spazio di archiviazione viene venduto a soli 400 dollari. Il modello non si affida a soluzioni Celeron o Atom terribilmente lente per raggiungere prezzi interessanti e questo rimane un punto di forza per molti mini PC di Beelink.

La mancanza del supporto Thunderbolt è deludente, ma probabilmente avrà un impatto solo sugli appassionati che desiderano collegare in cascata monitor ad alta risoluzione o eGPU. Per quel che vale, Intel sta iniziando a reagire con l'ultima serie NUC12 che offre CPU Core P ancora più veloci. Se vi accontentate delle prestazioni di un moderno Ultrabook, il Core i5-1235U del SEi12 sarà comunque più che sufficiente e sicuramente molto più veloce della maggior parte dei mini PC della stessa fascia di prezzo.

Prezzo e disponibilità

Il Beelink SEi12 è attualmente in vendita a 400 dollari su Amazon rispetto al prezzo iniziale di 480 dollari. In alternativa, gli utenti possono acquistare direttamente dal produttore per 460 dollari.

Articoli collegati

Beelink SEi12 Core i5-1235U (SEi Serie)

recensione

•

Recensione del mini PC Beelink...

recensione

•

Recensione di Beelink SEi8: Co...

recensione

•

Recensione del Mini PC Beelink...

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5192 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 389876 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del mini PC Beelink SEi12: Supera l'Intel NUC 11

Allen Ngo, 2022-12-10 (Update: 2022-12-10)
