Recensione dell'Ace Magician AMR5: Mini PC elegante con Ryzen 5 5600U e illuminazione RGB discreta

Unione Minipcè un'azienda cinese specializzata in Mini PC e sistemi all-in-one. Al momento, Minipc Union offre diversi prodotti, tra i quali. Questi includono Kamrui, Ouvislite, Nipogi, Snunmu e Ace Magician, che comprende anche l'AMR5 che esamineremo in questa recensione

L'Ace Magician AMR5 è un Mini PC molto compatto che si basa su un processore AMD Ryzen 5 5600U. Lo stesso modello era disponibile anche conAMD Ryzen 5 4500U in passato. La AMD Radeon RX Vega 7, che abbiamo spesso incontrato in diversi portatili, è l'unica responsabile dei calcoli 3D. Lo stesso vale per il Ryzen 5 5600U. Ha trovato posto in questo PC compatto grazie alle sue emissioni ridotte. Ci sono 16 GB di RAM e un SSD da 512 GB come dispositivo di archiviazione di massa. Inoltre, Windows 11 Pro è preinstallato e attivato

L'Ace Magician AMR5 può essere acquistato a 590 Euro (~$599) nella versione da noi recensita. D'altra parte, il modello basato su AMD Ryzen 5 4500U è disponibile a 560 Euro (~$569).

Data	Modello	Peso	Altezza	Risoluzione
09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 gr	72 mm	x
01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm	x
01/2022	Morefine S500+ R9 5900HX, Vega 8	697 gr	40 mm	x
06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm	x
04/2022	Beelink SER4 R7 4800U, Vega 8	494 gr	40 mm	x
02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 gr	55.5 mm	x

Il Minipc Union Ace Magician AMR5 in dettaglio

Caso

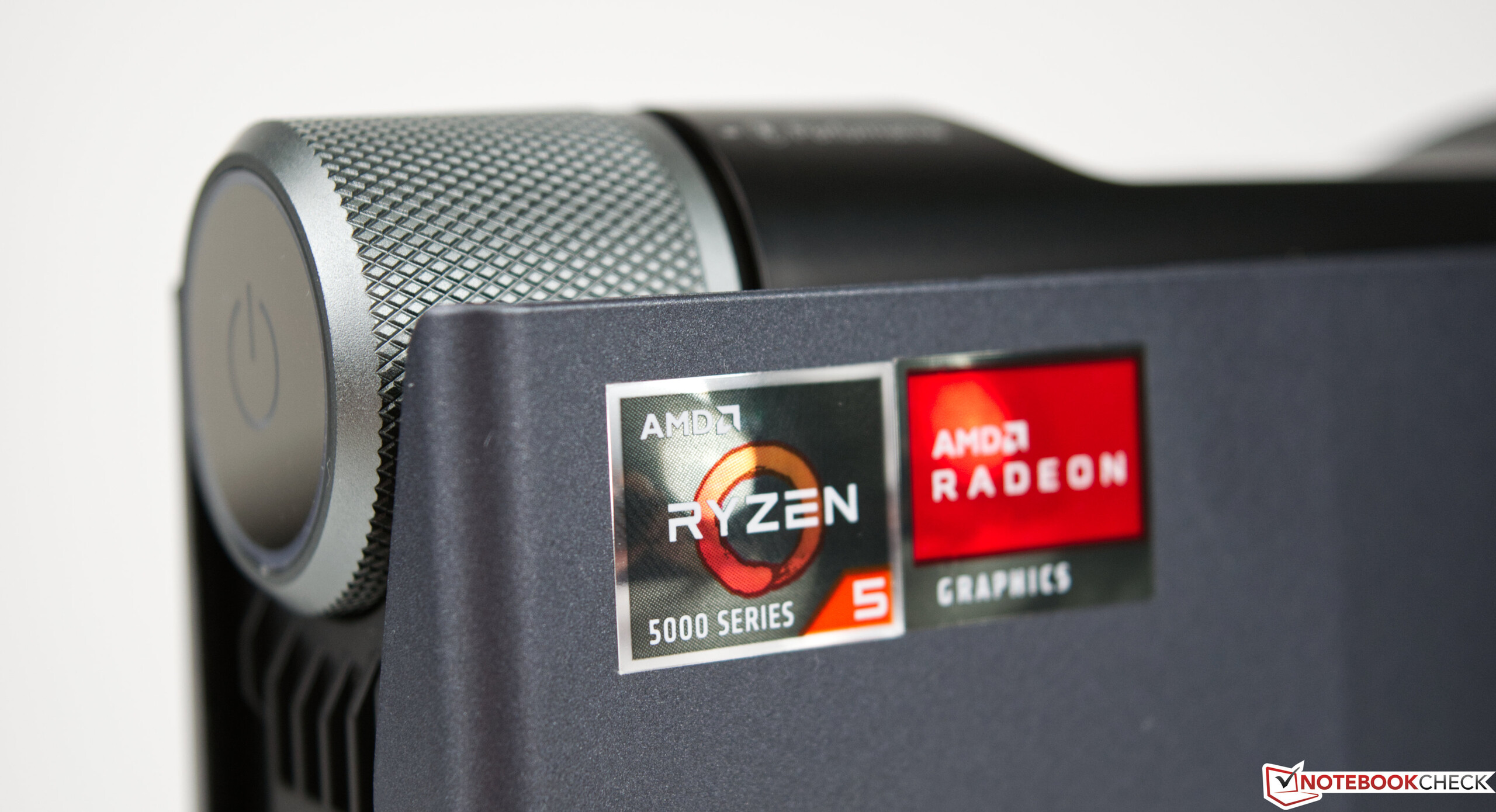

Se immaginate un Mini PC, probabilmente penserete sempre a una scatola quadrata e compatta. In questo caso, l'Ace Magician AMR5 adotta un approccio completamente diverso, orientato verso un PC a torre in termini di aspetto. Come versione ridotta, il PC compatto è alto solo 16 centimetri. Per quanto riguarda i materiali, c'è solo plastica, ma il design è arricchito dall'uso di due accenti di colore. Il lato destro del case, visto frontalmente, è trattenuto magneticamente e può essere rimosso facilmente. La RAM e l'SSD sono nascosti dietro di esso e possono essere espansi se necessario. Non c'è nulla di cui lamentarsi in termini di robustezza, nonostante non sia stato utilizzato l'alluminio. Con un peso di 581 grammi, il piccolo computer è molto leggero e si adatta a qualsiasi scrivania. Inoltre, il sistema può essere migliorato visivamente con alcuni effetti RGB

Connettività

L'Ace Magician AMR5 offre un gran numero di interfacce esterne. Queste sono distribuite sulla parte anteriore e posteriore. Gli utenti potranno usufruire di un totale di cinque porte USB, una delle quali è una porta Type-C che supporta anche l'uscita video. Ciò significa che il piccolo PC può essere utilizzato con tre monitor contemporaneamente. Tuttavia, non è incluso un lettore di schede SD

Porte esterne dell'Ace Magician AMR5 (fonte: Minipc Union)

Comunicazione

Minipc Union utilizza un modulo WLAN MediaTek RZ608 nel suo Ace Magician AMR5. Lo conosciamo già, poiché lo stesso modello è stato utilizzato anche nel Minisforum EliteMini B550. Tuttavia, le velocità di trasferimento determinate con l'Ace Magician AMR5 sembrano molto più promettenti. Il nostro esemplare in prova ha fornito velocità di trasferimento stabili e veloci nel nostro ambiente di test. Per questo test abbiamo utilizzato il nostro Asus ROG Rapture GT-AXE11000. La porta RJ45 offre un'altra alternativa per la comunicazione di rete wireless. Tuttavia, non è possibile ottenere più di 1 Gb/s

Networking
iperf3 receive AXE11000 6GHz
Media della classe Mini PC (390 - 1771, n=26, ultimi 2 anni)	1185 MBit/s ∼100% +31%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s ∼76%
Media MediaTek RZ608 (430 - 961, n=14)	836 MBit/s ∼71% -7%
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s ∼65% -14%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s ∼36% -52%
iperf3 transmit AXE11000 6GHz
Media della classe Mini PC (722 - 1764, n=27, ultimi 2 anni)	1136 MBit/s ∼100% +17%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s ∼85%
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s ∼76% -10%
Media MediaTek RZ608 (572 - 980, n=14)	828 MBit/s ∼73% -14%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s ∼50% -41%

Minipc Union Ace Magician AMR5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø951 (486-993)

Minipc Union Ace Magician AMR5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø888 (450-913)

Manutenzione

È piuttosto difficile eseguire qualsiasi intervento di manutenzione quando si tratta di accedere alla ventola della CPU. Tuttavia, gli utenti che desiderano espandere o sostituire la RAM o l'SSD possono accedere facilmente a questi componenti. Il coperchio laterale può essere rimosso senza allentare le viti ed è anche dotato di una chiusura magnetica. Ci sarebbe piaciuto vedere questa opzione anche sull'altro lato, per raggiungere più velocemente l'unità di raffreddamento attiva del SoC. Probabilmente è stata omessa perché non ci sono opzioni di aggiornamento su quel lato. Pertanto, se si desidera accedere ad altri componenti, è necessario continuare a smontare il dispositivo dal lato già aperto

Prestazioni

IlAMD Ryzen 5 5600U Fornisce una solida base per le applicazioni multithread. Con i 16 GB di RAM DDR4 integrati, si è ben equipaggiati per la maggior parte delle applicazioni, senza lavorare costantemente al limite. D'altra parte, l'unità SSD da 512 GB può essere criticata un po' di più, poiché Minipc Union considera l'Ace Magician AMR5 un PC da gioco compatto. Ma dato che i giochi occupano sempre più spazio di archiviazione, un'unità SSD da 1 TB sarebbe stata una scelta migliore, a nostro avviso

Condizioni di prova

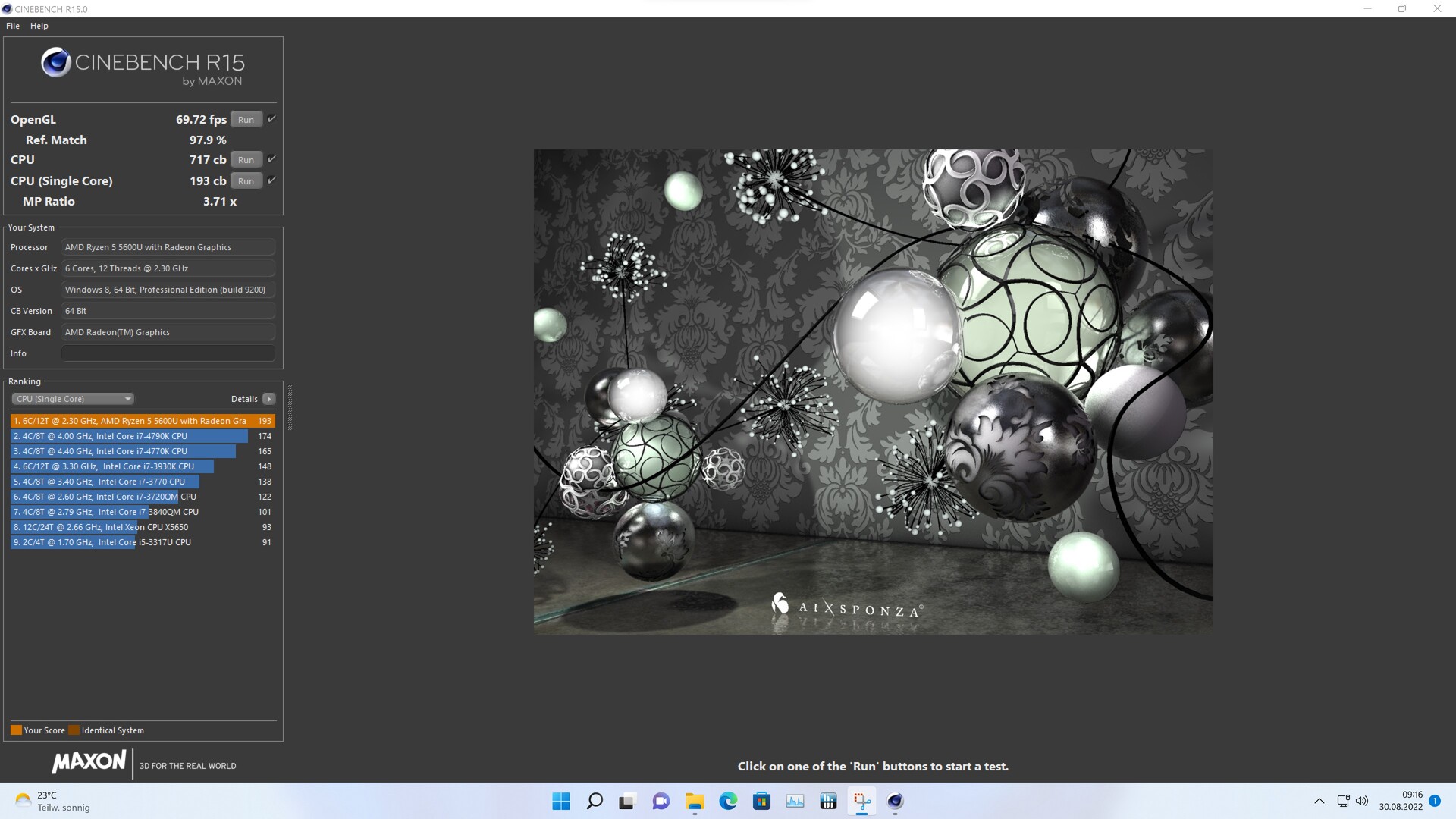

L'Ace Magician AMR5 offre agli utenti la possibilità di utilizzare il dispositivo con tre diverse impostazioni. Le impostazioni possono essere modificate tramite un interruttore rotante, che è anche il pulsante di accensione. Di conseguenza, il SoC può essere utilizzato in modo permanente a 12, 18 o 25 watt (Silent, Auto, Performance). Per questa recensione abbiamo scelto esclusivamente il profilo Performance per ottenere i migliori risultati possibili

Processore

Il sistema integrato AMD Ryzen 5 5600Uoffre 6 core Zen 3 con SMT e proviene dal settore mobile. L'APU, che altrimenti si trova nei computer portatili, è frugale, cosa che va a vantaggio del design compatto, poiché non richiede un raffreddamento complesso. Il SoC può funzionare in tre diverse modalità. In modalità Performance è disponibile un massimo di 28 watt, anche se a lungo termine è possibile mantenere 25 watt. Nelle altre modalità il SoC può essere limitato a 18 o 12 watt, rispettivamente. Naturalmente, questo ha un impatto sulle prestazioni del sistema. Per illustrare questo aspetto, abbiamo eseguito Cinebench R15 una volta in ciascuna delle tre modalità, come mostrano gli screenshot qui sotto

In un confronto diretto con la concorrenza, l'Ace Magician AMR5 si comporta abbastanza bene, anche se la CPU octa-core nativa offre migliori prestazioni multithread. Tuttavia, le prestazioni complessive dell'AMD Ryzen 5 5600U sono leggermente migliori rispetto alla media delle prestazioni che abbiamo potuto raggiungere finora con questo SoC. Tuttavia, è possibile ottenere maggiori prestazioni utilizzando una RAM leggermente più veloce, dato che la RAM integrata ha un clock di soli 2.666 MHz.

Ulteriori benchmark sui processori possono essere trovati qui.

Cinebench R15 - Modalità prestazioni (utilizzata per tutti i test)

Performance Rating - Percent
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	50.3 pt ∼50%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.3 pt ∼50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50 pt ∼50%
Beelink SER4 ^-16! AMD Ryzen 7 4800U, 1800 MHz	47.9 pt ∼48%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	44.4 pt ∼44%
Media AMD Ryzen 5 5600U	44 pt ∼44%
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	42.7 pt ∼43%

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points ∼74% +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points ∼74% +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points ∼73% +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points ∼68%
Media AMD Ryzen 5 5600U (220 - 223, n=6)	222 Points ∼68% 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points ∼65% -5%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	187 Points ∼57% -16%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points ∼23% +76%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points ∼20% +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points ∼20% +52%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1411 (1390.29^min - 1411.03^max) Points ∼15% +12%
Media AMD Ryzen 5 5600U (1265 - 1546, n=6)	1347 Points ∼14% +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points ∼13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points ∼10% -25%

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points ∼67% +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points ∼67% +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points ∼65% +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points ∼64% +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points ∼61%
Media AMD Ryzen 5 5600U (532 - 536, n=7)	534 Points ∼61% 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	488 Points ∼56% -9%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points ∼22% +74%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points ∼20% +57%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points ∼19% +51%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	3248 Points ∼14% +9%
Media AMD Ryzen 5 5600U (2345 - 3632, n=7)	3036 Points ∼13% +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points ∼13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points ∼10% -22%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points ∼73% +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points ∼73% +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points ∼71% +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points ∼67%
Media AMD Ryzen 5 5600U (2.61 - 2.64, n=3)	2.63 Points ∼67% 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points ∼64% -5%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points ∼36% +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points ∼32% +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points ∼31% +49%
Media AMD Ryzen 5 5600U (14.5 - 16, n=3)	15.1 Points ∼21% +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points ∼21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points ∼15% -27%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points ∼66% +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points ∼66% +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points ∼64% +6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points ∼62% +3%
Media AMD Ryzen 5 5600U (11098 - 11143, n=3)	11124 Points ∼61% 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points ∼60%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points ∼53% +61%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points ∼48% +46%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points ∼46% +42%
Media AMD Ryzen 5 5600U (45363 - 50831, n=3)	47704 Points ∼34% +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points ∼33%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points ∼30% -7%

Blender - v2.79 BMW27 CPU
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * ∼4% -29%
Media AMD Ryzen 5 5600U (328 - 481, n=6)	413 Seconds * ∼3% -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * ∼3%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	340 Seconds * ∼2% +15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * ∼2% +34%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * ∼2% +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * ∼2% +43%

wPrime 2.10
32m
Media AMD Ryzen 5 5600U (4.85 - 8.78, n=3)	6.34 s * ∼1% -18%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * ∼1% -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * ∼1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * ∼1% +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * ∼1% +33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * ∼1% +38%
1024m
Media AMD Ryzen 5 5600U (147.8 - 277, n=3)	193.8 s * ∼2% -24%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * ∼2% -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * ∼2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * ∼1% +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * ∼1% +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * ∼1% +41%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps ∼65% +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps ∼64% +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps ∼62% +13%
Media AMD Ryzen 5 5600U (234 - 236, n=2)	235 fps ∼55% 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps ∼55%
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps ∼47% +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps ∼42% +54%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps ∼41% +47%
Media AMD Ryzen 5 5600U (76 - 81, n=2)	78.5 fps ∼29% +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps ∼28%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s ∼15% +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s ∼14% +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s ∼13%
Media AMD Ryzen 5 5600U (6346 - 6877, n=3)	6694 KB/s ∼13% -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s ∼11% -20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s ∼8% -38%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s ∼33% +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s ∼23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s ∼23% -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s ∼22% -4%
Media AMD Ryzen 5 5600U (5.1 - 8.3, n=3)	7.03 GB/s ∼21% -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s ∼19% -21%
Twofish Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s ∼0% +82%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s ∼0% +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s ∼0% +36%
Media AMD Ryzen 5 5600U (1.1 - 1.2, n=3)	1.133 GB/s ∼0% +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s ∼0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s ∼0% -16%
Serpent Mean 100MB
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s ∼0% +71%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s ∼0% +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s ∼0% +57%
Media AMD Ryzen 5 5600U (0.7 - 0.796, n=3)	0.759 GB/s ∼0% +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s ∼0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s ∼0% -25%

Geekbench 5.2 - 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points ∼27% +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points ∼27% +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points ∼27% +27%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6375 Points ∼22% +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points ∼21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points ∼20% -8%
Media AMD Ryzen 5 5600U (4506 - 6523, n=5)	5611 Points ∼19% -9%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points ∼68% +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points ∼67% +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points ∼67% +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points ∼63% +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points ∼62%
Media AMD Ryzen 5 5600U (1334 - 1430, n=5)	1388 Points ∼60% -3%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	1192 Points ∼52% -17%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points ∼25% +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points ∼25% +28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points ∼25% +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points ∼19%
Media AMD Ryzen 5 5600U (5031 - 6479, n=3)	5876 Points ∼19% -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points ∼18% -8%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points ∼7% +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points ∼7% +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points ∼7% +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points ∼6% +5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points ∼6%
Media AMD Ryzen 5 5600U (1340 - 1383, n=3)	1365 Points ∼6% -1%

Geekbench 4.1 - 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points ∼67% +11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points ∼66% +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points ∼66% +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points ∼64% +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points ∼60%
Media AMD Ryzen 5 5600U (5553 - 5918, n=3)	5775 Points ∼60% -1%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points ∼36% +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points ∼35% +30%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points ∼35% +30%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points ∼27%
Media AMD Ryzen 5 5600U (21830 - 25738, n=3)	24021 Points ∼27% -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points ∼25% -10%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points ∼45% +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points ∼39% +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points ∼38% +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points ∼34%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	12541 Points ∼34% -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points ∼32% -8%
Media AMD Ryzen 5 5600U (7823 - 13130, n=6)	11018 Points ∼30% -13%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS ∼36% +46%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS ∼34% +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS ∼34% +40%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	40117 MIPS ∼25% +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS ∼24%
Media AMD Ryzen 5 5600U (32052 - 43071, n=6)	37855 MIPS ∼23% -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS ∼17% -31%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS ∼71% +12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS ∼69% +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS ∼69% +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS ∼63%
Media AMD Ryzen 5 5600U (5118 - 5260, n=6)	5198 MIPS ∼62% -1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS ∼59% -6%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	4603 MIPS ∼55% -12%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps ∼34% +57%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps ∼32% +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps ∼31% +44%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	10.4 fps ∼22% +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps ∼22%
Media AMD Ryzen 5 5600U (7.31 - 11.8, n=6)	9.72 fps ∼21% -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps ∼17% -22%

R Benchmark 2.5 - Overall mean
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * ∼13% -16%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	0.576 sec * ∼12% -7%
Media AMD Ryzen 5 5600U (0.537 - 0.59, n=6)	0.555 sec * ∼12% -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * ∼12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * ∼11% +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * ∼11% +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * ∼11% +8%

LibreOffice - 20 Documents To PDF
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	62.6 s * ∼16% -23%
Media AMD Ryzen 5 5600U (49.3 - 57.5, n=6)	54 s * ∼14% -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * ∼13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * ∼13% +1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * ∼13% +1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * ∼12% +4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * ∼12% +5%

WebXPRT 3 - ---
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points ∼59% +11%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points ∼58% +9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points ∼57% +7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points ∼54% +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points ∼53%
Media AMD Ryzen 5 5600U (243 - 265, n=6)	255 Points ∼53% 0%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	219 Points ∼46% -14%

Mozilla Kraken 1.1 - Total Score
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	793 ms * ∼1% -23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * ∼1% -4%
Media AMD Ryzen 5 5600U (646 - 667, n=6)	656 ms * ∼1% -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * ∼1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * ∼1% +7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * ∼1% +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * ∼1% +7%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points ∼44% +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points ∼43% +32%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points ∼42% +31%
Media AMD Ryzen 5 5600U (16412 - 20528, n=3)	18169 Points ∼34% +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points ∼32%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17516 Points ∼32% 0%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points ∼25% -22%
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points ∼46% +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points ∼44% +33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points ∼44% +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points ∼33%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	17885 Points ∼33% -1%
Media AMD Ryzen 5 5600U (14756 - 20872, n=6)	17757 Points ∼33% -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points ∼25% -24%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points ∼40% +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points ∼35% +30%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points ∼34% +28%
Beelink SER4 AMD Ryzen 7 4800U, 1800 MHz	6514 Points ∼32% +20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points ∼27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points ∼26% -4%
Media AMD Ryzen 5 5600U (3820 - 5685, n=6)	4931 Points ∼24% -9%

* ... Meglio usare valori piccoli

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	94.9 pt ∼95%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	84.5 pt ∼85%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	84.4 pt ∼84%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	64.6 pt ∼65%
Media della classe Mini PC	61.6 pt ∼62%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	59.2 pt ∼59%
Media AMD Ryzen 5 5600U	57.9 pt ∼58%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51.4 pt ∼51%

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s ∼100% +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s ∼87% +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s ∼85% +48%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s ∼64% +11%
Media della classe Mini PC (561 - 27538, n=60, ultimi 2 anni)	9652 KRay/s ∼61% +6%
Media AMD Ryzen 5 5600U (7902 - 10892, n=6)	9154 KRay/s ∼58% +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s ∼58%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s ∼48% -18%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points ∼100% +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points ∼86% +51%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points ∼85% +49%
Media AMD Ryzen 5 5600U (55397 - 69193, n=6)	59694 Points ∼59% +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points ∼57%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points ∼56% -2%
Media della classe Mini PC (3604 - 116903, n=60, ultimi 2 anni)	52753 Points ∼52% -8%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points ∼31% -45%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s ∼100% +75%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s ∼86% +50%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s ∼85% +48%
Media della classe Mini PC (225 - 5096, n=60, ultimi 2 anni)	2248 MB/s ∼65% +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s ∼61% +6%
Media AMD Ryzen 5 5600U (1906 - 2359, n=6)	2032 MB/s ∼59% +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s ∼57%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s ∼53% -7%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points ∼100% +56%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points ∼93% +45%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points ∼90% +41%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points ∼75% +17%
Media AMD Ryzen 5 5600U (67224 - 77176, n=6)	70668 Points ∼67% +5%
Media della classe Mini PC (8172 - 119569, n=60, ultimi 2 anni)	69550 Points ∼66% +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points ∼64%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points ∼50% -22%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points ∼100% +54%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points ∼95% +47%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points ∼93% +44%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points ∼92% +42%
Media AMD Ryzen 5 5600U (7897 - 9215, n=6)	8412 Points ∼66% +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points ∼65%
Media della classe Mini PC (408 - 15525, n=60, ultimi 2 anni)	7408 Points ∼58% -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points ∼39% -40%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points ∼100% +77%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points ∼86% +52%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points ∼85% +50%
Media AMD Ryzen 5 5600U (30542 - 38158, n=6)	32514 Points ∼59% +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points ∼57%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points ∼52% -9%
Media della classe Mini PC (1958 - 62378, n=60, ultimi 2 anni)	28175 Points ∼51% -10%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points ∼34% -40%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s ∼100% +73%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s ∼89% +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s ∼85% +48%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s ∼58%
Media della classe Mini PC (5504 - 177158, n=60, ultimi 2 anni)	76508 MB/s ∼57% -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s ∼57% -2%
Media AMD Ryzen 5 5600U (34865 - 92244, n=6)	67096 MB/s ∼50% -14%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s ∼40% -30%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s ∼100% +72%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s ∼89% +53%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s ∼86% +48%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s ∼68% +17%
Media della classe Mini PC (74.8 - 1114, n=60, ultimi 2 anni)	563 MB/s ∼65% +11%
Media AMD Ryzen 5 5600U (493 - 597, n=6)	527 MB/s ∼61% +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s ∼58%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s ∼47% -19%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s ∼100% +82%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s ∼85% +55%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s ∼85% +55%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s ∼66% +20%
Media della classe Mini PC (308 - 14722, n=60, ultimi 2 anni)	5156 KRay/s ∼61% +11%
Media AMD Ryzen 5 5600U (4104 - 5644, n=6)	4749 KRay/s ∼56% +2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s ∼55%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s ∼48% -13%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s ∼100% +58%
Media della classe Mini PC (4408 - 44347, n=60, ultimi 2 anni)	24401 MPixel/s ∼80% +26%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s ∼79% +25%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s ∼65% +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s ∼63%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s ∼49% -23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s ∼48% -24%
Media AMD Ryzen 5 5600U (7147 - 19395, n=6)	13587 MPixel/s ∼44% -30%

L'Ace Magician AMR5 nel ciclo Cinebench R15 Multi

Un'occhiata all'efficienza del sistema di raffreddamento integrato è fornita dal ciclo continuo di Cinebench R15. Dopo la settima esecuzione, le prestazioni calano di circa il 10%. Tuttavia, con una media di 1.158 punti, l'Ace Magician AMR5 è in grado di completare questo test con un risultato piuttosto buono.

Misurazioni della CPU durante l'esecuzione del ciclo Cinebench R15

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Beelink SER4 AMD Ryzen 7 4800U, AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Prestazioni del sistema

Ancora una volta, l'Ace Magician AMR5 riesce a tenere testa ai benchmark in termini di prestazioni di sistema. Il divario con i più veloci octa-core rimane nei limiti e non si nota molto durante le attività quotidiane.

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	99.8 pt ∼100%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	96.9 pt ∼97%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	96.8 pt ∼97%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	94 pt ∼94%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	82.3 pt ∼82%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	79.3 pt ∼79%

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points ∼100% +13%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points ∼97% +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points ∼95% +8%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points ∼89%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	5257 Points ∼81% -9%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points ∼79% -11%
Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points ∼100%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points ∼99% -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points ∼98% -2%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points ∼97% -3%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points ∼92% -8%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	9188 Points ∼88% -12%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points ∼100% +7%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points ∼97% +4%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points ∼97% +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points ∼94%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	7916 Points ∼78% -17%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points ∼67% -28%

Performance Rating - Percent
Morefine S500+, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	93.4 pt ∼93%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	81.1 pt ∼81%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	78.5 pt ∼79%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX ^-4! AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	76.4 pt ∼76%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	75.3 pt ∼75%

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	64.5 fps ∼100% +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	61.8 fps ∼96% +19%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	59.4 fps ∼92% +14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	52 fps ∼81%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.3 fps ∼58% -28%
1900x1060 Siemens NX (snx-02)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.7 fps ∼100%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.1 fps ∼65% -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	20.1 fps ∼61% -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.6 fps ∼57% -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.44 fps ∼11% -89%
1900x1060 Showcase (showcase-01)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps ∼100% +8%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.4 fps ∼95% +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	17 fps ∼92%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.4 fps ∼78% -15%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.7 fps ∼74% -19%
1900x1060 Medical (medical-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	14.8 fps ∼100% +35%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	12.4 fps ∼84% +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	12.2 fps ∼82% +11%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	11.1 fps ∼75% +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	11 fps ∼74%
1900x1060 Maya (maya-04)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.2 fps ∼100% +25%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	36.8 fps ∼94% +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	31.4 fps ∼80%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	31 fps ∼79% -1%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	30 fps ∼77% -4%
1900x1060 Energy (energy-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	2.19 fps ∼100% +68%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1.3 fps ∼59%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.53 fps ∼24% -59%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.52 fps ∼24% -60%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	0.43 fps ∼20% -67%
1900x1060 Creo (creo-01)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	37.2 fps ∼100% +61%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	35.9 fps ∼97% +55%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.6 fps ∼93% +50%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	23.1 fps ∼62%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	8.37 fps ∼23% -64%
1900x1060 Catia (catia-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	41.2 fps ∼100% +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	37.7 fps ∼92% +15%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	37.1 fps ∼90% +13%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	34.4 fps ∼83% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	32.9 fps ∼80%
1900x1060 3ds Max (3dsmax-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps ∼100% +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	43.7 fps ∼92% +10%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.8 fps ∼86% +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.9 fps ∼84%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.8 fps ∼82% -3%

SPECviewperf 13
Solidworks (sw-04)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	71.7 fps ∼100% +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	69.6 fps ∼97% +16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	67.7 fps ∼94% +12%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	60.2 fps ∼84%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	49.7 fps ∼69% -17%
Siemens NX (snx-03)
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	59.1 fps ∼100%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	38.2 fps ∼65% -35%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	36.3 fps ∼61% -39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	33.6 fps ∼57% -43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6.19 fps ∼10% -90%
Showcase (showcase-02)
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	18.4 fps ∼100% +10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	17.3 fps ∼94% +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	16.8 fps ∼91%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	14.1 fps ∼77% -16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	13.8 fps ∼75% -18%
Medical (medical-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	21.2 fps ∼100% +45%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	19.2 fps ∼91% +32%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	18.7 fps ∼88% +28%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	14.6 fps ∼69%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	13.1 fps ∼62% -10%
Maya (maya-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	48.6 fps ∼100% +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	44.6 fps ∼92%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	39.3 fps ∼81% -12%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	39.1 fps ∼80% -12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	38.9 fps ∼80% -13%
Energy (energy-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6.93 fps ∼100% +17%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5.92 fps ∼85%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3.64 fps ∼53% -39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	0.88 fps ∼13% -85%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	0.87 fps ∼13% -85%
Creo (creo-02)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	50.4 fps ∼100% +20%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	44.9 fps ∼89% +7%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	42 fps ∼83%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	41.8 fps ∼83% 0%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	34.2 fps ∼68% -19%
Catia (catia-05)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	59.3 fps ∼100% +26%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	52.9 fps ∼89% +13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	52.2 fps ∼88% +11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	49.3 fps ∼83% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	47 fps ∼79%
3ds Max (3dsmax-06)
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	47.5 fps ∼100% +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	42.9 fps ∼90% +8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	40.5 fps ∼85% +2%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	39.8 fps ∼84%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	38.5 fps ∼81% -3%

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	4148 Points ∼100% +29%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	3843 Points ∼93% +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	3499 Points ∼84% +8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	3414 Points ∼82% +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	3225 Points ∼78%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	306 Points ∼100% +37%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	276 Points ∼90% +23%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	235 Points ∼77% +5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	235 Points ∼77% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	224 Points ∼73%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	292 Points ∼100% +38%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	272 Points ∼93% +28%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	231 Points ∼79% +9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	220 Points ∼75% +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	212 Points ∼73%
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1280 Points ∼100% +30%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1217 Points ∼95% +24%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1066 Points ∼83% +9%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	982 Points ∼77%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	763 Points ∼60% -22%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1115 Points ∼100% +23%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1047 Points ∼94% +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	964 Points ∼86% +6%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	906 Points ∼81%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	853 Points ∼77% -6%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1205 Points ∼100% +34%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1200 Points ∼100% +33%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1123 Points ∼93% +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1002 Points ∼83% +11%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	900 Points ∼75%

LuxMark v2.0 64Bit
Sala GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	2320 Samples/s ∼100% +134%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1287 Samples/s ∼55% +30%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	993 Samples/s ∼43%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	948 Samples/s ∼41% -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	939 Samples/s ∼40% -5%
Room GPUs-only
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	693 Samples/s ∼100% +54%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	547 Samples/s ∼79% +22%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	451 Samples/s ∼65% 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	450 Samples/s ∼65%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	392 Samples/s ∼57% -13%

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points ∼100% +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points ∼99%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points ∼99% 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points ∼100% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points ∼95%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points ∼86% -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points ∼100% +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points ∼97%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points ∼95% -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points ∼100% +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points ∼96%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points ∼91% -5%

Performance Rating | CrossMark

Performance Rating - Percent
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt ∼100%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt ∼97%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt ∼93%

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points ∼100% +1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points ∼99%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points ∼99% 0%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points ∼100% +5%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points ∼95%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points ∼86% -10%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points ∼100% +3%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points ∼97%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points ∼95% -2%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points ∼100% +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points ∼96%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points ∼91% -5%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s ∼100% +39%
Media della classe Mini PC (6481 - 70620, n=60, ultimi 2 anni)	42162 MB/s ∼87% +20%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s ∼86% +20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s ∼78% +8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s ∼77% +7%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s ∼76% +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s ∼72%
Media AMD Ryzen 5 5600U (19785 - 38102, n=6)	28327 MB/s ∼58% -19%

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s ∼100% +22%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s ∼100% +22%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s ∼95% +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s ∼93% +14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s ∼92% +12%
Media della classe Mini PC (6914 - 65856, n=60, ultimi 2 anni)	42685 MB/s ∼91% +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s ∼82%
Media AMD Ryzen 5 5600U (22505 - 40126, n=6)	31392 MB/s ∼67% -18%

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s ∼100% +34%
Media della classe Mini PC (6862 - 87358, n=60, ultimi 2 anni)	45365 MB/s ∼90% +21%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s ∼87% +17%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s ∼83% +12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s ∼74%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s ∼70% -6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s ∼70% -6%
Media AMD Ryzen 5 5600U (19884 - 40633, n=6)	30023 MB/s ∼60% -20%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * ∼100% -5%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * ∼99% -4%
Media AMD Ryzen 5 5600U (88.2 - 96.2, n=6)	92.1 ns * ∼96% -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * ∼95%
Media della classe Mini PC (55.3 - 146, n=60, ultimi 2 anni)	86.3 ns * ∼90% +5%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * ∼83% +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * ∼78% +19%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * ∼77% +19%

* ... Meglio usare valori piccoli

Latenze DPC

LatencyMon non rivela alcun problema di latenza nell'Ace Magician AMR5. Non ci sono problemi durante la riproduzione del video 4K di YouTube, la navigazione in Internet o sotto carico con Prime95. Il carico sull'iGPU dell'AMD Ryzen 5 5600U è di circa il 20% durante la riproduzione del nostro video di prova in 4K

Latenza massima quando si aprono più schede del browser e si riproducono contenuti video 4K.

Latenza massima dopo 10 secondi di Prime95

Driver classificati in base al tempo di esecuzione più lungo

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * ∼100% -144%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * ∼87% -112%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * ∼59% -45%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * ∼41%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * ∼19% +54%
Beelink SER4, AMD Ryzen 7 4800U AMD Radeon RX Vega 8 (Ryzen 4000/5000), Intel SSD 660p SSDPEKNW512G8	336 μs * ∼18% +56%

* ... Meglio usare valori piccoli

Immagazzinamento

Minipc Union equipaggia l'Ace Magician AMR5 con un SSD da 512 GB. Il modello di Future Path utilizza l'interfaccia PCIe ed è in grado di conquistare il primato nel test con buone prestazioni. La buona velocità di lettura 4K consente di caricare rapidamente molti piccoli file, il che rappresenta un vantaggio durante l'avvio del sistema. Tuttavia, lo stress test mostra che queste prestazioni non possono essere mantenute completamente per un lungo periodo di tempo. Nonostante il dissipatore di calore passivo, la temperatura sotto carico sembra portare a un rallentamento delle prestazioni di tanto in tanto. Purtroppo, non c'è un raffreddamento attivo per il dispositivo di memoria di massa. Purtroppo, con 512 GB, il modello può essere consigliato solo in misura limitata, considerando che viene pubblicizzato come sistema di gioco. Tuttavia, è possibile installare facilmente una seconda unità SSD.

Per ulteriori confronti e benchmark, consultare i nostri Articolo sui benchmark di HDD/SSD.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2124 MB/s

Sequential Write: 1817 MB/s

512K Read: 1359 MB/s

512K Write: 1280 MB/s

4K Read: 50.3 MB/s

4K Write: 145.5 MB/s

4K QD32 Read: 581.6 MB/s

4K QD32 Write: 366.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Media della classe Mini PC	88.9 pt ∼89%
Media Future Path FPE220M8SSD512G	80 pt ∼80%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	79.2 pt ∼79%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	75.4 pt ∼75%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	65.1 pt ∼65%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	63.1 pt ∼63%
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	59.9 pt ∼60%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	58.9 pt ∼59%

DiskSpd
seq read
Media Future Path FPE220M8SSD512G (2082 - 2184, n=2)	2133 MB/s ∼100% +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s ∼98%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s ∼95% -2%
Media della classe Mini PC (233 - 4168, n=59, ultimi 2 anni)	1960 MB/s ∼92% -6%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s ∼80%

Recensione dell'Ace Magician AMR5: Mini PC elegante con Ryzen 5 5600U e illuminazione RGB discreta

Potenziali concorrenti a confronto

Il Minipc Union Ace Magician AMR5 in dettaglio

Caso

Connettività

Comunicazione

Manutenzione

Prestazioni

Condizioni di prova

Processore

L'Ace Magician AMR5 nel ciclo Cinebench R15 Multi

Prestazioni del sistema

Latenze DPC

Immagazzinamento
