Recensione del Morefine S500+: AMD Ryzen 9 5900HX con 32 GB di RAM e un SSD da 1 TB in un Mini PC

PC molto compatto e potente! Il produttore cinese Morefine offre il suo ultimo prodotto premium sotto il nome di S500+; la configurazione top è equipaggiata con l'AMD Ryzen 9 5900HX. Abbiamo dato un'occhiata più da vicino al computer compatto e vi forniremo un'analisi dettagliata in questa recensione.
CPU-Z
CPU-Z

Morefine è un produttore cinese che produce PC compatti da molti anni. Le prestazioni dei Mini PC compatti sono state migliorate continuamente attraverso nuovi sviluppi. Morefine ora commercializza il suo modello di punta che è basato sulAMD Ryzen 9 5900HX con il nome di S500+. Il recentemente recensitoMinisforum EliteMini HX90 ha anche questo processore e ha offerto una grande prestazione. Con questa conoscenza, abbiamo deciso di eseguire i benchmark con grandi aspettative. Anche il piccolo Morefine offre prestazioni eccellenti, che non vorrete perdere nell'uso quotidiano dopo averlo provato per un breve periodo.

L'altissima velocità di funzionamento rende il Morefine S500+ interessante, e allo stesso tempo, il sistema è anche adatto per compiti che richiedono un uso intensivo della CPU. Proprio come Minisforum, anche Morefine segue la stessa strada vendendo l'S500+ sia come barebone che come sistema preconfigurato con RAM e storage SSD. Attualmente dovete pagare $779 per l'S500+ senza SSD e RAM. Il nostro campione con 32 GB di RAM e un SSD da 1 TB costa 1.099 dollari. Tuttavia, il top della linea viene raggiunto a 1.225 dollari. Con questo, il Morefine S500+ viene anche con 64 GB di RAM e un SSD da 1 TB. Ci sono anche configurazioni alternative di CPU, e si possono trovare sulla confezione dell'S500+. Il modello meno potente basato sulAMD Ryzen 3 5300U parte da 499 dollari, comprese le spese di spedizione in Germania e le tasse.

L'hardware è alloggiato in un case molto compatto che misura 149 x 145 x 40 millimetri. Questo rende il Morefine S500+ considerevolmente più compatto del Minisforum EliteMini HX90. Tuttavia, i Mini PC NUC 10 di Intel sono ancora più compatti in termini di dimensioni.

Il Morefine S500+ viene consegnato in una scatola robusta con tutti gli accessori necessari per far funzionare rapidamente il PC. L'alimentatore relativamente grande è un po' più piatto di quello dell'EliteMini HX90, ma manca anche un connettore USB-C. Inoltre, la confezione include una piastra di montaggio per fissare il dispositivo a un display (supporto Vesa). Internamente, il dispositivo può essere equipaggiato con due unità di archiviazione aggiuntive. Di conseguenza, un totale di tre unità di archiviazione può essere installato nel piccolo PC.

Morefine S500+
Processore
AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 35 W PL2 / Short Burst, 54 W PL1 / Sustained, Cezanne-H (Zen 3)
Memoria
32 GB
, DDR4-3200, dual-channel, 2 out of 2 occupied, max. 64 GB
Scheda madre
AMD Promontory/Bixby FCH
Harddisk
ADATA XPG Gammix S11L 1024GB, 1024 GB
, 950 GB libera
Scheda audio
AMD Raven/Renoir/VanGogh/Cezanne - Audio Processor - HD Audio Controller
Porte di connessione
4 USB 2.0, 2 USB 3.1 Gen 2, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort
Rete
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX210 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Dimensioni
altezza x larghezza x profondità (in mm): 40 x 145 x 149
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Peso
697 gr, Alimentazione: 539 gr
Prezzo
779 Euro
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Custodia e connettività

Porte esterne (fonte: Morefine)
Porte esterne (fonte: Morefine)

A differenza di Minisforum, Morefine ospita l'hardware in un case di alluminio, che sembra robusto e ha una sensazione di alta qualità. Tuttavia, la superficie è adornata da uno strato di plastica, che ricorda la lacca per pianoforte dopo aver rimosso la pellicola protettiva. A causa delle proprietà svantaggiose (micro graffi), non siamo particolarmente affezionati a queste finiture. Tuttavia, il produttore sembra aver fatto molto bene i suoi compiti in questo caso. Anche dopo diversi giorni di uso intensivo, non abbiamo ancora rilevato alcun micrograffio. Questi appaiono spesso subito dopo aver rimosso la pellicola protettiva. Questi graffi diventano evidenti ancora più velocemente quando il dispositivo viene anche spesso pulito dalla polvere.

Morefine ha scelto una soluzione molto piatta per la costruzione del raffreddamento, che facilita anche la bassa altezza di costruzione. Misuriamo solo un po' più di quattro centimetri compresi i piedini di supporto. Pertanto, il sistema di raffreddamento ricorda un po' una soluzione per laptop, e fa uso di una piccola ventola.

L'interno è accessibile molto rapidamente. Tuttavia, dovete sapere che i lati superiore e inferiore possono essere rimossi singolarmente. Il lato superiore è fissato solo con due piccole viti, e dopo averle rimosse, è possibile accedere all'SSD integrato così come alla RAM. Un'unità di archiviazione aggiuntiva nel formato da 2,5 pollici può essere installata anche qui. Il fondo è fissato con quattro viti che si trovano direttamente sotto i piedi incollati. L'unità di raffreddamento si trova sotto il coperchio inferiore, così come un altro posto per inserire un SSD M.2.

In termini di porte esterne, il Morefine S500+ fornisce diverse opzioni per le periferiche esterne. Abbiamo contato un totale di sei porte USB-A e una USB Type-C. Tuttavia, le porte USB sul retro sono esclusivamente porte USB 2.0. Questo non è del tutto aggiornato, purtroppo. Ci saremmo aspettati almeno una velocità USB 3.0 qui. Ciononostante, potete tranquillamente collegare i vostri dispositivi di input qui. Si può scegliere tra HDMI, DisplayPort, o USB Type-C quando si tratta di uscita dell'immagine. In totale, il Morefine S500+ può supportare tre display allo stesso tempo. Purtroppo, questo modello non ha nemmeno un'interfaccia Thunderbolt

Morefine S500+ (fonte: Morefine)
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+
Morefine S500+ (fonte: Morefine)
Morefine S500+ (fonte: Morefine)
Morefine S500+ (fonte: Morefine)
Morefine S500+ (fonte: Morefine)
Morefine S500+ (fonte: Morefine)

Prestazioni - Molto buono tuttofare

Il Morefine S500+ ci è stato fornito con il AMD Ryzen 9 5900HX. Questo processore octa-core offre abbastanza potenza di calcolo, e il potenziale del PC non viene effettivamente sfruttato appieno se si devono eseguire solo compiti di ufficio. Ma avere un certo margine di prestazioni è molto rassicurante. Inoltre, il nostro campione di prova è equipaggiato con 32 GB di RAM e un SSD da 1 TB. Pertanto, si è ben curati per il momento, e non si corre il rischio di dover aggiornare rapidamente. Morefine non classifica esplicitamente l'S500+ come un PC da gioco, il che è completamente comprensibile, dal momento che la iGPU nel Ryzen 9 5900HX può essere raccomandata per il gioco solo in misura limitata.

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

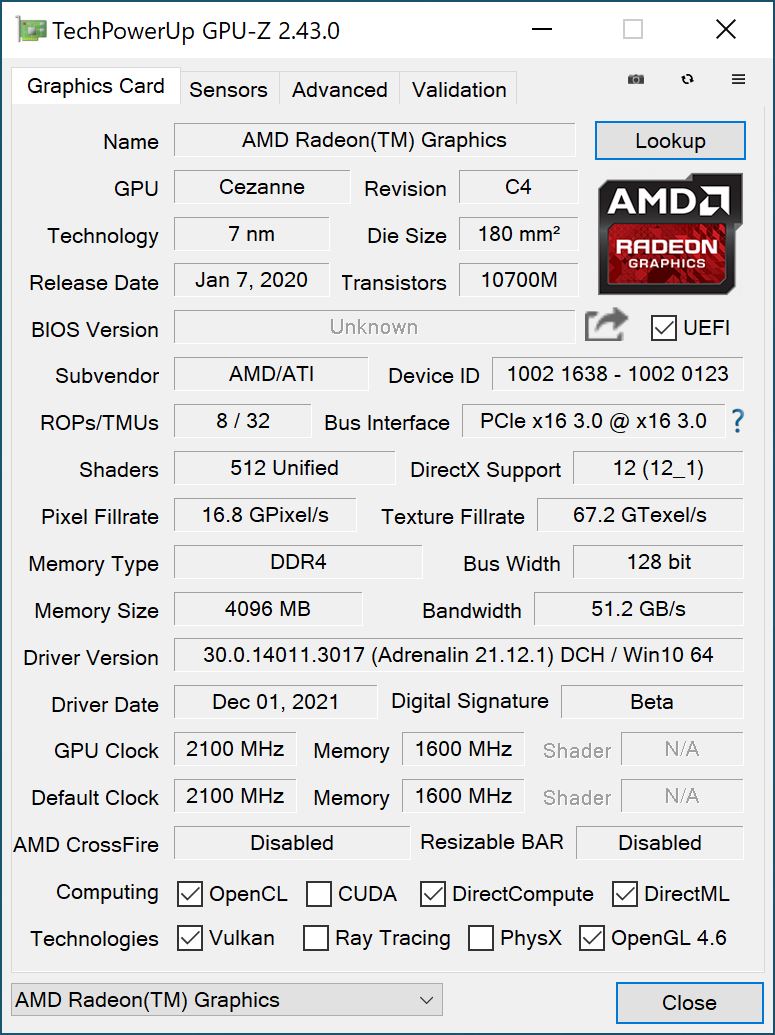

GPU-Z
GPU-Z
HWiNFO




Processore

L'integratoAMD Ryzen 9 5900HX ha avuto origine nel campo mobile e si trova altrimenti solo nei computer portatili. Morefine fa uso di questo SoC a causa del suo basso sviluppo di calore e delle sue prestazioni ancora molto elevate. Il processore fa parte della famiglia della serie Cezanne ed è basato sull'architettura Zen3. Un totale di fino a 16 thread possono essere elaborati contemporaneamente, il che rende il SoC ideale per compiti multithread. In un confronto di prestazioni, il Morefine S500+ è leggermente dietro al Minisforum EliteMini HX90. Ciò è dovuto all'unità di raffreddamento leggermente inferiore del primo, che raggiunge rapidamente il suo limite sotto carico con l'AMD Ryzen 9 5900HX.

Come Minisforum, Morefine offre anche diverse impostazioni nel BIOS (10-, 15-, 25-, 35-, 45- e 54 watt) per quanto riguarda il TDP del SoC. L'AMD Ryzen 9 5900HX è utilizzato con 45 watt di default. Tuttavia, il SoC può anche essere eseguito con 54 watt. Abbiamo eseguito tutti i benchmark con il TDP aumentato per permettere un miglior confronto con l'EliteMini HX90 di Minisforum.

A causa delle prestazioni marginalmente peggiori ma ancora molto buone del SoC nel Morefine S500+, le sue prestazioni possono tenere il passo con un Intel Core i5-11600K. Quest'ultimo, tuttavia, richiede molta più energia (125-watt TDP), che ancora una volta distingue chiaramente le prestazioni dell'AMD Ryzen 9 5900HX in questo caso.

Per ulteriori confronti e benchmark, fate riferimento al nostro Articolo sui benchmark della CPU.

Performance Rating - Percent
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
82.9 pt
Media AMD Ryzen 5 5600X
81.7 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
77.7 pt
Morefine S500+, AMD Ryzen 9 5900HX
75.6 pt
Media Intel Core i5-11600K
75.5 pt
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
67.7 pt
Minisforum HM90, AMD Ryzen 9 4900H
66.9 pt
Zotac Magnus One (ECM73070C), Intel Core i7-10700 -2!
65.4 pt
Media Intel Core i5-10600K
62.9 pt
Media Intel Core i5-10400F -5!
55.1 pt
Media Intel Core i7-10750H -2!
54.4 pt
Cinebench R20
CPU (Single Core)
Media AMD Ryzen 5 5600X
601 Points +6%
Media Intel Core i5-11600K (576 - 595, n=2)
586 Points +3%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
583 Points +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
582 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX
567 Points
Minisforum HM90, AMD Ryzen 9 4900H
505 Points -11%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
504 Points -11%
Media Intel Core i7-10750H (431 - 504, n=43)
473 Points -17%
Media Intel Core i5-10600K
464 Points -18%
Media Intel Core i5-10400F
438 Points -23%
CPU (Multi Core)
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
5371 Points +19%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
5185 Points +15%
Minisforum HM90, AMD Ryzen 9 4900H
4585 Points +2%
Media AMD Ryzen 5 5600X
4567 Points +2%
Morefine S500+, AMD Ryzen 9 5900HX
4495 Points
Media Intel Core i5-11600K (4254 - 4349, n=2)
4302 Points -4%
Media Intel Core i5-10600K
3443 Points -23%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
3357 Points -25%
Media Intel Core i5-10400F
3201 Points -29%
Media Intel Core i7-10750H (1749 - 3325, n=43)
2848 Points -37%
Cinebench R15
CPU Single 64Bit
Media AMD Ryzen 5 5600X
254 Points +6%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
242 Points +1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
242 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
240 Points
Media Intel Core i5-11600K (234 - 242, n=2)
238 Points -1%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
215 Points -10%
Media Intel Core i5-10600K
205 Points -15%
Media Intel Core i7-10750H (184 - 213, n=45)
196.7 Points -18%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
196 Points -18%
Minisforum HM90, AMD Ryzen 9 4900H
194 Points -19%
Media Intel Core i5-10400F
180 Points -25%
CPU Multi 64Bit
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
2234 Points +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
2224 Points +16%
Media AMD Ryzen 5 5600X
1968 Points +3%
Minisforum HM90, AMD Ryzen 9 4900H
1967 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX
1919 (1862.02min - 1893.4max) Points
Media Intel Core i5-11600K (1738 - 1750, n=2)
1744 Points -9%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1607 Points -16%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1455 Points -24%
Media Intel Core i5-10600K
1452 Points -24%
Media Intel Core i5-10400F
1332 Points -31%
Media Intel Core i7-10750H (804 - 1418, n=50)
1263 Points -34%
Cinebench R11.5
CPU Single 64Bit
Media AMD Ryzen 5 5600X
2.95 Points +5%
Media Intel Core i5-11600K
2.87 Points +3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
2.86 Points +2%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
2.84 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
2.8 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2.4 Points -14%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2.26 Points -19%
Minisforum HM90, AMD Ryzen 9 4900H
2.24 Points -20%
Media Intel Core i7-10750H (2.17 - 2.22, n=2)
2.2 Points -21%
Media Intel Core i5-10600K
2.19 Points -22%
Media Intel Core i5-10400F
2.03 Points -27%
CPU Multi 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
25.6 Points +16%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
24.37 Points +11%
Minisforum HM90, AMD Ryzen 9 4900H
23.03 Points +5%
Morefine S500+, AMD Ryzen 9 5900HX
22 Points
Media AMD Ryzen 5 5600X
21.8 Points -1%
Media Intel Core i5-11600K
19.3 Points -12%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
18.04 Points -18%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
16.7 Points -24%
Media Intel Core i5-10600K
15.8 Points -28%
Media Intel Core i5-10400F
14.4 Points -35%
Media Intel Core i7-10750H (13.7 - 14.1, n=2)
13.9 Points -37%
Cinebench R10
Rendering Single CPUs 64Bit
Media Intel Core i5-11600K
12957 Points +10%
Media AMD Ryzen 5 5600X
12563 Points +6%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
12152 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX
11811 Points
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
11351 Points -4%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
10359 Points -12%
Minisforum HM90, AMD Ryzen 9 4900H
10173 Points -14%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
9898 Points -16%
Media Intel Core i5-10600K
9594 Points -19%
Media Intel Core i5-10400F
8849 Points -25%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
73115 Points +14%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
71162 Points +11%
Media AMD Ryzen 5 5600X
69545 Points +8%
Minisforum HM90, AMD Ryzen 9 4900H
65380 Points +2%
Media Intel Core i5-11600K
64663 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
64320 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
55742 Points -13%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
52577 Points -18%
Media Intel Core i5-10600K
51816 Points -19%
Media Intel Core i5-10400F
47901 Points -26%
Blender - v2.79 BMW27 CPU
Media Intel Core i7-10750H (322 - 587, n=43)
389 Seconds * -47%
Media Intel Core i5-10400F
332 Seconds * -25%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
317.4 Seconds * -20%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
315.4 Seconds * -19%
Media Intel Core i5-10600K
302 Seconds * -14%
Media Intel Core i5-11600K (265 - 270, n=2)
267 Seconds * -1%
Morefine S500+, AMD Ryzen 9 5900HX
265 Seconds *
Media AMD Ryzen 5 5600X
260 Seconds * +2%
Minisforum HM90, AMD Ryzen 9 4900H
247.3 Seconds * +7%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
229.3 Seconds * +13%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
213.6 Seconds * +19%
wPrime 2.10
32m
Media Intel Core i5-10400F
6.25 s * -42%
Media Intel Core i7-10750H
5.56 s * -26%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
5.067 s * -15%
Media Intel Core i5-11600K
4.92 s * -12%
Media Intel Core i5-10600K
4.65 s * -6%
Morefine S500+, AMD Ryzen 9 5900HX
4.4 s *
Media AMD Ryzen 5 5600X
3.89 s * +12%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
3.788 s * +14%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3.308 s * +25%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
3.257 s * +26%
Minisforum HM90, AMD Ryzen 9 4900H
3.194 s * +27%
1024m
Media Intel Core i7-10750H
142.7 s * -34%
Media Intel Core i5-10400F
134.7 s * -26%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
120.2 s * -13%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
119.5 s * -12%
Media AMD Ryzen 5 5600X
113.9 s * -7%
Media Intel Core i5-10600K
113.2 s * -6%
Media Intel Core i5-11600K
107.6 s * -1%
Morefine S500+, AMD Ryzen 9 5900HX
106.7 s *
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
91.6 s * +14%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
90.5 s * +15%
Minisforum HM90, AMD Ryzen 9 4900H
82.9 s * +22%
X264 HD Benchmark 4.0
Pass 1
Media AMD Ryzen 5 5600X
320 fps +16%
Media Intel Core i5-11600K (279 - 299, n=2)
289 fps +5%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
284 (283min - 285max) fps +3%
Morefine S500+, AMD Ryzen 9 5900HX
276.5 (274min - 278max) fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
271.5 (259min - 276max) fps -2%
Media Intel Core i5-10600K
252 fps -9%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
237.5 (236min - 239max) fps -14%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
236 (235min - 257max) fps -15%
Media Intel Core i5-10400F
229 fps -17%
Media Intel Core i7-10750H (221 - 222, n=2)
221 fps -20%
Minisforum HM90, AMD Ryzen 9 4900H
215 (213min - 217max) fps -22%
Pass 2
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
130 (130min - 130max) fps +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
128 (122min - 128max) fps +14%
Media AMD Ryzen 5 5600X
117 fps +4%
Morefine S500+, AMD Ryzen 9 5900HX
112 (112min - 112max) fps
Minisforum HM90, AMD Ryzen 9 4900H
111 (111min - 112max) fps -1%
Media Intel Core i5-11600K (100.5 - 101, n=2)
100.8 fps -10%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
92.8 (89.1min - 100max) fps -17%
Media Intel Core i5-10600K
88.2 fps -21%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
84.8 (84.6min - 105max) fps -24%
Media Intel Core i5-10400F
81.2 fps -27%
Media Intel Core i7-10750H (77.4 - 79.2, n=2)
78.3 fps -30%
WinRAR - Result
Media AMD Ryzen 5 5600X
13282 KB/s +72%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
8401 KB/s +9%
Media Intel Core i5-11600K
7850 KB/s +2%
Morefine S500+, AMD Ryzen 9 5900HX
7722 KB/s
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
7266 KB/s -6%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
6555 KB/s -15%
Media Intel Core i5-10600K
6536 KB/s -15%
Media Intel Core i7-10750H (6265 - 6309, n=2)
6287 KB/s -19%
Minisforum HM90, AMD Ryzen 9 4900H
4297 KB/s -44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
4297 KB/s -44%
TrueCrypt
AES Mean 100MB
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
13.4 GB/s +24%
Morefine S500+, AMD Ryzen 9 5900HX
10.8 GB/s
Media AMD Ryzen 5 5600X
10.7 GB/s -1%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
10.3 GB/s -5%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
10.1 GB/s -6%
Media Intel Core i5-11600K
9.7 GB/s -10%
Media Intel Core i5-10600K
8 GB/s -26%
Media Intel Core i7-10750H (7.6 - 7.6, n=2)
7.6 GB/s -30%
Minisforum HM90, AMD Ryzen 9 4900H
7.4 GB/s -31%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
7.4 GB/s -31%
Twofish Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
2 GB/s +25%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
2 GB/s +25%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1.8 GB/s +13%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1.7 GB/s +6%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
1.7 GB/s +6%
Morefine S500+, AMD Ryzen 9 5900HX
1.6 GB/s
Media AMD Ryzen 5 5600X
1.5 GB/s -6%
Media Intel Core i5-11600K
1.5 GB/s -6%
Media Intel Core i5-10600K
1.4 GB/s -12%
Media Intel Core i7-10750H (1.3 - 1.3, n=2)
1.3 GB/s -19%
Serpent Mean 100MB
Minisforum HM90, AMD Ryzen 9 4900H
1.2 GB/s +9%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
1.2 GB/s +9%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1.1 GB/s 0%
Morefine S500+, AMD Ryzen 9 5900HX
1.1 GB/s
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1 GB/s -9%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
1 GB/s -9%
Media AMD Ryzen 5 5600X
0.938 GB/s -15%
Media Intel Core i5-11600K
0.9 GB/s -18%
Media Intel Core i5-10600K
0.82 GB/s -25%
Media Intel Core i7-10750H (0.767 - 0.78, n=2)
0.774 GB/s -30%
Geekbench 5.5
Multi-Core
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
9544 Points +22%
Media AMD Ryzen 5 5600X
8980 Points +14%
Media Intel Core i5-11600K (8336 - 8523, n=2)
8430 Points +7%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
8173 Points +4%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
7875 Points 0%
Morefine S500+, AMD Ryzen 9 5900HX
7855 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
7568 Points -4%
Media Intel Core i5-10600K
7248 Points -8%
Minisforum HM90, AMD Ryzen 9 4900H
7224 Points -8%
Media Intel Core i5-10400F (6358 - 6372, n=2)
6365 Points -19%
Media Intel Core i7-10750H (4443 - 6674, n=43)
6135 Points -22%
Single-Core
Media Intel Core i5-11600K (1694 - 1752, n=2)
1723 Points +11%
Media AMD Ryzen 5 5600X
1657 Points +7%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
1598 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX
1552 Points
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
1542 Points -1%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1378 Points -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1299 Points -16%
Media Intel Core i5-10600K
1286 Points -17%
Media Intel Core i7-10750H (1114 - 1333, n=43)
1263 Points -19%
Minisforum HM90, AMD Ryzen 9 4900H
1233 Points -21%
Media Intel Core i5-10400F (1217 - 1223, n=2)
1220 Points -21%
Geekbench 5.0
5.0 Multi-Core
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
9563 Points +22%
Media AMD Ryzen 5 5600X
8926 Points +14%
Media Intel Core i5-11600K
8542 Points +9%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
8196 Points +4%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
7859 Points 0%
Morefine S500+, AMD Ryzen 9 5900HX
7847 Points
Minisforum HM90, AMD Ryzen 9 4900H
7624 Points -3%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
7540 Points -4%
Media Intel Core i5-10600K
7237 Points -8%
Media Intel Core i5-10400F
6349 Points -19%
Media Intel Core i7-10750H (5710 - 6632, n=8)
6283 Points -20%
5.0 Single-Core
Media Intel Core i5-11600K
1731 Points +15%
Media AMD Ryzen 5 5600X
1587 Points +6%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
1525 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
1504 Points
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
1498 Points 0%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
1355 Points -10%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
1304 Points -13%
Media Intel Core i5-10600K
1281 Points -15%
Media Intel Core i7-10750H (1215 - 1325, n=8)
1258 Points -16%
Minisforum HM90, AMD Ryzen 9 4900H
1237 Points -18%
Media Intel Core i5-10400F
1217 Points -19%
Geekbench 4.4
64 Bit Single-Core Score
Media Intel Core i5-11600K
7438 Points +16%
Media AMD Ryzen 5 5600X
6953 Points +8%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
6743 Points +5%
Morefine S500+, AMD Ryzen 9 5900HX
6434 Points
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
6365 Points -1%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
5969 Points -7%
Media Intel Core i5-10600K
5821 Points -10%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
5726 Points -11%
Media Intel Core i5-10400F
5587 Points -13%
Media Intel Core i7-10750H (5321 - 5832, n=8)
5572 Points -13%
Minisforum HM90, AMD Ryzen 9 4900H
5287 Points -18%
64 Bit Multi-Core Score
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
36970 Points +17%
Media AMD Ryzen 5 5600X
35617 Points +12%
Media Intel Core i5-11600K
33266 Points +5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
32434 Points +2%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
32174 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
31724 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
29385 Points -7%
Minisforum HM90, AMD Ryzen 9 4900H
28402 Points -10%
Media Intel Core i5-10600K
28391 Points -11%
Media Intel Core i5-10400F
25403 Points -20%
Media Intel Core i7-10750H (22859 - 25637, n=8)
24682 Points -22%
3DMark 11 - 1280x720 Performance Physics
Media AMD Ryzen 5 5600X
19649 Points +17%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
18372 Points +9%
Morefine S500+, AMD Ryzen 9 5900HX
16783 Points
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
16422 Points -2%
Media Intel Core i5-11600K (15381 - 17381, n=2)
16381 Points -2%
Media Intel Core i5-10600K
15961 Points -5%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
15497 Points -8%
Media Intel Core i5-10400F
14539 Points -13%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
13940 Points -17%
Media Intel Core i7-10750H (8587 - 14993, n=48)
12991 Points -23%
Minisforum HM90, AMD Ryzen 9 4900H
12199 Points -27%
7-Zip 18.03
7z b 4
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
64358 MIPS +17%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
57435 MIPS +4%
Media AMD Ryzen 5 5600X
56607 MIPS +3%
Morefine S500+, AMD Ryzen 9 5900HX
54998 MIPS
Minisforum HM90, AMD Ryzen 9 4900H
48976 MIPS -11%
Media Intel Core i5-11600K (44620 - 45322, n=2)
44971 MIPS -18%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
44081 MIPS -20%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
43007 MIPS -22%
Media Intel Core i5-10600K
40379 MIPS -27%
Media Intel Core i5-10400F
36731 MIPS -33%
Media Intel Core i7-10750H (26040 - 37345, n=43)
33946 MIPS -38%
7z b 4 -mmt1
Media AMD Ryzen 5 5600X
6594 MIPS +12%
Media Intel Core i5-11600K (5987 - 6136, n=2)
6062 MIPS +3%
Morefine S500+, AMD Ryzen 9 5900HX
5905 MIPS
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
5818 MIPS -1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
5739 MIPS -3%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
5642 MIPS -4%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
5293 MIPS -10%
Media Intel Core i5-10600K
5289 MIPS -10%
Media Intel Core i7-10750H (4504 - 5470, n=43)
5114 MIPS -13%
Media Intel Core i5-10400F
5064 MIPS -14%
Minisforum HM90, AMD Ryzen 9 4900H
4727 MIPS -20%
HWBOT x265 Benchmark v2.2 - 4k Preset
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
16.8 fps +16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
15.9 fps +10%
Media AMD Ryzen 5 5600X
15.7 fps +8%
Morefine S500+, AMD Ryzen 9 5900HX
14.5 fps
Media Intel Core i5-11600K (14 - 14.7, n=2)
14.4 fps -1%
Minisforum HM90, AMD Ryzen 9 4900H
12.9 fps -11%
Media Intel Core i5-10600K
12.2 fps -16%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
11.6 fps -20%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
11.4 fps -21%
Media Intel Core i5-10400F
11.2 fps -23%
Media Intel Core i7-10750H (5.54 - 11.6, n=43)
9.61 fps -34%
R Benchmark 2.5 - Overall mean
Media Intel Core i5-10400F
0.618 sec * -25%
Media Intel Core i7-10750H (0.578 - 0.708, n=42)
0.611 sec * -24%
Media Intel Core i5-10600K
0.593 sec * -20%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
0.588 sec * -19%
Minisforum HM90, AMD Ryzen 9 4900H
0.572 sec * -16%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
0.541 sec * -10%
Media Intel Core i5-11600K (0.506 - 0.528, n=2)
0.517 sec * -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
0.4965 sec * -1%
Morefine S500+, AMD Ryzen 9 5900HX
0.493 sec *
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
0.4896 sec * +1%
Media AMD Ryzen 5 5600X
0.4778 sec * +3%
LibreOffice - 20 Documents To PDF
Minisforum HM90, AMD Ryzen 9 4900H
66 s * -31%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
59.5 s * -18%
Media Intel Core i5-10400F
57.1 s * -13%
Media Intel Core i7-10750H (43.1 - 99.2, n=43)
53.3 s * -6%
Morefine S500+, AMD Ryzen 9 5900HX
50.4 s *
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
49.8 s * +1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
49.3 s * +2%
Media Intel Core i5-10600K
46.1 s * +9%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
45.23 s * +10%
Media AMD Ryzen 5 5600X
45.1 s * +11%
Media Intel Core i5-11600K (39.7 - 43.8, n=2)
41.8 s * +17%
WebXPRT 3 - Overall
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
295 Points +8%
Media AMD Ryzen 5 5600X
286 Points +4%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
278 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
274 Points
Media Intel Core i5-11600K (263 - 280, n=2)
272 Points -1%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
244 Points -11%
Media Intel Core i5-10600K
239 Points -13%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
233 Points -15%
Minisforum HM90, AMD Ryzen 9 4900H
227 Points -17%
Media Intel Core i7-10750H (202 - 239, n=39)
225 Points -18%
Media Intel Core i5-10400F
215 Points -22%
Mozilla Kraken 1.1 - Total
Media Intel Core i5-10400F
849 ms * -41%
Media Intel Core i7-10750H (764 - 840, n=43)
783 ms * -30%
Minisforum HM90, AMD Ryzen 9 4900H
767 ms * -27%
Media Intel Core i5-10600K
760 ms * -26%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
754 ms * -25%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
752 ms * -25%
Morefine S500+, AMD Ryzen 9 5900HX
602 ms *
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
601 ms * -0%
Media Intel Core i5-11600K (587 - 608, n=2)
598 ms * +1%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
587 ms * +2%
Media AMD Ryzen 5 5600X
578 ms * +4%
3DMark
3840x2160 Fire Strike Ultra Physics
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
27096 Points +16%
Media AMD Ryzen 5 5600X
26038 Points +12%
Morefine S500+, AMD Ryzen 9 5900HX
23269 Points
Media Intel Core i5-11600K
23190 Points 0%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
22976 Points -1%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
21864 Points -6%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
21542 Points -7%
Media Intel Core i5-10600K
19942 Points -14%
Minisforum HM90, AMD Ryzen 9 4900H
18986 Points -18%
Media Intel Core i5-10400F
18082 Points -22%
Media Intel Core i7-10750H (16535 - 18978, n=29)
17806 Points -23%
1920x1080 Fire Strike Physics
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
27300 Points +14%
Media AMD Ryzen 5 5600X
25990 Points +9%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
24096 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
23903 Points
Media Intel Core i5-11600K (21677 - 22631, n=2)
22154 Points -7%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
21706 Points -9%
Minisforum HM90, AMD Ryzen 9 4900H
20613 Points -14%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
20080 Points -16%
Media Intel Core i5-10600K
20040 Points -16%
Media Intel Core i7-10750H (11653 - 18769, n=46)
17163 Points -28%
2560x1440 Time Spy CPU
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
9743 Points +19%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
9417 Points +15%
Media AMD Ryzen 5 5600X
8911 Points +9%
Media Intel Core i5-11600K (8286 - 9482, n=2)
8884 Points +8%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
8580 Points +5%
Media Intel Core i5-10600K
8290 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
8191 Points
Media Intel Core i5-10400F
7548 Points -8%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
6955 Points -15%
Media Intel Core i7-10750H (4911 - 7543, n=47)
6649 Points -19%
Minisforum HM90, AMD Ryzen 9 4900H
6523 Points -20%

* ... Meglio usare valori piccoli

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23

Cinebench R15 multi loop

Durante il nostro primo test di carico, che simuliamo con il multi-loop Cinebench R15, possiamo chiaramente vedere che il design compatto e la piccola unità di raffreddamento possono ancora gestire ilAMD Ryzen 9 5900HX bene. Allo stesso tempo, però, il TDP più alto non può essere mantenuto costante, il che si riflette in un punteggio medio più basso. Con 1.892 punti, il Morefine S500+ si posiziona appena davanti alMinisforum EliteMini HM90 che è basato sul AMD Ryzen 9 4900H. Minisforum mostra cosa si può ottenere implementando un sistema di raffreddamento migliore con l EliteMini HX90. Ci si può aspettare un buon 10% in più di prestazioni nel lungo periodo

011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)
Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)
AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø2227 (2208.24-2244.79)
Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)
Zotac Magnus One (ECM73070C) Intel Core i7-10700, Intel Core i7-10700: Ø1338 (1184.66-1454.54)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Prestazioni del sistema

I benchmark sintetici fanno un buon lavoro per riflettere l'impressione soggettiva delle prestazioni del sistema. In ogni momento, il sistema lavora rapidamente e senza lunghi tempi di attesa. Il sitoAMD Ryzen 9 5900HX è perfettamente adatto per applicazioni esigenti, e il SoC non rimane a corto di fiato rapidamente anche quando si eseguono più compiti contemporaneamente, il che è anche merito dell'ampia RAM. Tuttavia, l'AMD Radeon RX Vega 8 non può compensare una scheda grafica dedicata, come si può vedere nei test di rendering. IlIntel Ghost Canyon NUCe la Zotac Magnus One sono chiaramente in vantaggio qui.

In termini di latenze misurate, il Morefine S500+ si comporta leggermente peggio rispetto al Minisforum EliteMini HX90. Tuttavia, non ci sono stati svantaggi evidenti durante la riproduzione di contenuti 4K. L'iGPU è stata caricata di circa il 30%, e le latenze sono aumentate solo leggermente dopo il lancio di Prime95.

Massima latenza quando si aprono più schede del browser e si riproducono contenuti video 4K.
Massima latenza quando si aprono più schede del browser e si riproducono contenuti video 4K.
Latenza massima dopo 10 secondi di Prime95
Latenza massima dopo 10 secondi di Prime95
PCMark 10
Score
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
6939 Points +10%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6507 Points +3%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
6499 Points +3%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6444 Points +2%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6290 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5565 Points -12%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2958 Points -53%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1806 Points -71%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10196 Points +3%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9856 Points
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9332 Points -5%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
8581 Points -13%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
8277 Points -16%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
7447 Points -24%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
5397 Points -45%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
2928 Points -70%
Essentials
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
10797 Points +7%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10321 Points +2%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10226 Points +1%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10087 Points
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
9846 Points -2%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
9026 Points -11%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
6210 Points -38%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
4693 Points -53%
Digital Content Creation
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
10161 Points +50%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9785 Points +44%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7610 Points +12%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7105 Points +5%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6794 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6262 Points -8%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
2097 Points -69%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
1165 Points -83%
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
3767 μs * -132%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1625 μs *
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1581 μs * +3%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * +32%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1106 μs * +32%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
829 μs * +49%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
82.3 fps +28%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
71.1 fps +10%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
64.5 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
61.8 fps -4%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
59.2 fps -8%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.3 fps -24%
1900x1060 Siemens NX (snx-02)
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.2 fps +5%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.1 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20.1 fps -5%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.4 fps -22%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
12 fps -43%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
9.08 fps -57%
1900x1060 Showcase (showcase-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps +848%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps +581%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 fps +26%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.4 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 fps -17%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.3 fps -24%
1900x1060 Medical (medical-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
49 fps +231%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
40.14 fps +171%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.3 fps +3%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.8 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12.2 fps -18%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.7 fps -21%
1900x1060 Maya (maya-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
200 fps +443%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
171 fps +365%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
43.5 fps +18%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.8 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31 fps -16%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.6 fps -28%
1900x1060 Energy (energy-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
13.1 fps +498%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
11.49 fps +425%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.68 fps +22%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
2.19 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.52 fps -76%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.5 fps -77%
1900x1060 Creo (creo-01)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
61.5 fps +65%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
52.2 fps +40%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
42.4 fps +14%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.2 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
35.9 fps -3%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.9 fps -20%
1900x1060 Catia (catia-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
117 fps +184%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
78.3 fps +90%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
48 fps +17%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
41.2 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.7 fps -8%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
32.7 fps -21%
1900x1060 3ds Max (3dsmax-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps +348%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
180.8 fps +281%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
53 fps +12%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.5 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
43.7 fps -8%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.4 fps -21%
SPECviewperf 13
Solidworks (sw-04)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
114 fps +59%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
85.4 fps +19%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
79.4 fps +11%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
71.7 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
69.6 fps -3%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
57.4 fps -20%
Siemens NX (snx-03)
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
39.9 fps +4%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.2 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
36.3 fps -5%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.6 fps -23%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
21.9 fps -43%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
16.33 fps -57%
Showcase (showcase-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
165 fps +854%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
118.5 fps +585%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 fps +27%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.3 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.1 fps -18%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.5 fps -22%
Medical (medical-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
78.3 fps +269%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
56.4 fps +166%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.7 fps +2%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
21.2 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19.2 fps -9%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.4 fps -23%
Maya (maya-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
367 fps +655%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
281 fps +478%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
58.5 fps +20%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
48.6 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.9 fps -20%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
35.1 fps -28%
Energy (energy-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
28.2 fps +307%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
21.83 fps +215%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7.57 fps +9%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6.93 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.88 fps -87%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
0.82 fps -88%
Creo (creo-02)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
241 fps +378%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
183.8 fps +265%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
59.3 fps +18%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
50.4 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
44.9 fps -11%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.7 fps -25%
Catia (catia-05)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
171 fps +188%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
113.7 fps +92%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
69.1 fps +17%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
59.3 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
52.2 fps -12%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
46.4 fps -22%
3ds Max (3dsmax-06)
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
213 fps +348%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
178.6 fps +276%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
52.9 fps +11%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
47.5 fps
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
42.9 fps -10%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.8 fps -20%
ComputeMark v2.1
1024x600 Normal, Score
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4166 Points 0%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4148 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points -16%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3499 Points -16%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
631 Points -85%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
337 Points -92%
1024x600 Normal, Fluid 3DTex
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
340 Points +23%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
276 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points -15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
235 Points -15%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
54 Points -80%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
44 Points -84%
1024x600 Normal, Fluid 2DTexArr
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
337 Points +24%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
272 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points -15%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
231 Points -15%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
63 Points -77%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
42 Points -85%
1024x600 Normal, Mandel Vector
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1280 Points
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1255 Points -2%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points -17%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1066 Points -17%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
147 Points -89%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
79 Points -94%
1024x600 Normal, Mandel Scalar
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1115 Points
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1084 Points -3%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points -14%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
964 Points -14%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
137 Points -88%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
54 Points -95%
1024x600 Normal, QJuliaRayTrace
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1205 Points
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1149 Points -5%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points -17%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1002 Points -17%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
230 Points -81%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
118 Points -90%
LuxMark v2.0 64Bit
Room GPUs-only
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
772 Samples/s +41%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
547 Samples/s
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s -18%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
451 Samples/s -18%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
109 Samples/s -80%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
76 Samples/s -86%
Sala GPUs-only
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1575 Samples/s +22%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
1287 Samples/s
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s -27%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
939 Samples/s -27%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
266 Samples/s -79%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
129 Samples/s -90%

* ... Meglio usare valori piccoli

Stoccaggio

1 TB NVMe SSD
1 TB NVMe SSD

Morefine è generoso e confeziona un SSD da 1 TB nel nostro sistema di test. Questo corrisponde alla configurazione top che viene offerta nel negozio del produttore. L'SSD è prodotto da ADATA e utilizza il protocollo NVMe per trasferimenti di dati fulminei. L'SSD ha raggiunto tassi molto buoni in lettura e scrittura sequenziale dei dati nel nostro test. Tuttavia, le prestazioni di lettura 4K sono state un po' deludenti con soli 27 MB/s. Ci aspettavamo un risultato molto migliore qui. Per confronto: L'SSD Kingston nelMinisforum EliteMini HX90 ha raggiunto 54 MB/s qui.

Se trovate insufficiente lo spazio di archiviazione di 1 TB, potete ancora inserire due unità di archiviazione di massa aggiuntive nel Morefine S500+. C'è un altro slot M.2 e uno slot da 2,5 pollici libero per questo. L'attrezzatura di montaggio giusta e i cavi di connessione sono inclusi nella confezione. Tuttavia, l'altezza massima di 7 millimetri dovrebbe essere presa in considerazione per l'unità da 2,5 pollici.

AS SSD
AS SSD
CrystalDiskInfo
CrystalDiskInfo
ADATA XPG Gammix S11L 1024GB
Sequential Read: 2048MB/s
Sequential Write: 1254MB/s
4K Read: 27.6MB/s
4K Write: 121.3MB/s
4K-64 Read: 622MB/s
4K-64 Write: 745MB/s
Access Time Read: 0.154ms
Access Time Write: 0.103ms
Copy ISO: 2659MB/s
Copy Program: 359.9MB/s
Copy Game: 1039MB/s
Score Read: 855Points
Score Write: 992Points
Score Total: 2248Points
Drive Performance Rating - Percent
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
83.8 pt
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
66.4 pt
Morefine S500+
ADATA XPG Gammix S11L 1024GB
62.1 pt
MSI Cubi 5 10M -8!
WDC PC SN530 SDBPTPZ-256G
43.8 pt
DiskSpd
seq read
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2034 (2023.33min - 2033.61max) MB/s
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1319 (1307.78min - 1319.44max) MB/s -35%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
824 (549.82min - 823.58max) MB/s -59%
seq write
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1277 (1270.04min - 1277.38max) MB/s
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 977.06max) MB/s -23%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
665 (240.27min - 665.08max) MB/s -48%
seq q8 t1 read
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2635 (2212.29min - 2635.07max) MB/s +22%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2167 (2086.44min - 2166.57max) MB/s
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1973 (254.17min - 1973.17max) MB/s -9%
seq q8 t1 write
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2002 (577.14min - 2001.94max) MB/s +52%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1316 (1309.25min - 1315.54max) MB/s
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 976.5max) MB/s -26%
4k q1 t1 read
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
47.4 (11.99min - 47.41max) MB/s +61%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
42.2 (41.94min - 42.15max) MB/s +43%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
29.5 (29.27min - 29.48max) MB/s
4k q1 t1 write
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
167 (54.54min - 166.59max) MB/s +21%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
138 (136.12min - 137.6max) MB/s
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
120 (119.43min - 119.96max) MB/s -13%
4k q32 t16 read
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1311 (1269.74min - 1311.13max) MB/s +23%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1063 (1053.81min - 1062.87max) MB/s
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
313 (311.66min - 312.85max) MB/s -71%
4k q32 t16 write
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
976 (747.22min - 976.04max) MB/s +10%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
937 (473.07min - 936.52max) MB/s +5%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
890 (860.72min - 889.72max) MB/s
AS SSD
Score Total
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
4893 Points +118%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2248 Points
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
2184 Points -3%
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
364.5 Points -84%
Score Read
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1911 Points +124%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
855 Points
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
741 Points -13%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
698 Points -18%
Score Write
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2041 Points +106%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1152 Points +16%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
992 Points
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
424 Points -57%
Seq Read
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2361 MB/s +15%
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
2177 MB/s +6%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
2048 MB/s
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1777 MB/s -13%
Seq Write
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1690 MB/s +35%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
1254 MB/s
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
929 MB/s -26%
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
892 MB/s -29%
4K Read
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
54.5 MB/s +97%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
38.25 MB/s +39%
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
36.86 MB/s +34%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
27.6 MB/s
4K Write
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
143.1 MB/s +18%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
121.3 MB/s
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
104.1 MB/s -14%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
100.2 MB/s -17%
4K-64 Read
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1637 MB/s +163%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
622 MB/s
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
486.1 MB/s -22%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
465.3 MB/s -25%
4K-64 Write
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1772 MB/s +138%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
916 MB/s +23%
Morefine S500+
ADATA XPG Gammix S11L 1024GB
745 MB/s
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
230.4 MB/s -69%
Access Time Read
Morefine S500+
ADATA XPG Gammix S11L 1024GB
0.154 ms *
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
0.099 ms * +36%
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
0.098 ms * +36%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.081 ms * +47%
Access Time Write
Morefine S500+
ADATA XPG Gammix S11L 1024GB
0.103 ms *
MSI Cubi 5 10M
WDC PC SN530 SDBPTPZ-256G
0.051 ms * +50%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
0.035 ms * +66%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.024 ms * +77%

* ... Meglio usare valori piccoli

Scheda grafica

Come abbiamo detto prima, non c'è una scheda grafica dedicata nella Morefine S500+, il che significa che laAMD Radeon RX Vega 8 serve come unità grafica integrata del AMD Ryzen 9 5900HX. Abbiamo già familiarità con ciò che ci si può aspettare dalla iGPU, dal momento che il modello non è sconosciuto, e ha già qualche anno sotto la sua cintura. Con le innovazioni del SoC, AMD ha anche leggermente migliorato le prestazioni della AMD Radeon RX Vega 8. Tuttavia, è ancora la vecchia architettura Vega nel suo nucleo.

La iGPU della Morefine può utilizzare 4 GB di RAM in modalità gaming, che può essere attivata nel BIOS. Questo valore può anche essere regolato dall'utente, però. Un massimo di 16 GB è possibile, a condizione che la RAM installata sia sufficiente. Questa opzione è disponibile anche con la concorrenza. Tuttavia, il Minisforum EliteMini HX90 ottiene solo 2 GB di RAM per l'iGPU a causa della minore quantità di RAM. C'è un piccolo vantaggio per la RAM leggermente più grande assegnata, dato che molti giochi offrono frame rate più elevati con impostazioni medie. Ancora, non ci si può aspettare troppo dalla iGPU. Rispetto a una moderna scheda grafica dedicata, l'iGPU deve ammettere la sconfitta.

Parlando di schede grafiche dedicate: Le GPU desktop possono anche essere utilizzate tramite l'interfaccia M.2 con un adattatore adatto. L'unico svantaggio qui è la velocità PCIe x4. Ciononostante, una GPU desktop esterna dovrebbe comunque fornire migliori frame rate sulle quattro corsie PCIe rispetto alla iGPU. Dal momento che non abbiamo ricevuto un adattatore adatto finora, non possiamo fare alcuna dichiarazione concreta per quanto riguarda le prestazioni qui.

Quindi, se volete acquistare la Morefine S500+, dovete sapere che le prestazioni della AMD Radeon RX Vega 8 sono sufficienti solo per una quantità limitata di giochi o per quelli che non sono molto esigenti. Un miglioramento delle prestazioni 3D dovrebbe accompagnare l'AMD Ryzen 9 6900HX, perché Navi dovrebbe sostituire Vega nella iGPU per la prima volta qui. Ma questa è solo pura speculazione al momento.

Potete trovare altri benchmark basati sulla AMD Radeon RX Vega 8 qui.

Performance Rating - Percent
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
85.1 pt
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
84.9 pt
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.2 pt
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.5 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.5 pt
Media Intel Iris Xe Graphics G7 96EUs

17.7 pt
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.5 pt
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
10.1 pt
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
8.1 pt
Intel NUC5i5RYH, Intel Core i5-5250U -1!
1600 MHz, Intel HD Graphics 6000
7 pt
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
5.5 pt
Intel NUC5i3RYK, Intel Core i3-5010U -1!
2100 MHz, Intel HD Graphics 5500
5.4 pt
Intel NUC6i5SYH, Intel Core i5-6260U -2!
1800 MHz, Intel Iris Graphics 540
5.3 pt
3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
40950 Points +475%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
28828 Points +305%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7591 Points +7%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
7122 Points
Media Intel Iris Xe Graphics G7 96EUs
  (2867 - 7471, n=193)
6342 Points -11%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
6306 Points -11%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5567 Points -22%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
2322 Points -67%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1983 Points -72%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1853 Points -74%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1458 Points -80%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
1316 Points -82%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
1175 Points -84%
3DMark
1280x720 Ice Storm Standard Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
441161 Points +237%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
286573 Points +119%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
187444 Points +43%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
171104 Points +31%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
130976 Points
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
100414 Points -23%
Media Intel Iris Xe Graphics G7 96EUs
  (35195 - 214326, n=39)
90880 Points -31%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
79747 Points -39%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
61979 Points -53%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
58199 Points -56%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
41037 Points -69%
1920x1080 Ice Storm Extreme Graphics
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
376770 Points +209%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
284001 Points +133%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
147236 Points +21%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
121736 Points
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
102227 Points -16%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
84227 Points -31%
Media Intel Iris Xe Graphics G7 96EUs
  (35612 - 144112, n=25)
70045 Points -42%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
48446 Points -60%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
40670 Points -67%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
40532 Points -67%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
26409 Points -78%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C), Intel Core i7-10700
2900 MHz, NVIDIA GeForce RTX 3070
30090 Points +589%
Intel Ghost Canyon NUC (RTX 2070), Intel Core i9-9980HK
2400 MHz, NVIDIA GeForce RTX 2070 (Desktop)
20775 Points +376%
AMD Ryzen 7 5700G, AMD Ryzen 7 5700G
3800 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
5041 Points +15%
Media Intel Iris Xe Graphics G7 96EUs
  (2286 - 6143, n=206)
4903 Points +12%
Morefine S500+, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
4369 Points
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3775 Points -14%
Minisforum HM90, AMD Ryzen 9 4900H
3300 MHz, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
3414 Points -22%
Intel NUC6i5SYH, Intel Core i5-6260U
1800 MHz, Intel Iris Graphics 540
1479 Points -66%
Intel NUC10i7FNH, Intel Core i7-10710U
1100 MHz, Intel UHD Graphics 620
1418 Points -68%
Intel NUC10i5FNK, Intel Core i5-10210U
1600 MHz, Intel UHD Graphics 620
1202 Points -72%
Intel NUC5i5RYH, Intel Core i5-5250U
1600 MHz, Intel HD Graphics 6000
1033 Points -76%
MSI Cubi 5 10M, Intel Core i3-10110U
2100 MHz, Intel UHD Graphics 620
772 Points -82%
Intel NUC5i3RYK, Intel Core i3-5010U
2100 MHz, Intel HD Graphics 5500
770 Points -82%
3DMark 05 Standard
35488 punti
3DMark 06 Standard Score
29215 punti
3DMark Vantage P Result
23277 punti
3DMark 11 Performance
7449 punti
3DMark Ice Storm Standard Score
116499 punti
3DMark Cloud Gate Standard Score
27318 punti
3DMark Fire Strike Score
3972 punti
3DMark Fire Strike Extreme Score
1808 punti
3DMark Time Spy Score
1612 punti
Aiuto
basso medio alto ultraQHD4K
GTA V (2015) 136 123 33.9 15.2 10.8 10.6
The Witcher 3 (2015) 84.5 52.4 25.6 17.4
Dota 2 Reborn (2015) 137.4 106.9 66.7 62.8 23.8
Final Fantasy XV Benchmark (2018) 45 22.4 16 11.5 6.3
X-Plane 11.11 (2018) 56.9 46.1 40.1 22.7
Far Cry 5 (2018) 62 29 27 25 17 8
Strange Brigade (2018) 100 38.2 32.3 27.6 18.4 9.7
Far Cry New Dawn (2019) 56 28 26 24 17 8
Metro Exodus (2019) 48.3 20.7 15.6 13 9.88 5.78
Borderlands 3 (2019) 72.7 28.2 17.7 13.8 9.06 4.55
F1 2020 (2020) 114 52.9 40.4 28.4 19.6 10.2
F1 2021 (2021) 122 52 40.1 27 19.5 10.8
Alan Wake Remastered (2021) 51 40.1 27.9 15.1
Far Cry 6 (2021) 54.4 26.4 22 17.2 11.3 4.93
Riders Republic (2021) 34 26 20 17 12 6
Farming Simulator 22 (2021) 145 57.4 41.1 32.8 23.6 13.3
God of War (2022) 20.5 17 13.3 9.63
Rainbow Six Extraction (2022) 34 31 29 19 13 6
Dying Light 2 (2022) 27.9 22.2 18.5 13.4 7.76
GRID Legends (2022) 72 50 42 28 20 11
Elden Ring (2022) 33.3 29.2 24.5 21 14.1 7.32
Cyberpunk 2077 1.6 (2022) 24.5 19.1 13.3 10.6
Elex 2 (2022) 7.48 6.59 5.65
Ghostwire Tokyo (2022) 21.3 21.1 21.1 20.9 12.5 6.11
Tiny Tina's Wonderlands (2022) 38.2 29.1 18.6 15 9.97 5.06
Vampire Bloodhunt (2022) 63.3 33.5 32.3 30.5 18.4 8.68
F1 22 (2022) 25.2 22.5 18 12.6
The Quarry (2022) 13.8 9.56 7.66
Call of Duty Modern Warfare 2 2022 (2022) 28 27 20

Emissioni ed energia

Temperatura

Morefine installa un'unità di raffreddamento compatta con una piccola ventola nel suo S500+. Aspira aria fresca dal lato e poi la soffia fuori dal case di nuovo attraverso il lato. A nostro parere, l'unità di raffreddamento è un po' troppo sollecitata con il AMD Ryzen 9 5900HXqualcosa che si riflette anche nelle prestazioni leggermente peggiori rispetto alla concorrenza. Le prestazioni del SoC non possono essere mantenute in modo stabile come nel caso del Minisforum EliteMini HX90per esempio.

Sotto pieno carico, ilAMD Ryzen 9 5900HX raggiunge un massimo di 90,6 °C (~195 °F), anche se l'iGPU era significativamente più fredda a soli 62 °C (~144 °F). Il TDP di 54 watts, che abbiamo usato per tutti i test, è anche degno di nota. A causa della temperatura relativamente bassa dell'iGPU, non è sorprendente che le prestazioni 3D non siano peggiori dopo lo stress test rispetto all'avvio a freddo. Il risultato del benchmark 3DMark11 lo dimostra, e oscilla solo di pochi punti all'interno del range di tolleranza.

Test di stress: Prime95 da solo
Test di stress: Prime95 da solo
Test da sforzo: FurMark da solo
Test da sforzo: FurMark da solo
3DMark 11 dopo lo stress test
3DMark 11 dopo lo stress test
Sviluppo del calore durante la prova di stress
Sviluppo del calore durante la prova di stress
Sviluppo del calore durante la prova di stress
Sviluppo del calore durante la prova di stress
Sviluppo di calore durante il test di stress (PSU)
Sviluppo di calore durante il test di stress (PSU)

Emissioni di rumore

Il Morefine S500+ ricorda un portatile da gioco quando si tratta dei livelli di rumore registrati, perché il Mini PC è chiaramente udibile sotto carico con un massimo di 41,6 dB(A). Questo livello riflette lo scenario peggiore, ma il rumore della ventola a frequenza relativamente alta non è esattamente piacevole per periodi di tempo prolungati. Il dispositivo è anche udibile nell'uso inattivo, anche se qui abbiamo misurato solo 33,1 dB(A). La velocità della ventola è ben regolata, e si adatta rapidamente alle condizioni senza salire costantemente di giri.

Il BIOS permette di regolare manualmente la velocità della ventola e le corrispondenti soglie di temperatura della CPU un po'. Tuttavia, abbiamo lasciato le impostazioni di default invariate per questa recensione.

Emissioni di rumore (dintorni)
Emissioni di rumore (dintorni)
Emissioni di rumore (al minimo)
Emissioni di rumore (al minimo)
Emissioni di rumore (stress test: FurMark + Prime95)
Emissioni di rumore (stress test: FurMark + Prime95)

Rumorosità

Idle
/ 33.15 / dB(A)
Sotto carico
/ 41.63 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 30.1 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.92531.93133.44033.45038.66348.78028.910028.112525.6160252002625028.131525.440026.850026.163027.680029.9100030.4125034.7160035200028.7250029.7315026.7400022.5500022.5630021.28000201000020.31250020.61600021.2SPL41.6N3.6median 26.1Delta3.5hearing rangehide median Fan NoiseMorefine S500+

Consumo di energia

I mini PC di solito possono ottenere ottimi risultati quando si tratta di consumo energetico. Il Morefine S500+ non fa eccezione, perché il nostro campione in esame ha un vantaggio significativo rispetto ai sistemi con schede grafiche dedicate. Sorprendentemente, il consumo energetico del Morefine S500+ è leggermente superiore a quello del Minisforum EliteMini HX90nonostante il SoC non sia sempre in grado di fornire tutte le sue prestazioni. Con 72 watt nel test di stress della CPU e 58 watt nel test di stress 3D, rispettivamente, i tassi sono ancora bassi se si considerano le prestazioni dell'intero sistema.

L'alimentatore da 120 watt fornisce abbastanza energia, e ha ancora un po' di margine, se si aggiungono due unità di archiviazione di massa al Morefine S500+.

Consumo di energia quando è spento
Consumo di energia quando è spento
Consumo di energia nell'uso inattivo
Consumo di energia nell'uso inattivo
Consumo di energia durante lo stress test (Prime95)
Consumo di energia durante lo stress test (Prime95)
Consumo di energia durante lo stress test (FurMark)
Consumo di energia durante lo stress test (FurMark)
Consumo di energia durante lo stress test (FurMark e Prime95)
Consumo di energia durante lo stress test (FurMark e Prime95)
Consumo di energia durante il gioco (Il Witcher 3 Ultra Preset)
Consumo di energia durante il gioco (Il Witcher 3 Ultra Preset)
Power Consumption
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
326.2 (316min - 333max) Watt * -460%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
251.9 (242min - 270max) Watt * -332%
AMD Ryzen 7 5700G
93.9 (48.3min, 91.6P1 - 112max) Watt * -61%
Morefine S500+
58.3 (53.2min, 55.8P1 - 69.7max) Watt *
Minisforum EliteMini HX90 (Idle: 6.3 W)
56.2 (52.1min, 53.3P1 - 79.8max) Watt * +4%
Minisforum HM90 (Idle: 9.8 W)
47.47 (44min - 78max) Watt * +19%
Intel NUC10i7FNH (Idle: 8.4 W)
46.6 (45min - 68max) Watt * +20%
Intel NUC10i5FNK (Idle: 15.7 W)
37.8 (35min - 63max) Watt * +35%
MSI Cubi 5 10M (Idle: 8 W)
25.17 (25min - 26max) Watt * +57%
Prime95 V2810 Stress (external Monitor)
AMD Ryzen 7 5700G
125 (50.4min, 112P1 - 145max) Watt * -73%
Zotac Magnus One (ECM73070C) (Idle: 37.6 W)
116.3 (110min - 238max) Watt * -61%
Intel Ghost Canyon NUC (RTX 2070) (Idle: 33.1 W)
109.4 (107min - 151max) Watt * -51%
Minisforum EliteMini HX90 (Idle: 6.3 W)
86.9 (77.4min, 79.5P1 - 109max) Watt * -20%
Minisforum HM90 (Idle: 9.8 W)
73.2 (71min - 76max) Watt * -1%
Morefine S500+
72.4 (69.4min, 71P1 - 75.6max) Watt *
Intel NUC10i7FNH (Idle: 8.4 W)
60 (52min - 86max) Watt * +17%
Intel NUC10i5FNK (Idle: 15.7 W)
58.5 (56min - 69max) Watt * +19%
MSI Cubi 5 10M (Idle: 8 W)
46.72 (40min - 66max) Watt * +35%
AC6-M Mini-PC
17.4 (15.8min, 16.8P1 - 18max) Watt * +76%

* ... Meglio usare valori piccoli

Energy consumption with an external monitor

051015202530354045505560657075Tooltip
Morefine S500+; Prime95 V2810 Stress (external Monitor): Ø72.4 (69.4-75.6)
Morefine S500+; Cinebench R15 Multi (external Monitor): Ø68.1 (67.6-69)
Morefine S500+; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø58.3 (53.2-69.7)
Morefine S500+; 1920x1080 The Witcher 3 ultra (external Monitor): Ø57.6 (55.2-69.4)

Pro

+ prestazioni di sistema molto elevate
+ 8 core e 16 thread
+ case molto robusto e compatto
+ molte porte USB
+ fino a tre unità di archiviazione possibili
+ un massimo di tre display possono essere utilizzati contemporaneamente

Contro

- Velocità USB 2.0 sul retro
- nessun lettore di schede SD
- udibile sotto carico
- l'unità di raffreddamento raggiunge rapidamente il suo limite

Verdetto - Computer da lavoro compatto con grandi prestazioni

Morefine S500+ in recensione, fornita da Morefine (fonte: Morefine)
Morefine S500+ in recensione, fornita da Morefine (fonte: Morefine)

Nella configurazione che abbiamo recensito, il Morefine S500+ con ilaMD Ryzen 9 5900HX è un vero e proprio cavallo di battaglia, e padroneggia facilmente i compiti quotidiani dell'ufficio. Il processore molto moderno offre otto core ed è quindi ideale per le applicazioni multithreading. Con un TDP aumentato, il SoC si è comportato bene nel test, anche se le sue prestazioni non sono proprio di alto livello a causa del sistema di raffreddamento un po' più piccolo. Tuttavia, non dovrebbero esserci cali di prestazioni degni di nota nell'uso quotidiano. Con la AMD Radeon RX Vega 8il SoC offre una iGPU che è ancora basata sull'architettura Vega e ha già qualche anno di vita. Tuttavia, piccoli ma dettagliati miglioramenti hanno costantemente aumentato leggermente le sue prestazioni grafiche per essere ancora in grado di competere con le iGPU Iris Xe di Intel. Questo ha avuto successo finora, e le prestazioni 3D sono, come previsto, alla pari con ciò di cui è capace la iGPU. Potete sicuramente divertirvi a giocare a qualche gioco con questo piccolo PC

Come punto di critica vorremmo menzionare l'unità di raffreddamento integrata, che non ha più spazio a disposizione a causa del design compatto. Di conseguenza, il rumore aumenta sensibilmente sotto carico. Inoltre, le porte incluse non sono in linea con quello che ci si può aspettare nel 2022. Molte porte USB sono buone e le lodiamo, ma offrire solo velocità USB 2.0 per quattro porte non ha senso per noi. Thunderbolt è e rimane un problema per i sistemi AMD. Le due interfacce di rete sono buone, che sono sicuramente un vantaggio nelle reti aziendali. Tuttavia, una porta di rete è di solito sufficiente per l'uso domestico

Il Morefine S500+ è un Mini PC molto compatto e allo stesso tempo molto potente che si basa sul moderno AMD Ryzen 9 5900HX, che può anche gestire molti giochi.

Quindi, chi appartiene al gruppo target del Morefine S500+? Essendo un piccolo e compatto PC da lavoro, questa centrale di calcolo è adatta come un PC da ufficio in piccole aziende così come per compiti di home office. L'iGPU che si trova nell'AMD Ryzen 9 5900HX offre abbastanza potenza 3D per giocare ai giochi senza problemi se avete bisogno di qualche distrazione nel mezzo. Tuttavia, il Morefine S500+ certamente non è un PC da gioco dedicato. Tuttavia, questo non è nemmeno il gruppo target. Il PC è anche adatto come un piccolo media PC per il soggiorno, perché il sistema è ancora più frugale e silenzioso con un TDP ridotto

Per quanto riguarda l'aspetto, il dispositivo non offre alcun punto di forza degno di nota. Ma questo non deve essere il caso, perché il design semplice e compatto ha un bell'aspetto, e i materiali di alta qualità fanno una buona impressione, sia in termini di aspetto che di sensazioni. Tuttavia, la parte superiore del case, molto lucida e laccata come un pianoforte, è qualcosa che vale la pena riconsiderare. Potrebbe ancora sembrare buono su un nuovo dispositivo, ma i graffi troveranno rapidamente la loro strada nella superficie liscia nel tempo

Non ci sono molte alternative in questa classe compatta, se consideriamo anche le prestazioni. Il recentemente recensito Minisforum EliteMini HX90 si avvicina di più alla Morefine S500+. In termini di prezzo, tuttavia, il Morefine S500+ è circa 150 euro (~$170) più costoso. Con lo Zotac ZBOX Magnus, c'è un avversario uguale che include una scheda grafica dedicata, ma è considerevolmente più costoso ad almeno 1.450 euro (~$1.645) nella versione barebone

Al momento della scrittura, la versione barebone del Morefine S500+ è disponibile nel negozio online del produttore a partire da 779 dollari. Il nostro campione di prova https://morefines.com/collections/pc-box/products/morefine-s500-mini-pc?variant=41230933622937 è disponibile per $1,099 al momento del test. Le versioni più economiche del Morefine S500+ equipaggiate con AMD Ryzen 3 5300U, AMD Ryzen 5 5500Ue AMD Ryzen 7 5700U sono anche disponibili.

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del Morefine S500+: AMD Ryzen 9 5900HX con 32 GB di RAM e un SSD da 1 TB in un Mini PC
Sebastian Bade, 2022-01-24 (Update: 2022-01-24)
