Recensione dell'Ace Magician T8Pro: Mini PC economico per l'ufficio

Name: Minipc Union Ace Magician T8Pro
Brand: Minipc Union

Silenzioso ed efficiente! L'Ace Magician T8Pro è un PC da ufficio estremamente compatto rilasciato da Minipc Union. Il SoC Jasper Lake all'interno è in grado di eseguire solo attività di base. In questa recensione, abbiamo riassunto le nostre scoperte con molte misurazioni e risultati di benchmark per darvi un'idea migliore di questo prodotto.

Sebastian Bade (traduzione a cura di DeepL / Ninh Duy), Published 01/10/2023 🇺🇸 🇩🇪 ...

Jasper Lake Desktop Intel Mini PC

Il produttore di sistemi Minipc Union offre un'ampia gamma di PC compatti per applicazioni che vanno dalle attività d'ufficio di base ai giochi economici. L'Ace Magician T8Pro è un mini PC estremamente compatto alimentato da un Intel Celeron N5095A. Il dispositivo è dotato di 8 GB di RAM e di un'unità SSD da 256 GB. Il prezzo del dispositivo è di circa 290 euro (309 dollari), un prezzo equo rispetto ad altri mini computer compatti. Non sono disponibili altre varianti - non che lo riteniamo necessario. Inoltre, Windows 11 Pro è incluso nel prezzo.

Il mini PC è confezionato in una piccola scatola che contiene anche un caricabatterie da 65 watt e una staffa VESA per il montaggio del dispositivo su un monitor.

Minipc Union Ace Magician T8Pro

Processore

Intel Celeron N5095 4 x 2 - 2.9 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Jasper Lake

Scheda grafica

Intel UHD Graphics (Jasper Lake 16 EU)

Memoria

8 GB

Harddisk

FPT310M4SSD256G, 256 GB

, M.2 2242 SATA SSD, 210 GB libera

Porte di connessione

3 USB 3.0 / 3.1, 3 HDMI, Connessioni Audio: 3.5mm Klinke

Rete

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Dimensioni

altezza x larghezza x profondità (in mm): 43.5 x 87 x 87

Sistema Operativo

Microsoft Windows 11 Pro

Altre caratteristiche

12 Mesi Garanzia

Peso

209 gr, Alimentazione: 124 gr

Prezzo

280 EUR

Links

Minipc Union homepage

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Informazioni dettagliate sull'Ace Magician T8Pro

Caso

Ace Magician T8Pro è un minuscolo mini PC che occupa un ingombro di circa 8,7 x 8,7 cm (3,5 x 3,5"). Il prodotto è anche relativamente sottile, con soli 4,35 cm (1,69"). Il produttore ha scelto una struttura prevalentemente in plastica. Le superfici del dispositivo sono abbastanza lisce e si sentono bene al tatto. Per quanto riguarda i colori, l'Ace Magician T8Pro si mantiene relativamente neutro con l'argento e il grigio, consentendogli di integrarsi perfettamente in una scrivania moderna. Non ci sono problemi di stabilità grazie al suo design compatto. Inoltre, il piccolo computer è molto leggero, con soli 209 g (0,46 lb).

Confronto delle dimensioni

Minisforum EliteMini B550 Newsmay Neosmay S2-B560TPM Beelink GTI 11 Minisforum EliteMini TH50 Morefine S500+ Geekom MiniAir 11 Special Edition Minipc Union Ace Magician T8Pro DIN A4 ❌

Specifiche tecniche

Nonostante il design compatto, Minipc Union è riuscita a inserire tre porte USB-A e tre uscite HDMI nell'Ace Magician T8Pro. I due tipi di porte si trovano ciascuno su un lato del dispositivo, mentre sul retro sono presenti due porte LAN. Ciò significa che l'Ace Magician T8Pro è molto ben equipaggiato e può reggere il confronto con dispositivi più "grandi". Il T8Pro utilizza un chip Realtek 8821CE per la comunicazione wireless, che offre prestazioni peggiori rispetto alle soluzioni wireless degli altri dispositivi.

Networking
iperf3 receive AXE11000
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	964 (933^min - 986^max) MBit/s +166%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +149%
Media della classe Mini PC (192.9 - 1796, n=85, ultimi 2 anni)	897 MBit/s +147%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s +114%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s +18%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	363 (359^min - 365^max) MBit/s
Media Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (354 - 365, n=5)	360 MBit/s -1%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	290 (279^min - 299^max) MBit/s -20%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +425%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s +370%
Newsmay Neosmay S2-B560TPM Realtek RTL8852BE	858 (810^min - 882^max) MBit/s +366%
Media della classe Mini PC (184.1 - 1776, n=85, ultimi 2 anni)	828 MBit/s +350%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s +211%
Media Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (184.1 - 274, n=5)	242 MBit/s +31%
Geekom MiniAir 11 Special Edition Intel Dual Band Wireless-AC 7265	225 (210^min - 237^max) MBit/s +22%
Minipc Union Ace Magician T8Pro Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	184.1 (94^min - 191^max) MBit/s

Minipc Union Ace Magician T8Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø363 (359-365)

Minipc Union Ace Magician T8Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø181 (94-191)

Manutenzione

L'SSD e il modulo Wi-Fi sono facilmente accessibili per chi vuole aggiornare l'Ace Magician T8Pro. Per aprire il dispositivo, è sufficiente rimuovere le quattro viti sul fondo. Tuttavia, è necessario tenere presente il fattore di forma dell'SSD, in quanto il dispositivo può ospitare solo un SSD M.2 con una lunghezza di 42 mm. A differenza dell'SSD e del modulo Wi-Fi, però, la memoria non è aggiornabile.

Prestazioni

Il Intel Celeron N5095 è l'unica opzione di processore disponibile per l'Ace Magician T8Pro. I quattro core nativi hanno a disposizione 8 GB di RAM DDR4 e offrono solide prestazioni per le attività d'ufficio di base.

Condizioni di prova

Abbiamo eseguito tutti i test relativi alle prestazioni con il piano di alimentazione "High Performance" per ottenere i migliori risultati possibili. L'unica volta che abbiamo utilizzato un piano di alimentazione diverso è stato quando abbiamo misurato il consumo energetico e i livelli di rumore. Fare clic su qui per saperne di più sui nostri criteri di test.

Processore

L'Ace Magician T8Pro è in grado di sfruttare la potenza del processore Intel Celeron N5095 abbastanza bene. Detto questo, ci sono prodotti concorrenti che hanno prestazioni migliori con lo stesso SoC, come il Geekom MiniAir 11 Special Edition. La differenza di prestazioni, tuttavia, si attesta su percentuali a una sola cifra ed è quindi trascurabile. Il limite di potenza a breve termine del SoC (PL2) è di circa 20 watt, mentre quello a lungo termine (PL1) è di 15 watt.

È possibile fare clic su quiper vedere altri benchmark del processore.

Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	123 Points +21%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.3 Points +5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	106 Points +4%
Media Intel Celeron N5095 (95.4 - 109, n=5)	103.9 Points +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	102 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	95.4 Points -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	77 Points -25%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	76 Points -25%
CPU Multi 64Bit
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	372 Points +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	369 Points +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	359 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	358 (350.25^min - 357.53^max) Points 0%
Media Intel Celeron N5095 (221 - 379, n=6)	343 Points -4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	319 Points -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	248 Points -31%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	128 Points -64%

Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	266 Points +14%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	236 Points +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	234 Points 0%
Media Intel Celeron N5095 (228 - 239, n=5)	234 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	233 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	228 Points -2%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	174 Points -25%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	171 Points -27%
CPU (Multi Core)
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	828 Points +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	827 Points +1%
Media Intel Celeron N5095 (804 - 844, n=5)	825 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	822 Points
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	804 Points -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	720 Points -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	556 Points -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	285 Points -65%

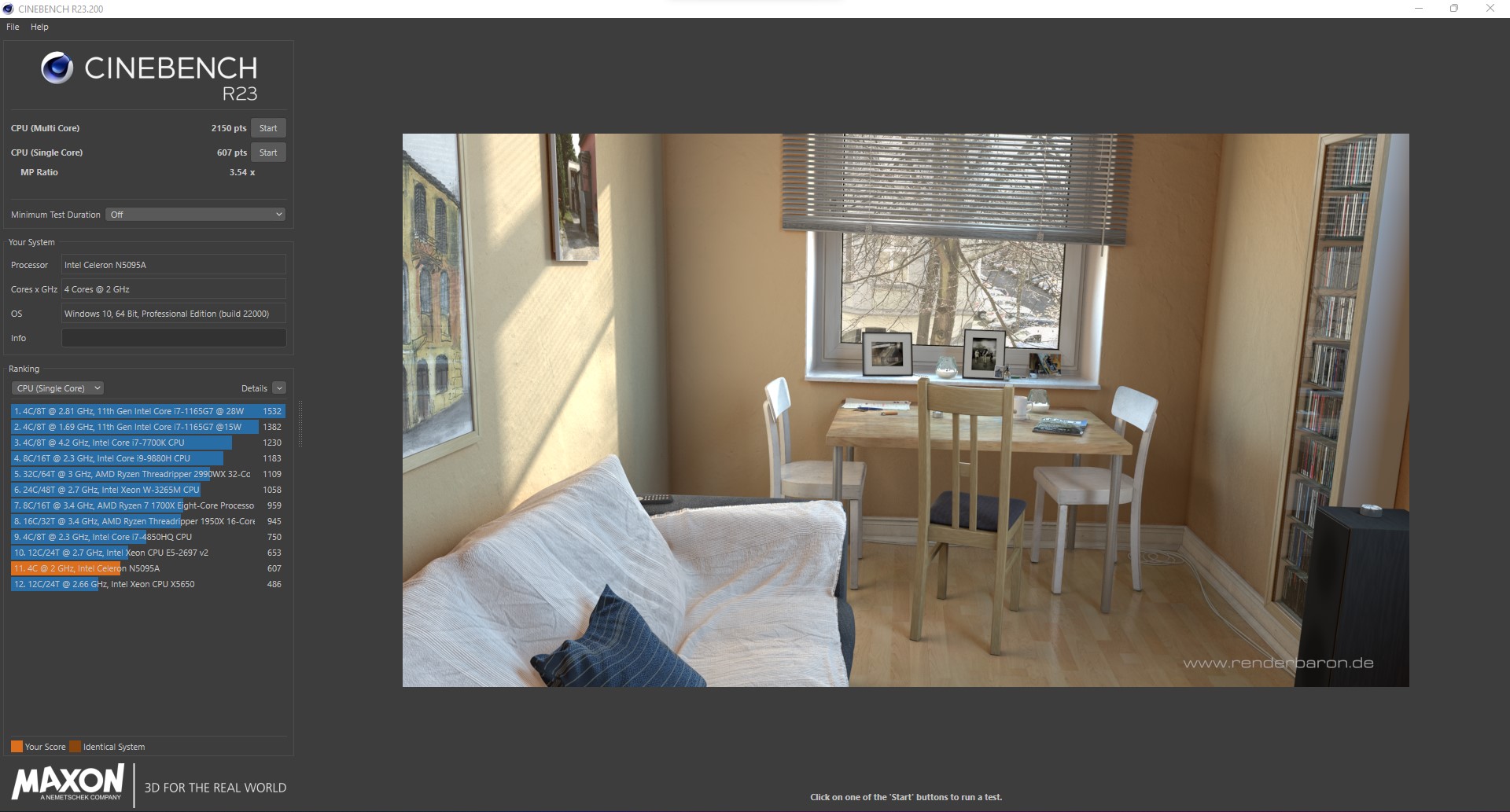

Cinebench R23
Single Core
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	696 Points +15%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	615 Points +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	611 Points +1%
Media Intel Celeron N5095 (587 - 621, n=5)	608 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	607 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	587 Points -3%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	439 Points -28%
Multi Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2176 (2164.67^min - 2176.1^max) Points +1%
Media Intel Celeron N5095 (2150 - 2219, n=5)	2174 Points +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2164 Points +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2159 (2113.79^min - 2158.74^max) Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2150 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1833 Points -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	735 Points -66%

Cinebench R11.5
CPU Single 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.47 Points +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.29 Points +3%
Media Intel Celeron N5095 (1.25 - 1.29, n=2)	1.27 Points +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.25 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.97 Points -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.92 Points -26%
CPU Multi 64Bit
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4.76 Points +2%
Media Intel Celeron N5095 (4.65 - 4.76, n=2)	4.71 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4.65 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4.14 Points -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3.09 Points -34%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.65 Points -65%

Cinebench R10
Rendering Single CPUs 64Bit
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	6163 Points +18%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5451 Points +4%
Media Intel Celeron N5095 (5224 - 5451, n=2)	5338 Points +2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5224 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	4120 Points -21%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3711 Points -29%
Rendering Multiple CPUs 64Bit
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	17278 Points
Media Intel Celeron N5095 (16442 - 17278, n=2)	16860 Points -2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	16442 Points -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	15504 Points -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	10705 Points -38%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	6653 Points -61%

Blender - v2.79 BMW27 CPU
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3767 Seconds * -144%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 Seconds * -54%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1805 Seconds * -17%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1624 Seconds * -5%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1550 Seconds * -0%
Media Intel Celeron N5095 (1502 - 1624, n=5)	1548 Seconds * -0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1547 Seconds *
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1502 Seconds * +3%

wPrime 2.10
32m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	49.66 s * -159%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	19.779 s * -3%
Media Intel Celeron N5095 (19.2 - 19.8, n=2)	19.5 s * -2%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	19.202 s *
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	17.37 s * +10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	17.09 s * +11%
1024m
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1561.178 s * -158%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	617.326 s * -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	615 s * -2%
Media Intel Celeron N5095 (605 - 617, n=2)	611 s * -1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	605.375 s *
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	566 s * +7%

X264 HD Benchmark 4.0
Pass 1
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	120.25 (119.9^min - 120.3^max) fps +7%
Media Intel Celeron N5095 (112.8 - 120.3, n=2)	116.5 fps +3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	112.75 (112^min - 114.5^max) fps
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	102 (100^min - 118^max) fps -10%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	78.9 (77.1^min - 81.7^max) fps -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	45.25 (44.7^min - 45.7^max) fps -60%
Pass 2
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	25.25 (25.2^min - 25.4^max) fps +2%
Media Intel Celeron N5095 (24.8 - 25.3, n=2)	25 fps +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	24.75 (24.5^min - 25^max) fps
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	21.6 (21.5^min - 22.1^max) fps -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	16.75 (16.7^min - 16.9^max) fps -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	9.995 (9.97^min - 10.2^max) fps -60%

WinRAR - Result
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1781 KB/s +9%
Media Intel Celeron N5095 (1630 - 1781, n=2)	1706 KB/s +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1630 KB/s
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1525 KB/s -6%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1140 KB/s -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	731 KB/s -55%

TrueCrypt
AES Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2.6 GB/s +4%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.5 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.5 GB/s
Media Intel Celeron N5095 (2.5 - 2.5, n=2)	2.5 GB/s 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.9 GB/s -24%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.979 GB/s -61%
Twofish Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.403 GB/s +9%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.37 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.37 GB/s
Media Intel Celeron N5095 (0.37 - 0.37, n=2)	0.37 GB/s 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.266 GB/s -28%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.14 GB/s -62%
Serpent Mean 100MB
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	0.23 GB/s +16%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	0.198 GB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	0.198 GB/s
Media Intel Celeron N5095 (0.198 - 0.198, n=2)	0.198 GB/s 0%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	0.182 GB/s -8%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.074 GB/s -63%

Geekbench 5.5
Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2052 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2036 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2020 Points -2%
Media Intel Celeron N5095 (1933 - 2052, n=4)	2010 Points -2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1933 Points -6%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1673 Points -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1501 Points -27%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	844 Points -59%
Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	659 Points +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	657 Points +3%
Media Intel Celeron N5095 (637 - 659, n=4)	649 Points +2%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	644 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	637 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	606 Points -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	556 Points -13%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	455 Points -29%

Geekbench 5.0
5.0 Multi-Core
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2041 Points
Media Intel Celeron N5095 (1985 - 2070, n=4)	2029 Points -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2020 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1985 Points -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1482 Points -27%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1313 Points -36%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	857 Points -58%
5.0 Single-Core
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	655 Points +3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	655 Points +3%
Media Intel Celeron N5095 (628 - 655, n=4)	644 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	638 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	603 Points -5%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	559 Points -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	453 Points -29%

Geekbench 4.4
64 Bit Single-Core Score
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2929 Points +2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	2900 Points +1%
Media Intel Celeron N5095 (2858 - 2929, n=3)	2896 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2858 Points
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2585 Points -10%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	2555 Points -11%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1922 Points -33%
64 Bit Multi-Core Score
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	7968 Points
Media Intel Celeron N5095 (7759 - 7968, n=3)	7856 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	7842 Points -2%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	7759 Points -3%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	5468 Points -31%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	5399 Points -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3606 Points -55%

3DMark 11 - 1280x720 Performance Physics
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	4322 Points +1%
Media Intel Celeron N5095 (4224 - 4439, n=5)	4309 Points +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	4287 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	4272 Points 0%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	4224 Points -1%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3659 Points -15%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2794 Points -35%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1591 Points -63%

7-Zip 18.03
7z b 4
Media Intel Celeron N5095 (10924 - 11168, n=5)	11024 MIPS +1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	11023 MIPS +1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	11013 MIPS +1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	10994 MIPS +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	10924 MIPS
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	9964 MIPS -9%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	7790 MIPS -29%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	3974 MIPS -64%
7z b 4 -mmt1
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	3515 MIPS +20%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	3124 MIPS +6%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	3100 MIPS +6%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	3098 MIPS +6%
Media Intel Celeron N5095 (2935 - 3124, n=5)	3074 MIPS +5%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2935 MIPS
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2593 MIPS -12%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2379 MIPS -19%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	2.02 fps 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	2.01 fps
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	2 fps 0%
Media Intel Celeron N5095 (1.9 - 2.05, n=5)	1.996 fps -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.9 fps -5%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.65 fps -18%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.48 fps -26%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	0.88 fps -56%

R Benchmark 2.5 - Overall mean
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	1.579 sec * -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	1.371 sec * -14%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1.2 sec *
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1.178 sec * +2%
Media Intel Celeron N5095 (1.16 - 1.2, n=5)	1.174 sec * +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1.166 sec * +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1.16 sec * +3%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1.137 sec * +5%

LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	144.7 s * -40%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	143 s * -38%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	107.9 s * -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	106.5 s * -3%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	103.6 s *
Media Intel Celeron N5095 (97 - 107.9, n=5)	103.6 s * -0%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	103.2 s * -0%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	92.9 s * +10%

WebXPRT 3 - Overall
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	146 Points +15%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	127.2 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points -1%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	125.3 Points -1%
Media Intel Celeron N5095 (114.3 - 127.2, n=6)	123.4 Points -3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	122.2 Points -4%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	114.3 Points -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	89.2 Points -30%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	86.2 Points -32%

Mozilla Kraken 1.1 - Total
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	2288 ms * -41%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	1619 ms *
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	1591 ms * +2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	1581 ms * +2%
Media Intel Celeron N5095 (1557 - 1619, n=6)	1578 ms * +3%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * +4%
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	1557 ms * +4%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	1396 ms * +14%

3DMark - 1920x1080 Fire Strike Physics
Minipc Union Ace Magician T8Pro Intel Celeron N5095, 2000 MHz	5535 Points
Geekom MiniAir 11 Intel Celeron N5095, 2000 MHz	5499 Points -1%
Media Intel Celeron N5095 (5400 - 5572, n=5)	5496 Points -1%
Geekom MiniAir 11 Special Edition Intel Celeron N5095, 2000 MHz	5474 Points -1%
Beelink U59 Mini-S Intel Celeron N5095, 2000 MHz	5400 Points -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005, 2000 MHz	4295 Points -22%
AC6-M Mini-PC Intel Celeron J4125, 2000 MHz	3885 Points -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, 1200 MHz	2195 Points -60%

* ... Meglio usare valori piccoli

Performance Rating
Media della classe Mini PC	100 pt
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22 pt
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21 pt
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	20.8 pt
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	17 pt
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	9.2 pt
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7 pt

AIDA64 / FP32 Ray-Trace
Media della classe Mini PC (561 - 27538, n=97, ultimi 2 anni)	9978 KRay/s +703%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1245 KRay/s 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1244 KRay/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1242 KRay/s
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	999 KRay/s -20%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	490 KRay/s -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	416 KRay/s -67%

AIDA64 / FPU Julia
Media della classe Mini PC (3604 - 116903, n=97, ultimi 2 anni)	52513 Points +604%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7459 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7457 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7264 Points -3%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6217 Points -17%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	2932 Points -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2401 Points -68%

AIDA64 / CPU SHA3
Media della classe Mini PC (225 - 5096, n=97, ultimi 2 anni)	2294 MB/s +346%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	514 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	508 MB/s -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	396 MB/s -23%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	202 MB/s -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	167 MB/s -68%

AIDA64 / CPU Queen
Media della classe Mini PC (8172 - 119569, n=97, ultimi 2 anni)	69137 Points +210%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	22326 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21801 Points -2%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21458 Points -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	20014 Points -10%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	8820 Points -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	7876 Points -65%

AIDA64 / FPU SinJulia
Media della classe Mini PC (408 - 15525, n=97, ultimi 2 anni)	7328 Points +631%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	1204 Points +20%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1003 Points 0%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1002 Points
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	397 Points -60%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	396 Points -60%

AIDA64 / FPU Mandel
Media della classe Mini PC (1958 - 62378, n=97, ultimi 2 anni)	27844 Points +603%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3962 Points 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3961 Points
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3802 Points -4%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	3375 Points -15%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	1558 Points -61%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1264 Points -68%

AIDA64 / CPU AES
Media della classe Mini PC (3691 - 177158, n=97, ultimi 2 anni)	75036 MB/s +288%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19350 MB/s
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19086 MB/s -1%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19076 MB/s -1%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	10084 MB/s -48%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	7653 MB/s -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	6370 MB/s -67%

AIDA64 / CPU ZLib
Media della classe Mini PC (74.8 - 1183, n=97, ultimi 2 anni)	581 MB/s +209%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	189.9 MB/s +1%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	188.1 MB/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	187.7 MB/s 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	131 MB/s -30%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	75.2 MB/s -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	60.6 MB/s -68%

AIDA64 / FP64 Ray-Trace
Media della classe Mini PC (308 - 14722, n=97, ultimi 2 anni)	5327 KRay/s +688%
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s 0%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	673 KRay/s 0%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	553 KRay/s -18%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	273 KRay/s -60%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	213 KRay/s -68%

AIDA64 / CPU PhotoWorxx
Media della classe Mini PC (4408 - 44347, n=97, ultimi 2 anni)	24659 MPixel/s +149%
Minipc Union Ace Magician T8Pro Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9899 MPixel/s
Geekom MiniAir 11 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7707 MPixel/s -22%
Beelink U59 Mini-S Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7386 MPixel/s -25%
AC6-M Mini-PC Intel Celeron J4125, UHD Graphics 600	6778 MPixel/s -32%
Zotac ZBOX PI336 pico Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	5125 MPixel/s -48%
Newsmay AC8 N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	2501 MPixel/s -75%

Le prestazioni del Intel Celeron N5059sono gestite molto bene sotto carico, come dimostra il test Cinebench R15. I risultati sono rimasti costanti per tutte le 50 esecuzioni del test. Il raffreddamento passivo Newsmay AC8 non è riuscito a tenere il passo, nonostante abbia un SoC più veloce. Nel complesso, la nostra unità in prova è riuscita ad aggiudicarsi il secondo posto nel gruppo di confronto.

Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)

Geekom MiniAir 11 Intel Celeron N5095, Intel Celeron N5095: Ø373 (370.41-374.55)

Beelink U59 Mini-S Intel Celeron N5095, Intel Celeron N5095: Ø353 (350.25-357.53)

Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

Prestazioni del sistema

Il Intel Celeron N5059 limita le capacità dell'Ace Magician T8Pro. Tuttavia, il dispositivo si comporta bene nell'uso quotidiano, a patto di non sovraccaricare il suo SoC. L'Ace Magician è stato persino in grado di superare leggermente le prestazioni del Geekom MiniAir 11 Special Editione il divario di prestazioni tra il T8Pro e il Newsmay AC8 (con un Intel Pentium Silver N6005) è minuscolo.

Performance Rating | PCMark 10

Performance Rating - Percent
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	97.6 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	96.7 pt
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	95.1 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93.7 pt
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	91.5 pt
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	75.6 pt

PCMark 10
Score
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2548 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	2417 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	2386 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2351 Points -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2317 Points -4%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	1806 Points -25%
Essentials
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	5866 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	5778 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5679 Points -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	5516 Points -6%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	5446 Points -7%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	4693 Points -20%
Productivity
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	3854 Points +5%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	3666 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	3591 Points -2%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3547 Points -3%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	3454 Points -6%
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	2928 Points -20%

Performance Rating | CrossMark

Performance Rating - Percent
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	99.8 pt
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	98 pt
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	93 pt

CrossMark
Responsiveness
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	497 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	469 Points -6%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	403 Points -19%
Creativity
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	440 Points 0%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	438 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	434 Points -1%
Productivity
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	561 Points +1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	558 Points
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	535 Points -4%
Overall
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	495 Points
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	490 Points -1%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	473 Points -4%

PCMark 10 Score		2417 punti
Aiuto

Latenza DPC

L'Ace Magician T8Pro ha riscontrato problemi di latenza non appena sono state aperte diverse schede nel browser Edge. La riproduzione del nostro video di prova in 4K ha aumentato ulteriormente la latenza. Durante la riproduzione del video, l'utilizzo dell'iGPU ha superato di poco il 30%.

Latenza massima con diverse schede del browser aperte e con la riproduzione di video 4K

Latenza massima dopo l'esecuzione di Prime95 per 10 secondi

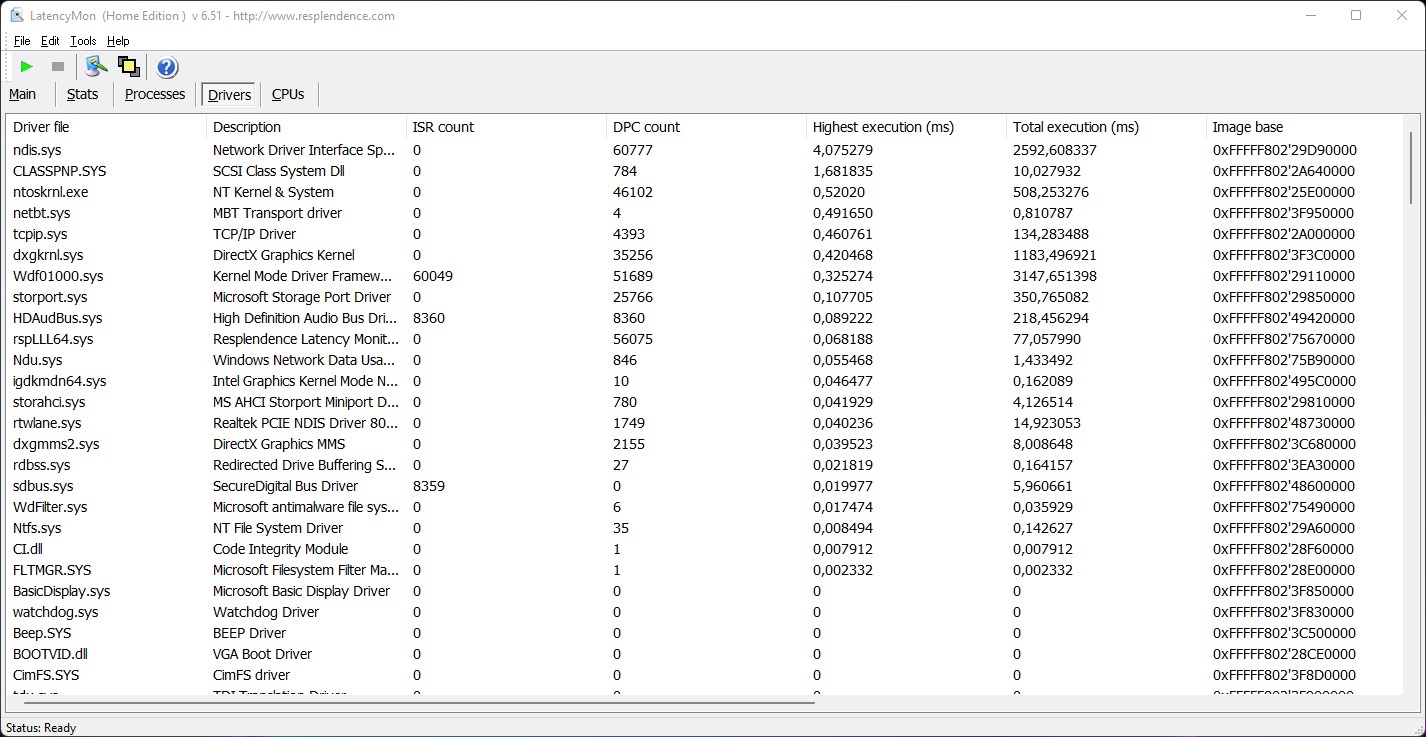

Driver ordinati in base al tempo di esecuzione (da alto a basso)

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G	4075 μs *
AC6-M Mini-PC, Intel Celeron J4125 Intel UHD Graphics 600,	3767 μs * +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005 Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD	2635 μs * +35%
Geekom MiniAir 11, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	2582.6 μs * +37%
Beelink U59 Mini-S, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3	1732.2 μs * +57%
Zotac ZBOX PI336 pico, Intel Celeron N6211 Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128	1476.3 μs * +64%
Geekom MiniAir 11 Special Edition, Intel Celeron N5095 Intel UHD Graphics (Jasper Lake 16 EU), NF830 256GB M.2 2280	687.3 μs * +83%

* ... Meglio usare valori piccoli

Memoria di massa

L'Ace Magician T8Pro è dotato di un'unità SSD da 256 GB. L'unità supporta solo velocità SATA ed è quindi più lenta delle unità SSD NVMe. Tuttavia, è ancora adeguata per gli scopi previsti per il T8Pro. Inoltre, non abbiamo notato alcun calo di prestazioni sotto carico prolungato. Se i 256 GB di spazio di archiviazione nella configurazione predefinita non sono sufficienti per le vostre esigenze, potete sostituire l'unità SSD inclusa con una più grande. Tuttavia, è necessario assicurarsi che la nuova unità SSD non sia più lunga di 42 mm (M.2 2242).

È possibile consultare la nostra tabella delle unità di archiviazione https://www.notebookcheck.net/Laptop-harddisks-HDD-SSD-benchmarks.22089.0.html per ulteriori confronti e risultati di benchmark.

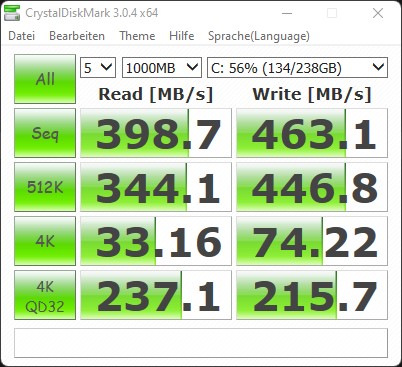

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

FPT310M4SSD256G

Sequential Read: 398.7 MB/s

Sequential Write: 463.1 MB/s

512K Read: 344.1 MB/s

512K Write: 446.8 MB/s

4K Read: 33.16 MB/s

4K Write: 74.22 MB/s

4K QD32 Read: 237.1 MB/s

4K QD32 Write: 215.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Media della classe Mini PC	97.5 pt
AC6-M Mini-PC	33.1 pt
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	31.4 pt
Media FPT310M4SSD256G	31.4 pt
Newsmay AC8 N6005 Lexar 128GB SSD	31.1 pt
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	24.5 pt
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	21.8 pt
Geekom MiniAir 11 NF830 256GB M.2 2280	18.5 pt
Zotac ZBOX PI336 pico SanDisk DF4128	6.9 pt

DiskSpd
seq read
Media della classe Mini PC (233 - 4168, n=96, ultimi 2 anni)	2028 MB/s +330%
Newsmay AC8 N6005 Lexar 128GB SSD	511 (502.22^min - 510.84^max) MB/s +8%
AC6-M Mini-PC	477 (454.59^min - 477.1^max) MB/s +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	472 (470.6^min - 472.28^max) MB/s
Media FPT310M4SSD256G ()	472 MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	468 (410.62^min - 468.2^max) MB/s -1%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	434 (226.49^min - 434.29^max) MB/s -8%
Zotac ZBOX PI336 pico SanDisk DF4128	250 (248.23^min - 249.69^max) MB/s -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	229 (187.74^min - 229.26^max) MB/s -51%
seq write
Media della classe Mini PC (222 - 5595, n=96, ultimi 2 anni)	2049 MB/s +343%
Newsmay AC8 N6005 Lexar 128GB SSD	491 (445.91^min - 491.36^max) MB/s +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	463 (451.31^min - 462.72^max) MB/s
Media FPT310M4SSD256G ()	463 MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	435 (387.34^min - 434.74^max) MB/s -6%
AC6-M Mini-PC	428 (412.52^min - 427.8^max) MB/s -8%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	409 (44.25^min - 408.73^max) MB/s -12%
Geekom MiniAir 11 NF830 256GB M.2 2280	256 (237.45^min - 255.73^max) MB/s -45%
Zotac ZBOX PI336 pico SanDisk DF4128	105.7 (97.74^min - 105.7^max) MB/s -77%
seq q8 t1 read
Media della classe Mini PC (236 - 8430, n=96, ultimi 2 anni)	3155 MB/s +474%
AC6-M Mini-PC	563 (509.43^min - 563.43^max) MB/s +2%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	550 (465.68^min - 549.87^max) MB/s
Media FPT310M4SSD256G ()	550 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	548 (494.87^min - 547.82^max) MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	490 (435.79^min - 489.54^max) MB/s -11%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	447 (396.95^min - 446.64^max) MB/s -19%
Geekom MiniAir 11 NF830 256GB M.2 2280	260 (234.3^min - 260.36^max) MB/s -53%
Zotac ZBOX PI336 pico SanDisk DF4128	254 (201.55^min - 254.3^max) MB/s -54%
seq q8 t1 write
Media della classe Mini PC (228 - 6669, n=96, ultimi 2 anni)	2223 MB/s +377%
Newsmay AC8 N6005 Lexar 128GB SSD	515 (500.64^min - 515.04^max) MB/s +11%
AC6-M Mini-PC	497 (494.3^min - 497.29^max) MB/s +7%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	488 (470.29^min - 487.93^max) MB/s +5%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	466 (442.13^min - 465.87^max) MB/s
Media FPT310M4SSD256G ()	466 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	346 (118.46^min - 345.82^max) MB/s -26%
Geekom MiniAir 11 NF830 256GB M.2 2280	268 (261.2^min - 268.44^max) MB/s -42%
Zotac ZBOX PI336 pico SanDisk DF4128	100.9 (42.78^min - 100.87^max) MB/s -78%
4k q1 t1 read
Media della classe Mini PC (5.67 - 86.6, n=96, ultimi 2 anni)	51.3 MB/s +51%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	33.9 (33.27^min - 33.91^max) MB/s
Media FPT310M4SSD256G ()	33.9 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	26.4 (25.68^min - 26.38^max) MB/s -22%
Geekom MiniAir 11 NF830 256GB M.2 2280	16.1 (12.09^min - 16.13^max) MB/s -53%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	16 (13.05^min - 15.97^max) MB/s -53%
AC6-M Mini-PC	13.9 (11.27^min - 13.88^max) MB/s -59%
Zotac ZBOX PI336 pico SanDisk DF4128	13.7 (13.61^min - 13.69^max) MB/s -60%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	12.9 (5.79^min - 12.85^max) MB/s -62%
4k q1 t1 write
Media della classe Mini PC (22 - 425, n=96, ultimi 2 anni)	184.7 MB/s +149%
Newsmay AC8 N6005 Lexar 128GB SSD	99.8 (98.72^min - 99.78^max) MB/s +35%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	74.1 (72.55^min - 74.09^max) MB/s
Media FPT310M4SSD256G ()	74.1 MB/s 0%
AC6-M Mini-PC	62 (61.58^min - 62.02^max) MB/s -16%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	46.9 (43.93^min - 46.94^max) MB/s -37%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	22 (19.72^min - 21.99^max) MB/s -70%
Geekom MiniAir 11 NF830 256GB M.2 2280	20.9 (15.11^min - 20.94^max) MB/s -72%
Zotac ZBOX PI336 pico SanDisk DF4128	13.8 (12.91^min - 13.8^max) MB/s -81%
4k q32 t16 read
Media della classe Mini PC (26.1 - 2810, n=96, ultimi 2 anni)	1088 MB/s +309%
AC6-M Mini-PC	302 (300.2^min - 301.59^max) MB/s +14%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	266 (264.89^min - 265.82^max) MB/s
Media FPT310M4SSD256G ()	266 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	185 (183.89^min - 185.03^max) MB/s -30%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	170.2 (157.55^min - 170.17^max) MB/s -36%
Geekom MiniAir 11 NF830 256GB M.2 2280	165.1 (75.31^min - 165.14^max) MB/s -38%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	163.2 (153.74^min - 163.17^max) MB/s -39%
Zotac ZBOX PI336 pico SanDisk DF4128	26 (24.84^min - 25.96^max) MB/s -90%
4k q32 t16 write
Media della classe Mini PC (30.2 - 3983, n=96, ultimi 2 anni)	1084 MB/s +240%
AC6-M Mini-PC	351 (323.82^min - 350.53^max) MB/s +10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	319 (315.72^min - 318.72^max) MB/s
Media FPT310M4SSD256G ()	319 MB/s 0%
Newsmay AC8 N6005 Lexar 128GB SSD	288 (244.64^min - 287.66^max) MB/s -10%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	209 (190.39^min - 209.23^max) MB/s -34%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	168.3 (88.04^min - 168.3^max) MB/s -47%
Geekom MiniAir 11 NF830 256GB M.2 2280	113 (45.88^min - 112.97^max) MB/s -65%
Zotac ZBOX PI336 pico SanDisk DF4128	13.1 (12.24^min - 13.12^max) MB/s -96%

AS SSD
Score Total
Media della classe Mini PC (151.3 - 9030, n=94, ultimi 2 anni)	3534 Points +406%
AC6-M Mini-PC	1091 Points +56%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	698 Points
Media FPT310M4SSD256G ()	698 Points 0%
Newsmay AC8 N6005 Lexar 128GB SSD	604 Points -13%
Geekom MiniAir 11 NF830 256GB M.2 2280	582 Points -17%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	580 Points -17%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	151.3 (331.02^min) Points -78%
Zotac ZBOX PI336 pico SanDisk DF4128	136 Points -81%
Score Read
Media della classe Mini PC (61 - 3635, n=94, ultimi 2 anni)	1346 Points +321%
AC6-M Mini-PC	473 Points +48%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	320 Points
Media FPT310M4SSD256G ()	320 Points 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	217 Points -32%
Geekom MiniAir 11 NF830 256GB M.2 2280	201 Points -37%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	166 Points -48%
Newsmay AC8 N6005 Lexar 128GB SSD	134 Points -58%
Zotac ZBOX PI336 pico SanDisk DF4128	65 Points -80%
Score Write
Media della classe Mini PC (88 - 4185, n=94, ultimi 2 anni)	1551 Points +646%
Newsmay AC8 N6005 Lexar 128GB SSD	396 Points +90%
AC6-M Mini-PC	374 Points +80%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	324 Points +56%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	312 Points +50%
Geekom MiniAir 11 NF830 256GB M.2 2280	278 Points +34%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	208 Points
Media FPT310M4SSD256G ()	208 Points 0%
Zotac ZBOX PI336 pico SanDisk DF4128	39 Points -81%
Seq Read
Media della classe Mini PC (291 - 6620, n=94, ultimi 2 anni)	2804 MB/s +473%
Newsmay AC8 N6005 Lexar 128GB SSD	512 MB/s +5%
AC6-M Mini-PC	492 MB/s +1%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	489 MB/s
Media FPT310M4SSD256G ()	489 MB/s 0%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	455.57 MB/s -7%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	433 MB/s -11%
Geekom MiniAir 11 NF830 256GB M.2 2280	421.78 MB/s -14%
Zotac ZBOX PI336 pico SanDisk DF4128	264.86 MB/s -46%
Seq Write
Media della classe Mini PC (240 - 5783, n=94, ultimi 2 anni)	1949 MB/s +467%
AC6-M Mini-PC	450 MB/s +31%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	438.23 MB/s +27%
Newsmay AC8 N6005 Lexar 128GB SSD	411.6 MB/s +20%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	385 MB/s +12%
Geekom MiniAir 11 NF830 256GB M.2 2280	365.24 MB/s +6%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	344 MB/s
Media FPT310M4SSD256G ()	344 MB/s 0%
Zotac ZBOX PI336 pico SanDisk DF4128	117 MB/s -66%
4K Read
Media della classe Mini PC (6.08 - 104.2, n=94, ultimi 2 anni)	55.3 MB/s +56%
Media FPT310M4SSD256G ()	35.5 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	35.45 MB/s
Newsmay AC8 N6005 Lexar 128GB SSD	23.29 MB/s -34%
AC6-M Mini-PC	19.43 MB/s -45%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	16.2 MB/s -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	13.9 MB/s -61%
Geekom MiniAir 11 NF830 256GB M.2 2280	13.57 MB/s -62%
Zotac ZBOX PI336 pico SanDisk DF4128	13.21 MB/s -63%
4K Write
Media della classe Mini PC (30.9 - 366, n=94, ultimi 2 anni)	166.7 MB/s +339%
Newsmay AC8 N6005 Lexar 128GB SSD	83 MB/s +118%
AC6-M Mini-PC	51.4 MB/s +35%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	49.68 MB/s +31%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	38 MB/s
Media FPT310M4SSD256G ()	38 MB/s 0%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	36.63 MB/s -4%
Geekom MiniAir 11 NF830 256GB M.2 2280	21.25 MB/s -44%
Zotac ZBOX PI336 pico SanDisk DF4128	13.46 MB/s -65%
4K-64 Read
Media della classe Mini PC (23.4 - 3035, n=94, ultimi 2 anni)	1010 MB/s +329%
AC6-M Mini-PC	404.1 MB/s +71%
Media FPT310M4SSD256G ()	236 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	235.66 MB/s
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	157.18 MB/s -33%
Geekom MiniAir 11 NF830 256GB M.2 2280	144.84 MB/s -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	106.99 MB/s -55%
Newsmay AC8 N6005 Lexar 128GB SSD	59.4 MB/s -75%
Zotac ZBOX PI336 pico SanDisk DF4128	25.74 MB/s -89%
4K-64 Write
Media della classe Mini PC (32.8 - 3598, n=94, ultimi 2 anni)	1190 MB/s +779%
AC6-M Mini-PC	277.8 MB/s +105%
Newsmay AC8 N6005 Lexar 128GB SSD	272.3 MB/s +101%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	237.24 MB/s +75%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	230.65 MB/s +70%
Geekom MiniAir 11 NF830 256GB M.2 2280	219.83 MB/s +62%
Media FPT310M4SSD256G ()	135.4 MB/s 0%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	135.39 MB/s
Zotac ZBOX PI336 pico SanDisk DF4128	13.71 MB/s -90%
Access Time Read
Zotac ZBOX PI336 pico SanDisk DF4128	0.311 ms * -110%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.284 ms * -92%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.205 ms * -39%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.193 ms * -30%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.148 ms *
Media FPT310M4SSD256G ()	0.148 ms * -0%
Newsmay AC8 N6005 Lexar 128GB SSD	0.139 ms * +6%
Media della classe Mini PC (0.022 - 0.489, n=94, ultimi 2 anni)	0.1031 ms * +30%
AC6-M Mini-PC	0.088 ms * +41%
Access Time Write
Zotac ZBOX PI336 pico SanDisk DF4128	0.942 ms * -614%
Geekom MiniAir 11 NF830 256GB M.2 2280	0.218 ms * -65%
Geekom MiniAir 11 Special Edition NF830 256GB M.2 2280	0.203 ms * -54%
Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	0.18 ms * -36%
Newsmay AC8 N6005 Lexar 128GB SSD	0.145 ms * -10%
Minipc Union Ace Magician T8Pro FPT310M4SSD256G	0.132 ms *
Media FPT310M4SSD256G ()	0.132 ms * -0%
Media della classe Mini PC (0.016 - 0.765, n=94, ultimi 2 anni)	0.1304 ms * +1%
AC6-M Mini-PC	0.071 ms * +46%

* ... Meglio usare valori piccoli

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician T8Pro FPT310M4SSD256G: Ø553 (484.52-559.31)

Geekom MiniAir 11 NF830 256GB M.2 2280: Ø222 (150.9-230.52)

Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3: Ø485 (394.52-487.59)

Zotac ZBOX PI336 pico SanDisk DF4128: Ø256 (203.85-260.99)

Newsmay AC8 N6005 Lexar 128GB SSD: Ø545 (496.4-547.82)

Scheda grafica e prestazioni di gioco

L'elaborazione grafica è gestita da UHD Graphics 16 EU di Intel (Jasper Lake). Con questa iGPU, non è ragionevole chiedere all'Ace Magician T8Pro di eseguire calcoli 3D complessi. Ciononostante, in base alle nostre misurazioni, il T8Pro è leggermente migliore del Geekom MiniAir 11 Special Edition in termini di prestazioni grafiche. Detto questo, la nostra unità di recensione non è così buona come il Newsmay AC8perché l'iGPU dell'unità Intel Pentium Silver N6005 ha un totale di 32 EU. Sebbene non ci si debba aspettare di giocare a giochi 3D impegnativi con Ace Magician T8Pro, il piccolo PC da ufficio non dovrebbe avere problemi a eseguire semplici giochi basati su browser e altri giochi casuali.

Fare clic qui per ulteriori risultati di benchmark per l'Intel UHD Graphics.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	100 pt
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	72.6 pt
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	69.7 pt
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	69.1 pt
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	68.3 pt
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	54.7 pt
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	49.3 pt

3DMark 11 - 1280x720 Performance GPU
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1589 Points +85%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	859 Points
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	854 Points -1%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -3%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -3%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	650 Points -24%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	602 Points -30%

3DMark
1280x720 Cloud Gate Standard Graphics
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	5895 Points +13%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5217 Points
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points -5%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4952 Points -5%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4863 Points -7%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	3762 Points -28%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	3503 Points -33%
1920x1080 Fire Strike Graphics
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	881 Points +33%
Minipc Union Ace Magician T8Pro Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	662 Points
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	637 Points -4%
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	623 Points -6%
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	605 Points -9%
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	523 Points -21%
AC6-M Mini-PC Intel UHD Graphics 600, Intel Celeron J4125	446 Points -33%

	basso	medio	alto	ultra
Dota 2 Reborn (2015)	61.2	22.8	12	11.2
Final Fantasy XV Benchmark (2018)	7.13	3.27
X-Plane 11.11 (2018)	15.1

Emissioni: per lo più silenziose ed efficienti

Emissioni acustiche

Grazie al basso TDP del Intel Celeron N5095il sistema di raffreddamento non è particolarmente sollecitato. Il computer è quasi silenzioso al minimo e produce solo una piccola quantità di rumore sotto carico (non superiore a 30,9 dB(A) secondo le nostre misurazioni).

	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Noise		15%	-3%	-10%	-25%	1%
off /ambiente *	30.2	23.3 23%	30.2 -0%	30.2 -0%	30.5 -1%	29.6 2%
Idle Minimum *	30.2	24.2 20%	30.5 -1%	30.8 -2%	31.5 -4%	29.6 2%
Idle Average *	30.2	24.2 20%	30.5 -1%	32.1 -6%	32.6 -8%	29.6 2%
Idle Maximum *	30.2	24.2 20%	30.5 -1%	32.9 -9%	33.8 -12%	29.6 2%
Load Average *	30.5	25.1 18%	31.2 -2%	33.9 -11%	49.3 -62%	30 2%
Load Maximum *	30.9	33.9 -10%	35.1 -14%	41.4 -34%	50.9 -65%	32.9 -6%

* ... Meglio usare valori piccoli

Rumorosità

Idle		30.2 / 30.2 / 30.2 dB(A)
Sotto carico		30.5 / 30.9 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 30.2 dB(A)

Temperatura

Il telaio dell'Ace Magician T8Pro si scalda solo moderatamente sotto carico. Per quanto riguarda il SoC stesso, la temperatura più alta registrata è stata di 80°C (176°F), che è ancora lontana dal limite termico massimo della CPU di 105°C (221°F).

Ace Magician T8Pro durante lo stress test

L'alimentatore di Ace Magician T8Pro durante lo stress test

Consumo di energia

La maggior parte dei mini PC ha un consumo energetico incredibilmente basso e l'Ace Magician T8Pro non è da meno. Sebbene il suo consumo energetico sia sostanzialmente inferiore alla media per questa classe di dispositivi, gli altri mini PC del nostro confronto sono ancora più efficienti dal punto di vista energetico. Il nostro monitor di potenza ha mostrato che il T8Pro ha assorbito un massimo di 26,3 watt. Con una potenza nominale di 30 watt, l'alimentatore è in grado di gestire questo livello di consumo.

Consumo di corrente

Off / Standby	0.8 / 1.7 Watt
Idle	8.4 / 8.4 / 11.1 Watt
Sotto carico	16.5 / 26.3 Watt


Leggenda: min: , med: , max: Metrahit Energy Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.

	Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	Media Intel UHD Graphics (Jasper Lake 16 EU)	Media della classe Mini PC
Power Consumption		10%	40%	24%	20%	-106%
Idle Minimum *	8.4	7 17%	5.4 36%	4.8 43%	5.65 ?(2.5 - 8.4, n=8) 33%	9.8 ?(1.9 - 46.5, n=91, ultimi 2 anni) -17%
Idle Average *	8.4	7 17%	5.5 35%	4.8 43%	6.61 ?(4.6 - 8.4, n=7) 21%	11.7 ?(1.9 - 63, n=90, ultimi 2 anni) -39%
Idle Maximum *	11.1	7.6 32%	6.2 44%	6.7 40%	7.54 ?(5.3 - 11.1, n=7) 32%	14.7 ?(2.6 - 68.9, n=91, ultimi 2 anni) -32%
Load Average *	16.5	18.3 -11%	11.3 32%	15.9 4%	16.2 ?(12.3 - 18.3, n=6) 2%	51.9 ?(11.3 - 158.7, n=91, ultimi 2 anni) -215%
Load Maximum *	26.3	27.1 -3%	11.8 55%	28.4 -8%	23.1 ?(13.4 - 28.4, n=7) 12%	86 ?(18.1 - 271, n=91, ultimi 2 anni) -227%

* ... Meglio usare valori piccoli

Power consumption with external monitor

Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.8 (23.8-26.3)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø24.6 (23.2-25.8)

Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø22.7 (15-23.3)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø21.4 (17.3-21.8)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16 (13.6-23.3)

Minipc Union Ace Magician T8Pro Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)

Geekom MiniAir 11 Special Edition Celeron N5095, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø4.85 (4.73-5.02)

Pro

+ mini PC estremamente compatto

+ alloggiamento robusto

+ molto silenzioso sotto carico

+ basso consumo energetico

+ 3x HDMI

+ Doppia LAN

Contro

- soC lento

- prestazioni grafiche limitate

- nessun lettore di schede SD

- wi-Fi lento

- rAM saldata

Verdetto - Mini PC per attività di base

L'Ace Magician T8Pro offre buone prestazioni in un formato molto piccolo ed è in grado di gestire il lavoro d'ufficio di base. Il Intel Celeron N5095è dotato di quattro core nativi che vengono rapidamente spinti al limite quando si eseguono compiti impegnativi. Se si tiene conto di ciò che l'Ace Magician T8Pro è progettato per fare, si troverà un mini PC compatto, efficiente ed estremamente silenzioso. A bordo sono presenti 8 GB di RAM, che a nostro avviso rappresentano il quantitativo minimo richiesto per un sistema ragionevolmente funzionale. I 256 GB di memoria sono sufficienti e il T8Pro viene fornito con Windows 11 Pro a meno di 300 euro (320 dollari).

Il dispositivo ha un'ottima qualità costruttiva, anche se il suo telaio è completamente in plastica. Nonostante il suo design compatto, Ace Magician T8Pro offre un'impressionante selezione di porte. Il mini PC può gestire fino a tre display esterni contemporaneamente e dispone di tre porte USB-A e due porte LAN. Tutte queste caratteristiche non sono sempre scontate per un prodotto di queste dimensioni.

Ace Magician T8Pro è un computer da lavoro compatto per applicazioni d'ufficio di base.

Una cosa che non ci è piaciuta del sistema è il modulo Wi-Fi integrato. Purtroppo non supporta lo standard più recente e ha fornito prestazioni mediocri. Un moderno modulo Wi-Fi 6E sarebbe stata una soluzione più a prova di futuro. L'Ace Magician T8Pro ha sicuramente fatto un'ottima figura durante la nostra recensione, ma il Beelink U59 Mini-S e Geekom MiniAir 11 (entrambi dotati dello stesso SoC) offrono prestazioni migliori sotto alcuni aspetti e una latenza DPC molto più bassa.

L'Ace Magician T8Pro è stato prestato a Notebookcheck a scopo di recensione.

Prezzo e disponibilità

In Germania, è possibile acquistare l'Ace Magician T8Pro (con 8 GB di RAM e un SSD da 256 GB) su Amazon per 329 € in questo momento. Negli Stati Uniti, il prodotto viene venduto a 199 dollari su Amazon.

Si prega di notare che i prezzi sono accurati al momento della stesura del presente documento e sono soggetti a modifiche.

Articoli collegati

Minipc Union Ace Magician T8Pro (Ace Magician Serie)

recensione

•

Recensione dell'Ace Magician AMR5: Mini PC elegante con Ryzen 5 5600U e ill...

recensione

•

Recensione dell'Ace Magician TK11-A0: Mini PC efficiente con Thunderbolt 4 ...

Minipc Union Ace Magician T8Pro - 2023-01-05 01/05/2023 v7
Sebastian Bade

Chassis

80 / 98 → 82%

Connettività

49 / 81 → 61%

Peso

88%

Prestazioni di gioco

31%

Prestazioni Applicazioni

72%

Rumorosità

95%

Media

69%

66%

Mini PC - Media ponderata

Editor of the original article: Zhiwei Zhuang - Translator - 147 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 388017 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione dell'Ace Magician T8Pro: Mini PC economico per l'ufficio

Sebastian Bade, 2023-01-10 (Update: 2023-01-11)
