Recensione del mini PC Beelink U59 Mini-S: L'alternativa super economica all'HTPC Intel NUC

Una linea di demarcazione verso l'economicità. Il Beelink U59 Mini-S è abbastanza economico da rappresentare un'alternativa rispettabile ai tipici dongle per smart TV o ai lettori multimediali di Google, Amazon, Apple o Roku, soprattutto per gli utenti che desiderano la versatilità di un ambiente Windows.

Beelink offre una vasta famiglia di mini PC che vanno dall'economico U59 con Celeron fino al velocissimo GTR5 con Ryzen 9 5900HX. Il modello U59 Mini-S oggetto della nostra recensione si colloca nella fascia bassa dello spettro, con CPU Celeron N5095, solo 8 GB di memoria a canale singolo e un'unità SSD da 256 GB per un prezzo al dettaglio di circa 220 dollari.

Tra le alternative all'U59 Mini-S ci sono i mini PC con processore Atom o Celeron come il Chuwi HeroBox, GMK NucBox K1, NucBox 3o l'Intel NUC 11 Essential. L'U59 Mini-S oggetto della recensione non deve essere confuso con l'U59 originale, leggermente più costoso u59 originale.

Altre recensioni di Beelink:

Beelink U59 Mini-S
Processore
Intel Celeron N5095 4 x 2 - 2.9 GHz, 17 W PL2 / Short Burst, 14 W PL1 / Sustained, Jasper Lake
Scheda grafica
Memoria
8 GB
, Single-Channel, DDR4-2666, 15-15-15-35, 2x SODIMM slots
Harddisk
Silicon Motion AZW 256G M.228 220426 C SATA 3, 256 GB
Scheda audio
Intel Jasper Lake PCH - cAVS Controller
Porte di connessione
4 USB 3.0 / 3.1, 2 HDMI, 1 Kensington Lock, Connessioni Audio: 3.5 mm
Rete
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Dimensioni
altezza x larghezza x profondità (in mm): 41 x 124 x 113
Sistema Operativo
Microsoft Windows 11 Pro
Altre caratteristiche
Manual, 2x HDMI cables, removable VESA mount, additional screws, 12 Mesi Garanzia
Peso
279 gr, Alimentazione: 150 gr
Prezzo
220 USD
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confronto

Punteggio
Data
Modello
Peso
Altezza
Dimensione
Risoluzione
Miglior Prezzo
06/2022
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
279 gr41 mmx
04/2022
Beelink SEi8
i3-8109U, Iris Plus Graphics 655
346 gr41 mmx
04/2021
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 gr37 mmx
11/2021
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
329 gr42 mmx
02/2022
GMK NucBox 3
Celeron J4125, UHD Graphics 600
410 gr32.5 mmx
10/2020
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620
472 gr51 mmx

Il caso - Più leggero di quanto sembri

Lo chassis è quasi identico a quello dell'U59 originale, anche se con alcune differenze superficiali. Il pannello superiore, ad esempio, è ora liscio e opaco anziché lucido, un cambiamento intelligente in quanto la superficie opaca è più resistente alle impronte digitali e ai graffi. I lati e la parte inferiore dello chassis sono in metallo per una prima impressione di solidità.

Un aspetto degno di nota del Beelink è il suo peso molto leggero di soli 279 g rispetto agli oltre 500 g del modello di dimensioni simili Intel NUC 11. I materiali più sottili dello chassis del Beelink e la mancanza di una gabbia metallica interna per un ulteriore rinforzo contribuiscono alle significative differenze di peso tra i due modelli.

Il pannello superiore è opaco anziché lucido, per ridurre le impronte digitali
Il pannello superiore è opaco anziché lucido, per ridurre le impronte digitali
Piedini in gomma sul fondo per ridurre le possibilità di scivolamento
Piedini in gomma sul fondo per ridurre le possibilità di scivolamento
Lo chassis in metallo è molto più leggero e sottile di quello di un Intel NUC
Lo chassis in metallo è molto più leggero e sottile di quello di un Intel NUC
A differenza delle grandi viti a torsione di un Intel NUC, le viti del Beelink richiedono un cacciavite
A differenza delle grandi viti a torsione di un Intel NUC, le viti del Beelink richiedono un cacciavite

Confronto delle dimensioni

128 mm 126 mm 51 mm 472 g124 mm 113 mm 42 mm 329 g124 mm 113 mm 41 mm 279 g124 mm 113 mm 41 mm 346 g128 mm 128 mm 32.5 mm 410 g117 mm 112 mm 37 mm 504 g210 mm 148 mm 1 mm 2.9 g

Connettività - Niente USB-C

Le opzioni di porta sono identiche a quelle dell'U59, ma con un'importante eccezione: la porta USB-C è stata eliminata. Sospettiamo che si tratti di una misura di risparmio.

Parte anteriore: 2x USB-A 3.0, jack audio da 3,5 mm, pulsante di alimentazione
Parte anteriore: 2x USB-A 3.0, jack audio da 3,5 mm, pulsante di alimentazione
Giusto: Nessuna porta
Giusto: Nessuna porta
Sinistra: nessuna porta
Sinistra: nessuna porta
Posteriore: 2x USB-A 3.0, Gigabit RJ-45, 2x HDMI 2.0, Kensington lock, adattatore AC
Posteriore: 2x USB-A 3.0, Gigabit RJ-45, 2x HDMI 2.0, Kensington lock, adattatore AC

Comunicazione

L'Intel 3165 è di serie anche in questo caso per la connettività Wi-Fi 5 1x1 e Bluetooth 4.2. Sebbene sia lento per gli standard attuali, è comunque abbastanza veloce per lo streaming video 4K.

1216 Il modulo WLAN è saldato e non è aggiornabile
1216 Il modulo WLAN è saldato e non è aggiornabile
Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s
Beelink SEi8
Intel Dual Band Wireless-AC 3165
200 (156min - 261max) MBit/s
Beelink U59
Intel Dual Band Wireless-AC 3165
180 (157min - 201max) MBit/s
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
152 (106min - 184max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
671 (648min - 684max) MBit/s
Beelink U59
Intel Dual Band Wireless-AC 3165
346 (336min - 355max) MBit/s
Beelink SEi8
Intel Dual Band Wireless-AC 3165
338 (320min - 344max) MBit/s
iperf3 transmit AXE11000
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
188.4 (153min - 228max) MBit/s
iperf3 receive AXE11000
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
322 (295min - 337max) MBit/s
050100150200250300Tooltip
Beelink U59 Mini-S; iperf3 receive AXE11000; iperf 3.1.3: Ø321 (295-337)
Beelink U59 Mini-S; iperf3 transmit AXE11000; iperf 3.1.3: Ø188.4 (153-228)

Manutenzione

Il pannello inferiore si toglie facilmente dopo aver rimosso le 4 viti Philips intorno agli angoli. Gli utenti hanno accesso diretto a due alloggiamenti (1x M.2 2280 SATA III + 1x 2,5" SATA III) e a un singolo slot SODIMM DDR4 che supporta fino a 16 GB di memoria a canale singolo.

Accessori e garanzia

La confezione include una staffa di montaggio VESA rimovibile con viti da fissare alla piastra inferiore dell'unità. Sono inclusi anche due cavi HDMI.

La garanzia standard limitata di un anno è valida se acquistata negli Stati Uniti.

Prestazioni




Condizioni di test

La nostra unità di test è stata impostata in modalità Windows Performance prima di eseguire i test di benchmark qui sotto per ottenere i punteggi più alti possibili. A parte le consuete impostazioni del BIOS, non ci sono applicazioni speciali per il controllo di caratteristiche o comportamenti specifici dell'U59 Mini-S.

Processore - Più veloce di Atom, più lento di Core i3

Le prestazioni multi-thread sono paragonabili a quelle del dual-core quad-thread Core i3-8109U mentre le prestazioni in single-thread sono più lente di circa il 20-45%. Il Celeron N5095 è comunque più veloce delle soluzioni Celeron di precedente generazione, tra cui il modelloJ4125 oN4100 fino a due volte nelle applicazioni multi-thread.

La sostenibilità delle prestazioni è buona, senza cali significativi quando si esegue CineBench R15 xT in loop.

Cinebench R15 Multi Loop

04080120160200240280320360400440480520560600640680720760Tooltip
Beelink U59 Mini-S Intel Celeron N5095: Ø353 (350.25-357.53)
Beelink SEi8 Intel Core i3-8109U: Ø320 (317.69-324.13)
Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)
Beelink U59 Intel Celeron N5095: Ø377 (375.08-378.57)
GMK NucBox 3 Intel Celeron J4125: Ø203 (171.15-207.16)
Zotac ZBOX MI642 Nano Intel Core i5-10210U: Ø514 (504.41-521.83)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
3095 Points +285%
Intel NUC11TNKi5
Intel Core i5-1135G7
1974 Points +146%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1432 Points +78%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1183 Points +47%
Media Intel Celeron N5095
  (804 - 844, n=5)
825 Points +3%
Beelink U59 Mini-S
Intel Celeron N5095
804 Points
Beelink SEi8
Intel Core i3-8109U
772 Points -4%
GMK NucBox 3
Intel Celeron J4125
430 Points -47%
Chuwi UBook CWI509
Intel Celeron N4100
386 Points -52%
Blackview AceBook 1
Intel Celeron N4120
376 Points -53%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points -66%
Cinebench R20 / CPU (Single Core)
Intel NUC11TNKi5
Intel Core i5-1135G7
503 Points +121%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
473 Points +107%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
427 Points +87%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
418 Points +83%
Beelink SEi8
Intel Core i3-8109U
351 Points +54%
Media Intel Celeron N5095
  (228 - 239, n=5)
234 Points +3%
Beelink U59 Mini-S
Intel Celeron N5095
228 Points
GMK NucBox 3
Intel Celeron J4125
170 Points -25%
Blackview AceBook 1
Intel Celeron N4120
159 Points -30%
Chuwi UBook CWI509
Intel Celeron N4100
152 Points -33%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points -59%
Cinebench R23 / Multi Core
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
7719 Points +258%
Intel NUC11TNKi5
Intel Core i5-1135G7
5098 (4930.91min - 5098.17max) Points +136%
Media Intel Celeron N5095
  (2150 - 2219, n=5)
2174 Points +1%
Beelink U59 Mini-S
Intel Celeron N5095
2159 (2113.79min - 2158.74max) Points
Beelink SEi8
Intel Core i3-8109U
2004 (1983.59min - 2004.09max) Points -7%
GMK NucBox 3
Intel Celeron J4125
1186 (1172.17min - 1186.25max) Points -45%
Blackview AceBook 1
Intel Celeron N4120
965 (915.042min - 964.764max) Points -55%
Cinebench R23 / Single Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1369 Points +123%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1217 Points +98%
Beelink SEi8
Intel Core i3-8109U
906 Points +47%
Beelink U59 Mini-S
Intel Celeron N5095
615 Points
Media Intel Celeron N5095
  (587 - 621, n=5)
608 Points -1%
GMK NucBox 3
Intel Celeron J4125
438 Points -29%
Blackview AceBook 1
Intel Celeron N4120
409 Points -33%
Cinebench R15 / CPU Multi 64Bit
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1240 Points +246%
Intel NUC11TNKi5
Intel Core i5-1135G7
794 (772.57min - 794.38max) Points +122%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
580 Points +62%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
522 (504.41min - 521.83max) Points +46%
Beelink U59 Mini-S
Intel Celeron N5095
358 (350.25min - 357.53max) Points
Media Intel Celeron N5095
  (221 - 379, n=6)
343 Points -4%
Beelink SEi8
Intel Core i3-8109U
324 (317.69min - 324.13max) Points -9%
Blackview AceBook 1
Intel Celeron N4120
234 (225.47min - 233.66max) Points -35%
GMK NucBox 3
Intel Celeron J4125
207 (171.15min - 207.16max) Points -42%
Chuwi UBook CWI509
Intel Celeron N4100
175 Points -51%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points -65%
Cinebench R15 / CPU Single 64Bit
Intel NUC11TNKi5
Intel Core i5-1135G7
201 Points +111%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
178 Points +87%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
167 Points +75%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
165 Points +73%
Beelink SEi8
Intel Core i3-8109U
124.3 Points +30%
Media Intel Celeron N5095
  (95.4 - 109, n=5)
103.9 Points +9%
Beelink U59 Mini-S
Intel Celeron N5095
95.4 Points
Blackview AceBook 1
Intel Celeron N4120
74.5 Points -22%
Chuwi UBook CWI509
Intel Celeron N4100
67 Points -30%
GMK NucBox 3
Intel Celeron J4125
63.1 Points -34%
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points -57%
Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus
Intel Atom x7-E3950
4564 Seconds * -181%
GMK NucBox 3
Intel Celeron J4125
3032 Seconds * -87%
Blackview AceBook 1
Intel Celeron N4120
2583 Seconds * -59%
Beelink U59 Mini-S
Intel Celeron N5095
1624 Seconds *
Media Intel Celeron N5095
  (1502 - 1624, n=5)
1548 Seconds * +5%
Beelink SEi8
Intel Core i3-8109U
1328 Seconds * +18%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
907 Seconds * +44%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
892 Seconds * +45%
Intel NUC11TNKi5
Intel Core i5-1135G7
600 Seconds * +63%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
479 Seconds * +71%
7-Zip 18.03 / 7z b 4
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
33282 MIPS +202%
Intel NUC11TNKi5
Intel Core i5-1135G7
23280 MIPS +111%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
16971 MIPS +54%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
15043 MIPS +37%
Media Intel Celeron N5095
  (10924 - 11168, n=5)
11024 MIPS 0%
Beelink U59 Mini-S
Intel Celeron N5095
11013 MIPS
Beelink SEi8
Intel Core i3-8109U
9489 MIPS -14%
Blackview AceBook 1
Intel Celeron N4120
7436 MIPS -32%
GMK NucBox 3
Intel Celeron J4125
5694 MIPS -48%
Chuwi LapBook Plus
Intel Atom x7-E3950
4569 MIPS -59%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11TNKi5
Intel Core i5-1135G7
4738 MIPS +52%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
4362 MIPS +40%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4303 MIPS +38%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4014 MIPS +28%
Beelink SEi8
Intel Core i3-8109U
3752 MIPS +20%
Beelink U59 Mini-S
Intel Celeron N5095
3124 MIPS
Media Intel Celeron N5095
  (2935 - 3124, n=5)
3074 MIPS -2%
Blackview AceBook 1
Intel Celeron N4120
2412 MIPS -23%
GMK NucBox 3
Intel Celeron J4125
2237 MIPS -28%
Chuwi LapBook Plus
Intel Atom x7-E3950
1454 MIPS -53%
Geekbench 5.5 / Multi-Core
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
6243 Points +223%
Intel NUC11TNKi5
Intel Core i5-1135G7
4593 Points +138%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
3877 Points +101%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
3330 Points +72%
Media Intel Celeron N5095
  (1933 - 2052, n=4)
2010 Points +4%
Beelink U59 Mini-S
Intel Celeron N5095
1933 Points
Beelink SEi8
Intel Core i3-8109U
1880 Points -3%
GMK NucBox 3
Intel Celeron J4125
1198 Points -38%
Geekbench 5.5 / Single-Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1396 Points +117%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1121 Points +74%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1111 Points +73%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1027 Points +59%
Beelink SEi8
Intel Core i3-8109U
888 Points +38%
Media Intel Celeron N5095
  (637 - 659, n=4)
649 Points +1%
Beelink U59 Mini-S
Intel Celeron N5095
644 Points
GMK NucBox 3
Intel Celeron J4125
462 Points -28%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
9.18 fps +359%
Intel NUC11TNKi5
Intel Core i5-1135G7
6.63 fps +232%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4.37 fps +119%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4.15 fps +108%
Beelink SEi8
Intel Core i3-8109U
2.85 fps +43%
Beelink U59 Mini-S
Intel Celeron N5095
2 fps
Media Intel Celeron N5095
  (1.9 - 2.05, n=5)
1.996 fps 0%
GMK NucBox 3
Intel Celeron J4125
1.26 fps -37%
Blackview AceBook 1
Intel Celeron N4120
1.02 fps -49%
Chuwi LapBook Plus
Intel Atom x7-E3950
0.98 fps -51%
LibreOffice / 20 Documents To PDF
GMK NucBox 3
Intel Celeron J4125
159 s * -49%
Blackview AceBook 1
Intel Celeron N4120
157 s * -47%
Beelink U59 Mini-S
Intel Celeron N5095
106.5 s *
Media Intel Celeron N5095
  (97 - 107.9, n=5)
103.6 s * +3%
Beelink SEi8
Intel Core i3-8109U
79 s * +26%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
68.8 s * +35%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
67.3 s * +37%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
62.2 s * +42%
Intel NUC11TNKi5
Intel Core i5-1135G7
51.3 s * +52%
R Benchmark 2.5 / Overall mean
Blackview AceBook 1
Intel Celeron N4120
1.649 sec * -40%
GMK NucBox 3
Intel Celeron J4125
1.525 sec * -29%
Beelink U59 Mini-S
Intel Celeron N5095
1.178 sec *
Media Intel Celeron N5095
  (1.16 - 1.2, n=5)
1.174 sec * -0%
Beelink SEi8
Intel Core i3-8109U
0.861 sec * +27%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
0.695 sec * +41%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
0.686 sec * +42%
Intel NUC11TNKi5
Intel Core i5-1135G7
0.622 sec * +47%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
0.616 sec * +48%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit
358 Points
Cinebench R15 OpenGL 64Bit
25.2 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
95.4 Points
Aiuto
Performance Rating
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
99.8 pt
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
67 pt
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
43.3 pt
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
31.9 pt
Media Intel Celeron N5095

31.2 pt
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30.4 pt
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
21 pt
AIDA64 / FP32 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s +439%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3775 KRay/s +203%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
2663 KRay/s +114%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1245 KRay/s 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1244 KRay/s
Media Intel Celeron N5095
  (1241 - 1245, n=5)
1243 KRay/s 0%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
726 KRay/s -42%
AIDA64 / FPU Julia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points +284%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
20498 Points +182%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
12985 Points +79%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7466 Points +3%
Media Intel Celeron N5095
  (7264 - 7466, n=5)
7418 Points +2%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7264 Points
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
4191 Points -42%
AIDA64 / CPU SHA3
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s +265%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
919 MB/s +81%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
629 MB/s +24%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
515 MB/s +1%
Media Intel Celeron N5095
  (508 - 515, n=5)
513 MB/s +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
508 MB/s
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
300 MB/s -41%
AIDA64 / CPU Queen
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
47528 Points +118%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points +113%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
23893 Points +10%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21959 Points +1%
Media Intel Celeron N5095
  (21458 - 22326, n=5)
21936 Points +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21801 Points
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
19745 Points -9%
AIDA64 / FPU SinJulia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points +344%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3766 Points +276%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
2152 Points +115%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
1107 Points +10%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1003 Points 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points
Media Intel Celeron N5095
  (1000 - 1003, n=5)
1002 Points 0%
AIDA64 / FPU Mandel
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points +345%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
10030 Points +164%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
6615 Points +74%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3967 Points +4%
Media Intel Celeron N5095
  (3802 - 3967, n=5)
3929 Points +3%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3802 Points
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
2231 Points -41%
AIDA64 / CPU AES
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s +250%
Media Intel Celeron N5095
  (19076 - 19354, n=5)
19193 MB/s +1%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19099 MB/s 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19076 MB/s
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
14698 MB/s -23%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
8288 MB/s -57%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
8170 MB/s -57%
AIDA64 / CPU ZLib
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s +99%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
258 MB/s +37%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
190 MB/s +1%
Media Intel Celeron N5095
  (187.7 - 190, n=5)
188.7 MB/s +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
187.7 MB/s
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
147.2 MB/s -22%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
105 MB/s -44%
AIDA64 / FP64 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s +439%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
2058 KRay/s +206%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
1440 KRay/s +114%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s 0%
Media Intel Celeron N5095
  (673 - 676, n=5)
675 KRay/s 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
673 KRay/s
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
404 KRay/s -40%
AIDA64 / CPU PhotoWorxx
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s +128%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
16602 MPixel/s +125%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
14060 MPixel/s +90%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9294 MPixel/s +26%
Media Intel Celeron N5095
  (7386 - 9899, n=5)
8388 MPixel/s +14%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7386 MPixel/s
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
6210 MPixel/s -16%

Prestazioni del sistema

I punteggi di PCMark si collocano comodamente tra i mini PC con il vecchio Celeron J4125 come il GMK NucBox 3 e i mini PC con CPU Core i3 come il Beelink SEi8.

PCMark 10 / Score
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points +89%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3791 Points +59%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
3645 Points +53%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
2410 Points +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
2386 Points
Media Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (2317 - 2417, n=5)
2376 Points 0%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1707 Points -28%
PCMark 10 / Essentials
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points +56%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
7861 Points +36%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
7787 Points +35%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
5874 Points +2%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
5778 Points
Media Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (5516 - 5874, n=5)
5743 Points -1%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
4754 Points -18%
PCMark 10 / Productivity
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
6333 Points +76%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points +72%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
6093 Points +70%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
3623 Points +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
3591 Points
Media Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (3454 - 3666, n=5)
3576 Points 0%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
2958 Points -18%
PCMark 10 / Digital Content Creation
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points +151%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3000 Points +69%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
2746 Points +54%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
1787 Points 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1779 Points
Media Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (1752 - 1787, n=5)
1775 Points 0%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
960 Points -46%
CrossMark / Overall
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
490 Points
Media Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (473 - 495, n=3)
486 Points -1%
CrossMark / Productivity
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
561 Points
Media Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (535 - 561, n=3)
551 Points -2%
CrossMark / Creativity
Media Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (434 - 440, n=3)
437 Points +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
434 Points
CrossMark / Responsiveness
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
469 Points
Media Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (403 - 497, n=3)
456 Points -3%
PCMark 10 Score
2386 punti
Aiuto
AIDA64 / Memory Copy
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
33609 MB/s +98%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
26641 MB/s +57%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
23009 MB/s +36%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s +35%
Media Intel Celeron N5095
  (16422 - 23009, n=5)
19089 MB/s +13%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16968 MB/s
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
12738 MB/s -25%
AIDA64 / Memory Read
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
30907 MB/s +82%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
30757 MB/s +82%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s +47%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16942 MB/s
Media Intel Celeron N5095
  (15464 - 16959, n=5)
16477 MB/s -3%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16406 MB/s -3%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
9928 MB/s -41%
AIDA64 / Memory Write
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
34480 MB/s +78%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30499 MB/s +58%
Media Intel Celeron N5095
  (18612 - 30843, n=5)
23707 MB/s +23%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s +21%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19340 MB/s
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
17678 MB/s -9%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
10380 MB/s -46%
AIDA64 / Memory Latency
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
94.4 ns * -63%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * -50%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
86.4 ns * -49%
Media Intel Celeron N5095
  (58 - 74.1, n=5)
62.3 ns * -7%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
60.2 ns * -4%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
58 ns *
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
56 ns * +3%

* ... Meglio usare valori piccoli

Latenza DPC

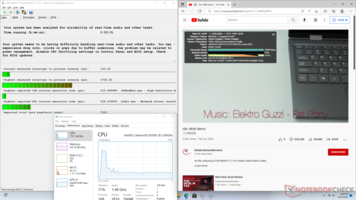

LatencyMon rivela problemi di DPC quando si aprono più schede del browser della nostra homepage. la riproduzione di video 4K a 60 FPS è invece fluida e con un utilizzo della CPU ragionevolmente basso, pari al 17%, con un solo fotogramma perso durante i nostri test.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
3231 μs * -87%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1913 μs * -10%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1732.2 μs *
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
765 μs * +56%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * +70%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione - Fino a due unità interne

La nostra unità viene fornita con una non comuneSilicon Motion AZW 256G M.228 220426 SSD SATA III M.2 per velocità di trasferimento sequenziali che raggiungono al massimo i 500 MB/s circa. Sebbene non sia neanche lontanamente paragonabile a una soluzione NVMe, è comunque sufficiente considerando il target di riferimento e la CPU Celeron.

AS SSD
AS SSD
CDM 8
CDM 8
Slot primario M.2 2280 SATA III. Il modello non viene fornito con unità SSD NVMe
Slot primario M.2 2280 SATA III. Il modello non viene fornito con unità SSD NVMe
Alloggiamento secondario SATA III da 2,5 pollici
Alloggiamento secondario SATA III da 2,5 pollici
Silicon Motion AZW 256G M.228 220426 C SATA 3
CDM 5/6 Read Seq Q32T1: 495.3 MB/s
CDM 5/6 Write Seq Q32T1: 423.4 MB/s
CDM 5/6 Read 4K Q32T1: 140 MB/s
CDM 5/6 Write 4K Q32T1: 166.1 MB/s
CDM 5 Read Seq: 445.2 MB/s
CDM 5 Write Seq: 417.6 MB/s
CDM 5/6 Read 4K: 15.02 MB/s
CDM 5/6 Write 4K: 48.42 MB/s
Drive Performance Rating - Percent
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
94.6 pt
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
70.3 pt
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
56.7 pt
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
45.6 pt
Beelink U59
Silicon Motion AZW 512G NV428
41.1 pt
GMK NucBox 3
Netac S535N8/256GYN
32 pt
DiskSpd
seq read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
734 (717.65min - 733.79max) MB/s +57%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s +9%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
490 (487.59min - 489.62max) MB/s +5%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
468 (410.62min - 468.2max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
402 (394.68min - 401.6max) MB/s -14%
GMK NucBox 3
Netac S535N8/256GYN
201 (166.09min - 201.1max) MB/s -57%
seq write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
700 (681.36min - 699.61max) MB/s +61%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
470 (456.41min - 470.18max) MB/s +8%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
435 (387.34min - 434.74max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
304 (291.46min - 304.28max) MB/s -30%
GMK NucBox 3
Netac S535N8/256GYN
241 (89.76min - 241.17max) MB/s -45%
seq q8 t1 read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
798 (733.79min - 797.55max) MB/s +63%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s +14%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
544 (436.87min - 543.62max) MB/s +11%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
490 (435.79min - 489.54max) MB/s
GMK NucBox 3
Netac S535N8/256GYN
484 (173.85min - 484.23max) MB/s -1%
Beelink U59
Silicon Motion AZW 512G NV428
448 (407.08min - 448.01max) MB/s -9%
seq q8 t1 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
775 (766.03min - 775.03max) MB/s +59%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
515 (462.09min - 515.25max) MB/s +6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s +3%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
488 (470.29min - 487.93max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
295 (288.36min - 294.82max) MB/s -40%
GMK NucBox 3
Netac S535N8/256GYN
235 (21.18min - 234.88max) MB/s -52%
4k q1 t1 read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
57.1 (51.23min - 57.13max) MB/s +257%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
40.1 (39.9min - 40.06max) MB/s +151%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s +35%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
16 (13.05min - 15.97max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
13 (11.34min - 13.03max) MB/s -19%
GMK NucBox 3
Netac S535N8/256GYN
7.53 (4.83min - 7.53max) MB/s -53%
4k q1 t1 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
145.3 (143.17min - 145.33max) MB/s +210%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
104 (103.95min - 104.38max) MB/s +122%
GMK NucBox 3
Netac S535N8/256GYN
57.7 (45.42min - 57.74max) MB/s +23%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
46.9 (43.93min - 46.94max) MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s -1%
Beelink U59
Silicon Motion AZW 512G NV428
41.3 (26.85min - 41.32max) MB/s -12%
4k q32 t16 read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
394 (375.15min - 393.85max) MB/s +141%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
347 (346.15min - 346.94max) MB/s +113%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s +75%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
163.2 (153.74min - 163.17max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
136 (135.53min - 136max) MB/s -17%
GMK NucBox 3
Netac S535N8/256GYN
88.1 (46.77min - 88.09max) MB/s -46%
4k q32 t16 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
517 (500.32min - 517.03max) MB/s +147%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s +58%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
307 (253.88min - 307.24max) MB/s +47%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
209 (190.39min - 209.23max) MB/s
GMK NucBox 3
Netac S535N8/256GYN
164 (0.14min - 163.91max) MB/s -22%
Beelink U59
Silicon Motion AZW 512G NV428
113 (106.48min - 113.38max) MB/s -46%
AS SSD
Score Total
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
1386 Points +139%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
1023 Points +76%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points +45%
Beelink U59
Silicon Motion AZW 512G NV428
615 Points +6%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
580 Points
GMK NucBox 3
Netac S535N8/256GYN
490 Points -16%
Score Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
457 Points +175%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
449 Points +170%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points +83%
Beelink U59
Silicon Motion AZW 512G NV428
198 Points +19%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
166 Points
GMK NucBox 3
Netac S535N8/256GYN
151 Points -9%
Score Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
687 Points +112%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points +16%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
324 Points 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
324 Points
Beelink U59
Silicon Motion AZW 512G NV428
321 Points -1%
GMK NucBox 3
Netac S535N8/256GYN
256 Points -21%
Seq Read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
700.68 MB/s +54%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s +16%
Beelink U59
Silicon Motion AZW 512G NV428
512 MB/s +12%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
507 MB/s +11%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
455.57 MB/s
GMK NucBox 3
Netac S535N8/256GYN
391 MB/s -14%
Seq Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
640.31 MB/s +46%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
438.23 MB/s
GMK NucBox 3
Netac S535N8/256GYN
423.2 MB/s -3%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
413.8 MB/s -6%
Beelink U59
Silicon Motion AZW 512G NV428
364.5 MB/s -17%
4K Read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
55.28 MB/s +298%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
36.75 MB/s +164%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s +47%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
13.9 MB/s
GMK NucBox 3
Netac S535N8/256GYN
11.78 MB/s -15%
Beelink U59
Silicon Motion AZW 512G NV428
10.74 MB/s -23%
4K Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
128.45 MB/s +159%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
88.5 MB/s +78%
GMK NucBox 3
Netac S535N8/256GYN
49.71 MB/s 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
49.68 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s -14%
Beelink U59
Silicon Motion AZW 512G NV428
30.16 MB/s -39%
4K-64 Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
369.4 MB/s +245%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
323.95 MB/s +203%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s +116%
Beelink U59
Silicon Motion AZW 512G NV428
135.7 MB/s +27%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
106.99 MB/s
GMK NucBox 3
Netac S535N8/256GYN
100.4 MB/s -6%
4K-64 Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
494.85 MB/s +115%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s +24%
Beelink U59
Silicon Motion AZW 512G NV428
254.3 MB/s +10%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
230.65 MB/s
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
193.7 MB/s -16%
GMK NucBox 3
Netac S535N8/256GYN
163.7 MB/s -29%
Access Time Read
GMK NucBox 3
Netac S535N8/256GYN
0.256 ms * -33%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.193 ms *
Beelink U59
Silicon Motion AZW 512G NV428
0.173 ms * +10%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * +36%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.103 ms * +47%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
0.102 ms * +47%
Access Time Write
GMK NucBox 3
Netac S535N8/256GYN
0.374 ms * -108%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * -49%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.18 ms *
Beelink U59
Silicon Motion AZW 512G NV428
0.174 ms * +3%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
0.136 ms * +24%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.095 ms * +47%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0255075100125150175200225250275300325350375400425450475Tooltip
Beelink U59 Mini-S: Ø485 (394.52-487.59)

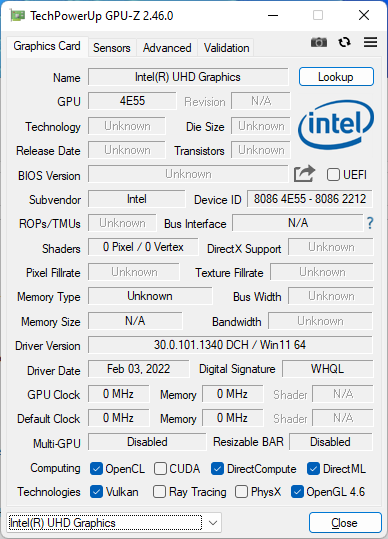

Prestazioni della GPU: troppo lente per i giochi

Le prestazioni grafiche sono scarse, con risultati al di sotto anche della vecchiaUHD Graphics 620 di oltre il 50%. Non aspettatevi di poter eseguire anche i giochi 3D meno impegnativi, perché questo mini PC è stato progettato più per lo streaming video FHD o 4K.

3DMark 11
3DMark 11
Fire Strike
Fire Strike
Fire Strike Ultra
Fire Strike Ultra
Cloud Gate
Cloud Gate
Time Spy
Time Spy

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
25431 Points +423%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
19330 Points +297%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
18282 Points +276%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
13022 Points +168%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
10077 Points +107%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
10057 Points +107%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4863 Points
Media Intel UHD Graphics (Jasper Lake 16 EU)
  (4210 - 5217, n=8)
4863 Points 0%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
3997 Points -18%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
3441 Points -29%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
3057 Points -37%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
2453 Points -50%
1920x1080 Fire Strike Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
3579 Points +492%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3152 Points +421%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
2438 Points +303%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
1715 Points +183%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1283 Points +112%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
1232 Points +104%
Media Intel UHD Graphics (Jasper Lake 16 EU)
  (392 - 679, n=8)
613 Points +1%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
605 Points
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
436 Points -28%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
378 Points -38%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
371 Points -39%
2560x1440 Time Spy Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
1076 Points +522%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1031 Points +496%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
733 Points +324%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
569 Points +229%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
403 Points +133%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
173 Points
Media Intel UHD Graphics (Jasper Lake 16 EU)
  (129 - 182, n=5)
168.2 Points -3%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
142 Points -18%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
102 Points -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
99 Points -43%

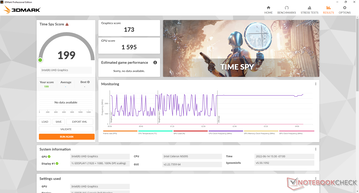

2560x1440 Time Spy Score
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
1221 Points +514%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1161 Points +483%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
825 Points +315%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
636 Points +220%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
462 Points +132%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
199 Points
Media Intel UHD Graphics (Jasper Lake 16 EU)
  (145 - 210, n=5)
192.4 Points -3%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
161 Points -19%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
117 Points -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
113 Points -43%
3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
5346 Points +526%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5221 Points +511%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
3535 Points +314%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
2801 Points +228%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1858 Points +118%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
854 Points
Media Intel UHD Graphics (Jasper Lake 16 EU)
  (554 - 894, n=8)
819 Points -4%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
765 Points -10%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
583 Points -32%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
508 Points -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
429 Points -50%
3DMark 11 Performance
982 punti
3DMark Cloud Gate Standard Score
4577 punti
3DMark Fire Strike Score
582 punti
3DMark Time Spy Score
199 punti
Aiuto
basso medio alto ultra
Dota 2 Reborn (2015) 58.3 20.7 11.6 10.8
Final Fantasy XV Benchmark (2018) 6.86
X-Plane 11.11 (2018) 13.3 7.54 7.07

Emissioni

Rumore del sistema: silenzioso nella maggior parte delle condizioni

Sebbene il modello non sia raffreddato passivamente, in pratica potrebbe esserlo, dato che la ventola è inattiva o appena udibile durante la maggior parte dei carichi. Quando si esegue la prima scena di benchmark di 3DMark 06, ad esempio, il rumore della ventola è di soli 25 dB(A) contro uno sfondo silenzioso di 23 dB(A). I risultati sono molto più silenziosi di quelli osservati sul Beelink SEi8 o sull'Intel NUC11, tutti dotati di hardware più potente.

Siamo riusciti a registrare fino a 34 dB(A) quando la CPU è sottoposta a Prime95. Durante la navigazione o lo streaming video per lunghi periodi, il rumore della ventola si aggira intorno ai 31 dB(A).

Profilo del rumore della ventola (bianco: sfondo, rosso: sistema al minimo, blu: 3DMark 06, verde: stress Prime95)
Profilo del rumore della ventola (bianco: sfondo, rosso: sistema al minimo, blu: 3DMark 06, verde: stress Prime95)

Rumorosità

Idle
24.2 / 24.2 / 24.2 dB(A)
Sotto carico
25.1 / 33.9 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 23.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.340.636.439.22531.22929.9323124.623.52725.74022.322.52123.45023.324.823.324.16329.629.424.529.88024.223.826.323.210020.420.421.421.312519.918.615.618.616016.515.114.416.920016.815.915.527.925015.915.413.129.831518.41714.518.540017.416.216.118.550013.112.811.918.36301312.31217.780012.29.89.919.9100013.29.59.223.61250119.39.820.7160010.79.99.622200011.110.11023.2250011.610.310.226.4315011.110.710.725.1400011.2111117.8500011.511.211.312.7630011.711.511.512800012.712.511.512.7100001716.911.516.91250018.717.411.418.91600013.712.910.613.8SPL25.124.223.333.9N0.60.50.51.8median 13.1median 12.5median 11.5median 18.6Delta2.82.923.1hearing rangehide median Fan NoiseBeelink U59 Mini-S
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
Noise
-19%
-39%
-9%
-36%
off /ambiente *
23.3
24.5
-5%
24.8
-6%
24.5
-5%
27.8
-19%
Idle Minimum *
24.2
26.5
-10%
35.6
-47%
24.5
-1%
27.8
-15%
Idle Average *
24.2
26.5
-10%
35.6
-47%
24.5
-1%
33.9
-40%
Idle Maximum *
24.2
31.1
-29%
35.6
-47%
28.6
-18%
33.9
-40%
Load Average *
25.1
37.7
-50%
36.2
-44%
29.7
-18%
43.7
-74%
Load Maximum *
33.9
37.5
-11%
47.6
-40%
37.6
-11%
43.7
-29%
Witcher 3 ultra *
38
30.4

* ... Meglio usare valori piccoli

Temperatura

Le temperature superficiali sono più calde del previsto, fino a 40 C sulla parte superiore anche quando il sistema è al minimo sul desktop. Quando si eseguono carichi impegnativi, il punto caldo superiore sale leggermente a 43 C. L'elevata temperatura della superficie al minimo può essere attribuita alla ventola al minimo durante i bassi carichi di elaborazione per mantenere il sistema il più silenzioso possibile fino a quando la ventola non è necessaria.

Sistema inattivo (parte anteriore)
Sistema inattivo (parte anteriore)
Sistema inattivo (retro)
Sistema inattivo (retro)
Sollecitazione Prime95 (fronte)
Sollecitazione Prime95 (fronte)
Stress Prime95 (schiena)
Stress Prime95 (schiena)

Stress test

Sistema inattivo
Sistema inattivo

L'esecuzione di Prime95 provoca un'impennata della velocità di clock della CPU e della temperatura, rispettivamente a 2,8 GHz e a 87 C. La frequenza di clock scendeva a 2,5-2,6 GHz dopo poco tempo, per mantenere la temperatura del core a 87 C. L'assorbimento di potenza della CPU raggiungeva i 16 W all'inizio del test prima di stabilizzarsi a 13 W a causa delle limitazioni termiche.

Stress Prime95
Stress Prime95
Stress di Prime95+FurMark
Stress di Prime95+FurMark
Clock della CPU (GHz) Clock della GPU (MHz) Temperatura media della CPU (°C)
Sistema inattivo -- -- 57
Stress Prime95 2,6 -- 87
Prime95 + FurMark Stress 2,3 -- 86

Gestione dell'energia - Molto efficiente

Consumo di energia

L'unità assorbe circa 7-8 W quando è al minimo sul desktop senza applicazioni in esecuzione, il che è più efficiente dell'Intel NUC11 con Core i5 di 11a generazione o del Core i5 di 10a generazione Zotac ZBox Nano. Quando si eseguono carichi più impegnativi, come i giochi, il sistema assorbe in media solo 18 W, rispetto ai 41 W o 33 W dei modelli Intel e Zotac citati in precedenza. Naturalmente, le prestazioni della GPU sono significativamente più lente sul Beelink Mini-S e quindi ci si aspetta una minore richiesta di energia.

Siamo riusciti a misurare un assorbimento massimo di 27 W dal piccolo adattatore CA da 36 W (~7,9 x 4,8 x 3,4 cm). Si tratta dello stesso adattatore fornito con l'U59 originale.

Consumo di corrente
Off / Standbydarklight 1.3 / 0.66 Watt
Idledarkmidlight 7 / 7 / 7.6 Watt
Sotto carico midlight 18.3 / 27.1 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3, , x,
Beelink SEi8
i3-8109U, Iris Plus Graphics 655, Intel SSD 660p SSDPEKNW512G8, , x,
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 512G NV428, , x,
GMK NucBox 3
Celeron J4125, UHD Graphics 600, Netac S535N8/256GYN, , x,
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620, Western Digital WD Blue 3D WDBNCE5000PNC, , x,
Power Consumption
-43%
-101%
6%
42%
-56%
Idle Minimum *
7
7.5
-7%
11.5
-64%
6.7
4%
3
57%
8.9
-27%
Idle Average *
7
7.6
-9%
12.4
-77%
6.7
4%
3.1
56%
9
-29%
Idle Maximum *
7.6
9.2
-21%
12.9
-70%
7.4
3%
3.6
53%
9.9
-30%
Load Average *
18.3
41.1
-125%
40.7
-122%
16
13%
11.1
39%
33
-80%
Load Maximum *
27.1
41.4
-53%
73.5
-171%
25.6
6%
25.4
6%
58
-114%
Witcher 3 ultra *
43.9
13.1

* ... Meglio usare valori piccoli

Power Consumption Witcher 3 / Stresstest

No graph data

Power Consumption external Monitor

0510152025Tooltip
Beelink U59 Mini-S; Prime95 V2810 Stress (external Monitor): Ø24.2 (22.9-27.1)
Beelink U59 Mini-S; Cinebench R15 Multi (external Monitor): Ø23 (20.9-23.9)
Beelink U59 Mini-S; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø14.7 (14.2-17.2)

Pro

+ silenzioso nella maggior parte delle condizioni
+ supporto di 2 memorie interne
+ due uscite video
+ economico

Contro

- nessun lettore di schede SD o USB-C
- solo RAM a canale singolo
- cavo adattatore AC corto
- wi-Fi lento

Verdetto - Per le configurazioni HTPC economiche

In recensione: Beelink U59 Mini-S. Unità di prova fornita da Beelink
In recensione: Beelink U59 Mini-S. Unità di prova fornita da Beelink

Con un prezzo di poco superiore ai 200 dollari, il Beelink U59 Mini-S è uno dei mini PC meno costosi che si possano trovare con una dotazione completa di RAM, spazio di archiviazione e Windows 11. A un prezzo così basso, il Mini-S può essere un'opzione decente per gli utenti che non sono disposti a spendere centinaia di euro in più per un mini PC con un Core ix più veloce e non sono disposti ad accontentarsi di dongle multimediali digitali come Chromecast, Roku o Amazon Fire TV. Il Celeron N5905 non è particolarmente veloce, ma è comunque più rapido di qualsiasi opzione Atom in circolazione per un funzionamento relativamente più fluido e un eccellente streaming video 4K a 60 FPS.

I punti di forza del Mini-S, oltre alla sua convenienza, sono l'opzione di archiviazione interna doppia e la silenziosità della ventola.

Ci sono molti angoli tagliati da tenere a mente, soprattutto per quanto riguarda la mancanza di funzioni del modello. Non ci sono lettori di schede SD, USB-C, Wi-Fi 6 o RAM a doppio canale. Anche il cavo dell'adattatore CA è piuttosto corto, solo 1 metro. Fortunatamente, questi inconvenienti non pregiudicano troppo l'esperienza HTPC di base.

Prezzo e disponibilità

Il Beelink U59 Mini-S è ora disponibile su Amazon a 209 dollari dopo aver applicato il coupon corrente o a 229 dollari attraverso il sito ufficiale di Beelink https://www.bee-link.com/catalog/product/buy?id=298.

Pricecompare

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del mini PC Beelink U59 Mini-S: L'alternativa super economica all'HTPC Intel NUC
Allen Ngo, 2022-06-20 (Update: 2022-06-20)
