Recensione del mini PC Beelink SER5 Pro 5600H: NUC 11 veloce con AMD Ryzen

Prestazioni della CPU eccellenti per ~$450 USD. Il SER5 Pro continua la serie di HTPC economici di Beelink, tutti progettati per essere alternative più economiche alla serie NUC di Intel. Quest'ultimo modello sfida i NUC Intel di fascia alta, dotati di CPU Core i7 serie U, grazie a un processore Ryzen 5 serie H Zen 3.
(Fonte: Beelink)
(Fonte: Beelink)

Proprio come Zotac e la sua notoriamente ampia selezione di mini PC ZBox, Beelink sta cercando di fare lo stesso lanciando ogni pochi mesi nuovi modelli dotati di processori sempre più veloci. Il Beelink SER4 è stato lanciato all'inizio di quest'anno con il processore Zen 2 Ryzen 7 4800U, ma ora il SER5 è arrivato sul mercato con uno Zen 3 ancora più veloce Ryzen 5 5600H il tutto mantenendo i prezzi ben al di sotto dei 500 dollari

I concorrenti in questo spazio includono altri mini PC o HTPC senza grafica discreta, come l'Ace Magician TK11 Ace Magician TK11, Geekom MiniAir 11, Zotac ZBox PI336e la maggior parte dei Modelli Intel NUC

Altre recensioni di Beelink:

Beelink SER Pro Ryzen 5 5600H
Processore
AMD Ryzen 5 5600H 6 x 3.3 - 4.2 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Cezanne-H (Zen 3)
Scheda grafica
AMD Radeon RX Vega 7 - 512 MB VRAM, Memoria: 1600 MHz, DDR4, 30.0.15021.11005

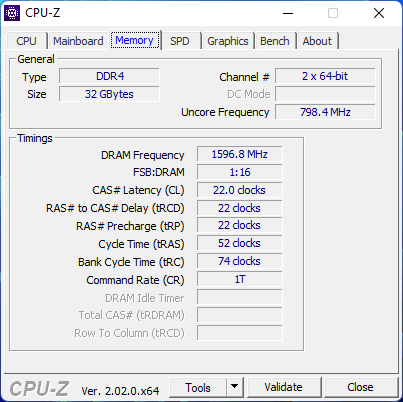

Memoria
32 GB
, Crucial DDR4-3200, 22-22-22-52, Dual-Channel
Scheda madre
AMD Promontory/Bixby FCH
Harddisk
Kingston NV1 SNVS/500GCN, 500 GB
Scheda audio
AMD Zen - Audio Processor - HD Audio Controller
Porte di connessione
4 USB 3.0 / 3.1, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, Connessioni Audio: 3.5 mm combo
Rete
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Dimensioni
altezza x larghezza x profondità (in mm): 42 x 126 x 113
Sistema Operativo
Microsoft Windows 11 Pro
Altre caratteristiche
12 Mesi Garanzia
Peso
498 gr, Alimentazione: 219 gr
Prezzo
490 USD
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confronto

Punteggio
Data
Modello
Peso
Altezza
Dimensione
Risoluzione
Miglior Prezzo
10/2022
Beelink SER Pro Ryzen 5 5600H
R5 5600H, Vega 7
498 gr42 mmx
09/2022
Beelink SEi11 Pro
i5-11320H, Iris Xe G7 96EUs
440 gr40 mmx
01/2022
Beelink GTR5
R9 5900HX, Vega 8
686 gr39 mmx
04/2021
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 gr37 mmx
02/2020
Intel NUC10i7FNH
i7-10710U, UHD Graphics 620
697 gr51 mm0.00"0x0
07/2022
Zotac ZBOX PI336 pico
Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
293 gr20.7 mmx

Caso

Sia il SER4 che il SER5 utilizzano lo stesso scheletro del telaio, anche se con marcature e colori superficiali leggermente diversi. Sul SER5, le griglie di ventilazione laterali sono nere anziché rosse

In termini di dimensioni, il SER5 è solo leggermente più spesso dell'Intel NUC 11TNK Recensione dell'Intel NUC11TNKi5 Pro Mini Tiger Canyon: Il più piccolo Tiger Lake NUC . Tuttavia, è altrettanto pesante, circa mezzo chilogrammo.

Design dello chassis familiare a quello di molti altri mini PC Beelink SER o SEi
Design dello chassis familiare a quello di molti altri mini PC Beelink SER o SEi
due fori sul pannello inferiore per il fissaggio del supporto VESA in dotazione
due fori sul pannello inferiore per il fissaggio del supporto VESA in dotazione
Bordi e angoli cromati con una striscia lucida sul davanti
Bordi e angoli cromati con una striscia lucida sul davanti

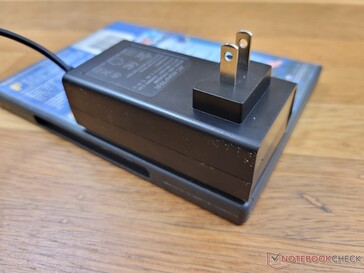

Adattatore CA a parete
Adattatore CA a parete

Confronto delle dimensioni

168 mm 120 mm 39 mm 686 g126 mm 113 mm 42 mm 498 g117 mm 112 mm 51 mm 697 g126 mm 113 mm 40 mm 440 g117 mm 112 mm 37 mm 504 g115 mm 76 mm 20.7 mm 293 g210 mm 148 mm 1 mm 2.9 g

Connettività

Le opzioni delle porte sono le stesse del SER4. È deludente che Beelink non sia ancora passata agli adattatori CA USB-C, dato che il SER5 si affida a un adattatore CA proprietario. La singola porta USB-C anteriore supporta DisplayPort 1.4 ma non PD-in.

Parte anteriore: 2x USB 3.0, USB-C, audio combo da 3,5 mm, pulsante di alimentazione
Parte anteriore: 2x USB 3.0, USB-C, audio combo da 3,5 mm, pulsante di alimentazione
Posteriore: Gigabit RJ-45, 2x USB 3.0, 2x HDMI 2.0, adattatore AC
Posteriore: Gigabit RJ-45, 2x USB 3.0, 2x HDMI 2.0, adattatore AC
Giusto: Nessuna porta
Giusto: Nessuna porta
Sinistra: nessuna porta
Sinistra: nessuna porta

Comunicazione

Il MediaTek RZ608 è di serie per il supporto del Wi-Fi 6E, proprio come nel modello Beelink SEi11 Pro Beelink SEi11 Pro. Tuttavia, le prestazioni sono ancora insufficienti rispetto alla comune serie Intel AX200/210, come mostrano i grafici seguenti.

Il modulo WLAN M.2 rimovibile si trova sotto l'unità SSD M.2
Il modulo WLAN M.2 rimovibile si trova sotto l'unità SSD M.2
Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s
Beelink GTR5
MediaTek RZ608
657 (321min - 735max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s
Beelink GTR5
MediaTek RZ608
837 (806min - 876max) MBit/s
iperf3 receive AXE11000 6GHz
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1827 (1760min - 1865max) MBit/s +115%
Beelink SER Pro Ryzen 5 5600H
MediaTek RZ608
850 (802min - 876max) MBit/s
Beelink SEi11 Pro
MediaTek RZ608
743 (453min - 793max) MBit/s -13%
iperf3 transmit AXE11000 6GHz
Zotac ZBOX PI336 pico
Intel Wi-Fi 6E AX210
1385 (1351min - 1401max) MBit/s +85%
Beelink SER Pro Ryzen 5 5600H
MediaTek RZ608
750 (374min - 799max) MBit/s
Beelink SEi11 Pro
MediaTek RZ608
722 (447min - 789max) MBit/s -4%
050100150200250300350400450500550600650700750800850Tooltip
Beelink SER Pro Ryzen 5 5600H; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø738 (374-799)
Beelink SER Pro Ryzen 5 5600H; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø850 (802-876)

Manutenzione

Il pannello inferiore è fissato da quattro viti Philips. Queste viti sono molto più piccole delle viti a rotazione manuale di un Intel NUC e richiedono un cacciavite per essere rimosse. Tenete presente che anche queste viti sono piuttosto morbide e possono essere facilmente spanate se non si fa attenzione.

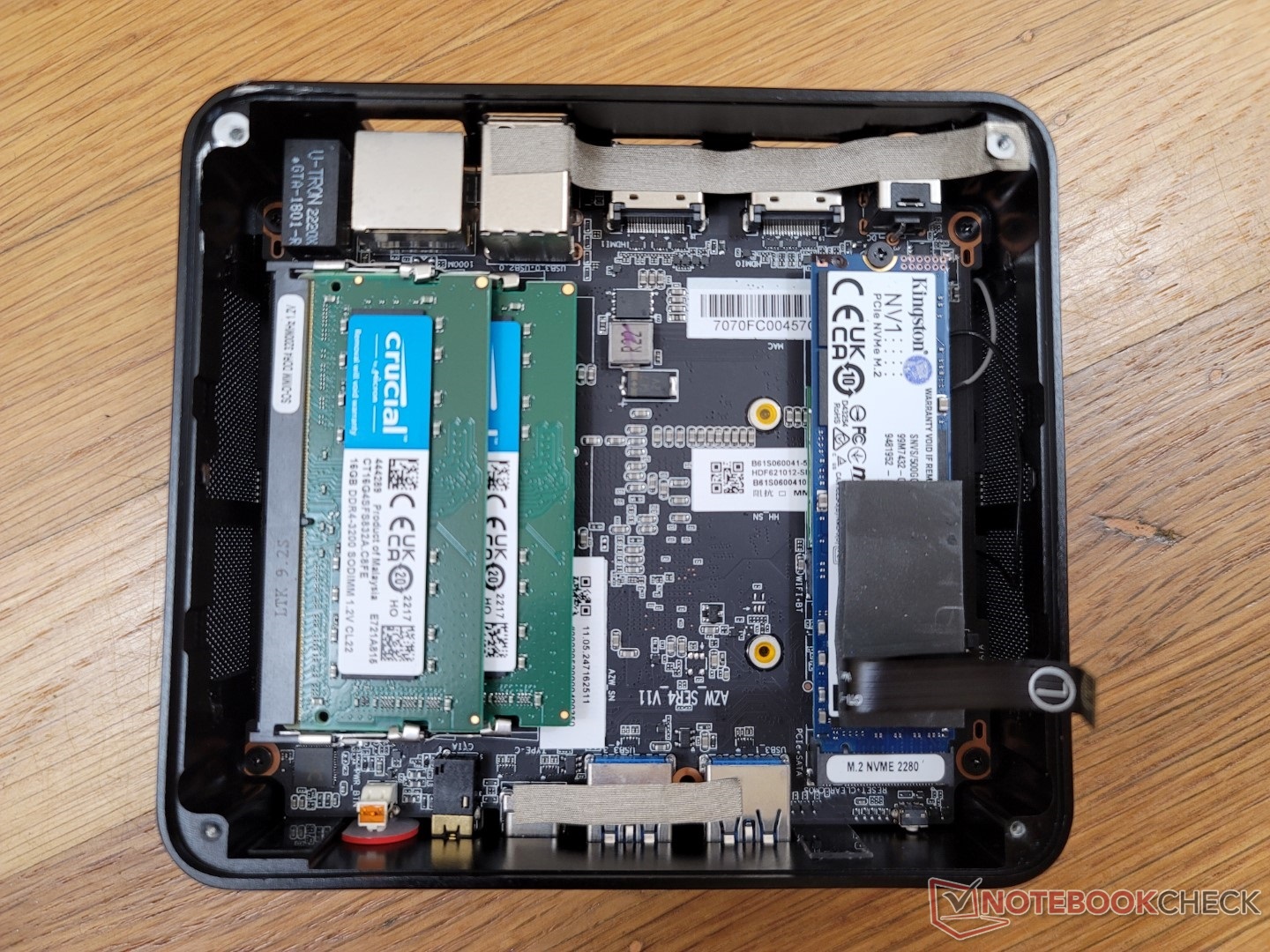

Gli utenti hanno accesso a due slot SODIMM DDR4, a due alloggiamenti per lo storage (M.2 + SATA da 2,5 pollici) e al modulo WLAN rimovibile
Gli utenti hanno accesso a due slot SODIMM DDR4, a due alloggiamenti per lo storage (M.2 + SATA da 2,5 pollici) e al modulo WLAN rimovibile

Accessori e garanzia

La confezione include una staffa di montaggio VESA rimovibile, viti aggiuntive, manuale d'uso, due cavi HDMI e l'adattatore CA.

La garanzia standard limitata di un anno del produttore si applica se acquistato negli Stati Uniti.

Prestazioni




Condizioni di test

Abbiamo impostato la nostra unità in modalità Performance tramite Windows prima di eseguire i benchmark qui sotto.

Processore

Le prestazioni multi-thread sono circa il 15% più lente rispetto alla media dei PC del nostro database equipaggiati con lo stesso Ryzen 5H Ryzen 5 5600H RYZEN 5 5600H. Nonostante ciò, le prestazioni complessive sono ancora molto più veloci rispetto a quelle del comune Core i7-1165G7 presente in molti Ultrabook e NUC Intel.

Cinebench R15 Multi Loop

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H: Ø1310 (1286.46-1319.48)
Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)
Beelink GTR5 AMD Ryzen 9 5900HX: Ø1938 (1889.11-1963.48)
Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)
Intel NUC10i7FNH Intel Core i7-10710U: Ø946 (834.01-1067.02)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
HP Envy 16 h0112nr
Intel Core i7-12700H
5053 Points +64%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
4913 Points +60%
Honor MagicBook 14 2022
Intel Core i5-12500H
4723 Points +54%
Beelink GTR5
AMD Ryzen 9 5900HX
4596 Points +50%
Media AMD Ryzen 5 5600H
  (3074 - 4059, n=15)
3690 Points +20%
Beelink SER4
AMD Ryzen 7 4800U
3248 Points +6%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
3074 Points
Intel NUC10i7FNH
Intel Core i7-10710U
2303 Points -25%
Beelink SEi11 Pro
Intel Core i5-11320H
2208 Points -28%
Framework Laptop 13.5
Intel Core i7-1165G7
2119 Points -31%
Intel NUC11TNKi5
Intel Core i5-1135G7
1974 Points -36%
Zotac ZBOX PI336 pico
Intel Celeron N6211
285 Points -91%
Cinebench R20 / CPU (Single Core)
HP Envy 16 h0112nr
Intel Core i7-12700H
683 Points +29%
Honor MagicBook 14 2022
Intel Core i5-12500H
652 Points +23%
Framework Laptop 13.5
Intel Core i7-1165G7
580 Points +9%
Beelink GTR5
AMD Ryzen 9 5900HX
579 Points +9%
Beelink SEi11 Pro
Intel Core i5-11320H
561 Points +6%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
558 Points +5%
Media AMD Ryzen 5 5600H
  (528 - 538, n=14)
533 Points 0%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
531 Points
Intel NUC11TNKi5
Intel Core i5-1135G7
503 Points -5%
Beelink SER4
AMD Ryzen 7 4800U
488 Points -8%
Intel NUC10i7FNH
Intel Core i7-10710U
480 Points -10%
Zotac ZBOX PI336 pico
Intel Celeron N6211
174 Points -67%
Cinebench R23 / Multi Core
HP Envy 16 h0112nr
Intel Core i7-12700H
13094 (11750.2min - 13094.1max) Points +65%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
12663 Points +59%
Honor MagicBook 14 2022
Intel Core i5-12500H
12225 Points +54%
Beelink GTR5
AMD Ryzen 9 5900HX
11599 (11445.9min - 11598.6max) Points +46%
Media AMD Ryzen 5 5600H
  (7945 - 10416, n=12)
9496 Points +20%
Beelink SER4
AMD Ryzen 7 4800U
8376 (8310.1min - 8376.05max) Points +5%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
7945 (7877.51min - 7944.53max) Points
Beelink SEi11 Pro
Intel Core i5-11320H
5720 (5681.08min - 5720.38max) Points -28%
Framework Laptop 13.5
Intel Core i7-1165G7
5477 (5385.09min - 5477.06max) Points -31%
Intel NUC11TNKi5
Intel Core i5-1135G7
5098 (4930.91min - 5098.17max) Points -36%
Zotac ZBOX PI336 pico
Intel Celeron N6211
735 Points -91%
Cinebench R23 / Single Core
HP Envy 16 h0112nr
Intel Core i7-12700H
1772 Points +30%
Honor MagicBook 14 2022
Intel Core i5-12500H
1697 Points +24%
Framework Laptop 13.5
Intel Core i7-1165G7
1507 Points +10%
Beelink GTR5
AMD Ryzen 9 5900HX
1497 Points +10%
Beelink SEi11 Pro
Intel Core i5-11320H
1467 Points +7%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
1427 Points +4%
Intel NUC11TNKi5
Intel Core i5-1135G7
1369 Points 0%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1367 Points
Media AMD Ryzen 5 5600H
  (1316 - 1381, n=12)
1364 Points 0%
Beelink SER4
AMD Ryzen 7 4800U
1240 Points -9%
Zotac ZBOX PI336 pico
Intel Celeron N6211
439 Points -68%
Cinebench R15 / CPU Multi 64Bit
HP Envy 16 h0112nr
Intel Core i7-12700H
2590 (2293.84min - 2590.34max) Points +96%
Honor MagicBook 14 2022
Intel Core i5-12500H
2094 (1576.35min - 2094.02max) Points +59%
Honor MagicBook 14 2022
Intel Core i5-12500H
2091 (1748.1min - 2091.07max) Points +59%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
2085 (2055.92min - 2084.96max) Points +58%
Beelink GTR5
AMD Ryzen 9 5900HX
1963 (1889.11min - 1963.48max) Points +49%
Media AMD Ryzen 5 5600H
  (1319 - 1723, n=15)
1564 Points +19%
Beelink SER4
AMD Ryzen 7 4800U
1411 (1390.29min - 1411.03max) Points +7%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1319 (1286.46min - 1319.48max) Points
Intel NUC10i7FNH
Intel Core i7-10710U
1067 Points -19%
Beelink SEi11 Pro
Intel Core i5-11320H
857 (845.25min - 856.84max) Points -35%
Framework Laptop 13.5
Intel Core i7-1165G7
850 (812.27min - 850.43max) Points -36%
Intel NUC11TNKi5
Intel Core i5-1135G7
794 (772.57min - 794.38max) Points -40%
Zotac ZBOX PI336 pico
Intel Celeron N6211
128 Points -90%
Cinebench R15 / CPU Single 64Bit
HP Envy 16 h0112nr
Intel Core i7-12700H
256 Points +16%
Beelink GTR5
AMD Ryzen 9 5900HX
240 Points +9%
Honor MagicBook 14 2022
Intel Core i5-12500H
240 Points +9%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
230 Points +4%
Framework Laptop 13.5
Intel Core i7-1165G7
224 Points +1%
Media AMD Ryzen 5 5600H
  (218 - 225, n=13)
222 Points 0%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
221 Points
Beelink SEi11 Pro
Intel Core i5-11320H
214 Points -3%
Intel NUC11TNKi5
Intel Core i5-1135G7
201 Points -9%
Intel NUC10i7FNH
Intel Core i7-10710U
194 Points -12%
Beelink SER4
AMD Ryzen 7 4800U
187 Points -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211
76 Points -66%
Blender / v2.79 BMW27 CPU
Zotac ZBOX PI336 pico
Intel Celeron N6211
3767 Seconds * -881%
Intel NUC11TNKi5
Intel Core i5-1135G7
600 Seconds * -56%
Framework Laptop 13.5
Intel Core i7-1165G7
551 Seconds * -43%
Beelink SEi11 Pro
Intel Core i5-11320H
541 Seconds * -41%
Intel NUC10i7FNH
Intel Core i7-10710U
468.3 Seconds * -22%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
384 Seconds *
Beelink SER4
AMD Ryzen 7 4800U
340 Seconds * +11%
Media AMD Ryzen 5 5600H
  (300 - 384, n=13)
325 Seconds * +15%
Honor MagicBook 14 2022
Intel Core i5-12500H
264 Seconds * +31%
Beelink GTR5
AMD Ryzen 9 5900HX
262 Seconds * +32%
HP Envy 16 h0112nr
Intel Core i7-12700H
249 Seconds * +35%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
244 Seconds * +36%
7-Zip 18.03 / 7z b 4
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
58467 MIPS +47%
Beelink GTR5
AMD Ryzen 9 5900HX
56761 MIPS +42%
HP Envy 16 h0112nr
Intel Core i7-12700H
54715 MIPS +37%
Honor MagicBook 14 2022
Intel Core i5-12500H
51818 MIPS +30%
Media AMD Ryzen 5 5600H
  (36315 - 46562, n=13)
43653 MIPS +9%
Beelink SER4
AMD Ryzen 7 4800U
40117 MIPS +1%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
39897 MIPS
Intel NUC10i7FNH
Intel Core i7-10710U
29948 MIPS -25%
Beelink SEi11 Pro
Intel Core i5-11320H
24798 MIPS -38%
Framework Laptop 13.5
Intel Core i7-1165G7
24436 MIPS -39%
Intel NUC11TNKi5
Intel Core i5-1135G7
23280 MIPS -42%
Zotac ZBOX PI336 pico
Intel Celeron N6211
3974 MIPS -90%
7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR5
AMD Ryzen 9 5900HX
5791 MIPS +7%
HP Envy 16 h0112nr
Intel Core i7-12700H
5706 MIPS +6%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
5590 MIPS +4%
Framework Laptop 13.5
Intel Core i7-1165G7
5405 MIPS 0%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
5400 MIPS
Media AMD Ryzen 5 5600H
  (5274 - 5446, n=13)
5360 MIPS -1%
Honor MagicBook 14 2022
Intel Core i5-12500H
5260 MIPS -3%
Beelink SEi11 Pro
Intel Core i5-11320H
5105 MIPS -5%
Intel NUC11TNKi5
Intel Core i5-1135G7
4738 MIPS -12%
Intel NUC10i7FNH
Intel Core i7-10710U
4727 MIPS -12%
Beelink SER4
AMD Ryzen 7 4800U
4603 MIPS -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211
2593 MIPS -52%
Geekbench 5.5 / Multi-Core
HP Envy 16 h0112nr
Intel Core i7-12700H
12640 Points +107%
Honor MagicBook 14 2022
Intel Core i5-12500H
10828 Points +77%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
8389 Points +37%
Beelink GTR5
AMD Ryzen 9 5900HX
8147 Points +33%
Media AMD Ryzen 5 5600H
  (4990 - 7253, n=13)
6573 Points +8%
Beelink SER4
AMD Ryzen 7 4800U
6375 Points +4%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
6103 Points
Intel NUC10i7FNH
Intel Core i7-10710U
5839 Points -4%
Beelink SEi11 Pro
Intel Core i5-11320H
4959 Points -19%
Intel NUC11TNKi5
Intel Core i5-1135G7
4593 Points -25%
Zotac ZBOX PI336 pico
Intel Celeron N6211
844 Points -86%
Geekbench 5.5 / Single-Core
HP Envy 16 h0112nr
Intel Core i7-12700H
1773 Points +23%
Honor MagicBook 14 2022
Intel Core i5-12500H
1685 Points +17%
Beelink GTR5
AMD Ryzen 9 5900HX
1560 Points +9%
Beelink SEi11 Pro
Intel Core i5-11320H
1518 Points +6%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
1501 Points +5%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
1436 Points
Media AMD Ryzen 5 5600H
  (1365 - 1445, n=13)
1415 Points -1%
Intel NUC11TNKi5
Intel Core i5-1135G7
1396 Points -3%
Intel NUC10i7FNH
Intel Core i7-10710U
1229 Points -14%
Beelink SER4
AMD Ryzen 7 4800U
1192 Points -17%
Zotac ZBOX PI336 pico
Intel Celeron N6211
556 Points -61%
HWBOT x265 Benchmark v2.2 / 4k Preset
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
15.6 fps +49%
HP Envy 16 h0112nr
Intel Core i7-12700H
14.9 fps +42%
Beelink GTR5
AMD Ryzen 9 5900HX
14.8 fps +41%
Honor MagicBook 14 2022
Intel Core i5-12500H
14.3 fps +36%
Media AMD Ryzen 5 5600H
  (9.92 - 13.3, n=13)
12 fps +14%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
10.5 fps
Beelink SER4
AMD Ryzen 7 4800U
10.4 fps -1%
Intel NUC10i7FNH
Intel Core i7-10710U
7.95 fps -24%
Beelink SEi11 Pro
Intel Core i5-11320H
7.28 fps -31%
Framework Laptop 13.5
Intel Core i7-1165G7
7.05 fps -33%
Intel NUC11TNKi5
Intel Core i5-1135G7
6.63 fps -37%
Zotac ZBOX PI336 pico
Intel Celeron N6211
0.88 fps -92%
LibreOffice / 20 Documents To PDF
Zotac ZBOX PI336 pico
Intel Celeron N6211
144.7 s * -177%
Beelink SER4
AMD Ryzen 7 4800U
62.6 s * -20%
Media AMD Ryzen 5 5600H
  (52.2 - 81.5, n=13)
58.5 s * -12%
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
53.5 s * -2%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
52.2 s *
Intel NUC11TNKi5
Intel Core i5-1135G7
51.3 s * +2%
Beelink GTR5
AMD Ryzen 9 5900HX
49.7 s * +5%
Beelink SEi11 Pro
Intel Core i5-11320H
49.1 s * +6%
HP Envy 16 h0112nr
Intel Core i7-12700H
45.3 s * +13%
Framework Laptop 13.5
Intel Core i7-1165G7
45.1 s * +14%
Honor MagicBook 14 2022
Intel Core i5-12500H
41.6 s * +20%
R Benchmark 2.5 / Overall mean
Zotac ZBOX PI336 pico
Intel Celeron N6211
1.371 sec * -159%
Intel NUC10i7FNH
Intel Core i7-10710U
0.649 sec * -22%
Intel NUC11TNKi5
Intel Core i5-1135G7
0.622 sec * -17%
Beelink SEi11 Pro
Intel Core i5-11320H
0.581 sec * -10%
Beelink SER4
AMD Ryzen 7 4800U
0.576 sec * -9%
Framework Laptop 13.5
Intel Core i7-1165G7
0.566 sec * -7%
Media AMD Ryzen 5 5600H
  (0.526 - 0.596, n=13)
0.54 sec * -2%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H
0.53 sec *
SCHENKER XMG Apex 15 NH57E PS
AMD Ryzen 7 5800H
0.512 sec * +3%
Honor MagicBook 14 2022
Intel Core i5-12500H
0.4969 sec * +6%
Beelink GTR5
AMD Ryzen 9 5900HX
0.48 sec * +9%
HP Envy 16 h0112nr
Intel Core i7-12700H
0.4586 sec * +13%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit
1319 Points
Cinebench R15 OpenGL 64Bit
89.3 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
221 Points
Aiuto
Performance Rating
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
97.8 pt
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
67.4 pt
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
53.2 pt
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
47.7 pt
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
6.9 pt
AIDA64 / FP32 Ray-Trace
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
13987 KRay/s +52%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
9181 KRay/s
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
7047 KRay/s -23%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s -27%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
490 KRay/s -95%
AIDA64 / FPU Julia
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
88153 Points +52%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
58039 Points
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
29972 Points -48%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points -52%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
2932 Points -95%
AIDA64 / CPU SHA3
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
3026 MB/s +51%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
2006 MB/s
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
1992 MB/s -1%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s -8%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
202 MB/s -90%
AIDA64 / CPU Queen
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
97835 Points +47%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
66699 Points
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
48212 Points -28%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
8820 Points -87%
AIDA64 / FPU SinJulia
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
12402 Points +49%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
8340 Points
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
4771 Points -43%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points -47%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
396 Points -95%
AIDA64 / FPU Mandel
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
48563 Points +52%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
31962 Points
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
17987 Points -44%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points -47%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
1558 Points -95%
AIDA64 / CPU AES
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
119784 MB/s +51%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
79183 MB/s
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
68683 MB/s -13%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s -16%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
7653 MB/s -90%
AIDA64 / CPU ZLib
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
769 MB/s +52%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
507 MB/s
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s -26%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
368 MB/s -27%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
75.2 MB/s -85%
AIDA64 / FP64 Ray-Trace
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
7395 KRay/s +54%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
4811 KRay/s
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
3811 KRay/s -21%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s -25%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
273 KRay/s -94%
AIDA64 / CPU PhotoWorxx
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
25964 MPixel/s +28%
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
20277 MPixel/s 0%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
20237 MPixel/s
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s -17%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
5125 MPixel/s -75%

Prestazioni del sistema

I risultati di PCMark 10 sono quelli che ci aspettiamo rispetto ad altri portatili o mini PC Ryzen 5 5600H, tranne che nel sottotest Creazione di contenuti digitali, dove le prestazioni della GPU sono più importanti. Questo perché molti portatili con questo stesso processore sono dotati di una grafica discreta più veloce.

PCMark 10 / Score
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
6504 Points +10%
Media AMD Ryzen 5 5600H
  (5309 - 7091, n=13)
6125 Points +4%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
5902 Points
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
5095 Points -14%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points -24%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
4418 Points -25%
PCMark 10 / Essentials
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
10772 Points +4%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
10351 Points
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
10281 Points -1%
Media AMD Ryzen 5 5600H
  (9326 - 10506, n=13)
9936 Points -4%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
9013 Points -13%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points -13%
PCMark 10 / Productivity
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
9875 Points +6%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
9293 Points
Media AMD Ryzen 5 5600H
  (7975 - 9642, n=13)
8913 Points -4%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
6915 Points -26%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
6876 Points -26%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points -33%
PCMark 10 / Digital Content Creation
Media AMD Ryzen 5 5600H
  (4921 - 9907, n=13)
7121 Points +23%
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
7020 Points +21%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
5801 Points
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
5048 Points -13%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points -23%
Intel NUC10i7FNH
UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1
3777 Points -35%
CrossMark / Overall
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
1501 Points +14%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1335 Points +2%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1311 Points
Media AMD Ryzen 5 5600H
  (1157 - 1353, n=6)
1300 Points -1%
CrossMark / Productivity
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
1495 Points +10%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1419 Points +5%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1355 Points
Media AMD Ryzen 5 5600H
  (1217 - 1384, n=6)
1338 Points -1%
CrossMark / Creativity
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
1589 Points +21%
Media AMD Ryzen 5 5600H
  (1184 - 1377, n=6)
1323 Points +1%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1315 Points
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1256 Points -4%
CrossMark / Responsiveness
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
1336 Points +14%
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
1281 Points +9%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
1177 Points
Media AMD Ryzen 5 5600H
  (926 - 1225, n=6)
1132 Points -4%
PCMark 10 Score
5902 punti
Aiuto
AIDA64 / Memory Copy
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
42079 MB/s 0%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
42001 MB/s
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
41106 MB/s -2%
Media AMD Ryzen 5 5600H
  (20549 - 42141, n=13)
38322 MB/s -9%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s -45%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
15737 MB/s -63%
AIDA64 / Memory Read
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
47363 MB/s
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
47281 MB/s 0%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
46516 MB/s -2%
Media AMD Ryzen 5 5600H
  (22917 - 47595, n=13)
43659 MB/s -8%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s -47%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
10311 MB/s -78%
AIDA64 / Memory Write
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
46760 MB/s +10%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
42347 MB/s
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
42270 MB/s 0%
Media AMD Ryzen 5 5600H
  (20226 - 44872, n=13)
37373 MB/s -12%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s -45%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
17031 MB/s -60%
AIDA64 / Memory Latency
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * -8%
Beelink SEi11 Pro
Intel Core i5-11320H, Iris Xe G7 96EUs
81 ns * -1%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, Vega 7
80.3 ns *
Beelink GTR5
AMD Ryzen 9 5900HX, Vega 8
80 ns * -0%
Media AMD Ryzen 5 5600H
  (75 - 89.1, n=13)
79 ns * +2%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
76.3 ns * +5%

* ... Meglio usare valori piccoli

Latenza DPC

LatencyMon non mostra alcun problema di DPC quando si aprono più schede del browser sulla nostra homepage. Sfortunatamente, la riproduzione di video 4K a 60 FPS è imperfetta, con 21 fotogrammi caduti durante il nostro video di un minuto.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Zotac ZBOX PI336 pico
UHD Graphics (Elkhart Lake 16 EU), Celeron N6211, SanDisk DF4128
1476.3 μs * -163%
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
562 μs *
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * +7%
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
167.2 μs * +70%
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
116 μs * +79%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

La velocità di NVMe è limitata a PCIe3 x4, mentre la maggior parte dei nuovi modelli Intel NUC supporta pienamente PCIe4 x4. Tuttavia, PCIe3 è più che sufficiente per la maggior parte degli utenti e quindi il taglio di velocità non è significativo. Il nostro SSD di fascia media da 500 GB Kingston NV1 SSD è in grado di sostenere la velocità massima di lettura di circa 2500 MB/s senza alcun problema termico.

CDM 8
CDM 8
AS SSD
AS SSD
Slot M.2 NVMe primario
Slot M.2 NVMe primario
Alloggiamento secondario SATA da 2,5 pollici
Alloggiamento secondario SATA da 2,5 pollici
Kingston NV1 SNVS/500GCN
CDM 5/6 Read Seq Q32T1: 2440 MB/s
CDM 5/6 Write Seq Q32T1: 1764 MB/s
CDM 5/6 Read 4K Q32T1: 353.6 MB/s
CDM 5/6 Write 4K Q32T1: 270.8 MB/s
CDM 5 Read Seq: 1898 MB/s
CDM 5 Write Seq: 1727 MB/s
CDM 5/6 Read 4K: 50.6 MB/s
CDM 5/6 Write 4K: 117.8 MB/s
Drive Performance Rating - Percent
Beelink SER Pro Ryzen 5 5600H -11!
Kingston NV1 SNVS/500GCN
94.2 pt
Beelink GTR5
Kingston NV1 SNVS/500GCN
93.2 pt
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
92.9 pt
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
53.8 pt
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
34.1 pt
Zotac ZBOX PI336 pico
SanDisk DF4128
7.8 pt
DiskSpd
seq read
Beelink GTR5
Kingston NV1 SNVS/500GCN
1986 (1983.26min - 1986.21max) MB/s +1%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
1976 (1950.06min - 1975.69max) MB/s
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1638 (1628.34min - 1637.59max) MB/s -17%
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
687 MB/s -65%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s -74%
Zotac ZBOX PI336 pico
SanDisk DF4128
250 (248.23min - 249.69max) MB/s -87%
seq write
Beelink GTR5
Kingston NV1 SNVS/500GCN
1766 (564min - 1766.22max) MB/s +1%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
1746 (580.39min - 1746.23max) MB/s
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1661 (336.85min - 1661.33max) MB/s -5%
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
858 MB/s -51%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s -73%
Zotac ZBOX PI336 pico
SanDisk DF4128
105.7 (97.74min - 105.7max) MB/s -94%
seq q8 t1 read
Beelink GTR5
Kingston NV1 SNVS/500GCN
2511 (2320.5min - 2511.12max) MB/s +2%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
2456 (2261.06min - 2456.06max) MB/s
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
2374 (2218.75min - 2374.19max) MB/s -3%
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
1030 MB/s -58%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s -77%
Zotac ZBOX PI336 pico
SanDisk DF4128
254 (201.55min - 254.3max) MB/s -90%
seq q8 t1 write
Beelink GTR5
Kingston NV1 SNVS/500GCN
1797 (679.16min - 1796.66max) MB/s +2%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
1763 (714.42min - 1763.25max) MB/s
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1433 (67.32min - 1432.98max) MB/s -19%
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
980 MB/s -44%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s -71%
Zotac ZBOX PI336 pico
SanDisk DF4128
100.9 (42.78min - 100.87max) MB/s -94%
4k q1 t1 read
Beelink GTR5
Kingston NV1 SNVS/500GCN
51.1 (45.32min - 51.14max) MB/s +15%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
50.5 (48.13min - 50.48max) MB/s +14%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
44.3 (43.84min - 44.26max) MB/s
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
25.19 MB/s -43%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s -51%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.7 (13.61min - 13.69max) MB/s -69%
4k q1 t1 write
Beelink GTR5
Kingston NV1 SNVS/500GCN
203 (155.48min - 203.38max) MB/s +37%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
173.6 (113.3min - 173.62max) MB/s +17%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
147.9 (117.82min - 147.87max) MB/s
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
61.1 MB/s -59%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s -69%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.8 (12.91min - 13.8max) MB/s -91%
4k q32 t16 read
Beelink GTR5
Kingston NV1 SNVS/500GCN
747 (741.87min - 747.14max) MB/s 0%
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
747 (745.51min - 747.02max) MB/s
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
745 (742.2min - 744.53max) MB/s 0%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s -62%
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
251.1 MB/s -66%
Zotac ZBOX PI336 pico
SanDisk DF4128
26 (24.84min - 25.96max) MB/s -97%
4k q32 t16 write
Beelink SER Pro Ryzen 5 5600H
Kingston NV1 SNVS/500GCN
860 (472.56min - 860.33max) MB/s
Beelink GTR5
Kingston NV1 SNVS/500GCN
801 (384.08min - 801.12max) MB/s -7%
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
733 (332min - 733.18max) MB/s -15%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s -62%
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
257.7 MB/s -70%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.1 (12.24min - 13.12max) MB/s -98%
AS SSD
Score Total
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
2742 Points
Beelink GTR5
Kingston NV1 SNVS/500GCN
2544 Points
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
1944 Points
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points
Zotac ZBOX PI336 pico
SanDisk DF4128
136 Points
Score Read
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
975 Points
Beelink GTR5
Kingston NV1 SNVS/500GCN
966 Points
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
804 Points
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points
Zotac ZBOX PI336 pico
SanDisk DF4128
65 Points
Score Write
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1282 Points
Beelink GTR5
Kingston NV1 SNVS/500GCN
1103 Points
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
762 Points
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points
Zotac ZBOX PI336 pico
SanDisk DF4128
39 Points
Seq Read
Beelink GTR5
Kingston NV1 SNVS/500GCN
2289 MB/s
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
2246.84 MB/s
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
1306 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
264.86 MB/s
Seq Write
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
1764.26 MB/s
Beelink GTR5
Kingston NV1 SNVS/500GCN
1703 MB/s
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
611 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
117 MB/s
4K Read
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
44.12 MB/s
Beelink GTR5
Kingston NV1 SNVS/500GCN
43.84 MB/s
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
21.53 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.21 MB/s
4K Write
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
192.62 MB/s
Beelink GTR5
Kingston NV1 SNVS/500GCN
137.3 MB/s
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
53.5 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.46 MB/s
4K-64 Read
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
706.35 MB/s
Beelink GTR5
Kingston NV1 SNVS/500GCN
693 MB/s
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
652 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
25.74 MB/s
4K-64 Write
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
912.72 MB/s
Beelink GTR5
Kingston NV1 SNVS/500GCN
795 MB/s
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
648 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.71 MB/s
Access Time Read
Zotac ZBOX PI336 pico
SanDisk DF4128
0.311 ms *
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms *
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
0.114 ms *
Beelink GTR5
Kingston NV1 SNVS/500GCN
0.054 ms *
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
0.053 ms *
Access Time Write
Zotac ZBOX PI336 pico
SanDisk DF4128
0.942 ms *
Beelink SEi11 Pro
Kingston NV1 SNVS/500GCN
0.342 ms *
Beelink GTR5
Kingston NV1 SNVS/500GCN
0.332 ms *
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms *
Intel NUC10i7FNH
Kingston RBUSNS8154P3256GJ1
0.07 ms *

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0125250375500625750875100011251250137515001625175018752000212522502375Tooltip
Beelink SER Pro Ryzen 5 5600H: Ø2448 (2226.34-2468.25)

Prestazioni della GPU

Le prestazioni grafiche sono molto più veloci rispetto alla maggior parte degli altri laptop o mini PC con lo stesso sistema integrato Radeon RX Vega 7 Del 30-35%, perché questi prodotti di solito accoppiano la GPU con CPU Ryzen serie U più lente o solo con RAM a canale singolo. Il Ryzen 5 5600H fa meno da collo di bottiglia alla GPU e i frame rate ne beneficiano. Tuttavia, non è ancora una macchina da gioco.

La Iris Xe 96 EU comunemente presente nella maggior parte dei laptop o mini PC Intel Core i7 di 11a generazione è ancora più veloce del 10-15%.

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate
Time Spy
Time Spy
Fire Strike
Fire Strike
Fire Strike Ultra
Fire Strike Ultra

3DMark
1920x1080 Fire Strike Graphics
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7
17077 Points +323%
Honor MagicBook 14 2022
NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H
10621 Points +163%
Lenovo Yoga 7-14ARB G7
AMD Radeon 680M, AMD Ryzen 7 6800U
7279 Points +80%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
4523 Points +12%
Beelink GTR5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
4493 Points +11%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
4037 Points
Beelink SER4
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U
3927 Points -3%
Media AMD Radeon RX Vega 7
  (1772 - 4037, n=62)
3189 Points -21%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3152 Points -22%
Intel NUC10i7FNH
Intel UHD Graphics 620, Intel Core i7-10710U
1418 Points -65%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
523 Points -87%
2560x1440 Time Spy Graphics
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7
6599 Points +429%
Honor MagicBook 14 2022
NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H
3938 Points +216%
Lenovo Yoga 7-14ARB G7
AMD Radeon 680M, AMD Ryzen 7 6800U
2449 Points +96%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
1443 Points +16%
Beelink GTR5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1441 Points +16%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1247 Points
Beelink SER4
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U
1241 Points 0%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1031 Points -17%
Media AMD Radeon RX Vega 7
  (496 - 1249, n=57)
991 Points -21%
Intel NUC10i7FNH
Intel UHD Graphics 620, Intel Core i7-10710U
443 Points -64%
2560x1440 Time Spy Score
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7
6380 Points +354%
Honor MagicBook 14 2022
NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H
4326 Points +208%
Lenovo Yoga 7-14ARB G7
AMD Radeon 680M, AMD Ryzen 7 6800U
2722 Points +94%
Beelink GTR5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1647 Points +17%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
1612 Points +15%
Beelink SER4
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U
1412 Points 0%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
1405 Points
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1161 Points -17%
Media AMD Radeon RX Vega 7
  (570 - 1420, n=58)
1126 Points -20%
Intel NUC10i7FNH
Intel UHD Graphics 620, Intel Core i7-10710U
512 Points -64%
3DMark 11 - 1280x720 Performance GPU
Intel NUC11PHKi7C
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-1165G7
23992 Points +295%
Honor MagicBook 14 2022
NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H
15411 Points +154%
Lenovo Yoga 7-14ARB G7
AMD Radeon 680M, AMD Ryzen 7 6800U
9507 Points +56%
Beelink GTR5
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
7102 Points +17%
Beelink SEi11 Pro
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
6571 Points +8%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
6079 Points
Beelink SER4
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U
6036 Points -1%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5221 Points -14%
Media AMD Radeon RX Vega 7
  (3353 - 6249, n=58)
5054 Points -17%
Intel NUC10i7FNH
Intel UHD Graphics 620, Intel Core i7-10710U
1983 Points -67%
Zotac ZBOX PI336 pico
Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211
650 Points -89%
3DMark 11 Performance
6372 punti
3DMark Cloud Gate Standard Score
20373 punti
3DMark Fire Strike Score
3638 punti
3DMark Time Spy Score
1405 punti
Aiuto
Blender - v3.3 Classroom CPU
Media della classe Mini PC
  (305 - 7856, n=88, ultimi 2 anni)
1063 Seconds * -60%
Beelink SER Pro Ryzen 5 5600H
AMD Radeon RX Vega 7, AMD Ryzen 5 5600H
666 Seconds *

* ... Meglio usare valori piccoli

GTA V
1024x768 Lowest Settings possible
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
183.2 (2.84min, 125P1) fps +38%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
168 (5.58min, 111P1) fps +26%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
140 (14min, 90.9P1) fps +5%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
132.9 (18.4min, 90.9P1) fps
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
131.1 (6.99min, 76.9P1) fps -1%
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
110 (19.4min, 71.4P1) fps -17%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
94.2 (16.5min, 58.8P1) fps -29%
Media AMD Radeon RX Vega 7
  (43.1 - 140.7, n=35)
89.5 fps -33%
1920x1080 Lowest Settings possible
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
156 (4.99min, 111P1) fps +93%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
81.8 (10.6min, 58.8P1) fps +1%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
81 (12.3min, 58.8P1) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
71.5 (8.83min, 52.6P1) fps -12%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
65.9 (13.2min, 45.5P1) fps -19%
Media AMD Radeon RX Vega 7
  (25.1 - 81.3, n=27)
56.2 fps -31%
1366x768 Normal/Off AF:4x
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
175.8 (3.76min, 125P1) fps +49%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
158 (4.65min, 90.9P1) fps +34%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
124 (14.4min, 83.3P1) fps +5%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
119.6 (26.1min, 76.9P1) fps +2%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
117.6 (20.9min, 71.4P1) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
98.3 (13.8min, 62.5P1) fps -16%
Media AMD Radeon RX Vega 7
  (38 - 123, n=33)
78.7 fps -33%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
77.6 (21.9min, 50P1) fps -34%
1920x1080 Normal/Off AF:4x
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
147 (4.13min, 90.9P1) fps +80%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
84.6 (9.51min, 58.8P1) fps +3%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
81.8 (14.1min, 55.6P1) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
72.2 (6.79min, 50P1) fps -12%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
57.3 (22.2min, 38.5P1) fps -30%
Media AMD Radeon RX Vega 7
  (26.3 - 82.7, n=28)
57.1 fps -30%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
119 (39.3min, 76.9P1) fps +270%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
111.5 (33.4min, 71.4P1) fps +246%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
49.5 (0.668min, 32.3P1) fps +54%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
33.4 (6.39min, 24.4P1) fps +4%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
32.2 (8.1min, 23.3P1) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.6 (5.48min, 21.7P1) fps -8%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
23.2 (11.5min, 15.9P1) fps -28%
Media AMD Radeon RX Vega 7
  (11.3 - 32.2, n=36)
22.7 fps -30%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
69.6 (19.2min, 47.6P1) fps +380%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
55.8 (15.1min, 37P1) fps +285%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
23.5 (1.5min, 16.4P1) fps +62%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.1 (3.94min, 10.6P1) fps +4%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
14.5 (4.85min, 10.3P1) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.4 (3.61min, 9.62P1) fps -8%
Media AMD Radeon RX Vega 7
  (5.09 - 15, n=34)
10 fps -31%
The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
220.7 (196min) fps +179%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
217 fps +174%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
126 fps +59%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
89.7 (45min) fps +13%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
86.9 (77min) fps +10%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
79.2 (75min) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
64.2 (51min) fps -19%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
59.8 (53min) fps -24%
Media AMD Radeon RX Vega 7
  (25.5 - 105.8, n=50)
58.1 fps -27%
1366x768 Medium Graphics & Postprocessing
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
152.2 (142min) fps +213%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
141 fps +190%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
76 fps +56%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
55.2 (52min) fps +13%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
53.7 (44min) fps +10%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
48.7 (45min) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
45.2 (41min) fps -7%
Media AMD Radeon RX Vega 7
  (9.74 - 81.3, n=37)
34.1 fps -30%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
101.5 (96min) fps +304%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
78 fps +211%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
43 fps +71%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
27.8 (25min) fps +11%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.8 (25min) fps +7%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
25.1 (22min) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.6 (21min) fps -10%
Media AMD Radeon RX Vega 7
  (8.96 - 26.2, n=49)
18.1 fps -28%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
61.4 (59min) fps +289%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
39.6 (38min, 38P1) fps +151%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
25.4 (19min, 24P1) fps +61%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
17.1 (15min) fps +8%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
15.8 (14min) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.3 (13min) fps -9%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
13.8 (12min) fps -13%
Media AMD Radeon RX Vega 7
  (6.5 - 15.8, n=42)
11.9 fps -25%
X-Plane 11.11
1280x720 low (fps_test=1)
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
117 fps +119%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
94.8 fps +78%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
58.2 fps +9%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
58.2 fps +9%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
54.6 fps +2%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
53.4 fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
41.1 fps -23%
Media AMD Radeon RX Vega 7
  (24.7 - 53.4, n=56)
39.3 fps -26%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37.1 fps -31%
Intel NUC10i7FNH
Intel Core i7-10710U, Intel UHD Graphics 620
11.6 fps -78%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
7.76 fps -85%
1920x1080 med (fps_test=2)
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
93.6 fps +132%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
81.3 fps +102%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
45.7 fps +13%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
41.9 fps +4%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
41.2 fps +2%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
40.3 fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
33.2 fps -18%
Media AMD Radeon RX Vega 7
  (19.3 - 40.3, n=56)
30.5 fps -24%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
27.3 fps -32%
Intel NUC10i7FNH
Intel Core i7-10710U, Intel UHD Graphics 620
13.5 fps -67%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
4.97 fps -88%
1920x1080 high (fps_test=3)
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
82.3 fps +131%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
69.8 fps +96%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
40.5 fps +13%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
37.3 fps +4%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
36.2 fps +1%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
35.7 fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
29.5 fps -17%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
29.1 fps -18%
Media AMD Radeon RX Vega 7
  (17.4 - 35.7, n=56)
27.2 fps -24%
Intel NUC10i7FNH
Intel Core i7-10710U, Intel UHD Graphics 620
11 fps -69%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
4.64 fps -87%
Dota 2 Reborn
1280x720 min (0/3) fastest
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
159.3 (143.4min) fps +16%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
139 (124.5min) fps +1%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
137.5 (109.5min) fps
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
135 (115.7min) fps -2%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
119.6 (108.4min) fps -13%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
114.6 (100.4min) fps -17%
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
103 (88.1min) fps -25%
Media AMD Radeon RX Vega 7
  (32.9 - 137.7, n=58)
99 fps -28%
Intel NUC10i7FNH
Intel Core i7-10710U, Intel UHD Graphics 620
81.3 (71.9min) fps -41%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
73.8 (47.9min) fps -46%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
24.3 (20.6min) fps -82%
1366x768 med (1/3)
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
143.6 (127min) fps +39%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
123 (107.7min) fps +19%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
107 (88.2min) fps +4%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
103.1 (78.3min) fps
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
97.6 (84.4min) fps -5%
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
83.3 (67.5min) fps -19%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
78.6 (66.2min) fps -24%
Media AMD Radeon RX Vega 7
  (32.7 - 107.8, n=58)
76.7 fps -26%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
56 (40.8min) fps -46%
Intel NUC10i7FNH
Intel Core i7-10710U, Intel UHD Graphics 620
52.5 (48min) fps -49%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
10.9 (8.1min) fps -89%
1920x1080 high (2/3)
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
138.1 (121.4min) fps +133%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
116 (100.9min) fps +96%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
74 (65.1min) fps +25%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
63.8 (56.8min) fps +8%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
59.3 (52.5min) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
53.1 (44.7min) fps -10%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
50.4 (41.9min) fps -15%
Media AMD Radeon RX Vega 7
  (25.1 - 62.1, n=58)
44.8 fps -24%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
34.2 (20min) fps -42%
Intel NUC10i7FNH
Intel Core i7-10710U, Intel UHD Graphics 620
22.4 (21min) fps -62%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
5.8 (2.3min) fps -90%
1920x1080 ultra (3/3) best looking
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
130.1 (114.7min) fps +131%
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
112 (98.7min) fps +99%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
64.2 (56.1min) fps +14%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
59.9 (53.3min) fps +6%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
56.3 (49.3min) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
51.1 (44.6min) fps -9%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
47.4 (40.8min) fps -16%
Media AMD Radeon RX Vega 7
  (23.3 - 58.2, n=58)
41.9 fps -26%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
31.4 (18.2min) fps -44%
Intel NUC10i7FNH
Intel Core i7-10710U, Intel UHD Graphics 620
19.9 (18.7min) fps -65%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
5.2 (2.4min) fps -91%
Cyberpunk 2077 1.6
1920x1080 Low Preset
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
49 fps +134%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
34 fps +63%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
20.9 (14min) fps
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
18.6 (8.1min) fps -11%
Media AMD Radeon RX Vega 7
  (10 - 20.9, n=4)
16.9 fps -19%
1920x1080 Medium Preset
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
42 fps +159%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
26 fps +60%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
16.2 (12min) fps
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
15.6 (7.8min) fps -4%
Media AMD Radeon RX Vega 7
  (11.6 - 16.2, n=4)
14 fps -14%
1920x1080 High Preset
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
30 fps +163%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
19 fps +67%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
11.7 (6.1min) fps +3%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
11.4 (8.7min) fps
Media AMD Radeon RX Vega 7
  (8.5 - 11.4, n=4)
9.83 fps -14%
Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
130 fps +216%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
112.6 fps +174%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
68.5 fps +67%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
44.8 fps +9%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
41.1 fps
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
38.6 fps -6%
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.3 fps -9%
Media AMD Radeon RX Vega 7
  (17.1 - 41.1, n=40)
30.4 fps -26%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
26.8 fps -35%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
3.45 fps -92%
1920x1080 Standard Quality
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
89.2 fps +339%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
60.8 fps +200%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
34 fps +67%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.3 fps +10%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
20.3 fps 0%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
20.3 fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19.2 fps -5%
Media AMD Radeon RX Vega 7
  (8.9 - 20.3, n=40)
15.4 fps -24%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
13.7 fps -33%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
1.66 fps -92%
1920x1080 High Quality
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
67.5 fps +372%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
42.9 fps +200%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
24.2 fps +69%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
15.7 fps +10%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
14.9 fps +4%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
14.3 fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.8 fps -3%
Intel NUC11TNKi5
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
10.5 fps -27%
Media AMD Radeon RX Vega 7
  (5.85 - 14.3, n=37)
10.5 fps -27%
Strange Brigade
1280x720 lowest AF:1
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
287 (77min, 220P1) fps +201%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
198.7 (96.8min, 155P1) fps +108%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
140.5 (68.9min, 108.3P1) fps +47%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
99.1 (72.8min, 85.4P1) fps +4%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
95.3 (72.8min, 84.4P1) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
82.3 (43.8min, 72.3P1) fps -14%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
79.3 (18.8min, 25.6P1) fps -17%
Media AMD Radeon RX Vega 7
  (34.8 - 95.3, n=41)
70.4 fps -26%
Zotac ZBOX PI336 pico
Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
9.2 (5min, 5P1) fps -90%
1920x1080 medium AA:medium AF:4
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
148 (64.5min, 124P1) fps +311%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
89.7 (71.8min, 77.7P1) fps +149%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
58.4 (43.4min, 50P1) fps +62%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.8 (31.8min, 33.6P1) fps +5%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
36 (29.9min, 31P1) fps
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
33.9 (10.3min, 19.8P1) fps -6%
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
33.3 (24min, 29.6P1) fps -7%
Media AMD Radeon RX Vega 7
  (13.4 - 36.1, n=41)
27.1 fps -25%
1920x1080 high AA:high AF:8
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
124 (75.3min, 98P1) fps +312%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
74 (52.9min, 56.5P1) fps +146%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
48.1 (20.7min, 36.9P1) fps +60%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31.9 (23.5min, 25.5P1) fps +6%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
30.1 (23.7min, 24.1P1) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
28.1 (20.4min, 22.5P1) fps -7%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
27.7 (10min, 15.1P1) fps -8%
Media AMD Radeon RX Vega 7
  (11.5 - 30.1, n=41)
22.7 fps -25%
1920x1080 ultra AA:ultra AF:16
Intel NUC11PHKi7C
Intel Core i7-1165G7, NVIDIA GeForce RTX 2060 Mobile
109 (68.2min, 83.9P1) fps +327%
Honor MagicBook 14 2022
Intel Core i5-12500H, NVIDIA GeForce RTX 2050 Mobile
65.3 (38.1min, 50.7P1) fps +156%
Lenovo Yoga 7-14ARB G7
AMD Ryzen 7 6800U, AMD Radeon 680M
41.8 (21.9min, 23.8P1) fps +64%
Beelink GTR5
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
27.5 (21.3min, 22.3P1) fps +8%
Beelink SER Pro Ryzen 5 5600H
AMD Ryzen 5 5600H, AMD Radeon RX Vega 7
25.5 (19.5min, 20.8P1) fps
Beelink SER4
AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24 (17.8min, 19.5P1) fps -6%
Beelink SEi11 Pro
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
22.2 (5.6min, 7.76P1) fps -13%
Media AMD Radeon RX Vega 7
  (9.9 - 25.5, n=39)
19.4 fps -24%

I frame rate purtroppo non sono così costanti come speravamo. Quando il gioco è al minimo Witcher 3 a impostazioni basse a 720p, il frame rate a volte scendeva a 60 FPS o addirittura a 19 FPS, apparentemente senza motivo, come mostra il grafico qui sotto. La scarsa gestione delle attività in background è probabilmente responsabile dell'interruzione dei frame rate.

Witcher 3 FPS Chart

051015202530354045505560657075Tooltip
basso medio alto ultra
GTA V (2015) 132.9 117.6 32.2 14.5
The Witcher 3 (2015) 79.2 48.7 25.1 15.8
Dota 2 Reborn (2015) 137.5 103.1 59.3 56.3
Final Fantasy XV Benchmark (2018) 41.1 20.3 14.3
X-Plane 11.11 (2018) 53.4 40.3 35.7
Strange Brigade (2018) 95.3 36 30.1 25.5
Cyberpunk 2077 1.6 (2022) 20.9 16.2 11.4

Emissioni

Rumore del sistema

La nostra unità di prova soffre di rumore elettronico o coil whine. Pertanto, siamo riusciti a registrare un rumore di 26,1 dB(A) contro uno sfondo silenzioso di 22,8 dB(A) anche quando è al minimo sul desktop senza applicazioni in esecuzione. Il rumore della ventola si aggira intorno ai 28,7 dB(A) durante carichi tipici come la navigazione web o lo streaming video, più silenzioso rispetto al NUC11TNK.

Il rumore della ventola oscilla tra i 32 e i 37 dB(A) quando si eseguono carichi più impegnativi come i giochi, anche in questo caso più silenzioso rispetto al NUC11TNK e al più veloce Beelink GTR5. Si tratta di un mini PC silenzioso rispetto alle prestazioni ottenute.

Profilo del rumore della ventola (bianco: Sfondo, Rosso: Sistema inattivo, Blu: 3DMark 06, Arancione: Witcher 3, Verde: Prime95 stress)
Profilo del rumore della ventola (bianco: Sfondo, Rosso: Sistema inattivo, Blu: 3DMark 06, Arancione: Witcher 3, Verde: Prime95 stress)

Rumorosità

Idle
26.1 / 26.1 / 28.7 dB(A)
Sotto carico
32.3 / 36.4 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 22.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.534.334.63736.636.52526.926.726.829.528.126.93125.729.122.325.621.925.74022.322.125.721.92222.35017.920.221.32120.617.96318.217.818.617.922.118.28018.120.22119.919.418.110017.823.81820.920.217.812516.419.52020.618.116.416012.516.920.620.814.412.520011.62119.617.915.111.625011.11918.817.113.211.131513.621.119.819.116.213.640012.221.318.91813.512.250010.521.219.819.513.410.56301023.420.620.511.7108008.924.821.821.3128.910009.525.321.720.712.39.512509.525.221.620.611.39.516009.825.321.421.511.79.820009.926.822.822.211.99.9250010.525.523.321.71210.5315010.725.820.319.912.710.740001125.620.119.611.711500011.323.918.117.711.511.3630011.516.113.213.812.111.5800011.615.115.316.51511.61000011.519.719.719.519.211.51250011.523.123.123.723.811.51600010.514.314.915.613.410.5SPL22.836.432.832.326.122.8N0.42.31.71.60.70.4median 11.1median 23.1median 20median 19.9median 13.2median 11.1Delta13.21.61.82.11hearing rangehide median Fan NoiseBeelink SER Pro Ryzen 5 5600H
Beelink SER Pro Ryzen 5 5600H
Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
Beelink SEi11 Pro
Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN
Beelink GTR5
Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
Beelink SER4
Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8
Noise
1%
-24%
-23%
-7%
-18%
off /ambiente *
22.8
22.8
-0%
23.1
-1%
24.8
-9%
24.5
-7%
23.4
-3%
Idle Minimum *
26.1
24.7
5%
34.2
-31%
35.6
-36%
26.5
-2%
33.2
-27%
Idle Average *
26.1
24.7
5%
34.2
-31%
35.6
-36%
26.5
-2%
33.2
-27%
Idle Maximum *
28.7
25.3
12%
34.2
-19%
35.6
-24%
31.1
-8%
33.2
-16%
Load Average *
32.3
33.2
-3%
44.6
-38%
36.2
-12%
37.7
-17%
38.6
-20%
Witcher 3 ultra *
32.8
34.5
-5%
41.4
-26%
38
-16%
39.2
-20%
Load Maximum *
36.4
37.8
-4%
45.1
-24%
47.6
-31%
37.5
-3%
40.8
-12%

* ... Meglio usare valori piccoli

Temperatura

L'adattatore CA può raggiungere i 52 C quando è sotto carico
L'adattatore CA può raggiungere i 52 C quando è sotto carico

L'aria fredda entra dalla parte superiore e il calore residuo esce dalla parte posteriore. Per un raffreddamento ottimale, è necessario tenere la parte superiore libera da libri, fogli o altre ostruzioni.

Sistema inattivo (parte anteriore)
Sistema inattivo (parte anteriore)
Sistema inattivo (retro)
Sistema inattivo (retro)
Stress Prime95+FurMark (anteriore)
Stress Prime95+FurMark (anteriore)
Stress Prime95+FurMark (retro)
Stress Prime95+FurMark (retro)

Stress test

La velocità di clock della CPU e l'assorbimento di potenza della scheda si stabilizzavano rispettivamente a 3,0 GHz e 35 W all'avvio di Prime95. 35 W sono nella parte bassa dello spettro per il Ryzen 5 5600H e quindi è un po' deludente non vedere obiettivi di TDP più elevati sul SER5. La temperatura del core è già abbastanza alta, 85 C, il che potrebbe spiegare il basso valore di 35 W.

L'esecuzione Witcher 3 si ottiene una temperatura del core di 75 C rispetto ai 57 C dell'Intel NUC11PAQ Intel NUC11PAQ. Il sistema Beelink funziona un po' più caldo dell'Intel nella maggior parte delle condizioni.

Sistema inattivo
Sistema inattivo
Witcher 3 stress
Witcher 3 stress
Stress Prime95
Stress Prime95
Stress di Prime95+FurMark
Stress di Prime95+FurMark
Clock della CPU (GHz) Clock della GPU (MHz) Temperatura media della CPU (°C)
Sistema inattivo -- -- 39
Stress Prime95 3.0 -- 85
Prime95 + FurMark Stress 2,8 980 84
Witcher 3 Stress ~0,9 1800 75

Gestione dell'energia

Consumo di energia

Il consumo energetico è generalmente più elevato rispetto ai modelli con CPU Ryzen serie U o Core serie U, poiché la nostra CPU Ryzen serie H punta a livelli di TDP relativamente più elevati. L'Intel NUC11 con il Core i5-1135G7per esempio, richiederebbe tra i 40 e i 44 W quando si gioca, rispetto ai 46-50 W del nostro Beelink. Le prestazioni per watt sono comunque migliori con il Ryzen 5 5600H, soprattutto in termini di prestazioni della CPU multi-thread

Siamo riusciti a registrare un consumo massimo di 50,2 W dall'adattatore CA a muro da 57 W di dimensioni medio-piccole (~10 x 4,9 x 3,3 cm) quando la CPU è utilizzata al 100%. Sospettiamo che questo valore possa salire ulteriormente se si collegano più dispositivi USB o monitor USB-C esterni.

consumo energetico di 3DMark 06
consumo energetico di 3DMark 06
Witcher 3 1080p Ultra stress
Witcher 3 1080p Ultra stress
L'avvio del Prime95 provoca un'impennata dei consumi, che si stabilizzano a 54 W senza cali significativi
L'avvio del Prime95 provoca un'impennata dei consumi, che si stabilizzano a 54 W senza cali significativi
Stress di Prime95+FurMark
Stress di Prime95+FurMark
Consumo di corrente
Off / Standbydarklight 0.6 / 1 Watt
Idledarkmidlight 5.4 / 8.2 / 8.3 Watt
Sotto carico midlight 49.3 / 50.2 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
Beelink SER Pro Ryzen 5 5600H
R5 5600H, Vega 7, Kingston NV1 SNVS/500GCN, , x,
Beelink SEi11 Pro
i5-11320H, Iris Xe G7 96EUs, Kingston NV1 SNVS/500GCN, , x,
Beelink GTR5
R9 5900HX, Vega 8, Kingston NV1 SNVS/500GCN, , x,
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Beelink SEi8
i3-8109U, Iris Plus Graphics 655, Intel SSD 660p SSDPEKNW512G8, , x,
Beelink SER4
R7 4800U, Vega 8, Intel SSD 660p SSDPEKNW512G8, , x,
Power Consumption
-30%
-28%
-41%
-2%
32%
Idle Minimum *
5.4
9.8
-81%
6.2
-15%
11.5
-113%
7.5
-39%
4.1
24%
Idle Average *
8.2
10.3
-26%
8.9
-9%
12.4
-51%
7.6
7%
4.1
50%
Idle Maximum *
8.3
10.5
-27%
9
-8%
12.9
-55%
9.2
-11%
4.6
45%
Load Average *
49.3
54.2
-10%
66.8
-35%
40.7
17%
41.1
17%
35.6
28%
Witcher 3 ultra *
46.1
53.1
-15%
62.6
-36%
43.9
5%
35.6
23%
Load Maximum *
50.2
59
-18%
81.6
-63%
73.5
-46%
41.4
18%
39.9
21%

* ... Meglio usare valori piccoli

Power Consumption Witcher 3 / Stresstest

05101520253035404550Tooltip
Beelink SER Pro Ryzen 5 5600H; Witcher 3 ultra: Ø46.1 (45.2-47.8)
Beelink SER Pro Ryzen 5 5600H; 1280x720 Prime95 28.10 and Furmark 1.25: Ø54.3 (50.1-55)

Power Consumption external Monitor

05101520253035404550Tooltip
Beelink SER Pro Ryzen 5 5600H; Prime95 V2810 Stress (external Monitor): Ø53.3 (52.3-54)
Beelink SER Pro Ryzen 5 5600H; Cinebench R15 Multi (external Monitor): Ø48.2 (47.8-48.5)
Beelink SER Pro Ryzen 5 5600H; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.5 (48.2-50.5)
Beelink SER Pro Ryzen 5 5600H; 1920x1080 The Witcher 3 ultra (external Monitor): Ø46.1 (45.2-47.8)

Pro

+ accessibile 2x SODIMM, 2x alloggiamenti di archiviazione
+ ottime prestazioni della CPU per il prezzo
+ Wi-Fi 6E standard
+ relativamente silenzioso
+ poco costoso

Contro

- prestazioni wireless lente secondo gli standard Wi-Fi 6E
- periodo di garanzia più breve rispetto ai NUC Intel
- nessun supporto Thunderbolt o PD-in
- le viti piccole si spanano facilmente
- fruscio della bobina

Verdetto - Un'altra eccellente alternativa all'Intel NUC11

In recensione: Beelink SER5 Pro. Unità di prova fornita da Beelink
In recensione: Beelink SER5 Pro. Unità di prova fornita da Beelink

Al prezzo di circa 450 dollari, il Beelink SER5 Pro viene fornito completo di 16 GB di RAM, 500 GB di memoria e una copia con licenza di Windows 11 Pro. Al contrario, un Intel NUC11PAHi7 dotato della stessa capacità di memoria e RAM costa attualmente quasi 900 dollari. Il SER5 è anche in grado di offrire prestazioni del processore più veloci rispetto all'Intel e molte delle stesse opzioni di aggiornamento, tra cui SODIMM e doppio storage. Se state cercando di risparmiare qualche centinaio di dollari, allora il Beelink dovrebbe essere in cima alla vostra lista di considerazioni.

Il Beelink SER5 Pro costa centinaia di dollari in meno rispetto a un NUC Intel con prestazioni simili. Le aziende potrebbero continuare a preferire l'affidabilità del NUC, ma la maggior parte degli utenti domestici vorrà prendere in considerazione il più conveniente Beelink.

Ci sono alcuni accorgimenti, ma nessuno di essi ha un impatto significativo sull'esperienza d'uso. Rispetto al NUC Intel, il SER5 Pro non dispone di Thunderbolt, di un blocco antifurto, del supporto per SSD PCIe4, di una garanzia di tre anni del produttore e di uno chassis più robusto. Il NUC può ancora essere l'investimento migliore se queste caratteristiche sono importanti per voi, ma il risparmio di prezzo è comunque sostanziale.

Prezzo e disponibilità

Il Beelink SER5 è ora disponibile sul sito su Amazon per poco meno di 400 dollari.

Pricecompare

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del mini PC Beelink SER5 Pro 5600H: NUC 11 veloce con AMD Ryzen
Allen Ngo, 2022-10- 2 (Update: 2022-10- 2)
