Recensione del mini PC Beelink SER6 Pro Ryzen 7 7735HS: Ora con DisplayPort integrata

Basta acquistare il modello 2022 più vecchio. Non lasciatevi ingannare dal nome della nuova serie 7000, perché si tratta di un processore della serie 6000. Lo Zen 3+ Ryzen 7 7735HS è ancora potente, soprattutto per quanto riguarda la grafica integrata, ma non offre sostanzialmente nulla in più rispetto al meno costoso Ryzen 7 6800H o al vecchio Ryzen 9 6900HS.
2023 Beelink SER6 Pro Ryzen 7 7735HS
2023 Beelink SER6 Pro Ryzen 7 7735HS

Il modello 2023 Beelink SER6 Pro è un aggiornamento del modello 2022 SER6 Pro. Sostituisce le vecchie opzioni Ryzen 7 6800 o Ryzen 9 6900HS del modello dello scorso anno con il più recente Ryzen 7 7735HS. A parte l'aggiornamento del processore, tuttavia, lo chassis rimane identico con un solo cambiamento degno di nota.

La nostra unità di recensione con Ryzen 7 7735HS, 32 GB di RAM, 500 GB di SSD NVMe e Windows 10 Pro preinstallato si può trovare online a circa 650 dollari o 550 dollari se in offerta. Il modello è in diretta concorrenza con altri mini PC, in particolare con la serie NUC di Intel.

Altre recensioni di Beelink:

  • SEi12
  • SEi11
  • SER5 Pro
  • GTR6
  • U59
Beelink SER6 Pro Ryzen 7 7735HS
Processore
AMD Ryzen 7 7735HS 8 x 3.2 - 4.8 GHz, 45 W PL2 / Short Burst, 38 W PL1 / Sustained, Rembrandt-HS Refresh
Scheda grafica
AMD Radeon 680M - 3 GB VRAM, Memoria: 2400 MHz, DDR5, 23.4.1
Memoria
32 GB
, DDR5, 2400 MHz, 40-39-39-77, Dual-Channel
Scheda madre
AMD Promontory/Bixby FCH
Harddisk
Kingston NV2 500GB SNV2S/500G, 500 GB
Scheda audio
AMD Zen - Audio Processor - HD Audio Controller
Porte di connessione
4 USB 3.0 / 3.1, 1 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Connessioni Audio: 3.5 mm headset
Rete
Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Dimensioni
altezza x larghezza x profondità (in mm): 42 x 126 x 113
Sistema Operativo
Microsoft Windows 11 Pro
Altre caratteristiche
12 Mesi Garanzia

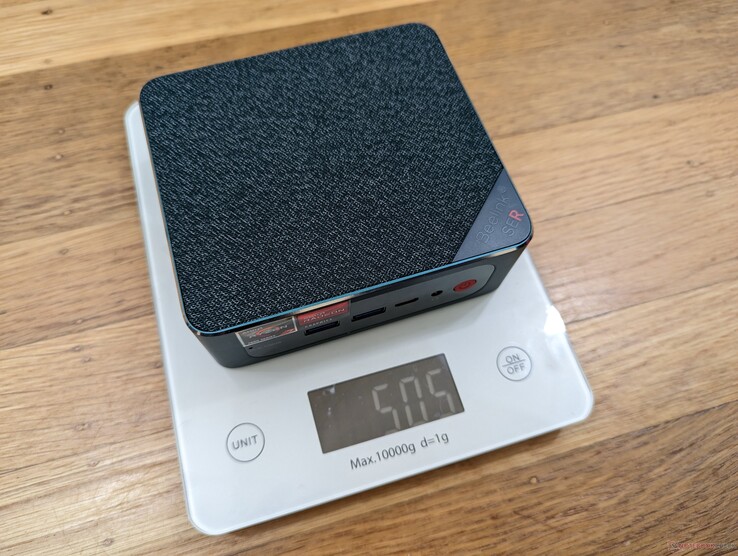

Peso
506 gr, Alimentazione: 496 gr
Prezzo
550 USD
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confronto

Punteggio
Data
Modello
Peso
Altezza
Dimensione
Risoluzione
Miglior Prezzo
84.8 %
04/2023
Beelink SER6 Pro Ryzen 7 7735HS
R7 7735HS, Radeon 680M
506 gr42 mmx
01/2023
Beelink SER6 Pro
R7 6800H, Radeon 680M
511 gr42 mmx
11/2022
Beelink GTR6
R9 6900HX, Radeon 680M
815 gr43 mmx
80.8 %
04/2023
Intel NUC 13 Pro Kit NUC13ANK
i7-1360P, Iris Xe G7 96EUs
538 gr37 mmx
03/2023
Intel NUC 12 Pro Kit NUC12WSBi5
i5-1240P, Iris Xe G7 80EUs
549 gr45.6 mmx
86.1 %
02/2023
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
621 gr48 mmx

Caso

Non ci sono modifiche sostanziali al design dello chassis, tranne un'eccezione: la seconda porta HDMI del modello dello scorso anno è stata sostituita da una DisplayPort full-size. Questa scelta è in realtà preferibile, in quanto la DisplayPort ha una migliore compatibilità con le frequenze di aggiornamento più elevate e con i monitor a sincronizzazione adattiva rispetto all'HDMI.

Il tessuto traspirante torna a consentire l'installazione di due ventole individuali sui lati superiore e inferiore dell'unità
Il tessuto traspirante torna a consentire l'installazione di due ventole individuali sui lati superiore e inferiore dell'unità
La linguetta in gomma facilita la presa e la rimozione del pannello inferiore
La linguetta in gomma facilita la presa e la rimozione del pannello inferiore
Porte posteriori. Si noti la nuova porta DP che ha sostituito una delle porte HDMI del modello dello scorso anno
Porte posteriori. Si noti la nuova porta DP che ha sostituito una delle porte HDMI del modello dello scorso anno
Piccolo-medio (14,5 x 6,3 x 3 cm) Adattatore CA 120 W
Piccolo-medio (14,5 x 6,3 x 3 cm) Adattatore CA 120 W

Confronto delle dimensioni

168 mm 120 mm 43 mm 815 g129 mm 126 mm 48 mm 621 g126 mm 113 mm 42 mm 506 g126 mm 113 mm 42 mm 511 g117 mm 112 mm 45.6 mm 549 g117 mm 112 mm 37 mm 538 g210 mm 148 mm 1 mm 2.9 g

Comunicazione

Moduli di comunicazione cablati e wireless integrati, confronto dei dati dei test di rete con la concorrenza, soluzioni alternative disponibili (5G/LTE)?, Irregolarità (ricezione radio)?

Networking
iperf3 transmit AXE11000
Beelink SER6 Pro
Intel Wi-Fi 6 AX200
1273 (1063min - 1401max) MBit/s +19%
Beelink SER6 Pro Ryzen 7 7735HS
Intel Wi-Fi 6 AX200
1069 (800min - 1158max) MBit/s
Minisforum Venus Series UM690
MediaTek RZ608
943 (477min - 981max) MBit/s -12%
Beelink GTR6
MediaTek RZ608
909 (429min - 966max) MBit/s -15%
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
833 (805min - 866max) MBit/s -22%
iperf3 receive AXE11000
Beelink SER6 Pro Ryzen 7 7735HS
Intel Wi-Fi 6 AX200
1356 (1119min - 1463max) MBit/s
Beelink SER6 Pro
Intel Wi-Fi 6 AX200
1282 (247min - 1409max) MBit/s -5%
Minisforum Venus Series UM690
MediaTek RZ608
956 (944min - 963max) MBit/s -29%
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
939 (921min - 952max) MBit/s -31%
Beelink GTR6
MediaTek RZ608
860 (440min - 882max) MBit/s -37%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
1445 (736min - 1476max) MBit/s
Beelink GTR6
MediaTek RZ608
948 (476min - 1030max) MBit/s
Minisforum Venus Series UM690
MediaTek RZ608
787 (638min - 865max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
1668 (1467min - 1725max) MBit/s
Minisforum Venus Series UM690
MediaTek RZ608
961 (954min - 967max) MBit/s
Beelink GTR6
MediaTek RZ608
886 (867min - 900max) MBit/s
0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450Tooltip
Beelink SER6 Pro Ryzen 7 7735HS; iperf3 transmit AXE11000; iperf 3.1.3: Ø1069 (800-1158)
Beelink SER6 Pro Ryzen 7 7735HS; iperf3 receive AXE11000; iperf 3.1.3: Ø1356 (1119-1463)

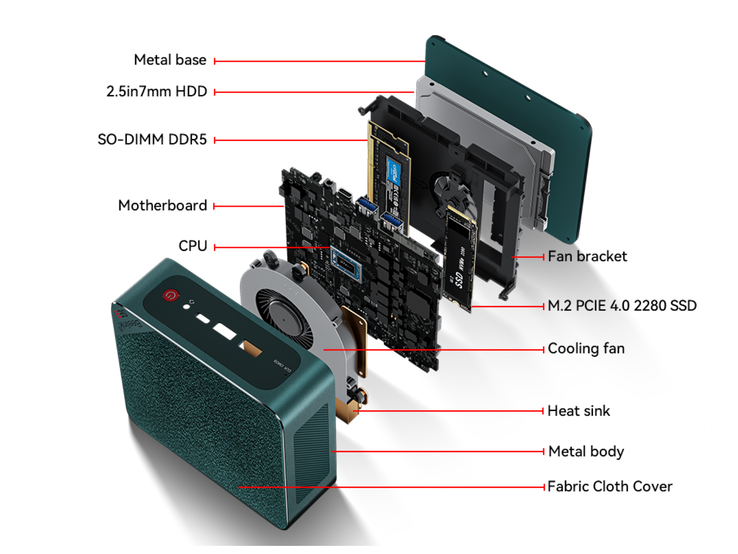

Manutenzione

La manutenzione è rimasta invariata rispetto al modello dello scorso anno. Gli utenti hanno a disposizione 2 alloggiamenti per l'archiviazione (1 PCIe4 x4 M.2 2280, 1 SATA III da 2,5 pollici) e 2 slot DDR5 SODIMM per l'espansione.

(Fonte: Beelink)
(Fonte: Beelink)

Accessori e garanzia

La garanzia standard limitata di un anno si applica se il prodotto viene acquistato negli Stati Uniti. La confezione include un manuale, una staffa VESA rimovibile per il montaggio a parete, due cavi HDMI e l'adattatore CA.

Prestazioni



Condizioni di test

Abbiamo impostato la nostra unità in modalità Prestazioni tramite Windows prima di eseguire i benchmark qui sotto. Non c'è un'applicazione tipo "Command Center" preinstallata, a differenza di molti altri portatili o PC di grandi marche.

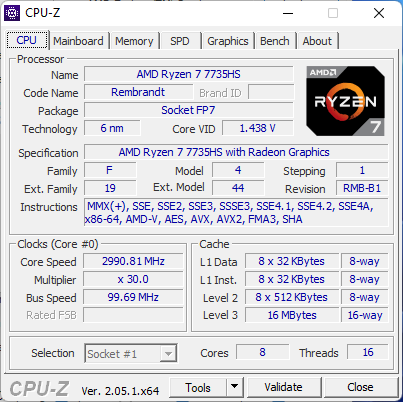

Processore

Proprio come abbiamo scoperto sul Lenovo Slim 7 Pro recentemente recensito, il Ryzen 7 7735HS 2023 ha prestazioni quasi identiche ai vecchi Ryzen 7 6800H o Ryzen 9 6900HS. Questo perché il Ryzen 7 7735HS è in gran parte un rebrand della vecchia serie Zen 3+, nonostante il suo recente lancio all'inizio del mese scorso. Di conseguenza, anche il vecchio Core i7-12700H di 12a generazione può superare il Ryzen 7 7735HS in quasi tutto, tranne che nelle prestazioni grafiche integrate.

Per un "vero" processore AMD di ultima generazione, dovreste invece acquistare lo Zen 4 Ryzen 9 7945HX. Purtroppo, questa opzione non è disponibile sul SER6 Pro.

Cinebench R15 Multi Loop

011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS: Ø1891 (1862.98-1952.55)
Beelink SER6 Pro AMD Ryzen 7 6800H: Ø1854 (1821.83-1930.5)
Beelink GTR6 AMD Ryzen 9 6900HX: Ø1922 (1894.3-1968.5)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P: Ø1681 (1638.81-2006.82)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
86.2 pt
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
85.2 pt
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
56 pt
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
53.5 pt
Beelink GTR6
AMD Ryzen 9 6900HX
50.1 pt
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
48.3 pt
Media AMD Ryzen 7 7735HS

48.2 pt
Beelink SER6 Pro
AMD Ryzen 7 6800H
47.1 pt
Intel NUC 12 Pro Kit NUC12WSBi5 -2!
Intel Core i5-1240P
44 pt
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
43 pt
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
41.9 pt
Trigkey Speed S
Intel Core i5-11320H
33.2 pt
Cinebench R23 / Multi Core
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
34087 (33104.5min - 34086.9max) Points +193%
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
32592 Points +180%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
16674 Points +43%
Media AMD Ryzen 7 7735HS
  (11072 - 14131, n=11)
13062 Points +12%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
12637 Points +9%
Beelink GTR6
AMD Ryzen 9 6900HX
11862 (11361.7min - 11862.4max) Points +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
11626 (11015.5min - 11625.6max) Points
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
11556 (23.57min - 11556.2max) Points -1%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
11494 Points -1%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
277 Points -98%
Beelink SER6 Pro
AMD Ryzen 7 6800H
11481 (10813.7min - 11481.3max) Points -1%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
8342 Points -28%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
8199 Points -29%
Trigkey Speed S
Intel Core i5-11320H
5724 (5641.98min - 5723.64max) Points -51%
Cinebench R23 / Single Core
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
2203 Points +43%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
1909 Points +24%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
1873 Points +22%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
1801 Points +17%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
1713 Points +11%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
1690 Points +10%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
1689 Points +10%
Beelink GTR6
AMD Ryzen 9 6900HX
1608 Points +5%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
1537 Points
Media AMD Ryzen 7 7735HS
  (1288 - 1570, n=11)
1525 Points -1%
Beelink SER6 Pro
AMD Ryzen 7 6800H
1506 Points -2%
Trigkey Speed S
Intel Core i5-11320H
1465 Points -5%
Cinebench R20 / CPU (Multi Core)
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
13415 Points +197%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
13208 Points +192%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
6459 Points +43%
Media AMD Ryzen 7 7735HS
  (4339 - 5502, n=11)
5067 Points +12%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
4887 Points +8%
Beelink GTR6
AMD Ryzen 9 6900HX
4619 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
4524 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
4460 Points -1%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
4456 Points -2%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
3234 Points -29%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
3153 Points -30%
Trigkey Speed S
Intel Core i5-11320H
2216 Points -51%
Cinebench R20 / CPU (Single Core)
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
853 Points +43%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
736 Points +23%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
720 Points +20%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
692 Points +16%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
654 Points +9%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
653 Points +9%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
649 Points +9%
Beelink GTR6
AMD Ryzen 9 6900HX
631 Points +6%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
598 Points
Media AMD Ryzen 7 7735HS
  (502 - 613, n=11)
595 Points -1%
Beelink SER6 Pro
AMD Ryzen 7 6800H
584 Points -2%
Trigkey Speed S
Intel Core i5-11320H
567 Points -5%
Cinebench R15 / CPU Multi 64Bit
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
5521 (5355.47min - 5521.05max) Points +183%
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
5321 Points +172%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
2632 Points +35%
Media AMD Ryzen 7 7735HS
  (1795 - 2355, n=13)
2164 Points +11%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
2030 Points +4%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
2007 (1638.81min - 2006.82max) Points +3%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
2005 Points +3%
Beelink GTR6
AMD Ryzen 9 6900HX
1969 (1894.3min - 1968.5max) Points +1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
1953 (1862.98min - 1952.55max) Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
1931 (1821.83min - 1930.5max) Points -1%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
1320 Points -32%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
1311 Points -33%
Trigkey Speed S
Intel Core i5-11320H
861 (839.91min - 860.88max) Points -56%
Cinebench R15 / CPU Single 64Bit
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
319 Points +29%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
308 Points +25%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
271 Points +10%
Beelink GTR6
AMD Ryzen 9 6900HX
260 Points +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
259 Points +5%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
247 Points
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
245 Points -1%
Media AMD Ryzen 7 7735HS
  (206 - 255, n=12)
245 Points -1%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
242 Points -2%
Beelink SER6 Pro
AMD Ryzen 7 6800H
242 Points -2%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
242 Points -2%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
242 Points -2%
Trigkey Speed S
Intel Core i5-11320H
215 Points -13%
Blender / v2.79 BMW27 CPU
Trigkey Speed S
Intel Core i5-11320H
543 Seconds * -106%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
388 Seconds * -48%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
380 Seconds * -44%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
285 Seconds * -8%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
275 Seconds * -5%
Beelink SER6 Pro
AMD Ryzen 7 6800H
268 Seconds * -2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
263 Seconds *
Beelink GTR6
AMD Ryzen 9 6900HX
257 Seconds * +2%
Media AMD Ryzen 7 7735HS
  (219 - 279, n=11)
240 Seconds * +9%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
198 Seconds * +25%
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
101 Seconds * +62%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
91 Seconds * +65%
7-Zip 18.03 / 7z b 4
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
140932 MIPS +144%
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
127201 MIPS +120%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
64403 MIPS +12%
Media AMD Ryzen 7 7735HS
  (48327 - 63214, n=11)
58608 MIPS +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
57693 MIPS
Beelink GTR6
AMD Ryzen 9 6900HX
57261 MIPS -1%
Beelink SER6 Pro
AMD Ryzen 7 6800H
55963 MIPS -3%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
52959 MIPS -8%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
45947 MIPS -20%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
36343 MIPS -37%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
35918 MIPS -38%
Trigkey Speed S
Intel Core i5-11320H
24718 MIPS -57%
7-Zip 18.03 / 7z b 4 -mmt1
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
7581 MIPS +31%
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
7255 MIPS +25%
Beelink GTR6
AMD Ryzen 9 6900HX
6005 MIPS +3%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
5972 MIPS +3%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
5961 MIPS +3%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
5809 MIPS
Beelink SER6 Pro
AMD Ryzen 7 6800H
5768 MIPS -1%
Media AMD Ryzen 7 7735HS
  (4779 - 5849, n=11)
5665 MIPS -2%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
5353 MIPS -8%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
5262 MIPS -9%
Trigkey Speed S
Intel Core i5-11320H
5119 MIPS -12%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
5097 MIPS -12%
Geekbench 5.5 / Multi-Core
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
22448 Points +140%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
19325 Points +107%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
10574 Points +13%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
10126 Points +8%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
9357 Points
Beelink GTR6
AMD Ryzen 9 6900HX
9350 Points 0%
Media AMD Ryzen 7 7735HS
  (7368 - 10126, n=11)
9316 Points 0%
Beelink SER6 Pro
AMD Ryzen 7 6800H
9218 Points -1%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
9065 Points -3%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
8772 Points -6%
Trigkey Speed S
Intel Core i5-11320H
4927 Points -47%
Geekbench 5.5 / Single-Core
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
2106 Points +33%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
2047 Points +30%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
1850 Points +17%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
1714 Points +8%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
1675 Points +6%
Beelink GTR6
AMD Ryzen 9 6900HX
1652 Points +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
1590 Points +1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
1580 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H
1554 Points -2%
Media AMD Ryzen 7 7735HS
  (1327 - 1615, n=11)
1538 Points -3%
Trigkey Speed S
Intel Core i5-11320H
1523 Points -4%
HWBOT x265 Benchmark v2.2 / 4k Preset
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
37.6 fps +149%
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
34.5 fps +128%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
18.7 fps +24%
Media AMD Ryzen 7 7735HS
  (12.7 - 17.7, n=11)
16.2 fps +7%
Beelink GTR6
AMD Ryzen 9 6900HX
15.4 fps +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
15.1 fps
Beelink SER6 Pro
AMD Ryzen 7 6800H
15 fps -1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
14.2 fps -6%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
12.9 fps -15%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
9.7 fps -36%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
9.47 fps -37%
Trigkey Speed S
Intel Core i5-11320H
7.25 fps -52%
LibreOffice / 20 Documents To PDF
Media AMD Ryzen 7 7735HS
  (44.3 - 63.8, n=11)
53 s * -20%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
49.4 s * -12%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
49.1 s * -11%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
48.9 s * -10%
Beelink SER6 Pro
AMD Ryzen 7 6800H
48.8 s * -10%
Beelink GTR6
AMD Ryzen 9 6900HX
46 s * -4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
44.9 s * -1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
44.3 s *
Trigkey Speed S
Intel Core i5-11320H
44 s * +1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
43.7 s * +1%
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
41.6 s * +6%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
36.8 s * +17%
R Benchmark 2.5 / Overall mean
Trigkey Speed S
Intel Core i5-11320H
0.591 sec * -15%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS
0.512 sec *
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U
0.511 sec * -0%
Media AMD Ryzen 7 7735HS
  (0.4822 - 0.585, n=11)
0.506 sec * +1%
Beelink SER6 Pro
AMD Ryzen 7 6800H
0.4989 sec * +3%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P
0.4987 sec * +3%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U
0.4856 sec * +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon
Intel Core i7-12700H
0.4643 sec * +9%
Beelink GTR6
AMD Ryzen 9 6900HX
0.4627 sec * +10%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P
0.445 sec * +13%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX
0.4059 sec * +21%
Intel NUC13 Raptor Canyon
Intel Core i9-13900K
0.3911 sec * +24%

* ... Meglio usare valori piccoli

Blender
v3.3 Classroom HIP/AMD
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
356 Seconds * -13%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
340 Seconds * -8%
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
318 Seconds * -1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
314 Seconds *
v3.3 Classroom CPU
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
590 Seconds * -33%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
464 Seconds * -4%
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
453 Seconds * -2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
445 Seconds *
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
436 Seconds * +2%
Minisforum Venus Series UM690
AMD Radeon 680M, AMD Ryzen 9 6900HX
394 Seconds * +11%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit
1953 Points
Cinebench R15 OpenGL 64Bit
172.8 fps
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 CPU Single 64Bit
247 Points
Aiuto
Performance Rating
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
99.1 pt
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
90.8 pt
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
88.3 pt
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
87.8 pt
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
73.6 pt
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
55.8 pt
AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
15102 KRay/s +15%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
13630 KRay/s +4%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
13148 KRay/s
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
12876 KRay/s -2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
11040 KRay/s -16%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
6011 KRay/s -54%
AIDA64 / FPU Julia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
98980 Points +18%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
86563 Points +3%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
83889 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
82673 Points -1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
55557 Points -34%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
27835 Points -67%
AIDA64 / CPU SHA3
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
3452 MB/s +20%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
3033 MB/s +5%
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
2886 MB/s 0%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
2885 MB/s
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
2728 MB/s -5%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
2019 MB/s -30%
AIDA64 / CPU Queen
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
103686 Points +8%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
95566 Points
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
94363 Points -1%
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
93785 Points -2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
86691 Points -9%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
75592 Points -21%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
13101 Points +8%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
12291 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
12094 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
11981 Points -1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
7269 Points -40%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
6540 Points -46%
AIDA64 / FPU Mandel
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
52710 Points +15%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
47561 Points +3%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
45982 Points
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
45287 Points -2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
27772 Points -40%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
16325 Points -64%
AIDA64 / CPU AES
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
136723 MB/s +16%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
122402 MB/s +4%
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
118383 MB/s +1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
117400 MB/s
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
99244 MB/s -15%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
67922 MB/s -42%
AIDA64 / CPU ZLib
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
863 MB/s +21%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
812 MB/s +14%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
807 MB/s +13%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
757 MB/s +6%
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
732 MB/s +3%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
712 MB/s
AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
7973 KRay/s +13%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
7214 KRay/s +3%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
7032 KRay/s
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
6917 KRay/s -2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
5920 KRay/s -16%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
3442 KRay/s -51%
AIDA64 / CPU PhotoWorxx
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
30600 MPixel/s 0%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
30542 MPixel/s
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
30360 MPixel/s -1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
29108 MPixel/s -5%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
27809 MPixel/s -9%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
27720 MPixel/s -9%

Prestazioni del sistema

I benchmark di PCMark sono ancora una volta essenzialmente identici a quelli registrati sul SER6 Pro 2022, dato che i loro processori sono così simili.

PCMark 10 / Score
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
7109 Points +2%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
7045 Points +1%
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
6950 Points
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
6936 Points 0%
Media AMD Ryzen 7 7735HS, AMD Radeon 680M
  (5722 - 7000, n=5)
6668 Points -4%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
6281 Points -10%
Intel NUC 12 Pro Kit NUC12WSBi5
Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG
5331 Points -23%
PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
11596 Points +4%
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
11323 Points +2%
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
11158 Points 0%
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
11124 Points
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
10838 Points -3%
Media AMD Ryzen 7 7735HS, AMD Radeon 680M
  (9933 - 11124, n=5)
10732 Points -4%
Intel NUC 12 Pro Kit NUC12WSBi5
Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG
10652 Points -4%
PCMark 10 / Productivity
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
10210 Points +4%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
10060 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
9862 Points
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
9759 Points -1%
Media AMD Ryzen 7 7735HS, AMD Radeon 680M
  (8829 - 9862, n=5)
9449 Points -4%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
7893 Points -20%
Intel NUC 12 Pro Kit NUC12WSBi5
Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG
7058 Points -28%
PCMark 10 / Digital Content Creation
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
8703 Points +5%
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
8432 Points +2%
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
8319 Points 0%
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
8306 Points
Media AMD Ryzen 7 7735HS, AMD Radeon 680M
  (5798 - 8726, n=5)
7969 Points -4%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
7348 Points -12%
Intel NUC 12 Pro Kit NUC12WSBi5
Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG
5469 Points -34%
CrossMark / Overall
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1810 Points +4%
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
1736 Points
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1731 Points 0%
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
1704 Points -2%
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
1691 Points -3%
Media AMD Ryzen 7 7735HS, AMD Radeon 680M
  (1387 - 1736, n=5)
1604 Points -8%
CrossMark / Productivity
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1740 Points +1%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1738 Points +1%
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
1721 Points
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
1701 Points -1%
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
1674 Points -3%
Media AMD Ryzen 7 7735HS, AMD Radeon 680M
  (1443 - 1725, n=5)
1606 Points -7%
CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1970 Points +10%
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
1785 Points
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
1763 Points -1%
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1745 Points -2%
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
1698 Points -5%
Media AMD Ryzen 7 7735HS, AMD Radeon 680M
  (1376 - 1785, n=5)
1653 Points -7%
CrossMark / Responsiveness
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1671 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
1640 Points
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
1639 Points 0%
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
1625 Points -1%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1578 Points -4%
Media AMD Ryzen 7 7735HS, AMD Radeon 680M
  (1247 - 1653, n=5)
1464 Points -11%
PCMark 10 Score
6950 punti
Aiuto
AIDA64 / Memory Copy
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
51235 MB/s
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
51186 MB/s 0%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
50935 MB/s -1%
Media AMD Ryzen 7 7735HS
  (30324 - 52012, n=12)
48183 MB/s -6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
47938 MB/s -6%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
44892 MB/s -12%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
43747 MB/s -15%
AIDA64 / Memory Read
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
51869 MB/s 0%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
51856 MB/s
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
51679 MB/s 0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
49936 MB/s -4%
Media AMD Ryzen 7 7735HS
  (33938 - 51856, n=12)
48330 MB/s -7%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
47347 MB/s -9%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
45196 MB/s -13%
AIDA64 / Memory Write
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
55316 MB/s 0%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
55284 MB/s
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
55238 MB/s 0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
54750 MB/s -1%
Media AMD Ryzen 7 7735HS
  (33175 - 55284, n=12)
52586 MB/s -5%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
46768 MB/s -15%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
46179 MB/s -16%
AIDA64 / Memory Latency
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
96.1 ns * -16%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Iris Xe G7 80EUs
90.3 ns * -9%
Media AMD Ryzen 7 7735HS
  (78.2 - 109.7, n=12)
88.5 ns * -7%
Beelink SER6 Pro
AMD Ryzen 7 6800H, Radeon 680M
83.5 ns * -1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
83 ns * -1%
Beelink GTR6
AMD Ryzen 9 6900HX, Radeon 680M
82.9 ns * -0%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, Radeon 680M
82.5 ns *

* ... Meglio usare valori piccoli

Latenza DPC

LatencyMon rivela problemi di DPC quando si aprono più schede del browser della nostra homepage. Inoltre, la nostra unità mostrava problemi di riproduzione di video 4K60 con 32 fotogrammi caduti durante il nostro video di prova della durata di un minuto.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
1488 μs * -31%
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
1329 μs * -17%
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
1137.6 μs *
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1087 μs * +4%
Intel NUC 12 Pro Kit NUC12WSBi5
Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG
883.4 μs * +22%
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
509.9 μs * +55%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

La nostra unità 2023 SER6 Pro viene fornita con lo stesso Kingston NV2 500GB SNV2S/500G presente nel modello dello scorso anno.

CDM 8
CDM 8
AS SSD
AS SSD
Kingston NV2 500GB SNV2S/500G
CDM 5/6 Read Seq Q32T1: 3621 MB/s
CDM 5/6 Write Seq Q32T1: 2456 MB/s
CDM 5/6 Read 4K Q32T1: 634.9 MB/s
CDM 5/6 Write 4K Q32T1: 494.3 MB/s
CDM 5 Read Seq: 2906 MB/s
CDM 5 Write Seq: 2465 MB/s
CDM 5/6 Read 4K: 44.56 MB/s
CDM 5/6 Write 4K: 237.5 MB/s
Drive Performance Rating - Percent
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
93.3 pt
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
86.2 pt
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
75.1 pt
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
57.4 pt
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
51.5 pt
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
48.9 pt
DiskSpd
seq read
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
4168 (3579.63min - 4168.09max) MB/s +80%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3375 (3310.44min - 3375.33max) MB/s +46%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3195 (3147.62min - 3194.91max) MB/s +38%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
3074 (3056.63min - 3074.49max) MB/s +33%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
2312 (2299.53min - 2312.11max) MB/s
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
938 (893.07min - 938.27max) MB/s -59%
seq write
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
3938 (3783.49min - 3937.52max) MB/s +76%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3539 (3516.6min - 3538.94max) MB/s +58%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3360 (1416.73min - 3360.47max) MB/s +50%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
2277 (2253.07min - 2277.24max) MB/s +2%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
2243 (2200.96min - 2243.2max) MB/s
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
1128 (693.82min - 1128.11max) MB/s -50%
seq q8 t1 read
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
7061 (6122.84min - 7060.97max) MB/s +148%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
6729 (6134.8min - 6728.5max) MB/s +136%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4820 (3819.87min - 4820.3max) MB/s +69%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
3553 (3164.22min - 3552.99max) MB/s +25%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
3508 (3328.18min - 3507.7max) MB/s +23%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
2849 (2731.13min - 2849.44max) MB/s
seq q8 t1 write
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
3938 (3914.12min - 3937.52max) MB/s +79%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3536 (3475.82min - 3536.01max) MB/s +61%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
2830 (1138.15min - 2830.32max) MB/s +29%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
2615 (711.82min - 2614.74max) MB/s +19%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
2271 (2252.65min - 2271.35max) MB/s +3%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
2195 (2178.89min - 2194.65max) MB/s
4k q1 t1 read
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
80.4 (79.66min - 80.38max) MB/s +101%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
70.8 (63.28min - 70.81max) MB/s +77%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
51.8 (51.62min - 51.84max) MB/s +30%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
42.6 (42.44min - 42.57max) MB/s +7%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
40 (39.84min - 39.95max) MB/s
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
38.7 (22.67min - 38.7max) MB/s -3%
4k q1 t1 write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
288 (287.39min - 288.47max) MB/s +15%
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
284 (282.24min - 284.12max) MB/s +14%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
250 (246.86min - 249.77max) MB/s
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
239 (236.27min - 238.58max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
177.7 (176.17min - 177.7max) MB/s -29%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
160.7 (123.92min - 160.73max) MB/s -36%
4k q32 t16 read
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
1942 (1940.94min - 1941.94max) MB/s +58%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1933 (1926.8min - 1932.75max) MB/s +58%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
1568 (1565.33min - 1568.49max) MB/s +28%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
1227 (1221.9min - 1227.11max) MB/s
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
1225 (1194.7min - 1224.8max) MB/s 0%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
569 (455.25min - 568.93max) MB/s -54%
4k q32 t16 write
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
3741 (3667.09min - 3740.76max) MB/s +175%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3331 (2068.43min - 3331.41max) MB/s +145%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
1391 (1351.44min - 1391.2max) MB/s +2%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
1362 (1327.37min - 1362.29max) MB/s
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
626 (605.6min - 625.63max) MB/s -54%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
446 (240.36min - 445.56max) MB/s -67%

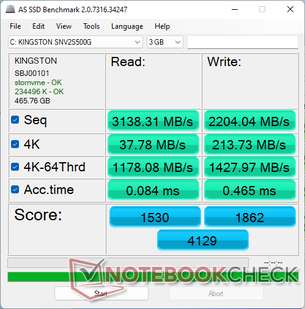

AS SSD
Score Total
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
6722 Points +63%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
6665 Points +61%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
6005 Points +45%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
4218 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
4129 Points
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
3592 Points -13%
Score Read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2352 Points +54%
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
2207 Points +44%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
1673 Points +9%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
1643 Points +7%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
1530 Points
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
1233 Points -19%
Score Write
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3574 Points +92%
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
3477 Points +87%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3145 Points +69%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
1862 Points
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
1792 Points -4%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
1784 Points -4%
Seq Read
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
5799.1 MB/s +85%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
4767 MB/s +52%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4050 MB/s +29%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
3138.31 MB/s
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
3079.48 MB/s -2%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
2902.75 MB/s -8%
Seq Write
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
3737.17 MB/s +70%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3025 MB/s +37%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
2442 MB/s +11%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
2204.04 MB/s
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
1926.48 MB/s -13%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
1486.78 MB/s -33%
4K Read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
86.05 MB/s +128%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
78.3 MB/s +107%
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
75.39 MB/s +100%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
59.71 MB/s +58%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
38.62 MB/s +2%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
37.78 MB/s
4K Write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
240.66 MB/s +13%
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
237.79 MB/s +11%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
216.44 MB/s +1%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
213.73 MB/s
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
209 MB/s -2%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
206.56 MB/s -3%
4K-64 Read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1860.96 MB/s +58%
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
1551.47 MB/s +32%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
1296.75 MB/s +10%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
1178.08 MB/s
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
1118 MB/s -5%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
883.18 MB/s -25%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
3120 MB/s +118%
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
2865.66 MB/s +101%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2602.12 MB/s +82%
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
1427.97 MB/s
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
1418.48 MB/s -1%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
1392.49 MB/s -2%
Access Time Read
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
0.084 ms *
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.065 ms * +23%
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
0.057 ms * +32%
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
0.048 ms * +43%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
0.045 ms * +46%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
0.045 ms * +46%
Access Time Write
Beelink SER6 Pro Ryzen 7 7735HS
Kingston NV2 500GB SNV2S/500G
0.465 ms *
Beelink SER6 Pro
Kingston NV2 500GB SNV2S/500G
0.362 ms * +22%
Intel NUC 12 Pro Kit NUC12WSBi5
Lexar 512GB NM6A1 LNM6A1X512G-HNNG
0.129 ms * +72%
Beelink GTR6
Kingston KC3000 512G SKC3000S512G
0.047 ms * +90%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.031 ms * +93%
Intel NUC 13 Pro Kit NUC13ANK
Samsung PM9A1 MZVL2512HCJQ
0.02 ms * +96%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

01653304956608259901155132014851650181519802145231024752640280529703135Tooltip
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G: Ø2669 (2438.83-2700.03)
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G: Ø3043 (2655.48-3280.21)

Prestazioni della GPU

Le prestazioni grafiche sono le stesse dei Ryzen 7 6800H o Ryzen 9 6900HX dello scorso anno, poiché tutte queste CPU montano la stessa GPU Radeon 680M integrata. Questo non è necessariamente un male, perché la Radeon 680M è già ben superiore alle Intel Iris Xe 96 EU del 40-60%, ma gli utenti che si aspettavano un qualche tipo di incremento quest'anno rimarranno delusi.

Il funzionamento al minimo su Witcher 3 rivela problemi di stabilità delle prestazioni, in quanto i frame rate si riducono spesso senza motivo, come mostra il grafico qui sotto. Questo comportamento suggerisce una scarsa priorità delle attività in background o problemi di driver con la GPU integrata. Abbiamo aggiornato i driver Radeon alle ultime versioni alla data di pubblicazione.

3DMark 11
3DMark 11
Fire Strike
Fire Strike
Fire Strike Ultra
Fire Strike Ultra
Time Spy
Time Spy
Via della velocità
Via della velocità

3DMark Performance Rating - Percent
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
99.5 pt
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
98.7 pt
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
98.4 pt
Media AMD Radeon 680M

91.5 pt
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
69.1 pt
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
63.2 pt
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
61.4 pt
Intel NUC 12 Pro Kit NUC12WSBi5 -2!
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
55.5 pt
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
52.6 pt
3DMark 11 - 1280x720 Performance GPU
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
10807 Points +1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
10734 Points
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
10566 Points -2%
Media AMD Radeon 680M
  (6858 - 11605, n=32)
9979 Points -7%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
7143 Points -33%
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
6423 Points -40%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
6210 Points -42%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
5631 Points -48%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
5378 Points -50%
3DMark
1920x1080 Fire Strike Graphics
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
7180 Points
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
7026 Points -2%
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
6962 Points -3%
Media AMD Radeon 680M
  (3791 - 7593, n=33)
6660 Points -7%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5229 Points -27%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
4902 Points -32%
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
4568 Points -36%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
4249 Points -41%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P
4227 Points -41%
2560x1440 Time Spy Graphics
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
2452 Points +2%
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
2437 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
2395 Points
Media AMD Radeon 680M
  (1359 - 2607, n=33)
2221 Points -7%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1673 Points -30%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
1556 Points -35%
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
1508 Points -37%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
1234 Points -48%
2560x1440 Time Spy Score
Beelink SER6 Pro
AMD Radeon 680M, AMD Ryzen 7 6800H
2751 Points +2%
Beelink GTR6
AMD Radeon 680M, AMD Ryzen 9 6900HX
2735 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Radeon 680M, AMD Ryzen 7 7735HS
2693 Points
Media AMD Radeon 680M
  (1546 - 2914, n=33)
2487 Points -8%
Intel NUC 13 Pro Kit NUC13ANK
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1907 Points -29%
Intel NUC Pro Chassis_i7_1265U
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U
1754 Points -35%
Trigkey Speed S
Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H
1680 Points -38%
Intel NUC Pro Chassis_i5_1245U
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U
1402 Points -48%
3DMark 11 Performance
10725 punti
3DMark Fire Strike Score
6596 punti
3DMark Time Spy Score
2693 punti
Aiuto
Performance Rating - Percent
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
99.6 pt
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
98.4 pt
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
97.3 pt
Intel NUC Pro Chassis_i7_1265U -1!
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
78 pt
Intel NUC 13 Pro Kit NUC13ANK -2!
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
68.2 pt
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
65.2 pt
Intel NUC Pro Chassis_i5_1245U -1!
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
59.4 pt
Intel NUC 12 Pro Kit NUC12WSBi5 -4!
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
46.5 pt
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
27.1 (24min) fps +8%
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
27 (25min) fps +7%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
25.2 (23min) fps
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
16.3 fps -35%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
13.1 (11min) fps -48%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
25 fps +1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
24.7 fps
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
24.6 fps 0%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
24.5 fps -1%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
15.4 fps -38%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
15.2 fps -38%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
73.1 (64min) fps 0%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
72.8 (65.3min) fps
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
71.4 (62.3min) fps -2%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
61.9 (52.7min) fps -15%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
61.6 (54.6min) fps -15%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
52.3 (43.7min) fps -28%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
45.7 (42.8min) fps -37%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
34 (32.3min) fps -53%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
43 fps +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
42.2 fps
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
41.8 fps -1%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
38.7 fps -8%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
30.4 fps -28%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
29.9 fps -29%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
41.9 (32.6min, 33.4P1) fps +3%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
41.6 (26.5min, 33P1) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
40.7 (31.5min, 32.4P1) fps
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
25.2 (5.1min, 6.91P1) fps -38%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
23.7 (5min, 6.21P1) fps -42%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
22.9 (6.4min, 8.1P1) fps -44%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
18.8 (5min, 5P1) fps -54%
Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
68.5 fps +10%
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
68.1 fps +9%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
62.2 fps
Media AMD Radeon 680M
  (34.4 - 74.7, n=31)
59.1 fps -5%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
43.6 fps -30%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
40.6 fps -35%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
39.8 fps -36%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
38.3 fps -38%
1920x1080 Standard Quality
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
34.9 fps +6%
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
34.7 fps +5%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
33 fps
Media AMD Radeon 680M
  (18.3 - 36.9, n=32)
30.6 fps -7%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
25 fps -24%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
21.7 fps -34%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
21.3 fps -35%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
19.6 fps -41%
1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
25 fps +1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
24.7 fps
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
24.6 fps 0%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
24.5 fps -1%
Media AMD Radeon 680M
  (12.9 - 25.9, n=32)
21.9 fps -11%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
15.4 fps -38%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
15.2 fps -38%
The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
139.2 (119min) fps +20%
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
138.1 (116min) fps +19%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
115.6 (84min) fps
Media AMD Radeon 680M
  (67.4 - 150, n=29)
114.6 fps -1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
101.7 fps -12%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
90.7 (3.4min, 21.9P0.1, 53.7P1) fps -22%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
87.8 (79min) fps -24%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
81.4 (31.8min, 35.9P0.1, 47.9P1) fps -30%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
42 fps -64%
1366x768 Medium Graphics & Postprocessing
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
85.1 (80min) fps +7%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
84 (77min) fps +5%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
79.8 (72min) fps
Media AMD Radeon 680M
  (44.5 - 85.1, n=22)
69.3 fps -13%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
59.9 (15.7min, 28.4P0.1, 34P1) fps -25%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
53.5 (49min) fps -33%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
52.3 (22.4min, 24.9P0.1, 29.9P1) fps -34%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
31 fps -61%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
46 (41min) fps +8%
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
43.3 (36min) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
42.4 (38min) fps
Media AMD Radeon 680M
  (22.3 - 48, n=31)
37.3 fps -12%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
33.5 (15.9min, 16.8P0.1, 18.7P1) fps -21%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
31.1 fps -27%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
27.7 (12.8min, 13.7P0.1, 15.4P1) fps -35%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
23.5 (22min) fps -45%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
15 fps -65%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
27.1 (24min) fps +8%
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
27 (25min) fps +7%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
25.2 (23min) fps
Media AMD Radeon 680M
  (14.3 - 27.1, n=31)
22.8 fps -10%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
16.3 fps -35%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
13.1 (11min) fps -48%
Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
143.3 (123.8min) fps +1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
142.2 (123.6min) fps
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
141.9 (121.4min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
123.8 (98min) fps -13%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
121 (109.7min) fps -15%
Media AMD Radeon 680M
  (34.4 - 143.3, n=33)
113.8 fps -20%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
110.4 (89.3min) fps -22%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
109 (85min) fps -23%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
35.9 (33.6min) fps -75%
1366x768 med (1/3)
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
113.5 (96.1min) fps
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
113.4 (94min) fps 0%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
112.7 (95min) fps -1%
Media AMD Radeon 680M
  (33.3 - 121.4, n=33)
94.9 fps -16%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
93.9 (77.2min) fps -17%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
89 (72.1min) fps -22%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
85.7 (67min) fps -24%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
79.4 (61.1min) fps -30%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
35.7 (33.9min) fps -69%
1920x1080 high (2/3)
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
89.1 (74.5min) fps
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
83.9 (73.4min) fps -6%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
80.9 (71.6min) fps -9%
Media AMD Radeon 680M
  (33.2 - 89.1, n=33)
71 fps -20%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
68.4 (57.5min) fps -23%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
67.6 (59.9min) fps -24%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
50.6 (42.5min) fps -43%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
49.8 (46.3min) fps -44%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
34.6 (33min) fps -61%
1920x1080 ultra (3/3) best looking
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
73.1 (64min) fps 0%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
72.8 (65.3min) fps
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
71.4 (62.3min) fps -2%
Media AMD Radeon 680M
  (33.2 - 84.9, n=33)
62.5 fps -14%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
61.9 (52.7min) fps -15%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
61.6 (54.6min) fps -15%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
52.3 (43.7min) fps -28%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
45.7 (42.8min) fps -37%
Intel NUC 12 Pro Kit NUC12WSBi5
Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs
34 (32.3min) fps -53%
X-Plane 11.11
1280x720 low (fps_test=1)
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
66.4 fps +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
65.2 fps
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
64.8 fps -1%
Media AMD Radeon 680M
  (26.8 - 66.7, n=33)
55.2 fps -15%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
51.1 fps -22%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
48.4 fps -26%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
44.5 fps -32%
1920x1080 med (fps_test=2)
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
52.9 fps +1%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
52.6 fps +1%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
52.3 fps
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
43.7 fps -16%
Media AMD Radeon 680M
  (21.1 - 53.1, n=33)
43.7 fps -16%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
35.8 fps -32%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
33.3 fps -36%
1920x1080 high (fps_test=3)
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
43 fps +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
42.2 fps
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
41.8 fps -1%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
38.7 fps -8%
Media AMD Radeon 680M
  (16.6 - 43.1, n=33)
35.7 fps -15%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
30.4 fps -28%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
29.9 fps -29%
Strange Brigade
1280x720 lowest AF:1
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
142.4 (86.5min, 118P1) fps +3%
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
141.9 (78.6min, 116.6P1) fps +3%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
137.8 (107.9min, 119.9P1) fps
Media AMD Radeon 680M
  (72.9 - 167.5, n=31)
131.1 fps -5%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
95.4 (19.5min, 37.2P1) fps -31%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
87.6 (11.7min, 31P1) fps -36%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
80.1 (18.9min, 25.5P1) fps -42%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
66.1 (9.6min, 21.1P1) fps -52%
1920x1080 medium AA:medium AF:4
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
57.8 (43.1min, 50.8P1) fps +2%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
57.4 (43.4min, 51P1) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
56.4 (47.8min, 49P1) fps
Media AMD Radeon 680M
  (30 - 63, n=31)
53.6 fps -5%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
38.1 (8.7min, 14.5P1) fps -32%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
37.3 (12min, 16.1P1) fps -34%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
34.5 (12.4min, 19.8P1) fps -39%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
29.6 (9.5min, 16P1) fps -48%
1920x1080 high AA:high AF:8
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
48.6 (34.2min, 38.3P1) fps +3%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
48.5 (35.1min, 38.2P1) fps +3%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
47.1 (35.1min, 37.2P1) fps
Media AMD Radeon 680M
  (25.3 - 53.1, n=31)
44.3 fps -6%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
31 (8.5min, 12P1) fps -34%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
29.7 (7.4min, 10.7P1) fps -37%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
28.5 (7.8min, 15.4P1) fps -39%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
23.5 (5.8min, 8.9P1) fps -50%
1920x1080 ultra AA:ultra AF:16
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
41.9 (32.6min, 33.4P1) fps +3%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
41.6 (26.5min, 33P1) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
40.7 (31.5min, 32.4P1) fps
Media AMD Radeon 680M
  (22 - 44.2, n=31)
38 fps -7%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
25.2 (5.1min, 6.91P1) fps -38%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
23.7 (5min, 6.21P1) fps -42%
Trigkey Speed S
Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs
22.9 (6.4min, 8.1P1) fps -44%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
18.8 (5min, 5P1) fps -54%
Cyberpunk 2077 1.6
1920x1080 Low Preset
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
43.3 (18.6min) fps +6%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
43 (18min) fps +5%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
40.8 (19.7min) fps
Media AMD Radeon 680M
  (26 - 50.6, n=15)
38 fps -7%
1920x1080 Medium Preset
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
33.1 (19.1min) fps +4%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
33 (19.6min) fps +4%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
31.8 (20.6min) fps
Media AMD Radeon 680M
  (20.1 - 41.8, n=15)
29 fps -9%
1280x720 Low Preset
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
72.8 (23.7min) fps +5%
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
72.2 (23.3min) fps +4%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
69.2 (26.3min) fps
Media AMD Radeon 680M
  (46.1 - 77.6, n=14)
63.7 fps -8%
1920x1080 High Preset
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
22.3 (5.3min) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
21.8 (6.2min) fps
Media AMD Radeon 680M
  (16.3 - 33.6, n=15)
21.4 fps -2%
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
21.3 (3min) fps -2%
1920x1080 Ultra Preset
Beelink GTR6
AMD Ryzen 9 6900HX, AMD Radeon 680M
17.5 (4min) fps 0%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
17.5 (3.4min) fps
Media AMD Radeon 680M
  (14 - 23.8, n=15)
17.5 fps 0%
Beelink SER6 Pro
AMD Ryzen 7 6800H, AMD Radeon 680M
17.2 (3.2min) fps -2%
F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
141.3 (116min, 93P1) fps
Media AMD Radeon 680M
  (75.5 - 147.3, n=17)
124.4 fps -12%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
80 (64min, 64P1) fps -43%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
79.9 (65min, 61P1) fps -43%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
57.6 (47min, 47P1) fps -59%
1920x1080 Low Preset AA:T AF:16x
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
80.1 (69min, 55P1) fps
Media AMD Radeon 680M
  (44.1 - 85.4, n=23)
72.5 fps -9%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
48 (40min, 40P1) fps -40%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
45.4 (37min, 36P1) fps -43%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
32.4 (20min, 27P1) fps -60%
1920x1080 Medium Preset AA:T AF:16x
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
69.5 (57min, 49P1) fps
Media AMD Radeon 680M
  (38 - 74.6, n=23)
63.7 fps -8%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
44.3 (36min, 36P1) fps -36%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
40.9 (34min, 33P1) fps -41%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
29.6 (25min, 24P1) fps -57%
1920x1080 High Preset AA:T AF:16x
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
52.9 (43min, 38P1) fps
Media AMD Radeon 680M
  (30 - 55, n=23)
47.2 fps -11%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
31.2 (27min, 26P1) fps -41%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
29.8 (25min, 24P1) fps -44%
Intel NUC Pro Chassis_i5_1245U
Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs
22 (19min, 18P1) fps -58%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
24 fps +73%
Intel NUC Pro Chassis_i7_1265U
Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs
22.1 (18min, 18P1) fps +59%
Beelink SER6 Pro Ryzen 7 7735HS
AMD Ryzen 7 7735HS, AMD Radeon 680M
13.9 (10min, 9P1) fps
Media AMD Radeon 680M
  (7.85 - 14.1, n=20)
11.3 fps -19%

Witcher 3 FPS Chart

0102030405060708090100110120Tooltip
basso medio alto ultra
The Witcher 3 (2015) 115.6 79.8 42.4 25.2
Dota 2 Reborn (2015) 142.2 113.5 89.1 72.8
Final Fantasy XV Benchmark (2018) 62.2 33 24.7
X-Plane 11.11 (2018) 65.2 52.3 42.2
Strange Brigade (2018) 137.8 56.4 47.1 40.7
Cyberpunk 2077 1.6 (2022) 40.8 31.8 21.8 17.5
Tiny Tina's Wonderlands (2022) 58.6 44.4 29.9 23.1
F1 22 (2022) 80.1 69.5 52.9 13.9

Emissioni

Rumore del sistema

Ci sono alcune leggere differenze nella rumorosità della ventola rispetto al modello dell'anno scorso, ma entrambi raggiungono un massimo simile di ~40 dB(A) quando si eseguono carichi molto impegnativi come i giochi. Quando si eseguono carichi inferiori, come i browser, il modello più recente sembra funzionare in modo più silenzioso per periodi più lunghi prima di ricorrere a un numero di giri della ventola più elevato.

Rumorosità

Idle
23.3 / 23.3 / 26.2 dB(A)
Sotto carico
40.2 / 40.2 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 23.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2027.73133.435.934.1252425.723.723.725.33123.224.120.822.722.64022.220.821.82122.55019.120.722.920.620.56320.721.220.819.224.98022.523.922.322241001921.117.718.418.91252120.615.116.620.716023.52314.513.62320021.320.115.11420.925021.92114.114.421.231523.422.615.416.52440023.922.413.914.923.150025.222.511.512.226.363024.324.810.21124.580025.825.59.19.925.610002726.699.826.6125026.425.99.29.626.2160025.725.29.99.625.6200026.726.510.21027.1250029.930.310.310.329.3315023.424.610.610.723.3400020.922.911.311.120.9500016.418.211.511.416.4630014.215.111.711.713.7800013.614.61211.712.51000013.61412.61212.41250014.114.912.911.912.91600013.414.411.511.311.5SPL36.836.923.223.336.7N2.32.30.50.52.3median 23.4median 22.5median 11.5median 11.7median 23Delta4.74.21.924.6hearing rangehide median Fan NoiseBeelink SER6 Pro Ryzen 7 7735HS
Beelink SER6 Pro Ryzen 7 7735HS
Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G
Beelink SER6 Pro
Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G
Beelink GTR6
Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Intel NUC 12 Pro Kit NUC12WSBi5
Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG
Minisforum Venus Series UM690
Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
Noise
-5%
-8%
-19%
-16%
off /ambiente *
23.3
22.8
2%
23.2
-0%
29.8
-28%
30.5
-31%
Idle Minimum *
23.3
24.1
-3%
23.6
-1%
30.2
-30%
31.6
-36%
Idle Average *
23.3
24.1
-3%
23.8
-2%
31.1
-33%
31.6
-36%
Idle Maximum *
26.2
33.8
-29%
36.2
-38%
31.9
-22%
31.6
-21%
Load Average *
40.2
40.1
-0%
39.7
1%
40
-0%
33.9
16%
Witcher 3 ultra *
37
38.7
-5%
41
-11%
Load Maximum *
40.2
40.1
-0%
43
-7%
40.5
-1%
34.4
14%

* ... Meglio usare valori piccoli

Temperatura

L'adattatore CA può raggiungere oltre 35 C quando si utilizzano carichi impegnativi per lunghi periodi
L'adattatore CA può raggiungere oltre 35 C quando si utilizzano carichi impegnativi per lunghi periodi

La temperatura della superficie non è un problema per il SER6 Pro. Tuttavia, occorre tenere presente che l'aria fresca entra dalla superficie superiore e quindi non si devono appoggiare carte, libri o oggetti. Lasciate un po' di spazio anche sul retro per far uscire il calore residuo.

Sistema inattivo (parte anteriore)
Sistema inattivo (parte anteriore)
Sistema inattivo (retro)
Sistema inattivo (retro)
Stress Prime95+FurMark (anteriore)
Stress Prime95+FurMark (anteriore)
Stress Prime95+FurMark (retro)
Stress Prime95+FurMark (retro)

Stress test

La frequenza di clock della CPU e l'assorbimento di potenza della scheda durante l'esecuzione di Prime95 aumentavano rispettivamente a 3,4 GHz e 45 W, con una durata di pochi secondi. La CPU si stabilizza poi rapidamente a 3,1 GHz, 38 W e 86 C, un valore leggermente più caldo e più veloce di quello registrato sul SER6 Pro dello scorso anno.

Con l'esecuzione di Witcher 3, la velocità di clock della GPU e la temperatura si stabilizzano rispettivamente a 2037 MHz e 86 C, rispetto ai 1150 MHz e ai soli 68 C del più lento SEi12 con processore Intel.

Sistema inattivo
Sistema inattivo
Witcher 3 stress
Witcher 3 stress
Stress Prime95
Stress Prime95
Stress di Prime95+FurMark
Stress di Prime95+FurMark
Clock della CPU (GHz) Clock della GPU (MHz) Temperatura media della CPU (°C)
Sistema inattivo -- -- 51
Stress Prime95 3,1 -- 86
Prime95 + FurMark Stress 2,6 931 85
Witcher 3 Stress 0,8 2037 86

Gestione dell'energia

Consumo di energia

Il consumo energetico è quasi identico a quello del Ryzen 7 6800H dello scorso anno, come mostrano i nostri grafici di confronto qui sotto. Pertanto, le prestazioni per watt non sono purtroppo migliori quando si passa dal vecchio Ryzen 6 6800H al nuovo Ryzen 7 7735HS.

consumo energetico di 3DMark 06
consumo energetico di 3DMark 06
Witcher 3 consumo 1080p Ultra
Witcher 3 consumo 1080p Ultra
L'avvio del Prime95 provoca un'impennata dei consumi fino a 72 W per pochi secondi, prima di scendere a 63 W
L'avvio del Prime95 provoca un'impennata dei consumi fino a 72 W per pochi secondi, prima di scendere a 63 W
Lo stress di Prime95+FurMark è iniziato al 10s
Lo stress di Prime95+FurMark è iniziato al 10s
Consumo di corrente
Off / Standbydarklight 0.34 / 0.71 Watt
Idledarkmidlight 8.9 / 9 / 9.3 Watt
Sotto carico midlight 62.5 / 80.1 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
Beelink SER6 Pro Ryzen 7 7735HS
R7 7735HS, Radeon 680M, Kingston NV2 500GB SNV2S/500G, , x,
Beelink SER6 Pro
R7 6800H, Radeon 680M, Kingston NV2 500GB SNV2S/500G, , x,
Beelink GTR6
R9 6900HX, Radeon 680M, Kingston KC3000 512G SKC3000S512G, , x,
Intel NUC 13 Pro Kit NUC13ANK
i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M, Kingston OM8PGP4512Q-A0, , x,
Intel Hades Canyon NUC8i7HVK
i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Power Consumption
6%
-4%
5%
-8%
-79%
Idle Minimum *
8.9
8.3
7%
7.6
15%
5.1
43%
8.7
2%
15.5
-74%
Idle Average *
9
8.4
7%
9.9
-10%
5.8
36%
9.6
-7%
16.2
-80%
Idle Maximum *
9.3
8.7
6%
10.6
-14%
10.2
-10%
10.5
-13%
16.5
-77%
Load Average *
62.5
60.8
3%
64
-2%
68.1
-9%
65.8
-5%
83.4
-33%
Witcher 3 ultra *
62.6
61.4
2%
69
-10%
121.7
-94%
Load Maximum *
80.1
72
10%
80.4
-0%
108.3
-35%
94.5
-18%
173.5
-117%

* ... Meglio usare valori piccoli

Power Consumption Witcher 3 / Stresstest

05101520253035404550556065707580Tooltip
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.6 (60.9-64.9)
Beelink SER6 Pro R7 6800H, Radeon 680M; Witcher 3 ultra: Ø61.4 (59.7-62.8)
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø65 (63.6-80.1)
Beelink SER6 Pro R7 6800H, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø63.3 (62-72)

Power Consumption external Monitor

0510152025303540455055606570Tooltip
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63.6 (62.6-72)
Beelink SER6 Pro R7 6800H, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø62.1 (60.9-70.6)
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø62.7 (55.1-67.9)
Beelink SER6 Pro R7 6800H, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø61 (57.5-66.4)
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.9 (62.7-67.8)
Beelink SER6 Pro R7 6800H, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø62.6 (61.3-68.3)
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.6 (60.9-64.9)
Beelink SER6 Pro R7 6800H, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø61.4 (59.7-62.8)
Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Idle 1min (external Monitor): Ø9.2 (8.79-12.5)
Beelink SER6 Pro R7 6800H, Radeon 680M; Idle 1min (external Monitor): Ø8.51 (8.12-9.32)

Pro

+ prestazioni veloci di CPU e GPU per le dimensioni
+ Supporto USB4 e Power Delivery
+ leggermente più silenzioso con carichi ridotti
+ 2x SODIMM + 2x alloggiamenti di archiviazione
+ displayPort integrata

Contro

- nessun aumento tangibile delle prestazioni rispetto al vecchio Ryzen 7 6800H
- Il Wi-Fi 6E non è di serie
- una sola porta USB-C
- Problemi di DPC

Verdetto - Niente di più che un re-brand dello Zen 3+

In recensione: Beelink SER6 Pro Ryzen 7 7735HS. Unità di prova fornita da Beelink
In recensione: Beelink SER6 Pro Ryzen 7 7735HS. Unità di prova fornita da Beelink

La parte migliore del SER6 Pro Ryzen 7 7735HS è che il vecchio SER6 Pro Ryzen 7 6800H è ora più economico. I due processori sono troppo simili in termini di prestazioni e consumo energetico, il che significa che potete semplicemente acquistare il modello più vecchio senza temere di perdere qualche caratteristica importante.

Il Ryzen 7 7735HS ha prestazioni identiche al vecchio Ryzen 7 6800H. Il 2023 SER6 Pro è quindi difficile da consigliare rispetto al modello 2022, in quanto non offre quasi nessun altro cambiamento.

La DisplayPort integrata è una bella aggiunta, ma crediamo che Beelink avrebbe potuto fare di più per invogliare gli acquirenti. Una seconda porta USB-C, ad esempio, un lettore di impronte digitali integrato o un lucchetto Kensington avrebbero potuto contribuire a differenziare il modello 2023 da quello 2022. Inoltre, i problemi di latenza del DPC e i cali di frame durante la riproduzione di video 4K dovrebbero essere risolti, dato che molti utenti potrebbero utilizzare il SER6 Pro per scopi HTC.

Prezzo e disponibilità

Amazon sta spedendo il Beelink SER6 Pro configurato al prezzo di 550 dollari.

Beelink SER6 Pro Ryzen 7 7735HS - 04/20/2023 v7
Allen Ngo

Chassis
79 / 98 → 80%
Connettività
60 / 81 → 74%
Peso
83%
Prestazioni di gioco
78%
Prestazioni Applicazioni
96%
Rumorosità
92%
Media
81%
85%
Mini PC - Media ponderata

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Pricecompare

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del mini PC Beelink SER6 Pro Ryzen 7 7735HS: Ora con DisplayPort integrata
Allen Ngo, 2023-04-20 (Update: 2023-04-20)
