Name: Minisforum Venus Series UM690
Brand: Minisforum

Configurazioni di Minisforum Venus Series UM690 (fonte: Minisforum)

Minisforum Serie Venus UM450, UM590, UM690 (fonte: Minisforum)

Miniforum si è già affermato come produttore di sistemi desktop altamente compatti. Al momento, la serie Venus presenta mini PC molto potenti con i più recenti SoC Rembrandt di AMD. L'UM690 è l'attuale modello di punta della linea, ma ci sono anche dispositivi leggermente più economici e meno potenti come l'UM450 e l'UM590. Spoiler: possiamo dire subito che siamo rimasti impressionati dalle prestazioni e dalla versatilità dell'UM690.

Il PC è basato su AMD Ryzen 9 6900HX, che è una CPU efficiente e molto veloce con una potente grafica integrata, ovvero la AMD Radeon 680M. L'APU è affiancata da 16 GB di memoria DDR5, lo standard più recente, e da un'unità SSD da 512 GB. Il Minisforum Venus Series UM690 è disponibile anche come kit barebone senza RAM e memoria. Gli utenti dovranno acquistare separatamente una licenza di Windows. I prezzi dell'UM690 partono attualmente da 559 euro (499 dollari), mentre il nostro modello in prova costa 719 euro (649 dollari). Il Minisforum Venus Series UM690 può essere configurato con un massimo di 64 GB di RAM e un SSD da 1 TB.

In questa recensione, confronteremo l'UM690 con altri PC desktop altamente compatti. La tabella seguente fornisce una panoramica dei dispositivi a confronto.

Caso

Il Minisforum Venus Series UM690 è realizzato principalmente in plastica all'esterno. All'interno, tuttavia, si trova il metallo integrato nel sistema per aumentare la robustezza complessiva dello chassis. Il dispositivo è di qualità superiore e non c'è nulla da ridire sulla sua lavorazione. Non abbiamo riscontrato spazi imprecisi o spigoli vivi nell'unità in prova. Il dispositivo può essere appoggiato su una scrivania o montato verticalmente sul supporto in dotazione. Non è necessario alcuno strumento per inserire l'UM690 nel suo robusto supporto, che (a differenza dello chassis) è realizzato in alluminio e si integra perfettamente con l'aspetto generale dell'UM690 dal punto di vista cromatico.

Grazie alle sue dimensioni compatte, il Minisforum Venus Series UM690 non occupa molto spazio sulla scrivania. Il dispositivo può, ad esempio, essere installato sul retro di un monitor utilizzando il kit di montaggio (VESA) in dotazione. Inoltre, l'UM690 è incredibilmente leggero, con soli 621 g (1,36"). Con un peso di 449 g (0,99 lb), il suo adattatore di alimentazione è pesante quanto quelli in dotazione ai dispositivi concorrenti.

Confronto delle dimensioni

Minisforum Neptune Series NAD9 Minisforum EliteMini B550 Morefine S600-Apex Engineer Minipc Union Ace Magician TK11-A0 Morefine S500+ Minisforum Venus Series UM690 DIN A4 ❌

Specifiche tecniche

Nonostante sia così compatto, il Minisforum Venus Series UM690 dispone di tutte le interfacce necessarie. Il totale di sei porte USB dovrebbe essere sufficiente per la maggior parte degli utenti, anche se due di esse sono porte USB-C. Inoltre, una delle uscite USB-C supporta Thunderbolt, il che amplia enormemente le potenziali applicazioni del piccolo computer. È possibile collegare all'UM690 fino a tre monitor contemporaneamente: due tramite le porte HDMI sul retro e uno tramite la porta USB-C sul davanti.

I/O esterni sul frontale (fonte: Minisforum)

I/O esterni sul retro dell'UM690 (fonte: Minisforum)

Connettività

Modulo Wi-Fi nella serie Minisforum Venus UM690

Minisforum ha incluso un modulo Mediatek Wi-Fi 6E nell'UM690. Il computer è riuscito a raggiungere velocità di trasferimento buone e stabili in un test reale con il nostro router di riferimento (Asus ROG Rapture GT-AXE11000). Tuttavia, il chip Mediatek non è in grado di eguagliare le prestazioni di un Intel Wi-Fi 6E AX210, anche se non lo si nota nell'uso quotidiano. In alternativa, è possibile utilizzare la porta LAN per stabilire una connessione di rete più veloce. Può trasmettere dati fino a 2,5 Gbit/s.

Networking
iperf3 receive AXE11000 6GHz
Media della classe Mini PC (390 - 1771, n=38, ultimi 2 anni)	1197 MBit/s +25%
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1044 (1009^min - 1058^max) MBit/s +9%
Minisforum Venus Series UM690 MediaTek RZ608	961 (954^min - 967^max) MBit/s
Media MediaTek RZ608 (430 - 961, n=16)	826 MBit/s -14%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s -59%
iperf3 transmit AXE11000 6GHz
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1658 (1514^min - 1706^max) MBit/s +111%
Media della classe Mini PC (432 - 1764, n=39, ultimi 2 anni)	1158 MBit/s +47%
Media MediaTek RZ608 (572 - 980, n=16)	825 MBit/s +5%
Minisforum Venus Series UM690 MediaTek RZ608	787 (638^min - 865^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s -5%
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -27%
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +38%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s
Media della classe Mini PC (192.9 - 1796, n=85, ultimi 2 anni)	897 MBit/s -6%
Media MediaTek RZ608 (430 - 975, n=19)	883 MBit/s -8%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s -55%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -59%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +40%
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s
Media MediaTek RZ608 (572 - 979, n=19)	855 MBit/s -9%
Media della classe Mini PC (184.1 - 1776, n=85, ultimi 2 anni)	828 MBit/s -12%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -21%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s -39%

Minisforum Venus Series UM690; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø787 (638-865)

Minisforum Venus Series UM690; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø960 (954-967)

Minisforum Venus Series UM690; iperf3 receive AXE11000; iperf 3.1.3: Ø956 (944-963)

Minisforum Venus Series UM690; iperf3 transmit AXE11000; iperf 3.1.3: Ø928 (477-981)

Accessori

Oltre al dispositivo, la confezione contiene un robusto supporto, un adattatore da 120 watt e un supporto VESA per fissare l'UM690 direttamente a un monitor.

Manutenzione

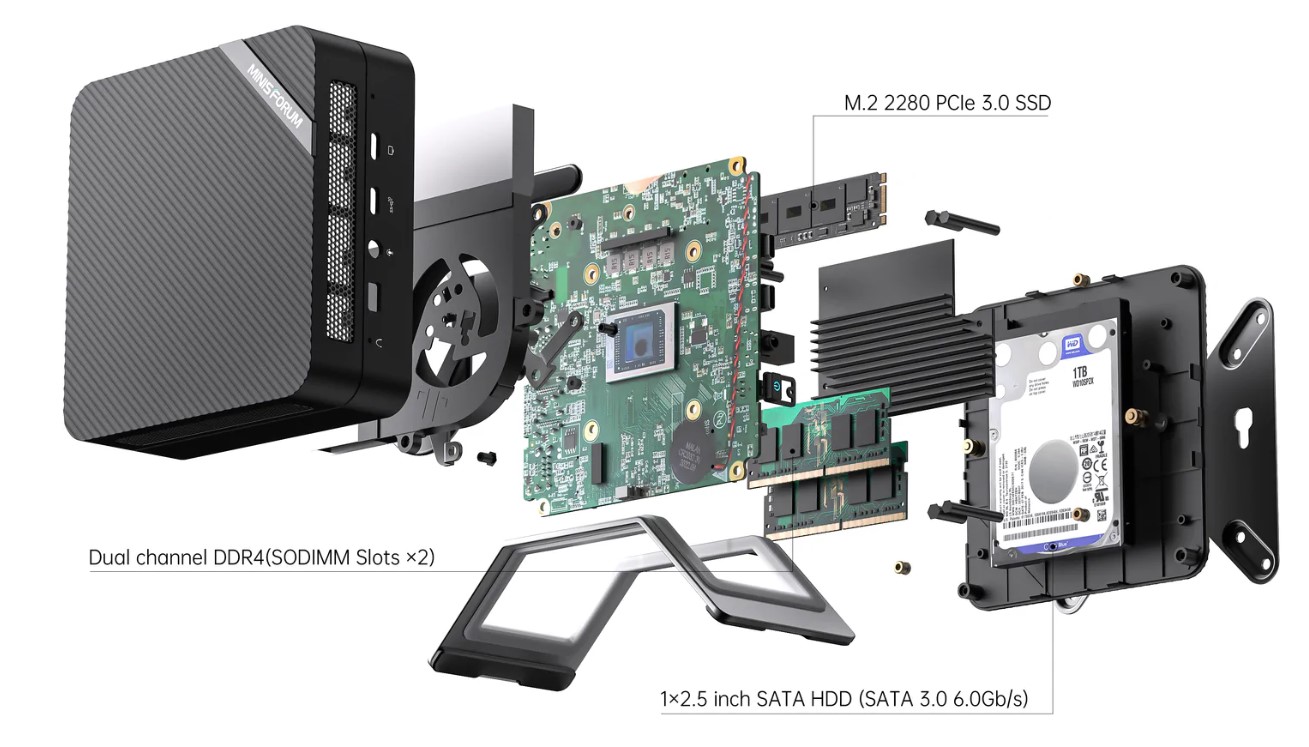

In generale, il Minisforum Venus Series UM690 può essere aperto per consentire agli utenti di installare o sostituire vari componenti, come RAM e SSD. Tuttavia, le viti sono nascoste sotto piedini di gomma che devono essere prima rimossi. L'interno del dispositivo è molto ordinato e tutti i componenti importanti sono accessibili rapidamente. Tuttavia, se l'unità di raffreddamento deve essere pulita, è necessario smontare ulteriormente il dispositivo. Ma Minisforum ha incluso un avvertimento esplicito per sconsigliare agli utenti di smontare il dissipatore perché il sistema utilizza metallo liquido come pasta termica.

Il Minisforum Venus Series UM690 senza pannello inferiore

Prestazioni - Il SoC Rembrandt di AMD offre ottime prestazioni

Minisforum ha equipaggiato l'UM690 con il nuovo Ryzen 9 6900HX di AMD. Si tratta di una buona scelta perché il dispositivo beneficia in generale delle prestazioni fornite dal nuovo SoC in tutti i tipi di applicazioni. Inoltre, il SoC è dotato di una veloce iGPU (Radeon 680M). L'azienda offre questo modello della serie Venus anche con SoC meno potenti con i nomi UM590 (Ryzen 9 5900HX) e UM450 (Ryzen 5 4500U).

Condizioni di prova

Abbiamo utilizzato il piano di alimentazione "Prestazioni elevate" per tutti i test sulle prestazioni di questa recensione e ci siamo discostati da questo solo quando abbiamo misurato il consumo energetico e i livelli di rumore, in conformità con i nostri criteri di test. Le prestazioni della CPU e del raffreddamento sono state lasciate invariate nel BIOS.

Processore

Il AMD Ryzen 9 6900HX è un processore Rembrandt a otto core e può eseguire un totale di 16 thread in parallelo. Il SoC dell'UM690 può assorbire fino a 65 watt di potenza per un breve periodo prima che scatti il limite di 45 watt. Ciononostante, l'unità in esame si è comportata molto bene nel nostro confronto ed è alla pari con un Intel Core i9-12900Hche si trova nella Minisforum Neptune Series NAD9. Per darvi un'idea generale delle prestazioni della serie Venus UM450 e UM590, abbiamo aggiunto i rispettivi SoC nella nostra tabella di confronto.

Potete fare riferimento a questa pagina per altri benchmark dei processori.

Performance Rating - Percent
Morefine S600-Apex Engineer ^-6! Intel Core i9-12900HK, 1800 MHz	50.1 pt
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	49.8 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49.4 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	48.5 pt
Media AMD Ryzen 9 6900HX	48.5 pt
Media AMD Ryzen 9 5900HX	47.3 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	46.5 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.7 pt
Media AMD Ryzen 5 4500U	35.3 pt

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	261 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points 0%
Media AMD Ryzen 9 6900HX (241 - 261, n=19)	250 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points -8%
Media AMD Ryzen 9 5900HX (197 - 243, n=25)	238 Points -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	226 Points -13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -25%
Media AMD Ryzen 5 4500U (156 - 177, n=13)	172.8 Points -34%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	2231 Points
Media AMD Ryzen 9 6900HX (1588 - 2411, n=19)	2163 Points -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points -7%
Media AMD Ryzen 9 5900HX (1076 - 2267, n=29)	2050 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1975 Points -11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points -16%
Media AMD Ryzen 5 4500U (715 - 1007, n=18)	896 Points -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -75%

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	629 Points
Media AMD Ryzen 9 6900HX (595 - 631, n=19)	610 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	608 Points -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points -7%
Media AMD Ryzen 9 5900HX (471 - 584, n=29)	573 Points -9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points -10%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -18%
Media AMD Ryzen 5 4500U (424 - 453, n=12)	446 Points -29%
CPU (Multi Core)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	5328 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5168 Points -3%
Media AMD Ryzen 9 6900HX (3742 - 5813, n=19)	5162 Points -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points -7%
Media AMD Ryzen 9 5900HX (2242 - 5476, n=30)	4847 Points -9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points -14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points -16%
Media AMD Ryzen 5 4500U (1843 - 2530, n=13)	2236 Points -58%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -73%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points +3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.07 Points
Media AMD Ryzen 9 6900HX (2.86 - 3.07, n=8)	2.94 Points -4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points -7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -7%
Media AMD Ryzen 9 5900HX (2.8 - 2.86, n=5)	2.84 Points -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.69 Points -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -25%
Media AMD Ryzen 5 4500U (2.02 - 2.04, n=2)	2.03 Points -34%
CPU Multi 64Bit
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	26.35 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points -1%
Media AMD Ryzen 9 5900HX (22 - 25.6, n=5)	24 Points -9%
Media AMD Ryzen 9 6900HX (19 - 26.4, n=8)	23.9 Points -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points -10%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23.44 Points -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points -14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points -17%
Media AMD Ryzen 5 4500U (10.2 - 11.6, n=2)	10.9 Points -59%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -76%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points +12%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	12943 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points -1%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	12378 Points -4%
Media AMD Ryzen 9 6900HX (11870 - 12943, n=8)	12332 Points -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points -6%
Media AMD Ryzen 9 5900HX (11811 - 12152, n=5)	12020 Points -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -20%
Media AMD Ryzen 5 4500U ()	9139 Points -29%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	76758 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	75223 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points -4%
Media AMD Ryzen 9 5900HX (64320 - 74772, n=5)	70380 Points -8%
Media AMD Ryzen 9 6900HX (55915 - 77450, n=8)	69650 Points -9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points -14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points -16%
Media AMD Ryzen 5 4500U ()	38477 Points -50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -68%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -221%
Media AMD Ryzen 5 4500U (533 - 748, n=11)	603 Seconds * -158%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds * -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * -13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * -8%
Media AMD Ryzen 9 5900HX (219 - 442, n=29)	250 Seconds * -7%
Media AMD Ryzen 9 6900HX (212 - 357, n=21)	239 Seconds * -2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	234 Seconds *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	232 Seconds * +1%

wPrime 2.10
32m
Media AMD Ryzen 5 4500U (5.7 - 9.48, n=3)	7.83 s * -126%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -96%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * -27%
Media AMD Ryzen 9 6900HX (3.46 - 4.69, n=7)	4 s * -16%
Media AMD Ryzen 9 5900HX (3.31 - 4.4, n=4)	3.66 s * -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s * -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * -4%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	3.461 s *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +1%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	3.375 s * +2%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -208%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s * -153%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	201.062 s * -116%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -103%
Media AMD Ryzen 5 4500U (170.4 - 173.4, n=2)	171.9 s * -84%
Media AMD Ryzen 9 6900HX (93.2 - 149.4, n=7)	114.7 s * -23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * -14%
Media AMD Ryzen 9 5900HX (91.6 - 106.7, n=4)	98.7 s * -6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	93.19 s *

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	276 (273^min - 294^max) fps +5%
Media AMD Ryzen 9 5900HX (272 - 278, n=4)	275 fps +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps +1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	262.5 (262^min - 266^max) fps
Media AMD Ryzen 9 6900HX (241 - 263, n=7)	254 fps -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps -7%
Media AMD Ryzen 5 4500U ()	210 fps -20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -37%
Pass 2
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	127.8 (127.3^min - 129.1^max) fps
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps -2%
Media AMD Ryzen 9 5900HX (112 - 128.4, n=4)	120.2 fps -6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps -9%
Media AMD Ryzen 9 6900HX (93.3 - 127.8, n=7)	115.2 fps -10%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	113.7 (113.5^min - 122.2^max) fps -11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps -12%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps -14%
Media AMD Ryzen 5 4500U ()	59.3 fps -54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -71%

WinRAR - Result
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	7387 KB/s +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s +5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6882 KB/s
Media AMD Ryzen 9 6900HX (6795 - 6980, n=7)	6875 KB/s 0%
Media AMD Ryzen 9 5900HX (4297 - 7722, n=4)	6535 KB/s -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -39%
Media AMD Ryzen 5 4500U (3420 - 3566, n=2)	3493 KB/s -49%

TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	14.1 GB/s +5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	13.4 GB/s
Media AMD Ryzen 9 6900HX (9.3 - 13.5, n=7)	11.8 GB/s -12%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s -13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s -19%
Media AMD Ryzen 9 5900HX (7.4 - 12.3, n=4)	10.5 GB/s -22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -43%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -60%
Media AMD Ryzen 5 4500U (4.9 - 4.9, n=2)	4.9 GB/s -63%
Twofish Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.3 GB/s +28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s +6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.8 GB/s
Media AMD Ryzen 9 5900HX (1.6 - 2, n=4)	1.775 GB/s -1%
Media AMD Ryzen 9 6900HX (1.3 - 1.8, n=7)	1.643 GB/s -9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s -17%
Media AMD Ryzen 5 4500U (0.865 - 0.922, n=2)	0.894 GB/s -50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -58%
Serpent Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1.3 GB/s +8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1.2 GB/s
Media AMD Ryzen 9 5900HX (1.1 - 1.2, n=4)	1.15 GB/s -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s -8%
Media AMD Ryzen 9 6900HX (0.857 - 1.2, n=7)	1.094 GB/s -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -19%
Media AMD Ryzen 5 4500U (0.511 - 0.541, n=2)	0.526 GB/s -56%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -63%

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points 0%
Media AMD Ryzen 9 6900HX (8313 - 10490, n=21)	9642 Points -1%
Media AMD Ryzen 9 5900HX (5057 - 9294, n=27)	8188 Points -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -50%
Media AMD Ryzen 5 4500U (4352 - 6234, n=10)	4774 Points -51%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points +5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points
Media AMD Ryzen 9 6900HX (1523 - 1652, n=21)	1589 Points -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points -5%
Media AMD Ryzen 9 5900HX (1271 - 1574, n=27)	1517 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -15%
Media AMD Ryzen 5 4500U (1082 - 1220, n=10)	1109 Points -32%

Geekbench 5.0
5.0 Multi-Core
Media AMD Ryzen 9 6900HX (9220 - 10426, n=15)	9880 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points
Media AMD Ryzen 9 5900HX (7327 - 9053, n=9)	8267 Points -14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -50%
Media AMD Ryzen 5 4500U ()	4282 Points -56%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points +6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points
Media AMD Ryzen 9 6900HX (1531 - 1603, n=15)	1561 Points -2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points -6%
Media AMD Ryzen 9 5900HX (1233 - 1517, n=9)	1460 Points -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -13%
Media AMD Ryzen 5 4500U ()	1074 Points -33%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points
Media AMD Ryzen 9 6900HX (6191 - 6804, n=11)	6642 Points -2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points -5%
Media AMD Ryzen 9 5900HX (5249 - 6591, n=8)	6240 Points -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -13%
Media AMD Ryzen 5 4500U (4486 - 4762, n=2)	4624 Points -32%
64 Bit Multi-Core Score
Media AMD Ryzen 9 6900HX (36780 - 39852, n=11)	39028 Points +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -5%
Media AMD Ryzen 9 5900HX (30451 - 35465, n=8)	33068 Points -14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -50%
Media AMD Ryzen 5 4500U (17798 - 19324, n=2)	18561 Points -52%

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	18277 Points
Media AMD Ryzen 9 6900HX (15855 - 21036, n=23)	18161 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points -1%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	17378 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points -8%
Media AMD Ryzen 9 5900HX (13940 - 18790, n=28)	16642 Points -9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points -22%
Media AMD Ryzen 5 4500U (7061 - 8704, n=12)	8121 Points -56%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -57%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	61401 MIPS
Media AMD Ryzen 9 6900HX (49526 - 65336, n=20)	60091 MIPS -2%
Media AMD Ryzen 9 5900HX (36011 - 62503, n=29)	57266 MIPS -7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	56455 MIPS -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS -10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS -23%
Media AMD Ryzen 5 4500U (22466 - 25891, n=11)	24384 MIPS -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -71%
7z b 4 -mmt1
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6067 MIPS
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS -1%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS -4%
Media AMD Ryzen 9 6900HX (5090 - 6070, n=20)	5799 MIPS -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS -5%
Media AMD Ryzen 9 5900HX (4791 - 5905, n=29)	5701 MIPS -6%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5347 MIPS -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -21%
Media AMD Ryzen 5 4500U (4235 - 4338, n=11)	4290 MIPS -29%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	17.1 fps
Media AMD Ryzen 9 6900HX (12.6 - 18.7, n=20)	16.7 fps -2%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	15.7 fps -8%
Media AMD Ryzen 9 5900HX (8.26 - 17.1, n=29)	15.2 fps -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps -13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps -15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps -18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps -23%
Media AMD Ryzen 5 4500U (5.86 - 7.33, n=10)	6.8 fps -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -69%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -34%
Media AMD Ryzen 5 4500U (0.614 - 0.654, n=10)	0.636 sec * -34%
Media AMD Ryzen 9 5900HX (0.48 - 0.599, n=29)	0.507 sec * -7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	0.4997 sec * -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * -4%
Media AMD Ryzen 9 6900HX (0.4627 - 0.4974, n=20)	0.483 sec * -2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec * -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	0.4757 sec *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +2%

LibreOffice - 20 Documents To PDF
Media AMD Ryzen 5 4500U (58.2 - 78, n=11)	66.4 s * -36%
Media AMD Ryzen 9 5900HX (44.1 - 87.4, n=29)	53.3 s * -9%
Media AMD Ryzen 9 6900HX (44.8 - 81.7, n=20)	53.1 s * -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * -3%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	48.8 s *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s * +8%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	41.9 s * +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +22%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +8%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	287 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	285 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points -1%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points -1%
Media AMD Ryzen 9 6900HX (248 - 304, n=17)	280 Points -2%
Media AMD Ryzen 9 5900HX (230 - 291, n=28)	275 Points -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -18%
Media AMD Ryzen 5 4500U (191 - 202, n=8)	196.5 Points -32%

Mozilla Kraken 1.1 - Total
Media AMD Ryzen 5 4500U (819 - 871, n=11)	851 ms * -49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -27%
Media AMD Ryzen 9 5900HX (595 - 728, n=29)	617 ms * -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * -5%
Media AMD Ryzen 9 6900HX (564 - 607, n=18)	588 ms * -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	582 ms * -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	571 ms *
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms * +6%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25456 Points
Media AMD Ryzen 9 5900HX (22976 - 26958, n=19)	25146 Points -1%
Media AMD Ryzen 9 6900HX (17731 - 26684, n=18)	24448 Points -4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	22101 Points -13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points -16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points -24%
Media AMD Ryzen 5 4500U ()	11843 Points -53%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -62%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	25915 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points -3%
Media AMD Ryzen 9 5900HX (17714 - 27288, n=31)	24899 Points -4%
Media AMD Ryzen 9 6900HX (18389 - 27338, n=23)	24551 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points -8%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23308 Points -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points -20%
Media AMD Ryzen 5 4500U (9800 - 12259, n=11)	11318 Points -56%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -64%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +13%
Media AMD Ryzen 9 6900HX (6621 - 11039, n=23)	9584 Points +2%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	9449 Points +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9354 Points
Media AMD Ryzen 9 5900HX (6932 - 10603, n=31)	9224 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points -10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points -24%
Media AMD Ryzen 5 4500U (3316 - 4187, n=9)	3759 Points -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -69%

* ... Meglio usare valori piccoli

Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9706 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points 0%
Media AMD Ryzen 9 6900HX (8313 - 10490, n=21)	9642 Points -1%
Media AMD Ryzen 9 5900HX (5057 - 9294, n=27)	8188 Points -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -50%
Media AMD Ryzen 5 4500U (4352 - 6234, n=10)	4774 Points -51%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points +5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1634 Points
Media AMD Ryzen 9 6900HX (1523 - 1652, n=21)	1589 Points -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points -5%
Media AMD Ryzen 9 5900HX (1271 - 1574, n=27)	1517 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -15%
Media AMD Ryzen 5 4500U (1082 - 1220, n=10)	1109 Points -32%

Geekbench 5.0
5.0 Multi-Core
Media AMD Ryzen 9 6900HX (9220 - 10426, n=15)	9880 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	9638 Points
Media AMD Ryzen 9 5900HX (7327 - 9053, n=9)	8267 Points -14%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -50%
Media AMD Ryzen 5 4500U ()	4282 Points -56%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points +6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	1593 Points
Media AMD Ryzen 9 6900HX (1531 - 1603, n=15)	1561 Points -2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points -6%
Media AMD Ryzen 9 5900HX (1233 - 1517, n=9)	1460 Points -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -13%
Media AMD Ryzen 5 4500U ()	1074 Points -33%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points +11%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	6804 Points
Media AMD Ryzen 9 6900HX (6191 - 6804, n=11)	6642 Points -2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points -4%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points -5%
Media AMD Ryzen 9 5900HX (5249 - 6591, n=8)	6240 Points -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -13%
Media AMD Ryzen 5 4500U (4486 - 4762, n=2)	4624 Points -32%
64 Bit Multi-Core Score
Media AMD Ryzen 9 6900HX (36780 - 39852, n=11)	39028 Points +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, 3300 MHz	38566 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points -5%
Media AMD Ryzen 9 5900HX (30451 - 35465, n=8)	33068 Points -14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -50%
Media AMD Ryzen 5 4500U (17798 - 19324, n=2)	18561 Points -52%

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.2 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85.9 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	85.8 pt
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	76.1 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	70.7 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	69.2 pt
Media della classe Mini PC	63.2 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	41.4 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s -10%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	12208 KRay/s -19%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s -31%
Media della classe Mini PC (561 - 27538, n=97, ultimi 2 anni)	9978 KRay/s -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -63%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points -12%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points -14%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	61600 Points -38%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -44%
Media della classe Mini PC (3604 - 116903, n=97, ultimi 2 anni)	52513 Points -47%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -76%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s -14%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s -15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	2844 MB/s -18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s -25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -26%
Media della classe Mini PC (225 - 5096, n=97, ultimi 2 anni)	2294 MB/s -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -52%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points -6%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	95602 Points -8%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points -9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points -20%
Media della classe Mini PC (8172 - 119569, n=97, ultimi 2 anni)	69137 Points -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -55%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points -7%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	8213 Points -37%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -42%
Media della classe Mini PC (408 - 15525, n=97, ultimi 2 anni)	7328 Points -44%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points -49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -70%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points -10%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30804 Points -42%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -47%
Media della classe Mini PC (1958 - 62378, n=97, ultimi 2 anni)	27844 Points -47%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points -51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -72%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s -12%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s -16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s -27%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s -32%
Media della classe Mini PC (3691 - 177158, n=97, ultimi 2 anni)	75036 MB/s -45%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	59882 MB/s -56%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -57%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	828 MB/s -4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s -10%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s -13%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s -16%
Media della classe Mini PC (74.8 - 1183, n=97, ultimi 2 anni)	581 MB/s -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -69%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s -10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s -10%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	6612 KRay/s -17%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -28%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s -30%
Media della classe Mini PC (308 - 14722, n=97, ultimi 2 anni)	5327 KRay/s -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -62%

AIDA64 / CPU PhotoWorxx
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30098 MPixel/s +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -3%
Media della classe Mini PC (4408 - 44347, n=97, ultimi 2 anni)	24659 MPixel/s -11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s -12%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -47%

Minisforum Venus Series UM690 con Cinebench R15 Multi loop

L'esecuzione di Cinebench R15 in loop per un periodo prolungato ci ha permesso di verificare l'efficacia della soluzione di raffreddamento dell'UM690. C'è stato un piccolo calo di prestazioni dopo il quarto ciclo, ma non è stato così grave come nel caso del Minisforum Neptune Series NAD9, ad esempio. La nostra unità in prova è riuscita ad aggiudicarsi il primo posto con un punteggio medio di 2.111.

Metriche della CPU durante il ciclo di Cinebench R15

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Prestazioni del sistema

Il sistema complessivo trae vantaggio dal SoC scattante abbinato alla memoria DDR5. La Venus Series UM690 è in grado di gestire il lavoro quotidiano in modo eccezionale. La maggiore velocità di trasmissione dei dati della memoria è emersa chiaramente durante i test AIDA64, in cui i concorrenti non sono riusciti a tenere il passo dell'UM690. Detto questo, la latenza della RAM inclusa non è tra le più brevi. Il Minisforum Venus Series UM690 è leggermente in ritardo in questo senso, ma è improbabile che lo si noti nell'uso quotidiano.

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	98.9 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	92.5 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	92.4 pt
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	88 pt
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	84.9 pt
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	81.9 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	68.9 pt

PCMark 10
Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	7045 Points
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points -11%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points -12%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points -12%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points -16%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	5658 Points -20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -36%
Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +3%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10838 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	10700 Points -1%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points -2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points -6%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points -7%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -18%
Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0	10060 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points -1%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points -2%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -24%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points -24%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	7041 Points -30%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -37%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +9%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1804 Points +4%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1731 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points -3%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -28%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +11%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1740 Points 0%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1738 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points -5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -25%

CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1867 Points +7%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points +2%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1745 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points -17%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -32%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +27%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1811 Points +8%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1671 Points
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points -12%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points -24%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -27%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Media AMD Ryzen 9 6900HX (47938 - 53345, n=20)	50405 MB/s +5%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s -4%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44965 MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s -7%
Media della classe Mini PC (6481 - 70620, n=97, ultimi 2 anni)	42885 MB/s -11%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -26%

AIDA64 / Memory Read
Media AMD Ryzen 9 6900HX (43892 - 53321, n=20)	51062 MB/s +2%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s -1%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s -7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44775 MB/s -10%
Media della classe Mini PC (6914 - 71285, n=97, ultimi 2 anni)	43515 MB/s -13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -19%

AIDA64 / Memory Write
Media AMD Ryzen 9 6900HX (51085 - 57202, n=20)	55188 MB/s +1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s -14%
Media della classe Mini PC (6862 - 89318, n=97, ultimi 2 anni)	46630 MB/s -15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	46454 MB/s -15%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s -16%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -35%

AIDA64 / Memory Latency
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	101.5 ns * -22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns * -12%
Media AMD Ryzen 9 6900HX (80.7 - 120.6, n=20)	88.7 ns * -7%
Media della classe Mini PC (44.9 - 154.6, n=97, ultimi 2 anni)	88 ns * -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns *
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +11%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +17%

* ... Meglio usare valori piccoli

Latenza DPC

LatencyMon aveva già indicato un lieve aumento della latenza quando abbiamo tenuto aperte diverse schede in Microsoft Edge. Ma la riproduzione del nostro video dimostrativo in 4K e l'esecuzione di Prime95 non hanno fatto aumentare ulteriormente la latenza.

Latenza massima con diverse schede del browser aperte e durante la riproduzione di video 4K

Latenza massima dopo l'esecuzione di Prime95 per dieci secondi

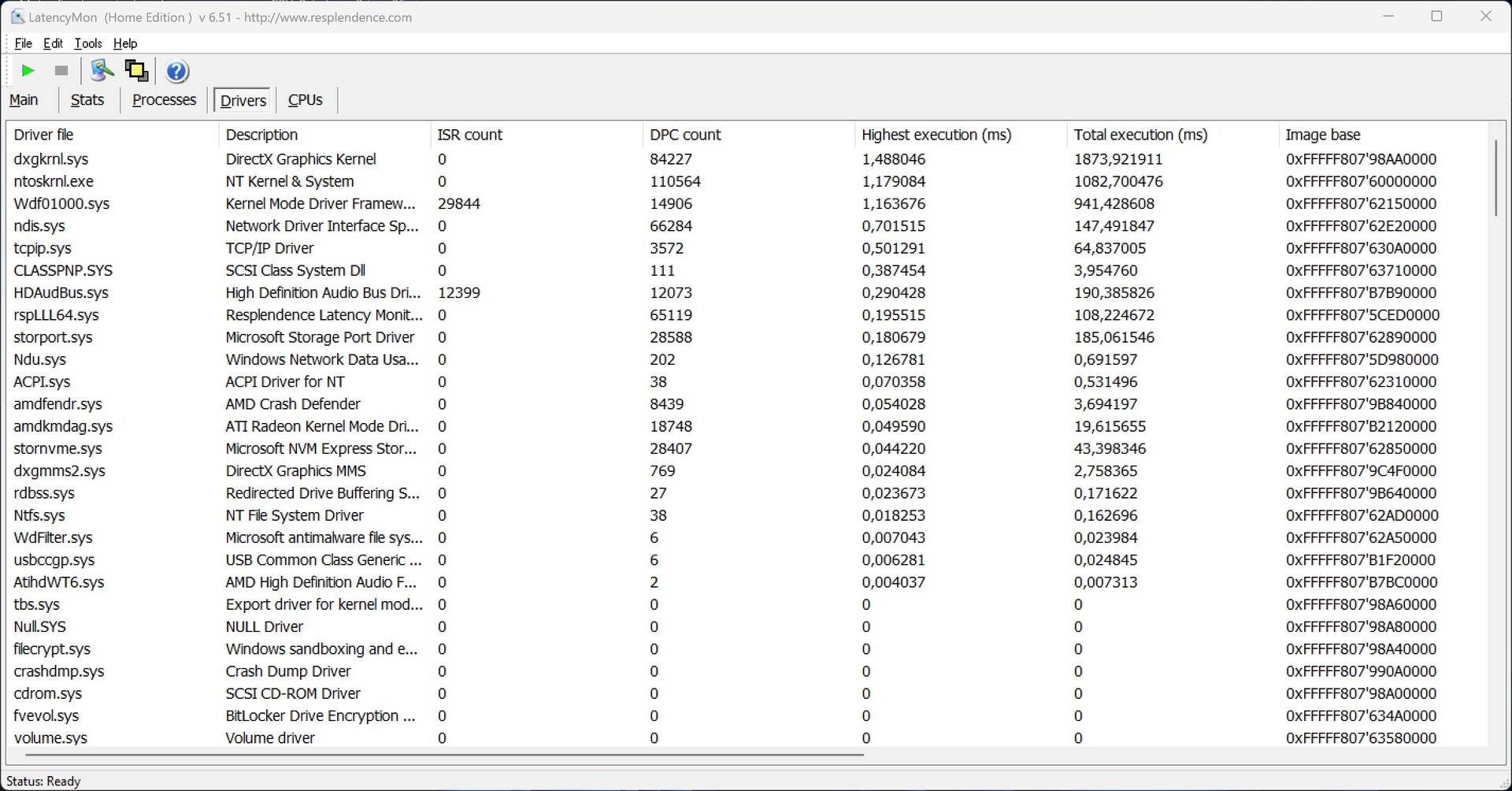

Driver ordinati in base al tempo di esecuzione (da alto a basso)

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -25%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -9%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston OM8PGP4512Q-A0	1488 μs *
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs * +25%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	961.5 μs * +35%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs * +48%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +56%

* ... Meglio usare valori piccoli

Memoria di massa

Il nostro esemplare in prova dell'UM690 è dotato di un'unità SSD Kingston da 512 GB. Abbiamo già visto lo stesso modello utilizzato nel modello Minisforum Neptune Series NAD9. Il drive si comporta in modo simile all'UM690 ed è più veloce delle soluzioni di archiviazione presenti negli altri dispositivi di confronto. Tuttavia, il drive Kingston ha mostrato le stesse debolezze sotto carico prolungato. Il piccolo dissipatore non è sufficiente a mantenere costanti le prestazioni del drive per un periodo prolungato. Il Minisforum UM690 può essere dotato di un'ulteriore unità di archiviazione da 2,5"; il cavo necessario è incluso nella confezione.

È possibile consultare la nostra tabella di confronto delle unità di archiviazione https://www.notebookcheck.net/Laptop-harddisks-HDD-SSD-benchmarks.22089.0.html per ulteriori informazioni e benchmark.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston OM8PGP4512Q-A0

Sequential Read: 2854 MB/s

Sequential Write: 3552 MB/s

512K Read: 1729 MB/s

512K Write: 3481 MB/s

4K Read: 69.39 MB/s

4K Write: 247.7 MB/s

4K QD32 Read: 589.3 MB/s

4K QD32 Write: 378.7 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	93.7 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	89.3 pt
Morefine S600-Apex Engineer ^-8! Crucial P1 SSD CT1000P1SSD8	55.1 pt
Media della classe Mini PC	49.9 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.7 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	43.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	37.3 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	34.5 pt

DiskSpd
seq read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s -12%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s -32%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -36%
Media della classe Mini PC (233 - 4168, n=96, ultimi 2 anni)	2028 MB/s -37%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s -44%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -46%
seq write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s -4%
Media della classe Mini PC (222 - 5595, n=96, ultimi 2 anni)	2049 MB/s -42%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s -49%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -64%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -67%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s -72%
seq q8 t1 read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s 0%
Media della classe Mini PC (236 - 8430, n=96, ultimi 2 anni)	3155 MB/s -35%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s -48%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -51%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s -53%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -55%
seq q8 t1 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s -4%
Media della classe Mini PC (228 - 6669, n=96, ultimi 2 anni)	2223 MB/s -37%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s -49%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s -50%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -63%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -66%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +16%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s -11%
Media della classe Mini PC (5.67 - 86.6, n=96, ultimi 2 anni)	51.3 MB/s -28%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -36%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -37%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -58%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +48%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s -31%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -32%
Media della classe Mini PC (22 - 425, n=96, ultimi 2 anni)	184.7 MB/s -36%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -44%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -52%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +1%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s
Media della classe Mini PC (26.1 - 2810, n=96, ultimi 2 anni)	1088 MB/s -44%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s -45%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s -48%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -58%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s -82%
4k q32 t16 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s -28%
Media della classe Mini PC (30.2 - 3983, n=96, ultimi 2 anni)	1084 MB/s -67%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s -69%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s -73%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s -77%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s -83%

AS SSD
Score Total
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +7%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	4023 Points -40%
Media della classe Mini PC (151.3 - 9030, n=94, ultimi 2 anni)	3534 Points -47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points -57%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -59%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -66%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points -80%
Score Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +2%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1365 Points -42%
Media della classe Mini PC (61 - 3635, n=94, ultimi 2 anni)	1346 Points -43%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points -51%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -57%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -64%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points -72%
Score Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +12%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1959 Points -38%
Media della classe Mini PC (88 - 4185, n=94, ultimi 2 anni)	1551 Points -51%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points -60%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points -63%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -68%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points -87%
Seq Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +2%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s
Media della classe Mini PC (291 - 6620, n=94, ultimi 2 anni)	2804 MB/s -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s -33%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s -43%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -46%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	2133 MB/s -47%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -49%
Seq Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +9%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s
Media della classe Mini PC (240 - 5783, n=94, ultimi 2 anni)	1949 MB/s -36%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1699 MB/s -44%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s -47%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s -54%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -59%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -62%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +20%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	77.46 MB/s -10%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s -33%
Media della classe Mini PC (6.08 - 104.2, n=94, ultimi 2 anni)	55.3 MB/s -36%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -54%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s -60%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -68%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +52%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	247.2 MB/s +3%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s -23%
Media della classe Mini PC (30.9 - 366, n=94, ultimi 2 anni)	166.7 MB/s -31%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s -37%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -50%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s -58%
4K-64 Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +1%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1073.73 MB/s -42%
Media della classe Mini PC (23.4 - 3035, n=94, ultimi 2 anni)	1010 MB/s -46%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s -52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -62%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -67%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s -81%
4K-64 Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +9%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1541.66 MB/s -41%
Media della classe Mini PC (32.8 - 3598, n=94, ultimi 2 anni)	1190 MB/s -54%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s -62%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s -68%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -71%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s -94%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -137%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	0.154 ms * -137%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -62%
Media della classe Mini PC (0.022 - 0.489, n=94, ultimi 2 anni)	0.1031 ms * -59%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms * -29%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * -14%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms *
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +8%
Access Time Write
Media della classe Mini PC (0.016 - 0.765, n=94, ultimi 2 anni)	0.1304 ms * -321%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -232%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -232%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms * -13%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * -0%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +6%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	0.026 ms * +16%

* ... Meglio usare valori piccoli

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Scheda grafica

Il nuovo SoC Rembrandt è accompagnato da un sensibile incremento delle prestazioni grafiche integrate. La AMD Radeon 680M dell'UM690 è un'ottima iGPU che offre molto più forza della Intel Iris Xe Graphics G7. In base ai nostri test, l'unità in esame è più veloce del 50% rispetto al Minisforum Neptune Series NAD9 (con Iris Xe Graphics).

Chi ha bisogno di maggiori prestazioni 3D può collegare una scheda grafica esterna tramite la porta Thunderbolt. Utilizzando un Razer Core X e una Nvidia GeForce RTX 3060 Tiabbiamo esaminato che tipo di prestazioni possiamo aspettarci da una configurazione eGPU. I risultati della scheda grafica dedicata sono stati inclusi nella tabella di confronto.

Visitate questa pagina per vedere altri benchmark della AMD Radeon 680M.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	100 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	97.2 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	95.9 pt
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	28 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	20.3 pt
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	20.1 pt
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	18.5 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	17.7 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	14.8 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	14.3 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +208%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	32726 Points +202%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +201%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	10845 Points
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points -34%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points -35%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points -37%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6687 Points -38%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points -47%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -49%

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +182%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	116516 Points +169%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +160%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	43275 Points
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points -24%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points -30%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	30433 Points -30%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points -39%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points -51%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -53%
1920x1080 Fire Strike Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +275%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	24360 Points +265%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +262%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	6679 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5543 Points -17%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points -17%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points -27%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -44%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -49%
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +369%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	10717 Points +356%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +348%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	2351 Points
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points -29%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1633 Points -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points -31%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points -40%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points -51%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -53%
Fire Strike Extreme Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +314%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	13007 Points +306%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +304%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	3206 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2498 Points -22%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points -23%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points -33%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1823 Points -43%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -46%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1509 Points -53%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 ^-2! NVIDIA GeForce RTX 3060 Ti, i7-1260P	100 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	98.3 pt
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	20.6 pt
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	12.9 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.7 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	12.4 pt
Intel NUC 12 Pro Kit NUC12WSKi7 ^-2! Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	11.9 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.7 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	9.5 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +390%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	167.3 fps +384%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	34.6 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.1 fps -30%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps -33%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.2 fps -36%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps -43%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -50%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -57%
Extreme Preset DX11
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +392%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	154.5 fps +363%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	33.4 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.7 fps -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps -28%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.5 fps -33%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps -36%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -47%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -50%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +653%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	134.2 fps +614%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	18.8 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	15.5 fps -18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps -24%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps -24%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps -28%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps -39%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -44%
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +497%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	122.7 fps +476%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	21.3 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	16.4 fps -23%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.2 fps -24%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps -29%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps -36%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps -40%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -57%

Unigine Superposition
1920x1080 1080p High
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	14698 Points +361%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	3187 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	2191 Points -31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points -34%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points -40%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points -50%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points -52%
1920x1080 1080p Extreme
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	7035 Points +375%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1481 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points -27%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	1041 Points -30%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	868 Points -41%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	776 Points -48%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	736 Points -50%

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +292%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	27740 Points +290%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7111 Points
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points -42%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3843 Points -46%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	3535 Points -50%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -52%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	3343 Points -53%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -62%
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +575%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2679 Points +570%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	400 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	298 Points -25%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points -31%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	235 Points -41%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points -41%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	224 Points -44%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -53%
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +551%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	2619 Points +548%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	404 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	286 Points -29%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points -33%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points -38%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	242 Points -40%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	220 Points -46%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -50%
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +181%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	5655 Points +179%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2030 Points
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points -37%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1217 Points -40%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	891 Points -56%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -58%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	808 Points -60%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -73%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	10536 Points +352%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +352%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	2332 Points
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1303 Points -44%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points -48%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -49%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1123 Points -52%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	1115 Points -52%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points -57%

Prestazioni di gioco

Anche se la nuova Radeon 680M è sostanzialmente più potente di una Radeon RX Vega 8l'iGPU è solo marginalmente adatta ai giochi più impegnativi. Detto questo, non possiamo scartare completamente le prestazioni di gioco della Radeon 680M. Ci sono infatti giochi che possono essere eseguiti senza problemi con la iGPU, ma in questi casi dovrete spesso accontentarvi di preset medi o alti.

Come accennato in precedenza, abbiamo testato l'UM690 anche con il Razer Core X e la Nvidia GeForce RTX 3060 Ti. Le prestazioni 3D del dispositivo possono essere notevolmente migliorate con le periferiche giuste. Tuttavia, l'unità in prova non è stata in grado di reggere il confronto con gli altri dispositivi che abbiamo testato con la stessa configurazione eGPU. Ad esempio, il Intel Nuc 12 Pro ha fornito prestazioni notevolmente migliori in combinazione con la scheda grafica dedicata.

Fare riferimento a il nostro elenco di giochi per le GPU per ulteriori informazioni e benchmark.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	308 (14.9^min, 95.6^P0.1, 204^P1) fps +134%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	219 (9.36^min, 50.7^P0.1, 139.8^P1) fps +66%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	210.7 fps +60%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	131.8 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	97.6 (8.8^min, 27.5^P0.1, 58.5^P1) fps -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps -26%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps -33%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps -36%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps -48%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -50%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	151.2 (24.1^min, 86.8^P0.1, 114.5^P1) fps +266%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	117 (21.2^min, 58.9^P0.1, 77.8^P1) fps +183%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	110 fps +166%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	41.3 fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	32.1 (3.28^min, 14.8^P0.1, 18.7^P1) fps -22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps -23%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	25.6 (19.1^min, 20^P0.1, 22.1^P1) fps -38%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps -43%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19.3 (2.25^min, 2.26^P0.1, 2.92^P1) fps -53%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -63%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	145.2 fps +77%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	118.3 fps +44%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	97.1 fps +18%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	82.1 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	72.7 fps -11%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	61 fps -26%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps -28%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	55.5 fps -32%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52.4 fps -36%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	33.9 fps -59%
1920x1080 High Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	101.3 fps +282%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	89.3 fps +237%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	81 fps +206%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	26.5 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	17.7 fps -33%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps -39%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	15.7 fps -41%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15 fps -43%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.8 fps -44%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	10.5 fps -60%

GTA V
1024x768 Lowest Settings possible
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	178.5 (4.33^min, 125^P1) fps +20%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	176.8 (3.31^min, 125^P1) fps +18%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	149.3 (5.43^min, 100^P1) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	140.8 (1.722^min, 4.74^P1) fps -6%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	136 (6.37^min, 90.9^P1) fps -9%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps -9%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	114.9 (9.31^min, 76.9^P1) fps -23%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	113.4 (25.6^min, 76.9^P1) fps -24%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	108.6 (21.4^min, 71.4^P1) fps -27%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68.3 (18.7^min, 45.5^P1) fps -54%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	152.7 (3.6^min, 100^P1) fps +210%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	128.2 (33.8^min, 83.3^P1) fps +160%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	96.1 (25.8^min, 55.6^P1) fps +95%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	49.3 (7.78^min, 34.5^P1) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	33.9 (11^min, 24.4^P1) fps -31%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	26.5 (10.4^min, 18.9^P1) fps -46%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	22.2 (5.57^min, 17.5^P1) fps -55%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -57%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	19.4 (8.25^min, 15.2^P1) fps -61%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16.4 (5.82^min, 11.9^P1) fps -67%

Far Cry 5
1280x720 Low Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	153 (116^min) fps +115%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	137 (107^min) fps +93%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	79 (61^min) fps +11%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	71 (39^min) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	62 (57^min) fps -13%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	59 (53^min) fps -17%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps -20%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52 (45^min) fps -27%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	44 (19^min) fps -38%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	25 (19^min) fps -65%
1920x1080 High Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127 (101^min) fps +226%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	112 (93^min) fps +187%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	65 (44^min) fps +67%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	39 (34^min) fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	28 (25^min) fps -28%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	27 (24^min) fps -31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	25 (23^min) fps -36%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	20 (10^min) fps -49%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16 (13^min) fps -59%

Far Cry New Dawn
1280x720 Low Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	133 (97^min) fps +105%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	114 (75^min) fps +75%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	72 (50^min) fps +11%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	65 (50^min) fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	56 (43^min) fps -14%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	53 (31^min) fps -18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps -20%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	47 (30^min) fps -28%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	42 (33^min) fps -35%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	29 (19^min) fps -55%
1920x1080 High Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	111 (89^min) fps +200%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	97 (75^min) fps +162%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58 (44^min) fps +57%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	37 (17^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps -24%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	27 (21^min) fps -27%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	26 (21^min) fps -30%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26 (19^min) fps -30%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19 (6^min) fps -49%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	15 (12^min) fps -59%

Dota 2 Reborn
1280x720 min (0/3) fastest
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	167.7 (148.7^min) fps +17%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	146.6 (129.5^min) fps +3%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	143 (124.5^min) fps
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	141 (113.7^min) fps -1%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	137.4 (117.3^min) fps -4%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps -4%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	124.2 (110.5^min) fps -13%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	116.4 (93.7^min) fps -19%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	115.5 (101.9^min) fps -19%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.1 (53.9^min) fps -45%
1920x1080 high (2/3)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	144.9 (126.6^min) fps +72%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) , R9 6900HX	125.8 (107.5^min) fps +49%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	94.8 (81.6^min) fps +12%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	84.3 (74.6^min) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps -19%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	67 (61.5^min) fps -21%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	66.7 (61^min) fps -21%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	63.1 (57.2^min) fps -25%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	51.7 (47.2^min) fps -39%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	43.4 (31.3^min) fps -49%

Minisforum Venus Series UM690 + iGPU

	basso	medio	alto	ultra
GTA V (2015)	149.3	138.1	49.3	22.3
The Witcher 3 (2015)	131.8	81.4	41.3	27
Dota 2 Reborn (2015)	143	121.4	84.3	73.6
Final Fantasy XV Benchmark (2018)	66.7	32.3	23.6
X-Plane 11.11 (2018)	66.1	53.1	43.1
Far Cry 5 (2018)	71	43	39	37
Strange Brigade (2018)	140.6	55.8	46.8	40.4
Far Cry New Dawn (2019)	65	39	37	34
Metro Exodus (2019)	73	29.8	22.9	19.5
Borderlands 3 (2019)	82.1	42.5	26.5	21.9
F1 2020 (2020)	177	86.3	67.6	46.7
F1 2021 (2021)	184.4	90.5	67.5	29.1
Tiny Tina's Wonderlands (2022)	59.5	44.2	29.8	24.4
F1 22 (2022)	82	72.9	53.8	13.2
The Witcher 3 v4.00 (2023)	43.3	38.9	35.1	29.3

Minisforum Venus Series UM690 + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)

	basso	medio	alto	ultra	QHD	4K
GTA V (2015)	176.8	169.8	152.7	90.5	84.4	96.2
The Witcher 3 (2015)	210.7	145.6	110	57.9		62.4
Dota 2 Reborn (2015)	146.6	130.6	125.8	113.3		96.9
Final Fantasy XV Benchmark (2018)	181.7	133.9	91.5		74.3	46.3
X-Plane 11.11 (2018)	108.9	96	77.5			66.9
Far Cry 5 (2018)	137	125	112	107	90	55
Strange Brigade (2018)	166.6	130.9	129	127.4	116.8	79.6
Far Cry New Dawn (2019)	114	101	97	88	82	56
Metro Exodus (2019)	112.6	76.3	59.1	44.5	39.7	30.5
Borderlands 3 (2019)	118.3	104.9	89.3	76.4	60.8	36.9
F1 2020 (2020)	168.9	99.2	98.1	82.4	73.3	52.3
F1 2021 (2021)	112	87	55.7	43.5	39.4	34.6
Tiny Tina's Wonderlands (2022)	150.3	122.1	90.5	74.1	57.6	33.8
F1 22 (2022)	50.2	44.9	35	22.6	21.8	17.4
The Witcher 3 v4.00 (2023)	108.8	94.1	83.1	75.2	63.9	43.1

Emissioni: efficienti ma udibili

Emissioni acustiche

Fino ad ora siamo sempre rimasti stupiti dalla silenziosità dei prodotti Minisforum sotto carico. Le nostre misurazioni hanno dimostrato che l'unità di raffreddamento del Minisforum Venus Series UM690 è estremamente silenziosa sotto carico. Tuttavia, il dispositivo non è completamente silenzioso. In base alle nostre misurazioni, la macchina ha prodotto 34 dB(A) di rumore sotto carico moderato e non è diventata molto più rumorosa sotto pieno carico, con 34,4 dB(A). Tuttavia, il rumore della ventola si è fatto sentire molto più del previsto a causa della sua frequenza elevata. Il Minisforum Neptune Series NAD9ha fatto molto meglio in questo senso ed è stato appena udibile a pieno carico.

Rumorosità

Idle		31.6 / 31.6 / 31.6 dB(A)
Sotto carico		33.9 / 34.4 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 30.5 dB(A)

Temperatura

Sul telaio del Minisforum UM690 sono presenti numerose prese d'aria che consentono di espellere efficacemente il calore dal case. L'unità di raffreddamento integrata è composta da due heat pipe e da una piccola ventola. Inoltre, al SoC è stato applicato del metallo liquido per garantire un trasferimento ottimale del calore. Nell'uso reale, la soluzione di raffreddamento funziona abbastanza bene, consentendo alle temperature dello chassis di rimanere fresche per tutto il tempo. Durante i nostri test, invece, il SoC ha raggiunto i 76°C (169°F) sotto carico, una temperatura ancora lontana dai limiti di sicurezza per i componenti del portatile.

Minisforum Venus Series UM690 durante lo stress test

L'adattatore dell'UM690 durante lo stress test

Consumo di energia

Il Minisforum Venus Series UM690 è uno dei dispositivi più efficienti del confronto. Considerando esclusivamente il consumo di energia, l'unità in esame si colloca allo stesso livello del Minisforum Neptune Series NAD9ma il SoC AMD è leggermente più efficiente. Il nostro dispositivo di monitoraggio ha registrato un consumo di soli 8,7-10,5 watt al minimo. L'UM690 ha assorbito fino a 94,5 watt durante lo stress test, che l'alimentatore da 120 watt è in grado di gestire senza problemi.

Consumo di corrente

Off / Standby	0.55 / 1.25 Watt
Idle	8.7 / 9.6 / 10.5 Watt
Sotto carico	65.8 / 94.5 Watt


Leggenda: min: , med: , max: Metrahit Energy Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.

	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Media AMD Radeon 680M	Media della classe Mini PC
Power Consumption		-14%	42%	-309%	-35%	-17%	16%	-9%
Idle Minimum *	8.7	8.9 -2%	3.4 61%	46.5 -434%	12.1 -39%	12.1 -39%	6.75 ?(2.2 - 10.8, n=30) 22%	9.8 ?(1.9 - 46.5, n=91, ultimi 2 anni) -13%
Idle Average *	9.6	9.6 -0%	5.7 41%	63 -556%	13 -35%	12.2 -27%	8.75 ?(4.4 - 12.8, n=30) 9%	11.7 ?(1.9 - 63, n=90, ultimi 2 anni) -22%
Idle Maximum *	10.5	11.8 -12%	7 33%	68.9 -556%	18.2 -73%	12.3 -17%	10.3 ?(5.1 - 18.6, n=30) 2%	14.7 ?(2.6 - 68.9, n=91, ultimi 2 anni) -40%
Load Average *	65.8	98.9 -50%	36.5 45%	73.9 -12%	70.6 -7%	64 3%	52.8 ?(20 - 77.7, n=30) 20%	51.9 ?(11.3 - 158.7, n=91, ultimi 2 anni) 21%
Load Maximum *	94.5	101.8 -8%	68 28%	80.8 14%	113 -20%	98.8 -5%	69.4 ?(48 - 103.2, n=30) 27%	86 ?(18.1 - 271, n=91, ultimi 2 anni) 9%

* ... Meglio usare valori piccoli

Verdetto - Una piccola centrale elettrica con opzioni di porta moderne

Recensione del Minisforum Venus Series UM690: Il prodotto è stato gentilmente fornito da Minisforum

Il Minisforum Venus Series UM690 è un mini PC all'avanguardia che offre anche molte prestazioni. Il AMD Ryzen 9 6900HX si adatta in modo fantastico all'UM690 ed è in grado di fornire costantemente grandi prestazioni senza essere frenato da limitazioni termiche. I nuovi SoC Rembrandt sono dotati della più recente iGPU sotto forma di una AMD Radeon 680Mche ha tutte le carte in regola per far girare senza problemi i giochi meno impegnativi ed è in grado di battere quasi sempre una iGPU Intel Iris Xe in termini di prestazioni. Non c'è nulla da criticare per quanto riguarda le finiture del dispositivo. Ogni cosa si incastra bene e non ci sono lacune evidenti sulla nostra unità di prova. Tuttavia, avremmo preferito che Minisforum avesse scelto materiali migliori invece di affidarsi a una costruzione prevalentemente in plastica. Ma almeno l'azienda ha dimostrato di essere in grado di fare le cose in modo diverso con la Serie Neptune NAD9.

Nonostante la compattezza dell'UM690, Minisforum non ha lesinato sulle interfacce esterne. Le numerose porte USB, compreso il supporto Thunderbolt, rendono il dispositivo interessante e, soprattutto, a prova di futuro. Abbiamo testato cosa si può ottenere dal mini PC con una scheda grafica esterna. Il risultato: l'UM690 può essere trasformato molto rapidamente in un'ottima piattaforma di gioco in grado di far girare senza problemi i giochi più recenti.

Dotato di un AMD Ryzen 9 6900HX, il Minisforum Venus Series UM690 offre prestazioni eccellenti senza consumare troppa energia.

Abbiamo un piccolo problema con l'unità di raffreddamento all'interno del computer. Sebbene funzioni in modo abbastanza silenzioso secondo le nostre misurazioni, la nostra impressione soggettiva è che il dispositivo sia udibile sotto carico e che sia molto più rumoroso di un Neptune Series NAD9. È lodevole che l'UM690 possa pilotare fino a tre display contemporaneamente, anche se probabilmente questo caso d'uso non è molto frequente nella vita reale. Purtroppo, gli utenti sono ancora limitati a una frequenza di aggiornamento di 60 Hz quando collegano il dispositivo a un display 4K. A nostro avviso, è essenziale fornire il supporto 4K@144Hz in futuro.

Prezzo e disponibilità

È possibile ordinare il Venus Series UM690 direttamente da Minisforum. L'azienda sta attualmente offrendo un interessante sconto in prevendita: il modello da recensire costa solitamente 899 €/US$759, ma dopo lo sconto vi costerà solo €719

/

US$649. Il modello più economico parte da €559/US$499. Tutti i prezzi indicati sono comprensivi di tasse.

Il prodotto viene attualmente spedito da Hong Kong e di solito impiega circa 2-3 settimane per essere consegnato. In futuro il prodotto sarà disponibile anche per il mercato di lingua tedesca, riducendo così notevolmente i tempi di spedizione nella regione.

L'esemplare oggetto della recensione è stato prestato gratuitamente all'autore dal produttore a scopo di recensione. L'azienda non ha alcuna influenza su questa recensione e non ha ricevuto alcuna versione della stessa prima della pubblicazione. Non vi è alcun obbligo di pubblicare alcun articolo sul prodotto.

Minisforum Venus Series UM690 - 2023-01-30 01/30/2023 v7
Sebastian Bade

Chassis

81 / 98 → 83%

Connettività

68 / 81 → 84%

Peso

81%

Prestazioni di gioco

78%

Prestazioni Applicazioni

97%

Rumorosità

85%

Media

81%

86%

Mini PC - Media ponderata

Punteggio	Data	Modello	Peso	Altezza
86.1 %	02/2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 gr	48 mm
	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 gr	40 mm
	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 gr	53 mm
	10/2022	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	795 gr	63.5 mm
85.1 %	01/2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
78.9 %	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 gr	37 mm

Recensione del desktop Minisforum Venus Series UM690: piccolo PC da ufficio con Ryzen 9 6900HX e USB4

Potenziali concorrenti a confronto

Uno sguardo dettagliato alla serie Minisforum Venus UM690

Caso

Confronto delle dimensioni

Specifiche tecniche

Connettività

Accessori

Manutenzione

Prestazioni - Il SoC Rembrandt di AMD offre ottime prestazioni

Condizioni di prova

Processore

Minisforum Venus Series UM690 con Cinebench R15 Multi loop

Prestazioni del sistema

Latenza DPC

Memoria di massa

Sustained Load Read: DiskSpd Read Loop, Queue Depth 8

Scheda grafica

Prestazioni di gioco

Minisforum Venus Series UM690 + iGPU

Minisforum Venus Series UM690 + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)

Emissioni: efficienti ma udibili

Emissioni acustiche

Temperatura

Consumo di energia

Power consumption with external monitor

Pro

Contro

Verdetto - Una piccola centrale elettrica con opzioni di porta moderne

Prezzo e disponibilità

Articoli collegati

	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs
Noise		-8%	3%	-4%	-17%	5%	-9%
off /ambiente *	30.5	30.1 1%	30.2 1%	30.28 1%	29.6 3%	30.2 1%	30.4 -0%
Idle Minimum *	31.6		30.5 3%	31.82 -1%	36.1 -14%	30.5 3%	33.1 -5%
Idle Average *	31.6	33.15 -5%	30.5 3%	32.27 -2%	37.6 -19%	30.5 3%	33.1 -5%
Idle Maximum *	31.6		30.5 3%	33.17 -5%	39.2 -24%	30.5 3%	33.1 -5%
Load Average *	33.9		31.2 8%	35.82 -6%	42.6 -26%	30.5 10%	38.1 -12%
Load Maximum *	34.4	41.63 -21%	35.1 -2%	37.1 -8%	42.4 -23%	30.5 11%	43.6 -27%
