Un PC da ufficio silenzioso! In tempi di continui aumenti dei prezzi dell'energia, i PC compatti sono eccezionalmente popolari perché hanno un consumo energetico notevolmente inferiore rispetto ai loro tradizionali fratelli desktop. Con il NiPoGi CK10, abbiamo messo alla prova questo piccolo PC da ufficio a sei core. È un dispositivo estremamente silenzioso, ma quanto è scattante il suo SoC? Nella nostra recensione vi sveliamo tutto quello che c'è da sapere sul NiPoGi CK10 basato su Intel Core i7-10810U.

Sebastian Bade (traduzione a cura di DeepL / Ninh Duy), Published 12/02/2022 🇺🇸 🇩🇪 ...

Desktop Intel Mini PC Comet Lake

Conosciamo già il produttore cinese di sistemi Minipc Union, dopo aver recensito sia l'Ace Magician AMR5 che l'Ace Magician AMR5 Ace Magician AMR5 così come l' Ace Magician TK11-A0 - due interessanti mini PC. Ora è apparso un altro piccolo concorrente sotto forma di NiPiGi CK10. Il sistema è basato su un Intel Core i7-10810U della serie Comet Lake. Il SoC non è più l'ultimo arrivato, nonostante le promesse di 6 core e 12 thread. Abbinato a 16 GB di RAM DDR4 e a un'unità SSD da 512 GB, nonché a una licenza Windows, il dispositivo costa circa 600 euro

Il Mini PC è arrivato in una confezione compatta, che include un alimentatore da 65 watt e un supporto VESA che consente di fissare il dispositivo a un monitor. Una panoramica dei potenziali concorrenti è riportata nella tabella seguente.

Minipc Union NiPoGi CK10 - 10810U

Processore

Intel Core i7-10810U 6 x 1.1 - 4.9 GHz, 40 W PL2 / Short Burst, 15 W PL1 / Sustained, Comet Lake-U

Scheda grafica

Intel UHD Graphics 620, Core: 1150 MHz, Memoria: 1333 MHz

Memoria

16 GB

, DDR4 2666, 1 of 2 installed, max. 32 GB

Scheda madre

Intel Comet Lake-U PCH-LP Premium

Harddisk

FPT310M8SSD512G, 512 GB

, M.2 2280 SATA SSD, 440 GB libera

Scheda audio

Intel Comet Lake PCH-LP - cAVS

Porte di connessione

5 USB 3.0 / 3.1, 1 VGA, 2 HDMI

Rete

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), RealTek Semiconductor, Device ID: C821 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Dimensioni

altezza x larghezza x profondità (in mm): 50 x 137.5 x 125

Sistema Operativo

Microsoft Windows 11 Pro

Altre caratteristiche

12 Mesi Garanzia

Peso

468 gr, Alimentazione: 233 gr

Prezzo

599 EUR

Links

Minipc Union homepage

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Potenziali concorrenti a confronto

Punteggio	Data	Modello	Peso	Altezza
70.9 %	12/2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 gr	50 mm
	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
	01/2022	Morefine S500+ R9 5900HX, Vega 8	697 gr	40 mm
	06/2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
	02/2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 gr	55.5 mm
	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 gr	72 mm
	12/2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 gr	53 mm

NiPoGi CK10 - Confezione con specifiche tecniche

NiPoGi CK10 - Contenuto della confezione

Caso

Il NiPoGi CK10 è un semplice mini PC che non presenta particolari caratteristiche di rilievo. Con un ingombro di 13,7 x 12,5 centimetri, è più piccolo di molti dei suoi concorrenti. In altezza, il PC compatto è alto quasi esattamente cinque centimetri. Per quanto riguarda la scelta dei materiali, il NiPoGi CK10 è realizzato principalmente in plastica. Il produttore ha completamente evitato l'implementazione di un telaio metallico stabilizzante. Un finto scanner di impronte digitali si trova sulla parte superiore del dispositivo e suggerisce che il case è stato preparato per ulteriori possibilità di configurazione.

Confronto delle dimensioni

Minisforum EliteMini HX90 Minipc Union Ace Magician AMR5 Minisforum EliteMini B550 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Minipc Union NiPoGi CK10 - 10810U Morefine S500+ DIN A4 ❌

Connettività

Per quanto riguarda le interfacce esterne, la NiPoGi CK10 offre una selezione semplice e standard. Un totale di cinque porte USB è buono e dovrebbe essere sufficiente per la maggior parte degli utenti. La porta Type-C disponibile non offre il supporto Thunderbolt. Tuttavia, il connettore VGA compensa questa mancanza con un senso di nostalgia. Quanto sia interessante la porta per monitor analogici lo decideranno gli utenti stessi. Tuttavia, tramite HDMI è possibile gestire senza problemi fino a due schermi moderni.

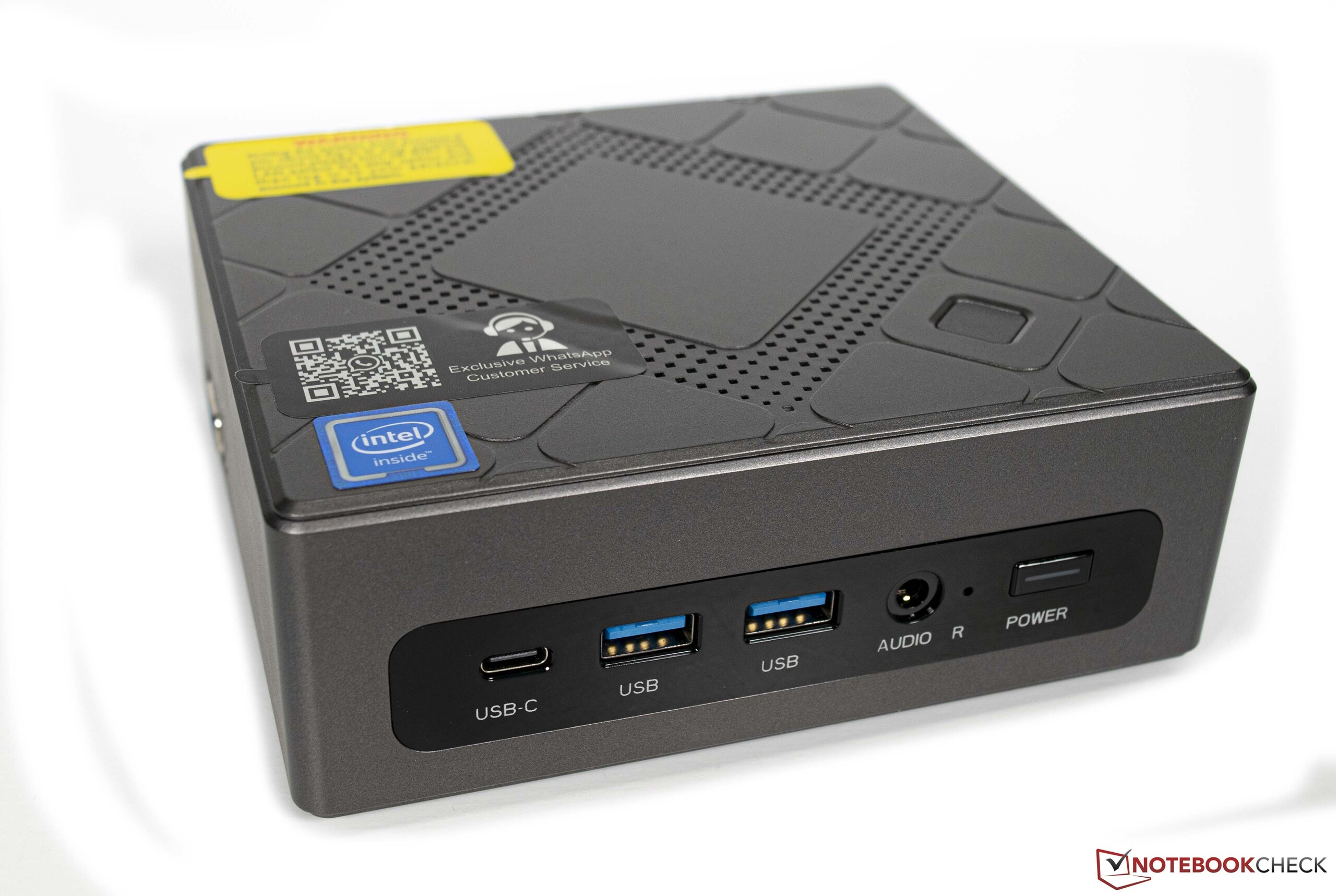

Lato anteriore: USB di tipo C (dati), 2x USB 3.0, jack audio da 3,5 mm, pulsante di alimentazione

Lato posteriore: 2x USB 3.0, 2x HDMI, GBit LAN, connettore di rete

Comunicazione

All'interno del NiPoGi CK10 è nascosto un modulo Wi-Fi Realtek. Durante i test, il modulo wireless non è stato purtroppo in grado di fornire prestazioni convincenti quando è stato abbinato al nostro router di prova, l'Asus ROG Rapture GT-AXE11000. Con un margine considerevole, il campione di prova si è piazzato all'ultimo posto nella nostra tabella di confronto. Fortunatamente, è possibile ottenere una connessione Internet più veloce, fino a 1 GBit/s, utilizzando una connessione cablata.

Networking
iperf3 receive AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +368%
Media della classe Mini PC (192.9 - 1796, n=86, ultimi 2 anni)	897 MBit/s +365%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s +302%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s +123%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s +102%
Media RealTek Semiconductor, Device ID: C821 (192.9 - 349, n=2)	271 MBit/s +40%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +182%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s +152%
Media della classe Mini PC (184.1 - 1776, n=86, ultimi 2 anni)	825 MBit/s +141%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s +117%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s +67%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s
Media RealTek Semiconductor, Device ID: C821 (272 - 343, n=2)	308 MBit/s -10%

Minipc Union NiPoGi CK10 - 10810U; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Minipc Union NiPoGi CK10 - 10810U; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

Manutenzione

Per il momento, un aggiornamento non è necessario grazie alla solida configurazione della base. Se si desidera comunque accedere ai componenti integrati, è possibile farlo facilmente, poiché per rimuovere la piastra di base è necessario svitare solo quattro piccole viti. Nel nostro esemplare di prova è stato possibile alloggiare uno slot aggiuntivo per un ulteriore modulo SO DIMM e altri due dispositivi di archiviazione di massa. Se si desidera pulire la ventola, è necessario un ulteriore smontaggio senza particolari problemi.

Prestazioni

A livello base, l'Intel Core i7-10810U è adatto per applicazioni d'ufficio e carichi di lavoro leggeri e multi-thread, che vengono elaborati in modo efficiente grazie ai 12 thread. Purtroppo, il produttore ha sprecato parte delle prestazioni installando un solo modulo RAM. Lo stesso vale per l'unità SSD integrata, che vanta solo una velocità SATA.

Condizioni di prova

Tutti i test sulle prestazioni sono stati eseguiti utilizzando le impostazioni di fabbrica. Non abbiamo apportato alcuna modifica ai limiti di potenza del SoC. Tuttavia, il BIOS consente di modificare questi valori.

Processore

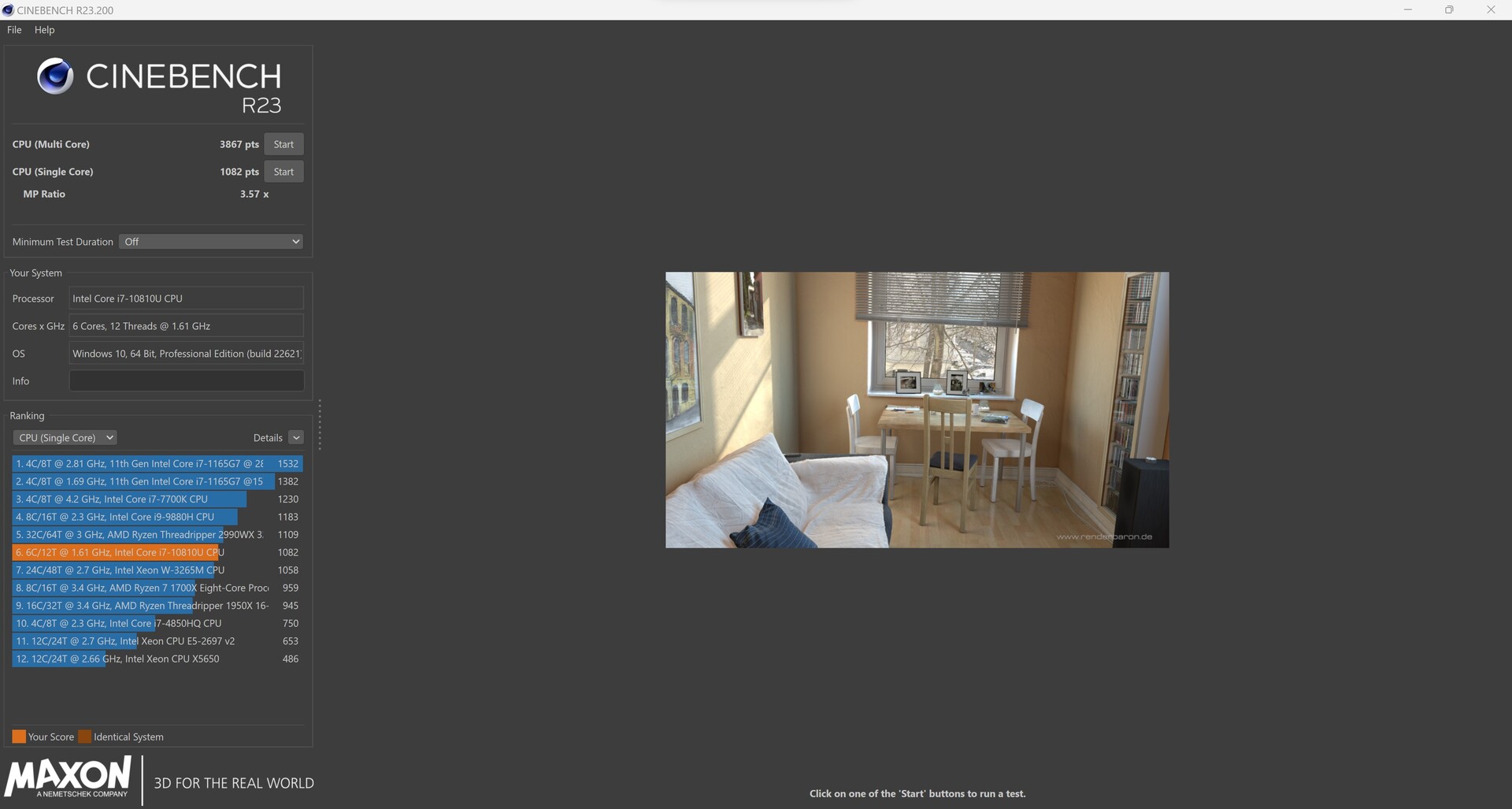

Il Intel Core i7-10810U appartiene alla serie Comet Lake e offre sei core di calcolo abilitati all'Hyper-Threading per un totale di 12 thread. Il consumo energetico è limitato a 40 watt (limite di potenza a breve termine) e 15 watt (limite di potenza a lungo termine), con il produttore che agisce in modo molto conservativo in questo settore. Il sistema di raffreddamento ha ancora le riserve per ottenere maggiori prestazioni dal SoC. Ciò significa che il NiPoGi CK10 ha difficoltà a tenere il passo con la concorrenza. Solo il Ace Magician TK11-A0 si avvicina e può essere battuto in molti benchmark multi-thread. Il vecchio Intel Core i7-10810U si trova in difficoltà rispetto ai concorrenti con 8 core nativi

Nei benchmark della memoria, il singolo modulo RAM integrato è fatale per il NiPoGi CK10. La modalità dual channel può essere utilizzata solo con due moduli RAM ed è un vantaggio per l'intero sistema

È possibile trovare altri benchmark del processore qui.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	46.8 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	46.7 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	46.5 pt
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	42 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.5 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	39.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.7 pt
Media Intel Core i7-10810U	34.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	33.5 pt

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points +16%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points +14%
Media Intel Core i7-10810U (161 - 183, n=5)	175.6 Points +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +257%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +218%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points +216%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +208%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points +103%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points +52%
Media Intel Core i7-10810U (623 - 1064, n=4)	799 Points +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -10%

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +40%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +35%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points +25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points +22%
Media Intel Core i7-10810U (396 - 447, n=5)	425 Points +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +246%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +211%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points +206%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +200%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points +99%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points +55%
Media Intel Core i7-10810U (1498 - 2344, n=5)	1778 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -4%

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +47%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points +18%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points +15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points
Media Intel Core i7-10810U ()	1.95 Points 0%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +267%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points +230%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +227%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +215%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points +112%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points +54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points
Media Intel Core i7-10810U ()	6.98 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -9%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +41%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +37%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points +21%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points +18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points
Media Intel Core i7-10810U ()	8591 Points 0%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +211%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +182%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points +178%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +174%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points +80%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points
Media Intel Core i7-10810U ()	23491 Points 0%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds *
Media Intel Core i7-10810U (571 - 875, n=5)	689 Seconds * +1%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * +26%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +43%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * +64%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +67%

wPrime 2.10
32m
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * +2%
Media Intel Core i7-10810U (4.86 - 6.95, n=2)	5.9 s * +15%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * +15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +48%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +52%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * +54%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s *
Media Intel Core i7-10810U (205 - 267, n=2)	236 s * +12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * +28%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +63%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +66%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * +69%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +95%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +92%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +86%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps +65%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps +52%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps +17%
Media Intel Core i7-10810U (141.6 - 153.7, n=2)	147.7 fps +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +198%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +186%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +94%
Media Intel Core i7-10810U (39.2 - 39.7, n=2)	39.4 fps +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -6%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s +15%
Media Intel Core i7-10810U (4747 - 4927, n=2)	4837 KB/s +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s -9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -12%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +83%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s +31%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s +29%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s
Media Intel Core i7-10810U (5.5 - 5.9, n=2)	5.7 GB/s -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -10%
Twofish Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s +100%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +50%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s +10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s
Media Intel Core i7-10810U (0.956 - 1, n=2)	0.978 GB/s -2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -24%
Serpent Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s +112%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +112%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +94%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s +24%
Media Intel Core i7-10810U (0.566 - 0.64, n=2)	0.603 GB/s +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -21%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points +84%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points +25%
Media Intel Core i7-10810U (3351 - 5553, n=5)	4350 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points +14%
Media Intel Core i7-10810U (1219 - 1274, n=5)	1240 Points +2%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +100%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +100%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +99%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points +56%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points +43%
Media Intel Core i7-10810U (3924 - 5631, n=3)	4908 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points +23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points +13%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points +1%
Media Intel Core i7-10810U (1220 - 1235, n=3)	1229 Points +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +35%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points +23%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points +11%
Media Intel Core i7-10810U (4762 - 5281, n=3)	5082 Points +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +65%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points +14%
Media Intel Core i7-10810U (19324 - 22533, n=3)	21447 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points 0%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +157%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +118%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +113%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points +93%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points +87%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points +78%
Media Intel Core i7-10810U (6537 - 10599, n=5)	8591 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +173%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +173%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS +143%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS +33%
Media Intel Core i7-10810U (16072 - 25244, n=5)	21290 MIPS +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -13%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +27%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS +2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS
Media Intel Core i7-10810U (4398 - 4794, n=5)	4561 MIPS -2%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +206%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +185%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +179%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps +148%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps +94%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps +51%
Media Intel Core i7-10810U (3.81 - 6.45, n=5)	5.31 fps +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec *
Media Intel Core i7-10810U (0.651 - 0.717, n=5)	0.682 sec * +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * +11%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +29%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +30%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s *
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * +3%
Media Intel Core i7-10810U (60.6 - 68.2, n=5)	65.4 s * +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +26%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +26%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +29%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +39%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +36%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points +24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points +15%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points
Media Intel Core i7-10810U (202 - 207, n=5)	205 Points 0%

Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms *
Media Intel Core i7-10810U (853 - 968, n=5)	901 ms * +7%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * +21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +33%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +38%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +38%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +38%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +183%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +175%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +171%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points +124%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +107%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points +63%
Media Intel Core i7-10810U (8470 - 11179, n=2)	9825 Points +16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points +13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +179%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +168%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +166%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +101%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points +53%
Media Intel Core i7-10810U (9003 - 11864, n=5)	10590 Points +18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +200%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +160%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +155%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points +139%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +91%
Media Intel Core i7-10810U (2331 - 4127, n=5)	3331 Points +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points

* ... Meglio usare valori piccoli

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.7 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	84 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.3 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	58.4 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	30.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +239%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +224%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +193%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +189%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s +95%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +61%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +283%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +231%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +225%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +206%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +119%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -8%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +181%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +178%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +100%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s +87%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s +57%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +86%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +80%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +73%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +67%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -18%

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +211%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +175%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +163%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +157%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +78%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -15%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +341%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +279%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +274%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +236%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +150%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +655%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +569%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +544%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +337%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +327%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +229%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +198%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +191%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +165%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +156%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s +73%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -9%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +233%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +226%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +185%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +184%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s +83%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +59%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s +19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +203%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +167%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +97%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s +95%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s +48%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s

NiPoGi CK10 Cinebench R15 multi-loop

Il ciclo continuo di Cinebench R15 ha mostrato che il sistema di raffreddamento integrato non ha davvero il suo bel da fare con l'Intel Core i7-108U Intel Core i7-10810U. La messa a punto conservativa garantisce una velocità di clock del turbo molto bassa, motivo per cui abbiamo osservato solo una minima perdita di prestazioni dopo il primo ciclo. Con una media di 612 punti, le prestazioni sono rimaste eccezionalmente stabili durante tutti i 50 test.

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Prestazioni del sistema

I benchmark evidenziano che il SoC ha già più di due anni. Dal punto di vista soggettivo, i limiti delle prestazioni del sistema sono evidenti a causa della relativa lentezza dell'SSD e della RAM, che funziona solo a canale singolo. A volte si osservano piccole latenze all'apertura dei programmi. Inoltre, le prestazioni Wi-Fi inferiori alla media non hanno un effetto positivo sui flussi di lavoro.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +68%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +62%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +60%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points +48%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points +43%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points +32%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points

PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points +39%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points +38%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points +36%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points +28%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points +19%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points

PCMark 10 / Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +53%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +49%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +48%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +43%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points +24%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points +3%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -5%

Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity

Performance Rating
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	89 pt
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	69.9 pt

CrossMark / Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +40%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +35%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points +28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points +22%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points

CrossMark / Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +63%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +62%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +62%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points +57%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points

CrossMark / Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +39%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +33%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points +20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points +15%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points

CrossMark / Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +33%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +29%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +26%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points +20%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +156%
Media della classe Mini PC (6481 - 70620, n=98, ultimi 2 anni)	42914 MB/s +126%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +121%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +99%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +98%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s +87%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s +85%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s +67%
Media Intel Core i7-10810U (18973 - 28662, n=2)	23818 MB/s +26%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s

AIDA64 / Memory Read
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +139%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +138%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +123%
Media della classe Mini PC (6914 - 71285, n=98, ultimi 2 anni)	43571 MB/s +122%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +119%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s +106%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s +96%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s +94%
Media Intel Core i7-10810U (19621 - 30124, n=2)	24873 MB/s +27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s

AIDA64 / Memory Write
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +175%
Media della classe Mini PC (6862 - 89318, n=98, ultimi 2 anni)	46636 MB/s +155%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +128%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s +114%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s +105%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s +93%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s +92%
Media Intel Core i7-10810U (18296 - 32064, n=2)	25180 MB/s +38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -59%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -52%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * -50%
Media della classe Mini PC (44.9 - 154.6, n=98, ultimi 2 anni)	87.8 ns * -46%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * -32%
Media Intel Core i7-10810U (60.2 - 94.3, n=2)	77.3 ns * -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * -23%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns *

* ... Meglio usare valori piccoli

Latenze DPC

Il NiPoGi CK10 ha problemi di latenza quando si aprono più schede in Edge. La latenza non è peggiorata durante la riproduzione di video Youtube 4K. Il Intel Core i7-10810Udell'Intel Core i7-10810U funziona con un carico di circa il 35% durante la riproduzione di questi video.

Massima latenza quando si aprono più schede del browser e si riproduce materiale video 4K

Latenza massima dopo dieci secondi di Prime95

Driver classificati in base alla latenza più elevata

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs *
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * +75%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * +78%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * +85%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * +85%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +90%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +91%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +95%

* ... Meglio usare valori piccoli

Memoria di massa

Il CK10 è alimentato da un'unità SSD sconosciuta con una capacità di archiviazione di 512 GB. Si tratta di un'unità SSD M.2 2280 basata su SATA, come si può chiaramente vedere nei benchmark. Gli svantaggi sono evidenti se confrontati con alternative più veloci come le unità SSD NVMe. Tuttavia, le prestazioni in lettura 4K sono di buon livello. Il mini PC può essere dotato di un massimo di tre dispositivi di archiviazione di massa (2x M.2 2280, 1x 2,5 pollici).

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

FPT310M8SSD512G

Sequential Read: 346.8 MB/s

Sequential Write: 395.5 MB/s

512K Read: 263.7 MB/s

512K Write: 307.5 MB/s

4K Read: 39.26 MB/s

4K Write: 83.54 MB/s

4K QD32 Read: 317.5 MB/s

4K QD32 Write: 338.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	87.4 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	85.7 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	82.4 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	71.1 pt
Minisforum HM90 ^-11! Kingston OM8PDP3256B	68.6 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	68.3 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	64.8 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	27.5 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +602%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +569%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +554%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s +451%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s +392%
Minisforum HM90 Kingston OM8PDP3256B	1445 (1382.19^min - 1445.15^max) MB/s +365%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s +324%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s
seq write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +308%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +308%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s +191%
Minisforum HM90 Kingston OM8PDP3256B	1211 (1193.91^min - 1211.31^max) MB/s +176%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s +170%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s +123%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s +26%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s
seq q8 t1 read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +469%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +450%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s +436%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s +430%
Minisforum HM90 Kingston OM8PDP3256B	2177 (1922.11^min - 2177.05^max) MB/s +390%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s +388%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s +344%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s
seq q8 t1 write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +288%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +284%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s +185%
Minisforum HM90 Kingston OM8PDP3256B	1245 (1229.98^min - 1245.08^max) MB/s +170%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s +160%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s +112%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s +20%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s
4k q1 t1 read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +24%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s +22%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +16%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s +14%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -2%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -24%
Minisforum HM90 Kingston OM8PDP3256B	27.1 (26.54^min - 27.09^max) MB/s -30%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +166%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +156%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +140%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s +104%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s +95%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s +68%
Minisforum HM90 Kingston OM8PDP3256B	125 (123.91^min - 124.78^max) MB/s +53%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s
4k q32 t16 read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +259%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +240%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +235%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s +171%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s +127%
Minisforum HM90 Kingston OM8PDP3256B	589 (585.51^min - 588.52^max) MB/s +99%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s +6%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s
4k q32 t16 write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +214%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +197%
Minisforum HM90 Kingston OM8PDP3256B	932 (920.96^min - 931.78^max) MB/s +183%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +171%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +135%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +100%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s +60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s

AS SSD
Score Total
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +1491%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +1441%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points +1400%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points +1139%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points +1103%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points
Score Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +204%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +202%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points +162%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points +124%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points +83%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points
Score Write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +623%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +576%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +566%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +512%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points +473%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points
Seq Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +370%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +361%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s +350%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s +318%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s +263%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s
Seq Write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +311%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +301%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s +214%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s +186%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s +132%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s
4K Read
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +38%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +30%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +25%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -6%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -34%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +370%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s +287%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +266%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s +263%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s +208%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s
4K-64 Read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +206%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +203%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s +144%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s +113%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s +60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s
4K-64 Write
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +951%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +878%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +779%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +701%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s +696%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -38%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * +6%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * +28%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +46%
Access Time Write
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms *
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * +9%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * +9%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +10%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +74%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +79%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Grafica

Il sistema Intel UHD Graphics 620 ha difficoltà a tenere il passo con i suoi successori. Il modello successivo - l'Intel Iris Xe Graphics - è in grado di competere con la Radeon RX Vega 8 di AMD. Le prestazioni 3D migliorerebbero se il dispositivo fosse dotato di un secondo modulo di RAM DDR4. Come punto di riferimento, abbiamo incluso il HP EliteBook x360 1040 G7 nella tabella di confronto.

Potete trovare altri benchmark qui.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	96.4 pt
Media Intel Iris Xe Graphics G7 96EUs	89.7 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	86.6 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	84.5 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	77.2 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	76.5 pt
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	73.3 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	72.1 pt
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	30.6 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	23.4 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +329%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +293%
Media Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=194)	6345 Points +282%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +280%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +248%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +238%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	5567 Points +235%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +235%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	1959 Points +18%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +303%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +254%
Media Intel Iris Xe Graphics G7 96EUs (13162 - 38040, n=172)	26334 Points +223%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +221%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points +221%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	23739 Points +191%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points +189%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +150%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	11437 Points +40%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points
1920x1080 Fire Strike Graphics
Media Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=207)	4905 Points +355%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +339%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +305%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +250%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points +246%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points +233%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	3414 Points +217%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points +213%
HP EliteBook x360 1040 G7, i7-10810U Intel UHD Graphics 620, Intel Core i7-10810U	1444 Points +34%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	93 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	91.1 pt
Media Intel Iris Xe Graphics G7 96EUs	90.8 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	78.8 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	78.1 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	74.9 pt
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	73.6 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	69.8 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	23.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +330%
Media Intel Iris Xe Graphics G7 96EUs (17.3 - 26.3, n=17)	22.7 fps +320%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +263%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps +228%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps +220%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps +200%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps +176%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	13.5 fps +150%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +309%
Media Intel Iris Xe Graphics G7 96EUs (17.7 - 27.5, n=17)	23.3 fps +309%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +275%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +216%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps +211%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps +200%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps +195%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	15.4 fps +170%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +282%
Media Intel Iris Xe Graphics G7 96EUs (11.3 - 17.2, n=15)	14.7 fps +277%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +264%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +197%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +195%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps +190%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps +172%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	10 fps +156%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Media Intel Iris Xe Graphics G7 96EUs (11.7 - 21.1, n=15)	16.5 fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.8 fps

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points +361%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3843 Points +327%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	3499 Points +289%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	3499 Points +289%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	3414 Points +280%
Media Intel Iris Xe Graphics G7 96EUs (2693 - 3797, n=21)	3359 Points +274%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points +259%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points +200%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points
1024x600 Normal, Fluid 3DTex
Media Intel Iris Xe Graphics G7 96EUs (186 - 420, n=21)	308 Points +258%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	306 Points +256%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points +221%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	235 Points +173%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	235 Points +173%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	235 Points +173%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points +160%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points +116%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points
1024x600 Normal, Fluid 2DTexArr
Media Intel Iris Xe Graphics G7 96EUs (204 - 389, n=21)	299 Points +256%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	292 Points +248%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points +224%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	231 Points +175%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	231 Points +175%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	220 Points +162%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points +152%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points +143%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points
1024x600 Normal, Mandel Vector
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points +623%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1217 Points +588%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1066 Points +502%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1066 Points +502%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +455%
Media Intel Iris Xe Graphics G7 96EUs (558 - 911, n=21)	773 Points +337%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	763 Points +331%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points +215%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points
1024x600 Normal, Mandel Scalar
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1115 Points +458%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1047 Points +424%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	964 Points +382%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	964 Points +382%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +353%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	853 Points +327%
Media Intel Iris Xe Graphics G7 96EUs (747 - 888, n=21)	829 Points +315%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points +276%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points
1024x600 Normal, QJuliaRayTrace
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points +242%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1200 Points +241%
Media Intel Iris Xe Graphics G7 96EUs (936 - 1303, n=21)	1149 Points +226%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1123 Points +219%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1002 Points +185%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1002 Points +185%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +182%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +156%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points

3DMark 05 Standard		16972 punti
3DMark 06 Standard Score		11379 punti
3DMark Vantage P Result		6899 punti
3DMark 11 Performance		1848 punti
3DMark Ice Storm Standard Score		51368 punti
3DMark Cloud Gate Standard Score		7637 punti
3DMark Fire Strike Score		1004 punti
3DMark Fire Strike Extreme Score		474 punti
3DMark Time Spy Score		419 punti
Aiuto

... in confronto

Prestazioni di gioco

Il sistema Intel UHD Graphics 620 è sopraffatto da tutti i giochi attuali. Anche i titoli più vecchi spesso possono essere giocati senza problemi solo a 720p e con i dettagli impostati su basso. La iGPU riesce a gestire al meglio i giochi casual più semplici a risoluzione nativa

Ulteriori confronti e benchmark sono disponibili nel nostro Elenco dei giochi per GPU.

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +301%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +242%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +237%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps +235%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps +193%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	92.8 (13.8^min, 62.5^P1) fps +174%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps +101%
Media Intel UHD Graphics 620 (33.9 - 35.7, n=2)	34.8 fps +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +339%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +271%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +250%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +237%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps +205%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 (12.9^min, 50^P1) fps +194%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps +96%
Media Intel UHD Graphics 620 (28 - 30.6, n=2)	29.3 fps +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +464%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +400%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +336%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (41^min) fps +318%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps +300%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps +300%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps +127%
Media Intel UHD Graphics 620 (6 - 16, n=12)	12.9 fps +17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (10^min) fps
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +480%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +480%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +340%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (18^min) fps +320%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps +320%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps +320%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps +240%
Media Intel UHD Graphics 620 (5 - 7, n=5)	6.6 fps +32%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (5^min) fps

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +409%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +336%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +300%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +282%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41 (31^min) fps +273%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps +264%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps +164%
Media Intel UHD Graphics 620 (11 - 13, n=2)	12 fps +9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (8^min) fps
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +480%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +460%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +340%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (17^min) fps +320%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps +300%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps +300%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps +220%
Media Intel UHD Graphics 620 (5 - 7, n=2)	6 fps +20%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (4^min) fps

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +347%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +271%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +265%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +255%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps +253%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.7 (65^min) fps +213%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps +137%
Media Intel UHD Graphics 620 (25.5 - 29.2, n=4)	27.1 fps +6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.5 (19^min) fps
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +368%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +322%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +265%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps +264%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.6 (32^min) fps +242%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps +188%
Media Intel UHD Graphics 620 (11.1 - 13.5, n=4)	12.2 fps +8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11.3 (5^min) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +89%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +74%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +72%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +71%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps +52%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.5 (88.7^min) fps +38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	79.1 (53.9^min) fps +9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps
Media Intel UHD Graphics 620 (42.4 - 90, n=92)	71.9 fps -1%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +137%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +114%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +109%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps +100%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.4 (69^min) fps +78%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	71.4 (52.5^min) fps +58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps
Media Intel UHD Graphics 620 (8.6 - 57.1, n=92)	43.5 fps -4%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +289%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +241%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +240%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +214%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps +212%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps +184%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.6 (43.7^min, 64.9^P1) fps +182%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps
Media Intel UHD Graphics 620 (17 - 31, n=5)	23.9 fps -7%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +290%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +281%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +242%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +220%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps +208%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.1 (23.3^min, 25.9^P1) fps +197%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps +189%
Media Intel UHD Graphics 620 (7 - 12.5, n=5)	10.2 fps +4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps

	basso	medio	alto	ultra
GTA V (2015)	33.9	28	6.56	2.67
Dota 2 Reborn (2015)	72.8	45.1	18.4	16
Final Fantasy XV Benchmark (2018)	10.8	5.08	3.75
X-Plane 11.11 (2018)	20.2	13.1	12
Far Cry 5 (2018)	11	5	5
Strange Brigade (2018)	25.7	9.8	10.1
Far Cry New Dawn (2019)	11	5	5
Metro Exodus (2019)	12.3	5.95	4.61
Borderlands 3 (2019)	14.9	5.83	3.69
F1 2020 (2020)	25.5	11.3		5.34
F1 2021 (2021)	28	12.2	9.22
Tiny Tina's Wonderlands (2022)	7.02	5.06	3.3

Emissioni - sempre silenziose ed economiche

Emissioni acustiche

Al contrario, il Intel Core i7-10810U(PL1 e PL2) garantisce un rumore di funzionamento molto silenzioso. Sia al minimo che sotto carico, il NiPoGi CK10 non è mai veramente udibile. Con 31 dB(A), il mini PC è stato molto silenzioso durante lo stress test e quindi ha battuto di gran lunga tutti i dispositivi di confronto testati.

Rumorosità

Idle		30.8 / 30.9 / 30.9 dB(A)
Sotto carico		31 / 31 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 30.4 dB(A)

	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		-2%	-9%	-23%	-8%
off /ambiente *	30.4	30.2 1%	30.2 1%	30.5 -0%	30.28 -0%
Idle Minimum *	30.8	30.5 1%	30.8 -0%	31.5 -2%	31.82 -3%
Idle Average *	30.9	30.5 1%	32.1 -4%	32.6 -6%	32.27 -4%
Idle Maximum *	30.9	30.5 1%	32.9 -6%	33.8 -9%	33.17 -7%
Load Average *	31	31.2 -1%	33.9 -9%	49.3 -59%	35.82 -16%
Load Maximum *	31	35.1 -13%	41.4 -34%	50.9 -64%	37.1 -20%

* ... Meglio usare valori piccoli

Temperatura

Le temperature del case del NiPoGi CK10 sono per lo più basse e i piccoli punti caldi sono visibili solo in modo selettivo. Durante i test di carico del SoC con Prime95 abbiamo osservato una temperatura massima di 81°C. Pertanto, anche a pieno carico, l'Intel Core i7-10810U opera all'interno delle sue specifiche e supera chiaramente la velocità di clock di base di 1,1 GHz.

Adattatore di rete NiPoGi CK10 durante lo stress test

Consumo di energia

Per quanto riguarda il consumo energetico, il NiPoGi CK10 beneficia di un SoC molto economico. Sia al minimo che sotto carico, il nostro esemplare in prova si è comportato bene rispetto alla concorrenza. Durante lo stress test, l'adattatore di rete da 65 watt ha dovuto assorbire fino a 54 watt per un breve periodo. Questo lascia un po' di spazio per un altro dispositivo di archiviazione di massa e un modulo SO-DIMM aggiuntivo.

Consumo di corrente

Off / Standby	0.3 / 0.4 Watt
Idle	4.8 / 4.9 / 5.5 Watt
Sotto carico	23 / 54 Watt


Leggenda: min: , med: , max: Metrahit Energy Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.

	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Media Intel UHD Graphics 620	Media della classe Mini PC
Power Consumption		-143%	-64%	-20%	-24%	-119%
Idle Minimum *	4.8	8.9 -85%	8.4 -75%	3.4 29%	3.81 ?(1 - 12.4, n=259) 21%	9.8 ?(1.9 - 46.5, n=91, ultimi 2 anni) -104%
Idle Average *	4.9	9.6 -96%	8.7 -78%	5.7 -16%	6.94 ?(2.8 - 15.7, n=261) -42%	11.7 ?(1.9 - 63, n=90, ultimi 2 anni) -139%
Idle Maximum *	5.5	11.8 -115%	9.3 -69%	7 -27%	8.75 ?(3.8 - 30, n=259) -59%	14.7 ?(2.6 - 68.9, n=91, ultimi 2 anni) -167%
Load Average *	23	98.9 -330%	46.4 -102%	36.5 -59%	35 ?(8.1 - 51.6, n=259) -52%	51.9 ?(11.3 - 158.7, n=91, ultimi 2 anni) -126%
Load Maximum *	54	101.8 -89%	52 4%	68 -26%	47.5 ?(22 - 96.3, n=261) 12%	86 ?(18.1 - 271, n=91, ultimi 2 anni) -59%

* ... Meglio usare valori piccoli

Power consumption with an external monitor

Minipc Union NiPoGi CK10 - 10810U; Prime95 V2810 Stress (external Monitor): Ø29.1 (25.3-42.4)

Minipc Union NiPoGi CK10 - 10810U; Cinebench R15 Multi (external Monitor): Ø32.6 (23.3-53.5)

Minipc Union NiPoGi CK10 - 10810U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø24.4 (23-37.2)

Minipc Union NiPoGi CK10 - 10810U; Idle 1min (external Monitor): Ø5.49 (5.09-6.37)

Pro

+ Ingombro ridotto

+ 6 core e 12 thread

+ 16 GB di RAM e 512 GB di SSD

+ Possibilità di utilizzare fino a tre unità di archiviazione

+ Facile da aprire

+ Sempre silenzioso

+ Bassi requisiti energetici

Contro

- Wi-Fi lento

- Un solo modulo RAM installato (a canale singolo)

- Niente Thunderbolt

- Nessun lettore di schede SD

- Latenza DPC molto elevata

Verdetto - Un PC da ufficio ultra silenzioso

L'unità in prova è stata fornita da Minipc Union

Innanzitutto, il NiPoGi CK10 è un PC da ufficio compatto, basato su un processore Intel Core i7-10810U. Sebbene il SoC non sia più uno dei modelli attuali, è ancora in grado di ottenere eccellenti prestazioni multi-thread grazie ai suoi 6 core e un totale di 12 thread. Inoltre, uno sguardo alla scheda tecnica promette molto in termini di RAM e memoria di massa. Tuttavia, a un'analisi più attenta, il sistema avrebbe beneficiato di prestazioni utilizzabili in modo sprecato. La RAM funziona solo in modalità single channel e l'SSD offre solo velocità SATA. A questi piccoli svantaggi si può porre rimedio grazie alla possibilità di upgrade

Rispetto alla concorrenza nel nostro test, il NiPoGi CK10 ha faticato a causa delle limitazioni sopra citate. Per chi è in grado di sopportare queste limitazioni, il NiPoGi CK10 rappresenta un buon mini PC per l'ufficio. Il più grande punto di forza di questo PC compatto sono i valori di emissione

Il NiPoGi CK10 è una buona workstation domestica. Tuttavia, il dispositivo è piuttosto poco interessante a causa del prezzo.

In primo luogo, il NiPoGi CK10 è una buona scelta per un semplice uso domestico in ufficio. Tuttavia, esistono ottime alternative, alcune delle quali sono prodotte in proprio e offrono un miglior rapporto qualità-prezzo. Il Ace Magician TK11-A0 si trova nella stessa categoria di prestazioni, anche se con alcuni svantaggi propri. Inoltre, anche Minisforum ha alternative interessanti nel suo portafoglio. Un confronto con il modello EliteMini TH50 vale la pena di fare un confronto con l'EliteMini TH50.

Prezzo e disponibilità

Attualmente, la NiPoGi CK10 con le specifiche della nostra recensione può essere acquistata su Amazon per 599 Euro in Germania. La stessa macchina viene venduta negli Stati Uniti con il nome di KAMURI CK10 e le stesse specifiche. Al momento, il mini PC è disponibile su al prezzo di 599 dollarisempre su Amazon.

Notebookcheck ha ricevuto in prova il NiPoGi CK10. Il produttore non ha esercitato alcuna influenza sul risultato della recensione. Inoltre, il produttore non ha ricevuto la recensione finita prima della pubblicazione.

Minipc Union NiPoGi CK10 - 10810U - 2022-11-25 11/25/2022 v7
Sebastian Bade

Chassis

81 / 98 → 82%

Connettività

48 / 81 → 59%

Peso

84%

Prestazioni di gioco

44%

Prestazioni Applicazioni

84%

Rumorosità

88%

Media

71%

Mini PC - Media ponderata

Articoli collegati

Minipc Union NiPoGi CK10 - 10810U (NiPoGi Serie)

recensione

•

Recensione del NiPoGi GK3 Plus N95: Un mini PC compatto con Intel N95 per l...

Pricecompare

Editor of the original article: Andrew Dickson - Translator - 88 articles published on Notebookcheck since 2022

Translator: Ninh Ngoc Duy - Editorial Assistant - 389263 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del NiPoGi CK10 con Intel Core i7-10810U: Piccolo PC da ufficio che offre spazio per tre SSD

Sebastian Bade, 2022-12- 2 (Update: 2022-12- 2)
