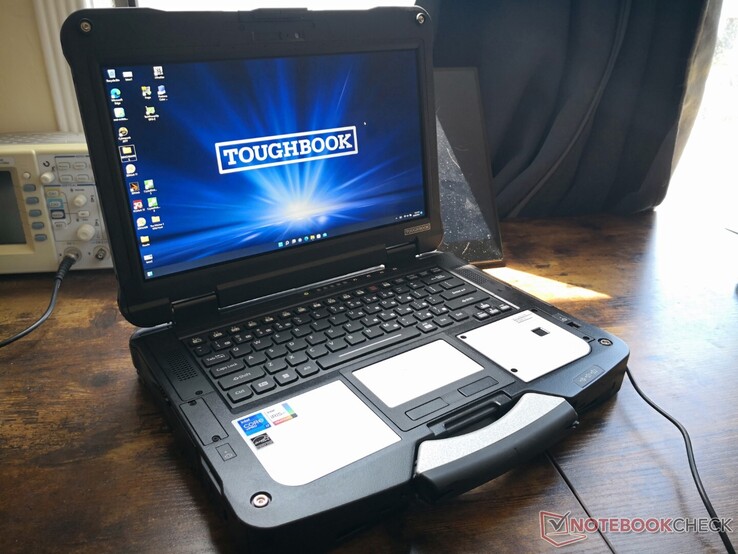

Recensione del portatile Panasonic Toughbook 40: Altamente adattabile e modulare

XPAKtor. Il modello può supportare fino a quattro schede di espansione individuali per soddisfare le diverse esigenze di agenti di polizia, aziende di servizi pubblici e altre realtà lavorative del settore pubblico. Panasonic punta sulla versatilità per distinguere meglio la serie Toughbook dalle altre.

Da non confondere con il più piccolo Toughbook 55 da 14 pollici, il Toughbook 40 da 14 pollici è un portatile completamente robusto progettato con la capacità di supportare fino a quattro schede di espansione modulari xPAK per adattarsi alle esigenze dell'utente. Queste schede opzionali contribuiscono a distinguere il Toughbook 40 da modelli concorrenti come il Getac S410, Dell Latitude 7400 Rugged o il Durabook S14I

Internamente, la nostra unità di prova è dotata di CPU Core i7-1185G7 di 11a generazione Tiger Lake-U, 64 GB di RAM e un display IPS 1080p ultrabrillante. Ulteriori configurazioni possono essere trovate sulla pagina ufficiale del prodotto qui

Altre recensioni Panasonic:

Panasonic Toughbook 40
Processore
Intel Core i7-1185G7 4 x 3 - 4.8 GHz, 40 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake-UP3
Scheda grafica
Intel Iris Xe Graphics G7 96EUs, Core: 1350 MHz, Memoria: 2000 MHz, DDR4, 30.0.101.1122
Memoria
64 GB
, DDR4-3200, Samsung, 22-22-22-52, Dual-Channel
Schermo
14.00 pollici 16:9, 1920 x 1080 pixel 157 PPI, Yes with glove support, InfoVision M140NWF5 R3, IPS, IVO057D, lucido: no, 60 Hz
Scheda madre
Intel Tiger Lake-UP3 PCH-LP
Harddisk
Samsung PM991 MZVLQ1T0HALB, 1024 GB
Scheda audio
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Porte di connessione
3 USB 3.0 / 3.1, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Porta Docking, Connessioni Audio: 3.5 mm headset, Lettore schede: MicroSD, 1 Lettore impronte digitali, Sensore luminosità
Rete
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2, LTE
Dimensioni
altezza x larghezza x profondità (in mm): 53.4 x 353 x 302
Batteria
136 Wh ioni di litio
Sistema Operativo
Microsoft Windows 11 Pro
Camera
Webcam: 1090p30
Fotocamera Principale: 5 MPix
Altre caratteristiche
Casse: Stereo, Tastiera: Chiclet, Illuminazione Tastiera: si, 36 Mesi Garanzia
Peso
3.93 kg, Alimentazione: 493 gr
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confronto

Punteggio
Data
Modello
Peso
Altezza
Dimensione
Risoluzione
Miglior Prezzo
07/2022
Panasonic Toughbook 40
i7-1185G7, Iris Xe G7 96EUs
3.9 kg53.4 mm14.00"1920x1080
83.9 %
09/2021
Panasonic Toughbook FZ-55 MK2
i7-1185G7, Iris Xe G7 96EUs
2.3 kg33 mm14.00"1920x1080
81.7 %
05/2022
Getac S410 Gen 4
i7-1185G7, Iris Xe G7 96EUs
3.2 kg34.9 mm14.00"1920x1080
89.2 %
03/2019
Dell Latitude 5420 Rugged-P85G
i7-8650U, Radeon RX 540
2.8 kg32.9 mm14.00"1920x1080
82.4 %
12/2021
Acer Enduro Urban N3 EUN314
i7-1165G7, Iris Xe G7 96EUs
1.8 kg21.95 mm14.00"1920x1080
04/2021
Durabook S14I
i7-1165G7, Iris Xe G7 96EUs
3 kg38.1 mm14.00"1920x1080

Caso

Il modello è grande e pesante, in quanto si tratta di un design fully-rugged. Il Durabook S14I semi-rugged, ad esempio, offre le stesse dimensioni dello schermo, ma è più leggero di quasi 1 kg ed è più piccolo in tutte e tre le dimensioni.

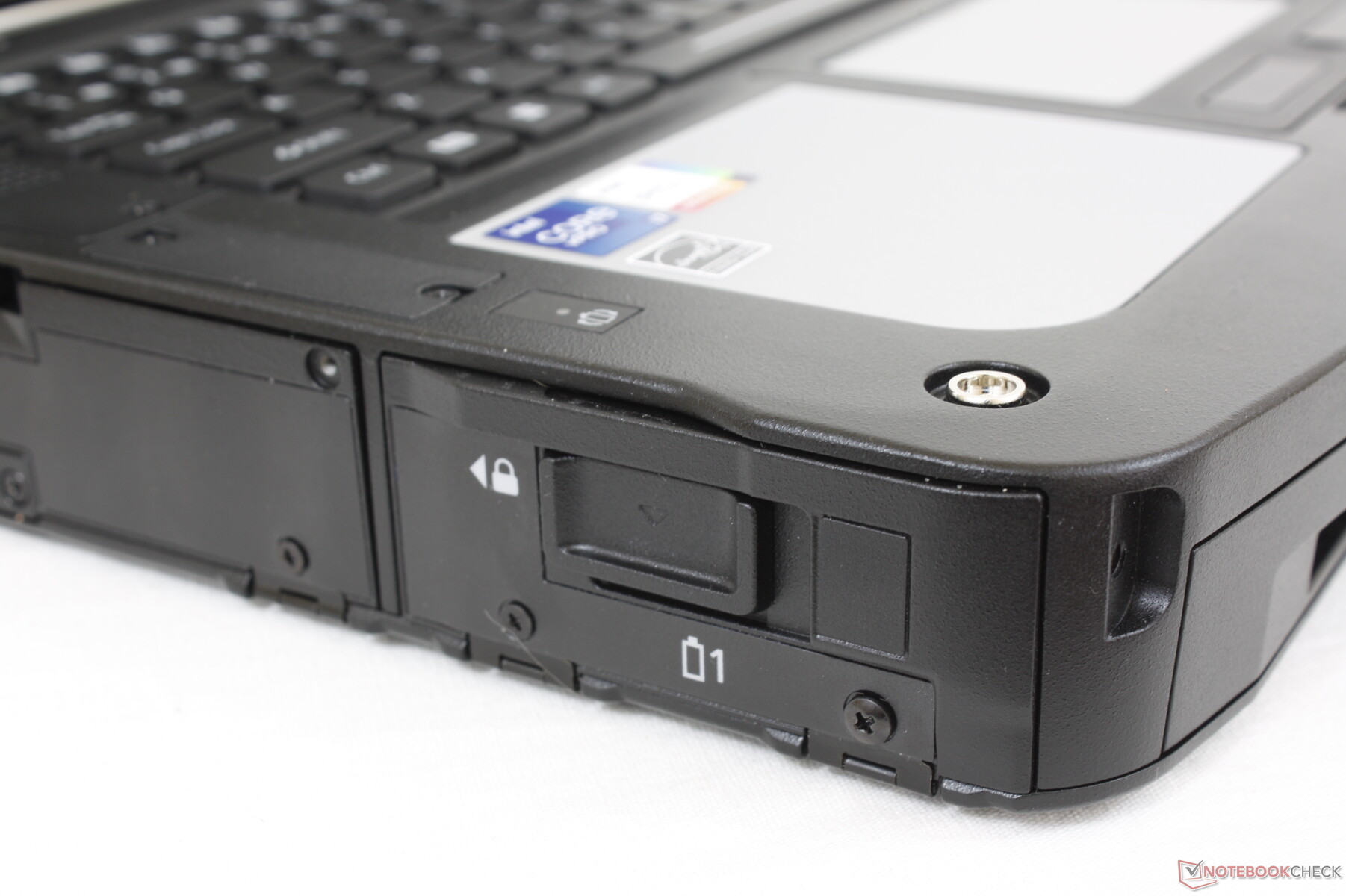

Lo slot per l'inserimento della batteria primaria si trova direttamente sotto il poggiapolsi sinistro
Lo slot per l'inserimento della batteria primaria si trova direttamente sotto il poggiapolsi sinistro
Modello costruito per resistere a cadute di 2 metri su pavimenti in legno duro a 26 angolazioni diverse
Modello costruito per resistere a cadute di 2 metri su pavimenti in legno duro a 26 angolazioni diverse

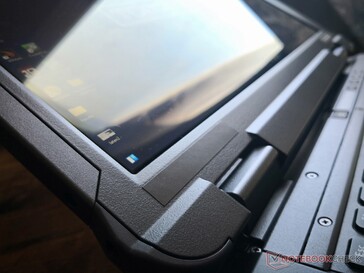

Le cerniere si aprono a 180 gradi e non solo. La rigidità delle cerniere è eccellente e non traballa in nessun angolo
Le cerniere si aprono a 180 gradi e non solo. La rigidità delle cerniere è eccellente e non traballa in nessun angolo
Quattro tasti F personalizzabili lungo la parte superiore
Quattro tasti F personalizzabili lungo la parte superiore
Indicatori di batteria e di stato. Il modello è in grado di resistere alle vibrazioni e agli urti come quelli delle automobili
Indicatori di batteria e di stato. Il modello è in grado di resistere alle vibrazioni e agli urti come quelli delle automobili
Il palm rest destro è fissato con quattro viti Philips, poiché funge da quarto slot di espansione xPAK
Il palm rest destro è fissato con quattro viti Philips, poiché funge da quarto slot di espansione xPAK

Confronto delle dimensioni

353 mm 302 mm 53.4 mm 3.9 kg350 mm 282 mm 38.1 mm 3 kg350 mm 293 mm 34.9 mm 3.2 kg347 mm 244.5 mm 32.9 mm 2.8 kg346 mm 272 mm 33 mm 2.3 kg351 mm 244 mm 21.95 mm 1.8 kg297 mm 210 mm 1 mm 5.7 g

Connettività ed espansione xPAK

Le porte intercambiabili e le funzioni di connettività del Toughbook 40 sono tra le più versatili che abbiamo visto su qualsiasi portatile. Il modello supporta fino a quattro schede xPAK rimovibili contemporaneamente: Una lungo la parte posteriore, una lungo il bordo sinistro, una lungo il bordo destro e una sotto il poggiapolsi destro, come mostrano le immagini qui sotto. Se lo scenario d'uso non richiede l'uso di HDMI, ad esempio, è possibile scambiare la scheda con un'altra che include un diverso set di porte. Anche la batteria primaria e l'unità SSD hanno i loro slot, rispettivamente sul bordo sinistro e sul bordo destro, ma non sono inclusi nei quattro slot xPAK. Tenere presente che ciascuno dei quattro slot xPAK ha dimensioni e forme diverse; una scheda progettata per entrare in uno slot non entrerà in nessuno degli altri.

Il primo slot è quello di espansione posteriore, progettato per porte come VGA, seriali, LAN, USB-A e HDMI. Il secondo slot lungo il bordo sinistro supporta unità ottiche, scanner di codici a barre, lettori di Smart Card e unità SSD secondarie. Il terzo slot lungo il bordo destro supporta batterie secondarie o lettori di Smart Card. Infine, lo slot per il palm rest supporta lettori di impronte digitali e altre funzioni di sicurezza. Il produttore prevede di produrre altre schede di espansione per vari scopi nel prossimo futuro.

Un problema fastidioso con tutti questi slot è che gli sportelli che li coprono sono molto complicati e difficili da aprire e bloccare, soprattutto se si hanno mani piccole o dita grasse. Non c'è abbastanza presa su questi sportelli per renderli comodi da usare. Le coperture lungo i bordi del Dell Latitude 7330 Rugged sono molto più facili da impugnare e gestire.

slot xPAK #1 lungo il bordo sinistro con lettore di codici a barre rimovibile installato
slot xPAK #1 lungo il bordo sinistro con lettore di codici a barre rimovibile installato
Alcune porte lungo il bordo posteriore e destro sono fissate al telaio
Alcune porte lungo il bordo posteriore e destro sono fissate al telaio
lo slot xPAK #4 funge da poggiapolsi destro
lo slot xPAK #4 funge da poggiapolsi destro

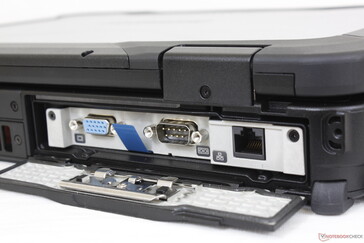

lo slot xPAK #3 sul retro può essere scambiato con un altro set di porte
lo slot xPAK #3 sul retro può essere scambiato con un altro set di porte

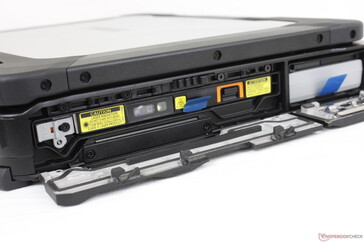

Gli sportelli che coprono le porte e gli slot xPAK sono difficili da afferrare e da aprire o bloccare
Gli sportelli che coprono le porte e gli slot xPAK sono difficili da afferrare e da aprire o bloccare
lo slot xPAK n. 2 è occupato dalla batteria secondaria rimovibile
lo slot xPAK n. 2 è occupato dalla batteria secondaria rimovibile

Lettore di schede SD

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U (Toshiba Exceria Pro SDXC 64 GB UHS-II)
182.9 MB/s +158%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7 (AV Pro V60)
76.1 MB/s +7%
Panasonic Toughbook 40
Intel Core i7-1185G7 (AV Pro V60)
70.8 MB/s
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7 (AV Pro V60)
22.9 MB/s -68%
Durabook S14I
Intel Core i7-1165G7 (Angelbird 128GB AV Pro UHS-II)
20.1 MB/s -72%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U (Toshiba Exceria Pro SDXC 64 GB UHS-II)
228.8 MB/s +182%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7 (AV Pro V60)
87.9 MB/s +8%
Panasonic Toughbook 40
Intel Core i7-1185G7 (AV Pro V60)
81.1 MB/s
Durabook S14I
Intel Core i7-1165G7 (Angelbird 128GB AV Pro UHS-II)
27.1 MB/s -67%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7 (AV Pro V60)
25.8 MB/s -68%

Comunicazione

La connettività Wi-Fi 6 è garantita da un Intel AX201 di serie. Al momento non sono disponibili opzioni Wi-Fi 6E

Sono disponibili opzioni 4G LTE e 5G.

Networking
iperf3 transmit AX12
Acer Enduro Urban N3 EUN314
Intel Wi-Fi 6 AX201
1396 (1280min - 1515max) MBit/s
Panasonic Toughbook FZ-55 MK2
Intel Wi-Fi 6 AX201
1267 (1166min - 1329max) MBit/s
Durabook S14I
Intel Wi-Fi 6 AX201
1246 (1055min - 1311max) MBit/s
Getac S410 Gen 4
Intel Wi-Fi 6 AX201
1088 (954min - 1156max) MBit/s
Dell Latitude 5420 Rugged-P85G
Intel Dual Band Wireless-AC 8265
540 MBit/s
iperf3 receive AX12
Durabook S14I
Intel Wi-Fi 6 AX201
1517 (789min - 1593max) MBit/s
Acer Enduro Urban N3 EUN314
Intel Wi-Fi 6 AX201
1487 (1396min - 1542max) MBit/s
Panasonic Toughbook FZ-55 MK2
Intel Wi-Fi 6 AX201
1452 (1295min - 1544max) MBit/s
Getac S410 Gen 4
Intel Wi-Fi 6 AX201
1414 (1346min - 1476max) MBit/s
Dell Latitude 5420 Rugged-P85G
Intel Dual Band Wireless-AC 8265
652 MBit/s
iperf3 receive AXE11000
Panasonic Toughbook 40
Intel Wi-Fi 6 AX201
1417 (1197min - 1475max) MBit/s
iperf3 transmit AXE11000
Panasonic Toughbook 40
Intel Wi-Fi 6 AX201
1334 (1089min - 1419max) MBit/s
0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450Tooltip
Panasonic Toughbook 40; iperf3 receive AXE11000; iperf 3.1.3: Ø1417 (1197-1475)
Panasonic Toughbook 40; iperf3 transmit AXE11000; iperf 3.1.3: Ø1334 (1089-1419)

Webcam

La fotocamera da 5 MP è più nitida rispetto a quella della maggior parte degli altri computer portatili, dove sono comuni le fotocamere da 2 MP o inferiori. È presente l'IR per il supporto di Windows Hello.

Otturatore fisico della fotocamera per la privacy
Otturatore fisico della fotocamera per la privacy
ColorChecker
2.9 ∆E
5.9 ∆E
7.5 ∆E
11.3 ∆E
9.2 ∆E
10.8 ∆E
2 ∆E
3 ∆E
4.4 ∆E
5.1 ∆E
7.9 ∆E
5.4 ∆E
3.1 ∆E
6.7 ∆E
6.1 ∆E
5.2 ∆E
2.6 ∆E
9.4 ∆E
4.3 ∆E
2.5 ∆E
4.3 ∆E
7.4 ∆E
8.8 ∆E
11.6 ∆E
ColorChecker Panasonic Toughbook 40: 6.15 ∆E min: 1.99 - max: 11.62 ∆E

Manutenzione

Il pannello inferiore non è stato progettato per essere facilmente rimosso dall'utente. Al contrario, è stato integrato un piccolo sportello per accedere ai 2 slot SODIMM DDR4.

Accessori e garanzia

Uno stilo passivo si trova all'interno della maniglia lungo la parte anteriore dell'unità. Panasonic offre un'ampia gamma di accessori per i suoi modelli di computer portatili, come illustrato in dettaglio qui https://na.panasonic.com/us/computers-tablets-handhelds/computers/laptops/toughbook-40.

La garanzia standard del produttore è limitata a tre anni.

Dispositivi di ingresso

Layout della tastiera con quattro livelli di retroilluminazione bianca. Non esiste un'opzione di colore rosso per la retroilluminazione. Tutti i tasti e i simboli sono illuminati
Layout della tastiera con quattro livelli di retroilluminazione bianca. Non esiste un'opzione di colore rosso per la retroilluminazione. Tutti i tasti e i simboli sono illuminati

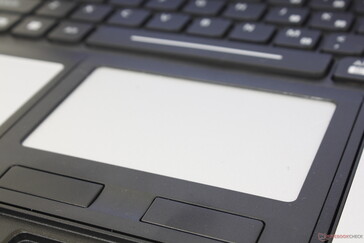

Il touchpad resistivo supportato da guanti ha una superficie di circa 50 cm^2 (9,3 x 5,4 cm). L'utente deve premere la superficie con una pressione maggiore del solito perché venga registrata
Il touchpad resistivo supportato da guanti ha una superficie di circa 50 cm^2 (9,3 x 5,4 cm). L'utente deve premere la superficie con una pressione maggiore del solito perché venga registrata
Il feedback dei tasti è uniforme e confortevole, ma avremmo preferito una sensazione più solida
Il feedback dei tasti è uniforme e confortevole, ma avremmo preferito una sensazione più solida
Tasti freccia angusti
Tasti freccia angusti

Display

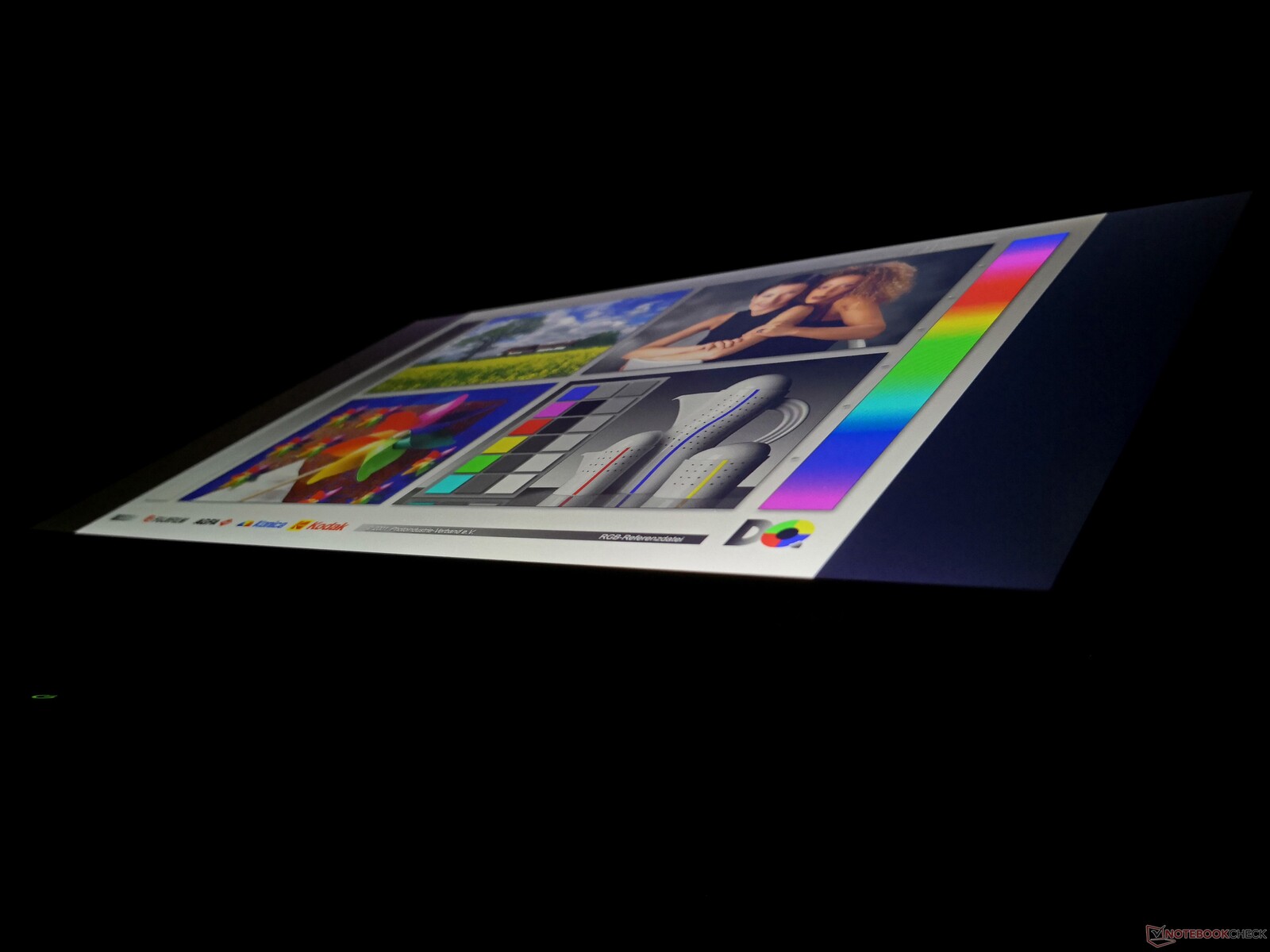

Il display IPS è comunque molto buono per quanto riguarda i portatili rugged. Non soffre dei problemi di granulosità che molti altri modelli rugged presentano, per testi e immagini più nitidi. È anche molto luminoso, con quasi 1400 nit, mantenendo un buon rapporto di contrasto di oltre 1000:1, migliore del display TN da 1400 nit del Durabook S14I

La modulazione di ampiezza degli impulsi è purtroppo presente a tutti i livelli di luminosità, tranne quello massimo. Se gli occhi sono sensibili allo sfarfallio, è meglio evitare di utilizzare il Panasonic con impostazioni di luminosità elevate per lunghi periodi.

Sovrapposizione semilucida. Non c'è protezione in vetro
Sovrapposizione semilucida. Non c'è protezione in vetro
Cornici spesse su tutti e quattro i lati
Cornici spesse su tutti e quattro i lati

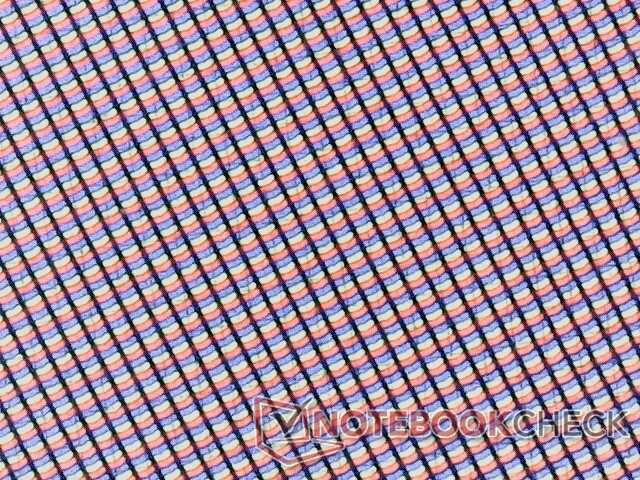

Subpixel nitidi dalla sovrapposizione lucida
Subpixel nitidi dalla sovrapposizione lucida
Forte emorragia irregolare della retroilluminazione
Forte emorragia irregolare della retroilluminazione
1380.3
cd/m²
1350.4
cd/m²
1459.9
cd/m²
1198.2
cd/m²
1284.3
cd/m²
1215.5
cd/m²
1225.3
cd/m²
1288.7
cd/m²
1201.5
cd/m²
Distribuzione della luminosità
InfoVision M140NWF5 R3 tested with X-Rite i1Pro 2
Massima: 1459.9 cd/m² (Nits) Media: 1289.3 cd/m² Minimum: 0.72 cd/m²
Distribuzione della luminosità: 82 %
Al centro con la batteria: 1284.3 cd/m²
Contrasto: 1443:1 (Nero: 0.89 cd/m²)
ΔE Color 4.67 | 0.5-29.43 Ø5, calibrated: 2.21
ΔE Greyscale 2.7 | 0.57-98 Ø5.3
37% AdobeRGB 1998 (Argyll 2.2.0 3D)
53.8% sRGB (Argyll 2.2.0 3D)
35.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 1.97
Panasonic Toughbook 40
InfoVision M140NWF5 R3, IPS, 1920x1080, 14.00
Panasonic Toughbook FZ-55 MK2
InfoVision M140NWF5 R3, IPS, 1920x1080, 14.00
Getac S410 Gen 4
AU Optronics AUO413D, IPS, 1920x1080, 14.00
Dell Latitude 5420 Rugged-P85G
AU Optronics AUO523D, IPS, 1920x1080, 14.00
Acer Enduro Urban N3 EUN314
XR140EA6T, IPS, 1920x1080, 14.00
Durabook S14I
KD140N0730A01, TN, 1920x1080, 14.00
Display
-3%
7%
74%
75%
22%
Display P3 Coverage
35.8
34.8
-3%
38.3
7%
62.5
75%
63.5
77%
43.55
22%
sRGB Coverage
53.8
52.2
-3%
57.2
6%
92.4
72%
91.9
71%
65.4
22%
AdobeRGB 1998 Coverage
37
36
-3%
39.5
7%
64.2
74%
65.5
77%
45
22%
Response Times
11%
14%
-17%
2%
14%
Response Time Grey 50% / Grey 80% *
50.4 ?(24.4, 26)
28.4 ?(14, 14.4)
44%
35.2 ?(17.6, 17.6)
30%
68 ?(34, 34)
-35%
56 ?(25.2, 30.8)
-11%
30.4 ?(16.8, 13.6)
40%

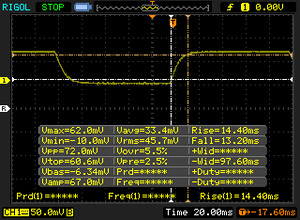

Response Time Black / White *
27.6 ?(14.4, 13.2)
30 ?(16, 14)
-9%
31.2 ?(19.2, 12)
-13%
33.6 ?(18.8, 14.8)
-22%
35.2 ?(16.4, 18.8)
-28%
11.8 ?(8.2, 3.6)
57%
PWM Frequency
694.4 ?(99)
685 ?(99)
-1%
870 ?(100)
25%
735 ?(100)
6%
1000 ?(99)
44%
304.9 ?(100)
-56%
Screen
-5%
-35%
-11%
-30%
-100%
Brightness middle
1284.3
1061.1
-17%
956.9
-25%
1111.7
-13%
487.8
-62%
1180.7
-8%
Brightness
1289
997
-23%
984
-24%
1026
-20%
464
-64%
1102
-15%
Brightness Distribution
82
76
-7%
84
2%
80
-2%
89
9%
89
9%
Black Level *
0.89
0.7
21%
0.81
9%
0.81
9%
0.48
46%
1.91
-115%
Contrast
1443
1516
5%
1181
-18%
1372
-5%
1016
-30%
618
-57%
Colorchecker dE 2000 *
4.67
4.64
1%
6.6
-41%
3.83
18%
6.51
-39%
13.45
-188%
Colorchecker dE 2000 max. *
19.85
20.92
-5%
22.94
-16%
7.85
60%
11.36
43%
22.52
-13%
Colorchecker dE 2000 calibrated *
2.21
2.52
-14%
4.05
-83%
2.98
-35%
1.77
20%
3.19
-44%
Greyscale dE 2000 *
2.7
2.8
-4%
6
-122%
5.6
-107%
7.8
-189%
15.4
-470%
Gamma
1.97 112%
2.08 106%
2.19 100%
2.306 95%
2.28 96%
1.97 112%
CCT
6222 104%
6364 102%
7276 89%
7676 85%
8102 80%
21134 31%
Color Space (Percent of AdobeRGB 1998)
59
41.6
Color Space (Percent of sRGB)
93
65.5
Media totale (Programma / Settaggio)
1% / -1%
-5% / -17%
15% / 5%
16% / -2%
-21% / -53%

* ... Meglio usare valori piccoli

Il gamut è ristretto, appena il 54% di sRGB, rispetto al 90% del monitor Acer Urban N Acer Enduro Urban N3, Dell Latitude 5420 Rugged e la maggior parte dei portatili consumer di fascia media o superiore. Questo non dovrebbe essere un problema, a meno che l'accuratezza del colore non sia essenziale per le vostre applicazioni.

rispetto a sRGB
rispetto a sRGB
contro DCI-P3
contro DCI-P3

Il display non è calibrato in fabbrica. La calibrazione da parte nostra migliorerebbe i valori medi deltaE su tutta la linea, ma i colori saturi saranno sempre imprecisi a causa della copertura sRGB limitata di cui sopra. Tuttavia, gli utenti possono applicare il profilo ICM calibrato di cui sopra per ottenere il massimo dal display.

Scala di grigi prima della calibrazione
Scala di grigi prima della calibrazione
Spazzate di saturazione prima della calibrazione
Spazzate di saturazione prima della calibrazione
ColorChecker prima della calibrazione
ColorChecker prima della calibrazione
Scala di grigi dopo la calibrazione
Scala di grigi dopo la calibrazione
Sweep di saturazione dopo la calibrazione
Sweep di saturazione dopo la calibrazione
ColorChecker dopo la calibrazione
ColorChecker dopo la calibrazione

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti possono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con tempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
27.6 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 14.4 ms Incremento
↘ 13.2 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In confronto, tutti i dispositivi di test variano da 0.1 (minimo) a 240 (massimo) ms. » 66 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (21.6 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
50.4 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 24.4 ms Incremento
↘ 26 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In confronto, tutti i dispositivi di test variano da 0.2 (minimo) a 636 (massimo) ms. » 85 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (33.9 ms).

Sfarfallio dello schermo / PWM (Pulse-Width Modulation)

Per ridurre la luminosità dello schermo, alcuni portatili accendono e spengono la retroilluminazione in rapida successione - un metodo chiamato Pulse Width Modulation (PWM). Questa frequenza di ciclo a livello ideale non dovrebbe essere percepibile dall'occhi umano. Se tale frequenza è troppo bassa, gli utenti con occhi sensibili potrebbero stancarsi gli occhi o avere mal di testa o anche notare uno sfarfallio.
flickering dello schermo / PWM rilevato 694.4 Hz ≤ 99 % settaggio luminosita'

Il display sfarfalla a 694.4 Hz (Probabilmente a causa dell'uso di PWM) Flickering rilevato ad una luminosita' di 99 % o inferiore. Non dovrebbe verificarsi flickering o PWM sopra questo valore di luminosita'.

La frequenza di 694.4 Hz è abbastanza alta, quindi la maggioranza degli utenti sensibili al PWM non dovrebbero notare alcun flickering.

In confronto: 53 % di tutti i dispositivi testati non utilizza PWM per ridurre la luminosita' del display. Se è rilevato PWM, una media di 18071 (minimo: 5 - massimo: 3846000) Hz è stata rilevata.

0 per cento di luminosità
0 per cento di luminosità
25 per cento di luminosità
25 per cento di luminosità
50 per cento di luminosità
50 per cento di luminosità
75 per cento di luminosità
75 per cento di luminosità
100 per cento di luminosità
100 per cento di luminosità
All'aperto sotto la luce diretta del sole
All'aperto sotto la luce diretta del sole
All'aperto all'ombra. Lo schermo è visibile nella maggior parte delle condizioni esterne
All'aperto all'ombra. Lo schermo è visibile nella maggior parte delle condizioni esterne
All'aperto sotto la luce diretta del sole
All'aperto sotto la luce diretta del sole
Ampi angoli di visione IPS
Ampi angoli di visione IPS

Prestazioni




Condizioni di test

Abbiamo impostato la nostra unità in modalità Performance tramite Windows prima di eseguire i benchmark qui sotto.

Processore

Le prestazioni della CPU sono più lente di circa il 5-10% sia nei carichi di lavoro single-threaded che in quelli multi-threaded rispetto alla media dei laptop del nostro database equipaggiati con lo stesso Core i85G7 Core i7-1185G7 CORE I7-1185G7. Questo non è insolito, dato che molti portatili rugged tendono a puntare a velocità di clock inferiori per aumentare la stabilità e l'affidabilità. Le prestazioni complessive sono comunque molto più veloci di qualsiasi soluzione Core serie U di decima generazione o precedente.

Cinebench R15 Multi Loop

04590135180225270315360405450495540585630675720765810Tooltip
Panasonic Toughbook 40 Intel Core i7-1185G7: Ø709 (633.51-720.99)
Panasonic Toughbook FZ-55 MK2 Intel Core i7-1185G7: Ø807 (789.97-811.61)
Getac S410 Gen 4 Intel Core i7-1185G7: Ø782 (745.67-787.01)
Dell Latitude 5420 Rugged-P85G Intel Core i7-8650U: Ø466 (461.37-494.52)
Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7: Ø807 (480.95-841.33)
Durabook S14I Intel Core i7-1165G7: Ø595 (571.89-599.28)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
3632 Points +97%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
3418 Points +86%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
3100 Points +68%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
2870 Points +56%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
2237 Points +22%
Media Intel Core i7-1185G7
  (1425 - 2493, n=28)
2039 Points +11%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
2035 Points +11%
Panasonic Toughbook 40
Intel Core i7-1185G7
1841 Points
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
1399 Points -24%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
1394 Points -24%
Infinix INBook X2
Intel Core i7-1065G7
1296 Points -30%
Durabook S15ABG2
Intel Core i5-8265U
972 Points -47%
Cinebench R20 / CPU (Single Core)
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
682 Points +30%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
671 Points +28%
Media Intel Core i7-1185G7
  (489 - 593, n=28)
557 Points +6%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
546 Points +4%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
533 Points +1%
Panasonic Toughbook 40
Intel Core i7-1185G7
526 Points
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
516 Points -2%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
485 Points -8%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
446 Points -15%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
435 Points -17%
Infinix INBook X2
Intel Core i7-1065G7
404 Points -23%
Durabook S15ABG2
Intel Core i5-8265U
401 Points -24%
Cinebench R23 / Multi Core
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
9345 (8734.61min - 9345.18max) Points +96%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
9021 (8794.72min - 9021.22max) Points +89%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
8628 (7585.05min - 8627.61max) Points +81%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
7385 (7081.74min - 7384.56max) Points +55%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
5479 (5186.22min - 5478.8max) Points +15%
Media Intel Core i7-1185G7
  (3610 - 6383, n=24)
5324 Points +12%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
5265 (4984.42min - 5264.54max) Points +10%
Panasonic Toughbook 40
Intel Core i7-1185G7
4766 (4659.62min - 4765.97max) Points
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
3800 Points -20%
Infinix INBook X2
Intel Core i7-1065G7
3437 (3270.81min - 3437.5max) Points -28%
Cinebench R23 / Single Core
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
1775 Points +29%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
1739 Points +26%
Media Intel Core i7-1185G7
  (1251 - 1532, n=24)
1449 Points +5%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
1413 Points +2%
Panasonic Toughbook 40
Intel Core i7-1185G7
1380 Points
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
1348 Points -2%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
1345 Points -3%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
1248 Points -10%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
1119 Points -19%
Infinix INBook X2
Intel Core i7-1065G7
1050 Points -24%
Cinebench R15 / CPU Multi 64Bit
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
1546 (1479.45min - 1545.71max) Points +114%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
1461 (1340.62min - 1461.29max) Points +103%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
1289 (1274.74min - 1288.99max) Points +79%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
1159 (1067.98min - 1158.61max) Points +61%
Media Intel Core i7-1185G7
  (617 - 1066, n=32)
859 Points +19%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
851 (743.99min - 851.23max) Points +18%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
841 (480.95min - 841.33max) Points +17%
Panasonic Toughbook 40
Intel Core i7-1185G7
721 (633.51min - 720.99max) Points
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
680 (525.27min - 680.19max) Points -6%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
632 (547.77min - 632.01max) Points -12%
Infinix INBook X2
Intel Core i7-1065G7
570 (483.75min - 569.97max) Points -21%
Durabook S15ABG2
Intel Core i5-8265U
461 (400.88min - 461.45max) Points -36%
Cinebench R15 / CPU Single 64Bit
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
251 Points +24%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
248 Points +22%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
220 Points +8%
Media Intel Core i7-1185G7
  (168 - 230, n=27)
215 Points +6%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
214 Points +5%
Panasonic Toughbook 40
Intel Core i7-1185G7
203 Points
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
198 Points -2%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
187 Points -8%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
178 Points -12%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
170 Points -16%
Durabook S15ABG2
Intel Core i5-8265U
161 Points -21%
Infinix INBook X2
Intel Core i7-1065G7
150 Points -26%
Blender / v2.79 BMW27 CPU
Durabook S15ABG2
Intel Core i5-8265U
1098 Seconds * -74%
Infinix INBook X2
Intel Core i7-1065G7
836 Seconds * -33%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
802 Seconds * -27%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
766 Seconds * -22%
Panasonic Toughbook 40
Intel Core i7-1185G7
630 Seconds *
Media Intel Core i7-1185G7
  (478 - 745, n=28)
588 Seconds * +7%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
567 Seconds * +10%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
540 Seconds * +14%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
416 Seconds * +34%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
338 Seconds * +46%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
333 Seconds * +47%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
328 Seconds * +48%
7-Zip 18.03 / 7z b 4
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
43816 MIPS +106%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
43071 MIPS +103%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
42034 MIPS +98%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
29874 MIPS +41%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
24357 MIPS +15%
Media Intel Core i7-1185G7
  (18812 - 27693, n=27)
23288 MIPS +10%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
23117 MIPS +9%
Panasonic Toughbook 40
Intel Core i7-1185G7
21244 MIPS
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
16883 MIPS -21%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
16748 MIPS -21%
Infinix INBook X2
Intel Core i7-1065G7
15342 MIPS -28%
Durabook S15ABG2
Intel Core i5-8265U
13731 MIPS -35%
7-Zip 18.03 / 7z b 4 -mmt1
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
5529 MIPS +11%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
5322 MIPS +7%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
5248 MIPS +5%
Media Intel Core i7-1185G7
  (3678 - 5507, n=27)
5112 MIPS +2%
Panasonic Toughbook 40
Intel Core i7-1185G7
4989 MIPS
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
4805 MIPS -4%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
4676 MIPS -6%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
4530 MIPS -9%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
4169 MIPS -16%
Durabook S15ABG2
Intel Core i5-8265U
4154 MIPS -17%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
3755 MIPS -25%
Infinix INBook X2
Intel Core i7-1065G7
3289 MIPS -34%
Geekbench 5.5 / Multi-Core
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
10350 Points +124%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
6778 Points +47%
Media Intel Core i7-1185G7
  (4620 - 5944, n=21)
5460 Points +18%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
5352 Points +16%
Panasonic Toughbook 40
Intel Core i7-1185G7
4620 Points
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
3986 Points -14%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
3973 Points -14%
Infinix INBook X2
Intel Core i7-1065G7
3525 Points -24%
Durabook S15ABG2
Intel Core i5-8265U
3442 Points -25%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
2839 Points -39%
Geekbench 5.5 / Single-Core
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
1740 Points +20%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
1640 Points +13%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
1548 Points +7%
Media Intel Core i7-1185G7
  (1398 - 1626, n=21)
1520 Points +5%
Panasonic Toughbook 40
Intel Core i7-1185G7
1451 Points
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
1235 Points -15%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
1188 Points -18%
Infinix INBook X2
Intel Core i7-1065G7
1169 Points -19%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
1163 Points -20%
Durabook S15ABG2
Intel Core i5-8265U
1043 Points -28%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
11.8 fps +90%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
11.5 fps +85%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
10.1 fps +63%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
8.73 fps +41%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
6.78 fps +9%
Media Intel Core i7-1185G7
  (5.02 - 8.13, n=27)
6.56 fps +6%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
6.51 fps +5%
Panasonic Toughbook 40
Intel Core i7-1185G7
6.2 fps
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
4.82 fps -22%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
4.52 fps -27%
Infinix INBook X2
Intel Core i7-1065G7
4.43 fps -29%
Durabook S15ABG2
Intel Core i5-8265U
3.38 fps -45%
LibreOffice / 20 Documents To PDF
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
69.6 s * -32%
Durabook S15ABG2
Intel Core i5-8265U
67.8 s * -28%
Infinix INBook X2
Intel Core i7-1065G7
67.4 s * -27%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
63.1 s * -19%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
61.9 s * -17%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
58.4 s * -10%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
55.6 s * -5%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
54.6 s * -3%
Panasonic Toughbook 40
Intel Core i7-1185G7
52.9 s *
Media Intel Core i7-1185G7
  (41.3 - 61.7, n=26)
51 s * +4%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
49.3 s * +7%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
47.7 s * +10%
R Benchmark 2.5 / Overall mean
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U
0.851 sec * -40%
Infinix INBook X2
Intel Core i7-1065G7
0.754 sec * -24%
Durabook S15ABG2
Intel Core i5-8265U
0.72 sec * -18%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
0.701 sec * -15%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7
0.664 sec * -9%
Panasonic Toughbook 40
Intel Core i7-1185G7
0.608 sec *
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U
0.603 sec * +1%
Media Intel Core i7-1185G7
  (0.55 - 0.615, n=27)
0.586 sec * +4%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7
0.577 sec * +5%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U
0.549 sec * +10%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P
0.4737 sec * +22%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U
0.4688 sec * +23%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit
721 Points
Cinebench R15 OpenGL 64Bit
90.3 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
203 Points
Aiuto
Performance Rating
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
97.3 pt
Media Intel Core i7-1185G7

92 pt
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
86.6 pt
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
85.2 pt
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
78.8 pt
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
74.8 pt
AIDA64 / FP32 Ray-Trace
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
6904 KRay/s +18%
Media Intel Core i7-1185G7
  (5621 - 7453, n=20)
6602 KRay/s +12%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
6435 KRay/s +10%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
6311 KRay/s +7%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
5873 KRay/s
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
5227 KRay/s -11%
AIDA64 / FPU Julia
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
29711 Points +21%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
27948 Points +14%
Media Intel Core i7-1185G7
  (23248 - 32614, n=20)
27808 Points +13%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
26305 Points +7%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
24570 Points
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
21978 Points -11%
AIDA64 / CPU SHA3
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
1993 MB/s +23%
Media Intel Core i7-1185G7
  (1530 - 2209, n=20)
1843 MB/s +14%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
1838 MB/s +14%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
1742 MB/s +8%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
1615 MB/s
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
1500 MB/s -7%
AIDA64 / CPU Queen
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
50412 Points +11%
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
50103 Points +10%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
49956 Points +10%
Media Intel Core i7-1185G7
  (44677 - 52815, n=20)
49779 Points +9%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
48276 Points +6%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
45594 Points
AIDA64 / FPU SinJulia
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
4792 Points +19%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
4514 Points +12%
Media Intel Core i7-1185G7
  (3870 - 5027, n=20)
4504 Points +12%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
4427 Points +10%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
4027 Points
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
3699 Points -8%
AIDA64 / FPU Mandel
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
17742 Points +19%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
16957 Points +14%
Media Intel Core i7-1185G7
  (14584 - 19594, n=20)
16878 Points +13%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
16001 Points +7%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
14900 Points
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
13587 Points -9%
AIDA64 / CPU AES
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
66115 MB/s +95%
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
51941 MB/s +53%
Media Intel Core i7-1185G7
  (33002 - 76826, n=20)
49981 MB/s +47%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
37073 MB/s +9%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
36893 MB/s +9%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
33966 MB/s
AIDA64 / CPU ZLib
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
371 MB/s +23%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
302 MB/s
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
293 MB/s -3%
Media Intel Core i7-1185G7
  (258 - 412, n=22)
293 MB/s -3%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
286 MB/s -5%
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
265 MB/s -12%
AIDA64 / FP64 Ray-Trace
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
3741 KRay/s +19%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
3594 KRay/s +14%
Media Intel Core i7-1185G7
  (2821 - 4094, n=20)
3572 KRay/s +13%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
3461 KRay/s +10%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
3148 KRay/s
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
2806 KRay/s -11%
AIDA64 / CPU PhotoWorxx
Media Intel Core i7-1185G7
  (22349 - 43701, n=20)
35213 MPixel/s +58%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
27802 MPixel/s +24%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
25825 MPixel/s +16%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
24041 MPixel/s +8%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
22349 MPixel/s
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
15887 MPixel/s -29%

Prestazioni del sistema

PCMark 10 / Score
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
5078 Points +2%
Media Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (4746 - 5561, n=20)
5000 Points 0%
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
4997 Points
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
4826 Points -3%
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
4757 Points -5%
Acer Enduro Urban N3 EUN314
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB
4580 Points -8%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
4451 Points -11%
PCMark 10 / Essentials
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
10126 Points +4%
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
10076 Points +4%
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
9904 Points +2%
Media Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (8279 - 10664, n=20)
9850 Points +1%
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
9731 Points
Acer Enduro Urban N3 EUN314
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB
9063 Points -7%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
8503 Points -13%
PCMark 10 / Productivity
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
7328 Points +12%
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
6976 Points +7%
Media Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (5799 - 8770, n=20)
6747 Points +3%
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
6703 Points +2%
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
6547 Points
Acer Enduro Urban N3 EUN314
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB
5842 Points -11%
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
5799 Points -11%
PCMark 10 / Digital Content Creation
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
5317 Points
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
5236 Points -2%
Media Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (4424 - 5684, n=20)
5123 Points -4%
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
5086 Points -4%
Acer Enduro Urban N3 EUN314
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB
4926 Points -7%
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
4341 Points -18%
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
3843 Points -28%
CrossMark / Overall
Media Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (1233 - 1474, n=5)
1343 Points +4%
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
1291 Points
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
1233 Points -4%
CrossMark / Productivity
Media Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (1277 - 1506, n=5)
1372 Points +3%
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
1336 Points
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
1277 Points -4%
CrossMark / Creativity
Media Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (1291 - 1513, n=5)
1398 Points +5%
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
1329 Points
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
1291 Points -3%
CrossMark / Responsiveness
Media Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
  (969 - 1411, n=5)
1125 Points +5%
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
1067 Points
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
969 Points -9%
PCMark 10 Score
4997 punti
Aiuto
AIDA64 / Memory Copy
Media Intel Core i7-1185G7
  (36515 - 68450, n=20)
54182 MB/s +48%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
40118 MB/s +10%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
39063 MB/s +7%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
36986 MB/s +1%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
36515 MB/s
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
21717 MB/s -41%
AIDA64 / Memory Read
Media Intel Core i7-1185G7
  (38394 - 64291, n=20)
54814 MB/s +43%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
47843 MB/s +25%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
43801 MB/s +14%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
42930 MB/s +12%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
38394 MB/s
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
24670 MB/s -36%
AIDA64 / Memory Write
Media Intel Core i7-1185G7
  (37684 - 66873, n=20)
57154 MB/s +52%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
46876 MB/s +24%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
42999 MB/s +14%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
41159 MB/s +9%
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
37684 MB/s
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
23468 MB/s -38%
AIDA64 / Memory Latency
Panasonic Toughbook 40
Intel Core i7-1185G7, Iris Xe G7 96EUs
94 ns *
Media Intel Core i7-1185G7
  (78.3 - 117, n=22)
86.6 ns * +8%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Iris Xe G7 96EUs
84.5 ns * +10%
Getac S410 Gen 4
Intel Core i7-1185G7, Iris Xe G7 96EUs
84.2 ns * +10%
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Iris Xe G7 96EUs
78.3 ns * +17%
Durabook S14I
Intel Core i7-1165G7, Iris Xe G7 96EUs
72.7 ns * +23%

* ... Meglio usare valori piccoli

Latenza DPC

LatencyMon rivela problemi di DPC quando si aprono più schede del browser della nostra homepage. la riproduzione di video 4K a 60 FPS è invece fluida e senza cadute di fotogrammi.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acer Enduro Urban N3 EUN314
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB
3966 μs * -207%
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
2432 μs * -88%
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
2043 μs * -58%
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
2027 μs * -57%
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
1291.6 μs *

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

La nostra unità di test è dotata di un dispositivo primario Samsung PM991 PCIe3 x4 NVMe. È possibile installare anche un'unità SATA secondaria utilizzando uno degli slot xPAK. Entrambe le unità si collegano al portatile tramite slot a sgancio rapido

L'unità SSD nella nostra unità non è in grado di mantenere la velocità di trasferimento massima per periodi prolungati, probabilmente a causa della scarsa dissipazione del calore. Quando si esegue DiskSpd in loop, le velocità di trasferimento iniziano a 3000 MB/s prima di diminuire costantemente e infine stabilizzarsi a soli ~1700 MB/s.

AS SSD
AS SSD
CDM 8
CDM 8
Lo slot per l'unità SSD primaria è adiacente allo slot per la batteria secondaria (o xPAK #2)
Lo slot per l'unità SSD primaria è adiacente allo slot per la batteria secondaria (o xPAK #2)
Samsung PM991 MZVLQ1T0HALB
CDM 5/6 Read Seq Q32T1: 3140 MB/s
CDM 5/6 Write Seq Q32T1: 1719 MB/s
CDM 5/6 Read 4K Q32T1: 382.2 MB/s
CDM 5/6 Write 4K Q32T1: 316.3 MB/s
CDM 5 Read Seq: 1733 MB/s
CDM 5 Write Seq: 1381 MB/s
CDM 5/6 Read 4K: 36.88 MB/s
CDM 5/6 Write 4K: 121.5 MB/s
Drive Performance Rating - Percent
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
85.4 pt
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
80.7 pt
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
79.8 pt
Dell Latitude 5420 Rugged-P85G -8!
SK hynix PC401 NVMe 500 GB
71.4 pt
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
62.4 pt
Getac S410 Gen 4
SSSTC CA5-8D256
51.8 pt
DiskSpd
seq read
Getac S410 Gen 4
SSSTC CA5-8D256
2077 (2034.87min - 2077.48max) MB/s +14%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
1828 (1803.55min - 1827.88max) MB/s
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
1727 (1702.05min - 1726.89max) MB/s -6%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
1550 (1540.63min - 1549.63max) MB/s -15%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
1380 (1375.73min - 1379.72max) MB/s -25%
seq write
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
1712 (1700.79min - 1712.18max) MB/s +12%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
1535 (1511min - 1535.4max) MB/s
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
1528 (1279.47min - 1528.49max) MB/s 0%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
1333 (1318.9min - 1332.74max) MB/s -13%
Getac S410 Gen 4
SSSTC CA5-8D256
415 (99.63min - 415.24max) MB/s -73%
seq q8 t1 read
Getac S410 Gen 4
SSSTC CA5-8D256
3276 (2968.1min - 3275.7max) MB/s +6%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
3095 (2909.43min - 3094.98max) MB/s
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
2373 (2189.66min - 2373max) MB/s -23%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
2288 (2042.21min - 2287.53max) MB/s -26%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
2020 (1932.32min - 2019.56max) MB/s -35%
seq q8 t1 write
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
1778 (1768.95min - 1777.55max) MB/s +5%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
1698 (1677.93min - 1697.64max) MB/s
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
1621 (1596.56min - 1620.68max) MB/s -5%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
1537 (1419.87min - 1537.21max) MB/s -9%
Getac S410 Gen 4
SSSTC CA5-8D256
505 (220.83min - 504.96max) MB/s -70%
4k q1 t1 read
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
51.2 (50.51min - 51.19max) MB/s
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
50.5 (50.27min - 50.52max) MB/s -1%
Getac S410 Gen 4
SSSTC CA5-8D256
44 (43.01min - 43.97max) MB/s -14%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
43.2 (43.12min - 43.24max) MB/s -16%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
41.5 (38.08min - 41.48max) MB/s -19%
4k q1 t1 write
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
295 (284.83min - 294.88max) MB/s +144%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
210 (189.87min - 210.35max) MB/s +74%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
122 (106.41min - 122.06max) MB/s +1%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
120.9 (118.09min - 120.86max) MB/s
Getac S410 Gen 4
SSSTC CA5-8D256
110 (102.56min - 110.49max) MB/s -9%
4k q32 t16 read
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
1223 (975.21min - 1223.29max) MB/s +57%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
780 (732.69min - 780.23max) MB/s
Getac S410 Gen 4
SSSTC CA5-8D256
679 (636.24min - 678.65max) MB/s -13%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
620 (617.31min - 619.51max) MB/s -21%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
545 (347.47min - 545.48max) MB/s -30%
4k q32 t16 write
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
1196 (771.52min - 1196.48max) MB/s +257%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
949 (790.77min - 949.21max) MB/s +183%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
335 (328.74min - 335.42max) MB/s
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
325 (235.5min - 325.22max) MB/s -3%
Getac S410 Gen 4
SSSTC CA5-8D256
196 (108.7min - 196.24max) MB/s -41%
AS SSD
Score Total
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
3325 Points +14%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
2913 Points
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
2475 Points -15%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
2418 Points -17%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
2106 Points -28%
Getac S410 Gen 4
SSSTC CA5-8D256
1994 Points -32%
Score Read
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
1396 Points +22%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
1145 Points
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
1057 Points -8%
Getac S410 Gen 4
SSSTC CA5-8D256
1029 Points -10%
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
921 Points -20%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
651 Points -43%
Score Write
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
1461 Points +18%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
1238 Points 0%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
1237 Points
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
1143 Points -8%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
556 Points -55%
Getac S410 Gen 4
SSSTC CA5-8D256
531 Points -57%
Seq Read
Getac S410 Gen 4
SSSTC CA5-8D256
2598 MB/s +3%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
2525.49 MB/s
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
2184 MB/s -14%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
2104 MB/s -17%
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
2054 MB/s -19%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
2007 MB/s -21%
Seq Write
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
1571 MB/s +34%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
1441 MB/s +23%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
1169.49 MB/s
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
806 MB/s -31%
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
653 MB/s -44%
Getac S410 Gen 4
SSSTC CA5-8D256
580 MB/s -50%
4K Read
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
51.28 MB/s
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
51.2 MB/s 0%
Getac S410 Gen 4
SSSTC CA5-8D256
40.87 MB/s -20%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
40.22 MB/s -22%
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
39.34 MB/s -23%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
35.98 MB/s -30%
4K Write
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
260.1 MB/s +81%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
175.6 MB/s +22%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
143.89 MB/s
Getac S410 Gen 4
SSSTC CA5-8D256
142.8 MB/s -1%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
123.3 MB/s -14%
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
96.4 MB/s -33%
4K-64 Read
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
1145 MB/s +36%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
841.29 MB/s
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
805 MB/s -4%
Getac S410 Gen 4
SSSTC CA5-8D256
728 MB/s -13%
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
677 MB/s -20%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
396.5 MB/s -53%
4K-64 Write
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
1057 MB/s +8%
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
982 MB/s +1%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
976.57 MB/s
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
905 MB/s -7%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
352.1 MB/s -64%
Getac S410 Gen 4
SSSTC CA5-8D256
329.9 MB/s -66%
Access Time Read
Getac S410 Gen 4
SSSTC CA5-8D256
0.368 ms * -418%
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
0.077 ms * -8%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
0.071 ms *
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
0.064 ms * +10%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
0.051 ms * +28%
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
0.044 ms * +38%
Access Time Write
Getac S410 Gen 4
SSSTC CA5-8D256
0.633 ms * -722%
Panasonic Toughbook FZ-55 MK2
Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
0.544 ms * -606%
Durabook S14I
UDinfo M2P M2P80DE512GBAEP
0.106 ms * -38%
Panasonic Toughbook 40
Samsung PM991 MZVLQ1T0HALB
0.077 ms *
Acer Enduro Urban N3 EUN314
Samsung PM991 MZVLQ1T0HALB
0.066 ms * +14%
Dell Latitude 5420 Rugged-P85G
SK hynix PC401 NVMe 500 GB
0.051 ms * +34%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

01553104656207759301085124013951550170518602015217023252480263527902945Tooltip
Panasonic Toughbook 40: Ø1947 (1564.69-3052.8)

Prestazioni della GPU

Il sistema integrato Iris Xe 96 EUs integrata ha le prestazioni che ci aspettiamo rispetto ad altri portatili con la stessa GPU. Sia le prestazioni che le prestazioni per watt sono nettamente superiori a quelle di qualsiasi computer portatile rugged che utilizza ancora le vecchie schede grafiche Grafica UHD 620.

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate
Time Spy
Time Spy
Fire Strike
Fire Strike
Fire Strike Ultra
Fire Strike Ultra

3DMark
1920x1080 Fire Strike Graphics
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
5654 Points +22%
Media Intel Iris Xe Graphics G7 96EUs
  (2286 - 6143, n=206)
4903 Points +6%
Acer Enduro Urban N3 EUN314
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
4847 Points +5%
Panasonic Toughbook 40
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
4623 Points
Dell Inspiron 14 7420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
3887 Points -16%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
3404 Points -26%
Dell Inspiron 14 7400 7415 2-in-1
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
3381 Points -27%
Asus ZenBook 14 UX434FL-DB77
NVIDIA GeForce MX250, Intel Core i7-8565U
2945 Points -36%
Infinix INBook X2
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
2510 Points -46%
Acer Spin 3 SP314-54N-56S5
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
2207 Points -52%
Dell Latitude 14 5420-D2G5W
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
2119 Points -54%
Durabook S15ABG2
Intel UHD Graphics 620, Intel Core i5-8265U
1108 Points -76%
2560x1440 Time Spy Graphics
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
1779 Points +20%
Acer Enduro Urban N3 EUN314
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1512 Points +2%
Media Intel Iris Xe Graphics G7 96EUs
  (707 - 1871, n=203)
1494 Points +1%
Panasonic Toughbook 40
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1478 Points
Dell Inspiron 14 7420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
1351 Points -9%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
1100 Points -26%
Dell Inspiron 14 7400 7415 2-in-1
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
966 Points -35%
Asus ZenBook 14 UX434FL-DB77
NVIDIA GeForce MX250, Intel Core i7-8565U
886 Points -40%
Dell Latitude 14 5420-D2G5W
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
843 Points -43%
Infinix INBook X2
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
810 Points -45%
Durabook S15ABG2
Intel UHD Graphics 620, Intel Core i5-8265U
363 Points -75%
2560x1440 Time Spy Score
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
2001 Points +23%
Acer Enduro Urban N3 EUN314
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1684 Points +3%
Media Intel Iris Xe Graphics G7 96EUs
  (789 - 2133, n=200)
1673 Points +2%
Panasonic Toughbook 40
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1633 Points
Dell Inspiron 14 7420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
1518 Points -7%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
1251 Points -23%
Dell Inspiron 14 7400 7415 2-in-1
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
1100 Points -33%
Asus ZenBook 14 UX434FL-DB77
NVIDIA GeForce MX250, Intel Core i7-8565U
990 Points -39%
Dell Latitude 14 5420-D2G5W
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
949 Points -42%
Infinix INBook X2
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
916 Points -44%
Durabook S15ABG2
Intel UHD Graphics 620, Intel Core i5-8265U
416 Points -75%
3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P
6906 Points +8%
Acer Enduro Urban N3 EUN314
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6728 Points +6%
Panasonic Toughbook 40
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
6374 Points
Media Intel Iris Xe Graphics G7 96EUs
  (2867 - 7471, n=193)
6342 Points -1%
Dell Inspiron 14 7420 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1255U
5800 Points -9%
Dell Inspiron 14 7400 7415 2-in-1
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U
5579 Points -12%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
5338 Points -16%
Dell Latitude 14 5420-D2G5W
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3997 Points -37%
Infinix INBook X2
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
3968 Points -38%
Asus ZenBook 14 UX434FL-DB77
NVIDIA GeForce MX250, Intel Core i7-8565U
3585 Points -44%
Acer Spin 3 SP314-54N-56S5
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
3334 Points -48%
Durabook S15ABG2
Intel UHD Graphics 620, Intel Core i5-8265U
1754 Points -72%
3DMark 11 Performance
6575 punti
3DMark Cloud Gate Standard Score
17314 punti
3DMark Fire Strike Score
4182 punti
3DMark Time Spy Score
1633 punti
Aiuto
Final Fantasy XV Benchmark
1280x720 Lite Quality
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
44.2 fps +10%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
40.1 fps
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
39.9 fps 0%
Media Intel Iris Xe Graphics G7 96EUs
  (14.9 - 56.5, n=174)
39.2 fps -2%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
34.3 fps -14%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
34.2 fps -15%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
33.7 fps -16%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
31.9 fps -20%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
18.2 fps -55%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
18.2 fps -55%
1920x1080 Standard Quality
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
25 fps +17%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
22.1 fps +4%
Media Intel Iris Xe Graphics G7 96EUs
  (10.5 - 28, n=170)
21.7 fps +2%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
21.3 fps
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
17.6 fps -17%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
17.1 fps -20%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
16.4 fps -23%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
16.3 fps -23%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
9.6 fps -55%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
8.8 fps -59%
1920x1080 High Quality
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
17.1 fps +10%
Media Intel Iris Xe Graphics G7 96EUs
  (8.15 - 27.8, n=163)
16.8 fps +8%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
15.9 fps +3%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
15.5 fps
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
12.5 fps -19%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
12.3 fps -21%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.7 fps -25%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
11 fps -29%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
9.6 fps -38%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
8.72 fps -44%
The Witcher 3
1024x768 Low Graphics & Postprocessing
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
89.5 (39min) fps +4%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
88.1 (84min) fps +3%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
85.9 (70min) fps
Media Intel Iris Xe Graphics G7 96EUs
  (28.9 - 110, n=181)
83.8 fps -2%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
78.2 (43min) fps -9%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
70.7 (64min) fps -18%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
62.1 (54min) fps -28%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
59.5 (54min) fps -31%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
54 (16min) fps -37%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
38.8 fps -55%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
35.65 (28min) fps -58%
1366x768 Medium Graphics & Postprocessing
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
60.8 (55min) fps +12%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
57.3 (53min) fps +6%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
54.2 (27min) fps
Media Intel Iris Xe Graphics G7 96EUs
  (21.4 - 74.1, n=179)
53.4 fps -1%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
49 (44min) fps -10%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
34.7 (30min) fps -36%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
33 (30min) fps -39%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
24.4 fps -55%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
23.42 (16min) fps -57%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
32.4 (29min) fps +10%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
29.5 (27min) fps
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
29.2 (26min) fps -1%
Media Intel Iris Xe Graphics G7 96EUs
  (10.6 - 45.9, n=184)
28.6 fps -3%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
25.3 (23min) fps -14%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
22.6 (20min) fps -23%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
20.8 (19min) fps -29%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
19.4 (16min) fps -34%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
18.5 (15min) fps -37%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
12.91 (7min) fps -56%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
9.3 fps -68%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
15.2 (13min) fps +3%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
14.9 (14min) fps +1%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
14.8 (14min) fps
Media Intel Iris Xe Graphics G7 96EUs
  (8.79 - 20.1, n=174)
14 fps -5%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
13.4 (10min) fps -9%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
13.2 (12min) fps -11%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
12.3 (11min) fps -17%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
10.3 (7min) fps -30%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
9.4 (6min) fps -36%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
7.375 (4min) fps -50%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
7 fps -53%
Dota 2 Reborn
1280x720 min (0/3) fastest
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
114 (95.6min) fps +1%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
113.1 (87.8min) fps 0%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
113 (93.1min) fps 0%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
112.9 (100.9min) fps
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
108.7 (86.2min) fps -4%
Media Intel Iris Xe Graphics G7 96EUs
  (36 - 148, n=206)
99.9 fps -12%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
94.5 (83.2min) fps -16%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
92.4 (81.6min) fps -18%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
81.2 (67.5min) fps -28%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
78.5 (48.2min) fps -30%
Durabook S15ABG2
Intel Core i5-8265U, Intel UHD Graphics 620
71.3 (61.5min) fps -37%
1366x768 med (1/3)
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
104.6 (77min) fps
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
88.7 (72.7min) fps -15%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
88.6 (77.1min) fps -15%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
85.6 (66.6min) fps -18%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
81.6 (57.4min) fps -22%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
76.7 (62.4min) fps -27%
Media Intel Iris Xe Graphics G7 96EUs
  (31.6 - 108.5, n=206)
75.5 fps -28%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
75.3 (61.6min) fps -28%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
62.5 (48.7min) fps -40%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
43.6 (33.1min) fps -58%
Durabook S15ABG2
Intel Core i5-8265U, Intel UHD Graphics 620
42.3 (37.8min) fps -60%
1920x1080 high (2/3)
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
63.9 (55min) fps +2%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
62.4 (56.2min) fps
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
61.3 (54.4min) fps -2%
Media Intel Iris Xe Graphics G7 96EUs
  (23.2 - 88.1, n=206)
53.8 fps -14%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
51.3 (45.6min) fps -18%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
49.9 (46.1min) fps -20%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
48.7 (29.2min) fps -22%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
46.9 (41min) fps -25%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
26.4 (18.5min) fps -58%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
23.2 (17.6min) fps -63%
Durabook S15ABG2
Intel Core i5-8265U, Intel UHD Graphics 620
19.1 (17.5min) fps -69%
1920x1080 ultra (3/3) best looking
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
58.4 (49.3min) fps +5%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
55.5 (49.6min) fps
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
54.1 (46.7min) fps -3%
Media Intel Iris Xe Graphics G7 96EUs
  (20.6 - 78.5, n=206)
49 fps -12%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
46.8 (43.4min) fps -16%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
46.7 (41.8min) fps -16%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
43.4 (25.4min) fps -22%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
43 (38.5min) fps -23%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
29.2 (24.9min) fps -47%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
20.9 (16.6min) fps -62%
Durabook S15ABG2
Intel Core i5-8265U, Intel UHD Graphics 620
16.7 (15.8min) fps -70%
X-Plane 11.11
1280x720 low (fps_test=1)
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
52.4 fps +111%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
51.9 fps +109%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
49.2 fps +98%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
47.1 fps +90%
Media Intel Iris Xe Graphics G7 96EUs
  (13.4 - 88.4, n=206)
41.2 fps +66%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
37.3 fps +50%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
32.5 fps +31%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
24.8 fps
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
23 fps -7%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
22.1 fps -11%
Durabook S15ABG2
Intel Core i5-8265U, Intel UHD Graphics 620
20.9 fps -16%
1920x1080 med (fps_test=2)
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
42.2 fps +81%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
41.4 fps +78%
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
41.1 fps +76%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
39.2 fps +68%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
36.6 fps +57%
Media Intel Iris Xe Graphics G7 96EUs
  (11.6 - 69.5, n=207)
35.1 fps +51%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
30.8 fps +32%
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
28.3 fps +21%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
23.3 fps
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
22.3 fps -4%
Durabook S15ABG2
Intel Core i5-8265U, Intel UHD Graphics 620
14.2 fps -39%
1920x1080 high (fps_test=3)
Asus ZenBook 14 UX434FL-DB77
Intel Core i7-8565U, NVIDIA GeForce MX250
37.5 fps +45%
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
37.5 fps +45%
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
36.5 fps +41%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
35.4 fps +37%
Lenovo IdeaPad 5 Pro 14ACN6
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
32.2 fps +24%
Media Intel Iris Xe Graphics G7 96EUs
  (11.1 - 59.8, n=206)
31.5 fps +22%
Dell Inspiron 14 7400 7415 2-in-1
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
26.6 fps +3%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
25.9 fps
Dell Latitude 14 5420-D2G5W
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
25.5 fps -2%
Infinix INBook X2
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
19.7 fps -24%
Durabook S15ABG2
Intel Core i5-8265U, Intel UHD Graphics 620
12.8 fps -51%
Cyberpunk 2077 1.6
1920x1080 Low Preset
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
21.1 (15.3min) fps
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
20.3 (13.1min) fps -4%
Media Intel Iris Xe Graphics G7 96EUs
  (13 - 25.9, n=42)
19 fps -10%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
17.6 (11.1min) fps -17%
1920x1080 Medium Preset
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
17.2 (11.5min) fps 0%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
17.2 (12.7min) fps
Media Intel Iris Xe Graphics G7 96EUs
  (10.8 - 21.7, n=37)
16.1 fps -6%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
14.6 (10.1min) fps -15%
1920x1080 High Preset
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
13.5 (10min) fps +4%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
13 (10.2min) fps
Media Intel Iris Xe Graphics G7 96EUs
  (9.8 - 16.9, n=34)
12.7 fps -2%
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
10.9 (8.4min) fps -16%
1920x1080 Ultra Preset
Lenovo Yoga 9 14IAP7 82LU0001US
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs
13.5 (10min) fps +29%
Media Intel Iris Xe Graphics G7 96EUs
  (7.4 - 16.8, n=32)
10.6 fps +1%
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
10.5 (7.7min) fps
Dell Inspiron 14 7420 2-in-1
Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs
7.4 (5.2min) fps -30%

Witcher 3 FPS Chart

05101520253035404550556065707580859095Tooltip
Panasonic Toughbook 40: Ø89.9 (61-96)
basso medio alto ultra
The Witcher 3 (2015) 85.9 54.2 29.5 14.8
Dota 2 Reborn (2015) 112.9 104.6 62.4 55.5
Final Fantasy XV Benchmark (2018) 40.1 21.3 15.5
X-Plane 11.11 (2018) 24.8 23.3 25.9
Cyberpunk 2077 1.6 (2022) 21.1 17.2 13 10.5

Emissioni

Rumore del sistema

Secondo la nostra esperienza, la ventola è sempre attiva con 26 dB(A) a fronte di uno sfondo silenzioso di 22,8 dB(A), anche quando è al minimo sulla scrivania. Possiamo notare un po' di rumore elettronico o di coil whine anche avvicinando l'orecchio ai tasti della tastiera. Questi rumori passivi non sono fortunatamente abbastanza forti da destare preoccupazione nella maggior parte degli scenari reali

L'esecuzione della prima scena di benchmark di 3DMark 06 induce un rumore della ventola di 37,6 dB(A), più forte e più lieve di quello che abbiamo osservato sul Toughbook FZ-55 MK2 e Getac S410 Gen 4, rispettivamente. Aspettatevi questo livello di rumore quando si eseguono carichi impegnativi.

Profilo del rumore della ventola (bianco: Sfondo, Rosso: Sistema inattivo, Blu: 3DMark 06, Arancione: Witcher 3, Verde: Prime95 stress)
Profilo del rumore della ventola (bianco: Sfondo, Rosso: Sistema inattivo, Blu: 3DMark 06, Arancione: Witcher 3, Verde: Prime95 stress)

Rumorosità

Idle
26 / 26 / 26 dB(A)
Sotto carico
37.6 / 40.3 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 22.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.638.436.133.6402527.128.329.427.2313125.82624.325.624.14024.628.922.924.324.65021.428.320.419.923.66322.324.221.819.823.68023.825.421.122.222.910023.923.919.819.221.912522.522.717.815.922.716023.222.615.913.824.620025.124.816.312.924.425022.722.715.413.623.531523.42315.814.124.740023.123.514.712.424.350021.721.612.610.722.663021.822.415.11024.680020.521.1119.323.6100030.430.214.79.530.8125027.527.218.89.332.6160021.321.211.69.523.4200022.923.113.39.825.2250030.23014.710.332.7315026.225.712.710.528.140002625.412.511.228.9500023.423.612.111.325.6630025.825.311.811.528.2800020.720.311.911.523.81000020.119.611.811.623.41250020.22013.311.322.81600016.816.914.110.418.5SPL37.837.62622.840.3N2.72.70.70.43.4median 23.1median 23median 14.1median 11.3median 24.4Delta2.321.91.72.2hearing rangehide median Fan NoisePanasonic Toughbook 40
Panasonic Toughbook 40
Iris Xe G7 96EUs, i7-1185G7, Samsung PM991 MZVLQ1T0HALB
Panasonic Toughbook FZ-55 MK2
Iris Xe G7 96EUs, i7-1185G7, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL
Getac S410 Gen 4
Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256
Dell Latitude 5420 Rugged-P85G
Radeon RX 540, i7-8650U, SK hynix PC401 NVMe 500 GB
Acer Enduro Urban N3 EUN314
Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ1T0HALB
Durabook S14I
Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP
Noise
8%
-3%
-4%
8%
-3%
off /ambiente *
22.8
23.8
-4%
23.3
-2%
28.3
-24%
23.8
-4%
25.2
-11%
Idle Minimum *
26
24
8%
23.5
10%
28.3
-9%
24.1
7%
25.2
3%
Idle Average *
26
24
8%
23.5
10%
28.3
-9%
24.1
7%
25.2
3%
Idle Maximum *
26
24
8%
28
-8%
28.3
-9%
24.1
7%
34.5
-33%
Load Average *
37.6
26.7
29%
42.8
-14%
29.9
20%
27.9
26%
34.5
8%
Witcher 3 ultra *
37.8
42.3
-12%
35.7
6%
Load Maximum *
40.3
41.7
-3%
42.6
-6%
38
6%
38.6
4%
36.2
10%

* ... Meglio usare valori piccoli

Temperatura

Le temperature di superficie sono generalmente fresche grazie alla CPU Core serie U e al design spesso dello chassis. Dopotutto, si tratta della stessa CPU presente in molti portatili consumer più sottili. I punti caldi possono raggiungere i 29 C e i 40 C sui lati superiore e inferiore, rispettivamente, dopo aver eseguito carichi pesanti per lunghi periodi.

La metà destra del modello Toughbook sarà sempre più calda di quella sinistra a causa del posizionamento della CPU e della soluzione di raffreddamento all'interno.

Scarico posteriore
Scarico posteriore
Adattatore CA dopo un'ora di carichi di lavoro pesanti
Adattatore CA dopo un'ora di carichi di lavoro pesanti
Carico massimo
 25.6 °C30.6 °C35.6 °C
 25.6 °C29.2 °C34.4 °C
 25.6 °C27.8 °C29 °C
Massima: 35.6 °C
Media: 29.3 °C
38.4 °C35 °C28.8 °C
40 °C34.4 °C28.8 °C
33.4 °C30.4 °C28.8 °C
Massima: 40 °C
Media: 33.1 °C
Alimentazione (max)  41.6 °C | Temperatura della stanza 22 °C | Fluke 62 Mini IR Thermometer
(+) La temperatura media del lato superiore sotto carico massimo e' di 29.3 °C / 85 F, rispetto alla media di 29.5 °C / 85 F per i dispositivi di questa classe Office.
(+) La temperatura massima sul lato superiore è di 35.6 °C / 96 F, rispetto alla media di 34.2 °C / 94 F, che varia da 21.2 a 62.5 °C per questa classe Office.
(±) Il lato inferiore si riscalda fino ad un massimo di 40 °C / 104 F, rispetto alla media di 36.7 °C / 98 F
(+) In idle, la temperatura media del lato superiore è di 27.1 °C / 81 F, rispetto alla media deld ispositivo di 29.5 °C / 85 F.
(+) I poggiapolsi e il touchpad sono piu' freddi della temperatura della pelle con un massimo di 29 °C / 84.2 F e sono quindi freddi al tatto.
(±) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 27.7 °C / 81.9 F (-1.3 °C / -2.3 F).
Sistema inattivo (in alto)
Sistema inattivo (in alto)
Sistema inattivo (in basso)
Sistema inattivo (in basso)
Sollecitazione Prime95 (in alto)
Sollecitazione Prime95 (in alto)
Sollecitazione Prime95 (in basso)
Sollecitazione Prime95 (in basso)
Panasonic Toughbook 40
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
Panasonic Toughbook FZ-55 MK2
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
Getac S410 Gen 4
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
Dell Latitude 5420 Rugged-P85G
Intel Core i7-8650U, AMD Radeon RX 540
Acer Enduro Urban N3 EUN314
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Durabook S14I
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
Heat
-8%
-13%
-11%
-4%
-7%
Maximum Upper Side *
35.6
36.2
-2%
36
-1%
42.2
-19%
37.8
-6%
36.4
-2%
Maximum Bottom *
40
42.2
-6%
46.8
-17%
42
-5%
45.8
-15%
38.6
3%
Idle Upper Side *
28.6
31
-8%
30
-5%
31.6
-10%
26.4
8%
32.6
-14%
Idle Bottom *
29.4
34
-16%
38.2
-30%
31.8
-8%
30.2
-3%
33.8
-15%

* ... Meglio usare valori piccoli

Stress test

Quando si esegue Prime95 per stressare la CPU, la velocità di clock e la temperatura del core raggiungono rispettivamente 3,1 GHz e 100 C per una frazione di secondo, prima di scendere costantemente a 2,6 e ~95 C. La potenza del pacchetto CPU raggiunge i 40 W all'inizio del test prima di stabilizzarsi a 28 W. Eseguendo questo stesso test sul Durabook S14I con una CPU Core i7-1165G7 si ottiene una temperatura stabile del nucleo molto più bassa, pari a 63 C, anche se con una frequenza di clock più lenta di 1,8 GHz. È chiaro che il nostro modello Panasonic privilegia le prestazioni della CPU, anche se questo comporta un processore molto più caldo.

Quando si esegue Witcher 3 di carichi impegnativi, la temperatura del processore si stabilizza a 83 C, più calda di quella del già citato Durabook (68 C) ma più fresca di quella del Getac S410 Gen 4 (95 C).

Il funzionamento a batteria non limita le prestazioni. Un test 3DMark 11 a batteria restituisce punteggi simili a quelli ottenuti con l'alimentazione di rete.

Sistema inattivo
Sistema inattivo
Witcher 3 stress
Witcher 3 stress
Stress Prime95
Stress Prime95
Stress di Prime95+FurMark
Stress di Prime95+FurMark
Clock della CPU (GHz) Clock della GPU (MHz) Temperatura media della CPU (°C)
Sistema inattivo -- -- 38
Stress Prime95 2,7 -- 97
Prime95 + FurMark Stress 1,4 - 1,6 1000 77
Witcher 3 Stress 1,4 - 1,6 1300 83

Altoparlanti

Rumore rosa al massimo volume. Sebbene Panasonic pubblicizzi 95 dB, siamo riusciti a registrare 77,5 dB(A) con un microfono a 15 cm dal bordo anteriore
Rumore rosa al massimo volume. Sebbene Panasonic pubblicizzi 95 dB, siamo riusciti a registrare 77,5 dB(A) con un microfono a 15 cm dal bordo anteriore
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203936.1392529.229.429.2312424.3244024.822.924.85025.720.425.76326.421.826.48030.321.130.310038.319.838.312543.417.843.41604915.94920052.816.352.825060.115.460.131563.615.863.640062.714.762.750063.712.663.763064.815.164.880064.41164.4100072.114.772.1125069.518.869.5160064.411.664.4200061.913.361.9250061.714.761.731506012.760400058.812.558.8500062.212.162.2630060.611.860.6800065.711.965.71000068.611.868.6125006713.3671600058.614.158.6SPL77.52677.5N41.70.741.7median 62.2median 14.1median 62.2Delta3.41.93.426.325.821.422.12624.925.127.622.532.523.448.72655.818.860.922.167.2267019.372.317.674.217.774.319.575.31571.711.871.311.27410.574.21072.710.17210.67210.97511.374.811.671.71269.71269.612.371.112.669.61270.111.269.824.784.70.666.6median 12median 71.73.42.2hearing rangehide median Pink NoisePanasonic Toughbook 40Apple MacBook Pro 16 2021 M1 Pro
Diagramma frequenza (le caselle possono essere selezionate/deselezionate per confrontare i dispositivi)
Panasonic Toughbook 40 analisi audio

(±) | potenza degli altiparlanti media ma buona (77.5 dB)
Bassi 100 - 315 Hz
(±) | bassi ridotti - in media 11.5% inferiori alla media
(±) | la linearità dei bassi è media (11.6% delta rispetto alla precedente frequenza)
Medi 400 - 2000 Hz
(+) | medi bilanciati - solo only 3.3% rispetto alla media
(+) | medi lineari (5.5% delta rispetto alla precedente frequenza)
Alti 2 - 16 kHz
(+) | Alti bilanciati - appena 2.5% dalla media
(+) | alti lineari (4.8% delta rispetto alla precedente frequenza)
Nel complesso 100 - 16.000 Hz
(+) | suono nel complesso lineare (13.1% differenza dalla media)
Rispetto alla stessa classe
» 4% di tutti i dispositivi testati in questa classe è stato migliore, 2% simile, 95% peggiore
» Il migliore ha avuto un delta di 7%, medio di 22%, peggiore di 53%
Rispetto a tutti i dispositivi testati
» 10% di tutti i dispositivi testati in questa classe è stato migliore, 2% similare, 88% peggiore
» Il migliore ha avuto un delta di 4%, medio di 25%, peggiore di 134%

Apple MacBook Pro 16 2021 M1 Pro analisi audio

(+) | gli altoparlanti sono relativamente potenti (84.7 dB)
Bassi 100 - 315 Hz
(+) | bassi buoni - solo 3.8% dalla media
(+) | bassi in lineaa (5.2% delta rispetto alla precedente frequenza)
Medi 400 - 2000 Hz
(+) | medi bilanciati - solo only 1.3% rispetto alla media
(+) | medi lineari (2.1% delta rispetto alla precedente frequenza)
Alti 2 - 16 kHz
(+) | Alti bilanciati - appena 1.9% dalla media
(+) | alti lineari (2.7% delta rispetto alla precedente frequenza)
Nel complesso 100 - 16.000 Hz
(+) | suono nel complesso lineare (4.6% differenza dalla media)
Rispetto alla stessa classe
» 0% di tutti i dispositivi testati in questa classe è stato migliore, 0% simile, 100% peggiore
» Il migliore ha avuto un delta di 5%, medio di 18%, peggiore di 45%
Rispetto a tutti i dispositivi testati
» 0% di tutti i dispositivi testati in questa classe è stato migliore, 0% similare, 100% peggiore
» Il migliore ha avuto un delta di 4%, medio di 25%, peggiore di 134%

Gestione dell'energia

Consumo di energia

Il funzionamento al minimo sulla scrivania consuma tra i 4 W e i 14 W, a seconda del livello di luminosità e del profilo energetico. Il semplice aumento della luminosità da 0 a 100 richiede circa 8 W in più a causa della retroilluminazione a 1400 nit

Il consumo energetico sotto carico è simile a quello di altri modelli rugged dotati di CPU Core serie U di 11a generazione, tra cui il Toughbook FZ-55 MK2 di Panasonic. Tiger Lake-La serie U offre un immenso guadagno in termini di prestazioni per watt rispetto ai modelli rugged di vecchia generazione come il modello Latitude 5420 con Kaby Lake-R e grafica Radeon RX 540

Siamo riusciti a registrare un consumo massimo di 83,6 W dal piccolo adattatore CA da 110 W (~14 x 5,4 x 3,1 cm) durante l'esecuzione di Prime95 e FurMark. Questo picco è di breve durata, come mostrano gli screenshot qui sotto, a causa delle limitazioni termiche.

consumo energetico di 3DMark 06
consumo energetico di 3DMark 06
Witcher 3 1080p Consumo energetico ultra
Witcher 3 1080p Consumo energetico ultra
Il consumo saliva a 67 W quando si iniziava lo stress Prime95, prima di scendere rapidamente e stabilizzarsi a 48 W
Il consumo saliva a 67 W quando si iniziava lo stress Prime95, prima di scendere rapidamente e stabilizzarsi a 48 W
Lo stress di Prime95+FurMark è iniziato al 10s
Lo stress di Prime95+FurMark è iniziato al 10s
Consumo di corrente
Off / Standbydarklight 0.08 / 1.3 Watt
Idledarkmidlight 4.9 / 12.3 / 14 Watt
Sotto carico midlight 54 / 83.6 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
Panasonic Toughbook 40
i7-1185G7, Iris Xe G7 96EUs, Samsung PM991 MZVLQ1T0HALB, IPS, 1920x1080, 14.00
Panasonic Toughbook FZ-55 MK2
i7-1185G7, Iris Xe G7 96EUs, Toshiba KIOXIA KBG4AZNV512G M.2 2280 OPAL, IPS, 1920x1080, 14.00
Getac S410 Gen 4
i7-1185G7, Iris Xe G7 96EUs, SSSTC CA5-8D256, IPS, 1920x1080, 14.00
Dell Latitude 5420 Rugged-P85G
i7-8650U, Radeon RX 540, SK hynix PC401 NVMe 500 GB, IPS, 1920x1080, 14.00
Acer Enduro Urban N3 EUN314
i7-1165G7, Iris Xe G7 96EUs, Samsung PM991 MZVLQ1T0HALB, IPS, 1920x1080, 14.00
Durabook S14I
i7-1165G7, Iris Xe G7 96EUs, UDinfo M2P M2P80DE512GBAEP, TN, 1920x1080, 14.00
Power Consumption
12%
-11%
-16%
34%
-11%
Idle Minimum *
4.9
3.5
29%
8.3
-69%
4.8
2%
3.8
22%
6.8
-39%
Idle Average *
12.3
10.4
15%
10.5
15%
13.6
-11%
8
35%
16.4
-33%
Idle Maximum *
14
10.5
25%
14.9
-6%
13.8
1%
8.7
38%
16.9
-21%
Load Average *
54
45.4
16%
48.6
10%
67.8
-26%
34.6
36%
39.2
27%
Witcher 3 ultra *
46.3
43
7%
50.9
-10%
69.1
-49%
35.4
24%
Load Maximum *
83.6
99.3
-19%
90.1
-8%
93.5
-12%
45.4
46%
73.1
13%

* ... Meglio usare valori piccoli

Power Consumption Witcher 3 / Stresstest

05101520253035404550556065707580Tooltip
Panasonic Toughbook 40; Witcher 3 ultra: Ø46.3 (45.1-59.4)
Panasonic Toughbook 40; 1280x720 Prime95 28.10 and Furmark 1.25: Ø56.4 (51.6-83.6)

Power Consumption external Monitor

05101520253035404550556065Tooltip
Panasonic Toughbook 40; Prime95 V2810 Stress (external Monitor): Ø49.3 (45.2-67.1)
Panasonic Toughbook 40; Cinebench R15 Multi (external Monitor): Ø47.9 (45.1-61.9)
Panasonic Toughbook 40; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø44 (41.4-50.8)
Panasonic Toughbook 40; 1920x1080 The Witcher 3 ultra (external Monitor): Ø38.9 (37.3-41)

Durata della batteria

La nostra unità di prova è stata fornita con due batterie rimovibili da 68 Wh, ciascuna delle quali occupa uno slot di espansione lungo i lati dello chassis. È possibile collegare altre batterie anche sul fondo per ottenere tempi di autonomia ancora più lunghi. Siamo riusciti a registrare quasi 19 ore di navigazione WLAN in condizioni reali con una luminosità di 150 nit con le due batterie collegate prima di doverle ricaricare

A proposito di ricarica, la velocità di ricarica è purtroppo estremamente lenta. Il sistema carica solo una batteria alla volta, anche se ne sono collegate due, e ogni batteria impiega circa 2,5 o 3 ore per ricaricarsi completamente. In confronto, la maggior parte dei normali computer portatili può ricaricarsi completamente in appena 1,5-2 ore

La ricarica tramite USB-C è supportata e quindi è possibile utilizzare alcuni adattatori USB-C di terze parti al posto dell'adattatore CA proprietario.

Autonomia della batteria
WiFi Websurfing
18ore 57minuti
Panasonic Toughbook 40
i7-1185G7, Iris Xe G7 96EUs, 136 Wh
Panasonic Toughbook FZ-55 MK2
i7-1185G7, Iris Xe G7 96EUs, 71 Wh
Getac S410 Gen 4
i7-1185G7, Iris Xe G7 96EUs, 194 Wh
Dell Latitude 5420 Rugged-P85G
i7-8650U, Radeon RX 540, 102 Wh
Acer Enduro Urban N3 EUN314
i7-1165G7, Iris Xe G7 96EUs, 50.3 Wh
Durabook S14I
i7-1165G7, Iris Xe G7 96EUs, 50 Wh
Autonomia della batteria
-28%
51%
-15%
-66%
-71%
WiFi v1.3
1137
814
-28%
1715
51%
972
-15%
382
-66%
329
-71%
Reader / Idle
1882
Load
190

Pro

+ prestazioni veloci con elevate prestazioni per watt
+ supporta la ricarica USB-C e Thunderbolt 4
+ numerosi alloggiamenti di espansione accessibili
+ display IPS nitido e molto luminoso
+ connettività 4G e 5G

Contro

- i coperchi delle porte sono difficili da afferrare, aprire o chiudere
- PWM presente su quasi tutti i livelli di luminosità
- nessuna opzione di colore per la retroilluminazione della tastiera
- la ventola interna è quasi sempre attiva
- temperature elevate della CPU sotto carico
- carica molto lenta

Il verdetto

In recensione: Panasonic Toughbook 40. Unità di prova fornita da Panasonic
In recensione: Panasonic Toughbook 40. Unità di prova fornita da Panasonic

la capacità di supportare non solo uno o due, ma quattro diversi slot di espansione specializzati dà al Toughbook 40 gambe più lunghe e maggiore versatilità nella sua categoria. Se i moduli xPAK rimovibili non sono pratici per i vostri scenari di utilizzo, il fascino del Toughbook 40 diminuisce notevolmente. Alternative come il Latitude 7424 Rugged Extreme sono completamente robusti e più piccoli, ma senza le capacità di espansione del Panasonic.

Ci sono alcuni aspetti fastidiosi che vorremmo vedere migliorati. Gli sportelli che coprono le porte, ad esempio, sono difficili da afferrare e da aprire o chiudere. Lo sfarfallio dello schermo è presente e non sono disponibili opzioni di gamut più ampie per ottenere colori più profondi. Anche le prestazioni dell'SSD potrebbero essere migliori, mentre la ricarica della batteria è troppo lenta. Questi inconvenienti potrebbero non essere importanti a seconda del caso d'uso.

Prezzo e disponibilità

Gli utenti possono richiedere un preventivo a Panasonic tramite la pagina ufficiale del prodotto https://na.panasonic.com/us/computers-tablets-handhelds/computers/laptops/toughbook-40.

Pricecompare

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del portatile Panasonic Toughbook 40: Altamente adattabile e modulare
Allen Ngo, 2022-07-19 (Update: 2022-07-19)
