Recensione del mini PC Geekom IT13 Max: conveniente e veloce, ma con un inconveniente

Name: Geekom IT13 Max
Brand: Geekom

Maggiore valore aggiunto per il vostro denaro.

Potenza di elaborazione abbondante, Wi-Fi molto veloce e un prezzo interessante: sulla carta, il Geekom IT13 Max ha molto da offrire. Il nostro test dimostra che questo mini PC è effettivamente all’altezza dei propri punti di forza. Tuttavia, un sistema di controllo della ventola non sufficientemente sviluppato gli impedisce di fornire un risultato complessivamente impressionante.
Sebastian Bade, 👁 Sebastian Bade (traduzione a cura di DeepL / Ninh Duy) Pubblicato 08/10/2026 🇺🇸 🇩🇪 ...
Mini PC Desktop Intel Meteor Lake Arc

Conclusione: il Geekom IT13 Max offre prestazioni elevate, una connessione Wi-Fi veloce e una garanzia di 36 mesi.

Il Geekom IT13 Max offre un'ottima impressione generale nei test e ottiene punteggi particolarmente elevati grazie al suo interessante rapporto qualità-prezzo. Il processore Intel Core Ultra 9 185H continua a garantire elevate prestazioni della CPU e assicura un ritmo di lavoro veloce nell'uso quotidiano. A ciò si aggiungono l’ampia dotazione di porte, il Wi-Fi molto veloce, le buone opzioni di espansione e le basse temperature del telaio. Un’altra caratteristica positiva è il design con una gabbia metallica interna, che allontana efficacemente il calore dalle superfici esterne del telaio.

La garanzia di 36 mesi rappresenta un ulteriore vantaggio e offre maggiore tranquillità. Tuttavia, la scheda grafica integrata Intel Arc Graphics rivela che Meteor Lake non rientra più tra le piattaforme più performanti attualmente disponibili. Sebbene le prestazioni siano sufficienti per giochi più datati e meno esigenti, i titoli moderni pongono rapidamente sfide significative per l’iGPU. Inoltre, le piattaforme più recenti offrono talvolta una migliore efficienza energetica.

Dispositivo di test fornito da Geekom

Scarica la tua immagine come PNG / SVG

Il principale punto di critica riguarda il controllo della ventola. Sotto carico, l’IT13 Max diventa chiaramente udibile, mentre mancano opzioni per personalizzare la curva di funzionamento della ventola. Sebbene la modalità silenziosa sia d’aiuto, essa riduce anche le prestazioni. Nel complesso, il Geekom IT13 Max offre un pacchetto completo a un prezzo interessante che piacerà soprattutto agli utenti che apprezzano elevate prestazioni della CPU, una connessione Wi-Fi molto veloce e funzionalità versatili. Chi è in grado di tollerare l’aumento del rumore sotto carico otterrà un mini-PC potente e ben equipaggiato con una garanzia di lunga durata.

Pro

+ custodia robusta

+ buone prestazioni di sistema con 24 GB di RAM

+ facile da aprire

+ Wi-Fi veloce

+ 2 porte USB4

+ doppia porta LAN da 2,5 G

+ lettore di schede SD (UHS-II)

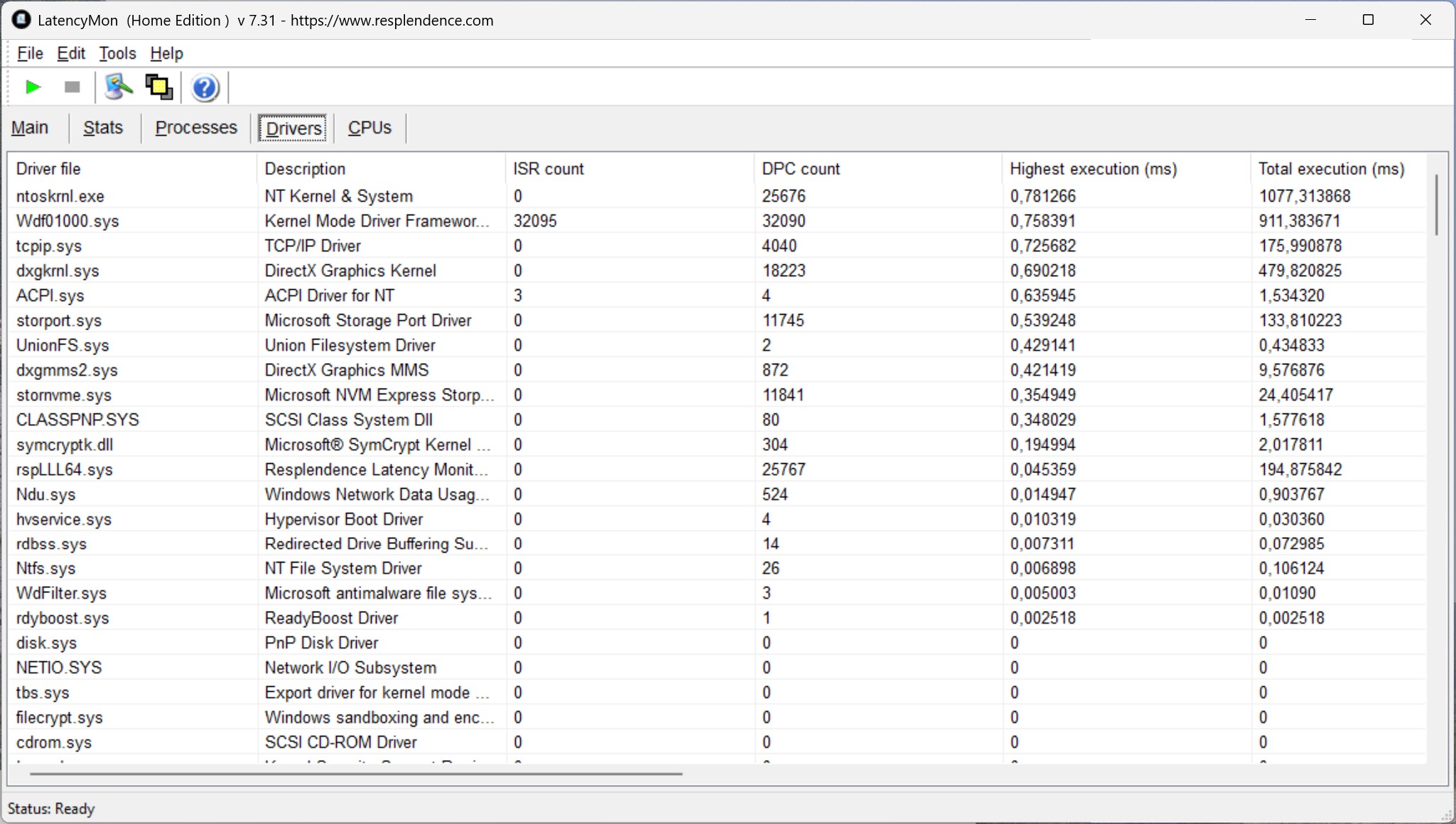

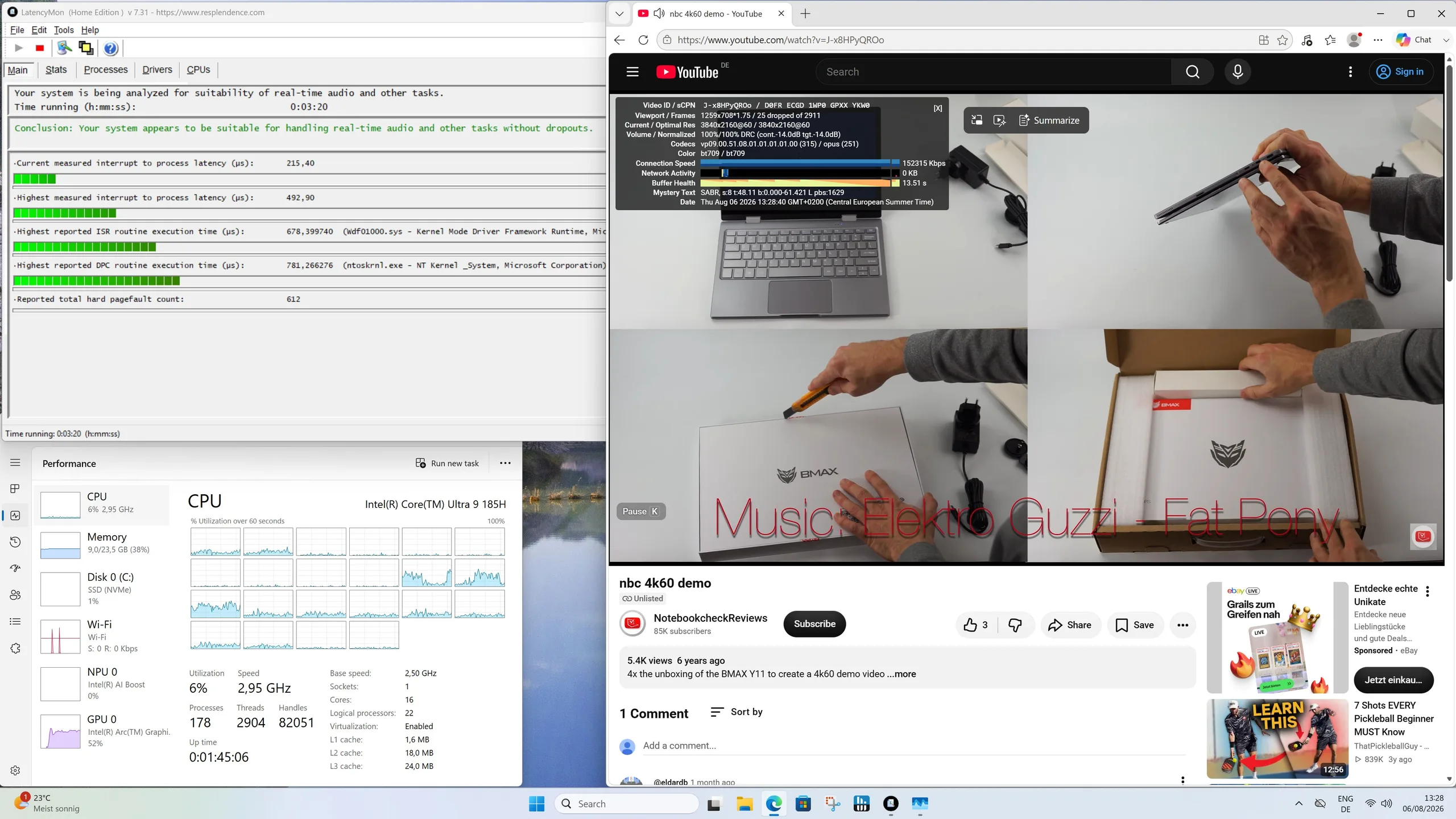

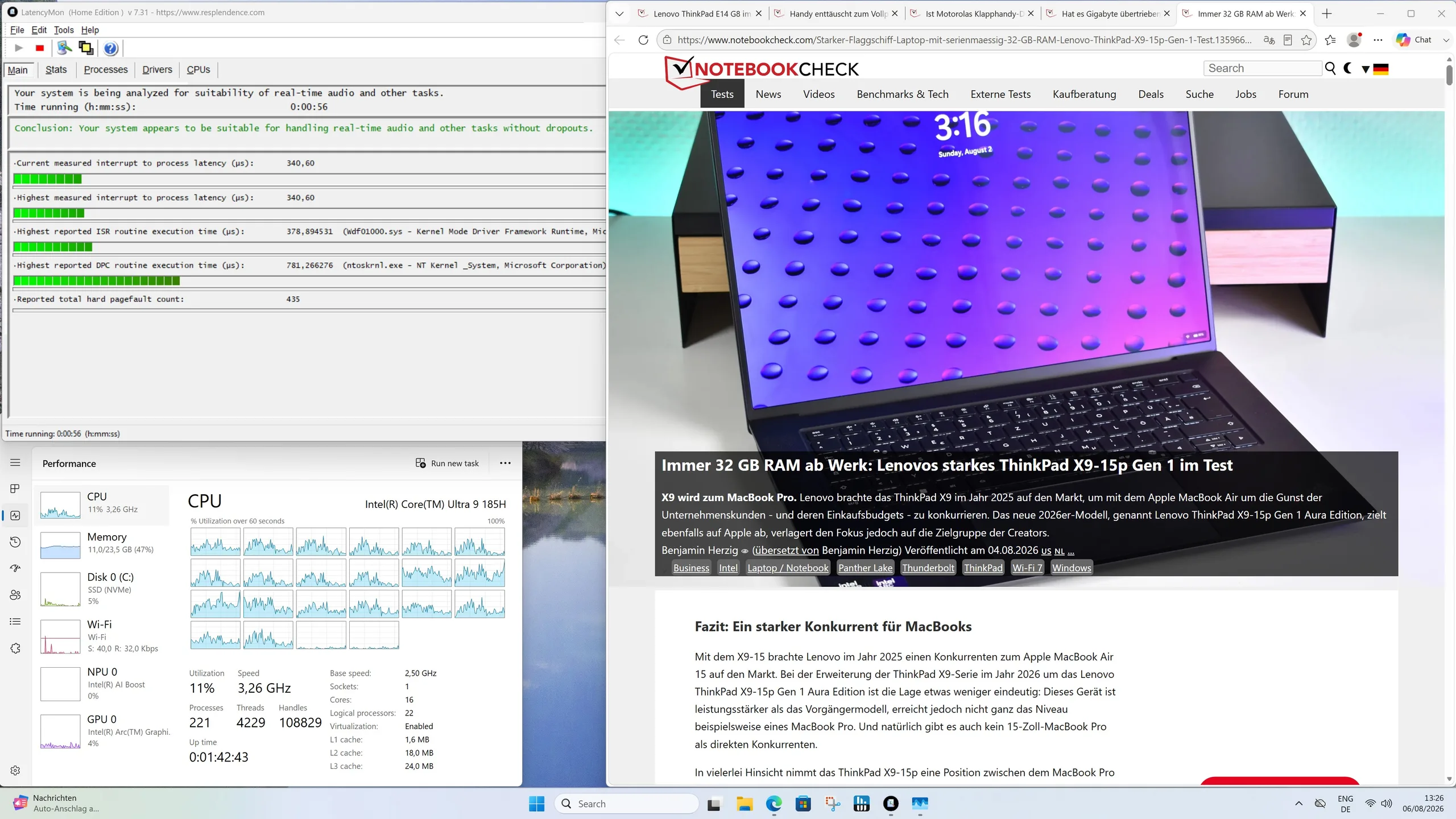

+ bassa latenza DC

+ garanzia di 36 mesi

Contro

- nessuna porta USB-C sul pannello frontale

- nessuna interfaccia OCuLink o USB4 v2

- chiaramente udibile sia a carico parziale che a pieno carico

- nessuna regolazione manuale della velocità della ventola

- poche opzioni nel BIOS

- RAM non espandibile (versione da 24 GB)

Prezzo e disponibilità

Il Geekom IT13 Max è disponibile in varie configurazioni, compresi modelli con 24 GB di RAM o 16 GB di RAM. Il nostro modello di prova è disponibile su Amazon a partire da 799 $. Il mini PC è in vendita nel negozio Geekom al prezzo di 759 $. Il modello da 16 GB costa lo stesso, ma è dotato di un SSD da 1 TB.

$799.00

GEEKOM IT13 MAX AI Mini PC, Intel Ultra 9 185H (65W), DDR5 16GB 1TB SSD

Sommario

Conclusione: il Geekom IT13 Max offre prestazioni elevate, una connessione Wi-Fi veloce e una garanzia di 36 mesi.
Specifiche
Custodia e connettività
Prestazioni

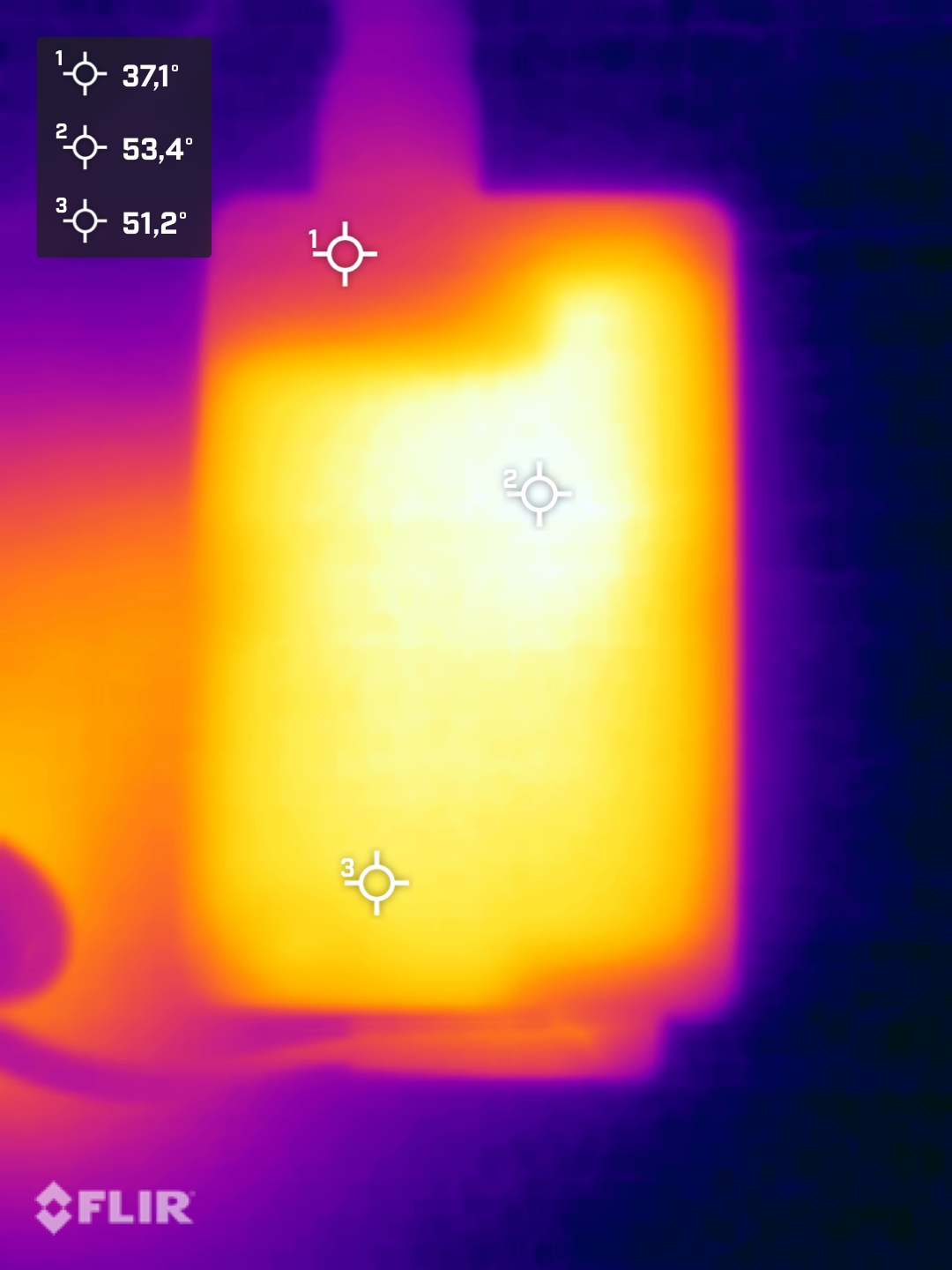

Emissioni
Gestione energetica
Valutazione di Notebookcheck
Possibili alternative a titolo di confronto

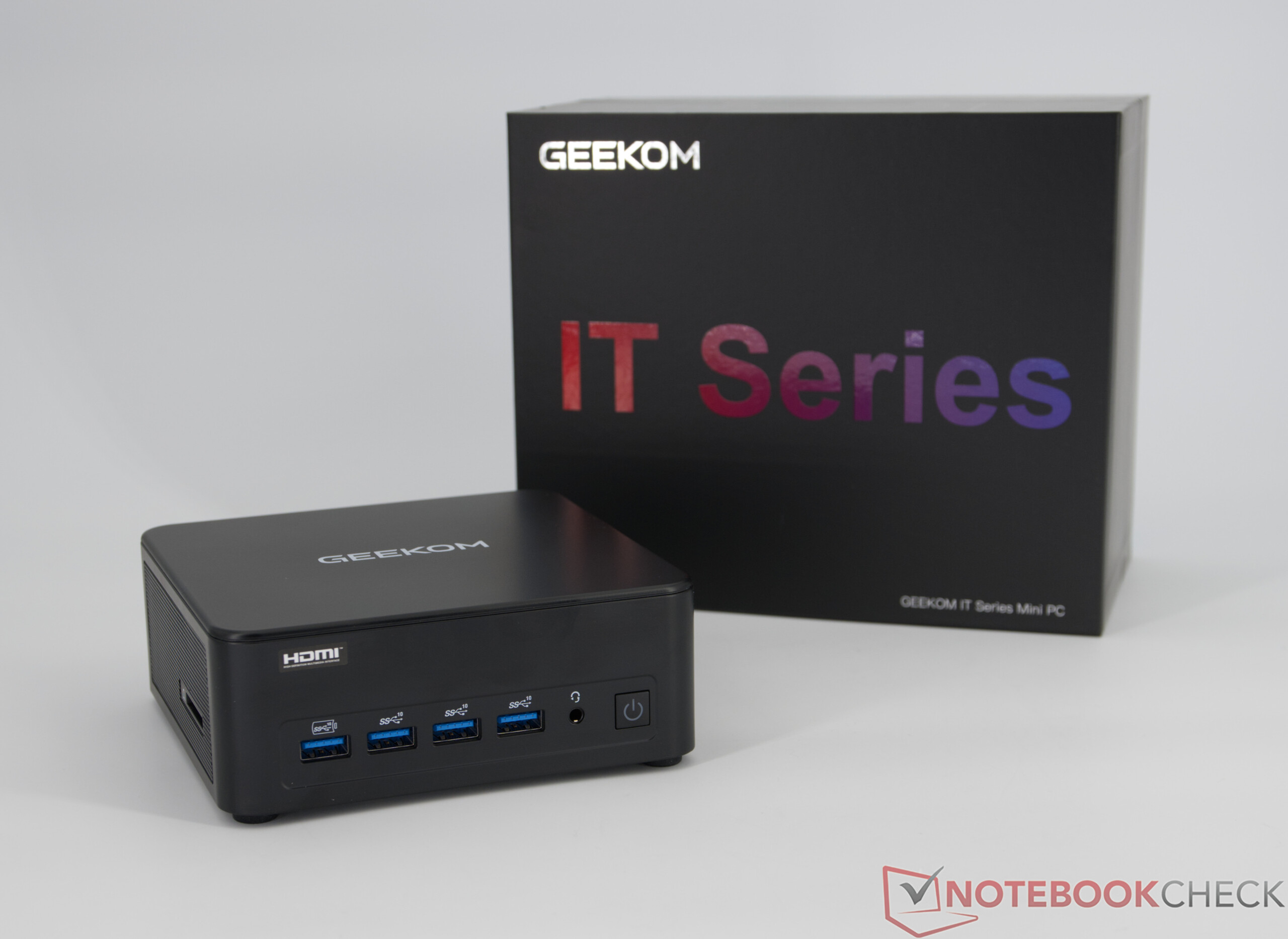

Con l’IT13 Max, Geekom propone un mini-PC compatto basato sul processore Intel Core Ultra 9 185H. Ai fini della presente recensione, abbiamo testato la versione con 24 GB di RAM saldata sulla scheda madre. Sono disponibili anche un modello barebone e una variante con 16 GB di RAM.

Specifiche

Geekom IT13 Max

Processore

Intel Core Ultra 9 185H 16c/22t, 6 x 4.8 GHz Intel Redwood Cove P-Core, 8 x 3.8 GHz Intel Crestmont E-Core, 2 x 2.5 GHz Intel Crestmont E-Core, 70 W PL2 / Short Burst, 40 W PL1 / Sustained, Meteor Lake-H

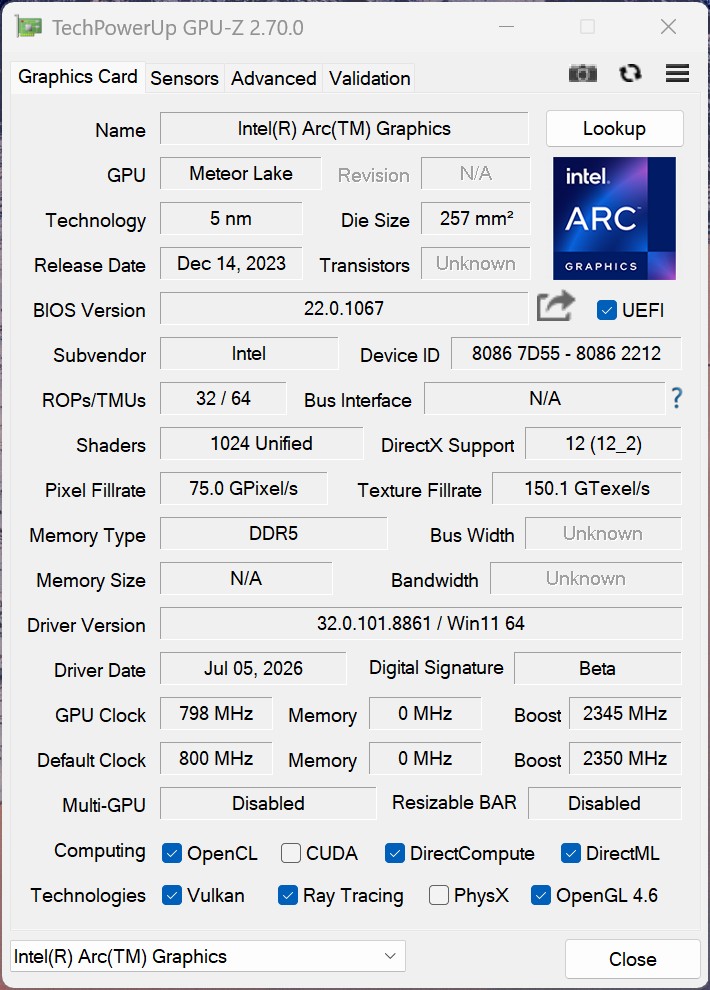

Scheda grafica

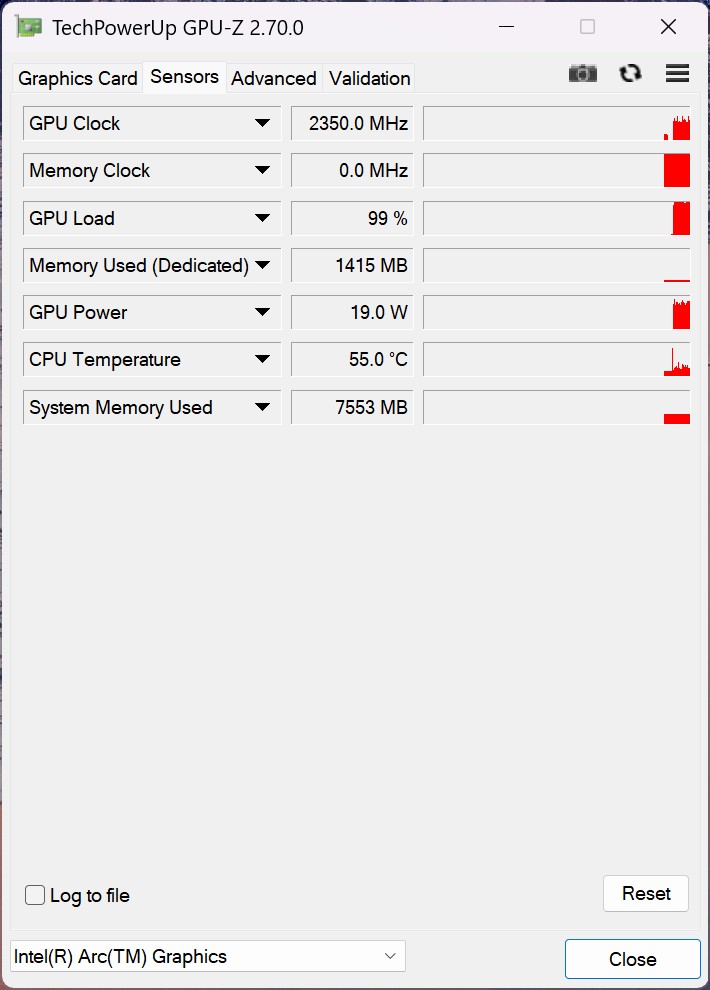

Intel Arc 8-Core iGPU, Core: 2350 MHz, 32.0.101.8861

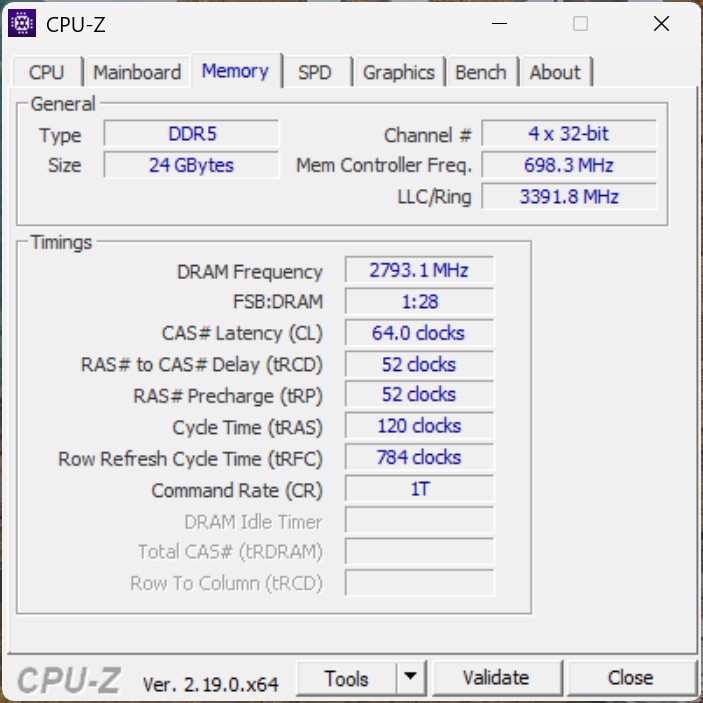

Memoria

24 GB

, LPDDR5 5.600 MT/s, Quad-Channel, nicht erweiterbar

Scheda madre

Intel Meteor Lake-U/P/H PCH

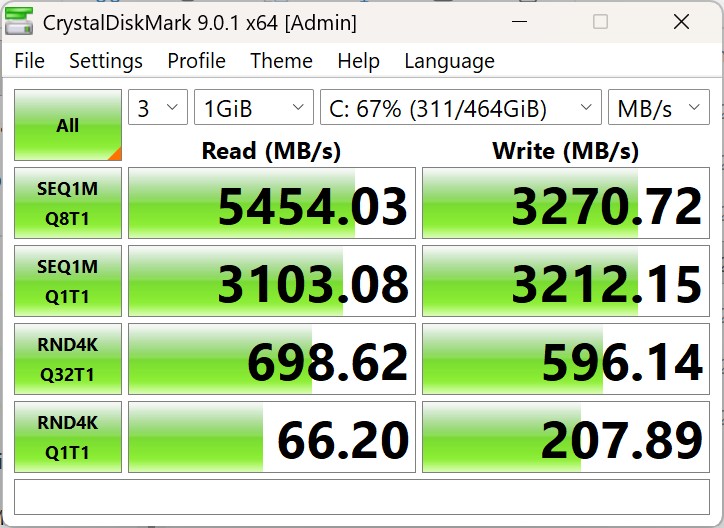

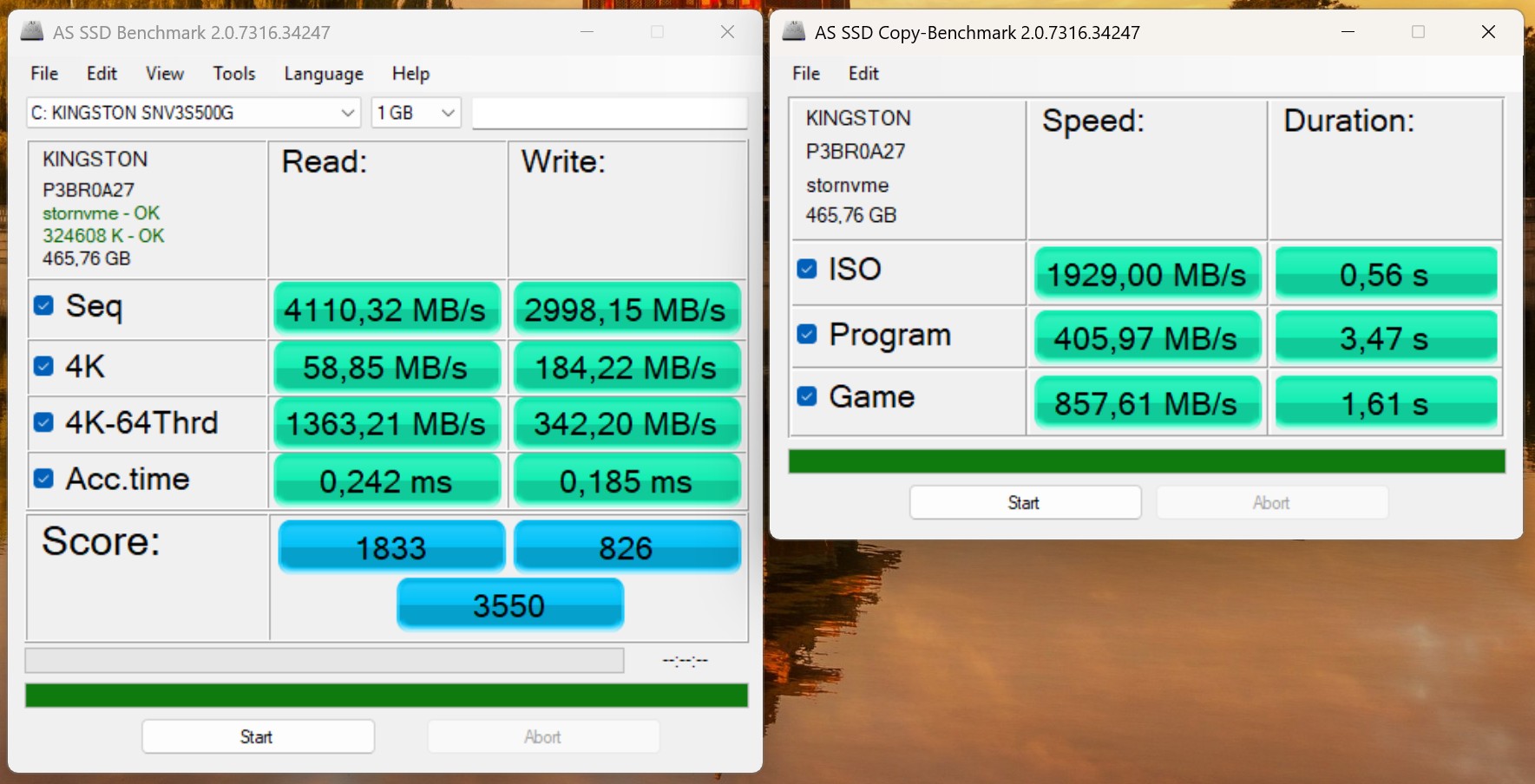

Harddisk

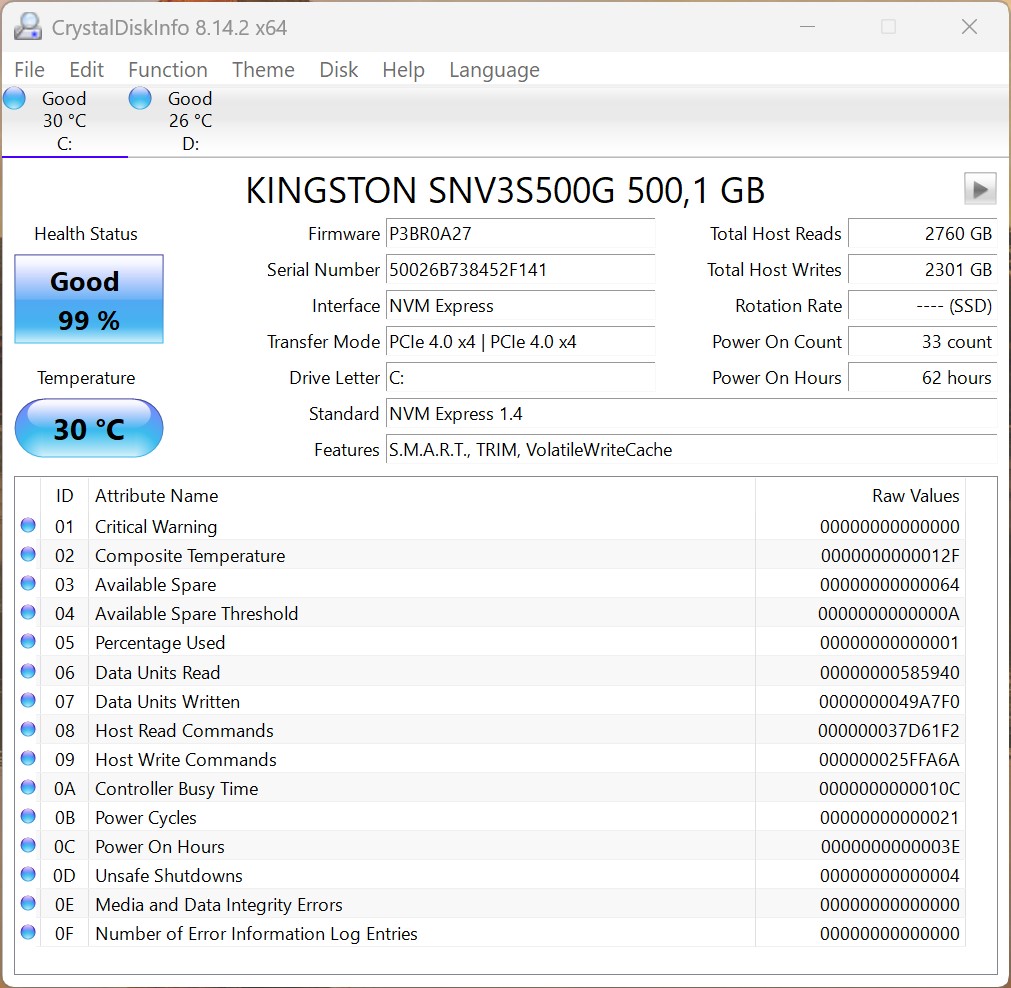

Kingston NV3 500GB SNV3S/500GCN, 500 GB

, 400 GB libera

Scheda audio

Intel Meteor Lake-U/P/H PCH - cAVS (Audio, Voice, Speech)

Porte di connessione

1 USB 2.0, 5 USB 3.1 Gen 2, 2 USB4 40 Gbps, USB-C Power Delivery (PD), 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Connessioni Audio: 3.5mm combo, Lettore schede: Full-Size-SD-Card (UHS II), Intel Ethernet Controller I226-V (10/2500MBit/s)

Rete

Intel Ethernet Controller I226-V (10/2500MBit/s), Intel Wi-Fi 7 BE200 320MHz (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz be = Wi-Fi 7), Bluetooth 5.4

Dimensioni

altezza x larghezza x profondità (in mm): 50.1 x 136 x 132

Sistema Operativo

Microsoft Windows 11 Pro

Altre caratteristiche

120-Watt-Power-Adapter, 36 Mesi Garanzia

Peso

833 gr, Alimentazione: 256 gr

Prezzo

799 Euro

Amazon

$799.00

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Custodia e connettività

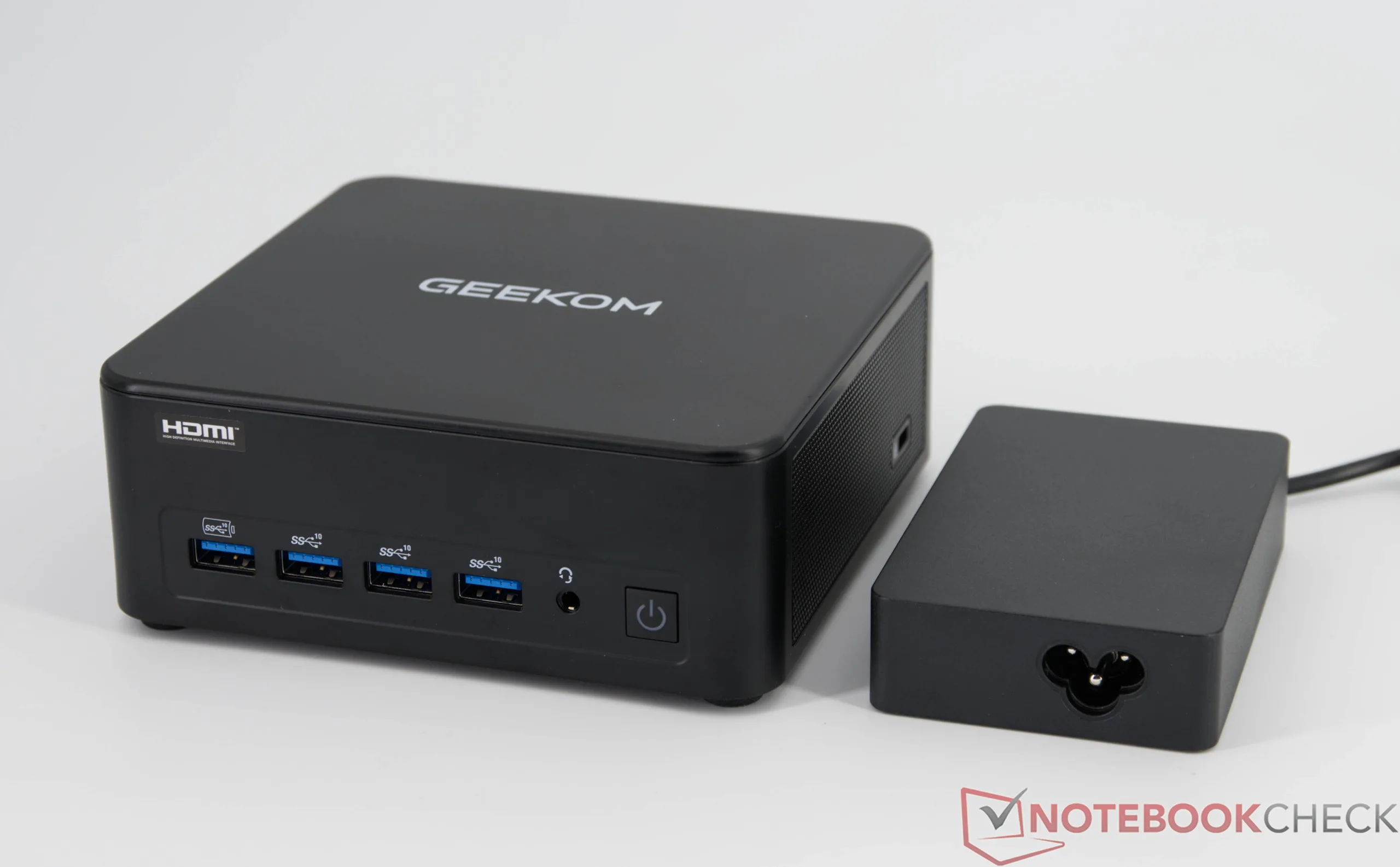

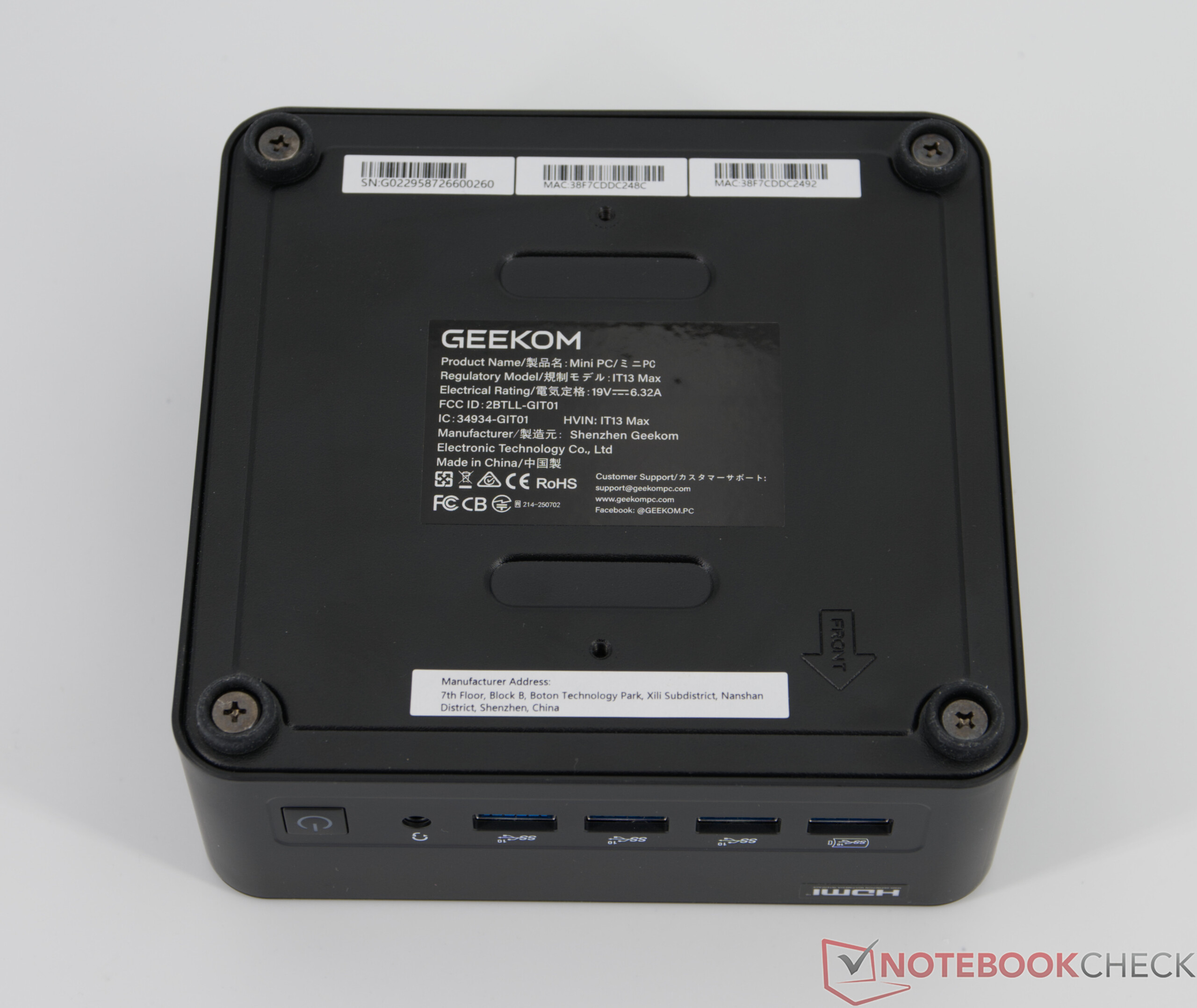

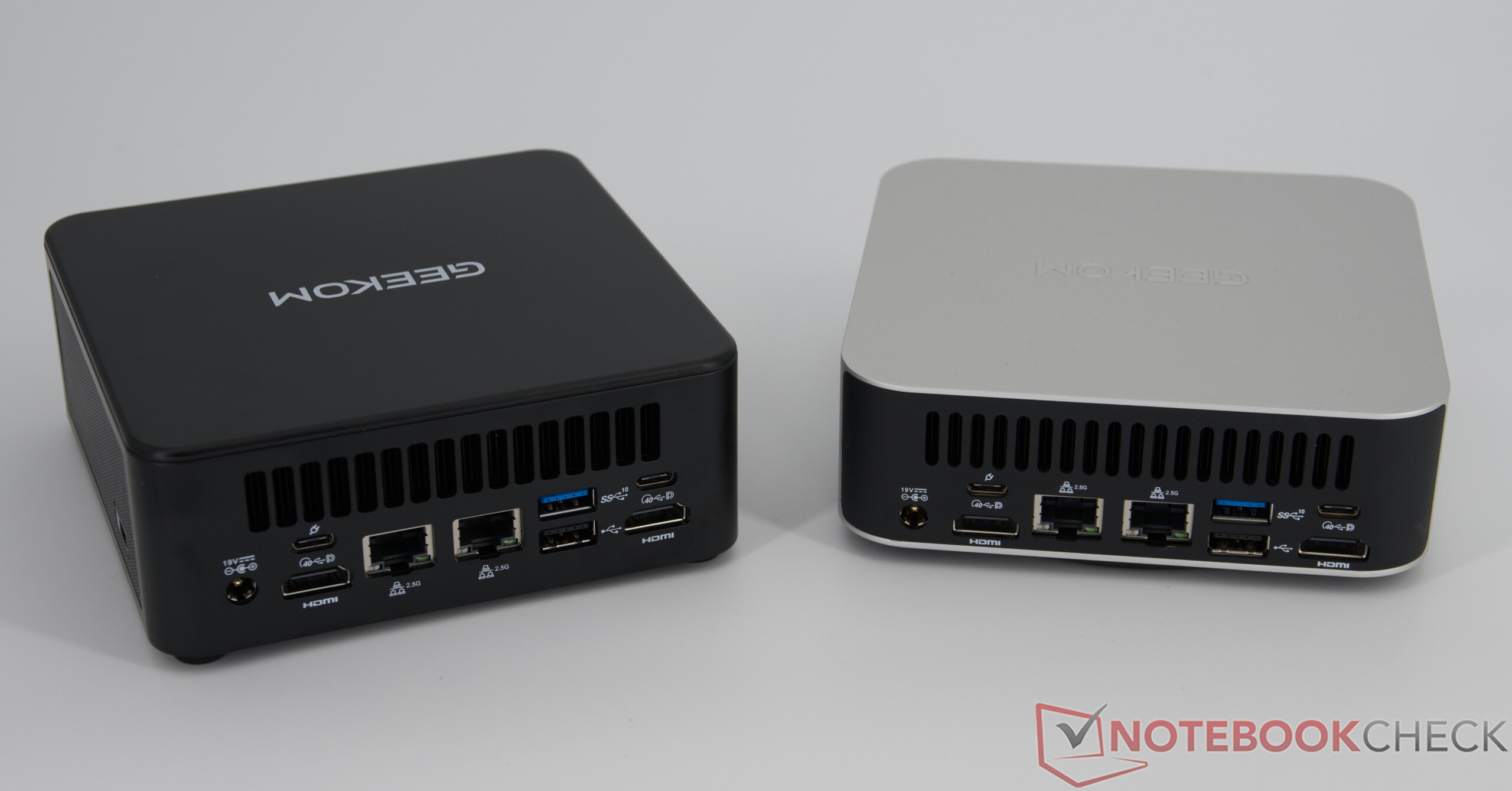

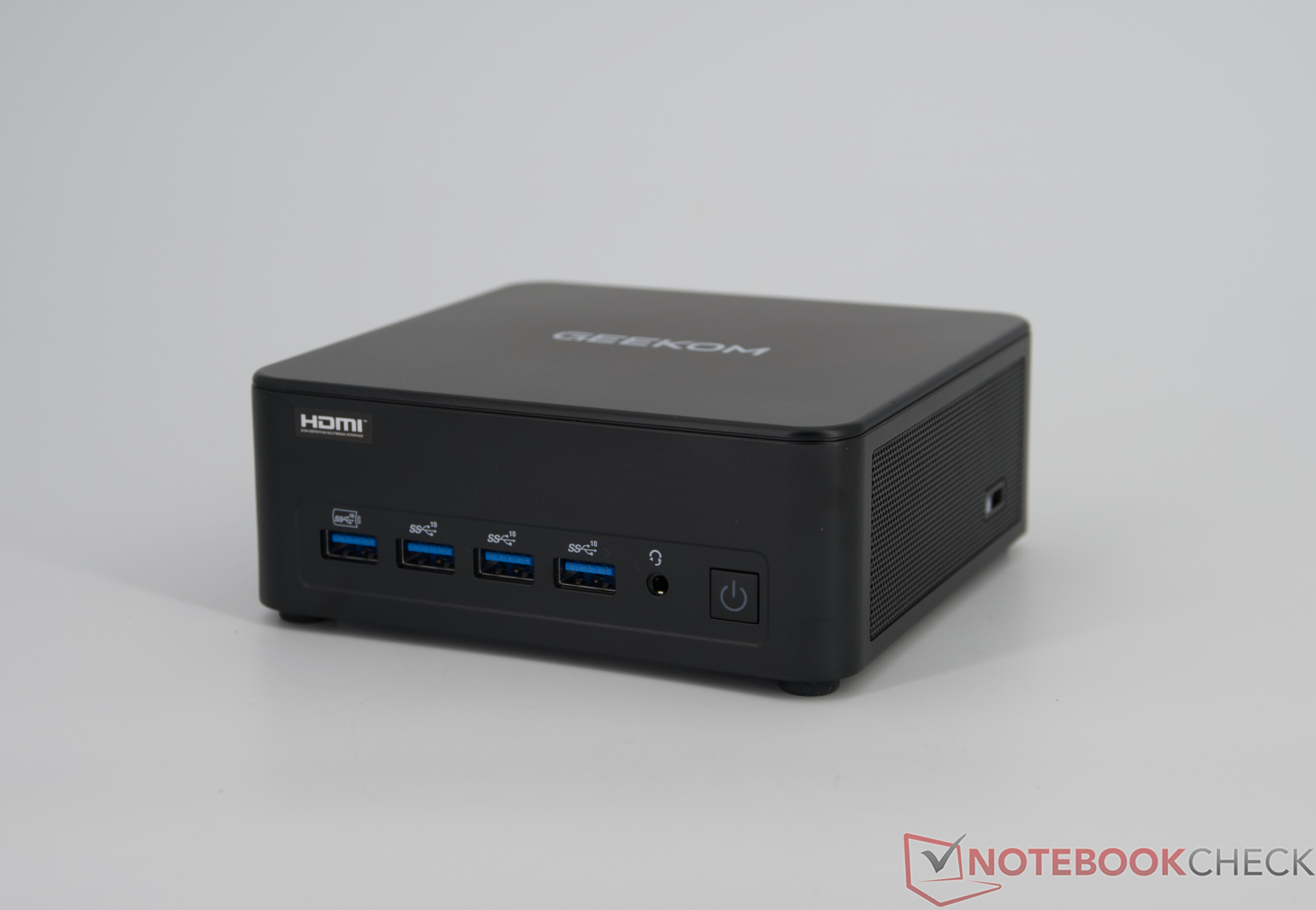

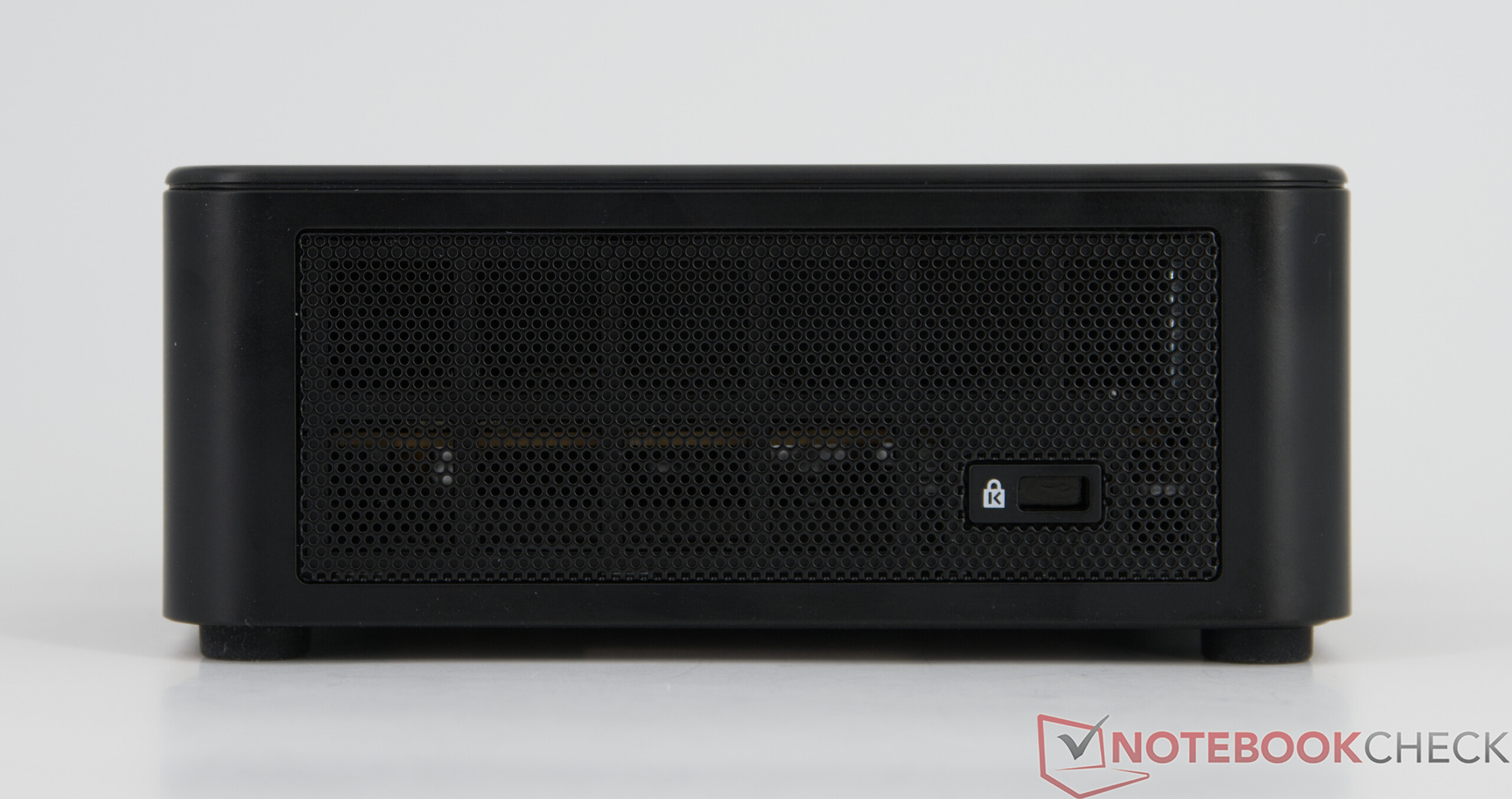

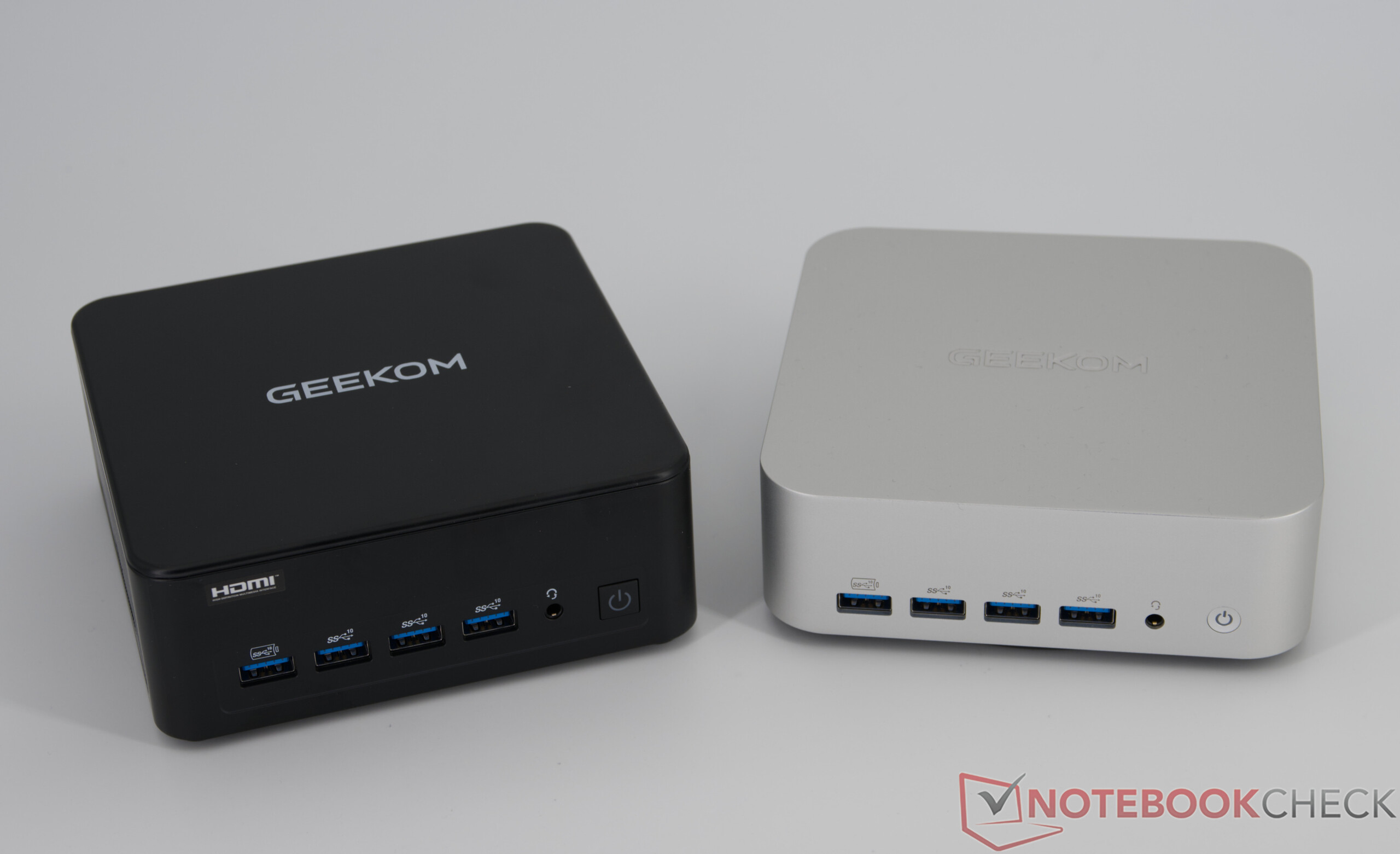

Il case del Geekom IT13 Max si basa sul design familiare della serie Mini-IT, ma è stato leggermente ingrandito in larghezza e altezza. La combinazione di plastica e metallo conferisce una sensazione di solidità, sebbene la superficie mostri rapidamente le impronte digitali. La dotazione di porte corrisponde in gran parte a quella del Geekom A8 Max e offre numerose porte USB, USB4 e un lettore di schede SD. Solo le due uscite HDMI 2.0 appaiono ora un po’ obsolete.

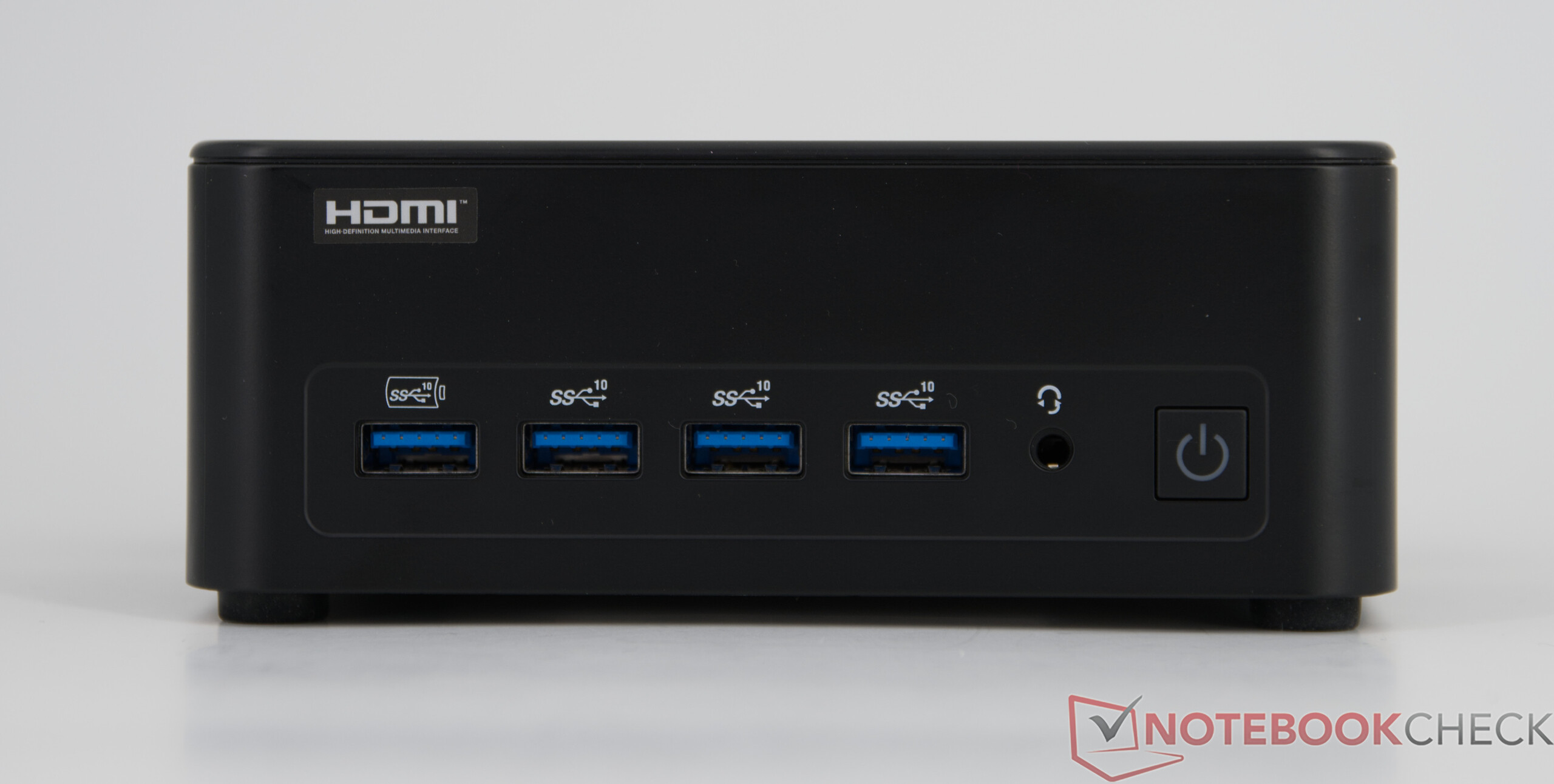

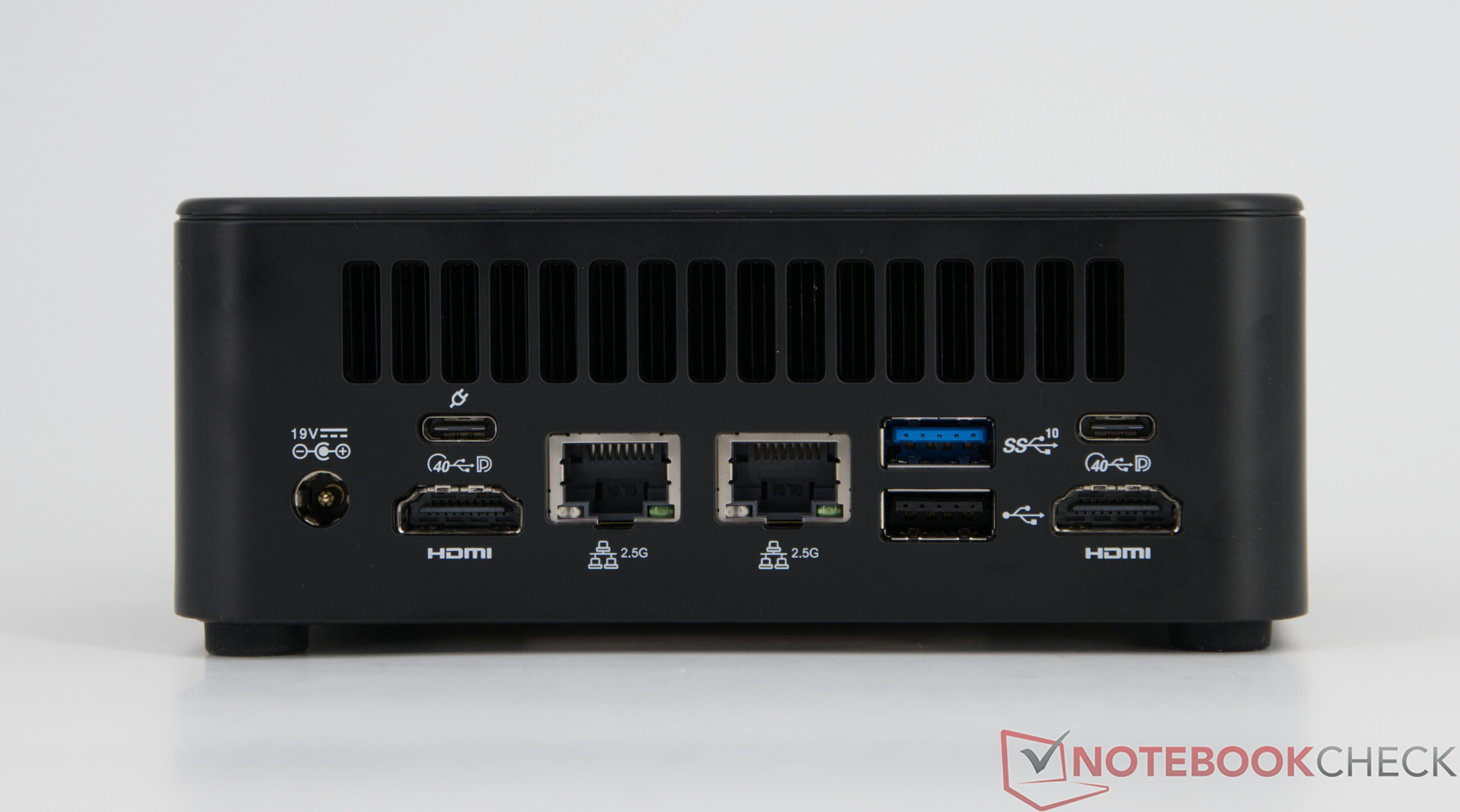

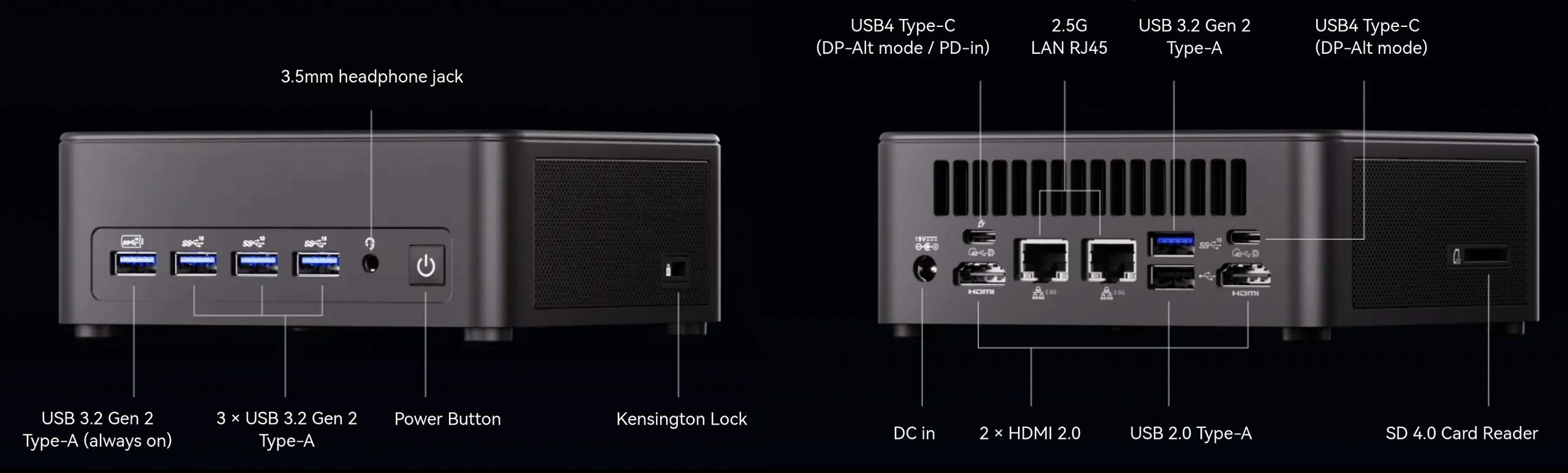

Le porte esterne del Geekom IT13 Max (Fonte: Geekom)

Confronto delle dimensioni

GMK NucBox K17 GMK NucBox M7 Ultra Geekom IT13 Max Peladn HO5, AI 9 HX 370 Geekom GT1 Mega Alliwava GH8, R9 8945HS DIN A4 ❌

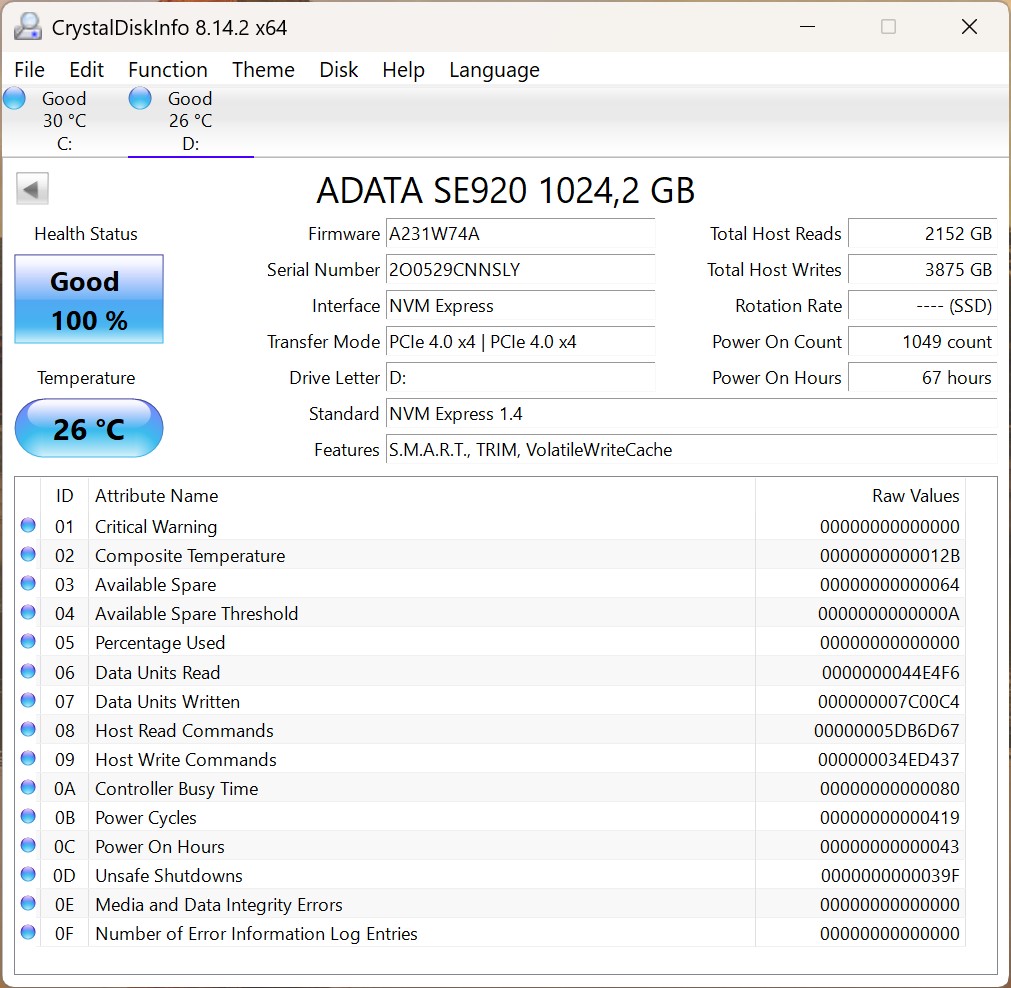

Prestazioni USB4 (ADATA SE920)

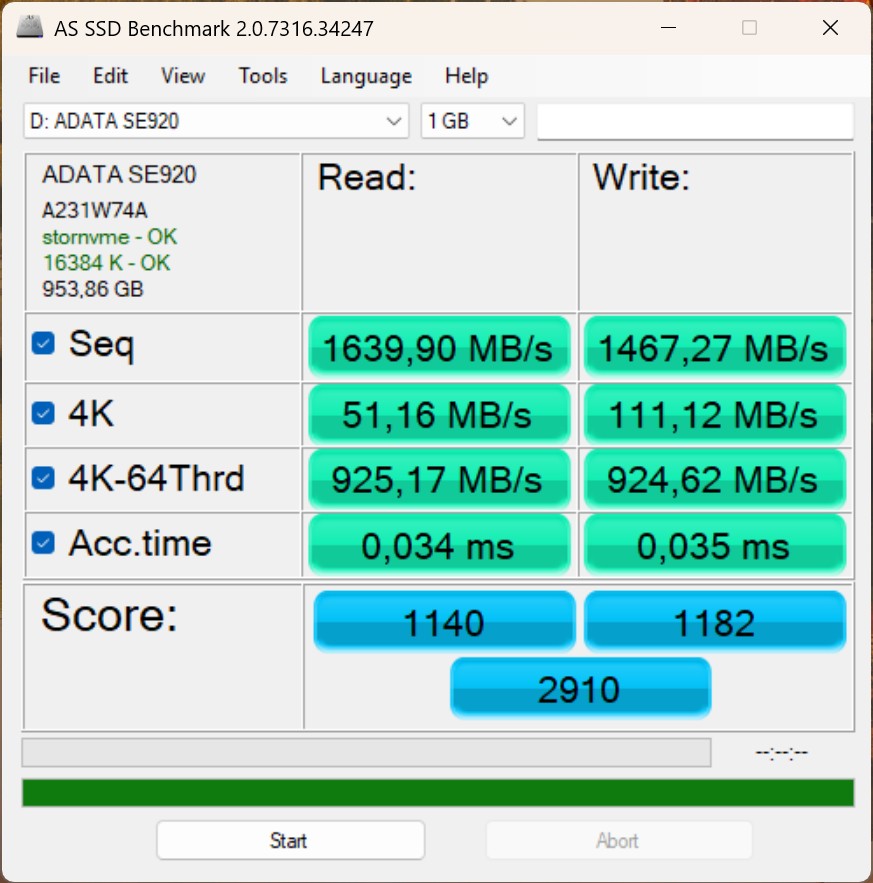

Test delle prestazioni con l’ADATA SE920 tramite USB4

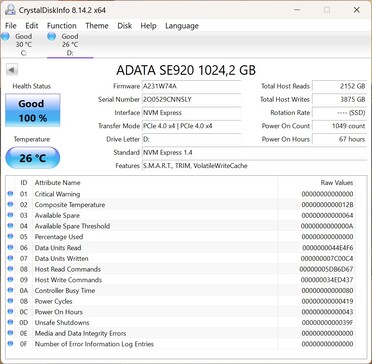

L'ADATA SE920 supporta lo standard PCIe 4.0 x4

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	3159.08 MB/s
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	3150.93 MB/s
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	3118.71 MB/s
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	3044.72 MB/s
Media della classe Mini PC (423 - 3906, n=46, ultimi 2 anni)	2741 MB/s
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	1639.9 MB/s
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	1611.37 MB/s

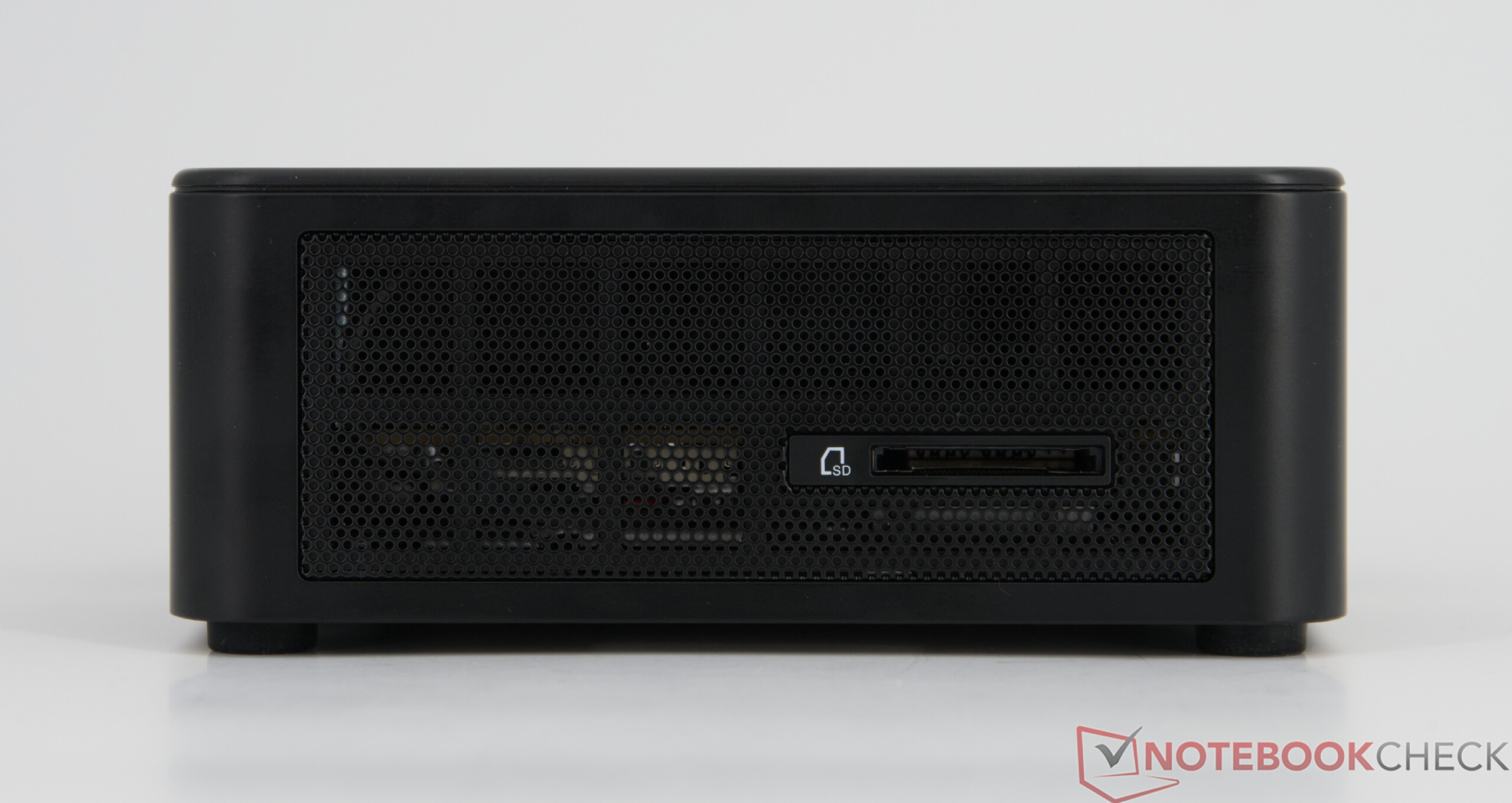

Lettore di schede SD

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Geekom GT1 Mega Intel Core Ultra 9 185H	214.4 MB/s +12%
Geekom IT13 Max Intel Core Ultra 9 185H (AV Pro SD microSD 128 GB V60)	190.8 MB/s
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370 (AV Pro SD microSD 128 GB V60)	163.31 MB/s -14%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H (AV Pro SD microSD 128 GB V60)	162.2 MB/s -15%
Media della classe Mini PC (17.3 - 214, n=21, ultimi 2 anni)	129.8 MB/s -32%
Zotac ZBOX Magnus EN374070 Intel Core i7-13700HX (AV Pro SD microSD 128 GB V60)	70.66 MB/s -63%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470 (AV Pro SD microSD 128 GB V60)	25.8 MB/s -86%
maximum AS SSD Seq Read Test (1GB)
Geekom GT1 Mega Intel Core Ultra 9 185H	220.9 MB/s 0%
Geekom IT13 Max Intel Core Ultra 9 185H (AV Pro SD microSD 128 GB V60)	220.1 MB/s
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H (AV Pro SD microSD 128 GB V60)	191.99 MB/s -13%
Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370 (AV Pro SD microSD 128 GB V60)	181.35 MB/s -18%
Media della classe Mini PC (17.9 - 250, n=21, ultimi 2 anni)	157.9 MB/s -28%
Zotac ZBOX Magnus EN374070 Intel Core i7-13700HX (AV Pro SD microSD 128 GB V60)	74.9 MB/s -66%
Minisforum AI X1 Pro, HX 470 AMD Ryzen AI 9 HX 470 (AV Pro SD microSD 128 GB V60)	31.3 MB/s -86%

Prestazioni Wi-Fi

Networking
iperf3 receive Wi-Fi7 MLO
Geekom IT13 Max Intel Wi-Fi 7 BE200 320MHz	2715 (2203^min - 2811^max) MBit/s
Media Intel Wi-Fi 7 BE200 320MHz (n=1)	2715 MBit/s 0%
Media della classe Mini PC (1130 - 2715, n=2, ultimi 2 anni)	1923 MBit/s -29%
iperf3 transmit Wi-Fi7 MLO
Geekom IT13 Max Intel Wi-Fi 7 BE200 320MHz	4089 (3789^min - 4278^max) MBit/s
Media Intel Wi-Fi 7 BE200 320MHz (n=1)	4089 MBit/s 0%
Media della classe Mini PC (1390 - 4089, n=2, ultimi 2 anni)	2740 MBit/s -33%
iperf3 receive AXE11000 6GHz
Peladn HO5, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1757 (1737^min - 1771^max) MBit/s
Media della classe Mini PC (729 - 1814, n=54, ultimi 2 anni)	1542 MBit/s
Media Intel Wi-Fi 7 BE200 320MHz (725 - 1770, n=29)	1483 MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1195 (658^min - 1297^max) MBit/s
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	1149 (666^min - 1346^max) MBit/s
Alliwava GH8, R9 8945HS MediaTek Wi-Fi 6E MT7902	779 (522^min - 800^max) MBit/s
iperf3 transmit AXE11000 6GHz
Peladn HO5, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1802 (1743^min - 1874^max) MBit/s
Media della classe Mini PC (504 - 1887, n=54, ultimi 2 anni)	1483 MBit/s
Media Intel Wi-Fi 7 BE200 320MHz (693 - 1653, n=29)	1293 MBit/s
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	1242 (1110^min - 1348^max) MBit/s
Alliwava GH8, R9 8945HS MediaTek Wi-Fi 6E MT7902	954 (907^min - 993^max) MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	504 (440^min - 565^max) MBit/s
iperf3 receive AXE11000
Peladn HO5, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1718 (1691^min - 1744^max) MBit/s
Media Intel Wi-Fi 7 BE200 320MHz (772 - 1745, n=47)	1427 MBit/s
Media della classe Mini PC (267 - 1776, n=73, ultimi 2 anni)	1150 MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	937 (922^min - 947^max) MBit/s
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	888 (825^min - 926^max) MBit/s
Alliwava GH8, R9 8945HS MediaTek Wi-Fi 6E MT7902	765 (743^min - 773^max) MBit/s
iperf3 transmit AXE11000
Peladn HO5, AI 9 HX 370 Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	1678 (1602^min - 1775^max) MBit/s
Media Intel Wi-Fi 7 BE200 320MHz (469 - 1685, n=47)	1264 MBit/s
Media della classe Mini PC (251 - 1811, n=73, ultimi 2 anni)	1096 MBit/s
Alliwava GH8, R9 8945HS MediaTek Wi-Fi 6E MT7902	921 (472^min - 957^max) MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	903 (863^min - 936^max) MBit/s
Geekom GT1 Mega Intel Wi-Fi 7 BE200 320MHz	741 (690^min - 797^max) MBit/s

Geekom IT13 Max; iperf3 receive Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø2842 (2427-2923) MBit/s

Geekom IT13 Max; iperf3 transmit Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø4052 (2112-4336) MBit/s

Geekom IT13 Max; iperf3 receive Wi-Fi7 MLO; iperf 3.1.3: Ø2714 (2203-2811) MBit/s

Geekom IT13 Max; iperf3 transmit Wi-Fi7 MLO; iperf 3.1.3: Ø4089 (3789-4278) MBit/s

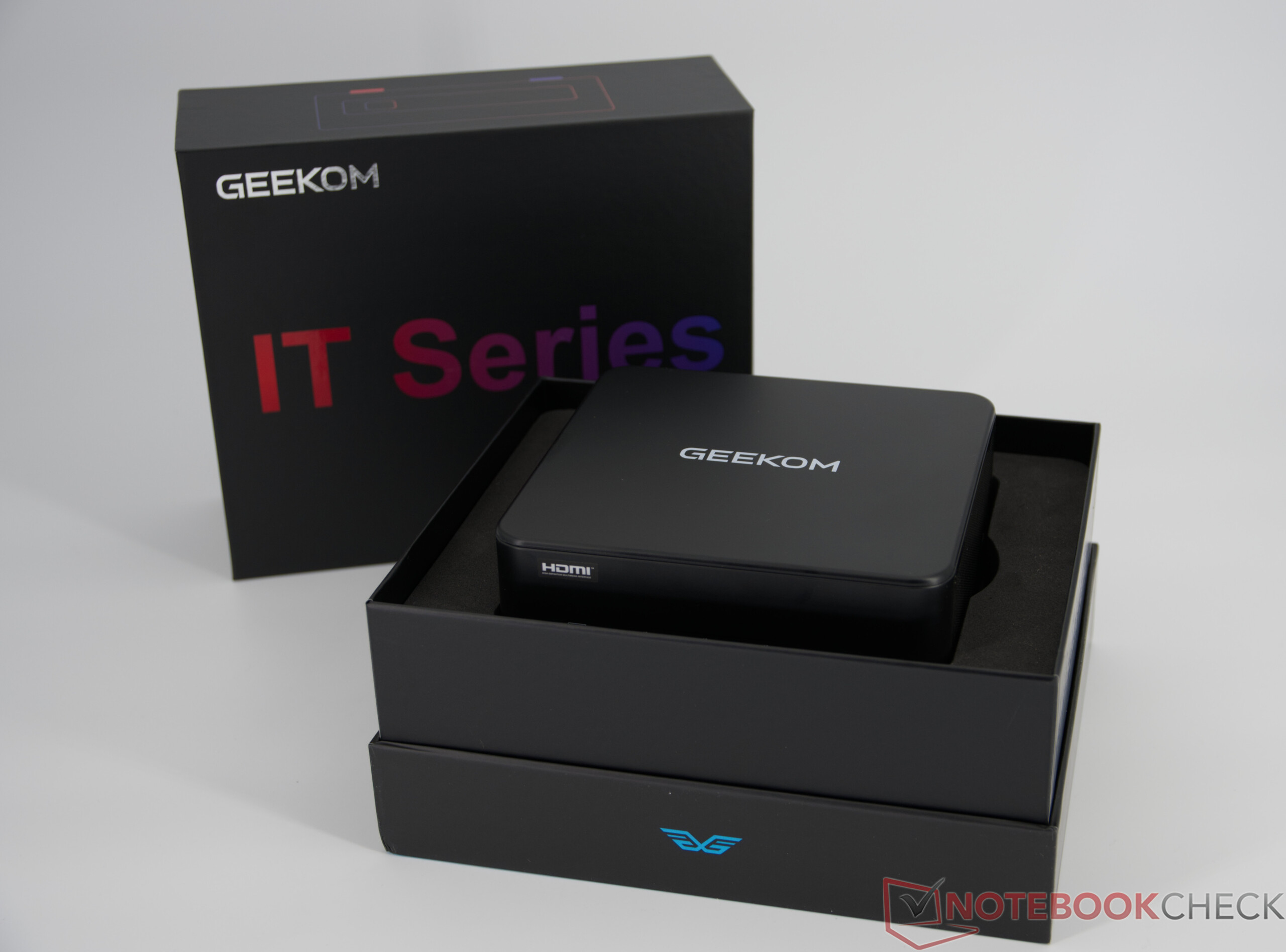

Accessori

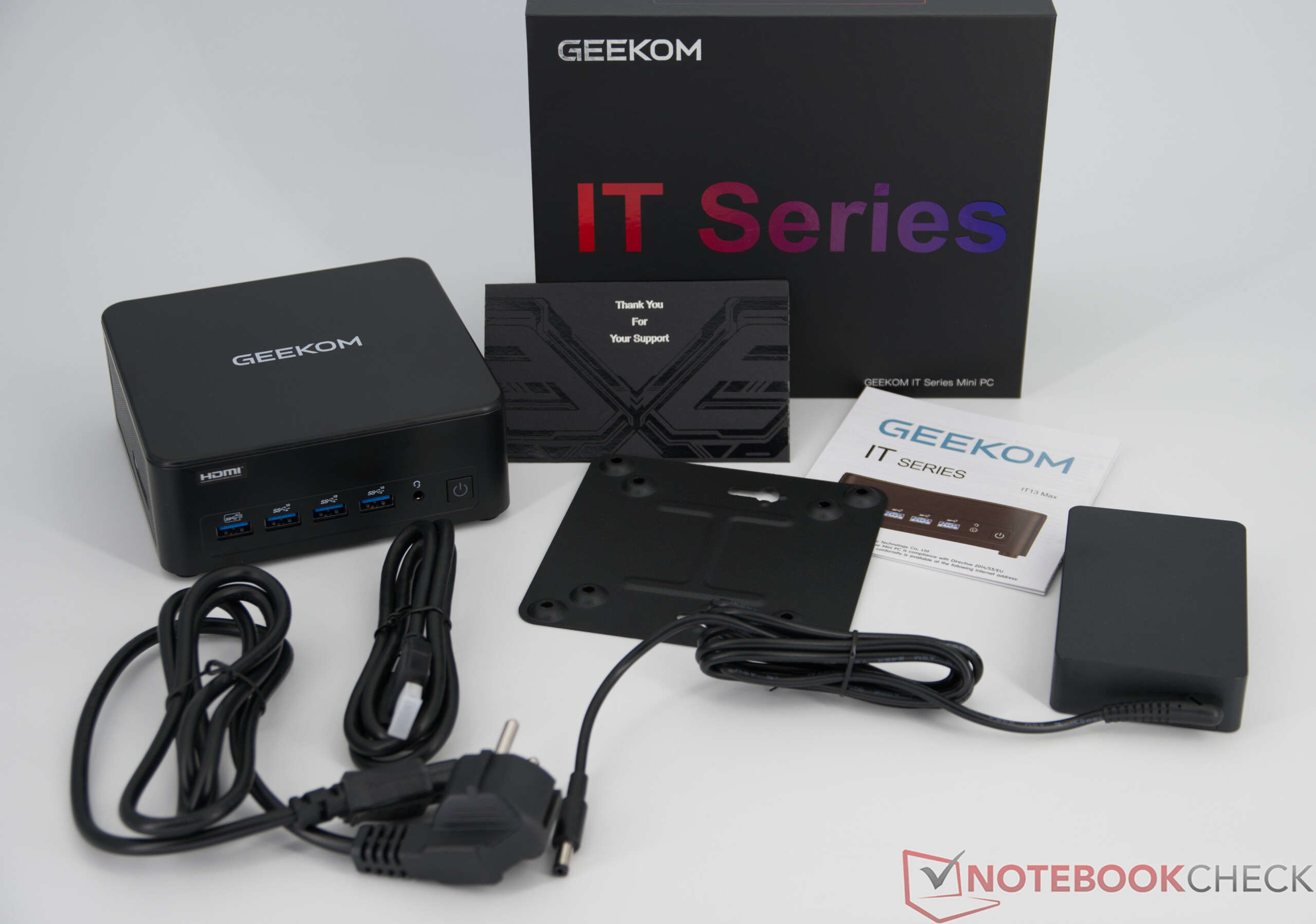

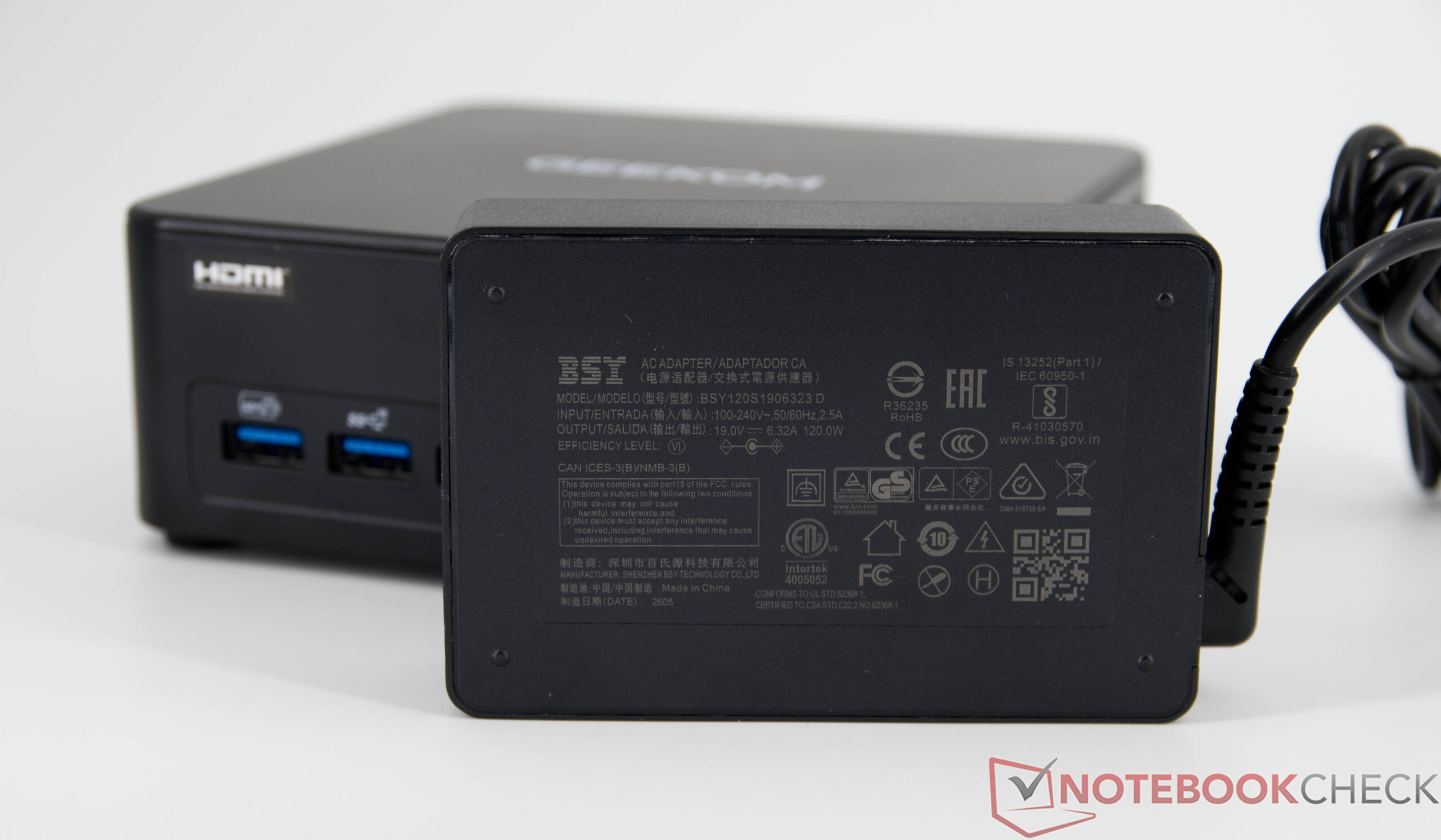

Il Geekom IT13 Max viene fornito con un alimentatore da 120 watt, un cavo HDMI, un supporto VESA con viti e una guida rapida. La guida rapida contiene informazioni sulle porte e descrive come accedere ai componenti aggiornabili.

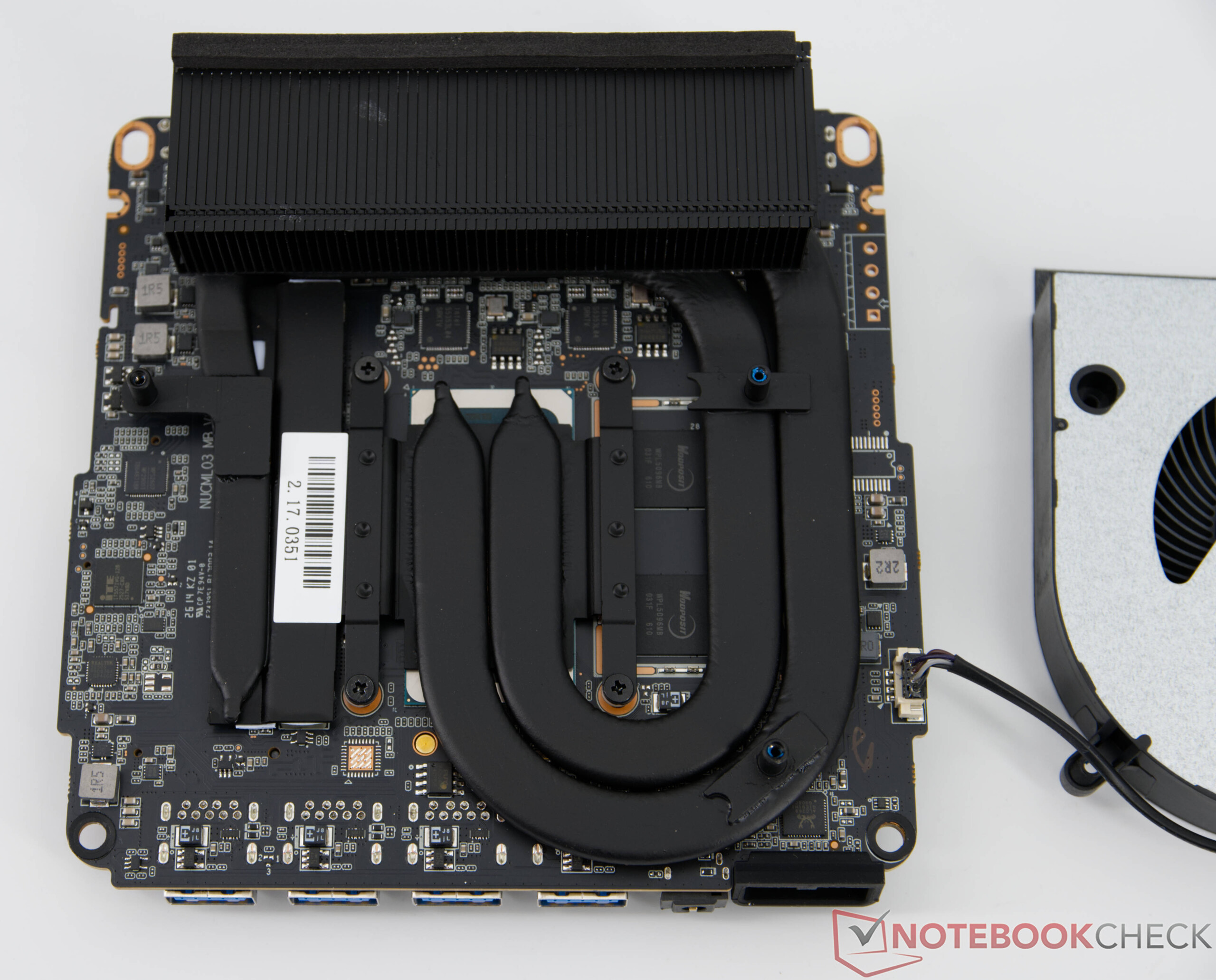

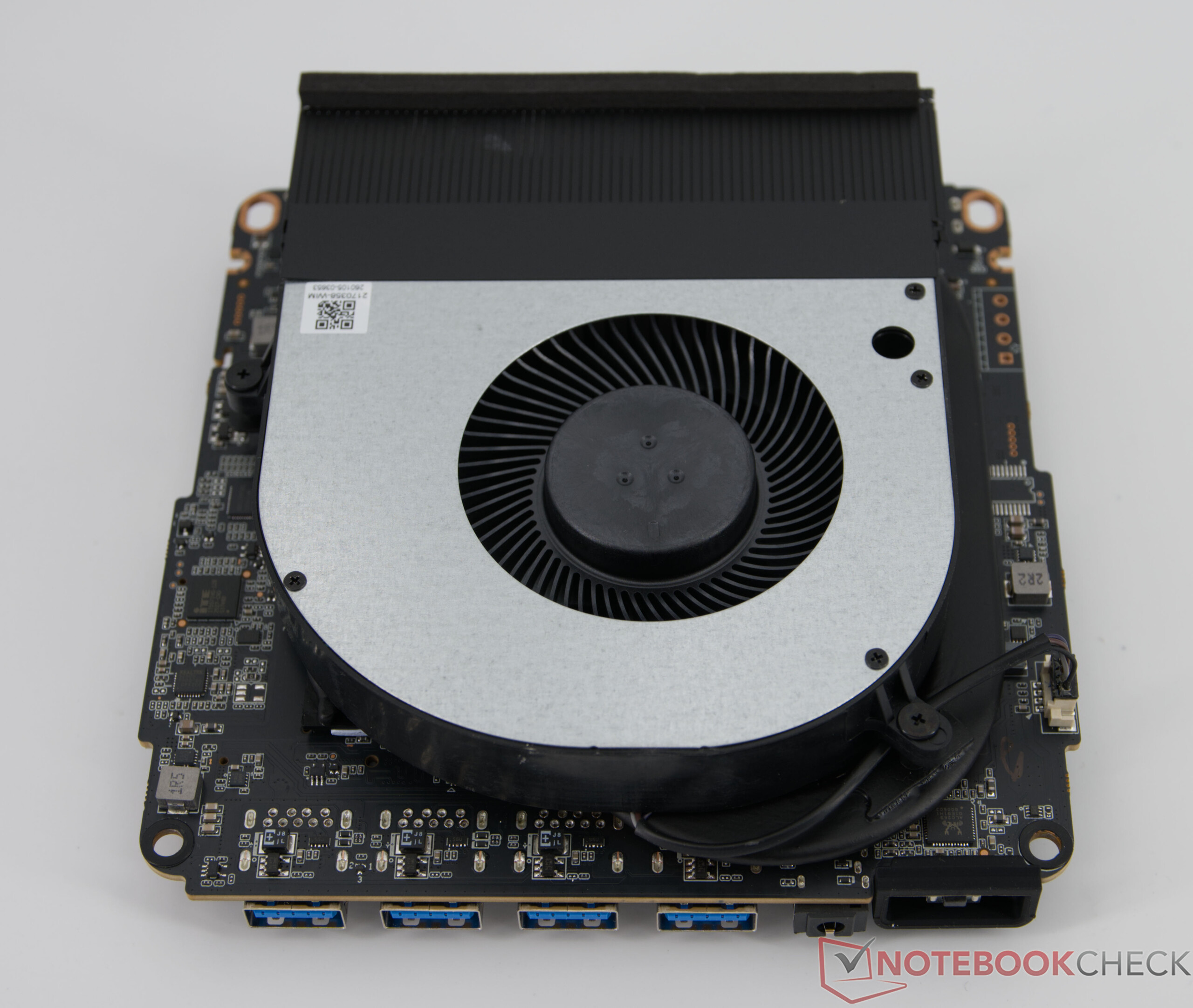

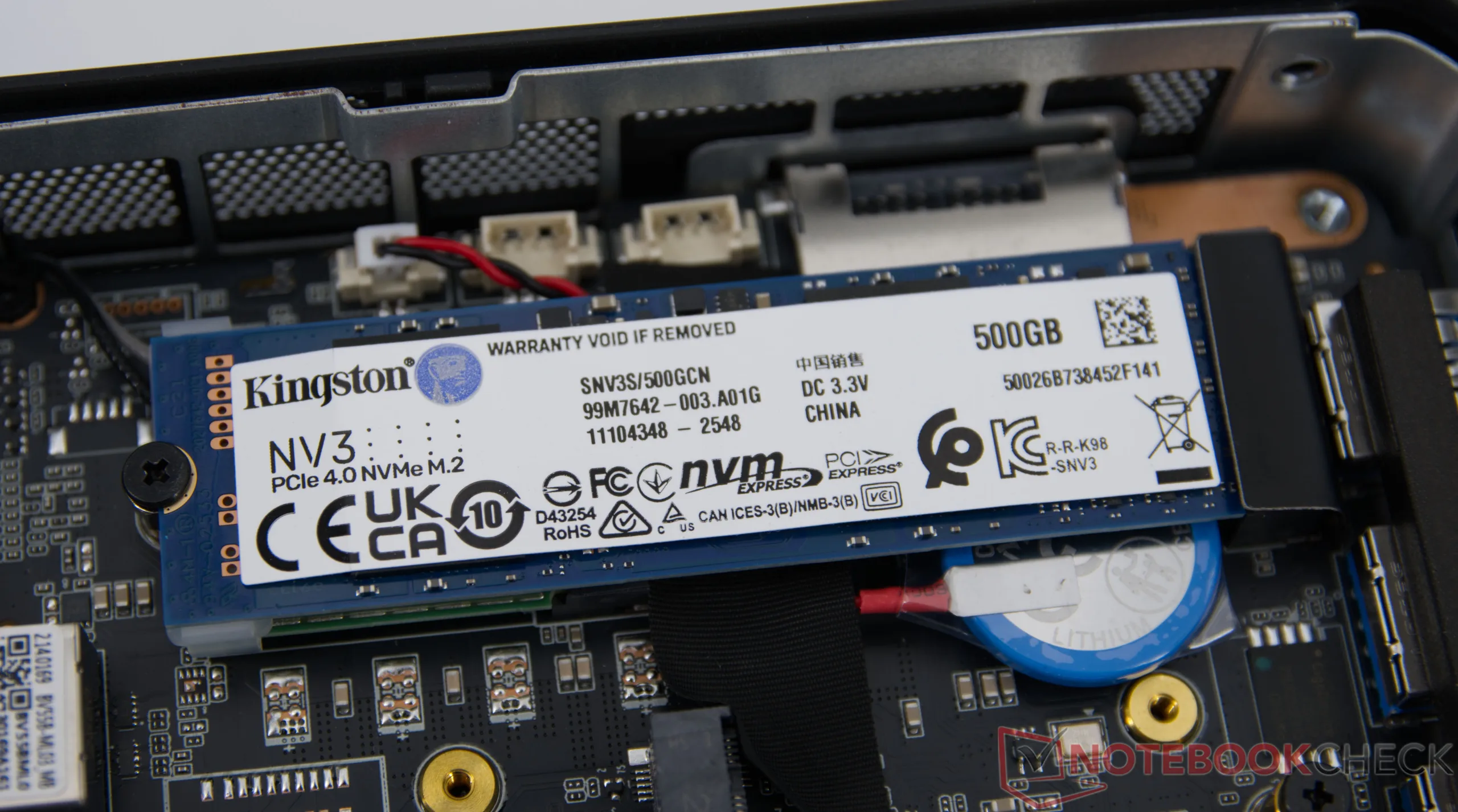

Manutenzione

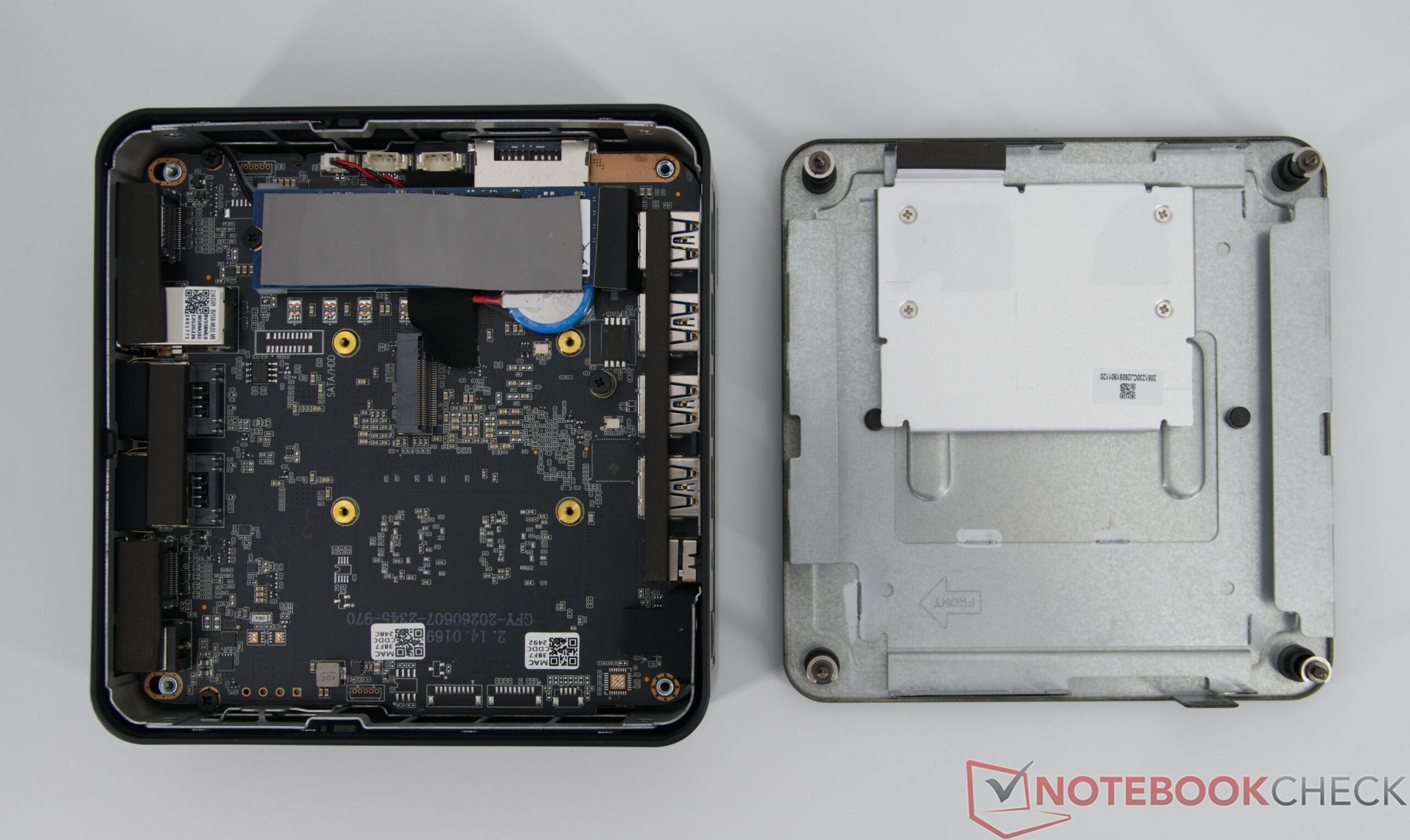

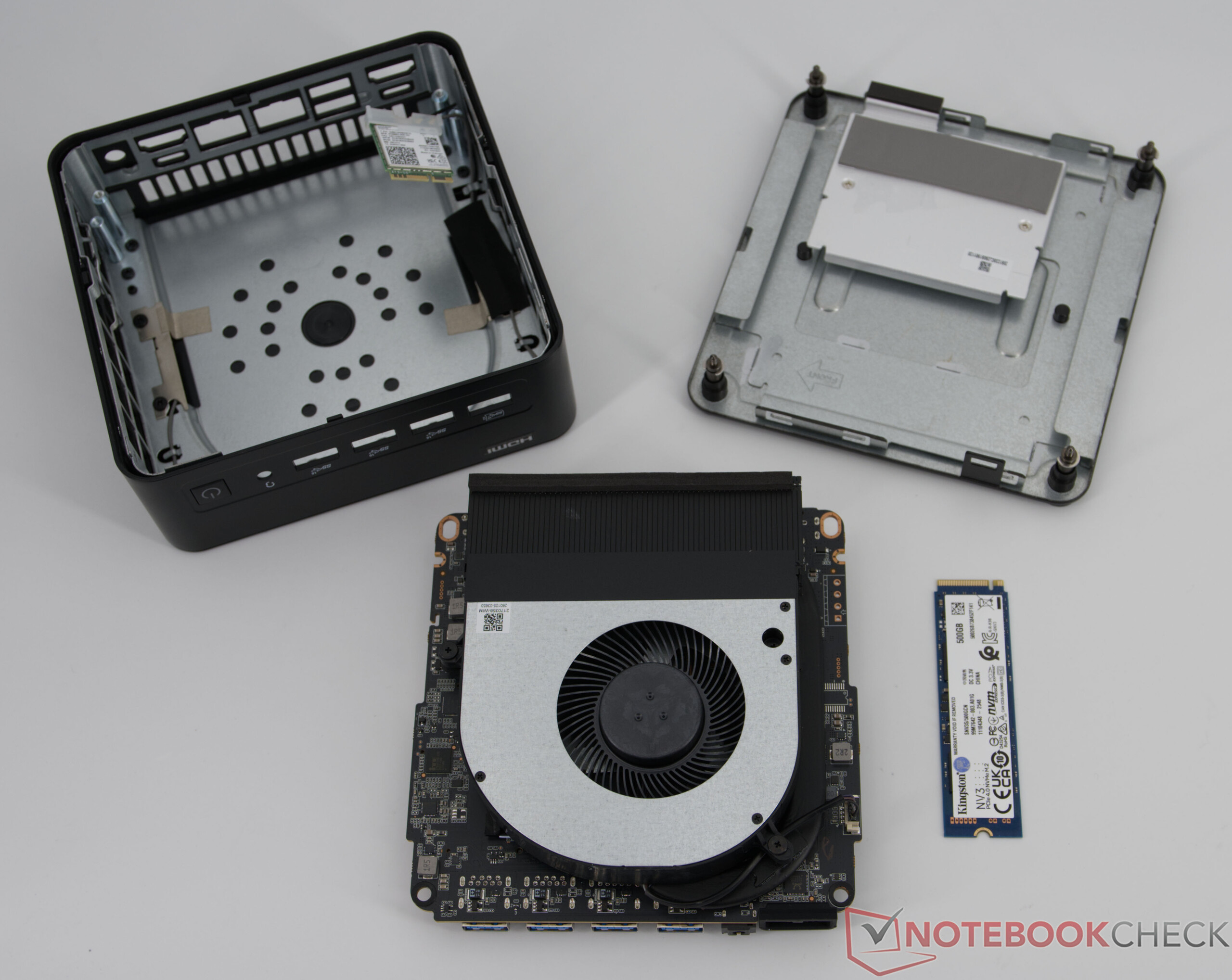

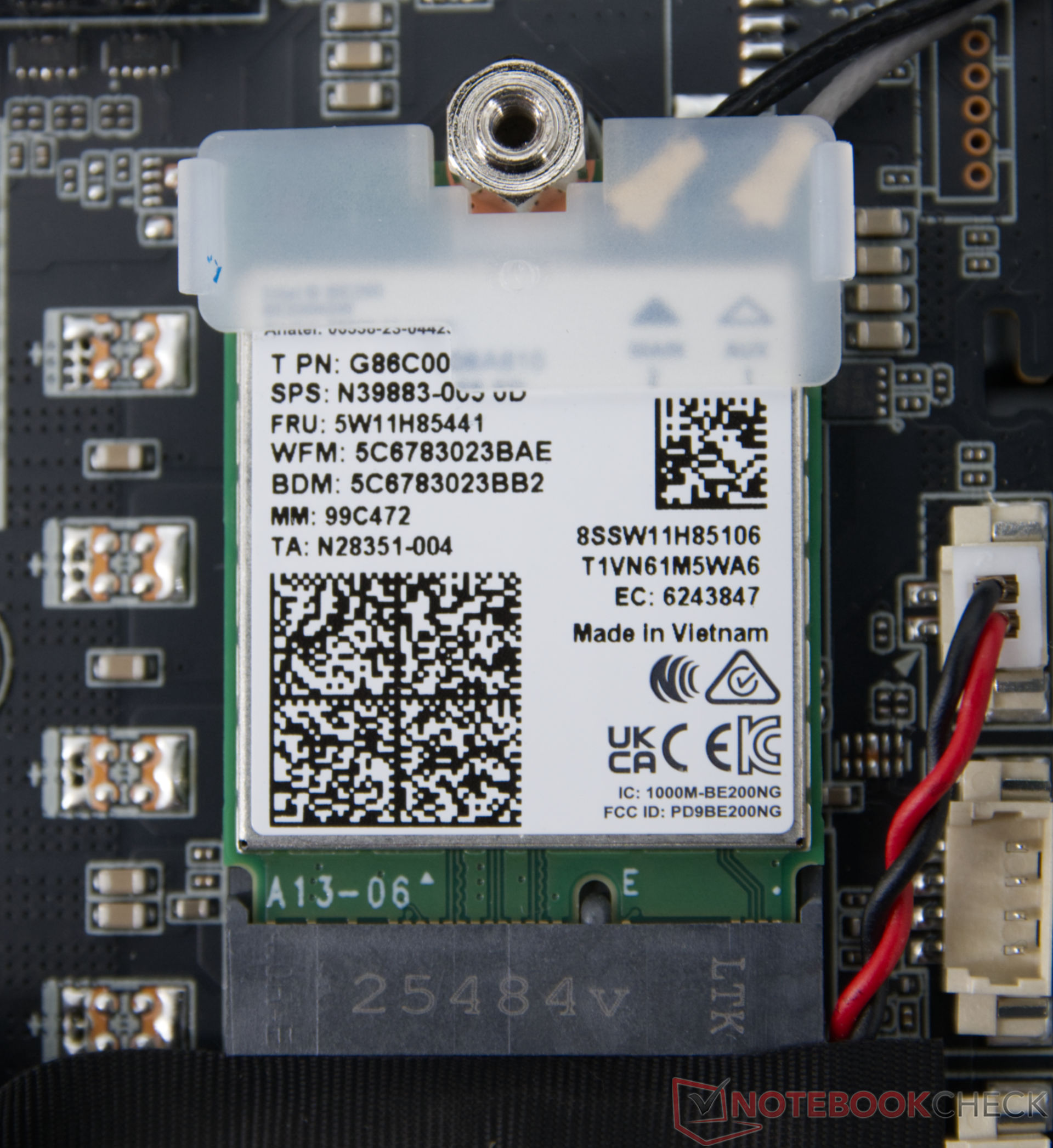

La manutenzione è semplice. Una volta rimosso il pannello inferiore, l’SSD e il modulo Wi-Fi sono facilmente accessibili. Per accedere al sistema di raffreddamento, tuttavia, è necessario smontare ulteriormente il mini-PC.

Sostenibilità

A causa del suo design compatto, il Geekom IT13 Max non è particolarmente facile da riparare. Tuttavia, con una garanzia del produttore di 36 mesi, Geekom offre comunque un chiaro valore aggiunto rispetto a molti concorrenti. L’imballaggio è progettato per risparmiare spazio, ma non vengono fornite informazioni specifiche riguardo ai materiali riciclati o alle iniziative di sostenibilità.

Prestazioni

Condizioni di prova

Tutti i test sono stati condotti nella modalità Normal predefinita di fabbrica. In alternativa, è possibile attivare nel BIOS le modalità Performance e Silent, che influiscono sulle prestazioni e sui livelli di rumorosità.

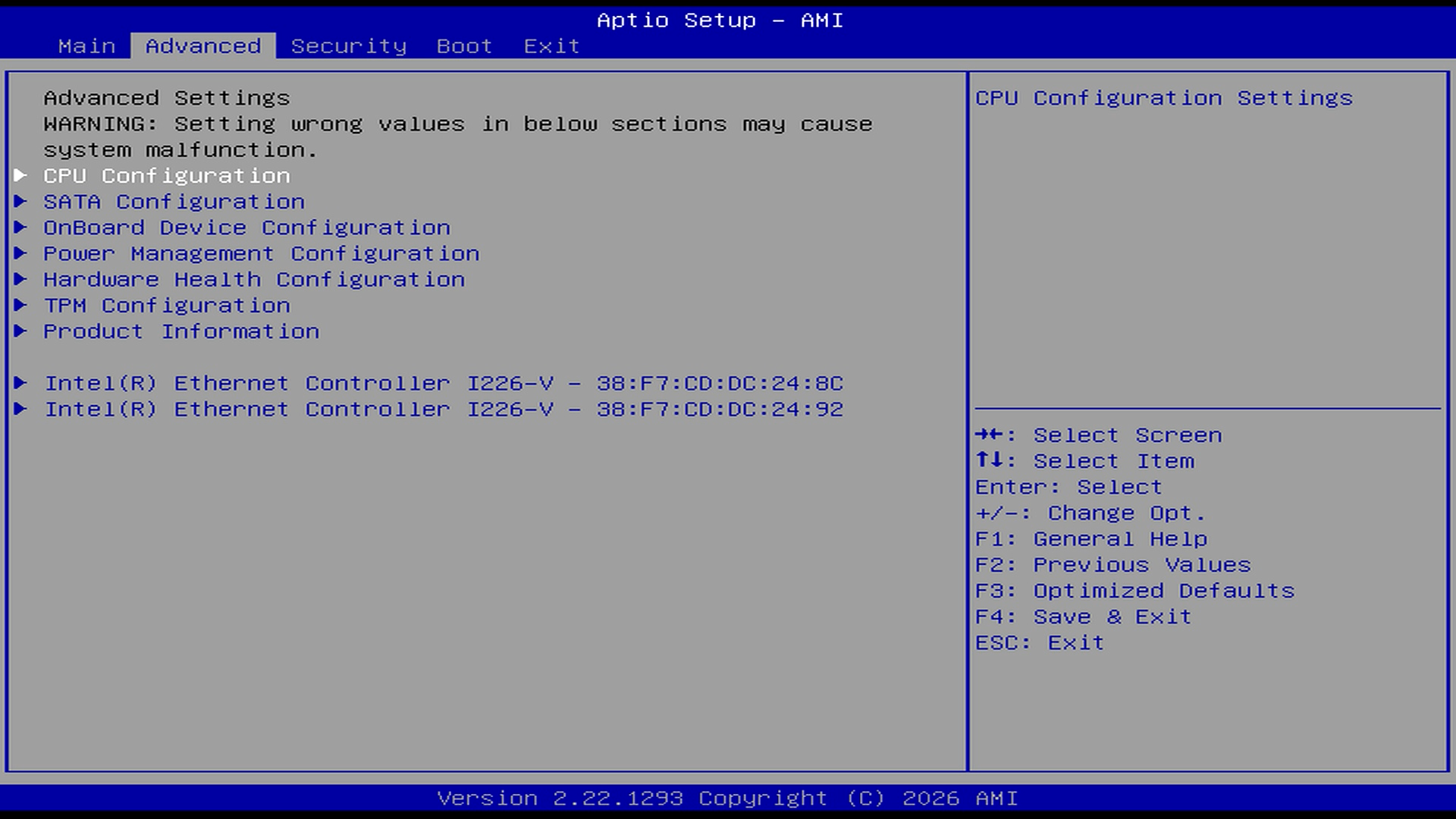

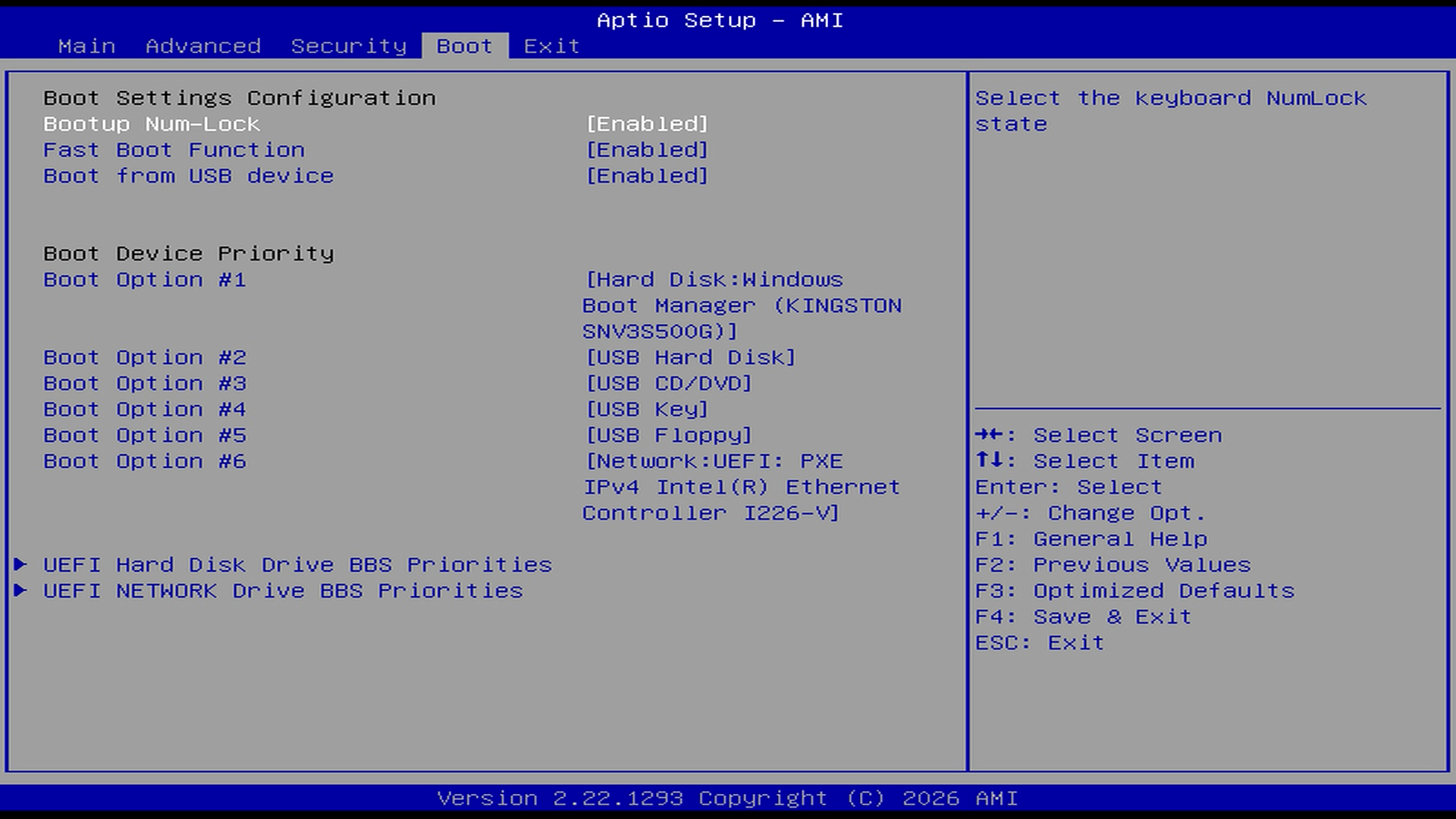

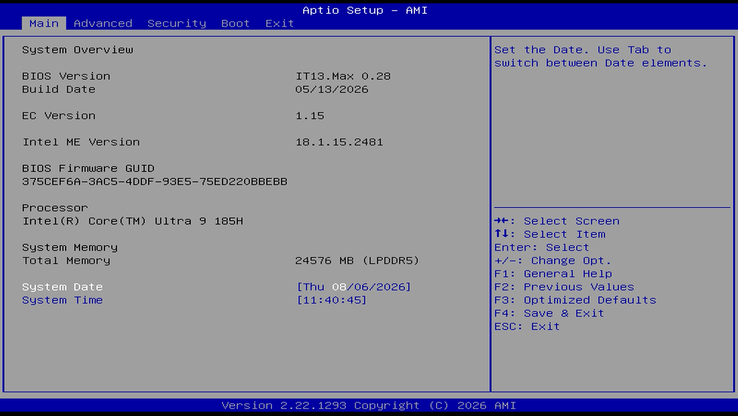

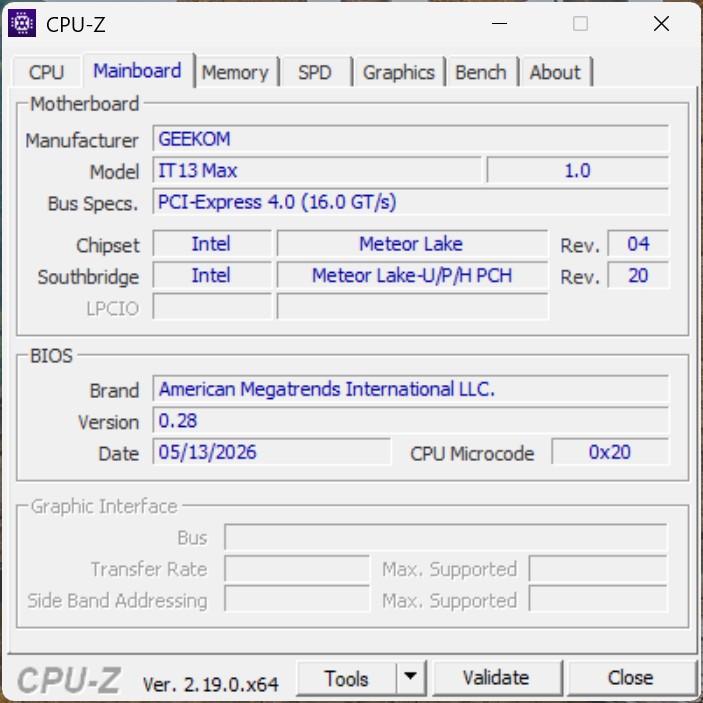

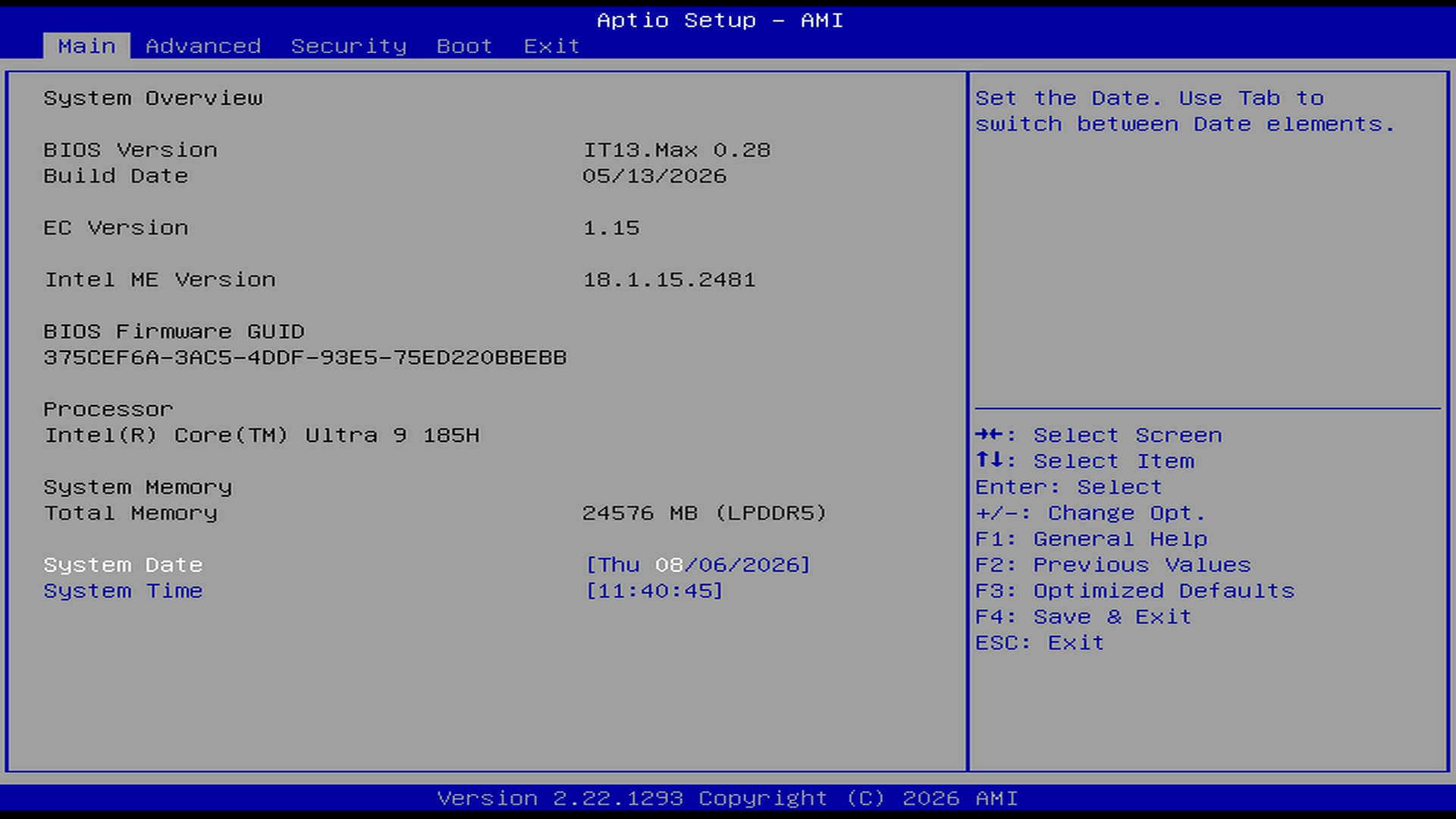

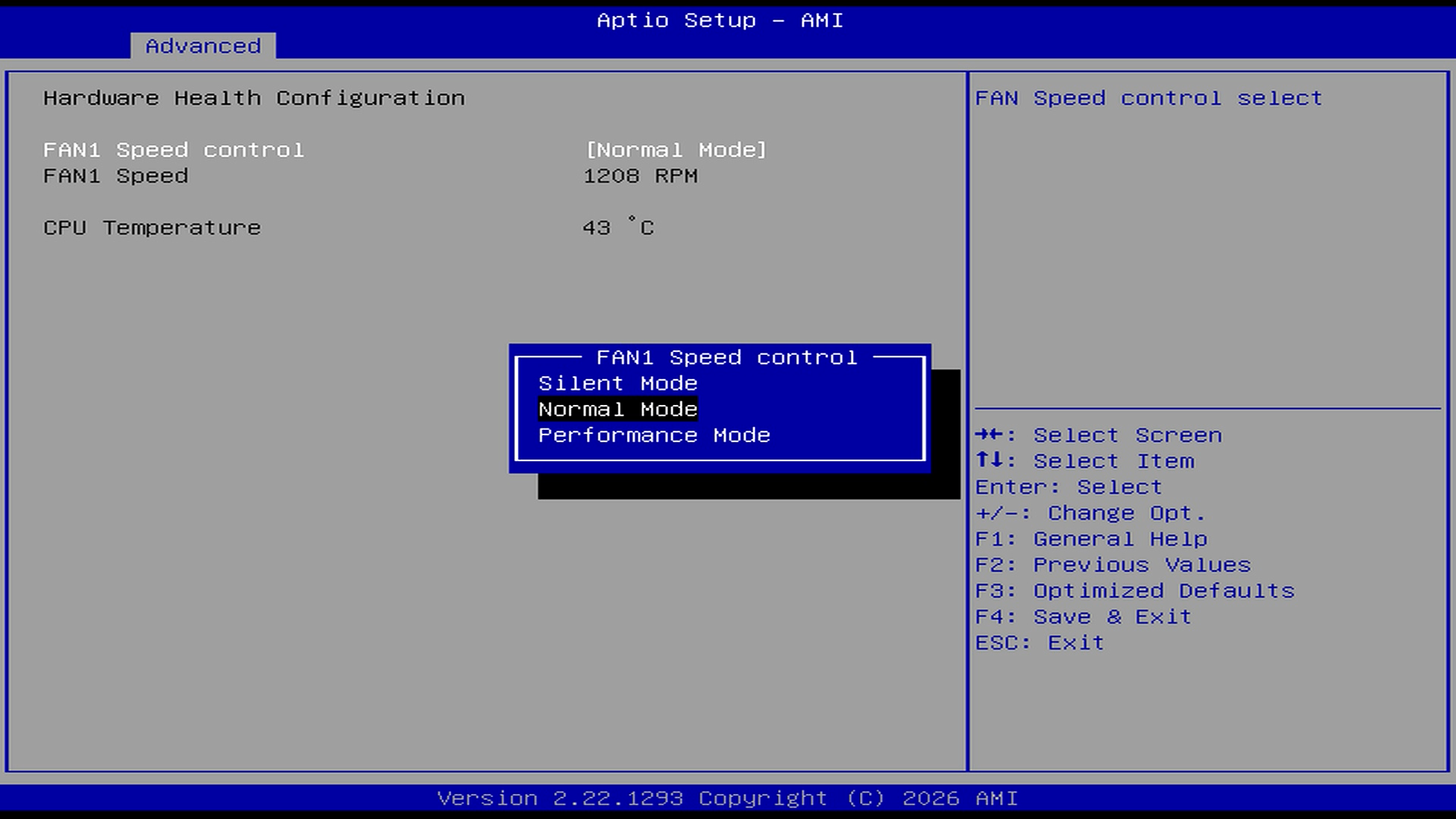

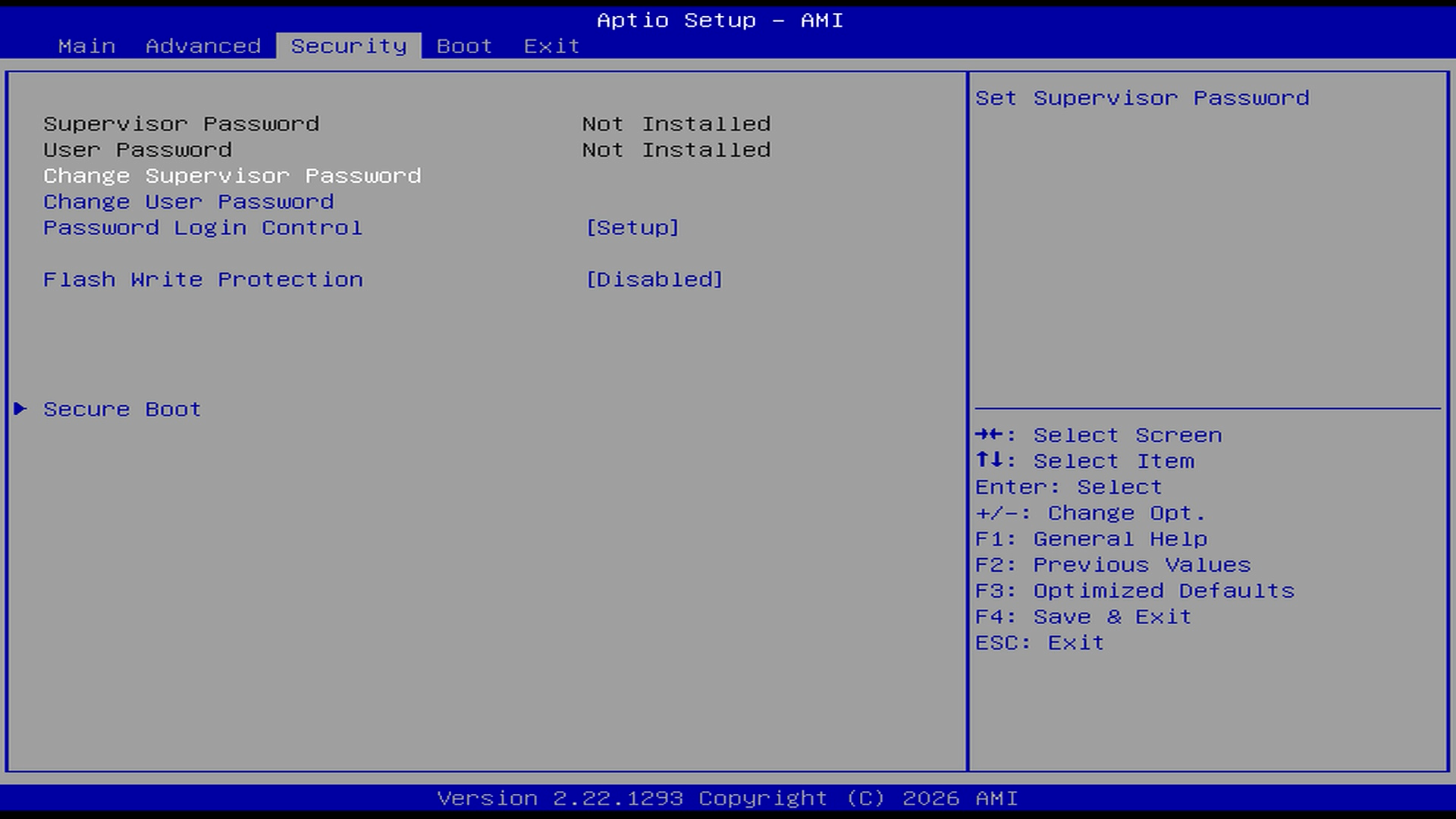

Opzioni del BIOS

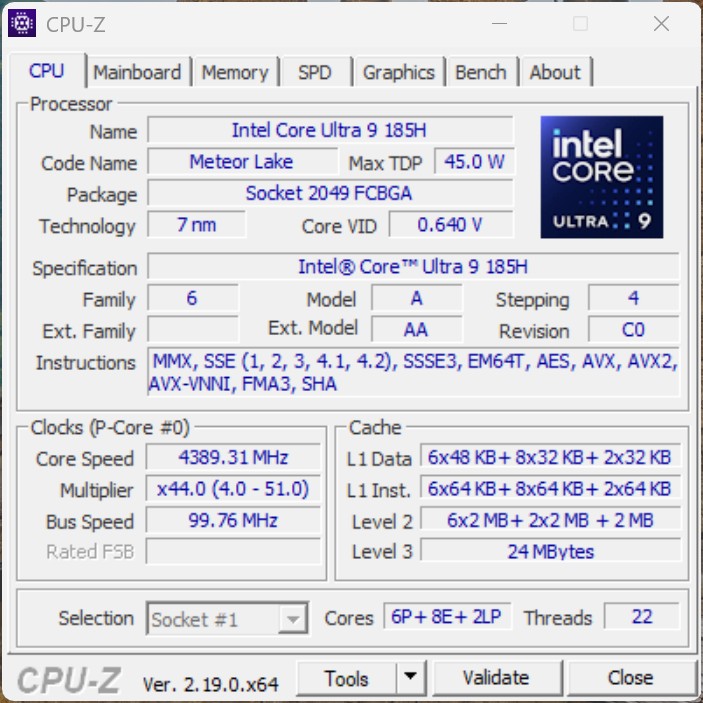

Processore

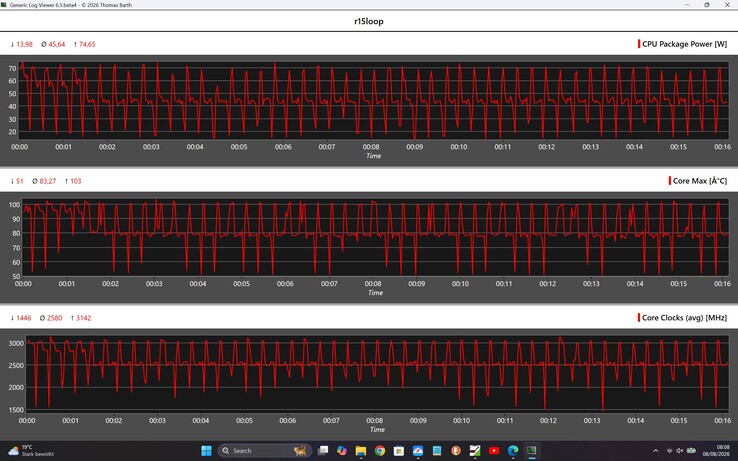

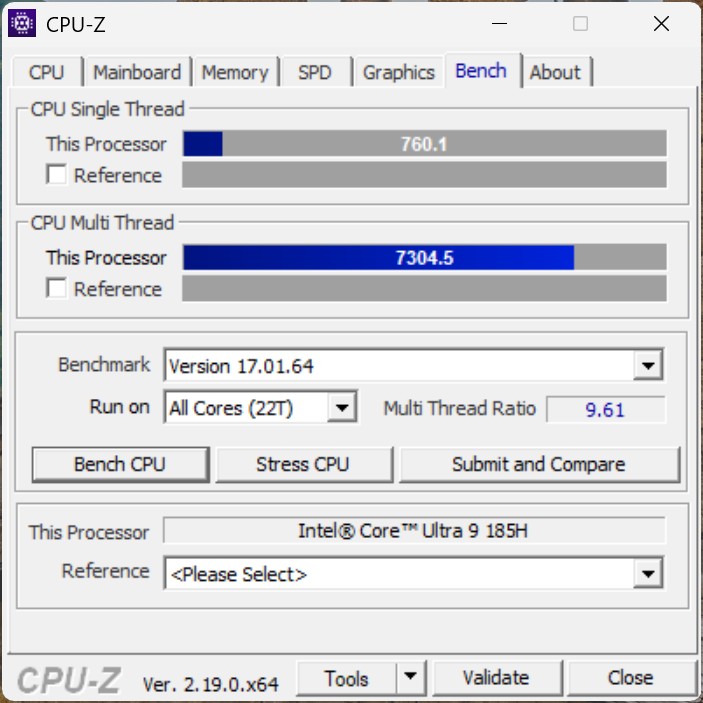

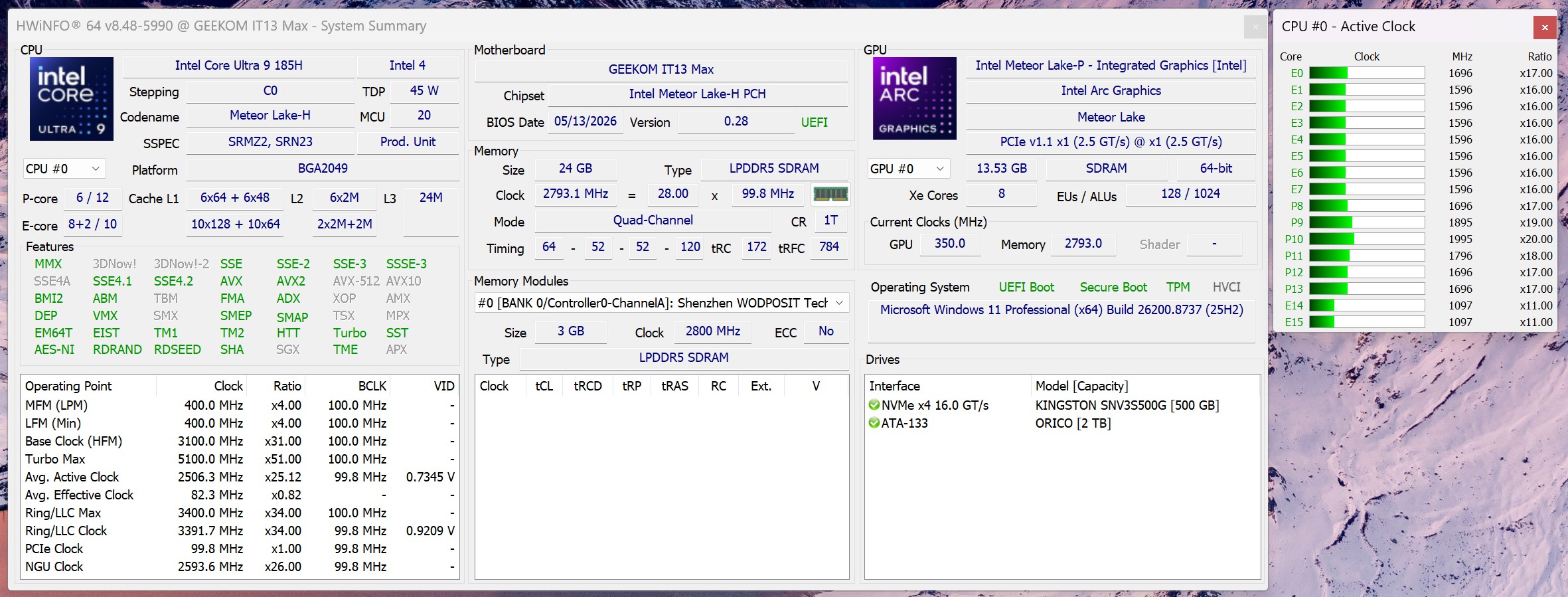

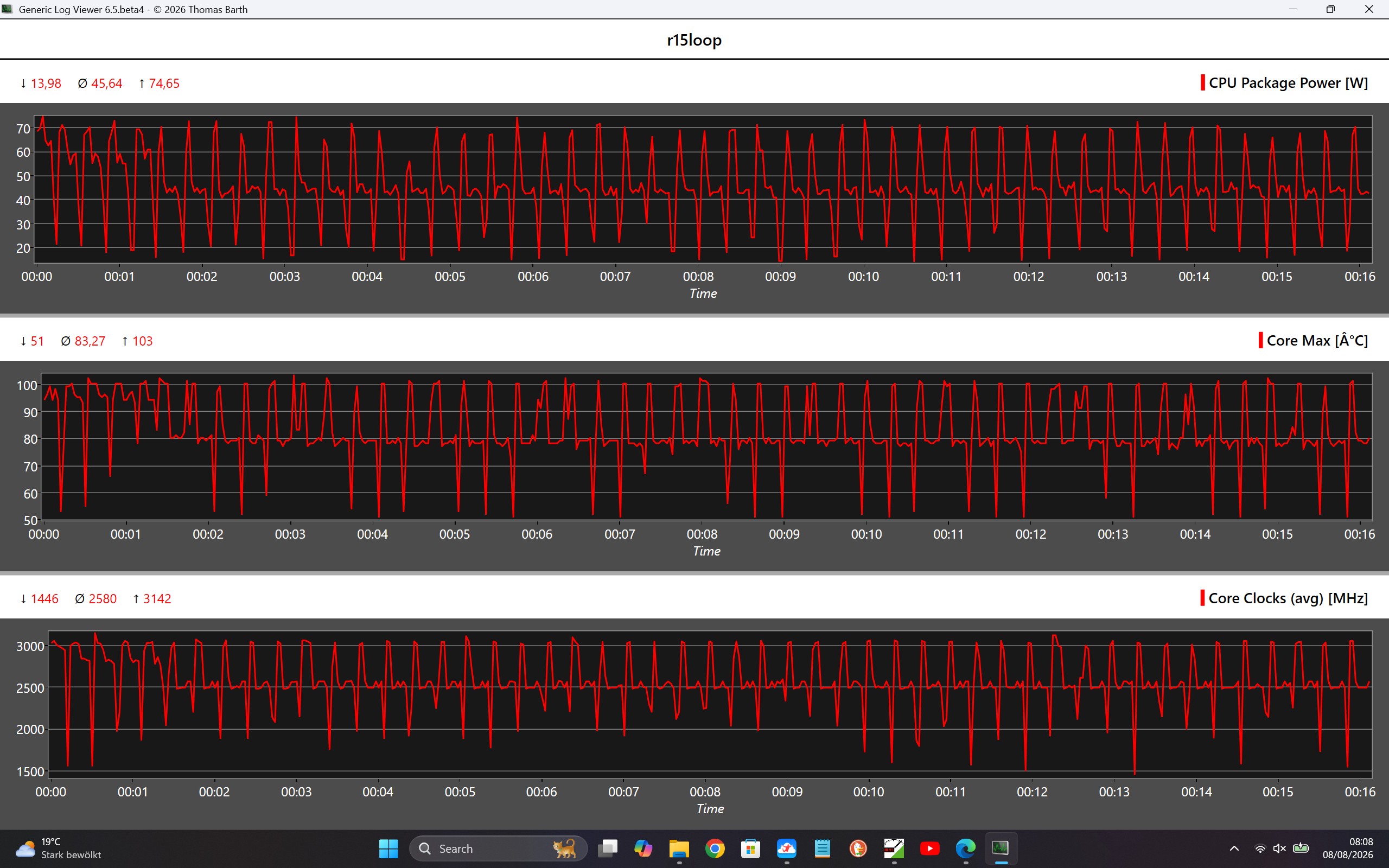

La configurazione in esame del Geekom IT13 Max è alimentata da un processore Intel Core Ultra 9 185H. Il processore Meteor Lake dispone di 16 core e 22 thread e offre elevate prestazioni di calcolo sia nelle applicazioni single-core che in quelle multi-core. Nei confronti tra benchmark, il mini-PC si colloca subito dietro al Peladn HO5, basato sul processore AMD Ryzen AI 9 HX370 leggermente più potente, e si rivela altrettanto adatto per attività d’ufficio impegnative, la creazione di contenuti e il multitasking.

Performance rating - Percent
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	53.5 pt
Geekom GT1 Mega Intel Core Ultra 9 185H	48.9 pt
Geekom IT13 Max ^-2! Intel Core Ultra 9 185H	48.5 pt
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	47.8 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	43.7 pt
GMK NucBox K17 ^-2! Intel Core Ultra 5 226V	41.6 pt

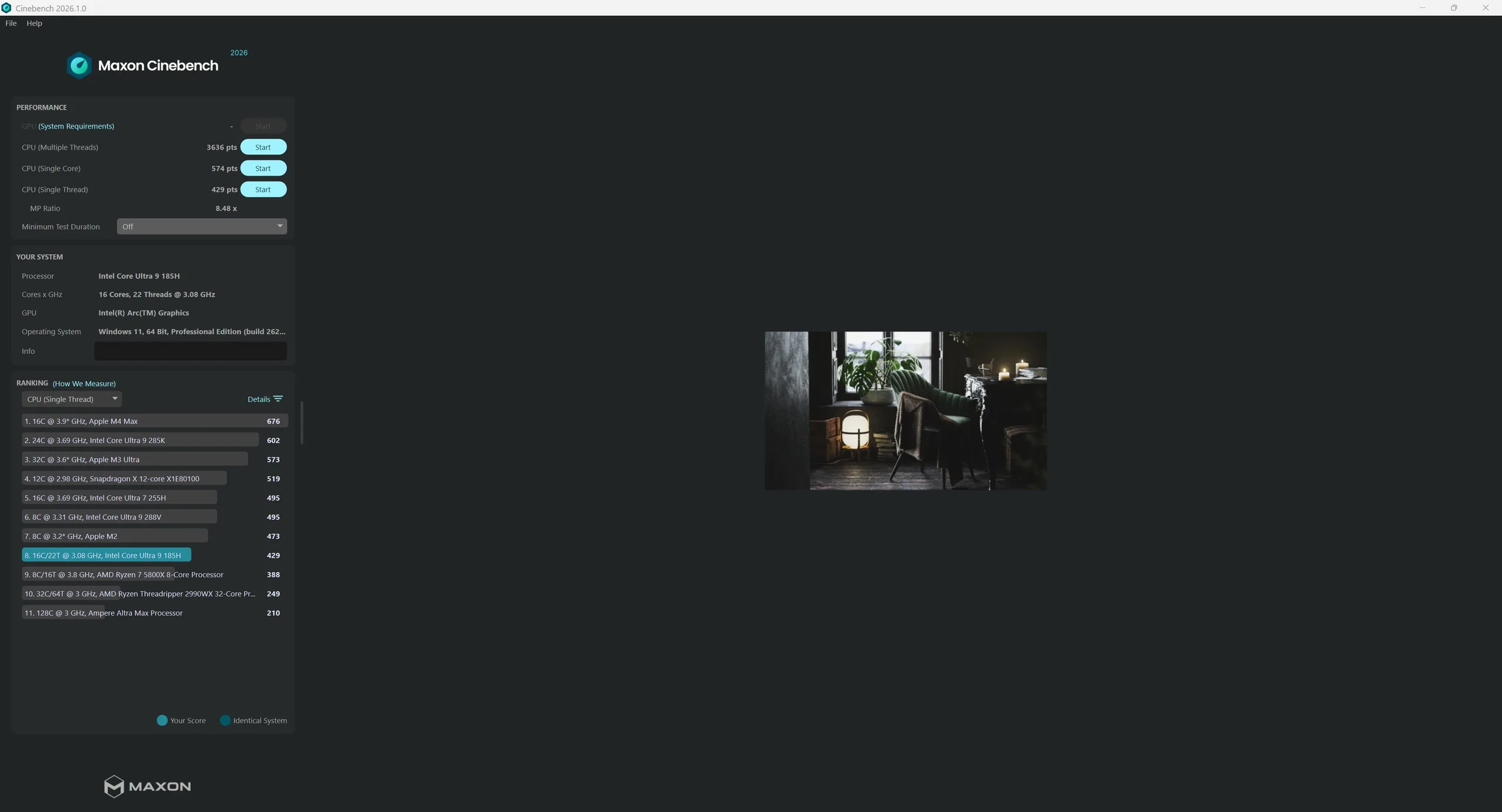

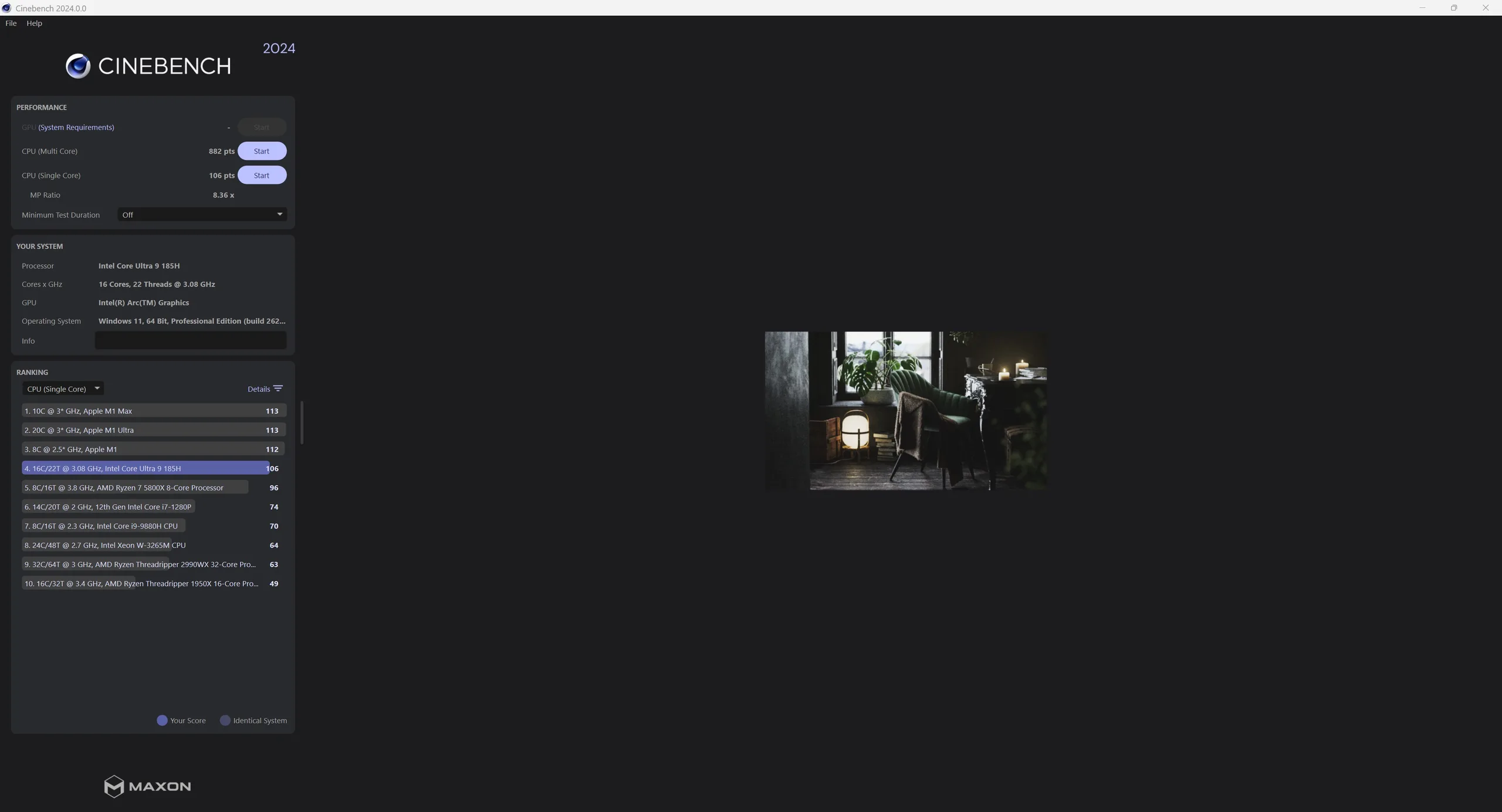

Cinebench 2024
CPU Multi Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1132 Points +28%
Geekom GT1 Mega Intel Core Ultra 9 185H	924 Points +5%
Geekom IT13 Max Intel Core Ultra 9 185H	882 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	838 Points -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	722 Points -18%
GMK NucBox K17 Intel Core Ultra 5 226V	523 Points -41%
CPU Single Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	116 Points +9%
GMK NucBox K17 Intel Core Ultra 5 226V	115 Points +8%
Geekom GT1 Mega Intel Core Ultra 9 185H	107 Points +1%
Geekom IT13 Max Intel Core Ultra 9 185H	106 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	101 Points -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	89 Points -16%

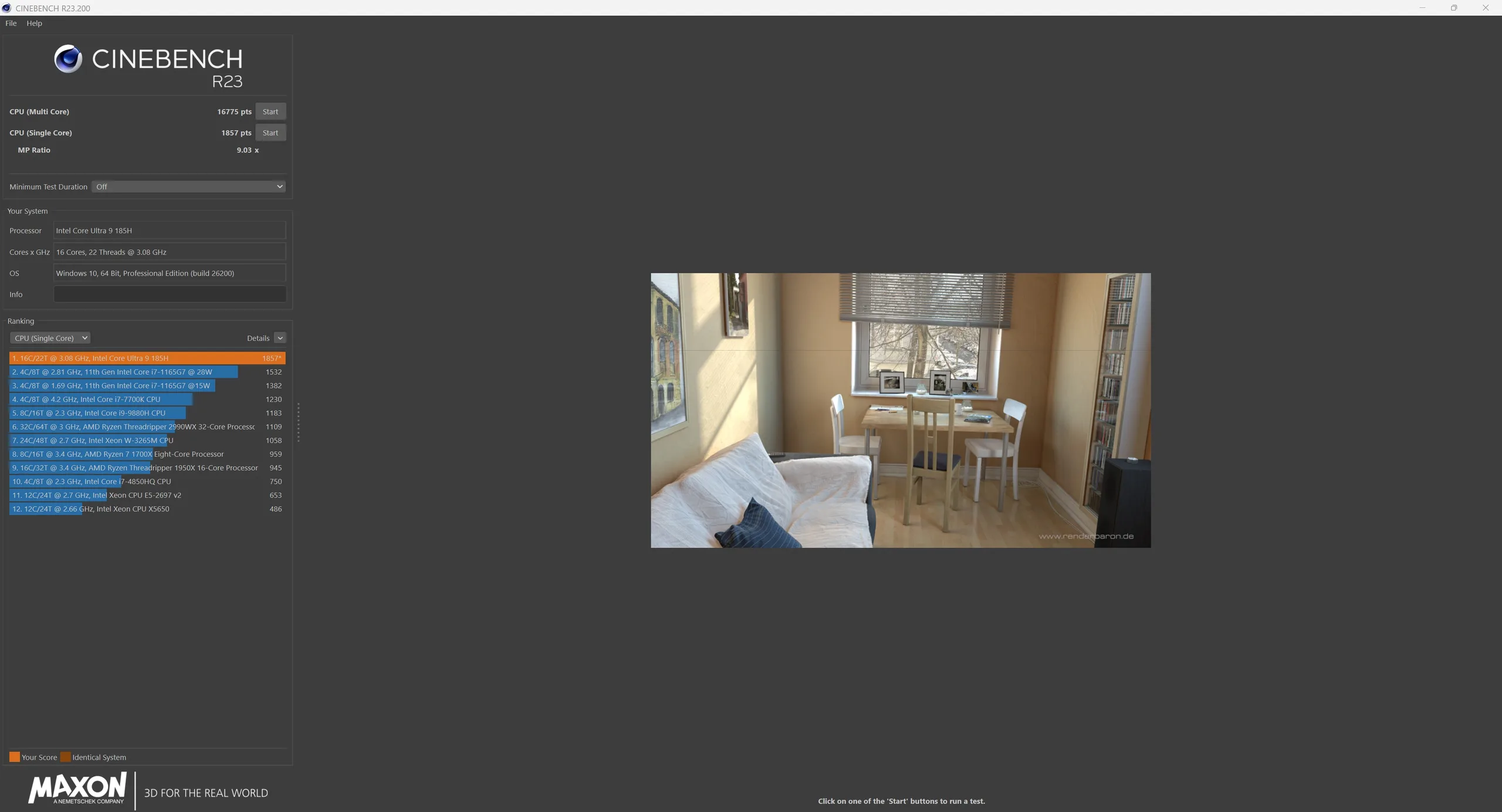

Cinebench R23
Multi Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	20354 Points +21%
Geekom GT1 Mega Intel Core Ultra 9 185H	18608 Points +11%
Geekom IT13 Max Intel Core Ultra 9 185H	16775 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	14816 Points -12%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	12945 Points -23%
GMK NucBox K17 Intel Core Ultra 5 226V	8665 Points -48%
Single Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1998 Points +8%
GMK NucBox K17 Intel Core Ultra 5 226V	1859 Points 0%
Geekom IT13 Max Intel Core Ultra 9 185H	1857 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	1774 Points -4%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1691 Points -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1536 Points -17%

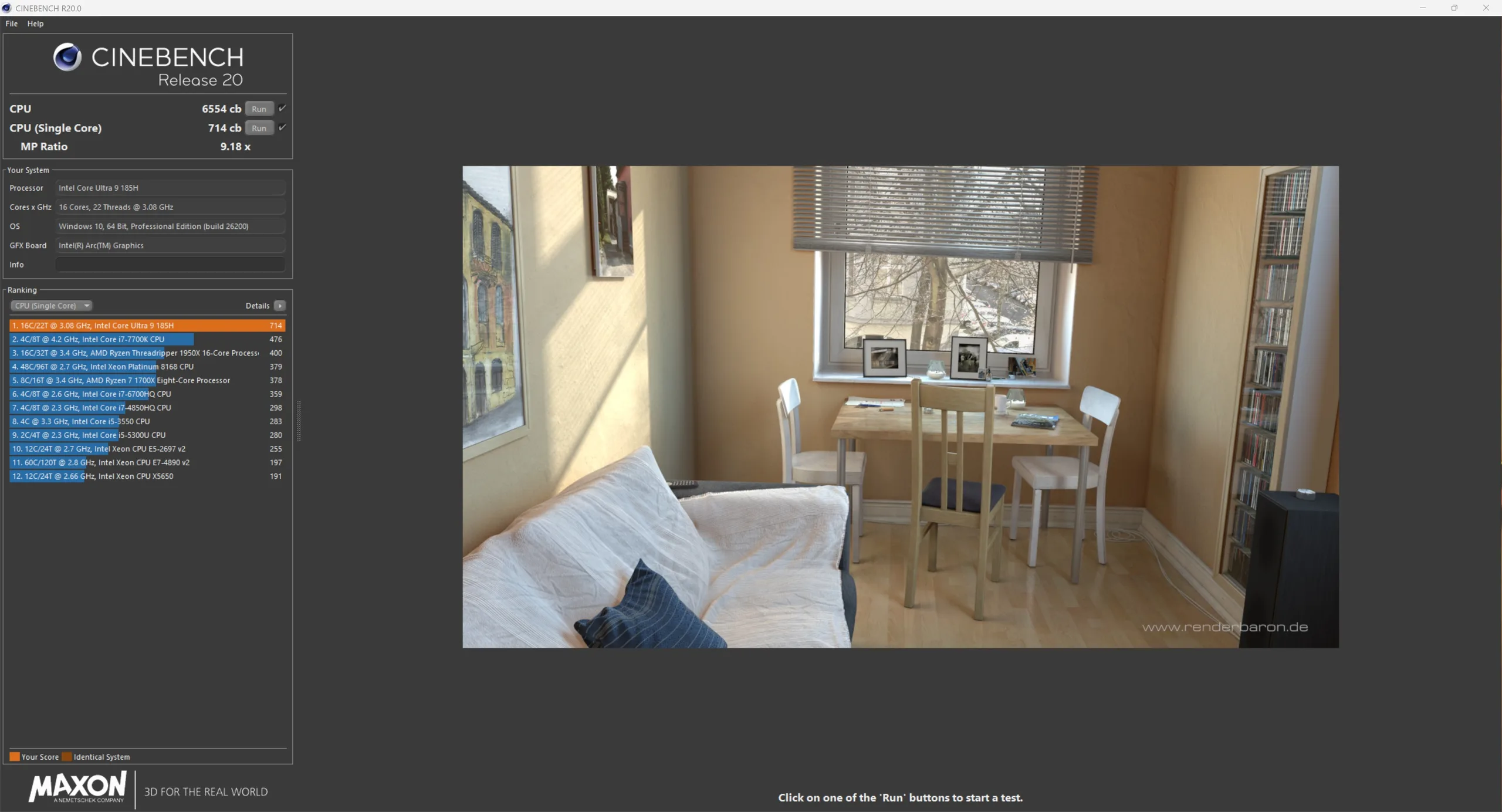

Cinebench R20
CPU (Multi Core)
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	8003 Points +22%
Geekom GT1 Mega Intel Core Ultra 9 185H	7192 Points +10%
Geekom IT13 Max Intel Core Ultra 9 185H	6554 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	5812 Points -11%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5022 Points -23%
GMK NucBox K17 Intel Core Ultra 5 226V	3380 Points -48%
CPU (Single Core)
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	737 Points +3%
GMK NucBox K17 Intel Core Ultra 5 226V	714 Points 0%
Geekom IT13 Max Intel Core Ultra 9 185H	714 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	696 Points -3%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	652 Points -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	591 Points -17%

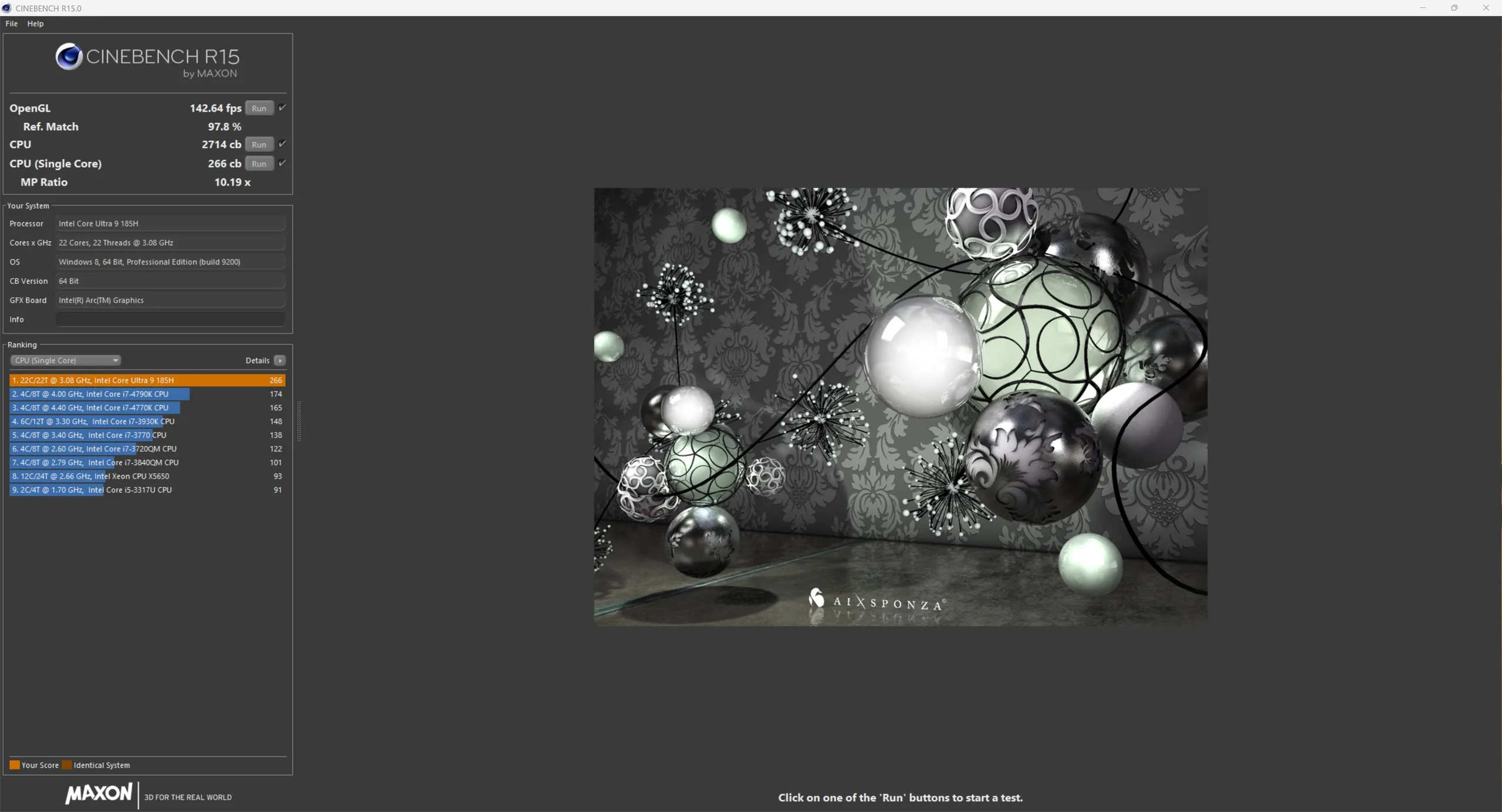

Cinebench R15
CPU Multi 64Bit
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	3050 Points +12%
Geekom GT1 Mega Intel Core Ultra 9 185H	2794 Points +3%
Geekom IT13 Max Intel Core Ultra 9 185H	2714 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	2293 Points -16%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2092 Points -23%
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points -54%
CPU Single 64Bit
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	302 Points +14%
GMK NucBox K17 Intel Core Ultra 5 226V	282 Points +6%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	268 Points +1%
Geekom IT13 Max Intel Core Ultra 9 185H	266 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	262 Points -2%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	244 Points -8%

Cinebench R11.5
CPU Multi 64Bit
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	37.29 Points +15%
Geekom GT1 Mega Intel Core Ultra 9 185H	34.34 Points +6%
Geekom IT13 Max Intel Core Ultra 9 185H	32.53 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	27.36 Points -16%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	24.09 Points -26%
GMK NucBox K17 Intel Core Ultra 5 226V	15.79 Points -51%
CPU Single 64Bit
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	3.6 Points +12%
GMK NucBox K17 Intel Core Ultra 5 226V	3.36 Points +5%
Geekom IT13 Max Intel Core Ultra 9 185H	3.21 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	3.18 Points -1%
Geekom GT1 Mega Intel Core Ultra 9 185H	3.13 Points -2%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2.9 Points -10%

Cinebench R10
Rendering Single CPUs 64Bit
GMK NucBox K17 Intel Core Ultra 5 226V	15701 Points +6%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	15425 Points +4%
Geekom IT13 Max Intel Core Ultra 9 185H	14783 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	14037 Points -5%
Geekom GT1 Mega Intel Core Ultra 9 185H	13997 Points -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	12061 Points -18%
Rendering Multiple CPUs 64Bit
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	95405 Points +9%
Geekom GT1 Mega Intel Core Ultra 9 185H	91553 Points +5%
Geekom IT13 Max Intel Core Ultra 9 185H	87150 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	78086 Points -10%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	68830 Points -21%
GMK NucBox K17 Intel Core Ultra 5 226V	56263 Points -35%

Blender
v2.79 BMW27 CPU
GMK NucBox K17 Intel Core Ultra 5 226V	387 Seconds * -94%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	241 Seconds * -21%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	220 Seconds * -11%
Geekom IT13 Max Intel Core Ultra 9 185H	199 Seconds *
Geekom GT1 Mega Intel Core Ultra 9 185H	191 Seconds * +4%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	162 Seconds * +19%
v3.3 Classroom CPU
GMK NucBox K17 Intel Core Ultra 5 226V	642 Seconds * -87%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	405 Seconds * -18%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	357 Seconds * -4%
Geekom IT13 Max Intel Core Ultra 9 185H	344 Seconds *
Geekom GT1 Mega Intel Core Ultra 9 185H	332 Seconds * +3%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	250 Seconds * +27%
v4.3 Barbershop CPU
GMK NucBox K17 Intel Core Ultra 5 226V	3291 Seconds * -86%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2038 Seconds * -15%
Geekom IT13 Max Intel Core Ultra 9 185H	1766 Seconds *
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1732 Seconds * +2%
Geekom GT1 Mega Intel Core Ultra 9 185H	1691 Seconds * +4%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1307 Seconds * +26%

wPrime 2.10
32m
GMK NucBox K17 Intel Core Ultra 5 226V	7.806 s * -92%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	7.273 s * -79%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	4.236 s * -4%
Geekom IT13 Max Intel Core Ultra 9 185H	4.07 s *
Geekom GT1 Mega Intel Core Ultra 9 185H	3.271 s * +20%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	3.265 s * +20%
1024m
GMK NucBox K17 Intel Core Ultra 5 226V	336.5 s * -247%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	184.594 s * -91%
Geekom GT1 Mega Intel Core Ultra 9 185H	165.075 s * -70%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	103.515 s * -7%
Geekom IT13 Max Intel Core Ultra 9 185H	96.87 s *
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	76.877 s * +21%

X264 HD Benchmark 4.0
Pass 1
Geekom GT1 Mega Intel Core Ultra 9 185H	336.5 (329^min - 346^max) fps +14%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	325.5 (325^min - 329^max) fps +10%
Geekom IT13 Max Intel Core Ultra 9 185H	295.5 (292^min - 307^max) fps
GMK NucBox K17 Intel Core Ultra 5 226V	275.5 (274^min - 276^max) fps -7%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	258 (253^min - 260^max) fps -13%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	252.5 (248^min - 254^max) fps -15%
Pass 2
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	169.45 (169.1^min - 174^max) fps +15%
Geekom GT1 Mega Intel Core Ultra 9 185H	161.5 (159.8^min - 163.8^max) fps +10%
Geekom IT13 Max Intel Core Ultra 9 185H	146.9 (145.9^min - 151.4^max) fps
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	129.7 (129^min - 131^max) fps -12%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	119.75 (119.7^min - 120.1^max) fps -18%
GMK NucBox K17 Intel Core Ultra 5 226V	79.1 (79^min - 79.3^max) fps -46%

WinRAR - Result
Geekom GT1 Mega Intel Core Ultra 9 185H	8563 KB/s +32%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	7335 KB/s +13%
Geekom IT13 Max Intel Core Ultra 9 185H	6499 KB/s
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	6472 KB/s 0%
GMK NucBox K17 Intel Core Ultra 5 226V	4880 KB/s -25%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	4408 KB/s -32%

TrueCrypt
AES Mean 100MB
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	16 GB/s +45%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	13.2 GB/s +20%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	11.7 GB/s +6%
Geekom GT1 Mega Intel Core Ultra 9 185H	11 GB/s 0%
Geekom IT13 Max Intel Core Ultra 9 185H	11 GB/s
GMK NucBox K17 Intel Core Ultra 5 226V	5.8 GB/s -47%
Twofish Mean 100MB
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	2.8 GB/s +33%
Geekom IT13 Max Intel Core Ultra 9 185H	2.1 GB/s
Geekom GT1 Mega Intel Core Ultra 9 185H	1.9 GB/s -10%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1.8 GB/s -14%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1.7 GB/s -19%
GMK NucBox K17 Intel Core Ultra 5 226V	1.3 GB/s -38%
Serpent Mean 100MB
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1.7 GB/s +42%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1.2 GB/s 0%
Geekom IT13 Max Intel Core Ultra 9 185H	1.2 GB/s
Geekom GT1 Mega Intel Core Ultra 9 185H	1.1 GB/s -8%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1.1 GB/s -8%
GMK NucBox K17 Intel Core Ultra 5 226V	0.657 GB/s -45%

Geekbench AI
Quantized CPU 1.2
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	7600 Points +26%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	6176 Points +2%
Geekom IT13 Max Intel Core Ultra 9 185H	6055 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	5791 Points -4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	4561 Points -25%
GMK NucBox K17 Intel Core Ultra 5 226V	4298 Points -29%
Half Precision CPU 1.2
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1803 Points +33%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1556 Points +15%
Geekom GT1 Mega Intel Core Ultra 9 185H	1506 Points +11%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1406 Points +4%
Geekom IT13 Max Intel Core Ultra 9 185H	1354 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1184 Points -13%
Single Precision CPU 1.2
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	3995 Points +18%
Geekom GT1 Mega Intel Core Ultra 9 185H	3611 Points +7%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	3559 Points +5%
Geekom IT13 Max Intel Core Ultra 9 185H	3377 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	3089 Points -9%
GMK NucBox K17 Intel Core Ultra 5 226V	2243 Points -34%
Quantized CPU 1.7
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	7671 Points +15%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	7265 Points +9%
Geekom IT13 Max Intel Core Ultra 9 185H	6688 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	5925 Points -11%
GMK NucBox K17 Intel Core Ultra 5 226V	5529 Points -17%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5197 Points -22%
Half Precision CPU 1.7
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1921 Points +36%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1635 Points +16%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1497 Points +6%
Geekom GT1 Mega Intel Core Ultra 9 185H	1479 Points +5%
Geekom IT13 Max Intel Core Ultra 9 185H	1414 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points -11%
Single Precision CPU 1.7
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	3924 Points +12%
Geekom GT1 Mega Intel Core Ultra 9 185H	3754 Points +7%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	3658 Points +4%
Geekom IT13 Max Intel Core Ultra 9 185H	3519 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	3300 Points -6%
GMK NucBox K17 Intel Core Ultra 5 226V	2621 Points -26%

Geekbench 6.7
Single-Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	2845 Points +15%
GMK NucBox K17 Intel Core Ultra 5 226V	2619 Points +6%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	2534 Points +3%
Geekom GT1 Mega Intel Core Ultra 9 185H	2500 Points +1%
Geekom IT13 Max Intel Core Ultra 9 185H	2465 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2078 Points -16%
Multi-Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	14203 Points +8%
Geekom GT1 Mega Intel Core Ultra 9 185H	13974 Points +6%
Geekom IT13 Max Intel Core Ultra 9 185H	13160 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	11516 Points -12%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9625 Points -27%
GMK NucBox K17 Intel Core Ultra 5 226V	9100 Points -31%

Geekbench 6.0
Single-Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	2721 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	2427 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	2385 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2028 Points
Multi-Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	14402 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	13121 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	10970 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9477 Points

Geekbench 5.5
Multi-Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	14888 Points +13%
Geekom GT1 Mega Intel Core Ultra 9 185H	13763 Points +4%
Geekom IT13 Max Intel Core Ultra 9 185H	13184 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	10887 Points -17%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9241 Points -30%
GMK NucBox K17 Intel Core Ultra 5 226V	8063 Points -39%
Single-Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	2056 Points +13%
GMK NucBox K17 Intel Core Ultra 5 226V	1914 Points +5%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1863 Points +2%
Geekom GT1 Mega Intel Core Ultra 9 185H	1852 Points +2%
Geekom IT13 Max Intel Core Ultra 9 185H	1822 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1517 Points -17%

Geekbench 5.0
5.0 Multi-Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	14875 Points +13%
Geekom GT1 Mega Intel Core Ultra 9 185H	13822 Points +5%
Geekom IT13 Max Intel Core Ultra 9 185H	13171 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	10733 Points -19%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9288 Points -29%
GMK NucBox K17 Intel Core Ultra 5 226V	8152 Points -38%
5.0 Single-Core
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	1968 Points +12%
GMK NucBox K17 Intel Core Ultra 5 226V	1865 Points +6%
Geekom GT1 Mega Intel Core Ultra 9 185H	1797 Points +2%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1785 Points +1%
Geekom IT13 Max Intel Core Ultra 9 185H	1764 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1476 Points -16%

Geekbench 4.4
64 Bit Multi-Core Score
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	56658 Points +17%
Geekom GT1 Mega Intel Core Ultra 9 185H	49924 Points +3%
Geekom IT13 Max Intel Core Ultra 9 185H	48415 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	43813 Points -10%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	36890 Points -24%
GMK NucBox K17 Intel Core Ultra 5 226V	28864 Points -40%
64 Bit Single-Core Score
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	8354 Points +13%
GMK NucBox K17 Intel Core Ultra 5 226V	8018 Points +8%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	7817 Points +5%
Geekom GT1 Mega Intel Core Ultra 9 185H	7516 Points +1%
Geekom IT13 Max Intel Core Ultra 9 185H	7424 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	6388 Points -14%

3DMark 11 - 1280x720 Performance Physics
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	21029 Points +1%
Geekom IT13 Max Intel Core Ultra 9 185H	20911 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	20702 Points -1%
Geekom GT1 Mega Intel Core Ultra 9 185H	18130 Points -13%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	17073 Points -18%
GMK NucBox K17 Intel Core Ultra 5 226V	13612 Points -35%

7-Zip 18.03
7z b 4
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	77342 MIPS +16%
Geekom GT1 Mega Intel Core Ultra 9 185H	71050 MIPS +7%
Geekom IT13 Max Intel Core Ultra 9 185H	66510 MIPS
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	63882 MIPS -4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	59045 MIPS -11%
GMK NucBox K17 Intel Core Ultra 5 226V	31083 MIPS -53%
7z b 4 -mmt1
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	6287 MIPS +14%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	6022 MIPS +9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5662 MIPS +3%
Geekom GT1 Mega Intel Core Ultra 9 185H	5657 MIPS +2%
Geekom IT13 Max Intel Core Ultra 9 185H	5522 MIPS
GMK NucBox K17 Intel Core Ultra 5 226V	5452 MIPS -1%

HWBOT x265 Benchmark v2.2 - 4k Preset
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	24.9 fps +26%
Geekom GT1 Mega Intel Core Ultra 9 185H	20.2 fps +3%
Geekom IT13 Max Intel Core Ultra 9 185H	19.7 fps
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	17.8 fps -10%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	16.3 fps -17%
GMK NucBox K17 Intel Core Ultra 5 226V	10.9 fps -45%

R Benchmark 2.5 - Overall mean
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	0.4932 sec * -10%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	0.4798 sec * -7%
GMK NucBox K17 Intel Core Ultra 5 226V	0.4746 sec * -5%
Geekom GT1 Mega Intel Core Ultra 9 185H	0.4571 sec * -2%
Geekom IT13 Max Intel Core Ultra 9 185H	0.4501 sec *
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	0.4183 sec * +7%

LibreOffice - 20 Documents To PDF
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	74 s * -44%
GMK NucBox K17 Intel Core Ultra 5 226V	62.1 s * -21%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	58.8 s * -14%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	55.8 s * -9%
Geekom GT1 Mega Intel Core Ultra 9 185H	52.1 s * -1%
Geekom IT13 Max Intel Core Ultra 9 185H	51.4 s *

3DMark
1920x1080 Fire Strike Physics
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	30157 Points +6%
Geekom IT13 Max Intel Core Ultra 9 185H	28505 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	24366 Points -15%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	23457 Points -18%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	22990 Points -19%
GMK NucBox K17 Intel Core Ultra 5 226V	18892 Points -34%
2560x1440 Time Spy CPU
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	10564 Points +1%
Geekom IT13 Max Intel Core Ultra 9 185H	10487 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	10366 Points -1%
Geekom GT1 Mega Intel Core Ultra 9 185H	9687 Points -8%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9095 Points -13%
GMK NucBox K17 Intel Core Ultra 5 226V	6588 Points -37%

Super Pi mod 1.5 XS 1M - 1M
GMK NucBox K17 Intel Core Ultra 5 226V	8.517 s * -24%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	8.438 s * -23%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	7.859 s * -15%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	7.71 s * -13%
Geekom IT13 Max Intel Core Ultra 9 185H	6.841 s *
Geekom GT1 Mega Intel Core Ultra 9 185H	6.762 s * +1%

Super Pi mod 1.5 XS 2M - 2M
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	19.277 s * -28%
GMK NucBox K17 Intel Core Ultra 5 226V	18.695 s * -24%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	18.231 s * -21%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	17.959 s * -19%
Geekom IT13 Max Intel Core Ultra 9 185H	15.115 s *
Geekom GT1 Mega Intel Core Ultra 9 185H	14.928 s * +1%

Affinity Photo 2 - Combined (Multi CPU)
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370	894 Points +3%
Geekom IT13 Max Intel Core Ultra 9 185H	868 Points
Geekom GT1 Mega Intel Core Ultra 9 185H	792 Points -9%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	659 Points -24%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	633 Points -27%
GMK NucBox K17 Intel Core Ultra 5 226V	348 Points -60%

* ... Meglio usare valori piccoli

Cinebench R10 Rendering Single 32Bit

10161

Cinebench R10 Shading 64Bit

18389 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

87150 Points

Cinebench R10 Rendering Single CPUs 64Bit

14783 Points

Cinebench R10 Shading 32Bit

17224

Cinebench R10 Rendering Multiple CPUs 32Bit

60151

Cinebench R11.5 CPU Single 32Bit

2.79 Points

Cinebench R11.5 CPU Multi 32Bit

29.27 Points

Cinebench R11.5 OpenGL 32Bit

102.71 fps

Cinebench R11.5 CPU Single 64Bit

3.21 Points

Cinebench R11.5 CPU Multi 64Bit

32.53 Points

Cinebench R11.5 OpenGL 64Bit

100.1 fps

Cinebench R15 CPU Single 64Bit

266 Points

Cinebench R15 CPU Multi 64Bit

2714 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

142.64 fps

Cinebench R20 CPU (Single Core)

714 Points

Cinebench R20 CPU (Multi Core)

6554 Points

Cinebench R23 Multi Core

16775 Points

Cinebench R23 Single Core

1857 Points

Cinebench 2024 CPU Single Core

106 Points

Cinebench 2024 CPU Multi Core

882 Points

Cinebench 2026 CPU Multi

3636 Points

Cinebench 2026 CPU Single Thread

429 Points

Aiuto

... in confronto

Performance rating
Peladn HO5, AI 9 HX 370 ^-1! AMD Ryzen AI 9 HX 370, Radeon 890M	94 pt
Media della classe Mini PC	80.1 pt
Alliwava GH8, R9 8945HS ^-1! AMD Ryzen 9 8945HS, Radeon 780M	76.4 pt
Geekom GT1 Mega ^-1! Intel Core Ultra 9 185H, Arc 8-Core	71.1 pt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	63.2 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	61.6 pt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	40.2 pt

AIDA64 / FP32 Ray-Trace
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	32035 KRay/s +119%
Media della classe Mini PC (974 - 82725, n=100, ultimi 2 anni)	24472 KRay/s +67%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	23462 KRay/s +60%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	15184 KRay/s +4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	14704 KRay/s +1%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	14643 KRay/s 0%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	14620 KRay/s
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	13192 KRay/s -10%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	9508 KRay/s -35%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	9335 KRay/s -36%

AIDA64 / FPU Julia
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	121023 Points +60%
Media della classe Mini PC (6115 - 363782, n=100, ultimi 2 anni)	100999 Points +33%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	95557 Points +26%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	92957 Points +23%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	92723 Points +23%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	78346 Points +4%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75689 Points
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	75046 Points -1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	48424 Points -36%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	48320 Points -36%

AIDA64 / CPU SHA3
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	5303 MB/s +36%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	4338 MB/s +11%
Media della classe Mini PC (385 - 9475, n=100, ultimi 2 anni)	4307 MB/s +10%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	3909 MB/s
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	3756 MB/s -4%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	3753 MB/s -4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	3104 MB/s -21%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	3099 MB/s -21%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2202 MB/s -44%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	2197 MB/s -44%

AIDA64 / CPU Queen
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	101809 Points +52%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	96912 Points +45%
Media della classe Mini PC (20501 - 154404, n=81, ultimi 2 anni)	91869 Points +37%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	88567 Points +32%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	86969 Points +30%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	66907 Points
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	47070 Points -30%

AIDA64 / FPU SinJulia
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	18230 Points +80%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	13669 Points +35%
Media della classe Mini PC (1116 - 31931, n=100, ultimi 2 anni)	12966 Points +28%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	12571 Points +24%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	12535 Points +24%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	10289 Points +2%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	10118 Points
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	10118 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	3921 Points -61%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	3915 Points -61%

AIDA64 / FPU Mandel
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	64126 Points +63%
Media della classe Mini PC (3322 - 192994, n=100, ultimi 2 anni)	53074 Points +35%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	51296 Points +31%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	51217 Points +31%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	50872 Points +30%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	39227 Points
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	36858 Points -6%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	38945 Points -1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	25349 Points -35%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	25323 Points -35%

AIDA64 / CPU AES
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	138481 MB/s +78%
Media della classe Mini PC (9915 - 204742, n=99, ultimi 2 anni)	82962 MB/s +7%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	77854 MB/s 0%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	77622 MB/s
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	77212 MB/s -1%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	77586 MB/s 0%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	60867 MB/s -22%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	60825 MB/s -22%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	34228 MB/s -56%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	34222 MB/s -56%

AIDA64 / CPU ZLib
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	1333 MB/s +17%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	1181 MB/s +3%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	1142 MB/s
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	1119 MB/s -2%
Media della classe Mini PC (127.2 - 2431, n=100, ultimi 2 anni)	1077 MB/s -6%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	935 MB/s -18%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	805 MB/s -30%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	802 MB/s -30%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	521 MB/s -54%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	516 MB/s -55%

AIDA64 / FP64 Ray-Trace
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	17357 KRay/s +120%
Media della classe Mini PC (537 - 43587, n=100, ultimi 2 anni)	13020 KRay/s +65%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	12443 KRay/s +58%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	7925 KRay/s +1%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	7875 KRay/s
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	7070 KRay/s -10%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	7821 KRay/s -1%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	7802 KRay/s -1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	5165 KRay/s -34%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	5133 KRay/s -35%

AIDA64 / CPU PhotoWorxx
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	51770 MPixel/s +3%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	46620 MPixel/s -7%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	50262 MPixel/s
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	48941 MPixel/s -3%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	50108 MPixel/s 0%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	47032 MPixel/s -6%
Media della classe Mini PC (8069 - 96843, n=100, ultimi 2 anni)	41777 MPixel/s -17%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	39944 MPixel/s -21%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	27840 MPixel/s -45%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	27656 MPixel/s -45%

AIDA64 / CPU CheckMate
Media della classe Mini PC (1743 - 19453, n=19, ultimi 2 anni)	5672 MP/s +74%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	3258 MP/s
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	2829 MP/s -13%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2013 MP/s -38%

Test di resistenza multi-core di Cinebench R15

Metriche della CPU durante il ciclo di Cinebench R15

Geekom IT13 Max Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2415 (2345.08-2716.65) Points

GMK NucBox K17 Intel Core Ultra 5 226V, Intel Core Ultra 5 226V: Ø1226 (1212.75-1232.63) Points

Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3021 (2798.77-3080.24) Points

Geekom GT1 Mega Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2442 (2286.63-2795.05) Points

GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Ryzen 7 PRO 6850U: Ø2061 (2052.65-2070.29) Points

Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, AMD Ryzen 9 8945HS: Ø2241 (2154.59-2335.08) Points

Prestazioni del sistema

Il Geekom IT13 Max supera a pieni voti i test di sistema. Grazie al processore Intel Core Ultra 9 185H e alla sua generosa configurazione di RAM, il nostro sistema di prova ottiene costantemente buoni risultati e si colloca nella fascia medio-alta. Anche dal punto di vista soggettivo, il mini-PC convince nell’uso quotidiano grazie alla sua elevata velocità di elaborazione.

PCMark 10 / Score
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	8330 Points
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	7755 Points -7%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	7481 Points -10%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	7232 Points -13%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	6577 Points -21%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	6311 Points -24%

PCMark 10 / Essentials
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	10993 Points +13%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	10824 Points +11%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	9970 Points +2%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	9740 Points
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	9521 Points -2%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	9312 Points -4%

PCMark 10 / Productivity
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	15629 Points
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	13840 Points -11%
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	10317 Points -34%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	9796 Points -37%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	8797 Points -44%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	8510 Points -46%

WebXPRT 4 / Overall
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	273 Points +10%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	259 Points +4%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	249 Points
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	245 Points -2%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	224 Points -10%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	180.6 Points -27%

WebXPRT 3 / Overall
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	302 Points +6%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	292 Points +2%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	286 Points 0%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	285 Points
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	277 Points -3%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	238 Points -16%

Mozilla Kraken 1.1 / Total
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	701 ms * -35%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	564 ms * -8%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	521 ms *
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	518 ms * +1%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	494 ms * +5%
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	444 ms * +15%

CrossMark / Overall
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1888 Points +2%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1846 Points
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	1839 Points 0%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	1575 Points -15%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1558 Points -16%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1442 Points -22%

CrossMark / Productivity
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1827 Points +6%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1724 Points
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	1714 Points -1%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1529 Points -11%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	1501 Points -13%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1444 Points -16%

CrossMark / Creativity
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	2074 Points
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	2038 Points -2%
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1959 Points -6%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	1788 Points -14%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1710 Points -18%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1498 Points -28%

CrossMark / Responsiveness
Geekom GT1 Mega, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Crucial P3 Plus CT2000P3PSSD8	1864 Points +16%
Peladn HO5, AI 9 HX 370, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Crucial P3 Plus CT1000P3PSSD8	1667 Points +4%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1601 Points
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1282 Points -20%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	1246 Points -22%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1244 Points -22%

* ... Meglio usare valori piccoli

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	102045 MB/s +36%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	100830 MB/s +34%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	90635 MB/s +21%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75089 MB/s
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	74884 MB/s 0%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	73624 MB/s -2%
Media della classe Mini PC (15933 - 163031, n=100, ultimi 2 anni)	68697 MB/s -9%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	68188 MB/s -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	47989 MB/s -36%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	47682 MB/s -36%

AIDA64 / Memory Read
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	100682 MB/s +39%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	85847 MB/s +19%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	84874 MB/s +17%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	79371 MB/s +10%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	72277 MB/s
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	70624 MB/s -2%
Media della classe Mini PC (14143 - 123769, n=100, ultimi 2 anni)	65677 MB/s -9%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	60579 MB/s -16%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	45912 MB/s -36%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	45811 MB/s -37%

AIDA64 / Memory Write
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	111489 MB/s +48%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	111430 MB/s +48%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	99231 MB/s +32%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	86760 MB/s +15%
Media della classe Mini PC (10630 - 216693, n=100, ultimi 2 anni)	78280 MB/s +4%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	75225 MB/s
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75208 MB/s 0%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	72187 MB/s -4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	49155 MB/s -35%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	49101 MB/s -35%

AIDA64 / Memory Latency
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	174.6 ns *
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	172.1 ns * +1%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	136.7 ns * +22%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M (v6.92.6600)	102.3 ns * +41%
Media della classe Mini PC (88.1 - 174.6, n=101, ultimi 2 anni)	102.2 ns * +41%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	93.5 ns * +46%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	86.1 ns * +51%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	91.1 ns * +48%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	89.5 ns * +49%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	88.2 ns * +49%

* ... Meglio usare valori piccoli

UL Procyon for Windows / Overall Score Integer NPU
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (OpenVINO)	1748 Points +176%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (OpenVINO)	634 Points
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (OpenVINO)	529 Points -17%

UL Procyon for Windows / Overall Score Integer GPU
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (Windows ML)	89 Points
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core (Windows ML)	63 Points -29%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (Windows ML)	56 Points -37%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (Windows ML)	54 Points -39%

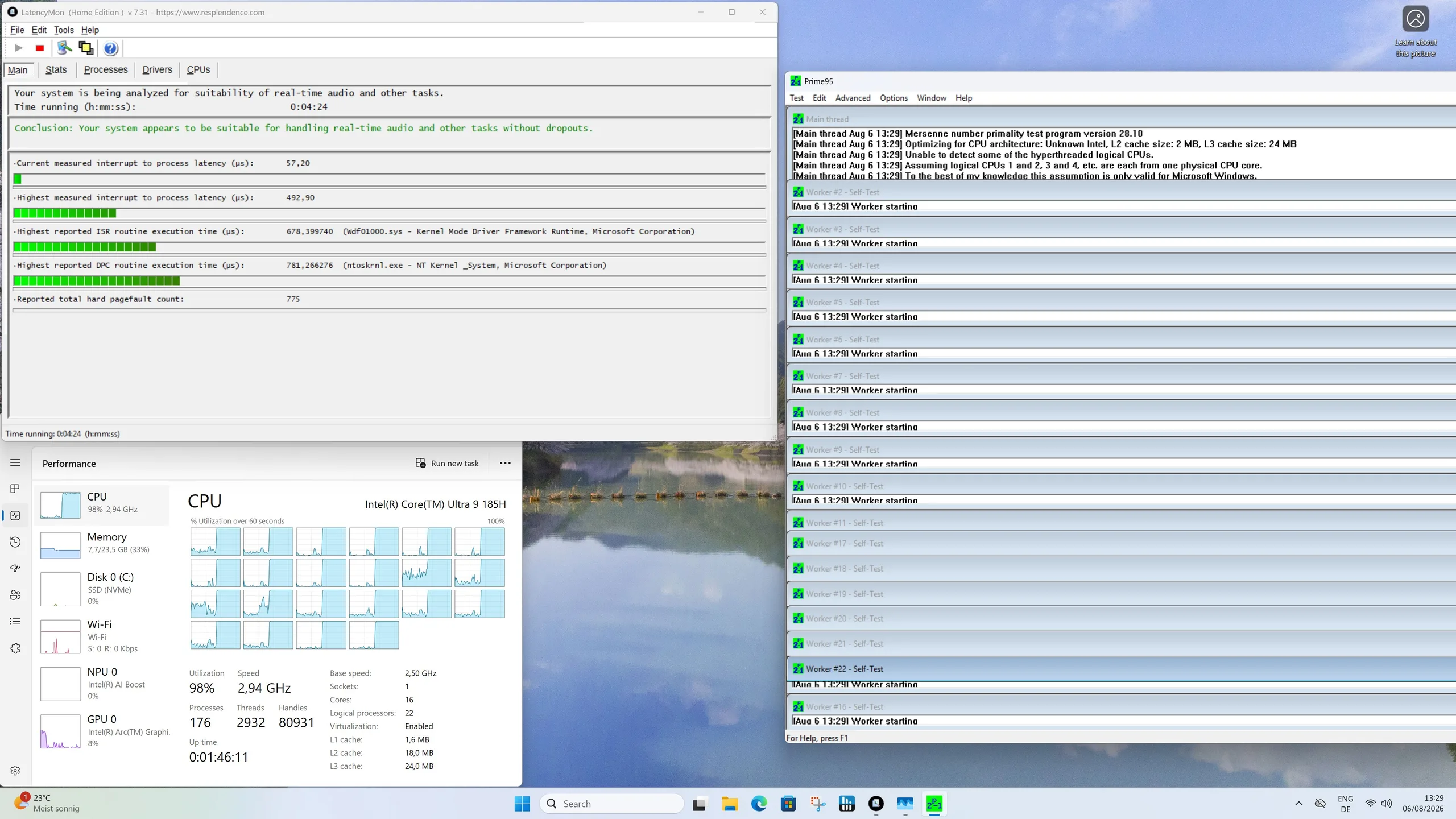

Latenze DPC

Latenza massima durante l’apertura di più schede del browser

Latenza massima durante la riproduzione di filmati in 4K

Latenza massima dopo dieci secondi di Prime95

Driver classificati in base al tempo di esecuzione più lungo

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1296 μs * -66%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	1200 μs * -54%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	1145.7 μs * -47%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	781 μs *
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	637 μs * +18%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	503 μs * +36%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

Il Geekom IT13 Max utilizza un Kingston NV3 da 500 GB come dispositivo di archiviazione di massa. Sebbene questo SSD PCIe 4.0 offra uno spazio di archiviazione inferiore rispetto a molti modelli concorrenti, nei nostri test ha raggiunto velocità di trasferimento soddisfacenti. Anche sotto carico prolungato, l’SSD rimane sostanzialmente stabile, pertanto non sono da prevedersi cali significativi delle prestazioni. Oltre all’SSD M.2 preinstallato, è possibile aggiungere un altro dispositivo di archiviazione. A tale scopo è disponibile uno slot M.2-2242 con connessione SATA. In caso di aggiornamento, si assicuri di verificare che il fattore di forma e l’interfaccia dell’unità siano supportati.

AS SSD

DiskSpd

Kingston NV3 500GB SNV3S/500GCN

Sequential Read: 4110MB/s

Sequential Write: 2998MB/s

4K Read: 58.9MB/s

4K Write: 184.2MB/s

4K-64 Read: 1363MB/s

4K-64 Write: 342MB/s

Access Time Read: 0.242ms

Access Time Write: 0.185ms

Copy ISO: 1929MB/s

Copy Program: 405.97MB/s

Copy Game: 857.61MB/s

Score Read: 1833Points

Score Write: 826Points

Score Total: 3550Points

Drive Performance rating | DiskSpd | AS SSD | SPECworkstation 4.0

Drive Performance rating - Percent
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	90.5 pt
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	89.1 pt
Media della classe Mini PC	63.5 pt
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	53.5 pt
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	52.6 pt
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	48.4 pt
Alliwava GH8, R9 8945HS	41.7 pt

DiskSpd
seq read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3437 (2671.77^min - 3436.65^max) MB/s +39%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2734 (2730.27^min - 2734.25^max) MB/s +10%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	2700 (2462.9^min - 2700.14^max) MB/s +9%
Media della classe Mini PC (435 - 4960, n=85, ultimi 2 anni)	2608 MB/s +5%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2476 (2339.58^min - 2475.9^max) MB/s
Alliwava GH8, R9 8945HS	2309 (2261.36^min - 2308.54^max) MB/s -7%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2202 (2069.11^min - 2202.22^max) MB/s -11%
seq write
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	4156 (3873.86^min - 4155.72^max) MB/s +51%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3976 (425.08^min - 3975.57^max) MB/s +45%
Media della classe Mini PC (408 - 5556, n=85, ultimi 2 anni)	3081 MB/s +12%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2744 (1428.03^min - 2743.91^max) MB/s
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2232 (2144.24^min - 2231.52^max) MB/s -19%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1945 (1600.49^min - 1945.32^max) MB/s -29%
Alliwava GH8, R9 8945HS	1940 (1921.97^min - 1940.08^max) MB/s -29%
seq q8 t1 read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	6829 (5502.51^min - 6829.17^max) MB/s +73%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	5184 (4418.31^min - 5183.74^max) MB/s +31%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	5060 (4781.3^min - 5060.16^max) MB/s +28%
Media della classe Mini PC (543 - 7117, n=85, ultimi 2 anni)	4637 MB/s +18%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	3945 (2995.45^min - 3945.37^max) MB/s
Alliwava GH8, R9 8945HS	3575 (3028.71^min - 3575.41^max) MB/s -9%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	3193 (2896.67^min - 3192.61^max) MB/s -19%
seq q8 t1 write
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	4334 (4040.79^min - 4333.97^max) MB/s +47%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3985 (52.74^min - 3985.01^max) MB/s +35%
Media della classe Mini PC (410 - 6647, n=85, ultimi 2 anni)	3666 MB/s +25%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3082 (2929.93^min - 3081.85^max) MB/s +5%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2941 (2574.88^min - 2941.05^max) MB/s
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2575 (2312.31^min - 2574.67^max) MB/s -12%
Alliwava GH8, R9 8945HS	2039 (2034.99^min - 2038.76^max) MB/s -31%
4k q1 t1 read
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	73.1 (65.7^min - 73.12^max) MB/s +16%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	62.9 (60.28^min - 62.92^max) MB/s
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	62.5 (62.22^min - 62.52^max) MB/s -1%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	61.8 (59.37^min - 61.83^max) MB/s -2%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	57.9 (55.63^min - 57.91^max) MB/s -8%
Media della classe Mini PC (6.85 - 88.3, n=85, ultimi 2 anni)	56.8 MB/s -10%
Alliwava GH8, R9 8945HS	49.6 (49.04^min - 49.57^max) MB/s -21%
4k q1 t1 write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	353 (348.24^min - 353.16^max) MB/s +76%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	225 (183.1^min - 224.93^max) MB/s +12%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	201 (158.52^min - 201.45^max) MB/s
Media della classe Mini PC (29.6 - 366, n=85, ultimi 2 anni)	183.9 MB/s -9%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	144.6 (135.02^min - 144.55^max) MB/s -28%
Alliwava GH8, R9 8945HS	136.2 (126.04^min - 136.17^max) MB/s -32%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	103.5 (100.16^min - 103.46^max) MB/s -49%
4k q32 t16 read
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	3195 (3190.48^min - 3194.74^max) MB/s +63%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2876 (2861.34^min - 2875.92^max) MB/s +47%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1960 (1905.33^min - 1960.41^max) MB/s
Media della classe Mini PC (177.7 - 4349, n=85, ultimi 2 anni)	1572 MB/s -20%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	946 (944.86^min - 946.43^max) MB/s -52%
Alliwava GH8, R9 8945HS	918 (900.37^min - 917.98^max) MB/s -53%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	581 (564.79^min - 581.34^max) MB/s -70%
4k q32 t16 write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2822 (709.76^min - 2821.52^max) MB/s +193%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	2665 (2462.25^min - 2665.49^max) MB/s +177%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1413 (525.05^min - 1412.75^max) MB/s +47%
Media della classe Mini PC (151.8 - 4088, n=85, ultimi 2 anni)	1411 MB/s +47%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	962 (435.84^min - 961.9^max) MB/s
Alliwava GH8, R9 8945HS	367 (348.73^min - 366.7^max) MB/s -62%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	245 (194.02^min - 244.8^max) MB/s -75%

AS SSD
Score Total
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	9142 Points +158%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	8215 Points +131%
Media della classe Mini PC (507 - 10559, n=84, ultimi 2 anni)	5028 Points +42%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	3550 Points
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	3467 Points -2%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3171 Points -11%
Alliwava GH8, R9 8945HS	2948 Points -17%
Score Read
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	3485 Points +90%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2779 Points +52%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1833 Points
Media della classe Mini PC (192 - 3834, n=84, ultimi 2 anni)	1722 Points -6%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1210 Points -34%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1169 Points -36%
Alliwava GH8, R9 8945HS	996 Points -46%
Score Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3987 Points +383%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	3878 Points +369%
Media della classe Mini PC (210 - 5505, n=84, ultimi 2 anni)	2457 Points +197%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1647 Points +99%
Alliwava GH8, R9 8945HS	1504 Points +82%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1494 Points +81%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	826 Points
Seq Read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	5056 MB/s +23%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	4258 MB/s +4%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	4110 MB/s
Media della classe Mini PC (501 - 5766, n=84, ultimi 2 anni)	3872 MB/s -6%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3587 MB/s -13%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2954 MB/s -28%
Alliwava GH8, R9 8945HS	2923 MB/s -29%
Seq Write
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	4162 MB/s +39%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3938 MB/s +31%
Media della classe Mini PC (437 - 5654, n=84, ultimi 2 anni)	3026 MB/s +1%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2998 MB/s
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	2883 MB/s -4%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2415 MB/s -19%
Alliwava GH8, R9 8945HS	1485 MB/s -50%
4K Read
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	84.3 MB/s +43%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	83.6 MB/s +42%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	65.1 MB/s +11%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	63.9 MB/s +8%
Media della classe Mini PC (18.2 - 101.7, n=84, ultimi 2 anni)	59.8 MB/s +2%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	58.9 MB/s
Alliwava GH8, R9 8945HS	43.3 MB/s -26%
4K Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	314 MB/s +70%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	215 MB/s +17%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	184.2 MB/s
Media della classe Mini PC (67.3 - 318, n=84, ultimi 2 anni)	178.1 MB/s -3%
Alliwava GH8, R9 8945HS	132 MB/s -28%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	129.8 MB/s -30%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	118.3 MB/s -36%
4K-64 Read
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	2975 MB/s +118%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	2336 MB/s +71%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1363 MB/s
Media della classe Mini PC (118.5 - 3321, n=84, ultimi 2 anni)	1275 MB/s -6%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	849 MB/s -38%
Alliwava GH8, R9 8945HS	661 MB/s -52%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	599 MB/s -56%
4K-64 Write
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	3279 MB/s +859%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	3247 MB/s +849%
Media della classe Mini PC (96.3 - 4890, n=84, ultimi 2 anni)	1977 MB/s +478%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1275 MB/s +273%
Alliwava GH8, R9 8945HS	1224 MB/s +258%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1088 MB/s +218%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	342 MB/s
Access Time Read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.242 ms *
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	0.154 ms * +36%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.137 ms * +43%
Alliwava GH8, R9 8945HS	0.115 ms * +52%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	0.096 ms * +60%
Media della classe Mini PC (0.027 - 0.242, n=84, ultimi 2 anni)	0.09129 ms * +62%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	0.027 ms * +89%
Access Time Write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.185 ms *
Alliwava GH8, R9 8945HS	0.135 ms * +27%
Media della classe Mini PC (0.013 - 0.706, n=84, ultimi 2 anni)	0.1003 ms * +46%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	0.09 ms * +51%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.084 ms * +55%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	0.019 ms * +90%
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	0.014 ms * +92%

SPECworkstation 4.0 - Storage Score
Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8	0.83 Points +1%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.82 Points
Media della classe Mini PC (0.2 - 1.1, n=65, ultimi 2 anni)	0.7 Points -15%
Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8	0.59 Points -28%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.59 Points -28%
Alliwava GH8, R9 8945HS	0.4 Points -51%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	0.34 Points -59%

* ... Meglio usare valori piccoli

Limitazione della velocità del disco: ciclo di lettura DiskSpd, profondità della coda 8

Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN; diskspd 2.0.17 f: Ø2948 (2469.4-2989.49) MB/s

GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB; diskspd 2.0.17 f: Ø3765 (1445.94-6800.23) MB/s

Peladn HO5, AI 9 HX 370 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5182 (4794.3-5192.86) MB/s

Geekom GT1 Mega Crucial P3 Plus CT2000P3PSSD8 ; diskspd 2.0.17 f: Ø5055 (4738.1-5067.7) MB/s

GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S; diskspd 2.0.17 f: Ø3141 (2808.34-3182.64) MB/s

Alliwava GH8, R9 8945HS ; diskspd 2.0.17 f: Ø3566 (3109.1-3575.64) MB/s

GPU e prestazioni di gioco

Le prestazioni 3D del Geekom IT13 Max sono gestite dalla scheda grafica Intel Arc integrata nel processore Core Ultra 9 185H. Nei nostri benchmark grafici, tuttavia, l’iGPU si colloca spesso solo nella fascia medio-bassa della classifica, dimostrando di non essere più in grado di tenere il passo con le più recenti unità grafiche integrate. Ciononostante, le prestazioni sono sufficienti per giochi più datati e meno esigenti, a condizione che si sia disposti a scendere a compromessi in termini di risoluzione e livelli di dettaglio.

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	91.1 pt
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	87.5 pt
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	86.5 pt
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	83.4 pt
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	71.1 pt
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	67.8 pt

3DMark 11 - 1280x720 Performance GPU
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	16539 Points +67%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13309 Points +35%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	11003 Points +11%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10312 Points +4%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	9877 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	9295 Points -6%

3DMark
2560x1440 Time Spy Graphics
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3610 Points +3%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3520 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3148 Points -11%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3048 Points -13%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	2429 Points -31%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2404 Points -32%
1920x1080 Fire Strike Graphics
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9561 Points +15%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8726 Points +5%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8463 Points +1%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8350 Points
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	7106 Points -15%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	6823 Points -18%
Steel Nomad Score
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	782 Points
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	669 Points -14%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	781 Points 0%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	659 Points -16%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	644 Points -18%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	451 Points -42%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	438 Points -44%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	416 Points -47%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	359 Points -54%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	298 Points -62%
2560x1440 Port Royal Graphics
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1798 Points +9%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1649 Points
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1618 Points -2%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1433 Points -13%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1284 Points -22%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1037 Points -37%
Night Raid Score
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	33268 Points +14%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	29215 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	29054 Points -1%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	27447 Points -6%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	25895 Points -11%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	25596 Points -12%
Solar Bay Score
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13862 Points +5%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	13402 Points +1%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13236 Points
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	12980 Points -2%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	10945 Points -17%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	10454 Points -21%

Unigine Heaven 4.0
Extreme Preset OpenGL
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	44.5 fps +24%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	37.3 fps +4%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	36.5 fps +1%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	36.4 fps +1%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	36 fps
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	31.9 fps -11%
Extreme Preset DX11
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	45.9 fps +42%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	37.5 fps +16%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	34.8 fps +7%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	32.4 fps
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	31.7 fps -2%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.3 fps -19%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	26.6 fps +15%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	24.8 fps +7%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	23.2 fps 0%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	23.1 fps
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	22.5 fps -3%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	20.1 fps -13%
1920x1080 Extreme HD Preset OpenGL AA:x8
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	26.7 fps +51%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.7 fps +51%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	23.7 fps +34%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	21.9 fps +24%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	20.3 fps +15%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	17.7 fps

Unigine Superposition
1280x720 720p Low
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13545 Points +24%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	12451 Points +14%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	10953 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10697 Points -2%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	10353 Points -5%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	10202 Points -7%
1920x1080 1080p High
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4518 Points +18%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3948 Points +3%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3823 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3751 Points -2%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	3247 Points -15%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	3028 Points -21%
1920x1080 1080p Extreme
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2119 Points +3%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2100 Points +2%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2052 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1694 Points -17%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1383 Points -33%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1321 Points -36%

ComputeMark v2.1
1024x600 Normal, Score
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	10562 Points +37%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7963 Points +3%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7704 Points
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	6117 Points -21%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	5886 Points -24%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	5163 Points -33%
1024x600 Normal, Fluid 3DTex
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	929 Points +75%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	563 Points +6%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	530 Points
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	492 Points -7%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	454 Points -14%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	408 Points -23%
1024x600 Normal, Fluid 2DTexArr
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	641 Points +34%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	571 Points +19%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	487 Points +2%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	479 Points
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	473 Points -1%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	423 Points -12%
1024x600 Normal, Mandel Vector
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2716 Points +43%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2039 Points +7%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1905 Points
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1587 Points -17%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1242 Points -35%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1157 Points -39%
1024x600 Normal, Mandel Scalar
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2780 Points +39%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2005 Points
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1701 Points -15%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1444 Points -28%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1092 Points -46%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	974 Points -51%
1024x600 Normal, QJuliaRayTrace
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3932 Points +41%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3244 Points +16%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2785 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2200 Points -21%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	2158 Points -23%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1983 Points -29%

LuxMark v2.0 64Bit
Room GPUs-only
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1051 Samples/s +41%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	997 Samples/s +33%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	922 Samples/s +23%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	894 Samples/s +20%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	747 Samples/s
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	656 Samples/s -12%
Sala GPUs-only
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2888 Samples/s 0%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2879 Samples/s
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	2698 Samples/s -6%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1986 Samples/s -31%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1623 Samples/s -44%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1592 Samples/s -45%

Affinity Photo 2 - Combined (Single / Multi GPU)
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	6468 Points +23%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6245 Points +19%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	5264 Points
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2822 Points -46%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1980 Points -62%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1072 Points -80%

Geekbench AI
Quantized GPU 1.7
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	6278 Points +80%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	4668 Points +34%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	4556 Points +31%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	4133 Points +18%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3660 Points +5%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3491 Points
Half Precision GPU 1.7
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13932 Points +78%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	11517 Points +48%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	8519 Points +9%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8378 Points +7%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	8313 Points +6%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7806 Points
Single Precision GPU 1.7
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8521 Points +78%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6296 Points +31%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	6259 Points +30%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	5983 Points +25%
Geekom GT1 Mega Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	5163 Points +8%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	4797 Points

Performance rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

Performance rating
Media NVIDIA GeForce RTX 4050 Laptop GPU	97.7 pt
Peladn HO5, AI 9 HX 370	83.8 pt
Alliwava GH8, R9 8945HS	63 pt
Geekom IT13 Max	59.7 pt
Geekom GT1 Mega	59.4 pt
GMK NucBox M7 Ultra	54.5 pt
GMK NucBox K17	41 pt

SPECworkstation 4.0 / Graphics Score
Media NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +171%
Peladn HO5, AI 9 HX 370	2.36 Points +121%
GMK NucBox M7 Ultra	1.6 Points +50%
Alliwava GH8, R9 8945HS	1.55 Points +45%
Geekom IT13 Max	1.07 Points
Geekom GT1 Mega	1 Points -7%
GMK NucBox K17	0.87 Points -19%

SPECworkstation 4.0 / Accelerator Score
Media NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	3.37 Points +84%
Peladn HO5, AI 9 HX 370	2.13 Points +16%
Geekom GT1 Mega	1.91 Points +4%
Geekom IT13 Max	1.83 Points
Alliwava GH8, R9 8945HS	1.77 Points -3%
GMK NucBox M7 Ultra	1.43 Points -22%
GMK NucBox K17	1.27 Points -31%

SPECworkstation 4.0 / Viewport Graphics
Media NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +171%
Peladn HO5, AI 9 HX 370	2.36 Points +121%
GMK NucBox M7 Ultra	1.6 Points +50%
Alliwava GH8, R9 8945HS	1.55 Points +45%
Geekom IT13 Max	1.07 Points
Geekom GT1 Mega	0.999 Points -7%
GMK NucBox K17	0.869 Points -19%

SPECworkstation 4.0 / HandBrake
Peladn HO5, AI 9 HX 370	1.45 Points +4%
Geekom GT1 Mega	1.4 Points +1%
Geekom IT13 Max	1.39 Points
Media NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.28 Points -8%
Alliwava GH8, R9 8945HS	1.2 Points -14%
GMK NucBox M7 Ultra	0.978 Points -30%
GMK NucBox K17	0.872 Points -37%

SPECworkstation 4.0 / ONNX Inference
Media NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.46 Points +34%
Peladn HO5, AI 9 HX 370	1.36 Points +25%
Geekom GT1 Mega	1.09 Points 0%
Geekom IT13 Max	1.09 Points
Alliwava GH8, R9 8945HS	1.06 Points -3%
GMK NucBox M7 Ultra	0.765 Points -30%
GMK NucBox K17	0.689 Points -37%

	Geekom IT13 Max, Intel Arc 8-Core iGPU Ultra 9 185H	GMK NucBox K17, Intel Arc Graphics 130V Core Ultra 5 226V	Peladn HO5, AI 9 HX 370, AMD Radeon 890M Ryzen AI 9 HX 370	Geekom GT1 Mega, Intel Arc 8-Core iGPU Ultra 9 185H	GMK NucBox M7 Ultra, AMD Radeon 680M R7 PRO 6850U	Alliwava GH8, R9 8945HS, AMD Radeon 780M R9 8945HS	Media della classe Mini PC
SPECviewperf 2020		-14%	264%	-5%	156%	129%	340%
3840x2160 Medical (medical-03) (fps)	7.12	4.32 -39%	25.9 264%	7.07 -1%	11.9 67%	10.4 46%	24 ?(1.74 - 90.1, n=67, ultimi 2 anni) 237%
3840x2160 Energy (energy-03) (fps)	5.57	3.32 -40%	14.3 157%	5 -10%	7.66 38%	8.17 47%	35.5 ?(1.16 - 139, n=67, ultimi 2 anni) 537%
3840x2160 Creo (creo-03) (fps)	19.2	18.7 -3%	38.2 99%	19.8 3%	29.8 55%	24.5 28%	50.7 ?(8.09 - 126, n=67, ultimi 2 anni) 164%
3840x2160 CATIA (catia-06) (fps)	12.3	11.5 -7%	27.4 123%	11.7 -5%	20.2 64%	18.8 53%	36.1 ?(4.65 - 89.8, n=63, ultimi 2 anni) 193%
3840x2160 3ds Max (3dsmax-07) (fps)	15.2		25.7 69%	15.5 2%	17.2 13%	17.7 16%	57.5 ?(5.64 - 213, n=65, ultimi 2 anni) 278%
3840x2160 Siemens NX (snx-04) (fps)	6.23	6.7 8%	74.9 1102%	5.68 -9%	59.3 852%	51.3 723%	52.4 ?(3.78 - 233, n=65, ultimi 2 anni) 741%
3840x2160 Maya (maya-06) (fps)	44.3	42.1 -5%	59.1 33%	38.8 -12%	45.1 2%	38.9 -12%	146 ?(11.6 - 542, n=66, ultimi 2 anni) 230%

3DMark 06 Standard Score		36265 punti
3DMark Vantage P Result		46160 punti
3DMark 11 Performance		10316 punti
3DMark Ice Storm Standard Score		163838 punti
3DMark Cloud Gate Standard Score		36695 punti
3DMark Fire Strike Score		7825 punti
3DMark Fire Strike Extreme Score		3933 punti
3DMark Time Spy Score		3909 punti
3DMark Steel Nomad Score		782 punti
Aiuto

... in confronto

Performance rating - Percent
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	100 pt
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	79.4 pt
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	75.1 pt
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	74.9 pt
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	69.4 pt
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	68.8 pt

GTA V
1024x768 Lowest Settings possible
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	175.8 (3.95^min, 111.1^P1) fps +18%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	165.2 (3.77^min, 100^P1) fps +11%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	162.3 (5.21^min, 111.1^P1) fps +9%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	148.5 (4.34^min, 100^P1) fps
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	145.3 (6.3^min, 90.9^P1) fps -2%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	115.9 (16.7^min, 71.4^P1) fps -22%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	81.5 (5.18^min, 52.6^P1) fps +119%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	58.3 (7.99^min, 40^P1) fps +57%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	57.9 (5.01^min, 41.7^P1) fps +56%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	50.9 (4.69^min, 34.5^P1) fps +37%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	43.5 (3.49^min, 32.3^P1) fps +17%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	37.2 (6.45^min, 30.3^P1) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	168.1 (143^min) fps +57%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	152.2 (128.4^min) fps +42%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	134.4 (114.9^min) fps +26%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	110.5 (63^min) fps +3%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	107 (68^min) fps
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	94.5 (66.9^min) fps -12%
1920x1080 high (2/3)
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	98.7 (89^min) fps +22%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	87.8 (28.3^min) fps +8%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	84.8 (74.3^min) fps +4%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	81.4 (72.4^min) fps 0%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	81.2 (52.7^min) fps
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	52.3 (25.3^min) fps -36%

Cyberpunk 2077
1920x1080 Low Preset (FSR off)
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	50.4 (42.7^min, 39.1^P1) fps +48%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	38 (33.3^min) fps +12%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	36.5 (31.2^min, 30^P1) fps +7%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	36.4 (31.2^min, 29.7^P1) fps +7%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	36.2 (30.3^min, 28.8^P1) fps +6%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	34 (29.7^min, 28.4^P1) fps
1920x1080 High Preset (FSR off)
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	28.9 (24.2^min, 22^P1) fps +22%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	26 (22.6^min) fps +10%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	25 (21.1^min, 20.3^P1) fps +6%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	23.6 (20^min, 19.3^P1) fps
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	21.7 (18.4^min, 15.1^P1) fps -8%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	20.7 (18^min, 17.3^P1) fps -12%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	82.1 (49^min, 50.9^P0.1, 65.7^P1) fps +67%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	58.6 (36.1^min, 40.9^P0.1, 51.3^P1) fps +19%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	57.6 (31.7^min, 33.6^P0.1, 37.9^P1) fps +17%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	52.9 (43.8^min, 44.6^P0.1, 45.9^P1) fps +7%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	49.3 (29.8^min, 29.9^P0.1, 30^P1) fps
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	47.7 (29.8^min, 29.9^P0.1, 30^P1) fps -3%
1920x1080 High Preset AA:T
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	32.8 (23^min, 23.6^P0.1, 25.6^P1) fps +46%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	25.4 (13.9^min, 14.3^P0.1, 16.3^P1) fps +13%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	24.5 (19.6^min, 20.4^P0.1, 21.7^P1) fps +9%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	22.9 (19.8^min, 19.8^P0.1, 20^P1) fps +2%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	22.5 (15^min, 17.8^P0.1, 20^P1) fps
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	19.9 (17.6^min, 17.7^P0.1, 17.9^P1) fps -12%

F1 24
1920x1080 Low Preset AA:T AF:16x
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	94 (77^min, 60^P1) fps +51%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	84.3 (70^min, 66^P1) fps +36%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	74.3 (65^min, 55^P1) fps +19%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	71.8 (52^min, 35^P1) fps +15%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	67.4 (56^min, 54^P1) fps +8%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	62.2 (53^min, 51^P1) fps
1920x1080 High Preset AA:T AF:16x
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	61.2 (47^min, 33^P1) fps +36%
Geekom GT1 Mega Arc 8-Core, Ultra 9 185H, Crucial P3 Plus CT2000P3PSSD8	54.8 (43^min, 45^P1) fps +22%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	47.1 (39^min, 37^P1) fps +4%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	45.1 (38^min, 36^P1) fps
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	44.9 (28^min, 22^P1) fps 0%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	41.7 (36^min, 33^P1) fps -8%

Grafico FPS - 30 min. Cyberpunk 2077 1920 x 1080, preimpostazione Ultra (FSR disattivato)

Geekom IT13 Max Ultra 9 185H, Arc 8-Core: Ø18 (17.2-18.5) fps

GMK NucBox K17 Core Ultra 5 226V, Arc 130V: Ø16.4 (15.6-17.2) fps

Peladn HO5, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M: Ø23.6 (19.3-24.9) fps

Geekom GT1 Mega Ultra 9 185H, Arc 8-Core: Ø22.1 (18.6-24) fps

GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M: Ø14.2 (12.6-14.4) fps

Alliwava GH8, R9 8945HS R9 8945HS, Radeon 780M: Ø17.5 (16.8-18.9) fps

	basso	medio	alto	ultra
GTA V (2015)	148.5	145.7	37.2	15.5
The Witcher 3 (2015)	148.1	97.1	55.8	29.8
Dota 2 Reborn (2015)	107	93	81.2	76.9
Final Fantasy XV Benchmark (2018)	70.1	41	28.4
X-Plane 11.11 (2018)	49.6	35.1	30.7
Strange Brigade (2018)	151	69.9	59.4	49.9
Baldur's Gate 3 (2023)	33.4	25.9	22.5	21.9
Cyberpunk 2077 (2023)	34	28.1	23.6	21.7
F1 24 (2024)	62.2	57.5	45.1	13.5

Emissioni

Rumore di sistema

Un evidente punto debole del Geekom IT13 Max è il controllo delle ventole. Sebbene il sistema funzioni in modo piacevolmente silenzioso in condizioni di inattività, la ventola accelera notevolmente sotto carico ed emette un rumore di funzionamento chiaramente udibile. A quanto pare, il design più ampio non può essere sfruttato appieno in questo caso per ridurre efficacemente il livello di rumore.

Il controllo delle ventole appare particolarmente carente, poiché Geekom non offre alcuna possibilità di personalizzare la curva di funzionamento delle ventole. Non sono disponibili opzioni di questo tipo né nel BIOS né in Windows. Solo la modalità «Silent Mode» consente una certa riduzione del rumore, ma ciò comporta limiti di potenza notevolmente inferiori e, di conseguenza, prestazioni leggermente ridotte.

Rumorosità

Idle		25.3 / 25.6 / 25.6 dB(A)
Sotto carico		53.3 / 53.5 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R (15 cm di distanza) Rumorosità ambientale: 24.6 dB(A)

	Geekom IT13 Max Ultra 9 185H, Arc 8-Core	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Peladn HO5, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M	Geekom GT1 Mega Ultra 9 185H, Arc 8-Core	GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M	Alliwava GH8, R9 8945HS R9 8945HS, Radeon 780M
Noise		23%	7%	0%	2%	3%
off /ambiente * (dB)	24.6	25.1 -2%	24.9 -1%	24.8 -1%	24.8 -1%	25 -2%
Idle Minimum * (dB)	25.3	25.3 -0%	29.8 -18%	25.4 -0%	31.9 -26%	27.2 -8%
Idle Average * (dB)	25.6	25.4 1%	29.8 -16%	27.2 -6%	31.9 -25%	27.2 -6%
Idle Maximum * (dB)	25.6	26.1 -2%	29.9 -17%	27.5 -7%	31.9 -25%	27.3 -7%
Load Average * (dB)	53.3	27.4 49%	39.3 26%	50.9 5%	41.7 22%	45.5 15%
Witcher 3 ultra * (dB)	47.1	28 41%	35.4 25%		37.8 20%	44.9 5%
Cyberpunk 2077 ultra * (dB)	53.4	29.1 46%	35.3 34%	50.8 5%	39.1 27%	45.5 15%
Load Maximum * (dB)	53.5	28.6 47%	39.5 26%	50.9 5%	40.8 24%	45.4 15%

* ... Meglio usare valori piccoli

Temperatura

Il telaio del Geekom IT13 Max si riscalda solo moderatamente, sia in condizioni di inattività che sotto carico. Una delle ragioni principali di ciò è il suo design, caratterizzato da una gabbia metallica interna che assorbe efficacemente il calore dai componenti, impedendo al contempo il surriscaldamento delle superfici esterne del telaio. Anche sotto carico prolungato, le temperature superficiali rimangono quindi a un livello non critico.

Sebbene l’Intel Core Ultra 9 185H raggiunga temperature elevate durante lo stress test, è in grado di mantenere stabilmente un consumo energetico costante di circa 45 watt per un periodo prolungato. Nel complesso, il sistema di raffreddamento si dimostra adeguatamente dimensionato e l’efficace disaccoppiamento termico dell’hardware dall’involucro esterno è particolarmente degno di nota.

Prestazioni del Geekom IT13 Max durante lo stress test

Geekom IT13 Max durante lo stress test (vista dall’alto)

Geekom IT13 Max durante lo stress test (vista dal basso)

Alimentazione elettrica durante lo stress test

Carico massimo

Idle

Cyberpunk


30.8 °C	31.1 °C	31.3 °C
26.8 °C	28.5 °C	27.5 °C
28 °C	28.4 °C	28.8 °C

Massima: 31.3 °C
Media: 29 °C


32.3 °C	32.5 °C	32.6 °C
31.3 °C	31.7 °C	31.5 °C
31.2 °C	31 °C	31.5 °C

Massima: 32.6 °C
Media: 31.7 °C

Alimentazione (max) 51.8 °C | Temperatura della stanza 22 °C | Fluke t3000FC (calibrated)

Carico massimo

Idle

Cyberpunk


28 °C	27.9 °C	28.8 °C
27.3 °C	28.3 °C	27.7 °C
27.4 °C	28 °C	28 °C

Massima: 28.8 °C
Media: 27.9 °C


29.1 °C	29.3 °C	29.5 °C
28.8 °C	29.2 °C	29.4 °C
28.8 °C	29 °C	29.5 °C

Massima: 29.5 °C
Media: 29.2 °C

Alimentazione (max) 34.2 °C | Temperatura della stanza 22.1 °C | Fluke t3000FC (calibrated)

Carico massimo

Idle

Cyberpunk


30.6 °C	31.1 °C	30.9 °C
27.4 °C	28.6 °C	28.1 °C
28.1 °C	28.6 °C	28.8 °C

Massima: 31.1 °C
Media: 29.1 °C


31.5 °C	31.6 °C	31.6 °C
30.3 °C	30.6 °C	30.7 °C
30.2 °C	30.3 °C	30.6 °C

Massima: 31.6 °C
Media: 30.8 °C

Alimentazione (max) 50.7 °C | Temperatura della stanza 22.2 °C | Fluke t3000FC (calibrated)

(+) La temperatura media del lato superiore sotto carico massimo e' di 29 °C / 84 F, rispetto alla media di 32.1 °C / 90 F per i dispositivi di questa classe Mini PC.
(+) La temperatura massima sul lato superiore è di 31.3 °C / 88 F, rispetto alla media di 35.3 °C / 96 F, che varia da 20.6 a 69.5 °C per questa classe Mini PC.
(+) Il lato inferiore si riscalda fino ad un massimo di 32.6 °C / 91 F, rispetto alla media di 36.1 °C / 97 F
(+) In idle, la temperatura media del lato superiore è di 27.9 °C / 82 F, rispetto alla media deld ispositivo di 32.1 °C / 90 F.
(+) 3: The average temperature for the upper side is 29.1 °C / 84 F, compared to the average of 32.1 °C / 90 F for the class Mini PC.

Gestione energetica

In un confronto diretto, il Geekom IT13 Max non sembra essere particolarmente efficiente dal punto di vista energetico. Anche in stato di inattività, il mini-PC consuma da 11 a 16 watt, il che non è molto efficiente. Sotto carico, il consumo energetico aumenta di conseguenza, pur rimanendo entro un intervallo accettabile per un sistema dotato di un processore Intel Core Ultra 9 185H. In termini di efficienza, l’IT13 Max risulta quindi superato dalle generazioni più recenti di CPU. Per l’alimentazione, Geekom utilizza un alimentatore da 120 watt.

Geekom IT13 Max con alimentatore (19 V; 6,32 A)

Consumo di corrente

Off / Standby	1.1 / 8.8 Watt
Idle	11.8 / 12.2 / 16.1 Watt
Sotto carico	52.9 / 100.1 Watt


Leggenda: min: , med: , max: Metrahit Energy

	Geekom IT13 Max Ultra 9 185H, Arc 8-Core	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Peladn HO5, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M	Geekom GT1 Mega Ultra 9 185H, Arc 8-Core	GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M	Alliwava GH8, R9 8945HS R9 8945HS, Radeon 780M	Media Intel Arc 8-Core iGPU	Media della classe Mini PC
Power Consumption		46%	34%	14%	-8%	14%	25%	5%
Idle Minimum * (Watt)	11.8	4.7 60%	3.2 73%	4.1 65%	12.5 -6%	6.5 45%	5.46 ?(1.8 - 11.8, n=42) 54%	8.61 ?(2.3 - 35.9, n=84, ultimi 2 anni) 27%
Idle Average * (Watt)	12.2	6.1 50%	4.6 62%	6.6 46%	14.4 -18%	8.9 27%	8.65 ?(4.2 - 16, n=42) 29%	10.7 ?(2.59 - 37.1, n=83, ultimi 2 anni) 12%
Idle Maximum * (Watt)	16.1	9.6 40%	6.9 57%	11.3 30%	15.2 6%	10.7 34%	12 ?(4.5 - 49, n=42) 25%	13.3 ?(2.7 - 44.4, n=84, ultimi 2 anni) 17%
Load Average * (Watt)	52.9	32.7 38%	57.3 -8%	65.8 -24%	66.6 -26%	60.3 -14%	53.5 ?(31.3 - 76.2, n=41) -1%	63.3 ?(21.2 - 159.2, n=84, ultimi 2 anni) -20%
Cyberpunk 2077 ultra external monitor * (Watt)	54.4	39.5 27%	59.5 -9%	69.4 -28%	69.9 -28%	68.4 -26%
Load Maximum * (Watt)	100.1	41.3 59%	73.8 26%	104.8 -5%	75.5 25%	82 18%	84.5 ?(60 - 144.9, n=42) 16%	109 ?(27.9 - 423, n=84, ultimi 2 anni) -9%

* ... Meglio usare valori piccoli

Efficienza energetica

Performance rating | Power Consumption

Performance rating - Percent
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	92.5 pt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	85 pt
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	76.5 pt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	67.2 pt
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	60.3 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	56.5 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	323 Points per Watt +52%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	266 Points per Watt +25%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	223 Points per Watt +5%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	213 Points per Watt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	197 Points per Watt -8%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	194.8 Points per Watt -9%
Cinebench R23 Single Power Efficiency - external Monitor
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	85.7 Points per Watt +75%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	66.1 Points per Watt +35%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	63.8 Points per Watt +30%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	56.7 Points per Watt +16%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	48.9 Points per Watt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	39.6 Points per Watt -19%
Cinebench R15 Multi Efficiency (external Monitor)
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	45.2 Points per Watt +51%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	38.3 Points per Watt +28%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	32 Points per Watt +7%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	31.6 Points per Watt +6%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	29.9 Points per Watt
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	29.2 Points per Watt -2%
Cyberpunk 2077 ultra Efficiency
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	0.4152 fps per Watt +25%
Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370, Radeon 890M	0.3966 fps per Watt +20%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	0.3309 fps per Watt
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	0.2558 fps per Watt -23%
Geekom GT1 Mega Intel Core Ultra 9 185H, Arc 8-Core	0.2075 fps per Watt -37%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	0.2031 fps per Watt -39%

Consumo energetico con un monitor esterno

Geekom IT13 Max; Idle 1min (external Monitor): Ø12.3 (11.8-17) Watt

Geekom IT13 Max; 1280x720 Prime95 28.10 and Furmark 1.25: Ø73.9 (52.8-100.1) Watt

Geekom IT13 Max; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø54.4 (53.6-60.7) Watt

Geekom IT13 Max; 3DMark06 Return To Proxycon: Ø52.9 (31.6-57.9) Watt

Consumo energetico con un monitor esterno

Geekom IT13 Max; Prime95 V2810 Stress (external Monitor): Ø71.9 (62.3-99.8) Watt

Geekom IT13 Max; Cinebench R15 Multi (external Monitor): Ø90.8 (83.9-94.5) Watt

Geekom IT13 Max; Cinebench R23 Single (external Monitor): Ø38 (32.3-59.5) Watt

Geekom IT13 Max; Cinebench R23 Multi (external Monitor): Ø78.7 (74.3-94.4) Watt

Geekom IT13 Max; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø55.9 (54.3-64.9) Watt

Valutazione di Notebookcheck

Torniamo al verdetto

Geekom IT13 Max - 08/09/2026 v8
Sebastian Bade

Chassis

80 / 98 → 81%

Connettività

78 / 81 → 96%

Peso

78%

Prestazioni di gioco

50 / 80 → 62%

Prestazioni Applicazioni

84 / 92 → 91%

Workstation

34%

AI Performance

88%

Temperatura

94%

Rumorosità

73%

Media

52%

79%

Mini PC - Media ponderata

CO2 Emissions
No Data

Materials
0%

Packaging
25%

Power Use
52.7%

Repairability
30%

Software Updates
39%

Total Sustainability Score: 24.5%

Possibili alternative a titolo di confronto

Immagine	Modello	Prezzo	Peso	Dimensioni
1. 78.6%	Geekom IT13 Max Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 24 GB Memoria, 500 GB SSD	Amazon: Prezzo di listino: 799€	833 gr	132 x 136 x 50.1 mm
2. 81.9%	GMK NucBox K17 Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memoria, 1024 GB SSD	Amazon: Prezzo di listino: 569€	461 gr	185 x 187 x 44.5 mm
3. 81.2%	Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memoria, 1024 GB SSD	Amazon: Prezzo di listino: 899€	575 gr	129 x 129 x 54 mm
4. 78.8%	Geekom GT1 Mega Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 32 GB Memoria, 2048 GB SSD	Amazon: Prezzo di listino: 1149 EUR	693 gr	132 x 135 x 46.9 mm
5. 75.5%	GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U ⎘ AMD Radeon 680M ⎘ 32 GB Memoria, 1024 GB SSD	Amazon: Prezzo di listino: 469€	637 gr	125 x 132 x 58 mm
6. 75%	Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS ⎘ AMD Radeon 780M ⎘ 32 GB Memoria	Amazon: Prezzo di listino: 769€	516 gr	127 x 130 x 50 mm

Transparency

La selezione dei dispositivi da recensire viene effettuata dalla nostra redazione. Il campione di prova è stato fornito all'autore come prestito dal produttore o dal rivenditore ai fini di questa recensione. L'istituto di credito non ha avuto alcuna influenza su questa recensione, né il produttore ne ha ricevuto una copia prima della pubblicazione. Non vi era alcun obbligo di pubblicare questa recensione. In quanto società mediatica indipendente, Notebookcheck non è soggetta all'autorità di produttori, rivenditori o editori.

Ecco come Notebookcheck esegue i test

Ogni anno, Notebookcheck esamina in modo indipendente centinaia di laptop e smartphone utilizzando procedure standardizzate per garantire che tutti i risultati siano comparabili. Da circa 20 anni sviluppiamo continuamente i nostri metodi di prova e nel frattempo stabiliamo gli standard di settore. Nei nostri laboratori di prova, tecnici ed editori esperti utilizzano apparecchiature di misurazione di alta qualità. Questi test comportano un processo di validazione in più fasi. Il nostro complesso sistema di valutazione si basa su centinaia di misurazioni e parametri di riferimento ben fondati, che mantengono l'obiettività.

Articoli collegati

Show more articles

Add as a preferred source on Google

Editor of the original article: Ninh Ngoc Duy - Translation Sections Manager - 820810 articles published on Notebookcheck since 2008

contact me via: Facebook

> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del mini PC Geekom IT13 Max: conveniente e veloce, ma con un inconveniente

Sebastian Bade, 2026-08-10 (Update: 2026-08-10)

Cinebench 2024 CPU Multi Core in confronto
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Acer Swift Go 16 AI SFG16-61-R5Y5 Ryzen AI 7 350, Radeon 860M	874
Zotac ZBOX Magnus EN374070 i7-13700HX, GeForce RTX 4070 Laptop GPU	875
Lenovo Yoga Pro 7 14APH G8 R7 7840HS, Radeon 780M	880
Geekom IT13 Max Ultra 9 185H, Arc 8-Core	882
Schenker XMG Evo 15 (M24) Ultra 7 155H, Arc 8-Core	882
Geekom A8, R7 8745HS R7 8745HS, Radeon 780M	884
MSI Claw 8 EX AI+ CG3EM Arc G3 Extreme, Arc B390 Panther Lake iGPU	886
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in confronto
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Lenovo ThinkPad T14 G3-21CF004NGE R7 PRO 6850U, Radeon 680M	10275
LG Ultra 17U70N i5-10210U, GeForce GTX 1650 Mobile	10278
GMK NucBox K13 Core Ultra 7 256V, Arc 140V	10298
Geekom IT13 Max Ultra 9 185H, Arc 8-Core	10316
Dell 14 Plus 2-in-1 Ryzen AI 7 350, Radeon 860M	10325
Lenovo ThinkPad T16 Gen 4 21QQS06M00 Ryzen AI 7 PRO 350, Radeon 860M	10353
Asus ProArt PZ14 HT7407 X2E-88-100, X2-90	10376
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
