Recensione breve del Portatile Dell Latitude 14 7414 Rugged Extreme (6200U, HD)

Sascha Mölck (traduzione a cura di G. De Luca), 04/28/2017

Solido come una roccia. Questo robusto Dell da 14" resiste a polvere, liquidi, schizzi e calore. Non solo è bello, ma ha anche hardware potente, molte porte e una lodevole durata.

Dell Latitude 14 7414 Rugged Extreme (Latitude 14 Serie)
Scheda grafica
Intel HD Graphics 520, Core: 300-950 MHz, Single-Channel, 21.20.16.4590
Memoria
8192 MB
, DDR4-2134, Single-Channel, 1/2 slots in uso
Schermo
14 pollici 16:9, 1366x768 pixel 112 PPI, resistente, utilizzabile con penna e dita, Sharp LQ140K1, IPS, lucido: no
Scheda madre
Intel Skylake-U Premium PCH
Harddisk
Liteonit CV3-8D128, 128 GB
, 80 GB libera
Scheda audio
Realtek ALC293 @ Intel Sunrise Point PCH - High Definition Audio Controller
Porte di connessione
1 Express Card 54mm, 2 USB 2.0, 3 USB 3.0 / 3.1, 1 VGA, 1 HDMI, 1 Kensington Lock, 2 Porta Seriale, 1 Porta Docking, Connessioni Audio: Audiokombo, Lettore schede: SD, 1 SmartCard, 1 Lettore impronte digitali, NFC, TPM 2.0
Rete
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Dual Band Wireless-AC 8260 (a/b/g/n/ac), Bluetooth 4.2, Dell Wireless 5808E Gobi LTE, LTE, GPS
Dimensioni
altezza x larghezza x profondità (in mm): 52 x 356 x 247
Batteria
97 Wh ioni di litio, removibile
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Altre caratteristiche
Casse: Stereo, Tastiera: Chiclet, Illuminazione Tastiera: si, MS Office 365 (Trial), 12 Mesi Garanzia, gommato
Peso
3.69 kg, Alimentazione: 372 gr
Prezzo
4100 Euro



Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo ThinkPad T470s-20HGS00V00
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼100% +30%
Acer TravelMate X349-G2
Intel Dual Band Wireless-AC 7265
542 MBit/s ∼85% +10%
Dell Latitude 14 7414 Rugged Extreme
Intel Dual Band Wireless-AC 8260
492 MBit/s ∼77%
iperf3 Client (transmit) TCP 1 m 4M x10
Acer TravelMate X349-G2
Intel Dual Band Wireless-AC 7265
672 MBit/s ∼100% +2%
Dell Latitude 14 7414 Rugged Extreme
Intel Dual Band Wireless-AC 8260
661 MBit/s ∼98%
Lenovo ThinkPad T470s-20HGS00V00
Intel Dual Band Wireless-AC 8265
297 MBit/s ∼44% -55%
458
cd/m²
485
cd/m²
426
cd/m²
475
cd/m²
493
cd/m²
417
cd/m²
488
cd/m²
462
cd/m²
397
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 493 cd/m² Media: 455.7 cd/m² Minimum: 1.8 cd/m²
Distribuzione della luminosità: 81 %
Al centro con la batteria: 493 cd/m²
Contrasto: 930:1 (Nero: 0.53 cd/m²)
ΔE Color 11.08 | - Ø
ΔE Greyscale 11.99 | - Ø
56% sRGB (Argyll) 36% AdobeRGB 1998 (Argyll)
Gamma: 4.03
Dell Latitude 14 7414 Rugged Extreme
IPS, 1366x768, 14
Dell Latitude 14 Rugged 5414
IPS, 1920x1080, 14
Dell Latitude 14 7414 Rugged Extreme
LED, UWVA, 1366x768, 14
Response Times
-16%
Response Time Grey 50% / Grey 80% *
43 (20, 23)
49 (17, 32)
-14%
Response Time Black / White *
27 (17, 10)
36 (14, 22)
-33%
PWM Frequency
200 (20)
198 (90)
-1%
Screen
10%
-2%
Brightness
456
1067
134%
482
6%
Brightness Distribution
81
86
6%
83
2%
Black Level *
0.53
1.08
-104%
0.61
-15%
Contrast
930
1067
15%
867
-7%
Colorchecker DeltaE2000 *
11.08
10.04
9%
10.64
4%
Greyscale DeltaE2000 *
11.99
10.47
13%
11.79
2%
Gamma
4.03 60%
2.42 99%
2.73 88%
CCT
10872 60%
5576 117%
6893 94%
Color Space (Percent of AdobeRGB 1998)
36
35
-3%
34.85
-3%
Color Space (Percent of sRGB)
56
63
13%
Media totale (Programma / Settaggio)
-3% / 3%
-2% / -2%

* ... Meglio usare valori piccoli

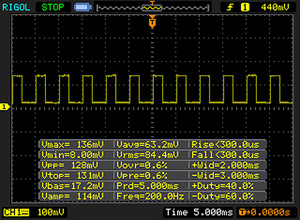

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 200 Hz20 % brightness setting

The display backlight flickers at 200 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 57 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 6262 (minimum: 43 - maximum: 142900) Hz was measured.

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
27 ms ... rise ↗ and fall ↘ combined↗ 17 ms Incremento
↘ 10 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 52 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.7 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
43 ms ... rise ↗ and fall ↘ combined↗ 20 ms Incremento
↘ 23 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 58 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (42.8 ms).
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R10 Rendering Single 32Bit
4715
Cinebench R10 Rendering Multiple CPUs 32Bit
10575
Cinebench R10 Shading 32Bit
7696
Cinebench R15 CPU Single 64Bit
111 Points
Cinebench R15 CPU Multi 64Bit
310 Points
Cinebench R15 OpenGL 64Bit
39.69 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Aiuto
Cinebench R15
CPU Single 64Bit
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
125 Points ∼64% +13%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
111 Points ∼57%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-4300U
108 Points ∼55% -3%
CPU Multi 64Bit
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
310 Points ∼14%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
308 Points ∼14% -1%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-4300U
252 Points ∼12% -19%
Cinebench R10
Rendering Single 32Bit
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
4728 Points ∼53% 0%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
4715 Points ∼53%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-4300U
4083 Points ∼46% -13%
Rendering Multiple CPUs 32Bit
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
10575 Points ∼21%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
10571 Points ∼21% 0%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-4300U
8601 Points ∼17% -19%
Geekbench 3
32 Bit Multi-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
6196 Points ∼20%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
6093 Points ∼20% -2%
32 Bit Single-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
2853 Points ∼61%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
2758 Points ∼59% -3%
Geekbench 4.0
64 Bit Multi-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
6756 Points ∼25%
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
6614 Points ∼24% -2%
64 Bit Single-Core Score
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
3547 Points ∼63% 0%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
3532 Points ∼63%
Geekbench 4.1
64 Bit Multi-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
7043 Points ∼38%
64 Bit Single-Core Score
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
3652 Points ∼75%
JetStream 1.1 - 1.1 Total Score
Dell Latitude 14 Rugged 5414
Intel Core i5-6300U
207.07 Points ∼62% 0%
Dell Latitude 14 7414 Rugged Extreme
Intel Core i5-6300U
206.94 Points ∼62%
PCMark 8 Home Score Accelerated v2
3655 punti
Aiuto
PCMark 8 - Home Score Accelerated v2
Dell Latitude 14 7414 Rugged Extreme
HD Graphics 520, 6300U, Liteonit CV3-8D128
3655 Points ∼61%
Dell Latitude 14 Rugged 5414
Radeon R7 M360, 6300U, Liteonit CV3-8D128
3507 Points ∼59% -4%
Dell Latitude 14 7414 Rugged Extreme
HD Graphics 4400, 4300U, Liteon IT LCS-256L9S-11
2688 Points ∼45% -26%
Liteonit CV3-8D128
Sequential Read: 474.3 MB/s
Sequential Write: 207.4 MB/s
512K Read: 265.2 MB/s
512K Write: 167.2 MB/s
4K Read: 26.98 MB/s
4K Write: 60.07 MB/s
4K QD32 Read: 304.5 MB/s
4K QD32 Write: 176.1 MB/s
Dell Latitude 14 7414 Rugged Extreme
Liteonit CV3-8D128
Dell Latitude 14 Rugged 5414
Liteonit CV3-8D128
Dell Latitude 14 7414 Rugged Extreme
Liteon IT LCS-256L9S-11
CrystalDiskMark 3.0
11%
62%
Write 4k QD32
176.1
158.2
-10%
328.9
87%
Read 4k QD32
304.5
267.8
-12%
329.5
8%
Write 4k
60.07
62.52
4%
95.04
58%
Read 4k
26.98
27.72
3%
35.85
33%
Write 512
167.2
185.8
11%
423.3
153%
Read 512
265.2
351
32%
385.1
45%
Write Seq
207.4
316.7
53%
419.9
102%
Read Seq
474.3
487.7
3%
504.4
6%
3DMark 11 Performance
1502 punti
Aiuto
3DMark 11 - 1280x720 Performance GPU
Dell Latitude 14 Rugged 5414
AMD Radeon R7 M360, Intel Core i5-6300U
2029 Points ∼4% +48%
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
1481 Points ∼3% +8%
Acer TravelMate P449-M-7407
Intel HD Graphics 520, Intel Core i7-6500U
1410 Points ∼3% +3%
Dell Latitude 14 7414 Rugged Extreme
Intel HD Graphics 520, Intel Core i5-6300U
1369 Points ∼3%
basso medio alto ultra
BioShock Infinite (2013) 46.825.921.5fps

Rumorosità

Idle
30.2 / 30.2 / 30.2 dB(A)
Sotto carico
30.2 / 31.7 dB(A)



30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm di distanza)   Rumorosità ambientale: 30.2 dB(A)
Carico massimo
 30.2 °C28.1 °C25.2 °C
 26.5 °C27.6 °C25.3 °C
 25.2 °C25.5 °C24.1 °C
Massima: 30.2 °C
Media: 26.4 °C
25.8 °C30 °C29.1 °C
25.4 °C28.7 °C28 °C
24.4 °C24.6 °C25.1 °C
Massima: 30 °C
Media: 26.8 °C
Alimentazione (max)  45.5 °C | Temperatura della stanza 20.2 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2042.736.742.72540.933.740.9313931.1394039.231.139.25041.629.941.66342.432.142.48043.129.843.110044.529.444.512546.925.246.916048.425.248.420049.924.949.925054.423.254.43155622.55640057.921.257.950060.820.760.863066.119.666.180069.719.269.7100070.918.470.9125069.517.969.5160069.917.669.920007116.971250068.116.968.1315067.817.167.8400066.416.966.4500065.916.765.9630068.916.868.9800063.516.663.51000059.716.659.71250064.516.464.51600062.616.462.6SPL80.130.280.1N47.71.447.7median 64.5Dell Latitude 14 7414 Rugged Extrememedian 17.9median 64.5Delta6.13.26.135.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
Dell Latitude 14 7414 Rugged Extreme audio analysis

(-) | not very loud speakers (71 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.6% lower than median
(+) | bass is linear (4.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5% higher than median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14% difference to median)
Compared to same class
» 13% of all tested devices in this class were better, 6% similar, 81% worse
» The best had a delta of 11%, average was 20%, worst was 48%
Compared to all devices tested
» 14% of all tested devices were better, 3% similar, 83% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 2% similar, 97% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 22%, worst was 53%

Consumo di corrente
Off / Standbydarklight 0.44 / 0.84 Watt
Idledarkmidlight 6.8 / 13.4 / 16.8 Watt
Sotto carico midlight 35.2 / 36.3 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Autonomia della batteria
Navigazione WiFi v1.3 (Edge 40)
10ore 28minuti
Battery Runtime - WiFi Websurfing 1.3
Dell Latitude 14 7414 Rugged Extreme
6300U, HD Graphics 520, 97 Wh
628 min ∼52%
Dell Latitude 14 Rugged 5414
6300U, Radeon R7 M360, 97 Wh
553 min ∼46% -12%

Pro

+ Case robusto
+ Certificazioni
+ Schermo IPS
+ Configurazione personale
+ Silenzioso
+ Si scalda poco
+ Opzioni Upgrade
+ Manutenzione
+ Autonomia molto buona
+ Tastiera buona

Contro

- Peso
- Prezzo
The Dell Latitude 14 7414 Rugged Extreme, supplied by Dell Germany.
The Dell Latitude 14 7414 Rugged Extreme, supplied by Dell Germany.

Il Dell Latitude 14 7414 Rugged Extreme è un portatile da 14" per situazioni estreme. L'interno è protetto da polvere, liquidi, schizzi e calore. Rispetto al predecessore non è cambiato nulla all'esterno. I miglioramenti sono solo dentro. Haswell fa spazio alla Skylake, che migliora la potenza di calcolo dei nuovi modelli. Nonostante questo incremento di prestazioni, non si notano peggioramenti di temperature o di rumore. Il Latitude resta silenzioso e fresco tutto il tempo. Inoltre l'autonomia è molto buona.

Il Latitude 14 7414 è attrezzato per situazioni estreme.

Un solid-state drive consente un sistema scattante. Potete senza sforzi cambiare l'SSD. Già conosciamo la retroilluminazione della tastiera del predecessore. L'esperienza di digitazione è comoda. Il display resta lo stesso modello con identiche luminosità, contrasto elevato e angoli di visuale buoni che abbiamo visto sul predecessore Haswell. Dell limita un po' l'upgrade in termini di selezione delle porte. Non sono offerte nemmeno come opzione Thunderbolt 3, DisplayPort o USB Type-C.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Dell Latitude 14 7414 Rugged Extreme - 04/20/2017 v6
Sascha Mölck

Chassis
91 / 98 → 92%
Tastiera
91%
Dispositivo di puntamento
76%
Connettività
67 / 80 → 84%
Peso
52 / 67 → 68%
Batteria
93%
Display
83%
Prestazioni di gioco
55 / 68 → 81%
Prestazioni Applicazioni
83 / 92 → 91%
Temperatura
96%
Rumorosità
95%
Audio
75%
Fotocamera
42 / 85 → 50%
Media
77%
87%
Office - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del Portatile Dell Latitude 14 7414 Rugged Extreme (6200U, HD)
Sascha Mölck, 2017-04-28 (Update: 2017-04-28)
