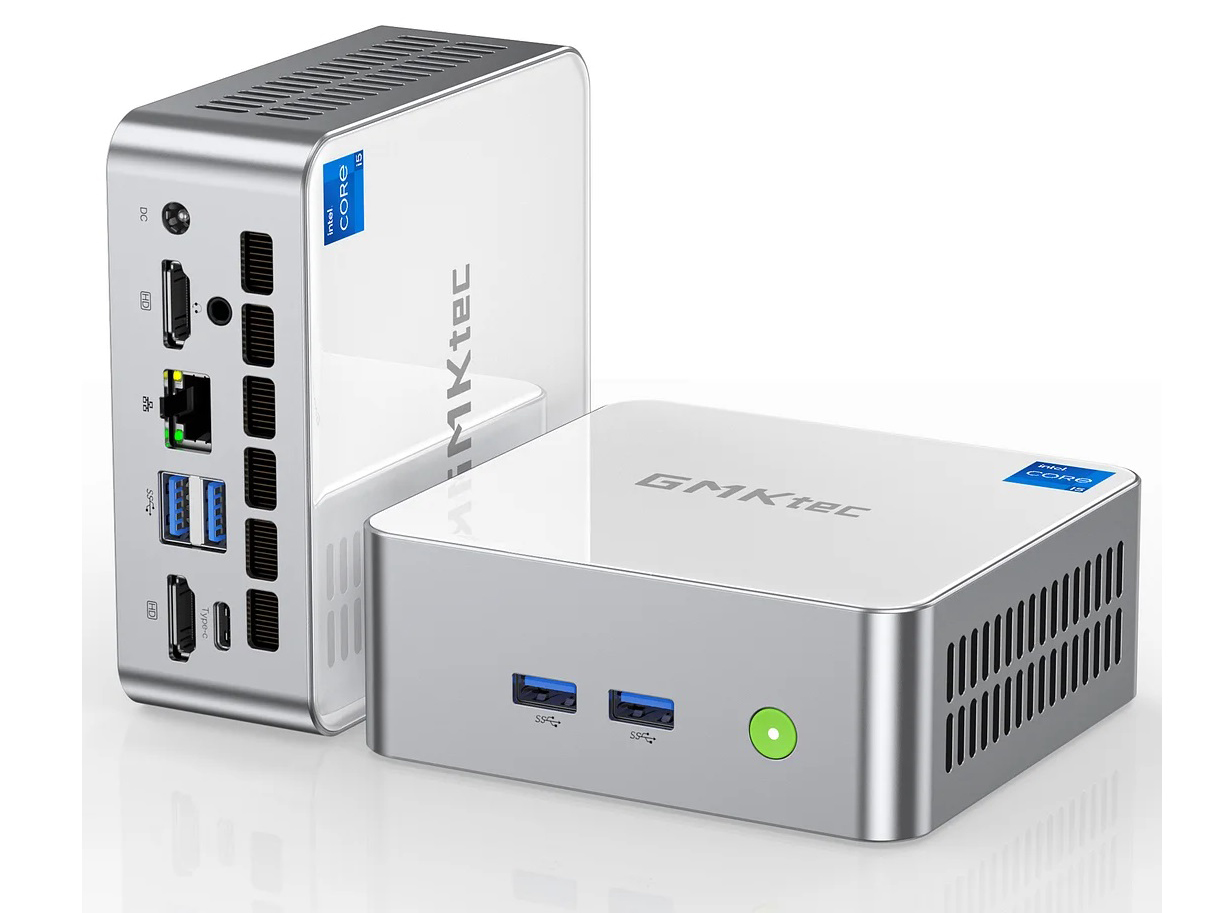

Recensione del mini PC GMKtec NucBox M3: Il Core i5-12450H consuma troppo

La NucBox M3 succede alla NucBox M2 dello scorso anno, sostituendo la CPU Intel Core H di 11esima generazione Tiger Lake con opzioni Alder Lake di 12esima generazione, oltre a un design del telaio leggermente rivisto. La nostra specifica unità di recensione è configurata con il Core i5-12450H, 32 GB di RAM e 1 TB di SSD per circa 480 dollari, ma le opzioni barebone partono da soli 370 dollari.

Le alternative a NucBox M3 includono altri mini PC orientati al budget, come il modello Beelink SER5, Geekom A5oBMAX B7.

Altre recensioni di GMK:

Punteggio	Data	Modello	Peso	Altezza	Risoluzione
78.7 %	11/2023	GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs	440 gr	42.4 mm	x
82.8 %		GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 gr	43.2 mm	x
82.1 %	11/2023	Beelink SER5 R5 5560U, Vega 6	439 gr	42 mm	x
73.1 %		Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N)	335 gr	39.1 mm	x
81.2 %	10/2023	Geekom A5 R7 5800H, Vega 8	555 gr	49.2 mm	x
80.8 %	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 gr	37 mm	x

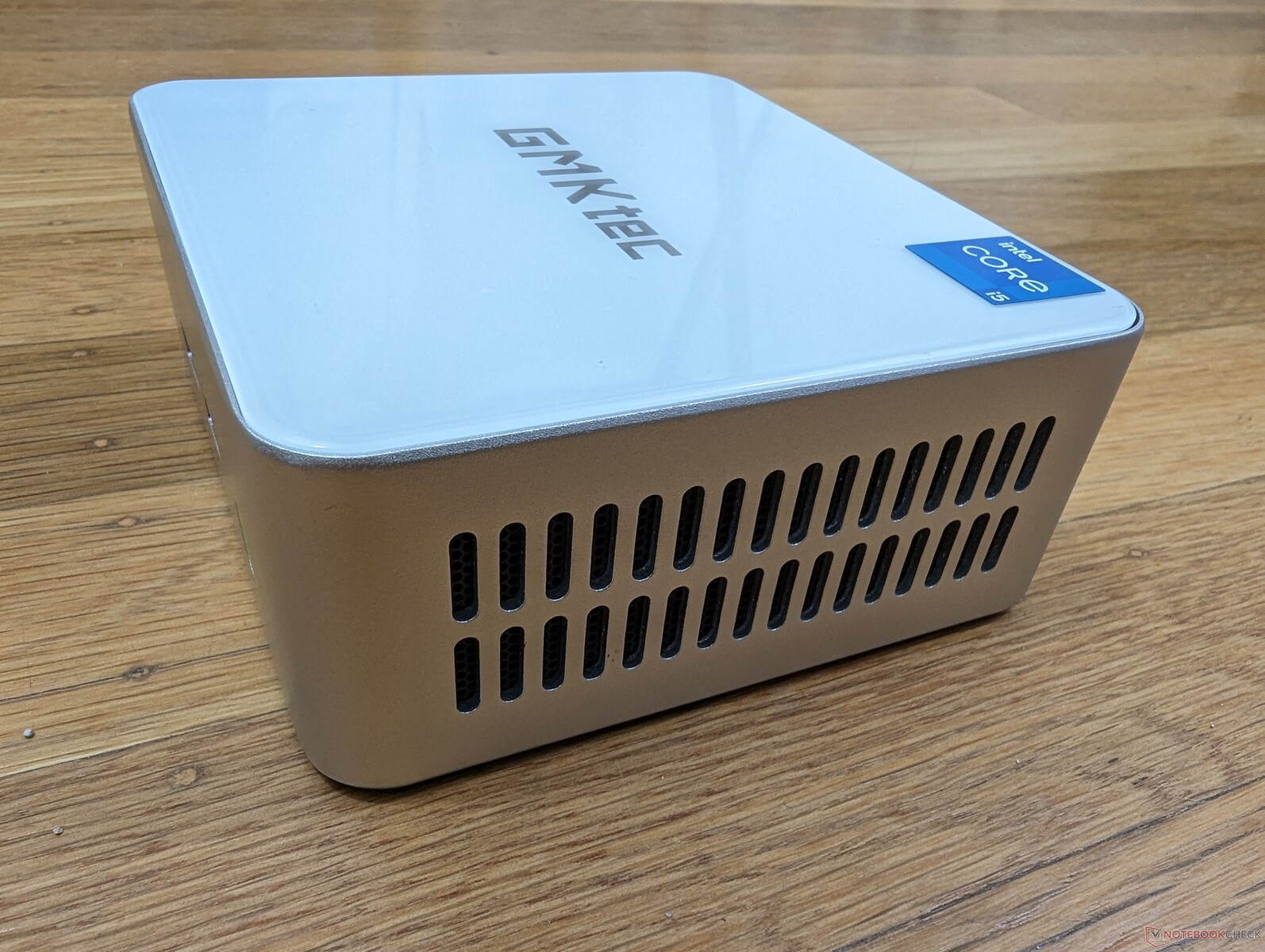

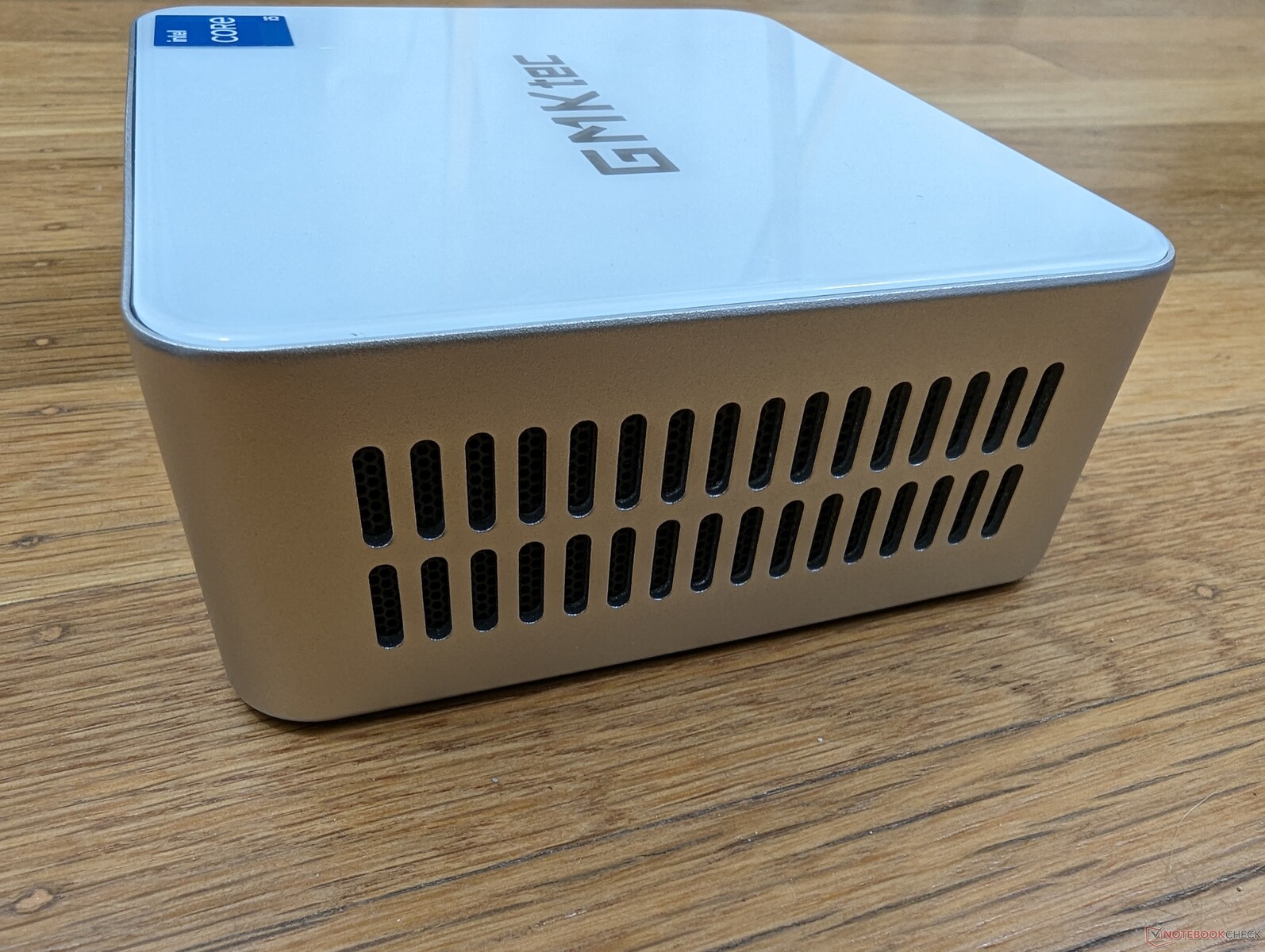

Caso

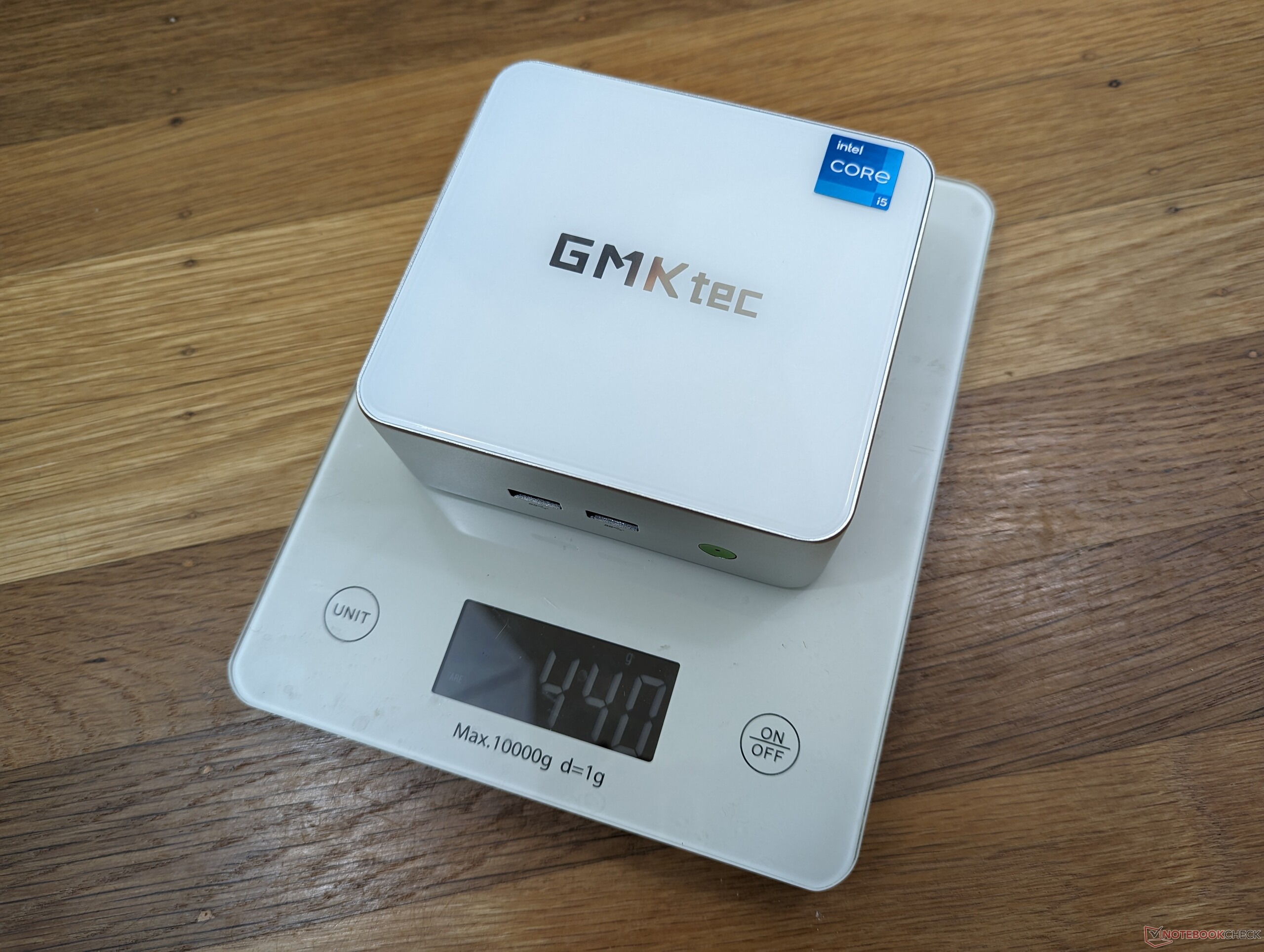

NucBox M3 è più piccolo di NucBox K3 Pro, pur essendo più pesante per una sensazione di maggiore densità. Il telaio è composto da metallo per i lati e da plastica per la parte superiore e inferiore. Sebbene la qualità costruttiva sia solida e senza difetti evidenti sulla nostra unità, la parte superiore e inferiore in plastica fanno sembrare il sistema economico rispetto alla serie NUC di Intel Serie NUC di Intel.

Il coperchio superiore purtroppo non è rimovibile

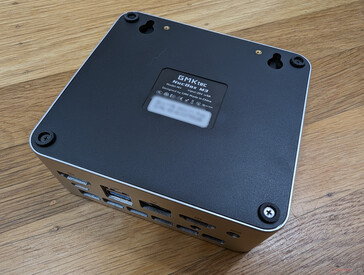

Il lato inferiore mostra i piedini in gomma e i fori per il montaggio VESA opzionale

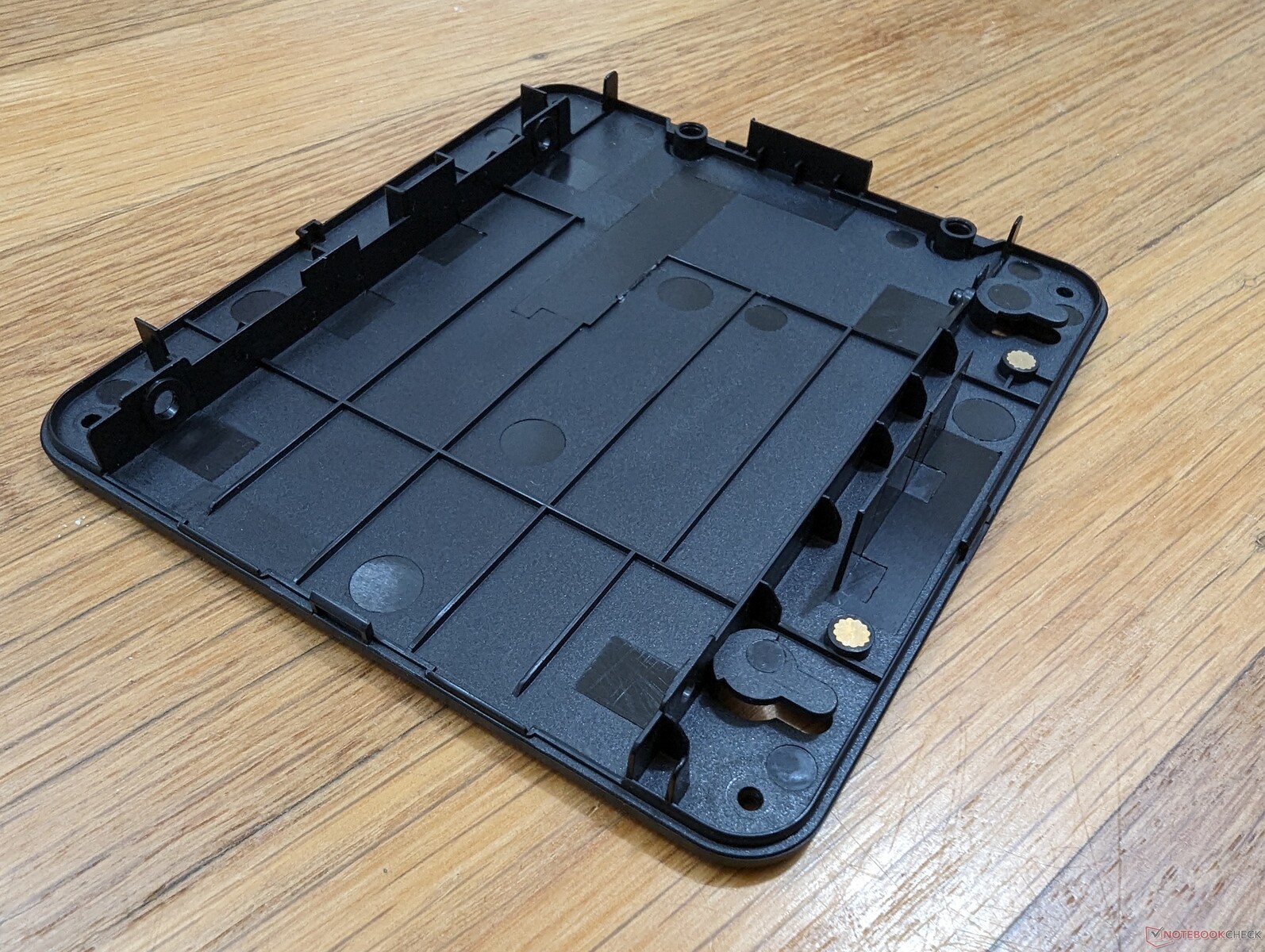

Il lato inferiore della piastra inferiore in plastica

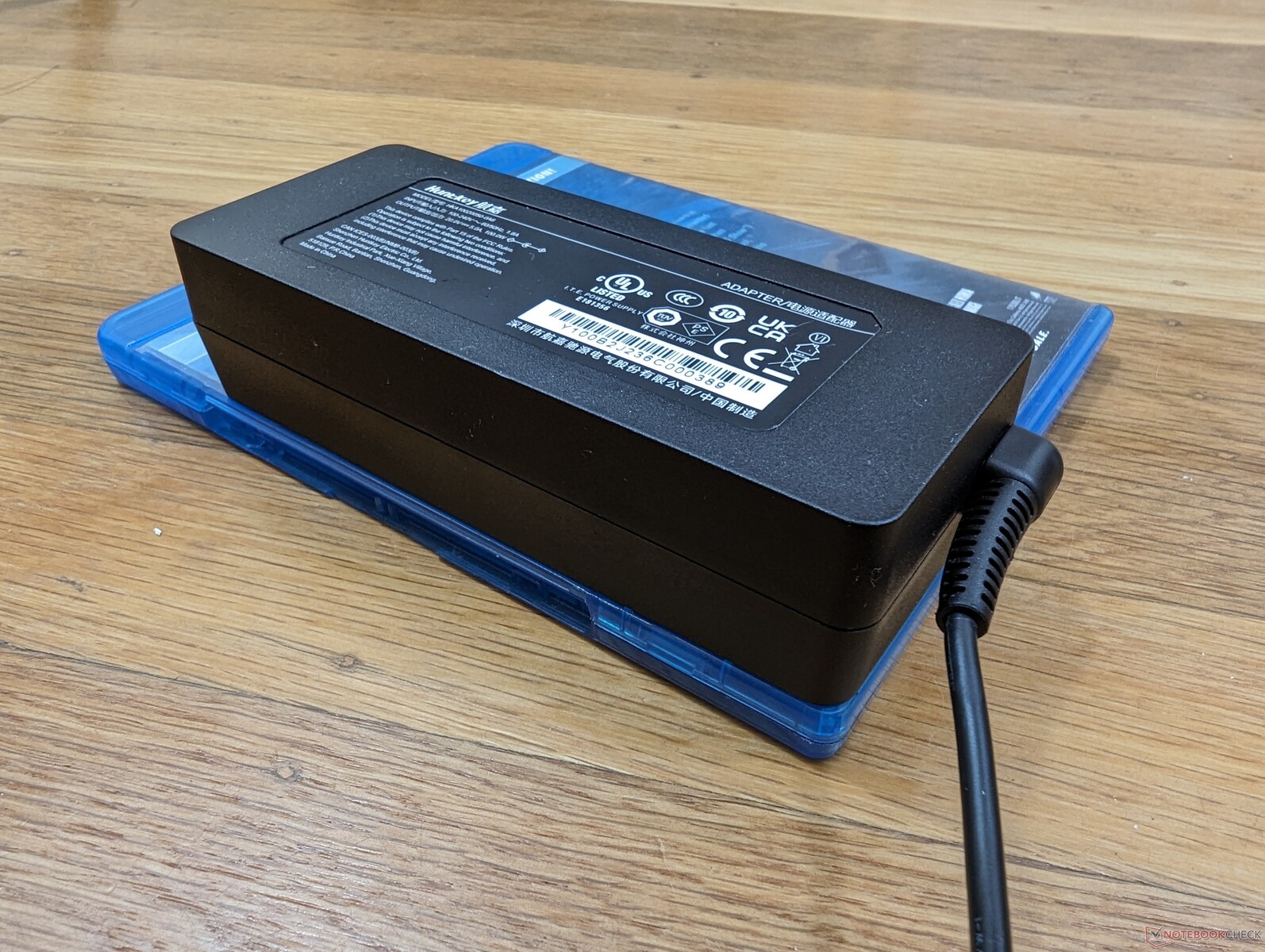

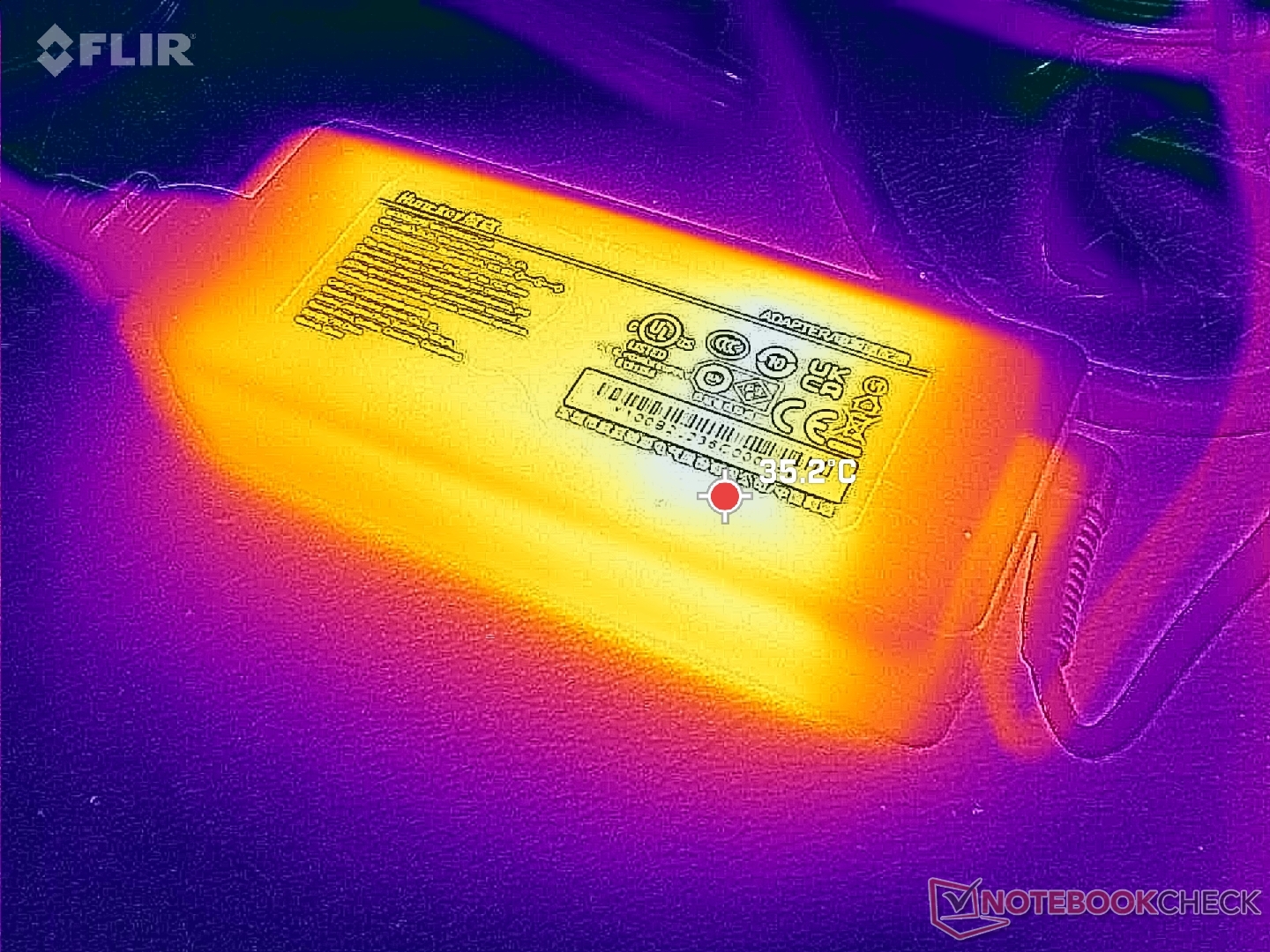

Piccolo-medio (13 x 5,2 x 3,3 cm) Adattatore CA da 100 W

Confronto delle dimensioni

Connettività

Mentre le opzioni di porta sono decenti, la singola porta USB-C sembra avere problemi di uscita video. Il produttore pubblicizza la compatibilità con USB-C DisplayPort, ma nessuno dei nostri monitor esterni USB-C ha funzionato. Anche Thunderbolt non è supportato, probabilmente per risparmiare sui costi.

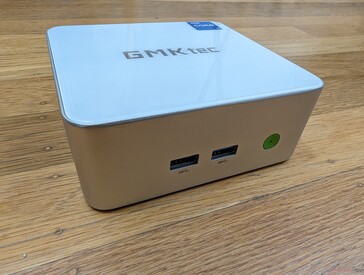

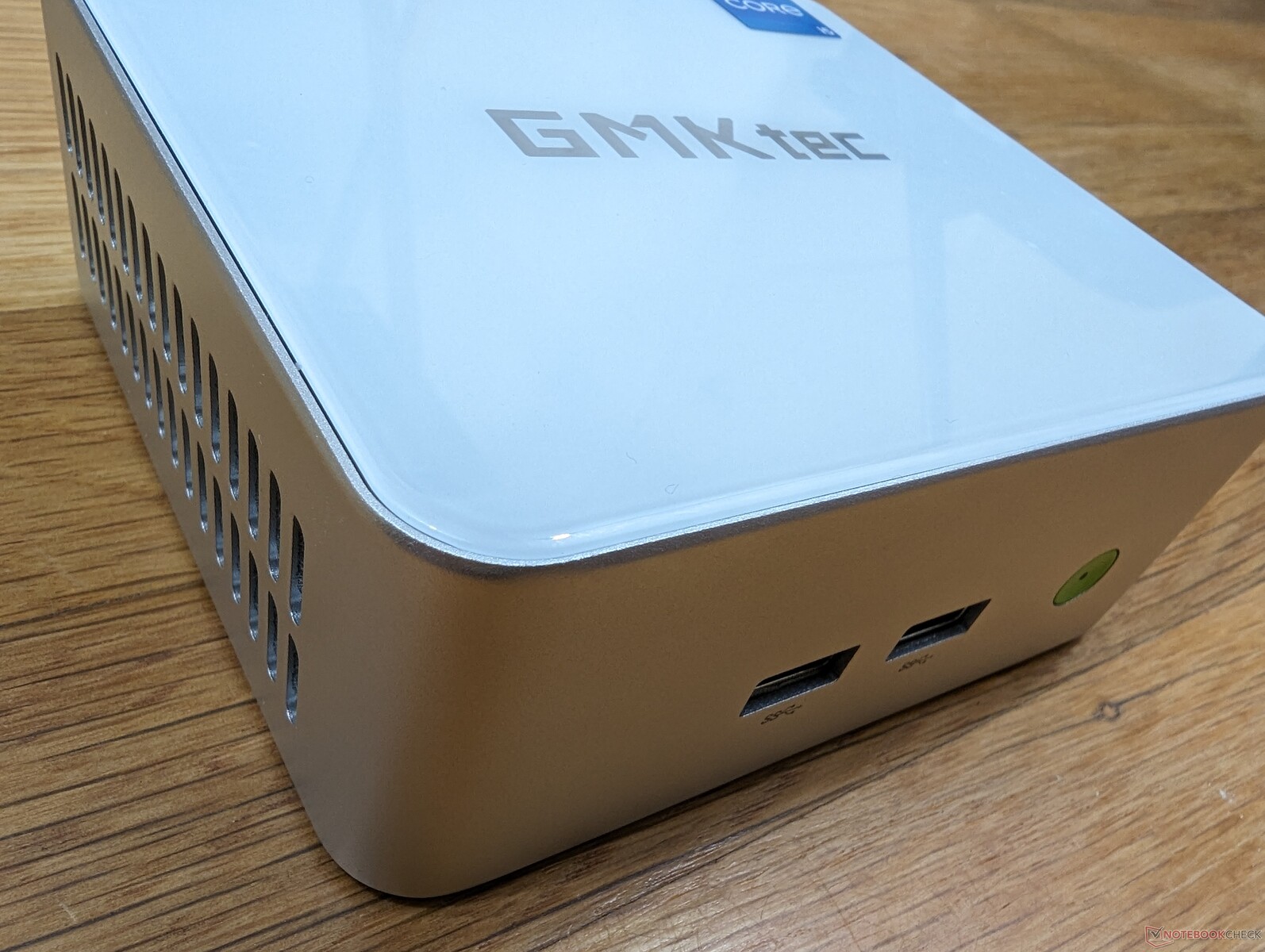

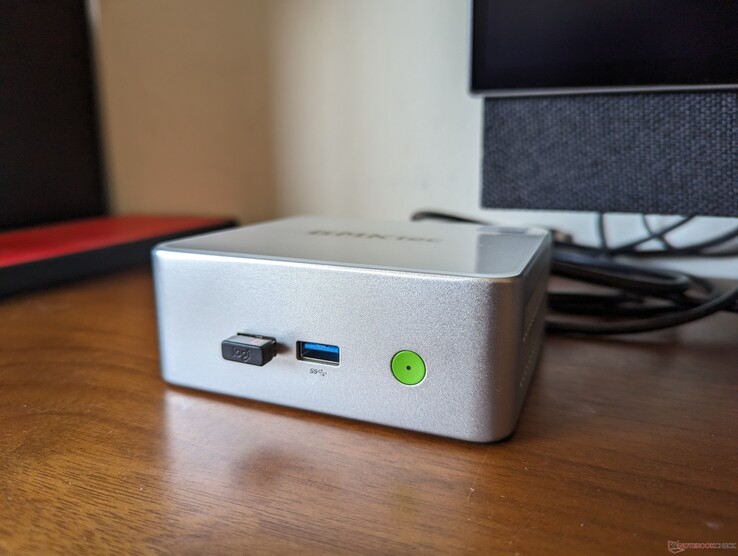

Parte anteriore: 2x USB-A 3.2, pulsante di alimentazione

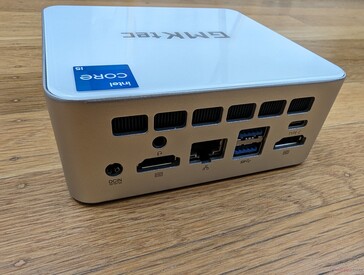

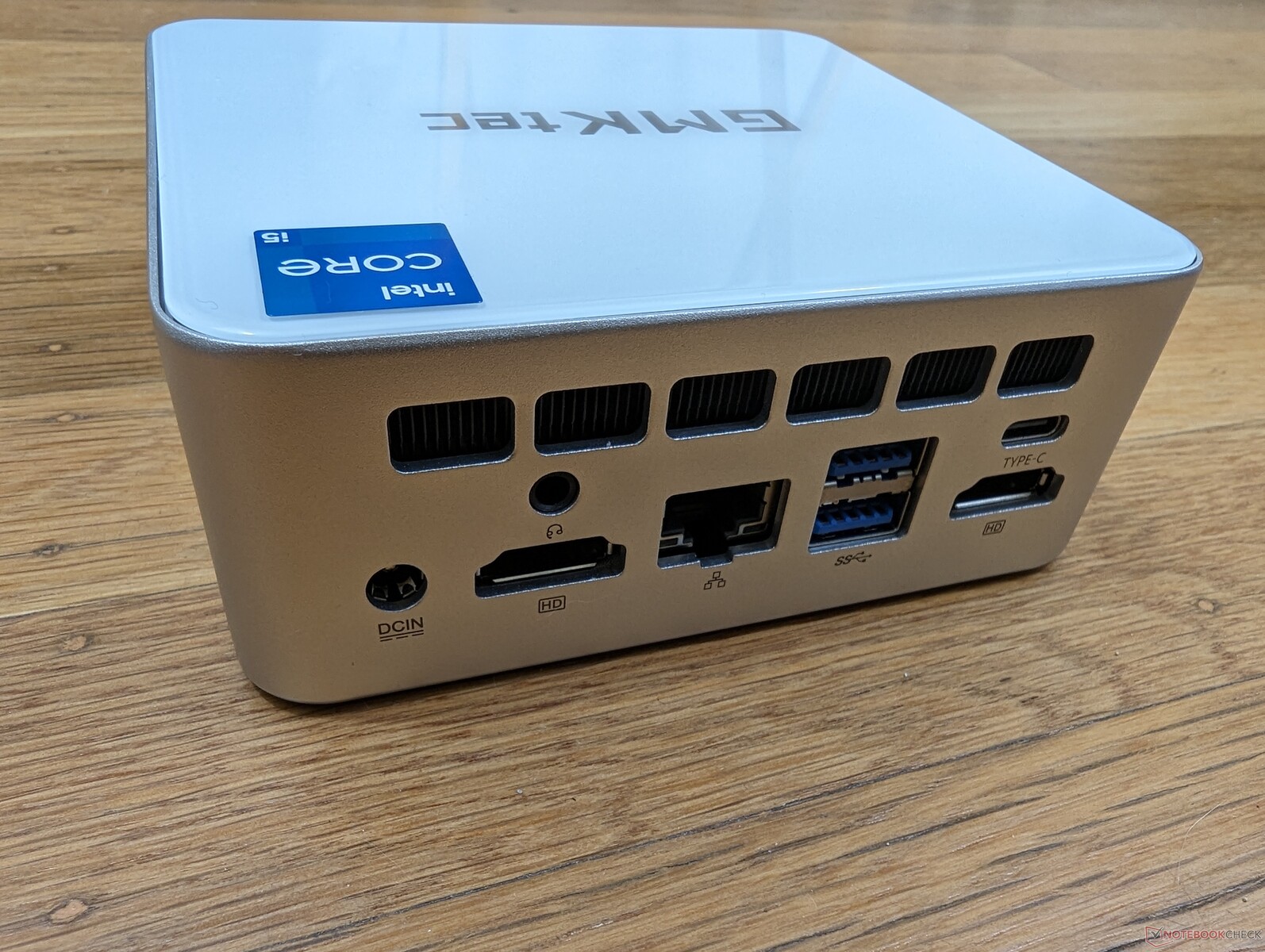

Posteriore: Adattatore AC, cuffie da 3,5 mm, 2x HDMI 2.0 (4K60), Gigabit RJ-45, USB-A 2.0, USB-A 3.2, USB-C (no PD)

Comunicazione

Il modello viene fornito senza supporto Wi-Fi 6E, probabilmente per risparmiare sui costi. La connettività Wi-Fi 6 è invece stabile e affidabile.

Networking
iperf3 transmit AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1278 (649^min - 1345^max) MBit/s +49%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s +36%
GMK NucBox M3 Realtek RTL8852BE	859 (773^min - 924^max) MBit/s
Geekom A5 Realtek RTL8852BE	834 (730^min - 861^max) MBit/s -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -3%
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	438 (376^min - 489^max) MBit/s -49%
iperf3 receive AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1411 (1230^min - 1580^max) MBit/s +64%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s +51%
Geekom A5 Realtek RTL8852BE	946 (856^min - 970^max) MBit/s +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +9%
GMK NucBox M3 Realtek RTL8852BE	860 (789^min - 895^max) MBit/s
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	470 (445^min - 491^max) MBit/s -45%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s

GMK NucBox M3; iperf3 transmit AXE11000; iperf 3.1.3: Ø859 (773-924)

GMK NucBox M3; iperf3 receive AXE11000; iperf 3.1.3: Ø860 (789-895)

Manutenzione

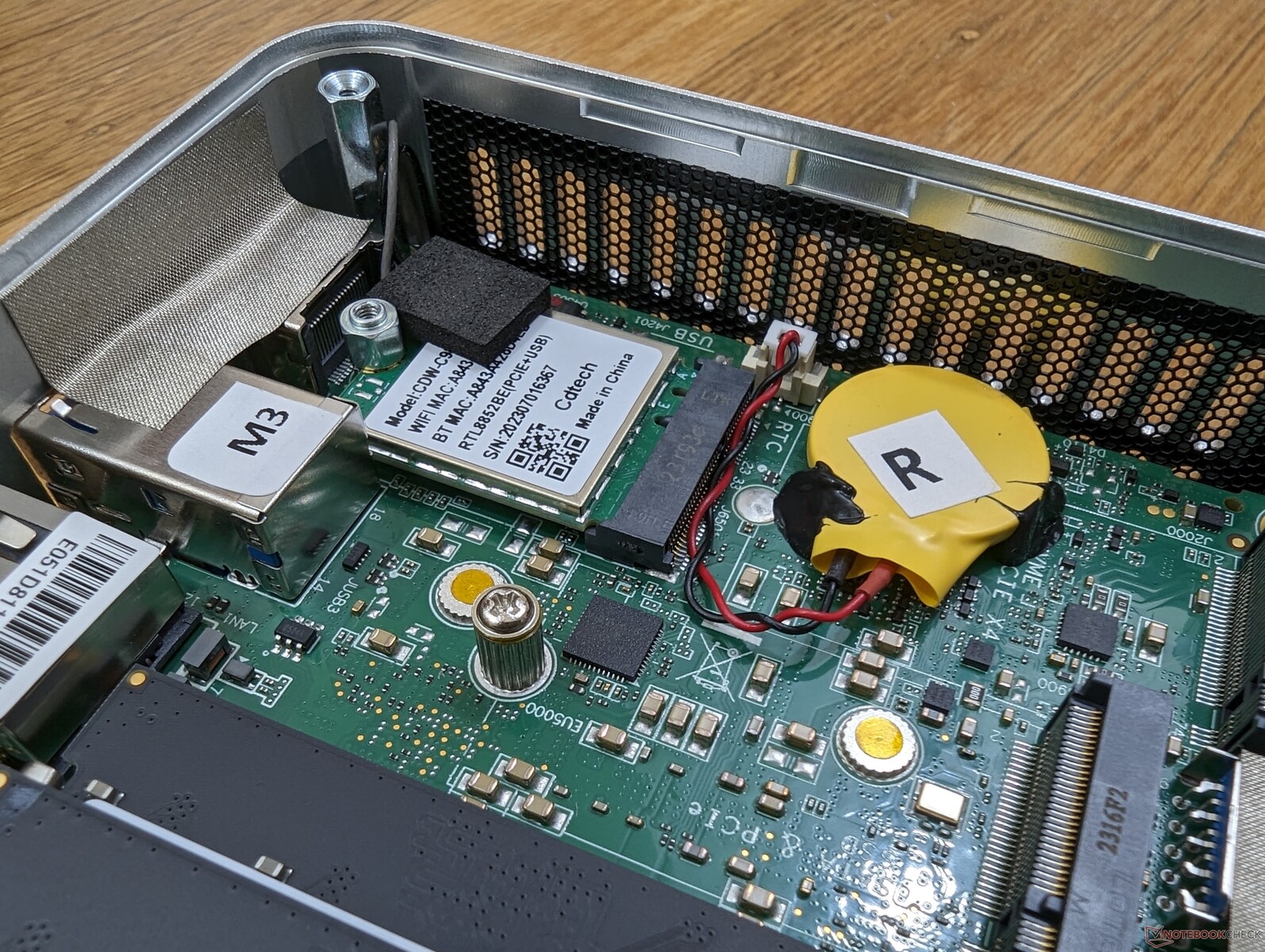

Il pannello inferiore è fissato da quattro viti Phillips per facilitare la manutenzione.

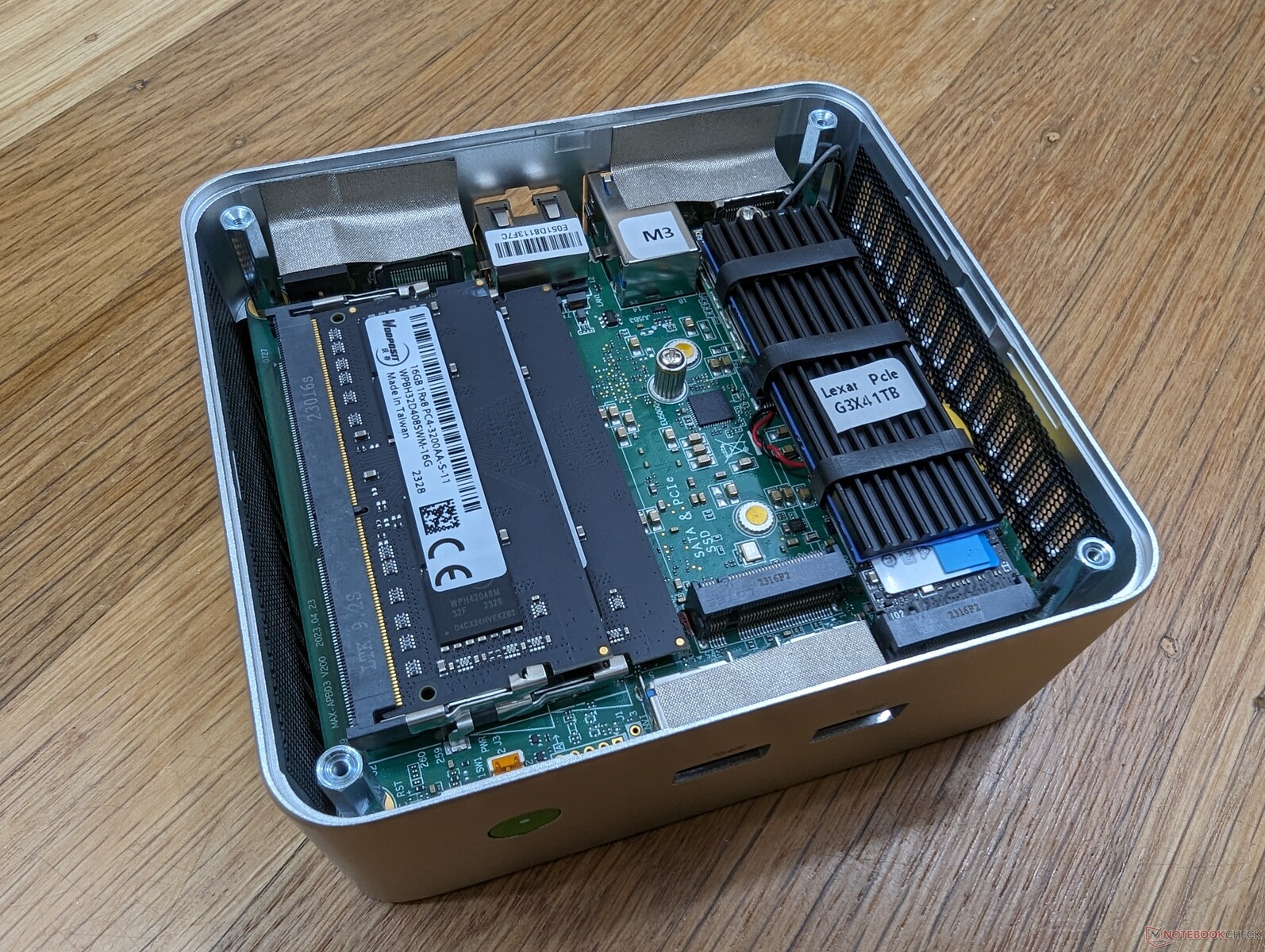

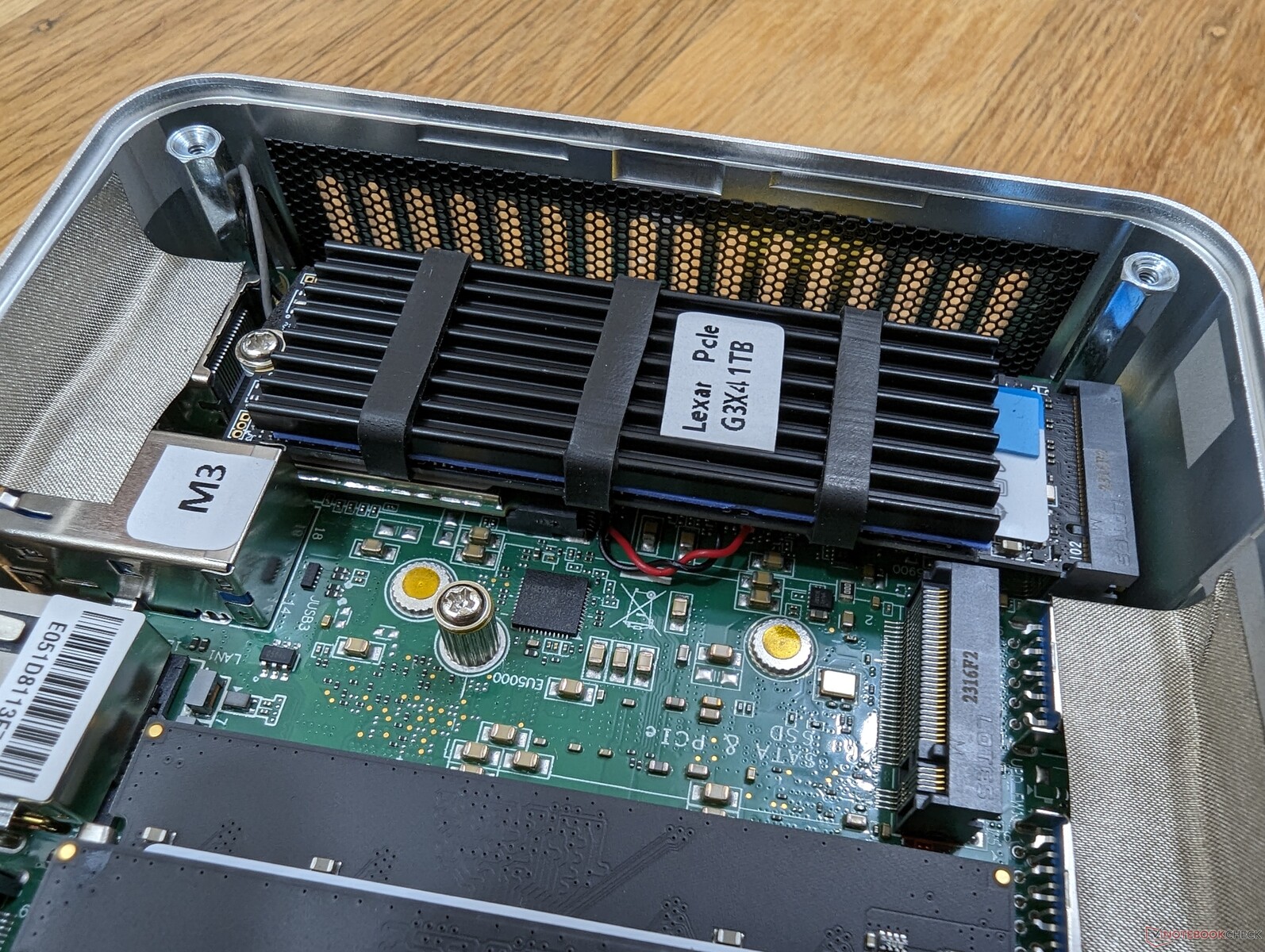

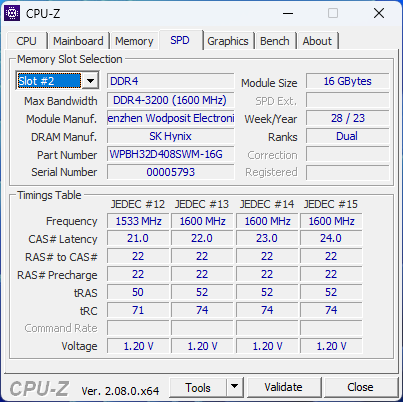

Accesso facile a 2x slot SODIMM, 1x slot SSD M.2 2280 e 1x slot SSD M.2 2242

Accessori e garanzia

La confezione di vendita include un cavo HDMI, un adattatore CA, la documentazione e un supporto VESA con viti. Se acquistato negli Stati Uniti, si applica la consueta garanzia limitata di un anno del produttore.

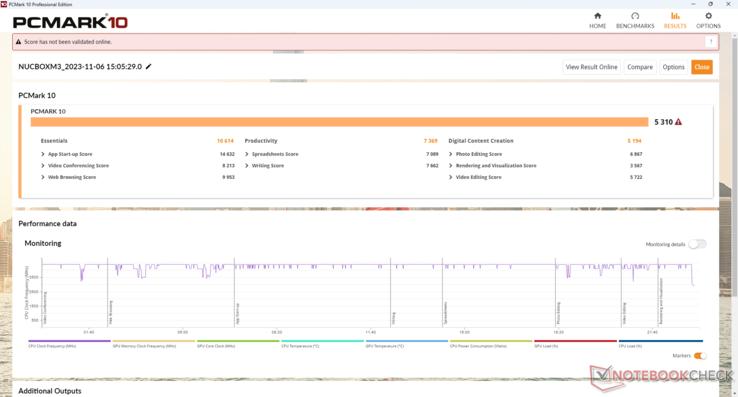

Prestazioni

Condizioni del test

Abbiamo impostato Windows in modalità Prestazioni prima di eseguire i benchmark qui sotto. Il produttore non installa alcun software specializzato per attivare le funzioni specifiche del modello.

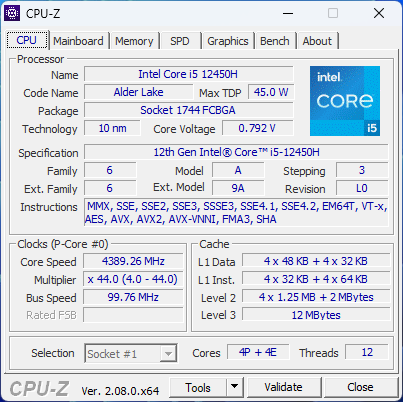

Processore

Le prestazioni multi-thread del nostro Core i5-12450H è di circa il 25-30% più lenta rispetto a quella del Core i7-12650H come si trova nella NucBox K3 Pro. Il deficit è sufficiente per mettere la nostra CPU testa a testa con il Ryzen 5 5560U che è un'alternativa meno costosa e più efficiente dal punto di vista energetico. Il Core i5-12450H eccelle invece nelle prestazioni a thread singolo, dove si trova a distanza ravvicinata con il Core i7-13700H.

Cinebench R15 Multi Loop

GMK NucBox M3 Intel Core i5-12450H: Ø1118 (1101.32-1149.92)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Beelink SER5 AMD Ryzen 5 5560U: Ø1274 (1263.74-1280.29)

Beelink Mini S12 Pro Intel Processor N100: Ø461 (458.73-467.21)

Geekom A5 AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Dell OptiPlex Micro Intel Core i7-13700	90.6 pt
Beelink SER7 AMD Ryzen 7 7840HS	83.5 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	77.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	73.8 pt
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	73 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	69.1 pt
GMK NucBox K3 Pro Intel Core i7-12650H	67.7 pt
Geekom AS 5 AMD Ryzen 9 5900HX	66 pt
Geekom A5 AMD Ryzen 7 5800H	62.5 pt
Media Intel Core i5-12450H	58.9 pt
GMK NucBox M3 Intel Core i5-12450H	57.4 pt
LG Gram 15Z90Q Intel Core i5-1240P	53.8 pt
Beelink SER5 AMD Ryzen 5 5560U	50.5 pt
BMAX B7 Power G7A2 Intel Core i7-11390H	44.6 pt
Beelink Mini S12 Pro Intel Processor N100	25.5 pt

Cinebench R23 / Multi Core
Dell OptiPlex Micro Intel Core i7-13700	21013 (16514.7^min - 21012.7^max) Points +174%
Beelink SER7 AMD Ryzen 7 7840HS	16105 (15785.6^min - 16105.2^max) Points +110%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points +89%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	14023 Points +83%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points +65%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	12486 Points +63%
Geekom AS 5 AMD Ryzen 9 5900HX	11662 Points +52%
Geekom A5 AMD Ryzen 7 5800H	10819 Points +41%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points +40%
Media Intel Core i5-12450H (7662 - 10610, n=5)	8809 Points +15%
LG Gram 15Z90Q Intel Core i5-1240P	8337 Points +9%
Beelink SER5 AMD Ryzen 5 5560U	7667 (7546.82^min - 7667.18^max) Points 0%
GMK NucBox M3 Intel Core i5-12450H	7662 (7500.47^min - 7661.93^max) Points
BMAX B7 Power G7A2 Intel Core i7-11390H	4570 Points -40%
Beelink Mini S12 Pro Intel Processor N100	2916 (2877.53^min - 2916.35^max) Points -62%

Cinebench R23 / Single Core
Dell OptiPlex Micro Intel Core i7-13700	1997 Points +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +12%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +6%
Beelink SER7 AMD Ryzen 7 7840HS	1774 Points +5%
GMK NucBox M3 Intel Core i5-12450H	1688 Points
Media Intel Core i5-12450H (1652 - 1688, n=5)	1666 Points -1%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	1570 Points -7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1550 Points -8%
LG Gram 15Z90Q Intel Core i5-1240P	1501 Points -11%
Geekom AS 5 AMD Ryzen 9 5900HX	1490 Points -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	1407 Points -17%
Geekom A5 AMD Ryzen 7 5800H	1405 Points -17%
Beelink SER5 AMD Ryzen 5 5560U	1260 Points -25%
Beelink Mini S12 Pro Intel Processor N100	931 Points -45%

Cinebench R20 / CPU (Multi Core)
Dell OptiPlex Micro Intel Core i7-13700	7027 Points +138%
Beelink SER7 AMD Ryzen 7 7840HS	6344 Points +115%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points +96%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	5341 Points +81%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points +66%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	4776 Points +62%
Geekom AS 5 AMD Ryzen 9 5900HX	4574 Points +55%
Geekom A5 AMD Ryzen 7 5800H	4229 Points +43%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points +37%
Media Intel Core i5-12450H (2952 - 4105, n=5)	3415 Points +16%
LG Gram 15Z90Q Intel Core i5-1240P	3175 Points +8%
Beelink SER5 AMD Ryzen 5 5560U	3019 Points +2%
GMK NucBox M3 Intel Core i5-12450H	2952 Points
BMAX B7 Power G7A2 Intel Core i7-11390H	1767 Points -40%
Beelink Mini S12 Pro Intel Processor N100	1115 Points -62%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +12%
Dell OptiPlex Micro Intel Core i7-13700	703 Points +9%
Beelink SER7 AMD Ryzen 7 7840HS	698 Points +8%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points +7%
GMK NucBox M3 Intel Core i5-12450H	646 Points
Media Intel Core i5-12450H (634 - 646, n=5)	641 Points -1%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	613 Points -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	607 Points -6%
Geekom AS 5 AMD Ryzen 9 5900HX	581 Points -10%
LG Gram 15Z90Q Intel Core i5-1240P	572 Points -11%
Geekom A5 AMD Ryzen 7 5800H	551 Points -15%
BMAX B7 Power G7A2 Intel Core i7-11390H	550 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	498 Points -23%
Beelink Mini S12 Pro Intel Processor N100	357 Points -45%

Cinebench R15 / CPU Multi 64Bit
Dell OptiPlex Micro Intel Core i7-13700	2986 (2348.38^min - 2986.19^max) Points +160%
Beelink SER7 AMD Ryzen 7 7840HS	2565 (2511.62^min - 2564.76^max) Points +123%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	2343 Points +104%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points +95%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points +77%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	2028 Points +76%
Geekom AS 5 AMD Ryzen 9 5900HX	1928 Points +68%
Geekom A5 AMD Ryzen 7 5800H	1773 Points +54%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points +47%
LG Gram 15Z90Q Intel Core i5-1240P	1479 (718.44^min - 1478.52^max) Points +29%
Media Intel Core i5-12450H (1150 - 1591, n=5)	1330 Points +16%
Beelink SER5 AMD Ryzen 5 5560U	1280 (1263.74^min - 1280.29^max) Points +11%
GMK NucBox M3 Intel Core i5-12450H	1150 (1101.32^min - 1149.92^max) Points
BMAX B7 Power G7A2 Intel Core i7-11390H	775 (685.89^min - 775.39^max) Points -33%
Beelink Mini S12 Pro Intel Processor N100	467 (458.73^min - 467.21^max) Points -59%

Cinebench R15 / CPU Single 64Bit
Beelink SER7 AMD Ryzen 7 7840HS	283 Points +19%
Dell OptiPlex Micro Intel Core i7-13700	279 Points +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points +9%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points +8%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	255 Points +7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	249 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX	241 Points +1%
GMK NucBox M3 Intel Core i5-12450H	238 Points
Media Intel Core i5-12450H (227 - 239, n=5)	236 Points -1%
Geekom A5 AMD Ryzen 7 5800H	227 Points -5%
LG Gram 15Z90Q Intel Core i5-1240P	209 Points -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	209 Points -12%
Beelink SER5 AMD Ryzen 5 5560U	202 Points -15%
Beelink Mini S12 Pro Intel Processor N100	153.9 Points -35%

Blender / v2.79 BMW27 CPU
Beelink Mini S12 Pro Intel Processor N100	1048 Seconds * -144%
BMAX B7 Power G7A2 Intel Core i7-11390H	665 Seconds * -55%
LG Gram 15Z90Q Intel Core i5-1240P	477 Seconds * -11%
GMK NucBox M3 Intel Core i5-12450H	429 Seconds *
Beelink SER5 AMD Ryzen 5 5560U	392 Seconds * +9%
Media Intel Core i5-12450H (335 - 429, n=6)	387 Seconds * +10%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * +23%
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * +32%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * +36%
Geekom AS 5 AMD Ryzen 9 5900HX	260 Seconds * +39%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	260 Seconds * +39%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	229 Seconds * +47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * +50%
Beelink SER7 AMD Ryzen 7 7840HS	196 Seconds * +54%
Dell OptiPlex Micro Intel Core i7-13700	178 Seconds * +59%

7-Zip 18.03 / 7z b 4
Dell OptiPlex Micro Intel Core i7-13700	74475 MIPS +139%
Beelink SER7 AMD Ryzen 7 7840HS	69882 MIPS +125%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	63214 MIPS +103%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	56930 MIPS +83%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS +76%
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS +73%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS +70%
Geekom AS 5 AMD Ryzen 9 5900HX	50673 MIPS +63%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS +38%
Beelink SER5 AMD Ryzen 5 5560U	38281 MIPS +23%
Media Intel Core i5-12450H (31119 - 38415, n=6)	34052 MIPS +9%
GMK NucBox M3 Intel Core i5-12450H	31119 MIPS
LG Gram 15Z90Q Intel Core i5-1240P	28108 MIPS -10%
BMAX B7 Power G7A2 Intel Core i7-11390H	20822 MIPS -33%
Beelink Mini S12 Pro Intel Processor N100	13291 MIPS -57%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER7 AMD Ryzen 7 7840HS	6734 MIPS +26%
Dell OptiPlex Micro Intel Core i7-13700	6466 MIPS +21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS +11%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	5807 MIPS +8%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS +8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	5721 MIPS +7%
Geekom AS 5 AMD Ryzen 9 5900HX	5653 MIPS +6%
BMAX B7 Power G7A2 Intel Core i7-11390H	5539 MIPS +3%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS +2%
GMK NucBox M3 Intel Core i5-12450H	5356 MIPS
Media Intel Core i5-12450H (4914 - 5386, n=6)	5157 MIPS -4%
LG Gram 15Z90Q Intel Core i5-1240P	4847 MIPS -10%
Beelink SER5 AMD Ryzen 5 5560U	4740 MIPS -12%
Beelink Mini S12 Pro Intel Processor N100	3958 MIPS -26%

Geekbench 5.5 / Multi-Core
Dell OptiPlex Micro Intel Core i7-13700	15525 Points +122%
Beelink SER7 AMD Ryzen 7 7840HS	11423 Points +63%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points +48%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	10126 Points +45%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points +40%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	9278 Points +33%
Geekom AS 5 AMD Ryzen 9 5900HX	8826 Points +26%
Geekom A5 AMD Ryzen 7 5800H	8823 Points +26%
LG Gram 15Z90Q Intel Core i5-1240P	8747 Points +25%
Media Intel Core i5-12450H (6804 - 8330, n=6)	7436 Points +6%
GMK NucBox M3 Intel Core i5-12450H	6990 Points
Beelink SER5 AMD Ryzen 5 5560U	5955 Points -15%
BMAX B7 Power G7A2 Intel Core i7-11390H	4457 Points -36%
Beelink Mini S12 Pro Intel Processor N100	2867 Points -59%

Geekbench 5.5 / Single-Core
Beelink SER7 AMD Ryzen 7 7840HS	1983 Points +21%
Dell OptiPlex Micro Intel Core i7-13700	1958 Points +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points +12%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points +9%
GMK NucBox M3 Intel Core i5-12450H	1639 Points
Media Intel Core i5-12450H (1581 - 1665, n=6)	1629 Points -1%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	1615 Points -1%
LG Gram 15Z90Q Intel Core i5-1240P	1598 Points -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1586 Points -3%
Geekom AS 5 AMD Ryzen 9 5900HX	1574 Points -4%
Geekom A5 AMD Ryzen 7 5800H	1494 Points -9%
BMAX B7 Power G7A2 Intel Core i7-11390H	1486 Points -9%
Beelink SER5 AMD Ryzen 5 5560U	1318 Points -20%
Beelink Mini S12 Pro Intel Processor N100	1018 Points -38%

HWBOT x265 Benchmark v2.2 / 4k Preset
Dell OptiPlex Micro Intel Core i7-13700	21.4 fps +144%
Beelink SER7 AMD Ryzen 7 7840HS	20.4 fps +132%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	17.7 fps +102%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps +100%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	15.8 fps +80%
Geekom AS 5 AMD Ryzen 9 5900HX	15 fps +71%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps +62%
Geekom A5 AMD Ryzen 7 5800H	13.3 fps +51%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps +40%
Media Intel Core i5-12450H (8.78 - 12.3, n=5)	10.4 fps +18%
Beelink SER5 AMD Ryzen 5 5560U	10 fps +14%
GMK NucBox M3 Intel Core i5-12450H	8.78 fps
LG Gram 15Z90Q Intel Core i5-1240P	7.77 fps -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	5.84 fps -33%
Beelink Mini S12 Pro Intel Processor N100	3.41 fps -61%

LibreOffice / 20 Documents To PDF
Beelink Mini S12 Pro Intel Processor N100	69.6 s * -69%
Beelink SER5 AMD Ryzen 5 5560U	57.1 s * -39%
Geekom A5 AMD Ryzen 7 5800H	54.3 s * -32%
LG Gram 15Z90Q Intel Core i5-1240P	53.6 s * -30%
BMAX B7 Power G7A2 Intel Core i7-11390H	52.6 s * -28%
Geekom AS 5 AMD Ryzen 9 5900HX	50.1 s * -22%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	49.6 s * -21%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	47.1 s * -15%
Media Intel Core i5-12450H (41.1 - 53.2, n=6)	46.2 s * -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * -6%
GMK NucBox M3 Intel Core i5-12450H	41.1 s *
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +3%
Beelink SER7 AMD Ryzen 7 7840HS	39.7 s * +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +9%
Dell OptiPlex Micro Intel Core i7-13700	36.4 s * +11%

R Benchmark 2.5 / Overall mean
Beelink Mini S12 Pro Intel Processor N100	0.822 sec * -66%
Beelink SER5 AMD Ryzen 5 5560U	0.584 sec * -18%
BMAX B7 Power G7A2 Intel Core i7-11390H	0.571 sec * -15%
LG Gram 15Z90Q Intel Core i5-1240P	0.559 sec * -13%
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * -6%
Media Intel Core i5-12450H (0.4949 - 0.527, n=6)	0.513 sec * -4%
Geekom AS 5 AMD Ryzen 9 5900HX	0.506 sec * -2%
GMK NucBox M3 Intel Core i5-12450H	0.4949 sec *
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	0.4849 sec * +2%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	0.4822 sec * +3%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +10%
Beelink SER7 AMD Ryzen 7 7840HS	0.4446 sec * +10%
Dell OptiPlex Micro Intel Core i7-13700	0.423 sec * +15%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... Meglio usare valori piccoli

Performance Rating
Geekom A5 AMD Ryzen 7 5800H, Vega 8	94.3 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	83.6 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	74.8 pt
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	68.8 pt
Media Intel Core i5-12450H	63.3 pt
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	57 pt
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8.2 pt

AIDA64 / FP32 Ray-Trace
Geekom A5 AMD Ryzen 7 5800H, Vega 8	12468 KRay/s +67%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s +48%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s +26%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8895 KRay/s +19%
Media Intel Core i5-12450H (7229 - 10131, n=5)	8493 KRay/s +14%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	7448 KRay/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -89%

AIDA64 / FPU Julia
Geekom A5 AMD Ryzen 7 5800H, Vega 8	77847 Points +107%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	56914 Points +51%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points +48%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points +30%
Media Intel Core i5-12450H (37583 - 51019, n=5)	43344 Points +15%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	37583 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4395 Points -88%

AIDA64 / CPU SHA3
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s +58%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	2707 MB/s +57%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s +21%
Media Intel Core i5-12450H (1724 - 2339, n=5)	1979 MB/s +15%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	1943 MB/s +13%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	1724 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	307 MB/s -82%

AIDA64 / CPU Queen
Geekom A5 AMD Ryzen 7 5800H, Vega 8	91846 Points +53%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points +45%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points +30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	67352 Points +12%
Media Intel Core i5-12450H (59539 - 68897, n=5)	63456 Points +6%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	59969 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8691 Points -86%

AIDA64 / FPU SinJulia
Geekom A5 AMD Ryzen 7 5800H, Vega 8	10972 Points +119%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8505 Points +70%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points +45%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points +31%
Media Intel Core i5-12450H (5007 - 6147, n=5)	5576 Points +11%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	5007 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	430 Points -91%

AIDA64 / FPU Mandel
Geekom A5 AMD Ryzen 7 5800H, Vega 8	42543 Points +128%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	31339 Points +68%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points +49%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points +27%
Media Intel Core i5-12450H (18516 - 23609, n=5)	20944 Points +12%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	18624 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2217 Points -88%

AIDA64 / CPU AES
Geekom A5 AMD Ryzen 7 5800H, Vega 8	108262 MB/s +66%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s +52%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s +27%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	78948 MB/s +21%
Media Intel Core i5-12450H (48420 - 78537, n=5)	67027 MB/s +3%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	65152 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8426 MB/s -87%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +65%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	700 MB/s +43%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s +23%
Media Intel Core i5-12450H (490 - 708, n=5)	578 MB/s +18%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	509 MB/s +4%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	490 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.7 MB/s -83%

AIDA64 / FP64 Ray-Trace
Geekom A5 AMD Ryzen 7 5800H, Vega 8	6380 KRay/s +59%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s +47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s +30%
Media Intel Core i5-12450H (4025 - 5477, n=5)	4633 KRay/s +15%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	4540 KRay/s +13%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	4025 KRay/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -88%

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s +67%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s +10%
Media Intel Core i5-12450H (26397 - 28682, n=5)	27190 MPixel/s +3%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	26489 MPixel/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	25113 MPixel/s -5%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	17917 MPixel/s -32%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	6535 MPixel/s -75%

Prestazioni del sistema

PCMark 10 / Score
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6281 Points +18%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	6149 Points +16%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points +10%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5453 Points +3%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	5310 Points
Media Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs ()	5310 Points 0%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	3164 Points -40%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11596 Points +9%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points +2%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	10614 Points
Media Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs ()	10614 Points 0%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	10356 Points -2%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	9440 Points -11%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7295 Points -31%

PCMark 10 / Productivity
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	9311 Points +26%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	8901 Points +21%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7893 Points +7%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points +6%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	7369 Points
Media Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs ()	7369 Points 0%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	4764 Points -35%

PCMark 10 / Digital Content Creation
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7348 Points +41%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	6544 Points +26%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points +25%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5238 Points +1%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	5194 Points
Media Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs ()	5194 Points 0%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	2476 Points -52%

CrossMark / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1810 Points +18%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points +2%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1540 Points
Media Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs ()	1540 Points 0%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1429 Points -7%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1196 Points -22%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	839 Points -46%

CrossMark / Productivity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1740 Points +11%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1561 Points
Media Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs ()	1561 Points 0%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points -4%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1408 Points -10%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1259 Points -19%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	905 Points -42%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1970 Points +30%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points +16%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1523 Points +1%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1510 Points
Media Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs ()	1510 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1153 Points -24%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	773 Points -49%

CrossMark / Responsiveness
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1578 Points 0%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1572 Points
Media Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs ()	1572 Points 0%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points -17%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1233 Points -22%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1144 Points -27%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	856 Points -46%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s +64%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s +6%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	43870 MB/s +3%
Media Intel Core i5-12450H (42484 - 43918, n=5)	43372 MB/s +2%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	42484 MB/s
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	38690 MB/s -9%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11580 MB/s -73%

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s +56%
Media Intel Core i5-12450H (43117 - 47555, n=5)	46324 MB/s +7%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46241 MB/s +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s +5%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	43117 MB/s
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	39794 MB/s -8%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12488 MB/s -71%

AIDA64 / Memory Write
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s +27%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	46577 MB/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46407 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -1%
Media Intel Core i5-12450H (43709 - 46963, n=5)	46132 MB/s -1%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	41162 MB/s -12%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12305 MB/s -74%

AIDA64 / Memory Latency
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	114.8 ns * -47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns * -25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -23%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	93.1 ns * -20%
Media Intel Core i5-12450H (76.5 - 100.9, n=5)	81.9 ns * -5%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	81.4 ns * -4%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	77.9 ns *

* ... Meglio usare valori piccoli

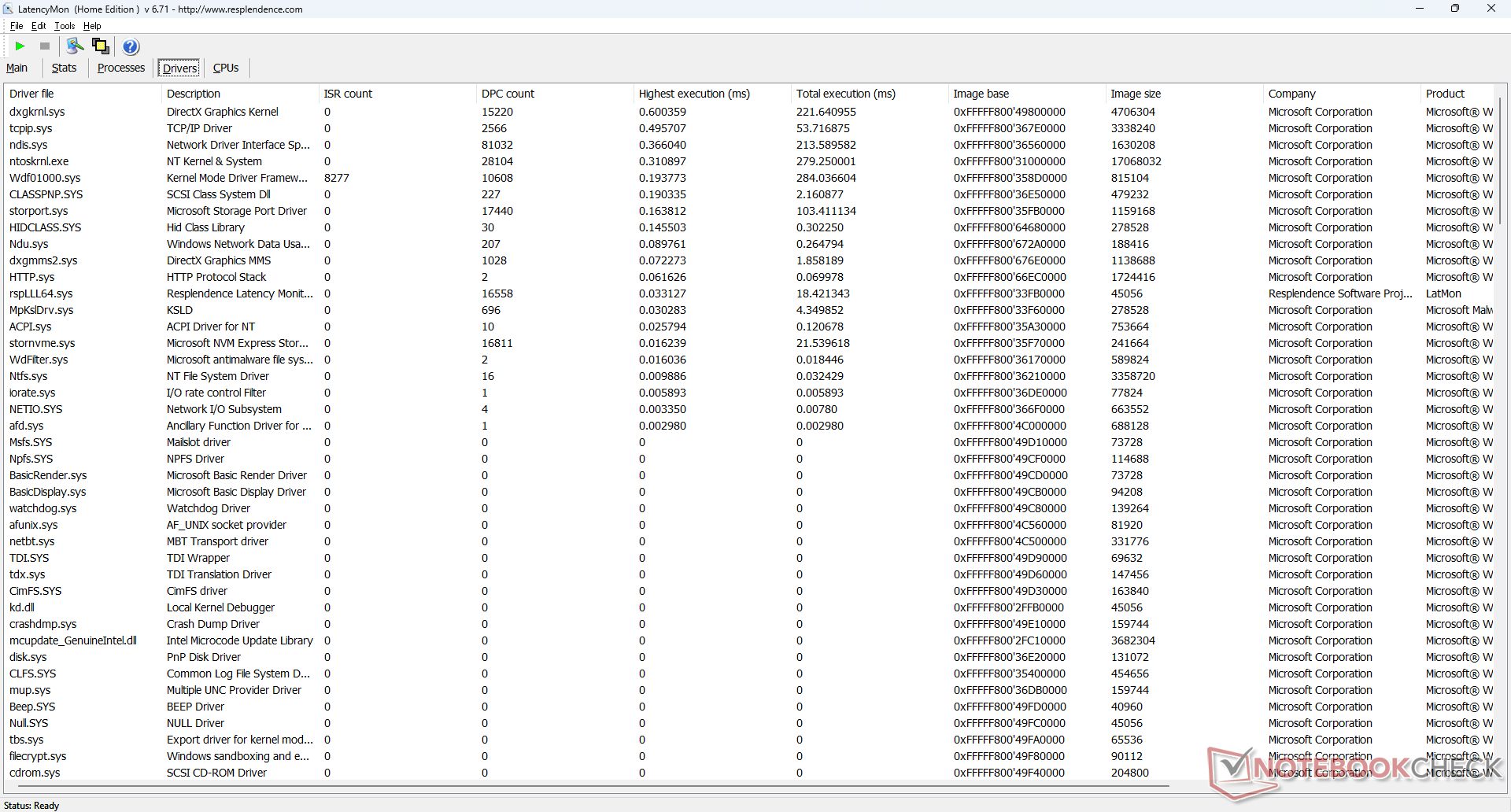

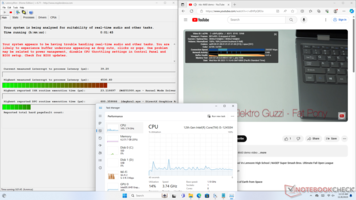

Latenza DPC

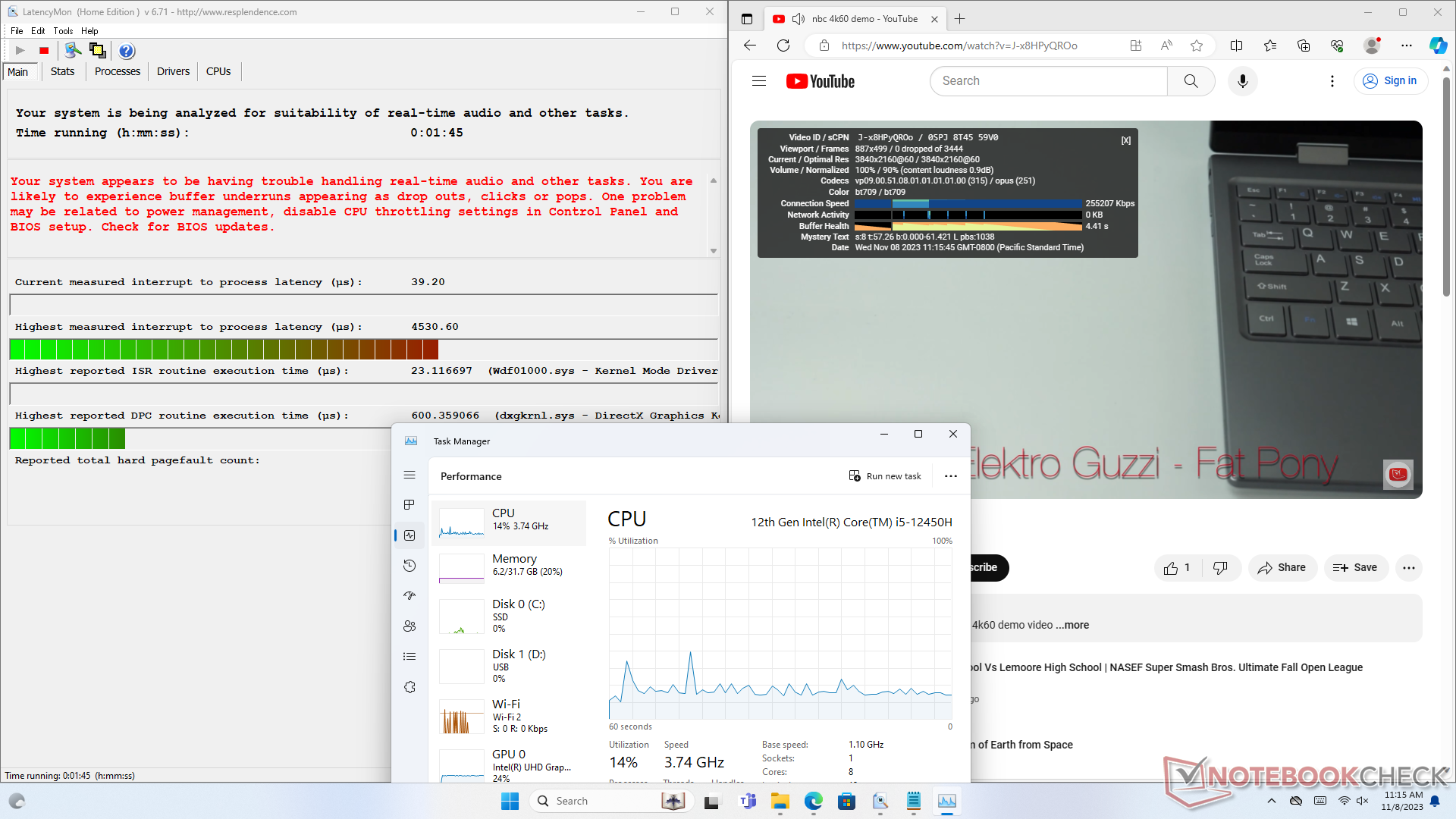

LatencyMon rivela problemi di DPC quando si aprono più schede del browser della nostra homepage. la riproduzione di video 4K a 60 FPS è invece perfetta e non si registrano cadute di fotogrammi.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7391.7 μs * -63%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	4530.6 μs *
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * +69%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1310.5 μs * +71%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * +76%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	364.6 μs * +92%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

GMK utilizza lo stessoLexar NM610 Pro SSD PCIe3 x4 NVMe per entrambi i suoi modelli NucBox M3 e NucBox K3 Pro. Il sistema non viene fornito con un SSD PCIe4, probabilmente per risparmiare sui costi.

È possibile installare un secondo SSD, ma deve avere una lunghezza di 42 mm o inferiore.

Supporta fino a due SSD interni. Sorprendentemente, l'SSD principale è dotato di un dissipatore di calore dedicato, nonostante la fascia di prezzo orientata al budget

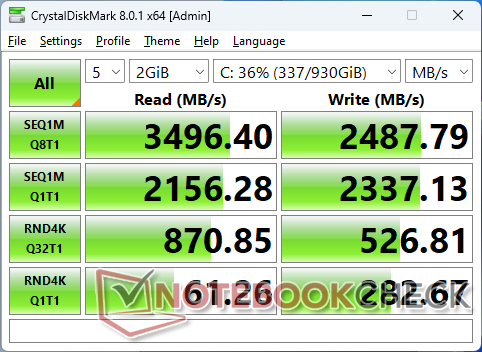

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Lexar NM610 Pro NM610P001T-HNNNG

CDM 5/6 Read Seq Q32T1: 3494 MB/s

CDM 5/6 Write Seq Q32T1: 2430 MB/s

CDM 5/6 Read 4K Q32T1: 864.9 MB/s

CDM 5/6 Write 4K Q32T1: 527.5 MB/s

CDM 5 Read Seq: 2115 MB/s

CDM 5 Write Seq: 2360 MB/s

CDM 5/6 Read 4K: 60.58 MB/s

CDM 5/6 Write 4K: 268 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	84.8 pt
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	75 pt
Geekom A5 Lexar NM620 512GB	66.7 pt
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	66.2 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	53.5 pt
Beelink Mini S12 Pro	37.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +68%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2615 (2607.21^min - 2614.94^max) MB/s +30%
Geekom A5 Lexar NM620 512GB	2371 (2315.68^min - 2370.91^max) MB/s +18%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2011 (1922.53^min - 2010.96^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s 0%
Beelink Mini S12 Pro	724 (713.03^min - 723.5^max) MB/s -64%
seq write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +45%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2878 (2868.83^min - 2877.62^max) MB/s +24%
Geekom A5 Lexar NM620 512GB	2668 (292.6^min - 2668^max) MB/s +15%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2317 (2260.73^min - 2317.16^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s -17%
Beelink Mini S12 Pro	715 (699.61^min - 714.88^max) MB/s -69%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +93%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3673 (3327.76^min - 3673.17^max) MB/s +6%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s 0%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3479 (3183.34^min - 3478.79^max) MB/s
Geekom A5 Lexar NM620 512GB	3444 (2979.63^min - 3443.98^max) MB/s -1%
Beelink Mini S12 Pro	874 (761^min - 873.67^max) MB/s -75%
seq q8 t1 write
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3220 (3120.61^min - 3219.7^max) MB/s +32%
Geekom A5 Lexar NM620 512GB	3117 (3075.4^min - 3117.21^max) MB/s +27%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +16%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2446 (2381.26^min - 2445.98^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s -2%
Beelink Mini S12 Pro	867 (858.82^min - 866.96^max) MB/s -65%
4k q1 t1 read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	59.8 (58.68^min - 59.84^max) MB/s
Geekom A5 Lexar NM620 512GB	54.5 (37.15^min - 54.54^max) MB/s -9%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	52.5 (52.31^min - 52.46^max) MB/s -12%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -13%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s -16%
Beelink Mini S12 Pro	50.2 (48.32^min - 50.22^max) MB/s -16%
4k q1 t1 write
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	282 (273.36^min - 281.83^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -37%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	173.4 (172.45^min - 173.36^max) MB/s -39%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s -42%
Geekom A5 Lexar NM620 512GB	148.4 (147.43^min - 148.38^max) MB/s -47%
Beelink Mini S12 Pro	131.7 (124.21^min - 131.65^max) MB/s -53%
4k q32 t16 read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2781 (2776.44^min - 2781.48^max) MB/s +51%
Geekom A5 Lexar NM620 512GB	1960 MB/s +7%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1837 (1834.99^min - 1837.44^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -33%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s -38%
Beelink Mini S12 Pro	861 (842.97^min - 860.59^max) MB/s -53%
4k q32 t16 write
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2218 (2164.78^min - 2217.8^max) MB/s +88%
Geekom A5 Lexar NM620 512GB	1370 (84.65^min - 1370.23^max) MB/s +16%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1180 (1097.88^min - 1179.87^max) MB/s
Beelink Mini S12 Pro	721 (676.73^min - 721.31^max) MB/s -39%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -47%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s -55%

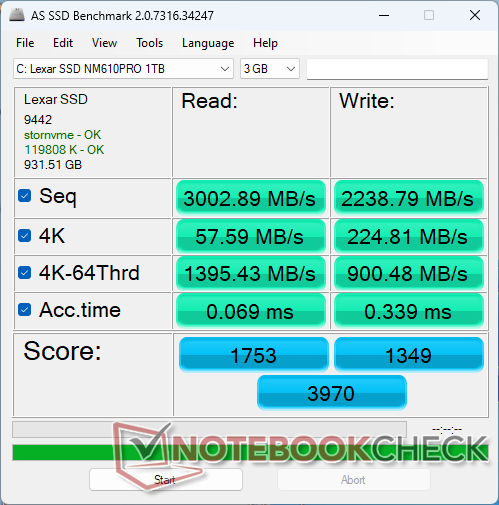

AS SSD
Score Total
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +51%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	4696 Points +18%
Geekom A5 Lexar NM620 512GB	4006 Points +1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3970 Points
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points -17%
Beelink Mini S12 Pro	2210 Points -44%
Score Read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1753 Points
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1701 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points -5%
Geekom A5 Lexar NM620 512GB	1502 Points -14%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points -22%
Beelink Mini S12 Pro	920 Points -48%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +165%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2136 Points +58%
Geekom A5 Lexar NM620 512GB	1739 Points +29%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1349 Points
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points -5%
Beelink Mini S12 Pro	801 Points -41%
Seq Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +59%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3157.87 MB/s +5%
Geekom A5 Lexar NM620 512GB	3020 MB/s +1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3002.89 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s -1%
Beelink Mini S12 Pro	704.36 MB/s -77%
Seq Write
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2830.61 MB/s +26%
Geekom A5 Lexar NM620 512GB	2714 MB/s +21%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +9%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2238.79 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s -24%
Beelink Mini S12 Pro	736.89 MB/s -67%
4K Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +36%
Geekom A5 Lexar NM620 512GB	57.7 MB/s 0%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	57.59 MB/s
Beelink Mini S12 Pro	55.88 MB/s -3%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s -11%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	49.71 MB/s -14%
4K Write
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	224.81 MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s -7%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s -8%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	143.94 MB/s -36%
Geekom A5 Lexar NM620 512GB	125.5 MB/s -44%
Beelink Mini S12 Pro	113.72 MB/s -49%
4K-64 Read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1395.43 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1335.88 MB/s -4%
Geekom A5 Lexar NM620 512GB	1143 MB/s -18%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s -20%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s -27%
Beelink Mini S12 Pro	793.52 MB/s -43%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +246%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1708.89 MB/s +90%
Geekom A5 Lexar NM620 512GB	1342 MB/s +49%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s +1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	900.48 MB/s
Beelink Mini S12 Pro	613.44 MB/s -32%
Access Time Read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.094 ms * -36%
Beelink Mini S12 Pro	0.086 ms * -25%
Geekom A5 Lexar NM620 512GB	0.08 ms * -16%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * -14%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	0.069 ms *
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +35%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * -8%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	0.339 ms *
Geekom A5 Lexar NM620 512GB	0.13 ms * +62%
Beelink Mini S12 Pro	0.114 ms * +66%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * +77%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +94%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox M3: Ø3435 (3058.49-3467.66)

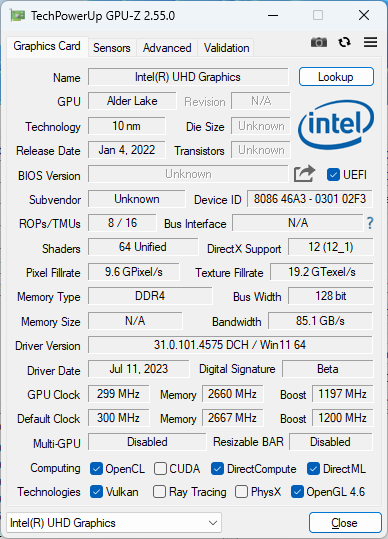

Prestazioni della GPU

Le prestazioni grafiche sono più veloci rispetto alla media dei PC con la stessa Iris Xe 48 EU in quanto questa GPU integrata è in genere abbinata a CPU Core serie U più lente. In questo caso, la CPU più veloce di classe Core H del nostro NucBox M3 contribuisce ad aumentare le prestazioni complessive della GPU. Tuttavia, il sistema non è ancora abbastanza veloce per eseguire la maggior parte dei giochi in modo nativo.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER7 ^-1! AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	84.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	61.9 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	60.9 pt
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	59.9 pt
Lenovo IdeaCentre Mini 01IRH8 ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	55.3 pt
Intel NUC 12 Pro Kit NUC12WSBi5 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	52.5 pt
GMK NucBox K3 Pro ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	48.2 pt
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	41.1 pt
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	38.6 pt
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	37.2 pt
Dell OptiPlex Micro ^-1! Intel UHD Graphics 770, Intel Core i7-13700	30.5 pt
Media Intel UHD Graphics Xe G4 48EUs	29.8 pt
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	15.3 pt

3DMark 11 - 1280x720 Performance GPU
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points +229%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points +166%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7166 Points +83%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points +83%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +82%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points +77%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	5631 Points +44%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points +42%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4770 Points +22%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	4439 Points +14%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3906 Points
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	3591 Points -8%
Media Intel UHD Graphics Xe G4 48EUs (2156 - 3906, n=11)	3288 Points -16%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1510 Points -61%

3DMark
1280x720 Cloud Gate Standard Graphics
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	39814 Points +83%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	32875 Points +51%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	31638 Points +45%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points +26%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	24221 Points +11%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	22822 Points +5%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	21778 Points
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	16589 Points -24%
Media Intel UHD Graphics Xe G4 48EUs (11270 - 21778, n=11)	15421 Points -29%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8965 Points -59%
1920x1080 Fire Strike Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points +156%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points +108%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +67%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points +54%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points +46%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points +46%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4419 Points +41%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4227 Points +35%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3131 Points
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	3056 Points -2%
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	2900 Points -7%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	2886 Points -8%
Media Intel UHD Graphics Xe G4 48EUs (1602 - 3131, n=11)	2282 Points -27%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1258 Points -60%
2560x1440 Time Spy Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points +233%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points +153%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +92%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points +73%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1430 Points +64%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points +62%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points +48%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	996 Points +14%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	986 Points +13%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	873 Points
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	793 Points -9%
Media Intel UHD Graphics Xe G4 48EUs (634 - 913, n=9)	763 Points -13%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	328 Points -62%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	675 Seconds *
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	524 Seconds *
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	477 Seconds *
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	347 Seconds *
v3.3 Classroom CPU
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2052 Seconds * -177%
Media Intel UHD Graphics Xe G4 48EUs (741 - 2408, n=4)	1852 Seconds * -150%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1259 Seconds * -70%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	741 Seconds *
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	677 Seconds * +9%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	590 Seconds * +20%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * +23%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	513 Seconds * +31%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * +37%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	463 Seconds * +38%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	451 Seconds * +39%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * +40%
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	320 Seconds * +57%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	318 Seconds * +57%

* ... Meglio usare valori piccoli

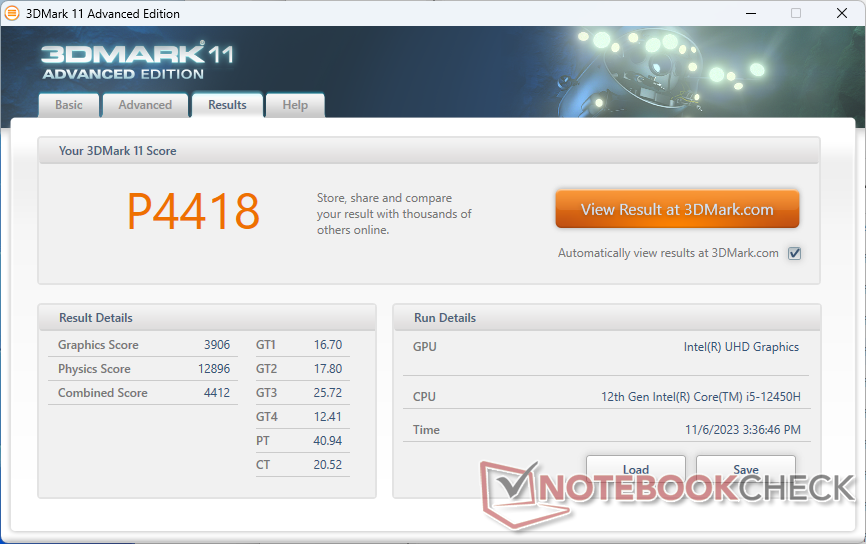

3DMark 11 Performance		4418 punti

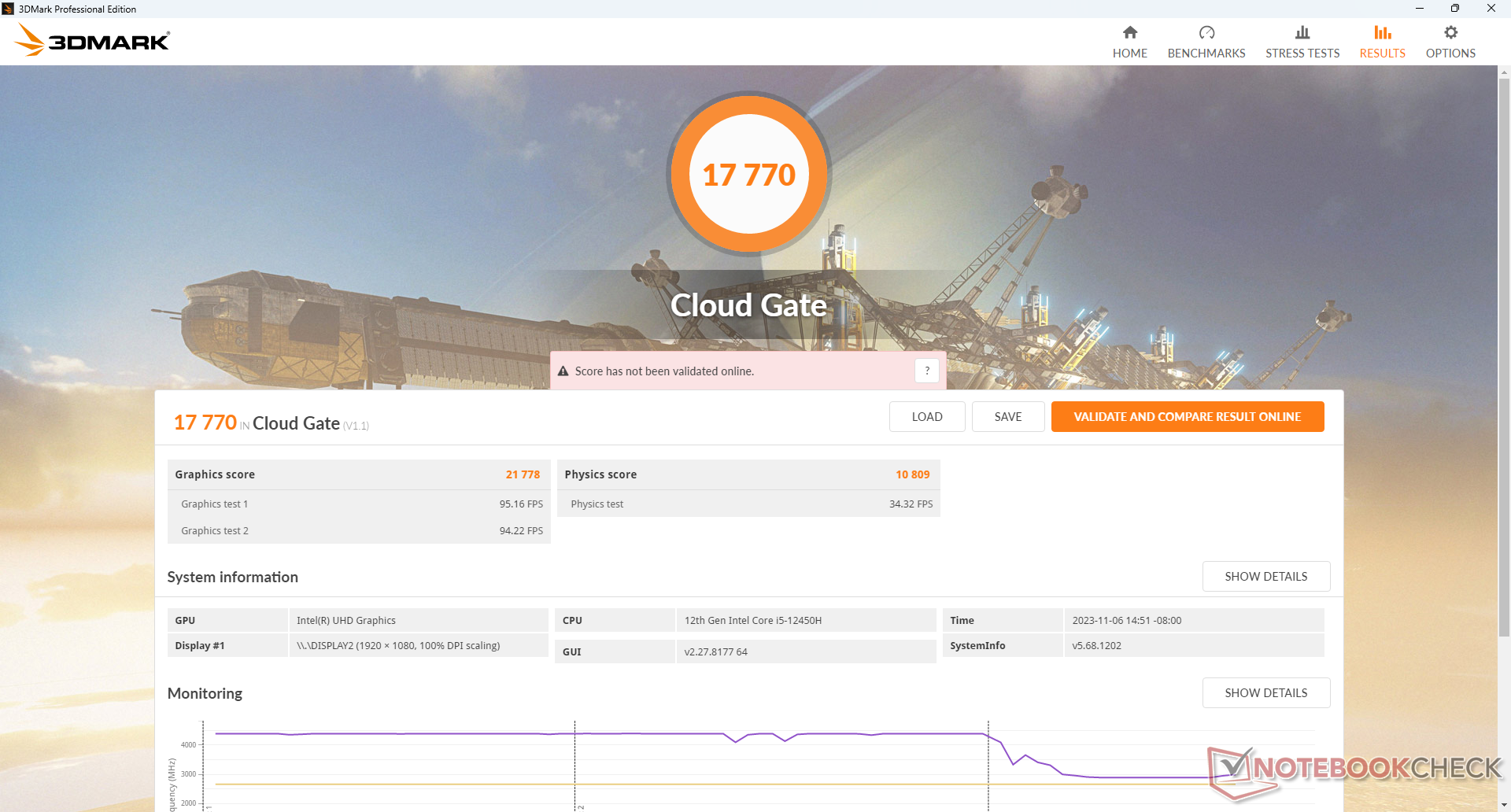

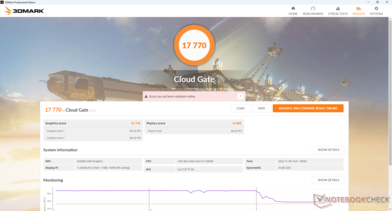

3DMark Cloud Gate Standard Score		17770 punti

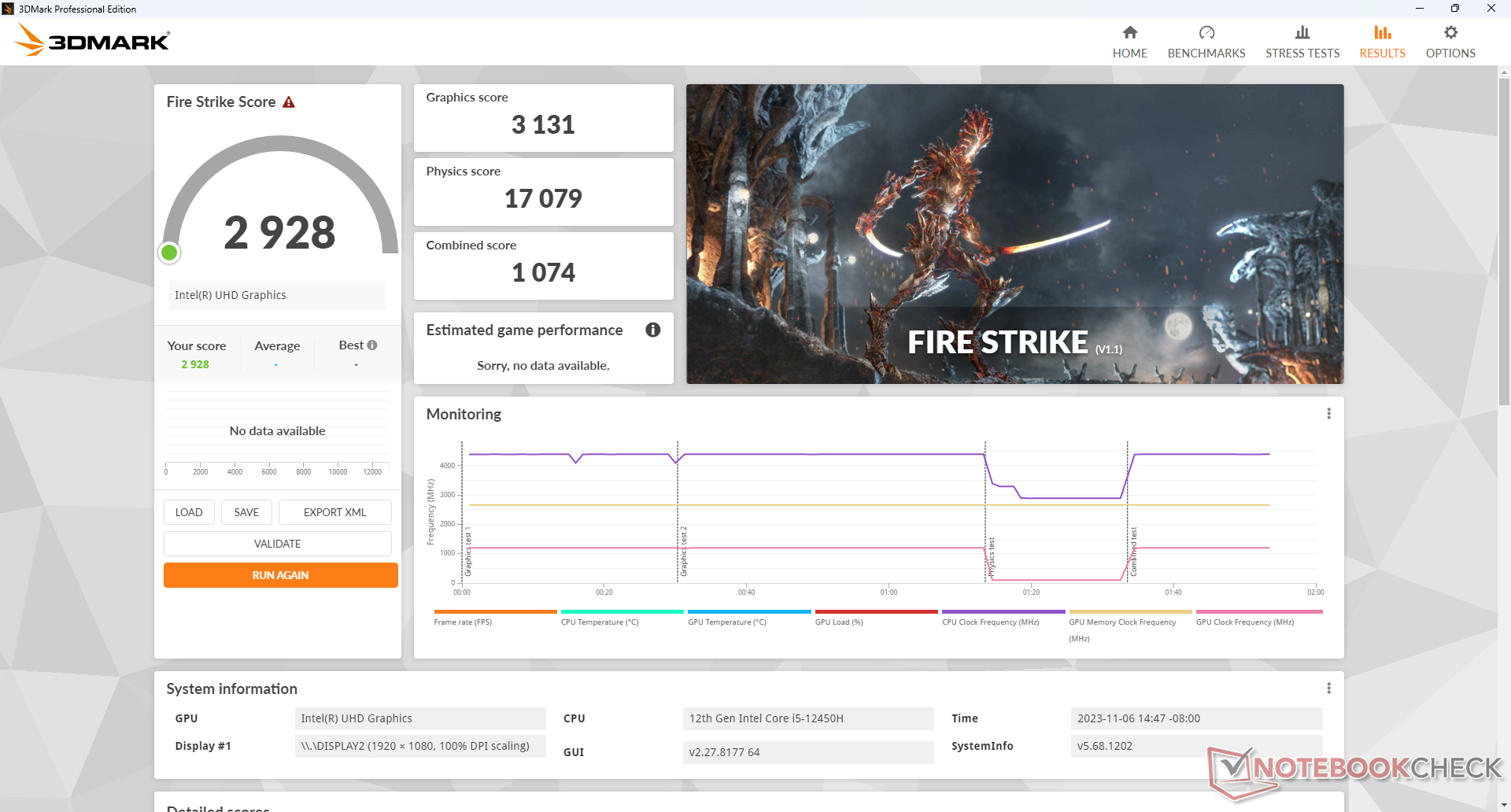

3DMark Fire Strike Score		2928 punti

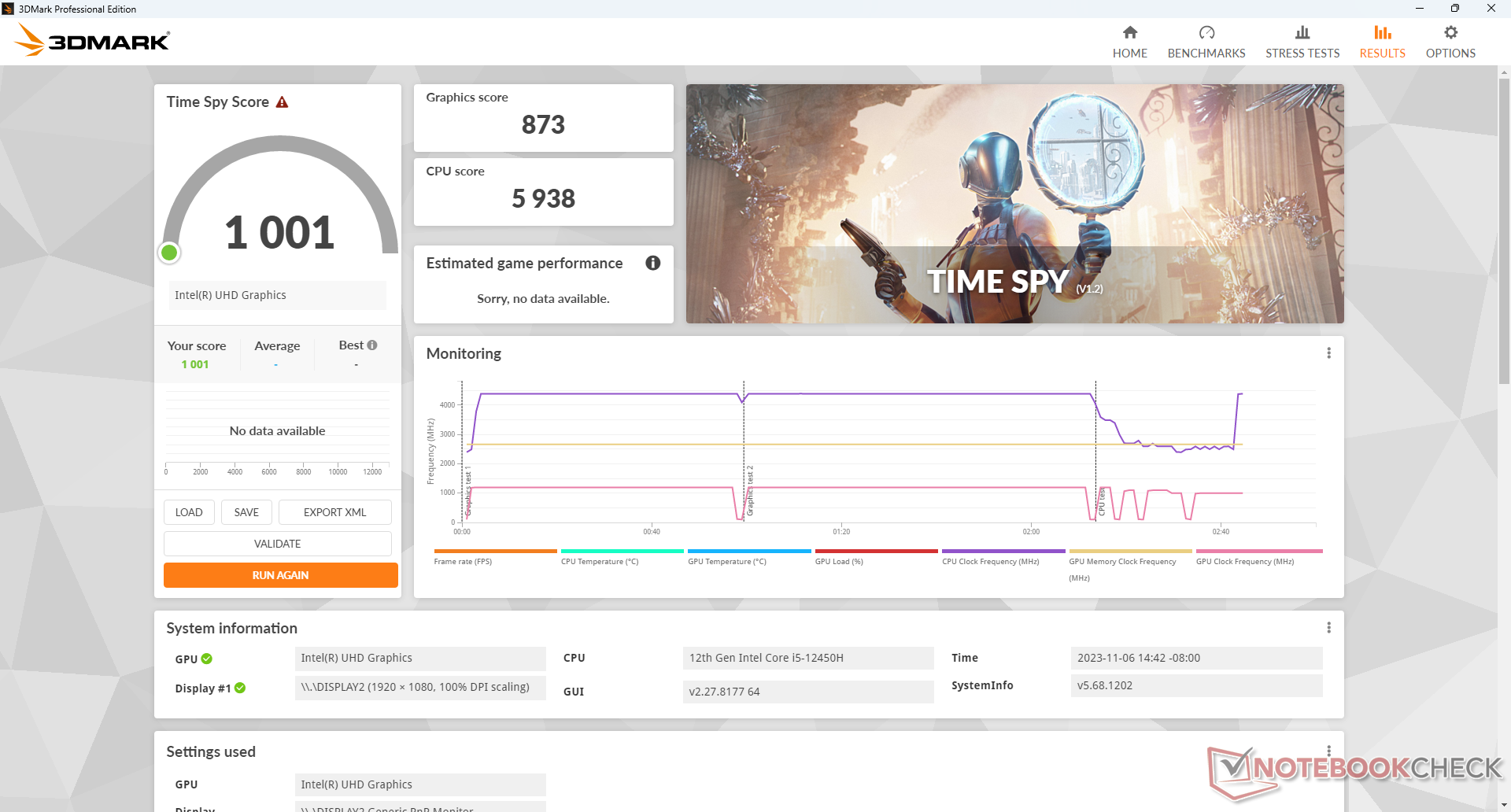

3DMark Time Spy Score		1001 punti
Aiuto

Recensione del mini PC GMKtec NucBox M3: Il Core i5-12450H consuma troppo

Potenziali concorrenti a confronto

Caso

Confronto delle dimensioni

Connettività

Comunicazione

Manutenzione

Accessori e garanzia

Prestazioni

Condizioni del test

Processore

Cinebench R15 Multi Loop

Prestazioni del sistema

Latenza DPC

Dispositivi di archiviazione

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Prestazioni della GPU
