Recensione dell'Intel NUC 13 Pro Kit - Vivid Canyon: L'ultimo NUC Intel ha un nuovo case e un Core i7-1360P

NUC con un nuovo case! Il rilascio dell'Intel NUC 13 Pro Desk Edition Kit, noto come Vivid Canyon, segna presumibilmente l'ultimo mini PC di Intel del ramo. Visivamente, Intel ha dato il tocco finale al dispositivo correggendo la maggior parte dei punti critici del suo predecessore. In questa recensione, potrete scoprire cos'altro ha da offrire l'ultimo NUC di Intel basato su Intel Core i7-1360P.

Il kit Intel NUC 13 Pro Desk Edition è il diretto successore dell'Intel NUC 13 Pro Kit.Kit Intel NUC 13 Pro. Dal punto di vista tecnico, i due modelli sono piuttosto simili, in quanto l'Intel NUC 13 Pro Desk Edition Kit che stiamo testando è dotato anche di unIntel Core i7-1360Pcon 32 GB di RAM DDR4 e un'unità SSD da 512 GB. Dal punto di vista visivo, sono cambiate molte cose, poiché Intel ha rinnovato completamente l'ultima versione del suo NUC. Come già già annunciatointel non commercializzerà più i suoi dispositivi NUC dopo questa versione.

Ciò significa che abbiamo tra le mani quello che presumibilmente è l'ultimo mini PC di Intel di questa gamma. Da anni ormai, questi piccoli geni del calcolo sono noti per offrire prestazioni eccellenti mantenendo basse le emissioni. Il boom dei mini PC nell'ultimo anno ha naturalmente portato a un'affluenza di produttori che hanno immesso sul mercato dispositivi simili. Ne abbiamo già testati alcuni. I suoi rivali (per lo più spediti dall'Estremo Oriente) sono stati spesso in grado di competere e, allo stesso tempo, si sono rivelati più convenienti. In questa recensione, l'Intel NUC 13 Pro Desk Edition Kit dovrà nuovamente competere con i dispositivi di Minisforum, Geekom e Morefine. L'elenco di tutti questi dispositivi è riportato nella seguente panoramica.

Intel NUC 13 Pro Desk Edition Kit
Processore
Intel Core i7-1360P 12 x 1.6 - 5 GHz, 64 W PL2 / Short Burst, 40 W PL1 / Sustained, Raptor Lake-P
Memoria
32 GB
, DDR4-3200, 2 of 2 occupied, max. 64 GB
Scheda madre
Intel Alder Lake-P PCH
Harddisk
Samsung PM9A1 MZVL2512HCJQ, 512 GB
, M.2 2280, NVMe, 420 GB libera
Scheda audio
Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)
Porte di connessione
1 USB 2.0, 3 USB 3.1 Gen 2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 2 HDMI, 2 DisplayPort, 1 Kensington Lock, Connessioni Audio: 3.5mm Klinke
Rete
Intel Ethernet Controller I226-V (10/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3
Dimensioni
altezza x larghezza x profondità (in mm): 37 x 117 x 112
Sistema Operativo
Microsoft Windows 11 Pro
Peso
558 gr, Alimentazione: 216 gr
Prezzo
800 Euro
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confronto

Punteggio
Data
Modello
Peso
Altezza
Miglior Prezzo
83.1 %
08/2023
Intel NUC 13 Pro Desk Edition Kit
i7-1360P, Iris Xe G7 96EUs
558 gr37 mm
85.1 %
01/2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg66 mm
85.5 %
03/2023
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
779 gr40.6 mm
82.8 %
07/2023
Geekom AS 6, R9 6900HX
R9 6900HX, Radeon 680M
753 gr58 mm
82.3 %
05/2023
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
572 gr45.6 mm
80.8 %
04/2023
Intel NUC 13 Pro Kit NUC13ANK
i7-1360P, Iris Xe G7 96EUs
538 gr37 mm
78.9 %
11/2022
Intel NUC 12 Pro Kit NUC12WSKi7
i7-1260P, Iris Xe G7 96EUs
511 gr37 mm
78.8 %
08/2023
Khadas Mind
i7-1360P, Iris Xe G7 96EUs
438 gr20 mm

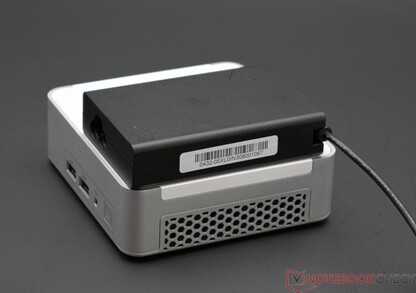

Intel NUC 13 Pro Desk Edition Kit - Vivid Canyon in dettaglio

Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon
Kit Intel NUC 13 Pro Desk Edition - Vivid Canyon

Custodia - Metallo anziché plastica

Finalmente Intel ha osato fare il passo di installare l'hardware in un case di metallo. La vecchia custodia in plastica può essere lasciata nel passato. Il nuovo design è moderno, fresco e convince sotto tutti i punti di vista, a partire dalla qualità del dispositivo al tatto. Allo stesso tempo, le dimensioni del PC non sono cambiate. Con una dimensione di 11,7 x 11,2 centimetri, l'Intel NUC 13 Pro Desk Edition Kit è ancora uno dei mini PC più compatti in grado di offrire ottime prestazioni.

Per quanto riguarda i colori, Intel è stata un po' più coraggiosa con il NUC 13 Pro Desk Edition Kit: ora è una combinazione di argento e bianco. La parte bianca si trova sulla parte anteriore, anch'essa realizzata con un rivestimento in plastica. Nonostante ciò, il concetto complessivo è ottimo e Intel ha continuato a garantire la perfetta qualità costruttiva a cui siamo abituati. Purtroppo, l'Intel NUC 13 Pro Desk Edition Kit non dispone di un supporto VESA.

Confronto delle dimensioni

208 mm 180 mm 66 mm 1.2 kg130 mm 120 mm 58 mm 753 g147.3 mm 144.7 mm 40.6 mm 779 g146 mm 105 mm 20 mm 438 g117 mm 112 mm 45.6 mm 572 g117 mm 112 mm 37 mm 558 g117 mm 112 mm 37 mm 538 g117 mm 112 mm 37 mm 511 g297 mm 210 mm 1 mm 5.7 g

Connettività

Intel è rimasta fedele alle sue opzioni di connettività, fornendo al kit NUC 13 Pro Desk Edition le stesse porte esterne del kit Intel NUC 13 Pro. Queste connessioni sono distribuite lungo la parte anteriore e posteriore del dispositivo. In totale, dispone di sei porte USB, due delle quali supportano Thunderbolt 4. Con l'ausilio di accessori adeguati, è possibile ampliare notevolmente la gamma di utilizzi del PC. I monitor possono essere collegati direttamente tramite HMDI o Thunderbolt, oltre a disporre di una connessione di rete 2,5G.

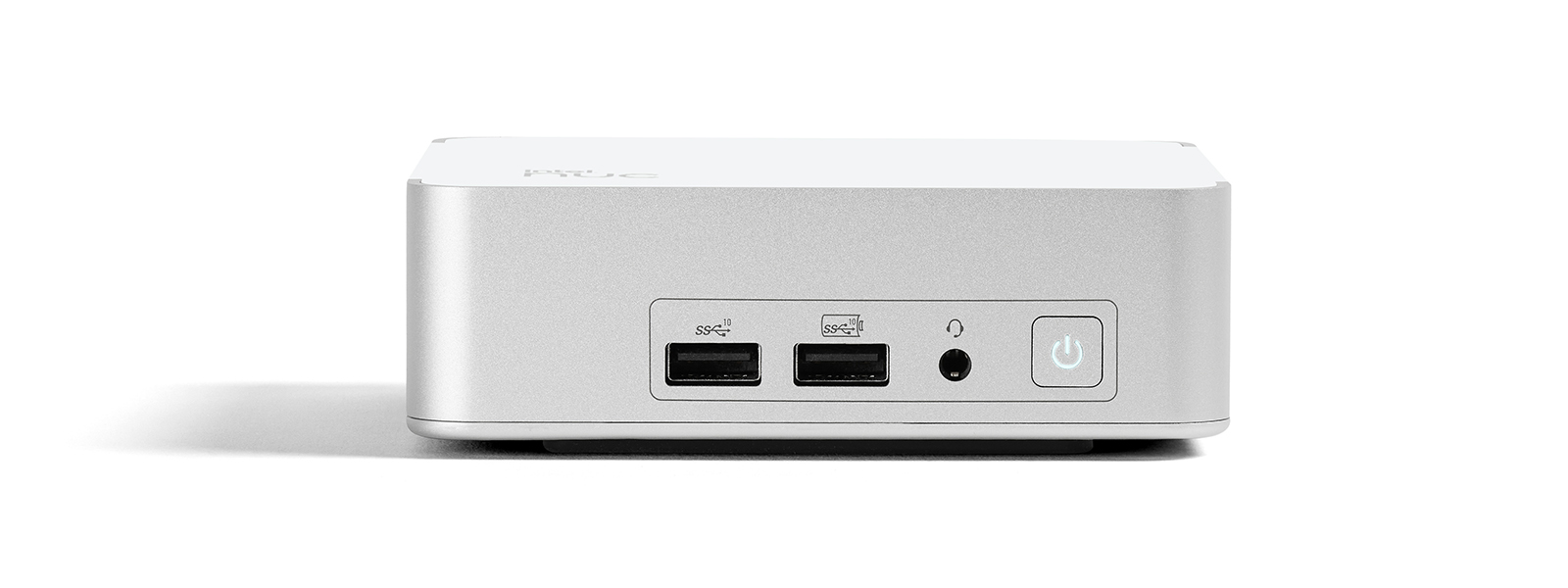

Parte anteriore: 2x USB 3.1, jack da 3,5 mm (fonte: Intel)
Parte anteriore: 2x USB 3.1, jack da 3,5 mm (fonte: Intel)
Retro: connessione di alimentazione, 2x Thunderbolt 4, 1x USB 3.1, 1x USB 2.0, LAN 2,5G, 2x HDMI 2.1 (fonte immagine: Intel)
Retro: connessione di alimentazione, 2x Thunderbolt 4, 1x USB 3.1, 1x USB 2.0, LAN 2,5G, 2x HDMI 2.1 (fonte immagine: Intel)

Comunicazione

Modulo WLAN
Modulo WLAN

L'Intel NUC 13 Pro Desk Edition Kit - Vivid Canyon è dotato di un modulo Wi-Fi 6E AX211 interno. Anche questo supporta la banda di frequenza a 6 GHz. Tutti i dispositivi hanno fornito velocità di trasmissione elevate nel nostro test WLAN, senza errori reali. Lo stesso si può dire per il nostro campione di prova, anche se è rimasto un po' indietro durante le misurazioni della banda di frequenza a 6 GHz. Per questo test abbiamo utilizzato il nostro ASUS ROG Rapture GT-AXE11000 come router di prova.

Networking
iperf3 receive AXE11000 6GHz
Geekom AS 6, R9 6900HX
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1719 (1695min - 1733max) MBit/s +19%
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
1668 (1467min - 1725max) MBit/s +15%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Wi-Fi 6E AX211
1530 (1509min - 1551max) MBit/s +6%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
1519 (1392min - 1699max) MBit/s +5%
Media Intel Wi-Fi 6E AX211
  (883 - 1857, n=176)
1486 MBit/s +3%
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1448 (1357min - 1490max) MBit/s
Khadas Mind
Intel Wi-Fi 6E AX211
1445 (1342min - 1468max) MBit/s 0%
Media della classe Mini PC
  (390 - 1771, n=44, ultimi 2 anni)
1239 MBit/s -14%
iperf3 transmit AXE11000 6GHz
Geekom Mini IT12
Intel Wi-Fi 6E AX211
1622 (1561min - 1670max) MBit/s +7%
Geekom AS 6, R9 6900HX
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1611 (1514min - 1705max) MBit/s +7%
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1511 (1451min - 1552max) MBit/s
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
1445 (736min - 1476max) MBit/s -4%
Media Intel Wi-Fi 6E AX211
  (632 - 1851, n=177)
1368 MBit/s -9%
Khadas Mind
Intel Wi-Fi 6E AX211
1348 (1293min - 1402max) MBit/s -11%
Media della classe Mini PC
  (432 - 1775, n=45, ultimi 2 anni)
1198 MBit/s -21%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Wi-Fi 6E AX211
919 (458min - 982max) MBit/s -39%
iperf3 receive AXE11000
Media Intel Wi-Fi 6E AX211
  (582 - 1890, n=196)
1392 MBit/s +25%
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s +18%
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1117 (884min - 1368max) MBit/s
Khadas Mind
Intel Wi-Fi 6E AX211
1059 (937min - 1173max) MBit/s -5%
Geekom AS 6, R9 6900HX
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
959 (947min - 969max) MBit/s -14%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
943 (923min - 960max) MBit/s -16%
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
939 (921min - 952max) MBit/s -16%
Morefine M600, 6900HX
MediaTek RZ608
929 (874min - 946max) MBit/s -17%
Media della classe Mini PC
  (192.9 - 1796, n=96, ultimi 2 anni)
915 MBit/s -18%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Wi-Fi 6E AX211
1301 (514min - 1422max) MBit/s
Media Intel Wi-Fi 6E AX211
  (464 - 1861, n=196)
1244 MBit/s -4%
Khadas Mind
Intel Wi-Fi 6E AX211
1108 (703min - 1199max) MBit/s -15%
Morefine M600, 6900HX
MediaTek RZ608
964 (924min - 990max) MBit/s -26%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
918 (892min - 938max) MBit/s -29%
Media della classe Mini PC
  (184.1 - 1776, n=96, ultimi 2 anni)
846 MBit/s -35%
Geekom AS 6, R9 6900HX
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
834 (769min - 893max) MBit/s -36%
Intel NUC 13 Pro Kit NUC13ANK
Intel Wi-Fi 6E AX211
833 (805min - 866max) MBit/s -36%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650Tooltip
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1511 (1451-1552)
Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1622 (1561-1670)
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1448 (1357-1490)
Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1519 (1392-1699)
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1117 (884-1368)
Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø943 (923-960)
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1284 (514-1422)
Geekom Mini IT12 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø918 (892-938)

Accessori

La dotazione è ridotta al minimo indispensabile. Oltre al dispositivo stesso, Intel ha incluso solo un alimentatore da 120 watt.

Manutenzione

Nonostante il nuovo design del case, il kit Intel NUC 13 Pro Desk Edition continua a essere facilissimo da aprire. Solo quattro viti fissano la piastra inferiore. Dopo averle rimosse, è possibile accedere facilmente alla RAM e all'SSD. Questo è importante, poiché l'Intel NUC 13 Pro Desk Edition Kit viene venduto come sistema barebone. Il nostro sistema di prova è quasi completamente equipaggiato, come si può vedere bene. È possibile installare solo un altro dispositivo di archiviazione. È necessario prestare attenzione al collegamento, poiché oltre all'unità SSD NVMe M.2 già installata, il secondo slot M.2 supporta solo unità SSD M.2 con velocità SATA e lunghezza massima di 42 millimetri.

Kit Intel NUC 13 Pro Desk Edition senza piastra inferiore
Kit Intel NUC 13 Pro Desk Edition senza piastra inferiore

Prestazioni - Un moderno SoC con 12 core e 16 thread

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

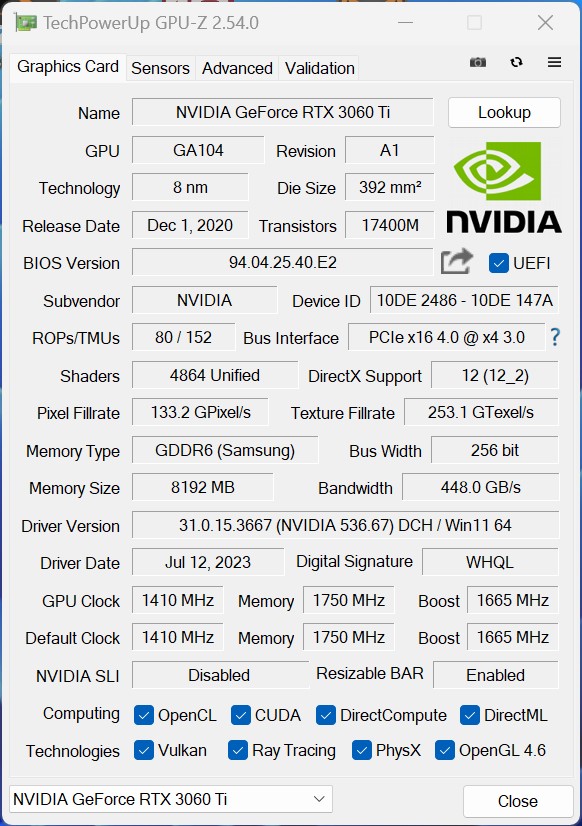

GPU-Z
GPU-Z
HWiNFO

Condizioni di test

Abbiamo eseguito tutti i test di prestazione utilizzando il profilo energetico "Bilanciato". I profili energetici alternativi non erano disponibili sul nostro sistema. Non abbiamo modificato le prestazioni del SoC e lo abbiamo lasciato in modalità automatica secondo le impostazioni del BIOS.

Processore

Il PCIntel Core i7-1360Pè un SoC molto moderno e frugale dell'attuale serie Raptor Lake P di Intel. Il produttore non ha limitato il possibile consumo energetico del dispositivo, il che significa che può accedere a 64 watt per un breve periodo di tempo. Questo valore è stato raggiunto, anche se sotto carico continuo ha avuto accesso solo a 40 watt. Nel nostro test, abbiamo visto che questo valore è stato mantenuto anche per un periodo di tempo più lungo.

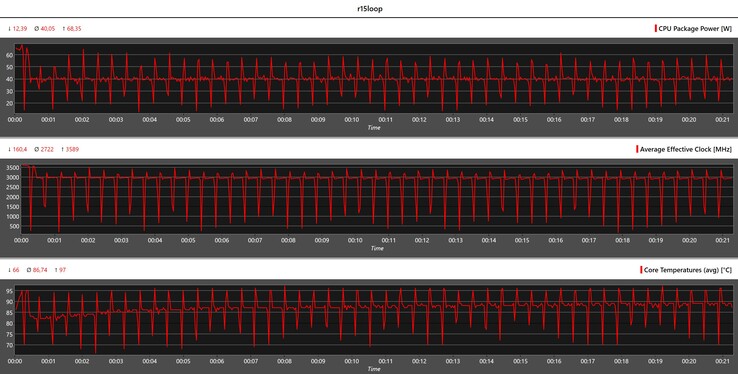

L'Intel NUC 13 Pro Desk Edition Kit ha superato a pieni voti il nostro test ed è persino riuscito a piazzarsi leggermente davanti all'Intel NUC 13 Pro Kit.Intel NUC 13 Pro Kit. Soggettivamente, non c'è alcuna differenza evidente tra le prestazioni di entrambi i sistemi.

Per ulteriori confronti e benchmark, date un'occhiata alla nostra tabella di confronto delle CPU Mobile Processors - Benchmark List .

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
50.3 pt
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
50 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
49.3 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
48.5 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
47.7 pt
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
47.7 pt
Khadas Mind
Intel Core i7-1360P, 1600 MHz
47.7 pt
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
45 pt
Cinebench R15
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
271 Points +1%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
270 Points +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
267 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
260 Points -3%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
249 Points -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
247 Points -7%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
244 Points -9%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
241 Points -10%
CPU Multi 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2067 Points +4%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
2030 Points +2%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2028 Points +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
1990 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1920 Points -4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1879 Points -6%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
1642 Points -17%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1565 Points -21%
Cinebench R20
CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
736 Points +2%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
724 Points 0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
723 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
698 Points -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
682 Points -6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
652 Points -10%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
607 Points -16%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
600 Points -17%
CPU (Multi Core)
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
4941 Points +5%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
4887 Points +4%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
4788 Points +2%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
4776 Points +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
4687 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
4578 Points -2%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
3820 Points -18%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
3427 Points -27%
Cinebench R11.5
CPU Single 64Bit
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
3.3 Points +2%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
3.27 Points +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
3.25 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.15 Points -3%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2.94 Points -10%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
2.93 Points -10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
2.88 Points -11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2.86 Points -12%
CPU Multi 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
25.96 Points +5%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
25.12 Points +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
24.69 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
23.66 Points -4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
23.6 Points -4%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
23.48 Points -5%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
20.06 Points -19%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
19.54 Points -21%
Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
15471 Points +2%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
15227 Points 0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
15176 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
14504 Points -4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13568 Points -11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
12846 Points -15%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12185 Points -20%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12133 Points -20%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
77409 Points +5%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
76744 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
73492 Points 0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
73480 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
69797 Points -5%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
68188 Points -7%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
61639 Points -16%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
53950 Points -27%
Blender - v2.79 BMW27 CPU
Khadas Mind
Intel Core i7-1360P, 1600 MHz
324 Seconds * -21%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
280 Seconds * -4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
279 Seconds * -4%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
275 Seconds * -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
273 Seconds * -2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
268 Seconds *
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
260 Seconds * +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
231 Seconds * +14%
wPrime 2.10
32m
Khadas Mind
Intel Core i7-1360P, 1600 MHz
4.957 s * -32%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
4.485 s * -19%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
3.765 s * -0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
3.754 s *
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
3.735 s * +1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
3.642 s * +3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
3.641 s * +3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
3.421 s * +9%
1024m
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
304.68 s *
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
277.01 s * +9%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
240.083 s * +21%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
237.123 s * +22%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
235.874 s * +23%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
189.07 s * +38%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
104.788 s * +66%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
103.226 s * +66%
X264 HD Benchmark 4.0
Pass 1
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
312.5 (304min - 328max) fps
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
312 (305min - 331max) fps 0%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
273 (264min - 275max) fps -13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
266 (264min - 271max) fps -15%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
258.5 (256min - 268max) fps -17%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
249 (246min - 255max) fps -20%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
245 (239min - 261max) fps -22%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
224 (222min - 258max) fps -28%
Pass 2
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
125.25 (105.2min - 130max) fps +9%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
116.4 (108.5min - 128.8max) fps +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
114.95 (107min - 127.4max) fps
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
114.45 (113.9min - 116.5max) fps 0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
114 (111.2min - 119.4max) fps -1%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
110.5 (101.7min - 125.3max) fps -4%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
94.7 (87.4min - 101.7max) fps -18%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
77.75 (77.6min - 113.9max) fps -32%
WinRAR - Result
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
7937 KB/s +61%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7200 KB/s +46%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6980 KB/s +41%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6795 KB/s +38%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6559 KB/s +33%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
6079 KB/s +23%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
5759 KB/s +17%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
4933 KB/s
TrueCrypt
AES Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
12.5 GB/s +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
12.3 GB/s
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
12.1 GB/s -2%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
11.8 GB/s -4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
11.6 GB/s -6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.4 GB/s -15%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
9.5 GB/s -23%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8.6 GB/s -30%
Twofish Mean 100MB
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
2.3 GB/s
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
2.2 GB/s -4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2 GB/s -13%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.9 GB/s -17%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1.8 GB/s -22%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.7 GB/s -26%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
1.7 GB/s -26%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.6 GB/s -30%
Serpent Mean 100MB
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1.2 GB/s 0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
1.2 GB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1.1 GB/s -8%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.1 GB/s -8%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1.1 GB/s -8%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1 GB/s -17%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.974 GB/s -19%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
0.935 GB/s -22%
Geekbench 5.5
Multi-Core
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
10574 Points +3%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
10269 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9935 Points -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points -6%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9278 Points -10%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
9159 Points -11%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9151 Points -11%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8918 Points -13%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1850 Points +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
1832 Points
Khadas Mind
Intel Core i7-1360P, 1600 MHz
1824 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1782 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1715 Points -6%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1586 Points -13%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1547 Points -16%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
10249 Points 0%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
10249 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10249 Points 0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
10213 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
9817 Points -4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points -5%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9351 Points -8%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
9000 Points -12%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +3%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
1826 Points +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
1784 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
1694 Points -5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1557 Points -13%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
1557 Points -13%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1557 Points -13%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1538 Points -14%
Geekbench 4.4
64 Bit Single-Core Score
Khadas Mind
Intel Core i7-1360P, 1600 MHz
8084 Points +2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
7950 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
7554 Points -5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6698 Points -16%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
6698 Points -16%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6698 Points -16%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6648 Points -16%
64 Bit Multi-Core Score
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
39852 Points +2%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
39852 Points +2%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
39852 Points +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
39116 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
36974 Points -5%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
36780 Points -6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points -6%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
33052 Points -16%
3DMark 11 - 1280x720 Performance Physics
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
18679 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
18382 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
18044 Points -3%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
17973 Points -4%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
17810 Points -5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15855 Points -15%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
15245 Points -18%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
13067 Points -30%
7-Zip 18.03
7z b 4
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
56930 MIPS +11%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
56923 MIPS +11%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
52959 MIPS +3%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
51340 MIPS
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
51151 MIPS 0%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
47064 MIPS -8%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
43201 MIPS -16%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
37570 MIPS -27%
7z b 4 -mmt1
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
6019 MIPS +3%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
5961 MIPS +2%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
5904 MIPS +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
5840 MIPS
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
5738 MIPS -2%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
5721 MIPS -2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
5591 MIPS -4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
5577 MIPS -5%
HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15.8 fps +14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
15.4 fps +11%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
14.2 fps +2%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
14.1 fps +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
13.9 fps
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
13.2 fps -5%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
11.4 fps -18%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10.1 fps -27%
R Benchmark 2.5 - Overall mean
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
0.4881 sec * -8%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
0.4849 sec * -8%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
0.4787 sec * -6%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
0.4718 sec * -5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
0.4641 sec * -3%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
0.45 sec *
Khadas Mind
Intel Core i7-1360P, 1600 MHz
0.4463 sec * +1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
0.445 sec * +1%
LibreOffice - 20 Documents To PDF
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
53.4 s * -14%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
48.1 s * -3%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
47.1 s * -0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
46.9 s *
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
45 s * +4%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
43.7 s * +7%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
40.9 s * +13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
38 s * +19%
WebXPRT 3 - Overall
Khadas Mind
Intel Core i7-1360P, 1600 MHz
316 Points +5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
311 Points +3%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
305 Points +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
301 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
292 Points -3%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
287 Points -5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
285 Points -5%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
268 Points -11%
Mozilla Kraken 1.1 - Total
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
605 ms * -22%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
600 ms * -21%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
577 ms * -16%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
539 ms * -9%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
534 ms * -8%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
502 ms * -1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
496 ms *
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
494 ms * -0%
3DMark
3840x2160 Fire Strike Ultra Physics
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
24226 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22441 Points -7%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22237 Points -8%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
21422 Points -12%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
20158 Points -17%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
19357 Points -20%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
17786 Points -27%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
15903 Points -34%
1920x1080 Fire Strike Physics
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
25349 Points
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22740 Points -10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
22426 Points -12%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
22244 Points -12%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
21523 Points -15%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
20684 Points -18%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
18564 Points -27%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
16568 Points -35%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
10539 Points +19%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, 1600 MHz
9334 Points +6%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9004 Points +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, 1600 MHz
8845 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
8622 Points -3%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, 1500 MHz
8393 Points -5%
Khadas Mind
Intel Core i7-1360P, 1600 MHz
7942 Points -10%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6487 Points -27%

* ... Meglio usare valori piccoli

Performance Rating
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
92.1 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
76.8 pt
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
74.8 pt
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
74.6 pt
Media della classe Mini PC

71.3 pt
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
70.5 pt
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
68.2 pt
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
65.5 pt
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
43.3 pt
AIDA64 / FP32 Ray-Trace
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
13757 KRay/s +23%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
11188 KRay/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s -2%
Media della classe Mini PC
  (561 - 27538, n=108, ultimi 2 anni)
10544 KRay/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
10351 KRay/s -7%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
9567 KRay/s -14%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
9406 KRay/s -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
9086 KRay/s -19%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
5612 KRay/s -50%
AIDA64 / FPU Julia
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
87663 Points +54%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
60111 Points +6%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
57375 Points +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
56942 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points -3%
Media della classe Mini PC
  (3604 - 116903, n=108, ultimi 2 anni)
54846 Points -4%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
52136 Points -8%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
47763 Points -16%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
24138 Points -58%
AIDA64 / CPU SHA3
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
2931 MB/s +10%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
2669 MB/s
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
2590 MB/s -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s -4%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
2430 MB/s -9%
Media della classe Mini PC
  (225 - 5096, n=108, ultimi 2 anni)
2401 MB/s -10%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
2065 MB/s -23%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
1971 MB/s -26%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
1649 MB/s -38%
AIDA64 / CPU Queen
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
100293 Points +15%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
86881 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
82493 Points -5%
Media della classe Mini PC
  (8172 - 119802, n=108, ultimi 2 anni)
71531 Points -18%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
70563 Points -19%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
67224 Points -23%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
65324 Points -25%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
46646 Points -46%
AIDA64 / FPU SinJulia
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
12396 Points +71%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
8507 Points +17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
8294 Points +14%
Media della classe Mini PC
  (408 - 15525, n=108, ultimi 2 anni)
7598 Points +5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points +4%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
7246 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
6728 Points -7%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
5734 Points -21%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
3964 Points -45%
AIDA64 / FPU Mandel
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
44629 Points +59%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
33084 Points +18%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
31389 Points +12%
Media della classe Mini PC
  (1958 - 62378, n=108, ultimi 2 anni)
28957 Points +3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points 0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
28019 Points
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
25996 Points -7%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
22832 Points -19%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
14905 Points -47%
AIDA64 / CPU AES
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s +87%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92356 MB/s +73%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
82315 MB/s +54%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
80041 MB/s +50%
Media della classe Mini PC
  (3691 - 177158, n=108, ultimi 2 anni)
78994 MB/s +48%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
78211 MB/s +47%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
58910 MB/s +10%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
56199 MB/s +5%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
53328 MB/s
AIDA64 / CPU ZLib
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
775 MB/s
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
745 MB/s -4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s -6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
722 MB/s -7%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
671 MB/s -13%
Media della classe Mini PC
  (74.8 - 1233, n=108, ultimi 2 anni)
609 MB/s -21%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
531 MB/s -31%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
505 MB/s -35%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
265 MB/s -66%
AIDA64 / FP64 Ray-Trace
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
7288 KRay/s +22%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
5957 KRay/s
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s -3%
Media della classe Mini PC
  (308 - 14722, n=108, ultimi 2 anni)
5633 KRay/s -5%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
5613 KRay/s -6%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
5024 KRay/s -16%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
4975 KRay/s -16%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
4636 KRay/s -22%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
2997 KRay/s -50%
AIDA64 / CPU PhotoWorxx
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
43544 MPixel/s +49%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
29765 MPixel/s +2%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
29263 MPixel/s
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
28377 MPixel/s -3%
Minipc Union Ace Magician TK11-A0
Intel Core i5-1135G7, Iris Xe G7 96EUs
26959 MPixel/s -8%
Media della classe Mini PC
  (4408 - 45560, n=108, ultimi 2 anni)
25597 MPixel/s -13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s -17%
Minipc Union Ace Magician AMR5
AMD Ryzen 5 5600U, Vega 7
19395 MPixel/s -34%
Minisforum Mars Series MC560
AMD Ryzen 5 5600U, Vega 7
17803 MPixel/s -39%

Kit Intel NUC 13 Pro Desk Edition - Arena Canyon vs. Cinebench R15 Multi Loop

Il ciclo continuo di Cinebench R15 ci dà una prima occhiata al funzionamento dell'unità di raffreddamento installata. Le prestazioni della CPU del dispositivo sono calate di circa il 10% già dopo il primo ciclo. Dopo la seconda prova, il SoC ha mostrato prestazioni relativamente stabili, raggiungendo una media di 1.753 punti dopo 50 prove. Si tratta di un valore leggermente inferiore a quello che abbiamo documentato sulIntel NUC 13 Pro Kit.

Metriche della CPU durante il ciclo Cinebench R15
Metriche della CPU durante il ciclo Cinebench R15
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Core i7-1360P: Ø1753 (1686.77-2083.33)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)
Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)
Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)
Khadas Mind Intel Core i7-1360P, Intel Core i7-1360P: Ø1443 (1386.82-1627.54)

Prestazioni del sistema

Durante i benchmark sintetici, le prestazioni del sistema dell'Intel NUC 13 Pro Desk Edition Kit non sono riuscite a tenere il passo con i risultati della CPU. Il nostro campione di prova ha ottenuto solo risultati medi e con PCMark10 si è attestato sullo stesso livello dell'Intel NUC 12 Pro Kit e del Geekom Mini IT12. Crossmark non ha dato risultati migliori. Durante i test della RAM, il nostro campione ha dovuto ammettere la sconfitta in molte occasioni. Per brillare adeguatamente, il NUC 13 Pro Desk Edition Kit avrebbe dovuto essere dotato di una RAM DDR5 più veloce. Il produttore avrebbe dovuto farlo anche per differenziare il PC dall'Intel NUC 13 Pro Kit.Intel NUC 13 Pro Kit. IlMente Khadasci mostra cosa si può ottenere con una RAM più veloce.

PCMark 10 / Score
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
6654 Points +13%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
6653 Points +13%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
6281 Points +7%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points +5%
Khadas Mind, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00
5937 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
5915 Points +1%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
5882 Points
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
5658 Points -4%
PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
11596 Points +5%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points +2%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
11035 Points
Khadas Mind, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00
10761 Points -2%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
10661 Points -3%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
10504 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
10390 Points -6%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
10139 Points -8%
PCMark 10 / Productivity
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
9817 Points +49%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
9550 Points +45%
Khadas Mind, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00
8161 Points +24%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
7893 Points +20%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points +17%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
7626 Points +16%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
7427 Points +13%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
6576 Points
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points +19%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1810 Points +13%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1738 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1679 Points +5%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1596 Points
Khadas Mind, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00
1564 Points -2%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1517 Points -5%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
1476 Points -8%
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points +61%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1734 Points +32%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1578 Points +20%
Khadas Mind, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00
1528 Points +17%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1476 Points +13%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1311 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1238 Points -6%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
1060 Points -19%
CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1970 Points +11%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1785 Points +1%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1769 Points
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1749 Points -1%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
1675 Points -5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1652 Points -7%
Khadas Mind, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00
1600 Points -10%
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points +25%
Intel NUC 13 Pro Kit NUC13ANK, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1740 Points +13%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1729 Points +12%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S
1649 Points +7%
Khadas Mind, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00
1541 Points 0%
Intel NUC 13 Pro Desk Edition Kit, Intel Core i7-1360P
Intel Iris Xe Graphics G7 96EUs, Samsung PM9A1 MZVL2512HCJQ
1537 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1491 Points -3%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G
1451 Points -6%
AIDA64 / Memory Copy
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
65299 MB/s +47%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50714 MB/s +14%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50228 MB/s +13%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s +4%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
44892 MB/s +1%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
44726 MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
44661 MB/s +1%
Media della classe Mini PC
  (6481 - 71990, n=108, ultimi 2 anni)
44339 MB/s 0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
44299 MB/s
AIDA64 / Memory Read
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
60668 MB/s +36%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51580 MB/s +15%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51077 MB/s +14%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s +11%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
47491 MB/s +6%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46644 MB/s +4%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
45196 MB/s +1%
Media della classe Mini PC
  (6914 - 75449, n=108, ultimi 2 anni)
44821 MB/s 0%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
44751 MB/s
AIDA64 / Memory Write
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
74777 MB/s +63%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55194 MB/s +20%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55128 MB/s +20%
Media della classe Mini PC
  (6862 - 89318, n=108, ultimi 2 anni)
48301 MB/s +5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s +2%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
46785 MB/s +2%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
46223 MB/s +1%
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
46179 MB/s +1%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
45887 MB/s
AIDA64 / Memory Latency
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * -4%
Intel NUC 13 Pro Desk Edition Kit
Intel Core i7-1360P, Iris Xe G7 96EUs
96.2 ns *
Intel NUC 13 Pro Kit NUC13ANK
Intel Core i7-1360P, Iris Xe G7 96EUs
96.1 ns * -0%
Intel NUC 12 Pro Kit NUC12WSKi7
Intel Core i7-1260P, Iris Xe G7 96EUs
92.7 ns * +4%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
92.4 ns * +4%
Khadas Mind
Intel Core i7-1360P, Iris Xe G7 96EUs
90.5 ns * +6%
Geekom AS 6, R9 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
89.9 ns * +7%
Media della classe Mini PC
  (44.9 - 154.6, n=108, ultimi 2 anni)
88.1 ns * +8%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
80.2 ns * +17%

* ... Meglio usare valori piccoli

Latenza DPC

Non abbiamo notato un aumento delle latenze durante la semplice navigazione in Internet. Le latenze sono diventate evidenti solo dopo aver iniziato a riprodurre il video di test 4K. Le latenze non sono aumentate ulteriormente dopo l'avvio di Prime95.

Latenze massime quando si aprono più schede del browser e si riproducono video 4K
Latenze massime quando si aprono più schede del browser e si riproducono video 4K
Latenze massime dopo dieci secondi di Prime95
Latenze massime dopo dieci secondi di Prime95
Driver classificati in base alla durata di esecuzione più lunga
Driver classificati in base alla durata di esecuzione più lunga
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AS 6, R9 6900HX
Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G
1588.3 μs * -49%
Morefine M600, 6900HX
Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
1317 μs * -23%
Minisforum Neptune Series NAD9
Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0
1113.9 μs * -4%
Intel NUC 13 Pro Kit NUC13ANK
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1087 μs * -2%
Intel NUC 13 Pro Desk Edition Kit
Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
1068.7 μs *
Geekom Mini IT12
Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0
985.8 μs * +8%
Khadas Mind
Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00
962 μs * +10%
Intel NUC 12 Pro Kit NUC12WSKi7
Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S
779 μs * +27%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

512 GB SSD NVMe
512 GB SSD NVMe

Il nostro esemplare di prova dell'Intel NUC 13 Pro Desk Edition Kit è dotato di un'unità SSD NVMe da 512 GB di Samsung. Un modello identico era già presente nelKit Intel NUC 13 Pro. Grazie all'utilizzo dello stesso dispositivo di archiviazione, abbiamo notato risultati di benchmark quasi identici per quanto riguarda le prestazioni. Abbiamo notato una differenza solo per quanto riguarda la velocità di lettura sotto carico continuo. In questo caso, il kit Intel NUC 13 Pro ha generalmente fornito prestazioni migliori, anche se il kit Intel NUC 13 Pro Desk Edition non ha mai avuto problemi nel mantenere stabili i livelli di prestazione. L'Intel NUC 13 Pro Desk Edition Kit può essere equipaggiato con due dispositivi di archiviazione in totale. Va notato che il secondo slot può essere dotato solo di un SSD M.2 2242. Inoltre, questa connessione supporta solo velocità SATA, un aspetto da tenere presente.

Per ulteriori confronti e benchmark, date un'occhiata alla nostra tabella di confronto.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Samsung PM9A1 MZVL2512HCJQ
Sequential Read: 3944 MB/s
Sequential Write: 3270 MB/s
512K Read: 2579 MB/s
512K Write: 1193 MB/s
4K Read: 54.85 MB/s
4K Write: 143.9 MB/s
4K QD32 Read: 423.5 MB/s
4K QD32 Write: 401.3 MB/s
