Recensione del Minisforum HX90G: un compatto PC per il gaming con AMD Ryzen 9 5900HX e AMD Radeon RX 6600M

Potente mini PC! Minisforum e la sua linea di computer desktop compatti stanno diventando sempre più popolari. La linea attuale del produttore cinese si concentra sempre più sui sistemi di gioco, come il Neptune Series HX90G. Scoprite cosa ha da offrire questo dispositivo compatto e se lo raccomandiamo in questa recensione.


Configurazioni Minisforum HX90G (Fonte: Minisforum)
Configurazioni Minisforum HX90G (Fonte: Minisforum)

Minisforum sta diventando sempre più popolare. Il costruttore cinese di sistemi ha iniziato con computer compatti per ufficio e ha segnato il suo debutto nel settore dei giochi con l'EliteMini HX90, un dispositivo privo di una GPU dedicata. Il Minisforum Neptune Series HX90G compensa questa mancanza e include una AMD Radeon RX 6600M per integrare l'AMD Ryzen 9 5900HX. Conosciamo bene questo chip grazie alle nostre recensioni di notebook. Ha una VRAM di 8 GB e può lavorare senza essere strozzato dall'HX90G.

Il Minisforum HX90G è disponibile presso il negozio online del produttore. È disponibile anche in versione barebone, senza moduli RAM o SSD e senza licenza per Windows Professional 11. Il prezzo di questa versione barebone parte da un minimo di 10 euro. Il prezzo per questa versione barebone parte da 1.079 euro. Il modello migliore con 64 GB di RAM e un SSD da 512 GB è disponibile a 1.469 euro. I primi prodotti saranno distribuiti a metà novembre e sono attualmente disponibili con uno sconto sul pre-ordine di circa 300 euro, il che rende il prezzo molto interessante.

Questa recensione include computer desktop compatti come dispositivi di confronto e prende in esame anche notebook da gioco con dotazione simile per un confronto più diretto delle prestazioni della GPU.

Minisforum Neptune Series HX90G
Processore
AMD Ryzen 9 5900HX 8 x 3.3 - 4.6 GHz, 54 W PL2 / Short Burst, 45 W PL1 / Sustained, Cezanne-H (Zen 3)
Scheda grafica
AMD Radeon RX 6600M - 8 GB VRAM, Core: 2448 MHz, Memoria: 1750 MHz, 100 W TDP, GDDR6, Adrenalin 22.10.1
Memoria
16 GB
, DDR4-3200, 2 von 2 installiert
Scheda madre
AMD Promontory/Bixby FCH
Harddisk
ESO512GYLCT, 512 GB
, M.2 NVMe, 450 GB libera
Scheda audio
AMD Zen - Audio Processor - HD Audio Controller
Porte di connessione
2 USB 3.0 / 3.1, 3 USB 3.1 Gen 2, 2 HDMI, 2 DisplayPort, Connessioni Audio: Mikrofonbuchse, Kopfhöreranschluss
Rete
Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Dimensioni
altezza x larghezza x profondità (in mm): 69.3 x 205 x 203
Sistema Operativo
Microsoft Windows 11 Pro
Altre caratteristiche
power supply with cable, HDMI cable, computer stand, user manual, 24 Mesi Garanzia
Rilasciata
11/21/2022
Peso
1.414 kg, Alimentazione: 653 gr
Prezzo
1229 EUR
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confronto

Punteggio
Data
Modello
Peso
Altezza
Miglior Prezzo
10/2022
Minisforum Neptune Series HX90G
R9 5900HX, Radeon RX 6600M
1.4 kg69.3 mm
12/2021
Intel Beast Canyon NUC
i9-11900KB, NVIDIA GeForce RTX 3060
189 mm
06/2021
Zotac Magnus One (ECM73070C)
i7-10700, NVIDIA GeForce RTX 3070
05/2022
Zotac ZBOX Magnus EN173070C
i7-11800H, GeForce RTX 3070 Laptop GPU
1.8 kg62.2 mm
04/2022
Intel Dragon Canyon NUC - RTX 3060
i9-12900, NVIDIA GeForce RTX 3060
189 mm
82.6 %
05/2022
Lenovo Legion 5 15ACH6A-82NW0010GE
R5 5600H, Radeon RX 6600M
2.5 kg25.75 mm
09/2022
Minisforum NUCX i7
i7-11800H, GeForce RTX 3070 Laptop GPU
2.4 kg393 mm
01/2022
Minisforum EliteMini HX90
R9 5900HX, Vega 8
60 mm

Uno sguardo dettagliato alla serie Neptune HX90G di Minisforum

Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G
Minisforum Serie Neptune HX90G

Caso

La custodia è realizzata interamente in plastica e, come il Minisforum EliteMini HX90, presenta un look in carbonio su alcune delle sue parti. L'interno della custodia è rinforzato con metallo. Non c'è nulla da criticare sull'esterno del dispositivo. La lavorazione è buona e le dimensioni dello spazio non sono eccessive. Tuttavia, avremmo preferito una custodia in alluminio. Questo avrebbe potuto rendere il dispositivo un po' più pesante, ma gli avrebbe conferito un aspetto più di alta qualità. Il Minisforum HX90G può essere posizionato in piano o in verticale con l'aiuto di un piccolo supporto, come si può vedere nelle immagini.

Il Minisforum HX90G pesa solo 1,4 kg (incluso il supporto). L'alimentatore esterno pesa altri 650 g.

Connettività

A prima vista, il Minisforum Neptune Series HX90G sembra includere tutte le porte necessarie. Dispone di cinque porte USB, una delle quali di tipo C. Purtroppo, nessuna delle porte supporta Thunderbolt e la porta di tipo C non supporta l'uscita di immagini. Il dispositivo offre sufficienti alternative per collegare schermi esterni: due connettori HDMI e due DisplayPort. Purtroppo, queste quattro porte supportano solo fino a 4K@60Hz. Le porte sono distribuite sulla parte anteriore e posteriore e sono facilmente accessibili.

Porte esterne del Minisforum Neptune Series HX90G (Fonte: Minisforum)
Porte esterne del Minisforum Neptune Series HX90G (Fonte: Minisforum)

Comunicazione

Minisforum ha incluso un modulo MediaTek RZ608 nel suo HX90G. Il mini PC ha ottenuto buoni risultati nel nostro test con il router di riferimento ASUS ROG Rapture GT-AXE11000. Le sue velocità di trasferimento sono state superiori a tutte le nostre precedenti misurazioni con questo modulo in altre unità di test. Tuttavia, i moduli Intel Wi-Fi 6E sono molto più veloci e superano facilmente la nostra unità di test. La porta LAN integrata è una buona alternativa e supporta fino a 2,5 GBit/s.

Networking
iperf3 receive AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1848 (1731min - 1888max) MBit/s +122%
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1480 (1212min - 1519max) MBit/s +78%
Media della classe Mini PC
  (390 - 1771, n=35, ultimi 2 anni)
1182 MBit/s +42%
Minisforum NUCX i7
Intel Wi-Fi 6E AX210
885 (820min - 897max) MBit/s +6%
Minisforum Neptune Series HX90G
MediaTek RZ608
831 (801min - 844max) MBit/s
Media MediaTek RZ608
  (430 - 961, n=16)
826 MBit/s -1%
iperf3 transmit AXE11000 6GHz
Intel Dragon Canyon NUC - RTX 3060
Intel Wi-Fi 6E AX211
1851 (1799min - 1897max) MBit/s +91%
Zotac ZBOX Magnus EN173070C
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
1669 (1609min - 1719max) MBit/s +72%
Minisforum NUCX i7
Intel Wi-Fi 6E AX210
1198 (975min - 1352max) MBit/s +24%
Media della classe Mini PC
  (722 - 1764, n=36, ultimi 2 anni)
1158 MBit/s +20%
Minisforum Neptune Series HX90G
MediaTek RZ608
968 (949min - 994max) MBit/s
Media MediaTek RZ608
  (572 - 980, n=16)
825 MBit/s -15%
050100150200250300350400450500550600650700750800850900950Tooltip
Minisforum Neptune Series HX90G; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø968 (949-994)
Minisforum Neptune Series HX90G; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø830 (801-844)

Accessori

Il dispositivo viene fornito con un alimentatore da 260 Watt e un supporto.

Manutenzione

Il coperchio laterale del dispositivo può essere rimosso per qualsiasi intervento di manutenzione. Sfortunatamente, ciò richiede la rimozione dei cuscinetti di gomma, il che non è l'ideale in quanto tendono a perdere la loro adesività. Il coperchio laterale è fissato al telaio con quattro viti. Gli utenti dovranno quindi rimuovere un'altra copertura metallica prima di poter accedere al modulo RAM, all'SSD o al modulo Wi-Fi. La piastra metallica serve solo a fissare il coperchio laterale. Non c'è spazio per un dispositivo di archiviazione da 2,5 pollici, né può essere collegato alla scheda principale. C'è spazio, invece, per due moduli SO-DIMM e due SSD M.2. Per pulire le ventole è necessario smontare ulteriormente il dispositivo, ma non dovrebbe essere un problema se si sa cosa fare. Il produttore sconsiglia agli utenti di smontare il sistema di raffreddamento. Poiché il produttore ha utilizzato una pasta termica di buona qualità (metallo liquido), non riteniamo che ciò sia necessario.

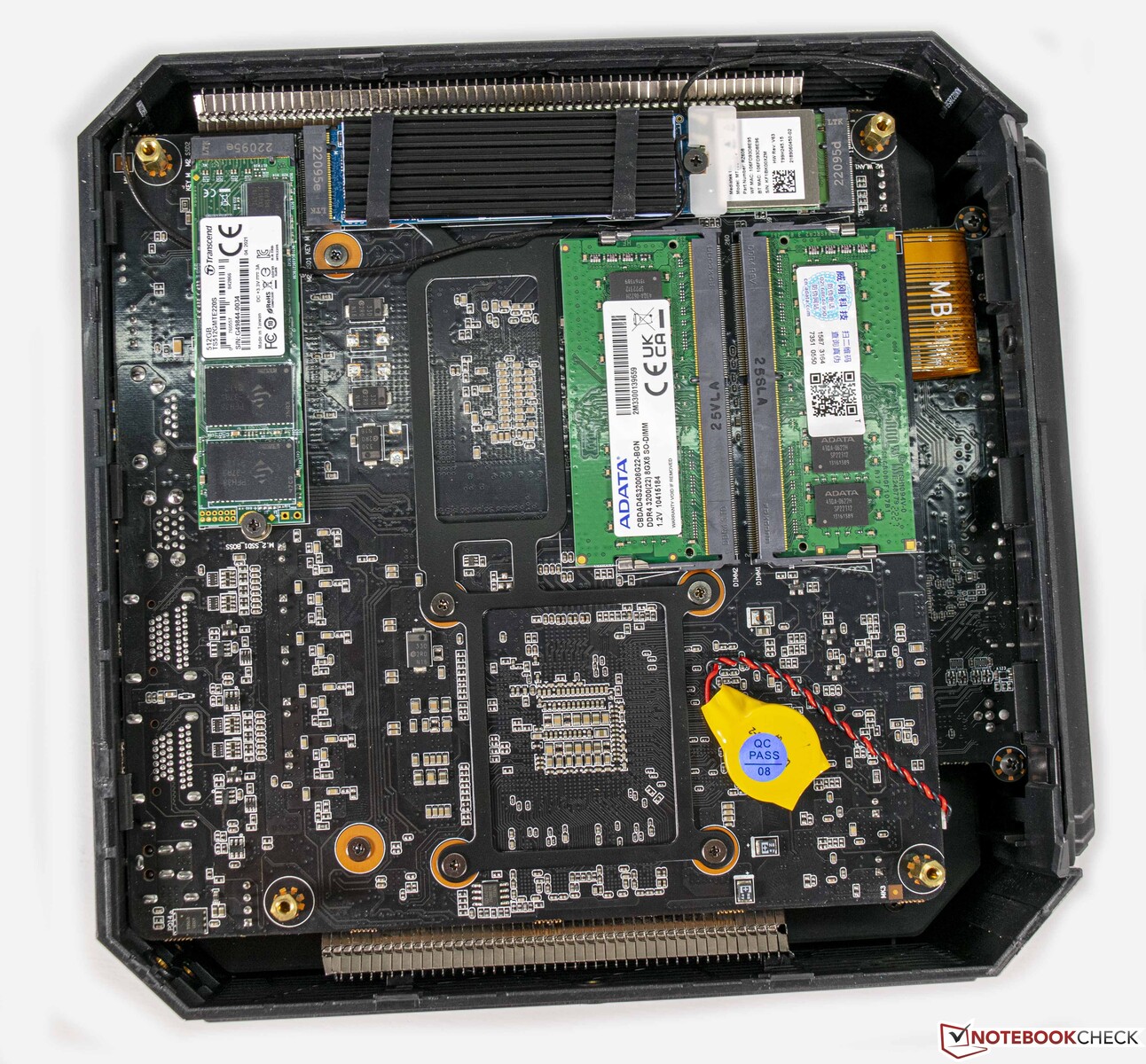

Interno del Minisforum Neptune Serie HX90G
Interno del Minisforum Neptune Serie HX90G

Prestazioni: compatto e potente

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
GPU-Z
HWiNFO

Condizioni di test

Abbiamo eseguito tutti i test sulle prestazioni con il profilo energetico "alte prestazioni". Non abbiamo apportato alcuna modifica alle prestazioni della CPU e abbiamo lasciato tutte le impostazioni del BIOS in modalità automatica.

Processore

AMD Ryzen 9 5900HX nel Minisforum HX90G (Fonte: Minisforum)
AMD Ryzen 9 5900HX nel Minisforum HX90G (Fonte: Minisforum)

L'AMD Ryzen 9 5900HX appartiene alla serie Cezanne ed è basato sull'architettura Zen3. Il SoC offre 8 core fisici con un totale di 16 thread (grazie a SMT). Ciò è particolarmente vantaggioso per le applicazioni multi-thread. L'AMD Ryzen 9 5900HX si comporta bene e le prestazioni complessive dell'HX90G sono migliori di quelle dell'HX90, dotato dello stesso SoC. Per una differenza più marcata nelle prestazioni della CPU, il produttore avrebbe potuto utilizzare il più recente SoC Ryzen 9 6900HX di AMD. La nostra valutazione delle prestazioni ha dimostrato che questo SoC è superiore del 10% a quello del nostro sistema. L'HX90G ha un altro avversario interno sotto forma di Minisforum NUCXi7. L'AMD Ryzen 9 5900HX controlla molto bene l'Intel Core i7-11800H, ma non può competere con l'Intel Dragon Canyon NUC, basato sull'attuale generazione Alder Lake. In termini numerici, ciò equivale a una differenza di prestazioni del 12%, che non considereremmo notevole nell'uso quotidiano.

Non ci sono differenze rispetto al Minisforum HX90 in termini di specifiche del SoC. Abbiamo testato il SoC dell'HX90G in modalità automatica e il SoC ha raggiunto brevemente i 54 watt. Il limite di potenza a lungo termine è fissato a 45 watt. Il SoC può essere impostato su sei diverse modalità (10, 15, 25, 35, 45, 54 watt) per risparmiare elettricità o ridurre ulteriormente le già basse emissioni acustiche.

Per ulteriori confronti e benchmark, visitate la nostra Tabella di confronto delle CPU.

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Performance Rating - Percent
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
54.3 pt
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
48.7 pt
Media AMD Ryzen 9 6900HX

48.5 pt
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
48.1 pt
Media AMD Ryzen 9 5900HX

47.3 pt
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
47 pt
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
46.7 pt
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
45.5 pt
Lenovo Legion 5 15ACH6A-82NW0010GE -8!
AMD Ryzen 5 5600H, 3300 MHz
44.7 pt
Zotac Magnus One (ECM73070C) -2!
Intel Core i7-10700, 2900 MHz
43.4 pt
Cinebench R15
CPU Single 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
262 Points +8%
Media AMD Ryzen 9 6900HX
  (241 - 261, n=19)
250 Points +3%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
247 Points +2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
242 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
242 Points
Media AMD Ryzen 9 5900HX
  (197 - 243, n=25)
238 Points -2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
227 Points -6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
224 Points -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
223 Points -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
196 Points -19%
CPU Multi 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
3299 Points +48%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2224 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
2222 Points
Media AMD Ryzen 9 6900HX
  (1588 - 2411, n=19)
2163 Points -3%
Media AMD Ryzen 9 5900HX
  (1076 - 2267, n=29)
2050 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
2045 Points -8%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
2027 Points -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1723 Points -22%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1666 Points -25%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1455 Points -35%
Cinebench R20
CPU (Single Core)
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
703 Points +21%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
629 Points +8%
Media AMD Ryzen 9 6900HX
  (595 - 631, n=19)
610 Points +5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
582 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
580 Points
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
579 Points 0%
Media AMD Ryzen 9 5900HX
  (471 - 584, n=29)
573 Points -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
564 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
535 Points -8%
CPU (Multi Core)
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
7179 Points +36%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
5276 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5185 Points -2%
Media AMD Ryzen 9 6900HX
  (3742 - 5813, n=19)
5162 Points -2%
Media AMD Ryzen 9 5900HX
  (2242 - 5476, n=30)
4847 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
4760 Points -10%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
4644 Points -12%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
4059 Points -23%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
3954 Points -25%
Cinebench R11.5
CPU Single 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
3.16 Points +11%
Media AMD Ryzen 9 6900HX
  (2.86 - 3.07, n=8)
2.94 Points +4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2.86 Points +1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
2.84 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
2.84 Points
Media AMD Ryzen 9 5900HX
  (2.8 - 2.86, n=5)
2.84 Points 0%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
2.62 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
2.61 Points -8%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
2.59 Points -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
2.26 Points -20%
CPU Multi 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
38.96 Points +58%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
25.6 Points +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
24.71 Points
Media AMD Ryzen 9 5900HX
  (22 - 25.6, n=5)
24 Points -3%
Media AMD Ryzen 9 6900HX
  (19 - 26.4, n=8)
23.9 Points -3%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
22.07 Points -11%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
21.87 Points -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
19.71 Points -20%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
19.18 Points -22%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
16.7 Points -32%
Cinebench R10
Rendering Single CPUs 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
14610 Points +21%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
12508 Points +4%
Media AMD Ryzen 9 6900HX
  (11870 - 12943, n=8)
12332 Points +2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
12152 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
12037 Points
Media AMD Ryzen 9 5900HX
  (11811 - 12152, n=5)
12020 Points 0%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
11957 Points -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
11608 Points -4%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
11082 Points -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
9898 Points -18%
Rendering Multiple CPUs 64Bit
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
107565 Points +44%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
74772 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
73115 Points -2%
Media AMD Ryzen 9 5900HX
  (64320 - 74772, n=5)
70380 Points -6%
Media AMD Ryzen 9 6900HX
  (55915 - 77450, n=8)
69650 Points -7%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
67486 Points -10%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
67183 Points -10%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
63144 Points -16%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
58426 Points -22%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
52577 Points -30%
Blender - v2.79 BMW27 CPU
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
315.4 Seconds * -37%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
305.2 Seconds * -32%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
286.1 Seconds * -24%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
262.7 Seconds * -14%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
262.7 Seconds * -14%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
261 Seconds * -13%
Media AMD Ryzen 9 5900HX
  (219 - 442, n=29)
250 Seconds * -8%
Media AMD Ryzen 9 6900HX
  (212 - 357, n=21)
239 Seconds * -3%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
231 Seconds *
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
229.3 Seconds * +1%
wPrime 2.10
32m
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
4.186 s * -25%
Media AMD Ryzen 9 6900HX
  (3.46 - 4.69, n=7)
4 s * -20%
Media AMD Ryzen 9 5900HX
  (3.31 - 4.4, n=4)
3.66 s * -9%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
3.416 s * -2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
3.405 s * -2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
3.345 s *
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
3.308 s * +1%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
3.257 s * +3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
2.67 s * +20%
1024m
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
211.8 s * -128%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
120.839 s * -30%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
119.5 s * -28%
Media AMD Ryzen 9 6900HX
  (93.2 - 149.4, n=7)
114.7 s * -23%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
102.2 s * -10%
Media AMD Ryzen 9 5900HX
  (91.6 - 106.7, n=4)
98.7 s * -6%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
98.307 s * -6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
93.062 s *
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
91.6 s * +2%
X264 HD Benchmark 4.0
Pass 1
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
310 (303min - 324max) fps +12%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
278 (276min - 280max) fps
Media AMD Ryzen 9 5900HX
  (272 - 278, n=4)
275 fps -1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
272.5 (271min - 279max) fps -2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
271.5 (259min - 276max) fps -2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
258 (256min - 259max) fps -7%
Media AMD Ryzen 9 6900HX
  (241 - 263, n=7)
254 fps -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
247.5 (245min - 250max) fps -11%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
236 (235min - 257max) fps -15%
Pass 2
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
147.5 (134min - 173max) fps +15%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
128.35 (126.9min - 128.4max) fps
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
128 (122min - 128max) fps 0%
Media AMD Ryzen 9 5900HX
  (112 - 128.4, n=4)
120.2 fps -6%
Media AMD Ryzen 9 6900HX
  (93.3 - 127.8, n=7)
115.2 fps -10%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
109.3 (108.1min - 111.7max) fps -15%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
106 (101min - 108max) fps -17%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
93.75 (91.3min - 98.8max) fps -27%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
84.8 (84.6min - 105max) fps -34%
WinRAR - Result
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
10739 KB/s +43%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
9584 KB/s +27%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
7944 KB/s +6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
7925 KB/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
7523 KB/s
Media AMD Ryzen 9 6900HX
  (6795 - 6980, n=7)
6875 KB/s -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
6555 KB/s -13%
Media AMD Ryzen 9 5900HX
  (4297 - 7722, n=4)
6535 KB/s -13%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
4297 KB/s -43%
TrueCrypt
AES Mean 100MB
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
17.2 GB/s +51%
Media AMD Ryzen 9 6900HX
  (9.3 - 13.5, n=7)
11.8 GB/s +4%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
11.6 GB/s +2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
11.6 GB/s +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
11.4 GB/s
Media AMD Ryzen 9 5900HX
  (7.4 - 12.3, n=4)
10.5 GB/s -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
10.3 GB/s -10%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
9.9 GB/s -13%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7.4 GB/s -35%
Twofish Mean 100MB
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
3.4 GB/s +79%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
2 GB/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1.9 GB/s
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1.8 GB/s -5%
Media AMD Ryzen 9 5900HX
  (1.6 - 2, n=4)
1.775 GB/s -7%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1.7 GB/s -11%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1.7 GB/s -11%
Media AMD Ryzen 9 6900HX
  (1.3 - 1.8, n=7)
1.643 GB/s -14%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1.5 GB/s -21%
Serpent Mean 100MB
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
1.9 GB/s +58%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1.2 GB/s 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1.2 GB/s
Media AMD Ryzen 9 5900HX
  (1.1 - 1.2, n=4)
1.15 GB/s -4%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1.1 GB/s -8%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1.1 GB/s -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1.1 GB/s -8%
Media AMD Ryzen 9 6900HX
  (0.857 - 1.2, n=7)
1.094 GB/s -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
0.9 GB/s -25%
Geekbench 5.5
Multi-Core
Media AMD Ryzen 9 6900HX
  (8313 - 10490, n=21)
9642 Points +7%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
9186 Points +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
9020 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
8924 Points -1%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
8924 Points -1%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
8207 Points -9%
Media AMD Ryzen 9 5900HX
  (5057 - 9294, n=27)
8188 Points -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
8173 Points -9%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7875 Points -13%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6567 Points -27%
Single-Core
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1656 Points +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
1656 Points +6%
Media AMD Ryzen 9 6900HX
  (1523 - 1652, n=21)
1589 Points +2%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1579 Points +1%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1570 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1560 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1542 Points -1%
Media AMD Ryzen 9 5900HX
  (1271 - 1574, n=27)
1517 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1414 Points -9%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1299 Points -17%
Geekbench 5.0
5.0 Multi-Core
Media AMD Ryzen 9 6900HX
  (9220 - 10426, n=15)
9880 Points +12%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
9074 Points +2%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
8853 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
8845 Points 0%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
8845 Points 0%
Media AMD Ryzen 9 5900HX
  (7327 - 9053, n=9)
8267 Points -7%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
8196 Points -7%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
8109 Points -8%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
7859 Points -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6483 Points -27%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6483 Points -27%
5.0 Single-Core
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
1638 Points +9%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
1638 Points +9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
1571 Points +5%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
1563 Points +4%
Media AMD Ryzen 9 6900HX
  (1531 - 1603, n=15)
1561 Points +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
1500 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
1498 Points 0%
Media AMD Ryzen 9 5900HX
  (1233 - 1517, n=9)
1460 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1377 Points -8%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
1377 Points -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
1304 Points -13%
Geekbench 4.4
64 Bit Single-Core Score
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
6991 Points +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
6991 Points +6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
6698 Points +2%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
6693 Points +2%
Media AMD Ryzen 9 6900HX
  (6191 - 6804, n=11)
6642 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
6572 Points
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6365 Points -3%
Media AMD Ryzen 9 5900HX
  (5249 - 6591, n=8)
6240 Points -5%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
5812 Points -12%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
5726 Points -13%
64 Bit Multi-Core Score
Media AMD Ryzen 9 6900HX
  (36780 - 39852, n=11)
39028 Points +14%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
36347 Points +6%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
36310 Points +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
36310 Points +6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
34259 Points
Media AMD Ryzen 9 5900HX
  (30451 - 35465, n=8)
33068 Points -3%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
33034 Points -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
32434 Points -5%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
32174 Points -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
27071 Points -21%
3DMark 11 - 1280x720 Performance Physics
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
24314 Points +33%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
18332 Points
Media AMD Ryzen 9 6900HX
  (15855 - 21036, n=23)
18161 Points -1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
17803 Points -3%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
16736 Points -9%
Media AMD Ryzen 9 5900HX
  (13940 - 18790, n=28)
16642 Points -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
15739 Points -14%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
15497 Points -15%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
13940 Points -24%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
13568 Points -26%
7-Zip 18.03
7z b 4
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
61760 MIPS
Media AMD Ryzen 9 6900HX
  (49526 - 65336, n=20)
60091 MIPS -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
57435 MIPS -7%
Media AMD Ryzen 9 5900HX
  (36011 - 62503, n=29)
57266 MIPS -7%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
51773 MIPS -16%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
50152 MIPS -19%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
50152 MIPS -19%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
45999 MIPS -26%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
44503 MIPS -28%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
43007 MIPS -30%
7z b 4 -mmt1
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
5979 MIPS +3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
5979 MIPS +3%
Media AMD Ryzen 9 6900HX
  (5090 - 6070, n=20)
5799 MIPS 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
5798 MIPS
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
5739 MIPS -1%
Media AMD Ryzen 9 5900HX
  (4791 - 5905, n=29)
5701 MIPS -2%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
5619 MIPS -3%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
5446 MIPS -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
5330 MIPS -8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
5293 MIPS -9%
HWBOT x265 Benchmark v2.2 - 4k Preset
Media AMD Ryzen 9 6900HX
  (12.6 - 18.7, n=20)
16.7 fps +5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
15.9 fps 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
15.9 fps
Media AMD Ryzen 9 5900HX
  (8.26 - 17.1, n=29)
15.2 fps -4%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
14.8 fps -7%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
14.4 fps -9%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
14.4 fps -9%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
13.2 fps -17%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
12.8 fps -19%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
11.6 fps -27%
R Benchmark 2.5 - Overall mean
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
0.588 sec * -20%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
0.562 sec * -14%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
0.56 sec * -14%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
0.537 sec * -9%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
0.535 sec * -9%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
0.535 sec * -9%
Media AMD Ryzen 9 5900HX
  (0.48 - 0.599, n=29)
0.507 sec * -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
0.4965 sec * -1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
0.492 sec *
Media AMD Ryzen 9 6900HX
  (0.4627 - 0.4974, n=20)
0.483 sec * +2%
LibreOffice - 20 Documents To PDF
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
59.5 s * -1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
59 s *
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
55.1 s * +7%
Media AMD Ryzen 9 5900HX
  (44.1 - 87.4, n=29)
53.3 s * +10%
Media AMD Ryzen 9 6900HX
  (44.8 - 81.7, n=20)
53.1 s * +10%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
50.1 s * +15%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
49.3 s * +16%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
48 s * +19%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
44.9 s * +24%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
44.9 s * +24%
WebXPRT 3 - Overall
Media AMD Ryzen 9 6900HX
  (248 - 304, n=17)
280 Points +1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
278 Points 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
278 Points
Media AMD Ryzen 9 5900HX
  (230 - 291, n=28)
275 Points -1%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
269 Points -3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
269 Points -3%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
267 Points -4%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
267 Points -4%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
267 Points -4%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
262 Points -6%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
244 Points -12%
Mozilla Kraken 1.1 - Total
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
752 ms * -22%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
647 ms * -5%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
641 ms * -4%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
640 ms * -4%
Media AMD Ryzen 9 5900HX
  (595 - 728, n=29)
617 ms * -0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
614 ms *
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
602 ms * +2%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
602 ms * +2%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
601 ms * +2%
Media AMD Ryzen 9 6900HX
  (564 - 607, n=18)
588 ms * +4%
3DMark
3840x2160 Fire Strike Ultra Physics
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
37967 Points +41%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
26957 Points
Media AMD Ryzen 9 5900HX
  (22976 - 26958, n=19)
25146 Points -7%
Media AMD Ryzen 9 6900HX
  (17731 - 26684, n=18)
24448 Points -9%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
23921 Points -11%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
23774 Points -12%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
22976 Points -15%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
22873 Points -15%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
21542 Points -20%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
21256 Points -21%
1920x1080 Fire Strike Physics
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
35153 Points +31%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
26772 Points
Media AMD Ryzen 9 5900HX
  (17714 - 27288, n=31)
24899 Points -7%
Media AMD Ryzen 9 6900HX
  (18389 - 27338, n=23)
24551 Points -8%
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
24508 Points -8%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
24327 Points -9%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
24096 Points -10%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
23641 Points -12%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
21095 Points -21%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
20080 Points -25%
2560x1440 Time Spy CPU
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, 2400 MHz
15095 Points +42%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, 3300 MHz
10603 Points
Minisforum NUCX i7
Intel Core i7-11800H, 2300 MHz
10169 Points -4%
Intel Beast Canyon NUC
Intel Core i9-11900KB, 3300 MHz
10035 Points -5%
Media AMD Ryzen 9 6900HX
  (6621 - 11039, n=23)
9584 Points -10%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, 2300 MHz
9282 Points -12%
Media AMD Ryzen 9 5900HX
  (6932 - 10603, n=31)
9224 Points -13%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, 2900 MHz
8580 Points -19%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, 3300 MHz
6957 Points -34%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, 3300 MHz
6955 Points -34%

* ... Meglio usare valori piccoli

Performance Rating
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
94.9 pt
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
94.2 pt
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
86.2 pt
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
86.2 pt
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
80.5 pt
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
80.4 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
71.8 pt
Media della classe Mini PC

61.9 pt
AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
15755 KRay/s +3%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
15334 KRay/s
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
14342 KRay/s -6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
14342 KRay/s -6%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
13002 KRay/s -15%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
12788 KRay/s -17%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
12360 KRay/s -19%
Media della classe Mini PC
  (561 - 27538, n=94, ultimi 2 anni)
9758 KRay/s -36%
AIDA64 / FPU Julia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
100504 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
99427 Points
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
76011 Points -24%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
60136 Points -40%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
60136 Points -40%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
56368 Points -43%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
54342 Points -45%
Media della classe Mini PC
  (3604 - 116903, n=94, ultimi 2 anni)
51601 Points -48%
AIDA64 / CPU SHA3
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
4043 MB/s +19%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
4043 MB/s +19%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
3829 MB/s +13%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
3655 MB/s +7%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
3444 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
3401 MB/s
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
2607 MB/s -23%
Media della classe Mini PC
  (225 - 5096, n=94, ultimi 2 anni)
2255 MB/s -34%
AIDA64 / CPU Queen
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
105123 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
104437 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
98219 Points -6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
98219 Points -6%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
89290 Points -15%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
88481 Points -15%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
76998 Points -26%
Media della classe Mini PC
  (8172 - 119569, n=94, ultimi 2 anni)
68432 Points -34%
AIDA64 / FPU SinJulia
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
12792 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
12662 Points
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
9861 Points -22%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
9861 Points -22%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
9734 Points -23%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
9457 Points -25%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
8894 Points -30%
Media della classe Mini PC
  (408 - 15525, n=94, ultimi 2 anni)
7192 Points -43%
AIDA64 / FPU Mandel
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
55452 Points +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
54893 Points
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
41691 Points -24%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
36161 Points -34%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
36161 Points -34%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
33223 Points -39%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
32372 Points -41%
Media della classe Mini PC
  (1958 - 62378, n=94, ultimi 2 anni)
27375 Points -50%
AIDA64 / CPU AES
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
141926 MB/s +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
141926 MB/s +6%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
135212 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
134031 MB/s
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
128262 MB/s -4%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
124539 MB/s -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
96790 MB/s -28%
Media della classe Mini PC
  (3691 - 177158, n=94, ultimi 2 anni)
73659 MB/s -45%
AIDA64 / CPU ZLib
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
871 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
859 MB/s
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
756 MB/s -12%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
755 MB/s -12%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
755 MB/s -12%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
735 MB/s -14%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
632 MB/s -26%
Media della classe Mini PC
  (74.8 - 1117, n=94, ultimi 2 anni)
570 MB/s -34%
AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
8425 KRay/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
8000 KRay/s
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
7780 KRay/s -3%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
7780 KRay/s -3%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
7119 KRay/s -11%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
7109 KRay/s -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
6652 KRay/s -17%
Media della classe Mini PC
  (308 - 14722, n=94, ultimi 2 anni)
5212 KRay/s -35%
AIDA64 / CPU PhotoWorxx
Media della classe Mini PC
  (4408 - 44347, n=94, ultimi 2 anni)
24394 MPixel/s +19%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
23774 MPixel/s +16%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
23758 MPixel/s +16%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
23422 MPixel/s +15%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
23422 MPixel/s +15%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
20422 MPixel/s
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
15135 MPixel/s -26%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
14978 MPixel/s -27%

Minisforum Neptune Series HX90G durante il Multi loop di Cinebench R15

Il loop Cinebench R15 fornisce un primo sguardo all'efficienza del sistema di raffreddamento. Non abbiamo osservato alcun calo di efficienza dopo le prime prove. Solo nella seconda metà delle 50 prove totali abbiamo notato un calo minimo. Nel complesso, le prestazioni sono leggermente migliori rispetto al Minisforum EliteMini HX90 (2.121 punti) con una media di 2.169 punti.

Metriche della CPU durante il ciclo di Cinebench R15
Metriche della CPU durante il ciclo di Cinebench R15
017034051068085010201190136015301700187020402210238025502720289030603230Tooltip
Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2169 (2116.63-2224.69)
Intel Beast Canyon NUC Intel Core i9-11900KB, Intel Core i9-11900KB: Ø1800 (1776.75-1859.25)
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H, Intel Core i7-11800H: Ø1562 (1536.63-1683.86)
Intel Dragon Canyon NUC - RTX 3060 Intel Core i9-12900, Intel Core i9-12900: Ø2592 (2433.39-3346.44)
Minisforum NUCX i7 Intel Core i7-11800H, Intel Core i7-11800H: Ø1825 (1783.96-2050.55)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Prestazioni del sistema

Il Minisforum HX90G si comporta bene nei nostri benchmark sintetici e si piazza al terzo posto nel PCMark 10. Tuttavia, la nostra unità di test basata su AMD non può competere con i risultati dei nostri concorrenti basati su Intel nel benchmark Crossmark. Soggettivamente, il Minisforum HX90G è ancora comodamente veloce. Il sistema funziona in modo fluido e non abbiamo notato alcun rallentamento causato da latenze elevate durante il caricamento di vari programmi.

Performance Rating - Percent
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
100 pt
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
92.4 pt
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
92.1 pt
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
91 pt
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
90.9 pt
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
87.9 pt
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
85.8 pt
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
80.5 pt
PCMark 10
Score
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
8083 Points +10%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
7341 Points
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
7281 Points -1%
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
7091 Points -3%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
6952 Points -5%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
6863 Points -7%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
6507 Points -11%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
6499 Points -11%
Essentials
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
11171 Points +6%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
10552 Points
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
10506 Points 0%
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
10422 Points -1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10321 Points -2%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
10014 Points -5%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
9865 Points -7%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
9846 Points -7%
Productivity
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
10205 Points +10%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX
AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB
10196 Points +10%
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
9582 Points +3%
Lenovo Legion 5 15ACH6A-82NW0010GE, AMD Ryzen 5 5600H
AMD Radeon RX 6600M, Micron 2210 MTFDHBA512QFD
9299 Points 0%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
9288 Points
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
8985 Points -3%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
8579 Points -8%
Zotac Magnus One (ECM73070C), Intel Core i7-10700
NVIDIA GeForce RTX 3070, Phison 512GB PA6620060U
7447 Points -20%
CrossMark / Responsiveness
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1885 Points +43%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1885 Points +43%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1496 Points +13%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1435 Points +9%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1322 Points
CrossMark / Creativity
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1724 Points +12%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1724 Points +12%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1644 Points +7%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1613 Points +5%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1535 Points
CrossMark / Productivity
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1816 Points +20%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1816 Points +20%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1592 Points +6%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1573 Points +4%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1508 Points
CrossMark / Overall
Intel Beast Canyon NUC, Intel Core i9-11900KB
NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB
1785 Points +20%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900
NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S
1785 Points +20%
Minisforum NUCX i7, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU,
1600 Points +7%
Zotac ZBOX Magnus EN173070C, Intel Core i7-11800H
NVIDIA GeForce RTX 3070 Laptop GPU, Transcend M.2 SSD 2200S TS512GMTE220S
1569 Points +5%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX
AMD Radeon RX 6600M, ESO512GYLCT
1491 Points
AIDA64 / Memory Copy
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
44474 MB/s +6%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
44474 MB/s +6%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
44370 MB/s +5%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
44240 MB/s +5%
Media della classe Mini PC
  (6481 - 70620, n=94, ultimi 2 anni)
42447 MB/s +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
42133 MB/s
Media AMD Ryzen 9 5900HX
  (36725 - 43318, n=26)
40935 MB/s -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
37616 MB/s -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
37007 MB/s -12%
AIDA64 / Memory Read
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
50365 MB/s +6%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
49616 MB/s +5%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
49616 MB/s +5%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
49326 MB/s +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
47460 MB/s
Media AMD Ryzen 9 5900HX
  (41378 - 47593, n=26)
45797 MB/s -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
43678 MB/s -8%
Media della classe Mini PC
  (6914 - 71285, n=94, ultimi 2 anni)
43068 MB/s -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
42375 MB/s -11%
AIDA64 / Memory Write
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
46213 MB/s +6%
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
46018 MB/s +6%
Media della classe Mini PC
  (6862 - 89318, n=94, ultimi 2 anni)
46008 MB/s +6%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
45577 MB/s +5%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
45577 MB/s +5%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
43471 MB/s
Media AMD Ryzen 9 5900HX
  (32536 - 46718, n=26)
41417 MB/s -5%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
35146 MB/s -19%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
30785 MB/s -29%
AIDA64 / Memory Latency
Minisforum NUCX i7
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
97.7 ns * -31%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, Radeon RX 6600M
87.9 ns * -18%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
87.4 ns * -17%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
87.4 ns * -17%
Media della classe Mini PC
  (44.9 - 154.6, n=94, ultimi 2 anni)
87.2 ns * -17%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, Vega 8
79.6 ns * -6%
Media AMD Ryzen 9 5900HX
  (73.5 - 97.1, n=26)
78.8 ns * -5%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, GeForce RTX 3070 Laptop GPU
77.3 ns * -3%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, Radeon RX 6600M
74.8 ns *

* ... Meglio usare valori piccoli

Latenze DPC

Il Minisforum HX90G non ha riscontrato alcun problema nell'apertura di diverse schede del browser Edge, né nella riproduzione di video 4K su Youtube. LatencyMon non ha documentato alcun aumento della latenza e la AMD Radeon RX 6600M deve lavorare solo al 10% della capacità per riprodurre il nostro video di prova.

Massima latenza all'apertura di più schede del browser e durante la riproduzione di video 4K
Massima latenza all'apertura di più schede del browser e durante la riproduzione di video 4K
Latenza massima dopo dieci secondi di Prime95
Latenza massima dopo dieci secondi di Prime95
Driver ordinati in base al tempo di esecuzione più lungo
Driver ordinati in base al tempo di esecuzione più lungo

Dispositivo di archiviazione

512 GB SSD NVMe
512 GB SSD NVMe

La nostra configurazione di prova è dotata di un'unità SSD NVMe con 512 GB di spazio di archiviazione. Il modello è veloce e si colloca nella fascia media, ma non può competere con le unità SSD PCIe 4.0 più veloci. Le sue prestazioni sono perfettamente adeguate per l'uso quotidiano. La quantità di spazio di archiviazione che offre, invece, è piuttosto bassa per un computer da gioco. Lo spazio richiesto dal sistema operativo riduce i 512 GB di memoria a 450 GB. Trattandosi di un dispositivo da gioco, ci saremmo aspettati almeno 1 TB di spazio di archiviazione. Fortunatamente lo spazio di archiviazione può essere facilmente ampliato in qualsiasi momento grazie al secondo slot M.2.

Vedere la nostra tabella di confronto per ulteriori confronti e benchmark.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
ESO512GYLCT
Sequential Read: 1561 MB/s
Sequential Write: 1864 MB/s
512K Read: 1306 MB/s
512K Write: 1805 MB/s
4K Read: 45.25 MB/s
4K Write: 167.7 MB/s
4K QD32 Read: 567.5 MB/s
4K QD32 Write: 428.3 MB/s
Drive Performance Rating - Percent
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
90.9 pt
Intel Dragon Canyon NUC - RTX 3060 -11!
Transcend M.2 SSD 2200S TS512GMTE220S
87.1 pt
Media della classe Mini PC

62.2 pt
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
60.4 pt
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
60 pt
Media ESO512GYLCT

58.8 pt
Minisforum Neptune Series HX90G
ESO512GYLCT
57.9 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
52.8 pt
Minisforum NUCX i7

52.2 pt
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
45.9 pt
DiskSpd
seq read
Media della classe Mini PC
  (233 - 4168, n=93, ultimi 2 anni)
2024 MB/s +25%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2008 (1998.8min - 2008.02max) MB/s +24%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1936 (1755.26min - 1936.41max) MB/s +20%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
1936 (1755.26min - 1936.41max) MB/s +20%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1935 (1931.9min - 1934.83max) MB/s +20%
Minisforum NUCX i7

1620 (1579.16min - 1620.17max) MB/s 0%
Minisforum Neptune Series HX90G
ESO512GYLCT
1614 (1595.77min - 1613.55max) MB/s
Media ESO512GYLCT
  (1310 - 1645, n=3)
1523 MB/s -6%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1319 (1307.78min - 1319.44max) MB/s -18%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
824 (549.82min - 823.58max) MB/s -49%
seq write
Media della classe Mini PC
  (222 - 5595, n=93, ultimi 2 anni)
2042 MB/s +21%
Media ESO512GYLCT
  (1681 - 1877, n=3)
1764 MB/s +5%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1744 (525.75min - 1743.78max) MB/s +4%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
1744 (525.75min - 1743.78max) MB/s +4%
Minisforum NUCX i7

1707 (1684.21min - 1706.66max) MB/s +2%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
1701 (653.68min - 1701.42max) MB/s +1%
Minisforum Neptune Series HX90G
ESO512GYLCT
1681 (1674.37min - 1681.28max) MB/s
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1146 (903.24min - 1146.3max) MB/s -32%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 977.06max) MB/s -42%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
665 (240.27min - 665.08max) MB/s -60%
seq q8 t1 read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
4996 (4330.97min - 4996.25max) MB/s +113%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
4996 (4330.97min - 4996.25max) MB/s +113%
Media della classe Mini PC
  (236 - 8430, n=93, ultimi 2 anni)
3134 MB/s +34%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2635 (2212.29min - 2635.07max) MB/s +12%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2599 (2228.8min - 2599.21max) MB/s +11%
Minisforum Neptune Series HX90G
ESO512GYLCT
2344 (2130.71min - 2343.78max) MB/s
Minisforum NUCX i7

2308 (2036.12min - 2307.5max) MB/s -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
2213 (2018.77min - 2212.5max) MB/s -6%
Media ESO512GYLCT
  (1749 - 2360, n=3)
2151 MB/s -8%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1973 (254.17min - 1973.17max) MB/s -16%
seq q8 t1 write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2524 (535.17min - 2524.36max) MB/s +37%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
2524 (535.17min - 2524.36max) MB/s +37%
Media della classe Mini PC
  (228 - 6669, n=93, ultimi 2 anni)
2209 MB/s +19%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2002 (577.14min - 2001.94max) MB/s +8%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
1988 (530.16min - 1987.88max) MB/s +8%
Media ESO512GYLCT
  (1815 - 1946, n=3)
1870 MB/s +1%
Minisforum Neptune Series HX90G
ESO512GYLCT
1849 (1833.02min - 1849.14max) MB/s
Minisforum NUCX i7

1843 (1731.1min - 1843.4max) MB/s 0%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1145 (65.64min - 1144.64max) MB/s -38%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
977 (973.56min - 976.5max) MB/s -47%
4k q1 t1 read
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
68.2 (66.68min - 68.15max) MB/s +80%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
60.5 (60.38min - 60.5max) MB/s +60%
Media della classe Mini PC
  (5.67 - 86.6, n=93, ultimi 2 anni)
51.2 MB/s +35%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
47.4 (11.99min - 47.41max) MB/s +25%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
45.7 (45.38min - 45.71max) MB/s +21%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
45.7 (45.38min - 45.71max) MB/s +21%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
42.2 (41.94min - 42.15max) MB/s +11%
Media ESO512GYLCT
  (35.4 - 44.8, n=3)
39.4 MB/s +4%
Minisforum NUCX i7

38.9 (38.65min - 38.87max) MB/s +3%
Minisforum Neptune Series HX90G
ESO512GYLCT
37.9 (37.34min - 37.87max) MB/s
4k q1 t1 write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
320 (298.75min - 319.53max) MB/s +98%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
320 (298.75min - 319.53max) MB/s +98%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
251 (152.06min - 251.09max) MB/s +56%
Minisforum NUCX i7

187.4 (170.03min - 187.4max) MB/s +16%
Media della classe Mini PC
  (22 - 425, n=93, ultimi 2 anni)
185.1 MB/s +15%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
167 (54.54min - 166.59max) MB/s +4%
Media ESO512GYLCT
  (161.3 - 168.4, n=3)
164.7 MB/s +2%
Minisforum Neptune Series HX90G
ESO512GYLCT
161.3 (150.7min - 161.34max) MB/s
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
153 (151.1min - 152.72max) MB/s -5%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
120 (119.43min - 119.96max) MB/s -26%
4k q32 t16 read
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1311 (1269.74min - 1311.13max) MB/s +59%
Media della classe Mini PC
  (26.1 - 2810, n=93, ultimi 2 anni)
1069 MB/s +30%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
970 (966.45min - 970.29max) MB/s +18%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
970 (966.45min - 970.29max) MB/s +18%
Minisforum Neptune Series HX90G
ESO512GYLCT
822 (773.05min - 821.5max) MB/s
Minisforum NUCX i7

786 (734.36min - 786.34max) MB/s -4%
Media ESO512GYLCT
  (424 - 831, n=3)
692 MB/s -16%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
656 (654.58min - 656.18max) MB/s -20%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
646 (644.91min - 645.74max) MB/s -21%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
313 (311.66min - 312.85max) MB/s -62%
4k q32 t16 write
Minisforum Neptune Series HX90G
ESO512GYLCT
1492 (333.99min - 1492.35max) MB/s
Media ESO512GYLCT
  (934 - 1611, n=3)
1346 MB/s -10%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1119 (483.18min - 1119.3max) MB/s -25%
Intel Dragon Canyon NUC - RTX 3060
Transcend M.2 SSD 2200S TS512GMTE220S
1119 (483.18min - 1119.3max) MB/s -25%
Media della classe Mini PC
  (30.2 - 3983, n=93, ultimi 2 anni)
1071 MB/s -28%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1061 (62.92min - 1061.17max) MB/s -29%
Minisforum NUCX i7

1032 (266.97min - 1032.05max) MB/s -31%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
976 (747.22min - 976.04max) MB/s -35%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
937 (473.07min - 936.52max) MB/s -37%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
933 (584.14min - 933.42max) MB/s -37%
AS SSD
Score Total
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
6467 Points +116%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
4893 Points +64%
Media della classe Mini PC
  (151.3 - 9030, n=91, ultimi 2 anni)
3523 Points +18%
Minisforum Neptune Series HX90G
ESO512GYLCT
2988 Points
Media ESO512GYLCT
  (2491 - 3139, n=3)
2873 Points -4%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
2499 Points -16%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2237 Points -25%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
2184 Points -27%
Minisforum NUCX i7

1054.23 Points -65%
Score Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2462 Points +146%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1911 Points +91%
Media della classe Mini PC
  (61 - 3635, n=91, ultimi 2 anni)
1343 Points +34%
Minisforum Neptune Series HX90G
ESO512GYLCT
1001 Points
Media ESO512GYLCT
  (954 - 1001, n=3)
973 Points -3%
Minisforum NUCX i7

895 Points -11%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
841 Points -16%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
824 Points -18%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
698 Points -30%
Score Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2827 Points +91%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2041 Points +38%
Minisforum NUCX i7

1556 Points +5%
Media della classe Mini PC
  (88 - 4185, n=91, ultimi 2 anni)
1544 Points +4%
Minisforum Neptune Series HX90G
ESO512GYLCT
1482 Points
Media ESO512GYLCT
  (1037 - 1702, n=3)
1407 Points -5%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1251 Points -16%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1152 Points -22%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
1022 Points -31%
Seq Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
4274 MB/s +93%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2822 MB/s +27%
Media della classe Mini PC
  (291 - 6620, n=91, ultimi 2 anni)
2788 MB/s +26%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
2361 MB/s +7%
Minisforum Neptune Series HX90G
ESO512GYLCT
2215 MB/s
Media ESO512GYLCT
  (2181 - 2215, n=3)
2196 MB/s -1%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1948 MB/s -12%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
1777 MB/s -20%
Minisforum NUCX i7

1613 MB/s -27%
Seq Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2382 MB/s +34%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
2044 MB/s +15%
Media della classe Mini PC
  (240 - 5783, n=91, ultimi 2 anni)
1929 MB/s +8%
Minisforum Neptune Series HX90G
ESO512GYLCT
1780 MB/s
Media ESO512GYLCT
  (1762 - 1780, n=3)
1770 MB/s -1%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1690 MB/s -5%
Minisforum NUCX i7

1468 MB/s -18%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
1094 MB/s -39%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
929 MB/s -48%
4K Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
83.9 MB/s +58%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
60.58 MB/s +14%
Media della classe Mini PC
  (6.08 - 104.2, n=91, ultimi 2 anni)
55.5 MB/s +4%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
54.5 MB/s +2%
Media ESO512GYLCT
  (53.2 - 55.3, n=3)
54.5 MB/s +2%
Minisforum NUCX i7

54.25 MB/s +2%
Minisforum Neptune Series HX90G
ESO512GYLCT
53.18 MB/s
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
38.25 MB/s -28%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
37.9 MB/s -29%
4K Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
308.4 MB/s +96%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
173.69 MB/s +10%
Media della classe Mini PC
  (30.9 - 366, n=91, ultimi 2 anni)
167.1 MB/s +6%
Minisforum Neptune Series HX90G
ESO512GYLCT
157.2 MB/s
Media ESO512GYLCT
  (151.8 - 160.1, n=3)
156.4 MB/s -1%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
145.7 MB/s -7%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
143.1 MB/s -9%
Minisforum NUCX i7

129.81 MB/s -17%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
100.2 MB/s -36%
4K-64 Read
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
1950 MB/s +169%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1637 MB/s +125%
Media della classe Mini PC
  (23.4 - 3035, n=91, ultimi 2 anni)
1009 MB/s +39%
Minisforum Neptune Series HX90G
ESO512GYLCT
725.98 MB/s
Media ESO512GYLCT
  (679 - 726, n=3)
699 MB/s -4%
Minisforum NUCX i7

679.23 MB/s -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
585.23 MB/s -19%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
503.52 MB/s -31%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
465.3 MB/s -36%
4K-64 Write
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
2281 MB/s +99%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
1772 MB/s +55%
Minisforum NUCX i7

1279.71 MB/s +12%
Media della classe Mini PC
  (32.8 - 3598, n=91, ultimi 2 anni)
1184 MB/s +3%
Minisforum Neptune Series HX90G
ESO512GYLCT
1146.83 MB/s
Media ESO512GYLCT
  (699 - 1374, n=3)
1073 MB/s -6%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
995.52 MB/s -13%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
916 MB/s -20%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
643.35 MB/s -44%
Access Time Read
Minisforum Neptune Series HX90G
ESO512GYLCT
0.117 ms *
Media della classe Mini PC
  (0.022 - 0.489, n=91, ultimi 2 anni)
0.1032 ms * +12%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
0.099 ms * +15%
Minisforum NUCX i7

0.092 ms * +21%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.081 ms * +31%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
0.077 ms * +34%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
0.071 ms * +39%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
0.063 ms * +46%
Media ESO512GYLCT
  (0.022 - 0.117, n=3)
0.061 ms * +48%
Access Time Write
Media della classe Mini PC
  (0.016 - 0.765, n=91, ultimi 2 anni)
0.128 ms * -433%
Minisforum NUCX i7

0.079 ms * -229%
Lenovo Legion 5 15ACH6A-82NW0010GE
Micron 2210 MTFDHBA512QFD
0.039 ms * -63%
Zotac Magnus One (ECM73070C)
Phison 512GB PA6620060U
0.035 ms * -46%
Zotac ZBOX Magnus EN173070C
Transcend M.2 SSD 2200S TS512GMTE220S
0.027 ms * -13%
Minisforum EliteMini HX90
Kingston OM8PCP3512F-AB
0.024 ms * -0%
Minisforum Neptune Series HX90G
ESO512GYLCT
0.024 ms *
Media ESO512GYLCT
  (0.024 - 0.024, n=3)
0.024 ms * -0%
Intel Beast Canyon NUC
Sabrent Rocket 4.0 500GB
0.012 ms * +50%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

02555107651020127515301785204022952550280530603315357038254080433545904845Tooltip
Minisforum Neptune Series HX90G ESO512GYLCT: Ø1859 (996.67-1961.26)
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB: Ø3896 (225.06-5002.7)
Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S: Ø2440 (1786.98-2501.9)
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S: Ø3896 (225.06-5002.7)
Minisforum NUCX i7  : Ø2309 (2137.76-2318.4)
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB: Ø1499 (1411.27-1985.99)

Prestazioni della GPU

le prestazioni 3D non sono influenzate solo dalla CPU ma anche dalla GPU. Il vantaggio che questo offre è evidente dal nostro confronto diretto con il Minisforum EliteMini HX90, che è dotato solo della AMD Radeon RX Vega 8. Il Minisforum HX90G è dotato di AMD Radeon RX 6600M, una buona scheda grafica di fascia media. È basata sulla più recente architettura RDNA-2 e ha un TDP di 100 watt, che spesso raggiunge quando si lavora sotto carico. Gli utenti possono aspettarsi di utilizzare tutte le prestazioni di questa GPU dedicata.

Il confronto sintetico delle prestazioni posiziona la nostra unità di test al centro. Le prestazioni della AMD Radeon RX 6600M sono leggermente superiori a quelle dei concorrenti dotati di Nvidia GeForce RTX 3060. In compenso, il Minisforum NUXCi7 con Nvidia GeForce RTX 3070 Laptop riesce a superare il Minisforum HX90G di poco meno del 10%.

Per maggiori dettagli sulla AMD Radeon RX 6600Mvisitate la nostra pagina dedicata alle GPU.

La nostra Tabella di confronto delle GPU fornisce ulteriori confronti e benchmark.

3DMark Performance Rating - Percent
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
100 pt
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
85.8 pt
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
80.4 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
78.3 pt
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
74.1 pt
Media AMD Radeon RX 6600M

74 pt
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
70.2 pt
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
70 pt
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
13.1 pt
3DMark 11 - 1280x720 Performance GPU
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
40950 Points +28%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
34986 Points +10%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
34957 Points +10%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
31877 Points
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
31702 Points -1%
Media AMD Radeon RX 6600M
  (27030 - 32340, n=6)
31142 Points -2%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
29172 Points -8%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
28939 Points -9%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
6306 Points -80%
3DMark
1280x720 Cloud Gate Standard Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
164443 Points +13%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
159036 Points +9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
155788 Points +7%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
145359 Points
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
143126 Points -2%
Media AMD Radeon RX 6600M
  (117448 - 155788, n=6)
139228 Points -4%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
124830 Points -14%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
120756 Points -17%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
28915 Points -80%
1920x1080 Fire Strike Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
30090 Points +31%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
26284 Points +15%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
24788 Points +8%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
24451 Points +7%
Media AMD Radeon RX 6600M
  (21876 - 24788, n=7)
23563 Points +3%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
22884 Points
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
21984 Points -4%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
21379 Points -7%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
3775 Points -84%
2560x1440 Time Spy Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
12668 Points +65%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
9929 Points +29%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
9205 Points +20%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
8578 Points +12%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
8525 Points +11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
8234 Points +7%
Media AMD Radeon RX 6600M
  (7200 - 8234, n=7)
7864 Points +2%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
7685 Points
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1247 Points -84%
Fire Strike Extreme Graphics
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, Intel Core i7-10700
15597 Points +48%
Zotac ZBOX Magnus EN173070C
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
12636 Points +20%
Minisforum NUCX i7
NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H
11757 Points +11%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Radeon RX 6600M, AMD Ryzen 5 5600H
11255 Points +7%
Media AMD Radeon RX 6600M
  (10016 - 11360, n=6)
10782 Points +2%
Minisforum Neptune Series HX90G
AMD Radeon RX 6600M, AMD Ryzen 9 5900HX
10545 Points
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, Intel Core i9-12900
10244 Points -3%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, Intel Core i9-11900KB
10181 Points -3%
Minisforum EliteMini HX90
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX
1578 Points -85%
Performance Rating - Percent
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
100 pt
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
80.3 pt
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
74.4 pt
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
66 pt
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
65.1 pt
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
60.7 pt
Media AMD Radeon RX 6600M

59.4 pt
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
53.8 pt
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
8.8 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
187.5 fps +39%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
152.9 fps +13%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
139.4 fps +3%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
135.1 fps
Media AMD Radeon RX 6600M
  (92.2 - 140.4, n=4)
126.3 fps -7%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
124.9 fps -8%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
121 fps -10%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
92.2 fps -32%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
16.2 fps -88%
Extreme Preset DX11
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
196.4 fps +54%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
165.1 fps +29%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
152.9 fps +20%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
134.8 fps +6%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
130.8 fps +2%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
127.7 fps
Media AMD Radeon RX 6600M
  (114.8 - 130.2, n=4)
125.4 fps -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
114.8 fps -10%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
18 fps -86%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
157.5 fps +69%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
131.6 fps +41%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
120.9 fps +30%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
108.3 fps +16%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
106.7 fps +14%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
93.3 fps
Media AMD Radeon RX 6600M
  (83.6 - 94.5, n=4)
91.1 fps -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
83.6 fps -10%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
11.6 fps -88%
1920x1080 Extreme HD Preset OpenGL AA:x8
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
140.2 fps +53%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
115.3 fps +26%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
104.8 fps +14%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
96.1 fps +5%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
93.9 fps +3%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
91.6 fps
Media AMD Radeon RX 6600M
  (64.8 - 93.8, n=4)
85.5 fps -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
64.8 fps -29%
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
10.7 fps -88%
Unigine Superposition
1920x1080 1080p High
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
17054 Points +67%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
13502 Points +33%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
12667 Points +24%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
11177 Points +10%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
11130 Points +9%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
10438 Points +2%
Media AMD Radeon RX 6600M
  (10187 - 10459, n=4)
10319 Points +1%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
10187 Points
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
1702 Points -83%
1920x1080 1080p Extreme
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
8276 Points +94%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
6259 Points +46%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
5847 Points +37%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
5008 Points +17%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
5006 Points +17%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
4498 Points +5%
Media AMD Radeon RX 6600M
  (4212 - 4498, n=4)
4335 Points +1%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
4274 Points
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
762 Points -82%
3840x2160 4k Optimized
Zotac Magnus One (ECM73070C)
NVIDIA GeForce RTX 3070, i7-10700, Phison 512GB PA6620060U
10544 Points +92%
Zotac ZBOX Magnus EN173070C
GeForce RTX 3070 Laptop GPU, i7-11800H, Transcend M.2 SSD 2200S TS512GMTE220S
7997 Points +46%
Minisforum NUCX i7
GeForce RTX 3070 Laptop GPU, i7-11800H
7574 Points +38%
Intel Beast Canyon NUC
NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB
6733 Points +23%
Intel Dragon Canyon NUC - RTX 3060
NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S
6694 Points +22%
Lenovo Legion 5 15ACH6A-82NW0010GE
Radeon RX 6600M, R5 5600H, Micron 2210 MTFDHBA512QFD
5707 Points +4%
Media AMD Radeon RX 6600M
  (5478 - 5707, n=4)
5567 Points +2%
Minisforum Neptune Series HX90G
Radeon RX 6600M, R9 5900HX, ESO512GYLCT
5478 Points
Minisforum EliteMini HX90
Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB
989 Points -82%
3DMark 05 Standard
57463 punti
3DMark 06 Standard Score
48270 punti
3DMark Vantage P Result
76579 punti
3DMark 11 Performance
26149 punti
3DMark Ice Storm Standard Score
231518 punti
3DMark Cloud Gate Standard Score
59875 punti
3DMark Fire Strike Score
20656 punti
3DMark Fire Strike Extreme Score
10026 punti
3DMark Time Spy Score
8015 punti
Aiuto

Prestazioni di gioco

Il Minisforum HX90G si comporta bene quando si tratta di prestazioni di gioco puro grazie alla sua AMD Radeon RX 6600M. Rispetto al Lenovo Legion 5, dotato della stessa GPU, il portatile è il chiaro vincitore. Le prestazioni della GPU dedicata si mantengono costantemente a un massimo di 100 watt. Il nostro campione di prova rimane indietro solo se confrontato con una Nvidia GeForce RTX 3060. Nel complesso, il Minisforum HX90G è in grado di visualizzare tutti i giochi che abbiamo testato a 1080p con il massimo dei dettagli. Alcuni giochi possono essere giocati anche a 1440p, ma risoluzioni ancora più elevate spingono presto la GPU di fascia media ai suoi limiti.

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
106 (6.46min, 76.9P1) fps +22%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
104.9 (4.3min, 71.4P1) fps +21%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
104 (4.33min, 71.4P1) fps +20%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
104 (4.33min, 71.4P1) fps +20%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
95.6 (6.11min, 66.7P1) fps +10%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
86.6 (3.43min, 58.8P1) fps
Media AMD Radeon RX 6600M
  (65.9 - 88.7, n=6)
78.6 fps -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
73.8 (17.6min, 52.6P1) fps -15%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
12 (3.91min, 8.93P1) fps -86%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
121 fps +38%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
105.5 (40.2min, 65.7P0.1, 83.1P1) fps +20%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
104.1 (24.9min, 51.1P0.1, 81.2P1) fps +18%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
91.3 (52.3min, 64.5P0.1, 77.1P1) fps +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
88 (41.9min, 48.7P0.1, 72.5P1) fps
Media AMD Radeon RX 6600M
  (75.4 - 88.2, n=6)
84 fps -5%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
81.3 (9.27min, 52.3P0.1, 66.2P1) fps -8%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
14.4 (8.07min, 10.9P0.1, 12P1) fps -84%
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
132 (114min) fps +20%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
122 (93min) fps +11%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
120 (91min) fps +9%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
119 (90min) fps +8%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
117 (89min) fps +6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
110 (87min) fps
Media AMD Radeon RX 6600M
  (86 - 110, n=6)
100 fps -9%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
86 (64min) fps -22%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (17min) fps -83%
Far Cry New Dawn - 1920x1080 Ultra Preset
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
113 (86min) fps +26%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
102 (72min) fps +13%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
100 (67min) fps +11%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
100 (71min) fps +11%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
95 (66min) fps +6%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
90 (63min) fps
Media AMD Radeon RX 6600M
  (67 - 91, n=4)
83.8 fps -7%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
67 (48min) fps -26%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
19 (14min) fps -79%
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
166.2 (136min) fps +26%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
165.8 (134min) fps +25%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
142 (114min) fps +7%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
142 (114min) fps +7%
Media AMD Radeon RX 6600M
  (128 - 135.8, n=4)
133 fps 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
132.4 (98min) fps
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
128 (95min) fps -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
24.3 (18min) fps -82%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
147.1 (126min) fps +52%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
147.1 (126min) fps +52%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
135.6 (116.6min) fps +40%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
133.9 (116.8min) fps +39%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
129.7 (113.4min) fps +34%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
104 (83.4min) fps +8%
Media AMD Radeon RX 6600M
  (91.4 - 110.1, n=8)
100.9 fps +4%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
96.6 (75.3min) fps
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
49.9 (43.8min) fps -48%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
222 (155min, 168P1) fps +46%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
186.7 (103.5min, 141.7P1) fps +23%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
184.7 (56.8min, 140.7P1) fps +22%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
154 (58.1min, 116P1) fps +1%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
154 (58.1min, 116P1) fps +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
151.8 (107min, 110.3P1) fps
Media AMD Radeon RX 6600M
  (138 - 158, n=6)
151.7 fps 0%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
151 (104min, 109P1) fps -1%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
23.9 (18.2min, 19.2P1) fps -84%
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
100 fps +51%
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
98.8 fps +49%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
84.7 fps +28%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
84.7 fps +28%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
84.6 fps +28%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
66.2 fps
Media AMD Radeon RX 6600M
  (59.9 - 67.3, n=5)
64.8 fps -2%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
64.5 fps -3%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
11.3 fps -83%
Metro Exodus - 1920x1080 Ultra Quality AF:16x
Zotac Magnus One (ECM73070C)
Intel Core i7-10700, NVIDIA GeForce RTX 3070
93.1 (45.73min) fps +57%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
74.6 (38.33min) fps +26%
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
74.6 (38.07min) fps +26%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
65.3 (34.71min) fps +10%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
62.3 (31.28min) fps +5%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
59.8 (30.99min) fps +1%
Media AMD Radeon RX 6600M
  (55.6 - 62.3, n=4)
59.8 fps +1%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
59.2 (34.14min) fps
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
10.8 (5.78min) fps -82%
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Minisforum NUCX i7
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
123.1 (104min, 93P1) fps +28%
Zotac ZBOX Magnus EN173070C
Intel Core i7-11800H, NVIDIA GeForce RTX 3070 Laptop GPU
122.7 (104min, 102P1) fps +28%
Intel Beast Canyon NUC
Intel Core i9-11900KB, NVIDIA GeForce RTX 3060
96.9 (83min, 83P1) fps +1%
Intel Dragon Canyon NUC - RTX 3060
Intel Core i9-12900, NVIDIA GeForce RTX 3060
96.9 (83min, 83P1) fps +1%
Lenovo Legion 5 15ACH6A-82NW0010GE
AMD Ryzen 5 5600H, AMD Radeon RX 6600M
95.9 (79min, 73P1) fps 0%
Minisforum Neptune Series HX90G
AMD Ryzen 9 5900HX, AMD Radeon RX 6600M
95.8 (80min, 80P1) fps
Media AMD Radeon RX 6600M
  (80.9 - 95.9, n=5)
91.8 fps -4%
Minisforum EliteMini HX90
AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22 (17min, 17P1) fps -77%
basso medio alto ultraQHD4K
GTA V (2015) 179.6 172.2 157.4 86.6 60.8 57.9
The Witcher 3 (2015) 367 260 144.9 88 43.9
Dota 2 Reborn (2015) 154.9 120.2 106.8 96.6 81.7
Rise of the Tomb Raider (2016) 263 206 126.8 105.2 41.5
Final Fantasy XV Benchmark (2018) 197.7 111.1 81.4 56.6 30.6
X-Plane 11.11 (2018) 60.1 49.8 47.1 29
Far Cry 5 (2018) 137 122 116 110 89 43
Strange Brigade (2018) 447 216 174.1 151.8 98.3 51.6
Shadow of the Tomb Raider (2018) 170.3 135.7 126 105.7 67.3 31.1
Forza Horizon 4 (2018) 220 187 184 158 123 73
Far Cry New Dawn (2019) 114 102 99 90 85 48
Metro Exodus (2019) 198.4 98.8 72.5 59.2 45.1 27.3
Anno 1800 (2019) 109.6 96.7 79.6 47 37.3 20.3
Control (2019) 220 102.6 70.4 44.9 21.7
Borderlands 3 (2019) 127.5 111.2 85.1 66.2 44.9 23.7
F1 2020 (2020) 325 242 198.8 132.4 96.6 52.6
Mafia Definitive Edition (2020) 137.4 93.8 85.6 57.7 27.3
Dirt 5 (2020) 236.2 135.4 104.5 81.3 68 40.4
F1 2021 (2021) 326 283 215 95.8 65.7 31.6
New World (2021) 113.7 90.5 84.1 75.6 52.4 31.3
Far Cry 6 (2021) 102 86.6 78.2 71.5 61.7 2.85
Forza Horizon 5 (2021) 154 121 118 62 50 30
Farming Simulator 22 (2021) 205 133.6 114.1 111.2 110.9 65.4
God of War (2022) 109.1 96.9 77.7 54.5 42.5 25
GRID Legends (2022) 236 207 164.7 131.7 102.8 59.8
Cyberpunk 2077 1.6 (2022) 107.3 82.6 68.8 61.2 36 14.4
Tiny Tina's Wonderlands (2022) 178.8 151 96.5 74.8 49.4 18.2
F1 22 (2022) 240 222 167.7 39.9 24.4 11.3
The Quarry (2022) 116.5 91 73.3 53 35 13
FIFA 23 (2022) 170.4 170.2 169.5 169.4 134 73.9
A Plague Tale Requiem (2022) 79.6 67.2 55.4 46.4 35.7 21.7
Uncharted Legacy of Thieves Collection (2022) 76.8 74.6 68.2 65.4 33.6 18.8
Call of Duty Modern Warfare 2 2022 (2022) 113 104 79 68 48 28
Spider-Man Miles Morales (2022) 94 85.3 82.9 69.4 47.2 24.4

Emissioni: funzionamento molto silenzioso

Rumore del sistema

Il sistema di raffreddamento del Minisforum HX90G è composto da sette heat pipe e due grandi ventole. Il produttore ha utilizzato metallo liquido per garantire un trasferimento di calore ideale dalla CPU e dalla GPU al sistema di raffreddamento. Per questo motivo il produttore sconsiglia esplicitamente agli utenti di smontare il sistema di raffreddamento. Il sistema è molto silenzioso ed è praticamente silenzioso quando funziona al minimo. A bassi carichi, abbiamo misurato un rumore di sistema di soli 31 dB(A), che è ancora molto basso. Il Minisforum HX90G raggiunge un massimo di 36,6 dB(A) durante lo stress test. Il volume oscilla poi tra 31 e 34 dB(A), a seconda dell'applicazione e del carico. Non abbiamo notato alcuna accelerazione brusca delle ventole.

Il sistema di raffreddamento del Minisforum Neptune Series HX90G (Fonte: Minisforum)
Il sistema di raffreddamento del Minisforum Neptune Series HX90G (Fonte: Minisforum)

Rumorosità

Idle
30.4 / 30.7 / 30.7 dB(A)
Sotto carico
31 / 36.6 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2047.933.133.533.133.533.347.92548.333.133.232.630.63548.33148.531.134.334.929.931.448.5404028.829.430.229.529.9405036.532.330.930.234.128.236.56333.228.92726.929.127.233.28030.428.227.827.52826.330.410029.826.826.925.826.324.329.812527.725.324.82525.224.527.716026.924.625.124.424.622.826.920027.323.223.922.723.322.627.325030.722.622.822.122.122.330.731526.622.222.322.322.320.926.640027.420.320.921.121.320.227.45002720.520.320.420.520.22763028.920.520.220.320.41928.980028.219.519.819.519.318.228.2100025.41918.618.918.717.925.4125026.518.618.418.118.51826.5160024.818.217.718.117.917.824.8200025.418.217.517.517.417.225.4250023.817.917.517.617.617.423.8315021.918.217.617.417.417.421.9400021.818.917.717.817.517.521.8500018.818.117.817.917.817.618.8630018.418.21818.118.117.918.4800018.418.418.218.218.21818.41000018.718.618.418.518.318.218.712500191918.818.918.818.6191600019.419.519.419.319.319.119.4SPL36.73130.730.730.730.336.7N2.61.51.51.51.51.42.6median 25.4median 19median 18.8median 18.9median 18.8median 18.2median 25.4Delta3.71.82.32.12.11.43.7hearing rangehide median Fan NoiseMinisforum Neptune Series HX90G
Minisforum Neptune Series HX90G
R9 5900HX, Radeon RX 6600M
Zotac Magnus One (ECM73070C)
i7-10700, NVIDIA GeForce RTX 3070
Zotac ZBOX Magnus EN173070C
i7-11800H, GeForce RTX 3070 Laptop GPU
Intel Dragon Canyon NUC - RTX 3060
i9-12900, NVIDIA GeForce RTX 3060
Lenovo Legion 5 15ACH6A-82NW0010GE
R5 5600H, Radeon RX 6600M
Minisforum NUCX i7
i7-11800H, GeForce RTX 3070 Laptop GPU
Minisforum EliteMini HX90
R9 5900HX, Vega 8
Noise
-21%
-14%
-4%
-11%
-1%
1%
off /ambiente *
30.3
30
1%
30.7
-1%
30.2
-0%
25
17%
29.5
3%
30.8
-2%
Idle Minimum *
30.4
33.58
-10%
32.7
-8%
30.2
1%
25
18%
29.5
3%
Idle Average *
30.7
32.8
-7%
30.4
1%
25
19%
29.5
4%
31.6
-3%
Idle Maximum *
30.7
32.8
-7%
30.8
-0%
34.5
-12%
29.5
4%
Load Average *
31
44.25
-43%
41.7
-35%
51.1
-65%
32.8
-6%
Load Maximum *
36.6
48.72
-33%
45.4
-24%
45.1
-23%
51.3
-40%
40.8
-11%
33.4
9%

* ... Meglio usare valori piccoli

Temperatura

Le temperature superficiali raggiungono un massimo di 48°C sotto carico, il che non rappresenta un grosso problema. Per questo test abbiamo utilizzato il dispositivo senza il suo supporto. Le temperature scendono minimamente quando il dispositivo viene utilizzato con il suo supporto.

Le temperature della CPU e della GPU misurate sono molto buone. Il test di stress, che simula uno scenario estremo, aumenta la temperatura della CPU fino a un massimo di 88,3°C. L'aumento di temperatura della GPU è notevolmente inferiore, pari a 77°C. Tuttavia, la temperatura del VR VDDC è aumentata fino a 106°C. Anche nel singolo test con Furmark, abbiamo documentato 103 °C. Tuttavia, non abbiamo rilevato un throttling delle prestazioni.

Stress test solo FurMark
Stress test solo FurMark
Solo test da sforzo Prime95
Solo test da sforzo Prime95
Stress test Prime95 + FurMark
Stress test Prime95 + FurMark
Carico massimo
 30.3 °C28.7 °C35 °C
 27.7 °C30 °C27.4 °C
 35.6 °C30.5 °C28.7 °C
Massima: 35.6 °C
Media: 30.4 °C
45.2 °C46.5 °C42.6 °C
46.4 °C48.2 °C42.7 °C
42.2 °C39 °C42.5 °C
Massima: 48.2 °C
Media: 43.9 °C
Alimentazione (max)  58.5 °C | Temperatura della stanza 24.5 °C | FIRT 550-Pocket
(+) La temperatura media del lato superiore sotto carico massimo e' di 30.4 °C / 87 F, rispetto alla media di 32.2 °C / 90 F per i dispositivi di questa classe Mini PC.
(+) La temperatura massima sul lato superiore è di 35.6 °C / 96 F, rispetto alla media di 35.6 °C / 96 F, che varia da 26 a 69.5 °C per questa classe Mini PC.
(-) Il lato inferiore si riscalda fino ad un massimo di 48.2 °C / 119 F, rispetto alla media di 36.9 °C / 98 F
(+) In idle, la temperatura media del lato superiore è di 29.3 °C / 85 F, rispetto alla media deld ispositivo di 32.2 °C / 90 F.
Top al minimo
Top al minimo
Parte superiore sotto carico
Parte superiore sotto carico
Fondo al minimo
Fondo al minimo
Fondo sotto carico
Fondo sotto carico

Consumo di energia

alimentatore da 262 Watt
alimentatore da 262 Watt

I mini PC compatti basati su componenti desktop hanno un grande vantaggio in termini di consumo energetico rispetto ai PC desktop tradizionali. Secondo il nostro dispositivo di misurazione, il Minisforum HX90G consuma solo 17-18 watt quando è al minimo. Abbiamo misurato 82 watt durante il carico medio e fino a 262 watt sotto carico massimo. Tuttavia, il dispositivo ha mantenuto questo valore massimo solo per breve tempo. Il carico medio massimo è stato misurato durante il gioco, con un consumo di 185 watt.

L'alimentatore ha una potenza nominale di 262 watt, sufficiente per questo dispositivo. Durante i nostri test non abbiamo riscontrato alcun problema di alimentazione.

Consumo di corrente
Off / Standbydarklight 0.77 / 0.65 Watt
Idledarkmidlight 17.8 / 17.9 / 18.1 Watt
Sotto carico midlight 82.1 / 262 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
Minisforum Neptune Series HX90G
R9 5900HX, Radeon RX 6600M
Zotac ZBOX Magnus EN173070C
i7-11800H, GeForce RTX 3070 Laptop GPU
Lenovo Legion 5 15ACH6A-82NW0010GE
R5 5600H, Radeon RX 6600M
Minisforum NUCX i7
i7-11800H, GeForce RTX 3070 Laptop GPU
Media AMD Radeon RX 6600M

Media della classe Mini PC

Power Consumption
-90%
-0%
-42%
2%
41%
Idle Minimum *
17.8
31.3
-76%
10
44%
28.2
-58%
13.7 ?(9.1 - 17.8, n=6)
23%
9.83 ?(1.9 - 46.5, n=88, ultimi 2 anni)
45%
Idle Average *
17.9
35.1
-96%
13.2
26%
29.9
-67%
16.6 ?(12.8 - 21.5, n=6)
7%
11.7 ?(1.9 - 63, n=88, ultimi 2 anni)
35%
Idle Maximum *
18.1
41.6
-130%
15.6
14%
36.2
-100%
19.1 ?(15.1 - 24.4, n=6)
-6%
14.3 ?(2.6 - 68.9, n=88, ultimi 2 anni)
21%
Load Average *
82.1
214
-161%
178
-117%
83.2
-1%
114.4 ?(77.2 - 190, n=6)
-39%
51.6 ?(11.3 - 158.7, n=89, ultimi 2 anni)
37%
Load Maximum *
262
231
12%
180
31%
215.7
18%
197.8 ?(114.4 - 262, n=6)
25%
85.5 ?(18.1 - 271, n=89, ultimi 2 anni)
67%
Witcher 3 ultra *
193.5
181
167

* ... Meglio usare valori piccoli

Power consumption with external monitor

0153045607590105120135150165180195210Tooltip
Minisforum Neptune Series HX90G; Prime95 V2810 Stress (external Monitor): Ø112.8 (101-119.4)
Minisforum Neptune Series HX90G; Cinebench R15 Multi (external Monitor): Ø117.8 (112.5-133.5)
Minisforum Neptune Series HX90G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø174.1 (164.6-195.4)
Minisforum Neptune Series HX90G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø185.6 (177.8-218)
Minisforum Neptune Series HX90G; Idle 1min (external Monitor): Ø18.2 (15-24.1)

Pro

+ ottime prestazioni di sistema
+ aMD Ryzen 9 5900HX veloce con 8 core e 16 thread
+ aMD Radeon RX 6600M dedicata con 8 GB di VRAM
+ case solido
+ sempre silenzioso
+ fino a quattro display contemporaneamente
+ bassa latenza DPC
+ molte porte USB

Contro

- nessun lettore di schede SD
- piuttosto costoso (senza sconti)
- Le porte di visualizzazione supportano un massimo di 4K@60Hz

Verdetto - PC da gioco compatto a 1080p

Il Minisforum Neptune Series HX90G in prova: fornito da Minisforum
Il Minisforum Neptune Series HX90G in prova: fornito da Minisforum

Il Minisforum Neptune Series HX90G è un dispositivo di gioco molto compatto, dotato di una GPU completa. Per la sua costruzione, il dispositivo si basa su una configurazione che il produttore ha ripetutamente utilizzato per produrre veloci mini PC e con cui ha acquisito una certa familiarità. Fondamentalmente, Minisforum ha migliorato il suo inizialeEliteMini HX90e lo ha ampliato con unaAMD Radeon RX 6600Mrendendo il sistema più adatto alle prestazioni 3D e consentendo di giocare senza limiti a 1080p e con il massimo dei dettagli

L'hardware è inserito in un dispositivo compatto con una buona ventilazione. Il sistema di raffreddamento è ben dimensionato e consente al sistema diAMD Ryzen 9 5900HXe la AMD Radeon RX 6600Mdi lavorare senza limitazioni, anche sotto carico massimo. Il produttore ha già dimostrato l'uso di buone unità di raffreddamento in altri dispositivi. Rimangono alcuni problemi nella selezione delle porte disponibili. Mentre il numero di porte è soddisfacente, le porte HDMI e DisplayPort supportano purtroppo solo 2160p a 60Hz. La mancanza di un lettore di schede e del supporto per Thunderbolt sono meno deludenti in considerazione della categoria del dispositivo (dispositivo di gioco) e sono qualcosa con cui possiamo convivere

Il Minisforum Neptune Series HX90G è un interessante dispositivo di gioco compatto per il gioco Full HD senza compromessi.

Siamo rimasti molto soddisfatti dei bassi valori di emissioni del Minisforum HX90G. Il dispositivo non è solo silenzioso, ma anche economico e tiene sempre sotto controllo le temperature. La nostra unità di prova ha mostrato prestazioni solide per tutta la durata dei test, senza alcun difetto grave. Le prestazioni del sistema sono pari a quelle dei dispositivi desktop tradizionali e le prestazioni di gioco sono impressionanti: il Minisforum HX90G ha dato filo da torcere ai dispositivi di confronto dotati di Nvidia GeForce RTX 3060

Il Minisforum HX90G deve competere con un altro dei PC compatti di Minisforum, il potenteMinisforum NUCXi7equipaggiato con la veloce Nvidia GeForce RTX 3070 LaptopgPU. Il Lenovo Legion 5potrebbe ostacolare il successo dell'HX90G. Questo interessante laptop offre una connettività simile a soli 1.150 dollari.

Prezzo e disponibilità

Il Minisforum Neptune Series HX90G può essere ordinato direttamente dal negozio online Minisforum. Il produttore offre attualmente interessanti sconti per i preordini, il che significa che la nostra configurazione di prova è ridotta a poco più di 900 dollari al momento in cui scriviamo. Senza lo sconto, il dispositivo costa 1070 dollari. Il modello barebone, più economico, è attualmente disponibile a 800 dollari. Il dispositivo viene spedito da Hongkong a partire da metà novembre. Tempo di consegna stimato: 2-3 settimane.

Notebookcheck ha ricevuto in prova il Minisforum Neptune Series HX90G. Questa recensione sarà regolarmente aggiornata con i risultati degli ultimi giochi. Il produttore non ha avuto alcuna influenza sulla recensione. Inoltre, il produttore non ha ricevuto una versione della recensione finita prima della pubblicazione.


Minisforum Neptune Series HX90G - 10/26/2022 v7
Sebastian Bade

Chassis
79 / 98 → 81%
Connettività
54 / 81 → 67%
Peso
70%
Prestazioni di gioco
98%
Prestazioni Applicazioni
95%
Temperatura
90%
Rumorosità
86%
Media
83%
0%
Mini PC - Media ponderata
Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del Minisforum HX90G: un compatto PC per il gaming con AMD Ryzen 9 5900HX e AMD Radeon RX 6600M
Sebastian Bade, 2022-10-31 (Update: 2022-11- 1)
