Recensione breve del Convertibile Panasonic Toughbook CF-XZ6

Resta nella suo settore di nicchia. Panasonic è il produttore dei robusti Toughbooks realizzati per militari e cantieri di lavoro. Il CF-XZ6 dovrebbe attrarre anche i normali clienti business che normalmente scelgono Surface, Latitude, ThinkPad o EliteBook. Vediamo perché il Toughbook non è riuscito ad uscire dalla sua nicchia nella nostra recensione.

Panasonic Toughbook CF-XZ6 (Toughbook CF Serie)
Scheda grafica
Memoria
8192 MB
, DDR3, saldata, Dual-Channel
Schermo
12 pollici 3:2, 2160 x 1440 pixel 216 PPI, 10 punti, supporto penna nativo, Semi-Matte Beschichtung, IPS LED, lucido: si, schermo sganciabile
Scheda madre
Intel Kaby Lake-U Premium PCH
Harddisk
Samsung SSD PM871a MZNLN256HMHQ, 256 GB
Scheda audio
Intel Kaby Lake-U/Y PCH - High Definition Audio
Porte di connessione
4 USB 3.0 / 3.1, 1 VGA, 1 HDMI, 1 Kensington Lock, Connessioni Audio: 3.5 mm audio combinato, Lettore schede: lettore di schede SDXC, Sensori: Rotationssensor
Rete
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.1, EM7305, LTE
Dimensioni
altezza x larghezza x profondità (in mm): 22 x 288,5 x 223,7
Batteria
76 Wh ioni di litio, removibile, due batterie a 4-celle
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 2 megapixel + IR camera
Fotocamera Principale: 8 MPix
Altre caratteristiche
Casse: cassa mono, Tastiera: tastiera bianca a 6 righe, Illuminazione Tastiera: no, Microsoft Office Trial, 36 Mesi Garanzia
Peso
1.18 kg, Alimentazione: 335 gr
Prezzo
2384 Euro



Size Comparison

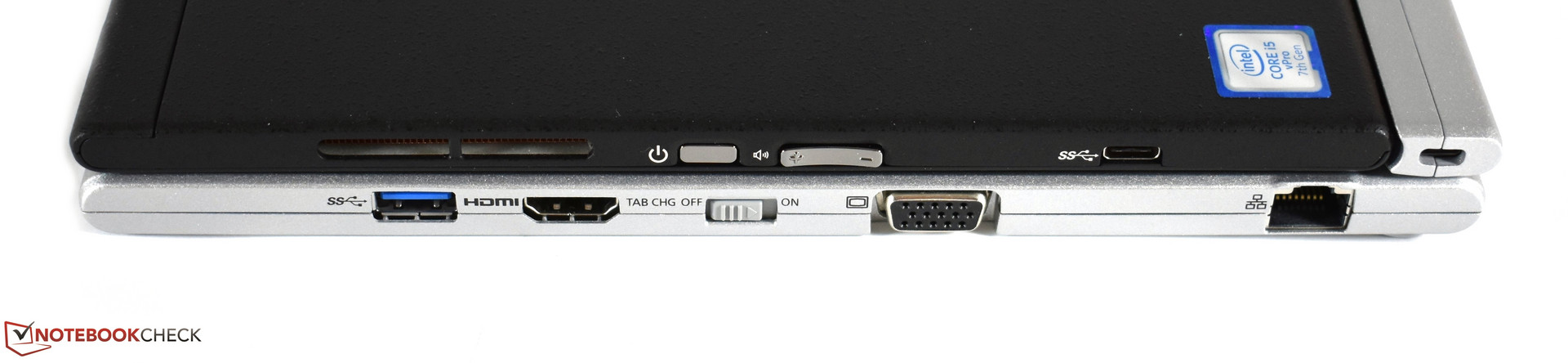

right: USB Type-A 3.0, HDMI, battery switch, VGA, USB Type-C 3.1 Gen. 1 (on the tablet), Ethernet, Kensington Lock
right: USB Type-A 3.0, HDMI, battery switch, VGA, USB Type-C 3.1 Gen. 1 (on the tablet), Ethernet, Kensington Lock

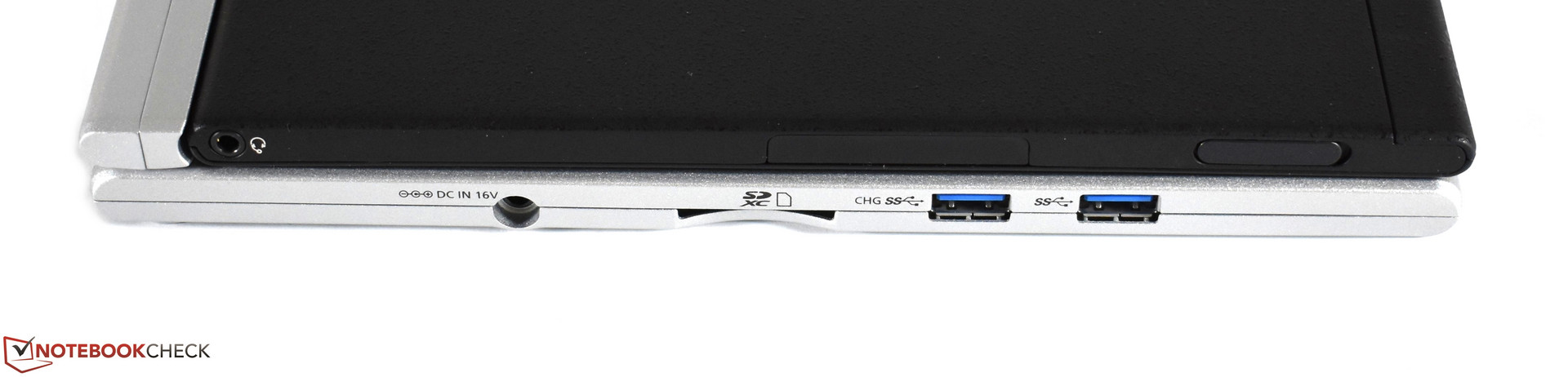

left: combined audio (on the tablet), power supply, SD card slot, 2 x USB Type-A 3.0, NanoSIM-Slot (on the tablet)
left: combined audio (on the tablet), power supply, SD card slot, 2 x USB Type-A 3.0, NanoSIM-Slot (on the tablet)
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Microsoft Surface Book 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
159.2 MB/s ∼100% +12%
Panasonic Toughbook CF-XZ6
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
142.6 MB/s ∼90%
HP Elite x2 1012 G2-1LV76EA
  (Toshiba Exceria Pro M501)
79.8 MB/s ∼50% -44%
Lenovo ThinkPad X1 Tablet Gen 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
72.62 MB/s ∼46% -49%
Microsoft Surface Pro (2017) i7
  (Toshiba Exceria Pro M401 64 GB)
53.8 MB/s ∼34% -62%
Dell Latitude 7285
  (Toshiba Exceria Pro M501)
29.7 MB/s ∼19% -79%
maximum AS SSD Seq Read Test (1GB)
Panasonic Toughbook CF-XZ6
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
239 MB/s ∼100%
Microsoft Surface Book 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
234.4 MB/s ∼98% -2%
Lenovo ThinkPad X1 Tablet Gen 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
93.77 MB/s ∼39% -61%
HP Elite x2 1012 G2-1LV76EA
  (Toshiba Exceria Pro M501)
87.4 MB/s ∼37% -63%
Microsoft Surface Pro (2017) i7
  (Toshiba Exceria Pro M401 64 GB)
86.5 MB/s ∼36% -64%
Dell Latitude 7285
  (Toshiba Exceria Pro M501)
30.5 (min: 29.7) MB/s ∼13% -87%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Dell Latitude 7285
Intel Dual Band Wireless-AC 8265
611 MBit/s ∼100% +19%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Dual Band Wireless-AC 8265
586 MBit/s ∼96% +14%
HP Elite x2 1012 G2-1LV76EA
Intel Dual Band Wireless-AC 8265
569 MBit/s ∼93% +11%
Microsoft Surface Book 2
Marvell AVASTAR Wireless-AC Network Controller
515 MBit/s ∼84% 0%
Panasonic Toughbook CF-XZ6
Intel Dual Band Wireless-AC 8265
514 MBit/s ∼84%
iperf3 Client (transmit) TCP 1 m 4M x10
Panasonic Toughbook CF-XZ6
Intel Dual Band Wireless-AC 8265
670 MBit/s ∼100%
Dell Latitude 7285
Intel Dual Band Wireless-AC 8265
515 MBit/s ∼77% -23%
Microsoft Surface Book 2
Marvell AVASTAR Wireless-AC Network Controller
498 MBit/s ∼74% -26%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Dual Band Wireless-AC 8265
440 MBit/s ∼66% -34%
HP Elite x2 1012 G2-1LV76EA
Intel Dual Band Wireless-AC 8265
246 MBit/s ∼37% -63%

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

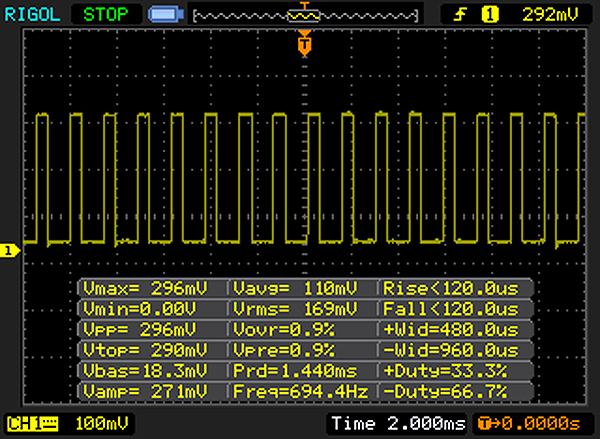

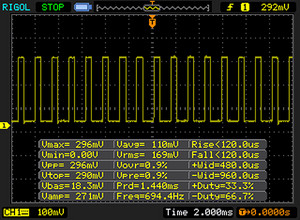

Screen flickering / PWM detected 694 Hz90 % brightness setting

The display backlight flickers at 694 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 694 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9024 (minimum: 43 - maximum: 142900) Hz was measured.

519
cd/m²
556
cd/m²
552
cd/m²
479
cd/m²
565
cd/m²
565
cd/m²
474
cd/m²
577
cd/m²
556
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 577 cd/m² Media: 538.1 cd/m² Minimum: 6.8 cd/m²
Distribuzione della luminosità: 82 %
Al centro con la batteria: 565 cd/m²
Contrasto: 1413:1 (Nero: 0.4 cd/m²)
ΔE Color 5.06 | 0.8-23.34 Ø6.4
ΔE Greyscale 6.4 | 0.64-98 Ø6.7
70% sRGB (Argyll) 44% AdobeRGB 1998 (Argyll)
Gamma: 2.25
Panasonic Toughbook CF-XZ6
Semi-Matte Beschichtung, , 2160x1440, 12
Microsoft Surface Book 2
Panasonic MEI96A2 , , 3000x2000, 13.5
Dell Latitude 7285
SHP1482 (LQ123Z1), , 2880x1920, 12.3
Microsoft Surface Pro (2017) i7
LG Display LP123WQ112604, , 2736x1824, 12.3
Lenovo ThinkPad X1 Tablet Gen 2
LSN120QL01L01, , 2160x1440, 12
HP Elite x2 1012 G2-1LV76EA
Samsung SDC4A49, , 2716x1824, 12.3
Response Times
-18%
6%
1037%
-6%
72%
Response Time Grey 50% / Grey 80% *
39 (21, 18)
52.8 (25.2, 27.6)
-35%
44 (19.6, 24.4)
-13%
37 (16, 21)
5%
28.4 (15.2, 13.2)
27%
45.6 (23.6, 22)
-17%
Response Time Black / White *
30 (18, 12)
30 (16.4, 13.6)
-0%
30.4 (15.6, 14.8)
-1%
25 (13, 12)
17%
22.8 (13.6, 9.2)
24%
21.6 (9.2, 12.4)
28%
PWM Frequency
694 (90)
922.1 (20)
33%
22130 (55)
3089%
221.2 (49)
-68%
2119 (50)
205%
Screen
28%
17%
9%
-2%
14%
Brightness middle
565
385
-32%
531
-6%
482
-15%
388.1
-31%
443
-22%
Brightness
538
372
-31%
490
-9%
466
-13%
344
-36%
446
-17%
Brightness Distribution
82
89
9%
86
5%
92
12%
78
-5%
88
7%
Black Level *
0.4
0.21
47%
0.37
7%
0.395
1%
0.39
2%
0.41
-3%
Contrast
1413
1833
30%
1435
2%
1220
-14%
995
-30%
1080
-24%
Colorchecker DeltaE2000 *
5.06
1.6
68%
3.5
31%
4
21%
4.6
9%
2.6
49%
Greyscale DeltaE2000 *
6.4
1.5
77%
4.7
27%
5.7
11%
6.1
5%
3
53%
Gamma
2.25 107%
2.22 108%
2.04 118%
2.28 105%
2.07 116%
2.38 101%
CCT
5794 112%
6502 100%
6581 99%
7950 82%
7104 91%
6780 96%
Color Space (Percent of AdobeRGB 1998)
44
64
45%
67.6
54%
62
41%
59
34%
62.6
42%
Color Space (Percent of sRGB)
70
95.9
37%
99.8
43%
96
37%
91
30%
98
40%
Media totale (Programma / Settaggio)
5% / 20%
12% / 14%
523% / 266%
-4% / -3%
43% / 28%

* ... Meglio usare valori piccoli

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.

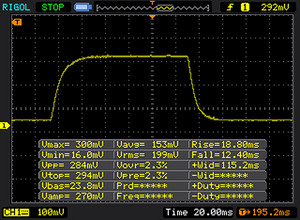

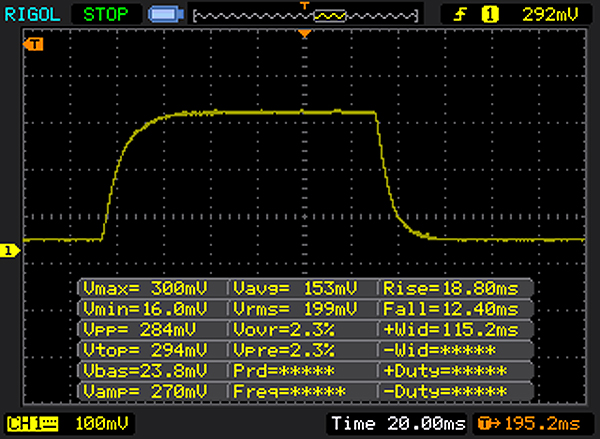

       Tempi di risposta dal Nero al Bianco
30 ms ... rise ↗ and fall ↘ combined↗ 18 ms Incremento
↘ 12 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 71 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (26.5 ms).

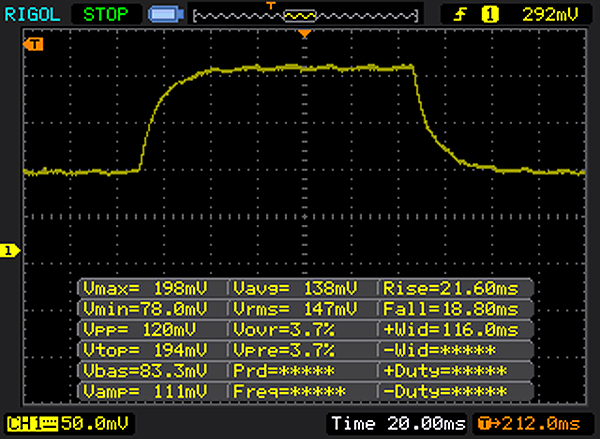

       Tempo di risposta dal 50% Grigio all'80% Grigio
39 ms ... rise ↗ and fall ↘ combined↗ 21 ms Incremento
↘ 18 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 39 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (42.3 ms).

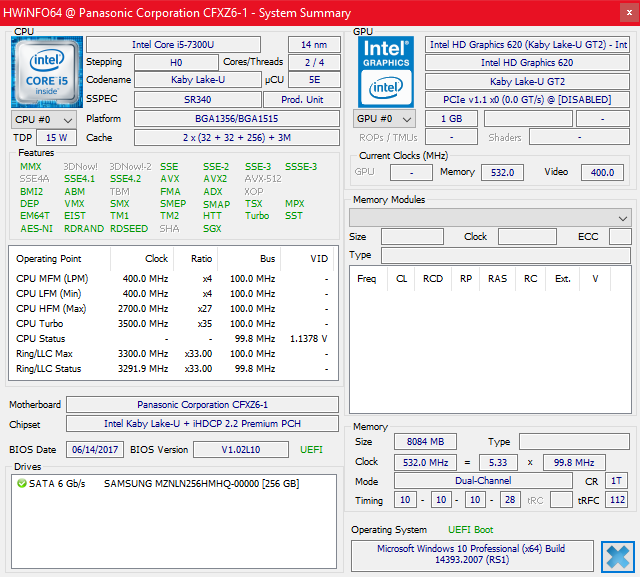

HWiNFO
HWiNFO

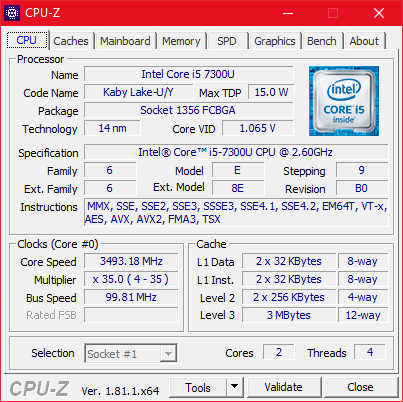

CPU-Z
CPU-Z

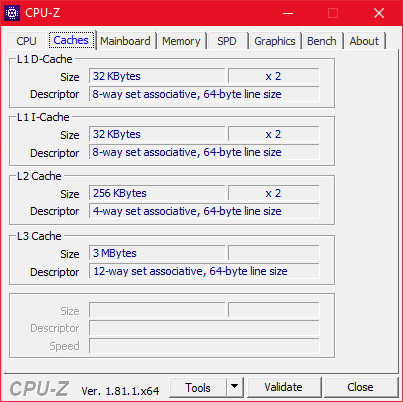

CPU-Z Caches
CPU-Z Caches

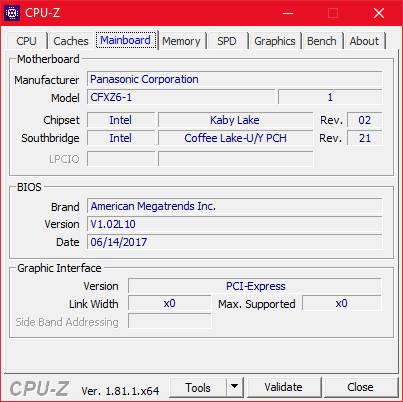

CPU-Z Mainboard
CPU-Z Mainboard

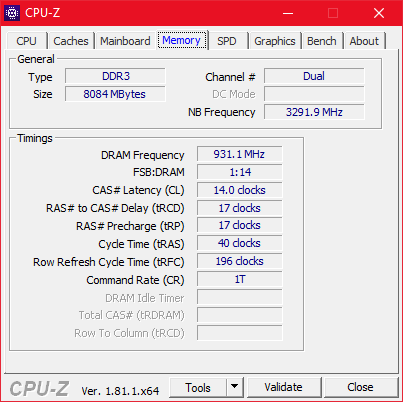

CPU-Z Memory
CPU-Z Memory

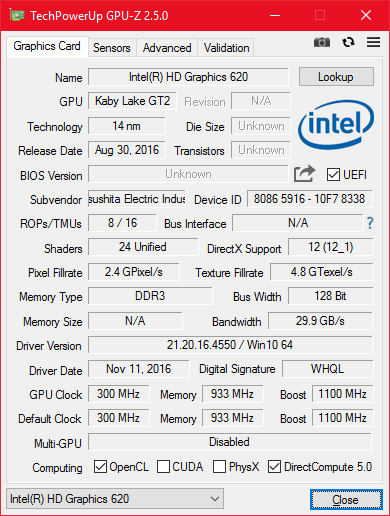

GPU-Z
GPU-Z

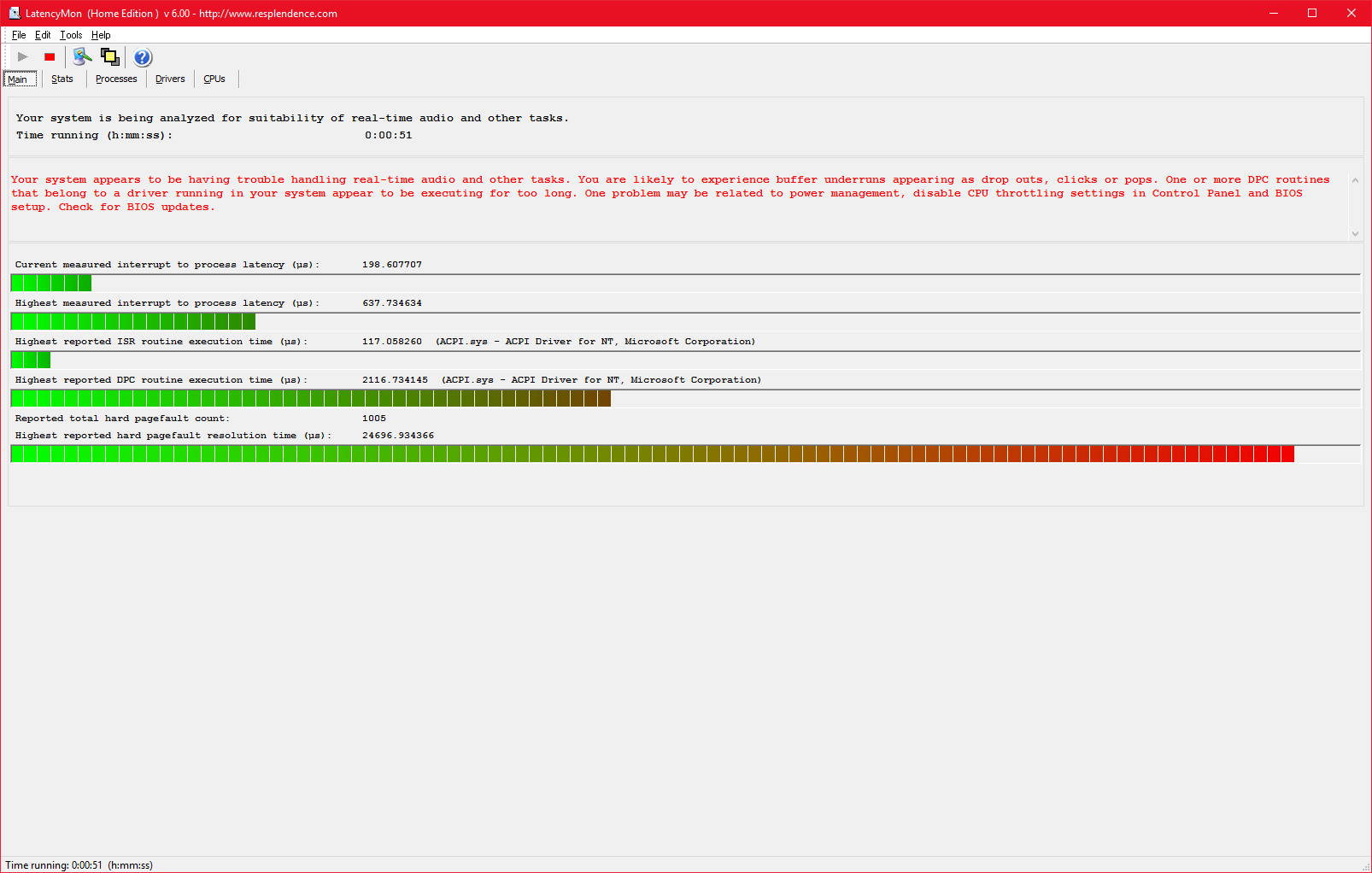

LatencyMon
LatencyMon

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Microsoft Surface Book 2
Intel Core i7-8650U
177 Points ∼100% +28%
Microsoft Surface Pro (2017) i7
Intel Core i7-7660U
163 Points ∼92% +18%
Panasonic Toughbook CF-XZ6
Intel Core i5-7300U
138 Points ∼78%
Dell Latitude 7285
Intel Core i5-7Y57
133 Points ∼75% -4%
HP Elite x2 1012 G2-1LV76EA
Intel Core i5-7200U
127 Points ∼72% -8%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
115 Points ∼65% -17%
CPU Multi 64Bit
Microsoft Surface Book 2
Intel Core i7-8650U
673 Points ∼100% +105%
Microsoft Surface Pro (2017) i7
Intel Core i7-7660U
410 (min: 335.35, max: 409.45) Points ∼61% +25%
Panasonic Toughbook CF-XZ6
Intel Core i5-7300U
328 Points ∼49%
HP Elite x2 1012 G2-1LV76EA
Intel Core i5-7200U
322 Points ∼48% -2%
Dell Latitude 7285
Intel Core i5-7Y57
273 Points ∼41% -17%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
234 Points ∼35% -29%
Cinebench R15 CPU Multi 64Bit
328 Points
Cinebench R15 OpenGL 64Bit
34.98 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Cinebench R15 CPU Single 64Bit
138 Points
Aiuto
PCMark 8
Work Score Accelerated v2
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
4522 (min: 4500, max: 4528) Points ∼100% 0%
Panasonic Toughbook CF-XZ6
HD Graphics 620, 7300U, Samsung SSD PM871a MZNLN256HMHQ
4503 Points ∼100%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
4431 Points ∼98% -2%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, 7Y54, Samsung PM961 MZVLW256HEHP
4288 Points ∼95% -5%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
4036 Points ∼89% -10%
Dell Latitude 7285
HD Graphics 615, 7Y57, Toshiba KBG20ZMS256G
3911 Points ∼86% -13%
Home Score Accelerated v2
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
4095 Points ∼100% +21%
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
3694 (min: 3691, max: 3696) Points ∼90% +9%
Panasonic Toughbook CF-XZ6
HD Graphics 620, 7300U, Samsung SSD PM871a MZNLN256HMHQ
3386 Points ∼83%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
3289 Points ∼80% -3%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, 7Y54, Samsung PM961 MZVLW256HEHP
3092 Points ∼76% -9%
Dell Latitude 7285
HD Graphics 615, 7Y57, Toshiba KBG20ZMS256G
3073 Points ∼75% -9%
PCMark 10
Digital Content Creation
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
4342 (min: 4211, max: 4356) Points ∼100% +100%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
3014 Points ∼69% +39%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
2246 Points ∼52% +3%
Panasonic Toughbook CF-XZ6
HD Graphics 620, 7300U, Samsung SSD PM871a MZNLN256HMHQ
2174 Points ∼50%
Dell Latitude 7285
HD Graphics 615, 7Y57, Toshiba KBG20ZMS256G
1981 Points ∼46% -9%
Productivity
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
6665 Points ∼100% +8%
Panasonic Toughbook CF-XZ6
HD Graphics 620, 7300U, Samsung SSD PM871a MZNLN256HMHQ
6147 Points ∼92%
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
5819 (min: 5653, max: 5995) Points ∼87% -5%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
5104 Points ∼77% -17%
Dell Latitude 7285
HD Graphics 615, 7Y57, Toshiba KBG20ZMS256G
4917 Points ∼74% -20%
Essentials
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
8076 Points ∼100% +18%
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
7659 (min: 7643, max: 7746) Points ∼95% +12%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
7276 Points ∼90% +7%
Panasonic Toughbook CF-XZ6
HD Graphics 620, 7300U, Samsung SSD PM871a MZNLN256HMHQ
6820 Points ∼84%
Dell Latitude 7285
HD Graphics 615, 7Y57, Toshiba KBG20ZMS256G
6632 Points ∼82% -3%
Score
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
4119 (min: 4106, max: 4190) Points ∼100% +28%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
3909 Points ∼95% +21%
Panasonic Toughbook CF-XZ6
HD Graphics 620, 7300U, Samsung SSD PM871a MZNLN256HMHQ
3226 Points ∼78%
HP Elite x2 1012 G2-1LV76EA
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
3146 Points ∼76% -2%
Dell Latitude 7285
HD Graphics 615, 7Y57, Toshiba KBG20ZMS256G
2876 Points ∼70% -11%
PCMark 8 Home Score Accelerated v2
3386 punti
PCMark 8 Work Score Accelerated v2
4503 punti
Aiuto
Panasonic Toughbook CF-XZ6
Samsung SSD PM871a MZNLN256HMHQ
Microsoft Surface Book 2
Samsung PM961 MZVLW256HEHP
Dell Latitude 7285
Toshiba KBG20ZMS256G
Microsoft Surface Pro (2017) i7
Samsung PM971 KUS040202M
Lenovo ThinkPad X1 Tablet Gen 2
Samsung PM961 MZVLW256HEHP
HP Elite x2 1012 G2-1LV76EA
Samsung PM961 MZVLW256HEHP
CrystalDiskMark 3.0
46%
38%
73%
90%
129%
Write 4k QD32
273.9
337.08
23%
253
-8%
421.48
54%
259
-5%
472.5
73%
Read 4k QD32
307
465.5
52%
357.7
17%
485.58
58%
247.9
-19%
398.3
30%
Write 4k
93
148.47
60%
99.07
7%
136.27
47%
120
29%
145.4
56%
Read 4k
35.75
43.64
22%
45.26
27%
53.64
50%
52.34
46%
56.9
59%
Write 512
355.6
337.86
-5%
487.9
37%
791.87
123%
869
144%
844.4
137%
Read 512
423.5
654.05
54%
755.8
78%
227.5
-46%
697.5
65%
1235
192%
Write Seq
404.2
341.2
-16%
587.4
45%
960.7
138%
1259
211%
1261
212%
Read Seq
499.9
1370.2
174%
1017
103%
1307.9
162%
1739
248%
1875
275%
Samsung SSD PM871a MZNLN256HMHQ
Sequential Read: 499.9 MB/s
Sequential Write: 404.2 MB/s
512K Read: 423.5 MB/s
512K Write: 355.6 MB/s
4K Read: 35.75 MB/s
4K Write: 93 MB/s
4K QD32 Read: 307 MB/s
4K QD32 Write: 273.9 MB/s
3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Book 2
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8650U
7483 (min: 7472, max: 7485) Points ∼100% +430%
Microsoft Surface Pro (2017) i7
Intel Iris Plus Graphics 640, Intel Core i7-7660U
2493 Points ∼33% +76%
HP Elite x2 1012 G2-1LV76EA
Intel HD Graphics 620, Intel Core i5-7200U
1510 Points ∼20% +7%
Panasonic Toughbook CF-XZ6
Intel HD Graphics 620, Intel Core i5-7300U
1413 Points ∼19%
Dell Latitude 7285
Intel HD Graphics 615, Intel Core i5-7Y57
1327 Points ∼18% -6%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, Intel Core i5-7Y54
1161 Points ∼16% -18%
3DMark
1920x1080 Fire Strike Graphics
Microsoft Surface Book 2
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8650U
5787 Points ∼100% +622%
Microsoft Surface Pro (2017) i7
Intel Iris Plus Graphics 640, Intel Core i7-7660U
1418 Points ∼25% +77%
HP Elite x2 1012 G2-1LV76EA
Intel HD Graphics 620, Intel Core i5-7200U
933 Points ∼16% +16%
Dell Latitude 7285
Intel HD Graphics 615, Intel Core i5-7Y57
866 Points ∼15% +8%
Panasonic Toughbook CF-XZ6
Intel HD Graphics 620, Intel Core i5-7300U
802 Points ∼14%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, Intel Core i5-7Y54
728 Points ∼13% -9%
1280x720 Cloud Gate Standard Graphics
Microsoft Surface Book 2
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8650U
29376 Points ∼100% +343%
Microsoft Surface Pro (2017) i7
Intel Iris Plus Graphics 640, Intel Core i7-7660U
11264 Points ∼38% +70%
HP Elite x2 1012 G2-1LV76EA
Intel HD Graphics 620, Intel Core i5-7200U
7334 Points ∼25% +11%
Dell Latitude 7285
Intel HD Graphics 615, Intel Core i5-7Y57
6862 Points ∼23% +4%
Panasonic Toughbook CF-XZ6
Intel HD Graphics 620, Intel Core i5-7300U
6625 Points ∼23%
Lenovo ThinkPad X1 Tablet Gen 2
Intel HD Graphics 615, Intel Core i5-7Y54
6164 Points ∼21% -7%
3DMark 11 Performance
1552 punti
3DMark Cloud Gate Standard Score
5469 punti
3DMark Fire Strike Score
734 punti
Aiuto
basso medio alto ultra
BioShock Infinite (2013) 43.3124.5fps
Rise of the Tomb Raider (2016) 16.08fps
Civilization VI (2016) 17.28fps

Rumorosità

Idle
30.5 / 30.5 / 30.5 dB(A)
Sotto carico
31.9 / 32.6 dB(A)



30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm di distanza)   Rumorosità ambientale: 30.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.633.533.834.434.433.62535.133.33538.33935.13139.539.442.241.142.239.54031.933.233.836.635.431.95033.635.63537.737.833.66335.128.928.630.229.635.18028.126.226.727.328.828.110027.625.826.327.228.327.61252626.125.82725.62616025.32424.224.423.325.320023.923.623.223.422.723.925021.721.822.423.121.521.731521.420.821.42120.821.440021.221.521.120.620.421.250019.521.220.819.819.319.563019.520.119.71918.519.580020.122.220.418.418.220.1100021.524.622.118.217.921.5125020.428.9211817.920.4160020.524.321.81817.720.5200019.92320.81817.819.9250019.223.12017.917.719.2315019.323.720.41818.119.3400019.122.820.518.218.219.1500018.922.319.518.518.318.9630018.720.618.918.518.518.7800018.819.518.918.618.618.81000018.618.818.718.618.618.61250018.618.618.618.518.418.61600018.618.618.618.618.518.6SPL31.935.532.630.830.631.9N1.72.21.81.51.41.7median 19.9Panasonic Toughbook CF-XZ6median 22.3median 20.8median 18.6median 18.5median 19.9Delta1.81.71.41.81.81.830.829.629.9322830.828.932.63434.334.631.432.632.43028.928.529.228.527.127.626.427.727.927.927.926.926.828.428.128.427.827.327.730.925.727.126.824.926.527.52725.627.825.92525.526.126.328.324.32627.528.926.828.226.32424.224.22323.424.823.922.823.521.92324.524.222.322.422.322.921.92324.123.621.721.221.720.822.425.523.321.62120.219.920.729.121.319.619.418.818.618.426.122.220.419.518.118.117.927.822.420.918.917.417.417.730.621.818.81816.917.217.131.122.919.718.616.51716.832.724.821.218.417.316.816.634.926.922.420.218.316.916.337.127.523.820.818.417.416.537.629.424.220.417.818.116.239.327.722.318.617.817.916.338.328.321.418.617.617.216.840.22518.51817.81817.137.122.318.618.418.118.617.339.620.31819.819.320.417.937.118.617.918.418.218.417.929.818.21818.318.518.717.826.718.318.220.520.520.618.223.337.833.431.430.230.229.4492.61.81.51.41.41.36.3median 23.3Microsoft Surface Book 2median 21.2median 19.5median 18.3median 18.4median 17.8median 30.62.31.81.41.31.62.25.3hearing rangehide median Fan Noise
Carico massimo
 24.4 °C30.9 °C35 °C
 25.3 °C24.1 °C37.6 °C
 33.8 °C33.1 °C34.7 °C
Massima: 37.6 °C
Media: 31 °C
38 °C30.7 °C25.2 °C
38.2 °C34.7 °C25.8 °C
31.2 °C31.7 °C26.6 °C
Massima: 38.2 °C
Media: 31.3 °C
Alimentazione (max)  39.3 °C | Temperatura della stanza 22 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.334.434.32533.83933.83138.942.238.94032.235.432.25031.437.831.4633229.6328026.728.826.710027.528.327.512526.225.626.216025.223.325.220023.722.723.725022.521.522.531522.820.822.840022.420.422.450026.819.326.863032.118.532.180043.418.243.4100049.217.949.2125056.317.956.3160051.817.751.8200050.717.850.7250051.417.751.431505318.153400054.218.254.2500058.818.358.8630063.118.563.1800059.718.659.71000055.918.655.91250050.418.450.41600046.818.546.8SPL67.930.667.9N18.81.418.8median 49.2Panasonic Toughbook CF-XZ6median 18.5median 49.2Delta14.31.814.330.833.932.632.627.129.226.928.627.728.427.527.226.127.526.832.523.440.824.543.22348.822.454.920.757.818.456.417.958.717.759.117.160.716.860.116.659.716.361.116.564.716.262.916.366.516.86217.165.217.359.717.95517.951.617.846.718.24929.474.21.333.1median 17.8Microsoft Surface Book 2median 58.72.25.1hearing rangehide median Pink Noise
Panasonic Toughbook CF-XZ6 audio analysis

(-) | not very loud speakers (63.07 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.6% lower than median
(+) | bass is linear (3.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 10.4% lower than median
(-) | mids are not linear (16.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.4% higher than median
(±) | linearity of highs is average (9.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (40.5% difference to median)
Compared to same class
» 96% of all tested devices in this class were better, 2% similar, 2% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 98% of all tested devices were better, 1% similar, 1% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Microsoft Surface Book 2 audio analysis

(±) | speaker loudness is average but good (74.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.4% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.9% away from median
(+) | mids are linear (3.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(±) | linearity of highs is average (9.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.4% difference to median)
Compared to same class
» 9% of all tested devices in this class were better, 7% similar, 84% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 18% of all tested devices were better, 4% similar, 78% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo di corrente
Off / Standbydarklight / 0.7 Watt
Idledarkmidlight 3.15 / 6 / 6.3 Watt
Sotto carico midlight 21 / 23 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Panasonic Toughbook CF-XZ6
7300U, HD Graphics 620, Samsung SSD PM871a MZNLN256HMHQ, IPS LED, 2160x1440, 12
Microsoft Surface Book 2
8650U, GeForce GTX 1050 (Notebook), Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13.5
Dell Latitude 7285
7Y57, HD Graphics 615, Toshiba KBG20ZMS256G, IPS LED, 2880x1920, 12.3
Microsoft Surface Pro (2017) i7
7660U, Iris Plus Graphics 640, Samsung PM971 KUS040202M, IPS, 2736x1824, 12.3
Lenovo ThinkPad X1 Tablet Gen 2
7Y54, HD Graphics 615, Samsung PM961 MZVLW256HEHP, IPS, 2160x1440, 12
HP Elite x2 1012 G2-1LV76EA
7200U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, IPS, 2716x1824, 12.3
Power Consumption
-169%
-61%
-70%
-13%
-67%
Idle Minimum *
3.15
4.7
-49%
6.6
-110%
4.2
-33%
5
-59%
4.1
-30%
Idle Average *
6
10.6
-77%
9.3
-55%
10.1
-68%
6.3
-5%
9.2
-53%
Idle Maximum *
6.3
12.3
-95%
10.2
-62%
14
-122%
7.8
-24%
11.1
-76%
Load Average *
21
81
-286%
25.1
-20%
37.4
-78%
19.5
7%
33.8
-61%
Load Maximum *
23
100.3
-336%
36.1
-57%
34
-48%
19.6
15%
49.2
-114%
Witcher 3 ultra *
97
38.1

* ... Meglio usare valori piccoli

Autonomia della batteria
Idle (senza WLAN, min luminosità)
22ore 05minuti
NBC WiFi Websurfing Battery Test 1.3 (Edge)
14ore 01minuti
Big Buck Bunny H.264 1080p
11ore 50minuti
Sotto carico (max luminosità)
3ore 08minuti
Panasonic Toughbook CF-XZ6
7300U, HD Graphics 620, 76 Wh
Microsoft Surface Book 2
8650U, GeForce GTX 1050 (Notebook), 75 Wh
Dell Latitude 7285
7Y57, HD Graphics 615, 54 Wh
Microsoft Surface Pro (2017) i7
7660U, Iris Plus Graphics 640, 45 Wh
Lenovo ThinkPad X1 Tablet Gen 2
7Y54, HD Graphics 615, 37 Wh
HP Elite x2 1012 G2-1LV76EA
7200U, HD Graphics 620, 47 Wh
Autonomia della batteria
6%
-35%
-32%
-42%
-42%
Reader / Idle
1325
1469
11%
1030
-22%
662
-50%
833
-37%
H.264
710
933
31%
369
-48%
614
-14%
377
-47%
WiFi v1.3
841
663
-21%
391
-54%
489
-42%
441
-48%
378
-55%
Load
188
190
1%
162
-14%
112
-40%
134
-29%
138
-27%
Witcher 3 ultra
230
115

Pro

+ display con alta luminosità
+ schermo con superficie semi matta
+ Ethernet & VGA
+ autonomia molto buona
+ seconda batteria che consente alta flessibilità
+ modulo WWAN
+ robusto case in magnesio

Contro

- evidente clouding sull'LCD
- display: PWM & e bassa copertura del colore
- tastiera scomoda con layout strano
- piccolo Touchpad difficile da usare
- pessima cassa mono
- un SSD SATA III in un portatile da £1850
- pecche nella costruzione
- rumore elettronico
- scarso posizionamento delle porte

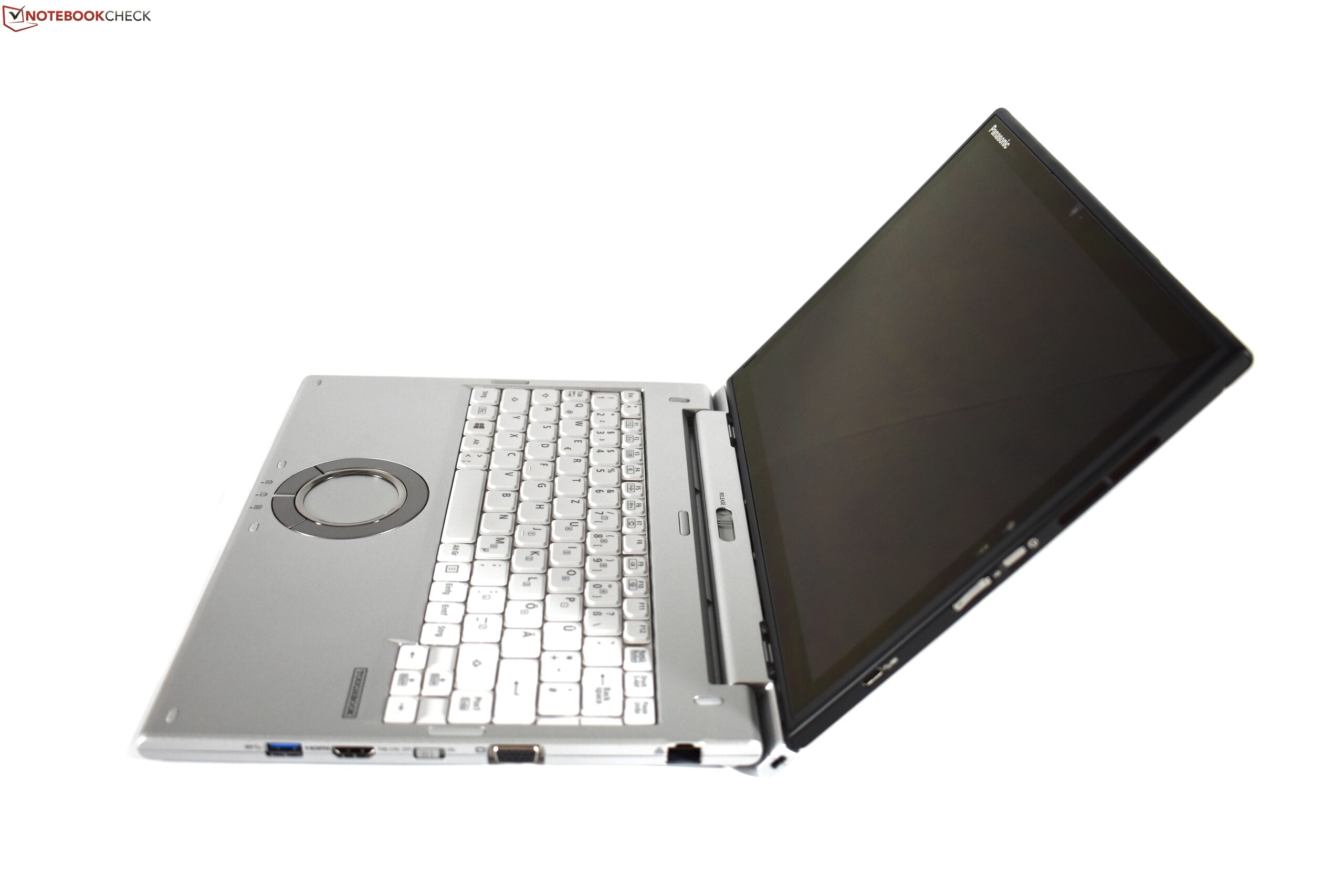

Panasonic Toughbook CF-XZ6, modello di test fornito da Panasonic.
Panasonic Toughbook CF-XZ6, modello di test fornito da Panasonic.

Il Panasonic Toughbook CF-XZ6 è un interessante sganciabile che ha delle ottime features - ma anche diverse pecche e punti deboli.

Se date uno sguardo all'autonomia o alla luminosità del display semi matto, ad esempio, avrete l'impressione di essere davanti ad un portatile di prima classe. Nessun concorrente regge il confronto con il Toughbook da questo punto di vista. Un altro vantaggio è la flessibilità: il Toughbook è sicuramente il migliore nel segmento degli sganciabili o dei tablets 2-in-1. Una porta VGA ed Ethernet è ancora importante per un portatile business e la batteria sganciabile vi consente la possibilità di avere maggiore autonomia. Ma nonostante questo, il Toughbook ha un case in metallo relativamente leggero e piccolo che appare molto robusto. Il modulo WWAN vi tiene connessi quando siete in giro.

Ma non è tutto oro quello che luccica: i punti deboli non mancano. Si parte con il display, la cui luminosità diminuisce troppo verso l'estremità sinistra e lo si nota ad occhio nudo. Il display usa anche il PWM e la copertura del colore è scarsa per un portatile di questo prezzo. Ma non si tratta del primo dispositivo ad avere questo tipo di problemi. I due principali dispositivi di input sono altrettanto deludenti: la tastiera ha un layout particolare, il che causa molti errori di battitura e il touchpad sembra venire dal passato con le sue dimensioni ridotte. Questi due punti da soli rendono quasi impossibile usare questo dispositivo per il lavoro. Considerando il tutto, possiamo perdonare la scarsa qualità della cassa mono, sebbene ci saremmo aspettati di più da un dispositivo che costa £1850. Questi non sono gli unici punti in cui Panasonic ha risparmiato. Ad esempio SSD piuttosto piccolo da 256-GB, è solo un drive flash SATA-III. Infine ma non per ultimo, dobbiamo citare qualche problema di qualità. La costruzione del case, ad esempio, non è buona in alcuni punti e talvolta abbiamo sentito rumori elettronici.

Non è per la massa: la qualità del Panasonic Toughbook CF-XZ6 è troppo inconsistente per competere con gli sganciabili di altri produttori. Probabilmente resterà un prodotto di nicchia.

Abbiamo posto una domanda nell'introduzione: prodotto di nicchia o per la massa? La risposta è chiara per il Toughbook - sicuramente un prodotto di nicchia. L'utente medio non sarà contento del Toughbook, quindi non possiamo raccomandarlo.

Ma se siete un utente che necessita delle funzioni speciali del Toughbook come una batteria sganciabile, display con alta luminosità o porte in uno sganciabile, probabilmente non troverete nulla di meglio rispetto al Toughbook CF-XZ6, nonostante le sue debolezze. Possiamo raccomandare il dispositivo solo ad un gruppo specifico - e con le dovute cautele. In ogni caso dovrete assicurarvi che la distribuzione della luminosità sia più omogenea rispetto al nostro modello - questo difetto sicuramente dovrebbe essere fatto presente al produttore.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Panasonic Toughbook CF-XZ6 - 01/11/2018 v6
Benjamin Herzig

Chassis
83 / 98 → 85%
Tastiera
68%
Dispositivo di puntamento
69%
Connettività
66 / 80 → 82%
Peso
73 / 78 → 88%
Batteria
97%
Display
85%
Prestazioni di gioco
56 / 68 → 82%
Prestazioni Applicazioni
86 / 87 → 99%
Temperatura
91%
Rumorosità
94%
Audio
36 / 91 → 40%
Fotocamera
32 / 85 → 37%
Media
72%
83%
Convertible - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del Convertibile Panasonic Toughbook CF-XZ6
Benjamin Herzig, 2018-01-18 (Update: 2018-01-18)
