Recensione breve della Workstation HP ZBook 14u G4 (7500U, FirePro W4190M)

Nino Ricchizzi (traduzione a cura di G. De Luca), 11/13/2017

Una workstation consumer. La nuova ZBook 14u è esattamente da 14" ed è destinato a coloro che cercano un compagno affidabile prima di tutto. Ci piace molto il pacchetto nel suo complesso, ma la scelta hardware lascia a desiderare.

HP ZBook 14u G4 (ZBook 14 Serie)
Processore
Intel Core i7-7500U, 2 cores, TDP da 15 W, che può salire temporaneamente fino a 25 W con il Turbo Boost
Scheda grafica
AMD FirePro W4190M - 2048 MB, Core: 825 MHz, Memoria: 1000 MHz, GDDR5, 21.19.142.32768 (Crimson 16.6)
Memoria
8192 MB
, DDR4
Schermo
14 pollici 16:9, 1920x1080 pixel 157 PPI, AU Optronics AUO123D, TN, lucido: no
Scheda madre
Intel Kaby Lake-U Premium PCH
Harddisk
Samsung SSD PM871a MZNLN256HMHQ, 256 GB
Scheda audio
Intel Kaby Lake-U/Y PCH - High Definition Audio
Porte di connessione
3 USB 3.0 / 3.1, 1 VGA, 1 DisplayPort, 1 Kensington Lock, Connessioni Audio: Audio-Combo, Lettore schede: SD, 1 SmartCard, 1 Lettore impronte digitali
Rete
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2, WWAN LTE/HSPA+ Modulo 4G Mobile Broadband, LTE
Dimensioni
altezza x larghezza x profondità (in mm): 25.1 x 338 x 237
Batteria
51 Wh polimeri di litio
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Altre caratteristiche
Casse: Bang & Olufsen HD-Audio. Due casse stereo, Tastiera: Chiclet, Illuminazione Tastiera: si, HP Sure Connect, HP Notifications, HP Hotkey Support, Conexant ISST Audio, HP Doumentation, HP WorkWise, HP Universal Camera Driver, HP Wireless Button Driver, HP Support Solution Framework, HP Device Access Manager, HP MAC Address Manager, Discover HP, 36 Mesi Garanzia
Peso
1.7 kg, Alimentazione: 360 gr
Prezzo
1459 Euro

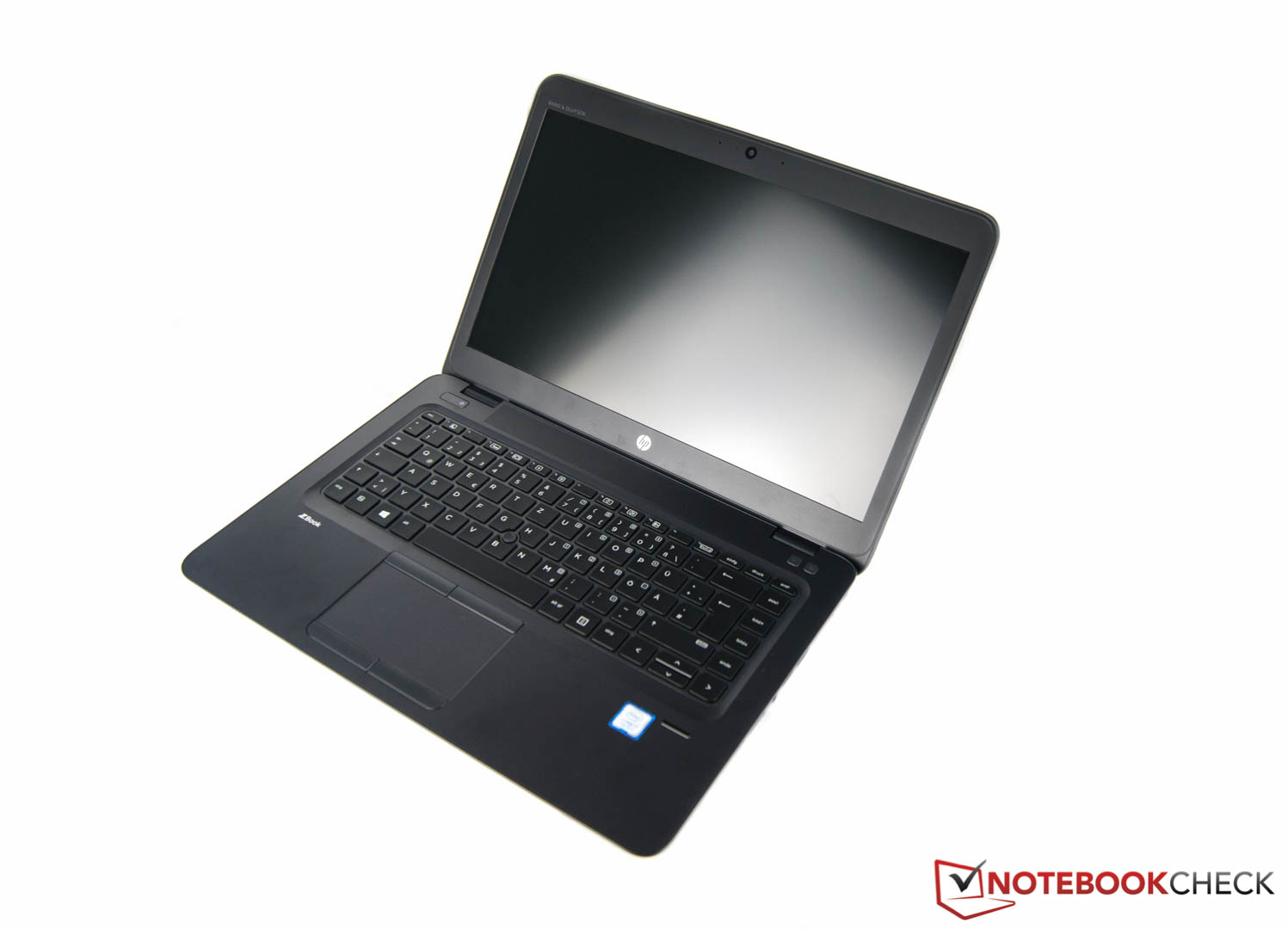

A workstation is paired with a consumer CPU and...
an obsolete workstation GPU.

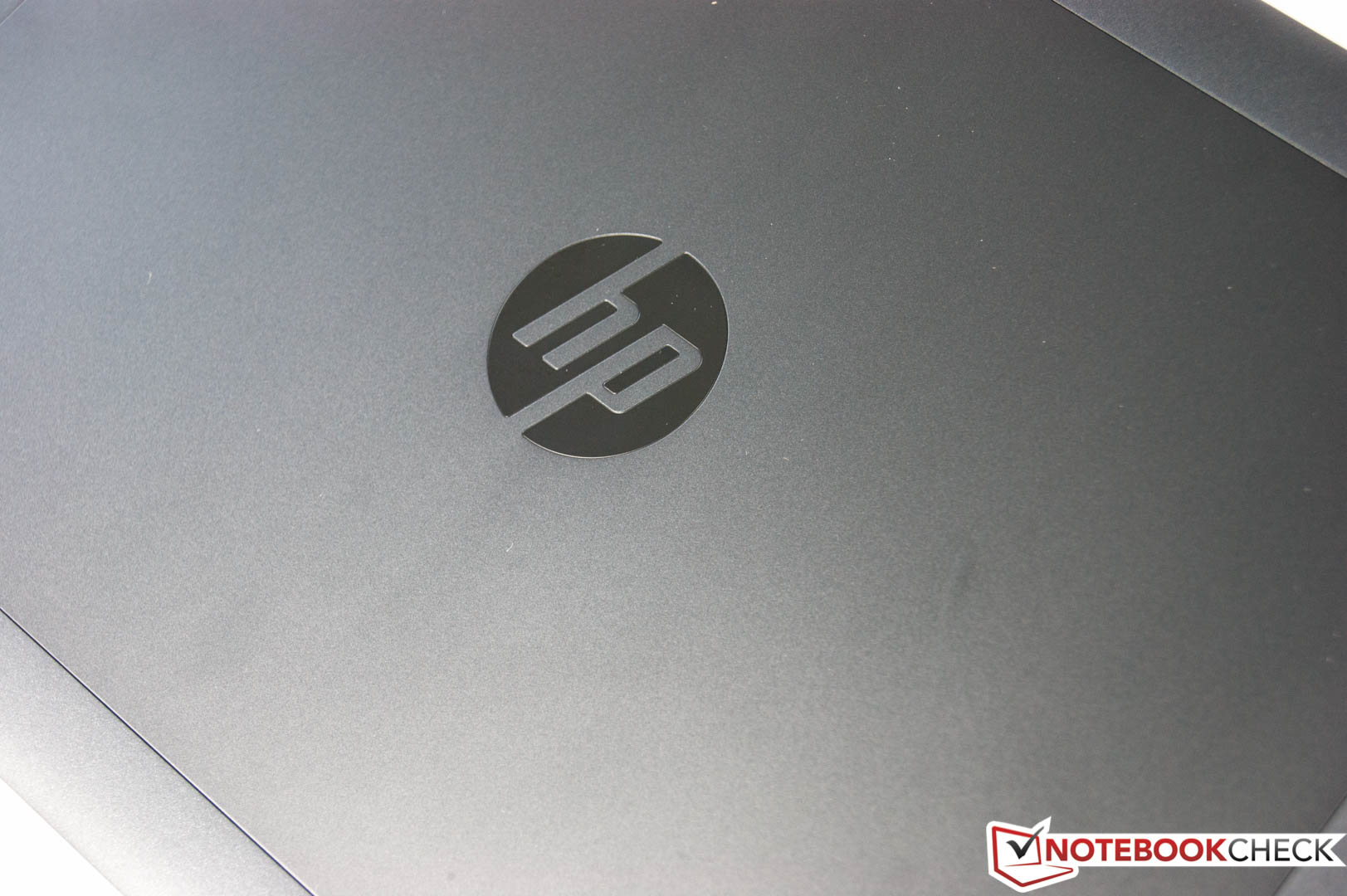

The famous & classic design of the ZBook line
The ZBook 14u is appealing thanks to its mobility features
As per usual: a solid case and great build quality
Out of four different display options only one is...
...equipped with an IPS panel.

Size Comparison

Left side: Kensington lock, VGA port, one USB 3.0 port, Smart-Card Reader
Left side: Kensington lock, VGA port, one USB 3.0 port, Smart-Card Reader
Rear side
Rear side
Right side: USB Type-C port, DisplayPort output, microphone/headphone combo jack, one USB 3.0 port, Ethernet port, docking-station port, SIM-card slot, DC power socket
Right side: USB Type-C port, DisplayPort output, microphone/headphone combo jack, one USB 3.0 port, Ethernet port, docking-station port, SIM-card slot, DC power socket
Front side
Front side
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Precision 3520
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
210 MB/s ∼100% +172%
HP ZBook 15u G4
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
78.2 MB/s ∼37% +1%
HP ZBook 14u G4
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
77.2 MB/s ∼37%
Lenovo ThinkPad P51s 20HB000SGE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
76.8 MB/s ∼37% -1%
maximum AS SSD Seq Read Test (1GB)
Dell Precision 3520
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
119 MB/s ∼100% +36%
Lenovo ThinkPad P51s 20HB000SGE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
89 MB/s ∼75% +2%
HP ZBook 14u G4
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.3 MB/s ∼73%
HP ZBook 15u G4
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
86.8 MB/s ∼73% -1%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Broadcom BCM15700A2 802.11ac
949 MBit/s ∼100% +83%
Dell Precision 3520
Intel Dual Band Wireless-AC 8265
705 MBit/s ∼74% +36%
Lenovo ThinkPad P51s 20HB000SGE
Intel Dual Band Wireless-AC 8265
672 MBit/s ∼71% +29%
HP ZBook 14u G4
Intel Dual Band Wireless-AC 8265
519 MBit/s ∼55%
HP ZBook 15u G4
Intel Dual Band Wireless-AC 8265
515 MBit/s ∼54% -1%
iperf3 Client (transmit) TCP 1 m 4M x10
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Broadcom BCM15700A2 802.11ac
845 MBit/s ∼100% +27%
HP ZBook 14u G4
Intel Dual Band Wireless-AC 8265
665 MBit/s ∼79%
Lenovo ThinkPad P51s 20HB000SGE
Intel Dual Band Wireless-AC 8265
508 MBit/s ∼60% -24%
HP ZBook 15u G4
Intel Dual Band Wireless-AC 8265
506 MBit/s ∼60% -24%
Dell Precision 3520
Intel Dual Band Wireless-AC 8265
378 MBit/s ∼45% -43%
313
cd/m²
334
cd/m²
302
cd/m²
274
cd/m²
338
cd/m²
289
cd/m²
284
cd/m²
337
cd/m²
288
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 338 cd/m² Media: 306.6 cd/m² Minimum: 22 cd/m²
Distribuzione della luminosità: 81 %
Al centro con la batteria: 338 cd/m²
Contrasto: 398:1 (Nero: 0.85 cd/m²)
ΔE Color 8.53 | - Ø
ΔE Greyscale 11.12 | - Ø
82% sRGB (Argyll) 53% AdobeRGB 1998 (Argyll)
Gamma: 2.5
HP ZBook 14u G4
AU Optronics AUO123D, , 1920x1080, 14
Dell Precision 3520
1920x1080, 15.6
Lenovo ThinkPad P51s 20HB000SGE
BOE NV156QUM-N44, , 3840x2160, 15.6
HP ZBook 15u G4
LP156WF6, , 1920x1080, 15.6
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
APPA031, , 2880x1800, 15.4
Response Times
-23%
8%
12%
-22%
Response Time Grey 50% / Grey 80% *
47 (29, 18)
48 (24.4, 23.6)
-2%
38.4 (20.4, 18)
18%
39.6 (22.4, 17.2)
16%
48 (23.6, 24.4)
-2%
Response Time Black / White *
24 (19, 5)
34.4 (17.2, 17.2)
-43%
24.8 (13.6, 11.2)
-3%
22 (12, 10)
8%
33.8 (19.6, 14.2)
-41%
PWM Frequency
1064 (90)
980.4 (90)
20830 (90)
119000 (80, 210)
Screen
40%
44%
30%
83%
Brightness
307
329
7%
290
-6%
310
1%
523
70%
Brightness Distribution
81
88
9%
85
5%
92
14%
86
6%
Black Level *
0.85
0.37
56%
0.32
62%
0.45
47%
0.44
48%
Contrast
398
932
134%
991
149%
711
79%
1239
211%
Colorchecker DeltaE2000 *
8.53
5
41%
3.6
58%
5.5
36%
1.6
81%
Greyscale DeltaE2000 *
11.12
6.2
44%
4.2
62%
4.8
57%
1.9
83%
Gamma
2.5 96%
2.35 102%
2.24 107%
2.28 105%
2.26 106%
CCT
12193 53%
6702 97%
6740 96%
6987 93%
6834 95%
Color Space (Percent of AdobeRGB 1998)
53
61.8
17%
59.5
12%
55
4%
Color Space (Percent of sRGB)
82
94.7
15%
91.1
11%
83.8
2%
Media totale (Programma / Settaggio)
9% / 28%
26% / 37%
21% / 26%
31% / 57%

* ... Meglio usare valori piccoli

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
24 ms ... rise ↗ and fall ↘ combined↗ 19 ms Incremento
↘ 5 ms Calo
Lo schermo mostra buoni tempi di risposta durante i nostri tests, ma potrebbe essere troppo lento per i gamers competitivi.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 28 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.6 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
47 ms ... rise ↗ and fall ↘ combined↗ 29 ms Incremento
↘ 18 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 74 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (42.5 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 55 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8587 (minimum: 43 - maximum: 142900) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
162 Points ∼100% +14%
Dell Precision 3520
Intel Core i7-7820HQ
160 Points ∼99% +13%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Intel Core i7-7700HQ
159.95 Points ∼99% +13%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Intel Core i7-7700HQ
156 Points ∼96% +10%
HP ZBook 15u G4
Intel Core i7-7500U
147 Points ∼91% +4%
HP ZBook 14u G4
Intel Core i7-7500U
142 Points ∼88%
HP EliteBook 850 G4 Z8W50EA
Intel Core i5-7200U
129 Points ∼80% -9%
HP EliteBook 840 G4 Z8N44EA
Intel Core i5-7200U
125 Points ∼77% -12%
CPU Multi 64Bit
Dell Precision 3520
Intel Core i7-7820HQ
736 Points ∼100% +111%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Intel Core i7-7700HQ
732 (min: 729) Points ∼99% +110%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Intel Core i7-7700HQ
726.78 (min: 704.77) Points ∼99% +108%
Lenovo ThinkPad P51s 20HB000SGE
Intel Core i7-7600U
379 Points ∼51% +9%
HP ZBook 15u G4
Intel Core i7-7500U
357 Points ∼49% +2%
HP ZBook 14u G4
Intel Core i7-7500U
349 Points ∼47%
HP EliteBook 840 G4 Z8N44EA
Intel Core i5-7200U
333 Points ∼45% -5%
HP EliteBook 850 G4 Z8W50EA
Intel Core i5-7200U
329 Points ∼45% -6%
Cinebench R15 OpenGL 64Bit
48.74 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Multi 64Bit
349 Points
Cinebench R15 CPU Single 64Bit
142 Points
Aiuto
PCMark 8
Work Score Accelerated v2
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
5194 Points ∼100% +9%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5100 Points ∼98% +7%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
4781 Points ∼92%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Radeon Pro 555, 7700HQ, Apple SSD SM0256L
4648 Points ∼89% -3%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, 7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
4193 Points ∼81% -12%
Home Score Accelerated v2
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
4183 Points ∼100% +6%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4169 Points ∼100% +6%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Radeon Pro 555, 7700HQ, Apple SSD SM0256L
4054 Points ∼97% +3%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
3947 Points ∼94%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, 7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
3232 Points ∼77% -18%
PCMark 8 Home Score Accelerated v2
3947 punti
PCMark 8 Creative Score Accelerated v2
4894 punti
PCMark 8 Work Score Accelerated v2
4781 punti
Aiuto
HP ZBook 14u G4
Samsung SSD PM871a MZNLN256HMHQ
Lenovo ThinkPad P51s 20HB000SGE
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
Dell Precision 3520
Toshiba XG4 NVMe (THNSN5512GPUK)
HP ZBook 15u G4
Samsung SM961 MZVKW512HMJP m.2 PCI-e
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Apple SSD SM0256L
HP EliteBook 840 G4 Z8N44EA
Toshiba NVMe THNSN5256GPUK
CrystalDiskMark 3.0
224%
106%
323%
229%
105%
Write 4k QD32
222.3
548.6
147%
396.1
78%
478.3
115%
468.37
111%
315.8
42%
Read 4k QD32
298.4
641.7
115%
552
85%
551.8
85%
630.82
111%
523.1
75%
Write 4k
91.33
161.4
77%
128
40%
152.7
67%
12.87
-86%
129.5
42%
Read 4k
30.9
54.8
77%
35.2
14%
53.35
73%
10.76
-65%
37
20%
Write 512
83.19
959.4
1053%
456.1
448%
1535
1745%
1124.03
1251%
428
414%
Read 512
467
782.1
67%
829.1
78%
413.4
-11%
967.57
107%
820.3
76%
Write Seq
502
1138
127%
476.3
-5%
1580
215%
1505.1
200%
802.2
60%
Read Seq
517.4
1189
130%
1096
112%
2042
295%
1556.5
201%
1094
111%
Samsung SSD PM871a MZNLN256HMHQ
Sequential Read: 517.4 MB/s
Sequential Write: 502 MB/s
512K Read: 467 MB/s
512K Write: 83.19 MB/s
4K Read: 30.9 MB/s
4K Write: 91.33 MB/s
4K QD32 Read: 298.4 MB/s
4K QD32 Write: 222.3 MB/s
SPECviewperf 11
1920x1080 Siemens NX
Dell Precision 3520
37.9 fps ∼100% +32%
Lenovo ThinkPad P51s 20HB000SGE
31.28 fps ∼83% +9%
HP ZBook 14u G4
28.74 fps ∼76%
Dell Vostro 15 5568
5.52 fps ∼15% -81%
Lenovo IdeaPad Z70-80 PL
4.26 fps ∼11% -85%
1920x1080 Tcvis
Dell Precision 3520
40.35 fps ∼100% +73%
Lenovo ThinkPad P51s 20HB000SGE
35.81 fps ∼89% +53%
HP ZBook 14u G4
23.36 fps ∼58%
Dell Vostro 15 5568
1.33 fps ∼3% -94%
Lenovo IdeaPad Z70-80 PL
1.12 fps ∼3% -95%
1920x1080 SolidWorks
HP ZBook 14u G4
51.18 fps ∼100%
Dell Precision 3520
50.13 fps ∼98% -2%
Lenovo ThinkPad P51s 20HB000SGE
43.69 fps ∼85% -15%
Dell Vostro 15 5568
10.59 fps ∼21% -79%
Lenovo IdeaPad Z70-80 PL
6.57 fps ∼13% -87%
1920x1080 Pro/ENGINEER
Dell Precision 3520
20.19 fps ∼100% +132%
Lenovo ThinkPad P51s 20HB000SGE
16.84 fps ∼83% +93%
HP ZBook 14u G4
8.71 fps ∼43%
Dell Vostro 15 5568
3.77 fps ∼19% -57%
Lenovo IdeaPad Z70-80 PL
1.64 fps ∼8% -81%
1920x1080 Maya
HP ZBook 14u G4
65.46 fps ∼100%
Dell Precision 3520
55.41 fps ∼85% -15%
Lenovo ThinkPad P51s 20HB000SGE
50.76 fps ∼78% -22%
Dell Vostro 15 5568
7.81 fps ∼12% -88%
Lenovo IdeaPad Z70-80 PL
6.8 fps ∼10% -90%
1920x1080 Lightwave
HP ZBook 14u G4
67.54 fps ∼100%
Dell Precision 3520
54.85 fps ∼81% -19%
Lenovo ThinkPad P51s 20HB000SGE
48.34 fps ∼72% -28%
Dell Vostro 15 5568
18.63 fps ∼28% -72%
Lenovo IdeaPad Z70-80 PL
14.34 fps ∼21% -79%
1920x1080 Ensight
Dell Precision 3520
32.63 fps ∼100% +55%
Lenovo ThinkPad P51s 20HB000SGE
24.78 fps ∼76% +17%
HP ZBook 14u G4
21.09 fps ∼65%
Dell Vostro 15 5568
19.12 fps ∼59% -9%
Lenovo IdeaPad Z70-80 PL
17.31 fps ∼53% -18%
1920x1080 Catia
Dell Precision 3520
51.54 fps ∼100% +74%
Lenovo ThinkPad P51s 20HB000SGE
40.53 fps ∼79% +37%
HP ZBook 14u G4
29.61 fps ∼57%
Dell Vostro 15 5568
10.7 fps ∼21% -64%
Lenovo IdeaPad Z70-80 PL
9.78 fps ∼19% -67%

Legenda


HP ZBook 14u G4 Intel Core i7-7500U, AMD FirePro W4190M, Samsung SSD PM871a MZNLN256HMHQ

Dell Precision 3520 Intel Core i7-7820HQ, NVIDIA Quadro M620, Toshiba XG4 NVMe (THNSN5512GPUK)

Lenovo ThinkPad P51s 20HB000SGE Intel Core i7-7600U, NVIDIA Quadro M520, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)

Dell Vostro 15 5568 Intel Core i7-7500U, NVIDIA GeForce 940MX, Transcend MTS400 256 GB M.2 TS256GMTS400

Lenovo IdeaPad Z70-80 PL Intel Core i5-5200U, NVIDIA GeForce 840M, Samsung SSD 850 EVO 250GB
LuxMark v2.0 64Bit
Room GPUs-only
Dell Precision 3520
834 Samples/s ∼100% +101%
Apple MacBook Pro 15 2017 (2.9 GHz, 560)
686 Samples/s ∼82% +65%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
506 Samples/s ∼61% +22%
HP ZBook 15u G4
431 Samples/s ∼52% +4%
HP ZBook 14u G4
415 Samples/s ∼50%
Lenovo ThinkPad P51s 20HB000SGE
405 Samples/s ∼49% -2%
Sala GPUs-only
Dell Precision 3520
1440 Samples/s ∼100% +56%
Apple MacBook Pro 15 2017 (2.9 GHz, 560)
1323 Samples/s ∼92% +43%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
1001 Samples/s ∼70% +8%
HP ZBook 15u G4
984 Samples/s ∼68% +6%
HP ZBook 14u G4
924 Samples/s ∼64%
Lenovo ThinkPad P51s 20HB000SGE
708 Samples/s ∼49% -23%
SiSoft Sandra 2016
Image Processing
HP ZBook 15u G4
191.42 MPix/s ∼100% 0%
HP ZBook 14u G4
190.64 MPix/s ∼100%
Lenovo ThinkPad P51s 20HB000SGE
149.34 MPix/s ∼78% -22%
Dell Precision 3520
137.5 MPix/s ∼72% -28%
GP Cryptography (Higher Security AES256+SHA2-512)
Dell Precision 3520
8 GB/s ∼100% +100%
Lenovo ThinkPad P51s 20HB000SGE
4.86 GB/s ∼61% +22%
HP ZBook 14u G4
4 GB/s ∼50%
HP ZBook 15u G4
3.92 GB/s ∼49% -2%
GP Financial Analysis (FP High/Double Precision)
HP ZBook 14u G4
42.2 KOPT/s ∼100%
HP ZBook 15u G4
42 KOPT/s ∼100% 0%
Dell Precision 3520
19.2 KOPT/s ∼45% -55%
Lenovo ThinkPad P51s 20HB000SGE
14 KOPT/s ∼33% -67%

Legenda


HP ZBook 14u G4 Intel Core i7-7500U, AMD FirePro W4190M, Samsung SSD PM871a MZNLN256HMHQ

Dell Precision 3520 Intel Core i7-7820HQ, NVIDIA Quadro M620, Toshiba XG4 NVMe (THNSN5512GPUK)

Lenovo ThinkPad P51s 20HB000SGE Intel Core i7-7600U, NVIDIA Quadro M520, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)

HP ZBook 15u G4 Intel Core i7-7500U, AMD FirePro W4190M, Samsung SM961 MZVKW512HMJP m.2 PCI-e

Apple MacBook Pro 15 2017 (2.9 GHz, 560) Intel Core i7-7820HQ, AMD Radeon Pro 560,

Apple MacBook Pro 15 2017 (2.8 GHz, 555) Intel Core i7-7700HQ, AMD Radeon Pro 555, Apple SSD SM0256L
3DMark 11 - 1280x720 Performance GPU
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
AMD Radeon Pro 555, Intel Core i7-7700HQ
5185 Points ∼100% +121%
Dell Precision 3520
NVIDIA Quadro M620, Intel Core i7-7820HQ
3801 Points ∼73% +62%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
2658 Points ∼51% +13%
Acer Aspire E5-771G-71PT
NVIDIA GeForce 840M, Intel Core i7-5500U
2387 Points ∼46% +2%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
2379 Points ∼46% +1%
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
2366 Points ∼46% +1%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
2351 Points ∼45%
3DMark
1920x1080 Fire Strike Graphics
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
AMD Radeon Pro 555, Intel Core i7-7700HQ
3721 Points ∼100% +113%
Dell Precision 3520
NVIDIA Quadro M620, Intel Core i7-7820HQ
3204 Points ∼86% +84%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
2342 Points ∼63% +34%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
1806 Points ∼49% +3%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
1745 Points ∼47%
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
1589 Points ∼43% -9%
Acer Aspire E5-771G-71PT
NVIDIA GeForce 840M, Intel Core i7-5500U
1577 Points ∼42% -10%
1280x720 Cloud Gate Standard Graphics
Dell Precision 3520
NVIDIA Quadro M620, Intel Core i7-7820HQ
23259 Points ∼100% +89%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
AMD Radeon Pro 555, Intel Core i7-7700HQ
22624 Points ∼97% +84%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
13394 Points ∼58% +9%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
12601 Points ∼54% +2%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
12317 Points ∼53%
Acer Aspire E5-771G-71PT
NVIDIA GeForce 840M, Intel Core i7-5500U
8728 Points ∼38% -29%
Lenovo Ideapad 500s-14ISK
NVIDIA GeForce 940M, Intel Core i7-6500U
8549 Points ∼37% -31%
Unigine Heaven 4.0
Extreme Preset OpenGL
Dell Precision 3520
NVIDIA Quadro M620, Intel Core i7-7820HQ
14.5 fps ∼100% +36%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
10.7 fps ∼74%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
10.7 fps ∼74% 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
9.9 fps ∼68% -7%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
7.5 fps ∼52% -30%
Extreme Preset DX11
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
AMD Radeon Pro 555, Intel Core i7-7700HQ
20.4 (min: 7) fps ∼100% +65%
Dell Precision 3520
NVIDIA Quadro M620, Intel Core i7-7820HQ
15.6 fps ∼76% +26%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
12.4 fps ∼61%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
12.4 fps ∼61% 0%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
10.6 fps ∼52% -15%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
8.8 fps ∼43% -29%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Dell Precision 3520
NVIDIA Quadro M620, Intel Core i7-7820HQ
17.4 fps ∼100% +110%
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
AMD Radeon Pro 555, Intel Core i7-7700HQ
16 (min: 9) fps ∼92% +93%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
11.4 fps ∼66% +37%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
8.3 fps ∼48%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
6.2 fps ∼36% -25%
1920x1080 Extreme HD Preset OpenGL AA:x8
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
AMD Radeon Pro 555, Intel Core i7-7700HQ
16.1 (min: 16) fps ∼100% +160%
Dell Precision 3520
NVIDIA Quadro M620, Intel Core i7-7820HQ
14.8 fps ∼92% +139%
Lenovo ThinkPad P51s 20HB000SGE
NVIDIA Quadro M520, Intel Core i7-7600U
9.9 fps ∼61% +60%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
8.4 fps ∼52% +35%
HP ZBook 14u G4
AMD FirePro W4190M, Intel Core i7-7500U
6.2 fps ∼39%
3DMark 11 Performance
2570 punti
3DMark Ice Storm Standard Score
42335 punti
3DMark Cloud Gate Standard Score
8348 punti
3DMark Fire Strike Score
1663 punti
Aiuto
BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF)
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
Radeon Pro 555, 7700HQ, Apple SSD SM0256L
37.6 (min: 11) fps ∼100% +136%
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
35.6 fps ∼95% +124%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, 7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
24.2 fps ∼64% +52%
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, 7200U, SK Hynix HFS256G3BTND
22.8 fps ∼61% +43%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
15.9 fps ∼42%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
15.45 fps ∼41% -3%
Acer TravelMate P277-MG-7474
GeForce 940M, 5500U, Kingston RBU-SNS8100S3256GD
14.54 fps ∼39% -9%
HP EliteBook 840 G4 Z8N44EA
HD Graphics 620, 7200U, Toshiba NVMe THNSN5256GPUK
9.1 fps ∼24% -43%
1366x768 High Preset
Dell Precision 3520
Quadro M620, 7820HQ, Toshiba XG4 NVMe (THNSN5512GPUK)
92.3 fps ∼100% +103%
Lenovo ThinkPad P51s 20HB000SGE
Quadro M520, 7600U, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0)
64.1 fps ∼69% +41%
Lenovo IdeaPad 320-15IKB 80XL01NEGE
GeForce 940MX, 7200U, SK Hynix HFS256G3BTND
59.7 fps ∼65% +31%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
46.86 fps ∼51% +3%
HP ZBook 14u G4
FirePro W4190M, 7500U, Samsung SSD PM871a MZNLN256HMHQ
45.4 fps ∼49%
Acer TravelMate P277-MG-7474
GeForce 940M, 5500U, Kingston RBU-SNS8100S3256GD
42.5 fps ∼46% -6%
HP EliteBook 840 G4 Z8N44EA
HD Graphics 620, 7200U, Toshiba NVMe THNSN5256GPUK
28.2 fps ∼31% -38%
basso medio alto ultra
BioShock Infinite (2013) 100.953.445.415.9fps
Middle-earth: Shadow of Mordor (2014) 2016112fps
GTA V (2015) 72.76117.37.1fps
The Witcher 3 (2015) 28.618.59.75.7fps
Metal Gear Solid V (2015) 59.942.318.913fps
Rise of the Tomb Raider (2016) 25.617.49.97.9fps
Doom (2016) 23.513.98.94.9fps
Resident Evil 7 (2017) 23.710.99.45.4fps
Rocket League (2017) 101.739.126.5fps
Dirt 4 (2017) 33.310.57.7fps
F1 2017 (2017) 40181413fps
Ark Survival Evolved (2017) 19.496.23.6fps
The Evil Within 2 (2017) 9.35.14.7fps

Rumorosità

Idle
30.4 / 30.4 / 30.4 dB(A)
Sotto carico
37 / 40 dB(A)



30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm di distanza)   Rumorosità ambientale: 30.4 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.731.632.930.632.72531.231.932.832.831.23134.933.934.53234.94031.429.630.530.431.45037.236.537.235.337.26329.627.830.229.929.68027.125.92727.427.110026.525.225.625.726.512524.125.825.124.724.116023.724.123.324.123.720023.923.722.523.123.9250232321.722.32331523.421.621.121.323.440023.622.22020.523.65002321.919.519.72363023.521.418.618.923.580026.8241818.426.8100029.324.91818.329.3125027.824.717.517.627.8160028.324.917.317.728.3200030.327.117.417.430.3250032.12817.817.532.1315030.223.917.717.830.2400028.123.218.417.928.150002420.918.31824630023.721.718.318.123.7800019.620.918.418.419.6100002127.318.418.4211250020.831.518.418.420.81600019.927.218.418.419.9SPL403730.430.440N3.12.51.41.43.1median 23.9HP ZBook 14u G4median 24median 18.4median 18.4median 23.9Delta2.11.81.722.13529.231.334.8313534.43434.834.73334.43430.830.232.431.63431.230.930.832.529.631.228.928.529.129.328.128.927.128.626.929.72727.127.828.827.728.326.727.826.426.125.325.225.226.426.625.224.524.926.426.624.323.923.423.923.124.325.124.723.723.72425.126.125.222.622.621.926.125.323.32221.920.525.323.823.220.920.619.323.824.923.321.52018.924.925.223.422.319.718.125.225.923.421.619.41725.925.924.121.619.316.625.926.424.621.719.716.226.425.42421.318.216.625.424.923.62118.416.524.926.72421.417.915.926.730.827.723.319.216.330.832.528.523.919.716.632.527.524.820.517.916.327.522.921.218.617.416.922.920.819.618.217.31720.818.418.818.217.316.918.417.518.518.417.316.817.517.720.720.518.117.117.739.436.733.631.129.239.43.12.51.91.51.23.1median 25.3Lenovo ThinkPad P51s 20HB000SGEmedian 23.9median 21.6median 19.4median 17median 25.31.40.81.31.92.41.429.53027.826.329.929.328.826.53028.926.729.128.927.326.526.125.927.926.626.527.725.625.727.125.626.927.523.724.124.32424.426.324.623.122.323.922.924.52524.72522.124.723.823.924.625.523.92122.622.821.122.622.52321.222.421.721.422.6232118.720.419.919.320.419.61919.42020.318.819.719.819.41919.618.71918.418.119.418.719.418.918.317.91818.917.819.517.91817.617.7191819.418.117.617.216.919.418.920.319.81917.516.521.119.322.721.220.917.716.721.92024.521.120.417.716.724.920.62523.222.618.817.324.421.326.624.222.918.917.526.221.326.224.123.11917.626.523.529.226.725.319.617.829.123.129.426.224.71918.129.120.126.222.921.618.317.825.818.622.820.319.51817.822.417.620.619.118.41817.420.217.118.918.218.118.217.318.416.517.917.317.617.416.617.81618.41817.718.216.117.715.818.218.718.918.715.616.932.537.53533.930.529.537.31.62.421.81.41.22.4median 19HP ZBook 15u G4median 20.6median 20.3median 19.3median 18.3median 17.6median 211.42.62.21.710.83hearing rangehide median Fan Noise
 24.3 °C25 °C25.3 °C
 24.1 °C25 °C25.4 °C
 24.2 °C24 °C25.1 °C
Massima: 25.4 °C
Media: 24.7 °C
26.1 °C25.6 °C25.1 °C
25.5 °C25 °C24.9 °C
25.1 °C24.6 °C24.7 °C
Massima: 26.1 °C
Media: 25.2 °C
Alimentazione (max)  28.2 °C | Temperatura della stanza 23.1 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.530.631.52530.632.830.63133.93233.94030.230.430.25036.235.336.26328.829.928.88026.327.426.310026.925.726.912535.924.735.916045.224.145.220046.323.146.325040.922.340.931552.421.352.440065.820.565.850067.819.767.863068.218.968.280065.818.465.810006418.364125065.317.665.3160060.217.760.2200059.817.459.825006717.567315068.717.868.7400065.517.965.5500067.11867.1630068.318.168.3800066.718.466.71000066.418.466.4125006818.4681600061.118.461.1SPL78.230.478.2N43.71.443.7median 65.5HP ZBook 14u G4median 18.4median 65.5Delta82835.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
HP ZBook 14u G4 audio analysis

(-) | not very loud speakers (68.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.3% lower than median
(±) | linearity of bass is average (13.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(±) | linearity of mids is average (7.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.6% away from median
(+) | highs are linear (5.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.8% difference to median)
Compared to same class
» 27% of all tested devices in this class were better, 13% similar, 60% worse
» The best had a delta of 13%, average was 20%, worst was 31%
Compared to all devices tested
» 24% of all tested devices were better, 7% similar, 69% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo di corrente
Off / Standbydarklight 0.49 / 0.36 Watt
Idledarkmidlight 2.4 / 5.3 / 8.8 Watt
Sotto carico midlight 45 / 64 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
HP ZBook 14u G4
7500U, FirePro W4190M, Samsung SSD PM871a MZNLN256HMHQ, TN, 1920x1080, 14
Lenovo ThinkPad P51s 20HB000SGE
7600U, Quadro M520, Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), IPS, 3840x2160, 15.6
Dell Precision 3520
7820HQ, Quadro M620, Toshiba XG4 NVMe (THNSN5512GPUK), IPS LED, 1920x1080, 15.6
HP ZBook 15u G4
7500U, FirePro W4190M, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS LED, 1920x1080, 15.6
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
7700HQ, Radeon Pro 555, Apple SSD SM0256L, IPS, 2880x1800, 15.4
Power Consumption
-69%
-90%
-37%
-80%
Idle Minimum *
2.4
5.8
-142%
5.8
-142%
3.85
-60%
3.4
-42%
Idle Average *
5.3
10.4
-96%
10.7
-102%
7.5
-42%
13.9
-162%
Idle Maximum *
8.8
13.5
-53%
13.3
-51%
11.8
-34%
17.6
-100%
Load Average *
45
62.4
-39%
78.2
-74%
47.7
-6%
71.1
-58%
Load Maximum *
64
73.1
-14%
116
-81%
90.2
-41%
88.5
-38%
Witcher 3 ultra *
58.8
46.7
57.9

* ... Meglio usare valori piccoli

Autonomia della batteria
Idle (senza WLAN, min luminosità)
23ore 38minuti
Navigazione WiFi v1.3
10ore 43minuti
Big Buck Bunny H.264 1080p
9ore 35minuti
Sotto carico (max luminosità)
1ore 44minuti
HP ZBook 14u G4
7500U, FirePro W4190M, 51 Wh
Lenovo ThinkPad P51s 20HB000SGE
7600U, Quadro M520, 104 Wh
Dell Precision 3520
7820HQ, Quadro M620, 68 Wh
HP ZBook 15u G4
7500U, FirePro W4190M, 51 Wh
Apple MacBook Pro 15 2017 (2.8 GHz, 555)
7700HQ, Radeon Pro 555, 76 Wh
Autonomia della batteria
64%
-25%
-28%
-18%
Reader / Idle
1418
1581
11%
996
-30%
966
-32%
H.264
575
700
22%
483
-16%
486
-15%
511
-11%
WiFi v1.3
643
712
11%
455
-29%
457
-29%
644
0%
Load
104
323
211%
79
-24%
65
-37%
60
-42%
Witcher 3 ultra
87

Pro

+ qualità di costruzione del case
+ dispositivi di input comodo
+ bassa rumorosità
+ molte porte, inclusa una porta VGA ed una uscita full-size DisplayPort
+ Autonomia della batteria

Contro

- GPU AMD molto obsoleta
- la CPU è troppo lenta per una workstation mobile
- display TN scarsp
- manca una porta Thunderbolt 3
- alimentatore AC inadeguato
HP ZBook 14u, fornito da notebooksbilliger.de
HP ZBook 14u, fornito da notebooksbilliger.de

HP realizza esattamente quello che ci aspettavamo con lo ZBook 14u: tutte le funzioni essenziali e di sicurezza della serie ZBook sono inserite in pacchetto più economico. L'hardware del dispositivo è un mix di prodotti consumer e workstation. Il case è realizzato molto bene e comprende sia elementi in plastica che in metallo. Con un peso di 1,7 kg (3.7 lbs), questa nuova workstation si rivela un piacevole compagno. Anche i dispositivi di input sono molto buoni, e gli utenti che scrivono parecchio saranno soddisfatti. Il pannello TN della nostra configurazione, tuttavia è un po' deludente. Di base, soffre di una evidente tendenza al blu. Tuttavia, si rimedia con la calibrazione. I potenziali clienti, che non lo useranno sempre da postazione fissa, potrebbero considerare un pannello IPS.

Le performance sono il punto dolente. Un processore dual-core è sufficiente per questo dispositivo. Questa CPU è la più comune nei portatili consumer low-TDP. Ha prestazioni particolarmente basse nei benchmarks Multi-Core, rispetto al resto della concorrenza. Un punto positivo: indipendentemente dal carico, non si verifica throttling della CPU. Il secondo componente per importanza è la AMD FirePro W4190M. Sfortunatamente, la GPU è del 2015, il che si nota chiaramente nei risultati dei benchmark. Tuttavia, riesce ad avere risultati superiori rispetto ai portatili convenzionali nei benchmarks workstation-oriented. Ma lo ZBook 14u non regge il confronto con i dispositivi che abbiamo scelto come termine di paragone.

Infine, abbiamo prestato attenzione all'autonomia della batteria, accertando che lo ZBook riesce a resistere ad una lunga giornata di lavoro in ufficio. In questo caso solo il Lenovo ThinkPad P51s potrebbe avere un risultato migliore.

Lo ZBook 14u è un mix tra una workstation senza compromessi e un dispositivo consumer. L'impressione complessivamente buona è intaccata da una scheda grafica obsoleta.

Coloro che vogliono maggiori prestazioni CPU ed un vero processore quad-core dovrebbero dare uno sguardo ai dispositivi che abbiamo scelto come paragone. Il Lenovo ThinkPad P51s vince in termini di durata. Il Dell Precision 3520 si comporta meglio come performance, mentre l'Apple MacBook Pro ha un superbo display ed ottimi materiali di costruzione.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.





HP ZBook 14u G4 - 11/07/2017 v6
Nino Ricchizzi

Chassis
89 / 98 → 91%
Tastiera
85%
Dispositivo di puntamento
88%
Connettività
69 / 81 → 85%
Peso
67 / 66 → 100%
Batteria
92%
Display
79%
Prestazioni di gioco
64%
Prestazioni Applicazioni
90%
Temperatura
85 / 95 → 89%
Rumorosità
91 / 90 → 100%
Audio
55%
Fotocamera
44 / 85 → 52%
Media
75%
80%
Workstation - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve della Workstation HP ZBook 14u G4 (7500U, FirePro W4190M)
Nino Ricchizzi, 2017-11-13 (Update: 2017-11-13)
