Recensione breve del Portatile Fujitsu LifeBook E557 (i3-7100U, HD620)

Mike Wobker (traduzione a cura di G. De Luca), 11/01/2017

Vecchia scuola. Non capita di frequente di vedere portatili che consentono all'utente di sostituire la batteria senza dover smontare tutto. Dispositivi che hanno covers facilmente removibili per consentire la sostituzione anche dei componenti. Per non parlare delle porte seriali che, oggi, sono quasi del tutto estinte. Il nostro dispositivo di test ha tutte queste features. La domanda è: cosa ha di altro da offrire?

Fujitsu Lifebook E557 (Lifebook E Serie)
Processore
Intel Core i3-7100U
Scheda grafica
Intel HD Graphics 620
Memoria
8 MB
, DDR4
Schermo
15.6 pollici 16:9, 1366x768 pixel 141 PPI, BOE0665, TN LED, lucido: no
Harddisk
Toshiba THNSNK256GCS8, 256 GB
, 180 GB libera
Scheda audio
Intel Kaby Lake-U/Y PCH - High Definition Audio
Porte di connessione
3 USB 3.0 / 3.1, 1 VGA, 1 DisplayPort, 1 Kensington Lock, 1 Porta Seriale, 1 Porta Docking, Connessioni Audio: 1x Kopfhörer, 1x Mikrofon, Lettore schede: SD, 1 Lettore impronte digitali
Rete
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter (a/b/g/n/ac), Bluetooth 4.2
Drive ottico
HL-DT-ST DVDRAM GUD0N
Dimensioni
altezza x larghezza x profondità (in mm): 24 x 374 x 250
Batteria
49 Wh, 4500 mAh ioni di litio, removibile, Autonomia della batteria (dichiarata dal produttore): 12 ore
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 1280x720
Altre caratteristiche
Casse: Stereo, Tastiera: Chiclet, Illuminazione Tastiera: no, 12 Mesi Garanzia
Peso
2.1 kg, Alimentazione: 355 gr
Prezzo
790 Euro



Size Comparison

Interfaces

frontside - light indicators
frontside - light indicators
backside - RS-232 serial port
backside - RS-232 serial port
left side -  DC power socket , LAN port, VGA port, DisplayPort output, USB port, SD card reader
left side - DC power socket , LAN port, VGA port, DisplayPort output, USB port, SD card reader
right side - headphone jack, microphone jack, two USB ports, DVD drive, Kensington lock
right side - headphone jack, microphone jack, two USB ports, DVD drive, Kensington lock
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Latitude 5580
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
86.8 MB/s ∼100% +16%
Acer Aspire 3 A315-51-55E4
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
77 MB/s ∼89% +3%
Fujitsu Lifebook E557
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
74.8 MB/s ∼86%
Asus X510UA-BR305T
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.7 MB/s ∼31% -64%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 5580
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
254.6 MB/s ∼100% +194%
Fujitsu Lifebook E557
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
86.6 MB/s ∼34%
Acer Aspire 3 A315-51-55E4
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
86 MB/s ∼34% -1%
Asus X510UA-BR305T
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
38.7 MB/s ∼15% -55%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Dell Latitude 5580
Intel Dual Band Wireless-AC 8265
655 MBit/s ∼100% +27%
Lenovo ThinkPad E570-20H6S02M00
Intel Dual Band Wireless-AC 8265
521 MBit/s ∼80% +1%
Asus X510UA-BR305T
Intel Dual Band Wireless-AC 8265
517 MBit/s ∼79% 0%
Fujitsu Lifebook E557
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
515 MBit/s ∼79%
Acer Aspire 3 A315-51-55E4
Intel Dual Band Wireless-AC 3168
311 MBit/s ∼47% -40%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus X510UA-BR305T
Intel Dual Band Wireless-AC 8265
667 MBit/s ∼100% +1%
Fujitsu Lifebook E557
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
662 MBit/s ∼99%
Lenovo ThinkPad E570-20H6S02M00
Intel Dual Band Wireless-AC 8265
650 MBit/s ∼97% -2%
Dell Latitude 5580
Intel Dual Band Wireless-AC 8265
487 MBit/s ∼73% -26%
Acer Aspire 3 A315-51-55E4
Intel Dual Band Wireless-AC 3168
345 MBit/s ∼52% -48%
227
cd/m²
223
cd/m²
211
cd/m²
207
cd/m²
214
cd/m²
200
cd/m²
216
cd/m²
211
cd/m²
205
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 227 cd/m² Media: 212.7 cd/m² Minimum: 29 cd/m²
Distribuzione della luminosità: 88 %
Al centro con la batteria: 216 cd/m²
Contrasto: 404:1 (Nero: 0.53 cd/m²)
ΔE Color 7.93 | - Ø
ΔE Greyscale 9.37 | - Ø
56% sRGB (Argyll) 36% AdobeRGB 1998 (Argyll)
Gamma: 2.32
Fujitsu Lifebook E557
BOE0665, , 1366x768, 15.6
Asus X510UA-BR305T
Chi Mei N156BGA-EA3, , 1366x768, 15.6
Lenovo ThinkPad E570-20H6S02M00
Lenovo NT156WHM-N42, , 1366x768, 15.6
Dell Latitude 5580
1366x768, 15.6
Acer Aspire 3 A315-51-55E4
AU Optronics AUO38ED, , 1920x1080, 15.6
Response Times
3951%
18%
7%
33%
Response Time Grey 50% / Grey 80% *
50 (30, 20)
49 (28, 21)
2%
46 (24, 22)
8%
30 (19.2, 10.8)
40%
44 (22, 22)
12%
Response Time Black / White *
26 (22, 4)
14 (12, 4)
46%
13 (8, 5)
50%
29.6 (21.2, 8.4)
-14%
12 (8, 4)
54%
PWM Frequency
210 (90)
25000 (20)
11805%
200 (90)
-5%
201.6 (99)
-4%
Screen
11%
-12%
-6%
22%
Brightness
213
215
1%
233
9%
216
1%
229
8%
Brightness Distribution
88
90
2%
73
-17%
83
-6%
87
-1%
Black Level *
0.53
0.51
4%
0.59
-11%
0.53
-0%
0.46
13%
Contrast
404
443
10%
410
1%
449
11%
524
30%
Colorchecker DeltaE2000 *
7.93
6.21
22%
10.9
-37%
10.8
-36%
3.4
57%
Greyscale DeltaE2000 *
9.37
7.06
25%
13.07
-39%
12.1
-29%
1.7
82%
Gamma
2.32 103%
2.35 102%
2.37 101%
2.25 107%
2.36 102%
CCT
9971 65%
8321 78%
13123 50%
14344 45%
6750 96%
Color Space (Percent of AdobeRGB 1998)
36
35
-3%
38.3
6%
34
-6%
Color Space (Percent of sRGB)
56
55
-2%
59.9
7%
54
-4%
Media totale (Programma / Settaggio)
1981% / 1324%
3% / -4%
1% / -2%
28% / 25%

* ... Meglio usare valori piccoli

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
26 ms ... rise ↗ and fall ↘ combined↗ 22 ms Incremento
↘ 4 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 42 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.6 ms).

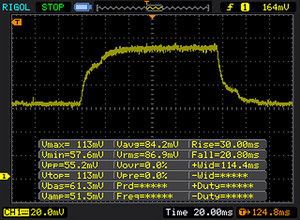

       Tempo di risposta dal 50% Grigio all'80% Grigio
50 ms ... rise ↗ and fall ↘ combined↗ 30 ms Incremento
↘ 20 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 82 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (42.5 ms).

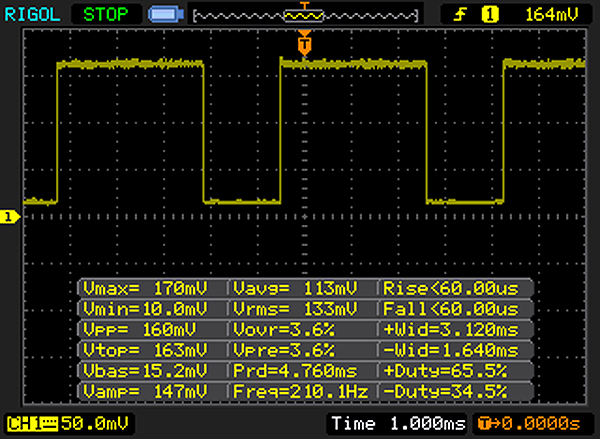

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 210 Hz90 % brightness setting

The display backlight flickers at 210 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 210 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 55 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9257 (minimum: 43 - maximum: 247500) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Dell Latitude 5580
Intel Core i5-7200U
127 Points ∼64% +41%
Lenovo ThinkPad E570-20H6S02M00
Intel Core i5-7200U
125 Points ∼63% +39%
Acer Aspire 3 A315-51-55E4
Intel Core i5-7200U
108 Points ∼54% +20%
Asus X510UA-BR305T
Intel Core i3-7100U
100 Points ∼50% +11%
Fujitsu Lifebook E557
Intel Core i3-7100U
90 Points ∼45%
CPU Multi 64Bit
Dell Latitude 5580
Intel Core i5-7200U
327 Points ∼15% +27%
Acer Aspire 3 A315-51-55E4
Intel Core i5-7200U
318 Points ∼15% +24%
Lenovo ThinkPad E570-20H6S02M00
Intel Core i5-7200U
316 Points ∼15% +23%
Asus X510UA-BR305T
Intel Core i3-7100U
260 Points ∼12% +1%
Fujitsu Lifebook E557
Intel Core i3-7100U
257 Points ∼12%
Cinebench R15 CPU Single 64Bit
90 Points
Cinebench R15 CPU Multi 64Bit
257 Points
Cinebench R15 OpenGL 64Bit
36.77 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Aiuto
PCMark 8 - Home Score Accelerated v2
Lenovo ThinkPad E570-20H6S02M00
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
3714 Points ∼62% +17%
Dell Latitude 5580
HD Graphics 620, 7200U, Seagate ST500LM021-1KJ15
3345 Points ∼56% +5%
Asus X510UA-BR305T
HD Graphics 620, 7100U, Seagate Mobile HDD 1TB ST1000LM035
3313 Points ∼55% +4%
Acer Aspire 3 A315-51-55E4
HD Graphics 620, 7200U, Micron 1100 MTFDDAV256TBN
3295 Points ∼55% +4%
Fujitsu Lifebook E557
HD Graphics 620, 7100U, Toshiba THNSNK256GCS8
3179 Points ∼53%
PCMark 8 Home Score Accelerated v2
3179 punti
Aiuto
Fujitsu Lifebook E557
Toshiba THNSNK256GCS8
Asus X510UA-BR305T
Seagate Mobile HDD 1TB ST1000LM035
Lenovo ThinkPad E570-20H6S02M00
Samsung PM961 MZVLW256HEHP
Dell Latitude 5580
Seagate ST500LM021-1KJ15
Acer Aspire 3 A315-51-55E4
Micron 1100 MTFDDAV256TBN
CrystalDiskMark 3.0
-89%
199%
-86%
34%
Write 4k QD32
201.1
0.967
-100%
428.7
113%
0.828
-100%
300.2
49%
Read 4k QD32
311.4
1.047
-100%
473.6
52%
1.1
-100%
245.9
-21%
Write 4k
60.62
0.438
-99%
148.8
145%
0.812
-99%
86.66
43%
Read 4k
17.5
0.326
-98%
59.65
241%
0.459
-97%
26.95
54%
Write 512
263
61.74
-77%
782.9
198%
56.58
-78%
446.8
70%
Read 512
389.5
29.55
-92%
1155
197%
27.04
-93%
328
-16%
Write Seq
262.6
84.21
-68%
1217
363%
131.1
-50%
456.1
74%
Read Seq
417.2
89.38
-79%
1589
281%
132.3
-68%
485.8
16%
Toshiba THNSNK256GCS8
Sequential Read: 417.2 MB/s
Sequential Write: 262.6 MB/s
512K Read: 389.5 MB/s
512K Write: 263 MB/s
4K Read: 17.5 MB/s
4K Write: 60.62 MB/s
4K QD32 Read: 311.4 MB/s
4K QD32 Write: 201.1 MB/s
3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad E570-20H6S02M00
Intel HD Graphics 620, Intel Core i5-7200U
1401 Points ∼3% +6%
Asus X510UA-BR305T
Intel HD Graphics 620, Intel Core i3-7100U
1363 Points ∼3% +3%
Fujitsu Lifebook E557
Intel HD Graphics 620, Intel Core i3-7100U
1317 Points ∼3%
Dell Latitude 5580
Intel HD Graphics 620, Intel Core i5-7200U
1281 Points ∼3% -3%
Acer Aspire 3 A315-51-55E4
Intel HD Graphics 620, Intel Core i5-7200U
1067 Points ∼2% -19%
3DMark 11 Performance
1410 punti
Aiuto
basso medio alto ultra
BioShock Infinite (2013) 30.9615.8712.94fps

Rumorosità

Idle
30.3 / 30.3 / 30.3 dB(A)
Sotto carico
34.2 / 34.2 dB(A)



30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm di distanza)   Rumorosità ambientale: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203130.83233.331253238.83330.6323133.735.134.834.333.74029.831.430.630.229.85031.329.435.836.231.36328.72729.828.128.78026.426.326.725.726.410025.725.325.62525.712524.924.62524.524.916023.123.42323.123.120024.825.223.122.224.825022.52221.421.822.531521.922.320.820.621.940022.322.920.119.722.350023.222.719.519.123.263023.62418.618.623.680025.325.318.118.425.3100025.626.317.618.125.6125024.124.117.517.724.1160024.324.717.417.424.3200022.522.517.517.322.5250020.119.818.217.520.1315018.718.717.917.718.7400018.418.418.117.918.4500018.818.318.11818.8630018.618.418.218.118.6800018.418.318.218.318.41000018.818.318.618.518.81250019.118.31918.419.11600019.118.419.518.619.1SPL34.134.230.430.334.1N221.41.42median 22.5Fujitsu Lifebook E557median 22.5median 18.6median 18.4median 22.5Delta2.93.21.91.12.9hearing rangehide median Fan Noise
Carico massimo
 29.7 °C25.1 °C23.3 °C
 29 °C25.3 °C23.2 °C
 28.9 °C26.5 °C24.3 °C
Massima: 29.7 °C
Media: 26.1 °C
23.9 °C24.5 °C31.1 °C
23.4 °C26.4 °C31 °C
24.8 °C25.1 °C26.7 °C
Massima: 31.1 °C
Media: 26.3 °C
Alimentazione (max)  35.9 °C | Temperatura della stanza 21.6 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.633.331.62530.630.630.63133.834.333.84031.730.231.75027.936.227.96328.528.128.5802725.72710026.62526.612524.624.524.616023.523.123.520022.822.222.825027.321.827.331542.420.642.440049.919.749.950045.719.145.76304818.64880054.118.454.1100065.118.165.1125066.217.766.2160064.417.464.4200063.917.363.9250062.517.562.5315058.617.758.6400059.817.959.8500063.61863.6630069.718.169.7800067.718.367.71000064.318.564.31250064.518.464.51600053.418.653.4SPL76.130.376.1N33.71.433.7median 58.6Fujitsu Lifebook E557median 18.4median 58.6Delta12.31.112.335.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
Fujitsu Lifebook E557 audio analysis

(-) | not very loud speakers (69.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 30.7% lower than median
(±) | linearity of bass is average (9.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 7.7% lower than median
(±) | linearity of mids is average (10.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.2% higher than median
(±) | linearity of highs is average (7.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (31.8% difference to median)
Compared to same class
» 95% of all tested devices in this class were better, 1% similar, 4% worse
» The best had a delta of 11%, average was 21%, worst was 48%
Compared to all devices tested
» 90% of all tested devices were better, 4% similar, 6% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo di corrente
Off / Standbydarklight 0.34 / 0.35 Watt
Idledarkmidlight 2.7 / 4.9 / 5.8 Watt
Sotto carico midlight 26 / 24.6 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime - WiFi Websurfing 1.3
Dell Latitude 5580
7200U, HD Graphics 620, 68 Wh
697 min ∼58% +158%
Lenovo ThinkPad E570-20H6S02M00
7200U, HD Graphics 620, 42 Wh
430 min ∼36% +59%
Asus X510UA-BR305T
7100U, HD Graphics 620, 42 Wh
425 min ∼35% +57%
Acer Aspire 3 A315-51-55E4
7200U, HD Graphics 620, 37 Wh
350 min ∼29% +30%
Fujitsu Lifebook E557
7100U, HD Graphics 620, 49 Wh
270 min ∼22%
Autonomia della batteria
Navigazione WiFi v1.3
4ore 30minuti

Pro

+ design modulare
+ batteria sostituibile
+ ottime possibilità di manutenzione

Contro

- i materiali sembrano cheap
- il case si flette sotto pressione
- casse davvero scarse
Modello di test fornito da AfB social & green IT
Modello di test fornito da AfB social & green IT

Il LifeBook E557 si distingue per il design modulare e per le sue interfacce, qualcosa di raro oggi. Per un costo di 790 Euro ($917), le performance sono buone. Tuttavia, Fujitsu ha risparmiato troppo sul case. Il design può essere definito “retro”. I materiali sembrano economici, ma tutto il resto risulta robusto. Una nota positiva, abbiamo apprezzato molto le opzioni di manutenzione.

In particolare, il LifeBook E557 si distingue per le insolite interfacce e le numerose opzioni di manutenzione.

Per coloro che possono convivere con una qualità dei materiali scarsa e necessitano di un dispositivo con interfacce speciali, il LifeBook E557 è da considerare. La versione di hardware che abbiamo testato offre prestazioni sufficienti per le applicazioni quotidiane. Chi vuole spendere di più può scegliere un display migliore e processori più veloci.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Fujitsu Lifebook E557 - 10/26/2017 v6
Mike Wobker

Chassis
66 / 98 → 68%
Tastiera
64%
Dispositivo di puntamento
78%
Connettività
58 / 80 → 73%
Peso
62 / 67 → 90%
Batteria
78%
Display
76%
Prestazioni di gioco
52 / 68 → 76%
Prestazioni Applicazioni
75 / 92 → 81%
Temperatura
96%
Rumorosità
93%
Audio
44%
Fotocamera
42 / 85 → 49%
Media
68%
77%
Office - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del Portatile Fujitsu LifeBook E557 (i3-7100U, HD620)
Mike Wobker, 2017-11- 1 (Update: 2017-11- 1)
