Recensione breve del Convertibile Asus VivoBook Flip 14 TP410UA (i5-7200U, FHD)

Sascha Mölck (traduzione a cura di G. De Luca), 11/24/2017

Non privo di pecche. Il VivoBook Flip 14 ha un display IPS luminoso e con un buon contrasto, un veloce SSD e una tastiera illuminata. Il dispositivo ha anche il supporto per dispositivi di input separati sempre Asus. Tuttavia, con un prezzo di 900 Euro, il dispositivo non sembra essere un buon affare.

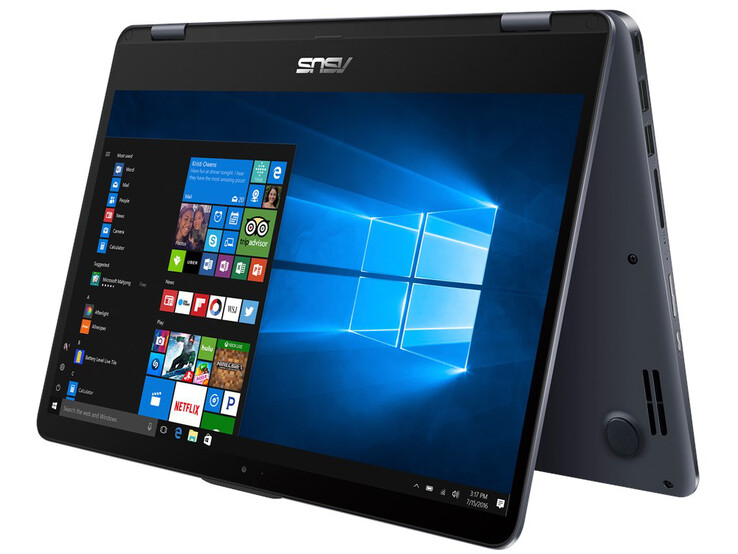

Asus VivoBook Flip 14 TP410UA-EC242T
Processore
Intel Core i5-7200U
Scheda grafica
Intel HD Graphics 620, Core: 300-1000 MHz, Single-Channel, 23.20.16.4849
Memoria
8192 MB
, DDR4-2133, Single-Channel, keine Speicherbänke, Speicher fest verlötet
Schermo
14 pollici 16:9, 1920x1080 pixel 157 PPI, kapazitiv, 10 Berührungspunkte, supporto penna nativo, Chi Mei N140HCE-EN1, IPS, lucido: si
Scheda madre
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Harddisk
SK Hynix HFS256G39TND-N210A, 256 GB
, 206 GB libera
Scheda audio
Realtek High Definition Audio
Porte di connessione
2 USB 2.0, 2 USB 3.0 / 3.1, 1 HDMI, 1 Kensington Lock, Connessioni Audio: Audiokombo, Lettore schede: SD, 1 Lettore impronte digitali, Sensori: Bewegungssensor, TPM 2.0
Rete
Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Dimensioni
altezza x larghezza x profondità (in mm): 19 x 327.4 x 226.5
Batteria
42 Wh ioni di litio
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: VGA
Altre caratteristiche
Casse: Stereo, Tastiera: Chiclet, Illuminazione Tastiera: si, Cyberlink PhotoDirector 5, Cyberlink PowerDirector 12, McAfee LiveSafe (Testversion), 24 Mesi Garanzia
Peso
1.6 kg, Alimentazione: 147 gr
Prezzo
899 Euro



Size Comparison

Ports

Left side: Kensington lock, two USB 2.0 (Type-A) ports, SD card reader, volume rockers, power button
Left side: Kensington lock, two USB 2.0 (Type-A) ports, SD card reader, volume rockers, power button
Right side: microphone/headphone combo jack, two USB 3.1 Gen 1 ports (one Type-C, one Type-A), HDMI output, DC power socket
Right side: microphone/headphone combo jack, two USB 3.1 Gen 1 ports (one Type-C, one Type-A), HDMI output, DC power socket
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP Pavilion x360 14-ba011ng
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
81 MB/s ∼100% +231%
Lenovo Yoga 510-14IKB
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
59.7 MB/s ∼74% +144%
Asus VivoBook Flip 14 TP410UA-EC242T
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
24.5 MB/s ∼30%
maximum AS SSD Seq Read Test (1GB)
HP Pavilion x360 14-ba011ng
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.9 MB/s ∼100% +230%
Lenovo Yoga 510-14IKB
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
85.3 MB/s ∼97% +221%
Asus VivoBook Flip 14 TP410UA-EC242T
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.6 MB/s ∼30%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Dual Band Wireless-AC 8265
526 MBit/s ∼100%
HP Pavilion x360 14-ba011ng
Intel Dual Band Wireless-AC 3168
310 MBit/s ∼59% -41%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Dual Band Wireless-AC 8265
665 MBit/s ∼100%
HP Pavilion x360 14-ba011ng
Intel Dual Band Wireless-AC 3168
349 MBit/s ∼52% -48%
303
cd/m²
305
cd/m²
293
cd/m²
305
cd/m²
327
cd/m²
309
cd/m²
294
cd/m²
323
cd/m²
309
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 327 cd/m² Media: 307.6 cd/m² Minimum: 19.3 cd/m²
Distribuzione della luminosità: 90 %
Al centro con la batteria: 327 cd/m²
Contrasto: 1422:1 (Nero: 0.23 cd/m²)
ΔE Color 2.63 | - Ø
ΔE Greyscale 4.11 | - Ø
97% sRGB (Argyll) 63% AdobeRGB 1998 (Argyll)
Gamma: 2.45
Asus VivoBook Flip 14 TP410UA-EC242T
IPS, 1920x1080, 14
HP Pavilion x360 14-ba011ng
IPS, 1920x1080, 14
Lenovo Yoga 510-14IKB
IPS, 1920x1080, 14
Response Times
1%
-63%
Response Time Grey 50% / Grey 80% *
34 (19, 15)
41 (23, 18)
-21%
53 (20, 33)
-56%
Response Time Black / White *
29 (18, 11)
22 (14, 10)
24%
39 (12, 27)
-34%
PWM Frequency
24750 (80)
25000 (50)
1%
350 (60)
-99%
Screen
-45%
-37%
Brightness
308
237
-23%
248
-19%
Brightness Distribution
90
90
0%
91
1%
Black Level *
0.23
0.21
9%
0.32
-39%
Contrast
1422
1200
-16%
759
-47%
Colorchecker DeltaE2000 *
2.63
7.29
-177%
5.44
-107%
Greyscale DeltaE2000 *
4.11
7.48
-82%
4.74
-15%
Gamma
2.45 98%
2.45 98%
2.38 101%
CCT
7352 88%
6953 93%
7799 83%
Color Space (Percent of AdobeRGB 1998)
63
40
-37%
39.6
-37%
Color Space (Percent of sRGB)
97
61
-37%
62.5
-36%
Media totale (Programma / Settaggio)
-22% / -33%
-50% / -44%

* ... Meglio usare valori piccoli

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 24750 Hz80 % brightness setting

The display backlight flickers at 24750 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 80 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 24750 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8561 (minimum: 43 - maximum: 142900) Hz was measured.

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.

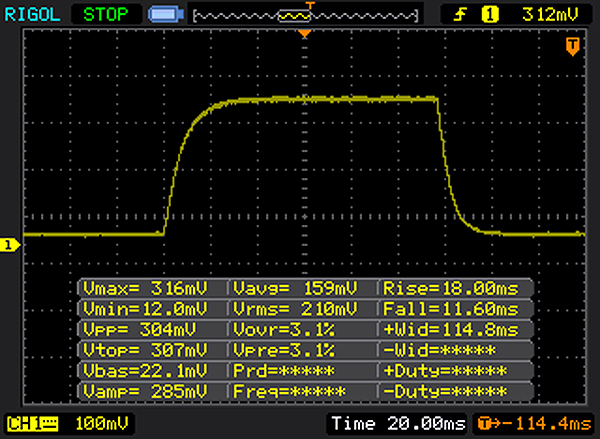

       Tempi di risposta dal Nero al Bianco
29 ms ... rise ↗ and fall ↘ combined↗ 18 ms Incremento
↘ 11 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 66 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.6 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
34 ms ... rise ↗ and fall ↘ combined↗ 19 ms Incremento
↘ 15 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 22 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (42.5 ms).
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R10 Rendering Single 32Bit
4983
Cinebench R10 Rendering Multiple CPUs 32Bit
11351
Cinebench R10 Shading 32Bit
6428
Cinebench R15 CPU Single 64Bit
127 Points
Cinebench R15 CPU Multi 64Bit
330 Points
Cinebench R15 OpenGL 64Bit
37.56 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Aiuto
Cinebench R15
CPU Single 64Bit
Lenovo Yoga 510-14IKB
Intel Core i5-7200U
130 Points ∼65% +2%
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
127 Points ∼64% 0%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
127 Points ∼64%
CPU Multi 64Bit
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
335 Points ∼16% +2%
Lenovo Yoga 510-14IKB
Intel Core i5-7200U
332 Points ∼15% +1%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
330 Points ∼15%
Cinebench R10
Rendering Single 32Bit
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
5020 Points ∼57% +1%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
4983 Points ∼56%
Rendering Multiple CPUs 32Bit
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
11503 Points ∼23% +1%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
11351 Points ∼23%
Geekbench 3
32 Bit Multi-Core Score
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
6484 Points ∼21% 0%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
6477 Points ∼21%
32 Bit Single-Core Score
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
2912 Points ∼62% 0%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
2903 Points ∼62%
Geekbench 4.0
64 Bit Multi-Core Score
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
6895 Points ∼25% +2%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
6761 Points ∼25%
64 Bit Single-Core Score
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
3636 Points ∼63% 0%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
3628 Points ∼63%
Geekbench 4.1/4.2
64 Bit Multi-Core Score
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
7199 Points ∼29% +1%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
7102 Points ∼28%
64 Bit Single-Core Score
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U
3724 Points ∼63%
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U
3707 Points ∼62% 0%
JetStream 1.1 - 1.1 Total Score
Asus VivoBook Flip 14 TP410UA-EC242T
Intel Core i5-7200U (Edge 41)
222.74 Points ∼0%
HP Pavilion x360 14-ba011ng
Intel Core i5-7200U (Edge 40)
214.66 Points ∼0% -4%
PCMark 8 Home Score Accelerated v2
3387 punti
PCMark 8 Creative Score Accelerated v2
4327 punti
PCMark 8 Work Score Accelerated v2
4345 punti
Aiuto
PCMark 8 - Home Score Accelerated v2
Lenovo Yoga 510-14IKB
Radeon R5 M430, 7200U, Samsung MZYTY256HDHP
3550 Points ∼59% +5%
HP Pavilion x360 14-ba011ng
GeForce 940MX, 7200U, Samsung CM871a MZNTY128HDHP
3435 Points ∼57% +1%
Asus VivoBook Flip 14 TP410UA-EC242T
HD Graphics 620, 7200U, SK Hynix HFS256G39TND-N210A
3387 Points ∼57%
SK Hynix HFS256G39TND-N210A
Sequential Read: 499.7 MB/s
Sequential Write: 261.9 MB/s
512K Read: 325.8 MB/s
512K Write: 262.5 MB/s
4K Read: 29.75 MB/s
4K Write: 77.68 MB/s
4K QD32 Read: 313.8 MB/s
4K QD32 Write: 259.3 MB/s
Asus VivoBook Flip 14 TP410UA-EC242T
SK Hynix HFS256G39TND-N210A
HP Pavilion x360 14-ba011ng
Samsung CM871a MZNTY128HDHP
Lenovo Yoga 510-14IKB
Samsung MZYTY256HDHP
CrystalDiskMark 3.0
6%
23%
Write 4k QD32
259.3
161.2
-38%
246.3
-5%
Read 4k QD32
313.8
398.4
27%
368.7
17%
Write 4k
77.68
95.51
23%
106.7
37%
Read 4k
29.75
35.29
19%
35.66
20%
Write 512
262.5
170.2
-35%
274.5
5%
Read 512
325.8
408.1
25%
408
25%
Write Seq
261.9
328.2
25%
476.5
82%
Read Seq
499.7
519
4%
517.5
4%
3DMark 11 Performance
1541 punti
3DMark Cloud Gate Standard Score
5700 punti
3DMark Fire Strike Score
749 punti
Aiuto
3DMark 11 - 1280x720 Performance GPU
HP Pavilion x360 14-ba011ng
NVIDIA GeForce 940MX, Intel Core i5-7200U
2543 Points ∼5% +78%
Lenovo Yoga 510-14IKB
AMD Radeon R5 M430, Intel Core i5-7200U
1643 Points ∼3% +15%
Asus VivoBook Flip 14 TP410UA-EC242T
Intel HD Graphics 620, Intel Core i5-7200U
1425 Points ∼3%
basso medio alto ultra
BioShock Infinite (2013) 41.42419.66.5fps
Assassin´s Creed Origins (2017) 8fps

Rumorosità

Idle
31.2 / 31.2 / 31.2 dB(A)
Sotto carico
36.2 / 38.3 dB(A)



30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm di distanza)   Rumorosità ambientale: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.933.731.534.534.92533.1313233.233.13133.535.333.43833.54028.932.53132.528.95032.332.33233.532.36328.72829.73028.78027.228.226.526.927.210027.125.426.326.427.112524.925.324.32624.916024.424.12424.124.4200242422.722.92425024.723.721.922.524.731526.124.822.620.926.14002523.420.820.22550025.925.521.119.725.963024.623.419.61924.680025.724.319.818.225.7100027.124.919.617.927.1125026.424.518.717.826.4160027.224.918.717.427.2200029.42719.417.529.4250029.226.419.317.529.2315027.825.418.317.727.8400026.323.41817.826.3500022.720.217.917.922.7630020.41918.21820.4800019.218.518.21819.21000018.718.418.218.118.71250018.518.418.21818.51600018.419.718.418.118.4SPL38.436.231.230.338.4N2.82.41.51.42.8median 25Asus VivoBook Flip 14 TP410UA-EC242Tmedian 24.1median 19.4median 18.1median 25Delta2.12.31.82.12.1hearing rangehide median Fan Noise
Carico massimo
 23.7 °C29.9 °C31 °C
 23.8 °C34.2 °C34.1 °C
 22.6 °C24.8 °C26.1 °C
Massima: 34.2 °C
Media: 27.8 °C
31.7 °C33.4 °C27.4 °C
30.5 °C31.7 °C25.4 °C
26.5 °C26.2 °C22.5 °C
Massima: 33.4 °C
Media: 28.4 °C
Alimentazione (max)  47.4 °C | Temperatura della stanza 21.3 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.334.534.32530.833.230.83135.63835.64031.932.531.95033.233.533.26327.93027.98031.426.931.410040.926.440.912550.62650.616052.524.152.52004222.94225050.322.550.331558.420.958.440064.620.264.650065.319.765.363066.41966.480073.118.273.1100070.817.970.8125068.217.868.2160066.517.466.5200068.217.568.225006517.565315063.417.763.4400068.917.868.9500063.317.963.3630061.61861.6800062.31862.3100006318.1631250055.61855.61600059.718.159.7SPL79.130.379.1N45.51.445.5median 63.3Asus VivoBook Flip 14 TP410UA-EC242Tmedian 18.1median 63.3Delta5.42.15.435.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
Asus VivoBook Flip 14 TP410UA-EC242T audio analysis

(±) | speaker loudness is average but good (73.14 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.1% lower than median
(-) | bass is not linear (17.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.5% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.8% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 2% similar, 93% worse
» The best had a delta of 11%, average was 23%, worst was 53%
Compared to all devices tested
» 12% of all tested devices were better, 4% similar, 85% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 9%, average was 20%, worst was 47%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo di corrente
Off / Standbydarklight 0.6 / 0.25 Watt
Idledarkmidlight 3.9 / 7 / 9.3 Watt
Sotto carico midlight 35 / 33 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Autonomia della batteria
Navigazione WiFi v1.3 (Edge 41)
6ore 47minuti
Battery Runtime - WiFi Websurfing 1.3
Asus VivoBook Flip 14 TP410UA-EC242T
7200U, HD Graphics 620, 42 Wh
407 min ∼34%
Lenovo Yoga 510-14IKB
7200U, Radeon R5 M430, 35 Wh
373 min ∼31% -8%
HP Pavilion x360 14-ba011ng
7200U, GeForce 940MX, 41.5 Wh
373 min ∼31% -8%

Pro

+ schermo IPS
+ risoluzione full HD
+ non si scalda
+ slot SATA-III vuoto
+ wireless-AC
+ USB Type-C
+ penna opzionale

Contro

- autonomia media
- lo chassis non è molto rigido
L'Asus VivoBook Flip 14 TP410UA-EC242T, fornito da notebooksbilliger.de
L'Asus VivoBook Flip 14 TP410UA-EC242T, fornito da notebooksbilliger.de

Il VivoBook Flip 14 offre prestazioni più che sufficienti per applicazioni da ufficio ed internet. Il dispositivo non si scalda molto anche sotto sforzo. Il display IPS touch è piacevole agli occhi ed ha angoli di visuale molto stabili, oltre a buoni valori di luminosità e contrasto.

Il touchscreen può essere usato non solo con le dita, ma anche con una penna Asus opzionale, che costa 50 Euro ($60).

Un veloce SSD rende il sistema molto reattivo. Inoltre all'interno del dispositivo troviamo uno slot SATA-III vuoto per drive de 2.5". La tastiera dal Vivobook dovrebbe essere più reattiva. Inoltre, si flette parecchio durante la digitazione. Ma Asus in questo caso realizza una tastiera che dovrebbe essere sufficiente per l'utilizzo domestico.

L'autonomia rilevata nel test Wi-Fi è accettabile. In questo caso, il dispositivo avrebbe potuto offrire di più. Invece di uno slot SATA-III aggiuntivo, avrebbero potuto inserire una batteria più grande per aumentare l'autonomia. Dopo tutto, si tratta di un dispositivo mobile. L'SSD da 256 GB dovrebbe bastare alla maggioranza degli utenti.

Nel complesso, Asus fissa un prezzo alto per un convertibile ben realizzato. Tuttavia, in termini di hardware, il dispositivo non ha nulla di eccezionale (es. SSD NVMe, GPU dedicata, Thunderbolt 3) che avrebbero giustificato un prezzo di 900 Euro. Per questo prezzo, pecche come lo chassis non rigido e la tastiera flessibile non dovrebbero mostrarsi. La RAM dovrebbe girare in modalità Dual-channel. Inoltre, ci saremmo aspettati che per 900 Euro la penna Asus fosse inclusa nella confezione.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Asus VivoBook Flip 14 TP410UA-EC242T - 11/13/2017 v6
Sascha Mölck

Chassis
75 / 98 → 77%
Tastiera
77%
Dispositivo di puntamento
83%
Connettività
51 / 80 → 64%
Peso
68 / 78 → 76%
Batteria
89%
Display
86%
Prestazioni di gioco
55 / 68 → 81%
Prestazioni Applicazioni
84 / 87 → 96%
Temperatura
96%
Rumorosità
91%
Audio
61 / 91 → 67%
Fotocamera
35 / 85 → 42%
Media
73%
82%
Convertible - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del Convertibile Asus VivoBook Flip 14 TP410UA (i5-7200U, FHD)
Sascha Mölck, 2017-11-24 (Update: 2017-11-24)
