Recensione del mini PC GMK NucBox M4: core i9 di 11a generazione per meno di 500 dollari

Name: GMK NucBox M4
Brand: GMK

Veloce a basso costo. Gli utenti che desiderano un mini PC Core i9 troveranno in NucBox M4 un'opzione competente. Tuttavia, con quasi tre anni di età, la CPU di undicesima generazione sta diventando un po' troppo lunga rispetto alle opzioni più recenti Core i7 o Ryzen 7.

Allen Ngo, 👁 Allen Ngo (traduzione a cura di DeepL / Ninh Duy), Published 12/13/2023 🇺🇸 🇸🇪 ...

Tiger Lake Mini PC

NucBox M4 è l'ultimo mini PC di GMK con CPU Core i9 Tiger Lake-H di 11a generazione. Si distingue per essere uno dei mini PC meno costosi con tale opzione di processore.

La nostra configurazione di recensione può essere trovata online a un prezzo compreso tra 450 e 500 dollari con il Core i9-11900H, 16 GB di RAM DDR4, 512 TB di SSD M.2 e Windows 11 Pro preinstallato. Tra i concorrenti di NucBox M4 ci sono altri mini PC economici come il Beelink SER6 Pro, Lenovo IdeaCentre Minio Minisforum Neptune Serie HX77G.

Altre recensioni GMKtec:

Dispositivo di test fornito da GMK

Scarica la tua immagine come PNG / SVG

GMK NucBox M4

Processore

Intel Core i9-11900H 8 x 2.5 - 4.9 GHz, 47 W PL2 / Short Burst, 45 W PL1 / Sustained, Tiger Lake-H

Scheda grafica

Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Core: 1450 MHz, Memoria: 2200 MHz, DDR4, 31.0.101.4644

Memoria

16 GB

, DDR4-3200, 21-21-21-47, Dual-Channel

Scheda madre

Intel HM570

Harddisk

Lexar NM620 512GB, 512 GB

Scheda audio

Intel Tiger Lake PCH-H - cAVS (Audio, Voice, Speech)

Porte di connessione

7 USB 3.0 / 3.1, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Connessioni Audio: 3.5 mm headset

Rete

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Dimensioni

altezza x larghezza x profondità (in mm): 37 x 180 x 174

Sistema Operativo

Microsoft Windows 11 Pro

Altre caratteristiche

12 Mesi Garanzia

Peso

951 gr, Alimentazione: 507 gr

Prezzo

470 USD

Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

guarda tutte le specifiche

Potenziali concorrenti a confronto

Punteggio	Data	Modello	Peso	Altezza	Risoluzione
81.1 %	12/2023	GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	951 gr	37 mm	x
78.7 %	11/2023	GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs	440 gr	42.4 mm	x
82.8 %		GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 gr	43.2 mm	x
81 %	09/2023	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs	1.8 kg	39 mm	x
	01/2023	Beelink SER6 Pro R7 6800H, Radeon 680M	511 gr	42 mm	x
80.8 %	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 gr	37 mm	x

Caso

A differenza della maggior parte degli altri mini PC in questa fascia di prezzo, NucBox M4 è quasi completamente in metallo su tutti i lati, per un look industriale o professionale. Tuttavia, è anche più grande e più pesante, soprattutto se confrontato con il tipico NUC Intel.

Si noti che, sebbene GMK pubblicizzi il NucBox m4 sia in orizzontale che in verticale, il modello è suscettibile di ribaltarsi se posizionato in verticale. Non esiste un supporto specializzato per fissare l'unità in posizione verticale.

Confronto delle dimensioni

Lenovo IdeaCentre Mini 01IRH8 GMK NucBox M4 Beelink SER6 Pro GMK NucBox K3 Pro GMK NucBox M3 Intel NUC 13 Pro Kit NUC13ANK DIN A5 ❌

Involucro metallico con griglie di ventilazione sulla parte superiore

Le viti sul retro, purtroppo, non sono viti a testa zigrinata e quindi è necessario un cacciavite

Adattatore AC di medie dimensioni (~14,5 x 6,4 x 3 cm) da 120 W

Connettività

Le porte non mancano: gli utenti hanno a disposizione un totale di sette porte USB, tre porte video-out e una doppia Ethernet da 2,5 Gbit. Tuttavia, non c'è il supporto Thunderbolt o eGPU, che avrebbe aumentato la versatilità del modello.

Anteriore: cuffie da 3,5 mm, USB-C 3.2 Gen. 1 con uscita DisplayPort, 2x USB-A (5 Gbps)

Posteriore: DisplayPort 1.4, HDMI 2.0, 4x USB-A (5 Gbps), 2x RJ-45 (2,5 Gbps), Kensington lock, adattatore AC

Comunicazione

Il Wi-Fi 6E non è di serie per mantenere i costi bassi. Le velocità di trasferimento sono comunque costanti e affidabili quando si collega alla nostra rete Wi-Fi 6.

Il modulo WLAN rimovibile e la batteria del BIOS si trovano sotto l'SSD M.2

Networking
iperf3 transmit AXE11000
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1273 (1063^min - 1401^max) MBit/s +78%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s +63%
GMK NucBox M3 Realtek RTL8852BE	859 (773^min - 924^max) MBit/s +20%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s +16%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	803 (713^min - 847^max) MBit/s +12%
GMK NucBox M4 Realtek RTL8852BE	717 (651^min - 749^max) MBit/s
iperf3 receive AXE11000
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s +74%
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1282 (247^min - 1409^max) MBit/s +72%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +26%
GMK NucBox M3 Realtek RTL8852BE	860 (789^min - 895^max) MBit/s +15%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	801 (656^min - 887^max) MBit/s +8%
GMK NucBox M4 Realtek RTL8852BE	745 (694^min - 805^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s

GMK NucBox M4; iperf3 transmit AXE11000; iperf 3.1.3: Ø717 (651-749)

GMK NucBox M4; iperf3 receive AXE11000; iperf 3.1.3: Ø745 (694-805)

Manutenzione

Il coperchio superiore si sfila dopo aver rimosso due viti dalla parte posteriore per rivelare due alloggiamenti di archiviazione (2,5 pollici SATA III + M.2 2280) e due slot SODIMM. Gli aggiornamenti sono relativamente indolori e richiedono solo un cacciavite.

Accessori e garanzia

La confezione di vendita include un cavo HDMI e viti di montaggio VESA, oltre all'adattatore di alimentazione e al manuale. Se acquistato negli Stati Uniti, si applica una garanzia limitata di un anno del produttore.

Prestazioni

Condizioni del test

Abbiamo impostato Windows in modalità Prestazioni prima di eseguire i benchmark qui sotto.

Processore

Come CPU Core i9 di tre anni fa, il modello i9-11900H ha difficoltà a tenere il passo con le offerte più recenti di Core i7 e Ryzen 7, come il Core i7-13700H, Core i7-1360Po Ryzen 7 7735HS. È comunque più veloce del Core i5-12450H nella NucBox M3 e della maggior parte delle CPU Core U, tra cui il 13° gen Core i7-1365U.

Cinebench R15 Multi Loop

GMK NucBox M4 Intel Core i9-11900H: Ø1747 (1710.13-1769.75)

GMK NucBox M3 Intel Core i5-12450H: Ø1118 (1101.32-1149.92)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H: Ø1926 (1862.02-2240.14)

Beelink SER6 Pro AMD Ryzen 7 6800H: Ø1854 (1821.83-1930.5)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	83.8 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	77.8 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	73 pt
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	72.6 pt
Media Intel Core i9-11900H	67.3 pt
GMK NucBox K2 AMD Ryzen 7 7735HS	66.7 pt
GMK NucBox K3 Pro Intel Core i7-12650H	65.9 pt
Beelink SER6 Pro AMD Ryzen 7 6800H	65.4 pt
GMK NucBox M4 Intel Core i9-11900H	65.3 pt
Geekom A5 AMD Ryzen 7 5800H	60.4 pt
GMK NucBox M3 Intel Core i5-12450H	53.4 pt
Beelink SER5 AMD Ryzen 5 5560U	46.1 pt

Cinebench R23 / Multi Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	16706 Points +50%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points +30%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	14023 Points +26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points +13%
Media Intel Core i9-11900H (11135 - 13012, n=4)	12109 Points +9%
GMK NucBox K2 AMD Ryzen 7 7735HS	11584 (11082.5^min - 11584.2^max) Points +4%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points +3%
GMK NucBox M4 Intel Core i9-11900H	11135 (10740.5^min - 11134.5^max) Points
Geekom A5 AMD Ryzen 7 5800H	10819 Points -3%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points -4%
Beelink SER5 AMD Ryzen 5 5560U	7667 (7546.82^min - 7667.18^max) Points -31%
GMK NucBox M3 Intel Core i5-12450H	7662 (7500.47^min - 7661.93^max) Points -31%

Cinebench R23 / Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points +19%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +18%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +12%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1779 Points +11%
GMK NucBox M3 Intel Core i5-12450H	1688 Points +5%
GMK NucBox M4 Intel Core i9-11900H	1605 Points
Media Intel Core i9-11900H (1574 - 1605, n=4)	1585 Points -1%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	1570 Points -2%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points -6%
GMK NucBox K2 AMD Ryzen 7 7735HS	1499 Points -7%
Geekom A5 AMD Ryzen 7 5800H	1405 Points -12%
Beelink SER5 AMD Ryzen 5 5560U	1260 Points -21%

Cinebench R20 / CPU (Multi Core)
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6509 Points +51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points +34%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	5341 Points +24%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points +13%
Media Intel Core i9-11900H (4324 - 5160, n=5)	4758 Points +10%
GMK NucBox K2 AMD Ryzen 7 7735HS	4533 Points +5%
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points +3%
GMK NucBox M4 Intel Core i9-11900H	4324 Points
Geekom A5 AMD Ryzen 7 5800H	4229 Points -2%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points -6%
Beelink SER5 AMD Ryzen 5 5560U	3019 Points -30%
GMK NucBox M3 Intel Core i5-12450H	2952 Points -32%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points +20%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +17%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points +12%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	690 Points +12%
GMK NucBox M3 Intel Core i5-12450H	646 Points +5%
GMK NucBox M4 Intel Core i9-11900H	615 Points
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	613 Points 0%
Media Intel Core i9-11900H (600 - 615, n=5)	607 Points -1%
GMK NucBox K2 AMD Ryzen 7 7735HS	591 Points -4%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -5%
Geekom A5 AMD Ryzen 7 5800H	551 Points -10%
Beelink SER5 AMD Ryzen 5 5560U	498 Points -19%

Cinebench R15 / CPU Multi 64Bit
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	2608 Points +47%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	2343 Points +32%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points +27%
Media Intel Core i9-11900H (1770 - 2211, n=5)	2068 Points +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points +15%
GMK NucBox K2 AMD Ryzen 7 7735HS	1972 (1875.64^min - 1972^max) Points +11%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points +9%
Geekom A5 AMD Ryzen 7 5800H	1773 Points 0%
GMK NucBox M4 Intel Core i9-11900H	1770 (1710.13^min - 1769.75^max) Points
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points -4%
Beelink SER5 AMD Ryzen 5 5560U	1280 (1263.74^min - 1280.29^max) Points -28%
GMK NucBox M3 Intel Core i5-12450H	1150 (1101.32^min - 1149.92^max) Points -35%

Cinebench R15 / CPU Single 64Bit
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	279 Points +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points +12%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points +7%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points +5%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	255 Points +5%
GMK NucBox K2 AMD Ryzen 7 7735HS	244 Points 0%
GMK NucBox M4 Intel Core i9-11900H	243 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points 0%
Media Intel Core i9-11900H (236 - 243, n=5)	240 Points -1%
GMK NucBox M3 Intel Core i5-12450H	238 Points -2%
Geekom A5 AMD Ryzen 7 5800H	227 Points -7%
Beelink SER5 AMD Ryzen 5 5560U	202 Points -17%

Blender / v2.79 BMW27 CPU
GMK NucBox M3 Intel Core i5-12450H	429 Seconds * -59%
Beelink SER5 AMD Ryzen 5 5560U	392 Seconds * -45%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * -22%
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * -2%
GMK NucBox M4 Intel Core i9-11900H	270 Seconds *
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * +1%
GMK NucBox K2 AMD Ryzen 7 7735HS	259 Seconds * +4%
Media Intel Core i9-11900H (231 - 270, n=5)	247 Seconds * +9%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	229 Seconds * +15%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * +20%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	192 Seconds * +29%

7-Zip 18.03 / 7z b 4
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	72684 MIPS +47%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	63214 MIPS +28%
GMK NucBox K2 AMD Ryzen 7 7735HS	57785 MIPS +17%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS +11%
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS +7%
Media Intel Core i9-11900H (49486 - 57263, n=5)	52910 MIPS +7%
GMK NucBox M4 Intel Core i9-11900H	49486 MIPS
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS -13%
Beelink SER5 AMD Ryzen 5 5560U	38281 MIPS -23%
GMK NucBox M3 Intel Core i5-12450H	31119 MIPS -37%

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	6563 MIPS +9%
GMK NucBox M4 Intel Core i9-11900H	6018 MIPS
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS -1%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	5807 MIPS -4%
GMK NucBox K2 AMD Ryzen 7 7735HS	5790 MIPS -4%
Media Intel Core i9-11900H (5582 - 6018, n=5)	5781 MIPS -4%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS -4%
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS -4%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS -9%
GMK NucBox M3 Intel Core i5-12450H	5356 MIPS -11%
Beelink SER5 AMD Ryzen 5 5560U	4740 MIPS -21%

Geekbench 5.5 / Multi-Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	12177 Points +38%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +20%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points +17%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	10126 Points +15%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points +11%
GMK NucBox K2 AMD Ryzen 7 7735HS	9436 Points +7%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points +4%
Media Intel Core i9-11900H (7725 - 9856, n=5)	9140 Points +4%
GMK NucBox M4 Intel Core i9-11900H	8829 Points
Geekom A5 AMD Ryzen 7 5800H	8823 Points 0%
GMK NucBox M3 Intel Core i5-12450H	6990 Points -21%
Beelink SER5 AMD Ryzen 5 5560U	5955 Points -33%

Geekbench 5.5 / Single-Core
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	1943 Points +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points +9%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points +9%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points +6%
GMK NucBox M4 Intel Core i9-11900H	1692 Points
GMK NucBox M3 Intel Core i5-12450H	1639 Points -3%
Media Intel Core i9-11900H (1576 - 1692, n=5)	1634 Points -3%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	1615 Points -5%
GMK NucBox K2 AMD Ryzen 7 7735HS	1564 Points -8%
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -8%
Geekom A5 AMD Ryzen 7 5800H	1494 Points -12%
Beelink SER5 AMD Ryzen 5 5560U	1318 Points -22%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	20.9 fps +54%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	17.7 fps +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps +29%
GMK NucBox K2 AMD Ryzen 7 7735HS	15.1 fps +11%
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps +10%
Media Intel Core i9-11900H (13.6 - 16.7, n=5)	15 fps +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps +4%
GMK NucBox M4 Intel Core i9-11900H	13.6 fps
Geekom A5 AMD Ryzen 7 5800H	13.3 fps -2%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps -10%
Beelink SER5 AMD Ryzen 5 5560U	10 fps -26%
GMK NucBox M3 Intel Core i5-12450H	8.78 fps -35%

LibreOffice / 20 Documents To PDF
Beelink SER5 AMD Ryzen 5 5560U	57.1 s * -35%
Geekom A5 AMD Ryzen 7 5800H	54.3 s * -28%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	53.9 s * -27%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	49.6 s * -17%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * -15%
GMK NucBox K2 AMD Ryzen 7 7735HS	46 s * -9%
Media Intel Core i9-11900H (40.5 - 49.3, n=5)	44.5 s * -5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * -3%
GMK NucBox M4 Intel Core i9-11900H	42.3 s *
GMK NucBox M3 Intel Core i5-12450H	41.1 s * +3%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +11%

R Benchmark 2.5 / Overall mean
Beelink SER5 AMD Ryzen 5 5560U	0.584 sec * -12%
Media Intel Core i9-11900H (0.52 - 0.544, n=5)	0.531 sec * -2%
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * -1%
GMK NucBox M4 Intel Core i9-11900H	0.52 sec *
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * +4%
GMK NucBox M3 Intel Core i5-12450H	0.4949 sec * +5%
GMK NucBox K2 AMD Ryzen 7 7735HS	0.4924 sec * +5%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	0.4822 sec * +7%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * +10%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +14%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS	0.4354 sec * +16%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit

1770 Points

Cinebench R15 OpenGL 64Bit

81.2 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

243 Points

Aiuto

... in confronto

Performance Rating
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	89.3 pt
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	84.3 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	80 pt
Media Intel Core i9-11900H	78.5 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	73.4 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	66.4 pt
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	50.3 pt

AIDA64 / FP32 Ray-Trace
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	13945 KRay/s
Media Intel Core i9-11900H ()	13945 KRay/s 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	13281 KRay/s -5%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	12876 KRay/s -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -21%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s -33%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	7448 KRay/s -47%

AIDA64 / FPU Julia
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	82673 Points +46%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	69808 Points +23%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	56662 Points
Media Intel Core i9-11900H ()	56662 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -2%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points -14%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	37583 Points -34%

AIDA64 / CPU SHA3
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3883 MB/s
Media Intel Core i9-11900H ()	3883 MB/s 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	3190 MB/s -18%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	2886 MB/s -26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -30%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s -46%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	1724 MB/s -56%

AIDA64 / CPU Queen
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	101624 Points +14%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	93785 Points +5%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	89081 Points
Media Intel Core i9-11900H ()	89081 Points 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points -3%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points -12%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	59969 Points -33%

AIDA64 / FPU SinJulia
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	11981 Points +28%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	9355 Points
Media Intel Core i9-11900H ()	9355 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	8851 Points -5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -22%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points -30%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	5007 Points -46%

AIDA64 / FPU Mandel
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	45287 Points +29%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	35044 Points
Media Intel Core i9-11900H ()	35044 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	32781 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -21%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points -33%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	18624 Points -47%

AIDA64 / CPU AES
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	121537 MB/s
Media Intel Core i9-11900H ()	121537 MB/s 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	118383 MB/s -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -18%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s -32%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	65953 MB/s -46%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	65152 MB/s -46%

AIDA64 / CPU ZLib
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	956 MB/s +30%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +9%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	738 MB/s
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	732 MB/s -1%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s -19%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	490 MB/s -34%
Media Intel Core i9-11900H (738 - 738, n=4)	184.5 (738^min - 738^max) MB/s -75%

AIDA64 / FP64 Ray-Trace
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	7587 KRay/s
Media Intel Core i9-11900H ()	7587 KRay/s 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	7090 KRay/s -7%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	6917 KRay/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -22%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s -31%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	4025 KRay/s -47%

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s +85%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	30360 MPixel/s +27%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s +22%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	26489 MPixel/s +11%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	23829 MPixel/s
Media Intel Core i9-11900H ()	23829 MPixel/s 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	19552 MPixel/s -18%

Prestazioni del sistema

I risultati di PCMark sono inferiori a quelli di molti mini PC che girano su CPU più recenti di 12a generazione, 13a generazione o Zen 3+, soprattutto a causa della lentezza della GPU integrata nel nostro NucBox M4.

PCMark 10 / Score
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	6936 Points +31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6281 Points +18%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	6247 Points +18%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points +10%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	5310 Points 0%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	5307 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	5307 Points 0%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11596 Points +11%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	11401 Points +9%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	11158 Points +7%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points +3%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	10614 Points +1%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	10464 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	10464 Points 0%

PCMark 10 / Productivity
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	9759 Points +37%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7893 Points +11%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points +10%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7691 Points +8%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	7369 Points +4%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	7118 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	7118 Points 0%

PCMark 10 / Digital Content Creation
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	8319 Points +53%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7547 Points +39%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7348 Points +35%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points +19%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	5445 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	5445 Points 0%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	5194 Points -5%

CrossMark / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1810 Points +11%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1723 Points +6%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1704 Points +4%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1632 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	1632 Points 0%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points -4%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1540 Points -6%

CrossMark / Productivity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1740 Points +7%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1677 Points +3%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1674 Points +3%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1633 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	1633 Points 0%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1561 Points -4%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points -8%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1970 Points +18%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1872 Points +12%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1763 Points +5%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points +5%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1675 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	1675 Points 0%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1510 Points -10%

CrossMark / Responsiveness
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1625 Points +8%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1578 Points +4%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1572 Points +4%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1511 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	1511 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1456 Points -4%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points -14%

WebXPRT 3 / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	305 Points +7%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	301 Points +5%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	295 Points +3%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	292 Points +2%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	286 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	286 Points 0%

WebXPRT 4 / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	266 Points +17%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	239 Points +5%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	227 Points
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	227 Points 0%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	225 Points -1%

Mozilla Kraken 1.1 / Total
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	608 ms *
Media Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) ()	608 ms * -0%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	596 ms * +2%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	561 ms * +8%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	522 ms * +14%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	495 ms * +19%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	494 ms * +19%

* ... Meglio usare valori piccoli

PCMark 10 Score		5307 punti
Aiuto

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s +58%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51186 MB/s +16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s +2%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	44216 MB/s
Media Intel Core i9-11900H ()	44216 MB/s 0%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	42484 MB/s -4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	40018 MB/s -9%

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s +33%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51679 MB/s +2%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	50614 MB/s
Media Intel Core i9-11900H ()	50614 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	44583 MB/s -12%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	43117 MB/s -15%

AIDA64 / Memory Write
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s +27%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	55238 MB/s +18%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	46629 MB/s
Media Intel Core i9-11900H ()	46629 MB/s 0%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	46577 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	42710 MB/s -8%

AIDA64 / Memory Latency
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns * -37%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -35%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	83.5 ns * -17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	82.4 ns * -16%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	77.9 ns * -9%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	71.2 ns *
Media Intel Core i9-11900H (71.2 - 71.2, n=4)	17.8 (71.2^min - 71.2^max) ns * +75%

* ... Meglio usare valori piccoli

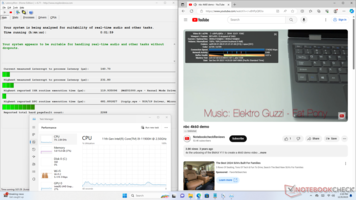

Latenza DPC

LatencyMon non rivela alcun problema di DPC quando si aprono più schede del browser della nostra homepage. anche la riproduzione di video 4K a 60 FPS è perfetta, senza alcuna caduta di fotogrammi, rendendo questo mini PC eccellente per lo streaming.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	4530.6 μs * -1855%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	2372.9 μs * -924%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * -511%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1329 μs * -473%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * -369%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	231.8 μs *

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

La nostra unità viene consegnata con un 512 GB Lexar NM620 SSD PCIe3 x4 NVMe che offre velocità di lettura e scrittura sequenziali fino a 3500 MB/s e 2400 MB/s, rispettivamente. L'unità non presenta problemi di throttling e mantiene le sue prestazioni massime per lunghi periodi.

2.il caddy SATA III da 5 pollici si trova sopra l'SSD M.2 e gli slot per la RAM

Caddy SATA III rimosso. L'SSD M.2 è dotato di un cuscinetto termico per dissipare il calore sul caddy SATA III

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Lexar NM620 512GB

CDM 5/6 Read Seq Q32T1: 3233 MB/s

CDM 5/6 Write Seq Q32T1: 2933 MB/s

CDM 5/6 Read 4K Q32T1: 786.4 MB/s

CDM 5/6 Write 4K Q32T1: 510.2 MB/s

CDM 5 Read Seq: 2333 MB/s

CDM 5 Write Seq: 298 MB/s

CDM 5/6 Read 4K: 53.48 MB/s

CDM 5/6 Write 4K: 114.8 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	87.3 pt
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	70.3 pt
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	69.2 pt
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	61.6 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	56.1 pt
GMK NucBox M4 Lexar NM620 512GB	49.3 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +93%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3074 (3056.63^min - 3074.49^max) MB/s +76%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2625 (2562.3^min - 2625.21^max) MB/s +50%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2011 (1922.53^min - 2010.96^max) MB/s +15%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s +15%
GMK NucBox M4 Lexar NM620 512GB	1746 (842.64^min - 1745.67^max) MB/s
seq write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +34%
GMK NucBox M4 Lexar NM620 512GB	2513 (274.86^min - 2513.02^max) MB/s
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2317 (2260.73^min - 2317.16^max) MB/s -8%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2277 (2253.07^min - 2277.24^max) MB/s -9%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s -24%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1773 (1718.7^min - 1773.12^max) MB/s -29%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +97%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3582 (3101.69^min - 3581.9^max) MB/s +5%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3553 (3164.22^min - 3552.99^max) MB/s +4%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s +2%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3479 (3183.34^min - 3478.79^max) MB/s +2%
GMK NucBox M4 Lexar NM620 512GB	3422 (3023.08^min - 3421.92^max) MB/s
seq q8 t1 write
GMK NucBox M4 Lexar NM620 512GB	2858 (295.24^min - 2857.74^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s -1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2446 (2381.26^min - 2445.98^max) MB/s -14%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s -16%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2291 (2242.9^min - 2291.17^max) MB/s -20%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2271 (2252.65^min - 2271.35^max) MB/s -21%
4k q1 t1 read
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	80.5 (74.84^min - 80.54^max) MB/s +83%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	59.8 (58.68^min - 59.84^max) MB/s +36%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s +18%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s +14%
GMK NucBox M4 Lexar NM620 512GB	44 (35.86^min - 44.02^max) MB/s
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	42.6 (42.44^min - 42.57^max) MB/s -3%
4k q1 t1 write
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	282 (273.36^min - 281.83^max) MB/s +143%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	239 (236.27^min - 238.58^max) MB/s +106%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s +53%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s +41%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	140.4 (133.49^min - 140.42^max) MB/s +21%
GMK NucBox M4 Lexar NM620 512GB	115.9 (99.18^min - 115.92^max) MB/s
4k q32 t16 read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1837 (1834.99^min - 1837.44^max) MB/s +17%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1568 (1565.33^min - 1568.49^max) MB/s 0%
GMK NucBox M4 Lexar NM620 512GB	1565 (506.92^min - 1565.24^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -22%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s -28%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	945 (935.84^min - 944.53^max) MB/s -40%
4k q32 t16 write
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1391 (1351.44^min - 1391.2^max) MB/s +896%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1180 (1097.88^min - 1179.87^max) MB/s +745%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s +348%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s +283%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	505 (469.38^min - 505.2^max) MB/s +262%
GMK NucBox M4 Lexar NM620 512GB	139.6 (45.28^min - 139.63^max) MB/s

AS SSD
Score Total
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +90%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	4218 Points +34%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3970 Points +26%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3692 Points +17%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points +4%
GMK NucBox M4 Lexar NM620 512GB	3154 Points
Score Read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1753 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +18%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1643 Points +15%
GMK NucBox M4 Lexar NM620 512GB	1423 Points
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points -4%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1257 Points -12%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +224%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1852 Points +68%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1792 Points +63%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1349 Points +22%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points +16%
GMK NucBox M4 Lexar NM620 512GB	1102 Points
Seq Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +72%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3079.48 MB/s +11%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3048.92 MB/s +10%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3002.89 MB/s +8%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s +7%
GMK NucBox M4 Lexar NM620 512GB	2774.25 MB/s
Seq Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +303%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2238.79 MB/s +269%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1926.48 MB/s +218%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s +180%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1430.07 MB/s +136%
GMK NucBox M4 Lexar NM620 512GB	606.01 MB/s
4K Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +54%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	70.4 MB/s +39%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	57.59 MB/s +13%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s +1%
GMK NucBox M4 Lexar NM620 512GB	50.83 MB/s
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	38.62 MB/s -24%
4K Write
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	224.81 MB/s +108%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +93%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	206.56 MB/s +91%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s +90%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	179.91 MB/s +66%
GMK NucBox M4 Lexar NM620 512GB	108.33 MB/s
4K-64 Read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1395.43 MB/s +27%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1296.75 MB/s +18%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +2%
GMK NucBox M4 Lexar NM620 512GB	1094.96 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s -7%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	882.05 MB/s -19%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +234%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1529.03 MB/s +64%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1392.49 MB/s +49%
GMK NucBox M4 Lexar NM620 512GB	932.87 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s -3%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	900.48 MB/s -3%
Access Time Read
GMK NucBox M4 Lexar NM620 512GB	0.103 ms *
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.099 ms * +4%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * +23%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	0.069 ms * +33%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.048 ms * +53%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +56%
Access Time Write
GMK NucBox M4 Lexar NM620 512GB	0.409 ms *
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * +10%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.362 ms * +11%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	0.339 ms * +17%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.097 ms * +76%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +95%

* ... Meglio usare valori piccoli

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox M4; diskspd 2.0.17 f: Ø3414 (3071.49-3431.78)

Prestazioni della GPU

Il sistema integrato UHD Graphics Xe 32 EUs è una delle GPU più lente della famiglia Intel Xe. NucBox M4 non è quindi progettato per alcun tipo di gioco nativo. Lo streaming di giochi, tuttavia, viene eseguito in modo eccellente sulla macchina.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	85.4 pt
GMK NucBox K2 ^-1! AMD Radeon 680M, AMD Ryzen 7 7735HS	85 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	57.3 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	55.6 pt
Lenovo IdeaCentre Mini 01IRH8 ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	54.2 pt
GMK NucBox K3 Pro ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	47.3 pt
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	37.5 pt
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	35.1 pt
GMK NucBox M4 ^-1! Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	28.8 pt
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	27.3 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	13347 Points +328%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points +246%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	10439 Points +234%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points +129%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +127%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points +121%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points +78%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	4439 Points +42%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3906 Points +25%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (3065 - 3322, n=5)	3180 Points +2%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	3122 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	50924 Points +204%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	45727 Points +173%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	32875 Points +96%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points +64%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	22822 Points +36%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	21778 Points +30%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	16753 Points
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (15662 - 16753, n=3)	16044 Points -4%
1920x1080 Fire Strike Graphics
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	8348 Points +232%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	7570 Points +201%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points +179%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +108%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points +91%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points +81%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points +81%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3131 Points +24%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	3056 Points +21%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	2517 Points
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (2363 - 2658, n=5)	2506 Points 0%

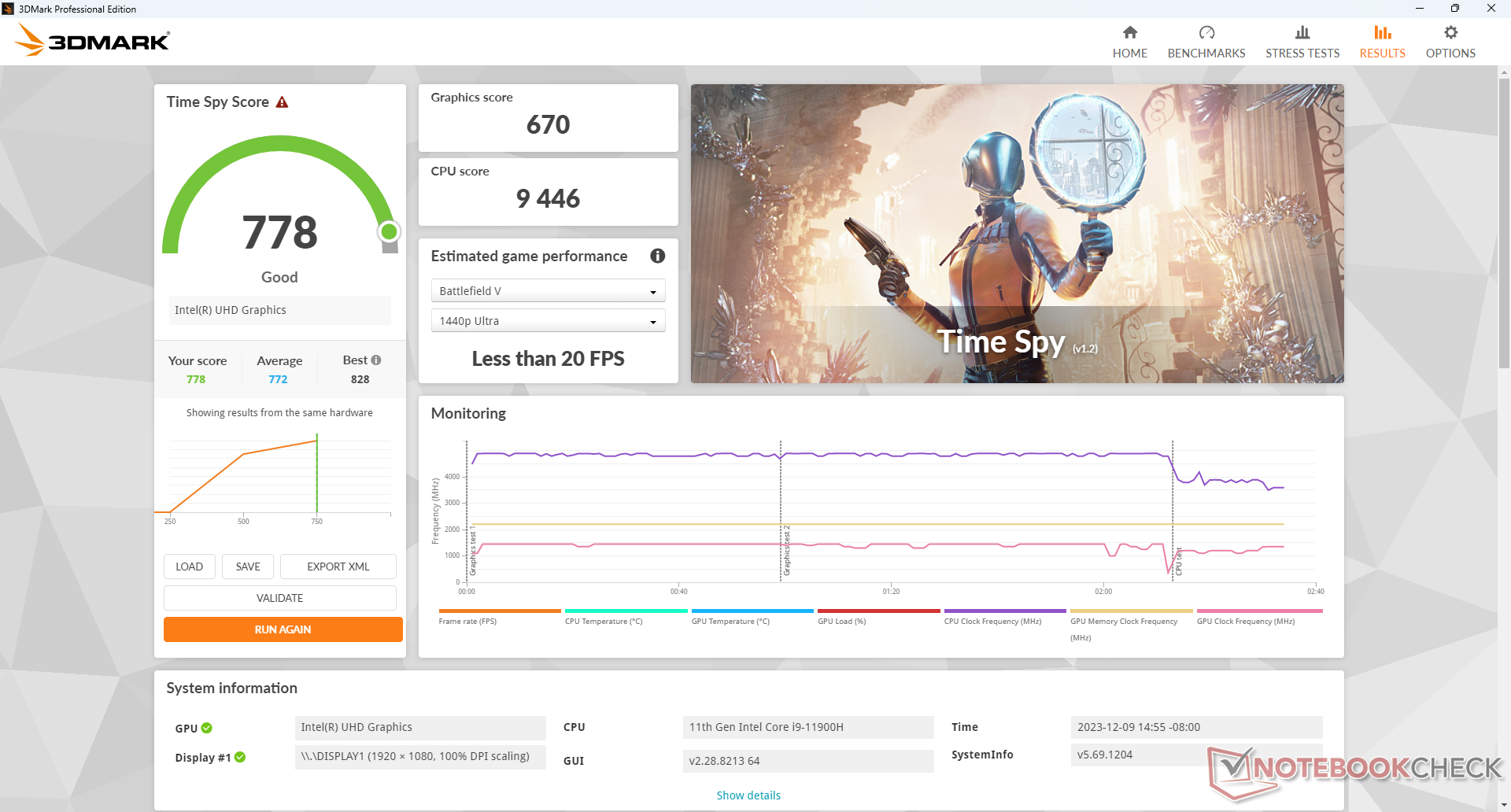

2560x1440 Time Spy Graphics
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	2832 Points
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2436 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	996 Points
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	873 Points
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (658 - 695, n=3)	670 Points

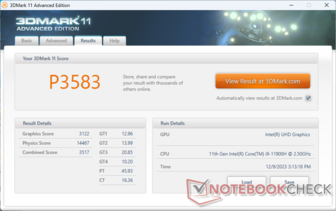

3DMark 11 Performance		3583 punti
3DMark Cloud Gate Standard Score		15986 punti
3DMark Fire Strike Score		2383 punti
Aiuto

... in confronto

Blender
v3.3 Classroom HIP/AMD
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	675 Seconds *
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	477 Seconds *
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds *
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	270 Seconds *
v3.3 Classroom CPU
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	741 Seconds * -55%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	677 Seconds * -41%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * -19%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (479 - 673, n=3)	570 Seconds * -19%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	513 Seconds * -7%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	479 Seconds *
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * +3%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * +8%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	438 Seconds * +9%
Minisforum EliteMini UM780 XTX AMD Radeon 780M, AMD Ryzen 7 7840HS	310 Seconds * +35%

* ... Meglio usare valori piccoli

Final Fantasy XV Benchmark | The Witcher 3 | Strange Brigade | X-Plane 11.11 | Dota 2 Reborn

Final Fantasy XV Benchmark - 1280x720 Lite Quality
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	79.3 fps +245%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps +196%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.4 fps +176%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.3 fps +97%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps +72%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps +63%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.2 fps +40%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	28.5 fps +24%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (23 - 24.6, n=3)	23.7 fps +3%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23 fps

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	153.5 (20.1^min, 43.1^P0.1, 107.8^P1) fps +209%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	138.1 (116^min) fps +178%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	121.6 (89^min) fps +145%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.7 fps +105%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	85.8 (61^min) fps +73%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	85.6 (16^min, 36.2^P0.1, 60.2^P1) fps +72%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	85.3 (69^min) fps +72%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.1 (39^min) fps +23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	58.8 (52^min) fps +18%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	49.7 (44^min) fps
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (47.3 - 50.1, n=4)	48.7 fps -2%
1366x768 Medium Graphics & Postprocessing
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	97.3 (34.8^min, 51.8^P0.1, 77.8^P1) fps +227%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	85.1 (80^min) fps +186%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	75.9 (71^min) fps +155%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	56 (53^min) fps +88%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 (52^min) fps +82%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54.1 (16.8^min, 34.9^P0.1, 43.7^P1) fps +82%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	39 (36^min) fps +31%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	38.6 (36^min) fps +30%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (29.8 - 31.1, n=2)	30.5 fps +2%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	29.8 (18^min) fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	49.1 (23.1^min, 38.4^P0.1, 40.8^P1) fps +194%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (36^min) fps +159%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	37.9 (35^min) fps +127%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.1 fps +86%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	30.1 (28^min) fps +80%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.8 (26^min) fps +60%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26 (20.8^min, 21.4^P0.1, 22.6^P1) fps +56%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20.1 (17^min) fps +20%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18.8 (17^min) fps +13%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.7 (14^min) fps
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (15.8 - 16.7, n=4)	16.3 fps -2%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	31.6 (15.4^min, 16.9^P0.1, 19.1^P1) fps +285%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps +229%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (20^min) fps +177%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.6 (14.7^min, 14.7^P0.1, 15.4^P1) fps +115%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps +99%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	13.8 (12^min) fps +68%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps +51%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps +44%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	9.5 (8^min) fps +16%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.2 (7^min) fps
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (7.5 - 8.27, n=4)	8.05 fps -2%

Strange Brigade
1280x720 lowest AF:1
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	168.8 (121.6^min, 142.3^P1) fps +199%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (85.9^min, 124^P1) fps +161%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps +151%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.9 (66.3^min, 84.2^P1) fps +79%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	95.4 (19.5^min, 37.2^P1) fps +69%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	89.2 (21.3^min, 32.1^P1) fps +58%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	78.9 (56.9^min, 66.5^P1) fps +40%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	64.4 (13.2^min, 19^P1) fps +14%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	56.5 (13.2^min, 17.2^P1) fps
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (55.6 - 56.7, n=5)	56.1 fps -1%
1920x1080 medium AA:medium AF:4
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (54.9^min, 58.1^P1) fps +198%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps +158%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	56 (46.4^min, 49.2^P1) fps +150%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.8 (24.2^min, 34.3^P1) fps +73%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	37.3 (12^min, 16.1^P1) fps +67%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	34.7 (12.5^min, 20^P1) fps +55%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.3 (25.6^min, 27.4^P1) fps +35%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	25.6 (7.1^min, 12.5^P1) fps +14%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	22.4 (6.3^min, 10.3^P1) fps
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (21.5 - 22.4, n=5)	21.9 fps -2%
1920x1080 high AA:high AF:8
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	56.5 (37.2^min, 44.1^P1) fps +228%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps +183%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.9 (25.6^min, 35.7^P1) fps +167%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 (23.8^min, 25.8^P1) fps +88%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31 (8.5^min, 12^P1) fps +80%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	29.2 (9^min, 13.5^P1) fps +70%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (19.8^min, 20.3^P1) fps +43%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20 (5^min, 6.58^P1) fps +16%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	17.2 (5^min, 5.39^P1) fps
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (16.6 - 17.5, n=5)	17 fps -1%
1920x1080 ultra AA:ultra AF:16
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	48.7 (24.3^min, 30.5^P1) fps +197%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.5 (15.8^min, 22.3^P1) fps +159%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps +155%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.4 (19.7^min, 22.4^P1) fps +67%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps +54%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps +40%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps +25%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.7 (5^min, 5^P1) fps +8%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.4 (5^min, 5^P1) fps
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (14.4 - 16.4, n=5)	15.4 fps -6%

X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.7 fps +72%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps +71%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	65.4 fps +69%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.6 fps +36%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps +12%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps +6%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.8 fps
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	38 fps -2%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.3 fps -6%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (21.3 - 38.9, n=5)	32 fps -18%
1920x1080 med (fps_test=2)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps +101%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 fps +101%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	47.1 fps +79%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.3 fps +49%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps +26%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps +25%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps +4%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	26.3 fps
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	23.8 fps -10%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (17.3 - 26.5, n=5)	22.7 fps -14%
1920x1080 high (fps_test=3)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +85%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 fps +82%
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	39.2 fps +68%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	34.2 fps +47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps +22%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps +12%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps +4%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.3 fps
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	22 fps -6%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (11.1 - 23.4, n=5)	19.4 fps -17%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	161.5 (141.6^min) fps +44%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps +28%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	141.2 (122.4^min) fps +26%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	129.5 (112.6^min) fps +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	123.8 (98^min) fps +10%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps +6%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (84.7 - 127.8, n=6)	115.6 fps +3%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	112.3 (96.7^min) fps
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	110.7 (97.6^min) fps -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps -2%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	37 (34.9^min) fps -67%
1366x768 med (1/3)
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	126 (107.1^min) fps +80%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps +62%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps +62%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	108.6 (88.6^min) fps +55%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (77.2^min) fps +34%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps +33%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	90.8 (71^min) fps +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps +18%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (63 - 80.5, n=6)	73.5 fps +5%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	70.1 (61.4^min) fps
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.2 (33.9^min) fps -48%
1920x1080 high (2/3)
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	97.45 (86.9^min) fps +170%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.2 (74.4^min) fps +133%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps +132%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	67.7 (59.9^min) fps +88%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (59.9^min) fps +87%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps +74%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps +58%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	48.7 (44.8^min) fps +35%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (35.2 - 37.1, n=5)	36.3 fps +1%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	36.1 (33^min) fps
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	35.4 (33.8^min) fps -2%
1920x1080 ultra (3/3) best looking
Minisforum EliteMini UM780 XTX AMD Ryzen 7 7840HS, AMD Radeon 780M	91.2 (78.8^min) fps +178%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	73.7 (65.4^min) fps +125%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps +123%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	63.7 (56^min) fps +94%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps +88%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps +75%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps +59%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps +38%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34.7 (32.5^min) fps +6%
Media Intel UHD Graphics Xe 32EUs (Tiger Lake-H) (32.6 - 33.8, n=6)	33.3 fps +2%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	32.8 (29.4^min) fps

Witcher 3 FPS Chart

GMK NucBox M4: Ø46.5 (41-50)

	basso	medio	alto	ultra
The Witcher 3 (2015)	49.7	29.8	16.7	8.2
Dota 2 Reborn (2015)	112.3	70.1	36.1	32.8
Final Fantasy XV Benchmark (2018)	23
X-Plane 11.11 (2018)	38.8	26.3	23.3
Strange Brigade (2018)	56.5	22.4	17.2	16.4

Emissioni

Rumore del sistema

Il rumore della ventola durante l'esecuzione di carichi non impegnativi, come browser o flussi video, è più silenzioso rispetto alla maggior parte dei mini PC più piccoli. Quando si esegue 3DMark 06 per rappresentare carichi medi, ad esempio, il rumore della ventola è stabile a soli 28 dB(A) rispetto ai 37 dB(A) di NucBox M3. Anche le pulsazioni sono minime.

L'esecuzione di carichi estremamente impegnativi, come Prime95, può far sì che la ventola interna raggiunga i 45 dB(A), un valore superiore a quello della maggior parte degli altri mini PC. Pertanto, NucBox M4 è una macchina rumorosa solo quando il carico di lavoro lo richiede, perché altrimenti è ragionevolmente silenziosa.

Solo una singola ventola e un dissipatore di calore per la CPU

Profilo del rumore del ventilatore (Bianco: Sfondo, Rosso: Sistema inattivo, Blu: 3DMark 06, Arancione: Witcher 3 verde: Prime95 stress)

Rumorosità

Idle		24.4 / 24.4 / 28 dB(A)
Sotto carico		28 / 44.6 dB(A)

	30 dB silenzioso 40 dB(A) udibile 50 dB(A) rumoroso
min: , med: , max: Earthworks M23R, Arta (15 cm di distanza) Rumorosità ambientale: 22.7 dB(A)

	GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Noise		-16%	-7%	-9%	-10%	-22%
off /ambiente *	22.7	23.9 -5%	23.1 -2%	23.4 -3%	22.8 -0%	29.8 -31%
Idle Minimum *	24.4	25.7 -5%	25 -2%	30.4 -25%	24.1 1%	30.2 -24%
Idle Average *	24.4	25.7 -5%	25.5 -5%	30.4 -25%	24.1 1%	31.1 -27%
Idle Maximum *	28	39.1 -40%	25.5 9%	30.4 -9%	33.8 -21%	31.9 -14%
Load Average *	28	37 -32%	39.9 -43%	30.7 -10%	40.1 -43%	40 -43%
Witcher 3 ultra *	33.7	43.5 -29%	39.9 -18%	33.9 -1%	38.7 -15%
Load Maximum *	44.6	43.5 2%	39.9 11%	41 8%	40.1 10%	40.5 9%

* ... Meglio usare valori piccoli

Temperatura

L'adattatore CA raggiunge i 34 C quando si utilizzano carichi impegnativi

Le temperature di superficie non sono mai fastidiosamente calde, grazie all'ingombro relativamente grande e al telaio in metallo. L'aria fresca entra dalla parte superiore e il calore disperso esce dalla parte posteriore. Pertanto, non è consigliabile collocare oggetti come libri o carta sopra l'unità.

Test da sforzo

La CPU ha raggiunto i 3,4 GHz e i 47 W solo per i primi secondi di stress Prime95, prima di scendere e stabilizzarsi a 2,7 GHz, 45 W e 76 C. La temperatura del core è rimasta relativamente bassa, a soli 57 C, durante l'esecuzione di carichi più realistici come i giochi, probabilmente a causa delle grandi dimensioni dello chassis. Ripetendo questo stesso test sul più piccolo NucBox K3 Proad esempio, la temperatura del core sarebbe molto più elevata, pari a 80 C.

	Clock della CPU (GHz)	Clock della GPU (MHz)	Temperatura media della CPU (°C)
Sistema inattivo	--	--	37
Stress Prime95	2,7	--	76
Prime95 + FurMark Stress	2,5 - 3,0	1000 - 1450	74
Witcher 3 Stress	~3,3	1450	57

Gestione dell'energia

Consumo di energia

Il consumo complessivo è relativamente alto quando è al minimo sul desktop, mentre è relativamente basso quando si eseguono carichi impegnativi. Questo è prevedibile, in quanto le vecchie CPU Intel di 11a generazione sono generalmente meno efficienti. Si noti che il modello AMD Beelink SER6 Pro offre sia prestazioni più veloci che consumi inferiori, per prestazioni superiori per watt.

La porta USB-C non supporta l'alimentazione e quindi è necessario utilizzare un alimentatore AC proprietario.

CineBench R15 xT è iniziato a 10 secondi. Il benchmark impiega circa 21 secondi per terminare

Il consumo raggiungeva un picco di 95 W per circa 10 secondi quando si avviava lo stress Prime95, prima di scendere leggermente a 89 W

Lo stress di Prime95+FurMark è iniziato al 10s

Consumo di corrente

Off / Standby	4.9 / 4.9 Watt
Idle	15.2 / 17.2 / 17.4 Watt
Sotto carico	40 / 112.8 Watt


Leggenda: min: , med: , max: Metrahit Energy Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.

	GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H), Lexar NM620 512GB, , x,	GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs, Samsung PM9B1 512GB MZVL4512HBLU, , x,	Beelink SER6 Pro R7 6800H, Radeon 680M, Kingston NV2 500GB SNV2S/500G, , x,	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Power Consumption		16%	20%	16%	18%	21%
Idle Minimum *	15.2	10.6 30%	7.1 53%	6.7 56%	8.3 45%	5.1 66%
Idle Average *	17.2	11.9 31%	10.1 41%	6.7 61%	8.4 51%	5.8 66%
Idle Maximum *	17.4	12.5 28%	18.6 -7%	7.1 59%	8.7 50%	10.2 41%
Load Average *	40	54.9 -37%	45.3 -13%	68.5 -71%	60.8 -52%	68.1 -70%
Witcher 3 ultra *	50.6	46.4 8%	55.2 -9%	58.3 -15%	61.4 -21%
Load Maximum *	112.8	75.6 33%	52.9 53%	104.3 8%	72 36%	108.3 4%

* ... Meglio usare valori piccoli

Power Consumption Witcher 3 / Stresstest

GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H); Witcher 3 ultra: Ø50.6 (48.9-58.5)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; Witcher 3 ultra: Ø46.4 (43.3-63)

GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H); 1280x720 Prime95 28.10 and Furmark 1.25: Ø83.4 (81.9-90.4)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø58 (55.8-75.6)

Power Consumption external Monitor

GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H); Prime95 V2810 Stress (external Monitor): Ø88.9 (88-94.6)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; Prime95 V2810 Stress (external Monitor): Ø61.5 (59.9-74.1)

GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H); Cinebench R15 Multi (external Monitor): Ø89.3 (83.4-112.8)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; Cinebench R15 Multi (external Monitor): Ø57.3 (52.7-67.8)

GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.7 (39.1-45.1)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø34.5 (33.4-43.8)

GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H); 1920x1080 The Witcher 3 ultra (external Monitor): Ø50.6 (48.9-58.5)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø46.4 (43.3-63)

GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H); Idle 1min (external Monitor): Ø17.3 (16.5-19.3)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; Idle 1min (external Monitor): Ø10.8 (10.5-12.9)

Pro

+ facilità di manutenzione; 2x SODIMM + 2x SSD

+ rumore silenzioso della ventola nella maggior parte delle condizioni

+ temperature di funzionamento relativamente basse

+ poco costoso

Contro

- superato dal Ryzen 7 6800H, dal prezzo simile

- gPU integrata molto debole

- nessun supporto Thunderbolt

- nessun problema di latenza DPC

Verdetto - Il Core i9 più vecchio supera le prestazioni e il prezzo di Ryzen 7 6800H

Il NucBox M4 è stato appena lanciato, ma la sua CPU Core i9 del 2021 non è invecchiata molto bene. In particolare, i mini PC con il Ryzen 7 6800H o Ryzen 7 7735HS come il Beelink SER6 Pro o NucBox K2 offrono prestazioni simili del processore e prestazioni grafiche significativamente più veloci a circa lo stesso prezzo. I motivi principali per scegliere NucBox M4 sono quindi il rumore della ventola, generalmente più silenzioso, e il distintivo Core i9.

NucBox M4 è veloce, silenzioso ed economico. Tuttavia, la sua vecchia CPU è superata da alternative moderne di prezzo simile, come il Ryzen 7 6800H.

Il resto del modello è eccellente, a partire dal robusto telaio in metallo, la facilità di manutenzione e l'ampia varietà di porte integrate. Le dimensioni relativamente grandi si prestano a temperature di esercizio più basse e a una ventola più silenziosa. Tuttavia, la GPU debole e la mancanza di supporto Thunderbolt non danno a NucBox M4 gambe molto lunghe.

Prezzo e disponibilità

NucBox M4 è attualmente disponibile su Amazon al prezzo di 470 dollari USA, con il doppio della RAM e dello spazio di archiviazione rispetto alla configurazione della nostra recensione.

GMK NucBox M4 - 2023-12-12 12/12/2023 v7
Allen Ngo

Chassis

85 / 98 → 86%

Connettività

59 / 81 → 73%

Peso

76%

Prestazioni di gioco

59%

Prestazioni Applicazioni

92%

Temperatura

95%

Rumorosità

91%

Media

79%

81%

Mini PC - Media ponderata

Articoli collegati

GMK NucBox M4 (NucBox Serie)

recensione

•

Recensione del mini PC GMK Nuc...

recensione

•

Recensione del mini PC GMK Nuc...

recensione

•

Recensione del mini PC GMKtec ...

recensione

•

Recensione del mini PC GMK Nuc...

recensione

•

Recensione GMK NucBox 3: HTPC ...

recensione

•

Recensione del Mini PC GMK Nuc...

recensione

•

Recensione del Mini PC GMK Nuc...

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5192 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 389876 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del mini PC GMK NucBox M4: core i9 di 11a generazione per meno di 500 dollari

Allen Ngo, 2023-12-13 (Update: 2023-12-13)

Cinebench R15 CPU Multi 64 Bit in confronto
Toshiba Satellite W30Dt-A-100 (min) A4-1200, Radeon HD 8180	33
...
SCHENKER XMG NEO 17 GM7TG8S i7-11800H, GeForce RTX 3080 Laptop GPU	1767
Asus ZenBook 14X UM5401QA-KN162 R7 5800H, Vega 8	1768
SCHENKER XMG Focus 15 i7-11800H, GeForce RTX 3050 Ti Laptop GPU	1770
GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	1770
Geekom A5 R7 5800H, Vega 8	1773
GPD Win 4 R7 6800U, Radeon 680M	1776
Lenovo ThinkPad E14 G5-21JSS05C00 R7 7730U, Vega 8	1777
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

3DMark 11 in confronto
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Asus VivoBook 17 F712JA-AU708W i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU)	3550
Asus VivoBook 15 X M1503QA R5 5600H, Vega 7	3560
Asus VivoBook 14 F412FJ-EB084T i5-8265U, GeForce MX230	3570
GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3583
HP Envy 13-ad006ng i7-7500U, GeForce MX150	3588
Huawei MateBook 13 2020 AMD R5 3500U, Vega 8	3619
Lenovo ThinkPad P43s-20RH001FGE i7-8565U, Quadro P520	3622
...
(max) R7 7800X3D, NVIDIA GeForce RTX 4090	72163
