Recensione breve delSubnotebook Asus VivoBook E200HA (x5-Z8350, 32 GB)

Sebastian Bade (traduzione a cura di G. De Luca), 08/09/2017

Economico ma buono? Con l'Asus VivoBook E200HA-FD0041TS, il produttore offre un subnotebook da 11,6" che dovrebbe convincere i clienti con i suoi tre diversi colori. C'è anche un processore quad-core sotto il cofano. Nella nostra recensione breve, vedremo come si comporta questo portatile.

Asus VivoBook E200HA-FD0041TS (VivoBook Serie)
Scheda grafica
Intel HD Graphics 400 (Braswell), 20.19.15.4364
Memoria
2048 MB
, DDR3
Schermo
11.6 pollici 16:9, 1366x768 pixel 135 PPI, Chi Mei CMN1130, N116BGE-EB2, TN LED, lucido: si
Scheda madre
Intel Cherry Trail
Harddisk
Hynix HBG4a2 32 GB eMMC, 32 GB
, 10 GB libera
Scheda audio
Intel SST Audio Device
Porte di connessione
1 USB 2.0, 1 USB 3.0 / 3.1, Connessioni Audio: stereo, SonicMaster, Lettore schede: Micro-SD, Micro-HDMI
Rete
Qualcomm Atheros QCA9377 Wireless Network Adapter (a/b/g/n/ac), Bluetooth 4.1
Dimensioni
altezza x larghezza x profondità (in mm): 17.5 x 286 x 193
Batteria
38 Wh polimeri di litio
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: VGA 640x480
Altre caratteristiche
Casse: SonicMaster sound, Tastiera: chiclet, Illuminazione Tastiera: no, Alimentatore, Office 365 (1 anno), 12 Mesi Garanzia, senza ventola
Peso
976 gr, Alimentazione: 130 gr
Prezzo
249 EUR



Asus VivoBook E200HA-FD0041TS
Asus VivoBook E200HA-FD0041TS
Asus VivoBook E200HA-FD0041TS
Asus VivoBook E200HA-FD0041TS
Asus VivoBook E200HA-FD0041TS
Asus VivoBook E200HA-FD0041TS
Asus VivoBook E200HA-FD0041TS

Size Comparison

Connections

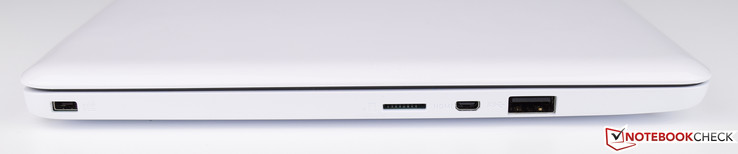

Left: power, microSD card reader, Micro-HDMI, USB 3.0
Left: power, microSD card reader, Micro-HDMI, USB 3.0

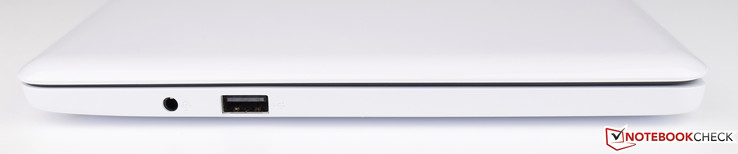

Right: Audio combo (Mic-In, Line-Out), USB 2.0
Right: Audio combo (Mic-In, Line-Out), USB 2.0
Front: status LEDs
Front: status LEDs
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus VivoBook E200HA-FD0041TS
Qualcomm Atheros QCA9377 Wireless Network Adapter
315 MBit/s ∼100%
Jumper EZbook 3
Realtek RTL8723B USB 2.0
86 MBit/s ∼27% -73%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus VivoBook E200HA-FD0041TS
Qualcomm Atheros QCA9377 Wireless Network Adapter
237 MBit/s ∼100%
Jumper EZbook 3
Realtek RTL8723B USB 2.0
78 MBit/s ∼33% -67%
280
cd/m²
270
cd/m²
277
cd/m²
278
cd/m²
267
cd/m²
265
cd/m²
239
cd/m²
250
cd/m²
259
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 280 cd/m² Media: 265 cd/m² Minimum: 16.9 cd/m²
Distribuzione della luminosità: 85 %
Al centro con la batteria: 222 cd/m²
Contrasto: 763:1 (Nero: 0.35 cd/m²)
ΔE Color 6.67 | - Ø
ΔE Greyscale 7.84 | - Ø
65% sRGB (Argyll) 42% AdobeRGB 1998 (Argyll)
Gamma: 2.3
Asus VivoBook E200HA-FD0041TS
TN LED, 1366x768, 11.6
HP Stream 11-r000ng
TN, 1366x768, 11.6
Jumper EZbook 3
TN LED, 1920x1080, 14.1
Medion Akoya S2218
IPS, 1920x1080, 11.6
Lenovo Flex 11 Chromebook
IPS, 1366x768, 11.6
Response Times
-16%
-22%
-47%
-16%
Response Time Grey 50% / Grey 80% *
45 (25, 20)
44 (24, 20)
2%
46 (25, 21)
-2%
27 (7, 20)
40%
33.6 (18.8, 14.8)
25%
Response Time Black / White *
18 (14, 4)
24 (8, 16)
-33%
11.6 (7.7, 3.8)
36%
33 (14, 19)
-83%
28 (16.4, 11.6)
-56%
PWM Frequency
24750 (30)
200 (99)
-99%
200 (90)
-99%
20830 (99)
-16%
Screen
-22%
-64%
12%
18%
Brightness
265
248
-6%
341
29%
394
49%
255
-4%
Brightness Distribution
85
84
-1%
76
-11%
88
4%
85
0%
Black Level *
0.35
0.5
-43%
1.28
-266%
0.43
-23%
0.31
11%
Contrast
763
528
-31%
300
-61%
970
27%
887
16%
Colorchecker DeltaE2000 *
6.67
9.78
-47%
8.7
-30%
6.7
-0%
5.2
22%
Greyscale DeltaE2000 *
7.84
11.16
-42%
11.1
-42%
6.25
20%
2.8
64%
Gamma
2.3 104%
2.44 98%
2.2 109%
2.48 97%
2.28 105%
CCT
8076 80%
12954 50%
12445 52%
5954 109%
6861 95%
Color Space (Percent of AdobeRGB 1998)
42
41
-2%
46
10%
Color Space (Percent of sRGB)
65
63
-3%
69
6%
Media totale (Programma / Settaggio)
-19% / -21%
-43% / -50%
-18% / -4%
1% / 7%

* ... Meglio usare valori piccoli

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
18 ms ... rise ↗ and fall ↘ combined↗ 14 ms Incremento
↘ 4 ms Calo
Lo schermo mostra buoni tempi di risposta durante i nostri tests, ma potrebbe essere troppo lento per i gamers competitivi.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 11 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (26.6 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
45 ms ... rise ↗ and fall ↘ combined↗ 25 ms Incremento
↘ 20 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 67 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (42.5 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 24750 Hz30 % brightness setting

The display backlight flickers at 24750 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 30 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 24750 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8568 (minimum: 43 - maximum: 142900) Hz was measured.

Grayscales
Grayscales
Color accuracy
Color accuracy
Saturation
Saturation
The Asus VivoBook E200HA in the sun
The Asus VivoBook E200HA in the sun
The Asus VivoBook E200HA in the shade
The Asus VivoBook E200HA in the shade
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
GPU-Z
GPU-Z
GPU-Z
HWiNFO
HWiNFO

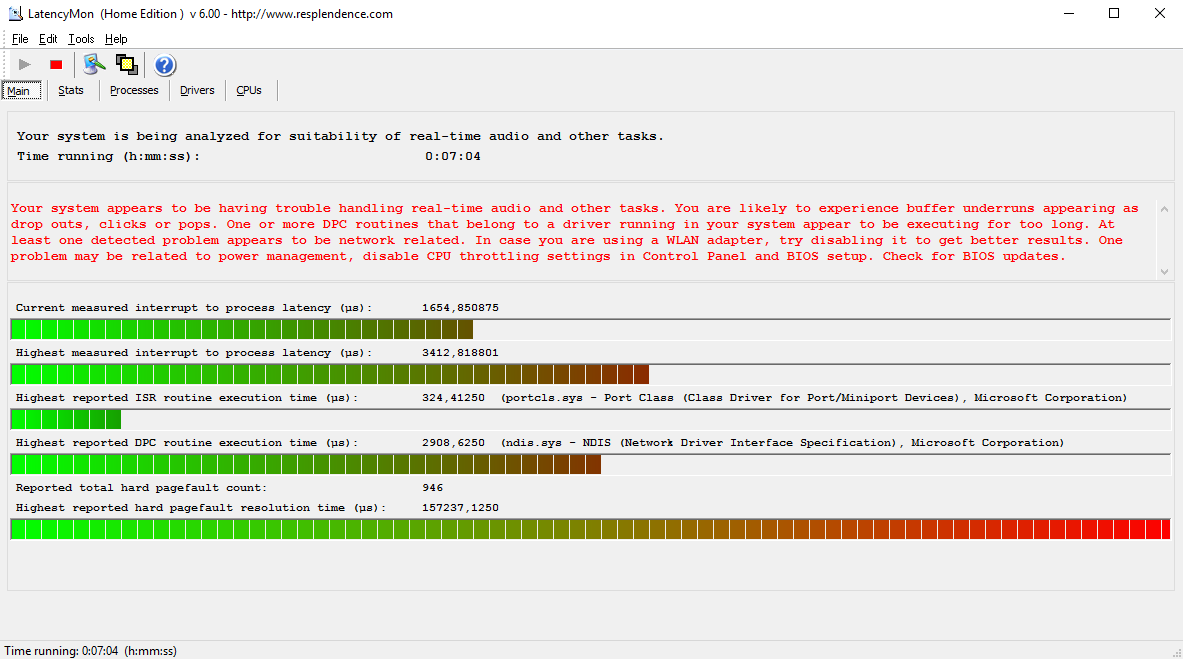

DPC latencies
DPC latencies
0102030405060708090100Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Jumper EZbook 3
Intel Celeron N3350
46 Points ∼23% +70%
HP Stream 11-r000ng
Intel Celeron N3050
28 Points ∼14% +4%
Asus VivoBook E200HA-FD0041TS
Intel Atom x5-Z8350
27 Points ∼14%
CPU Multi 64Bit
Asus VivoBook E200HA-FD0041TS
Intel Atom x5-Z8350
95 Points ∼4%
Jumper EZbook 3
Intel Celeron N3350
84 Points ∼4% -12%
HP Stream 11-r000ng
Intel Celeron N3050
57 Points ∼3% -40%
JetStream 1.1 - 1.1 Total Score
Jumper EZbook 3
Intel Celeron N3350
79.1 Points ∼0% +127%
Lenovo Flex 11 Chromebook
Mediatek MT8173C
57.116 Points ∼0% +64%
Asus VivoBook E200HA-FD0041TS
Intel Atom x5-Z8350
34.804 Points ∼0%
Cinebench R15
Cinebench R15
Jetstream 1.1
Jetstream 1.1
Cinebench R15 CPU Single 64Bit
27 Points
Cinebench R15 CPU Multi 64Bit
95 Points
Cinebench R15 OpenGL 64Bit
11.32 fps
Cinebench R15 Ref. Match 64Bit
98 %
Aiuto
PCMark 8 - Home Score Accelerated v2
Jumper EZbook 3
Intel Celeron N3350
1592 Points ∼27% +9%
HP Stream 11-r000ng
Intel Celeron N3050
1487 Points ∼25% +2%
Asus VivoBook E200HA-FD0041TS
Intel Atom x5-Z8350
1464 Points ∼25%
Medion Akoya S2218
Intel Atom Z3735F
1027 Points ∼17% -30%
PCMark 8 Home Score Accelerated v2
1464 punti
Aiuto
Asus VivoBook E200HA-FD0041TS
Hynix HBG4a2 32 GB eMMC
HP Stream 11-r000ng
32 GB eMMC Flash
Jumper EZbook 3
Toshiba 064G93 64 GB eMMC
Medion Akoya S2218
64 GB eMMC Flash
CrystalDiskMark 3.0
-12%
-54%
-32%
Write 4k QD32
28.32
13.21
-53%
2.74
-90%
8.734
-69%
Read 4k QD32
30.25
46.51
54%
16.4
-46%
37.24
23%
Write 4k
19.23
13.16
-32%
2.47
-87%
9.817
-49%
Read 4k
16.62
18.25
10%
5.07
-69%
15.25
-8%
Write 512
108.8
59.93
-45%
41.3
-62%
58.71
-46%
Read 512
154.9
165.8
7%
133
-14%
98.4
-36%
Write Seq
115.3
76.57
-34%
50
-57%
52.67
-54%
Read Seq
163.2
154.2
-6%
151
-7%
140.2
-14%
Hynix HBG4a2 32 GB eMMC
Sequential Read: 163.2 MB/s
Sequential Write: 115.3 MB/s
512K Read: 154.9 MB/s
512K Write: 108.8 MB/s
4K Read: 16.62 MB/s
4K Write: 19.23 MB/s
4K QD32 Read: 30.25 MB/s
4K QD32 Write: 28.32 MB/s
AS SSD
AS SSD
CrystalDiskMark 3.0
CrystalDiskMark 3.0
3DMark 11 - 1280x720 Performance GPU
Jumper EZbook 3
Intel HD Graphics 500, Intel Celeron N3350
458 Points ∼1% +32%
HP Stream 11-r000ng
Intel HD Graphics (Braswell), Intel Celeron N3050
375 Points ∼1% +8%
Asus VivoBook E200HA-FD0041TS
Intel HD Graphics 400 (Braswell), Intel Atom x5-Z8350
348 Points ∼1%
3DMark 11 Performance
395 punti
Aiuto
basso medio alto ultra
BioShock Infinite (2013) 18.78.8fps
F1 2013 (2013) 2817fps
Battlefield 4 (2013) 16.212.37.9fps
F1 2014 (2014) 2716fps
GTA V (2015) 14.3fps
Dirt Rally (2015) 40.111.7fps
The Witcher 3 (2015) 8.55.6fps
FIFA 16 (2015) 36.514.29fps
Overwatch (2016) 159.5fps
Farming Simulator 17 (2016) 20.95.8fps
Resident Evil 7 (2017) 10.7fps
Carico massimo
 40.6 °C39.4 °C27.1 °C
 35.6 °C35.1 °C26.3 °C
 27.6 °C27.1 °C24.9 °C
Massima: 40.6 °C
Media: 31.5 °C
25.5 °C35.6 °C40.2 °C
25.3 °C30.2 °C37.1 °C
25.8 °C27.3 °C29.2 °C
Massima: 40.2 °C
Media: 30.7 °C
Alimentazione (max)  33.4 °C | Temperatura della stanza 22.3 °C | FIRT 550-Pocket
Asus VivoBook E200HA-FD0041TS
Z8350, HD Graphics 400 (Braswell)
HP Stream 11-r000ng
N3050, HD Graphics (Braswell)
Jumper EZbook 3
N3350, HD Graphics 500
Medion Akoya S2218
Z3735F, HD Graphics (Bay Trail)
Lenovo Flex 11 Chromebook
MT8173C, PowerVR GX6250
Heat
-4%
2%
-14%
13%
Maximum Upper Side *
40.6
42.7
-5%
41
-1%
42.4
-4%
33
19%
Maximum Bottom *
40.2
41.3
-3%
42
-4%
49.7
-24%
36
10%
Idle Upper Side *
28.8
29
-1%
27
6%
32
-11%
25.2
12%
Idle Bottom *
29.4
31.2
-6%
27
8%
34
-16%
25.8
12%

* ... Meglio usare valori piccoli

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.629.831.6253131.2313130.630.430.64028.528.928.55030.729.430.76328.127.828.18027.825.927.810027.127.127.112527.324.927.316026.324.226.320026.822.526.825036.821.536.831543.220.743.240047.120.247.150050.619.250.663050.918.450.980062.718.162.7100068.817.568.8125068.517.268.5160065.517.565.5200065.617.365.6250067.217.367.2315066.317.666.3400069.417.669.4500074.117.774.1630069.917.969.9800066.51866.51000061.118.261.11250066.618.266.61600064.618.364.6SPL80.130.180.1N42.51.442.5median 64.6Asus VivoBook E200HA-FD0041TSmedian 18.2median 64.6Delta11.81.411.85346.35139.15341.740.543.836.941.74038.841.738.64039.844.143.336.539.841.342.94336.641.341.941.143.835.741.937.143.342.132.537.136.939.743.532.136.936.540.244.329.436.538.341.545.82938.338.344.54729.338.340.946.65126.840.948.754.757.826.248.753.758.661.924.353.753.458.461.723.853.452.658.361.72352.658.264.167.622.158.256.7636621.456.752.958.661.721.452.950.256.659.820.650.258.164.468.120.258.159.966.269.620.359.951.257.360.819.851.245.75255.419.845.741.74851.619.741.753.459.863.119.553.450.75759.519.550.745.852.155.119.445.843.750.454.119.243.742.348.553.219.142.366.572.776.133.466.520.229.436.12.120.2median 50.2Medion Akoya S2218median 56.6median 59.5median 21.4median 50.25.75.54.93.25.7hearing rangehide median Pink Noise
Asus VivoBook E200HA-FD0041TS audio analysis

(±) | speaker loudness is average but good (74 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 33.4% lower than median
(+) | bass is linear (6.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 7.1% lower than median
(±) | linearity of mids is average (7.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27% difference to median)
Compared to same class
» 82% of all tested devices in this class were better, 4% similar, 14% worse
» The best had a delta of 9%, average was 20%, worst was 47%
Compared to all devices tested
» 78% of all tested devices were better, 5% similar, 17% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Medion Akoya S2218 audio analysis

(-) | not very loud speakers (68 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.2% lower than median
(+) | bass is linear (6.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.5% away from median
(±) | linearity of highs is average (14.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.3% difference to median)
Compared to same class
» 36% of all tested devices in this class were better, 5% similar, 58% worse
» The best had a delta of 9%, average was 20%, worst was 47%
Compared to all devices tested
» 22% of all tested devices were better, 6% similar, 72% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo di corrente
Off / Standbydarklight 0.25 / 0.37 Watt
Idledarkmidlight 4.3 / 6 / 6.3 Watt
Sotto carico midlight 11.4 / 10.8 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Asus VivoBook E200HA-FD0041TS
Z8350, HD Graphics 400 (Braswell), Hynix HBG4a2 32 GB eMMC, TN LED, 1366x768, 11.6
HP Stream 11-r000ng
N3050, HD Graphics (Braswell), 32 GB eMMC Flash, TN, 1366x768, 11.6
Jumper EZbook 3
N3350, HD Graphics 500, Toshiba 064G93 64 GB eMMC, TN LED, 1920x1080, 14.1
Medion Akoya S2218
Z3735F, HD Graphics (Bay Trail), 64 GB eMMC Flash, IPS, 1920x1080, 11.6
Lenovo Flex 11 Chromebook
MT8173C, PowerVR GX6250, 32 GB eMMC Flash, IPS, 1366x768, 11.6
Power Consumption
10%
-4%
-10%
32%
Idle Minimum *
4.3
3.1
28%
3.18
26%
3.8
12%
1.5
65%
Idle Average *
6
4.8
20%
6.14
-2%
7.2
-20%
5.4
10%
Idle Maximum *
6.3
5.1
19%
6.4
-2%
7.3
-16%
5.5
13%
Load Average *
11.4
11.9
-4%
13.3
-17%
11.8
-4%
6.3
45%
Load Maximum *
10.8
12.3
-14%
13.6
-26%
13
-20%
7.9
27%

* ... Meglio usare valori piccoli

Asus VivoBook E200HA-FD0041TS
Z8350, HD Graphics 400 (Braswell), 38 Wh
HP Stream 11-r000ng
N3050, HD Graphics (Braswell), 37 Wh
Jumper EZbook 3
N3350, HD Graphics 500, 38 Wh
Medion Akoya S2218
Z3735F, HD Graphics (Bay Trail), 43 Wh
Lenovo Flex 11 Chromebook
MT8173C, PowerVR GX6250, 45 Wh
Battery Runtime
WiFi Websurfing 1.3
534
515
-4%
420
-21%
500
-6%
764
43%
Autonomia della batteria
Navigazione WiFi v1.3 (Edge 25.10586.672.0)
8ore 54minuti

Pro

+ prezzo attraente
+ silenzioso
+ buoni dispositivi di input
+ digitazione comoda
+ buona autonomia
+ consumi contenuti
+ peso contenuto

Contro

- tastiera non illuminata
- cover non molto robusta
- angoli di visuale instabili del pannello TN
- solo 2 GB di RAM
- solo 32 GB di spazio flash
Asus VivoBook E200HA, modello fornito da Notebooksbilliger.de
Asus VivoBook E200HA, modello fornito da Notebooksbilliger.de

L'Asus VivoBook E200HA è un subnotebook da 11,6". Sebbene il dispositivo non sia tra i più veloci, il prezzo di appena 249 Euro (~$294) attira i clienti. Per questo prezzo, avrete un piccolo compagno che monta un frugale processore quad-core. Se il peso contenuto fa pensare a una buona mobilità, il dispositivo è comunque relativamente robusto. Se non vi piace il bianco del nostro dispositivo, potete anche comprare il VivoBook E200HA in blu o oro.

Asus ha unito componenti molto efficienti energeticamente nel VivoBook E200HA, ottenendo valori di emissioni molto buoni da questo subnotebook da 11". Inoltre buoni dispositivi di input ed ampia autonomia sono argomenti a favore del VivoBook E200HA.

Siamo rimasti contenti dei dispositivi di input, sebbene avremmo preferito una tastiera retroilluminata. Il nostro dispositivo perde punti importanti a causa del display. Il pannello TN non è adatto all'utilizzo all'aperto. In aggiunta, gli angoli di visuale sono limitati, e lo stesso vale per la copertura del colore. In termini di spazio di archiviazione, l'OS è troppo avido per 32 GB. Il sistema operativo usa più della metà di questo spazio, quindi è difficile avere disponibilità per i vostri programmi. Lo stesso vale per la memoria di lavoro, che è di appena 2 GB. Chiunque stia considerando l'acquisto dell'Asus VivoBook E200HA dovrebbe pensare ad una versione da 64 GB o da 128 GB. Sfortunatamente, non ci sono opzioni per la RAM che non può essere aumentata.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Asus VivoBook E200HA-FD0041TS - 07/28/2017 v6
Sebastian Bade

Chassis
78 /  98 → 79%
Tastiera
79%
Dispositivo di puntamento
83%
Connettività
36 / 80 → 45%
Peso
75 / 78 → 94%
Batteria
91%
Display
76%
Prestazioni di gioco
34 / 68 → 49%
Prestazioni Applicazioni
43 / 87 → 49%
Temperatura
93 / 91 → 100%
Rumorosità
100%
Audio
50 / 91 → 55%
Fotocamera
37 / 85 → 43%
Media
67%
81%
Subnotebook - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve delSubnotebook Asus VivoBook E200HA (x5-Z8350, 32 GB)
Sebastian Bade, 2017-08- 9 (Update: 2017-08- 9)
