Recensione del convertibile Asus Zenbook Duo OLED (2024): Campione di multitasking con Core Ultra 9

Tuttofare con due schermi OLED. Asus porta il multitasking a un nuovo livello con il nuovo Zenbook Duo OLED. Il versatile computer portatile colpisce per i due fantastici schermi OLED da 120 Hz e per il sofisticato concetto operativo. È inoltre dotato del nuovo Intel Core Ultra 9 185H e di 32 GB di RAM.

La serie Duo di Asus con due schermi è disponibile da alcuni anni, ma il display secondario è sempre stato un piccolo display aggiuntivo. Il nuovo Zenbook Duo OLED UX8406MA, invece, ha due schermi OLED da 14 pollici identici, che rendono il dispositivo molto versatile. Oltre a uno stilo attivo e a una custodia protettiva, è inclusa una tastiera Bluetooth con touchpad, il che significa che lo Zenbook Duo può essere utilizzato come un normale computer portatile.

In termini di hardware, ci sono grandi somiglianze con lo Zenbook 14 precedentemente recensito, in quanto i due schermi OLED sono disponibili come modelli Full HD con 60 Hz o 3K con 120 Hz. Tutte le varianti sono dotate dei nuovi processori Meteor Lake di Intel. I prezzi partono da 1499 dollari; il nostro dispositivo di prova è la versione di fascia alta con i due pannelli OLED ad alta risoluzione, il modello Core Ultra 9 185H32 GB di RAM e un SSD da 2 TB, al prezzo di 3999,99 dollari.

Asus Zenbook Duo OLED UX8406MA
Processore
Intel Core Ultra 9 185H 16 x 3.8 - 5.1 GHz, 64 W PL2 / Short Burst, 20 W PL1 / Sustained, Meteor Lake-H
Scheda grafica
Intel Arc 8-Cores iGPU, 31.0.101.5008
Memoria
32 GB
, LPDDR5x-7467, Dual-Channel, onboard
Schermo
14.00 pollici 16:10, 2880 x 1800 pixel 243 PPI, capacitive, supporto penna nativo, SDC419D, OLED, lucido: si, HDR, 120 Hz
Scheda madre
Intel Meteor Lake-U/P/H PCH
Harddisk
WD PC SN740 SDDPNQE-2T00, 2048 GB
, 1833 GB libera
Scheda audio
Intel Meteor Lake-U/P/H PCH - cAVS (Audio, Voice, Speech)
Porte di connessione
1 USB 3.0 / 3.1, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Connessioni Audio: 3.5 mm Stereo, Sensore luminosità
Rete
Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2
Dimensioni
altezza x larghezza x profondità (in mm): 19.9 x 313.5 x 217.9
Batteria
75 Wh polimeri di litio
Sistema Operativo
Microsoft Windows 11 Home
Camera
Webcam: 1080p + IR
Fotocamera Principale: 2 MPix
Altre caratteristiche
Casse: Stereo, Tastiera: Chiclet, Illuminazione Tastiera: si, Asus Pen 2.0, 65W PSU, MyAsus, ScreenXpert, 24 Mesi Garanzia
Peso
1.708 kg, Alimentazione: 191 gr
Prezzo
2499 Euro
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confrontos

Punteggio
Data
Modello
Peso
Altezza
Dimensione
Risoluzione
Miglior Prezzo
87.8 %
03/2024
Asus Zenbook Duo OLED UX8406MA
Ultra 9 185H, Arc 8-Cores
1.7 kg19.9 mm14.00"2880x1800
86.4 %
05/2023
Lenovo Yoga Book 9i 2-in-1 Dual Screen
i7-1355U, Iris Xe G7 96EUs
1.6 kg15.95 mm13.30"2880x1800
91.4 %
02/2024
HP Spectre x360 14-eu0078ng
Ultra 7 155H, Arc 8-Cores
1.5 kg16.9 mm14.00"2880x1800
87.9 %
06/2023
Dell Latitude 9440 2-in-1
i7-1365U, Iris Xe G7 96EUs
1.6 kg16.28 mm14.00"2560x1600
89.3 %
03/2023
Lenovo Yoga 9 14IRP G8
i7-1360P, Iris Xe G7 96EUs
1.4 kg15.25 mm14.00"2880x1800
84.4 %
06/2022
Asus Zenbook Pro 14 Duo OLED UX8402ZA
i7-12700H, Iris Xe G7 96EUs
1.7 kg19.6 mm14.50"2880x1800

Custodia - Come uno Zenbook 14, solo più spessa

Il design di base dello Zenbook Duo ricorda molto l'attuale Zenbook 14, in quanto presenta anche il grande logo Pro Art sul coperchio ed entrambi hanno la stessa sensazione. Tuttavia, lo Zenbook Duo è disponibile in un colore grigio scuro(Inkwell Gray) ed è più pesante e più spesso. Lo stesso identico schermo OLED da 14 pollici è installato sulla parte superiore dell'unità base, ma è possibile posizionare una tastiera Bluetooth completa con ClickPad. Questa è tenuta saldamente in posizione da magneti e copre l'intera unità di base, non solo una parte di essa (come nel caso di Lenovo Yoga Book 9i).

Nella parte inferiore dell'unità di base è integrato un grande cavalletto, che consente vari stili di utilizzo. Naturalmente, lo Zenbook Duo può essere utilizzato come un normale computer portatile con una normale tastiera, il che rappresenta un grande vantaggio rispetto allo Zenbook Pro Duo. D'altra parte, gli utenti possono rimuovere la tastiera e utilizzare due display sovrapposti. Inoltre, il dispositivo può essere configurato come un libro, ma in questo caso non è particolarmente stabile sulla scrivania e il design del cavalletto non è ottimale.

In termini di qualità, lo chassis in metallo dello Zenbook Duo dà un'impressione di grande stabilità e solidità; solo la kickstand ha un po' di gioco. Non abbiamo osservato alcuno scricchiolio e il coperchio è molto stabile. Il coperchio dello schermo può essere aperto facilmente con una mano e l'angolo di apertura massimo è di 180 gradi. Le cerniere, tuttavia, potrebbero essere un po' più strette, poiché lo schermo traballa un po'.

Come descritto in precedenza, lo Zenbook Duo è naturalmente più pesante, con un totale di 1,7 kg (1,39 kg per il dispositivo stesso + 317 grammi per la tastiera) e, con un'altezza di quasi 2 cm, più spesso dei computer portatili convenzionali come lo Zenbook 14 o dei convertibili come lo HP Spectre x360 14 o lo Yoga 9i 14. Ma le dimensioni sono approssimativamente paragonabili a quelle dello Zenbook Pro 14 Duoche utilizza anch'esso due display. L'alimentatore plug-in da 65 watt è estremamente compatto e pesa solo 191 grammi, incluso il cavo.

Zenbook Duo OLED (sinistra) vs. Zenbook 14 OLED (destra)
Zenbook Duo OLED (sinistra) vs. Zenbook 14 OLED (destra)
Zenbook Duo OLED (in basso) vs. Zenbook 14 OLED (in alto)
Zenbook Duo OLED (in basso) vs. Zenbook 14 OLED (in alto)

Confronto delle dimensioni

323.5 mm 224.7 mm 19.6 mm 1.7 kg313.5 mm 217.9 mm 19.9 mm 1.7 kg318 mm 230 mm 15.25 mm 1.4 kg313.7 mm 220.4 mm 16.9 mm 1.5 kg312.4 mm 220.1 mm 14.9 mm 1.2 kg310.5 mm 215 mm 16.28 mm 1.6 kg299.1 mm 203.9 mm 15.95 mm 1.6 kg297 mm 210 mm 1 mm 5.7 g

Apparecchiature - Thunderbolt e HDMI

Le porte dello Zenbook Duo corrispondono a quelle del normale Zenbook 14: oltre alle due porte Thunderbolt, gli utenti hanno anche una normale porta USB-A e un'uscita HDMI completa. Tuttavia, le porte USB si trovano tutte sul lato sinistro dell'unità base. La tastiera Bluetooth dispone anche di una porta USB-C per la ricarica, ma anche questa funziona molto comodamente tramite i pogo pin sulla parte anteriore dell'unità base. Non appena la tastiera viene agganciata, si ricarica automaticamente. Manca invece un lettore di schede.

A sinistra: USB-A 3.2 Gen.1 (5 Gbit/s), 2x USB-C 4.0 con Thunderbolt 4 (40 GBit/s, DisplayPort, Power Delivery), USB-C (per la ricarica della tastiera Bluetooth)
A sinistra: USB-A 3.2 Gen.1 (5 Gbit/s), 2x USB-C 4.0 con Thunderbolt 4 (40 GBit/s, DisplayPort, Power Delivery), USB-C (per la ricarica della tastiera Bluetooth)

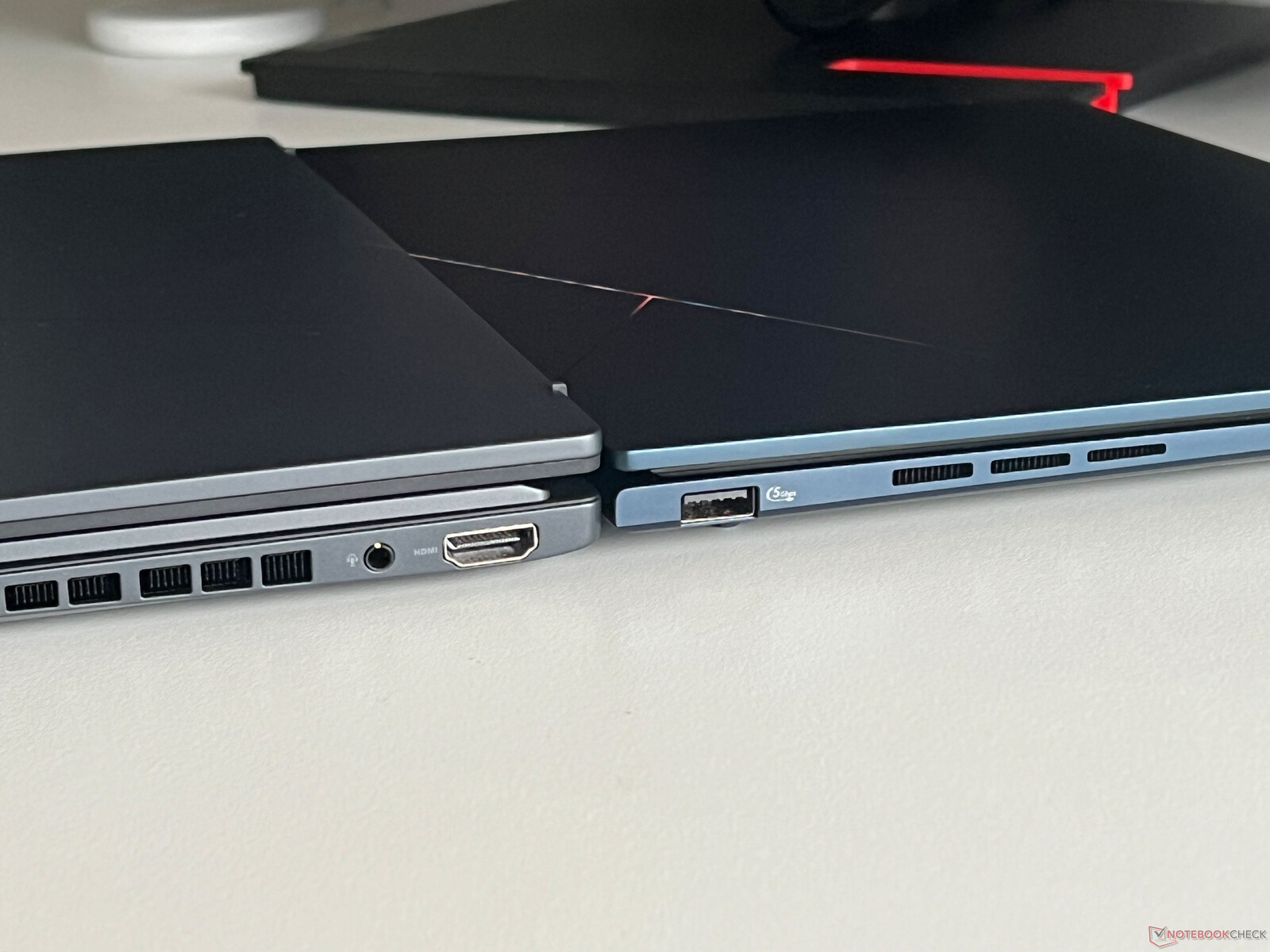

A destra: audio da 3,5 mm, HDMI 2.1
A destra: audio da 3,5 mm, HDMI 2.1

Comunicazione

Il nuovo Zenbook Duo non è ancora compatibile con il WiFi 7, ma è stato installato un modulo WiFi 6E veloce, ossia la scheda AX211 di Intel. In tandem con il nostro router di riferimento Asus, le velocità di trasferimento sono state molto elevate e stabili. Non ci sono stati problemi di stabilità WiFi durante i test.

Networking
Asus Zenbook Duo OLED UX8406MA
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1635 (min: 1533) MBit/s ∼100%
iperf3 receive AXE11000
1647 (min: 1591) MBit/s ∼100%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
993 (min: 762) MBit/s ∼61%
iperf3 receive AXE11000
1212 (min: 1032) MBit/s ∼73%
iperf3 transmit AXE11000 6GHz
1008 (min: 709) MBit/s ∼63%
iperf3 receive AXE11000 6GHz
1171 (min: 754) MBit/s ∼70%
HP Spectre x360 14-eu0078ng
Intel Wi-Fi 7 BE200 320MHz
iperf3 transmit AXE11000
1631 (min: 1520) MBit/s ∼100%
iperf3 receive AXE11000
1647 (min: 1625) MBit/s ∼100%
Dell Latitude 9440 2-in-1
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
935 (min: 743) MBit/s ∼57%
iperf3 receive AXE11000
1173 (min: 1017) MBit/s ∼71%
iperf3 transmit AXE11000 6GHz
1056 (min: 842) MBit/s ∼66%
iperf3 receive AXE11000 6GHz
1231 (min: 957) MBit/s ∼74%
Lenovo Yoga 9 14IRP G8
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1584 (min: 1475) MBit/s ∼97%
iperf3 receive AXE11000
1430 (min: 1392) MBit/s ∼86%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000 6GHz
1601 (min: 1502) MBit/s ∼100%
iperf3 receive AXE11000 6GHz
1665 (min: 1628) MBit/s ∼100%
Asus ZenBook 14 UX3405MA
Intel Wi-Fi 6E AX211
iperf3 transmit AXE11000
1638 (min: 1574) MBit/s ∼100%
iperf3 receive AXE11000
1654 (min: 1582) MBit/s ∼100%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650Tooltip
Asus Zenbook Duo OLED UX8406MA; iperf3 transmit AXE11000: Ø1635 (1533-1688)
Asus Zenbook Duo OLED UX8406MA; iperf3 receive AXE11000: Ø1647 (1591-1688)

Webcam

Asus installa una webcam da 1080p con un modulo IR per il riconoscimento facciale tramite Windows Hello. La qualità dell'immagine è solida in buone condizioni di illuminazione. Sono supportati anche gli effetti di studio (sfondo sfocato, contatto visivo, tracciamento della testa).

ColorChecker
2.6 ∆E
4.6 ∆E
8.1 ∆E
3 ∆E
7 ∆E
4.5 ∆E
4.6 ∆E
8.7 ∆E
7.8 ∆E
3.2 ∆E
4.9 ∆E
5.2 ∆E
4.4 ∆E
6.1 ∆E
11.3 ∆E
4.8 ∆E
8.6 ∆E
8.7 ∆E
2.7 ∆E
6.9 ∆E
8.6 ∆E
7.9 ∆E
5.9 ∆E
8.1 ∆E
ColorChecker Asus Zenbook Duo OLED UX8406MA: 6.18 ∆E min: 2.61 - max: 11.32 ∆E

Manutenzione

In linea di principio, lo Zenbook Duo consente di accedere a componenti come l'SSD M.2-2280, la batteria o la ventola. Tuttavia, a differenza dei computer portatili tradizionali, la procedura è molto più complicata. In primo luogo, è necessario svitare il kickstand sul lato inferiore, seguito da un'altra copertura sul lato inferiore, fissata con due viti. Sotto ci sono due cavi a nastro che devono essere rimossi. Solo a questo punto è possibile rimuovere la base del portatile (fissata con viti Torx). Questo non è sicuramente un lavoro per utenti inesperti e volevamo anche evitare di danneggiare il dispositivo di prova, motivo per cui abbiamo interrotto il tentativo a questo punto. Le foto degli interni saranno pubblicate non appena possibile.

Un piccolo sportello di manutenzione sotto il cavalletto.
Un piccolo sportello di manutenzione sotto il cavalletto.
Prima di poter rimuovere la base, è necessario allentare due collegamenti.
Prima di poter rimuovere la base, è necessario allentare due collegamenti.

Dispositivi di input - Zenbook Duo con tastiera completa

Lo Zenbook Duo è dotato di una tastiera aggiuntiva che viene fissata magneticamente all'unità base. La forza del fissaggio è molto solida e la tastiera non scivola di un millimetro durante l'uso. Nella parte inferiore ci sono dei contatti che collegano la tastiera al notebook e la caricano allo stesso tempo. Quando la tastiera viene rimossa, rimane collegata allo Zenbook tramite Bluetooth. È presente una retroilluminazione bianca con tre livelli di intensità, che può anche essere controllata automaticamente tramite un sensore di luce ambientale.

Fondamentalmente, le caratteristiche della tastiera sono le stesse del normale Zenbook 14, quindi c'è una corsa dei tasti di 1,4 mm e nessun compromesso nel layout (rispetto allo Zenbook 14 Duo, per esempio). I testi lunghi possono essere digitati molto comodamente e gli utenti non hanno alcuno svantaggio rispetto a un laptop/convertibile convenzionale. Questo vale anche per il ClickPad, dove i clic sono ancora più silenziosi e si sentono in modo più premium che sullo Zenbook 14. Anche le proprietà di scorrimento sono molto buone.

Dispositivi di ingresso
Dispositivi di ingresso
Retroilluminazione della tastiera
Retroilluminazione della tastiera
Il secondo touchscreen può essere utilizzato come tastiera virtuale.
Il secondo touchscreen può essere utilizzato come tastiera virtuale.

Entrambi gli schermi sono touchscreen e possono naturalmente essere utilizzati per gli input. Qui entra in gioco lo stilo incluso, che funziona molto bene, ma non può essere fissato al telaio. Si tratta della Asus Pen 2.0 SA203H (4096 livelli di pressione), che ha le stesse dimensioni di una normale penna e quindi è molto comoda da tenere in mano, anche quando viene utilizzata per lunghi periodi di tempo. Si ricarica tramite USB-C

Inoltre, il touchscreen inferiore può essere utilizzato come tastiera virtuale, per cui è possibile visualizzare solo la tastiera o la tastiera insieme a un touchpad simulato (sotto la tastiera o a destra di essa). Tuttavia, questo è piuttosto strano da usare, in quanto non c'è alcun feedback aptico quando vengono premuti i tasti. Tuttavia, vista la buona tastiera inclusa nel portatile, non vediamo alcun motivo per utilizzare la tastiera virtuale.

Display - Zenbook Duo con due fantastici pannelli OLED

Griglia di subpixel
Griglia di subpixel

Come il normale Zenbook 14, lo Zenbook Duo offre una scelta tra pannelli OLED con risoluzione Full HD (60 Hz) o risoluzione 3K a 120 Hz. Vengono utilizzati due pannelli Samsung identici, il che rappresenta un enorme vantaggio in termini di funzionamento, in quanto i problemi di ridimensionamento appartengono al passato e gli utenti non hanno la sensazione che il secondo display sia di qualità inferiore, come accadeva con lo Zenbook Pro 14 Duo. Non appena si rimuove la tastiera, si attiva il secondo schermo. Asus offre ampie opzioni con il software ScreenXpert, che consente di disporre rapidamente le applicazioni sui due schermi o di attivare la tastiera virtuale. Tutto funziona molto bene e dopo un po' di familiarizzazione gli utenti possono davvero sfruttare al meglio i due schermi.

I due pannelli Samsung si sono comportati molto bene nei nostri test di misurazione e i risultati sono praticamente identici (con piccole deviazioni). La luminosità media in modalità SDR è di 384 cd/m², che, insieme al basso livello di nero, si traduce in un rapporto di contrasto molto elevato. Anche la qualità dell'immagine soggettiva è eccellente, in quanto tutti i contenuti sul pannello 3K (2880 x 1800, 16:10) sono nitidissimi e i colori appaiono estremamente vivaci. L'aumento della frequenza (120 Hz) consente un movimento fluido dello schermo e tempi di risposta molto rapidi.

Luminosità massima HDR
Luminosità massima HDR

Anche le capacità HDR dei due pannelli OLED sono molto buone, in quanto abbiamo misurato una luminosità massima di 656 cd/m² per piccole sezioni di immagine e più di 620 cd/m² su un'immagine quasi completamente bianca. Come di consueto con i computer portatili Windows, l'HDR deve essere attivato manualmente nelle impostazioni per poter visualizzare correttamente i contenuti corrispondenti (ad esempio i video). Tuttavia, la gestione del colore non funziona correttamente quando l'HDR è attivo. Microsoft deve urgentemente apportare dei miglioramenti e seguire l'esempio di Apple, dove la luminosità aggiuntiva viene facilmente fornita dal display quando viene visualizzato il contenuto corrispondente.

386
cd/m²
380
cd/m²
380
cd/m²
388
cd/m²
381
cd/m²
381
cd/m²
388
cd/m²
385
cd/m²
383
cd/m²
Distribuzione della luminosità
SDC419D tested with X-Rite i1Pro 2
Massima: 388 cd/m² (Nits) Media: 383.6 cd/m² Minimum: 1.3 cd/m²
Distribuzione della luminosità: 98 %
Al centro con la batteria: 381 cd/m²
Contrasto: ∞:1 (Nero: 0 cd/m²)
ΔE Color 1.6 | 0.5-29.43 Ø5
ΔE Greyscale 2.6 | 0.57-98 Ø5.3
91.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.2
Asus Zenbook Duo OLED UX8406MA
SDC419D, OLED, 2880x1800, 14.00
Lenovo Yoga Book 9i 2-in-1 Dual Screen
SDC ATNA33AA02-0, OLED, 2880x1800, 13.30
HP Spectre x360 14-eu0078ng
SDC4197, OLED, 2880x1800, 14.00
Dell Latitude 9440 2-in-1
AU Optronics B140QAN, IPS, 2560x1600, 14.00
Lenovo Yoga 9 14IRP G8
LEN140WQ+, OLED, 2880x1800, 14.00
Asus Zenbook Pro 14 Duo OLED UX8402ZA
ATNA45AF01-0, OLED, 2880x1800, 14.50
Asus ZenBook 14 UX3405MA
ATNA40CU06-0, OLED, 2880x1800, 14.00
Display
1%
-1%
-13%
2%
2%
2%
Display P3 Coverage
99.6
99.8
0%
99.8
0%
77.2
-22%
99.9
0%
99.9
0%
99.8
0%
sRGB Coverage
100
100
0%
100
0%
99.6
0%
100
0%
100
0%
100
0%
AdobeRGB 1998 Coverage
91.8
95.4
4%
89.3
-3%
77.4
-16%
98.3
7%
97.4
6%
97.6
6%
Response Times
-131%
0%
-5545%
-28%
-159%
6%

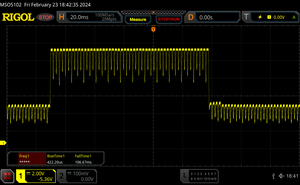

Response Time Grey 50% / Grey 80% *
0.77 ?(0.42, 0.35)
1.83 ?(0.9, 0.93)
-138%
0.77 ?(0.37, 0.4)
-0%
53.5 ?(23.6, 29.9)
-6848%
1.04 ?(0.57, 0.57)
-35%
2.4 ?(1.2, 1.2)
-212%
0.69 ?(0.37, 0.32)
10%
Response Time Black / White *
0.76 ?(0.41, 0.35)
2.03 ?(0.93, 1.1)
-167%
0.75 ?(0.4, 0.35)
1%
33 ?(16, 17)
-4242%
0.95 ?(0.48, 0.47)
-25%
2.4 ?(1.2, 1.2)
-216%
0.71 ?(0.38, 0.33)
7%

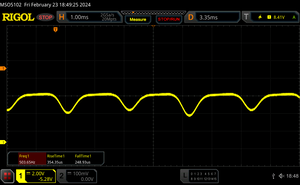

PWM Frequency
480 ?(80)
60 ?(100)
-87%
480
0%
360 ?(86)
-25%
240 ?(100)
-50%
480 ?(80)
0%
Screen
-73%
6%
-24%
-28%
-31%
11%
Brightness middle
381
359.7
-6%
378
-1%
532.4
40%
378
-1%
356
-7%
391
3%
Brightness
384
363
-5%
384
0%
502
31%
379
-1%
357
-7%
392
2%
Brightness Distribution
98
98
0%
97
-1%
91
-7%
98
0%
99
1%
98
0%
Black Level *
0.48
0.03
0.02
0.02
Colorchecker dE 2000 *
1.6
4.51
-182%
1.4
12%
2.33
-46%
2.5
-56%
2.6
-63%
1.1
31%
Colorchecker dE 2000 max. *
2
7.05
-253%
2.2
-10%
5.99
-200%
4.7
-135%
4.5
-125%
2.4
-20%
Greyscale dE 2000 *
2.6
2.4
8%
1.7
35%
1.6
38%
1.9
27%
2.2
15%
1.3
50%
Gamma
2.2 100%
2.18 101%
2.17 101%
2.17 101%
2.2 100%
2.2 100%
2.17 101%
CCT
6784 96%
6112 106%
6256 104%
6314 103%
6222 104%
6246 104%
6336 103%
Contrast
1109
12600
17800
19550
Colorchecker dE 2000 calibrated *
0.92
1.9
2
Media totale (Programma / Settaggio)
-68% / -69%
2% / 3%
-1861% / -1025%
-18% / -20%
-63% / -55%
6% / 7%

* ... Meglio usare valori piccoli

Nel software MyAsus sono disponibili diversi profili, che abbiamo misurato utilizzando il software professionale CalMAN (X-Rite i1 Pro2). Il profilo Nativo è attivo per impostazione predefinita, ma i colori sono un po' sovrasaturi. Questo non è un problema grave nell'uso quotidiano, in quanto i colori appaiono effettivamente un po' più intensi. Tuttavia, se preferisce i colori precisi, le consigliamo il profilo Display P3 , in quanto i colori rimangono al di sotto dell'importante deviazione di 3.

Scala di grigi CalMAN (profilo: Nativo, spazio colore di destinazione: P3)
Scala di grigi CalMAN (profilo: Nativo, spazio colore di destinazione: P3)
Saturazione CalMAN (profilo: Nativo, spazio colore di destinazione: P3)
Saturazione CalMAN (profilo: Nativo, spazio colore di destinazione: P3)
CalMAN ColorChecker (profilo: Nativo, spazio colore di destinazione: P3)
CalMAN ColorChecker (profilo: Nativo, spazio colore di destinazione: P3)
Scala di grigi CalMAN (profilo: P3, spazio colore di destinazione: P3)
Scala di grigi CalMAN (profilo: P3, spazio colore di destinazione: P3)
Saturazione CalMAN (profilo: P3, spazio colore di destinazione: P3)
Saturazione CalMAN (profilo: P3, spazio colore di destinazione: P3)
CalMAN ColorChecker (profilo: P3, spazio colore di destinazione: P3)
CalMAN ColorChecker (profilo: P3, spazio colore di destinazione: P3)

Entrambi gli spazi colore P3 e sRGB sono completamente coperti e c'è anche un profilo sRGB adatto che limita lo spazio colore di conseguenza. Anche qui i colori sono molto precisi. Utilizzando la nostra calibrazione, siamo riusciti a migliorare la visualizzazione della scala di grigi, ma questo ha aumentato le deviazioni del colore, motivo per cui non offriamo il profilo da scaricare qui.

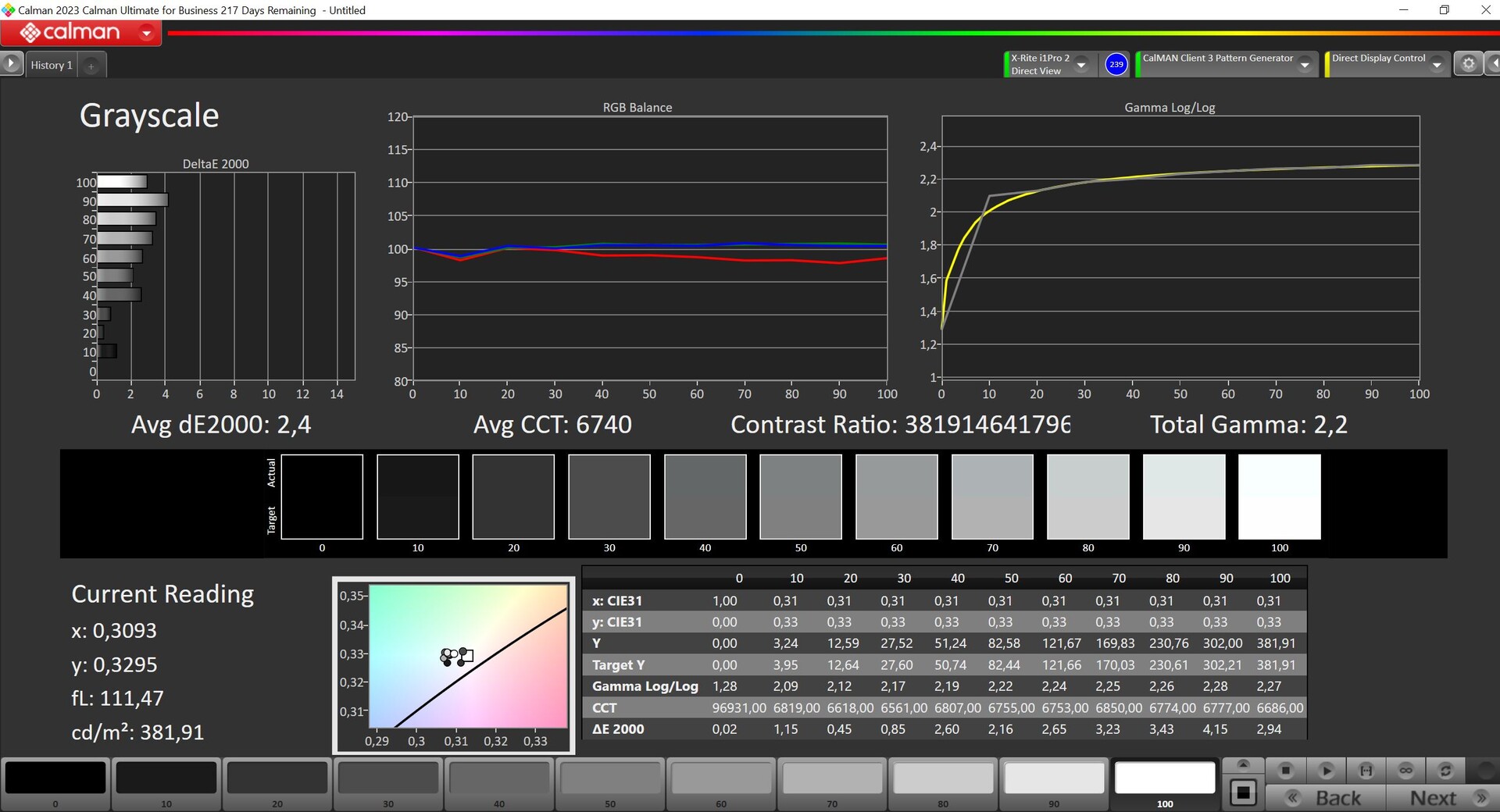

Scala di grigi CalMAN (profilo: sRGB, spazio colore di destinazione: sRGB)
Scala di grigi CalMAN (profilo: sRGB, spazio colore di destinazione: sRGB)
Saturazione CalMAN (profilo: sRGB, spazio colore di destinazione: sRGB)
Saturazione CalMAN (profilo: sRGB, spazio colore di destinazione: sRGB)
CalMAN ColorChecker (profilo: sRGB, spazio colore di destinazione: sRGB)
CalMAN ColorChecker (profilo: sRGB, spazio colore di destinazione: sRGB)
rispetto a sRGB
rispetto a sRGB
contro P3
contro P3
contro Adobe
contro Adobe

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti possono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con tempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
0.76 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 0.41 ms Incremento
↘ 0.35 ms Calo
Lo schermo ha mostrato valori di risposta molto veloci nei nostri tests ed è molto adatto per i gaming veloce.
In confronto, tutti i dispositivi di test variano da 0.1 (minimo) a 240 (massimo) ms. » 1 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono migliori rispettto alla media di tutti i dispositivi testati (21.5 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
0.77 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 0.42 ms Incremento
↘ 0.35 ms Calo
Lo schermo ha mostrato valori di risposta molto veloci nei nostri tests ed è molto adatto per i gaming veloce.
In confronto, tutti i dispositivi di test variano da 0.2 (minimo) a 636 (massimo) ms. » 1 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono migliori rispettto alla media di tutti i dispositivi testati (33.7 ms).

Sfarfallio dello schermo / PWM (Pulse-Width Modulation)

Per ridurre la luminosità dello schermo, alcuni portatili accendono e spengono la retroilluminazione in rapida successione - un metodo chiamato Pulse Width Modulation (PWM). Questa frequenza di ciclo a livello ideale non dovrebbe essere percepibile dall'occhi umano. Se tale frequenza è troppo bassa, gli utenti con occhi sensibili potrebbero stancarsi gli occhi o avere mal di testa o anche notare uno sfarfallio.
flickering dello schermo / PWM rilevato 480 Hz ≤ 80 % settaggio luminosita'

Il display sfarfalla a 480 Hz (Probabilmente a causa dell'uso di PWM) Flickering rilevato ad una luminosita' di 80 % o inferiore. Non dovrebbe verificarsi flickering o PWM sopra questo valore di luminosita'.

La frequenza di 480 Hz è relativamente elevata, quindi la maggioranza degli utenti sensibili al PWM non dovrebbe notare alcun flickering. Tuttavia, è stato segnalato che alcuni utenti sono sensibili al PWM a 500 Hz ed oltre, quindi prestate attenzione.

In confronto: 53 % di tutti i dispositivi testati non utilizza PWM per ridurre la luminosita' del display. Se è rilevato PWM, una media di 17903 (minimo: 5 - massimo: 3846000) Hz è stata rilevata.

PWM (luminosità 0%)
PWM (luminosità 0%)
PWM (20% di luminosità)
PWM (20% di luminosità)
PWM (40% di luminosità)
PWM (40% di luminosità)
PWM (luminosità 60%)
PWM (luminosità 60%)
PWM (80% di luminosità)
PWM (80% di luminosità)
PWM (luminosità al 100%)
PWM (luminosità al 100%)

Il pannello OLED utilizza il PWM ad una frequenza di 480 Hz quando la luminosità è all'80% o meno. Ma Asus offre anche la cosiddetta impostazione di oscuramento OLED senza sfarfallio nel software MyAsus.

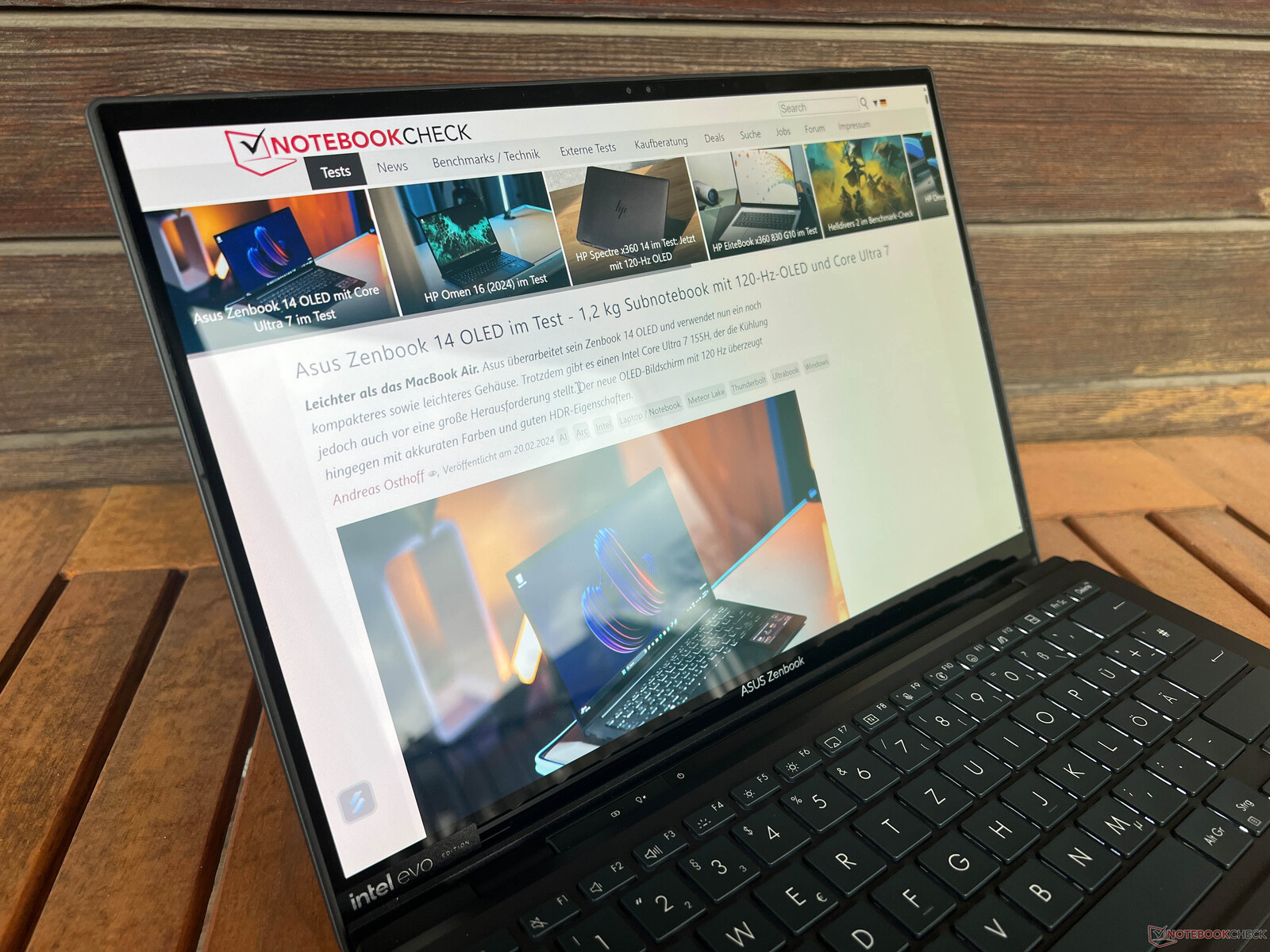

Al sole
Al sole
All'aperto (in una giornata nuvolosa)
All'aperto (in una giornata nuvolosa)

Anche se il rapporto di contrasto elevato aiuta all'esterno, i riflessi sul touchscreen lucido rimangono un problema, soprattutto nelle giornate luminose. La stabilità dell'angolo di visione non dà adito a lamentele. Sebbene sia presente il tipico luccichio blu OLED agli angoli ampi, è improbabile che questo rappresenti un problema nell'uso quotidiano.

Stabilità dell'angolo di visione
Stabilità dell'angolo di visione

Prestazioni - Core Ultra 9 e 32 GB di RAM

Asus equipaggia lo Zenbook Duo con i nuovi chip Meteor Lake di Intel (Core Ultra 5, 7 o 9) e la RAM è saldata, con 16 o 32 GB. Le GPU dedicate non sono presenti a bordo dello Zenbook Duo.




Condizioni di test

Come di consueto, Asus offre tre profili energetici(Standard, Whisper, Performance) nel software MyAsus preinstallato, mentre la modalità Performance è disponibile solo nel funzionamento a rete. Abbiamo elencato i valori TDP nella tabella seguente.

Profilo energetico TDP Cinebench R23 Multi Time Spy Grafica Volume massimo della ventola
Prestazioni 64/35 watt 15.923 punti 3474 punti 47,8 dB(A)
Standard 64/20 watt 12.688 punti 3283 punti 39,4 dB(A)
Whisper 28/18 watt 10.852 punti 2866 punti 30,7 dB(A)

Abbiamo eseguito i seguenti benchmark e misurazioni in modalità Standard . Se ha bisogno delle massime prestazioni della CPU, vale la pena utilizzare la modalità Performance , ma dovrà anche fare i conti con una ventilazione significativamente più rumorosa.

Processore - Core Ultra 9 185H

Il Core Ultra 9 185H è l'attuale punta di diamante di Intel della nuova generazione di processori Meteor Lake e quindi il processore H45 più potente. Con un TDP compreso tra 28 e 115 watt, il Core Ultra 9 non è affatto sfruttato appieno nel caso dello Zenbook Duo, in quanto il consumo massimo a breve termine è di 64 watt, che poi scende a 30 watt e successivamente a 20 watt. Le prestazioni nei benchmark a breve termine sono molto buone, ma calano in modo massiccio sotto carico prolungato. Le prestazioni della CPU sono ovviamente perfettamente adeguate per le attività quotidiane, ma non c'è alcun miglioramento rispetto ai vecchi chip Raptor Lake, come già osservato nella nostra analisi di Analisi di Meteor Lake. Le prestazioni in modalità batteria rimangono costanti. Ulteriori benchmark della CPU sono disponibili qui.

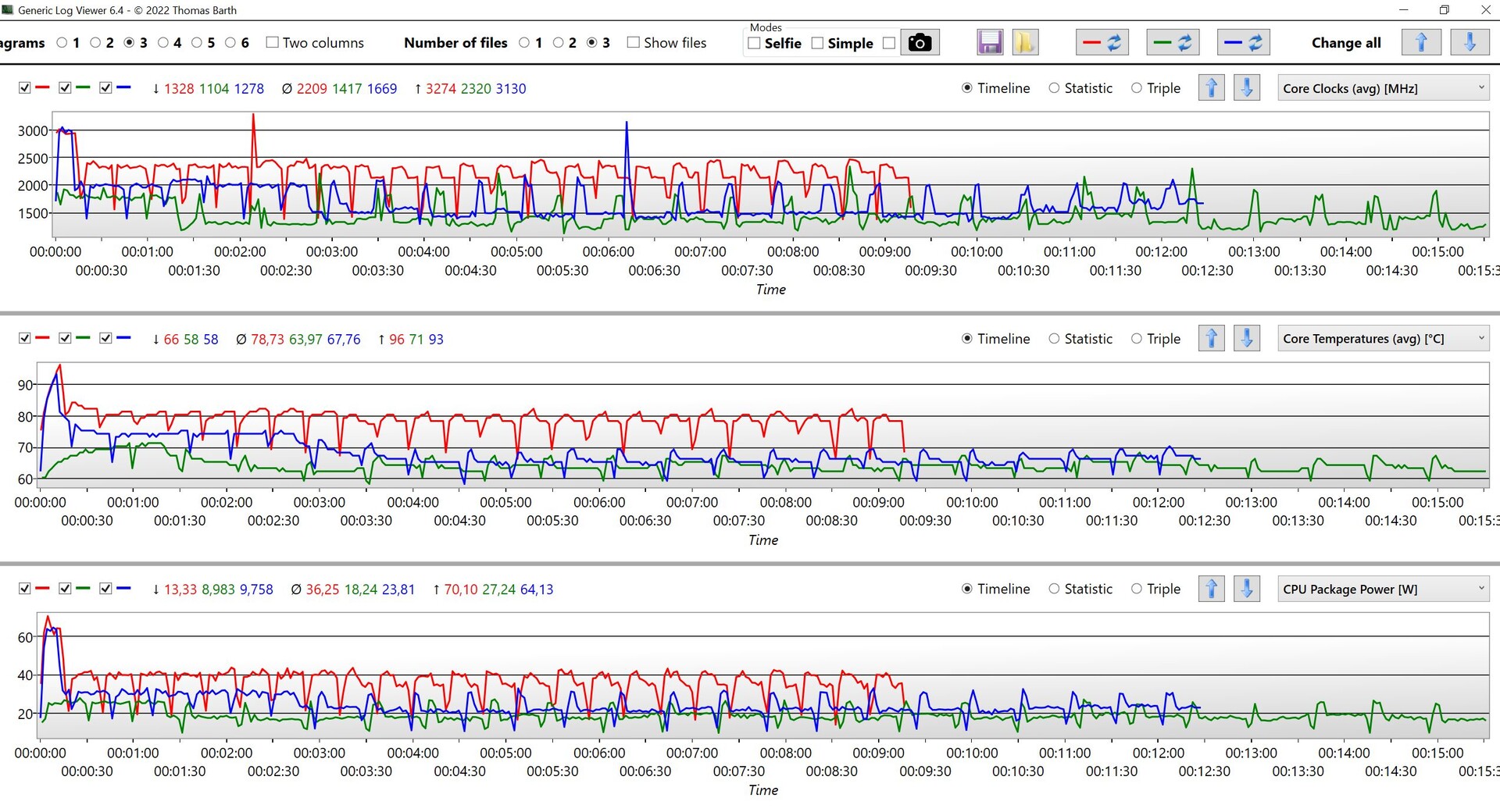

Cinebench R15 Multi sustained load

012024036048060072084096010801200132014401560168018001920204021602280Tooltip
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H: Ø1522 (1302.59-2316.16)
Lenovo Yoga Book 9i 2-in-1 Dual Screen Intel Core i7-1355U: Ø1153 (695.41-1206.27)
HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H: Ø1426 (1363.09-2028.81)
Dell Latitude 9440 2-in-1 Intel Core i7-1365U: Ø1286 (1217.51-1503.93)
Lenovo Yoga 9 14IRP G8 Intel Core i7-1360P: Ø1703 (1611.41-2114.84)
Asus Zenbook Pro 14 Duo OLED UX8402ZA Intel Core i7-12700H; Performance: Ø2250 (2201.55-2389.34)
Asus Zenbook Pro 14 Duo OLED UX8402ZA Intel Core i7-12700H; Balanced: Ø2111 (2031.08-2355.57)
Asus ZenBook 14 UX3405MA Intel Core Ultra 7 155H; Standard mode: Ø1477 (1223.99-2297.13)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.2: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Media Intel Core Ultra 9 185H

85.8 pt
Asus Zenbook Pro 14 Duo OLED UX8402ZA -2!
Intel Core i7-12700H
78.3 pt
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
75.9 pt
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
75.8 pt
Lenovo Yoga 9 14IRP G8 -2!
Intel Core i7-1360P
71.4 pt
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
69.4 pt
Dell Latitude 9440 2-in-1 -3!
Intel Core i7-1365U
67.1 pt
Lenovo Yoga Book 9i 2-in-1 Dual Screen -2!
Intel Core i7-1355U
60.5 pt
Media della classe Convertible

59.4 pt
Cinebench R23 / Multi Core
Media Intel Core Ultra 9 185H
  (12688 - 19851, n=4)
17175 Points +35%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
15101 Points +19%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
12794 Points +1%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
12688 Points
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
11922 Points -6%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
10333 Points -19%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
9576 (7962.38min - 9576.21max) Points -25%
Media della classe Convertible
  (616 - 18070, n=67, ultimi 2 anni)
9451 Points -26%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
9222 (7579.11min - 9221.84max) Points -27%
Cinebench R23 / Single Core
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
1883 Points +4%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
1877 Points +4%
Media Intel Core Ultra 9 185H
  (1770 - 1906, n=4)
1836 Points +1%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
1825 Points +1%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
1809 Points
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
1807 Points 0%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
1772 Points -2%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
1692 Points -6%
Media della classe Convertible
  (307 - 1970, n=67, ultimi 2 anni)
1589 Points -12%
Cinebench R20 / CPU (Multi Core)
Media Intel Core Ultra 9 185H
  (4843 - 7651, n=4)
6572 Points +36%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
5797 Points +20%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
5104 Points +5%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
4843 Points
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
4472 Points -8%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
4016 Points -17%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
3667 Points -24%
Media della classe Convertible
  (242 - 6954, n=67, ultimi 2 anni)
3564 Points -26%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
3522 Points -27%
Cinebench R20 / CPU (Single Core)
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
727 Points +5%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
719 Points +4%
Media Intel Core Ultra 9 185H
  (680 - 735, n=4)
704 Points +2%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
702 Points +1%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
696 Points 0%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
693 Points
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
673 Points -3%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
644 Points -7%
Media della classe Convertible
  (116.8 - 755, n=66, ultimi 2 anni)
610 Points -12%
Cinebench R15 / CPU Multi 64Bit
Media Intel Core Ultra 9 185H
  (1582 - 3165, n=6)
2568 Points +11%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
2389.34 (2201.55min - 2389.24max) Points +3%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
2355.57 (2031.08min - 2355.57max) Points +2%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
2316 (1302.59min - 2316.16max) Points
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
2297.13 (1223.99min - 2297.13max) Points -1%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
2115 (1611.41min - 2114.84max) Points -9%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
2029 (1363.09min - 2028.81max) Points -12%
Media della classe Convertible
  (110.1 - 2889, n=68, ultimi 2 anni)
1584 Points -32%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
1504 (1217.51min - 1503.93max) Points -35%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
1206 (695.41min - 1206.27max) Points -48%
Cinebench R15 / CPU Single 64Bit
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
271 Points +4%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
268 Points +3%
Media Intel Core Ultra 9 185H
  (257 - 280, n=4)
267 Points +3%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
264 Points +2%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
260 Points
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
259 Points 0%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
255 Points -2%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
246 Points -5%
Media della classe Convertible
  (68.6 - 287, n=66, ultimi 2 anni)
232 Points -11%
Blender / v2.79 BMW27 CPU
Media della classe Convertible
  (193 - 3620, n=62, ultimi 2 anni)
440 Seconds * -54%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
380 Seconds * -33%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
316 Seconds * -11%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
289 Seconds * -1%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
285 Seconds *
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
270.8 Seconds * +5%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
222 Seconds * +22%
Media Intel Core Ultra 9 185H
  (163 - 285, n=4)
215 Seconds * +25%
7-Zip 18.03 / 7z b 4
Media Intel Core Ultra 9 185H
  (52522 - 76331, n=4)
67739 MIPS +29%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
61571 MIPS +17%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
52522 MIPS
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
51896 MIPS -1%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
47518 MIPS -10%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
45570 MIPS -13%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
40377 MIPS -23%
Media della classe Convertible
  (7703 - 72400, n=64, ultimi 2 anni)
39843 MIPS -24%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
37621 MIPS -28%
7-Zip 18.03 / 7z b 4 -mmt1
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
5866 MIPS +5%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
5863 MIPS +5%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
5673 MIPS +1%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
5595 MIPS
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
5470 MIPS -2%
Media Intel Core Ultra 9 185H
  (4981 - 5781, n=4)
5462 MIPS -2%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
5457 MIPS -2%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
5401 MIPS -3%
Media della classe Convertible
  (2046 - 6417, n=64, ultimi 2 anni)
5166 MIPS -8%
Geekbench 6.2 / Multi-Core
Media Intel Core Ultra 9 185H
  (13351 - 14160, n=4)
13879 Points +4%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
13351 Points
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
12971 Points -3%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
12156 Points -9%
Media della classe Convertible
  (7760 - 14267, n=20, ultimi 2 anni)
10646 Points -20%
Geekbench 6.2 / Single-Core
Media Intel Core Ultra 9 185H
  (2384 - 2570, n=4)
2492 Points 0%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
2483 Points
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
2454 Points -1%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
2378 Points -4%
Media della classe Convertible
  (1836 - 2696, n=20, ultimi 2 anni)
2368 Points -5%
Geekbench 5.5 / Multi-Core
Media Intel Core Ultra 9 185H
  (10441 - 14230, n=4)
12858 Points +23%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
12469 Points +19%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
12345 Points +18%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
11217 Points +7%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
10785 Points +3%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
10441 Points
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
8272 Points -21%
Media della classe Convertible
  (663 - 14016, n=68, ultimi 2 anni)
8265 Points -21%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
8073 Points -23%
Geekbench 5.5 / Single-Core
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
1841 Points +2%
Media Intel Core Ultra 9 185H
  (1759 - 1902, n=4)
1834 Points +1%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
1822 Points +1%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
1811 Points
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
1805 Points 0%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
1790 Points -1%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
1789 Points -1%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
1771 Points -2%
Media della classe Convertible
  (319 - 1981, n=68, ultimi 2 anni)
1617 Points -11%
HWBOT x265 Benchmark v2.2 / 4k Preset
Media Intel Core Ultra 9 185H
  (14.1 - 22.7, n=4)
19 fps +35%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
15.2 fps +8%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
14.1 fps
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
14 fps -1%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
13 fps -8%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
10.6 fps -25%
Media della classe Convertible
  (0.61 - 20.1, n=66, ultimi 2 anni)
10.5 fps -26%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
10.3 fps -27%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
10 fps -29%
LibreOffice / 20 Documents To PDF
Media della classe Convertible
  (42 - 223, n=64, ultimi 2 anni)
53.8 s * -21%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
47.5 s * -7%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
47.5 s * -7%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
46.8 s * -5%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
46.1 s * -3%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
45.1 s * -1%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
44.6 s *
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
43.6 s * +2%
Media Intel Core Ultra 9 185H
  (39.7 - 44.6, n=4)
42.2 s * +5%
R Benchmark 2.5 / Overall mean
Media della classe Convertible
  (0.4102 - 1.967, n=64, ultimi 2 anni)
0.538 sec * -16%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H
0.4996 sec * -8%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H
0.4773 sec * -3%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U
0.4711 sec * -2%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H
0.462 sec *
Media Intel Core Ultra 9 185H
  (0.4457 - 0.4757, n=4)
0.4609 sec * -0%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P
0.46 sec * -0%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H
0.4583 sec * +1%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U
0.4582 sec * +1%

* ... Meglio usare valori piccoli

Cinebench R15 CPU Multi 64Bit
2316 Points
Cinebench R15 OpenGL 64Bit
156.1 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
260 Points
Aiuto
Performance Rating
Media Intel Core Ultra 9 185H

98.8 pt
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
70.3 pt
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
67.9 pt
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
67.4 pt
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
67.2 pt
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
66.7 pt
Media della classe Convertible

59.9 pt
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
58.8 pt
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
54.6 pt
AIDA64 / FP32 Ray-Trace
Media Intel Core Ultra 9 185H
  (9220 - 18502, n=4)
15095 KRay/s +64%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
10472 KRay/s +14%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
9220 KRay/s
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
9015 KRay/s -2%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
8627 KRay/s -6%
Media della classe Convertible
  (109 - 25226, n=67, ultimi 2 anni)
8396 KRay/s -9%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
8091 KRay/s -12%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
7071 KRay/s -23%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
7065 KRay/s -23%
AIDA64 / FPU Julia
Media Intel Core Ultra 9 185H
  (48865 - 95213, n=4)
79448 Points +63%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
50527 Points +3%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
48865 Points
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
47266 Points -3%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
46620 Points -5%
Media della classe Convertible
  (2644 - 106512, n=66, ultimi 2 anni)
43831 Points -10%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
41487 Points -15%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
34831 Points -29%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
34182 Points -30%
AIDA64 / CPU SHA3
Media Intel Core Ultra 9 185H
  (2394 - 4382, n=4)
3738 MB/s +56%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
2529 MB/s +6%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
2394 MB/s
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
2361 MB/s -1%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
2290 MB/s -4%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
2203 MB/s -8%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
2181 MB/s -9%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
2179 MB/s -9%
Media della classe Convertible
  (121 - 4764, n=66, ultimi 2 anni)
2091 MB/s -13%
AIDA64 / CPU Queen
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
99205 Points +49%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
89266 Points +34%
Media Intel Core Ultra 9 185H
  (66785 - 94589, n=4)
87551 Points +31%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
85817 Points +28%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
83869 Points +26%
Media della classe Convertible
  (3256 - 120368, n=66, ultimi 2 anni)
69309 Points +4%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
67557 Points +1%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
66785 Points
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
62655 Points -6%
AIDA64 / FPU SinJulia
Media Intel Core Ultra 9 185H
  (7255 - 11392, n=4)
10014 Points +38%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
8690 Points +20%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
7333 Points +1%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
7326 Points +1%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
7255 Points
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
6996 Points -4%
Media della classe Convertible
  (549 - 14835, n=66, ultimi 2 anni)
6338 Points -13%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
5145 Points -29%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
4699 Points -35%
AIDA64 / FPU Mandel
Media Intel Core Ultra 9 185H
  (24004 - 47315, n=4)
38538 Points +61%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
25330 Points +6%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
24004 Points
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
22621 Points -6%
Media della classe Convertible
  (1420 - 56839, n=66, ultimi 2 anni)
22539 Points -6%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
22231 Points -7%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
20668 Points -14%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
20299 Points -15%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
17391 Points -28%
AIDA64 / CPU AES
Media Intel Core Ultra 9 185H
  (53116 - 94250, n=4)
78060 MB/s +47%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
53116 MB/s
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
52590 MB/s -1%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
50795 MB/s -4%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
50440 MB/s -5%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
49062 MB/s -8%
Media della classe Convertible
  (191 - 169089, n=66, ultimi 2 anni)
47011 MB/s -11%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
42322 MB/s -20%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
41413 MB/s -22%
AIDA64 / CPU ZLib
Media Intel Core Ultra 9 185H
  (678 - 1341, n=4)
1088 MB/s +60%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
890 MB/s +31%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
696 MB/s +3%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
689 MB/s +2%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
678 MB/s
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
664 MB/s -2%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
647 MB/s -5%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
641 MB/s -5%
Media della classe Convertible
  (61.4 - 1088, n=66, ultimi 2 anni)
616 MB/s -9%
AIDA64 / FP64 Ray-Trace
Media Intel Core Ultra 9 185H
  (4428 - 9768, n=4)
7833 KRay/s +77%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
5716 KRay/s +29%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
4533 KRay/s +2%
Media della classe Convertible
  (59 - 13175, n=66, ultimi 2 anni)
4448 KRay/s 0%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
4428 KRay/s
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
4379 KRay/s -1%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
4261 KRay/s -4%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
4108 KRay/s -7%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
3747 KRay/s -15%
AIDA64 / CPU PhotoWorxx
Media Intel Core Ultra 9 185H
  (50237 - 53918, n=4)
51860 MPixel/s +3%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
50237 MPixel/s
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
48270 MPixel/s -4%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
47311 MPixel/s -6%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
43357 MPixel/s -14%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
42386 MPixel/s -16%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
42342 MPixel/s -16%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
41420 MPixel/s -18%
Media della classe Convertible
  (2185 - 52599, n=66, ultimi 2 anni)
34567 MPixel/s -31%

Abbiamo anche analizzato le prestazioni della CPU sotto carico sostenuto con gli altri due profili energetici. Rispetto al normale Zenbook 14 OLED con ventola, lo Zenbook Duo è in grado di estrarre più energia dal Core Ultra 9 (64 -> 40 -> 35 watt) e la modalità Performance è sicuramente utile per coloro che richiedono le massime prestazioni della CPU. Le prestazioni in modalità Whisper sono naturalmente inferiori, ma comunque sufficienti per le attività semplici e il calo di prestazioni non è così significativo.

Cinebench R15 multi-loop (rosso: Performance, blu: Standard, verde: Whisper)
Cinebench R15 multi-loop (rosso: Performance, blu: Standard, verde: Whisper)

Cinebench R15 multi sustained load

0130260390520650780910104011701300143015601690182019502080221023402470Tooltip
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H: Ø1522 (1302.59-2316.16)
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H; High Performance: Ø2074 (2008.33-2532.93)
Asus Zenbook Duo OLED UX8406MA Intel Core Ultra 9 185H; Silent: Ø1192 (1027.35-1581.9)

Prestazioni del sistema

I risultati dei benchmark sintetici sono molto buoni: in pratica, lo Zenbook Duo è un computer molto reattivo. Questo vale anche quando si utilizza il secondo schermo, poiché non si ha mai l'impressione che il convertibile sia sovraccaricato. Durante i test non sono emersi problemi con il sistema.

PCMark 10 / Score
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
6782 Points 0%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
6771 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
6771 Points 0%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
6527 Points -4%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
6195 Points -9%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
5948 Points -12%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
5896 Points -13%
Media della classe Convertible
  (1486 - 7963, n=61, ultimi 2 anni)
5729 Points -15%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
5642 Points -17%
PCMark 10 / Essentials
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
12059 Points +12%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
11827 Points +10%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
11209 Points +4%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
11126 Points +3%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
10990 Points +2%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
10781 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
10781 Points 0%
Media della classe Convertible
  (3975 - 12059, n=61, ultimi 2 anni)
10595 Points -2%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
10526 Points -2%
PCMark 10 / Productivity
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
9031 Points +2%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
8888 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
8888 Points 0%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
8744 Points -2%
Media della classe Convertible
  (2764 - 10800, n=61, ultimi 2 anni)
7525 Points -15%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
7328 Points -18%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
7162 Points -19%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
7024 Points -21%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
6864 Points -23%
PCMark 10 / Digital Content Creation
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
8793 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
8793 Points 0%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
8704 Points -1%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
7939 Points -10%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
7472 Points -15%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
7401 Points -16%
Media della classe Convertible
  (811 - 12360, n=61, ultimi 2 anni)
6536 Points -26%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
6418 Points -27%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
6335 Points -28%
CrossMark / Overall
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
1799 Points +5%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1756 Points +3%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
1711 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
1711 Points 0%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
1644 Points -4%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
1605 Points -6%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
1535 Points -10%
Media della classe Convertible
  (285 - 1912, n=61, ultimi 2 anni)
1482 Points -13%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
1366 Points -20%
CrossMark / Productivity
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
1693 Points +4%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1669 Points +3%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
1626 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
1626 Points 0%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
1622 Points 0%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
1526 Points -6%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
1523 Points -6%
Media della classe Convertible
  (310 - 1790, n=61, ultimi 2 anni)
1450 Points -11%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
1291 Points -21%
CrossMark / Creativity
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
2016 Points +3%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
1959 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
1959 Points 0%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1947 Points -1%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
1863 Points -5%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
1746 Points -11%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
1636 Points -16%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
1625 Points -17%
Media della classe Convertible
  (252 - 2183, n=61, ultimi 2 anni)
1583 Points -19%
CrossMark / Responsiveness
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
1533 Points +15%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1500 Points +13%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
1427 Points +7%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
1329 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
1329 Points 0%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
1317 Points -1%
Media della classe Convertible
  (204 - 1868, n=61, ultimi 2 anni)
1280 Points -4%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
1201 Points -10%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
939 Points -29%
WebXPRT 3 / Overall
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
306 Points +5%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
302 Points +4%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
299 Points +3%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
291 Points 0%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
291 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
291 Points 0%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
282 Points -3%
Media della classe Convertible
  (84.2 - 366, n=64, ultimi 2 anni)
268 Points -8%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
255 Points -12%
WebXPRT 4 / Overall
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
263 Points +2%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
261 Points +2%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
257 Points 0%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
257 Points
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
257 Points 0%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
251 Points -2%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
243.5 Points -5%
Media della classe Convertible
  (49.4 - 266, n=53, ultimi 2 anni)
224 Points -13%
Mozilla Kraken 1.1 / Total
Media della classe Convertible
  (472 - 3989, n=66, ultimi 2 anni)
697 ms * -37%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
534 ms * -5%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
527 ms * -4%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
521 ms * -3%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
516 ms * -2%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
508 ms *
Media Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
  ()
508 ms * -0%
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
501 ms * +1%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
499 ms * +2%

* ... Meglio usare valori piccoli

PCMark 10 Score
6771 punti
Aiuto
AIDA64 / Memory Copy
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
95631 MB/s +5%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
95353 MB/s +5%
Media Intel Core Ultra 9 185H
  (91178 - 95718, n=4)
93106 MB/s +2%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
91178 MB/s
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
71023 MB/s -22%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
69736 MB/s -24%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
67871 MB/s -26%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
67015 MB/s -27%
Media della classe Convertible
  (14439 - 95631, n=66, ultimi 2 anni)
59743 MB/s -34%
AIDA64 / Memory Read
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
86442 MB/s +4%
Media Intel Core Ultra 9 185H
  (83175 - 87768, n=4)
85774 MB/s +3%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
85295 MB/s +3%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
83175 MB/s
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
67758 MB/s -19%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
58600 MB/s -30%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
57493 MB/s -31%
Media della classe Convertible
  (12706 - 87812, n=66, ultimi 2 anni)
55785 MB/s -33%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
54068 MB/s -35%
AIDA64 / Memory Write
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
90603 MB/s +21%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
84601 MB/s +13%
Media Intel Core Ultra 9 185H
  (73682 - 93871, n=4)
79474 MB/s +7%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
74571 MB/s
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
74292 MB/s 0%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
74086 MB/s -1%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
73168 MB/s -2%
Media della classe Convertible
  (10177 - 93451, n=66, ultimi 2 anni)
61613 MB/s -17%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
58160 MB/s -22%
AIDA64 / Memory Latency
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Arc 8-Cores
154.2 ns * -7%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Arc 8-Cores
144.5 ns *
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Arc 8-Cores
143.7 ns * +1%
Media Intel Core Ultra 9 185H
  (129.6 - 144.5, n=4)
138.6 ns * +4%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Iris Xe G7 96EUs
101.7 ns * +30%
Media della classe Convertible
  (10.2 - 260, n=63, ultimi 2 anni)
100.7 ns * +30%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Iris Xe G7 96EUs
98.7 ns * +32%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Iris Xe G7 96EUs
93 ns * +36%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Iris Xe G7 96EUs
0 ns * +100%

* ... Meglio usare valori piccoli

Latenza DPC

Nel nostro test di latenza standardizzato (navigazione web, riproduzione di YouTube 4K, carico della CPU), il nostro dispositivo di prova con la versione attuale del BIOS mostra dei valori anomali sui singoli driver, ma il valore importante della "latenza di interrupt-to-process" è molto basso.

LatencyMon - panoramica
LatencyMon - panoramica
LatencyMon - driver
LatencyMon - driver
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
1820.8 μs * -188%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
1594.1 μs * -152%
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
1348 μs * -113%
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
643.7 μs * -2%
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
632.6 μs *
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
444.1 μs * +30%
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
435.7 μs * +31%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

La versione da 2 TB di Western Digital SN740 è installata nel nostro dispositivo di test Zenbook Duo e 1,79 GB di questa sono liberi al primo avvio del laptop. Tuttavia, i risultati dei benchmark dell'SSD M.2 2280 sono contrastanti. Nonostante la ripetizione dei test, i risultati sono rimasti invariati. Almeno non c'è stato un calo delle prestazioni sotto carico sostenuto. Ulteriori benchmark dell'SSD sono disponibili qui.

WD PC SN740 SDDPNQE-2T00
CDM 5/6 Read Seq Q32T1: 4955 MB/s
CDM 5/6 Write Seq Q32T1: 2704 MB/s
CDM 5/6 Read 4K Q32T1: 345 MB/s
CDM 5/6 Write 4K Q32T1: 222 MB/s
CDM 5/6 Read 4K: 56 MB/s
CDM 5/6 Write 4K: 82.3 MB/s
CDM 6 Write 4K Q8T8: 213 MB/s
CDM 6 Read 4K Q8T8: 865 MB/s
Drive Performance Rating - Percent
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
89.8 pt
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
84.4 pt
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
70.7 pt
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
68.9 pt
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
67.4 pt
Media della classe Convertible

66.3 pt
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
62.1 pt
Media WD PC SN740 SDDPNQE-2T00

62.1 pt
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
55.4 pt
DiskSpd
seq read
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
3773 (3715.43min - 3772.78max) MB/s +118%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
3676 (3619.26min - 3676.31max) MB/s +112%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
3539 (3485.73min - 3538.94max) MB/s +104%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
2767 (2757.27min - 2767.11max) MB/s +60%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
2671 (2653.88min - 2671.04max) MB/s +54%
Media della classe Convertible
  (251 - 4494, n=63, ultimi 2 anni)
2567 MB/s +48%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
2156 (2126.3min - 2155.87max) MB/s +24%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
1734 (1716.65min - 1733.51max) MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
1734 MB/s 0%
seq write
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
3187 (3096.33min - 3186.54max) MB/s +100%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
2581 (2506.12min - 2581.17max) MB/s +62%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
2524 (2435.47min - 2523.95max) MB/s +58%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
2400 (2259.98min - 2399.59max) MB/s +50%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
2309 (2175.85min - 2309.38max) MB/s +45%
Media della classe Convertible
  (195.5 - 4440, n=63, ultimi 2 anni)
2308 MB/s +45%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
1597 (1562.38min - 1597.14max) MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
1597 MB/s 0%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
1439 (1119.46min - 1438.8max) MB/s -10%
seq q8 t1 read
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
6830 (6364.65min - 6830.21max) MB/s +33%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
6592 (5400.38min - 6592.37max) MB/s +29%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
5120 (4545.58min - 5120.02max) MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
5120 MB/s 0%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
4833 (4163.41min - 4832.66max) MB/s -6%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
4671 (3796.43min - 4671.2max) MB/s -9%
Media della classe Convertible
  (272 - 7152, n=63, ultimi 2 anni)
4203 MB/s -18%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
3668 (3142.16min - 3668.33max) MB/s -28%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
3387 (2163.29min - 3386.84max) MB/s -34%
seq q8 t1 write
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
5061 (5034.21min - 5061.21max) MB/s +213%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
3980 (3966.13min - 3980.4max) MB/s +146%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
3394 (3353.56min - 3393.61max) MB/s +110%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
3164 (3094.35min - 3164.36max) MB/s +96%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
3019 (2984.15min - 3019.27max) MB/s +87%
Media della classe Convertible
  (215 - 5667, n=63, ultimi 2 anni)
3003 MB/s +86%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
2487 (1182.32min - 2486.59max) MB/s +54%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
1617 (1605.1min - 1617.23max) MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
1617 MB/s 0%
4k q1 t1 read
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
81.2 (79.21min - 81.22max) MB/s +50%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
75.6 (75.08min - 75.62max) MB/s +40%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
69.6 (66.88min - 69.61max) MB/s +29%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
59.7 (58.73min - 59.66max) MB/s +10%
Media della classe Convertible
  (9.13 - 90.3, n=63, ultimi 2 anni)
58.6 MB/s +8%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
54.1 (52.3min - 54.07max) MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
54.1 MB/s 0%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
50.6 (50.33min - 50.62max) MB/s -6%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
29.4 (29.32min - 29.4max) MB/s -46%
4k q1 t1 write
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
162.8 (160.36min - 162.76max) MB/s +86%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
150.3 (141.14min - 150.34max) MB/s +71%
Media della classe Convertible
  (18.7 - 398, n=63, ultimi 2 anni)
150.1 MB/s +71%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
148.7 (143.2min - 148.66max) MB/s +70%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
146.9 (145.49min - 146.86max) MB/s +68%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
117.8 (116.96min - 117.78max) MB/s +34%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
87.7 (85.6min - 87.7max) MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
87.7 MB/s 0%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
84.9 (82.69min - 84.93max) MB/s -3%
4k q32 t16 read
Media della classe Convertible
  (48.8 - 3881, n=63, ultimi 2 anni)
1046 MB/s +240%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
777 (765.59min - 777.23max) MB/s +152%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
764 (736.3min - 763.95max) MB/s +148%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
644 (640.97min - 643.93max) MB/s +109%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
520 (513.32min - 520.15max) MB/s +69%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
405 (381.66min - 405.28max) MB/s +31%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
308 (288.96min - 308.08max) MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
308 MB/s 0%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
283 (280.76min - 282.69max) MB/s -8%
4k q32 t16 write
Media della classe Convertible
  (17.4 - 3537, n=63, ultimi 2 anni)
757 MB/s +262%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
445 (438.68min - 445.02max) MB/s +113%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
431 (416.68min - 431.09max) MB/s +106%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
419 (395.04min - 419.43max) MB/s +100%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
401 (388.4min - 400.53max) MB/s +92%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
222 (208.14min - 221.73max) MB/s +6%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
209 (191.23min - 209.17max) MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
209 MB/s 0%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
185.8 (175.21min - 185.76max) MB/s -11%
AS SSD
Score Total
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
5549 Points +37%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
5343 Points +31%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
4065 Points
Media WD PC SN740 SDDPNQE-2T00
  ()
4065 Points 0%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
3949 Points -3%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
3738 Points -8%
Media della classe Convertible
  (125 - 7840, n=62, ultimi 2 anni)
3707 Points -9%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
3497 Points -14%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
3295 Points -19%
Score Read
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
1513 Points +74%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
1389 Points +59%
Media della classe Convertible
  (54 - 2943, n=62, ultimi 2 anni)
1300 Points +49%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
1196 Points +37%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
1166 Points +34%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
1075 Points +23%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
872 Points
Media WD PC SN740 SDDPNQE-2T00
  ()
872 Points 0%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
787 Points -10%
Score Write
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
3368 Points +20%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
3348 Points +19%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
2803 Points
Media WD PC SN740 SDDPNQE-2T00
  ()
2803 Points 0%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
2311 Points -18%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
2186 Points -22%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
2140 Points -24%
Media della classe Convertible
  (45 - 3586, n=62, ultimi 2 anni)
1798 Points -36%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
1778 Points -37%
Seq Read
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
5448 MB/s +30%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
5226 MB/s +25%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
5216 MB/s +25%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
4183 MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
4183 MB/s 0%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
4103.97 MB/s -2%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
3900 MB/s -7%
Media della classe Convertible
  (226 - 5478, n=62, ultimi 2 anni)
3329 MB/s -20%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
3035.54 MB/s -27%
Seq Write
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
2768 MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
2768 MB/s 0%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
2764 MB/s 0%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
2759 MB/s 0%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
2678 MB/s -3%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
2005.94 MB/s -28%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
1996 MB/s -28%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
1984.09 MB/s -28%
Media della classe Convertible
  (162.8 - 4335, n=62, ultimi 2 anni)
1959 MB/s -29%
4K Read
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
77.25 MB/s +54%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
74.02 MB/s +47%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
68.6 MB/s +37%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
62.49 MB/s +24%
Media della classe Convertible
  (7.89 - 82.4, n=62, ultimi 2 anni)
55.5 MB/s +11%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
50.2 MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
50.2 MB/s 0%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
48.1 MB/s -4%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
46.4 MB/s -8%
4K Write
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
217 MB/s +42%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
208.86 MB/s +37%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
205.44 MB/s +35%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
204.37 MB/s +34%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
168.1 MB/s +10%
Media della classe Convertible
  (14 - 347, n=62, ultimi 2 anni)
162.9 MB/s +7%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
152.4 MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
152.4 MB/s 0%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
134.6 MB/s -12%
4K-64 Read
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
914.1 MB/s +127%
Media della classe Convertible
  (19.6 - 2371, n=62, ultimi 2 anni)
912 MB/s +126%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
798 MB/s +98%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
722.62 MB/s +79%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
697.04 MB/s +73%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
575 MB/s +43%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
403 MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
403 MB/s 0%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
349 MB/s -13%
4K-64 Write
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
2895.76 MB/s +22%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
2855 MB/s +20%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
2374 MB/s
Media WD PC SN740 SDDPNQE-2T00
  ()
2374 MB/s 0%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
1900 MB/s -20%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
1818 MB/s -23%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
1734.33 MB/s -27%
Media della classe Convertible
  (15 - 3015, n=62, ultimi 2 anni)
1439 MB/s -39%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
1371.21 MB/s -42%
Access Time Read
Media della classe Convertible
  (0.021 - 0.244, n=61, ultimi 2 anni)
0.08482 ms * -203%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
0.064 ms * -129%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
0.048 ms * -71%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
0.041 ms * -46%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
0.028 ms *
Media WD PC SN740 SDDPNQE-2T00
  ()
0.028 ms * -0%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
0.023 ms * +18%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
0.022 ms * +21%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
0.021 ms * +25%
Access Time Write
Media della classe Convertible
  (0.017 - 0.865, n=62, ultimi 2 anni)
0.1175 ms * -390%
Asus ZenBook 14 UX3405MA
Micron 2400 MTFDKBA1T0QFM
0.102 ms * -325%
Dell Latitude 9440 2-in-1
Samsung PM9B1 1024GB MZAL41T0HBLB
0.084 ms * -250%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
WD PC SN740 512GB SDDPMQD-512G-1101
0.069 ms * -188%
HP Spectre x360 14-eu0078ng
Kioxia XG8 KXG80ZNV2T04
0.029 ms * -21%
Asus Zenbook Duo OLED UX8406MA
WD PC SN740 SDDPNQE-2T00
0.024 ms *
Media WD PC SN740 SDDPNQE-2T00
  ()
0.024 ms * -0%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Samsung PM9A1 MZVL2512HCJQ
0.02 ms * +17%
Lenovo Yoga 9 14IRP G8
SK hynix PC801 HFS512GEJ9X101N BF
0.017 ms * +29%

* ... Meglio usare valori piccoli

Sustained read performance: DiskSpd Read Loop, Queue Depth 8

02605207801040130015601820208023402600286031203380364039004160442046804940Tooltip
Asus Zenbook Duo OLED UX8406MA; diskspd 2.0.17 f: Ø4887 (1860.65-5151.02)

Scheda grafica - Intel Arc Graphics

GPU-Z Intel Arc Graphics
GPU-Z Intel Arc Graphics

Dopo un po' di tempo di zero progressi con le iGPU di Intel, i nuovi processori mobili Meteor Lake sono ora dotati della nuova Arc iGPU. Il Core Ultra 9 (proprio come il Core Ultra 7) è dotato della variante più veloce della GPU Arc, che ha 8 core Xe. Come già osservato in alcuni test, le prestazioni grezze della nuova GPU sono molto buone e Intel è stata in grado di raddoppiare quasi le prestazioni della vecchia Iris Xe Graphics G7che è anche sufficiente per superare di poco la Radeon 780M di AMD nei benchmark sintetici.

L'iGPU utilizza la memoria di sistema e sembra che ci siano ancora problemi di driver. Come per altri dispositivi, a volte si verificano fluttuazioni massicce nella frequenza dei fotogrammi nei giochi, il che rende impossibile un gameplay fluido a dettagli elevati. Nel software MyAsus, è possibile allocare fino a 8 GB di memoria all'iGPU (che viene automaticamente occupata dal sistema per impostazione predefinita), ma anche questa allocazione manuale aiuta solo per un breve periodo. Lo si può vedere nel nostro test Witcher 3 qui sotto, dove le fluttuazioni iniziano dopo pochi minuti. Abbiamo provato sia il driver preinstallato (5008) che l'attuale driver Intel (5330), ma il comportamento e i problemi sono rimasti gli stessi.

Questo problema non è sempre visibile nei nostri benchmark di gioco, per lo più brevi, ma gli utenti dovrebbero tenerlo presente. Inoltre, Intel non è in grado di mantenere le sue forti prestazioni nei test sintetici e rimane costantemente indietro rispetto alla

Radeon 780M. In modalità batteria, le prestazioni rimangono costanti. Ulteriori benchmark sono disponibili nella nostra sezione tech.

3DMark Performance Rating - Percent
Tuxedo Pulse 14 Gen3
AMD Radeon 780M, AMD Ryzen 7 7840HS
96.1 pt
Asus Zenbook Duo OLED UX8406MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 9 185H
95.6 pt
Media Intel Arc 8-Cores iGPU

91.9 pt
Asus ZenBook 14 UX3405MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
85.3 pt
HP Spectre x360 14-eu0078ng
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
84.5 pt
Media della classe Convertible

62 pt
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
58.5 pt
Lenovo Yoga 9 14IRP G8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
57.2 pt
Dell Latitude 9440 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U
52.7 pt
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
52.2 pt
3DMark 11 - 1280x720 Performance GPU
Tuxedo Pulse 14 Gen3
AMD Radeon 780M, AMD Ryzen 7 7840HS
13524 Points +15%
Media Intel Arc 8-Cores iGPU
  (8064 - 13716, n=17)
11823 Points +1%
Asus Zenbook Duo OLED UX8406MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 9 185H
11725 Points
HP Spectre x360 14-eu0078ng
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
10270 Points -12%
Asus ZenBook 14 UX3405MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
9702 Points -17%
Media della classe Convertible
  (471 - 40768, n=66, ultimi 2 anni)
7853 Points -33%
Lenovo Yoga 9 14IRP G8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
7222 Points -38%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
7134 Points -39%
Dell Latitude 9440 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U
6490 Points -45%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
6395 Points -45%
3DMark
1920x1080 Fire Strike Graphics
Asus Zenbook Duo OLED UX8406MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 9 185H
8873 Points
Tuxedo Pulse 14 Gen3
AMD Radeon 780M, AMD Ryzen 7 7840HS
8538 Points -4%
Media Intel Arc 8-Cores iGPU
  (5568 - 9650, n=19)
8228 Points -7%
HP Spectre x360 14-eu0078ng
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
7708 Points -13%
Asus ZenBook 14 UX3405MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
7673 Points -14%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
5955 Points -33%
Media della classe Convertible
  (365 - 29684, n=66, ultimi 2 anni)
5885 Points -34%
Lenovo Yoga 9 14IRP G8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
5601 Points -37%
Dell Latitude 9440 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U
5340 Points -40%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
5318 Points -40%
2560x1440 Time Spy Graphics
Asus Zenbook Duo OLED UX8406MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 9 185H
3283 Points
Asus ZenBook 14 UX3405MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
3206 Points -2%
Media Intel Arc 8-Cores iGPU
  (2018 - 3756, n=22)
3132 Points -5%
Tuxedo Pulse 14 Gen3
AMD Radeon 780M, AMD Ryzen 7 7840HS
3027 Points -8%
HP Spectre x360 14-eu0078ng
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
2976 Points -9%
Media della classe Convertible
  (94 - 11749, n=65, ultimi 2 anni)
2023 Points -38%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-12700H
1830 Points -44%
Lenovo Yoga 9 14IRP G8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
1805 Points -45%
Dell Latitude 9440 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U
1637 Points -50%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
1626 Points -50%
3DMark 11 Performance
11153 punti
3DMark Fire Strike Score
8024 punti
3DMark Time Spy Score
3537 punti
Aiuto
Blender - v3.3 Classroom CPU
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1355U
755 Seconds * -40%
Media della classe Convertible
  (326 - 1253, n=53, ultimi 2 anni)
676 Seconds * -26%
Dell Latitude 9440 2-in-1
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1365U
660 Seconds * -23%
HP Spectre x360 14-eu0078ng
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
577 Seconds * -7%
Asus Zenbook Duo OLED UX8406MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 9 185H
538 Seconds *
Asus ZenBook 14 UX3405MA
Intel Arc 8-Cores iGPU, Intel Core Ultra 7 155H
535 Seconds * +1%
Lenovo Yoga 9 14IRP G8
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P
527 Seconds * +2%
Media Intel Arc 8-Cores iGPU
  (301 - 637, n=18)
456 Seconds * +15%

* ... Meglio usare valori piccoli

Performance Rating - Percent
Tuxedo Pulse 14 Gen3
AMD Ryzen 7 7840HS, AMD Radeon 780M
96.9 pt
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
72.5 pt
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
72 pt
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
70.7 pt
Media della classe Convertible

68.6 pt
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
68.4 pt
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
65.4 pt
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
59.1 pt
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
57 pt
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Tuxedo Pulse 14 Gen3
AMD Ryzen 7 7840HS, AMD Radeon 780M
30.2 (28min, 28P1) fps +47%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
20.9 (13min, 15P1) fps +2%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
20.5 (8min, 15P1) fps
Media della classe Convertible
  (8.5 - 123.3, n=61, ultimi 2 anni)
19.4 fps -5%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
19.2 (11min, 13P1) fps -6%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
16.1 (12min, 15P1) fps -21%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
15.2 (14min) fps -26%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
14.8 (14min, 14P1) fps -28%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
14.8 (14min) fps -28%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Tuxedo Pulse 14 Gen3
AMD Ryzen 7 7840HS, AMD Radeon 780M
27.1 (3.98min, 18.9P1) fps +86%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
15.9 (1.337min, 3.02P1) fps +9%
Media della classe Convertible
  (5.98 - 114.3, n=56, ultimi 2 anni)
15.9 fps +9%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
14.6 (0.635min, 5.56P1) fps
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
14.1 (0.852min, 2.6P1) fps -3%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
11.2 (4.56min, 7.3P1) fps -23%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
10.9 (3.31min, 6.76P1) fps -25%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
10.9 (5.87min, 8.62P1) fps -25%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
10.7 (4.92min, 7.09P1) fps -27%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Tuxedo Pulse 14 Gen3
AMD Ryzen 7 7840HS, AMD Radeon 780M
29.4 fps +27%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
27.8 fps +20%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
24.9 fps +7%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
24.8 fps +7%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
23.2 fps
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
21.2 fps -9%
Media della classe Convertible
  (8.88 - 107.1, n=58, ultimi 2 anni)
21 fps -9%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
17.2 fps -26%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
17.1 fps -26%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Tuxedo Pulse 14 Gen3
AMD Ryzen 7 7840HS, AMD Radeon 780M
49.6 (35.6min, 39P1) fps +13%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
44 fps
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
38.8 (5min, 9.64P1) fps -12%
Media della classe Convertible
  (17.3 - 196.9, n=55, ultimi 2 anni)
36.1 fps -18%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
35 (7.1min, 10.2P1) fps -20%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
30.8 (9.7min, 11.4P1) fps -30%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
28.3 (5.4min, 9.07P1) fps -36%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
25.8 (5.3min, 8.25P1) fps -41%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
25.8 (5.1min, 8.07P1) fps -41%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Tuxedo Pulse 14 Gen3
AMD Ryzen 7 7840HS, AMD Radeon 780M
85.1 (75.2min) fps +41%
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
68.9 (58.8min) fps +14%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
66.5 (48.2min) fps +10%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
63.9 (44.2min) fps +6%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
62.7 (53.2min) fps +4%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
60.4 (38min) fps
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
58.2 (47.1min) fps -4%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
57.8 (49.3min) fps -4%
Media della classe Convertible
  (5.4 - 158.3, n=66, ultimi 2 anni)
56.3 fps -7%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
43.5 fps +56%
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
38.6 fps +38%
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
37.4 fps +34%
Tuxedo Pulse 14 Gen3
AMD Ryzen 7 7840HS, AMD Radeon 780M
35.4 fps +27%
Media della classe Convertible
  (3.91 - 101.4, n=66, ultimi 2 anni)
34.2 fps +23%
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
32 fps +15%
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
32 fps +15%
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
30.2 fps +8%
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
27.9 fps

Witcher 3 FPS chart

0510152025Tooltip
Asus Zenbook Duo OLED UX8406MA Ultra 9 185H, Arc 8-Cores: Ø20.5 (8-25)
basso medio alto ultra
GTA V (2015) 139.1 135.8 37.6 14.6
The Witcher 3 (2015) 132 78 42 20.5
Dota 2 Reborn (2015) 103.5 84.3 64.1 60.4
Final Fantasy XV Benchmark (2018) 57.2 35.8 23.2
X-Plane 11.11 (2018) 49 31.2 27.9
Far Cry 5 (2018) 54 35 33 32
Strange Brigade (2018) 189 72 59 44
F1 2021 (2021) 147.5 80.6 63.8 31
F1 22 (2022) 78.2 70.9 53.7 14.4
F1 23 (2023) 68.2 65.8 38.7 11.4

Emissioni - Zenbook Duo con due ventole

Rumore

A differenza del normale Zenbook 14 OLED, lo Zenbook Duo utilizza due ventole, il che si nota nell'uso quotidiano. Anche se le ventole si avviano in modo relativamente rapido, rimangono a velocità inferiori per più tempo, rendendo lo Zenbook Duo un compagno di lavoro molto più piacevole. Inoltre, è possibile utilizzare la modalità Whisper per le attività semplici senza problemi. Se si esagera con l'hardware, lo Zenbook non è certo un dispositivo silenzioso, con un livello di rumorosità appena inferiore a 40 dB(A), ma non lo definiremmo nemmeno fastidioso. Abbiamo misurato 47,8 dB(A) in modalità Performance e un massimo di 30,7 dB(A) in modalità Whisper . Sul nostro dispositivo di prova si sono sentiti occasionalmente dei rumori elettronici, ma non erano così pronunciati e fastidiosi come sullo Zenbook 14 OLED.

Rumorosità

Idle
24 / 24 / 26.7 dB(A)
Sotto carico
39.4 / 39.4 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm di distanza)   Rumorosità ambientale: 24 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.83135.633.92523.724.726.530.43127.528.626.4304031.532.232.233.35026.725.727.628.86325.926.226.127.2802520.720.621.310022.722.623.320.612520.218.418.819.516026.517.317.118.320023.217.618.617.625023.118.818.41931523.716.816.416.740022.31412.51450022.413.811.112.36302514.810.611.88002814.510.111.2100027.513.810.210.9125029.315.710.21116003016.410.111.3200030.214.81111.5250029.313.41111.8315028.514.711.312.4400026.614.312.812.1500025.11312.112.6630022.413.312.512.6800020.813.712.612.5100002013.912.512.61250016.413.212.412.51600016.712.311.711.8SPL39.426.72424.5N30.80.50.6median 23.7median 14.5median 12.4median 12.5Delta3.51.62.42.5hearing rangehide median Fan NoiseAsus Zenbook Duo OLED UX8406MA
Asus Zenbook Duo OLED UX8406MA
Arc 8-Cores, Ultra 9 185H, WD PC SN740 SDDPNQE-2T00
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Iris Xe G7 96EUs, i7-1355U, WD PC SN740 512GB SDDPMQD-512G-1101
HP Spectre x360 14-eu0078ng
Arc 8-Cores, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04
Dell Latitude 9440 2-in-1
Iris Xe G7 96EUs, i7-1365U, Samsung PM9B1 1024GB MZAL41T0HBLB
Lenovo Yoga 9 14IRP G8
Iris Xe G7 96EUs, i7-1360P, SK hynix PC801 HFS512GEJ9X101N BF
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Iris Xe G7 96EUs, i7-12700H, Samsung PM9A1 MZVL2512HCJQ
Asus ZenBook 14 UX3405MA
Arc 8-Cores, Ultra 7 155H, Micron 2400 MTFDKBA1T0QFM
Noise
6%
12%
-2%
-4%
3%
3%
off /ambiente *
24
22.6
6%
23.4
2%
24.1
-0%
23.6
2%
23.7
1%
23.4
2%
Idle Minimum *
24
23.1
4%
23.4
2%
24.3
-1%
23.6
2%
23.7
1%
23.4
2%
Idle Average *
24
23.1
4%
23.4
2%
24.3
-1%
23.6
2%
23.7
1%
23.4
2%
Idle Maximum *
26.7
23.1
13%
25.6
4%
24.3
9%
24.6
8%
23.7
11%
24.5
8%
Load Average *
39.4
38.6
2%
25.6
35%
36.3
8%
45
-14%
37.6
5%
39.3
-0%
Witcher 3 ultra *
39.4
34.2
13%
30.9
22%
44.5
-13%
45
-14%
37.6
5%
35.9
9%
Load Maximum *
39.4
38.3
3%
32.6
17%
44.5
-13%
45
-14%
41.7
-6%
39.3
-0%

* ... Meglio usare valori piccoli

Temperatura

Il case in metallo rimane piacevolmente fresco in modalità idle e durante le attività semplici, ma non ci sono stati problemi nemmeno sotto carico. L'hotspot è posizionato centralmente nell'area posteriore sul lato inferiore dell'unità base, motivo per cui il convertibile può essere posizionato anche sulle cosce. Il vantaggio è che la tastiera è un componente separato e quindi non si riscalda particolarmente, per cui gli utenti possono continuare a digitare comodamente sotto carico elevato. Nel test di stress, il processore ha funzionato inizialmente a 64 watt, per poi scendere a 30 watt per alcuni minuti e infine stabilizzarsi a 20 watt.

Dati CPU/iGPU - stress test
Dati CPU/iGPU - stress test
Carico massimo
 34.5 °C35.6 °C33.9 °C
 32.3 °C34.5 °C33.1 °C
 28 °C28.9 °C28.3 °C
Massima: 35.6 °C
Media: 32.1 °C
41.3 °C46.6 °C40.9 °C
38.9 °C39.4 °C39.9 °C
32.4 °C32.7 °C32.9 °C
Massima: 46.6 °C
Media: 38.3 °C
Alimentazione (max)  48.7 °C | Temperatura della stanza 20.3 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(±) La temperatura media del lato superiore sotto carico massimo e' di 32.1 °C / 90 F, rispetto alla media di 30.2 °C / 86 F per i dispositivi di questa classe Convertible.
(+) La temperatura massima sul lato superiore è di 35.6 °C / 96 F, rispetto alla media di 35.3 °C / 96 F, che varia da 19.6 a 55.7 °C per questa classe Convertible.
(-) Il lato inferiore si riscalda fino ad un massimo di 46.6 °C / 116 F, rispetto alla media di 36.7 °C / 98 F
(+) In idle, la temperatura media del lato superiore è di 26.4 °C / 80 F, rispetto alla media deld ispositivo di 30.2 °C / 86 F.
(±) Riproducendo The Witcher 3, la temperatura media per il lato superiore e' di 32.4 °C / 90 F, rispetto alla media del dispositivo di 30.2 °C / 86 F.
(+) I poggiapolsi e il touchpad sono piu' freddi della temperatura della pelle con un massimo di 28.9 °C / 84 F e sono quindi freddi al tatto.
(±) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 28.1 °C / 82.6 F (-0.8 °C / -1.4 F).
Test di sollecitazione delle temperature di superficie (in alto)
Test di sollecitazione delle temperature di superficie (in alto)
Test di sollecitazione delle temperature di superficie (in basso)
Test di sollecitazione delle temperature di superficie (in basso)
Asus Zenbook Duo OLED UX8406MA
Intel Core Ultra 9 185H, Intel Arc 8-Cores iGPU
Lenovo Yoga Book 9i 2-in-1 Dual Screen
Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs
HP Spectre x360 14-eu0078ng
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
Dell Latitude 9440 2-in-1
Intel Core i7-1365U, Intel Iris Xe Graphics G7 96EUs
Lenovo Yoga 9 14IRP G8
Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs
Asus Zenbook Pro 14 Duo OLED UX8402ZA
Intel Core i7-12700H, Intel Iris Xe Graphics G7 96EUs
Asus ZenBook 14 UX3405MA
Intel Core Ultra 7 155H, Intel Arc 8-Cores iGPU
Heat
1%
8%
-4%
4%
-7%
5%
Maximum Upper Side *
35.6
37
-4%
39.3
-10%
40.8
-15%
39.7
-12%
43.2
-21%
40.9
-15%
Maximum Bottom *
46.6
37.2
20%
45
3%
40
14%
45.4
3%
47.8
-3%
46.8
-0%
Idle Upper Side *
27.1
31.4
-16%
23.8
12%
30.4
-12%
25.7
5%
28
-3%
24.1
11%
Idle Bottom *
32.3
31.6
2%
24
26%
32.8
-2%
26.4
18%
32.2
-0%
24.6
24%

* ... Meglio usare valori piccoli

Altoparlanti

I due altoparlanti dello Zenbook Duo sono solidi, ma non sono in grado di tenere il passo con i sistemi audio del normale Zenbook 14 OLED o del HP Spectre x360 14. Tuttavia, gli utenti possono comunque sfruttare le cuffie o gli altoparlanti esterni se l'audio di buona qualità è un must.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.634.62526.527.73126.4314032.232.65027.631.16326.128.88020.627.210023.336.812518.845.516017.150.520018.661.625018.465.631516.470.540012.571.750011.17163010.669.980010.170100010.269.2125010.271.7160010.171.72000117325001171.4315011.371.4400012.867500012.167.6630012.570.6800012.675.71000012.5681250012.463.61600011.752.1SPL2483.1N0.561.3median 12.4median 69.9Delta2.4532.436.926.427.729.930.731.833.429.430.329.129.120.532.521.446.219.153.415.158.51662.917.966.61568.412.568.310.870.110.374.810.774.910.271.71074.19.973.310.474.710.673.41169.411.374.311.569.411.66711.868.411.869.711.767.311.464.223.484.40.564.4median 11.5median 69.42.43.8hearing rangehide median Pink NoiseAsus Zenbook Duo OLED UX8406MAHP Spectre x360 14-eu0078ng
Diagramma frequenza (le caselle possono essere selezionate/deselezionate per confrontare i dispositivi)
Asus Zenbook Duo OLED UX8406MA analisi audio

(+) | gli altoparlanti sono relativamente potenti (83.1 dB)
Bassi 100 - 315 Hz
(-) | quasi nessun basso - in media 15% inferiori alla media
(±) | la linearità dei bassi è media (12.6% delta rispetto alla precedente frequenza)
Medi 400 - 2000 Hz
(+) | medi bilanciati - solo only 1.3% rispetto alla media
(+) | medi lineari (1.7% delta rispetto alla precedente frequenza)
Alti 2 - 16 kHz
(+) | Alti bilanciati - appena 2.4% dalla media
(+) | alti lineari (5.6% delta rispetto alla precedente frequenza)
Nel complesso 100 - 16.000 Hz
(+) | suono nel complesso lineare (11.3% differenza dalla media)
Rispetto alla stessa classe
» 7% di tutti i dispositivi testati in questa classe è stato migliore, 3% simile, 91% peggiore
» Il migliore ha avuto un delta di 6%, medio di 21%, peggiore di 57%
Rispetto a tutti i dispositivi testati
» 5% di tutti i dispositivi testati in questa classe è stato migliore, 2% similare, 93% peggiore
» Il migliore ha avuto un delta di 4%, medio di 25%, peggiore di 134%

HP Spectre x360 14-eu0078ng analisi audio

(+) | gli altoparlanti sono relativamente potenti (84.4 dB)
Bassi 100 - 315 Hz
(±) | bassi ridotti - in media 10.1% inferiori alla media
(±) | la linearità dei bassi è media (10.3% delta rispetto alla precedente frequenza)
Medi 400 - 2000 Hz
(+) | medi bilanciati - solo only 3.6% rispetto alla media
(+) | medi lineari (3.1% delta rispetto alla precedente frequenza)
Alti 2 - 16 kHz
(+) | Alti bilanciati - appena 1.8% dalla media
(+) | alti lineari (5% delta rispetto alla precedente frequenza)
Nel complesso 100 - 16.000 Hz
(+) | suono nel complesso lineare (8.9% differenza dalla media)
Rispetto alla stessa classe
» 3% di tutti i dispositivi testati in questa classe è stato migliore, 1% simile, 96% peggiore
» Il migliore ha avuto un delta di 6%, medio di 21%, peggiore di 57%
Rispetto a tutti i dispositivi testati
» 2% di tutti i dispositivi testati in questa classe è stato migliore, 1% similare, 98% peggiore
» Il migliore ha avuto un delta di 4%, medio di 25%, peggiore di 134%

Gestione dell'alimentazione - Tempi di esecuzione utili, anche con 2 OLED

Consumo di energia

Per le nostre misurazioni energetiche, abbiamo utilizzato un solo display sullo Zenbook Duo. Con due display, il consumo massimo a riposo aumenta di circa 5 watt alla massima luminosità SDR. In sostanza, non ci sono sorprese e, ancora una volta, un alimentatore da 65 watt è insufficiente se il processore può consumare 64 watt. Come osservato in precedenza, la CPU consuma 64 watt solo per brevi periodi di tempo, quindi non ci sono problemi. Tuttavia, un alimentatore da 90 watt sarebbe stata una scelta migliore.

Consumo di corrente
Off / Standbydarklight 0.56 / 0.71 Watt
Idledarkmidlight 6.9 / 10.2 / 10.9 Watt
Sotto carico midlight 52.8 / 67.1 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
Asus Zenbook Duo OLED UX8406MA
Ultra 9 185H, Arc 8-Cores, WD PC SN740 SDDPNQE-2T00, OLED, 2880x1800, 14.00
Lenovo Yoga Book 9i 2-in-1 Dual Screen
i7-1355U, Iris Xe G7 96EUs, WD PC SN740 512GB SDDPMQD-512G-1101, OLED, 2880x1800, 13.30
HP Spectre x360 14-eu0078ng
Ultra 7 155H, Arc 8-Cores, Kioxia XG8 KXG80ZNV2T04, OLED, 2880x1800, 14.00
Dell Latitude 9440 2-in-1
i7-1365U, Iris Xe G7 96EUs, Samsung PM9B1 1024GB MZAL41T0HBLB, IPS, 2560x1600, 14.00
Lenovo Yoga 9 14IRP G8
i7-1360P, Iris Xe G7 96EUs, SK hynix PC801 HFS512GEJ9X101N BF, OLED, 2880x1800, 14.00
Asus Zenbook Pro 14 Duo OLED UX8402ZA
i7-12700H, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, OLED, 2880x1800, 14.50
Asus ZenBook 14 UX3405MA
Ultra 7 155H, Arc 8-Cores, Micron 2400 MTFDKBA1T0QFM, OLED, 2880x1800, 14.00
Media Intel Arc 8-Cores iGPU

Media della classe Convertible

Power Consumption
-19%
34%
15%
-11%
-36%
4%
2%
11%
Idle Minimum *
6.9
6.9
-0%
3.2
54%
4.2
39%
7.8
-13%
8.8
-28%
6.1
12%
4.96 ?(3 - 9.1, n=15)
28%
Idle Average *
10.2
11.6
-14%
4.2
59%
6.9
32%
9.3
9%
12.6
-24%
10
2%
Idle Maximum *
10.9
20.8
-91%
4.9
55%
7.8
28%
9.8
10%
13.9
-28%
10.3
6%
12.8 ?(4.9 - 49, n=15)
-17%
Load Average *
52.8
55
-4%
40.5
23%
46
13%
62.8
-19%
77.5
-47%
53.3
-1%
Witcher 3 ultra *
43.2
44.9
-4%
37.9
12%
51.9
-20%
46.5
-8%
52.4
-21%
42
3%
Load Maximum *
67.1
68.1
-1%
68.6
-2%
68.2
-2%
96
-43%
111
-65%
67
-0%
84.4 ?(60 - 140.6, n=15)
-26%

* ... Meglio usare valori piccoli

Power consumption Witcher 3 / stress test

05101520253035404550556065Tooltip
Asus Zenbook Duo OLED UX8406MA; Witcher 3 ultra: Ø43.2 (29.7-50.9)
Asus Zenbook Duo OLED UX8406MA; 1280x720 Prime95 28.10 and Furmark 1.25: Ø52.9 (40-67.1)
Asus Zenbook Duo OLED UX8406MA; Idle 150cd/m2: Ø11.7 (10.4-13.8)

Power consumption with an external monitor

05101520253035404550556065Tooltip
Asus Zenbook Duo OLED UX8406MA; Prime95 V2810 Stress (external Monitor): Ø44.4 (33.2-67)
Asus Zenbook Duo OLED UX8406MA; Cinebench R23 Single (external Monitor): Ø30.2 (19.1-46.6)
Asus Zenbook Duo OLED UX8406MA; Cinebench R23 Multi (external Monitor): Ø46.9 (43.9-67.1)
Asus Zenbook Duo OLED UX8406MA; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.8 (29.8-54.9)
Asus Zenbook Duo OLED UX8406MA; 1920x1080 The Witcher 3 ultra (external Monitor): Ø38.7 (26.4-42.7)
Asus Zenbook Duo OLED UX8406MA; Idle 1min (external Monitor): Ø5.87 (4.75-7.87)

Durata della batteria

Asus installa una batteria da 75 wattora nello Zenbook Duo e il software MyAsus riduce la frequenza a 60 Hz in modalità batteria per impostazione predefinita. Abbiamo eseguito i nostri soliti test a 60 Hz per la nostra tabella di confronto. Nel test WLAN a 150 cd/m² (corrispondente al 71% della luminosità massima SDR), abbiamo registrato poco meno di 9,5 ore (8,5 ore con 120 Hz) e 7 ore alla massima luminosità SDR (6,5 ore con 120 Hz). La riproduzione di video a 150 cd/m² dura più di 13,5 ore, mentre un video HDR dura poco più di 5,5 ore alla massima luminosità.

Abbiamo anche testato i tempi di esecuzione con due pannelli attivi e abbiamo elencato i risultati nella tabella seguente. Nello scenario peggiore, ossia l'utilizzo massimo del processore con entrambi i pannelli OLED al 100% di luminosità SDR e 120 Hz, il tempo di esecuzione è stato di 109 minuti. Naturalmente, dipende sempre da come viene utilizzato il dispositivo e con quali contenuti, ma nel complesso i risultati sono accettabili. Una carica completa richiede circa 100 minuti con il dispositivo acceso e la curva di carica è completamente lineare.


Test WLAN
150 cd/m² 60 Hz
Test WLAN
150 cd/m² 120 Hz
Test WLAN
luminosità massima 60 Hz
Test WLAN
luminosità massima 120 Hz
1 display 561 minuti 502 minuti 422 minuti 390 minuti
2 display 406 minuti 339 minuti 294 minuti 282 minuti
Autonomia della batteria
WiFi Websurfing
9ore 21minuti
WiFi Websurfing max. Brightness
7ore 02minuti
Big Buck Bunny H.264 1080p
13ore 40minuti
Sotto carico (max luminosità)
2ore 26minuti
Asus Zenbook Duo OLED UX8406MA
Ultra 9 185H, Arc 8-Cores, 75 Wh
Lenovo Yoga Book 9i 2-in-1 Dual Screen
i7-1355U, Iris Xe G7 96EUs, 80 Wh
HP Spectre x360 14-eu0078ng
Ultra 7 155H, Arc 8-Cores, 68 Wh
Dell Latitude 9440 2-in-1
i7-1365U, Iris Xe G7 96EUs, 60 Wh
Lenovo Yoga 9 14IRP G8
i7-1360P, Iris Xe G7 96EUs, 75 Wh
Asus Zenbook Pro 14 Duo OLED UX8402ZA
i7-12700H, Iris Xe G7 96EUs, 76 Wh
Asus ZenBook 14 UX3405MA
Ultra 7 155H, Arc 8-Cores, 75 Wh
Media della classe Convertible

Autonomia della batteria
27%
3%
-26%
-27%
-37%
14%
-7%
H.264
820
999
22%
651
-21%
407
-50%
1010
23%
WiFi v1.3
561
586
4%
555
-1%
555
-1%
472
-16%
386
-31%
707
26%
Load
146
219
50%
129
-12%
73
-50%
81
-45%
101
-31%
134
-8%

Pro

+ concetto operativo ben studiato
+ due ottimi pannelli OLED con 120 Hz
+ dispositivi di ingresso molto comodi
+ buone prestazioni di sistema
+ stilo e custodia inclusi
+ durata della batteria decente

Contro

- accesso complicato ai componenti/ RAM saldata
- nessun lettore di schede/Wi-Fi 7
- prestazioni mediocri dell'SSD
- (ancora) problemi con i giochi

Verdetto - Zenbook Duo è il miglior dispositivo multischermo sul mercato

In recensione: Asus Zenbook Duo OLED. Dispositivo di prova fornito da Asus Germania.
In recensione: Asus Zenbook Duo OLED. Dispositivo di prova fornito da Asus Germania.

Il nuovo Zenbook Duo 2024 è un prodotto molto interessante e il miglior dispositivo multischermo che abbiamo recensito finora. Da un lato, ciò è dovuto all'utilizzo di due schermi OLED identici, per cui non ci sono problemi di ridimensionamento e non si ha la sensazione che il secondo schermo sia di qualità inferiore. Anche il software in dotazione facilita l'utilizzo di entrambi gli schermi. D'altra parte, gli utenti non devono scendere a compromessi per quanto riguarda i dispositivi di input (né in termini di dimensioni, né di qualità, né di posizione), perché la tastiera Bluetooth in dotazione è ben salda sull'unità base. La sensazione di digitazione, con la sua corsa di 1,4 mm, non è diversa da quella di altri notebook, come il normale Zenbook 14. Se il secondo schermo non è necessario, lo Zenbook Duo può essere utilizzato come un normale computer portatile, e non ci si troverà subito a dover gestire il secondo schermo. L'unico compromesso in questo caso è il case più spesso e più pesante rispetto ai normali notebook come lo Zenbook 14 o ai convertibili come il HP Spectre x360 14ma rispetto ad altri notebook multischermo come lo Zenbook Pro 14 Duo, lo Zenbook Duo si comporta bene.

La kickstand integrata non è ancora stata completamente perfezionata, in quanto il dispositivo non è molto stabile quando viene inclinato all'indietro, soprattutto in modalità verticale (vedi foto sopra), e le opzioni di regolazione sono limitate. Si può anche appoggiare il dispositivo sul telaio, ma in questo caso c'è il rischio che si ribalti all'indietro. Pertanto, qualsiasi modello successivo avrà margini di miglioramento in questo ambito. Un altro problema del design particolare è l'accesso complicato ai componenti, in quanto alcuni cavi devono essere rimossi. Ciò significa che la maggior parte degli utenti non avrà alcuna possibilità di manutenzione.

Il nuovo Asus Zenbook Duo 2024 è attualmente il miglior dispositivo multischermo sul mercato perché, oltre ai due fantastici schermi OLED, è possibile utilizzarlo anche come un normale notebook grazie alla solida tastiera.

Nell'uso quotidiano, lo Zenbook Duo è veloce e, soprattutto con 32 GB di RAM e 2 TB di memoria SSD, gli utenti sono ben equipaggiati per i prossimi anni. Il Core Ultra 9 185H, il processore H45 più potente della generazione Meteor Lake che Intel offre attualmente, non è davvero necessario. Le opzioni di raffreddamento dell'unità base sottile sono naturalmente limitate e le prestazioni a breve termine sono buone in modalità energia normale, ma il processore si ferma a 20 watt dopo poco tempo. La situazione migliora in modalità Performance , ma anche qui il convertibile è molto rumoroso. Come per altri dispositivi Meteor Lake, ci sono ancora problemi di driver durante i giochi, che si spera vengano risolti presto.

Il comportamento della ventola dello Zenbook Duo è generalmente migliore rispetto allo Zenbook 14 OLED recensito di recente, ma anche in questo caso la ventola si avvia abbastanza rapidamente e si verificano occasionalmente rumori elettronici. I tempi di esecuzione della batteria degli schermi OLED dipendono naturalmente in larga misura dai contenuti visualizzati e sono naturalmente soggetti a una maggiore scarica quando si utilizzano entrambi i display. Nel complesso, tuttavia, lo Zenbook Duo si comporta bene.

Il principale concorrente dello Zenbook Duo è lo Yoga Book di Lenovoche è nettamente inferiore, soprattutto se utilizzato come notebook tradizionale, in quanto gli utenti sono costretti ad accettare compromessi importanti con la tastiera compatta. Chi è alla ricerca di un convertibile con due schermi non può evitare il nuovo Zenbook Duo 2024.

Scarica la tua immagine come SVG / PNG

Prezzo e disponibilità

Al momento, Amazon sembra essere l'unico rivenditore che ha in offerta lo Zenbook Duo OLED. Purtroppo, è "temporaneamente esaurito". Gli acquirenti interessati sono invitati a controllare regolarmente Amazon e la pagina ufficiale del prodotto di Asus per verificare la disponibilità.

Asus Zenbook Duo OLED UX8406MA - 02/25/2024 v7
Andreas Osthoff

Chassis
84 / 98 → 86%
Tastiera
85%
Dispositivo di puntamento
93%
Connettività
68 / 75 → 90%
Peso
67 / 20-75 → 85%
Batteria
88%
Display
91%
Prestazioni di gioco
39 / 78 → 49%
Prestazioni Applicazioni
82 / 85 → 97%
Temperatura
90%
Rumorosità
87%
Audio
83 / 91 → 91%
Fotocamera
39 / 85 → 46%
Media
77%
88%
Convertible - Media ponderata

Transparency

The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Pricecompare

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione del convertibile Asus Zenbook Duo OLED (2024): Campione di multitasking con Core Ultra 9
Andreas Osthoff, 2024-03- 2 (Update: 2024-03- 2)
