Recensione breve del portatile Acer Aspire Switch One 10 SW1-011-14UQ

Sascha Mölck (traduzione a cura di G. De Luca), 02/25/2017

Un portatile convertibile per casa. Acer richiede circa 250 Euro (~$265) per il nuovo convertibile Windows da 10.1": lo Switch One. Avrete un computer silenzioso con una ampia autonomia - e un display IPS sorprendentemente luminoso e con contrasto elevato.

Acer Switch One 10 SW1-011-14UQ (Aspire Switch Serie)
Processore
Intel Atom x5-Z8300
Scheda grafica
Intel HD Graphics (Cherry Trail), Core: 300-500 MHz, Single-channel, 20.19.15.4352
Memoria
2048 MB
, DDR3, Single-channel, Memoria saldata
Schermo
10.1 pollici 16:10, 1280x800 pixel 149 PPI, Capacitive, 10 punti, supporto Active stylus, MS_9001, IPS, lucido: no, schermo sganciabile
Harddisk
64 GB eMMC Flash, 64 GB
, 47 GB libera
Porte di connessione
2 USB 2.0, 1 HDMI, Connessioni Audio: Audio combo, Lettore schede: MicroSD, Sensori: sensore accelerazione, TPM 2.0
Rete
Realtek RTL8723BS (b/g/n), Bluetooth 4.0
Dimensioni
altezza x larghezza x profondità (in mm): 20.7 x 259 x 192.6
Batteria
8200 mAh polimeri di litio
Sistema Operativo
Microsoft Windows 10 Home 32 Bit
Camera
Webcam: HD
Fotocamera Principale: 2 MPix HD
Fotocamera Secondaria: 2 MPix
Altre caratteristiche
Casse: Stereo, Tastiera: Chiclet, Illuminazione Tastiera: no, 12 Mesi Garanzia, senza ventola
Peso
1.26 kg, Alimentazione: 112 gr
Prezzo
259 Euro



Size Comparison

Connectivity

Left side: Audio combo, Micro-USB, Power connection Micro-HDMI, Memory card reader (MicroSD)
Left side: Audio combo, Micro-USB, Power connection Micro-HDMI, Memory card reader (MicroSD)
Right side: USB 2.0 (Type A)
Right side: USB 2.0 (Type A)
The top side of the tablet component houses the power button and volume rocker.
The top side of the tablet component houses the power button and volume rocker.
303
cd/m²
343
cd/m²
298
cd/m²
280
cd/m²
315
cd/m²
333
cd/m²
301
cd/m²
321
cd/m²
305
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 343 cd/m² Media: 311 cd/m² Minimum: 28.9 cd/m²
Distribuzione della luminosità: 82 %
Al centro con la batteria: 271 cd/m²
Contrasto: 1086:1 (Nero: 0.29 cd/m²)
ΔE Color 6.78 | - Ø
ΔE Greyscale 7.7 | - Ø
77.9% sRGB (Argyll) 49.9% AdobeRGB 1998 (Argyll)
Gamma: 2.23
Acer Switch One 10 SW1-011-14UQ
IPS, 1280x800, 10.1
Acer Switch V 10 SW5-017-196Q
IPS, 1280x800, 10.1
Lenovo IdeaPad MIIX 310-10ICR
IPS, 1280x800, 10.1
HP x2 210 G1
IPS, 1280x800, 10.1
Response Times
533%
13%
-9%
Response Time Grey 50% / Grey 80% *
39 (17, 22)
29 (8, 21)
26%
31.6 (13.6, 18)
19%
43 (21, 22)
-10%
Response Time Black / White *
22 (5, 17)
25 (9, 16)
-14%
24.8 (6, 28.8)
-13%
25 (10, 15)
-14%
PWM Frequency
52 (70)
877 (90)
1587%
69.4
33%
50 (60)
-4%
Screen
10%
-8%
5%
Brightness
311
239
-23%
233
-25%
295
-5%
Brightness Distribution
82
82
0%
83
1%
84
2%
Black Level *
0.29
0.21
28%
0.348
-20%
0.21
28%
Contrast
1086
1286
18%
724
-33%
1490
37%
Colorchecker DeltaE2000 *
6.78
3.01
56%
6.35
6%
6.79
-0%
Greyscale DeltaE2000 *
7.7
7.66
1%
7.09
8%
6.78
12%
Gamma
2.23 108%
1.45 166%
2.02 119%
2.26 106%
CCT
8676 75%
6665 98%
8590 76%
6708 97%
Color Space (Percent of AdobeRGB 1998)
49.9
49
-2%
52.69
6%
41
-18%
Color Space (Percent of sRGB)
77.9
76
-2%
63
-19%
Media totale (Programma / Settaggio)
272% / 152%
3% / -2%
-2% / 1%

* ... Meglio usare valori piccoli

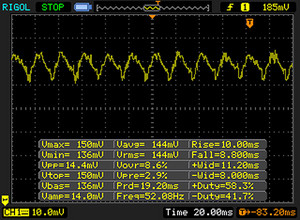

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 52 Hz70 % brightness setting

The display backlight flickers at 52 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 70 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 52 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 57 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 6562 (minimum: 43 - maximum: 142900) Hz was measured.

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
22 ms ... rise ↗ and fall ↘ combined↗ 5 ms Incremento
↘ 17 ms Calo
Lo schermo mostra buoni tempi di risposta durante i nostri tests, ma potrebbe essere troppo lento per i gamers competitivi.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 17 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (26.7 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
39 ms ... rise ↗ and fall ↘ combined↗ 17 ms Incremento
↘ 22 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 39 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (42.8 ms).
Cinebench R10 Rendering Single 32Bit
910
Cinebench R10 Rendering Multiple CPUs 32Bit
2933
Cinebench R10 Shading 32Bit
1877
Aiuto
Cinebench R10
Rendering Single 32Bit
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
999 Points ∼11% +10%
Acer Switch One 10 SW1-011-14UQ
Intel Atom x5-Z8300
910 Points ∼10%
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
884 Points ∼10% -3%
HP x2 210 G1
Intel Atom x5-Z8300
855 Points ∼10% -6%
Rendering Multiple CPUs 32Bit
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
3130 Points ∼6% +7%
Acer Switch One 10 SW1-011-14UQ
Intel Atom x5-Z8300
2933 Points ∼6%
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
2575 Points ∼5% -12%
HP x2 210 G1
Intel Atom x5-Z8300
2135 Points ∼4% -27%
Geekbench 3
32 Bit Multi-Core Score
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
2332 Points ∼7% +8%
Acer Switch One 10 SW1-011-14UQ
Intel Atom x5-Z8300
2157 Points ∼7%
32 Bit Single-Core Score
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
796 Points ∼17% +7%
Acer Switch One 10 SW1-011-14UQ
Intel Atom x5-Z8300
745 Points ∼16%
JetStream 1.1 - 1.1 Total Score
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
45.774 Points ∼14% +12%
HP x2 210 G1
Intel Atom x5-Z8300
44.024 Points ∼13% +7%
Acer Switch One 10 SW1-011-14UQ
Intel Atom x5-Z8300
41.008 Points ∼12%
Octane V2 - Total Score
Acer Switch One 10 SW1-011-14UQ
Intel Atom x5-Z8300
6531 Points ∼13%
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
6343 Points ∼13% -3%
Mozilla Kraken 1.1 - Total Score
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
6122 ms * ∼10% -6%
Acer Switch One 10 SW1-011-14UQ
Intel Atom x5-Z8300
5769.3 ms * ∼10%

* ... Meglio usare valori piccoli

PCMark 8 Home Score Accelerated v2
1315 punti
Aiuto
PCMark 8 - Home Score Accelerated v2
Acer Switch V 10 SW5-017-196Q
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1520 Points ∼25% +16%
Lenovo IdeaPad MIIX 310-10ICR
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1419 Points ∼24% +8%
HP x2 210 G1
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1391 Points ∼23% +6%
Acer Switch One 10 SW1-011-14UQ
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1315 Points ∼22%
64 GB eMMC Flash
Sequential Read: 169 MB/s
Sequential Write: 109.8 MB/s
512K Read: 163.2 MB/s
512K Write: 105.6 MB/s
4K Read: 18.95 MB/s
4K Write: 23.33 MB/s
4K QD32 Read: 29.17 MB/s
4K QD32 Write: 37.32 MB/s
Acer Switch One 10 SW1-011-14UQ
64 GB eMMC Flash
Acer Switch V 10 SW5-017-196Q
64 GB eMMC Flash
Lenovo IdeaPad MIIX 310-10ICR
64 GB eMMC Flash
HP x2 210 G1
64 GB eMMC Flash
CrystalDiskMark 3.0
-19%
-31%
-32%
Write 4k QD32
37.32
33.93
-9%
13.18
-65%
11.84
-68%
Read 4k QD32
29.17
23.81
-18%
29
-1%
35.31
21%
Write 4k
23.33
12.38
-47%
12.26
-47%
10.06
-57%
Read 4k
18.95
12.58
-34%
9.35
-51%
15.79
-17%
Write 512
105.6
91.51
-13%
58.05
-45%
57.69
-45%
Read 512
163.2
136.2
-17%
144.5
-11%
112.9
-31%
Write Seq
109.8
101.1
-8%
87.29
-21%
66.09
-40%
Read Seq
169
153.9
-9%
151.9
-10%
134.1
-21%
3DMark 11 Performance
338 punti
Aiuto
3DMark 11 - 1280x720 Performance GPU
Acer Switch V 10 SW5-017-196Q
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350
358 Points ∼1% +20%
Lenovo IdeaPad MIIX 310-10ICR
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350
298 Points ∼1% 0%
Acer Switch One 10 SW1-011-14UQ
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8300
298 Points ∼1%
HP x2 210 G1
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8300
291 Points ∼1% -2%
basso medio alto ultra
Trackmania Nations Forever (2008) 96.122.9fps
Carico massimo
 37.3 °C33.1 °C38.4 °C
 31.5 °C30.2 °C37 °C
 29.5 °C29.3 °C29.1 °C
Massima: 38.4 °C
Media: 32.8 °C
30.1 °C33 °C44.3 °C
30 °C31 °C31.5 °C
29 °C30 °C30.2 °C
Massima: 44.3 °C
Media: 32.1 °C
Alimentazione (max)  36 °C | Temperatura della stanza 22 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.43735.42536.63436.63136.430.736.44035.436.935.4503731.1376338.730.838.78039.13039.110037.828.537.812539.225.339.216040.225.540.220042.825.942.825042.623.742.63154523.94540046.622.146.650050.521.450.563057.520.557.580064.32064.3100069.519.369.5125064.818.764.8160058.418.258.4200061.11861.1250069.817.969.8315065.317.865.340006717.867500070.517.970.5630065.517.865.580005417.9541000050.717.750.71250046.917.546.91600042.817.642.8SPL77.831.177.8N37.71.637.7median 54Acer Switch One 10 SW1-011-14UQmedian 18.7median 54Delta11.22.211.235.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
Acer Switch One 10 SW1-011-14UQ audio analysis

(-) | not very loud speakers (70 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.7% lower than median
(+) | bass is linear (4.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.8% higher than median
(±) | linearity of mids is average (13.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 10.2% higher than median
(-) | highs are not linear (15.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (28.2% difference to median)
Compared to same class
» 75% of all tested devices in this class were better, 5% similar, 20% worse
» The best had a delta of 11%, average was 23%, worst was 53%
Compared to all devices tested
» 81% of all tested devices were better, 5% similar, 14% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 2% similar, 97% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo di corrente
Off / Standbydarklight 0.06 / 0.36 Watt
Idledarkmidlight 3.1 / 5.1 / 5.5 Watt
Sotto carico midlight 10.4 / 10.5 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Autonomia della batteria
Navigazione WiFi v1.3 (Edge 38)
8ore 53minuti
Battery Runtime - WiFi Websurfing 1.3
Lenovo IdeaPad MIIX 310-10ICR
Z8350, HD Graphics (Cherry Trail), 33 Wh
643 min ∼54% +21%
HP x2 210 G1
Z8300, HD Graphics (Cherry Trail), 33 Wh
550 min ∼46% +3%
Acer Switch One 10 SW1-011-14UQ
Z8300, HD Graphics (Cherry Trail),  Wh
533 min ∼44%
Acer Switch V 10 SW5-017-196Q
Z8350, HD Graphics (Cherry Trail), 28.2 Wh
493 min ∼41% -8%

Pro

+ Pannello IPS luminoso e con elevato contrasto
+ Silenzioso
+ 64 GB di spazio

Contro

- Dock tastiera molto instabile
- Solo un anno di garanzia
- Nessuna porta USB Type-C
- Nessun supporto ac WLAN
In review: Acer Aspire Switch One 10 SW1-011-14UQ. Test model courtesy of Notebook.de
In review: Acer Aspire Switch One 10 SW1-011-14UQ. Test model courtesy of Notebook.de

Questo convertibile Acer Window da 10.1" ha un processore Cherry Trail, progettato per applicazioni semplidi da ufficio ed internet. Un decoder integrato sulla GPU alleggerisce il carico della CPU quando il computer riproduce videos nei consueti formati. Il dispositivo è silenzioso e si scalda poco. PRO: il dispositivo monta un modulo da 64 GB eMMC. Acer ha anche modelli da 32 GB di spazio. Non raccomandiamo questi modelli indipendentemente dal produttore. 32 GB sono troppo pochi per un sistema Windows 10. Dei 64 GB, circa 47 GB restano a disposizione dell'utente. La tastiera è adatta ad un utilizzo domestico. Il dispositivo ha una buona autonomia, e il suo display IPS offre angoli di visuale stabili, elevata luminosità e contrasto ricco - ottime features per un dispositivo di questo prezzo.

L'Acer Switch One è un ragionevole convertibile Windows, con qualche pecca.

Il dispositivo merita qualche critica per l'assenza di porte USB Type-C. La scarsità di USB 3.0 è un altro punto debole. In aggiunta, Acer offre solo un anno di garanzia - un passo indietro per il produttore.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Acer Switch One 10 SW1-011-14UQ - 02/11/2017 v6
Sascha Mölck

Chassis
74 / 98 → 75%
Tastiera
67%
Dispositivo di puntamento
84%
Connettività
33 / 80 → 42%
Peso
72 / 78 → 86%
Batteria
91%
Display
84%
Prestazioni di gioco
31 / 68 → 45%
Prestazioni Applicazioni
44 / 87 → 51%
Temperatura
91%
Rumorosità
100%
Audio
44 / 91 → 48%
Fotocamera
42 / 85 → 49%
Media
66%
78%
Convertible - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del portatile Acer Aspire Switch One 10 SW1-011-14UQ
Sascha Mölck, 2017-02-25 (Update: 2017-02-25)
