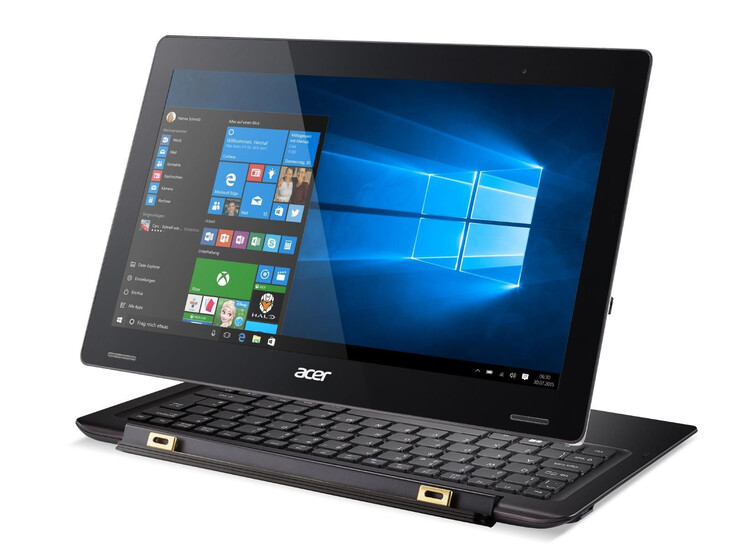

Recensione Breve del Convertibile Acer Aspire Switch 12S SW7-272-M3A0

Sascha Mölck, Stefanie Voigt, 07/14/2016

Flessibile. L'Acer Switch 12S è uno sganciabile da 12.5" che monta un display luminoso e con buon contrasto oltre ad una panne input opzionale. Lo Switch costa 1200 Euro (~$1330) - troppo a nostro parere.

Acer Aspire Switch 12S SW7-272-M3A0 (Aspire Switch Serie)
Scheda grafica
Intel HD Graphics 515, Core: 300-850 MHz, Dual-Channel, 20.19.15.4331
Memoria
4096 MB
, DDR3-1600, Dual-Channel, saldata
Schermo
12.5 pollici 16:9, 1920 x 1080 pixel 176 PPI, capacitive, supporto penna nativo, AU Optronics B125HAN01.0, IPS, lucido: si, schermo sganciabile
Scheda madre
Intel Skylake-Y Premium PCH
Harddisk
Lite-On CV1-8B128, 128 GB
, 90 GB libera
Scheda audio
Realtek High Definition Audio
Porte di connessione
2 USB 3.0 / 3.1, 1 USB 3.1 Gen 2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, Connessioni Audio: audio combo-jack, Lettore schede: MicroSD, Sensore luminosità, Sensori: G-Sensor, Bussola digitale, giroscopio, TPM 2.0
Rete
Atheros/Qualcomm QCA6174 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.0
Dimensioni
altezza x larghezza x profondità (in mm): 17.3 x 313.4 x 206.1
Batteria
34 Wh ioni di litio
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD webcam (2 MP)
Fotocamera Principale: Real Sense 3D
Altre caratteristiche
Casse: Stereo, Tastiera: Chiclet, Illuminazione Tastiera: si, Foxit PhantomPDF, McAfee LiveSafe-Internet Security (trial), MS Office (trial), 12 Mesi Garanzia, senza ventola
Peso
1.4 kg, Alimentazione: 246 gr
Prezzo
1199 Euro
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.

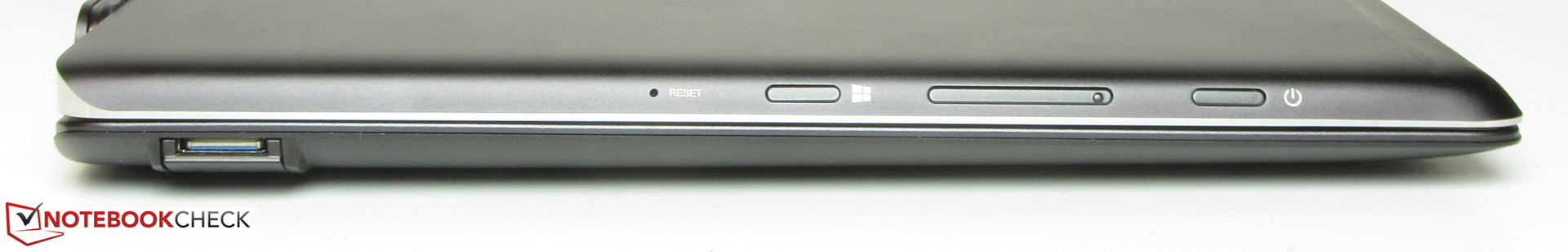

Left side: USB 3.0, reset button (recessed), Windows key, volume rocker switch, power button
Left side: USB 3.0, reset button (recessed), Windows key, volume rocker switch, power button

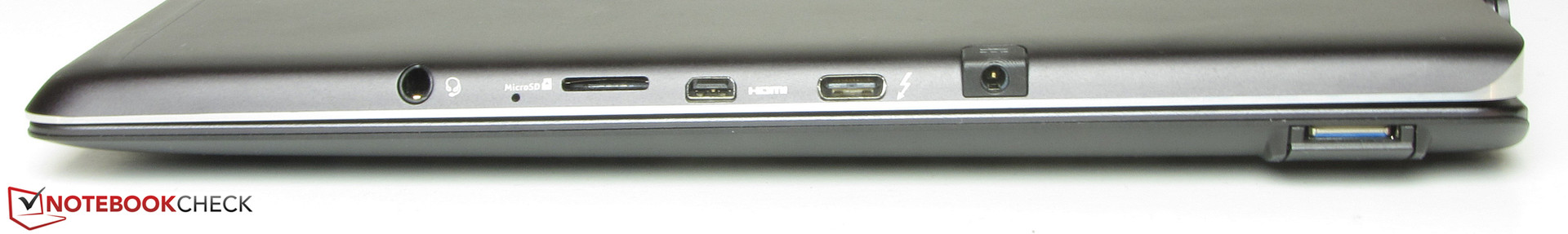

Right side: audio combo-jack, card reader (MicroSD), MicroHDMI, Thunderbolt 3, power jack, USB 3.0
Right side: audio combo-jack, card reader (MicroSD), MicroHDMI, Thunderbolt 3, power jack, USB 3.0
388
cd/m²
387
cd/m²
371
cd/m²
385
cd/m²
383
cd/m²
362
cd/m²
382
cd/m²
386
cd/m²
357
cd/m²
Distribuzione della luminosità
AU Optronics B125HAN01.0
X-Rite i1Pro 2
Massima: 388 cd/m² Media: 377.9 cd/m² Minimum: 14 cd/m²
Distribuzione della luminosità: 92 %
Al centro con la batteria: 383 cd/m²
Contrasto: 1126:1 (Nero: 0.34 cd/m²)
ΔE Color 4.8 | 0.6-29.43 Ø6
ΔE Greyscale 2.8 | 0.64-98 Ø6.2
64% sRGB (Argyll 3D) 41% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.25

Sfarfallio dello schermo / PWM (Pulse-Width Modulation)

Per ridurre la luminosità dello schermo, alcuni portatili accendono e spengono la retroilluminazione in rapida successione - un metodo chiamato Pulse Width Modulation (PWM). Questa frequenza di ciclo a livello ideale non dovrebbe essere percepibile dall'occhi umano. Se tale frequenza è troppo bassa, gli utenti con occhi sensibili potrebbero stancarsi gli occhi o avere mal di testa o anche notare uno sfarfallio.
flickering dello schermo / PWM non rilevato

In confronto: 51 % di tutti i dispositivi testati non utilizza PWM per ridurre la luminosita' del display. Se è rilevato PWM, una media di 9258 (minimo: 43 - massimo: 142900) Hz è stata rilevata.

Calman - Color Checker
Calman - Color Checker

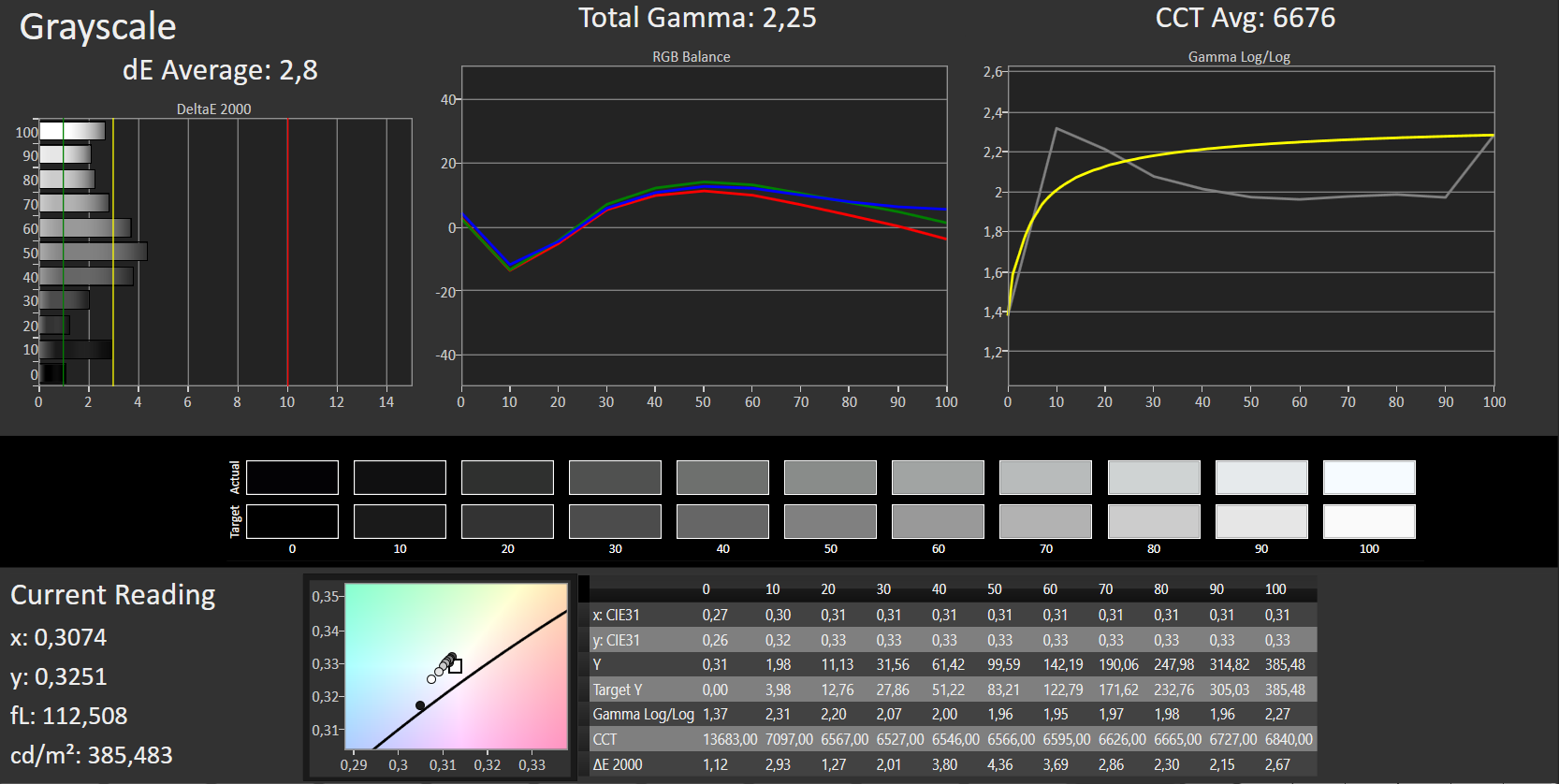

Calman - Graylevels
Calman - Graylevels

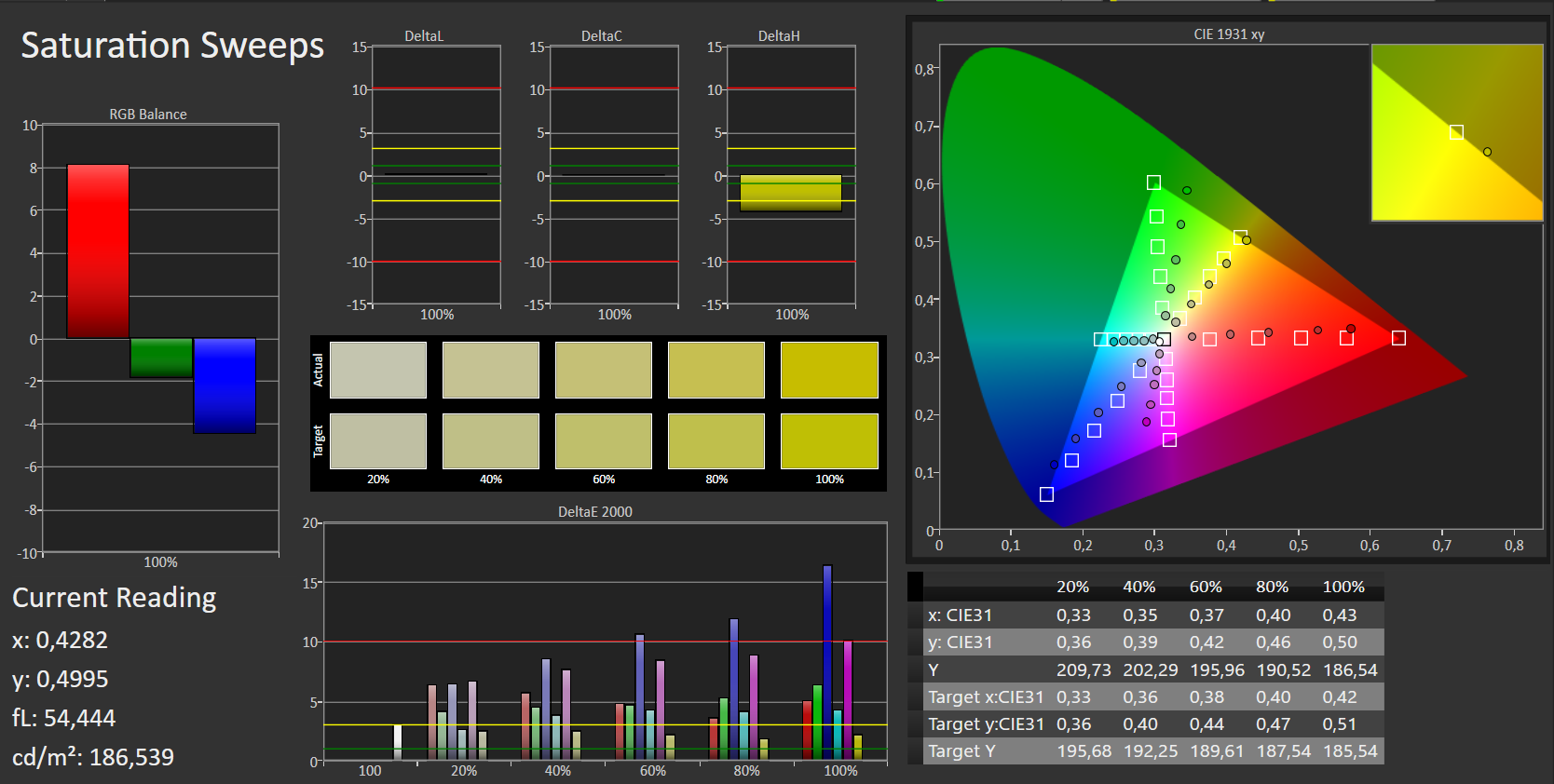

Calman - Saturation
Calman - Saturation

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti possono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con tempi di risposta bassi.

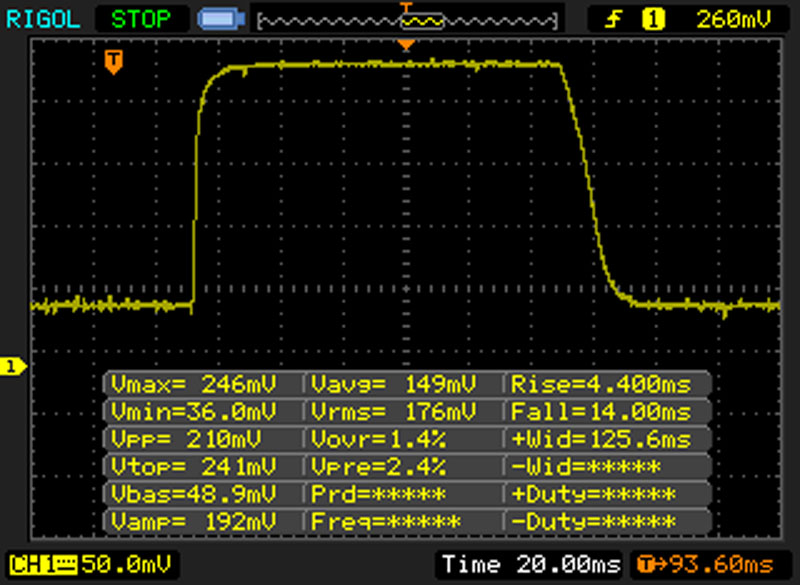

       Tempi di risposta dal Nero al Bianco
18 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 4 ms Incremento
↘ 14 ms Calo
Lo schermo mostra buoni tempi di risposta durante i nostri tests, ma potrebbe essere troppo lento per i gamers competitivi.
In confronto, tutti i dispositivi di test variano da 0.8 (minimo) a 240 (massimo) ms. » 19 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono migliori rispettto alla media di tutti i dispositivi testati (24.9 ms).

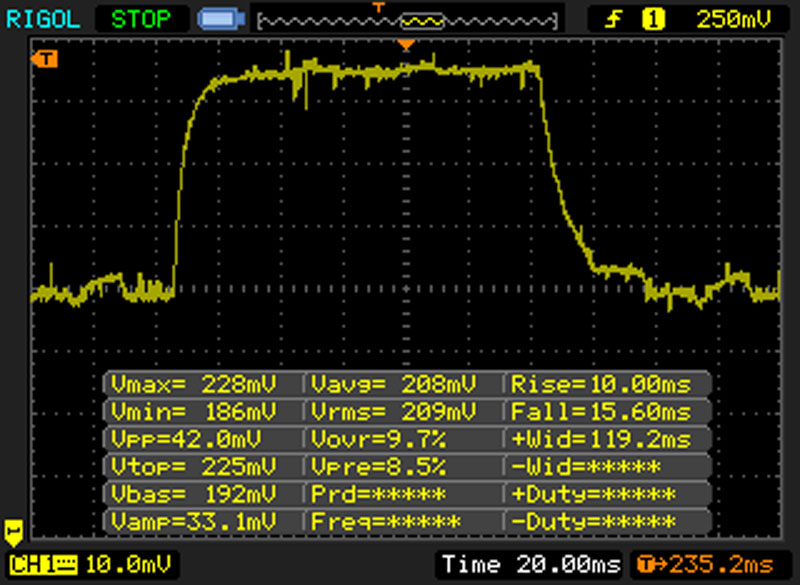

       Tempo di risposta dal 50% Grigio all'80% Grigio
25 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 10 ms Incremento
↘ 15 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In confronto, tutti i dispositivi di test variano da 0.9 (minimo) a 636 (massimo) ms. » 14 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono migliori rispettto alla media di tutti i dispositivi testati (39.6 ms).
Acer Aspire Switch 12S SW7-272-M3A0
IPS, 1920x1080
Lenovo IdeaPad Miix 700
IPS, 2160x1440
HP Elite x2 1012 G1
IPS, 1920x1280
Samsung Galaxy Tab Pro S W700N
sAMOLED, 2160x1440
Microsoft Surface Pro 4, Core m3
IPS, 2736x1824
Microsoft Surface Pro 4, Core i5, 128GB
IPS, 2736x1824
Acer Aspire Switch 12 SW5-271-61X7
IPS, 1920x1080
Acer Aspire Switch Alpha 12 SA5-271-56HM
IPS, 2160x1440
Response Times
-5%
-30%
-78%
-79%
-35%
Response Time Grey 50% / Grey 80% *
25 (10, 15)
30 (11, 19)
-20%
33.2 (15.2, 18)
-33%
46 (17.2, 28.8)
-84%
46 (17.2, 28.8, plateau, spikes in between)
-84%
20 (5, 15, detail 5 schraffiert)
20%
Response Time Black / White *
18 (4, 14)
16 (4.4, 11.6)
11%
22.8 (10.4, 12.4)
-27%
31 (6, 25.2)
-72%
31.2 (6, 25.2, Spikes in between)
-73%
34 (15, 19, [email protected]% mit/ohne PSU)
-89%
PWM Frequency
200 (18)
50 (50)
50 (50)
1000 (100)
Screen
-18%
-22%
120%
17%
11%
-15%
-19%
Brightness middle
383
341
-11%
322
-16%
363
-5%
389.2
2%
413
8%
385
1%
345
-10%
Brightness
378
318
-16%
319
-16%
378
0%
392
4%
396
5%
352
-7%
328
-13%
Brightness Distribution
92
87
-5%
97
5%
90
-2%
92
0%
87
-5%
85
-8%
91
-1%
Black Level *
0.34
0.36
-6%
0.42
-24%
0.03
91%
0.27
21%
0.36
-6%
0.48
-41%
0.38
-12%
Contrast
1126
947
-16%
767
-32%
12100
975%
1441
28%
1147
2%
802
-29%
908
-19%
Colorchecker DeltaE2000 *
4.8
6
-25%
6.02
-25%
4.8
-0%
3.61
25%
3.09
36%
4.3
10%
8.4
-75%
Colorchecker DeltaE2000 max. *
8.77
10.06
-15%
6.91
21%
11.9
-36%
Greyscale DeltaE2000 *
2.8
8.12
-190%
6.29
-125%
5.04
-80%
3.8
-36%
3.92
-40%
3.73
-33%
4.3
-54%
Gamma
2.25 98%
2.23 99%
2.4 92%
2.57 86%
2.16 102%
2.3 96%
2.66 83%
2.63 84%
CCT
6676 97%
7011 93%
7712 84%
7255 90%
5969 109%
7333 89%
6785 96%
7368 88%
Color Space (Percent of AdobeRGB 1998)
41
63.4
55%
47.8
17%
73
78%
63
54%
61
49%
62
51%
Color Space (Percent of sRGB)
64
97.4
52%
73.2
14%
97
52%
97
52%
Media totale (Programma / Settaggio)
-12% / -16%
-26% / -23%
120% / 120%
-31% / -1%
-34% / -5%
-15% / -15%
-27% / -22%

* ... Meglio usare valori piccoli

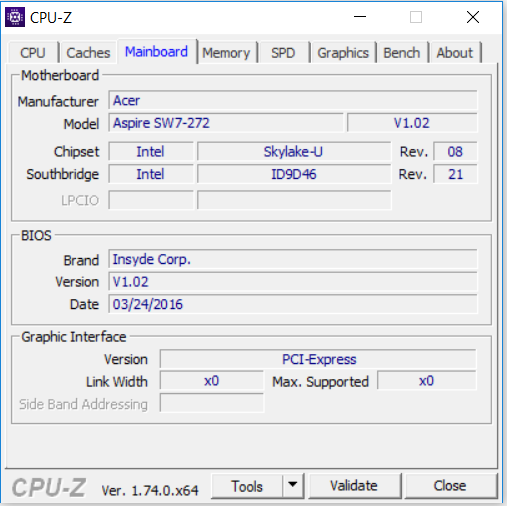

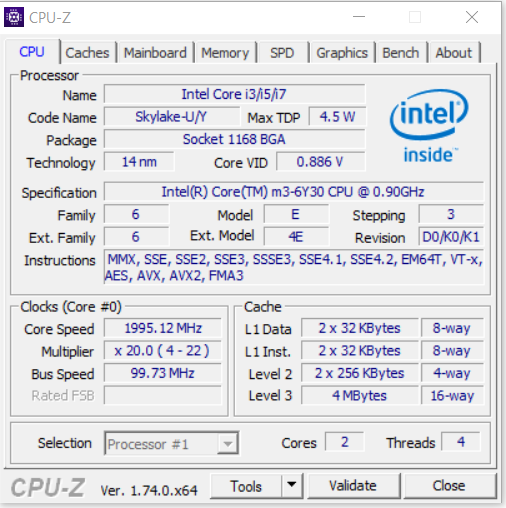

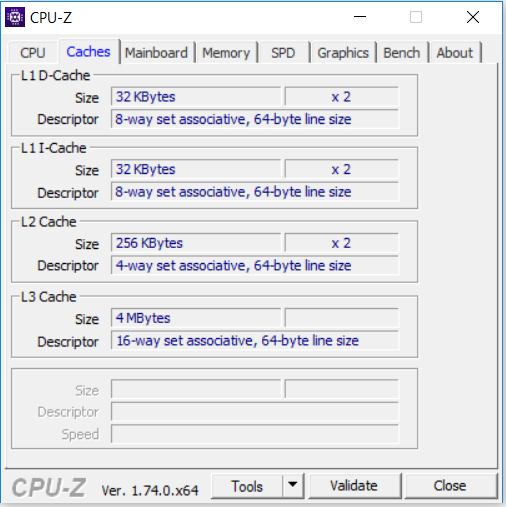

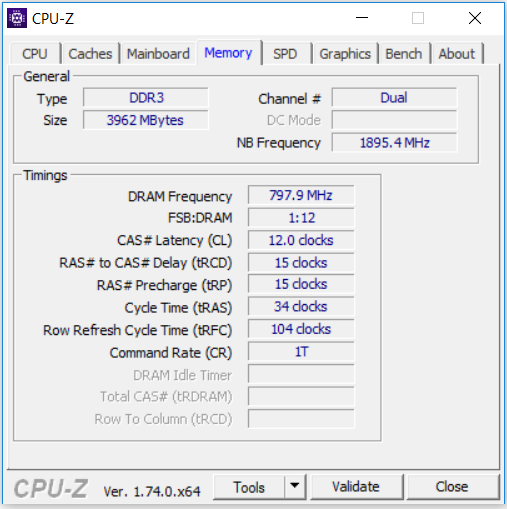

CPU-Z
CPU-Z
CPU-Z
CPU-Z

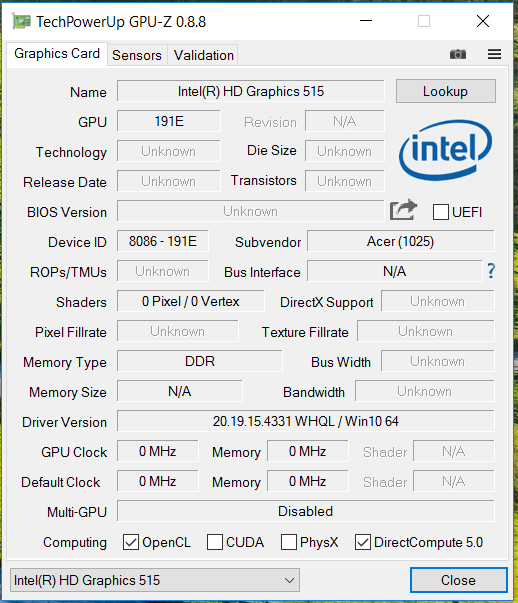

GPU-Z

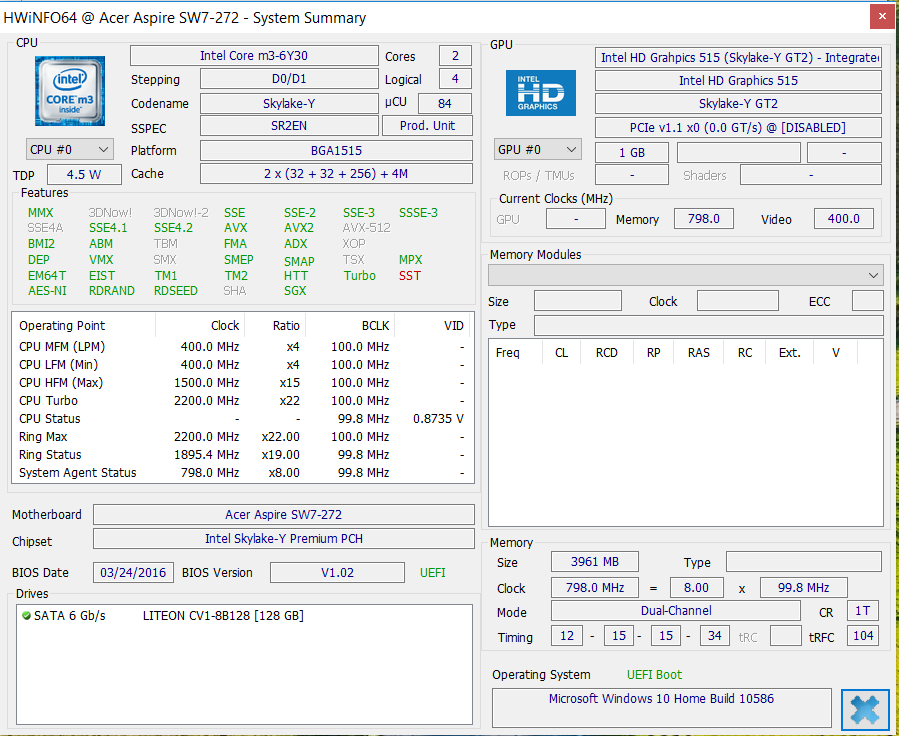

HWInfo

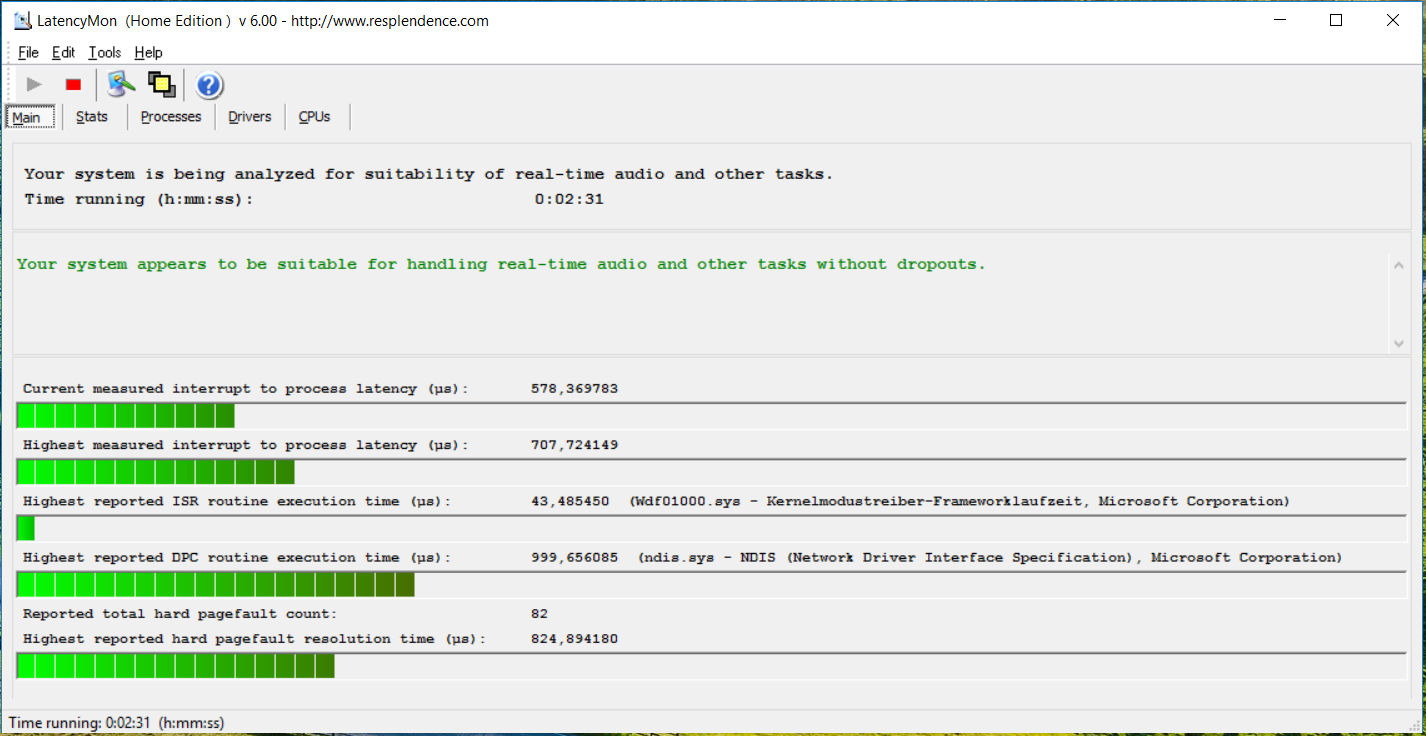

LatencyMon
Cinebench R10 Shading 32Bit
5890
Cinebench R10 Rendering Multiple CPUs 32Bit
6194
Cinebench R10 Rendering Single 32Bit
3422
Cinebench R11.5 OpenGL 64Bit
19.32 fps
Cinebench R11.5 CPU Multi 64Bit
1.94 Points
Cinebench R11.5 CPU Single 64Bit
1.04 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
23.26 fps
Cinebench R15 CPU Multi 64Bit
172 Points
Cinebench R15 CPU Single 64Bit
91 Points
Aiuto
Cinebench R15
CPU Single 64Bit
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
122 Points ∼100% +34%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
114 Points ∼93% +25%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
111 Points ∼91% +22%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
99 Points ∼81% +9%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
91 Points ∼75%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
88 Points ∼72% -3%
Samsung Galaxy Tab Pro S W700N
HD Graphics 515, 6Y30, Lite-On CV1-8B128
86 Points ∼70% -5%
CPU Multi 64Bit
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
306 Points ∼100% +78%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
289 Points ∼94% +68%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
255 Points ∼83% +48%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
206 Points ∼67% +20%
Samsung Galaxy Tab Pro S W700N
HD Graphics 515, 6Y30, Lite-On CV1-8B128
204 Points ∼67% +19%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
200 Points ∼65% +16%
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
180 Points ∼59% +5%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
172 Points ∼56%
Cinebench R11.5
CPU Single 64Bit
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1.4 Points ∼100% +35%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
1.26 Points ∼90% +21%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
1.06 Points ∼76% +2%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
1.04 Points ∼74%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
0.98 Points ∼70% -6%
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
0.96 Points ∼69% -8%
CPU Multi 64Bit
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3.4 Points ∼100% +75%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
2.7 Points ∼79% +39%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2.27 Points ∼67% +17%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2.08 Points ∼61% +7%
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
1.98 Points ∼58% +2%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
1.94 Points ∼57%
Cinebench R10
Rendering Single 32Bit
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
4656 Points ∼100% +36%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
4235 Points ∼91% +24%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
3690 Points ∼79% +8%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
3422 Points ∼73%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
3286 Points ∼71% -4%
Rendering Multiple CPUs 32Bit
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
10558 Points ∼100% +70%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
8731 Points ∼83% +41%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
6994 Points ∼66% +13%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
6340 Points ∼60% +2%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
6194 Points ∼59%
Geekbench 3
32 Bit Multi-Core Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
6419 Points ∼100% +49%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
5522 Points ∼86% +28%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
5189 Points ∼81% +20%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
4309 Points ∼67%
32 Bit Single-Core Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3085 Points ∼100% +30%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
2837 Points ∼92% +19%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2588 Points ∼84% +9%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
2381 Points ∼77%
Sunspider - 1.0 Total Score
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
284 ms * ∼100% -99%
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
164 ms * ∼58% -15%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
143 ms * ∼50%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
122.4 ms * ∼43% +14%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
104.5 ms * ∼37% +27%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
97.8 ms * ∼34% +32%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
95.4 ms * ∼34% +33%
Mozilla Kraken 1.1 - Total Score
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
2012 ms * ∼100% -29%
Samsung Galaxy Tab Pro S W700N
HD Graphics 515, 6Y30, Lite-On CV1-8B128
1873 ms * ∼93% -20%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
1556.5 ms * ∼77%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
1556.2 ms * ∼77% -0%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
1445.2 ms * ∼72% +7%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
1311.8 ms * ∼65% +16%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
1305.7 ms * ∼65% +16%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1178 ms * ∼59% +24%
Octane V2 - Total Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
29991 Points ∼100% +63%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
26885 Points ∼90% +46%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
26727 Points ∼89% +45%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
23339 Points ∼78% +27%
Samsung Galaxy Tab Pro S W700N
HD Graphics 515, 6Y30, Lite-On CV1-8B128
18576 Points ∼62% +1%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
18444 Points ∼61%
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
16560 Points ∼55% -10%
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
15625 Points ∼52% -15%
Peacekeeper - ---
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
3151 Points ∼100% +65%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
2998 Points ∼95% +57%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
2555 Points ∼81% +34%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2295 Points ∼73% +20%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2216 Points ∼70% +16%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
1912 Points ∼61%

* ... Meglio usare valori piccoli

PCMark 7 Score
4173 punti
PCMark 8 Home Score Accelerated v2
2536 punti
PCMark 8 Creative Score Accelerated v2
2819 punti
PCMark 8 Work Score Accelerated v2
3596 punti
Aiuto
PCMark 8 - Home Score Accelerated v2
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3281 Points ∼100% +29%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
2983 Points ∼91% +18%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
2770 Points ∼84% +9%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2733 Points ∼83% +8%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
2536 Points ∼77%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2426 Points ∼74% -4%
Samsung Galaxy Tab Pro S W700N
HD Graphics 515, 6Y30, Lite-On CV1-8B128
2217 Points ∼68% -13%
PCMark 7 - Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
5229 Points ∼100% +25%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
4808 Points ∼92% +15%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
4518 Points ∼86% +8%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
4274 Points ∼82% +2%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
4173 Points ∼80%
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
4112 Points ∼79% -1%
Lite-On CV1-8B128
Sequential Read: 445.2 MB/s
Sequential Write: 179.9 MB/s
512K Read: 330.6 MB/s
512K Write: 181.6 MB/s
4K Read: 12.17 MB/s
4K Write: 19.09 MB/s
4K QD32 Read: 137.9 MB/s
4K QD32 Write: 106.5 MB/s
3DMark 06 Standard
4968 punti
3DMark 11 Performance
814 punti
3DMark Ice Storm Standard Score
32704 punti
3DMark Cloud Gate Standard Score
3278 punti
3DMark Fire Strike Score
453 punti
Aiuto
3DMark 11 - 1280x720 Performance
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
1585 Points ∼100% +95%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1565 Points ∼99% +92%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
1344 Points ∼85% +65%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
1334 Points ∼84% +64%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
1109 Points ∼70% +36%
Samsung Galaxy Tab Pro S W700N
HD Graphics 515, 6Y30, Lite-On CV1-8B128
1077 Points ∼68% +32%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
814 Points ∼51%
Acer Aspire Switch 12 SW5-271-61X7
HD Graphics 5300, 5Y10c, 128 GB SATA SSD
762 Points ∼48% -6%
3DMark
1920x1080 Fire Strike Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
844 Points ∼100% +86%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
740 Points ∼88% +63%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
739 Points ∼88% +63%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
630 Points ∼75% +39%
Samsung Galaxy Tab Pro S W700N
HD Graphics 515, 6Y30, Lite-On CV1-8B128
558 Points ∼66% +23%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
453 Points ∼54%
1280x720 Sky Diver Score
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
3046 Points ∼100% +65%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2316 Points ∼76% +26%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
1843 Points ∼61%
1280x720 Cloud Gate Standard Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
5853 Points ∼100% +79%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
5608 Points ∼96% +71%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
4943 Points ∼84% +51%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
4604 Points ∼79% +40%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
3936 Points ∼67% +20%
Samsung Galaxy Tab Pro S W700N
HD Graphics 515, 6Y30, Lite-On CV1-8B128
3684 Points ∼63% +12%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
3278 Points ∼56%
1280x720 Ice Storm Standard Score
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
51010 Points ∼100% +56%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
47242 Points ∼93% +44%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
42046 Points ∼82% +29%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
38523 Points ∼76% +18%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
32704 Points ∼64%
3DMark 06 - 1280x1024 Standard AA:0x AF:0x
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
7912 Points ∼100% +59%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
7733 Points ∼98% +56%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
5842 Points ∼74% +18%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
4968 Points ∼63%
basso medio alto ultra
Tomb Raider (2013) 32.3 16.9 12.1 5.8 fps
BioShock Infinite (2013) 26 13.7 11.8 3.8 fps
Battlefield 4 (2013) 17.7 12.4 8.5 2.3 fps
Need for Speed 2016 (2016) 8.4 5.9 fps
BioShock Infinite - 1280x720 Very Low Preset
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
58.1 fps ∼100% +123%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
54.4 fps ∼94% +109%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
52.42 fps ∼90% +102%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
44.1 fps ∼76% +70%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
33.1 fps ∼57% +27%
Acer Aspire Switch 12S SW7-272-M3A0
HD Graphics 515, 6Y30, Lite-On CV1-8B128
26 fps ∼45%

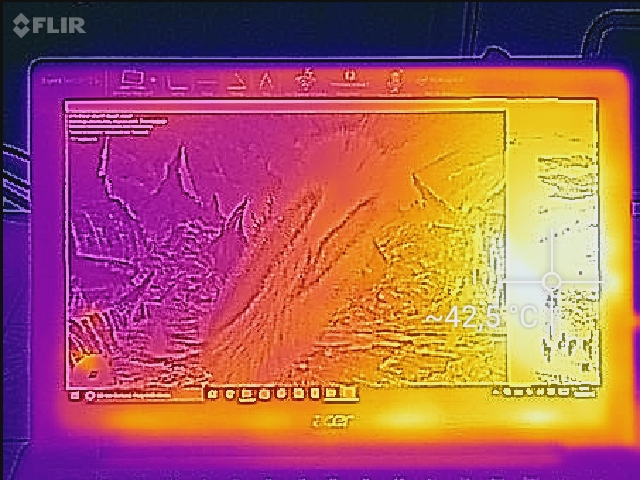

Carico massimo
 28.7 °C32.1 °C39 °C
 28.6 °C31.6 °C40.2 °C
 35.1 °C35.4 °C38.9 °C
Massima: 40.2 °C
Media: 34.4 °C

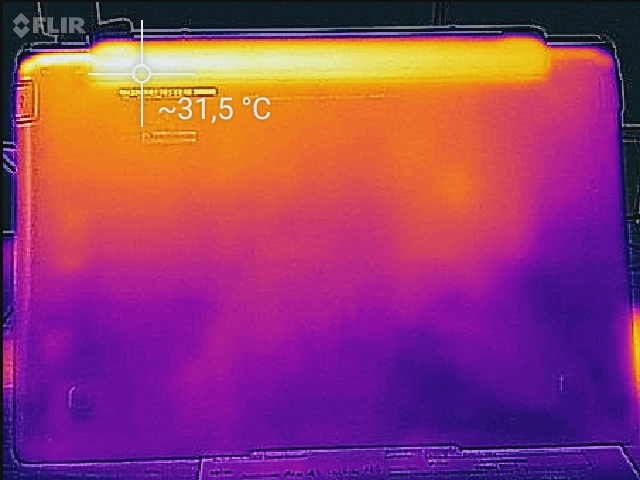

27.4 °C26.9 °C26.2 °C
25.7 °C25.1 °C24.7 °C
23.9 °C23.4 °C23.6 °C
Massima: 27.4 °C
Media: 25.2 °C
Alimentazione (max)  37.7 °C | Temperatura della stanza 22.6 °C | FIRT 550-Pocket
(±) La temperatura media del lato superiore sotto carico massimo e' di 34.4 °C / 94 F, rispetto alla media di 30.3 °C / 87 F per i dispositivi di questa classe Convertible.
(±) La temperatura massima sul lato superiore è di 40.2 °C / 104 F, rispetto alla media di 35.4 °C / 96 F, che varia da 21.8 a 55.7 °C per questa classe Convertible.
(+) Il lato inferiore si riscalda fino ad un massimo di 27.4 °C / 81 F, rispetto alla media di 36.5 °C / 98 F
(+) In idle, la temperatura media del lato superiore è di 26.8 °C / 80 F, rispetto alla media deld ispositivo di 30.3 °C / 87 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.9 °C / 102 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-10 °C / -18 F).
Acer Aspire Switch 12S SW7-272-M3A0
6Y30, HD Graphics 515
Lenovo IdeaPad Miix 700
6Y54, HD Graphics 515
HP Elite x2 1012 G1
6Y54, HD Graphics 515
Samsung Galaxy Tab Pro S W700N
6Y30, HD Graphics 515
Microsoft Surface Pro 4, Core m3
6Y30, HD Graphics 515
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520
Acer Aspire Switch 12 SW5-271-61X7
5Y10c, HD Graphics 5300
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520
Heat
-14%
-15%
-35%
-24%
-51%
-16%
-28%
Maximum Upper Side *
40.2
38.6
4%
39
3%
42.5
-6%
43.6
-8%
52.3
-30%
43.6
-8%
46.7
-16%
Maximum Bottom *
27.4
40.8
-49%
41.2
-50%
44.6
-63%
45.2
-65%
51.4
-88%
43.4
-58%
51
-86%
Idle Upper Side *
28.6
30.4
-6%
29.5
-3%
36.6
-28%
32.4
-13%
43.2
-51%
27.5
4%
29.5
-3%
Idle Bottom *
27.1
28
-3%
29.8
-10%
38.6
-42%
29.6
-9%
36
-33%
27.6
-2%
28.6
-6%

* ... Meglio usare valori piccoli

Temperatures top (load)
Temperatures top (load)
Temperatures bottom (load)
Temperatures bottom (load)
Temperatures top (idle)
Temperatures top (idle)
Temperatures bottom (idle)
Temperatures bottom (idle)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.434.435.431.42532.832.934.832.83135.23333.935.24031.231.231.731.2503534.734.135632928.729.3298028.327.429.328.31002930.734.62912534.237.642.234.216035.941.546.335.920037.241.546.737.225031.135.439.631.131538.643.448.138.6400535862.25350053.758.362.753.763055.96164.955.980052.557.461.652.5100056.461.265.256.4125055.760.765.555.7160056.961.966.856.9200056.761.766.256.725005661.365.856315053.859.263.453.8400053.258.36353.2500056.961.766.356.9630059.664.46959.6800054.759.864.354.71000046.451.255.746.41250043.848.853.443.8160004246.651.242SPL67.672.677.167.6N22.530.740.422.5median 53.2median 58.3median 62.7median 53.2Delta88.27.5831.331.733.430.429.528.926.227.234.531.237.939.536.646.749.358.665.465.259.863.261.764.464.862.763.767.274.668.855.446.97868.73921.8median 59.810.8hearing rangehide median Pink NoiseAcer Aspire Switch 12S SW7-272-M3A0Acer Aspire Switch Alpha 12 SA5-271-56HM
Consumo di corrente
Off / Standbydarklight 0.36 / 1.2 Watt
Idledarkmidlight 6.3 / 9.4 / 12.3 Watt
Sotto carico midlight 18.6 / 19 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Acer Aspire Switch 12S SW7-272-M3A0
6Y30, HD Graphics 515
Lenovo IdeaPad Miix 700
6Y54, HD Graphics 515
HP Elite x2 1012 G1
6Y54, HD Graphics 515
Samsung Galaxy Tab Pro S W700N
6Y30, HD Graphics 515
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520
Acer Aspire Switch 12 SW5-271-61X7
5Y10c, HD Graphics 5300
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520
Power Consumption
-4%
1%
28%
7%
20%
-19%
Idle Minimum *
6.3
4
37%
3.7
41%
3.4
46%
4.4
30%
4.1
35%
7.3
-16%
Idle Average *
9.4
8.6
9%
6.8
28%
8
15%
9
4%
8
15%
10
-6%
Idle Maximum *
12.3
9.3
24%
7.6
38%
9
27%
10.7
13%
9.3
24%
10.15
17%
Load Average *
18.6
18.6
-0%
22.5
-21%
12
35%
19.6
-5%
16.3
12%
25.2
-35%
Load Maximum *
19
36.3
-91%
34.5
-82%
16.1
15%
19.9
-5%
16.8
12%
29.3
-54%

* ... Meglio usare valori piccoli

Autonomia della batteria
Idle (senza WLAN, min luminosità)
8ore 50minuti
NBC WiFi Websurfing Battery Test 1.3 (Edge 25.10586.0.0)
5ore 43minuti
Big Buck Bunny H.264 1080p
5ore 37minuti
Sotto carico (max luminosità)
2ore 25minuti
Acer Aspire Switch 12S SW7-272-M3A0
34 Wh
Lenovo IdeaPad Miix 700
41 Wh
HP Elite x2 1012 G1
37 Wh
Samsung Galaxy Tab Pro S W700N
39.5 Wh
Microsoft Surface Pro 4, Core m3
38 Wh
Microsoft Surface Pro 4, Core i5, 128GB
38 Wh
Acer Aspire Switch 12 SW5-271-61X7
37 Wh
Acer Aspire Switch Alpha 12 SA5-271-56HM
37 Wh
Autonomia della batteria
33%
21%
72%
29%
24%
29%
8%
Reader / Idle
530
861
62%
732
38%
1110
109%
791
49%
899
70%
771
45%
640
21%
H.264
337
450
34%
432
28%
515
53%
378
12%
468
39%
WiFi v1.3
343
440
28%
443
29%
525
53%
488
42%
427
24%
321
-6%
Load
145
157
8%
130
-10%
138
-5%
111
-23%
112
-23%
WiFi
360

Pro

+ display luminoso e con molto contrasto
+ silenzioso
+ veloce SSD
+ keyboard dock

Contro

- solo 12 mesi di garanzia
- throttling CPU e GPU
- autonomia media
In review: Acer Aspire Switch 12 S. Test model courtesy of Notebooksbilliger.de
In review: Acer Aspire Switch 12 S. Test model courtesy of Notebooksbilliger.de

L'Acer Switch 12S è un 12.5" sganciabile. Lo Switch monta n processore Skylake Core-m, che offre abbastanza potenza epr word processing e web browsing. Il convertibile è silenzioso, e si scalda poco e - grazie al veloce solid state disk - abbastanza veloce. Abiamo apprezzato il display, in quanto è luminoso ed ha molto contrasto oltre a buoni angoli di visuale. Rispetto alla concorrenza, Acer ha usato un formato 16:9 invee del più diffuso 3:2. Il touchscreen è molto reattivo e può opzionalmente essere usato con una penna.

Il nostro modello cotsta 1200 Euro (~$1330) - troppo a nostro parere. Il sistema soffre per le troppe pecche non adeguate al prezzo.

Innanzitutto, l'autonomia è mediocre, e la maggioranza dei competitors offre autonomie migliori. Acer avrebbe potuto impiegare una seconda batteria nella keyboard dock. Manca anche una penna - che il più economico Lenovo Ideapad Miix 700 include unitamente ad una keyboard dock. Infine, lo Switch ha solo un anno di garanzia. Considerando che Acer anche per i portatili low-end offre 24 mesi, non ha molto senso. Coloro che vogliono un portatile simile allo Switch 12S farebbero meglio a scegliere il Microsoft Surface Pro 4, il Lenovo Ideapad Miix 700 o l'Acer Aspire Switch 12 Alpha. Tutti hanno da offrire di più ad un prezzo inferiore.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Acer Aspire Switch 12S SW7-272-M3A0 - 06/23/2016 v5.1(old)
Sascha Mölck

Chassis
80 / 98 → 82%
Tastiera
80%
Dispositivo di puntamento
88%
Connettività
58 / 80 → 73%
Peso
70 / 35-78 → 81%
Batteria
85%
Display
84%
Prestazioni di gioco
45 / 68 → 67%
Prestazioni Applicazioni
69 / 87 → 80%
Temperatura
92%
Rumorosità
100%
Audio
54 / 91 → 59%
Fotocamera
44 / 85 → 52%
Media
73%
83%
Convertible - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione Breve del Convertibile Acer Aspire Switch 12S SW7-272-M3A0
Sascha Mölck, 2016-07-14 (Update: 2016-07-14)
