Recensione breve del Convertibile Lenovo IdeaPad Miix 310-10ICR

Bernhard Pechlaner, 07/31/2016

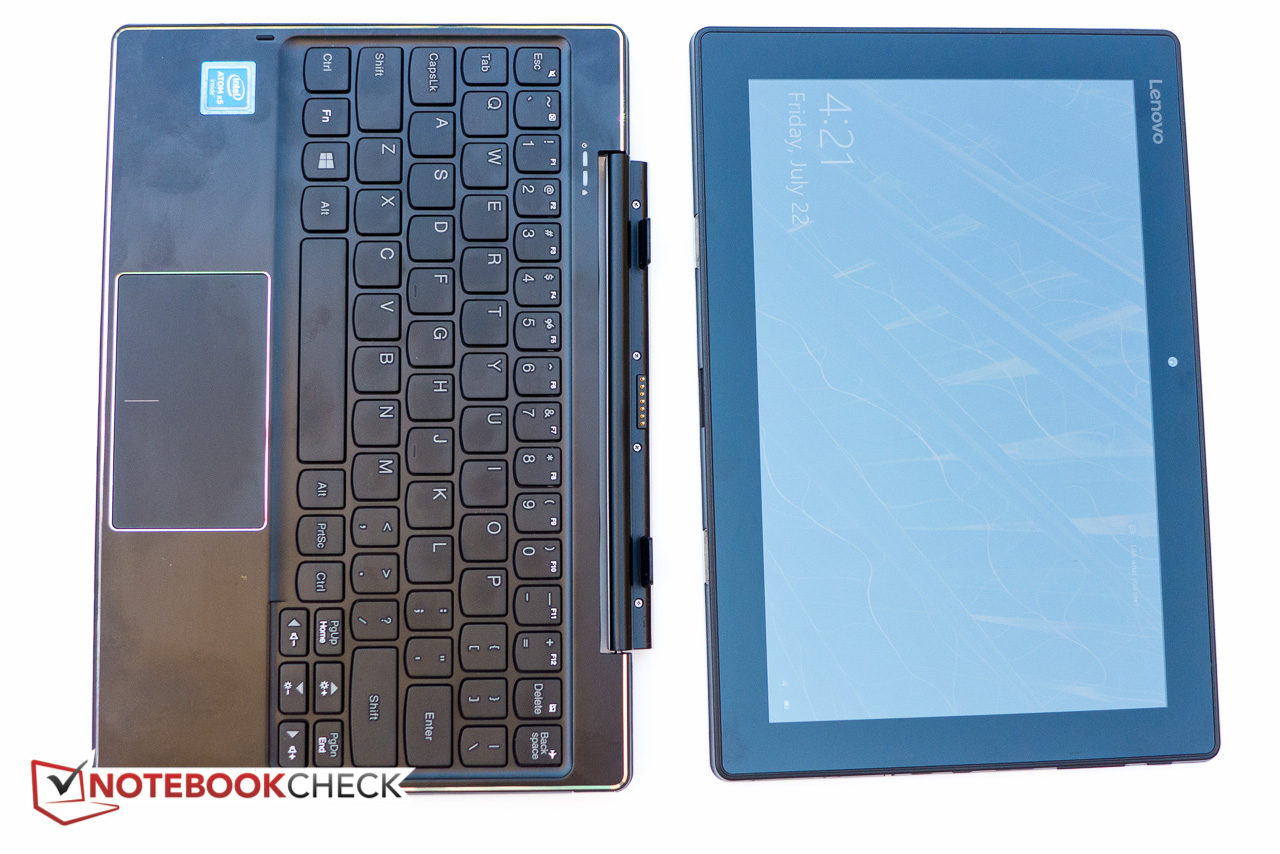

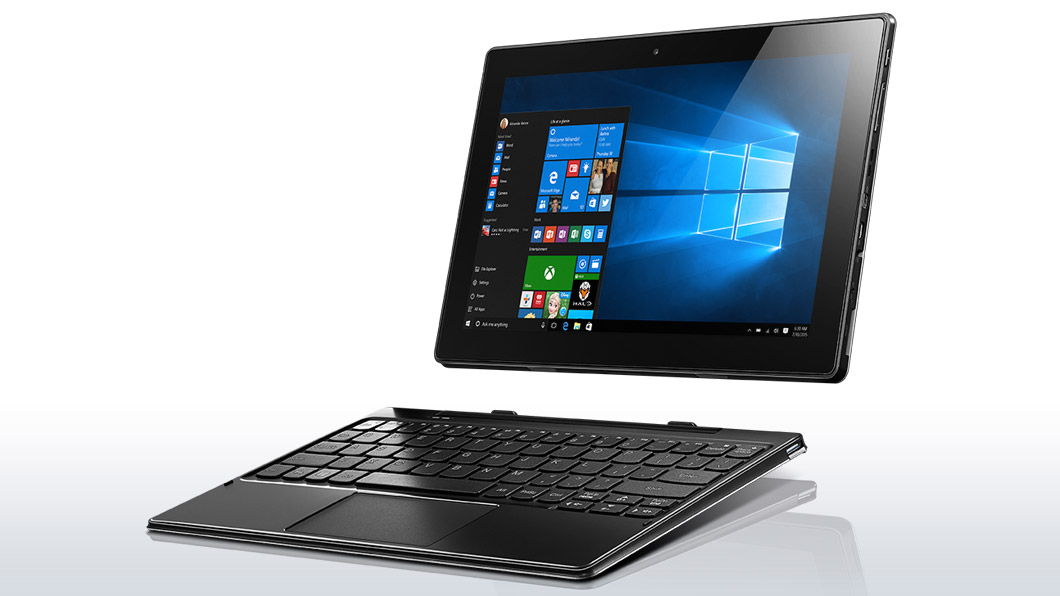

Miixed bag. Il Lenovo IdeaPad Miix 310 da 10.1" è uno sganciabile progettato principalmente per incrementare -e non sostituire - un sistema Windows già usato dagli utenti. Le prestazioni sono perfettamente adeguate per word processing e navigazione web - ma lo schermo potrebbe essere più luminoso.

Lenovo IdeaPad MIIX 310-10ICR (IdeaPad Miix Serie)
Processore
Scheda grafica
Intel HD Graphics (Cherry Trail), Core: 500 MHz, 20.19.15.4404

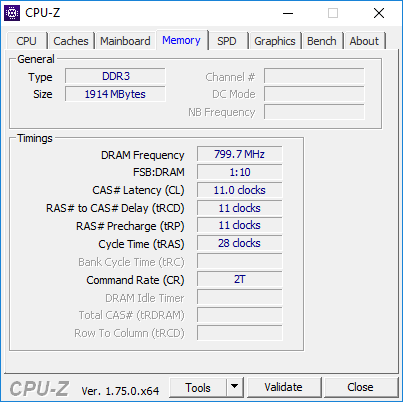

Memoria
2048 MB
, DDR3L 1600
Schermo
10.1 pollici 16:10, 1280x800 pixel 149 PPI, yes, IPS, schermo sganciabile
Scheda madre
Intel Cherry Trail
Harddisk
64 GB eMMC Flash, 64 GB
Scheda audio
Intel SST Audio Device
Porte di connessione

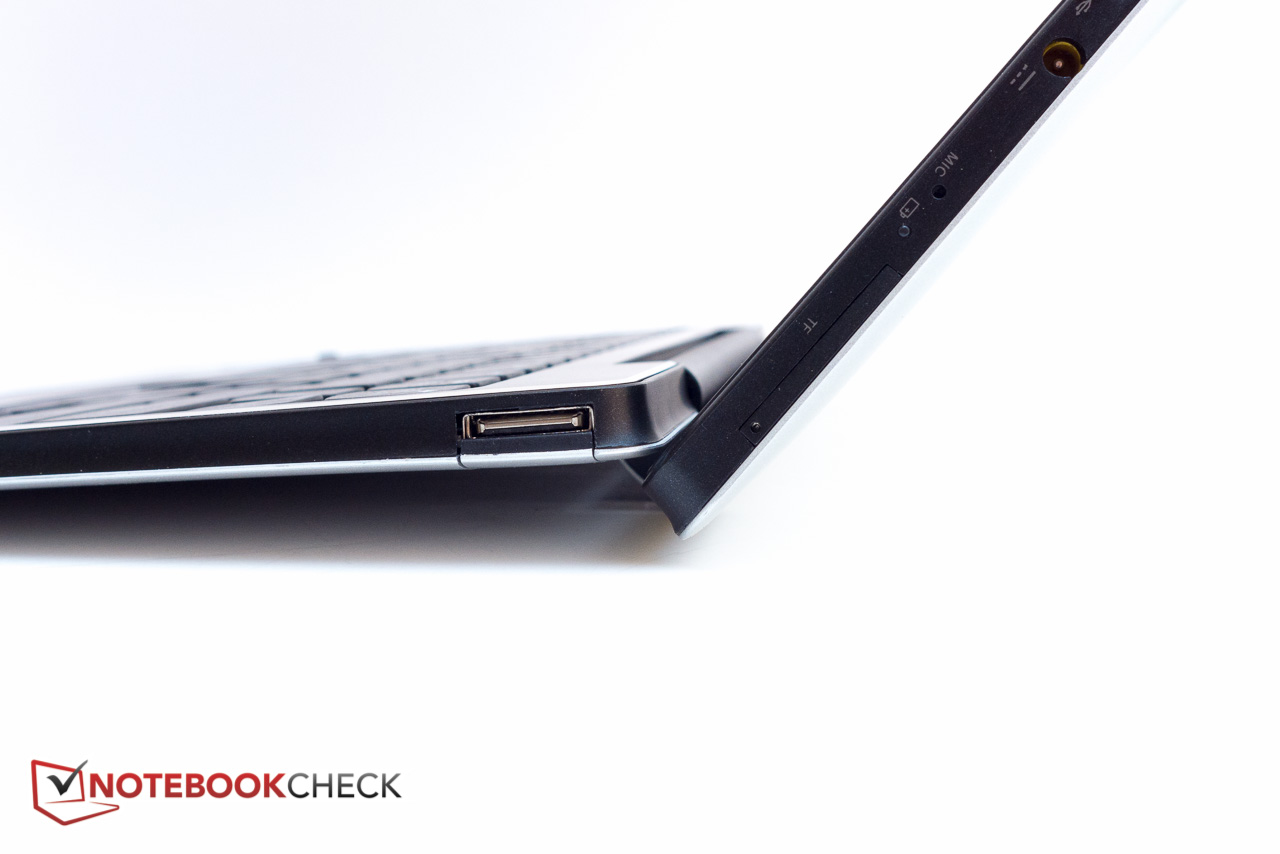

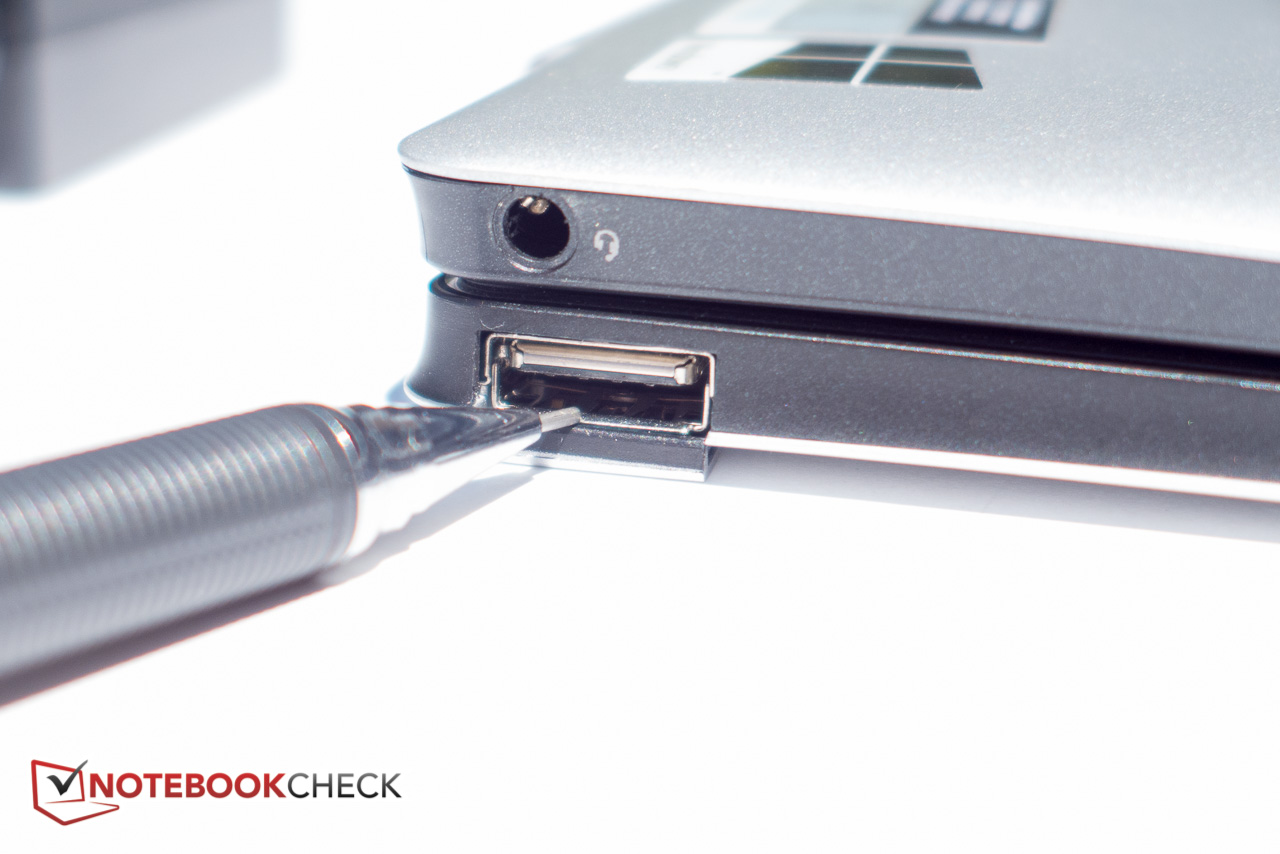

3 USB 2.0, 1 HDMI, Connessioni Audio: Kombostecker, Lettore schede: microSD, Sensori: accelerometro
Rete
Realtek RTL8723BS (b/g/n), Bluetooth 4.0
Dimensioni
altezza x larghezza x profondità (in mm): 18.2 x 246 x 173
Batteria
33 Wh polimeri di litio, 2-celle, Autonomia della batteria (dichiarata dal produttore): 10 ore
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 2 MP
Fotocamera Principale: 5 MPix
Altre caratteristiche

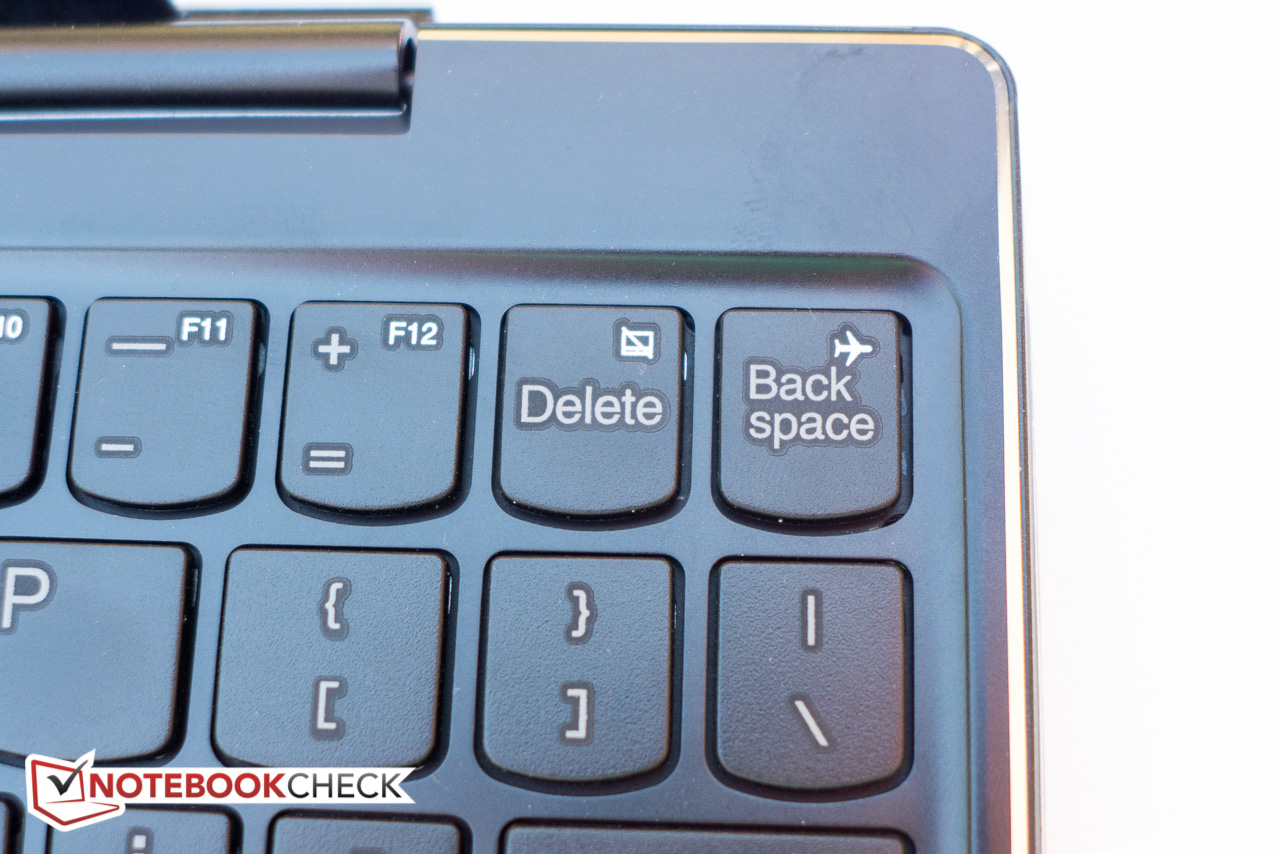

Casse: mono, Tastiera: chiclet, Illuminazione Tastiera: no, 12 Mesi Garanzia, senza ventola
Peso
1.1 kg, Alimentazione: 156 gr
Prezzo
299 USD



SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo IdeaPad MIIX 310-10ICR
41.21 MB/s ∼100%

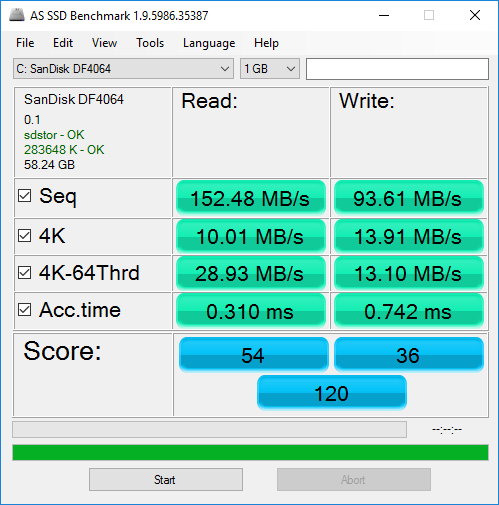

maximum AS SSD Seq Read Test (1GB)
Lenovo IdeaPad MIIX 310-10ICR
85.58 MB/s ∼100%
Networking
iperf Server (receive) TCP 1 m
Lenovo IdeaPad MIIX 310-10ICR
Realtek RTL8723BS
34.95 MBit/s ∼100%
iperf Client (transmit) TCP 1 m
Lenovo IdeaPad MIIX 310-10ICR
Realtek RTL8723BS
37.44 MBit/s ∼100%
238.1
cd/m²
241.1
cd/m²
209.2
cd/m²
234.5
cd/m²
251.9
cd/m²
217.6
cd/m²
233.9
cd/m²
244.9
cd/m²
226.5
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 251.9 cd/m² Media: 233.1 cd/m² Minimum: 23.7 cd/m²
Distribuzione della luminosità: 83 %
Al centro con la batteria: 251.9 cd/m²
Contrasto: 724:1 (Nero: 0.348 cd/m²)
ΔE Color 6.35 | - Ø
ΔE Greyscale 7.09 | - Ø
75.23% sRGB (Calman) 52.69% AdobeRGB 1998 (Argyll)
Gamma: 2.02
Lenovo IdeaPad MIIX 310-10ICR
IPS, 10.1, 1280x800
Asus Transformer Book T100HA-C4-GR
AUO20D4, IPS, 10.1, 1280x800
Toshiba Satellite Click 10 LX0W-C-104
MS_9001, IPS, 10.1, 1920x1200
Acer Aspire Switch 10E SW3-013
AU Optronics AUO15D4, IPS, 10.1, 1280x800
HP Pavilion x2 10-n013dx
HP Display MS_9001, IPS, 10.1, 1280x800
Microsoft Surface 3
Panasonic MEI9001, IPS, 10.8, 1920x1280
Response Times
204%
Response Time Grey 50% / Grey 80% *
31.6
92
-191%
Response Time Black / White *
24.8
114
-360%
PWM Frequency
69.4
877
1164%
Screen
44%
8%
11%
10%
28%
Brightness
233
455
95%
288
24%
327
40%
294
26%
380
63%
Brightness Distribution
83
85
2%
87
5%
86
4%
85
2%
90
8%
Black Level *
0.348
0.324
7%
0.43
-24%
0.35
-1%
0.327
6%
0.49
-41%
Contrast
724
1482
105%
716
-1%
963
33%
967
34%
814
12%
Colorchecker DeltaE2000 *
6.35
3.45
46%
4.68
26%
6.24
2%
6.18
3%
1.66
74%
Greyscale DeltaE2000 *
7.09
2.67
62%
3.4
52%
5.74
19%
5.51
22%
2.75
61%
Gamma
2.02 119%
2.34 103%
2.72 88%
2.26 106%
2.01 119%
2.22 108%
CCT
8590 76%
6164 105%
6803 96%
7214 90%
6510 100%
6358 102%
Color Space (Percent of AdobeRGB 1998)
52.69
47.28
-10%
40
-24%
43
-18%
40
-24%
64.4
22%
Color Space (Percent of sRGB)
84.38
64
67
64
98.8
Media totale (Programma / Settaggio)
44% / 44%
106% / 67%
11% / 11%
10% / 10%
28% / 28%

* ... Meglio usare valori piccoli

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.

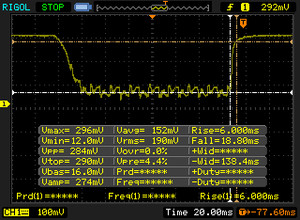

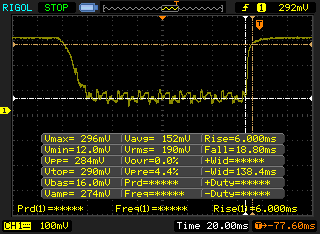

       Tempi di risposta dal Nero al Bianco
24.8 ms ... rise ↗ and fall ↘ combined↗ 6 ms Incremento
↘ 28.8 ms Calo
Lo schermo mostra buoni tempi di risposta durante i nostri tests, ma potrebbe essere troppo lento per i gamers competitivi.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 34 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (27.2 ms).

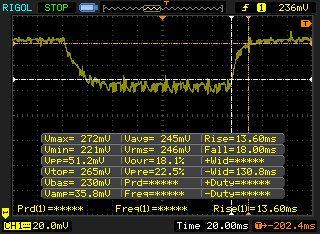

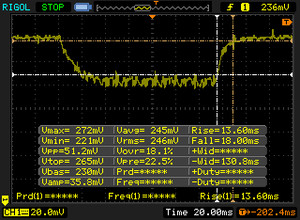

       Tempo di risposta dal 50% Grigio all'80% Grigio
31.6 ms ... rise ↗ and fall ↘ combined↗ 13.6 ms Incremento
↘ 18 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 17 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (44.1 ms).

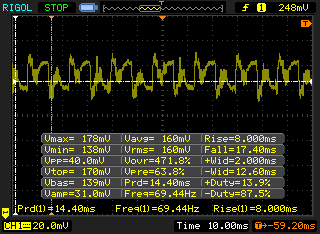

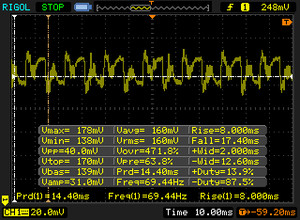

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 69.4 Hz

The display backlight flickers at 69.4 Hz (Likely utilizing PWM) .

The frequency of 69.4 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 60 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 1405 (minimum: 43 - maximum: 30860) Hz was measured.


Cinebench R10
Rendering Single 32Bit (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
884 Points ∼12%
Asus Transformer Book T100HA-C4-GR
Intel Atom x5-Z8500
1168 Points ∼15% +32%
Toshiba Satellite Click 10 LX0W-C-104
Intel Atom x5-Z8300
948 Points ∼12% +7%
Acer Aspire Switch 10E SW3-013
Intel Atom Z3735F
946 Points ∼12% +7%
HP Pavilion x2 10-n013dx
Intel Atom Z3736F
713 Points ∼9% -19%
Microsoft Surface 3
Intel Atom x7-Z8700
1225 Points ∼16% +39%
Rendering Multiple CPUs 32Bit (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
2575 Points ∼6%
Asus Transformer Book T100HA-C4-GR
Intel Atom x5-Z8500
4107 Points ∼10% +59%
Toshiba Satellite Click 10 LX0W-C-104
Intel Atom x5-Z8300
2911 Points ∼7% +13%
Acer Aspire Switch 10E SW3-013
Intel Atom Z3735F
2898 Points ∼7% +13%
HP Pavilion x2 10-n013dx
Intel Atom Z3736F
2309 Points ∼6% -10%
Microsoft Surface 3
Intel Atom x7-Z8700
4356 Points ∼11% +69%
Cinebench R11.5
CPU Single 64Bit (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
0.36 Points ∼16%
Asus Transformer Book T100HA-C4-GR
Intel Atom x5-Z8500
0.43 Points ∼20% +19%
Toshiba Satellite Click 10 LX0W-C-104
Intel Atom x5-Z8300
0.35 Points ∼16% -3%
Acer Aspire Switch 10E SW3-013
Intel Atom Z3735F (32-bit test)
0.31 Points ∼14% -14%
Microsoft Surface 3
Intel Atom x7-Z8700
0.46 Points ∼21% +28%
CPU Multi 64Bit (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
1.18 Points ∼6%
Asus Transformer Book T100HA-C4-GR
Intel Atom x5-Z8500
1.63 Points ∼8% +38%
Toshiba Satellite Click 10 LX0W-C-104
Intel Atom x5-Z8300
1.17 Points ∼6% -1%
Acer Aspire Switch 10E SW3-013
Intel Atom Z3735F (32-bit test)
1.07 Points ∼5% -9%
Microsoft Surface 3
Intel Atom x7-Z8700
1.79 Points ∼9% +52%
Cinebench R15
CPU Single 64Bit (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
29 Points ∼13%
Asus Transformer Book T100HA-C4-GR
Intel Atom x5-Z8500
36 Points ∼16% +24%
Toshiba Satellite Click 10 LX0W-C-104
Intel Atom x5-Z8300
27 Points ∼12% -7%
Microsoft Surface 3
Intel Atom x7-Z8700
38 Points ∼17% +31%
CPU Multi 64Bit (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
94 Points ∼5%
Asus Transformer Book T100HA-C4-GR
Intel Atom x5-Z8500
127 Points ∼7% +35%
Toshiba Satellite Click 10 LX0W-C-104
Intel Atom x5-Z8300
94 Points ∼5% 0%
Microsoft Surface 3
Intel Atom x7-Z8700
134 Points ∼7% +43%
wPrime 2.0x - 1024m (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
1107.8 s * ∼13%
HP Pavilion x2 10-n013dx
Intel Atom Z3736F
1192.9 s * ∼14% -8%
Mozilla Kraken 1.1 - Total Score (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
6122 ms * ∼10%
Asus Transformer Book T100HA-C4-GR
Intel Atom x5-Z8500
5142.2 ms * ∼9% +16%
Toshiba Satellite Click 10 LX0W-C-104
Intel Atom x5-Z8300 (Edge 20.10240.16384.0)
5894.7 ms * ∼10% +4%
HP Pavilion x2 10-n013dx
Intel Atom Z3736F
5862.9 ms * ∼10% +4%
Octane V2 - Total Score (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
6343 Points ∼13%
Toshiba Satellite Click 10 LX0W-C-104
Intel Atom x5-Z8300 (Edge 20.10240.16384.0)
6506 Points ∼13% +3%
HP Pavilion x2 10-n013dx
Intel Atom Z3736F
6002 Points ∼12% -5%

* ... Meglio usare valori piccoli

Cinebench R10 Shading 32Bit
1829
Cinebench R10 Rendering Multiple CPUs 32Bit
2575
Cinebench R10 Rendering Single 32Bit
884
Cinebench R11.5 OpenGL 64Bit
7.35 fps
Cinebench R11.5 CPU Multi 64Bit
1.18 Points
Cinebench R11.5 CPU Single 64Bit
0.36 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
9.09 fps
Cinebench R15 CPU Multi 64Bit
94 Points
Cinebench R15 CPU Single 64Bit
29 Points
Aiuto
PCMark 8
Work Score Accelerated v2 (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1224 Points ∼19%
Asus Transformer Book T100HA-C4-GR
HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC
1372 Points ∼21% +12%
Toshiba Satellite Click 10 LX0W-C-104
HD Graphics (Cherry Trail), Z8300, 32 GB eMMC Flash
1044 Points ∼16% -15%
Home Score Accelerated v2 (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1419 Points ∼24%
Asus Transformer Book T100HA-C4-GR
HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC
1697 Points ∼28% +20%
Toshiba Satellite Click 10 LX0W-C-104
HD Graphics (Cherry Trail), Z8300, 32 GB eMMC Flash
1294 Points ∼22% -9%
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
1677 Points ∼28% +18%
PCMark 8 Home Score Accelerated v2
1419 punti
PCMark 8 Work Score Accelerated v2
1224 punti
Aiuto
Lenovo IdeaPad MIIX 310-10ICR
64 GB eMMC Flash
Asus Transformer Book T100HA-C4-GR
Samsung CGND3R eMMC
Toshiba Satellite Click 10 LX0W-C-104
32 GB eMMC Flash
Acer Aspire Switch 10E SW3-013
32 GB eMMC Flash
HP Pavilion x2 10-n013dx
Microsoft Surface 3
128 GB eMMC Flash
CrystalDiskMark 3.0
30%
-16%
2%
1%
-11%
Write 4k QD32
13.18
29.03
120%
14.46
10%
11.16 (Bitlocker)
-15%

10.38 (No bitlocker)
-21%

12.85
-3%
11.2
-15%
Read 4k QD32
29
33.16
14%
20.93
-28%
42.66 (Bitlocker)
47%

39.38 (No bitlocker)
36%

34.34
18%
27.94
-4%
Write 4k
12.26
17.59
43%
11.54
-6%
9.46 (No bitlocker)
-23%

8.37 (Bitlocker)
-32%

10.69
-13%
9.52
-22%
Read 4k
9.35
14.98
60%
13.25
42%
16.49 (No bitlocker)
76%

15.56 (Bitlocker)
66%

15.2
63%
12.64
35%
Write 512
58.05
71.64
23%
30.47
-48%
66.45 (No bitlocker)
14%

46.4 (Bitlocker)
-20%

67.21
16%
39.9
-31%
Read 512
144.5
127.8
-12%
97.35
-33%
150.6 (No bitlocker)
4%

83.91 (Bitlocker)
-42%

107.5
-26%
133.7
-7%
Write Seq
87.29
87.64
0%
43.99
-50%
88.41 (No bitlocker)
1%

54.68 (Bitlocker)
-37%

64.11
-27%
47.99
-45%
Read Seq
151.9
139.2
-8%
128.6
-15%
167.6 (No bitlocker)
10%

90.67 (Bitlocker)
-40%

120.5
-21%
149.3
-2%
64 GB eMMC Flash
Sequential Read: 151.9 MB/s
Sequential Write: 87.29 MB/s
512K Read: 144.5 MB/s
512K Write: 58.05 MB/s
4K Read: 9.35 MB/s
4K Write: 12.26 MB/s
4K QD32 Read: 29 MB/s
4K QD32 Write: 13.18 MB/s
3DMark 11
1280x720 Performance Combined (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel HD Graphics (Cherry Trail), Z8350
352 Points ∼2%
Asus Transformer Book T100HA-C4-GR
Intel HD Graphics (Cherry Trail), Z8500
433 Points ∼3% +23%
Toshiba Satellite Click 10 LX0W-C-104
Intel HD Graphics (Cherry Trail), Z8300
361 Points ∼2% +3%
Acer Aspire Switch 10E SW3-013
Intel HD Graphics (Bay Trail), Z3735F
221 Points ∼1% -37%
HP Pavilion x2 10-n013dx
Intel HD Graphics (Bay Trail), Z3736F
214 Points ∼1% -39%
Microsoft Surface 3
Intel HD Graphics (Cherry Trail), Z8700
554 Points ∼3% +57%
1280x720 Performance GPU (ordina per valore)
Lenovo IdeaPad MIIX 310-10ICR
Intel HD Graphics (Cherry Trail), Z8350
298 Points ∼1%
Asus Transformer Book T100HA-C4-GR
Intel HD Graphics (Cherry Trail), Z8500
367 Points ∼1% +23%
Toshiba Satellite Click 10 LX0W-C-104
Intel HD Graphics (Cherry Trail), Z8300
342 Points ∼1% +15%
Acer Aspire Switch 10E SW3-013
Intel HD Graphics (Bay Trail), Z3735F
181 Points ∼0% -39%
HP Pavilion x2 10-n013dx
Intel HD Graphics (Bay Trail), Z3736F
181 Points ∼0% -39%
Microsoft Surface 3
Intel HD Graphics (Cherry Trail), Z8700
494 Points ∼1% +66%
3DMark 11 Performance
344 punti
Aiuto
Carico massimo
 30.4 °C33.6 °C42.4 °C
 30.6 °C34.2 °C42.4 °C
 30.2 °C34 °C39.8 °C
Massima: 42.4 °C
Media: 35.3 °C
36.6 °C31.6 °C29.2 °C
35.6 °C31 °C28.6 °C
34 °C30.6 °C28.6 °C
Massima: 36.6 °C
Media: 31.8 °C

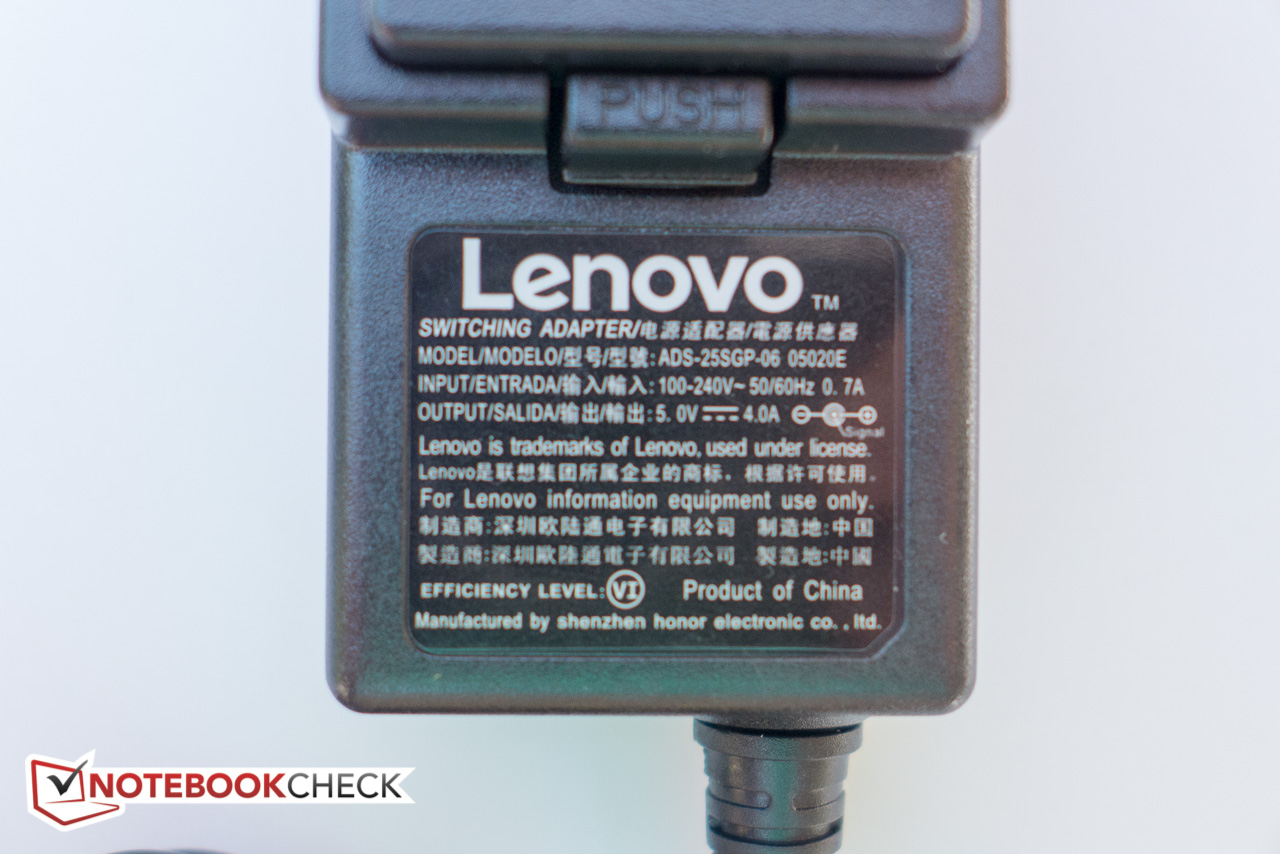

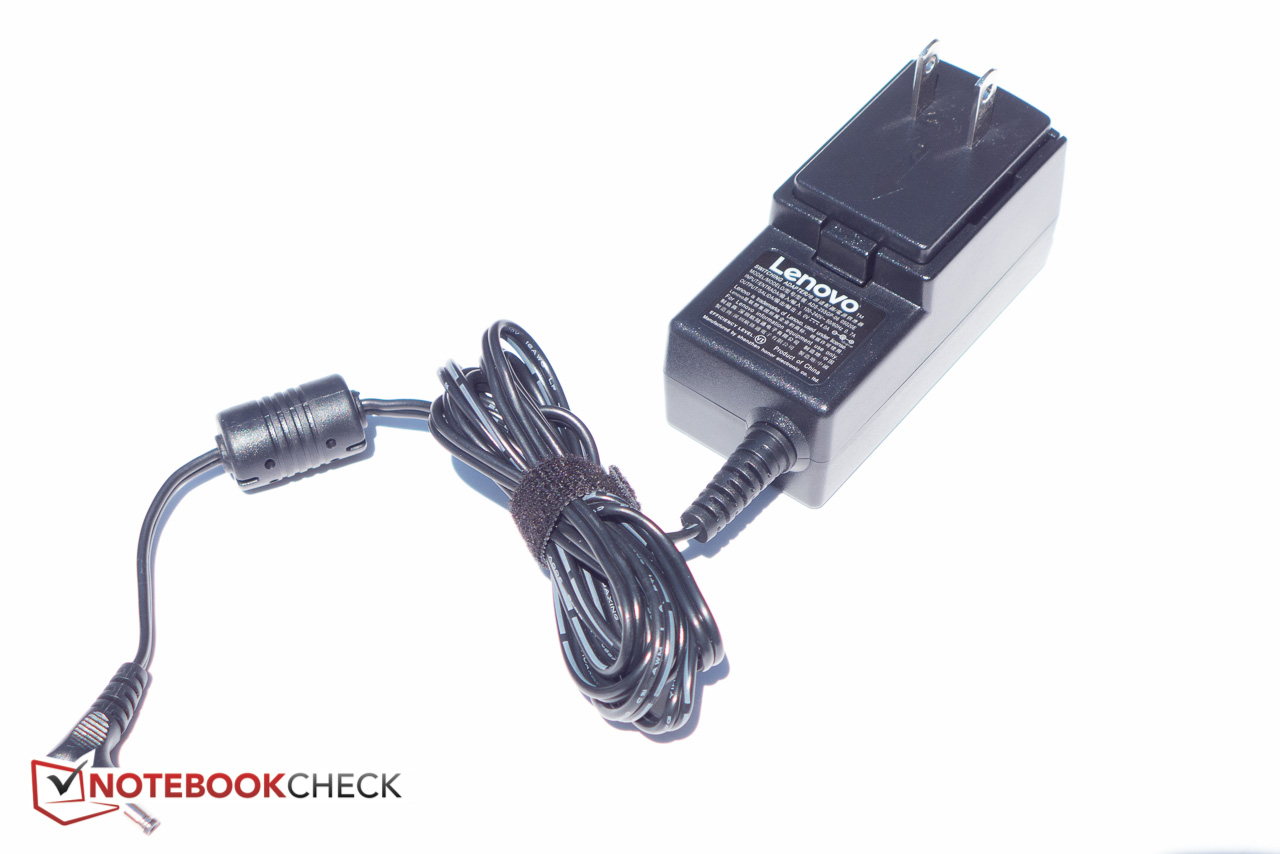

Alimentazione (max)  37 °C | Temperatura della stanza 22 °C | Raytek Raynger ST
Consumo di corrente
Off / Standbydarklight 3 / 3.1 Watt
Idledarkmidlight 5.14 / 7.6 / 8.28 Watt
Sotto carico midlight 11.33 / 15.36 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Lenovo IdeaPad MIIX 310-10ICR
Z8350, HD Graphics (Cherry Trail), 64 GB eMMC Flash, IPS, 1280x800, 10.1
Asus Transformer Book T100HA-C4-GR
Z8500, HD Graphics (Cherry Trail), Samsung CGND3R eMMC, IPS, 1280x800, 10.1
Toshiba Satellite Click 10 LX0W-C-104
Z8300, HD Graphics (Cherry Trail), 32 GB eMMC Flash, IPS, 1920x1200, 10.1
Acer Aspire Switch 10E SW3-013
Z3735F, HD Graphics (Bay Trail), 32 GB eMMC Flash, IPS, 1280x800, 10.1
HP Pavilion x2 10-n013dx
Z3736F, HD Graphics (Bay Trail), , IPS, 1280x800, 10.1
Microsoft Surface 3
Z8700, HD Graphics (Cherry Trail), 128 GB eMMC Flash, IPS, 1920x1280, 10.8
Power Consumption
-0%
34%
16%
Idle Minimum *
5.14
4.3
16%
2.1
59%
2.5
51%
Idle Average *
7.6
7.8
-3%
4.2
45%
7
8%
Idle Maximum *
8.28
8.5
-3%
5.1
38%
8.4
-1%
Load Average *
11.33
13.4
-18%
11
3%
11.2
1%
Load Maximum *
15.36
14.3
7%
11.3
26%
12.4
19%

* ... Meglio usare valori piccoli

Autonomia della batteria
Navigazione WiFi v1.3
10ore 43minuti
Lenovo IdeaPad MIIX 310-10ICR
Z8350, HD Graphics (Cherry Trail), 33 Wh
Asus Transformer Book T100HA-C4-GR
Z8500, HD Graphics (Cherry Trail), 30 Wh
Toshiba Satellite Click 10 LX0W-C-104
Z8300, HD Graphics (Cherry Trail), 46 Wh
Acer Aspire Switch 10E SW3-013
Z3735F, HD Graphics (Bay Trail), 30 Wh
HP Pavilion x2 10-n013dx
Z3736F, HD Graphics (Bay Trail), 33 Wh
Microsoft Surface 3
Z8700, HD Graphics (Cherry Trail), 28 Wh
Autonomia della batteria
-16%
3%
-39%
-28%
-32%
Reader / Idle
1460
943
509
828
Load
246
219
173
WiFi
425
WiFi v1.3
643
541
-16%
662
3%
390
-39%
460
-28%
437
-32%

Pro

+ poco ingombrante
+ buona autonomia
+ buoni i colori

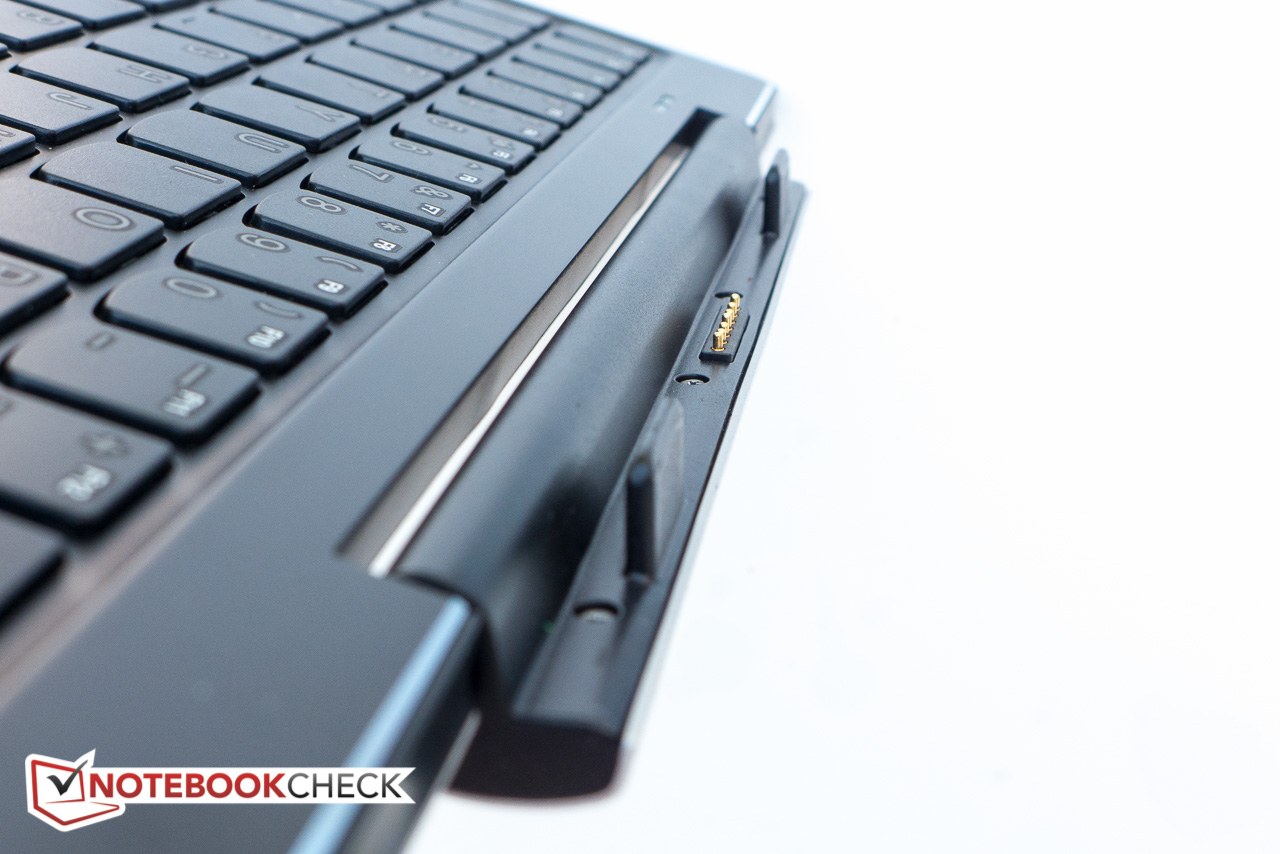

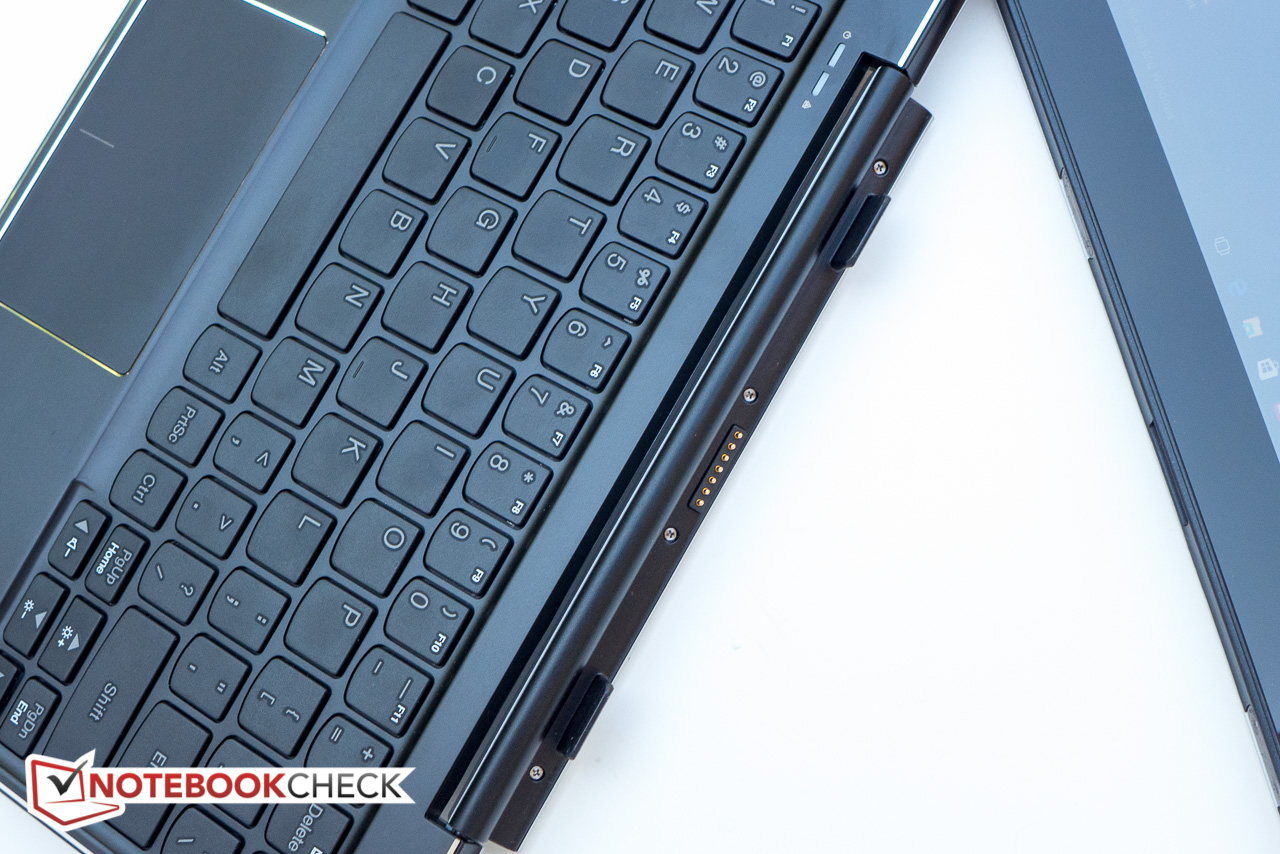

+ decente dock per la tastiera

Contro

- display poco luminoso
- arresti occasionali
- potenziali problemi con le porte USB sulla dock
- tablet non comodo da reggere
Ideapad Miix 310, courtesy of Lenovo US.
Ideapad Miix 310, courtesy of Lenovo US.

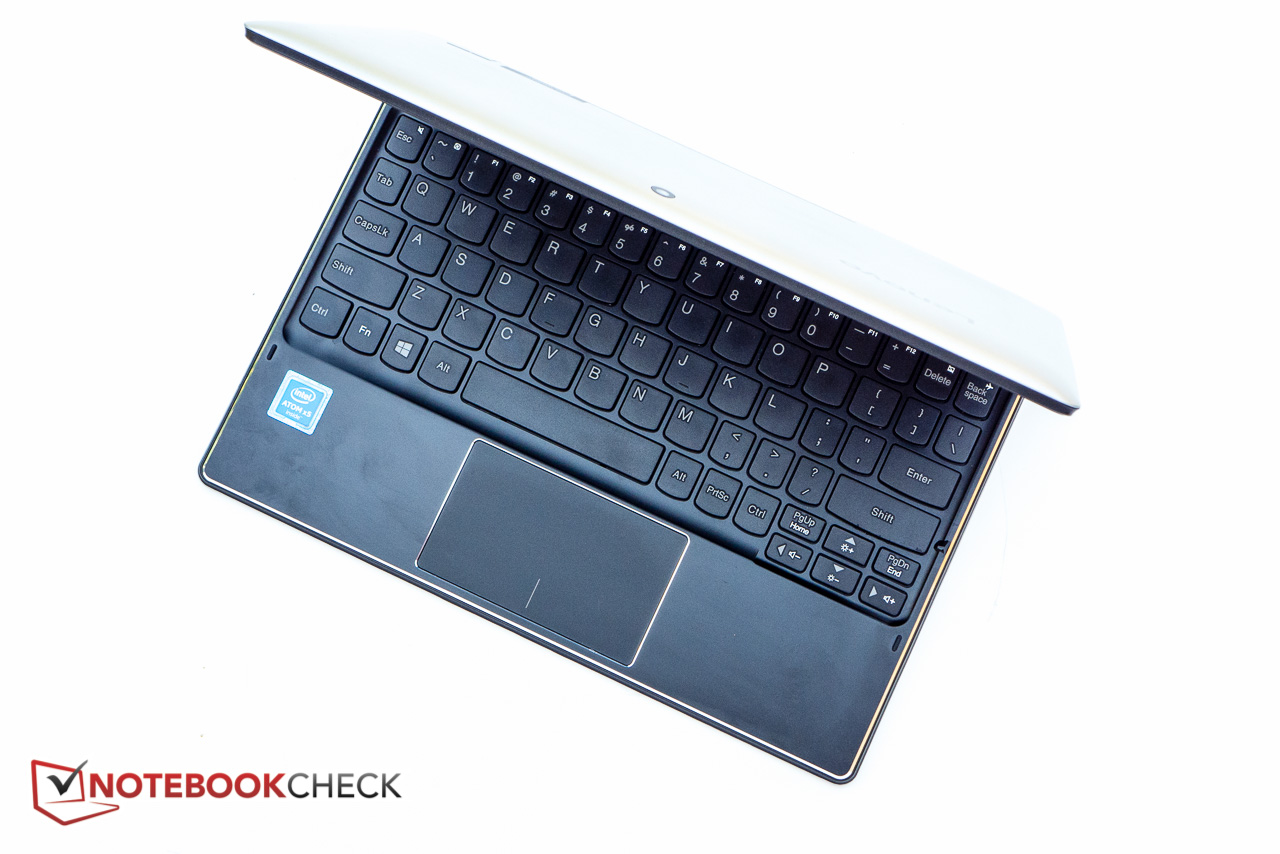

Il Lenovo Ideapad Miix 310 è uno sganciabile da 10.1". E' molto piccolo, leggero, silenzioso, e non si scalda molto, offrendo abbastanza potenza per le applicazioni basilari. L'autonomia della batteria è impressionate e sufficiente per durare un giorno. Il display IPS è sorprendentemente preciso ed offre un contrasto abbastanza decente. Sfortunatamente è anche riflettente, il che - unitamente alla luminosità bassa - comporta un utilizzo in ambienti aperti molto limitato. I dispositivi di input funzionano abbastanza bene, ma il layout della tastiera richiede un po' di pratica.

Coloro che cercano un economico sganciabile dovrebbero essere felici con il Miix 310 - ma non si dovranno avventurare troppo all'aperto.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Lenovo IdeaPad MIIX 310-10ICR - 07/22/2016 v5.1
Bernhard Pechlaner

Chassis
66 / 98 → 67%
Tastiera
73%
Dispositivo di puntamento
78%
Connettività
29 / 80 → 37%
Peso
74 / 78 → 91%
Batteria
93%
Display
80%
Prestazioni di gioco
31 / 68 → 46%
Prestazioni Applicazioni
40 / 87 → 46%
Temperatura
90%
Rumorosità
100%
Audio
25 / 91 → 27%
Fotocamera
42 / 85 → 50%
Media
63%
78%
Convertible - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del Convertibile Lenovo IdeaPad Miix 310-10ICR
Bernhard Pechlaner, 2016-07-31 (Update: 2016-07-31)
