Recensione breve del convertibile Acer Spin 5 SP515-51GN (i7-8550U, GTX 1050, 8 GB)

Più di un semplice convertibile! Prima di tutto l'Acer Spin 5 è un convertibile da 15". Tuttavia l'eccitazione è giustificata in quanto l'ultima Intel Core i7-8550U e la Nvidia GeForce GTX 1050 si nascondono sotto il cofano. Se questo convertibile funziona anche come portatile gaming, lo vedremo nel corso della recensione.

Acer Spin 5 SP515-51GN-80A3 (Spin 5 Serie)
Scheda grafica
NVIDIA GeForce GTX 1050 (Notebook) - 4096 MB, Core: 1354 - 1493 MHz, Memoria: 7000 MHz, GDDR5, ForceWare 388.31 WHQL, Nvidia Optimus
Memoria
8192 MB
, DDR4, soldered-in
Schermo
15.6 pollici 16:9, 1920 x 1080 pixel 141 PPI, multitouch 10 dita, supporto penna nativo, AUO, B156HAN06.1, a-Si TFT-LCD, LCM, IPS, 262K 45% (CIE1931), 60Hz, 250 cd/m², 700:1, lucido: si
Scheda madre
Intel Kaby Lake-U + iHDCP 2.2 Premium PCH
Harddisk
Intel SSD 600p SSDPEKKW256G7, 256 GB
, M.2 SSD + Seagate ST1000LM035-1RK172 1 TB HDD, 5400 RPM, 1150 GB libera
Scheda audio
Realtek High Definition Audio
Porte di connessione
1 USB 2.0, 3 USB 3.0 / 3.1, 1 HDMI, Connessioni Audio: Lautsprecher/Kopfhörer/Line-ou, Lettore schede: SD, SDHC, SDXC, 1 Lettore impronte digitali, gyroscope
Rete
Qualcomm Atheros QCA61x4 (a/g/n/ac), Bluetooth 4.2
Dimensioni
altezza x larghezza x profondità (in mm): 17.9 x 381.5 x 258.1
Batteria
48 Wh, 3220 mAh ioni di litio, Autonomia della batteria (dichiarata dal produttore): 8 ore
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Altre caratteristiche
Casse: Casse Stereo, Tastiera: Chiclet, Illuminazione Tastiera: si, adattatore AC, Acer Care Center, Acer Portal, Dolby Audio, Norton Security (Testversion), 24 Mesi Garanzia, Noble Wedge Lock
Peso
2.254 kg, Alimentazione: 452 gr
Prezzo
1299 EUR



Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN
Acer Spin 5 SP515-51GN

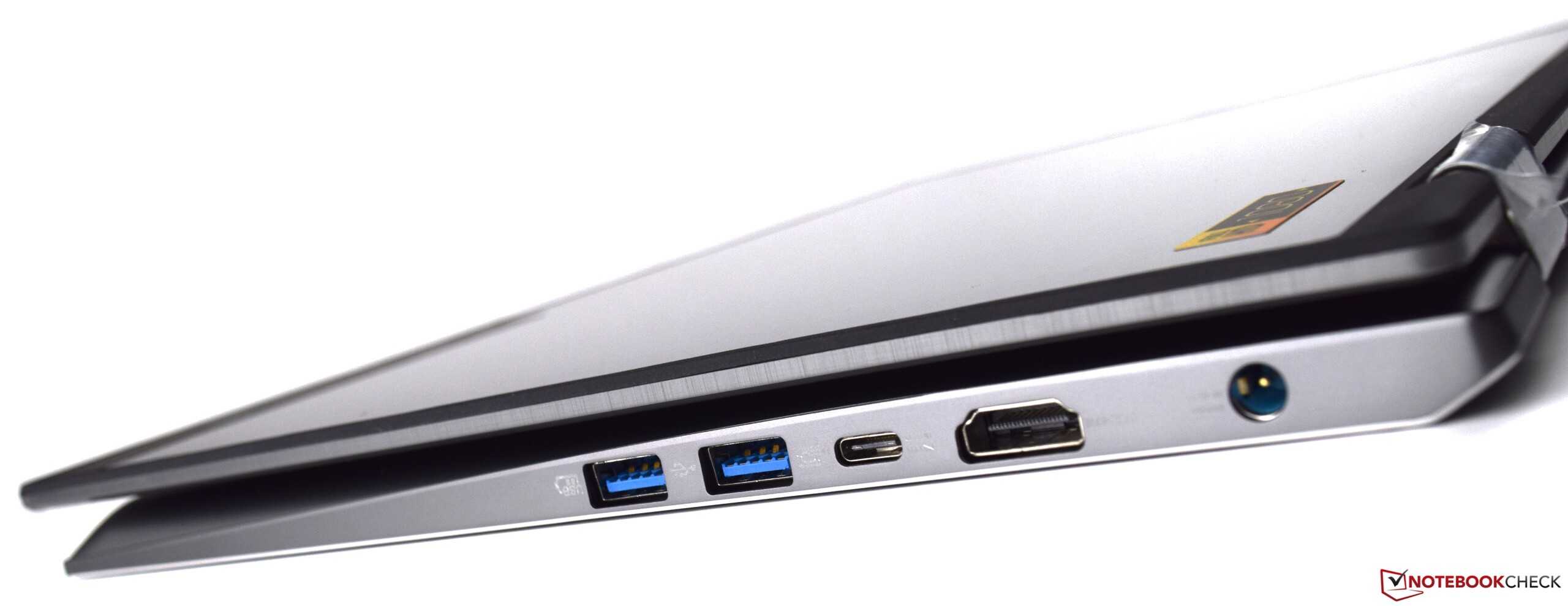

Left side: DC power socket, HDMI port, USB 3.1 Gen 1 Type-C port, two USB 3.0 ports
Left side: DC power socket, HDMI port, USB 3.1 Gen 1 Type-C port, two USB 3.0 ports
Right side: Status LEDs, volume rockers, microphone/headphone combo jack, SD card reader, USB 2.0 port, power button, security slot
Right side: Status LEDs, volume rockers, microphone/headphone combo jack, SD card reader, USB 2.0 port, power button, security slot
Frontside: no ports
Frontside: no ports
Backside: fan grill
Backside: fan grill
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Microsoft Surface Book 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
159.2 MB/s ∼100% +608%
Dell Inspiron 17-7773-0043
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.2 MB/s ∼16% +16%
Asus VivoBook Flip TP501UQ-FZ119T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
24.7 MB/s ∼16% +10%
Acer Spin 5 SP513-52N-54SF
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
23 MB/s ∼14% +2%
Acer Spin 5 SP515-51GN-80A3
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
22.5 MB/s ∼14%
maximum AS SSD Seq Read Test (1GB)
Microsoft Surface Book 2
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
234.4 MB/s ∼100% +877%
Dell Inspiron 17-7773-0043
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
28.5 MB/s ∼12% +19%
Asus VivoBook Flip TP501UQ-FZ119T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.3 MB/s ∼12% +14%
Acer Spin 5 SP513-52N-54SF
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
25.2 MB/s ∼11% +5%
Acer Spin 5 SP515-51GN-80A3
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
24 MB/s ∼10%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo Yoga 720-15IKB-80X7
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
662 MBit/s ∼100% +35%
Microsoft Surface Book 2
Marvell AVASTAR Wireless-AC Network Controller
515 MBit/s ∼78% +5%
Acer Spin 5 SP515-51GN-80A3
Qualcomm Atheros QCA61x4
489 MBit/s ∼74%
Asus VivoBook Flip TP501UQ-FZ119T
Intel Dual Band Wireless-AC 8260
475 MBit/s ∼72% -3%
Acer Spin 5 SP513-52N-54SF
Atheros/Qualcomm QCA6174
308 MBit/s ∼47% -37%
Dell Inspiron 17-7773-0043
Intel Dual Band Wireless-AC 3165
302 MBit/s ∼46% -38%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus VivoBook Flip TP501UQ-FZ119T
Intel Dual Band Wireless-AC 8260
676 MBit/s ∼100% +12%
Acer Spin 5 SP515-51GN-80A3
Qualcomm Atheros QCA61x4
604 MBit/s ∼89%
Acer Spin 5 SP513-52N-54SF
Atheros/Qualcomm QCA6174
580 MBit/s ∼86% -4%
Lenovo Yoga 720-15IKB-80X7
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
512 MBit/s ∼76% -15%
Microsoft Surface Book 2
Marvell AVASTAR Wireless-AC Network Controller
498 MBit/s ∼74% -18%
Dell Inspiron 17-7773-0043
Intel Dual Band Wireless-AC 3165
341 MBit/s ∼50% -44%
234
cd/m²
216
cd/m²
224
cd/m²
229
cd/m²
221
cd/m²
224
cd/m²
224
cd/m²
235
cd/m²
210
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 235 cd/m² Media: 224.1 cd/m²
Distribuzione della luminosità: 89 %
Al centro con la batteria: 221 cd/m²
Contrasto: 1842:1 (Nero: 0.12 cd/m²)
ΔE Color 4.12 | 0.8-29.43 Ø6.4
ΔE Greyscale 3.4 | 0.64-98 Ø6.6
58% sRGB (Argyll) 37% AdobeRGB 1998 (Argyll)
Gamma: 2.54
Acer Spin 5 SP515-51GN-80A3
AUO, B156HAN06.1, 1920x1080, 15.6
Acer Spin 5 SP513-52N-54SF
LC133LF102, 1920x1080, 13.3
Lenovo Yoga 720-15IKB-80X7
Chi Mei CMN N156HCE-EN1, 1920x1080, 15.6
Asus VivoBook Flip TP501UQ-FZ119T
BOE HF NV156FHM-N43, 1920x1080, 15.6
Dell Inspiron 17-7773-0043
Chi Mei CMN1738, 1920x1080, 17.3
Microsoft Surface Book 2
Panasonic MEI96A2 , 3000x2000, 13.5
Response Times
-5%
20%
-16%
4%
-15%
Response Time Grey 50% / Grey 80% *
42 (22, 20)
49 (30, 19)
-17%
29.6 (15.6, 14)
30%
45 (23, 22)
-7%
40 (22, 18)
5%
52.8 (25.2, 27.6)
-26%
Response Time Black / White *
29 (15, 13)
27 (15, 12)
7%
26.4 (15.6, 10.8)
9%
36 (21, 15)
-24%
28 (17, 11)
3%
30 (16.4, 13.6)
-3%
PWM Frequency
1000 (20)
25510 (69)
19840 (90)
1000 (90)
Screen
7%
-14%
-4%
-5%
35%
Brightness middle
221
295
33%
300.9
36%
314
42%
323
46%
385
74%
Brightness
224
276
23%
285
27%
287
28%
290
29%
372
66%
Brightness Distribution
89
88
-1%
92
3%
85
-4%
77
-13%
89
0%
Black Level *
0.12
0.27
-125%
0.24
-100%
0.25
-108%
0.21
-75%
0.21
-75%
Contrast
1842
1093
-41%
1254
-32%
1256
-32%
1538
-17%
1833
0%
Colorchecker DeltaE2000 *
4.12
2.97
28%
5
-21%
4.55
-10%
4.88
-18%
1.6
61%
Colorchecker DeltaE2000 max. *
6.41
5.67
12%
10.2
-59%
7.39
-15%
8.86
-38%
4.5
30%
Greyscale DeltaE2000 *
3.4
3.12
8%
7
-106%
4.95
-46%
6.21
-83%
1.5
56%
Gamma
2.54 94%
2.45 98%
2.34 103%
2.37 101%
2.36 102%
2.22 108%
CCT
6893 94%
6676 97%
6578 99%
5803 112%
6620 98%
6502 100%
Color Space (Percent of AdobeRGB 1998)
37
62
68%
59
59%
58
57%
60
62%
64
73%
Color Space (Percent of sRGB)
58
94
62%
90
55%
89
53%
92
59%
95.9
65%
Media totale (Programma / Settaggio)
1% / 5%
3% / -8%
-10% / -6%
-1% / -3%
10% / 27%

* ... Meglio usare valori piccoli

CalMAN: Crayscale
CalMAN: Crayscale
CalMAN: ColorChecker
CalMAN: ColorChecker
CalMAN: Saturation
CalMAN: Saturation

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
29 ms ... rise ↗ and fall ↘ combined↗ 15 ms Incremento
↘ 13 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 66 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (26.3 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
42 ms ... rise ↗ and fall ↘ combined↗ 22 ms Incremento
↘ 20 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 52 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (42.1 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9953 (minimum: 43 - maximum: 588200) Hz was measured.

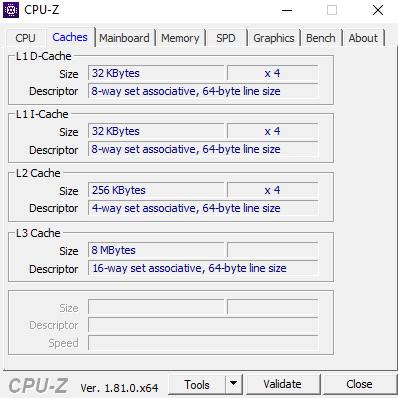

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
DPC latencies
GPU-Z
GPU-Z
GPU-Z
GPU-Z
HWiNFO
Intel Extreme Utility
Intel Extreme Utility (Benchmark)
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Microsoft Surface Book 2
Intel Core i7-8650U
177 Points ∼100% +4%
Acer Spin 5 SP515-51GN-80A3
Intel Core i7-8550U
170 Points ∼96%
Dell Inspiron 17-7773-0043
Intel Core i7-8550U
158 Points ∼89% -7%
Acer Spin 5 SP513-52N-54SF
Intel Core i5-8250U
144 Points ∼81% -15%
Asus VivoBook Flip TP501UQ-FZ119T
Intel Core i5-7200U
128 Points ∼72% -25%
Lenovo Yoga 720-15IKB-80X7
Intel Core i7-7700HQ
120 Points ∼68% -29%
CPU Multi 64Bit
Microsoft Surface Book 2
Intel Core i7-8650U
673 Points ∼100% +21%
Dell Inspiron 17-7773-0043
Intel Core i7-8550U
652 Points ∼97% +17%
Lenovo Yoga 720-15IKB-80X7
Intel Core i7-7700HQ
603 Points ∼90% +8%
Acer Spin 5 SP515-51GN-80A3
Intel Core i7-8550U
558 Points ∼83%
Acer Spin 5 SP513-52N-54SF
Intel Core i5-8250U
534 Points ∼79% -4%
Asus VivoBook Flip TP501UQ-FZ119T
Intel Core i5-7200U
331 Points ∼49% -41%
Cinebench R11.5
CPU Single 64Bit
Microsoft Surface Book 2
Intel Core i7-8650U
2.01 Points ∼100% +4%
Acer Spin 5 SP515-51GN-80A3
Intel Core i7-8550U
1.94 Points ∼97%
Dell Inspiron 17-7773-0043
Intel Core i7-8550U
1.57 Points ∼78% -19%
Lenovo Yoga 720-15IKB-80X7
Intel Core i7-7700HQ
1.36 Points ∼68% -30%
CPU Multi 64Bit
Microsoft Surface Book 2
Intel Core i7-8650U
7.24 Points ∼100% +16%
Lenovo Yoga 720-15IKB-80X7
Intel Core i7-7700HQ
6.67 Points ∼92% +7%
Acer Spin 5 SP515-51GN-80A3
Intel Core i7-8550U
6.26 Points ∼86%
Dell Inspiron 17-7773-0043
Intel Core i7-8550U
4.96 Points ∼69% -21%
JetStream 1.1 - 1.1 Total Score
Acer Spin 5 SP515-51GN-80A3
Intel Core i7-8550U
286.26 Points ∼100%
Microsoft Surface Book 2
Intel Core i7-8650U
285.1 Points ∼100% 0%
Acer Spin 5 SP513-52N-54SF
Intel Core i5-8250U
256.14 Points ∼89% -11%
Dell Inspiron 17-7773-0043
Intel Core i7-8550U
241.43 Points ∼84% -16%
Asus VivoBook Flip TP501UQ-FZ119T
Intel Core i5-7200U
221.49 Points ∼77% -23%
Octane V2 - Total Score
Microsoft Surface Book 2
Intel Core i7-8650U
42822 Points ∼100% +2%
Acer Spin 5 SP515-51GN-80A3
Intel Core i7-8550U
42043 Points ∼98%
Dell Inspiron 17-7773-0043
Intel Core i7-8550U
35100 Points ∼82% -17%
Mozilla Kraken 1.1 - Total Score
Dell Inspiron 17-7773-0043
Intel Core i7-8550U
1083.1 ms * ∼100% -24%
Acer Spin 5 SP515-51GN-80A3
Intel Core i7-8550U
876.6 ms * ∼81%
Microsoft Surface Book 2
Intel Core i7-8650U
809 ms * ∼75% +8%

* ... Meglio usare valori piccoli

Cinebench R10
Cinebench R10
Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15
Jetstream 1.1
Jetstream 1.1
Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1
Cinebench R10 Shading 32Bit
6841
Cinebench R10 Rendering Multiple CPUs 32Bit
18269
Cinebench R10 Rendering Single 32Bit
6494
Cinebench R10 Shading 64Bit
6841 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
23730 Points
Cinebench R10 Rendering Single CPUs 64Bit
8359 Points
Cinebench R11.5 CPU Multi 64Bit
6.26 Points
Cinebench R11.5 OpenGL 64Bit
69.98 fps
Cinebench R11.5 CPU Single 64Bit
1.94 Points
Cinebench R15 CPU Multi 64Bit
558 Points
Cinebench R15 CPU Single 64Bit
170 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
110.29 fps
Aiuto
PCMark 8
Work Score Accelerated v2
Acer Spin 5 SP515-51GN-80A3
GeForce GTX 1050 (Notebook), 8550U, Intel SSD 600p SSDPEKKW256G7
5281 Points ∼100%
Dell Inspiron 17-7773-0043
GeForce MX150, 8550U, SanDisk X400 M.2 2280 128GB
4922 Points ∼93% -7%
Lenovo Yoga 720-15IKB-80X7
GeForce GTX 1050 (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
4771 Points ∼90% -10%
Acer Spin 5 SP513-52N-54SF
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
4563 Points ∼86% -14%
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
4522 (min: 4500, max: 4528) Points ∼86% -14%
Asus VivoBook Flip TP501UQ-FZ119T
GeForce 940MX, 7200U, Micron SSD 1100 (MTFDDAV256TBN)
4491 Points ∼85% -15%
Home Score Accelerated v2
Acer Spin 5 SP515-51GN-80A3
GeForce GTX 1050 (Notebook), 8550U, Intel SSD 600p SSDPEKKW256G7
4100 Points ∼100%
Dell Inspiron 17-7773-0043
GeForce MX150, 8550U, SanDisk X400 M.2 2280 128GB
3837 Points ∼94% -6%
Asus VivoBook Flip TP501UQ-FZ119T
GeForce 940MX, 7200U, Micron SSD 1100 (MTFDDAV256TBN)
3703 Points ∼90% -10%
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
3694 (min: 3691, max: 3696) Points ∼90% -10%
Lenovo Yoga 720-15IKB-80X7
GeForce GTX 1050 (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
3670 Points ∼90% -10%
Acer Spin 5 SP513-52N-54SF
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
3197 Points ∼78% -22%
PCMark 10
Productivity
Dell Inspiron 17-7773-0043
GeForce MX150, 8550U, SanDisk X400 M.2 2280 128GB
6767 Points ∼100% 0%
Acer Spin 5 SP515-51GN-80A3
GeForce GTX 1050 (Notebook), 8550U, Intel SSD 600p SSDPEKKW256G7
6748 Points ∼100%
Acer Spin 5 SP513-52N-54SF
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
6265 Points ∼93% -7%
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
5819 (min: 5653, max: 5995) Points ∼86% -14%
Asus VivoBook Flip TP501UQ-FZ119T
GeForce 940MX, 7200U, Micron SSD 1100 (MTFDDAV256TBN)
4760 Points ∼70% -29%
Score
Acer Spin 5 SP515-51GN-80A3
GeForce GTX 1050 (Notebook), 8550U, Intel SSD 600p SSDPEKKW256G7
4194 Points ∼100%
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
4119 (min: 4106, max: 4190) Points ∼98% -2%
Dell Inspiron 17-7773-0043
GeForce MX150, 8550U, SanDisk X400 M.2 2280 128GB
3769 Points ∼90% -10%
Acer Spin 5 SP513-52N-54SF
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
3664 Points ∼87% -13%
Asus VivoBook Flip TP501UQ-FZ119T
GeForce 940MX, 7200U, Micron SSD 1100 (MTFDDAV256TBN)
2850 Points ∼68% -32%
PCMark 8 Home Score Accelerated v2
4100 punti
PCMark 8 Creative Score Accelerated v2
5283 punti
PCMark 8 Work Score Accelerated v2
5281 punti
Aiuto
Acer Spin 5 SP515-51GN-80A3
Intel SSD 600p SSDPEKKW256G7
Acer Spin 5 SP513-52N-54SF
Micron 1100 MTFDDAV256TBN
Lenovo Yoga 720-15IKB-80X7
Samsung PM961 MZVLW256HEHP
Asus VivoBook Flip TP501UQ-FZ119T
Micron SSD 1100 (MTFDDAV256TBN)
Dell Inspiron 17-7773-0043
SanDisk X400 M.2 2280 128GB
Microsoft Surface Book 2
Samsung PM961 MZVLW256HEHP
CrystalDiskMark 3.0
-35%
46%
-44%
-39%
-1%
Write 4k QD32
331.1
292
-12%
369.2
12%
199.2
-40%
212.8
-36%
337.08
2%
Read 4k QD32
289.3
247.3
-15%
415.1
43%
161.5
-44%
365.8
26%
465.5
61%
Write 4k
134.4
91.58
-32%
146.2
9%
89.8
-33%
56.21
-58%
148.47
10%
Read 4k
35.61
27.52
-23%
58.1
63%
24.11
-32%
29.37
-18%
43.64
23%
Write 512
608.9
361.9
-41%
798.9
31%
329.8
-46%
254.8
-58%
337.86
-45%
Read 512
935.3
325.2
-65%
1242
33%
335.6
-64%
324.2
-65%
654.05
-30%
Write Seq
598.8
439.9
-27%
1213
103%
398.7
-33%
350.5
-41%
341.2
-43%
Read Seq
1187
462.7
-61%
2046
72%
465.6
-61%
486.2
-59%
1370.2
15%
Intel SSD 600p SSDPEKKW256G7
Valore Minimo di trasferimento: 61.2 MB/s
Valore Massimo di trasferimento: 104.7 MB/s
Valore Medio di trasferimento: 77.2 MB/s
Tempi di accesso: 19.6 ms
Burst Rate: 38 MB/s
Utilizzo CPU: 5.3 %
3DMark
1920x1080 Fire Strike Graphics
Lenovo Yoga 720-15IKB-80X7
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
5885 Points ∼100% +3%
Microsoft Surface Book 2
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8650U
5787 Points ∼98% +2%
Acer Spin 5 SP515-51GN-80A3
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8550U
5688 Points ∼97%
Dell Inspiron 17-7773-0043
NVIDIA GeForce MX150, Intel Core i7-8550U
3401 Points ∼58% -40%
Asus VivoBook Flip TP501UQ-FZ119T
NVIDIA GeForce 940MX, Intel Core i5-7200U
1588 Points ∼27% -72%
Acer Spin 5 SP513-52N-54SF
Intel UHD Graphics 620, Intel Core i5-8250U
1049 Points ∼18% -82%
1280x720 Cloud Gate Standard Graphics
Lenovo Yoga 720-15IKB-80X7
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-7700HQ
37388 Points ∼100% +7%
Acer Spin 5 SP515-51GN-80A3
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8550U
35068 Points ∼94%
Microsoft Surface Book 2
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8650U
29376 Points ∼79% -16%
Dell Inspiron 17-7773-0043
NVIDIA GeForce MX150, Intel Core i7-8550U
21134 Points ∼57% -40%
Acer Spin 5 SP513-52N-54SF
Intel UHD Graphics 620, Intel Core i5-8250U
8654 Points ∼23% -75%
Asus VivoBook Flip TP501UQ-FZ119T
NVIDIA GeForce 940MX, Intel Core i5-7200U
8165 Points ∼22% -77%
3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Book 2
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8650U
7483 (min: 7472, max: 7485) Points ∼100% +6%
Acer Spin 5 SP515-51GN-80A3
NVIDIA GeForce GTX 1050 (Notebook), Intel Core i7-8550U
7043 Points ∼94%
Dell Inspiron 17-7773-0043
NVIDIA GeForce MX150, Intel Core i7-8550U
4507 Points ∼60% -36%
Asus VivoBook Flip TP501UQ-FZ119T
NVIDIA GeForce 940MX, Intel Core i5-7200U
2339 Points ∼31% -67%
Acer Spin 5 SP513-52N-54SF
Intel UHD Graphics 620, Intel Core i5-8250U
1607 Points ∼21% -77%
3DMark Ice Storm
3DMark Ice Storm
3DMark Ice Storm Unlimited
3DMark Ice Storm Unlimited
3DMark Ice Storm Extreme
3DMark Ice Storm Extreme
3DMark Cloud Gate
3DMark Cloud Gate
3DMark Sky Diver
3DMark Sky Diver
3DMark Fire Strike
3DMark Fire Strike
3DMark Fire Strike Extreme
3DMark Fire Strike Extreme
3DMark Fire Strike Ultra
3DMark Fire Strike Ultra
3DMark Time Spy
3DMark Time Spy
3DMark Time Spy Extreme
3DMark Time Spy Extreme
3DMark 11
3DMark 11

3DMark 11 Performance
6753 punti
3DMark Ice Storm Standard Score
69762 punti
3DMark Cloud Gate Standard Score
14539 punti
3DMark Fire Strike Score
4892 punti
3DMark Fire Strike Extreme Score
2516 punti
3DMark Time Spy Score
1708 punti
Aiuto
basso medio alto ultra
BioShock Infinite (2013) 203.9117.5110.853.2fps
Battlefield 4 (2013) 120.682.77640.8fps
Rise of the Tomb Raider (2016) 99.461.131.228.8fps
Two fans carry the heat from the case.
Two fans carry ...
Two fans carry the heat from the case.
... the heat from the case.

Rumorosità

Idle
30.2 / 30.2 / 30.9 dB(A)
HDD
31.7 dB(A)
Sotto carico
42.4 / 44.8 dB(A)



30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm di distanza)   Rumorosità ambientale: 30.2 dB(A)
Acer Spin 5 SP515-51GN-80A3
GeForce GTX 1050 (Notebook), 8550U, Intel SSD 600p SSDPEKKW256G7
Acer Spin 5 SP513-52N-54SF
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
Lenovo Yoga 720-15IKB-80X7
GeForce GTX 1050 (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
Asus VivoBook Flip TP501UQ-FZ119T
GeForce 940MX, 7200U, Micron SSD 1100 (MTFDDAV256TBN)
Dell Inspiron 17-7773-0043
GeForce MX150, 8550U, SanDisk X400 M.2 2280 128GB
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
Noise
7%
6%
1%
2%
5%
off / environment *
30.2
30.4
-1%
28.2
7%
30.3
-0%
30.3
-0%
29.4
3%
Idle Minimum *
30.2
30.4
-1%
28.2
7%
30.3
-0%
30.6
-1%
29.4
3%
Idle Average *
30.2
30.4
-1%
28.2
7%
32.8
-9%
30.6
-1%
29.4
3%
Idle Maximum *
30.9
30.9
-0%
28.2
9%
32.9
-6%
32.2
-4%
29.4
5%
Load Average *
42.4
34
20%
39
8%
37.8
11%
40.5
4%
31.4
26%
Load Maximum *
44.8
33.5
25%
46.3
-3%
40
11%
39.5
12%
49
-9%
Witcher 3 ultra *
49

* ... Meglio usare valori piccoli

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.131.731.730.12530.732.835.130.73133.935.934.733.94029.63034.629.65033.63837.633.66328.429.12828.48025.426.127.125.410026.225.825.226.212524.924.923.824.916023.924.823.523.920023.624.422.623.625023.9242223.931524.325.820.724.340023.126.620.223.1500222319.22263022.723.11822.780027.128.817.827.1100028.931.118.128.9125031.132.917.531.1160031.833.317.231.8200032.434.317.532.4250034.936.517.634.9315034.838.917.534.8400026.429.817.926.4500023.927.11823.9630023.626.718.123.6800021.523.218.321.51000021.920.918.321.91250022.619.518.222.61600024.719.818.324.7SPL42.444.830.242.4N3.54.21.43.5median 24.3Acer Spin 5 SP515-51GN-80A3median 25.8median 18.2median 24.3Delta2.93.81.32.9hearing rangehide median Fan Noise
Stress test: Prime95 solo
Stress test: Prime95 solo
Stresstest: FurMark solo
Stresstest: FurMark solo
Stress test: FurMark+Prime95
Stress test: FurMark+Prime95
Carico massimo
 40.2 °C50.9 °C39 °C
 39 °C43.7 °C27.6 °C
 29.6 °C29.6 °C27.6 °C
Massima: 50.9 °C
Media: 36.4 °C
32.6 °C44.2 °C41.6 °C
28.4 °C36 °C37.8 °C
28.1 °C31 °C31.6 °C
Massima: 44.2 °C
Media: 34.6 °C
Alimentazione (max)  48.3 °C | Temperatura della stanza 22 °C | FIRT 550-Pocket
Acer Spin 5 SP515-51GN-80A3
GeForce GTX 1050 (Notebook), 8550U, Intel SSD 600p SSDPEKKW256G7
Acer Spin 5 SP513-52N-54SF
UHD Graphics 620, 8250U, Micron 1100 MTFDDAV256TBN
Lenovo Yoga 720-15IKB-80X7
GeForce GTX 1050 (Notebook), 7700HQ, Samsung PM961 MZVLW256HEHP
Asus VivoBook Flip TP501UQ-FZ119T
GeForce 940MX, 7200U, Micron SSD 1100 (MTFDDAV256TBN)
Dell Inspiron 17-7773-0043
GeForce MX150, 8550U, SanDisk X400 M.2 2280 128GB
Microsoft Surface Book 2
GeForce GTX 1050 (Notebook), 8650U, Samsung PM961 MZVLW256HEHP
Heat
3%
-1%
10%
-2%
10%
Maximum Upper Side *
50.9
41.8
18%
42.8
16%
35.4
30%
42.7
16%
40.8
20%
Maximum Bottom *
44.2
47.8
-8%
49.6
-12%
44.6
-1%
47.2
-7%
43.7
1%
Idle Upper Side *
26.3
26
1%
27.2
-3%
25.3
4%
28.4
-8%
25.4
3%
Idle Bottom *
27.1
26.9
1%
28.6
-6%
25.5
6%
29.7
-10%
22.8
16%

* ... Meglio usare valori piccoli

Both speakers are located above the keyboard.
Both speakers ...
Both speakers are located above the keyboard.
... are located above the keyboard.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.931.732.92533.535.133.53132.634.732.64032.934.632.95037.237.637.2633628368026.327.126.310030.625.230.612541.523.841.516046.923.546.920047.422.647.425043.72243.731551.720.751.740064.920.264.950065.819.265.863067.61867.680065.617.865.6100067.818.167.8125070.717.570.7160067.817.267.8200067.817.567.8250068.217.668.2315068.717.568.7400063.717.963.7500060.91860.963006318.163800060.518.360.5100005418.3541250051.418.251.41600049.618.349.6SPL78.630.278.6N42.71.442.7median 63Acer Spin 5 SP515-51GN-80A3median 18.2median 63Delta9.61.39.632.931.932.932.53132.534.435.334.431.431.631.435.83735.828.429.828.427.625.627.632.526.132.542.724.242.747.923.847.950.42350.443.721.343.752.221.152.267.620.467.669.819.569.873.918.973.967.818.467.867.71867.768.217.968.268.717.668.76717.36767.817.767.866.417.766.463.617.863.662.818.162.861.818.361.858.118.458.156.618.556.656.118.656.150.718.650.778.930.478.944.41.444.4median 62.8Acer Spin 5 SP513-52N-54SFmedian 18.5median 62.88.71.98.7hearing rangehide median Pink Noise
Acer Spin 5 SP515-51GN-80A3 audio analysis

(-) | not very loud speakers (70.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.4% lower than median
(±) | linearity of bass is average (12.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(±) | linearity of mids is average (7.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(+) | highs are linear (6.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.4% difference to median)
Compared to same class
» 37% of all tested devices in this class were better, 9% similar, 55% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 40% of all tested devices were better, 5% similar, 55% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Acer Spin 5 SP513-52N-54SF audio analysis

(±) | speaker loudness is average but good (73.86 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.9% lower than median
(±) | linearity of bass is average (14.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6% higher than median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.2% difference to median)
Compared to same class
» 37% of all tested devices in this class were better, 9% similar, 55% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 39% of all tested devices were better, 5% similar, 56% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo di corrente
Off / Standbydarklight 0.22 / 0.45 Watt
Idledarkmidlight 3.9 / 6.7 / 8.7 Watt
Sotto carico midlight 74 / 79 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Acer Spin 5 SP515-51GN-80A3
8550U, GeForce GTX 1050 (Notebook), Intel SSD 600p SSDPEKKW256G7, a-Si TFT-LCD, LCM, IPS, 1920x1080, 15.6
Acer Spin 5 SP513-52N-54SF
8250U, UHD Graphics 620, Micron 1100 MTFDDAV256TBN, IPS, 1920x1080, 13.3
Lenovo Yoga 720-15IKB-80X7
7700HQ, GeForce GTX 1050 (Notebook), Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 15.6
Asus VivoBook Flip TP501UQ-FZ119T
7200U, GeForce 940MX, Micron SSD 1100 (MTFDDAV256TBN), IPS, 1920x1080, 15.6
Dell Inspiron 17-7773-0043
8550U, GeForce MX150, SanDisk X400 M.2 2280 128GB, IPS, 1920x1080, 17.3
Microsoft Surface Book 2
8650U, GeForce GTX 1050 (Notebook), Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13.5
Power Consumption
20%
-45%
6%
-23%
-31%
Idle Minimum *
3.9
3.9
-0%
8.3
-113%
3.8
3%
5.5
-41%
4.7
-21%
Idle Average *
6.7
8.2
-22%
10.2
-52%
8.6
-28%
11.6
-73%
10.6
-58%
Idle Maximum *
8.7
8.8
-1%
10.4
-20%
9.4
-8%
12.4
-43%
12.3
-41%
Load Average *
74
28.5
61%
67.5
9%
43
42%
65
12%
81
-9%
Load Maximum *
79
30.7
61%
117.2
-48%
62
22%
56
29%
100.3
-27%
Witcher 3 ultra *
96.5
97

* ... Meglio usare valori piccoli

Autonomia della batteria
Idle (senza WLAN, min luminosità)
12ore 39minuti
NBC WiFi Websurfing Battery Test 1.3 (Edge 41.16299.15.0)
6ore 13minuti
Big Buck Bunny H.264 1080p
5ore 31minuti
Sotto carico (max luminosità)
1ore 28minuti
Maximum battery life
Maximum battery life
Minimum battery life
Minimum battery life
Wi-Fi battery life
Wi-Fi battery life
H.264-battery life
H.264-battery life
Charging time
Charging time
Acer Spin 5 SP515-51GN-80A3
8550U, GeForce GTX 1050 (Notebook), 48 Wh
Acer Spin 5 SP513-52N-54SF
8250U, UHD Graphics 620, 53.9 Wh
Lenovo Yoga 720-15IKB-80X7
7700HQ, GeForce GTX 1050 (Notebook), 72 Wh
Asus VivoBook Flip TP501UQ-FZ119T
7200U, GeForce 940MX, 38 Wh
Dell Inspiron 17-7773-0043
8550U, GeForce MX150, 56 Wh
Microsoft Surface Book 2
8650U, GeForce GTX 1050 (Notebook), 75 Wh
Autonomia della batteria
34%
26%
0%
19%
118%
Reader / Idle
759
1066
40%
883
16%
1469
94%
H.264
331
373
13%
933
182%
WiFi v1.3
373
500
34%
484
30%
372
0%
408
9%
663
78%
Load
88
96
9%
121
38%
190
116%
Witcher 3 ultra
230

Pro

+ case in alluminio
+ cerniere 360 gradi
+ prestazioni di sistema molto buone
+ ottime prestazioni gaming
+ buone prestazioni Wi-Fi
+ Nvidia GeForce GTX 1050 con 4 GB di VRAM
+ multi-touch screen 10 dita
+ Acer Active Stylus
+ tastiera illuminata
+ touchpad con lettore di impronte
+ display con buon contrasto e minimoclouding
+ Veloce SSD NVMe
+ consumi contenuti

Contro

- sistema di raffreddamento
- le ventole si fanno sentire sotto carico
- throttling termico (CPU)
- nessuna USB 3.1 Type-C Gen 2
- casse appena “okay”
- SD card reader lento
- luminosità del display e copertura della gamma di colore
-
Acer Spin 5 SP515-51GN, fornito da CampusPoint
Acer Spin 5 SP515-51GN, fornito da CampusPoint

L'Acer Spin 5 SP515 è un sottile convertibile da 15" con una buona potenza 3D. Il potente, ma efficiente Intel Core i7-8550U è la base. 8 GD di RAM DDR4 non sono molte, ma abbastanza per l'utilizzo quotidiano. Entrambi i dispositivi di archiviazione funzionano bene e rendono il sistema reattivo. Come highlight, l'Acer Spin 5 SP515 offre una Nvidia GeForce GTX 1050 con 4 GB di VRAM, che trasforma il convertibile in un piccolo portatile gaming.

Coloro che cercano un portatile gaming e non vogliono rinunciare al vantaggio di un convertibile, saranno contenti dell'Acer Spin 5 SP515.

L'Acer Spin 5 SP515 impressiona con il suo case sottile e impeccabile. La scelta dei materiali è molto buona. Rende l'aspetto di elevato valore. La versatilità di un convertibile lo rende ancora più attraente. Grazie alla buona GPU (per un convertibile), l'Acer Spin 5 SP515 può essere usato per i video games. Nel complesso, i componenti funzionano bene tra loro, con un sistema molto buono. In termini di display, le opinioni possono divergere. Se è buono per l'utilizzo domestico, all'aperto bisogna accettare qualche compromessi. Per quanto riguarda le temperature, l'Acer Spin 5 SP515 non impressiona, in quanto il sistema di raffreddamento è andato sotto sforzo durante il nostro stress test. Le porte possono essere definite "buon". Tuttavia, avremmo voluto vedere una porta USB 3.1 Type-C Gen 2. Il lettore SD avrebbe dovuto offrire velocità USB 3.0, in modo da non infastidire il veloce SSD NVMe.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.





Acer Spin 5 SP515-51GN-80A3 - 12/04/2017 v6
Sebastian Bade

Chassis
87 / 98 → 88%
Tastiera
84%
Dispositivo di puntamento
89%
Connettività
54 / 80 → 68%
Peso
61 / 35-78 → 61%
Batteria
86%
Display
85%
Prestazioni di gioco
83 / 68 → 100%
Prestazioni Applicazioni
92 / 87 → 100%
Temperatura
89%
Rumorosità
84%
Audio
54 / 91 → 60%
Fotocamera
42 / 85 → 50%
Media
76%
82%
Convertible - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del convertibile Acer Spin 5 SP515-51GN (i7-8550U, GTX 1050, 8 GB)
Sebastian Bade, 2017-12- 8 (Update: 2017-12- 8)
