Recensione breve del Portatile Lenovo IdeaPad 520s-14IKB (Core i5-7200U, 940MX)

Benjamin Herzig (traduzione a cura di G. De Luca), 09/11/2017

Un tuttofare di successo. Un Ultrabook economico con display Full HD IPS, GeForce 940MX, e Core i5-7200U - Lenovo realizza un pacchetto interessante per molti studenti. Vediamo insieme nella recensione, se l'IdeaPad 520s riesce a convincerci.

Lenovo IdeaPad 520s-14IKB 80X200C1GE (IdeaPad 520s Serie)
Processore
Intel Core i5-7200U
Scheda grafica
NVIDIA GeForce 940MX - 2048 MB, Core: 1083 MHz, Memoria: 1253 MHz, GDDR5, 373.50, Optimus
Memoria
8192 MB
Schermo
14 pollici 16:9, 1920x1080 pixel 157 PPI, N140HCA-EAC, IPS LED, lucido: no
Scheda madre
Intel Kaby Lake-U Premium PCH
Harddisk
Ramaxel RTNTE256PCA8EADL, M.2 GB
, SATA-III SSD, 185 GB libera
Scheda audio
Intel Kaby Lake-U/Y PCH - High Definition Audio
Porte di connessione
1 USB 2.0, 2 USB 3.0 / 3.1, 1 HDMI, 1 Kensington Lock, Connessioni Audio: 3.5 mm audio combo, Lettore schede: 4-in-1 card reader, 1 Lettore impronte digitali
Rete
Intel Dual Band Wireless-AC 3165 (a/b/g/n/ac), Bluetooth 4.1
Dimensioni
altezza x larghezza x profondità (in mm): 19.3 x 327.4 x 236.5
Batteria
52.5 Wh polimeri di litio
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 0.3 Megapixel
Altre caratteristiche
Casse: cassa stereo 2W, Tastiera: Chiclet a 6 righe, Illuminazione Tastiera: si, Lenovo Settings, Lenovo Companion, Lenovo Appexplorer, Microsoft Office Trial, 24 Mesi Garanzia
Peso
1.616 kg, Alimentazione: 223 gr
Prezzo
799 Euro



Size Comparison

Left: power connection, HDMI, USB Type-A 3.0, USB Type C 3.1 Gen1, combo audio
Left: power connection, HDMI, USB Type-A 3.0, USB Type C 3.1 Gen1, combo audio
Right: SD-card reader, USB Type-A 3.0, Kensington lock
Right: SD-card reader, USB Type-A 3.0, Kensington lock
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell XPS 13 9360 FHD i5
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
107.8 MB/s ∼100% +35%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
79.6 MB/s ∼74%
HP Envy 13-ad065nr
(Toshiba THN-M401S0640E2)
62.8 MB/s ∼58% -21%
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 9360 FHD i5
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
250.6 MB/s ∼100% +186%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.6 MB/s ∼35%
HP Envy 13-ad065nr
(Toshiba THN-M401S0640E2)
81.88 MB/s ∼33% -7%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP Envy 13-ad065nr
Intel Dual Band Wireless-AC 7265
635 MBit/s ∼100% +85%
Dell XPS 13 9360 FHD i5
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
525 MBit/s ∼83% +53%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Dual Band Wireless-AC 3165
343 MBit/s ∼54%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell XPS 13 9360 FHD i5
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
575 MBit/s ∼100% +92%
HP Envy 13-ad065nr
Intel Dual Band Wireless-AC 7265
480 MBit/s ∼83% +60%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Dual Band Wireless-AC 3165
300 MBit/s ∼52%

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 24510 Hz60 % brightness setting

The display backlight flickers at 24510 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 60 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 24510 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 55 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9304 (minimum: 43 - maximum: 247500) Hz was measured.

275
cd/m²
276
cd/m²
256
cd/m²
265
cd/m²
274
cd/m²
245
cd/m²
240
cd/m²
247
cd/m²
228
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 276 cd/m² Media: 256.2 cd/m² Minimum: 3.8 cd/m²
Distribuzione della luminosità: 83 %
Al centro con la batteria: 273 cd/m²
Contrasto: 1522:1 (Nero: 0.18 cd/m²)
ΔE Color 6.7 | - Ø
ΔE Greyscale 6.3 | - Ø
61.5% sRGB (Argyll) 39.6% AdobeRGB 1998 (Argyll)
Gamma: 2.04
Lenovo IdeaPad 520s-14IKB 80X200C1GE
N140HCA-EAC, , 1920x1080, 14
Asus X302UV-FN016T
InfoVision M133NWN1 R3, , 1366x768, 13.3
Xiaomi Mi Notebook Air (13.3 inch)
Samsung LTN133HL09-M01, , 1920x1080, 13.3
Lenovo IdeaPad 510S-14ISK
NV140FHM-N41, , 1920x1080, 14
Dell XPS 13 9360 FHD i5
Sharp SHP1449 LQ133M1, , 1920x1080, 13.3
HP Envy 13-ad065nr
LG Philips LGD0576, , 1920x1080, 13.3
Response Times
-33%
-44%
-39%
-6%
-6%
Response Time Grey 50% / Grey 80% *
38 (20, 18)
42 (20, 22)
-11%
49 (20, 29)
-29%
45 (17, 28)
-18%
32.8 (16, 16.8)
14%
28 (14, 14)
26%
Response Time Black / White *
26.4 (14.8, 11.6)
23 (6, 17)
13%
27 (8, 19)
-2%
26 (7, 19)
2%
33.2 (10.8, 22.4)
-26%
22.4 (12.4, 10)
15%
PWM Frequency
24510 (60)
50 (90)
-100%
50 (30)
-100%
50 (60)
-100%
10200 (100)
-58%
Screen
-20%
21%
1%
9%
5%
Brightness
256
210
-18%
334
30%
263
3%
325
27%
270
5%
Brightness Distribution
83
88
6%
80
-4%
90
8%
89
7%
78
-6%
Black Level *
0.18
0.5
-178%
0.27
-50%
0.24
-33%
0.195
-8%
0.32
-78%
Contrast
1522
436
-71%
1285
-16%
1071
-30%
1801
18%
906
-40%
Colorchecker DeltaE2000 *
6.7
3.89
42%
3.29
51%
5.44
19%
7.4
-10%
4.8
28%
Greyscale DeltaE2000 *
6.3
4.9
22%
3.62
43%
3.95
37%
6.71
-7%
2.8
56%
Gamma
2.04 118%
2.41 100%
2.23 108%
2.29 105%
2.74 88%
2.19 110%
CCT
6363 102%
7860 83%
7307 89%
6896 94%
7222 90%
6382 102%
Color Space (Percent of AdobeRGB 1998)
39.6
46
16%
62
57%
40
1%
50.48
27%
54.9
39%
Color Space (Percent of sRGB)
61.5
73
19%
95
54%
64
4%
73.31
19%
83.5
36%
Media totale (Programma / Settaggio)
-27% / -24%
-12% / 3%
-19% / -10%
2% / 6%
-1% / 2%

* ... Meglio usare valori piccoli

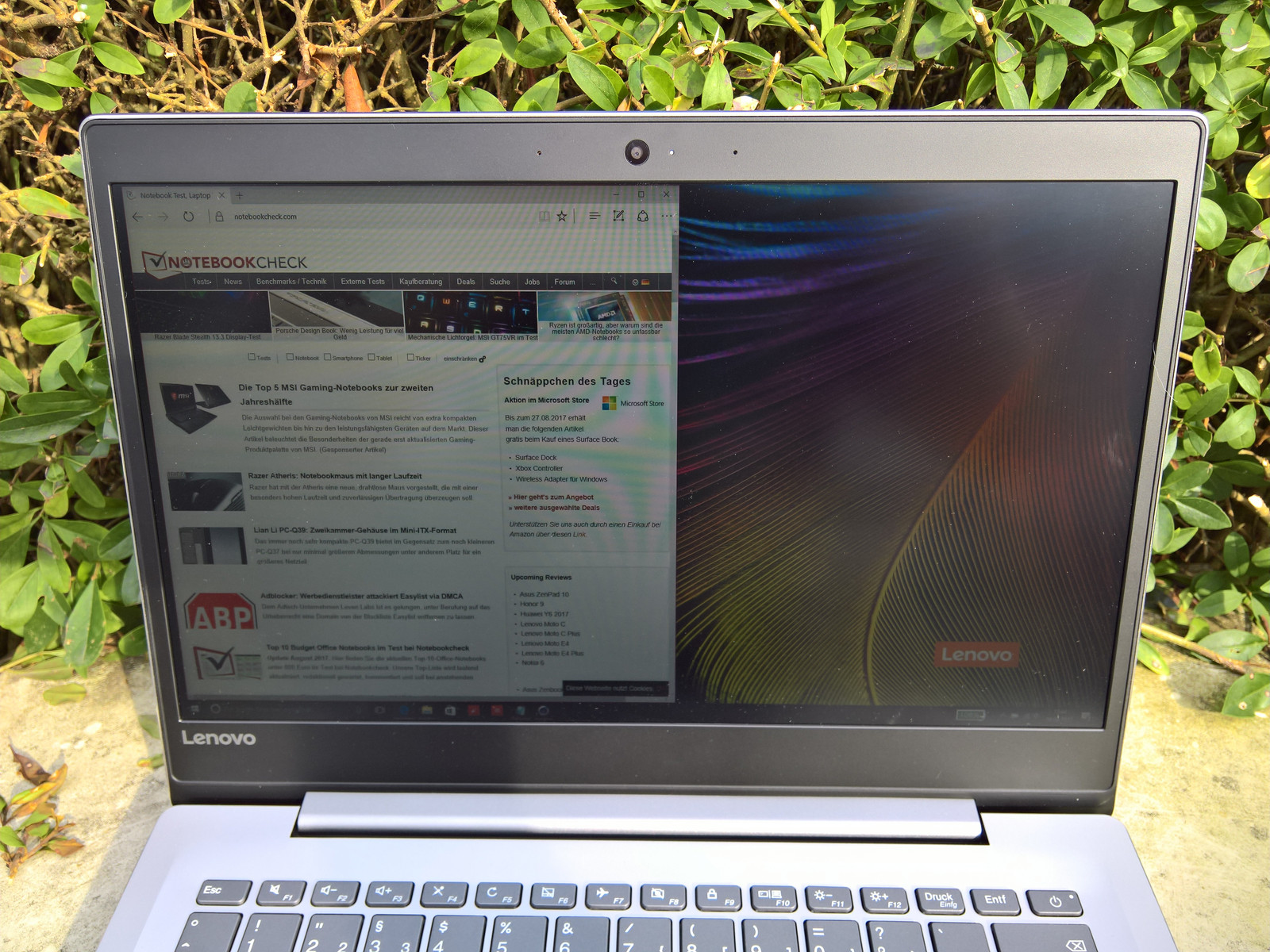

Outdoors (shade)
Outdoors (shade)
Outdoors (sun)
Outdoors (sun)

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
26.4 ms ... rise ↗ and fall ↘ combined↗ 14.8 ms Incremento
↘ 11.6 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 49 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.6 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
38 ms ... rise ↗ and fall ↘ combined↗ 20 ms Incremento
↘ 18 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 34 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (42.6 ms).
HWiNFO
HWiNFO
CPU-Z
CPU-Z
CPU-Z Caches
CPU-Z Caches
CPU-Z Mainboard
CPU-Z Mainboard

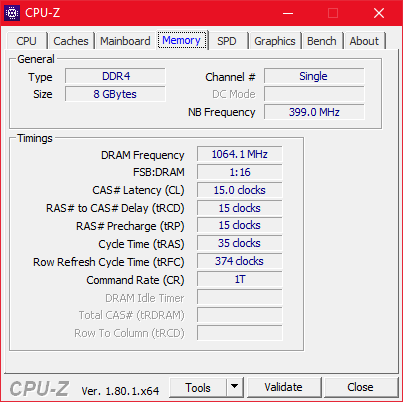

CPU-Z Memory
CPU-Z Memory
CPU-Z SPD
CPU-Z SPD
GPU-Z Intel HD 620
GPU-Z Intel HD 620
LatencyMon
LatencyMon
0102030405060708090100110120130140150160170180190200210220230240250260270280290300Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Core i5-7200U
132 Points ∼100%
HP Pavilion 14-al103ng
Intel Core i5-7200U
129 Points ∼98% -2%
Acer TravelMate X349-G2
Intel Core i5-7200U
124 Points ∼94% -6%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U
123 Points ∼93% -7%
Xiaomi Mi Notebook Air (13.3 inch)
Intel Core i5-6200U
118 Points ∼89% -11%
Asus X302UV-FN016T
Intel Core i5-6200U
115 Points ∼87% -13%
CPU Multi 64Bit
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Intel Core i5-7200U
334 Points ∼100%
HP Pavilion 14-al103ng
Intel Core i5-7200U
330 Points ∼99% -1%
Acer TravelMate X349-G2
Intel Core i5-7200U
318 Points ∼95% -5%
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U
314 Points ∼94% -6%
Xiaomi Mi Notebook Air (13.3 inch)
Intel Core i5-6200U
294 Points ∼88% -12%
Asus X302UV-FN016T
Intel Core i5-6200U
290 Points ∼87% -13%
Cinebench R15 OpenGL 64Bit
67.28 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 CPU Multi 64Bit
334 Points
Cinebench R15 CPU Single 64Bit
132 Points
Aiuto
PCMark 8
Work Score Accelerated v2
HP Envy 13-ad065nr
HD Graphics 620, 7200U, SanDisk X400 SD8SN8U-128G-1006
4669 Points ∼100% +1%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, 7200U, Ramaxel RTNTE256PCA8EADL
4628 Points ∼99%
Lenovo IdeaPad 510S-14ISK
Iris Graphics 550, 6267U, Samsung MZYTY256HDHP
4579 Points ∼98% -1%
Dell XPS 13 9360 FHD i5
HD Graphics 620, 7200U, Toshiba NVMe THNSN5256GPUK
4568 Points ∼98% -1%
Asus X302UV-FN016T
GeForce 920MX, 6200U, Hynix HFS128G3MND
4464 Points ∼96% -4%
Xiaomi Mi Notebook Air (13.3 inch)
GeForce 940MX, 6200U, Samsung PM951 NVMe MZVLV256
4274 Points ∼92% -8%
Home Score Accelerated v2
HP Envy 13-ad065nr
HD Graphics 620, 7200U, SanDisk X400 SD8SN8U-128G-1006
3760 Points ∼100% +6%
Lenovo IdeaPad 510S-14ISK
Iris Graphics 550, 6267U, Samsung MZYTY256HDHP
3710 Points ∼99% +4%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, 7200U, Ramaxel RTNTE256PCA8EADL
3554 Points ∼95%
Dell XPS 13 9360 FHD i5
HD Graphics 620, 7200U, Toshiba NVMe THNSN5256GPUK
3535 Points ∼94% -1%
Asus X302UV-FN016T
GeForce 920MX, 6200U, Hynix HFS128G3MND
3466 Points ∼92% -2%
Xiaomi Mi Notebook Air (13.3 inch)
GeForce 940MX, 6200U, Samsung PM951 NVMe MZVLV256
3144 Points ∼84% -12%
PCMark 8 Home Score Accelerated v2
3554 punti
PCMark 8 Work Score Accelerated v2
4628 punti
Aiuto
Lenovo IdeaPad 520s-14IKB 80X200C1GE
Ramaxel RTNTE256PCA8EADL
Lenovo IdeaPad 510S-14ISK
Samsung MZYTY256HDHP
Acer TravelMate X349-G2
Intel SSD 600p SSDPEKKW512G7
HP Pavilion 14-al103ng
Western Digital Scorpio Blue WD5000LPCX-24C6HT0
Xiaomi Mi Notebook Air (13.3 inch)
Samsung PM951 NVMe MZVLV256
Asus X302UV-FN016T
Hynix HFS128G3MND
CrystalDiskMark 3.0
29%
113%
-88%
76%
-26%
Write 4k QD32
244.8
257.3
5%
210.8
-14%
1.026
-100%
312.2
28%
174
-29%
Read 4k QD32
279.6
397.7
42%
373.7
34%
0.72
-100%
487.6
74%
253
-10%
Write 4k
77.69
90.22
16%
133.4
72%
0.981
-99%
153.4
97%
71.15
-8%
Read 4k
24.74
35.27
43%
34.93
41%
0.34
-99%
43.4
75%
6.559
-73%
Write 512
252.8
299.3
18%
585.6
132%
47.13
-81%
179.1
-29%
Read 512
347.8
399.7
15%
1134
226%
30.83
-91%
282.6
-19%
Write Seq
254.1
458.8
81%
581.9
129%
110.2
-57%
314
24%
178.6
-30%
Read Seq
472.3
509.7
8%
1818
285%
113.3
-76%
1209
156%
428.2
-9%
Ramaxel RTNTE256PCA8EADL
Sequential Read: 472.3 MB/s
Sequential Write: 254.1 MB/s
512K Read: 347.8 MB/s
512K Write: 252.8 MB/s
4K Read: 24.74 MB/s
4K Write: 77.69 MB/s
4K QD32 Read: 279.6 MB/s
4K QD32 Write: 244.8 MB/s
3DMark 11 - 1280x720 Performance GPU
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150 (Laptop GT 1030), Intel Core i5-7200U
4575 Points ∼100% +80%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
NVIDIA GeForce 940MX, Intel Core i5-7200U
2535 Points ∼55%
Xiaomi Mi Notebook Air (13.3 inch)
NVIDIA GeForce 940MX, Intel Core i5-6200U
2417 Points ∼53% -5%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
1782 Points ∼39% -30%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1747 Points ∼38% -31%
Dell XPS 13 9360 FHD i5
Intel HD Graphics 620, Intel Core i5-7200U
1545 Points ∼34% -39%
HP Envy 13-ad065nr
Intel HD Graphics 620, Intel Core i5-7200U
1474 Points ∼32% -42%
3DMark
1920x1080 Fire Strike Graphics
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150 (Laptop GT 1030), Intel Core i5-7200U
3576 Points ∼100% +68%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
NVIDIA GeForce 940MX, Intel Core i5-7200U
2132 Points ∼60%
Xiaomi Mi Notebook Air (13.3 inch)
NVIDIA GeForce 940MX, Intel Core i5-6200U
2091 Points ∼58% -2%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
1282 Points ∼36% -40%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
1025 Points ∼29% -52%
Dell XPS 13 9360 FHD i5
Intel HD Graphics 620, Intel Core i5-7200U
963 Points ∼27% -55%
HP Envy 13-ad065nr
Intel HD Graphics 620, Intel Core i5-7200U
939 Points ∼26% -56%
1280x720 Cloud Gate Standard Graphics
Acer Aspire 5 A515-51G-51RL
NVIDIA GeForce MX150 (Laptop GT 1030), Intel Core i5-7200U
19333 Points ∼100% +40%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
NVIDIA GeForce 940MX, Intel Core i5-7200U
13775 Points ∼71%
Xiaomi Mi Notebook Air (13.3 inch)
NVIDIA GeForce 940MX, Intel Core i5-6200U
12078 Points ∼62% -12%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
8885 Points ∼46% -35%
Dell XPS 13 9360 FHD i5
Intel HD Graphics 620, Intel Core i5-7200U
8177 Points ∼42% -41%
HP Envy 13-ad065nr
Intel HD Graphics 620, Intel Core i5-7200U
7854 Points ∼41% -43%
Asus X302UV-FN016T
NVIDIA GeForce 920MX, Intel Core i5-6200U
7733 Points ∼40% -44%
3DMark 11 Performance
2700 punti
3DMark Cloud Gate Standard Score
7222 punti
3DMark Fire Strike Score
1936 punti
Aiuto
01234567891011Tooltip
The Witcher 3 ultra
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Acer Aspire 5 A515-51G-51RL
GeForce MX150, 7200U, Kingston RBUSNS8180DS3128GH
30.2 fps ∼100% +29%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, 7200U, Ramaxel RTNTE256PCA8EADL
23.49 fps ∼78%
Xiaomi Mi Notebook Air (13.3 inch)
GeForce 940MX, 6200U, Samsung PM951 NVMe MZVLV256
19.82 fps ∼66% -16%
Lenovo IdeaPad 510S-14ISK
Iris Graphics 550, 6267U, Samsung MZYTY256HDHP
7.8 (min: 4.6) fps ∼26% -67%
Rise of the Tomb Raider - 1366x768 Medium Preset AF:2x
Acer Aspire 5 A515-51G-51RL
GeForce MX150, 7200U, Kingston RBUSNS8180DS3128GH
33.6 fps ∼100% +32%
Lenovo IdeaPad 520s-14IKB 80X200C1GE
GeForce 940MX, 7200U, Ramaxel RTNTE256PCA8EADL
25.49 fps ∼76%
Xiaomi Mi Notebook Air (13.3 inch)
GeForce 940MX, 6200U, Samsung PM951 NVMe MZVLV256
23.2 fps ∼69% -9%
Lenovo IdeaPad 510S-14ISK
Iris Graphics 550, 6267U, Samsung MZYTY256HDHP
16.2 fps ∼48% -36%
basso medio alto ultra
BioShock Infinite (2013) 135.7573.463.8423.49fps
Company of Heroes 2 (2013) 39.8232.4219.43fps
The Witcher 3 (2015) 44.2125.0113.458fps
Rise of the Tomb Raider (2016) 45.7925.4913.63fps

Rumorosità

Idle
29.9 / 29.9 / 30.7 dB(A)
Sotto carico
35.1 / 36.2 dB(A)



30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm di distanza)   Rumorosità ambientale: 29.9 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2026.729.628.43130.729.528.426.72528.53029.730.628.929.728.328.53128.228.126.327.428.526.728.728.24024.226.828.22726.526.32424.25025.223.524.724.3242523.925.263232525.825.324.92425.3238024.825.32424.425.525.924.324.810025.523.122.923.123.823.421.825.512521.322.522.421.723.922.622.221.316022.42221.421.921.919.820.422.420026.925.323.624.421.620.719.626.925021.422.822.22121.620.319.421.431520.823.121.921.221.81918.220.840022.923.823.322.921.919.517.422.950022.424.423.522.321.919.317.322.463024.223.62524.223.218.716.524.280024.826.225.725.623.919.216.124.810002627.926.726.524.419.616.626125024.526.125.325.123.118.816.924.516002424.824.123.322.218.617.224200023.824.824.223.722.718.417.723.8250024.625.525.124.122.618.718.224.6315023.223.423.122.421.218.618.523.2400021.922.421.921.320.118.518.521.9500021.222.621.620.919.918.418.521.2630019.82120.519.919.218.218.419.8800018.819.71918.618.317.718.118.81000017.618.317.817.617.617.417.617.6125001717.317.11717.11717.1171600016.716.616.616.91716.416.516.7SPL35.236.235.735.133.830.729.935.2N2.22.42.32.221.41.32.2median 22.4Lenovo IdeaPad 520s-14IKB 80X200C1GEmedian 23.1median 22.9median 22.3median 21.9median 18.7median 18.1median 22.4Delta2.21.81.61.71.70.60.82.2hearing rangehide median Fan Noise
Carico massimo
 47.4 °C48.5 °C49.3 °C
 43.6 °C45.5 °C36.7 °C
 33.6 °C29.2 °C28.4 °C
Massima: 49.3 °C
Media: 40.2 °C
32.1 °C53.9 °C52.9 °C
34.6 °C39.7 °C35.7 °C
26.1 °C29.2 °C30.1 °C
Massima: 53.9 °C
Media: 37.1 °C
Alimentazione (max)  47.1 °C | Temperatura della stanza 22.8 °C | Voltcraft IR-900
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.628.431.62533.428.333.43132.528.732.54031.62431.65030.423.930.46330.825.330.88033.824.333.81003321.8331253622.23616038.320.438.320044.419.644.425054.519.454.531560.618.260.640057.317.457.350055.817.355.863053.316.553.380063.216.163.2100060.616.660.6125056.716.956.7160059.217.259.2200056.717.756.7250056.318.256.3315058.218.558.2400051.318.551.3500054.718.554.7630053.818.453.8800055.218.155.21000055.317.655.31250056.717.156.71600055.416.555.4SPL69.529.969.5N26.51.326.5median 55.4Lenovo IdeaPad 520s-14IKB 80X200C1GEmedian 18.1median 55.4Delta3.70.83.736.336.236.336.137.436.134.832.734.834.431.434.432.433.132.433.232.433.236.331.936.336.729.536.742.230.142.252.527.652.552.527.752.556.726.856.756.82756.856.725.756.755.224.955.26124.36160.523.960.561.423.761.461.423.361.459.723.259.759.822.759.855.922.755.950.722.750.757.722.757.758.422.758.454.222.854.255.122.855.153.622.753.649.722.749.741.122.941.170.435.570.4282.528median 55.9Dell XPS 13 9360 FHD i5median 23.3median 55.93.72.23.7hearing rangehide median Pink Noise
Lenovo IdeaPad 520s-14IKB 80X200C1GE audio analysis

(-) | not very loud speakers (69.5 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.7% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3% away from median
(±) | linearity of mids is average (9.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.5% away from median
(+) | highs are linear (5.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13% difference to median)
Compared to same class
» 22% of all tested devices in this class were better, 3% similar, 75% worse
» The best had a delta of 3%, average was 18%, worst was 35%
Compared to all devices tested
» 10% of all tested devices were better, 2% similar, 88% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Dell XPS 13 9360 FHD i5 audio analysis

(-) | not very loud speakers (70.35 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.9% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(±) | linearity of highs is average (10.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.2% difference to median)
Compared to same class
» 21% of all tested devices in this class were better, 6% similar, 73% worse
» The best had a delta of 9%, average was 19%, worst was 41%
Compared to all devices tested
» 15% of all tested devices were better, 3% similar, 82% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo di corrente
Off / Standbydarklight 0.24 / 0.41 Watt
Idledarkmidlight 3.37 / 5.2 / 7.1 Watt
Sotto carico midlight 46.2 / 57 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Lenovo IdeaPad 520s-14IKB 80X200C1GE
7200U, GeForce 940MX, Ramaxel RTNTE256PCA8EADL, IPS LED, 1920x1080, 14
Lenovo IdeaPad 510S-14ISK
6267U, Iris Graphics 550, Samsung MZYTY256HDHP, a-Si TFT-LCD, IPS, LED, 1920x1080, 14
Xiaomi Mi Notebook Air (13.3 inch)
6200U, GeForce 940MX, Samsung PM951 NVMe MZVLV256, IPS, 1920x1080, 13.3
Dell XPS 13 9360 FHD i5
7200U, HD Graphics 620, Toshiba NVMe THNSN5256GPUK, IPS, 1920x1080, 13.3
HP Envy 13-ad065nr
7200U, HD Graphics 620, SanDisk X400 SD8SN8U-128G-1006, IPS, 1920x1080, 13.3
Asus X302UV-FN016T
6200U, GeForce 920MX, Hynix HFS128G3MND, TN LED, 1366x768, 13.3
Power Consumption
2%
-6%
25%
18%
18%
Idle Minimum *
3.37
3.9
-16%
4
-19%
4.1
-22%
2.8
17%
3.3
2%
Idle Average *
5.2
7.1
-37%
6.6
-27%
4.2
19%
5.8
-12%
5.1
2%
Idle Maximum *
7.1
8.8
-24%
7.4
-4%
5.1
28%
6.4
10%
5.2
27%
Load Average *
46.2
27.6
40%
41.7
10%
22.1
52%
31.3
32%
29.5
36%
Load Maximum *
57
30.2
47%
52.4
8%
29.4
48%
31.7
44%
44
23%
Witcher 3 ultra *
38.5

* ... Meglio usare valori piccoli

Autonomia della batteria
Idle (senza WLAN, min luminosità)
14ore 24minuti
Navigazione WiFi v1.3 (Edge)
9ore 28minuti
Big Buck Bunny H.264 1080p
9ore 17minuti
Sotto carico (max luminosità)
2ore 16minuti
Lenovo IdeaPad 520s-14IKB 80X200C1GE
7200U, GeForce 940MX, 52.5 Wh
Lenovo IdeaPad 510S-14ISK
6267U, Iris Graphics 550, 30 Wh
Xiaomi Mi Notebook Air (13.3 inch)
6200U, GeForce 940MX, 40 Wh
Asus X302UV-FN016T
6200U, GeForce 920MX, 38 Wh
Dell XPS 13 9360 FHD i5
7200U, HD Graphics 620, 60 Wh
HP Envy 13-ad065nr
7200U, HD Graphics 620, 53.6 Wh
Autonomia della batteria
-36%
-28%
-31%
28%
22%
Reader / Idle
864
638
-26%
718
-17%
1295
50%
1487
72%
H.264
557
231
-59%
423
-24%
WiFi v1.3
568
384
-32%
389
-32%
392
-31%
677
19%
570
0%
Load
136
100
-26%
83
-39%
157
15%
127
-7%

Pro

+ buona qualità del case
+ tastiera comoda
+ touchpad piacevole
+ ventola silenziosa
+ autonomia migliorata
+ display IPS matto

Contro

- CPU che non regge il livello di prestazioni
- case caldo sotto carico
- USB C senza supporto DisplayPort ed alimentazione
- 1x1 WLAN
Recensione: IdeaPad 520s-14IKB, fornito da campuspoint.
Recensione: IdeaPad 520s-14IKB, fornito da campuspoint.

L'IdeaPad 520s-14IKB è un pacchetto complessivamente buono che fa bene molte cose ma ha anche delle pecche. Tuttavia, possiamo giustificarlo considerando il prezzo. Prima gli aspetti positivi: rispetto al predecessore, il design è più attraente ed il case non mostra pecche in termini di stabilità e costruzione. La buona stabilità aiuta anche la digitazione, quindi anche la tastiera ha una valutazione positiva, così come il TouchPad che è in linea con lo standard Microsoft Precision. L'autonomia è molto buona e nettamente migliore rispetto al predecessore, in quanto Lenovo ha usato una batteria più grande. La ventola spesso è spenta e quando ruota, è piacevolmente silenziosa. Sebbene il display sia lontano dalla perfezione (bassa copertura della gamma di colore), ha gli ottimi angoli di visuale classici degli schermi IPS e un contrasto sorprendentemente elevato.

Ma ci sono anche delle pecche. Ad esempio, il case si scalda molto sotto carico. In generale, il sistema di raffreddamento non è moto adeguato. Per quanto sia silenzioso, si nota evidente throttling nello stress test. Già con un loop di Cinebench, la CPU non mantiene le prestazioni massime. Non si comprende perché la connessione USB-C non supporti DisplayPort, e non funzioni per la ricarica. Che peccato! Purtroppo Lenovo usa solo una scheda 1x1-WLAN.

Nel complesso, l'IdeaPad 520s è un buon tuttofare, che convince con una buona autonomia ed un design attraente.

I punti negativi non sono abbastanza per evitare la raccomandazione dell'IdeaPad 520s-14IKB. E' un Ultrabook di relativo successo, che potrebbe interessare in particolare agli studenti, con la sua buona autonomia, la dGPU, e la comoda tastiera. Se confrontate ad esempio con il popolare Dell XPS 13, l'IdeaPad è più grande  e pesante, ma sempre molto portatile ed adatto ai giochi con la GPU GeForce. Inoltre è anche molto più economico.

Dobbiamo precisare una cosa, in quanto al momento del test l'IdeaPad 520s-14IKB è già obsoleto. Una nuova versione dello stesso portatile con Core i5-8250U e GeForce MX150 potrebbe essere molto più attraente. Tuttavia, vorremmo vedere anche un sistema di raffreddamento più efficace.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Lenovo IdeaPad 520s-14IKB 80X200C1GE - 09/05/2017 v6
Benjamin Herzig

Chassis
81 / 98 → 82%
Tastiera
78%
Dispositivo di puntamento
84%
Connettività
46 / 81 → 57%
Peso
68 / 67 → 100%
Batteria
91%
Display
83%
Prestazioni di gioco
68 / 85 → 80%
Prestazioni Applicazioni
87 / 92 → 95%
Temperatura
87%
Rumorosità
95 / 95 → 100%
Audio
64%
Fotocamera
42 / 85 → 49%
Media
75%
83%
Multimedia - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del Portatile Lenovo IdeaPad 520s-14IKB (Core i5-7200U, 940MX)
Benjamin Herzig, 2017-09-11 (Update: 2017-09-11)
