Recensione breve del Convertibile Acer TravelMate Spin B1

Benjamin Herzig (traduzione a cura di G. De Luca), 09/21/2017

Scommessa su un clickpad dal design strano. I portatili del settore educativo devono essere robusti ed economici. L'Acer TravelMate Spin B1 risponde a queste esigenze, ma guardandolo da vicino ci sono molte pecche.

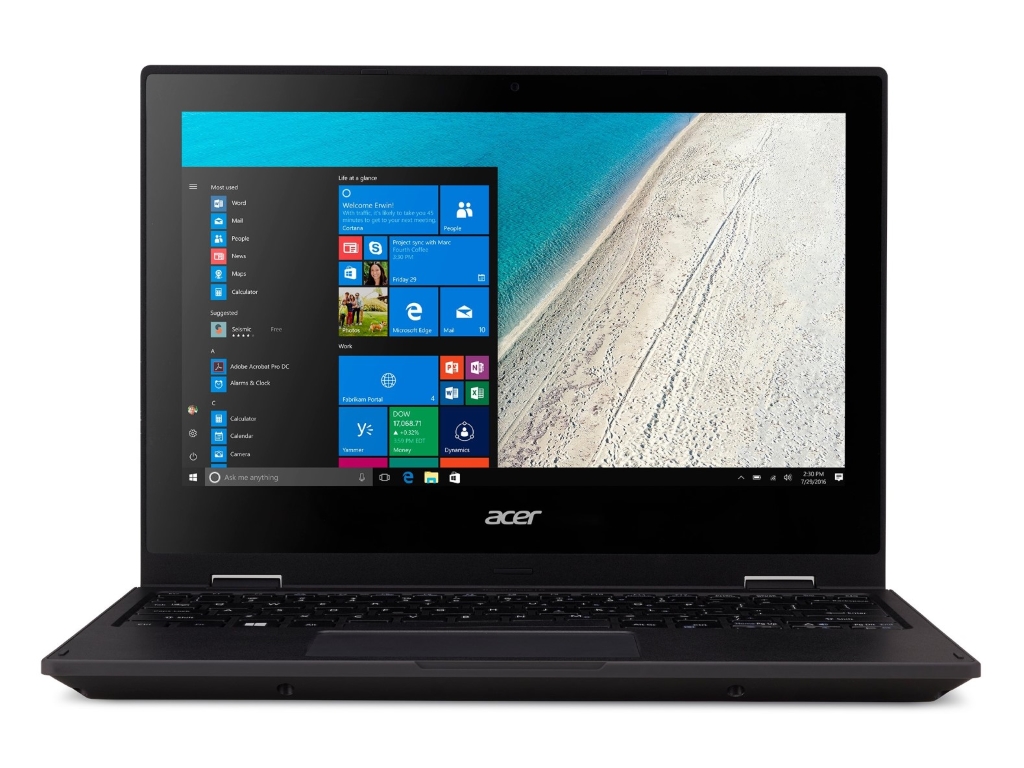

Acer TravelMate Spin B1 118-RN-P6BE (TravelMate Spin B1 Serie)
Scheda grafica
Memoria
4096 MB
, DDR3L-1333, 1 slot
Schermo
11.6 pollici 16:9, 1920x1080 pixel 190 PPI, 10-point, supporto penna nativo, LM116LF3L02, IPS LED, lucido: si
Scheda madre
Apollo Lake
Harddisk
SK Hynix HFS256G39TND-N210A, 256 GB
, 218 GB libera
Scheda audio
Realtek ALC256 @ Intel Apollo Lake SoC - High Definition Audio Controller
Porte di connessione
1 USB 2.0, 1 USB 3.0 / 3.1, 1 HDMI, 1 Kensington Lock, Connessioni Audio: 3.5 mm combo-jack, Lettore schede: SD card reader
Rete
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n/ac), Bluetooth 4.0
Dimensioni
altezza x larghezza x profondità (in mm): 23 x 291 x 211
Batteria
48 Wh ioni di litio
Sistema Operativo
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 0.9 MP
Altre caratteristiche
Casse: casse stereo, Tastiera: 6 righe chiclet, Illuminazione Tastiera: no, Active Pen, Acer Collection, Acer TeachSmart, Acer Quick Access, McAfee Internet Security Trial, Microsoft Office Trial, 36 Mesi Garanzia
Peso
1.488 kg, Alimentazione: 280 gr
Prezzo
811 Euro



Size Comparison

Left: power, Ethernet, HDMI, USB 3.0 Type A, audio combo-jack
Left: power, Ethernet, HDMI, USB 3.0 Type A, audio combo-jack
Right: power button, SD card reader, USB 2.0 Type A, Kensington lock slot
Right: power button, SD card reader, USB 2.0 Type A, Kensington lock slot
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP ProBook x360 11 G1 EE Z3A47EA
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
64 MB/s ∼100% +158%
Acer TravelMate Spin B1 118-RN-P6BE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
24.8 MB/s ∼39%
maximum AS SSD Seq Read Test (1GB)
HP ProBook x360 11 G1 EE Z3A47EA
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
84.2 MB/s ∼100% +136%
Acer TravelMate Spin B1 118-RN-P6BE
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
35.7 MB/s ∼42%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP ProBook x360 11 G1 EE Z3A47EA
Intel Dual Band Wireless-AC 7265
559 MBit/s ∼100% +23%
Dell Latitude 3180
Intel Dual Band Wireless-AC 7265
543 MBit/s ∼97% +20%
Acer TravelMate Spin B1 118-RN-P6BE
Intel Dual Band Wireless-AC 7265
453 MBit/s ∼81%
iperf3 Client (transmit) TCP 1 m 4M x10
HP ProBook x360 11 G1 EE Z3A47EA
Intel Dual Band Wireless-AC 7265
671 MBit/s ∼100% +53%
Dell Latitude 3180
Intel Dual Band Wireless-AC 7265
655 MBit/s ∼98% +49%
Acer TravelMate Spin B1 118-RN-P6BE
Intel Dual Band Wireless-AC 7265
439 MBit/s ∼65%
274
cd/m²
259
cd/m²
278
cd/m²
289
cd/m²
324
cd/m²
295
cd/m²
301
cd/m²
287
cd/m²
299
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 324 cd/m² Media: 289.6 cd/m² Minimum: 19.7 cd/m²
Distribuzione della luminosità: 80 %
Al centro con la batteria: 324 cd/m²
Contrasto: 1409:1 (Nero: 0.23 cd/m²)
ΔE Color 3.7 | - Ø
ΔE Greyscale 4 | - Ø
97.3% sRGB (Argyll) 63.7% AdobeRGB 1998 (Argyll)
Gamma: 2.13
Acer TravelMate Spin B1 118-RN-P6BE
LM116LF3L02, , 1920x1080, 11.6
Dell Latitude 3180
BOE NT11621, , 1366x768, 11.6
Asus VivoBook E200HA-FD0041TS
Chi Mei CMN1130, N116BGE-EB2, , 1366x768, 11.6
HP ProBook x360 11 G1 EE Z3A47EA
Chi Mei CMN1139, , 1366x768, 11.6
Acer Spin 1 SP111-31-C79E
AU Optronics B116HAN05.0, , 1920x1080, 11.6
Response Times
-25%
798%
5%
12%
Response Time Grey 50% / Grey 80% *
38 (17.6, 20.4)
40 (22, 18)
-5%
45 (25, 20)
-18%
40 (22, 18)
-5%
36 (19, 17)
5%
Response Time Black / White *
29.2 (16.4, 12.8)
26 (20, 6)
11%
18 (14, 4)
38%
25 (19, 6)
14%
24 (14, 10)
18%
PWM Frequency
1000 (20)
200 (90)
-80%
24750 (30)
2375%
Screen
-94%
-43%
-77%
-9%
Brightness
290
236
-19%
265
-9%
166
-43%
247
-15%
Brightness Distribution
80
85
6%
85
6%
90
13%
86
8%
Black Level *
0.23
0.47
-104%
0.35
-52%
0.29
-26%
0.21
9%
Contrast
1409
538
-62%
763
-46%
600
-57%
1195
-15%
Colorchecker DeltaE2000 *
3.7
12.87
-248%
6.67
-80%
11.38
-208%
4.27
-15%
Greyscale DeltaE2000 *
4
13.97
-249%
7.84
-96%
12.75
-219%
3.77
6%
Gamma
2.13 113%
2.46 98%
2.3 104%
2.49 96%
2.26 106%
CCT
6971 93%
18336 35%
8076 80%
15367 42%
6524 100%
Color Space (Percent of AdobeRGB 1998)
63.7
39
-39%
42
-34%
40
-37%
47
-26%
Color Space (Percent of sRGB)
97.3
61
-37%
65
-33%
63
-35%
72
-26%
Media totale (Programma / Settaggio)
-60% / -75%
378% / 186%
-36% / -60%
2% / -5%

* ... Meglio usare valori piccoli

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
29.2 ms ... rise ↗ and fall ↘ combined↗ 16.4 ms Incremento
↘ 12.8 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 69 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.6 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
38 ms ... rise ↗ and fall ↘ combined↗ 17.6 ms Incremento
↘ 20.4 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 34 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (42.6 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1000 Hz20 % brightness setting

The display backlight flickers at 1000 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 55 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9304 (minimum: 43 - maximum: 247500) Hz was measured.

ColorChecker
ColorChecker
Saturation
Saturation
Grayscale
Grayscale
ColorChecker (calibrated)
ColorChecker (calibrated)
Saturation (calibrated)
Saturation (calibrated)
Grayscale (calibrated)
Grayscale (calibrated)
0102030405060708090100110120130140Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
HP ProBook x360 11 G1 EE Z3A47EA
Intel Pentium N4200
53 Points ∼7% +2%
Acer TravelMate Spin B1 118-RN-P6BE
Intel Pentium N4200
52 Points ∼7%
Dell Latitude 3180
Intel Pentium N4200
51 Points ∼7% -2%
Acer Spin 1 SP111-31-C79E
Intel Celeron N3450
48 Points ∼7% -8%
Asus VivoBook E200HA-FD0041TS
Intel Atom x5-Z8350
27 Points ∼4% -48%
CPU Multi 64Bit
Dell Latitude 3180
Intel Pentium N4200
175 Points ∼8% +30%
HP ProBook x360 11 G1 EE Z3A47EA
Intel Pentium N4200
174 Points ∼8% +29%
Acer Spin 1 SP111-31-C79E
Intel Celeron N3450
135 Points ∼6% 0%
Acer TravelMate Spin B1 118-RN-P6BE
Intel Pentium N4200
135 Points ∼6%
Asus VivoBook E200HA-FD0041TS
Intel Atom x5-Z8350
95 Points ∼4% -30%
Cinebench R15 OpenGL 64Bit
11.3 fps
Cinebench R15 Ref. Match 64Bit
97.7 %
Cinebench R15 CPU Multi 64Bit
135 Points
Cinebench R15 CPU Single 64Bit
52 Points
Aiuto
PCMark 8 - Home Score Accelerated v2
Dell Latitude 3180
HD Graphics 505, N4200, Liteonit CV3-8D128
2314 Points ∼39% +16%
HP ProBook x360 11 G1 EE Z3A47EA
HD Graphics 505, N4200, SanDisk SD8SN8U256G1006
2140 Points ∼36% +8%
Acer TravelMate Spin B1 118-RN-P6BE
HD Graphics 505, N4200, SK Hynix HFS256G39TND-N210A
1989 Points ∼33%
Acer Spin 1 SP111-31-C79E
HD Graphics 500, N3450, Toshiba MQ01ABF050
1530 Points ∼26% -23%
Asus VivoBook E200HA-FD0041TS
HD Graphics 400 (Braswell), Z8350, Hynix HBG4a2 32 GB eMMC
1464 Points ∼25% -26%
PCMark 8 Home Score Accelerated v2
1989 punti
Aiuto
Acer TravelMate Spin B1 118-RN-P6BE
SK Hynix HFS256G39TND-N210A
Dell Latitude 3180
Liteonit CV3-8D128
Asus VivoBook E200HA-FD0041TS
Hynix HBG4a2 32 GB eMMC
HP ProBook x360 11 G1 EE Z3A47EA
SanDisk SD8SN8U256G1006
Acer Spin 1 SP111-31-C79E
Toshiba MQ01ABF050
CrystalDiskMark 3.0
-6%
-55%
13%
-88%
Write 4k QD32
106.9
118.1
10%
28.32
-74%
112.1
5%
1.043
-99%
Read 4k QD32
119.3
132.7
11%
30.25
-75%
123.8
4%
1.003
-99%
Write 4k
54.2
44.77
-17%
19.23
-65%
58.09
7%
1.037
-98%
Read 4k
15.91
18.17
14%
16.62
4%
12.3
-23%
0.482
-97%
Write 512
261.4
162.6
-38%
108.8
-58%
369.8
41%
45.28
-83%
Read 512
313.1
276.5
-12%
154.9
-51%
317.1
1%
35.89
-89%
Write Seq
262.2
213.2
-19%
115.3
-56%
453.5
73%
107.3
-59%
Read Seq
480.6
482.6
0%
163.2
-66%
458.4
-5%
109.1
-77%
SK Hynix HFS256G39TND-N210A
Sequential Read: 480.6 MB/s
Sequential Write: 262.2 MB/s
512K Read: 313.1 MB/s
512K Write: 261.4 MB/s
4K Read: 15.91 MB/s
4K Write: 54.2 MB/s
4K QD32 Read: 119.3 MB/s
4K QD32 Write: 106.9 MB/s
3DMark 11 - 1280x720 Performance GPU
Dell Latitude 3180
Intel HD Graphics 505, Intel Pentium N4200
825 Points ∼100% +74%
HP ProBook x360 11 G1 EE Z3A47EA
Intel HD Graphics 505, Intel Pentium N4200
725 Points ∼88% +53%
Acer TravelMate Spin B1 118-RN-P6BE
Intel HD Graphics 505, Intel Pentium N4200
473 Points ∼57%
Acer Spin 1 SP111-31-C79E
Intel HD Graphics 500, Intel Celeron N3450
368 Points ∼45% -22%
Asus VivoBook E200HA-FD0041TS
Intel HD Graphics 400 (Braswell), Intel Atom x5-Z8350
348 Points ∼42% -26%
3DMark 11 Performance
500 punti
Aiuto
basso medio alto ultra
BioShock Infinite (2013) 21.04fps
Carico massimo
 42.9 °C42.7 °C32.8 °C
 39.6 °C38.9 °C31.7 °C
 34.6 °C33.3 °C28.1 °C
Massima: 42.9 °C
Media: 36.1 °C
29.3 °C44.2 °C45.6 °C
29.4 °C42 °C42.3 °C
25.7 °C28.9 °C29.3 °C
Massima: 45.6 °C
Media: 35.2 °C
Alimentazione (max)  37.7 °C | Temperatura della stanza 22.4 °C | Voltcraft IR-900
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2030.928.430.9253128.3313129.228.729.24027.62427.65026.123.926.16327.425.327.48030.224.330.210026.921.826.912530.622.230.616030.920.430.920033.719.633.725040.119.440.131549.818.249.840051.117.451.150050.317.350.363049.916.549.980055.616.155.6100060.616.660.6125062.116.962.1160062.617.262.6200060.317.760.3250060.218.260.231505718.557400061.418.561.4500062.118.562.1630057.718.457.7800066.718.166.71000060.817.660.81250057.917.157.91600066.116.566.1SPL72.929.972.9N29.61.329.6median 57.7Acer TravelMate Spin B1 118-RN-P6BEmedian 18.1median 57.7Delta7.80.87.832.233.132.233.432.933.435.232.635.23329.83339.137.939.128.231.128.227.328.227.326.524.526.524.524.924.525.824.425.827.923.327.935.322.235.352.121.452.156.120.456.15619.25652.318.752.356.818.256.861.217.761.261.217.561.265.117.365.163.517.463.562.217.562.267.817.567.873.917.773.974.817.874.869.81869.869.618.269.671.218.271.265.418.365.468.418.468.480.930.380.9431.443median 61.2HP ProBook x360 11 G1 EE Z3A47EAmedian 18.2median 61.211.82.211.8hearing rangehide median Pink Noise
Acer TravelMate Spin B1 118-RN-P6BE audio analysis

(±) | speaker loudness is average but good (72.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.4% lower than median
(±) | linearity of bass is average (11% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(+) | mids are linear (5.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(±) | linearity of highs is average (10% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.5% difference to median)
Compared to same class
» 55% of all tested devices in this class were better, 5% similar, 40% worse
» The best had a delta of 11%, average was 23%, worst was 53%
Compared to all devices tested
» 55% of all tested devices were better, 8% similar, 38% worse
» The best had a delta of 3%, average was 21%, worst was 53%

HP ProBook x360 11 G1 EE Z3A47EA audio analysis

(±) | speaker loudness is average but good (74.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.2% lower than median
(±) | linearity of bass is average (11.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.7% higher than median
(+) | highs are linear (6.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (28.1% difference to median)
Compared to same class
» 76% of all tested devices in this class were better, 5% similar, 19% worse
» The best had a delta of 11%, average was 23%, worst was 53%
Compared to all devices tested
» 81% of all tested devices were better, 4% similar, 14% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Consumo di corrente
Off / Standbydarklight 0.18 / 0.64 Watt
Idledarkmidlight 3.25 / 6.1 / 6.8 Watt
Sotto carico midlight 15.1 / 26.3 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime - WiFi Websurfing 1.3
Dell Latitude 3180
N4200, HD Graphics 505, 42 Wh
621 min ∼52% +79%
Acer Spin 1 SP111-31-C79E
N3450, HD Graphics 500, 48.9 Wh
564 min ∼47% +63%
Asus VivoBook E200HA-FD0041TS
Z8350, HD Graphics 400 (Braswell), 38 Wh
534 min ∼44% +54%
HP ProBook x360 11 G1 EE Z3A47EA
N4200, HD Graphics 505, 41 Wh
381 min ∼32% +10%
Acer TravelMate Spin B1 118-RN-P6BE
N4200, HD Graphics 505, 48 Wh
347 min ∼29%
Autonomia della batteria
Navigazione WiFi v1.3 (Edge)
5ore 47minuti

Pro

+ display Full-HD con colori buoni
+ sempre silenzioso - nessuna ventola
+ chassis robusto
+ flessibile con touchscreen e supporto penna

Contro

- strano design del clickpad
- la CPU non raggiunge il suo potenziale
- display lucido
- mediocre autonomia della batteria
Recensione: Acer TravelMate Spin B1, fornito da Acer Germany.
Recensione: Acer TravelMate Spin B1, fornito da Acer Germany.

L'Acer TravelMate Spin B1 non è un convertibile mainstream, ma un portatile progettato appositamente per il settore educativo. Considerato il target, Acer ha fatto bene poche cose. Gli studenti hanno bisogno di un case robusto e lo Spin B1 lo è. Un display luminoso è altrettanto utile e con 290 cd/m², il TravelMate va bene - specialmente se paragonato alla concorrenza. In aggiunta, il display è un touchscreen e supporta la penna, cosa utile in questo settore. Il TravelMate è raffreddato passivamente, quindi non c'è una ventola. Le scuole sfruttano l'hardware più a lungo rispetto alle aziende o agli utenti privati, quindi la longevità è molto importante.

Ci sono alcune cose che potrebbero migliorare. Il display è luminoso e sorprendentemente colorato, ma è riflettente - e pensiamo che almeno un pannello semiopaco sarebbe stato più adatto. Il clickpad è abbastanza strano, e non si riesce ad usare bene. L'autonomia nemmeno è eccezionale - gli studenti che vogliono un secondo portatile economico devono considerare questi aspetti. Infine, il TravelMate non sfrutta tutto il potenziale del processore; il Dell Latitude 3180 e l'Asus VivoBook E200HA sempre a raffreddamento passivo fanno un lavoro migliore a riguardo. L'unico aspetto positivo per il momento è l'SSD.

L'Acer TravelMate Spin B1 è un qualcosa di misto: il display è impressionante, ma il convertibile ha anche molte pecche.

I punti citati rendono difficile raccomandare in pieno lo Spin B1. Il fatto che il TravelMate sia un convertibile non è un punto di forza unico e nemmeno il design fanless. Le differenze di prezzo sono limitate inoltre. Uno dei maggiori punti di forza è il display: coloro che vogliono una adeguata copertura della gamma di colore ed ampi angoli di visuale potrebbero considerare il TravelMate.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Acer TravelMate Spin B1 118-RN-P6BE - 09/11/2017 v6
Benjamin Herzig

Chassis
81 / 98 → 82%
Tastiera
74%
Dispositivo di puntamento
72%
Connettività
44 / 80 → 55%
Peso
69 / 78 → 79%
Batteria
87%
Display
84%
Prestazioni di gioco
40 / 68 → 58%
Prestazioni Applicazioni
60 / 87 → 69%
Temperatura
89%
Rumorosità
100%
Audio
50 / 91 → 55%
Fotocamera
44 / 85 → 52%
Media
69%
78%
Convertible - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del Convertibile Acer TravelMate Spin B1
Benjamin Herzig, 2017-09-21 (Update: 2017-09-21)
