Recensione breve del Convertibile Teclast Tbook 10s (x5-Z8350, FHD)

Marcus Herbrich (traduzione a cura di G. De Luca), 04/02/2017

Convertibile Dual-OS. Dopo il Chuwi Hi10 Pro che ha recentemente superato il nostro test di prova, abbiamo ancora un altro tablet low-budget con funzionalità dual-boot dal produttore Teclast chiamato Tbook 10s nel test. Scopri quale dei due è in testa nel nostro report.

Teclast Tbook 10s
Processore
Scheda grafica
Intel HD Graphics (Cherry Trail)
Memoria
4096 MB
Schermo
10.1 pollici 16:10, 1920x1200 pixel 224 PPI, capacitive, LCD, IPS, lucido: si
Harddisk
64 GB eMMC Flash, 64 GB
, 15.7 GB libera
Porte di connessione
1 USB 2.0, 1 HDMI, Connessioni Audio: jack da 3,5 mm, Lettore schede: micro-SD, Sensori: sensore posizione
Rete
802.11 b/g/n (b/g/n), Bluetooth 4.0
Dimensioni
altezza x larghezza x profondità (in mm): 8 x 247 x 166
Batteria
6000 mAh polimeri di litio, Autonomia della batteria (dichiarata dal produttore): 6 ore
Sistema Operativo
Android 5.1 Lollipop
Camera
Fotocamera Secondaria: 2 MPix
Altre caratteristiche
Casse: casse stereo, Tastiera: onscreen, keyboard dock, Illuminazione Tastiera: no, cavo USB, alimentatore modulare, Windows 10, Tecla Android UI, 12 Mesi Garanzia, senza ventola
Peso
574 gr, Alimentazione: 63 gr
Prezzo
150 Euro



Size Comparison

Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash (Linksys EA8500, 5.0 GHz)
254 MBit/s ∼100% +563%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash (Linksys EA8500, 2.4 GHz)
40.6 MBit/s ∼16% +6%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash (Linksys EA8500, 2.4 GHz)
38.3 MBit/s ∼15%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash (Linksys EA8500, 5.0 GHz)
246 MBit/s ∼100% +528%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash (Linksys EA8500, 2.4 GHz)
41.6 MBit/s ∼17% +6%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash (Linksys EA8500, 2.4 GHz)
39.2 MBit/s ∼16%
iperf Server (receive) TCP 1 m
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash (AVM Fritzbox 6490 Cable)
90.2 MBit/s ∼100%
iperf Client (transmit) TCP 1 m
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash (AVM Fritzbox 6490 Cable)
91.2 MBit/s ∼100%
252
cd/m²
279
cd/m²
308
cd/m²
262
cd/m²
279
cd/m²
305
cd/m²
252
cd/m²
278
cd/m²
302
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 308 cd/m² Media: 279.7 cd/m² Minimum: 35.53 cd/m²
Distribuzione della luminosità: 82 %
Al centro con la batteria: 279 cd/m²
Contrasto: 962:1 (Nero: 0.29 cd/m²)
ΔE Color 6.7 | - Ø
ΔE Greyscale 6.8 | - Ø
Gamma: 2.27
Teclast Tbook 10s
IPS, 1920x1200, 10.1
Chuwi Hi10 Pro
IPS, 1920x1200, 10.1
Xiaomi MiPad 2
IPS, 2048x1536, 7.9
Haier Pad 971
IPS, 2048x1536, 9.7
Asus ZenPad 10.0 Z300M-6A039A
IPS, 1280x800, 10.1
Asus ZenPad 3s 10 Z500M
IPS, 2048x1536, 9.7
Screen
2%
13%
13%
5%
9%
Brightness
280
356
27%
402
44%
294
5%
351
25%
443
58%
Brightness Distribution
82
87
6%
91
11%
90
10%
89
9%
86
5%
Black Level *
0.29
0.42
-45%
0.4
-38%
0.37
-28%
0.4
-38%
0.43
-48%
Contrast
962
902
-6%
1063
10%
795
-17%
925
-4%
1137
18%
Colorchecker DeltaE2000 *
6.7
4.8
28%
4.98
26%
3.2
52%
4.6
31%
5.5
18%
Greyscale DeltaE2000 *
6.8
6.7
1%
5.2
24%
3
56%
6.5
4%
6.7
1%
Gamma
2.27 106%
2.23 108%
2.65 91%
2.3 104%
2.17 111%
2.06 117%
CCT
8466 77%
6988 93%
7249 90%
6882 94%
6354 102%
7457 87%

* ... Meglio usare valori piccoli

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 60 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 1486 (minimum: 43 - maximum: 30860) Hz was measured.

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.

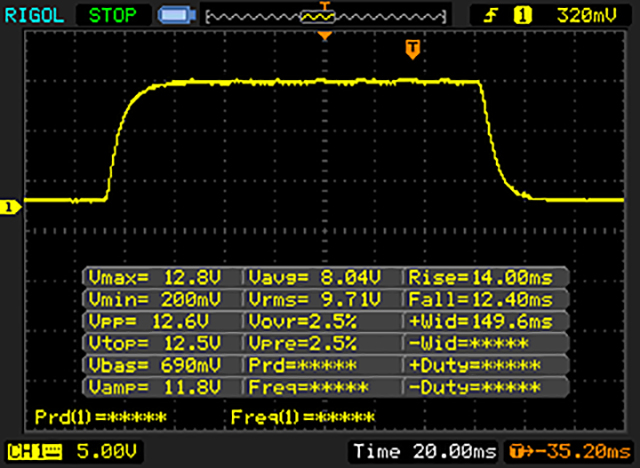

       Tempi di risposta dal Nero al Bianco
26.4 ms ... rise ↗ and fall ↘ combined↗ 14 ms Incremento
↘ 12.4 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 48 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (27.2 ms).

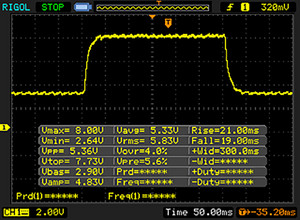

       Tempo di risposta dal 50% Grigio all'80% Grigio
40 ms ... rise ↗ and fall ↘ combined↗ 21 ms Incremento
↘ 19 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 39 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (44.1 ms).
Geekbench 4.0
64 Bit Multi-Core Score
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1980 Points ∼7%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1971 Points ∼7% 0%
64 Bit Single-Core Score
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
879 Points ∼16%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
867 Points ∼16% -1%
AndroBench 3-5
Sequential Write 256KB SDCard
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash (Toshiba Exceria Pro M401)
24.7 MB/s ∼28%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
MB/s ∼0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
MB/s ∼0%
Sequential Read 256KB SDCard
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash (Toshiba Exceria Pro M401)
37 MB/s ∼38%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
MB/s ∼0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
MB/s ∼0%
Random Write 4KB
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
13.96 MB/s ∼9% +311%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
7.36 MB/s ∼5% +116%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
6.79 MB/s ∼4% +100%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
5.37 MB/s ∼4% +58%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
3.4 MB/s ∼2%
Random Read 4KB
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
25.79 MB/s ∼15% +125%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
24.42 MB/s ∼14% +113%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
18.7 MB/s ∼11% +63%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
15.34 MB/s ∼9% +34%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
11.44 MB/s ∼7%
Sequential Write 256KB
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
121.22 MB/s ∼62% +82%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
66.48 MB/s ∼34%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
56.37 MB/s ∼29% -15%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
39.97 MB/s ∼21% -40%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
14.57 MB/s ∼7% -78%
Sequential Read 256KB
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
163.48 MB/s ∼21% +43%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
147.85 MB/s ∼19% +29%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
136.08 MB/s ∼17% +19%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
114.68 MB/s ∼14%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
56.87 MB/s ∼7% -50%
AnTuTu Benchmark v6 - Total Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
73083 Points ∼40% +25%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
58565 Points ∼32%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
57914 Points ∼31% -1%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
47100 Points ∼26% -20%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
36602 Points ∼20% -38%
Geekbench 3
64 Bit Multi-Core Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
3170 Points ∼10%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
1972 Points ∼6%
64 Bit Single-Core Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
990 Points ∼21%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
659 Points ∼14%
3DMark
2560x1440 Sling Shot OpenGL ES 3.0 Physics
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1580 Points ∼61% +41%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1119 Points ∼43%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
1111 Points ∼43% -1%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1061 Points ∼41% -5%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
916 Points ∼35% -18%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1537 Points ∼20% 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1530 Points ∼20%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1300 Points ∼17% -15%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
540 Points ∼7% -65%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
203 Points ∼3% -87%
2560x1440 Sling Shot OpenGL ES 3.0
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1415 Points ∼29%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1398 Points ∼29% -1%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1353 Points ∼28% -4%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
610 Points ∼13% -57%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
245 Points ∼5% -83%
1280x720 offscreen Ice Storm Unlimited Physics
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
20142 Points ∼29% +33%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
15496 Points ∼22% +2%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
15195 Points ∼22%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
14564 Points ∼21% -4%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
10816 Points ∼16% -29%
1280x720 offscreen Ice Storm Unlimited Graphics Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
27537 Points ∼6% +48%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
18589 Points ∼4% 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
18563 Points ∼4%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
9208 Points ∼2% -50%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
5490 Points ∼1% -70%
1280x720 offscreen Ice Storm Unlimited Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
25460 Points ∼13% +45%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
17556 Points ∼9% 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
17549 Points ∼9%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
10121 Points ∼5% -42%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
6165 Points ∼3% -65%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
32 fps ∼2% +19%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
27 fps ∼2% 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
27 fps ∼2%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
16 fps ∼1% -41%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
10 fps ∼1% -63%
T-Rex HD Onscreen C24Z16
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
23 fps ∼5% 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
23 fps ∼5%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
16 fps ∼3% -30%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
13 fps ∼3% -43%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
12 fps ∼3% -48%
GFXBench 3.0
off screen Manhattan Offscreen OGL
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
12 fps ∼2% 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
12 fps ∼2%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
8.4 fps ∼2% -30%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
7.1 fps ∼1% -41%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
3.5 fps ∼1% -71%
on screen Manhattan Onscreen OGL
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
11 fps ∼5% 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
11 fps ∼5%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
7 fps ∼3% -36%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
6.3 fps ∼3% -43%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
5.3 fps ∼2% -52%
GFXBench 3.1
off screen Manhattan ES 3.1 Offscreen
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
13 fps ∼3% +38%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
9.4 fps ∼2%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
9.2 fps ∼2% -2%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
4.9 fps ∼1% -48%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
2.3 fps ∼1% -76%
on screen Manhattan ES 3.1 Onscreen
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
8.5 fps ∼5%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
7.3 fps ∼4% -14%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
6.3 fps ∼4% -26%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
5 fps ∼3% -41%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
3.3 fps ∼2% -61%
GFXBench 4.0
off screen Car Chase Offscreen
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
8.4 fps ∼2% +33%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
6.4 fps ∼2% +2%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
6.3 fps ∼2%
on screen Car Chase Onscreen
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
5.9 fps ∼5%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
5.7 fps ∼5% -3%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
5.6 fps ∼5% -5%
PCMark for Android - Work performance score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
5279 Points ∼65% +13%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
4885 Points ∼60% +5%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
4671 Points ∼57%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
4246 Points ∼52% -9%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
3888 Points ∼48% -17%
BaseMark OS II
Web
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
1011 Points ∼66% +26%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
952 Points ∼62% +18%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
805 Points ∼52%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
773 Points ∼50% -4%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash (Chrome 46.0.2490.76)
762 Points ∼49% -5%
Graphics
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1609 Points ∼19% +35%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1277 Points ∼15% +7%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1191 Points ∼14%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
685 Points ∼8% -42%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
339 Points ∼4% -72%
Memory
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1379 Points ∼36% +339%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
910 Points ∼24% +190%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
444 Points ∼12% +41%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
342 Points ∼9% +9%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
314 Points ∼8%
System
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
2088 Points ∼32% +55%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1921 Points ∼29% +43%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1346 Points ∼20%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1333 Points ∼20% -1%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
1277 Points ∼19% -5%
Overall
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1419 Points ∼43% +78%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
874 Points ∼26% +10%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
827 Points ∼25% +4%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
798 Points ∼24%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
749 Points ∼23% -6%
Mozilla Kraken 1.1 - Total Score
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash (Chrome 46.0.2490.76)
12839.9 ms * ∼22% -154%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash (Chrome Version 49)
6883.7 ms * ∼12% -36%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash (Chrome Version 54)
5088.7 ms * ∼9% -1%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash (Chrome Version 56)
5047.4 ms * ∼8%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash (Chrome 48)
4420.4 ms * ∼7% +12%
JetStream 1.1 - 1.1 Total Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash (Chrome 48)
43.039 Points ∼0% +22%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash (Chrome Version 54)
35.725 Points ∼0% +1%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash (Chrome Version 56)
35.358 Points ∼0%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash (Chrome Version 49)
33.132 Points ∼0% -6%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash (Chrome 46.0.2490.76)
21.2 Points ∼0% -40%
Octane V2 - Total Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash (Chrome 48)
7994 Points ∼16% +23%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash (Chrome Version 56)
6494 Points ∼13%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash (Chrome Version 54)
6365 Points ∼13% -2%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash (Chrome Version 49)
5967 Points ∼12% -8%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash (Chrome 46.0.2490.76)
3320 Points ∼7% -49%

* ... Meglio usare valori piccoli

Cinebench R15
CPU Multi 64Bit (ordina per valore)
Teclast Tbook 10s
101 Points ∼30%
Chuwi Hi10 Pro
85 Points ∼25% -16%
Chuwi Hi12
99 Points ∼29% -2%
Acer Switch V 10 SW5-017-196Q
100 Points ∼29% -1%
Toshiba Satellite Click 10 LX0W-C-104
94 Points ∼27% -7%
Microsoft Surface Pro 4 Core i7
342 Points ∼100% +239%
OpenGL 64Bit (ordina per valore)
Teclast Tbook 10s
8.43 fps ∼14%
Chuwi Hi10 Pro
8.8 fps ∼15% +4%
Chuwi Hi12
9.82 fps ∼16% +16%
Acer Switch V 10 SW5-017-196Q
11.16 fps ∼19% +32%
Toshiba Satellite Click 10 LX0W-C-104
10.71 fps ∼18% +27%
Microsoft Surface Pro 4 Core i7
60.14 fps ∼100% +613%
PCMark 8
Work Score Accelerated v2 (ordina per valore)
Teclast Tbook 10s
1329 Points ∼33%
Chuwi Hi12
1008 Points ∼25% -24%
Toshiba Satellite Click 10 LX0W-C-104
1044 Points ∼26% -21%
Microsoft Surface Pro 4 Core i7
4052 Points ∼100% +205%
Creative Score Accelerated v2 (ordina per valore)
Teclast Tbook 10s
914 Points ∼21%
Toshiba Satellite Click 10 LX0W-C-104
1410 Points ∼32% +54%
Microsoft Surface Pro 4 Core i7
4431 Points ∼100% +385%
Home Score Accelerated v2 (ordina per valore)
Teclast Tbook 10s
1088 Points ∼32%
Chuwi Hi12
1039 Points ∼31% -5%
Acer Switch V 10 SW5-017-196Q
1520 Points ∼45% +40%
Toshiba Satellite Click 10 LX0W-C-104
1294 Points ∼38% +19%
Microsoft Surface Pro 4 Core i7
3394 Points ∼100% +212%

Legenda


Teclast Tbook 10s Intel Atom x5-Z8350, Intel HD Graphics (Cherry Trail), 64 GB eMMC Flash

Chuwi Hi10 Pro Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), 64 GB eMMC Flash

Chuwi Hi12 Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), Hynix HCG8E 64 GB

Acer Switch V 10 SW5-017-196Q Intel Atom x5-Z8350, Intel HD Graphics (Cherry Trail), 64 GB eMMC Flash

Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), 32 GB eMMC Flash

Microsoft Surface Pro 4 Core i7 Intel Core i7-6650U, Intel Iris Graphics 540, Samsung MZFLV256 NVMe
Carico massimo
 35.5 °C28.8 °C31.9 °C
 34.2 °C29.1 °C33.1 °C
 30.8 °C28.5 °C31.9 °C
Massima: 35.5 °C
Media: 31.5 °C
31.4 °C30.8 °C29.1 °C
31.7 °C31 °C29.5 °C
29 °C29.1 °C28.8 °C
Massima: 31.7 °C
Media: 30 °C
Alimentazione (max)  40.5 °C | Temperatura della stanza 21.3 °C | Voltcraft IR-260
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.642.52525.437.83125.337.84032.935.25033.631.56331.633.48028.4261002727.512520.828.31602226.120021.32725020.827.531521.230.140019.435.250019.54363017.75180017.958.2100017.863.9125017.356.7160017.456.6200016.755.9250017.256.7315018.259.6400017.968.4500017.668.3630017.764.6800017.853.41000017.947.41250018.152.11600018.245.1SPL3074.4N1.328.6median 17.9Teclast Tbook 10smedian 52.1Delta1.311.631.636.525.431.425.333.632.930.233.644.231.636.828.431.92725.320.825.32228.121.329.920.835.221.239.919.448.119.554.717.760.717.967.117.870.417.370.117.469.716.767.817.269.418.273.317.978.217.678.217.770.117.86017.954.518.157.818.255.63084.41.352.1median 17.9Chuwi Hi10 Promedian 601.314.140.735.335.240.739.430.137.839.443.33028.443.346.727.733.846.747.535.639.547.545.426.934.345.445.524.627.345.544.626.330.844.64731.226.24752.943.623.852.956.552.122.956.560.452.122.460.463.854.519.963.866.557.120.466.572.163.818.772.174.667.517.774.677.86917.977.878.9701878.980.47117.880.483.873.51783.885.175.816.985.183.473.317.483.483.473.117.883.483.974.417.583.983.473.517.383.48575.617.38586.6771886.684.674.518.384.681.571.817.981.572.261.217.972.295.185.430.195.1110.763.21.4110.7median 78.9Xiaomi MiPad 2median 70median 17.9median 78.910.49.52.410.4hearing rangehide median Pink Noise
Teclast Tbook 10s audio analysis

(±) | speaker loudness is average but good (74.41 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.4% lower than median
(+) | bass is linear (4.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.2% higher than median
(-) | mids are not linear (15.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 9% higher than median
(±) | linearity of highs is average (14% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (34.8% difference to median)
Compared to same class
» 92% of all tested devices in this class were better, 6% similar, 2% worse
» The best had a delta of 11%, average was 22%, worst was 44%
Compared to all devices tested
» 95% of all tested devices were better, 2% similar, 3% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Chuwi Hi10 Pro audio analysis

(+) | speakers can play relatively loud (84.37 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.4% lower than median
(±) | linearity of bass is average (8.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.8% higher than median
(±) | linearity of mids is average (9.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 10.7% higher than median
(±) | linearity of highs is average (11.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (33.1% difference to median)
Compared to same class
» 95% of all tested devices in this class were better, 5% similar, 0% worse
» The best had a delta of 17%, average was 23%, worst was 33%
Compared to all devices tested
» 91% of all tested devices were better, 4% similar, 5% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Xiaomi MiPad 2 audio analysis

(+) | speakers can play relatively loud (95.07 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.7% lower than median
(+) | bass is linear (5.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (4.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.4% higher than median
(+) | highs are linear (1.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 21% similar, 79% worse
» The best had a delta of 17%, average was 23%, worst was 33%
Compared to all devices tested
» 22% of all tested devices were better, 6% similar, 72% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Consumo di corrente
Off / Standbydarklight 0.13 / 0.32 Watt
Idledarkmidlight 1.46 / 5 / 5.08 Watt
Sotto carico midlight 9.57 / 10.77 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Teclast Tbook 10s
6000 mAh
Chuwi Hi10 Pro
6500 mAh
Xiaomi MiPad 2
6190 mAh
Haier Pad 971
7800 mAh
Asus ZenPad 10.0 Z300M-6A039A
4680 mAh
Power Consumption
-7%
-21%
45%
39%
Idle Minimum *
1.46
1.4
4%
3.33
-128%
1.38
5%
1.22
16%
Idle Average *
5
4.82
4%
5.01
-0%
1.46
71%
3.15
37%
Idle Maximum *
5.08
5.43
-7%
5.19
-2%
1.6
69%
3.39
33%
Load Average *
9.57
11.61
-21%
8.32
13%
5.06
47%
3.95
59%
Load Maximum *
10.77
12.48
-16%
9.33
13%
6.95
35%
5.64
48%

* ... Meglio usare valori piccoli

Autonomia della batteria
Navigazione WiFi v1.3
3ore 48minuti
Teclast Tbook 10s
6000 mAh
Chuwi Hi10 Pro
6500 mAh
Xiaomi MiPad 2
6190 mAh
Haier Pad 971
7800 mAh
Asus ZenPad 10.0 Z300M-6A039A
4680 mAh
Autonomia della batteria
60%
85%
86%
91%
WiFi
WiFi v1.3
228
364
60%
421
85%
423
86%
435
91%

Pro

+ 4 GB di RAM
+ accessori (keyboard dock, stylus)
+ Opzione OS: Windows + Android
+ pannello IPS definito
+ temperature basse

Contro

- autonomia breve
- accessori di poco conto
- lento spazio eMMC
- lento il modulo Wi-Fi
- Android 5.1
- performance (Windows)
In review: Teclast Tbook 10s. Review sample courtesy of Teclast

Come il Chuwi Hi10 Pro,il Teclast Tbook 10s convince con un design elegante e casing in alluminio di alta qualità. A questo si aggiunge l'opzione dual-boot dei sistemi operativi Android o Windows. Tuttavia, il produttore installa l'ormai superato Android 5.1. Concessioni devono essere fatte con l'altoparlante e la qualità della fotocamera in entrambi i dispositivi. In sostanza, i due tablet differiscono appena in termini di aspetto e sensazione al tatto.

Non c'è piaciuta la qualità degli accessori opzionali offerti per il Tbook 10s di Teclast. Riteniamo che altri dispositivi siano configurati meglio per quanto concerne lo schermo piuttosto poco luminoso, l'interfaccia utente che non è stata ottimizzata per Android e la breve durata della batteria. Tuttavia, gli acquirenti alla ricerca di un dispositivo economico ben costruito con un SoC alto rendimento Intel e che non hanno bisogno di una batteria a lunga durata possono optare per 10s Tbook di Teclast.

Il Teclast Tbook 10s è un buon tablet low-end nella fascia di prezzo più basso, rappresenta una offerta davvero unica rispetto alla concorrenza.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.





Teclast Tbook 10s - 03/23/2017 v6
Marcus Herbrich

Chassis
86 / 98 → 88%
Tastiera
72%
Dispositivo di puntamento
86%
Connettività
33 / 80 → 41%
Peso
82 / 78 → 100%
Batteria
74%
Display
80%
Prestazioni di gioco
42 / 68 → 61%
Prestazioni Applicazioni
36 / 87 → 41%
Temperatura
93%
Rumorosità
100%
Audio
51 / 91 → 56%
Fotocamera
32 / 85 → 38%
Media
67%
80%
Convertible - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove de portatili e telefoni cellulari > Recensioni e prove > Recensioni e prove > Recensione breve del Convertibile Teclast Tbook 10s (x5-Z8350, FHD)
Marcus Herbrich, 2017-04- 2 (Update: 2017-04- 3)
