Recensione Breve del portatile Asus F540SA-XX087T

Sascha Mölck, 06/13/2016

Soddisfacente. Un semplice portatile da 15.6" basato su CPU Braswell, il F540SA-XX087T può essere comprato per poco meno di 280 Euro (~$315). Il prezzo include Windows 10 ed un hard drive da 500 GB. Asus ha installato anche una porta USB Type-C in questo portatile low-cost.

Asus F540SA-XX087T (F540 Serie)
Processore
Intel Celeron N3050 1.6 GHz
Scheda grafica
Intel HD Graphics (Braswell), Core: 200-600 MHz, single channel, 20.19.4300
Memoria
2048 MB
, DDR3-1600, single-channel
Schermo
15.6 pollici 16:9, 1366x768 pixel 100 PPI, Chi Mei N156BGE-E42, TN LED, lucido: si
Harddisk
Seagate Momentus Thin ST500LT012-1DG142, 500 GB
, 5400 rpm, 430 GB libera
Porte di connessione
1 USB 2.0, 2 USB 3.0 / 3.1, 1 VGA, 1 HDMI, 1 Kensington Lock, Connessioni Audio: combo audio, Lettore schede: SD, TPM 2.0
Rete
RealTek Semiconductor RTL8101/2/3 Family Fast Ethernet NIC (10/100MBit), Atheros AR9485 WiFi Adapter (b/g/n), Bluetooth 4.0
Drive ottico
HL-DT-ST DVDRAM GUE1N
Dimensioni
altezza x larghezza x profondità (in mm): 25.4 x 381.4 x 251.5
Batteria
33 Wh, 3000 mAh ioni di litio, 11.25 V
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: SD webcam
Altre caratteristiche
Casse: stereo, Tastiera: chiclet, Illuminazione Tastiera: no, McAfee LiveSafe-Internet Security (trial), MS Office (trial), 12 Mesi Garanzia
Peso
1.9 kg, Alimentazione: 141 gr
Prezzo
319 Euro



Left: Power-in, USB 3.1 Gen 1, Fast Ethernet, VGA-out, HDMI, USB 3.0, USB 2.0, combo audio
Left: Power-in, USB 3.1 Gen 1, Fast Ethernet, VGA-out, HDMI, USB 3.0, USB 2.0, combo audio
Right: DVD burner, lock slot
Right: DVD burner, lock slot
Front: Memory card reader
Front: Memory card reader
199
cd/m²
206
cd/m²
205
cd/m²
186
cd/m²
215
cd/m²
193
cd/m²
195
cd/m²
214
cd/m²
191
cd/m²
Distribuzione della luminosità
X-Rite i1Pro 2
Massima: 215 cd/m² Media: 200.4 cd/m² Minimum: 10 cd/m²
Distribuzione della luminosità: 87 %
Al centro con la batteria: 177 cd/m²
Contrasto: 827:1 (Nero: 0.26 cd/m²)
ΔE Color 13.07 | - Ø
ΔE Greyscale 4.34 | - Ø
60% sRGB (Argyll) 38% AdobeRGB 1998 (Argyll)
Gamma: 2.48

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 200 Hz90 % brightness setting

The display backlight flickers at 200 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 60 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 965 (minimum: 43 - maximum: 30860) Hz was measured.

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti poccono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con rempi di risposta bassi.

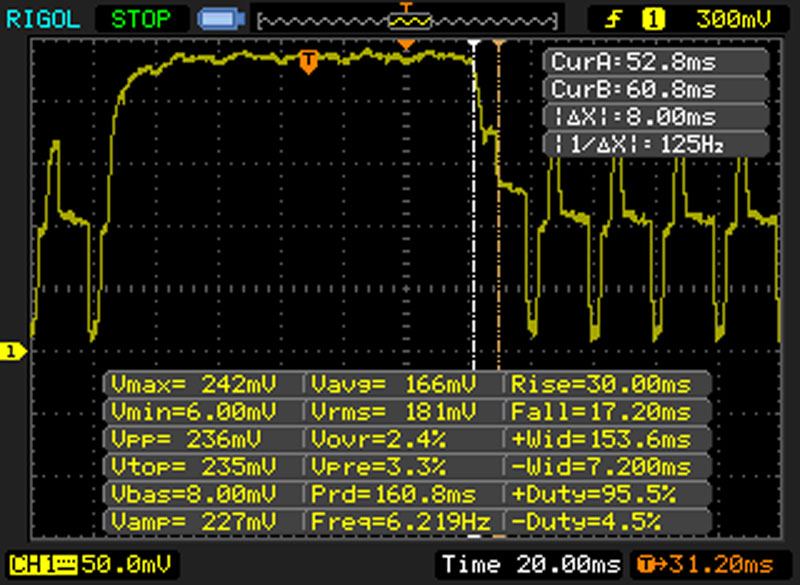

       Tempi di risposta dal Nero al Bianco
20 ms ... rise ↗ and fall ↘ combined↗ 12 ms Incremento
↘ 8 ms Calo
Lo schermo mostra buoni tempi di risposta durante i nostri tests, ma potrebbe essere troppo lento per i gamers competitivi.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 11 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (27.3 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
20 ms ... rise ↗ and fall ↘ combined↗ 10 ms Incremento
↘ 10 ms Calo
Lo schermo mostra buoni tempi di risposta durante i nostri tests, ma potrebbe essere troppo lento per i gamers competitivi.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 4 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (44.3 ms).
Cinebench R10 Rendering Single 32Bit
1019
Cinebench R10 Rendering Multiple CPUs 32Bit
1978
Cinebench R10 Shading 32Bit
2265
Cinebench R15 CPU Single 64Bit
33 Points
Cinebench R15 CPU Multi 64Bit
61 Points
Cinebench R15 OpenGL 64Bit
12.17 fps
Cinebench R15 Ref. Match 64Bit
98 %
Aiuto
Cinebench R15
CPU Single 64Bit
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
82 Points ∼100% +148%
Lenovo G51-35 80M8002HGE
Radeon R5 (Beema/Carrizo-L), A8-7410, WDC Scorpio Blue WD10JPCX-24UE4T0
52 Points ∼63% +58%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
49 Points ∼60% +48%
HP 250 G3
HD Graphics (Bay Trail), N3540
43 Points ∼52% +30%
Lenovo IdeaPad 300-15IBR
GeForce 920M, N3700, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
36 Points ∼44% +9%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
34 Points ∼41% +3%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
33 Points ∼40%
CPU Multi 64Bit
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
210 Points ∼100% +244%
Lenovo G51-35 80M8002HGE
Radeon R5 (Beema/Carrizo-L), A8-7410, WDC Scorpio Blue WD10JPCX-24UE4T0
174 Points ∼83% +185%
HP 250 G3
HD Graphics (Bay Trail), N3540
158 Points ∼75% +159%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
156 Points ∼74% +156%
Lenovo IdeaPad 300-15IBR
GeForce 920M, N3700, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
132 Points ∼63% +116%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
65 Points ∼31% +7%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
61 Points ∼29%
Cinebench R10
Rendering Single 32Bit
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
3151 Points ∼100% +209%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
1883 Points ∼60% +85%
Lenovo G51-35 80M8002HGE
Radeon R5 (Beema/Carrizo-L), A8-7410, WDC Scorpio Blue WD10JPCX-24UE4T0
1642 Points ∼52% +61%
HP 250 G3
HD Graphics (Bay Trail), N3540
1385 Points ∼44% +36%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1134 Points ∼36% +11%
Lenovo IdeaPad 300-15IBR
GeForce 920M, N3700, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1114 Points ∼35% +9%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1019 Points ∼32%
Rendering Multiple CPUs 32Bit
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
6953 Points ∼100% +252%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
5659 Points ∼81% +186%
HP 250 G3
HD Graphics (Bay Trail), N3540
4828 Points ∼69% +144%
Lenovo G51-35 80M8002HGE
Radeon R5 (Beema/Carrizo-L), A8-7410, WDC Scorpio Blue WD10JPCX-24UE4T0
4428 Points ∼64% +124%
Lenovo IdeaPad 300-15IBR
GeForce 920M, N3700, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3148 Points ∼45% +59%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
2150 Points ∼31% +9%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1978 Points ∼28%
Geekbench 3
32 Bit Multi-Core Score
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
4093 Points ∼100% +159%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
3756 Points ∼92% +137%
HP 250 G3
HD Graphics (Bay Trail), N3540
3254 Points ∼80% +106%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1583 Points ∼39%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1167 Points ∼29% -26%
32 Bit Single-Core Score
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
1907 Points ∼100% +120%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
1270 Points ∼67% +47%
HP 250 G3
HD Graphics (Bay Trail), N3540
982 Points ∼51% +14%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
865 Points ∼45%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
829 Points ∼43% -4%
Sunspider - 1.0 Total Score
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
444.5 ms * ∼100% -10%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
404.9 ms * ∼91%
HP 250 G3
HD Graphics (Bay Trail), N3540 (IE 11)
282.1 ms * ∼63% +30%
Acer Chromebook C910-354Y
HD Graphics 5500, 5005U, 32 GB SSD (Chrome OS 49.0.2623.112)
275 ms * ∼62% +32%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX (Edge 25.10586.0.0)
270.2 ms * ∼61% +33%
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024 (IE 11)
164.3 ms * ∼37% +59%
JetStream 1.1 - 1.1 Total Score
Acer Chromebook C910-354Y
HD Graphics 5500, 5005U, 32 GB SSD (Chrome OS 49.0.2623.112)
115.73 Points ∼100% +126%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX (Edge 25.10586.0.09)
75.677 Points ∼65% +48%
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024 (IE 11)
75.091 Points ∼65% +47%
Lenovo G51-35 80M8002HGE
Radeon R5 (Beema/Carrizo-L), A8-7410, WDC Scorpio Blue WD10JPCX-24UE4T0 (Edge 20.10240.16384.0)
71.187 Points ∼62% +39%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
51.115 Points ∼44%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
36.675 Points ∼32% -28%
Lenovo IdeaPad 300-15IBR
GeForce 920M, N3700, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
36.142 Points ∼31% -29%
Mozilla Kraken 1.1 - Total Score
HP 250 G3
HD Graphics (Bay Trail), N3540 (IE 11)
6209.8 ms * ∼100% -24%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
5790.3 ms * ∼93% -16%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
5001.3 ms * ∼81%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX (Edge 25.10586.0.09)
3876.2 ms * ∼62% +22%
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024 (IE 11)
3332.8 ms * ∼54% +33%
Acer Chromebook C910-354Y
HD Graphics 5500, 5005U, 32 GB SSD (Chrome OS 49.0.2623.112)
1636 ms * ∼26% +67%
Octane V2 - Total Score
Acer Chromebook C910-354Y
HD Graphics 5500, 5005U, 32 GB SSD (Chrome OS 49.0.2623.112)
19700 Points ∼100% +162%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX (Edge 25.10586.0.09)
11133 Points ∼57% +48%
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024 (IE11)
9479 Points ∼48% +26%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
7505 Points ∼38%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
5606 Points ∼28% -25%
HP 250 G3
HD Graphics (Bay Trail), N3540 (IE 11)
4996 Points ∼25% -33%
Peacekeeper - ---
Acer Chromebook C910-354Y
HD Graphics 5500, 5005U, 32 GB SSD (Chrome OS 49.0.2623.112)
3193 Points ∼100% +377%
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024 (IE 11)
1926 Points ∼60% +187%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX (Edge 25.10586.0.09)
1038 Points ∼33% +55%
HP 250 G3
HD Graphics (Bay Trail), N3540 (IE 11)
996 Points ∼31% +49%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
670 Points ∼21%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142 (Edge 25.10586.0.0)
587 Points ∼18% -12%

* ... Meglio usare valori piccoli

PCMark 8 Home Score Accelerated v2
1598 punti
PCMark 8 Creative Score Accelerated v2
1624 punti
PCMark 8 Work Score Accelerated v2
1269 punti
Aiuto
PCMark 8 - Home Score Accelerated v2
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
2720 Points ∼100% +70%
Lenovo G51-35 80M8002HGE
Radeon R5 (Beema/Carrizo-L), A8-7410, WDC Scorpio Blue WD10JPCX-24UE4T0
1960 Points ∼72% +23%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
1872 Points ∼69% +17%
Lenovo IdeaPad 300-15IBR
GeForce 920M, N3700, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1740 Points ∼64% +9%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1634 Points ∼60% +2%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1598 Points ∼59%
Seagate Momentus Thin ST500LT012-1DG142
Valore Minimo di trasferimento: 47.5 MB/s
Valore Massimo di trasferimento: 120.7 MB/s
Valore Medio di trasferimento: 85.4 MB/s
Tempi di accesso: 19.6 ms
Burst Rate: 103.3 MB/s
Utilizzo CPU: 7 %
3DMark 11 Performance
425 punti
3DMark Ice Storm Standard Score
18047 punti
3DMark Cloud Gate Standard Score
1497 punti
3DMark Fire Strike Score
231 punti
Aiuto
3DMark 11 - 1280x720 Performance
Lenovo IdeaPad 300-15IBR
GeForce 920M, N3700, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
1573 Points ∼100% +270%
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
1045 Points ∼66% +146%
Lenovo G51-35 80M8002HGE
Radeon R5 (Beema/Carrizo-L), A8-7410, WDC Scorpio Blue WD10JPCX-24UE4T0
860 Points ∼55% +102%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
829 Points ∼53% +95%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
442 Points ∼28% +4%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
425 Points ∼27%
3DMark
1920x1080 Fire Strike Score
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
545 Points ∼100% +136%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
510 Points ∼94% +121%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
236 Points ∼43% +2%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
231 Points ∼42%
1280x720 Sky Diver Score
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
2287 Points ∼100% +129%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
1823 Points ∼80% +83%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1032 Points ∼45% +4%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
997 Points ∼44%
1280x720 Cloud Gate Standard Score
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
3989 Points ∼100% +166%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
2071 Points ∼52% +38%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1529 Points ∼38% +2%
HP 250 G3
HD Graphics (Bay Trail), N3540
1512 Points ∼38% +1%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1497 Points ∼38%
1280x720 Ice Storm Standard Score
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
39323 Points ∼100% +118%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
24304 Points ∼62% +35%
HP 250 G3
HD Graphics (Bay Trail), N3540
19019 Points ∼48% +5%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
18186 Points ∼46% +1%
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
18047 Points ∼46%
basso medio alto ultra
BioShock Infinite (2013) 17.59.17fps

Rumorosità

Idle
31.7 / 31.7 / 31.7 dB(A)
HDD
31.9 dB(A)
DVD
36.4 / dB(A)
Sotto carico
37.2 / 35.3 dB(A)



30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm di distanza)   Rumorosità ambientale: 31.2 dB(A)
Carico massimo
 26.5 °C22.4 °C21.9 °C
 29.8 °C24.5 °C22.3 °C
 26.5 °C24.9 °C25.1 °C
Massima: 29.8 °C
Media: 24.9 °C
23 °C26.9 °C26 °C
24 °C23 °C28 °C
26.5 °C23.3 °C26 °C
Massima: 28 °C
Media: 25.2 °C
Alimentazione (max)  44.4 °C | Temperatura della stanza 21.2 °C | FIRT 550-Pocket
Consumo di corrente
Off / Standbydarklight 0.38 / 0.4 Watt
Idledarkmidlight 3.8 / 6.9 / 7.14 Watt
Sotto carico midlight 20 / 20.7 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Autonomia della batteria
Navigazione WiFi v1.3 (Edge 25.10586.0.0)
5ore 29minuti
Autonomia della batteria
WiFi
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
min ∼0%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
min ∼0%
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
min ∼0%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
min ∼0%
Acer Chromebook C910-354Y
HD Graphics 5500, 5005U, 32 GB SSD
min ∼0%
Lenovo G51-35 80M8002HGE
Radeon R5 (Beema/Carrizo-L), A8-7410, WDC Scorpio Blue WD10JPCX-24UE4T0
min ∼0%
Lenovo IdeaPad 300-15IBR
GeForce 920M, N3700, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
min ∼0%
HP 250 G3
HD Graphics (Bay Trail), N3540
min ∼0%
WiFi v1.3
Asus F540SA-XX087T
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
329 min ∼12%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
340 min ∼13%
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
255 min ∼9%
Acer Aspire ES1-521-87DN
Radeon R5 (Beema/Carrizo-L), A8-6410, Western Digital Scorpio Blue WD5000LPVX
290 min ∼11%
Acer Chromebook C910-354Y
HD Graphics 5500, 5005U, 32 GB SSD
520 min ∼19%
Lenovo G51-35 80M8002HGE
Radeon R5 (Beema/Carrizo-L), A8-7410, WDC Scorpio Blue WD10JPCX-24UE4T0
205 min ∼8%
Lenovo IdeaPad 300-15IBR
GeForce 920M, N3700, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
251 min ∼9%

Pro

+ schermo con contrasto elevato
+ economico
+ USB Type-C

Contro

- schermo scuro
- solo 12 mesi di garanzia
- solo Fast Ethernet
In review: Asus F540SA-XX087T. Test model courtesy of Notebooksbilliger.de
In review: Asus F540SA-XX087T. Test model courtesy of Notebooksbilliger.de

La potenza di calcolo del SoC usato è sufficiente per applicazioni basilari da ufficio ed internet. Il decoder integrato nella scheda grafica consente il rendering di tutti i formati video comuni. Il portatile resta silenzioso e virtualmente non si scalda. Possibile sostituire l'HDD. Tuttavia, il case deve essere aperto. La tastiera non vince alcun premio, ma soddisfa le esigenze domestiche. L'autonomia è accettabile. Lo schermo sorprende con contrasto elevato, ma delude per la scarsa luminosità. Con la batteria diventa ancora più scuro.

L'F540SA-XX087T cosa 280 Euro (~$315). Il prezzo deriva dalle pecche che abbiamo citato ma che sono tollerabili. In pratica avrete un semplice portatile da ufficio ad un prezzo basso.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Asus F540SA-XX087T - 06/08/2016 v5.1
Sascha Mölck

Chassis
72 / 98 → 73%
Tastiera
69%
Dispositivo di puntamento
81%
Connettività
41 / 80 → 51%
Peso
64 / 67 → 94%
Batteria
85%
Display
73%
Prestazioni di gioco
37 / 68 → 54%
Prestazioni Applicazioni
39 / 92 → 43%
Temperatura
96%
Rumorosità
90%
Audio
41%
Fotocamera
38 / 85 → 44%
Media
63%
76%
Office - Media ponderata

Pricecompare

> Notebookcheck Italiano > Recensioni e prove > Recensioni e prove > Recensione Breve del portatile Asus F540SA-XX087T
Sascha Mölck, 2016-06-13 (Update: 2016-06-15)
