Recensione Breve del portatile Lenovo IdeaPad 100-15IBD

Core i3 Low-cost. I portatili del settore low-cost sono dotati prevalentemente di processori Braswell o APUs AMD oggigiorno. Nessuna di queste è la più potente del settore. Lenovo ha avuto un approccio diverso ed installato un processore Core i3 per la generazione Broadwell nel suo IdeaPad.
Lenovo IdeaPad 100-15IBD (Ideapad 100 Serie)
Processore
Intel Core i3-5005U 2 x 2 GHz, Broadwell
Scheda grafica
Intel HD Graphics 5500, Core: 850 MHz, single-channel, 10.18.14.4332
Memoria
4 GB
, DDR3, single-channel, un banco di memoria (occupato)
Schermo
15.60 pollici 16:9, 1366 x 768 pixel, Samsung LATLTN156AT39L01, TN LED, lucido: si
Scheda madre
Intel Broadwell-U PCH-LP (Baseline)
Harddisk
Seagate Momentus SpinPoint M8 ST1000LM024, 1000 GB
, 5400 rpm, 900 GB libera
Scheda audio
Conexant CX20751/2 @ Intel Wildcat Point-LP PCH - High Definition Audio Controller
Porte di connessione
1 USB 2.0, 1 USB 3.0 / 3.1, 1 VGA, 1 Kensington Lock, Connessioni Audio: combo audio, Lettore schede: SD, TPM 2.0
Rete
RealTek Semiconductor RTL8101/2/3 Family Fast Ethernet NIC (10/100MBit/s), Realtek RTL8723BE Wireless LAN 802.11n PCI-E NIC (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Drive ottico
PLDS DVD-RW DA8A6SH
Dimensioni
altezza x larghezza x profondità (in mm): 23 x 378 x 265
Batteria
32 Wh ioni di litio
Sistema Operativo
FreeDos
Camera
Webcam: webcam SD
Altre caratteristiche
Casse: mono, Tastiera: chiclet, Illuminazione Tastiera: no, 12 Mesi Garanzia
Peso
2 kg, Alimentazione: 178 gr
Prezzo
349 Euro
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Left: Power-in, Ethernet port, HDMI, USB 2.0, USB 3.0, combo audio, power button
Left: Power-in, Ethernet port, HDMI, USB 2.0, USB 3.0, combo audio, power button
Right: DVD burner, Kensington lock slot
Right: DVD burner, Kensington lock slot
Front: Memory card reader
Front: Memory card reader

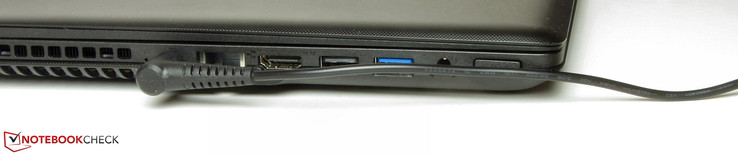

The power cable runs in front of the ports or the vent
The power cable runs in front of the ports or the vent
262
cd/m²
235
cd/m²
249
cd/m²
259
cd/m²
225
cd/m²
252
cd/m²
259
cd/m²
234
cd/m²
239
cd/m²
Distribuzione della luminosità
Samsung LATLTN156AT39L01 tested with X-Rite i1Pro 2 // Gossen Mavo-Monitor
Massima: 262 cd/m² (Nits) Media: 246 cd/m²
Distribuzione della luminosità: 86 %
Al centro con la batteria: 225 cd/m²
Contrasto: 489:1 (Nero: 0.46 cd/m²)
ΔE Color 13.57 | 0.5-29.43 Ø5
ΔE Greyscale 15.07 | 0.57-98 Ø5.3
53% sRGB (Argyll 1.6.3 3D)
34% AdobeRGB 1998 (Argyll 1.6.3 3D)
36.45% AdobeRGB 1998 (Argyll 2.2.0 3D)
53.2% sRGB (Argyll 2.2.0 3D)
35.28% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.27

Sfarfallio dello schermo / PWM (Pulse-Width Modulation)

Per ridurre la luminosità dello schermo, alcuni portatili accendono e spengono la retroilluminazione in rapida successione - un metodo chiamato Pulse Width Modulation (PWM). Questa frequenza di ciclo a livello ideale non dovrebbe essere percepibile dall'occhi umano. Se tale frequenza è troppo bassa, gli utenti con occhi sensibili potrebbero stancarsi gli occhi o avere mal di testa o anche notare uno sfarfallio.
flickering dello schermo / PWM non rilevato

In confronto: 53 % di tutti i dispositivi testati non utilizza PWM per ridurre la luminosita' del display. Se è rilevato PWM, una media di 17933 (minimo: 5 - massimo: 3846000) Hz è stata rilevata.

Tempi di risposta del Display

I tempi di risposta del display mostrano quanto sia veloce lo schermo a cambaire da un colore all'altro. Tempi di risposta lenti possono creare sovrapposizioni negloi oggetti in movimento. Specialmente i giocatori patiti del 3D dovrebbero usare uno schermo con tempi di risposta bassi.
       Tempi di risposta dal Nero al Bianco
26 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 9 ms Incremento
↘ 17 ms Calo
Lo schermo mostra tempi di risposta relativamente lenti nei nostri tests e potrebbe essere troppo lento per i gamers.
In confronto, tutti i dispositivi di test variano da 0.1 (minimo) a 240 (massimo) ms. » 57 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (21.5 ms).
       Tempo di risposta dal 50% Grigio all'80% Grigio
48 ms ... aumenta ↗ e diminuisce ↘ combinato↗ 26 ms Incremento
↘ 22 ms Calo
Lo schermo mostra tempi di risposta lenti nei nostri tests e sarà insoddisfacente per i gamers.
In confronto, tutti i dispositivi di test variano da 0.2 (minimo) a 636 (massimo) ms. » 80 % di tutti i dispositivi è migliore.
Questo significa che i tempi di risposta rilevati sono peggiori rispetto alla media di tutti i dispositivi testati (33.8 ms).
Cinebench R10 Shading 32Bit
5601
Cinebench R10 Rendering Multiple CPUs 32Bit
6953
Cinebench R10 Rendering Single 32Bit
3151
Cinebench R11.5 OpenGL 64Bit
18.27 fps
Cinebench R11.5 CPU Multi 64Bit
2.27 Points
Cinebench R11.5 CPU Single 64Bit
0.96 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
22.1 fps
Cinebench R15 CPU Multi 64Bit
210 Points
Cinebench R15 CPU Single 64Bit
82 Points
Aiuto
Cinebench R15
CPU Multi 64Bit (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
210 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
158 Points -25%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
65 Points -69%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
157 Points -25%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
157 Points -25%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
171 Points -19%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
208 Points -1%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
187 Points -11%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
146 Points -30%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
129 Points -39%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
164 Points -22%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
119 Points -43%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
127 Points -40%
CPU Single 64Bit (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
82 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
43 Points -48%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
34 Points -59%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
42 Points -49%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
47 Points -43%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
39 Points -52%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
82 Points 0%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
70 Points -15%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
46 Points -44%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
67 Points -18%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
49 Points -40%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
32 Points -61%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
37 Points -55%
Cinebench R11.5
CPU Multi 64Bit (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
2.27 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
1.9 Points -16%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
0.8 Points -65%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
1.92 Points -15%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
1.94 Points -15%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
1.84 Points -19%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
2.27 Points 0%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
2.01 Points -11%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
1.62 Points -29%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
1.45 Points -36%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
2.04 Points -10%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
1.43 Points -37%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
1.74 Points -23%
CPU Single 64Bit (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
0.96 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
0.5 Points -48%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
0.41 Points -57%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
0.5 Points -48%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
0.57 Points -41%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
0.75 Points -22%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
0.96 Points 0%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
0.79 Points -18%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
0.55 Points -43%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
0.74 Points -23%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
0.6 Points -37%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
0.39 Points -59%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
0.45 Points -53%
Cinebench R10
Rendering Multiple CPUs 32Bit (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
6953 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
4759 Points -32%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
2150 Points -69%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
4750 Points -32%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
5575 Points -20%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
5730 Points -18%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
6837 Points -2%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
5309 Points -24%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
4852 Points -30%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
5785 Points -17%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
4171 Points -40%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
3598 Points -48%
Rendering Single 32Bit (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
3151 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
1383 Points -56%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1134 Points -64%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
1379 Points -56%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
1858 Points -41%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
2528 Points -20%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
3116 Points -1%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
1709 Points -46%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
2510 Points -20%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
1850 Points -41%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
1205 Points -62%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
1381 Points -56%
Geekbench 3
32 Bit Single-Core Score (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
1907 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
992 Points -48%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
829 Points -57%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
988 Points -48%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
1244 Points -35%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
1912 Points 0%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
1209 Points -37%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
1468 Points -23%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
1287 Points -33%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
868 Points -54%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
991 Points -48%
32 Bit Multi-Core Score (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
4093 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
3223 Points -21%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1167 Points -71%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
3267 Points -20%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
3534 Points -14%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
4016 Points -2%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
3230 Points -21%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
2592 Points -37%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
3792 Points -7%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
2762 Points -33%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
3146 Points -23%
Sunspider - 1.0 Total Score (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
164.3 ms *
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
321.1 ms * -95%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
444.5 ms * -171%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
303.3 ms * -85%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
254.3 ms * -55%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
182.1 ms * -11%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
151.1 ms * +8%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
309.2 ms * -88%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
181.5 ms * -10%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
253 ms * -54%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
427.3 ms * -160%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
346.9 ms * -111%
Acer Chromebook 15 CB5-571-C9GR
HD Graphics (Broadwell), 3205U
334.7 ms * -104%
JetStream 1.1 - Total Score (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
75.1 Points
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
36.67 Points -51%
Mozilla Kraken 1.1 - Total (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
3333 ms *
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
6182 ms * -85%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
5790 ms * -74%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
6205 ms * -86%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
6279 ms * -88%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
3339 ms * -0%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
6880 ms * -106%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
4080 ms * -22%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
6200 ms * -86%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
9672 ms * -190%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
8268 ms * -148%
Acer Chromebook 15 CB5-571-C9GR
HD Graphics (Broadwell), 3205U
2332 ms * +30%
Octane V2 - Total Score (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
9479 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
5006 Points -47%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
5606 Points -41%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
5052 Points -47%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
5574 Points -41%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
9551 Points +1%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
5334 Points -44%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
7963 Points -16%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
6074 Points -36%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
3727 Points -61%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
4580 Points -52%
Acer Chromebook 15 CB5-571-C9GR
HD Graphics (Broadwell), 3205U
13238 Points +40%
Peacekeeper - --- (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
1926 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
861 Points -55%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
587 Points -70%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
842 Points -56%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
1108 Points -42%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
1915 Points -1%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
957 Points -50%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
1793 Points -7%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
1136 Points -41%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
720 Points -63%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
868 Points -55%
Acer Chromebook 15 CB5-571-C9GR
HD Graphics (Broadwell), 3205U
2905 Points +51%

* ... Meglio usare valori piccoli

PCMark 8 Home Score Accelerated v2
2720 punti
PCMark 8 Creative Score Accelerated v2
3047 punti
PCMark 8 Work Score Accelerated v2
3512 punti
Aiuto
PCMark 8 - Home Score Accelerated v2 (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
2720 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
1462 Points -46%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1634 Points -40%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
1946 Points -28%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
2092 Points -23%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
1880 Points -31%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
2151 Points -21%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
2451 Points -10%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
1685 Points -38%
Seagate Momentus SpinPoint M8 ST1000LM024
Valore Minimo di trasferimento: 48.5 MB/s
Valore Massimo di trasferimento: 114.7 MB/s
Valore Medio di trasferimento: 87.2 MB/s
Tempi di accesso: 17 ms
Burst Rate: 267.3 MB/s
Utilizzo CPU: 4.3 %
3DMark 11 Performance
1045 punti
3DMark Ice Storm Standard Score
39323 punti
3DMark Cloud Gate Standard Score
3989 punti
3DMark Fire Strike Score
545 punti
Aiuto
3DMark 11 - 1280x720 Performance (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
1045 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
238 Points -77%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
442 Points -58%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
268 Points -74%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
788 Points -25%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
784 Points -25%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
909 Points -13%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
782 Points -25%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
752 Points -28%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
574 Points -45%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
1640 Points +57%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
592 Points -43%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
688 Points -34%
3DMark
1280x720 Ice Storm Standard Score (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
39323 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
17547 Points -55%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
18186 Points -54%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
17701 Points -55%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
31626 Points -20%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
33875 Points -14%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
37420 Points -5%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
30714 Points -22%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
30090 Points -23%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
27941 Points -29%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
39458 Points 0%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
27138 Points -31%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
23939 Points -39%
1280x720 Cloud Gate Standard Score (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
3989 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
1417 Points -64%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1529 Points -62%
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
1444 Points -64%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
2853 Points -28%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
3581 Points -10%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
3886 Points -3%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
2763 Points -31%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
3276 Points -18%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
2426 Points -39%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
4032 Points +1%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
2244 Points -44%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
2291 Points -43%
1280x720 Sky Diver Score (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
2287 Points
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
500 Points -78%
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
1032 Points -55%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
1846 Points -19%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
2244 Points -2%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
1773 Points -22%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
1493 Points -35%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
1780 Points -22%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
1348 Points -41%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
1545 Points -32%
1920x1080 Fire Strike Score (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
545 Points
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
236 Points -57%
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
473 Points -13%
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
479 Points -12%
Lenovo ThinkPad Edge E550-20DGS00300
HD Graphics 5500, 5005U, Hitachi Travelstar Z7K500 HTS725050A7E630
540 Points -1%
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
472 Points -13%
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
446 Points -18%
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
316 Points -42%
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
843 Points +55%
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
347 Points -36%
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
427 Points -22%
basso medio alto ultra
Tomb Raider (2013) 40.8 21.4 13.3
Rise of the Tomb Raider (2016) 11.4 7.3

Rumorosità

Idle
32.8 / 32.8 / 32.8 dB(A)
HDD
32.5 dB(A)
DVD
38.6 / dB(A)
Sotto carico
35.5 / 35.5 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm di distanza)
 28.1 °C24.5 °C23 °C
 28.3 °C26.5 °C23.2 °C
 27.4 °C28.1 °C29.7 °C
Massima: 29.7 °C
Media: 26.5 °C
23.7 °C23 °C24.3 °C
23.9 °C27 °C28.9 °C
26 °C30.1 °C27.5 °C
Massima: 30.1 °C
Media: 26 °C
Alimentazione (max)  33 °C | Temperatura della stanza 21.4 °C | FIRT 550-Pocket
(+) La temperatura media del lato superiore sotto carico massimo e' di 27.8 °C / 82 F, rispetto alla media di 29.5 °C / 85 F per i dispositivi di questa classe Office.
(+) La temperatura massima sul lato superiore è di 34 °C / 93 F, rispetto alla media di 34.2 °C / 94 F, che varia da 21.2 a 62.5 °C per questa classe Office.
(+) Il lato inferiore si riscalda fino ad un massimo di 35.6 °C / 96 F, rispetto alla media di 36.7 °C / 98 F
(+) In idle, la temperatura media del lato superiore è di 26.5 °C / 80 F, rispetto alla media deld ispositivo di 29.5 °C / 85 F.
(+) I poggiapolsi e il touchpad sono piu' freddi della temperatura della pelle con un massimo di 30 °C / 86 F e sono quindi freddi al tatto.
(-) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 27.7 °C / 81.9 F (-2.3 °C / -4.1 F).
Consumo di corrente
Off / Standbydarklight 0.2 / 0.29 Watt
Idledarkmidlight 10 / 10.8 / 12.6 Watt
Sotto carico midlight 29 / 29 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Metrahit Energy
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
Autonomia della batteria
WiFi Websurfing (IE 11)
4ore 15minuti
Autonomia della batteria
WiFi v1.3 (ordina per valore)
Lenovo IdeaPad 100-15IBD
HD Graphics 5500, 5005U, Seagate Momentus SpinPoint M8 ST1000LM024
255 min
Lenovo IdeaPad 100-15IBY
HD Graphics (Bay Trail), N3540, Seagate Momentus Thin ST500LT012-1DG142
199 min
Acer Extensa 2519-C7DC
HD Graphics (Braswell), N3050, Seagate Momentus Thin ST500LT012-1DG142
340 min
Acer Aspire E15 ES1-512-P1SM
HD Graphics (Bay Trail), N3540, Western Digital Scorpio Blue WD5000LPVX
349 min
Lenovo IdeaPad 305-15ABM
Radeon R4 (Beema), A6-6310, Seagate Momentus Thin ST500LT012-1DG142
238 min
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
350 min
HP 350 G1 F7Z01EA
HD Graphics (Haswell), 3558U, Toshiba MQ01ABF050
290 min
HP 255 G3
Radeon HD 8330, A4-5000, Hitachi Travelstar Z5K500 HTS545050A7E680
190 min
Acer Chromebook 15 CB5-571-C9GR
HD Graphics (Broadwell), 3205U
540 min
WiFi (ordina per valore)
Acer Aspire E5-521-60Y6
Radeon R4 (Beema), A6-6310, WDC Scorpio Blue WD10JPVX-22JC3T0
427 min
Acer Extensa 2510-34Z4
HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX
391 min
Fujitsu Lifebook A514
HD Graphics 4400, 4005U, Samsung SSD PM871 MZ7LN128HCHP
350 min
HP 355 G2
Radeon R5 M240, A8-6410, Toshiba MQ01ABF050
283 min
Toshiba Satellite C50D-B-125
Radeon R3 (Mullins/Beema), A4-6210, Toshiba MQ01ABF050
338 min

Pro

+ Processore Core i3
+ prezzo basso
+ molto spazio di archiviazione
+ silenzioso
+ temperature basse

Contro

- Solo 12 mesi di garanzia
- nessuna cover di manutenzione
- cassa mono con suono scarso
- solo Fast-Ethernet
In review: Lenovo IdeaPad 100-15IBD. Test model courtesy of Notebooksbilliger.de
In review: Lenovo IdeaPad 100-15IBD. Test model courtesy of Notebooksbilliger.de

L'IdeaPad monta un processore Core i3 che dovrebbe soddisfare la maggioranza degli utenti. Quasi 350 Euro (~$390) sono necessari per questo dispositivo. Il portatile in genere è silenzioso e non si scalda molto. Inoltre, l'utente ha molto spazio per l'archiviazione: un hard drive da 1 TB. Il case deve essere smontato per sostituirlo con un SSD. Non ci sono cover di manutenzione. Lo schermo non vince alcun premio, ma è accettabile considerando il prezzo. Lo stesso vale per l'autonomia. La tastiera del portatile va bene per l'utilizzo domestico. Sfortunatamente, Lenovo include solo un anno di garanzia per l'IdeaPad. La cassa installata è virtualmente inutile, e pertanto raccomandiamo casse esterne o cuffie.

Il prezzo e la CPU rendono attraente l'IdeaPad per certi versi. Un portatile con un processore relativamente potente, ma economico.

Coloro che si accontentano di un hard drive da 500 GB possono pagare appena 300 Euro (~$335). Chi vuole usare Windows deve aggiungere da 20 a 30 Euro (~$22 to ~$33) per una licenza Windows 7. Quest'ultima consente anche l'upgrade a Windows 10.

La maggioranza dei rivali dell'IdeaPad montano processori Braswell o APUs AMD. L'IdeaPad è superiore a questi grazie al processore Core i3. L'IdeaPad va bene per chi cerca una comoda macchina da scrivere, per navigare e per giocare. Questo portatile Lenovo non dovrebbe essere considerato per altri scopi come disposizione di interfacce, output audio o manutenzione.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Lenovo IdeaPad 100-15IBD - 01/31/2016 v4.1(old)
Sascha Mölck

Chassis
65 / 98 → 66%
Tastiera
73%
Dispositivo di puntamento
81%
Connettività
51 / 80 → 64%
Peso
63 / 20-67 → 91%
Batteria
86%
Display
70%
Prestazioni di gioco
65 / 68 → 96%
Prestazioni Applicazioni
69 / 92 → 75%
Temperatura
93%
Rumorosità
88%
Audio
46%
Fotocamera
38 / 85 → 45%
Media
68%
75%
Office - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione Breve del portatile Lenovo IdeaPad 100-15IBD
Sascha Mölck, 2016-02- 9 (Update: 2016-02- 9)
