Recensione dello Zotac Zbox pico PI430AJ: Il primo mini PC al mondo con tecnologia AirJet attiva raffredda l'Intel Core i3-N300 in un case da 0,055 gal

Raffreddamento attivo AirJet senza ventola. La serie compatta pico di Zotac ha subito un aggiornamento significativo. Oltre all'introduzione del nuovo Intel Core i3-N300 con 8 core Alder Lake, Zotac si distingue come il primo produttore a incorporare un nuovo sistema di raffreddamento. Sono stati implementati due moduli AirJet attivi per gestire efficacemente il SoC anche durante l'uso intenso. Abbiamo valutato l'efficacia di questo sistema e valutato le prestazioni complessive di Zotac Zbox pico PI430AJ nell'uso quotidiano.
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ

Zotac ha offerto PC estremamente compatti con lo pseudonimo di serie pico, concentrandosi sul funzionamento silenzioso. L'ultimo modello, tuttavia, introduce cambiamenti significativi. Presenta il nuovo Intel Core i3-N300con 8 core nativi per migliorare le prestazioni multi-thread, la caratteristica principale è la tecnologia AirJet integrata, progettata per raffreddare il SoC. Zotac Zbox pico PI430AJ è dotato di 8 GB di RAM LPDDR5 e di un SSD NVMe da 512 GB, con un prezzo di circa 599,99 dollari per questa configurazione. Sebbene questo costo sia relativamente alto, viste le opzioni competitive nella fascia dei 500 dollari, non bisogna trascurare il punto di vendita unico dell'innovativa unità di raffreddamento. Le prestazioni del dispositivo sono state esaminate da vicino per valutarne l'efficacia. Per questa recensione è stato compilato un elenco comparativo di dispositivi della stessa fascia di prezzo.

Zotac ZBOX PI430AJ
Processore
Intel Core i3-N300 8 x - 3.8 GHz, 25 W PL2 / Short Burst, 7 W PL1 / Sustained, Alder Lake-N
Scheda grafica
Intel UHD Graphics 32EUs (Alder Lake), 31.0.101.4889 DCH
Memoria
8 GB
, LPDDR5-4800
Scheda madre
Intel Alder Lake-N PCH
Scheda audio
Intel Alder Lake-N PCH - cAVS
Porte di connessione
3 USB 3.1 Gen 2, 1 HDMI, 1 DisplayPort, Connessioni Audio: Mic / Audio combo Jack, Lettore schede: microSD
Rete
Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wi-Fi 6 AX101 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Dimensioni
altezza x larghezza x profondità (in mm): 23.8 x 114.8 x 76
Sistema Operativo
Microsoft Windows 11 Pro
Altre caratteristiche
35 Watt Power Adapter, 60 Mesi Garanzia
Peso
318 gr, Alimentazione: 158 gr
Prezzo
560 EUR
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



Potenziali concorrenti a confronto

Punteggio
Data
Modello
Peso
price
69.9 %
01/2024
Zotac ZBOX PI430AJ
i3-N300, UHD Graphics 32EUs
318 gr560 EUR
74.1 %
11/2023
Acemagic S1
N95, UHD Graphics 24EUs (Alder Lake-N)
440 gr239 EUR
73.5 %
09/2023
Blackview MP80
N95, UHD Graphics 24EUs (Alder Lake-N)
214 gr250 EUR
73.2 %
01/2024
Asus ExpertCenter PN42-BBN200MV
N200, UHD Graphics Xe 750 32EUs
828 gr299 EUR
71.1 %
08/2023
BOSGAME N95
N95, UHD Graphics 24EUs (Alder Lake-N)
392 gr179 EUR
70.1 %
11/2023
Trigkey G4
N100, UHD Graphics 24EUs (Alder Lake-N)
272 gr189 EUR
68.2 %
03/2023
Minipc Union NiPoGi GK3PLUS - N95
N95, UHD Graphics 24EUs (Alder Lake-N)
381 gr399 EUR
65.9 %
01/2023
Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
209 gr280 EUR
07/2022
Zotac ZBOX PI336 pico
Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
293 gr370 EUR

Zotac Zbox pico PI430AJ in dettaglio

Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ

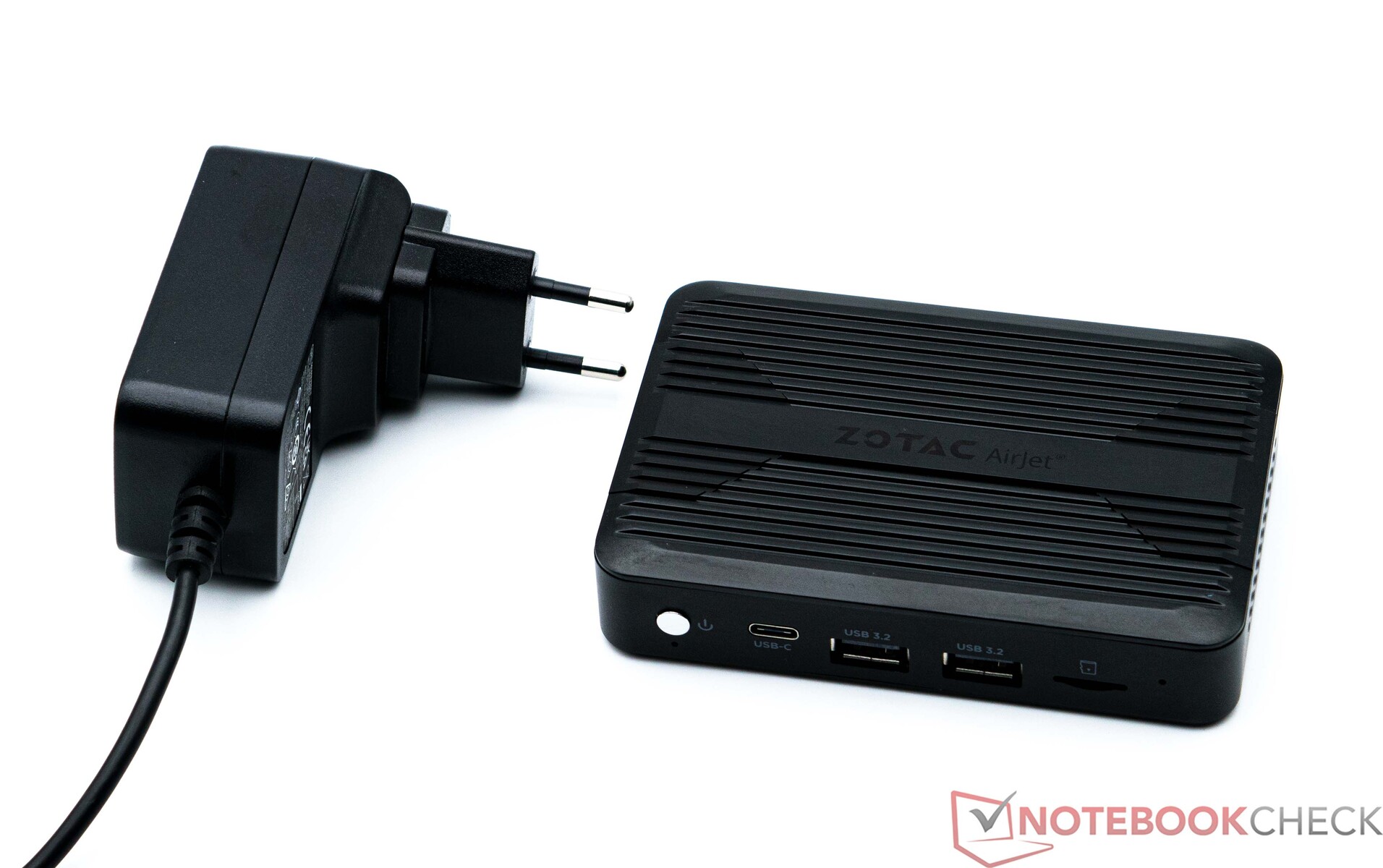

Zotac Zbox pico PI430AJ e l'alimentatore da 25 watt (5 V; 5 A)

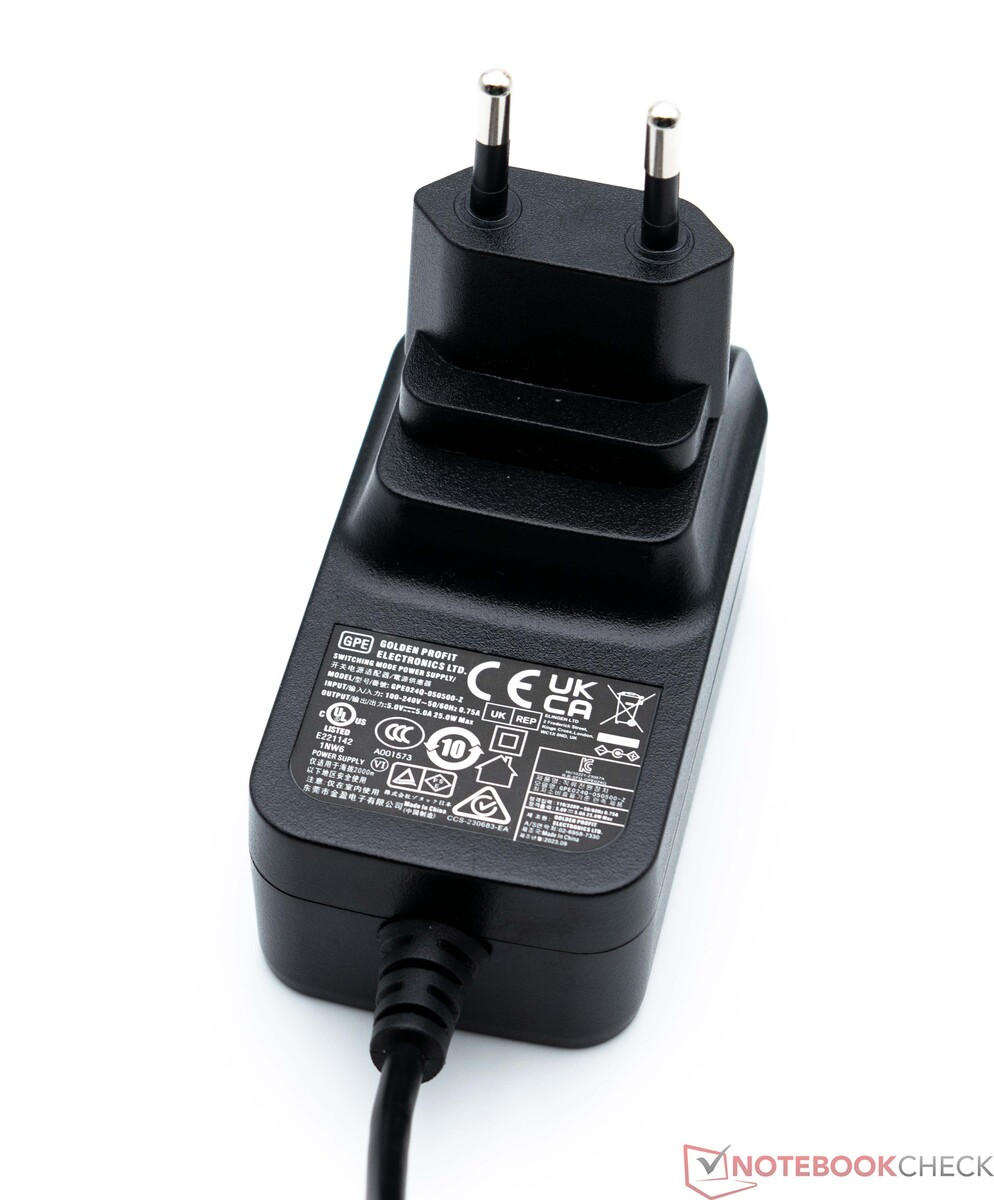

alimentatore da 25 watt (5 V; 5 A)

Valigetta - Valigetta compatta in alluminio da 0,055 gal

Visivamente, lo Zotac Zbox pico PI430A ha una forte somiglianza con il suo predecessore, lo Zotac Zbox PI336 pico. L'alloggiamento compatto è realizzato interamente in alluminio, che funge da mezzo per la dissipazione del calore. Mentre il modello precedente si affidava esclusivamente al raffreddamento passivo, il PI430A adotta un approccio a doppio raffreddamento, integrando la tecnologia attiva AirJet accanto ai metodi di raffreddamento convenzionali. La struttura minuscola del dispositivo è stabile grazie all'eccellente costruzione e alle finiture impeccabili. Rispetto al suo predecessore, lo spessore è leggermente aumentato grazie alla funzione di raffreddamento attivo, anche se il profilo è ancora sottile, appena sotto i 24 millimetri. Con dimensioni di quasi 15 centimetri di lunghezza e solo 7,6 centimetri di profondità, questo piccolo PC offre una soluzione efficiente dal punto di vista dello spazio per l'utilizzo su scrivania. L'opzione di montaggio VESA aumenta ulteriormente la sua versatilità e i materiali di montaggio necessari sono comodamente inclusi nella confezione.

Confronto delle dimensioni

132 mm 127.5 mm 57.6 mm 828 g132 mm 132 mm 47 mm 381 g128 mm 124 mm 42 mm 440 g126 mm 112 mm 40.8 mm 392 g114.8 mm 76 mm 23.8 mm 318 g115 mm 76 mm 20.7 mm 293 g87 mm 87 mm 43.5 mm 209 g87.7 mm 87.7 mm 37 mm 214 g210 mm 148 mm 1 mm 2.9 g

Connettività

Nonostante le dimensioni ridotte, Zotac Zbox pico PI430A contiene tutti i connettori necessari, nonostante le sue restrizioni. Sono presenti tre porte USB 3.2, una delle quali è conforme al Type-C. Tuttavia, il dispositivo non può essere alimentato dal connettore Type-C. Sono presenti un lettore di schede microSD e porte HDMI (2.0) e DisplayPort (1.4) per collegare i monitor.

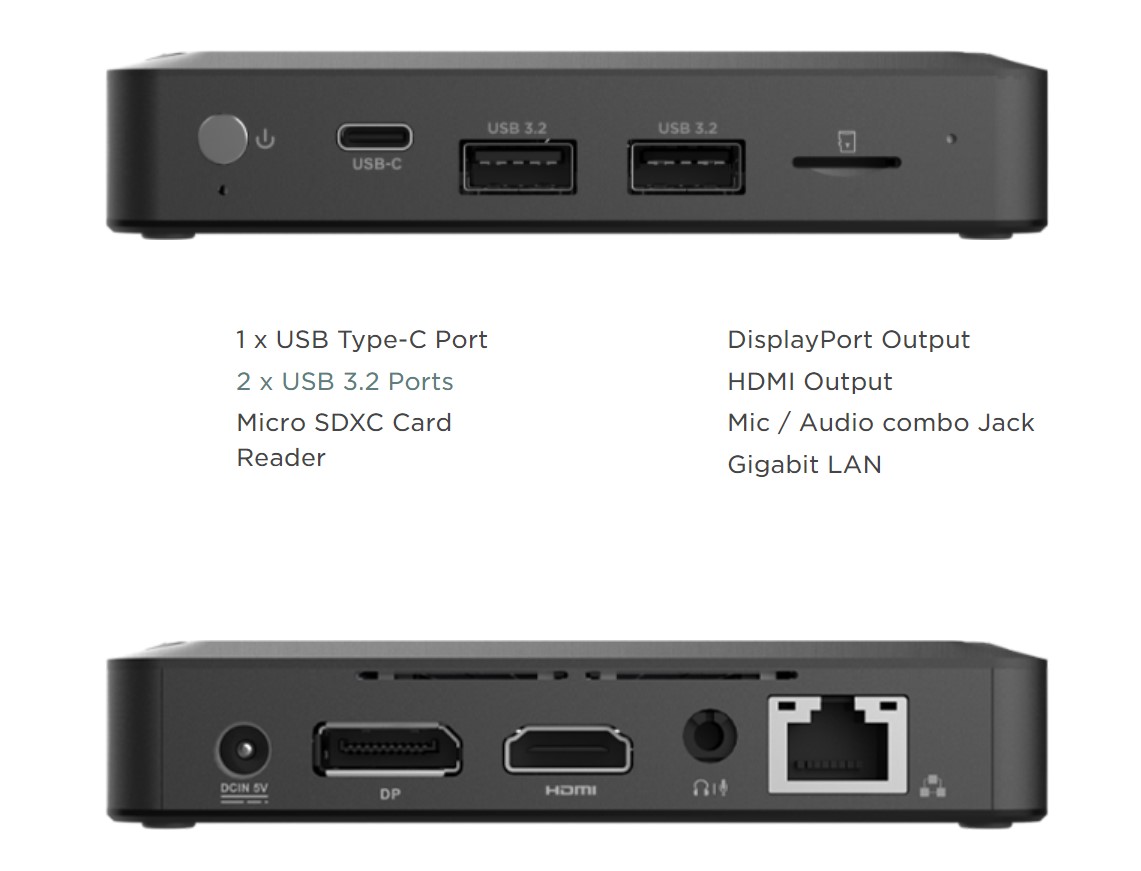

Connessioni esterne sulla parte anteriore e posteriore (fonte: Zotac)
Connessioni esterne sulla parte anteriore e posteriore (fonte: Zotac)

Lettore di schede SD

Il lettore di schede SD integrato supporta solo le schede microSD e offre una velocità USB 3. Tuttavia, non è possibile sfruttare appieno il potenziale della nostra scheda di prova (AV Pro SD microSD 128 GB V60).

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Media della classe Mini PC
  (15.1 - 181.8, n=22, ultimi 2 anni)
90.7 MB/s +133%
Zotac ZBOX PI430AJ
Intel Core i3-N300 (AV Pro SD microSD 128 GB V60)
39 MB/s
Zotac ZBOX PI336 pico
Intel Celeron N6211 (AV PRO MICROSD V60)
24.44 MB/s -37%
AC6-M Mini-PC
Intel Celeron J4125 (AV PRO MICROSD V60)
18.46 MB/s -53%
Newsmay AC8 N6005
Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)
17.02 MB/s -56%
maximum AS SSD Seq Read Test (1GB)
Media della classe Mini PC
  (18.2 - 200, n=22, ultimi 2 anni)
102.1 MB/s +147%
Zotac ZBOX PI336 pico
Intel Celeron N6211 (AV PRO MICROSD V60)
41.45 MB/s 0%
Zotac ZBOX PI430AJ
Intel Core i3-N300 (AV Pro SD microSD 128 GB V60)
41.41 MB/s
AC6-M Mini-PC
Intel Celeron J4125 (AV PRO MICROSD V60)
21.03 MB/s -49%
Newsmay AC8 N6005
Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)
17.7 MB/s -57%

Comunicazione

Modulo WLAN
Modulo WLAN

Il modulo Intel Wi-Fi 6 AX101 fornito con Zotac Zbox pico PI430AJ non è sostituibile e supporta frequenze fino a 2,4 GHz e 5 GHz. Le sue prestazioni nel test sono mediocri. Tuttavia, ha mostrato valori coerenti sia per l'invio che per la ricezione. Il nostro router durante il test era l'Asus ROG Rapture GT-AXE11000. Inoltre, il mini PC dispone di una presa RJ45 per una connessione di rete cablata, che consente una velocità di trasferimento dati fino a 1 GBit/s.

Networking
iperf3 receive AXE11000
Asus ExpertCenter PN42-BBN200MV
Intel Wi-Fi 6 AX201
1684 (1645min - 1707max) MBit/s +240%
Media della classe Mini PC
  (192.9 - 1796, n=102, ultimi 2 anni)
924 MBit/s +87%
BOSGAME N95
Intel Dual Band Wireless-AC 8265
719 (702min - 729max) MBit/s +45%
Acemagic S1
Realtek RTL8852BE
503 (357min - 676max) MBit/s +2%
Zotac ZBOX PI430AJ
Intel Wi-Fi 6 AX101
495 (473min - 505max) MBit/s
Media Intel Wi-Fi 6 AX101
  (491 - 495, n=3)
493 MBit/s 0%
Trigkey G4
Intel Wi-Fi 6 AX101
491 (483min - 495max) MBit/s -1%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
363 (359min - 365max) MBit/s -27%
Blackview MP80
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
361 (326min - 365max) MBit/s -27%
Minipc Union NiPoGi GK3PLUS - N95
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
358 (180min - 362max) MBit/s -28%
iperf3 transmit AXE11000
Asus ExpertCenter PN42-BBN200MV
Intel Wi-Fi 6 AX201
1527 (1473min - 1571max) MBit/s +217%
Media della classe Mini PC
  (184.1 - 1776, n=102, ultimi 2 anni)
857 MBit/s +78%
Acemagic S1
Realtek RTL8852BE
536 (515min - 553max) MBit/s +11%
BOSGAME N95
Intel Dual Band Wireless-AC 8265
519 (510min - 547max) MBit/s +8%
Media Intel Wi-Fi 6 AX101
  (481 - 505, n=3)
491 MBit/s +2%
Trigkey G4
Intel Wi-Fi 6 AX101
487 (459min - 504max) MBit/s +1%
Zotac ZBOX PI430AJ
Intel Wi-Fi 6 AX101
481 (452min - 509max) MBit/s
Blackview MP80
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
274 (266min - 281max) MBit/s -43%
Minipc Union NiPoGi GK3PLUS - N95
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
269 (136min - 276max) MBit/s -44%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
184.1 (94min - 191max) MBit/s -62%
050100150200250300350400450500550600650Tooltip
Zotac ZBOX PI430AJ Intel Wi-Fi 6 AX101; iperf3 receive AXE11000; iperf 3.1.3: Ø495 (473-505)
Acemagic S1 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø503 (357-676)
Zotac ZBOX PI430AJ Intel Wi-Fi 6 AX101; iperf3 transmit AXE11000; iperf 3.1.3: Ø481 (452-509)
Acemagic S1 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø536 (515-553)

Garanzia

Secondo le condizioni di garanzia, Zotac fornisce una garanzia standard di 12 mesi con l'acquisto di Zotac Zbox pico PI430AJ.

Manutenzione

Zotac Zbox pico PI430AJ dovrebbe richiedere una manutenzione minima. Se acquista il dispositivo in versione barebone, l'installazione di un SSD è un processo semplice. La parte inferiore è fissata con quattro viti e può essere facilmente rimossa. Dopo aver smontato il dispositivo, si è notato che il produttore ha incorporato dei piccoli filtri antipolvere sui lati, che dovrebbero aiutare a mantenere l'interno pulito anche con un uso prolungato. Un ulteriore smontaggio per pulire la ventola non è necessario, in quanto l'unità di raffreddamento AirJet integrata è un sistema autonomo direttamente collegato al processore come dissipatore di calore. Dopo alcuni anni, potrebbe essere utile considerare la sostituzione della pasta termica del processore.

Zotac Zbox pico PI430AJ smontato

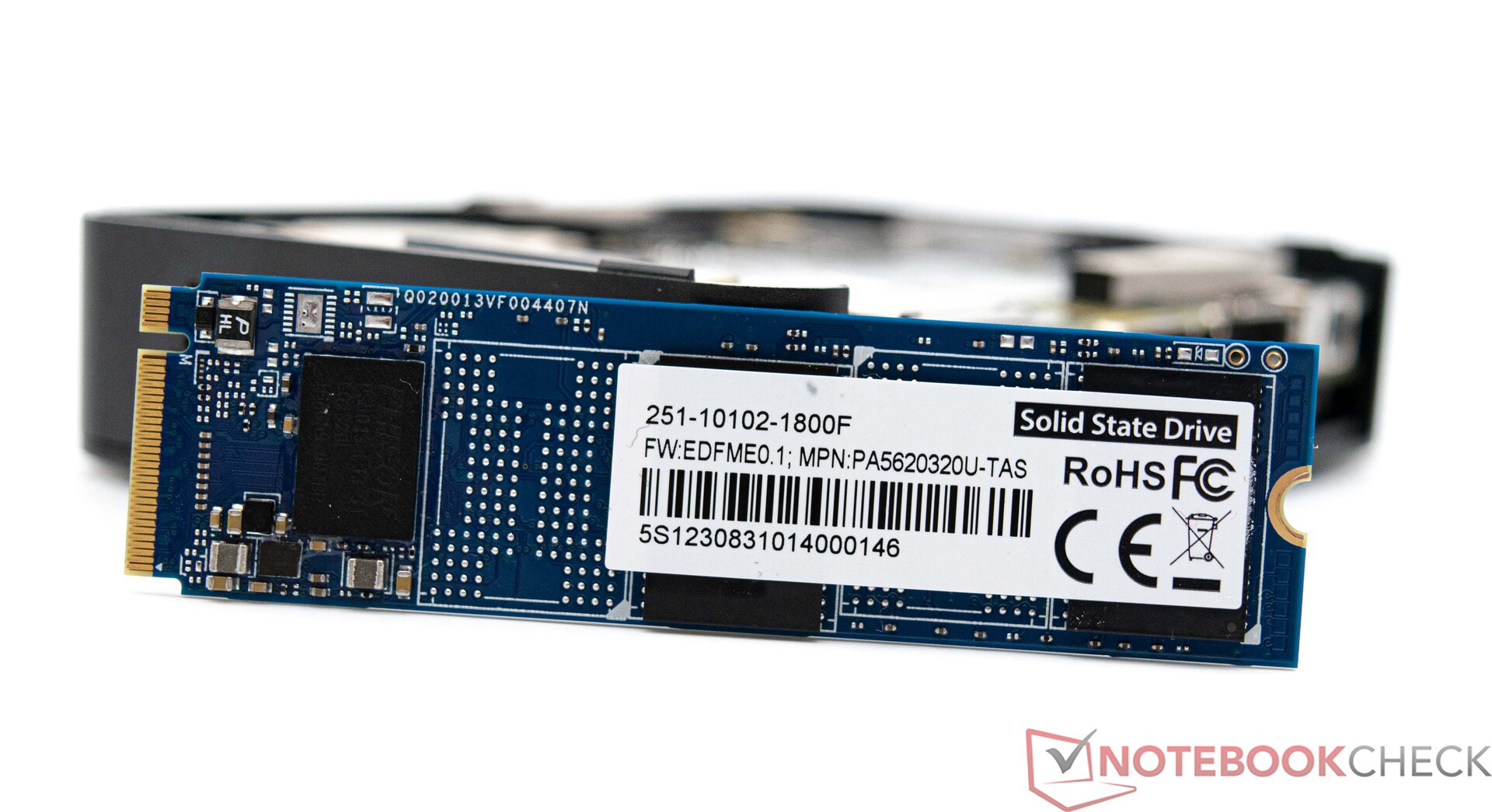

Vista dell'SSD integrato di Zotac Zbox pico PI430AJ
Zotac Zbox pico PI430AJ senza SSD
Zotac Zbox pico PI430AJ è composto da due schede collegate tra loro
Il coperchio del case con i due moduli di raffreddamento AirJet e il circuito stampato per il SoC e la RAM
Vista delle fessure di ventilazione dei due moduli di raffreddamento AirJet
Intel Core i3-N300 fisso e 8 GB di RAM LPDDR5

Prestazioni - Intel Core i3 con 8 core

Dotato di Intel Core i3-N300, l'efficiente SoC fornisce otto core di calcolo nativi. I limiti di potenza del processore sono fissati con un consumo energetico che va da 7 a 25 watt. Durante i nostri test, non ci siamo avvicinati al limite massimo di potenza. Il SoC è supportato da 8 GB di RAM LPDDR5, saldata sulla scheda. L'SSD è un modello da 512 GB, una capacità di archiviazione adeguata.

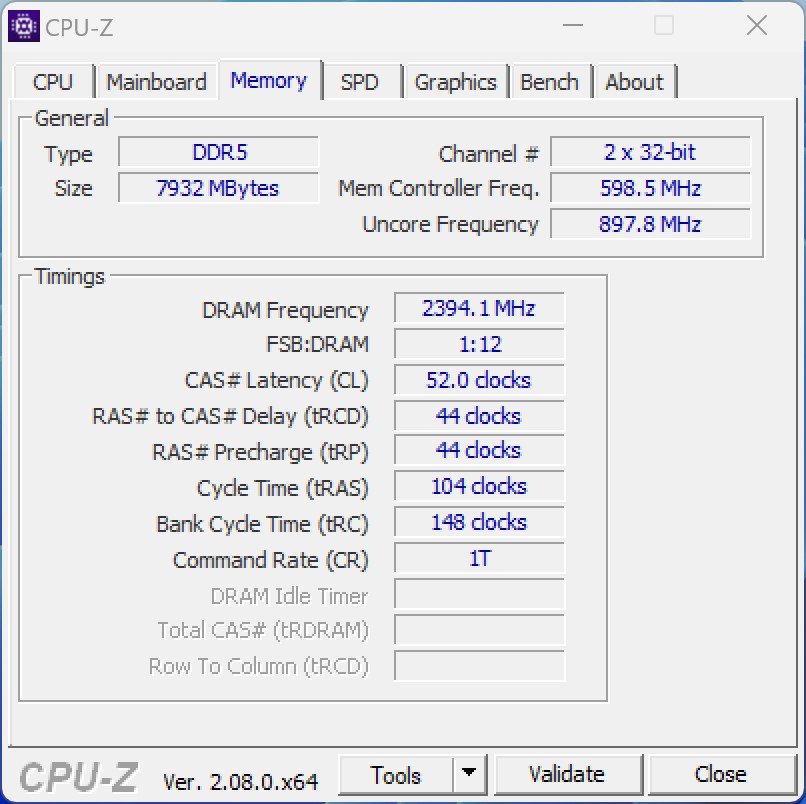

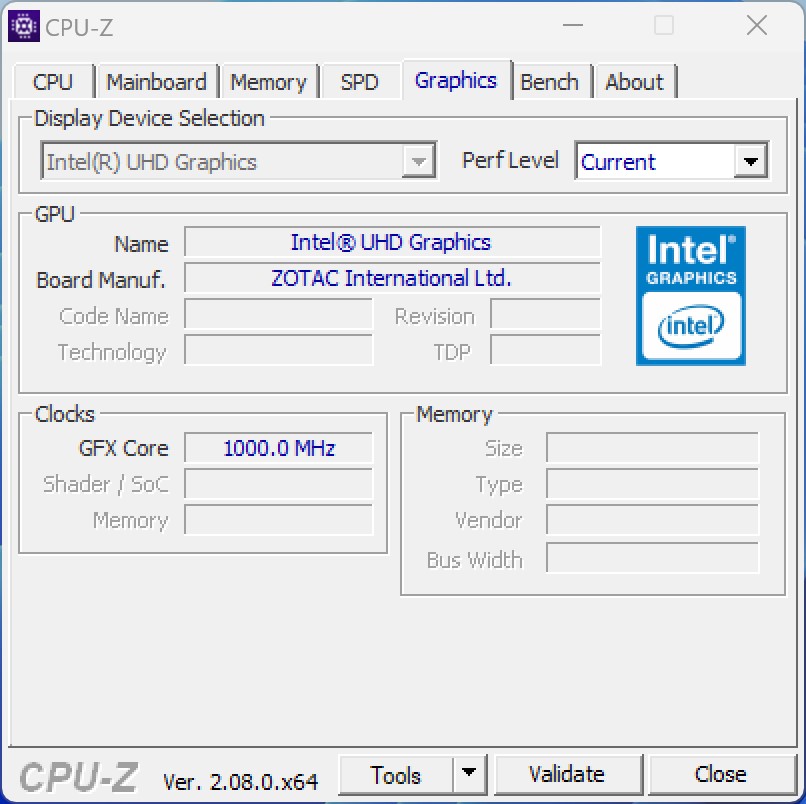

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
GPU-Z
HWiNFO

Condizioni di test

Abbiamo condotto tutti i test sulle prestazioni utilizzando il profilo energetico di massima prestazione. I diversi profili di risparmio energetico sono stati utilizzati solo per le misurazioni del consumo energetico e del volume. Ulteriori dettagli sui nostri criteri di test sono disponibili qui.

Processore

Lo Zotac Zbox pico PI430AJ è alimentato dall'Intel Core i3-N300. Con i suoi 8 core, il SoC supera chiaramente l'Intel N200 dell'Asus ExpertCenter PN42. Secondo le specifiche, il nostro campione di prova può accedere fino a 25 watt. Tuttavia, durante i nostri test, non siamo riusciti ad avvicinarci a questo valore, con prestazioni che sono solo marginalmente migliori di quelle dei concorrenti, nonostante l'unità di raffreddamento attiva AirJet. Dopo aver ottenuto un punteggio medio complessivo, il piccolo PC si posiziona al quinto posto e si assicura la vittoria solo nella competizione interna. Tuttavia, si posiziona bene in particolari test che richiedono prestazioni multi-core. Questo è evidente nei test AIDA64, dove Zotac Zbox pico PI430AJ emerge come il dispositivo più veloce con un margine considerevole.
Ulteriori benchmark sui processori si trovano qui.

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Cinebench 2024
Cinebench 2024
Performance Rating - Percent
Trigkey G4
Intel Processor N100, 1000 MHz
27.5 pt
Blackview MP80
Intel Processor N95,  MHz
27 pt
BOSGAME N95
Intel Processor N95,  MHz
27 pt
Acemagic S1
Intel Processor N95,  MHz
26.8 pt
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
24.1 pt
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
22.4 pt
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
21.7 pt
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
20.9 pt
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
17 pt
Cinebench R23
Single Core
Trigkey G4
Intel Processor N100, 1000 MHz
942 Points +84%
BOSGAME N95
Intel Processor N95,  MHz
935 Points +82%
Acemagic S1
Intel Processor N95,  MHz
933 Points +82%
Blackview MP80
Intel Processor N95,  MHz
914 Points +78%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
700 Points +36%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
690 Points +35%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
607 Points +18%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
513 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
439 Points -14%
Multi Core
Trigkey G4
Intel Processor N100, 1000 MHz
2983 Points +17%
BOSGAME N95
Intel Processor N95,  MHz
2785 Points +9%
Acemagic S1
Intel Processor N95,  MHz
2769 Points +9%
Blackview MP80
Intel Processor N95,  MHz
2686 Points +5%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
2546 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2528 Points -1%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2150 Points -16%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
1406 Points -45%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
735 Points -71%
Cinebench R20
CPU (Single Core)
Trigkey G4
Intel Processor N100, 1000 MHz
358 Points +84%
BOSGAME N95
Intel Processor N95,  MHz
357 Points +83%
Acemagic S1
Intel Processor N95,  MHz
357 Points +83%
Blackview MP80
Intel Processor N95,  MHz
350 Points +79%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
265 Points +36%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
241 Points +24%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
233 Points +19%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
195 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
174 Points -11%
CPU (Multi Core)
Trigkey G4
Intel Processor N100, 1000 MHz
1138 Points +18%
BOSGAME N95
Intel Processor N95,  MHz
1067 Points +10%
Acemagic S1
Intel Processor N95,  MHz
1050 Points +8%
Blackview MP80
Intel Processor N95,  MHz
1029 Points +6%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
976 Points +1%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
968 Points
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
822 Points -15%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
542 Points -44%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
285 Points -71%
Cinebench R15
CPU Single 64Bit
BOSGAME N95
Intel Processor N95,  MHz
155 Points +82%
Trigkey G4
Intel Processor N100, 1000 MHz
155 Points +82%
Acemagic S1
Intel Processor N95,  MHz
154 Points +81%
Blackview MP80
Intel Processor N95,  MHz
151 Points +78%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
123 Points +45%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
113 Points +33%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
102 Points +20%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
85 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
76 Points -11%
CPU Multi 64Bit
Trigkey G4
Intel Processor N100, 1000 MHz
477 Points +15%
BOSGAME N95
Intel Processor N95,  MHz
452 Points +9%
Acemagic S1
Intel Processor N95,  MHz
446 Points +7%
Blackview MP80
Intel Processor N95,  MHz
434 Points +4%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
416 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
408 Points -2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
359 Points -14%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
219 Points -47%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
128 Points -69%
Cinebench R11.5
CPU Single 64Bit
Trigkey G4
Intel Processor N100, 1000 MHz
1.87 Points +83%
BOSGAME N95
Intel Processor N95,  MHz
1.86 Points +82%
Acemagic S1
Intel Processor N95,  MHz
1.85 Points +81%
Blackview MP80
Intel Processor N95,  MHz
1.83 Points +79%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1.49 Points +46%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
1.36 Points +33%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.25 Points +23%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
1.02 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.97 Points -5%
CPU Multi 64Bit
Trigkey G4
Intel Processor N100, 1000 MHz
5.99 Points +13%
BOSGAME N95
Intel Processor N95,  MHz
5.62 Points +6%
Acemagic S1
Intel Processor N95,  MHz
5.55 Points +4%
Blackview MP80
Intel Processor N95,  MHz
5.41 Points +2%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
5.32 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
5.18 Points -3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4.65 Points -13%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
2.73 Points -49%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1.65 Points -69%
Cinebench R10
Rendering Single CPUs 64Bit
Trigkey G4
Intel Processor N100, 1000 MHz
8227 Points +83%
Acemagic S1
Intel Processor N95,  MHz
8177 Points +82%
Blackview MP80
Intel Processor N95,  MHz
8080 Points +80%
BOSGAME N95
Intel Processor N95,  MHz
7574 Points +68%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
6562 Points +46%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
5971 Points +33%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5224 Points +16%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
4497 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
4120 Points -8%
Rendering Multiple CPUs 64Bit
Trigkey G4
Intel Processor N100, 1000 MHz
24225 Points +31%
BOSGAME N95
Intel Processor N95,  MHz
22275 Points +21%
Acemagic S1
Intel Processor N95,  MHz
22261 Points +21%
Blackview MP80
Intel Processor N95,  MHz
20565 Points +11%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
20429 Points +11%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
18450 Points
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
17278 Points -6%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
11030 Points -40%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
6653 Points -64%
wPrime 2.10
32m
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
49.66 s * -184%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
25.99 s * -49%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
19.202 s * -10%
BOSGAME N95
Intel Processor N95,  MHz
18.213 s * -4%
Blackview MP80
Intel Processor N95,  MHz
17.521 s * -0%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
17.491 s *
Acemagic S1
Intel Processor N95,  MHz
16.565 s * +5%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
16.449 s * +6%
Trigkey G4
Intel Processor N100, 1000 MHz
15.795 s * +10%
1024m
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1561.178 s * -194%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
874.559 s * -65%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
605.375 s * -14%
BOSGAME N95
Intel Processor N95,  MHz
568.939 s * -7%
Blackview MP80
Intel Processor N95,  MHz
538.757 s * -1%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
535.88 s * -1%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
531.113 s *
Acemagic S1
Intel Processor N95,  MHz
519.662 s * +2%
Trigkey G4
Intel Processor N100, 1000 MHz
481.652 s * +9%
X264 HD Benchmark 4.0
Pass 1
Trigkey G4
Intel Processor N100, 1000 MHz
172.55 (171.6min - 175.2max) fps +62%
Blackview MP80
Intel Processor N95,  MHz
163.3 (162.1min - 163.7max) fps +53%
BOSGAME N95
Intel Processor N95,  MHz
162.4 (161.9min - 162.4max) fps +52%
Acemagic S1
Intel Processor N95,  MHz
161.9 (158.9min - 162.5max) fps +52%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
145.25 (144.9min - 145.6max) fps +36%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
112.75 (112min - 114.5max) fps +6%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
106.6 (106min - 107.2max) fps
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
79.95 (79min - 109.2max) fps -25%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
45.25 (44.7min - 45.7max) fps -58%
Pass 2
Trigkey G4
Intel Processor N100, 1000 MHz
33.85 (33.7min - 35max) fps +17%
BOSGAME N95
Intel Processor N95,  MHz
32.45 (32.4min - 32.5max) fps +12%
Blackview MP80
Intel Processor N95,  MHz
32.4 (32.4min - 32.4max) fps +12%
Acemagic S1
Intel Processor N95,  MHz
32.4 (32.4min - 32.5max) fps +12%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
29.65 (29.5min - 29.7max) fps +3%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
28.85 (28.2min - 29.1max) fps
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
24.75 (24.5min - 25max) fps -14%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
16.3 (16.2min - 16.4max) fps -44%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
9.995 (9.97min - 10.2max) fps -65%
WinRAR - Result
Trigkey G4
Intel Processor N100, 1000 MHz
2431 KB/s +27%
Acemagic S1
Intel Processor N95,  MHz
2391 KB/s +25%
BOSGAME N95
Intel Processor N95,  MHz
2362 KB/s +23%
Blackview MP80
Intel Processor N95,  MHz
2277 KB/s +19%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2181 KB/s +14%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
2115 KB/s +10%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
1915 KB/s
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1630 KB/s -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
731 KB/s -62%
TrueCrypt
AES Mean 100MB
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
3.2 GB/s +23%
Trigkey G4
Intel Processor N100, 1000 MHz
2.9 GB/s +12%
Blackview MP80
Intel Processor N95,  MHz
2.8 GB/s +8%
BOSGAME N95
Intel Processor N95,  MHz
2.7 GB/s +4%
Acemagic S1
Intel Processor N95,  MHz
2.7 GB/s +4%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
2.6 GB/s
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.5 GB/s -4%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2.4 GB/s -8%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.979 GB/s -62%
Twofish Mean 100MB
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
0.583 GB/s +20%
Trigkey G4
Intel Processor N100, 1000 MHz
0.538 GB/s +11%
Blackview MP80
Intel Processor N95,  MHz
0.501 GB/s +4%
Acemagic S1
Intel Processor N95,  MHz
0.498 GB/s +3%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
0.497 GB/s +3%
BOSGAME N95
Intel Processor N95,  MHz
0.492 GB/s +2%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
0.484 GB/s
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.37 GB/s -24%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.14 GB/s -71%
Serpent Mean 100MB
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
0.287 GB/s +21%
Trigkey G4
Intel Processor N100, 1000 MHz
0.262 GB/s +11%
Blackview MP80
Intel Processor N95,  MHz
0.244 GB/s +3%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
0.243 GB/s +3%
BOSGAME N95
Intel Processor N95,  MHz
0.239 GB/s +1%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
0.237 GB/s
Acemagic S1
Intel Processor N95,  MHz
0.236 GB/s 0%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
0.198 GB/s -16%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.074 GB/s -69%
Geekbench 5.5
Multi-Core
Trigkey G4
Intel Processor N100, 1000 MHz
2796 Points +5%
Blackview MP80
Intel Processor N95,  MHz
2793 Points +4%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
2674 Points
BOSGAME N95
Intel Processor N95,  MHz
2616 Points -2%
Acemagic S1
Intel Processor N95,  MHz
2566 Points -4%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2391 Points -11%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2052 Points -23%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
1540 Points -42%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
844 Points -68%
Single-Core
Trigkey G4
Intel Processor N100, 1000 MHz
1014 Points +62%
Blackview MP80
Intel Processor N95,  MHz
1013 Points +62%
BOSGAME N95
Intel Processor N95,  MHz
1007 Points +61%
Acemagic S1
Intel Processor N95,  MHz
999 Points +60%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
928 Points +48%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
804 Points +28%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
637 Points +2%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
626 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
556 Points -11%
Geekbench 5.0
5.0 Multi-Core
Trigkey G4
Intel Processor N100, 1000 MHz
2753 Points +4%
Blackview MP80
Intel Processor N95,  MHz
2737 Points +4%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
2642 Points
BOSGAME N95
Intel Processor N95,  MHz
2585 Points -2%
Acemagic S1
Intel Processor N95,  MHz
2531 Points -4%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
2382 Points -10%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2041 Points -23%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
1518 Points -43%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
857 Points -68%
5.0 Single-Core
Trigkey G4
Intel Processor N100, 1000 MHz
1008 Points +64%
Blackview MP80
Intel Processor N95,  MHz
1005 Points +63%
BOSGAME N95
Intel Processor N95,  MHz
1000 Points +62%
Acemagic S1
Intel Processor N95,  MHz
993 Points +61%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
891 Points +45%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
804 Points +31%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
638 Points +4%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
616 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
559 Points -9%
Geekbench 4.4
64 Bit Single-Core Score
Blackview MP80
Intel Processor N95,  MHz
4553 Points +56%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
4552 Points +56%
Trigkey G4
Intel Processor N100, 1000 MHz
4518 Points +55%
BOSGAME N95
Intel Processor N95,  MHz
4495 Points +54%
Acemagic S1
Intel Processor N95,  MHz
4450 Points +53%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
3591 Points +23%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
2913 Points
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2858 Points -2%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2585 Points -11%
64 Bit Multi-Core Score
Trigkey G4
Intel Processor N100, 1000 MHz
10938 Points +11%
Blackview MP80
Intel Processor N95,  MHz
10798 Points +9%
BOSGAME N95
Intel Processor N95,  MHz
10299 Points +4%
Acemagic S1
Intel Processor N95,  MHz
10228 Points +3%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
9989 Points +1%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
9894 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
9662 Points -2%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
7968 Points -19%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3606 Points -64%
3DMark 11 - 1280x720 Performance Physics
Trigkey G4
Intel Processor N100, 1000 MHz
6129 Points +23%
Blackview MP80
Intel Processor N95,  MHz
5806 Points +17%
BOSGAME N95
Intel Processor N95,  MHz
5767 Points +16%
Acemagic S1
Intel Processor N95,  MHz
5661 Points +14%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
5084 Points +2%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
4983 Points
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
4287 Points -14%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
2765 Points -45%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1591 Points -68%
7-Zip 18.03
7z b 4
Trigkey G4
Intel Processor N100, 1000 MHz
13255 MIPS +11%
BOSGAME N95
Intel Processor N95,  MHz
12224 MIPS +2%
Acemagic S1
Intel Processor N95,  MHz
12190 MIPS +2%
Blackview MP80
Intel Processor N95,  MHz
12177 MIPS +2%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
11976 MIPS
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
11654 MIPS -3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
10924 MIPS -9%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
7146 MIPS -40%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
3974 MIPS -67%
7z b 4 -mmt1
Trigkey G4
Intel Processor N100, 1000 MHz
3908 MIPS +63%
Acemagic S1
Intel Processor N95,  MHz
3866 MIPS +61%
Blackview MP80
Intel Processor N95,  MHz
3843 MIPS +60%
BOSGAME N95
Intel Processor N95,  MHz
3803 MIPS +58%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
3230 MIPS +34%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
3121 MIPS +30%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2935 MIPS +22%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2593 MIPS +8%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
2403 MIPS
HWBOT x265 Benchmark v2.2 - 4k Preset
Trigkey G4
Intel Processor N100, 1000 MHz
3.49 fps +8%
Blackview MP80
Intel Processor N95,  MHz
3.29 fps +2%
BOSGAME N95
Intel Processor N95,  MHz
3.25 fps +1%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
3.22 fps
Acemagic S1
Intel Processor N95,  MHz
3.17 fps -2%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
3.03 fps -6%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
2.01 fps -38%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
1.52 fps -53%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
0.88 fps -73%
R Benchmark 2.5 - Overall mean
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
1.371 sec * -3%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
1.333 sec *
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
1.2 sec * +10%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
1.149 sec * +14%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
1.032 sec * +23%
Acemagic S1
Intel Processor N95,  MHz
0.837 sec * +37%
BOSGAME N95
Intel Processor N95,  MHz
0.834 sec * +37%
Blackview MP80
Intel Processor N95,  MHz
0.83 sec * +38%
Trigkey G4
Intel Processor N100, 1000 MHz
0.824 sec * +38%
LibreOffice - 20 Documents To PDF
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
144.7 s * -8%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
134 s *
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
120 s * +10%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
103.6 s * +23%
Acemagic S1
Intel Processor N95,  MHz
89.3 s * +33%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
80.4 s * +40%
BOSGAME N95
Intel Processor N95,  MHz
74.6 s * +44%
Blackview MP80
Intel Processor N95,  MHz
68.3 s * +49%
Trigkey G4
Intel Processor N100, 1000 MHz
67 s * +50%
WebXPRT 3 - Overall
Trigkey G4
Intel Processor N100, 1000 MHz
187.4 Points +80%
Blackview MP80
Intel Processor N95,  MHz
183.4 Points +76%
BOSGAME N95
Intel Processor N95,  MHz
179.4 Points +72%
Acemagic S1
Intel Processor N95,  MHz
178.3 Points +71%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
171.3 Points +64%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
155.3 Points +49%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
127.2 Points +22%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
104.3 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
89.2 Points -14%
3DMark - 1920x1080 Fire Strike Physics
Trigkey G4
Intel Processor N100, 1000 MHz
6522 Points +18%
Blackview MP80
Intel Processor N95,  MHz
6062 Points +10%
BOSGAME N95
Intel Processor N95,  MHz
5952 Points +8%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95,  MHz
5903 Points +7%
Acemagic S1
Intel Processor N95,  MHz
5701 Points +3%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, 2000 MHz
5535 Points 0%
Zotac ZBOX PI430AJ
Intel Core i3-N300,  MHz
5528 Points
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, 1000 MHz
4135 Points -25%
Zotac ZBOX PI336 pico
Intel Celeron N6211, 1200 MHz
2195 Points -60%

* ... Meglio usare valori piccoli

Performance Rating
Media della classe Mini PC

100 pt
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
26.2 pt
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
20.4 pt
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
18.1 pt
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
10.4 pt
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
10.4 pt
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9.9 pt
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9.9 pt
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9.3 pt
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
8.6 pt
AIDA64 / FP32 Ray-Trace
Media della classe Mini PC
  (561 - 51004, n=115, ultimi 2 anni)
11139 KRay/s +443%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
2051 KRay/s
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
1384 KRay/s -33%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1242 KRay/s -39%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
837 KRay/s -59%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
770 KRay/s -62%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
769 KRay/s -63%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
764 KRay/s -63%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
744 KRay/s -64%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
490 KRay/s -76%
AIDA64 / FPU Julia
Media della classe Mini PC
  (3604 - 214250, n=115, ultimi 2 anni)
57130 Points +421%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
10963 Points
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7457 Points -32%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
7292 Points -33%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
4397 Points -60%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
4144 Points -62%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
4141 Points -62%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
4140 Points -62%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
3970 Points -64%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
2932 Points -73%
AIDA64 / CPU SHA3
Media della classe Mini PC
  (225 - 9399, n=115, ultimi 2 anni)
2499 MB/s +226%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
767 MB/s
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s -33%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
466 MB/s -39%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
308 MB/s -60%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
290 MB/s -62%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
290 MB/s -62%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
290 MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
270 MB/s -65%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
202 MB/s -74%
AIDA64 / CPU Queen
Media della classe Mini PC
  (8172 - 184747, n=115, ultimi 2 anni)
73183 Points +285%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
23345 Points +23%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22326 Points +17%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
19025 Points
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
8820 Points -54%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8663 Points -54%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8208 Points -57%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8186 Points -57%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8178 Points -57%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8172 Points -57%
AIDA64 / FPU SinJulia
Media della classe Mini PC
  (408 - 29064, n=115, ultimi 2 anni)
7886 Points +632%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
1078 Points
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points -7%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
985 Points -9%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
432 Points -60%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
408 Points -62%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
408 Points -62%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
408 Points -62%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
408 Points -62%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
396 Points -63%
AIDA64 / FPU Mandel
Media della classe Mini PC
  (1958 - 113499, n=115, ultimi 2 anni)
30156 Points +445%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
5532 Points
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3961 Points -28%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
3648 Points -34%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
2220 Points -60%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
2092 Points -62%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
2089 Points -62%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
2088 Points -62%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
1987 Points -64%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
1558 Points -72%
AIDA64 / CPU AES
Media della classe Mini PC
  (3691 - 325960, n=115, ultimi 2 anni)
82022 MB/s +291%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
20979 MB/s
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19350 MB/s -8%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
8752 MB/s -58%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8421 MB/s -60%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
7961 MB/s -62%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
7954 MB/s -62%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
7951 MB/s -62%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
7948 MB/s -62%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
7653 MB/s -64%
AIDA64 / CPU ZLib
Media della classe Mini PC
  (74.8 - 2039, n=115, ultimi 2 anni)
631 MB/s +202%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
209 MB/s
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
188.1 MB/s -10%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
133.4 MB/s -36%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
81.9 MB/s -61%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
77.7 MB/s -63%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
77.4 MB/s -63%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
76.7 MB/s -63%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
75.2 MB/s -64%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
74.9 MB/s -64%
AIDA64 / FP64 Ray-Trace
Media della classe Mini PC
  (308 - 26952, n=115, ultimi 2 anni)
5949 KRay/s +423%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
1138 KRay/s
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
705 KRay/s -38%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s -41%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
465 KRay/s -59%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
433 KRay/s -62%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
432 KRay/s -62%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
432 KRay/s -62%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
412 KRay/s -64%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
273 KRay/s -76%
AIDA64 / CPU PhotoWorxx
Media della classe Mini PC
  (4408 - 45560, n=115, ultimi 2 anni)
25677 MPixel/s +73%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
14830 MPixel/s
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9899 MPixel/s -33%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
9467 MPixel/s -36%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6599 MPixel/s -56%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
5384 MPixel/s -64%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
5333 MPixel/s -64%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
5296 MPixel/s -64%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
5125 MPixel/s -65%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
4408 MPixel/s -70%

Zotac Zbox pico PI430AJ vs. Cinebench-R15 a ciclo continuo

Il ciclo continuo di Cinebench R15 è stato molto impegnativo per lo Zotac Zbox pico PI430AJ, con conseguenti temperature elevate. L'Intel Core i3-N300 ha faticato a mantenere prestazioni costantemente elevate a causa dell'aumento delle temperature della CPU. I dati di telemetria hanno indicato un calo graduale delle prestazioni con l'aumento della temperatura del SoC. Inoltre, il consumo energetico non ha mai superato gli otto watt durante tutto il test, con un conseguente punteggio medio finale di soli 386 punti.

Metriche della CPU durante il ciclo continuo di Cinebench R15
Metriche della CPU durante il ciclo continuo di Cinebench R15
0255075100125150175200225250275300325350375400425450Tooltip
Zotac ZBOX PI430AJ Intel Core i3-N300, Intel Core i3-N300: Ø386 (357.51-413.92)
Acemagic S1 Intel Processor N95, Intel Processor N95: Ø440 (431.21-442.98)
Blackview MP80 Intel Processor N95, Intel Processor N95: Ø425 (410.8-428.48)
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel Processor N200: Ø210 (198.23-215.98)
BOSGAME N95 Intel Processor N95, Intel Processor N95: Ø421 (417.99-423.28)
Trigkey G4 Intel Processor N100, Intel Processor N100: Ø465 (453-467.97)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)

Prestazioni del sistema

A causa del consumo energetico limitato del Intel Core i3-N300zotac Zbox pico PI430AJ mostra una competitività limitata nei benchmark delle prestazioni di sistema rispetto ai suoi rivali. Anche se il nostro sistema di prova si comporta bene nei test della RAM, non si può trascurare una latenza notevole durante il funzionamento.

Performance Rating - Percent
Trigkey G4, Intel Processor N100
Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),
99.9 pt
Blackview MP80, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
99.5 pt
BOSGAME N95, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
98.5 pt
Acemagic S1, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
96.9 pt
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
92 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
76.8 pt
Zotac ZBOX PI430AJ, Intel Core i3-N300
Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),
68 pt
PCMark 10
Score
Blackview MP80, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
3220 Points +36%
Trigkey G4, Intel Processor N100
Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),
3207 Points +36%
BOSGAME N95, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
3192 Points +35%
Acemagic S1, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
3153 Points +33%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
2983 Points +26%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
2417 Points +2%
Zotac ZBOX PI430AJ, Intel Core i3-N300
Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),
2363 Points
Essentials
Trigkey G4, Intel Processor N100
Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),
7123 Points +31%
Blackview MP80, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
7079 Points +30%
BOSGAME N95, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
7021 Points +29%
Acemagic S1, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
6731 Points +24%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
6650 Points +22%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
5866 Points +8%
Zotac ZBOX PI430AJ, Intel Core i3-N300
Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),
5435 Points
Productivity
Trigkey G4, Intel Processor N100
Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N),
5033 Points +84%
Blackview MP80, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
4993 Points +83%
Acemagic S1, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
4950 Points +81%
BOSGAME N95, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
4923 Points +80%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
4524 Points +66%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
3666 Points +34%
Zotac ZBOX PI430AJ, Intel Core i3-N300
Intel Core i3-N300, Intel UHD Graphics 32EUs (Alder Lake),
2733 Points
CrossMark / Overall
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
820 Points +55%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
773 Points +46%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
764 Points +44%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
735 Points +39%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
666 Points +26%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G
614 Points +16%
Zotac ZBOX PI430AJ, Intel Core i3-N300
Intel UHD Graphics 32EUs (Alder Lake),
529 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
495 Points -6%
CrossMark / Responsiveness
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
895 Points +53%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
755 Points +29%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
710 Points +22%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
709 Points +21%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
661 Points +13%
Zotac ZBOX PI430AJ, Intel Core i3-N300
Intel UHD Graphics 32EUs (Alder Lake),
584 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G
577 Points -1%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
497 Points -15%
CrossMark / Creativity
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
739 Points +44%
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
721 Points +41%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
714 Points +39%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
676 Points +32%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
616 Points +20%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G
560 Points +9%
Zotac ZBOX PI430AJ, Intel Core i3-N300
Intel UHD Graphics 32EUs (Alder Lake),
513 Points
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
438 Points -15%
CrossMark / Productivity
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
907 Points +71%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
843 Points +59%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
810 Points +53%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
808 Points +53%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
721 Points +36%
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G
688 Points +30%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
558 Points +5%
Zotac ZBOX PI430AJ, Intel Core i3-N300
Intel UHD Graphics 32EUs (Alder Lake),
529 Points
AIDA64 / Memory Copy
Media della classe Mini PC
  (6481 - 71990, n=115, ultimi 2 anni)
44414 MB/s +53%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
29076 MB/s
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22138 MB/s -24%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
18937 MB/s -35%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
15737 MB/s -46%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
12715 MB/s -56%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8472 MB/s -71%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8458 MB/s -71%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8377 MB/s -71%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6481 MB/s -78%
AIDA64 / Memory Read
Media della classe Mini PC
  (6914 - 75449, n=115, ultimi 2 anni)
44856 MB/s +97%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
22746 MB/s
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
18451 MB/s -19%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
15464 MB/s -32%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
11247 MB/s -51%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
10311 MB/s -55%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9130 MB/s -60%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9027 MB/s -60%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8974 MB/s -61%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6914 MB/s -70%
AIDA64 / Memory Write
Media della classe Mini PC
  (6862 - 89318, n=115, ultimi 2 anni)
48718 MB/s +57%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
31007 MB/s
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30843 MB/s -1%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
21626 MB/s -30%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
17031 MB/s -45%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
14266 MB/s -54%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
9047 MB/s -71%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8959 MB/s -71%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
8762 MB/s -72%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6862 MB/s -78%
AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
146 ns * -92%
Acemagic S1
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
125.8 ns * -65%
Blackview MP80
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
124.9 ns * -64%
Trigkey G4
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
120.6 ns * -58%
BOSGAME N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
119.8 ns * -57%
Media della classe Mini PC
  (44.9 - 154.6, n=115, ultimi 2 anni)
87.7 ns * -15%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
76.3 ns * -0%
Zotac ZBOX PI430AJ
Intel Core i3-N300, UHD Graphics 32EUs
76.1 ns *
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
74.1 ns * +3%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, UHD Graphics Xe 750 32EUs
52.9 ns * +30%

* ... Meglio usare valori piccoli

Latenza DPC

Come previsto, abbiamo osservato latenze DPC significativamente elevate su Zotac Zbox pico PI430AJ. La nostra unità di prova non ha avuto problemi durante la semplice navigazione in Internet. I valori sono aumentati solo durante la riproduzione del nostro video di prova 4K, con un utilizzo dell'iGPU intorno al 35%.

Massima latenza quando si aprono più schede del browser e si riproducono video 4K
Massima latenza quando si aprono più schede del browser e si riproducono video 4K
Latenza massima dopo dieci secondi di Prime95
Latenza massima dopo dieci secondi di Prime95
Driver classificati in base al tempo di esecuzione più lungo
Driver classificati in base al tempo di esecuzione più lungo
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G
5491 μs * -229%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
4075 μs * -144%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
3463 μs * -108%
Zotac ZBOX PI430AJ, Intel Core i3-N300
Intel UHD Graphics 32EUs (Alder Lake),
1667 μs *
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128
1476.3 μs * +11%
BOSGAME N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0
1165.5 μs * +30%
Blackview MP80, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330
817.1 μs * +51%
Trigkey G4, Intel Processor N100
Intel UHD Graphics 24EUs (Alder Lake-N),
561.2 μs * +66%
Acemagic S1, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), BiWin CE480Y2D100-1TB
367.2 μs * +78%

* ... Meglio usare valori piccoli

Dispositivi di archiviazione

512 GB SSD
512 GB SSD

La nostra unità di prova di Zotac Zbox pico PI430AJ è dotata di un SSD NVMe da 512 GB di un produttore sconosciuto. Il modello incorporato, almeno, utilizza completamente l'interfaccia M.2. Le prestazioni dell'SSD sono lodevoli e corrispondono a quelle del modello BiWin nel modello Acemagic S1.

Durante i test, non abbiamo riscontrato alcun problema di temperatura con l'SSD. L'SSD è alloggiato nel dispositivo dal lato inferiore, che viene utilizzato anche per la dissipazione diretta del calore. Oltre all'SSD da 3,15 pollici preinstallato, è possibile ospitare SSD più corti. Pertanto, se opta per la versione barebone di Zotac Zbox pico PI430AJ, ha la flessibilità di scegliere tra SSD da 1,18, 1,65 o 3,15 pollici

Per ulteriori confronti e benchmark, faccia riferimento alla nostra tabella di confronto.

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
CDI
CDI
Sequential Read: 1567 MB/s
Sequential Write: 1856 MB/s
512K Read: 1209 MB/s
512K Write: 1788 MB/s
4K Read: 41.95 MB/s
4K Write: 105.7 MB/s
4K QD32 Read: 259.2 MB/s
4K QD32 Write: 142 MB/s
Drive Performance Rating - Percent
Media della classe Mini PC

97 pt
Acemagic S1
BiWin CE480Y2D100-1TB
71.2 pt
Zotac ZBOX PI430AJ

68 pt
Asus ExpertCenter PN42-BBN200MV
Kingston KC3000 2048G SKC3000D2048G
52.5 pt
BOSGAME N95
Kingston OM8SEP4256Q-A0
44.3 pt
Trigkey G4

43.7 pt
Blackview MP80
Netac NS512GSSD330
33 pt
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
32.1 pt
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
29.8 pt
Zotac ZBOX PI336 pico
SanDisk DF4128
6.4 pt
DiskSpd
seq read
Media della classe Mini PC
  (233 - 4357, n=114, ultimi 2 anni)
2119 MB/s +49%
Asus ExpertCenter PN42-BBN200MV
Kingston KC3000 2048G SKC3000D2048G
1948 (1560.49min - 1947.92max) MB/s +37%
Zotac ZBOX PI430AJ

1423 (1403.41min - 1423.13max) MB/s
Acemagic S1
BiWin CE480Y2D100-1TB
1354 (1350.96min - 1354.32max) MB/s -5%
BOSGAME N95
Kingston OM8SEP4256Q-A0
762 (757.28min - 762.31max) MB/s -46%
Trigkey G4

729 (705.12min - 729.18max) MB/s -49%
Blackview MP80
Netac NS512GSSD330
542 (541.31min - 542.36max) MB/s -62%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
472 (470.6min - 472.28max) MB/s -67%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
459 (458.57min - 459.41max) MB/s -68%
Zotac ZBOX PI336 pico
SanDisk DF4128
250 (248.23min - 249.69max) MB/s -82%
seq write
Media della classe Mini PC
  (222 - 5595, n=114, ultimi 2 anni)
