Recensione breve dell'Ultrabook Lenovo IdeaPad U410 Touch-59372989

Un IdeaPad con touch. Poiché i vantaggi di Windows 8 si notano solo con un touchscreen, Lenovo installa questo sistema operativo sul suo U410 Touch. L'IdeaPad per il resto continua ad essere conservatore.
177
cd/m²
183
cd/m²
175
cd/m²
178
cd/m²
196
cd/m²
175
cd/m²
184
cd/m²
186
cd/m²
184
cd/m²
Distribuzione della luminosità
AU Optronics B140XTN02 tested with X-Rite i1Pro 2
Massima: 196 cd/m² (Nits) Media: 182 cd/m²
Distribuzione della luminosità: 89 %
Al centro con la batteria: 196 cd/m²
Contrasto: 726:1 (Nero: 0.27 cd/m²)
ΔE Color 12 | 0.5-29.43 Ø5
ΔE Greyscale 12 | 0.57-98 Ø5.3
36.61% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.98% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.8% sRGB (Argyll 2.2.0 3D)
38.95% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.17
Cinebench R10 Rendering Single 32Bit
3631
Cinebench R10 Rendering Multiple CPUs 32Bit
7013
Cinebench R10 Shading 32Bit
5845
Cinebench R10 Rendering Single CPUs 64Bit
4587 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
9348 Points
Cinebench R10 Shading 64Bit
5860 Points
Cinebench R11.5 CPU Single 64Bit
1.09 Points
Cinebench R11.5 CPU Multi 64Bit
2.46 Points
Cinebench R11.5 OpenGL 64Bit
28.33 fps
Aiuto
Cinebench R11.5 - CPU Multi 64Bit (ordina per valore)
Lenovo IdeaPad U410 Touch-59372989
2.46 Points
HP Pavilion Sleekbook 15-b004sg Ultrabook
2.4 Points -2%
Dell Inspiron 15-3521-0620
2.49 Points +1%

Legenda


Lenovo IdeaPad U410 Touch-59372989 Intel Core i5-3337U, NVIDIA GeForce 710M, Hitachi Travelstar Z5K500 HTS545050A7E380 + 24 GB SanDisk SSD U100 Cache

HP Pavilion Sleekbook 15-b004sg Ultrabook Intel Core i5-3317U, NVIDIA GeForce GT 630M, Western Digital Scorpio Blue WD7500BPVT-60HXZT3 + 32 GB LiteOn LMT-32L3M SSD Cache

Dell Inspiron 15-3521-0620 Intel Core i5-3337U, AMD Radeon HD 8750M, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
4.9
Windows 8 Experience Index
Processore
Calcoli per secondo
6.9
Memoria (RAM)
Operazioni memoria per secondo
7.4
Grafica
Prestazioni desktop con Windows Aero
4.9
Grafica Gaming
Grafica 3D business e gaming
6.4
Hard disk Principale
Valore trasferimento dati disco
5.9
PCMark Vantage Result
6097 punti
PCMark 7 Score
2558 punti
Aiuto
Hitachi Travelstar Z5K500 HTS545050A7E380 + 24 GB SanDisk SSD U100 Cache
Valore Minimo di trasferimento: 12.7 MB/s
Valore Massimo di trasferimento: 146.1 MB/s
Valore Medio di trasferimento: 80.8 MB/s
Tempi di accesso: 17.3 ms
Burst Rate: 162.6 MB/s
Utilizzo CPU: 4 %
3DMark 2001SE Standard
13110 punti
3DMark 03 Standard
19786 punti
3DMark 05 Standard
14205 punti
3DMark 06 Standard Score
8581 punti
3DMark Vantage P Result
4710 punti
3DMark 11 Performance
1234 punti
3DMark Ice Storm Standard Score
47532 punti
3DMark Cloud Gate Standard Score
4242 punti
3DMark Fire Strike Score
727 punti
Aiuto
basso medio alto ultra
Anno 2070 (2011) 88.8 36.25 22.17
Mass Effect 3 (2012) 44 31
Fifa 13 (2012) 195 142 127
Medal of Honor: Warfighter (2012) 38 25 21
Tomb Raider (2013) 67 34 20
SimCity (2013) 58.8 14.8 12.5
BioShock Infinite (2013) 54 32 25
GRID 2 (2013) 81 55 21
Company of Heroes 2 (2013) 18.7 14.7 8.1

Rumorosità

Idle
31.3 / 31.2 / 32.8 dB(A)
HDD
31.6 dB(A)
Sotto carico
35 / 40.7 dB(A)
  red to green bar


30 dB
silenzioso
40 dB(A)
udibile
50 dB(A)
rumoroso

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm di distanza)
 27.5 °C29.5 °C30.3 °C
 27.2 °C28.7 °C30.6 °C
 26.6 °C26.5 °C30.7 °C
Massima: 30.7 °C
Media: 28.6 °C
32.2 °C30.6 °C28.6 °C
31.6 °C30.3 °C28.5 °C
31.4 °C30.3 °C28.2 °C
Massima: 32.2 °C
Media: 30.2 °C
Alimentazione (max)  34.6 °C | Temperatura della stanza 23.1 °C | Voltcraft IR-360
(±) La temperatura media del lato superiore sotto carico massimo e' di 36.5 °C / 98 F, rispetto alla media di 31.2 °C / 88 F per i dispositivi di questa classe Multimedia.
(±) La temperatura massima sul lato superiore è di 42.2 °C / 108 F, rispetto alla media di 36.9 °C / 98 F, che varia da 21.1 a 71 °C per questa classe Multimedia.
(±) Il lato inferiore si riscalda fino ad un massimo di 41.3 °C / 106 F, rispetto alla media di 39.1 °C / 102 F
(+) In idle, la temperatura media del lato superiore è di 28.6 °C / 83 F, rispetto alla media deld ispositivo di 31.2 °C / 88 F.
(±) I poggiapolsi e il touchpad possono diventare molto caldi al tatto con un massimo di 36.1 °C / 97 F.
(-) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 28.8 °C / 83.8 F (-7.3 °C / -13.2 F).
Consumo di corrente
Off / Standbydarklight 0.1 / 0.5 Watt
Idledarkmidlight 9.8 / 12.1 / 12.5 Watt
Sotto carico midlight 42.1 / 44.2 Watt
 color bar
Leggenda: min: dark, med: mid, max: light        Voltcraft VC 940
Attualmente utilizziamo il Metrahit Energy, un multimetro digitale professionale per la misurazione della qualità della potenza e dell'energia monofase, per le nostre misurazioni.
Autonomia della batteria
Idle (senza WLAN, min luminosità)
6ore 08minuti
Navigazione WiFi
3ore 48minuti
Sotto carico (max luminosità)
2ore 17minuti
Lenovo U410: Stylish but hardly suitable for outdoor use
Lenovo U410: Stylish but hardly suitable for outdoor use

Is there such a thing as the perfect ultrabook? Maybe, but it is not the IdeaPad U410 Touch. The manufacturer has eliminated a few points of criticism made on the precursor and installs a handy touch feature in the U410, but we cannot really jump for joy yet.

A 14-inch ultrabook is not usually a downright lightweight but we would have appreciated a bit less weight in the laptop bag. Then there is also the outdoor-unsuitable glossy screen alongside its low brightness. The user should therefore avoid places behind windows even indoors.

In return, the SSD cache solution has been pleasantly implemented and can actually speed up the ultrabook in routine use, noticeably when the same applications are used frequently. The pure work speed is agreeable and does not give reason for complaint, which is also due to the i5 ULV processor and the generous working memory. Nevertheless, the user should not perform some processor-heavy applications like video editing or he will have to accept long waiting and processing times. However, this criticism not only applies to the U410 Touch but also is true for almost all ultrabooks.

Pleasing to the eye but hardly outdoor suitable.
Pleasing to the eye but hardly outdoor suitable.
The compulsory stickers are included.
The compulsory stickers are included.
The underside: No maintenance covers. Only four feet are seen.
The underside: No maintenance covers. Only four feet are seen.
Nicely rounded edges - chic.
Nicely rounded edges - chic.
The manufacturer has to attract a bit of attention.
The manufacturer has to attract a bit of attention.
The cooling system does its job reliably and quietly.
The cooling system does its job reliably and quietly.
Working in the hammock? Not with the U410 Touch.
Working in the hammock? Not with the U410 Touch.
The hinge lets the display wobble a bit.
The hinge lets the display wobble a bit.
Important in Lenovo devices: The FN key for the double F-key function.
Important in Lenovo devices: The FN key for the double F-key function.
The aluminum casing fortunately limits scratches.
The aluminum casing fortunately limits scratches.
The display bezel looks elegant but is just as reflective.
The display bezel looks elegant but is just as reflective.
Vents on the underside.
Vents on the underside.
The double mapped F keys contain the multimedia functions.
The double mapped F keys contain the multimedia functions.

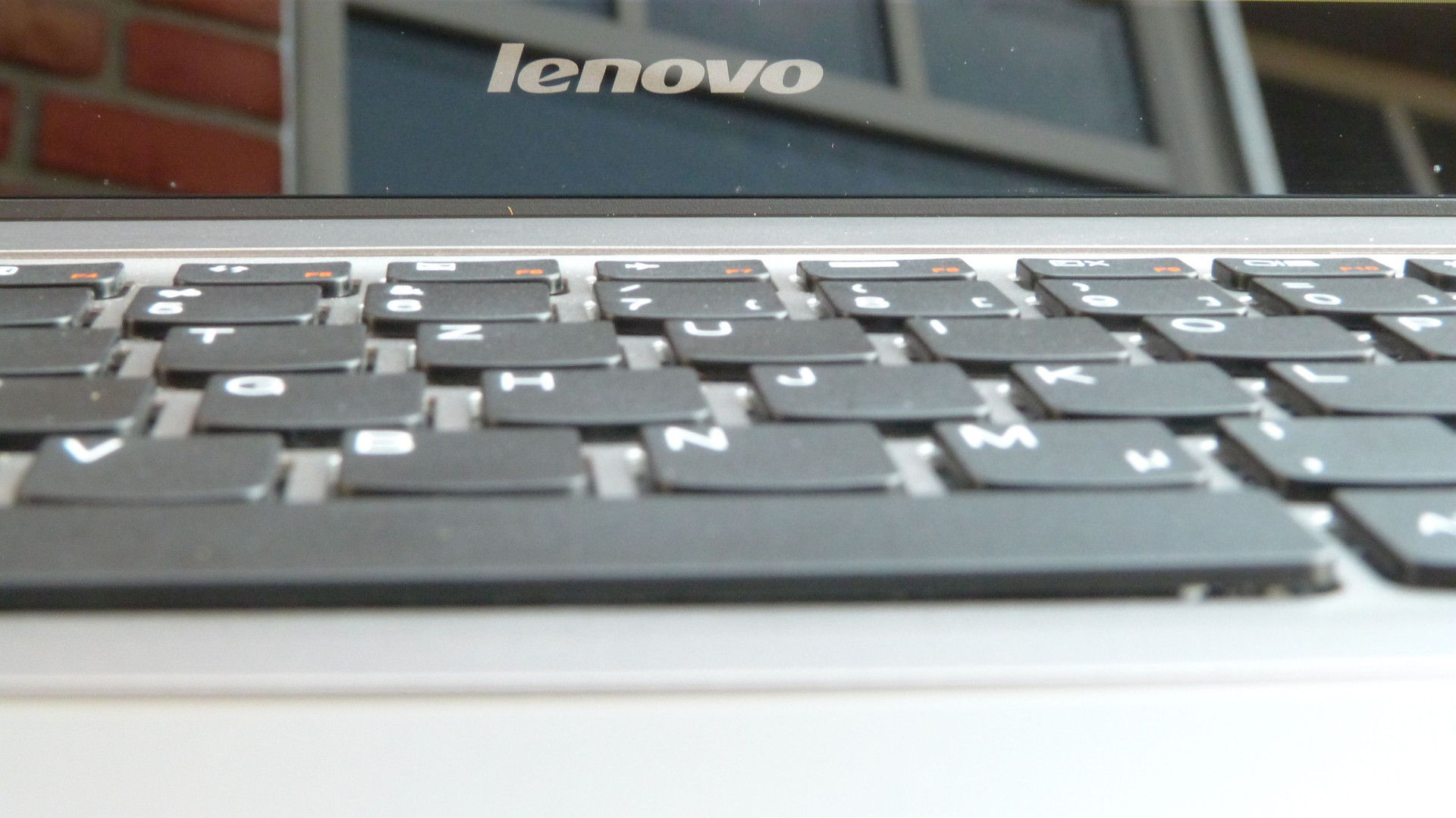

Except for the yielding in the center, the keyboard is good.
Except for the yielding in the center, the keyboard is good.
It is a riddle why only a 10/100 Mbit LAN is installed.
It is a riddle why only a 10/100 Mbit LAN is installed.
The power button is illuminated by LEDs.
The power button is illuminated by LEDs.
The U410 Touch's maximum opening angle.
The U410 Touch's maximum opening angle.
The power supply provides enough power and is quite small.
The power supply provides enough power and is quite small.
The plug is conveniently angled.
The plug is conveniently angled.
The very small backspace key is very annoying.
The very small backspace key is very annoying.
SD dummy for the card reader.
SD dummy for the card reader.
The glossy parts, like the hinge, magically attract dust.
The glossy parts, like the hinge, magically attract dust.
The large touchpad is nice to use.
The large touchpad is nice to use.

Please share our article, every link counts!

Specifiche tecniche

Lenovo IdeaPad U410 Touch-59372989 (IdeaPad U410 Serie)
Processore
Intel Core i5-3337U 2 x 1.8 - 2.7 GHz, Ivy Bridge
Scheda grafica
NVIDIA GeForce 710M - 2048 MB VRAM, Core: 775/900 MHz, Memoria: 900 MHz, 310.90, Optimus
Memoria
8 GB
, 2x 4096 MB, inseriti
Schermo
14.00 pollici 16:9, 1366 x 768 pixel, multi-touch 10 punti, AU Optronics B140XTN02, TN LED, lucido: si
Scheda madre
Intel HM77 (Panther Point)
Harddisk
Hitachi Travelstar Z5K500 HTS545050A7E380 + 24 GB SanDisk SSD U100 Cache, 500 GB
, 5400 rpm
Scheda audio
Conexant Cx20590 @ Intel Panther Point PCH - High Definition Audio Controller [C-1]
Porte di connessione
2 USB 2.0, 2 USB 3.0 / 3.1, 1 HDMI, Connessioni Audio: 1, Lettore schede: SD, MMC
Rete
Realtek RTL8139/810x Fast Ethernet Adapter (10/100MBit/s), Intel Centrino Wireless-N 2230 (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Dimensioni
altezza x larghezza x profondità (in mm): 21 x 235 x 344
Batteria
46 Wh polimeri di litio, 4 celle, Autonomia della batteria (dichiarata dal produttore): 8 ore
Sistema Operativo
Microsoft Windows 8 64 Bit
Camera
Webcam: 1280 x 720 Pixel
Altre caratteristiche
Casse: stereo, Tastiera: chiclet, Illuminazione Tastiera: no, McAfee (trial), MS Office 2010 (trial), OneKey Rescue System, Lenovo Energy Management, VeriFace, 24 Mesi Garanzia
Peso
1.985 kg, Alimentazione: 360 gr
Prezzo
899 Euro



Portatili con medesima GPU

Recensione breve del portatile Toshiba Satellite C75-A-13W
GeForce 710M, Core i5 4200M, 17.30", 2.7 kg

Portatili con uguale dimensione dello Schermo e/o peso

Recensione del portatile Lenovo ThinkPad Z16 Gen 2: Debutto delle prestazioni della Radeon RX 6550M
Radeon RX 6550M, Phoenix (Zen 4, Ryzen 7040) R9 PRO 7940HS, 16.00", 1.841 kg
Recensione del portatile Lenovo Slim Pro 9i 16IRP8: L'alternativa al MacBook Pro 16 di Apple
NVIDIA GeForce RTX 4050 Laptop GPU, Raptor Lake-H i9-13905H, 16.00", 2.217 kg
Recensione del notebook Lenovo Yoga Pro 9i 16: Ottimo pannello mini-LED, ma hanno risparmiato un po' troppo
NVIDIA GeForce RTX 4060 Laptop GPU, Raptor Lake-H i7-13705H, 16.00", 2.228 kg
Recensione dello Yoga Pro 9i 14: Il miglior portatile multimediale di Lenovo con pannello Mini-LED AdobeRGB
NVIDIA GeForce RTX 4050 Laptop GPU, Raptor Lake-H i7-13705H, 14.50", 1.688 kg
Recensione del notebook Lenovo Yoga Pro 7 14 G8: GeForce Il laptop RTX 4050 alimenta il display 3K a 120 Hz
NVIDIA GeForce RTX 4050 Laptop GPU, Raptor Lake-H i7-13700H, 14.50", 1.52 kg
Recensione del portatile Lenovo Slim 7 Pro Ryzen 7 7735HS: Nuovo nome della CPU, vecchie prestazioni della CPU
GeForce RTX 3050 6GB Laptop GPU, Rembrandt (Zen 3+) R7 7735HS, 14.50", 1.623 kg

Pro

+Elevata qualità di costruzione
+USB 3.0
+Design attraenete
+Prestazioni decenti
+8 gigabyte di RAM
+Touchscreen


Contro

-Schermo scuro con tonalità blu
-Estremamente riflettente
-La tastiera cede
-Il tasto backspace è troppo piccolo
-Prestazioni Wi-Fi inferiori alla media

Lenovo IdeaPad U410 Touch-59372989 - 07/23/2013 v3(old)
Dennis Ziesecke

Chassis
90%
Tastiera
82%
Dispositivo di puntamento
89%
Connettività
67%
Peso
80%
Batteria
88%
Display
72%
Prestazioni di gioco
75%
Prestazioni Applicazioni
90%
Temperatura
82%
Rumorosità
88%
Punti aggiuntivi
79%
Media
82%
82%
Multimedia - Media ponderata
