Recensione breve del convertibile Asus Transformer Book T100HA

Più che una soddisfazione per gli occhi? Asus ha Sfruttato le critiche del loro T100 Chi per realizzare un successore rielaborato e correggendo quasi tutti i problemi. Inoltre, cosa non da poco, e anche più economico del 25%.
Transformer Book T100HA (Transformer Book Serie)
Processore
Intel Atom x5-Z8500 4 x 1.4 - 2.2 GHz, Cherry Trail
Scheda grafica
Intel HD Graphics (Cherry Trail), Core: 600 MHz, 10.18.15.4248
Memoria
4 GB
, DDR3L 1600 MHz
Schermo
10.10 pollici 16:10, 1280 x 800 pixel, 10-point multitouch, AUO20D4, IPS, lucido: si
Scheda madre
Intel Cherry Trail
Harddisk
Samsung CGND3R eMMC, 64 GB
Scheda audio
Intel SST Audio Device
Porte di connessione
2 USB 2.0, 1 USB 3.0 / 3.1, 1 HDMI, Connessioni Audio: 3.5 mm combo, Lettore schede: MicroSD, Sensori: Accelerometro, giroscopio , USB-C Gen 1 (bis zu 5 Gbit/s)
Rete
Broadcom 802.11 abgn Wireless SDIO Adapter (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0
Dimensioni
altezza x larghezza x profondità (in mm): 27 x 276 x 188
Batteria
30 Wh ioni di litio
Sistema Operativo
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: Frontale: 2 MP; Posteriore: 5 MP
Altre caratteristiche
Casse: 2.0, in fondo, Tastiera: Chiclet, Illuminazione Tastiera: no, 12 Mesi Garanzia
Peso
1.07 kg, Alimentazione: 84 gr
Prezzo
299 Euro
Nota: il produttore potrebbe usare componenti di fornitori diversi pannelli dei diplay, drive o banchi di memoria con specifiche simili.



276 mm 188 mm 27 mm 1.1 kg292 mm 201 mm 9 mm 810 g279.8 mm 176.4 mm 10.75 mm 1.4 kg267 mm 187 mm 8.7 mm 917 g257 mm 175 mm 13 mm 1.1 kg297 mm 210 mm 1 mm 5.7 g
Left: USB 3.1 Type-C port, volume rocker
Left: USB 3.1 Type-C port, volume rocker
Right: microSD card reader, micro-HDMI, micro-USB 2.0, combo audio, full-sized USB 2.0 (below on keyboard base unit)
Right: microSD card reader, micro-HDMI, micro-USB 2.0, combo audio, full-sized USB 2.0 (below on keyboard base unit)
409.8
cd/m²
479.8
cd/m²
472
cd/m²
408.3
cd/m²
480.2
cd/m²
464
cd/m²
433
cd/m²
482.7
cd/m²
461.7
cd/m²
Distribuzione della luminosità
AUO20D4 tested with X-Rite i1Pro 2
Massima: 482.7 cd/m² (Nits) Media: 454.6 cd/m²
Distribuzione della luminosità: 85 %
Al centro con la batteria: 480.2 cd/m²
Contrasto: 1482:1 (Nero: 0.324 cd/m²)
ΔE Color 3.45 | 0.5-29.43 Ø5
ΔE Greyscale 2.67 | 0.57-98 Ø5.3
84.38% sRGB (Argyll 1.6.3 3D)
47.28% AdobeRGB 1998 (Argyll 1.6.3 3D)
53.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
73% sRGB (Argyll 2.2.0 3D)
52.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34
Asus Transformer Book T100HA-C4-GR
HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC
Asus T100CHI-B1-BK
HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
Display
-12%
32%
22%
Display P3 Coverage
52.8
45.62
-14%
68.8
30%
63.6
20%
sRGB Coverage
73
65.7
-10%
98.7
35%
88.8
22%
AdobeRGB 1998 Coverage
53.3
47.4
-11%
70.4
32%
65.6
23%
Screen
-54%
-2%
-29%
-30%
Brightness middle
480.2
407.1
-15%
399
-17%
355.3
-26%
386
-20%
Brightness
455
395
-13%
380
-16%
338
-26%
357
-22%
Brightness Distribution
85
90
6%
90
6%
91
7%
84
-1%
Black Level *
0.324
0.736
-127%
0.49
-51%
0.33
-2%
0.4
-23%
Contrast
1482
553
-63%
814
-45%
1077
-27%
965
-35%
Colorchecker dE 2000 *
3.45
6.11
-77%
1.66
52%
4.72
-37%
3.71
-8%
Greyscale dE 2000 *
2.67
6.21
-133%
2.75
-3%
6.53
-145%
5.4
-102%
Gamma
2.34 94%
1.99 111%
2.22 99%
2.17 101%
2.33 94%
CCT
6164 105%
6960 93%
6358 102%
6707 97%
6666 98%
Color Space (Percent of AdobeRGB 1998)
47.28
43.54
-8%
64.4
36%
59.37
26%
Color Space (Percent of sRGB)
84.38
98.8
17%
Colorchecker dE 2000 max. *
3.24
Media totale (Programma / Settaggio)
-33% / -42%
15% / 6%
-4% / -15%
-30% / -30%

* ... Meglio usare valori piccoli

CPU-Z CPU
CPU-Z CPU
CPU-Z Caches
CPU-Z Caches
CPU-Z Mainboard
CPU-Z Mainboard
CPU-Z Memory
CPU-Z Memory
CrystalDiskMark 3.0
CrystalDiskMark 3.0
Octane v2
Octane v2
Sunspider
Sunspider
LatencyMon
LatencyMon
Cinebench R10 Shading 64Bit
2545 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
5560 Points
Cinebench R10 Rendering Single CPUs 64Bit
1656 Points
Cinebench R10 Shading 32Bit
2484
Cinebench R10 Rendering Multiple CPUs 32Bit
4107
Cinebench R10 Rendering Single 32Bit
1168
Cinebench R11.5 OpenGL 64Bit
10.83 fps
Cinebench R11.5 CPU Multi 64Bit
1.63 Points
Cinebench R11.5 CPU Single 64Bit
0.43 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
13.21 fps
Cinebench R15 CPU Multi 64Bit
127 Points
Cinebench R15 CPU Single 64Bit
36 Points
Aiuto
Cinebench R10
Shading 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
2545 Points
Microsoft Surface Pro 3
7154 Points +181%
Rendering Multiple CPUs 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
5560 Points
Microsoft Surface Pro 3
10262 Points +85%
Rendering Single CPUs 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
1656 Points
Microsoft Surface Pro 3
5619 Points +239%
Shading 32Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
2484 Points
Asus T100CHI-B1-BK
2157 Points -13%
Microsoft Surface 3
2551 Points +3%
Microsoft Surface Pro 3
4469 Points +80%
Rendering Multiple CPUs 32Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
4107 Points
Asus T100CHI-B1-BK
4065 Points -1%
Microsoft Surface 3
4356 Points +6%
Microsoft Surface Pro 3
7067 Points +72%
Rendering Single 32Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
1168 Points
Asus T100CHI-B1-BK
1165 Points 0%
Microsoft Surface 3
1225 Points +5%
Microsoft Surface Pro 3
3675 Points +215%
Dell Venue 11 Pro 7140
3131 Points +168%
Cinebench R11.5
CPU Single 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
0.43 Points
Microsoft Surface 3
0.46 Points +7%
Microsoft Surface Pro 3
1.12 Points +160%
Dell Venue 11 Pro 7140
0.94 Points +119%
CPU Multi 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
1.63 Points
Microsoft Surface 3
1.79 Points +10%
Microsoft Surface Pro 3
2.77 Points +70%
Dell Venue 11 Pro 7140
2.01 Points +23%
OpenGL 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
10.83 fps
Microsoft Surface 3
11.71 fps +8%
Microsoft Surface Pro 3
19.48 fps +80%
Dell Venue 11 Pro 7140
20.06 fps +85%
Cinebench R15
CPU Single 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
36 Points
Microsoft Surface 3
38 Points +6%
Dell Venue 11 Pro 7140
83 Points +131%
CPU Multi 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
127 Points
Microsoft Surface 3
134 Points +6%
Dell Venue 11 Pro 7140
190 Points +50%
Ref. Match 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
98 %
Microsoft Surface 3
98 % 0%
Dell Venue 11 Pro 7140
98 % 0%
OpenGL 64Bit (ordina per valore)
Asus Transformer Book T100HA-C4-GR
13.21 fps
Microsoft Surface 3
14.71 fps +11%
Dell Venue 11 Pro 7140
22.86 fps +73%

Legenda


Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500, Intel HD Graphics (Cherry Trail), Samsung CGND3R eMMC

Asus T100CHI-B1-BK Intel Atom Z3775, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Dell Venue 11 Pro 7140 Intel Core M-5Y10a, Intel HD Graphics 5300, Sandisk X110 M.2 SD6SP1M-128G
PCMark 7 Score
2814 punti
PCMark 8 Home Score Accelerated v2
1697 punti
PCMark 8 Creative Score Accelerated v2
1798 punti
PCMark 8 Work Score Accelerated v2
1372 punti
Aiuto
Samsung CGND3R eMMC
Sequential Read: 139.2 MB/s
Sequential Write: 87.6 MB/s
512K Read: 127.8 MB/s
512K Write: 71.6 MB/s
4K Read: 14.98 MB/s
4K Write: 17.59 MB/s
4K QD32 Read: 33.16 MB/s
4K QD32 Write: 29.03 MB/s
3DMark 06 Standard Score
3330 punti
3DMark 11 Performance
419 punti
3DMark Ice Storm Standard Score
18603 punti
3DMark Cloud Gate Standard Score
1905 punti
3DMark Fire Strike Score
248 punti
Aiuto
basso medio alto ultra
StarCraft 2 (2010) 64 18 14 7
BioShock Infinite (2013) 20.46 9.82 8.42 2.59
Carico massimo
 29.4 °C31.6 °C35.2 °C
 29.2 °C29.4 °C30.6 °C
 29 °C29.2 °C29.6 °C
Massima: 35.2 °C
Media: 30.4 °C
33.4 °C31.4 °C28.8 °C
30.2 °C29 °C28.2 °C
28.4 °C28.4 °C27.2 °C
Massima: 33.4 °C
Media: 29.4 °C
Alimentazione (max)  30.4 °C | Temperatura della stanza 20.5 °C | Raytek Raynger ST
(+) La temperatura media del lato superiore sotto carico massimo e' di 30.4 °C / 87 F, rispetto alla media di 30.2 °C / 86 F per i dispositivi di questa classe Convertible.
(+) La temperatura massima sul lato superiore è di 35.2 °C / 95 F, rispetto alla media di 35.3 °C / 96 F, che varia da 19.6 a 55.7 °C per questa classe Convertible.
(+) Il lato inferiore si riscalda fino ad un massimo di 33.4 °C / 92 F, rispetto alla media di 36.7 °C / 98 F
(+) In idle, la temperatura media del lato superiore è di 25.7 °C / 78 F, rispetto alla media deld ispositivo di 30.2 °C / 86 F.
(+) I poggiapolsi e il touchpad sono piu' freddi della temperatura della pelle con un massimo di 29.6 °C / 85.3 F e sono quindi freddi al tatto.
(±) La temperatura media della zona del palmo della mano di dispositivi simili e'stata di 28.1 °C / 82.6 F (-1.5 °C / -2.7 F).
Asus Transformer Book T100HA-C4-GR
HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC
Asus T100CHI-B1-BK
HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
Heat
-13%
-21%
-32%
-28%
Maximum Upper Side *
35.2
40.2
-14%
39.9
-13%
45.2
-28%
46.3
-32%
Maximum Bottom *
33.4
39.8
-19%
41.9
-25%
46.4
-39%
47
-41%
Idle Upper Side *
27.6
30.4
-10%
33.9
-23%
35.2
-28%
30.6
-11%
Idle Bottom *
25.8
28.4
-10%
31.2
-21%
34.4
-33%
33.3
-29%

* ... Meglio usare valori piccoli

Autonomia della batteria
Idle (senza WLAN, min luminosità)
24ore 20minuti
WiFi Websurfing
9ore 01minuti
Sotto carico (max luminosità)
4ore 06minuti
Asus Transformer Book T100HA-C4-GR
HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC
Asus T100CHI-B1-BK
HD Graphics (Bay Trail), Z3775, 32 GB eMMC Flash
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
Autonomia della batteria
-12%
-31%
-38%
-24%
Reader / Idle
1460
874
-40%
828
-43%
1096
-25%
777
-47%
WiFi v1.3
541
588
9%
437
-19%
Load
246
236
-4%
173
-30%
124
-50%
244
-1%
WiFi
425
504
562
The Asus Transformer Book T100HA-C4-GR
The Asus Transformer Book T100HA-C4-GR

Sei mesi fa, la nostra recensione dell'Asus T100 Chi ha rivelato un legittimo contendente nel mercato dei convertibili economici con qualche evidente pecca. Abbiamo risentito delle modalità di ricarica della base della tastiera (e del ritardato avvio dopo il collegamento), la poca RAM, lo spazio eMMC piccolo e lento, l'assenza di possibilità di manutenzione, la tastiera ridotta, e la riproduzione del colore del pannello. Il T100HA li risole quasi tutti, e cosa circa $100 in meno — sembra impossibile.

Asus lancia un altro dispositivo nella competizione Chromebook con un convertibile da $299 Windows che ha molti aspetti positivi.

La base della tastiera e il tablet ora sono collegati tramite una porta dati fisica (e quindi non è richiesta una ricarica della base, e non ci sono ritardi di inizializzazione). Ci sono 4 GB di RAM inclusi nel nostro dispositivo, e 64 GB di eMMC più veloce (circa 40-50% in media). Il pannello LCD ora ha una rispettabile copertura dell'84% sRGB, ed una maggiore precisione rispetto a quanto accadeva con il T100 Chi. E una selezione di porte che ha visto un significativo upgrade che include una porta USB 3.1 Type-C ed una porta full-sized USB 2.0 sulla base della tastiera (al posto della micro-USB del precedente modello).

Ovviamente, non finisce qui. Mentre per la maggior parte il T100HA rappresenta un sostanziale miglioramento del suo predecessore, ci sono un paio di aree dove si nota un regresso. Nello specifico, il pannello LCD ha visto diminuire la risoluzione dai 1900x1200 del T100 Chi ad appena 1280x800, davvero poco per tablets di questa dimensione. In secondo luogo, le casse ora sono meno potenti rispetto quelle che abbiamo recensito negli ultimi dispositivi. Ma alla fine, e cosa più importante, la base della tastiera è più solida (e gestisce meglio le pressioni durante la digitazione), producendo un siono sordo ad ogni battuta.

In defitiva non prendiamoci in giro: è una macchina da $299 MSRP — e per questo prezzo il pacchetto è impressionante. Di sicuro, potrente passare a Microsoft Surface 3 e qualche altra amenità, come la qualità di costruzione superiore, uno schermo migliore, e una CPU potenzialmente superiore, ma dovrete spendere oltre $200 — e ci sono alcune aree dove il T100HA resta migliore, come la selezione di porte.

Nota: si tratta di una recensione breve, con alcune sezioni non tradotte, per la versione integrale in inglese guardate qui.

Asus Transformer Book T100HA-C4-GR - 10/15/2015 v4(old)
Steve Schardein

Chassis
64 / 98 → 65%

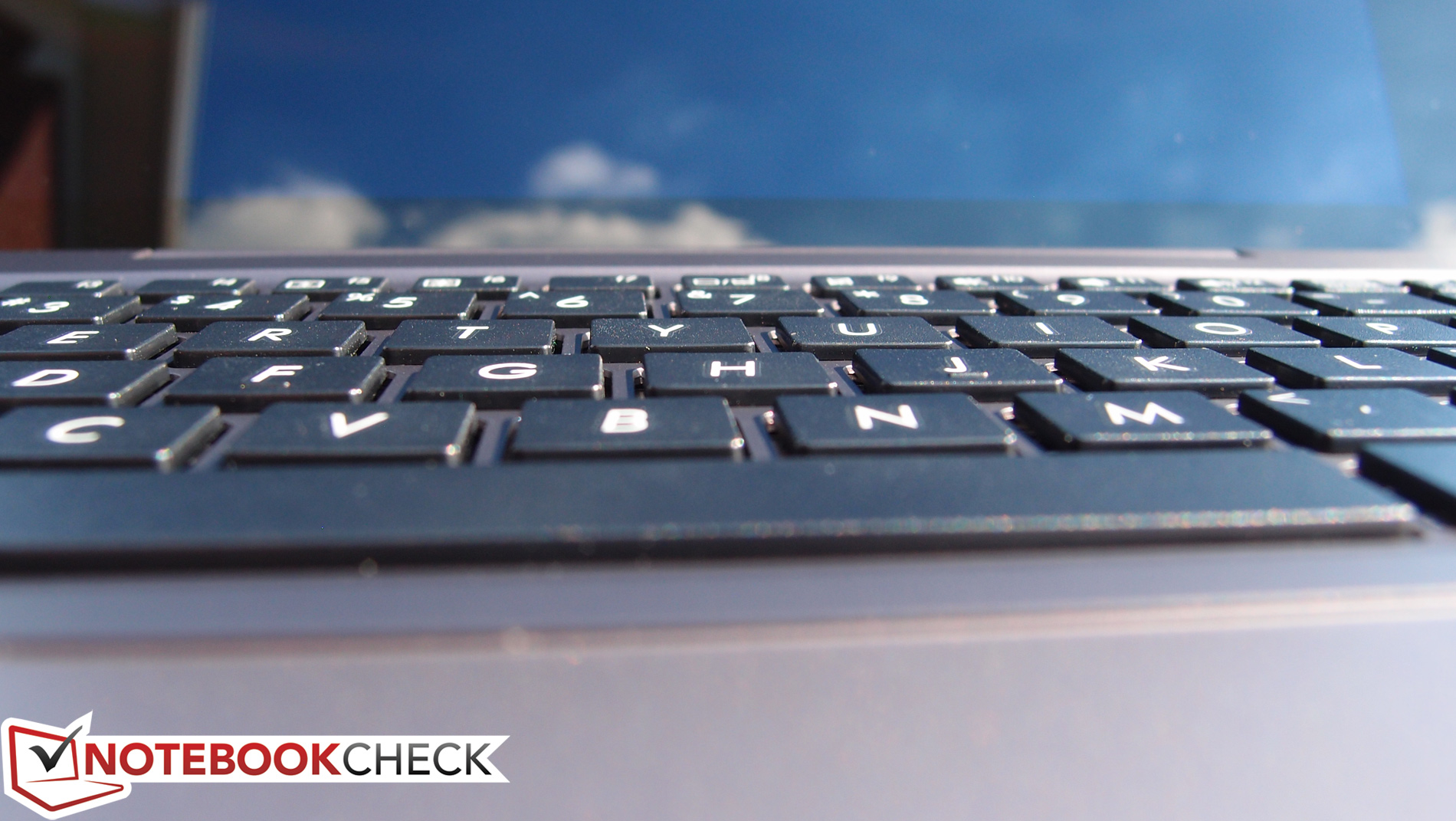

Tastiera
54%
Dispositivo di puntamento
69%
Connettività
65 / 80 → 81%
Peso
74 / 35-78 → 91%
Batteria
94%
Display
84%
Prestazioni di gioco
46 / 68 → 68%
Prestazioni Applicazioni
54 / 87 → 62%
Temperatura
93%
Rumorosità
100%
Audio
30 / 91 → 33%
Fotocamera
69 / 85 → 81%
Punti aggiuntivi
+3%
Media
64%
80%
Convertible - Media ponderata

Pricecompare

Please share our article, every link counts!
> Recensioni e prove di notebook, tablets e smartphones > Recensioni e prove > Recensioni e prove > Recensione breve del convertibile Asus Transformer Book T100HA
Steve Schardein, 2015-10-22 (Update: 2015-10-22)
